Mercedes-Benz ML320. Service manual - part 376





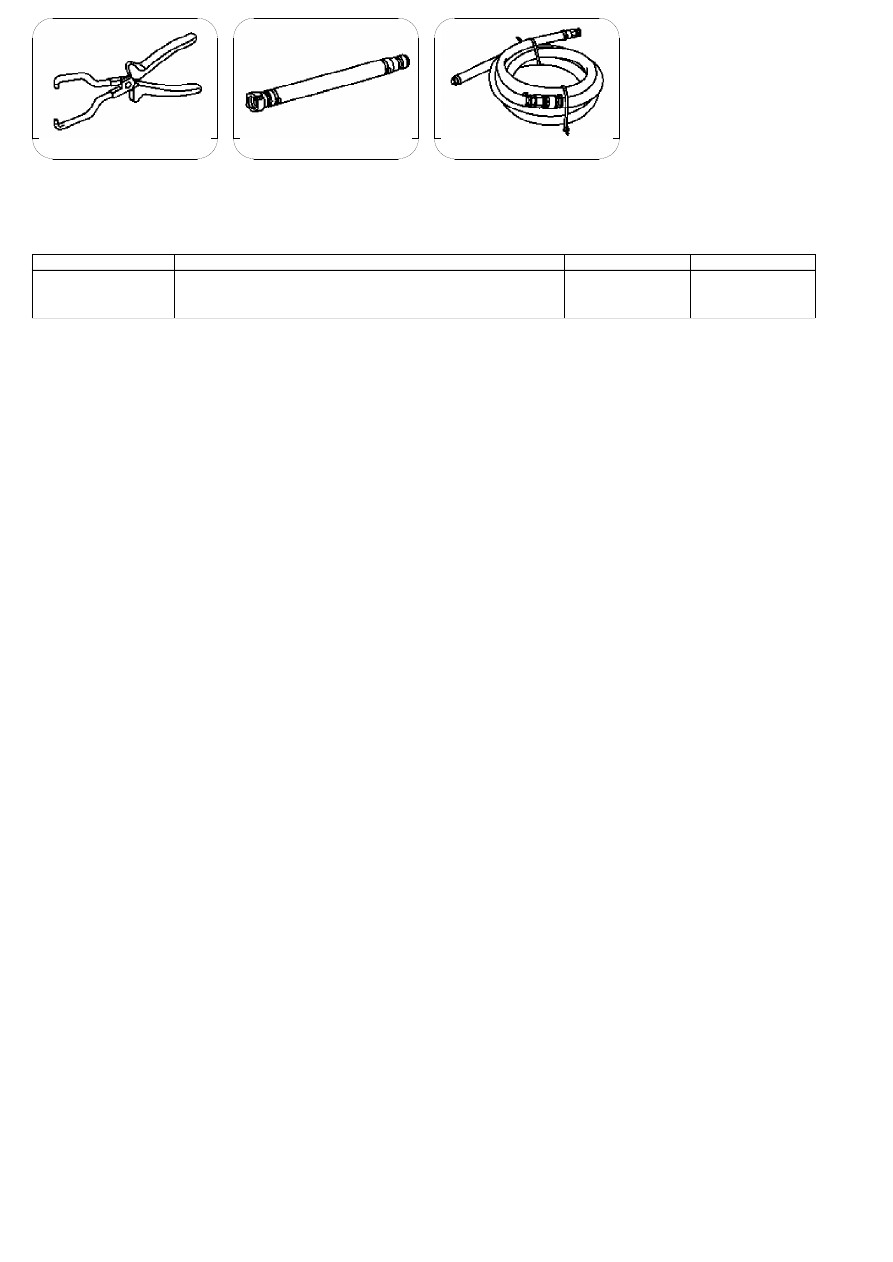

163 589 00 91 00

Extraction hose

Adapter hose

Pliers

163 589 00 37 00

168 589 00 90 00

Commercially available tools (see Workshop Equipment Manual)

Number

Designation

Make (e.g.)

Order number

WH58.30-Z-1001-16A

Suction master M2P 20 B

Ecco GmbH
Vonkeln 17
D-42349 Wuppertal

9749 5000 50

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 3

AR40.10-P-1080A

Draining TIREFIT sealant out of tires

18.6.96

MODEL

163.174

MODEL

168, 170, 171, 203, 209, 211, 230, 240

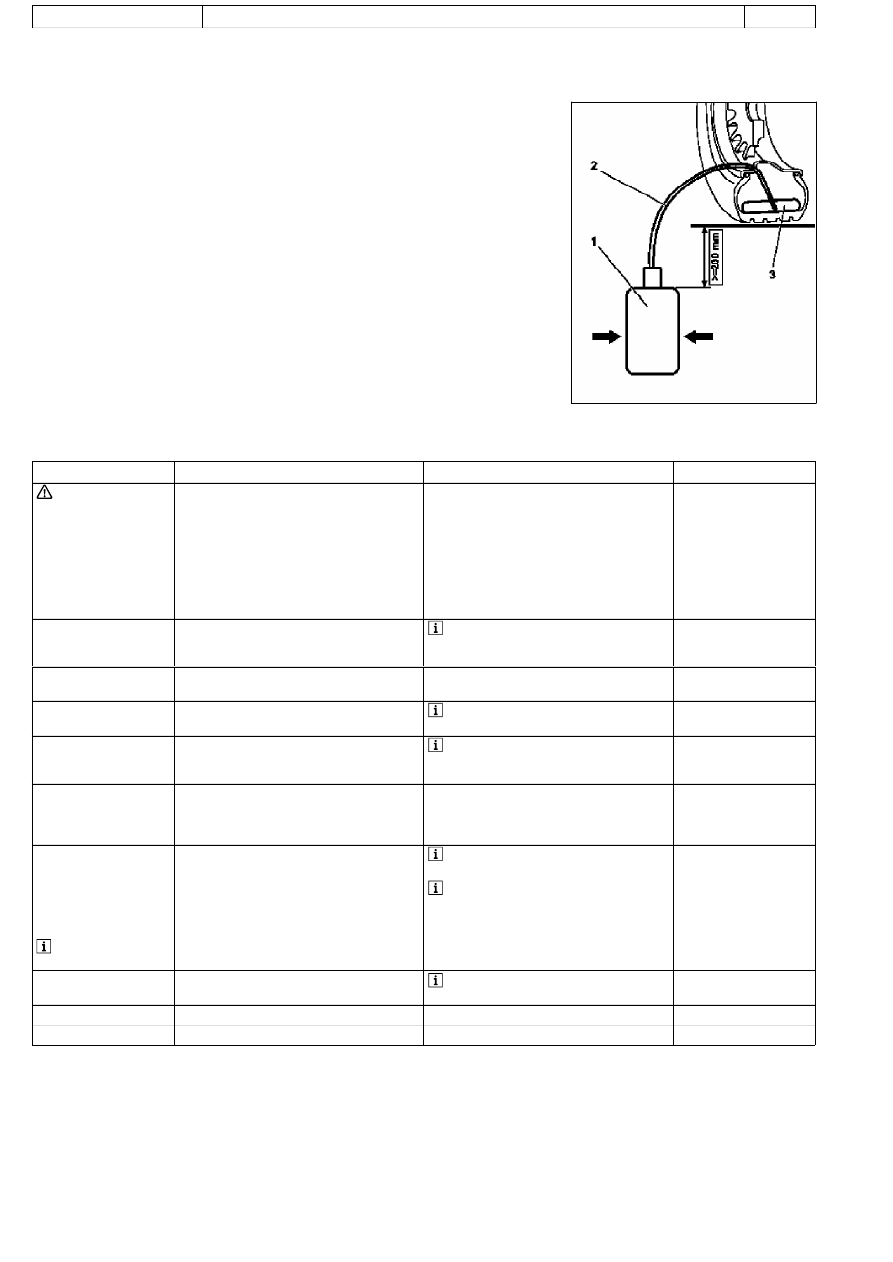

P40.10-0309-02

1

Tire sealant container

2

Hose

3

Tire sealant

Draining



Danger!

Risk of death cased by vehicle slipping or
toppling off of the lifting platform.

Align vehicle between the columns of the
hydraulic hoist and position the four support
plates below the hoist support points specified
by the vehicle manufacturer.

AS00.00-Z-0010-01A

1

Remove wheel.

e

Remove/install wheels, rotate if necessary

Model 163.174

AP40.10-P-4050GH

Model 168, 170, 203, 209, 211, 230, 240

AP40.10-P-4050Z

Type 171

AP40.10-P-4050V

2

Position road wheel upright with valve
pointing downwards for
approx. 10 minutes.



Raise wheel approx. 200 mm to allow tire

sealant (3) to run out.

3

Unscrew valve element from the valve and
allow pressure to escape from the tire

4

Pull valve out of rim.



Press remains of valve remaining in valve

bore of disk wheel into inside of tire.

5

Attach hose (2) to tire sealant container (1).



Replace original hose of tire sealant

container (1) with a hose (2) approx.
400 mm long.

6

Press tire sealant container (1) together and
immerse hose (2) through the valve hole in
the disk wheel, as low as possible into the tire
repair kit (3)

7

Reduce pressure on tire sealant container (1),
the tire sealant (3) is extracted.



This method can be used to remove

approx. 90% of the tire sealant (3).

 If the tire sealant container (1) is not

available, drill the tire tread with a twist drill (

10mm) and allow the tire repair kit (3) to flow
into a suitable container.



TIREFIT tire sealant

Model 163.174, 168, 170, 171, 203, 209, 211,
230, 240

AH40.10-P-0001-01A

8

Replace tire

 Remove the remaining tire repair kit (3)

from the rim using a damp cloth.

AR40.10-P-1030A

9

Place new TIREFIT tire repair kit in the vehicle See

#

e



TIREFIT tire sealant - check expiration date.

AP40.10-P-4054R

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR54.21-P-1300GH

Remove/install drive authorization module (FBM)

11.7.00

MODEL

163.136 /154 /172 #A as of 145273,

163.136 /154 /172 #X as of 708319,
163.113 /128 /157 /174 /175

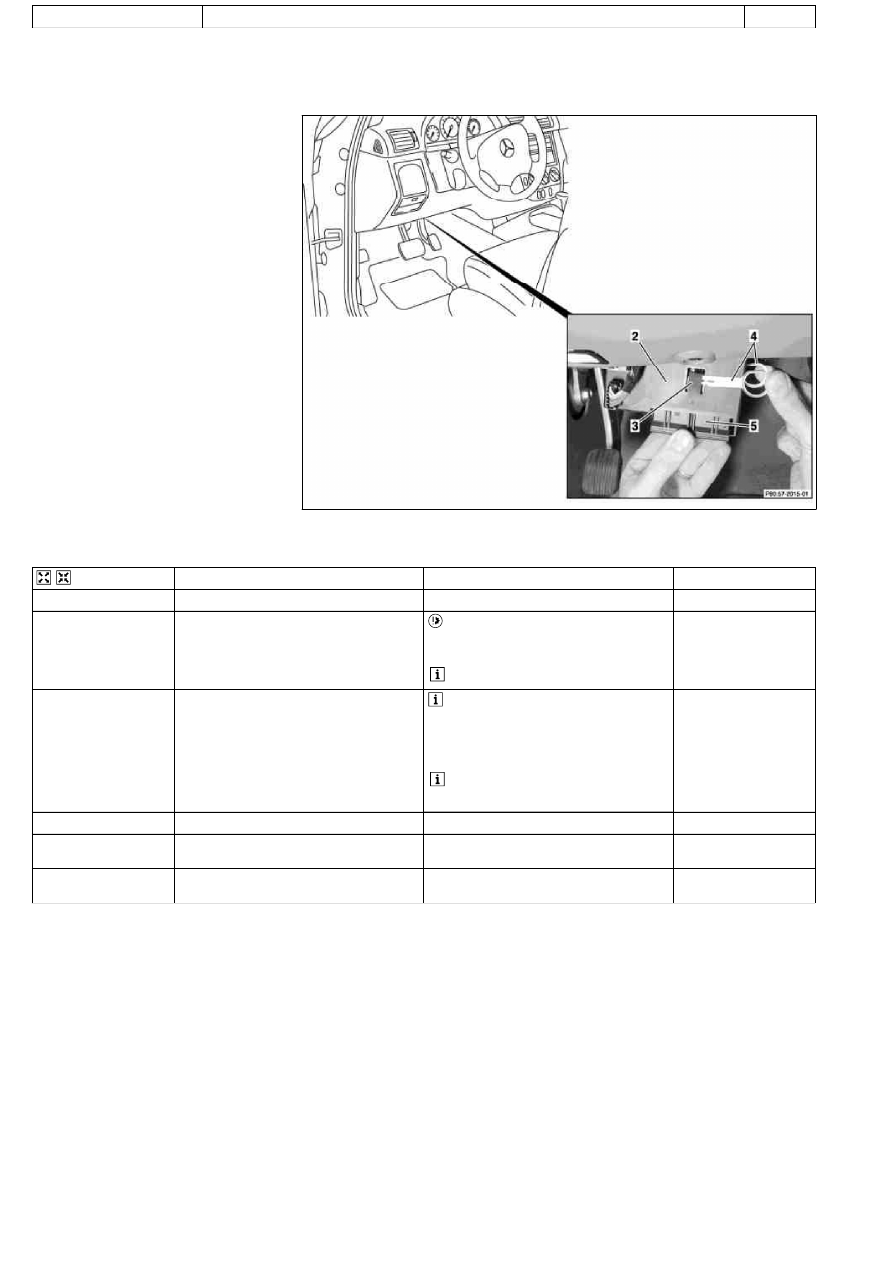

P54.21-2099-06

2

Extended-Activity-Module (EAM)

3

Retaining lugs

4

Removal tools

5

DAS control module



Remove/install

1

Remove Extended-Activity-Module (EAM) (2)

AR54.21-P-1200GH

2

Loosen the retaining lugs (3) which hold the
DAS control module (5) in the EAM

 Ensure that the retaining lugs do not

break off.

 Use radio removal tools (4) for removal.

3

Remove the DAS control module from the EAM

 Before installing a new DAS control

module, determine in the old DAS control
module whether keys are banned and code
suitably in the new DAS control module.



Note: The chassis number must be

stated when  ordering a new control module.

4

Install in the reverse order

5

Move ignition key into position 1 for at least
40 seconds

6

Check whether the vehicle can be started
with all keys

Copyright DaimlerChrysler AG  05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

GF54.21-P-4106GH

Extended activity module position/task

23.6.99

MODEL

163

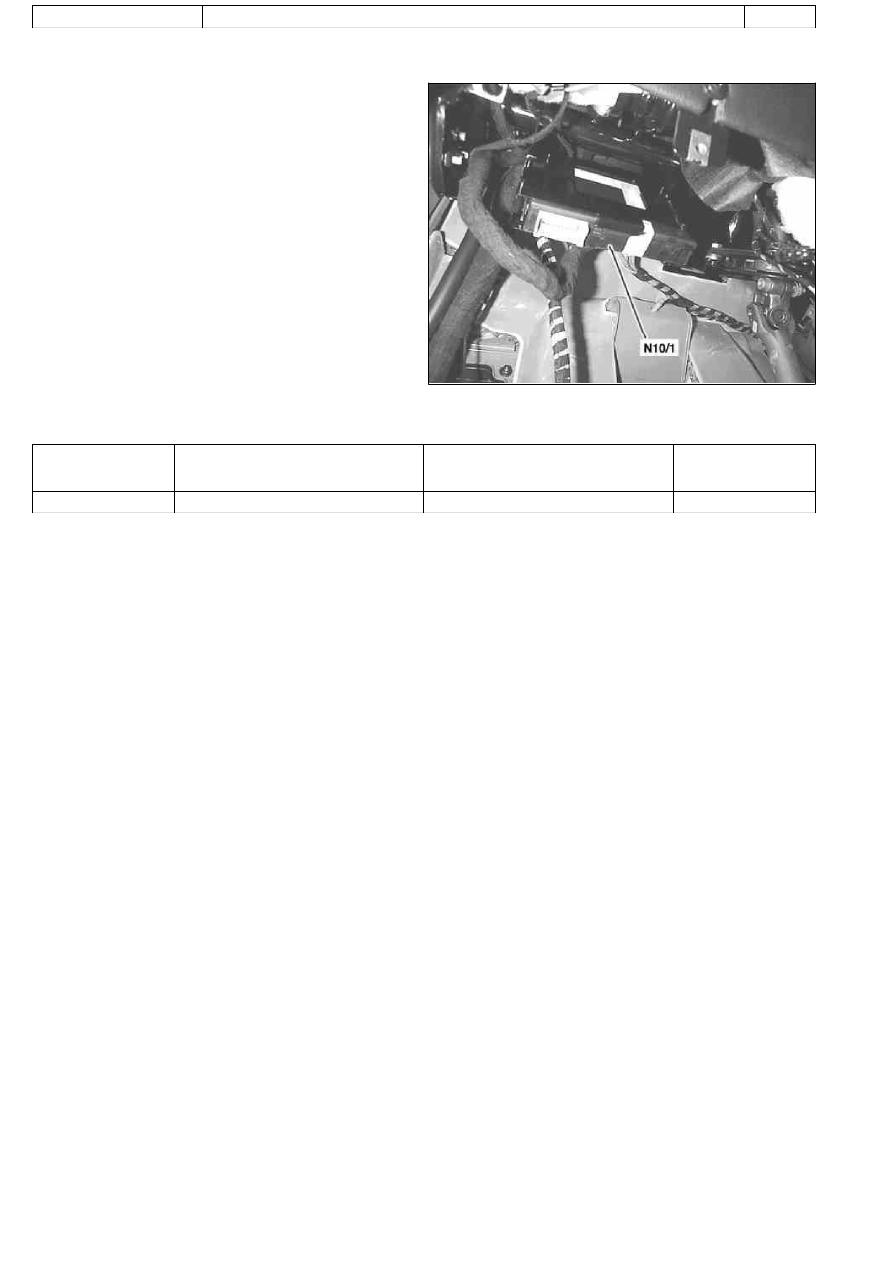

P54.21-2057-11

N10/1 Extended activitiy module

The extended activity module in combination with the new drive
authorization system (DAS (N10/ 1- n1)) represents an extension of
the All-Activity Module. In addition, the extended activity module acts
as a diagnosis gateway for the transfer case, the all-activity module
and as of 1.9.00 for the trip computer control module.

Extended activity module position

The extended activity module is located in the
interior of the vehicle on the left side behind
the instrument cluster.

Extended activity module task

GF54.21-P-4106-01GH
