Mercedes-Benz ML320. Service manual - part 359





GF72.29-P-2002GH

Convenience control, function

7.4.97

MODEL

163

The convenience control allows the driver to operate the electrical
seat adjustment, the power windows, the electric vent windows, the
electric outside rearview mirror as well as the electric sliding/pop-up
roof or the electric lamella sliding roof   when the ignition is switched
off.

To achieve this, the all-activity module (AAM) (N10) switches to the
corresponding loads via the convenience relay (F1k14)
circuit 30 .

As of 12.99 the vehicle is equipped with its own convenience relay for
seat adjustment (relay 1, F2k1). In addition the status of the
convenience control via CAN is transmitted to the extended activity
module (EAM, N10/1).

Conditions for control actuation
On all-activity module (AAM) (N10) configured for

I



up

to 11.99:
The convenience actuation becomes active as soon as
D

Circuit 15 ON is recognized

When circuit 15 is switched off, the convenience actuation is
deactivated after a door is opened

Otherwise
The convenience actuation is active in the following cases:
D

Circuit 15c ON

D

A front door is open

D

The remote control key is removed, however, the doors are not
yet opened

In both cases the convenience actuation remains active for 5 min.



Switch-on condition for circuit 15c

When the remote control key is inserted into the ignition lock, circuit
15c is switched on when the key is turned out of the zero position.
Circuit 15c switches off only after the remote control key is removed
from the ignition lock

Electric seat adjustment without memory,
function

GF91.29-P-0003GH

Electric seat adjustment with memory, function as of 12.99

GF91.29-P-0002GH

Convenience control, function

for electrical seat adjustment as of 12.99

GF91.29-P-2013GK

Power windows, function

GF72.29-P-0003GH

Power tilting/sliding roof (SR), function

GF77.20-P-0001GH

Electrically adjustable outside rearview
mirrors, function

GF88.79-P-0005GH

Electric vent windows, function

GF67.39-P-1000GH

Extended activity module,
location/purpose/design

as of 12.99

GF54.21-P-4107GK

Copyright DaimlerChrysler AG  04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR20.00-P-1142M

Drain, pour in coolant

8.11.99

ENGINE

612.963 in MODEL 163.113

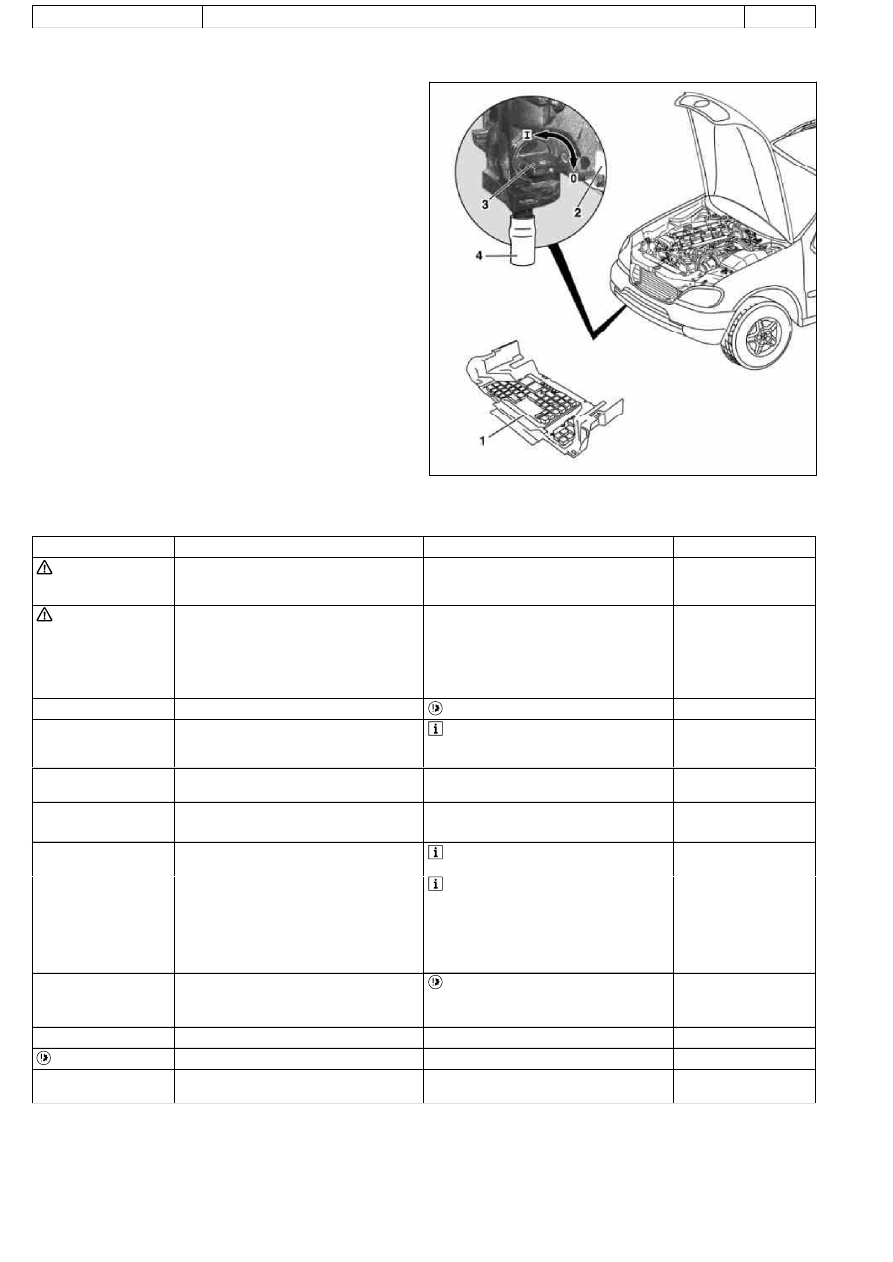

P20.20-2083-12

1

Front noise encapsulation bottom part

2

Radiator

3

Radiator drain tap

4

Siphon hose

Draining



Danger!

Risk of injury to fingers being jammed or
pinched
when removing, installing or aligning
hoods, doors, trunk lid/tailgate or sliding roof.

When moving components, ensure that no
body parts or limbs are within the operating
range of moving parts.

AS00.00-Z-0011-01A



Danger!

Risk of injury to skin and eyes suffering
scalding from contact with hot coolant spray.
Risk of poisoning from swallowing coolant.

Do not open cooling system unless coolant
temperature is below 90 °C. Open cap slowly
and release the pressure. Do not pour coolant
into beverage bottles.

Wear protective gloves, protective clothing
and eye protection.

AS20.00-Z-0001-01A

1

Open engine hood and raise to vertical position



Have assistant secure hood.

AR88.40-P-1000GI

2

Open cap of coolant expansion reservoir



Turn cap half a turn in the anti-clockwise

direction, release pressure, and then unscrew
cap.

3

Remove front noise encapsulation bottom
part (1)

4

Attach siphon hose (4) to drain connection of
radiator

5

Drain coolant at radiator (2) on right

 To do this, turn drain tap (3) at radiator (2)

into position "1" (arrow).



Disposal of coolants.

Pay attention to legal provisions or local
wastewater regulations!
Refer to Environmental Protection Catalog
issued by MBVD/PWU for locations in
Germany.

6

Clean cooling and heating system



Clean cooling and heating system in case

of impurities. See

#

Remove oil from cooling and heating system.

AR20.00-P-1250B

Pour in



Notes on coolant

All engines

AH20.00-N-2080-01A

7

Turn drain tap (3) at radiator (2) into position
"0" (arrow)

Copyright DaimlerChrysler AG  12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

Danger!

Risk of accident caused by vehicle starting
off by itself when engine is running. Risk of
injury
 caused by contusions and burns when
working in engine during starting procedure

Secure vehicle to prevent it from moving.
Wear closed and snug-fitting work clothes.
Do not grasp hot or rotating parts.

AS00.00-Z-0005-01A

8

Pour in coolant

 Warm up engine by running at moderate

revs. Top up coolant constantly at coolant
expansion reservoir. Close coolant expansion
tank once
coolant temperature is 60-70 °C.

*BF20.00-P-1001-02E



Note on coolant level

Model 124, 129, 140, 163.113, 168, 170, 202,
208, 210, 220, 463

AH20.00-P-1142-01A

9

Inspect cooling system for leaks

AR20.00-P-1010HA



Cooling system

Number

Designation

Engine
612.963

BF20.00-P-1001-02E

Cooling system

Total capacity

Liter

Y

11.0

Filling capacity of anticorrosion/
antifreeze agent down to
-37 °C

Liter

Y

5.5

Filling capacity of anticorrosion/
antifreeze up to -45 °C

Liter

Y

6.25

Specifications for Operating
Fluids

Sheet

BB00.40-P-0310-01A

Sheet

BB00.40-P-0325-00A

Copyright DaimlerChrysler AG  12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AR20.00-P-1142HA

Draining and pouring in coolant

2.4.93

ENGINE

112 in MODELS 129, 163, 202, 208, 210, 211.061 /065 /261 /265 /080 /280 /082 /282, 220, 230.467

ENGINE

113 in MODELS 129, 163, 202, 208, 210, 211.070 /083 /283, 215, 220

ENGINE

113.962 in MODELS 463.206 /240 /241 /247 /248 /249 /254

ENGINE

112.945 in MODELS 463.209 /232 /233 /244 /245 /250

ENGINE

137 in MODELS 215, 220

ENGINE

113.982 in MODELS 463.241 /243 /246

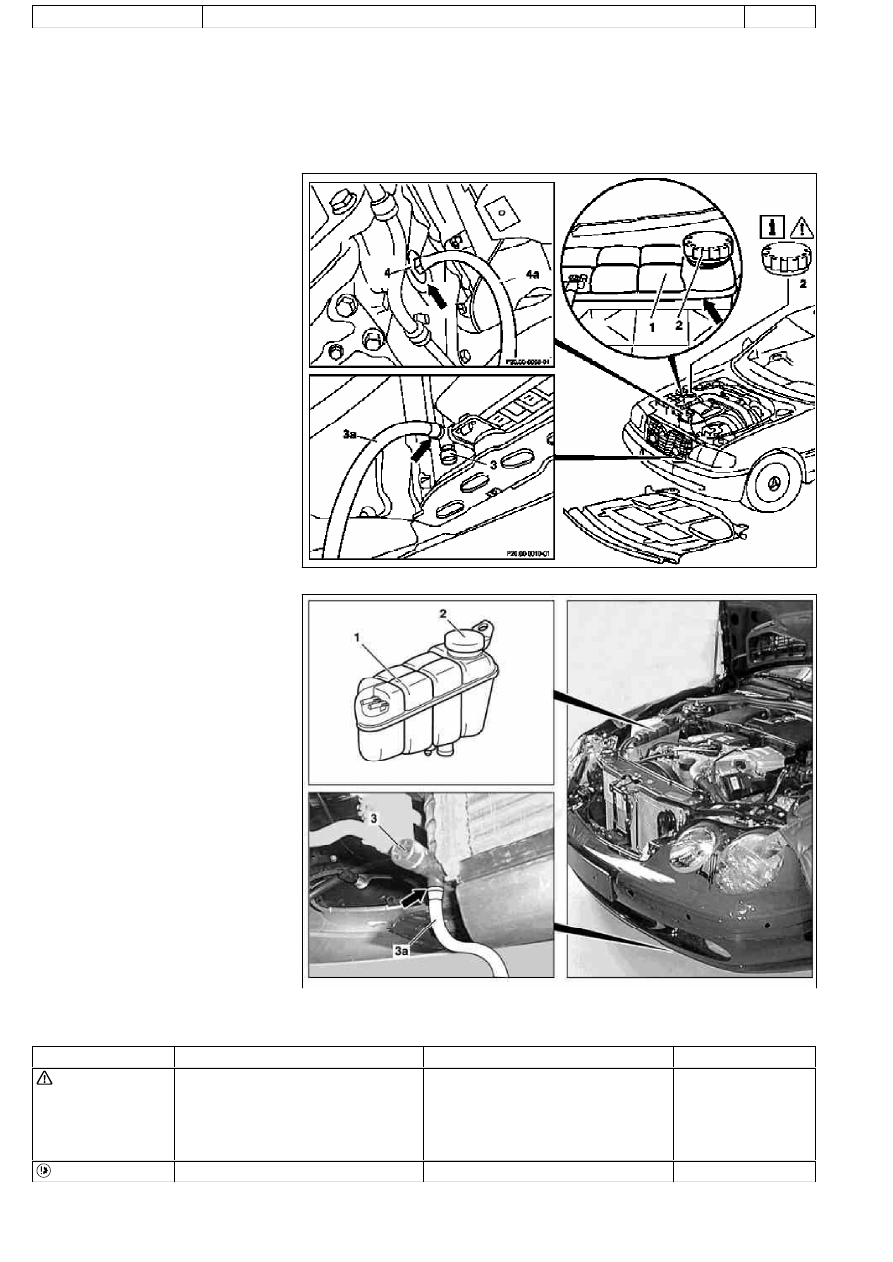

P20.00-0215-06

Illustrated on model 202

1

Coolant expansion reservoir

2

Cooling system cap

3

Radiator drain plug

3a

Drain hose (inner diameter 12 mm)

4

Crankcase drain plug

4a

Drain hose (inner diameter 14 mm)

P20.00-2045-06

Shown on model 215 with M137

1

coolant expansion reservoir

2

Cooling system cap

3

Radiator drain plug

3a

Drain hose (inner diameter 12 mm)

Draining



Danger!

Risk of injury to skin and eyes suffering
scalding from contact with hot coolant spray.
Risk of poisoning from swallowing coolant.

Do not open cooling system unless coolant
temperature is below 90°C. Open cap slowly
and release the pressure. Do not pour coolant
into beverage bottles.

Wear protective gloves, protective clothing
and eye protection.

AS20.00-Z-0001-01A



Notes on coolant

All engines

AH20.00-N-2080-01A

Copyright DaimlerChrysler AG  12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
