Mercedes-Benz ML320. Service manual - part 357

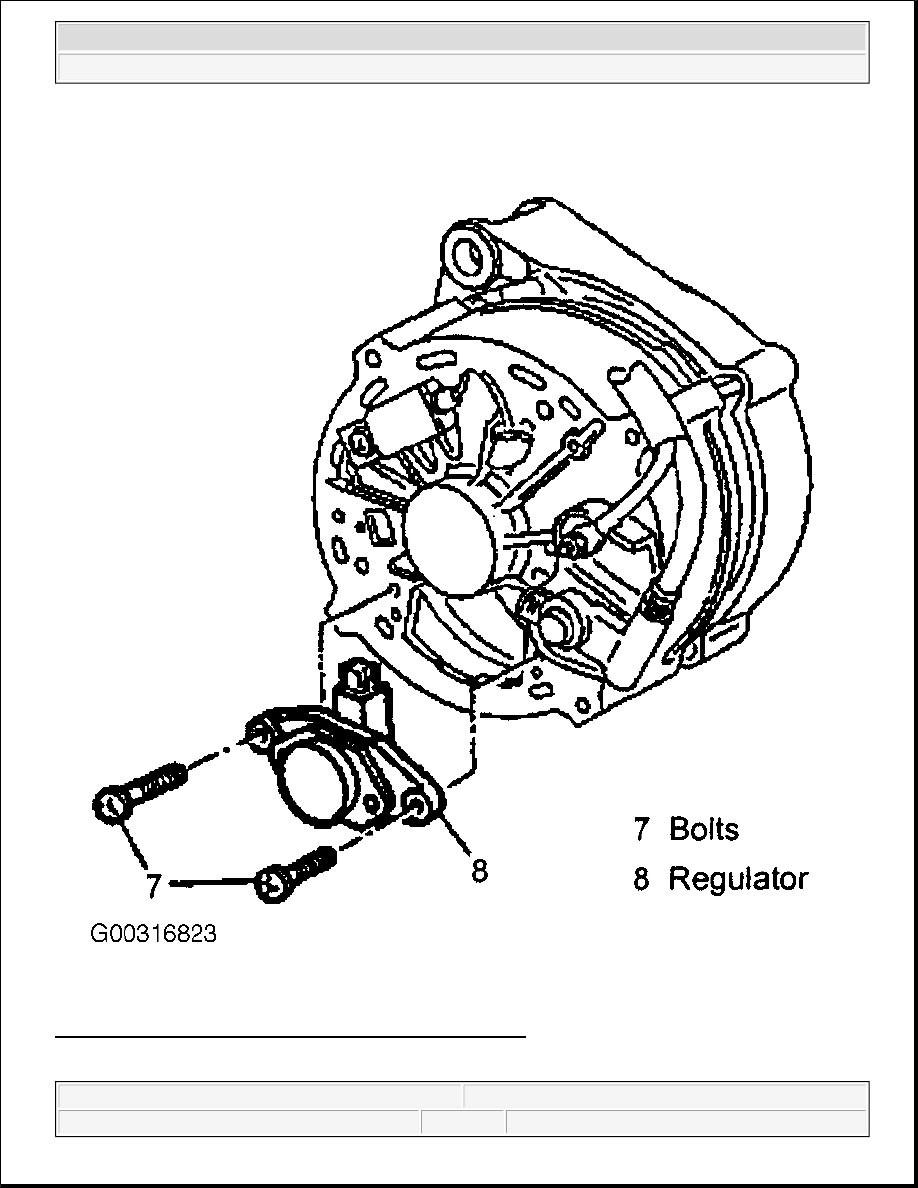

Fig. 17: Removing Voltage Regulator (Bowl-Type Generator)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

2001-04 STARTING & CHARGING SYSTEMS Generators & Regulators - 163 Chassis



me



TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

WIRING DIAGRAMS

See CHARGING SYSTEM in appropriate SYSTEM WIRING DIAGRAMS article in ELECTRICAL.

Application

Ft. Lbs. (N.m)

Generator Mounting Bolts

30 (42)

Generator Pulley Nut

52 (70)



2001 Mercedes-Benz ML320

2001-04 STARTING & CHARGING SYSTEMS Generators & Regulators - 163 Chassis



me



AP40.10-P-4051Z

Check tires for damage and cracks

MODEL

123, 124, 126, 129, 140, 163, 168, 170, 171, 201, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240, 414

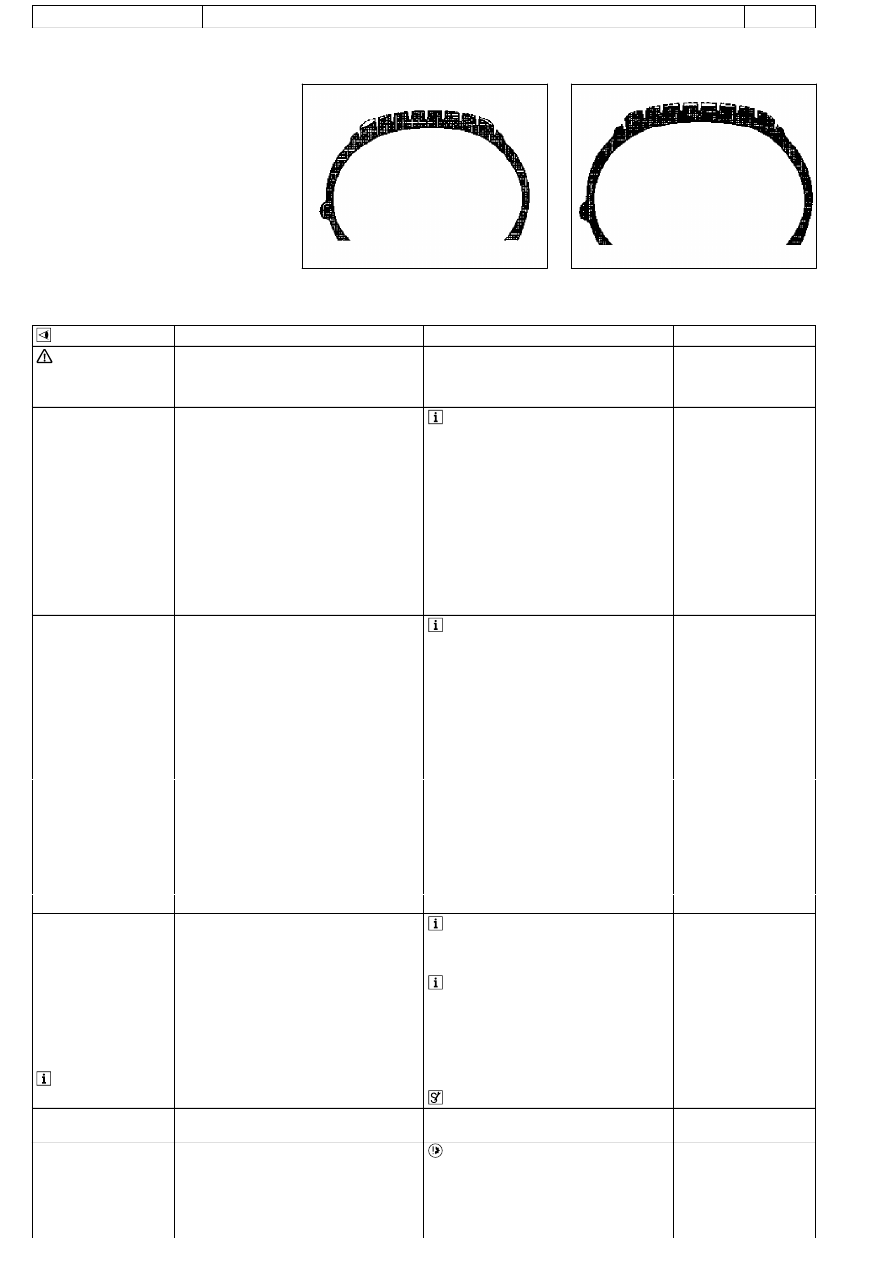

P40.10-0002-01

P40.10-0001-01

Left diagram

Wear at shoulder of front tires

Right picture

Wear in middle of rear tires



Check

Danger!

Risk of death cased by vehicle slipping or
toppling off of the lifting platform.

Align vehicle between the columns of the
hydraulic hoist and position the four support
plates below the hoist support points specified
by the vehicle manufacturer.

AS00.00-Z-0010-01A

1

Check tires on all wheels

 Check tread as well as outer and inner

sidewalls on all tires for signs of damage such
as cuts, punctures, cracks, breakouts,
separation and ingressed foreign matter. If
damage is present

#

Install new tires:

f



Model 124, 129, 140, 163, 168, 170, 171,
202, 203, 208, 209, 210, 211, 215, 220
except maximum protection code Z07, 230,
240 except CSR system, 414

AR40.10-P-1030A

f



Model 220 with maximum protection, code Z07 AR40.10-P-1030MB

f



Model 240 with CSR system

AR40.10-P-1030CSR

Model 123, 126, 201

2

Check tire wear pattern on all wheels

 Greater wear at the shoulder compared to

the center of the tire is normal for the front
wheel tires. Wear on the rear tires is uniformly
distributed across the total tread, whereby
wear on vehicles with rear-wheel drive in the
middle of the tread is somewhat greater than
at the shoulders. In event of unusual tire
pattern:

#

Determine cause for increased tire wear and
rectify, then:

#

Install new tires:

f



Model 124, 129, 140, 163, 168, 170, 171,
202, 203, 208, 209, 210, 211, 215, 220
except maximum protection code Z07, 230,
240 except CSR system, 414

AR40.10-P-1030A

f



Model 220 with maximum protection, code Z07 AR40.10-P-1030MB

f



Model 240 with CSR system

AR40.10-P-1030CSR

Model 123, 126, 201

3

Measure the depth of tread of the tires on al
the wheels and note the measurement in the
table on the maintenance sheet.

 Measure depth of tread at point of

greatest wear. Perform measurement at
outside, inside and center of tread.
Minimum depth of tread 1.6 mm.

 For safety reasons, tires should be

replaced before the minimum depth of tread is
reached:
D Summer tires for approx. 2 to 3 mm depth

of tread

D Winter tires at approx. 4 mm depth of tread



Information on measuring tire tread depth

AH40.10-P-0006-01T

 Brake pad gauge

*211589062300

4.1

Change round wheels on front and rear axles

If necessary, and only on vehicles without
mixed tires

 Retain running direction of wheels, as

otherwise handling performances and comfort
may be impaired and tire wear increased.
Model 124, 129, 140, 168, 170, 202, 203,
208, 209, 210, 211, 215, 220, 230, 240, 414

AP40.10-P-4050Z

Model 163

AP40.10-P-4050GH

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

Model 171

AP40.10-P-4050V

Model 123, 126, 201

Brake pad gage

211 589 06 23 00

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
