Mercedes-Benz ML320. Service manual - part 355

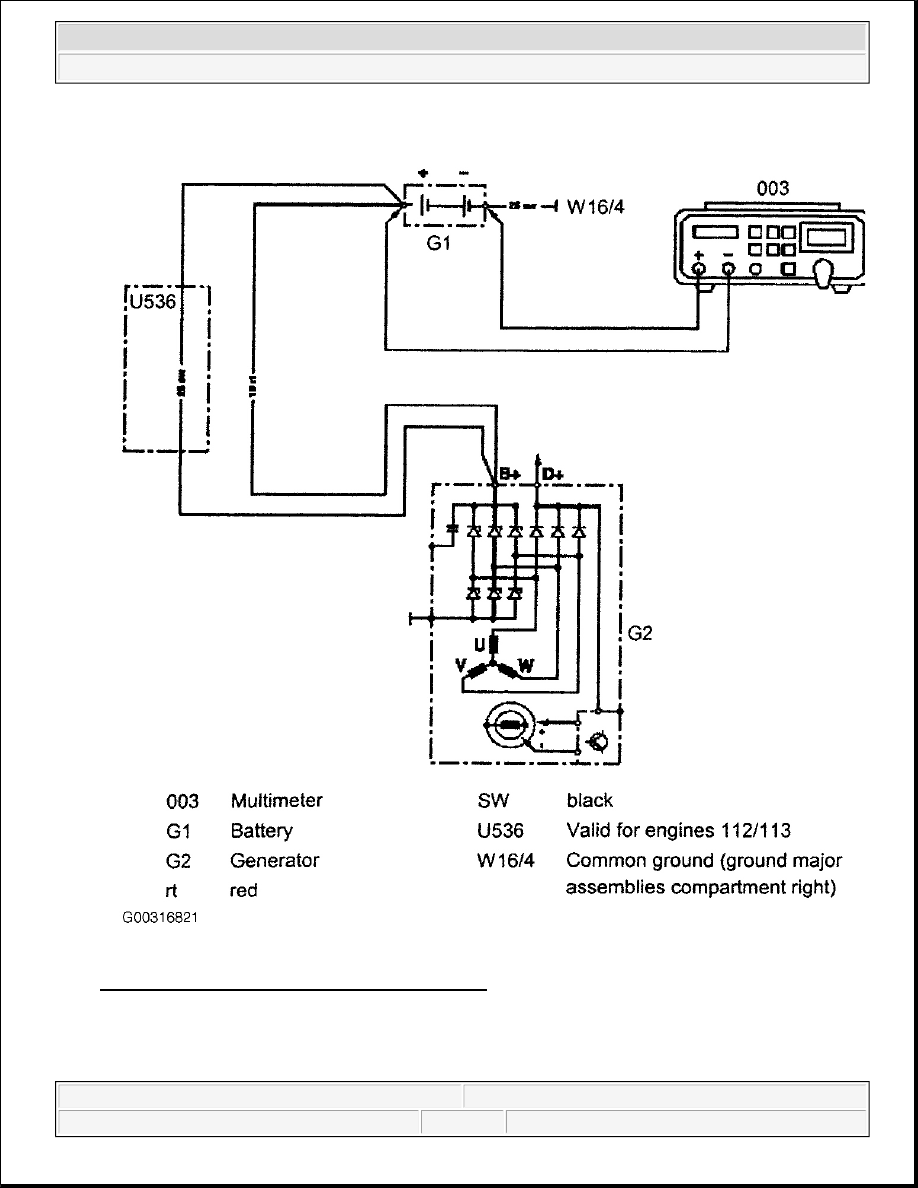

Fig. 10: Checking Voltage Regulator (Chassis 163)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

DIODE TEST



2001 Mercedes-Benz ML320

2001-04 STARTING & CHARGING SYSTEMS Generators & Regulators - 163 Chassis



me



Connect DC clip-on probe from engine tester with oscilloscope to positive battery terminal. See Fig. 11 . Start
engine. Switch on low beam. Access diode test at 3000 RPM. See Fig. 12 -Fig. 14 . Replace generator as
necessary.



2001 Mercedes-Benz ML320

2001-04 STARTING & CHARGING SYSTEMS Generators & Regulators - 163 Chassis



me





2001 Mercedes-Benz ML320

2001-04 STARTING & CHARGING SYSTEMS Generators & Regulators - 163 Chassis



me

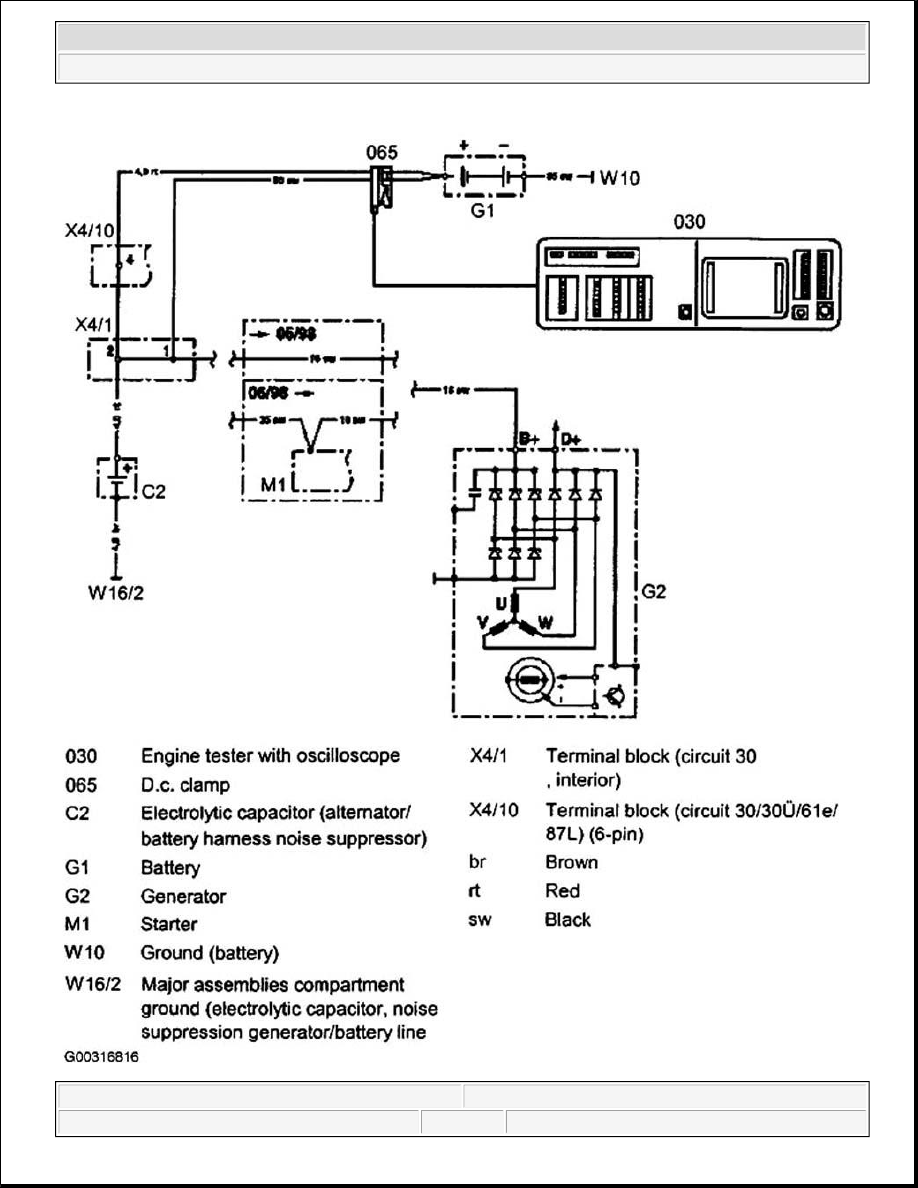

Fig. 11: Identifying Oscilloscope Connection
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

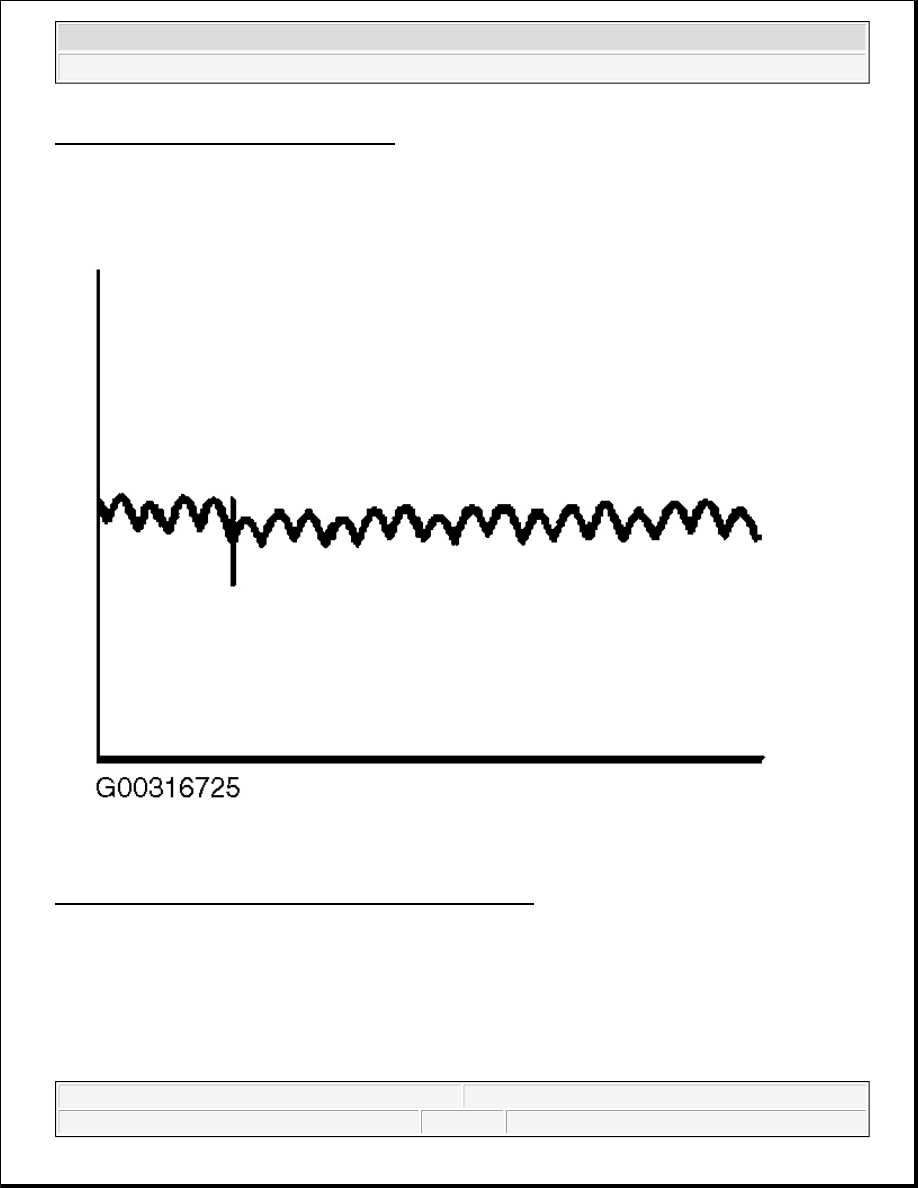

Fig. 12: Identifying Oscilloscope Patterns (No Fault Indicated)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
