Mercedes-Benz ML320. Service manual - part 350





9

Check headlamp adjustment and if necessary
correct.

e



Check and correct headlamp adjustment

MODEL 124, 129, 140, 163, 202

MODEL 170, 208, 210 except CODE (491)
USA version

AP82.10-P-8260A

10

Read fault memory, erase

Stored faults which can result from cables
being disconnected or from simulation during
removal and installation or test work, have to
be processed and erased in the fault
memories after completing the work. Refer to:

#

STAR DIAGNOSIS

Copyright DaimlerChrysler AG  12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

AR09.41-P-6817MM

Removing and installing charge air cooler

10.11.99

ENGINE

612.963 in MODEL 163.113

P09.41-2024-09

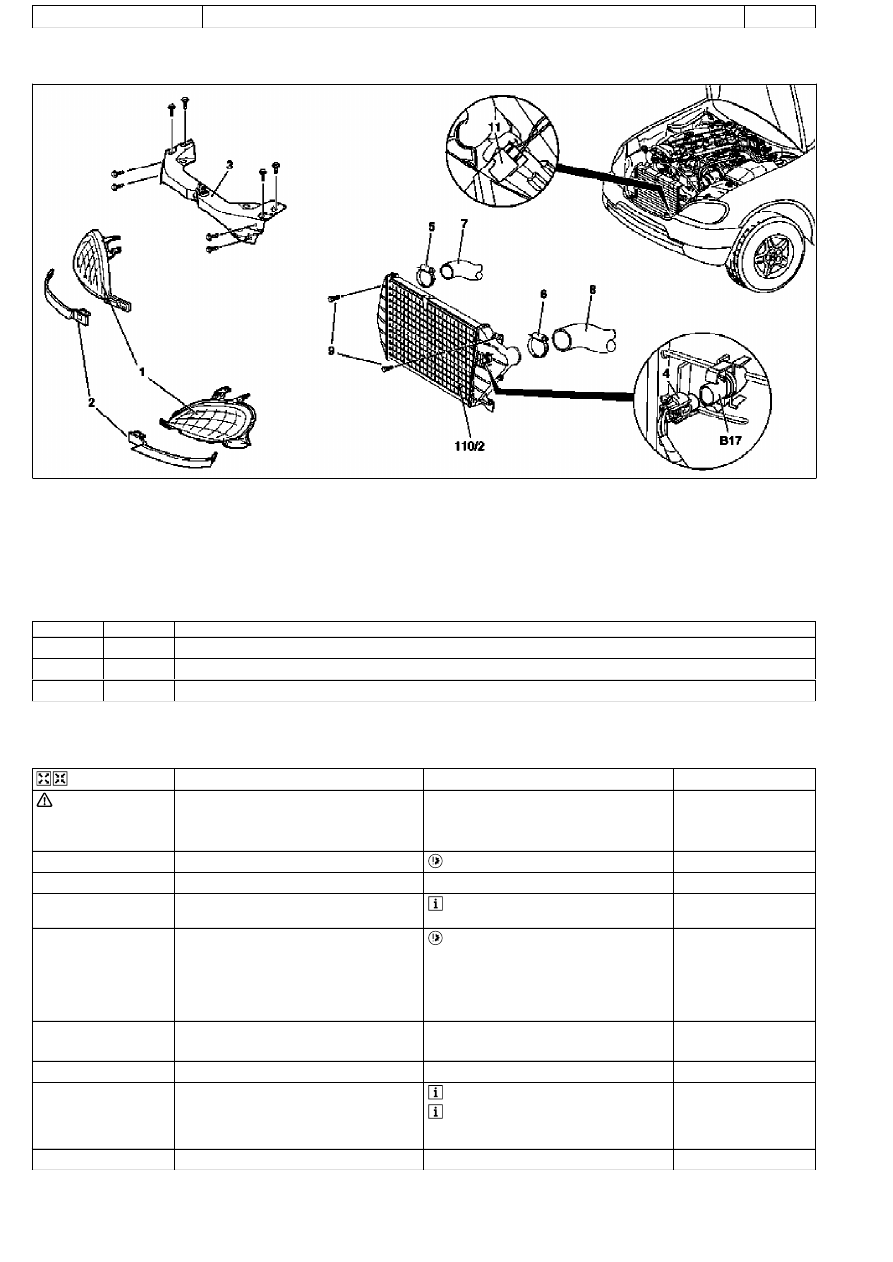

1

Headlamp units

2

Cover strips

3

Front end crossmember

4

Socket at temperature sensor

9

Bolts

11

Socket

110/2

Charge air cooler

B17

Intake air temperature sensor

5

Right hose clamp

6

Left hose clamp

7

Charge air hose to charge air cooler

8

Charge air hose from charge air cooler

Operation no. of operation texts or standard texts and flat rates

Sector

Op. no.

Operation text

P

096810

REMOVING AND INSTALLING CHARGE AIR COOLER

P

096820

REPLACING CHARGE AIR COOLER

P

096827

REPLACING CHARGE AIR COOLER (COOLER REMOVED)

Removing, installing



Danger!

Risk of injury from fingers becoming
jammed or bruised
 when removing and
installing and aligning hood, trunk lid, doors,
lids and sliding roof

When moving components ensure that no
body parts or limbs are in the area of motion.

AS00.00-Z-0011-01A

1

Open engine hood and position upright



Have an assistant secure hood

AR88.40-P-1000GI

2

Remove headlamp units (1)

AR82.10-P-4730GH

3

Remove front end crossmember (3)

 Place over engine with release cable

attached.

AR62.30-P-2300GH

4

Unplug socket (4) at intake air temperature
sensor (B17)



Do not release or lock temperature sensor

(B17) in place with socket plugged in
otherwise the locking arms will be over-
tensioned. Refer to:

#

Removing and installing intake air
temperature sensor.

AR07.52-P-1465A

5

Detach hose clamps (5, 6) of the charge air
hoses (7, 8) at the charge air cooler (110/2)

6

Unscrew bolts (9) at charge air cooler

7

Remove charge air cooler (110/2)

 Detach from charge air hoses.

 Traces of oil, slight quantities of oil in the

charge air hose come from the crankcase
ventilation and are permissible.

8

Install in the reverse order

Copyright DaimlerChrysler AG  12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

9

Check headlamp adjustment and if necessary
correct.

e



Check and correct headlamp adjustment

MODEL 124, 129, 140, 163, 202

MODEL 170, 208, 210 except CODE (491)
USA version

AP82.10-P-8260A

10

Read fault memory, erase

Stored faults which can result from cables
being disconnected or from simulation during
removal and installation or test work, have to
be processed and erased in the fault
memories after completing the work. Refer to:

#

STAR DIAGNOSIS

Copyright DaimlerChrysler AG  12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

GF54.30-P-3007A

Charge indicator lamp, exterior lamp failure

24.10.96

MODEL

129, 140 as of 1.6.96,

163, 168, 170,
202 as of 1.8.96,
208 up to 31.7.99,
210 as of 1.6.96 up to 30.6.99

P54.30-0517-06

Terminal 61 is used for the generator
indicator lamp. When the ignition is
On the excitation voltage is applied to it and
the generator voltage when the engine is
running.
However, a terminal is required for some
systems (e.g. exterior lamp indicator) which

D

is exactly at ground potential (low level),
when the engine is not running with the
ignition On

D

is exactly at least 10.5 V (high level),
when the voltage at terminal 61
exceeds a particular voltage or the
engine speed exceeds a particular
threshold (480 rpm).

Terminal 61e is used for this (engine running
recognition/speed threshold value).
Terminal 61e is produced in instrument

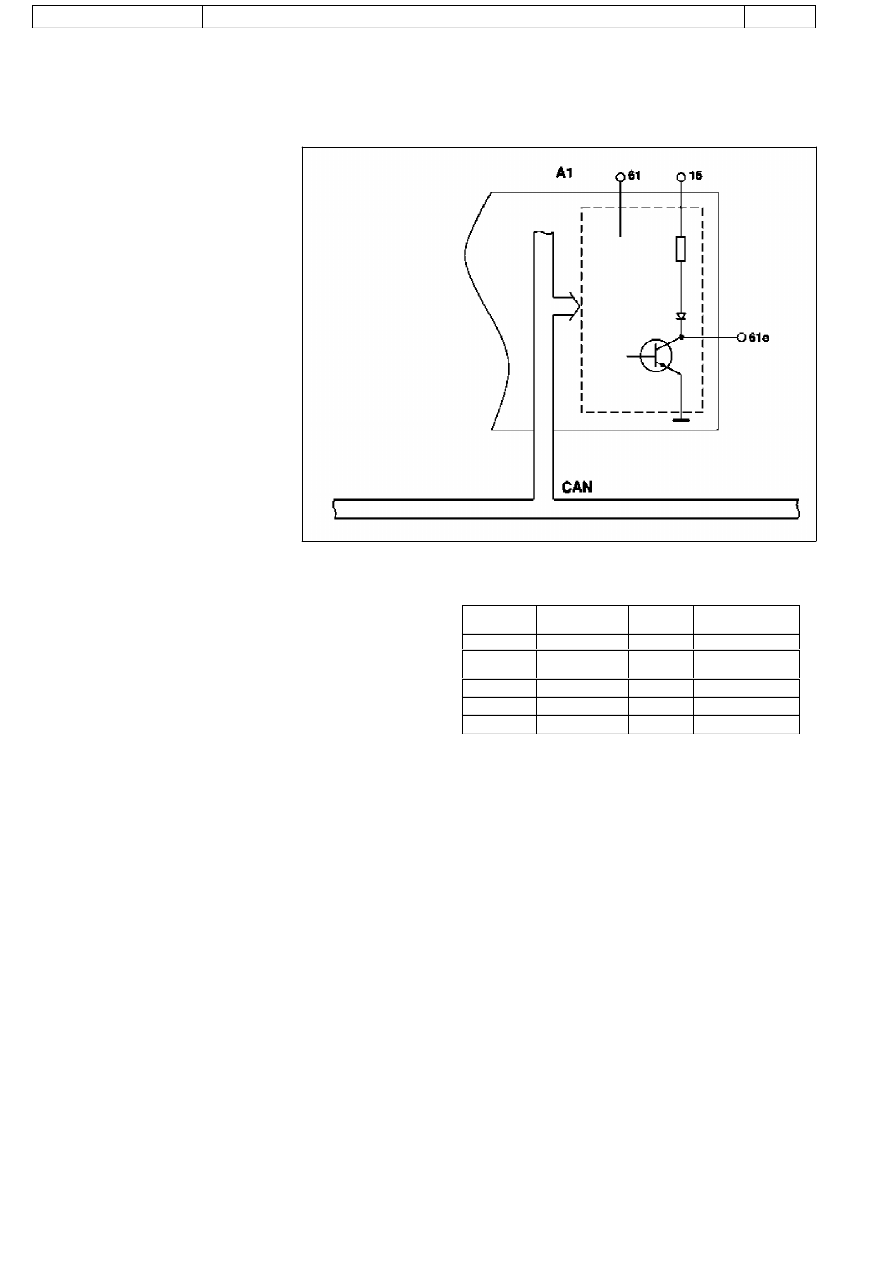

cluster (A1) in accordance with the sketched
circuit diagram:
An electronic system is ...via terminal 15

Terminal 61 and the speed signal are used as input signals which
reach the instrument cluster via the CAN data bus.
If a particular speed or a particular voltage threshold at terminal 61 is
exceeded, the transistor switches off and terminal 61e goes to high
level (terminal 61 and the speed signal are interlinked to terminal 61e
via an OR function. Also refer to table.)

The maximum current at terminal 61e is approx. 2 mA at high level
and approx. 350 mA at low level. The switching delay is
0.5 seconds in each case.

Exterior lamp indicator lamp and charge indicator lamp
The input signal of terminal 61 and the speed signal are used for
engine running recognition. Depending on these input signals the
exterior lamp failure indicator lamp (A1e14) or the generator charge
indicator lamp (A1e5) is actuated (refer to table).

The instrument cluster also passes on the status of terminal 61e as a
CAN message. The information is consequently available to all bus
participants.
On models 163 and 168 terminal 61e is only made available as a
CAN message. There is no discrete terminal 61e line.

Voltage

term. 61

Engine speed



Term 61e Warning/indicator

lamp

U

threshold

< 200 rpm

< 10.5 V

Bulb check

U

threshold

> 480 rpm

U

 10.5 V

Charge indicator

lamp

U

threshold

< 200 rpm

U

 10.5 V

-

U

threshol

> 480 rpm

U

 10.5 V

-

-

Fault value

U

 10.5 V

-
