Mercedes-Benz ML320. Service manual - part 348





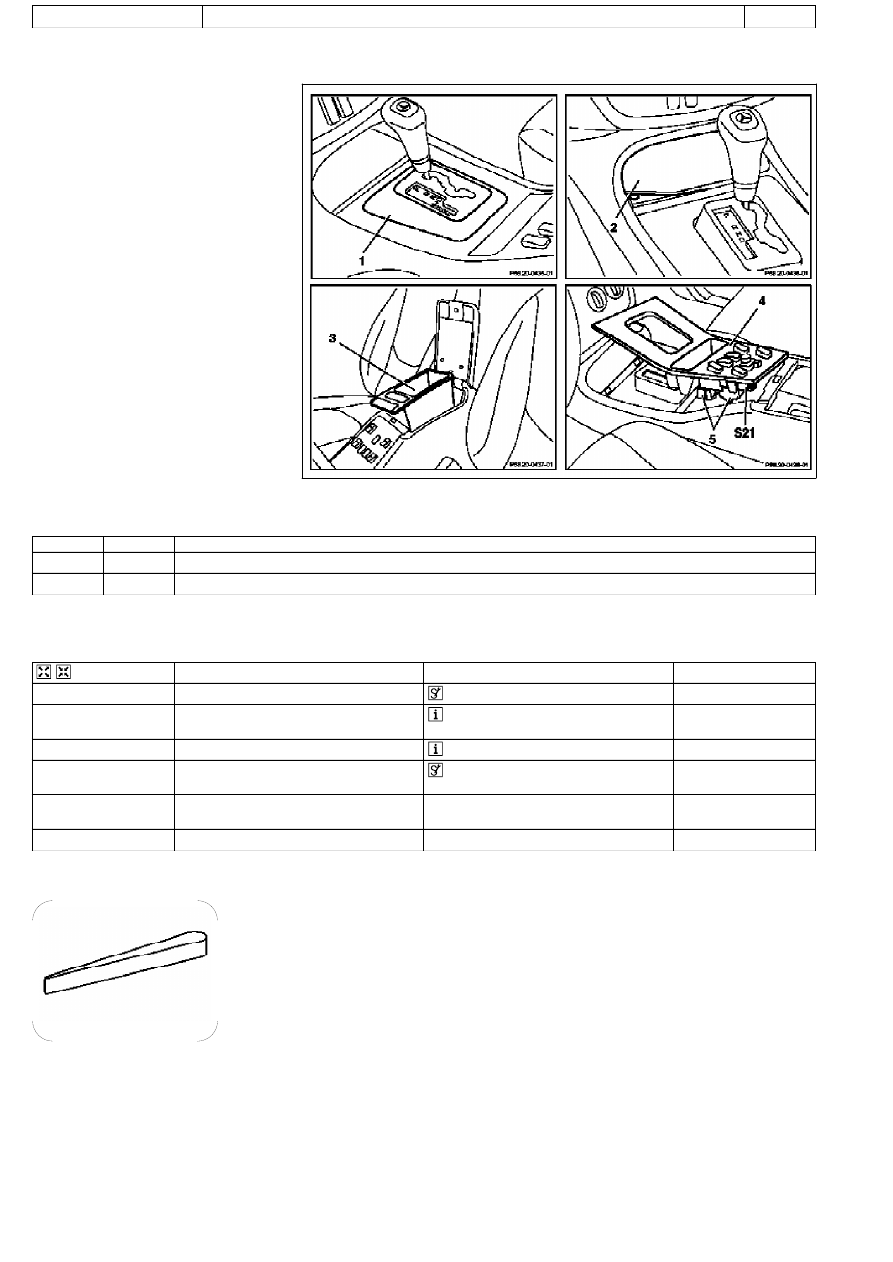

AR68.20-P-2310GH

Removing and installing cover at gearshift lever

4.2.97

MODEL

163.113 /136 /154 /172 /174 up to 31.8.01

P68.20-0434-06

1

Plastic frame

2

Covering in front stowage compartment

3

Center console insert

4

Cover

5

Connectors

S21 Center console switch group

Operation no. of operation texts or standard texts and flat rates

Range

Op. no.

Operation text

P

683450

REMOVING AND INSTALLING COVER FOR SHIFT LEVER

P

683455

REPLACING COVER FOR GEARSHIFT LEVER



Remove/install

1

Remove plastic frame (1) upward



*115589035900

2

Remove covering in stowage
compartment (2)

 Fastened with pin.

3

Remove center console insert (3)

 Remove screws (2 each) from insert floor

4

Press cover (4) out of catch in center console
at rear and sides with long wedge

*115589035900

5

Disconnect connectors (5) from center
console switch group (S21)

6

Install in the reverse order

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

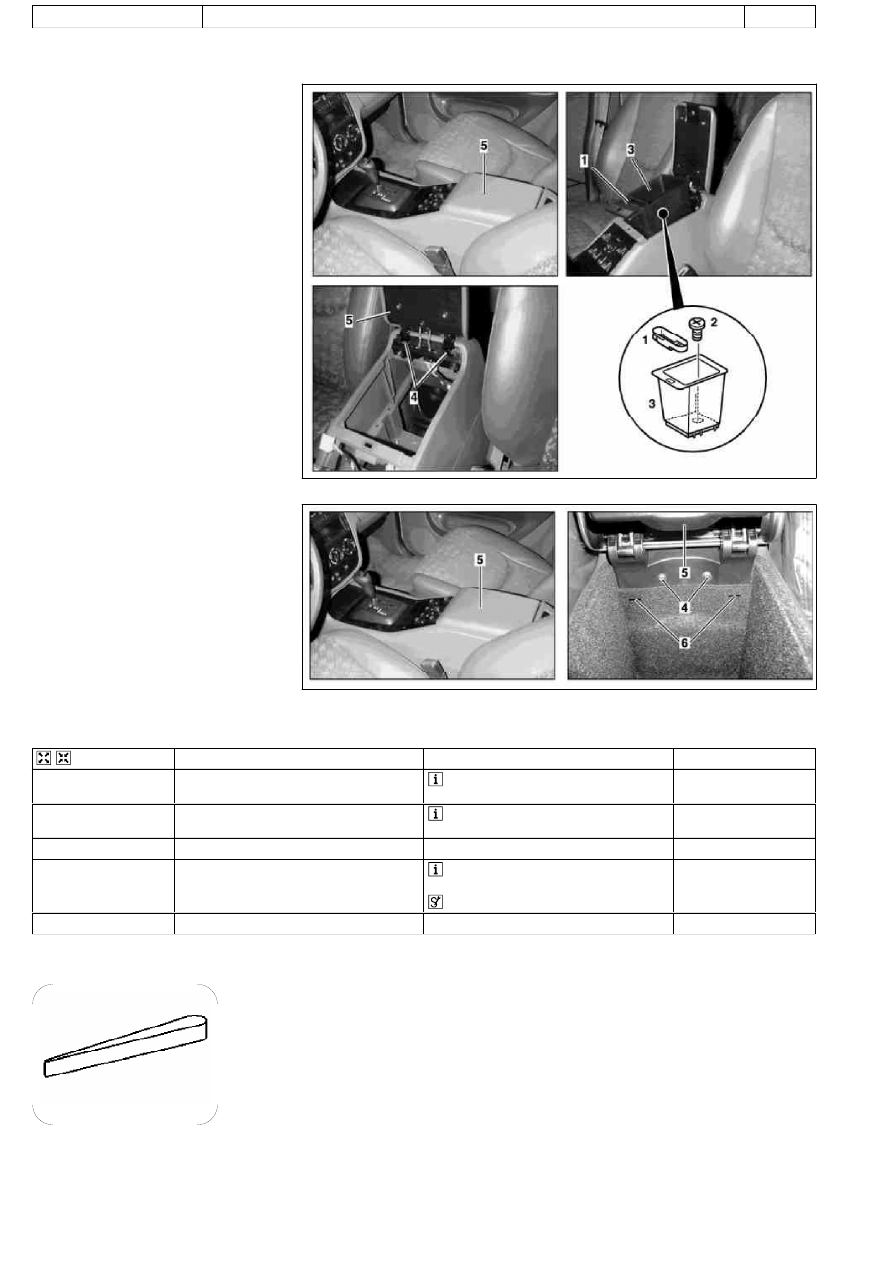

AR68.20-P-2370GH

Remove/install armrest lid on center console

15.4.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P68.20-0461-06

Illustrated on model 163  up to 31.08.01

1

Stowage compartment

2

Screws

3

Stowage box

4

Screws

5

Armrest cover

P68.20-2544-04

Illustrated on model 163  as of 01.09.01

4

Bolts

5

Armrest cover

6

Access openings



Removing, installing

1.1

Remove storage compartment (1)

 Up to 31.08.01: Unclip stowage

compartment (1) from stowage box (3)

2.1

Unscrew screws (2) and remove stowage box
(3)

 up to 31.08.01

3

Unscrew screws (4).

4

Remove armrest lid (5)

 As of 01.09.01: Insert long wedge into

access openings (6) and loosen retaining lugs.

 Long wedge

*115589035900

5

Install in the reverse order

Assembly wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

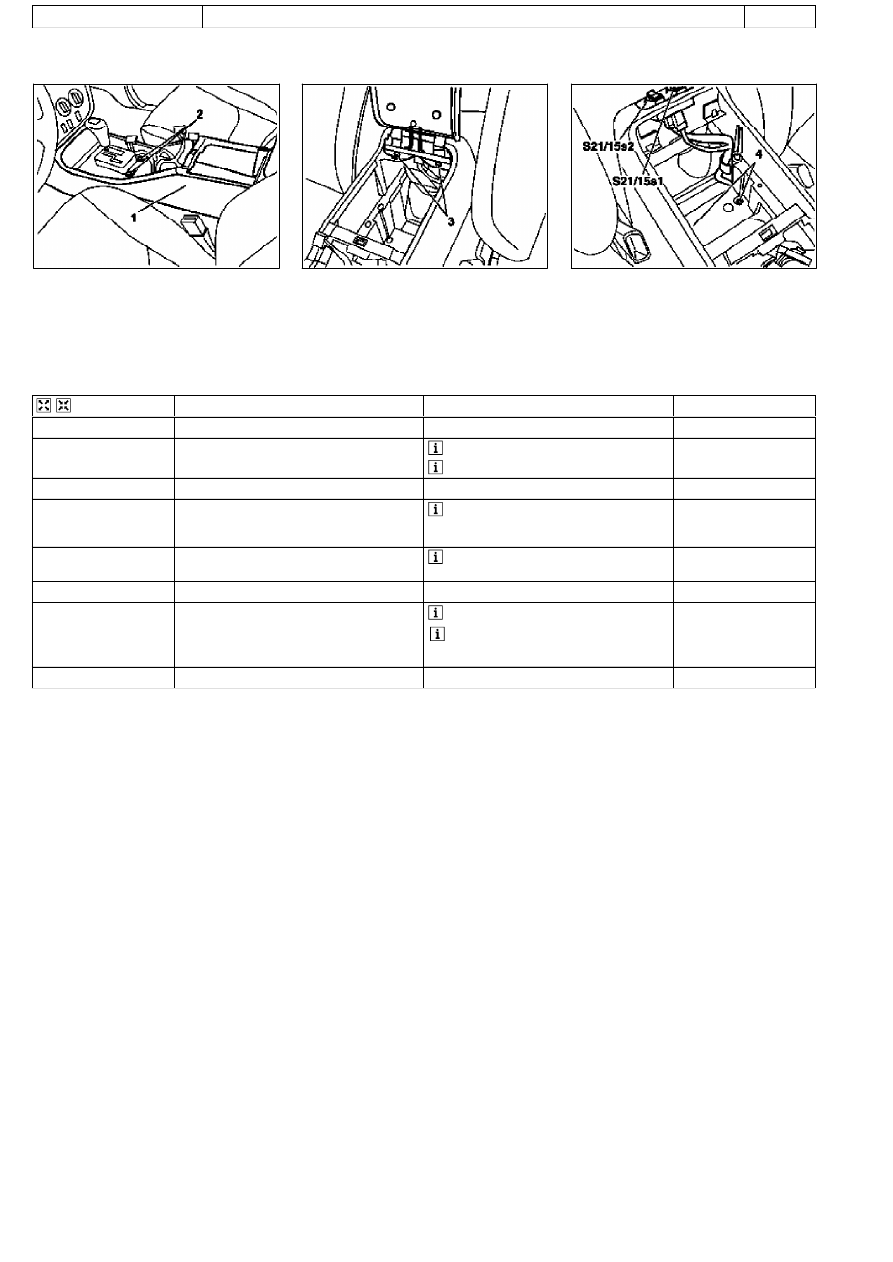

AR68.20-P-2000GH

Remove/install center console

4.2.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P68.20-0447-01

P68.20-0449-01

P68.20-0452-01

1

Housing

2

Screws

S21/15s1

Left rear power window switch

S21/15s2

Right rear power window switch

3

Screws

4

Screws



Remove, Install

1

Remove armrest cover from center console

AR68.20-P-2370GH

2

Remove cover on gearshift lever

 Up to 31.08.01

AR68.20-P-2310GH

 As of 01.09.01

AR68.20-P-2310GI

3

Unscrew screws (2) from front of housing (1)

4.1

Disconnect electrical connector on right and
left rear power window switches (S21/15s1
and S21/15s2)

 Up to 31.08.01: Remove wiring harness

from mount.

4.2

Disconnect connector from floor in center
console

 Up to 31.08.01: Remove wiring harness

from mount.

5

Unscrew screws (4) from rear of housing (1)

6

Remove housing (1)

 Set selector lever to position N



Installation: As of 01.09.01, ensure that

air duct is installed tightly.

7

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

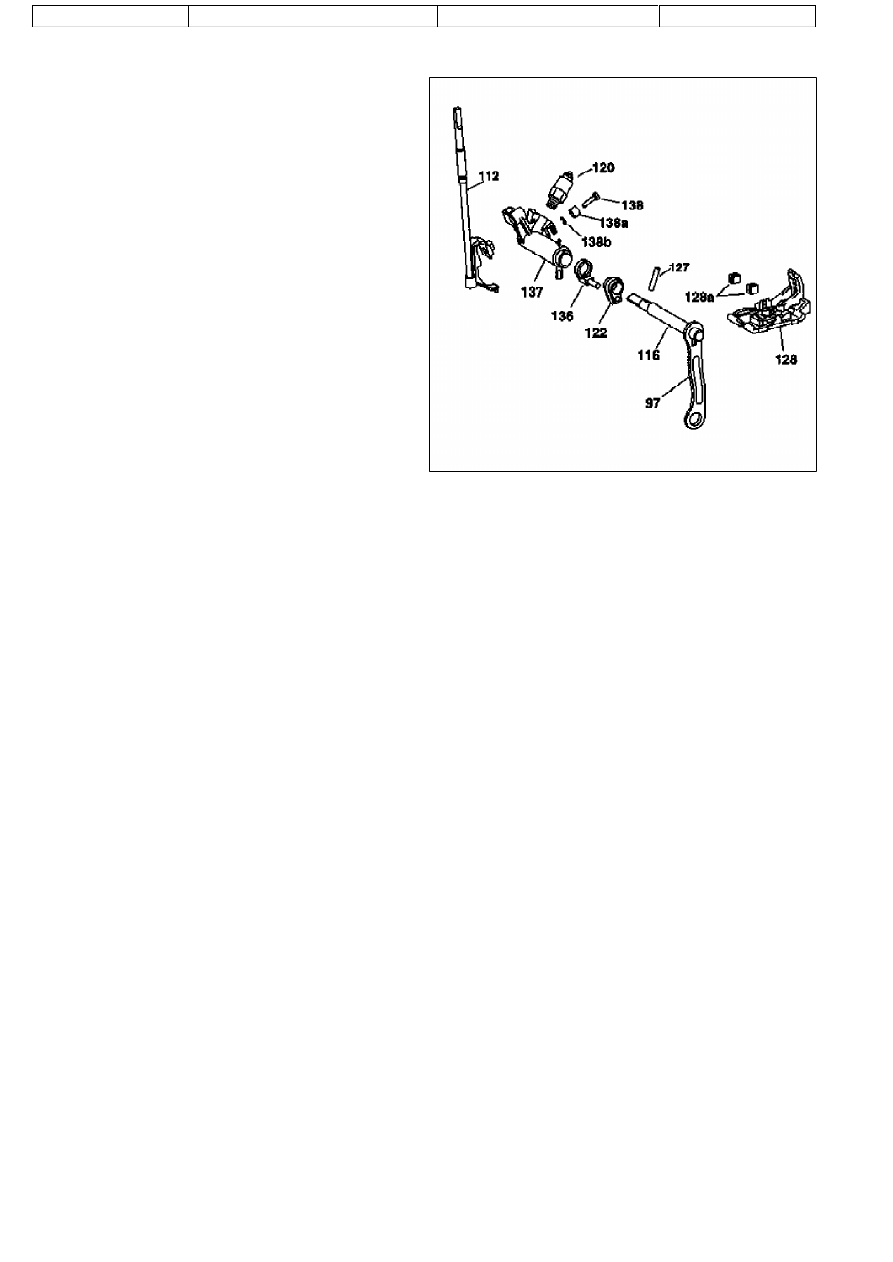

BT27.60-P-0001-01A

Center shift modified

Transmission 722.6 phased in

k

TRANSMISSION

722.6

P27.60-0372-12

97

Intermediate lever

112 Selector lever
116 Shift shaft
120 Shift detent
127 Pin
128 Shift gate
128a Rubber stop
136 Locking lever
137 Sleeve with shift detent carrier
138 Pin
138a Roller
138b Circlip

The center shift has been modified to improve operating convenience
and dampen noise.
The intermediate lever (97) is rigidly connected to the shift shaft (116).
A sleeve (137) with locking lever (136) is arranged on the shift shaft in
such a way that it can move.
A roller (138a) attached to the shift detent carrier and two rubber stops
(128b) on the shift gate (128) dampen noise during the transverse
movement of the selector lever.

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
