Mercedes-Benz ML320. Service manual - part 328





Parts ordering notes

5

Remove air conditioning
pushbutton control
module





6

Remove overhead control
panel microphone flap





7

Tie antenna lead

 Tied back in radio

shaft





Install





8

Retrofit telephone cable
harness



AZ82.70-P-0001-04G

9

Retrofit hands-free
system microphone

 Mount in overhead

control panel.

AZ82.70-P-0001-02GH

10

Retrofitting telephone
console



AZ82.70-P-0001-01G

11

Install antenna on roof



See installation
instructions from the
Kathrein company.





12

Check portable cellular
telephone for proper
function





13

Complete vehicle
(following steps 6 to 1)





Part no.

Designation

Quantity

B6 787 57 01

Electro kit parts set (for D-net
only)

1

B6 788 04 54

Portable cellular telephone
console anthracite LHS

1

B6 788 04 59

Portable cellular telephone
console anthracite RHS

1

B6 788 04 55

Portable cellular telephone
console orion gray middle LHS

1

B6 788 04 58

Portable cellular telephone
console orion gray middle RHS

1

B6 788 04 56

Portable cellular telephone
console java LHS

1

B6 788 04 57

Portable cellular telephone
console java RHS

1

B6 682 86 09

Cover (with microphone), color
java

1

B6 682 86 10

Cover (with microphone), color
light gray

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



RETROFIT PERMANENTLY INSTALLED GSM NETWORK CAR PHONE - AZ82.70-P-0002A

MODEL 163 up to 30.11.99

Nokia 6081 permanently installed telephone

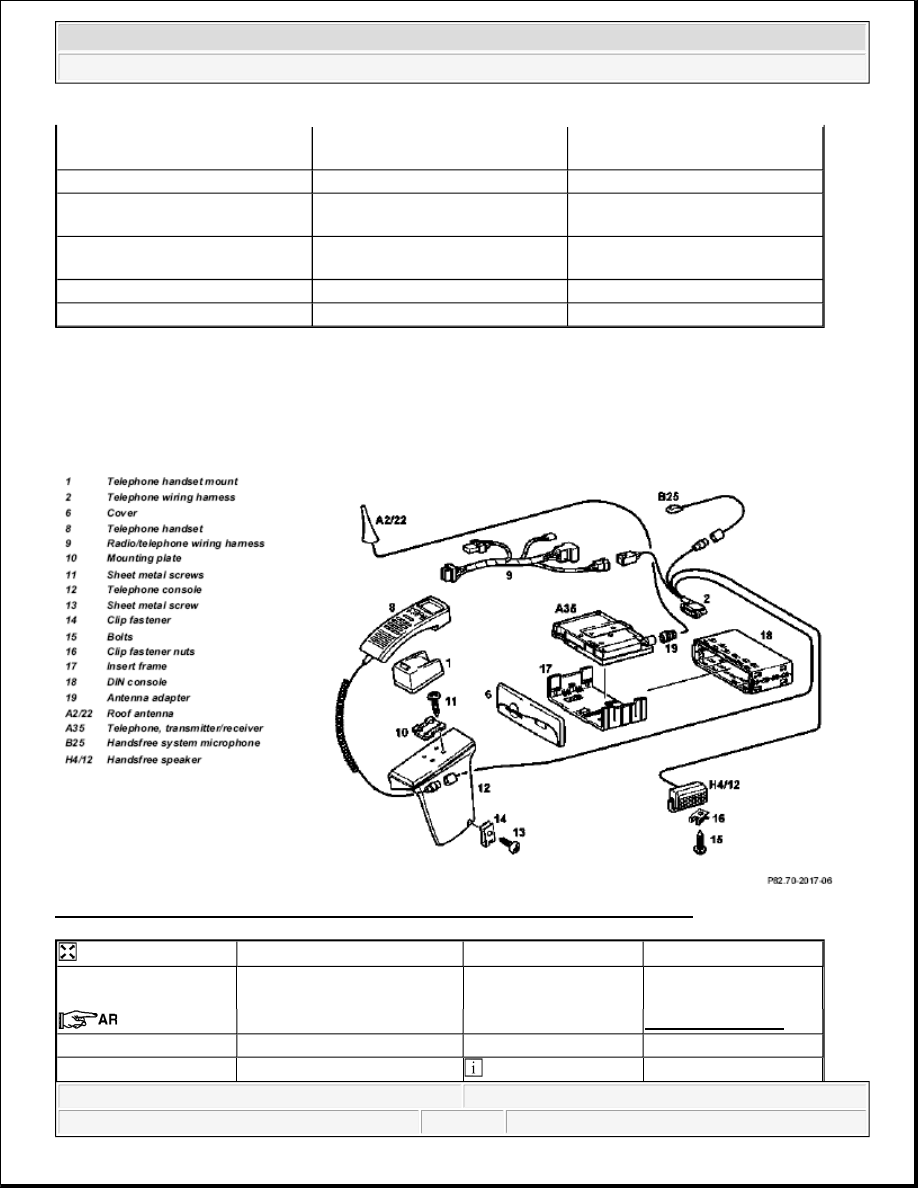

Fig. 399: Identifying Permanently Installed GSM Network Car Phone Components

B6 787 58 15

Telephone bracket, Nokia
5110/6110

1

B6 787 58 13

Telephone bracket, Nokia 6210

1

B6 787 58 17

Telephone bracket, Nokia
6310/631 0i

1

B6 787 58 14

Telephone bracket, Siemens
S/C/M35

1

B6 787 58 12

Telephone bracket, Siemens SL45 1

B6 788 01 28

Kathrein radiator-type antenna

as required



Removal





1

Disconnect ground cable of
battery











AR54.10-P-0003A

2

Remove radio





3

Remove stowage compartment

 No longer required.





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Parts ordering notes

below radio

4

Remove stowage compartment
in center armrest





5

Remove wooden cover from
shift lever





6

Remove A-pillar paneling at
top right





7

Remove cover below right
instrument panel





8

Tie out D-net antenna lead

 Tied back in radio

shaft.





Installation





9

Modify wiring harness and
install



AZ82.70-P-0001-04B

10

Installing handsfree system
microphone



AZ82.70-P-0001-02A

11

Install loudspeaker



AZ82.70-P-0001-03B

12

Install holder on telephone
console



AZ82.70-P-0001-01B

13

Installing transmitter/receiver

AZ82.70-P-0001-06A

14

Install D-net antenna on roof

 See assembly

instructions from
Kathrein company
Install antenna without
modification.



15

Carry out function check





16

Fit parts to vehicle 7-1





Part no.

Designation

Quantity

B6 787 4158

Permanently installed unit, Nokia
6081

1

B6 787 4161

Vehicle installation kit, Nokia
KNME-2 (DIN/ISO installation
frame)

1

B6 788 0128

Antenna radiator, Kathrein

1

A000 823 00 77

Antenna adapter, mini UHF/SAP

1

B6 787 4162

Wiring harness assy.

1

B6 787 6794

Telephone console, sand, left-hand
steering

1

B6 787 6804

Telephone console, sand, right-
hand steering

1

B6 787 6798

Telephone console, gray, left-hand 1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



RETROFIT PERMANENTLY INSTALLED GSM NETWORK CAR PHONE - AZ82.70-P-0002C

MODEL 163 as of 1.12.99 up to 31.8.00

fixed installation Nokia 6090 CTEL

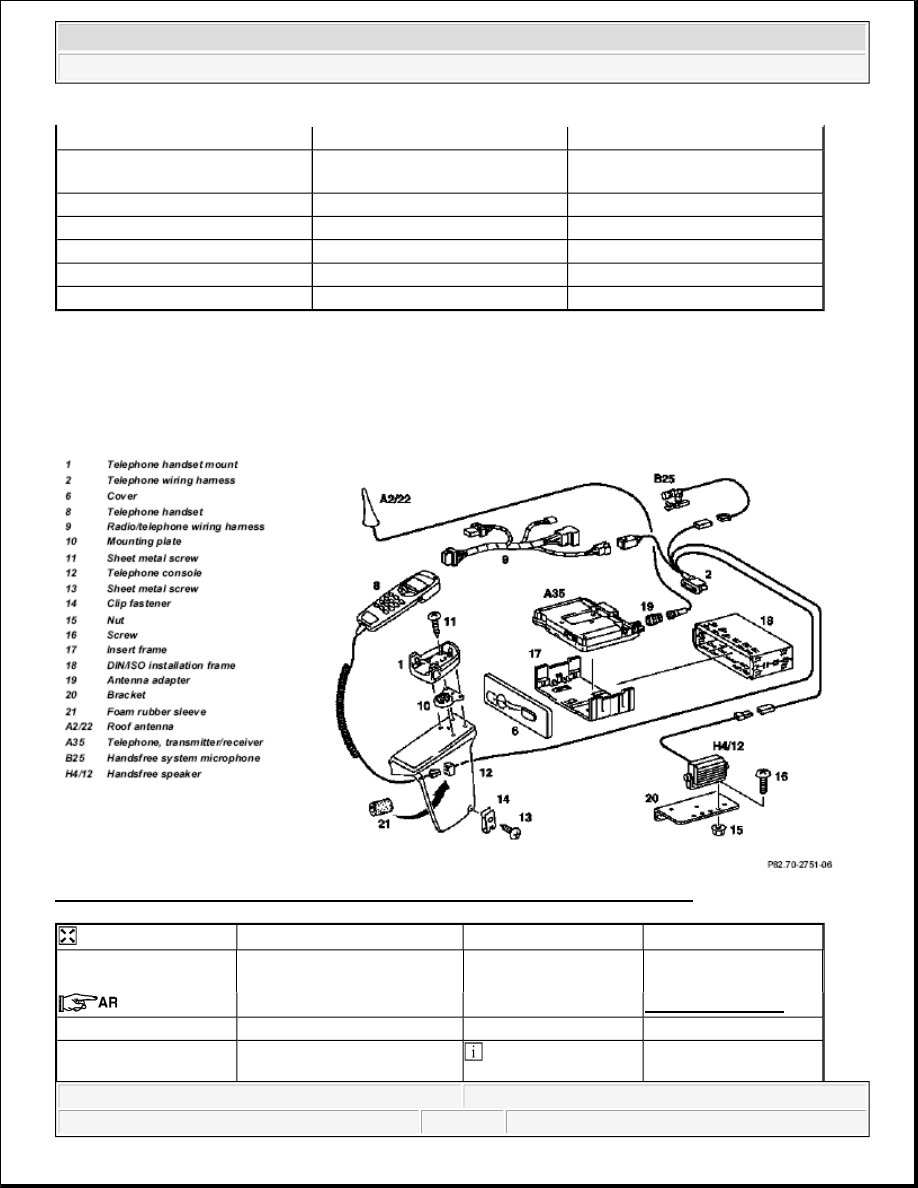

Fig. 400: Identifying Permanently Installed GSM Network Car Phone Components

steering

B6 787 6808

Telephone console, gray, right-
hand steering

1

Group 82 (see EPC)

Packard connector housing

1

Group 82 (see EPC)

Packard terminals

5

N914 127 004 204

Sheet metal screw

2

A002 994 11 45

Clip fastener

2

A000 989 92 71

Special glue

1



Removal





1

Disconnect ground cable of
battery











AR54.10-P-0003A

2

Remove radio





3

Remove stowage compartment
below radio

 No longer required.





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
