Mercedes-Benz ML320. Service manual - part 327





Parts ordering notes

RETROFITTING D-NETWORK CELL PHONE - AZ82.70-P-0001D

MODEL 163 as of 1.12.99 up to 31.8.00

Nokia 3110 portable cellular telephone

System illustration for installation

system microphone

11

Install loudspeaker



AZ82.70-P-0001-03A

12

Modify wiring harness
and install



AZ82.70-P-0001-04A

13

Install D-net antenna on
roof

 See assembly

instructions from
Kathrein company
Install antenna without
modification.



14

Check portable cellular
telephone for proper
function





15

Fit parts to vehicle 7-1





Part no.

Designation

Quantity

B6 787 4155

Portable cellular telephone, Nokia
3110

1

B6 787 4160

Motor vehicle installation kit,
Nokia CARK-74

1

B6 788 0128

Antenna radiator, Kathrein

1

B6 787 4162

Wiring harness assy.

1

B6 787 6794

Telephone console, sand, left-hand
steering

1

B6 787 6804

Telephone console, sand, right-
hand steering

1

B6 787 6798

Telephone console, gray, left-hand
steering

1

B6 787 6808

Telephone console, gray, right-
hand steering

1

Group 82 (see EPC)

Packard connector housing

1

Group 82 (see EPC)

Packard terminals

5

N914 129 005 000

Screw

2

Commercially available

Foam rubber 250 x 260 x 20

1

A000 989 92 71

Special glue

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



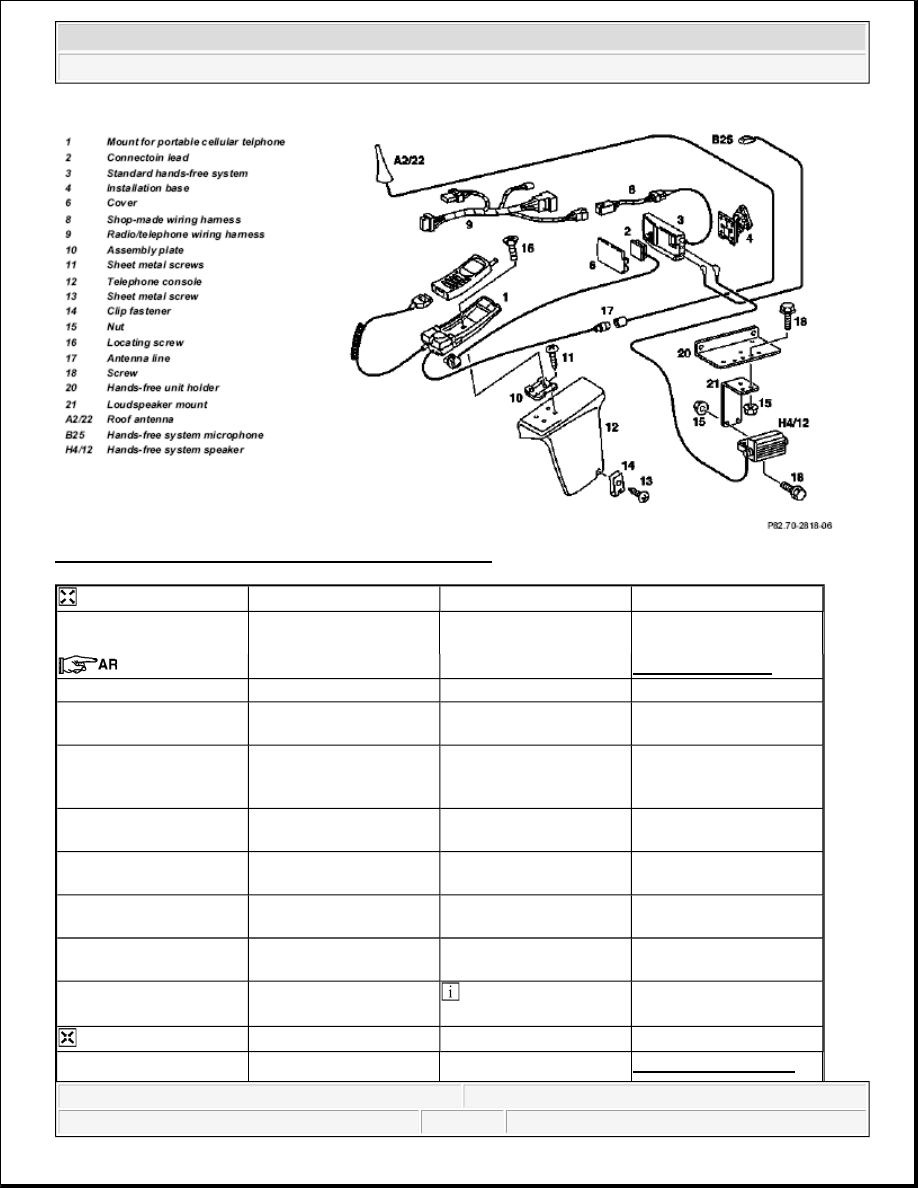

Fig. 397: Identifying D-Network Cell Phone Components



Removal





1

Disconnect ground cable
of battery











AR54.10-P-0003A

2

Remove radio





3

Remove stowage
compartment below radio





4

Remove stowage
compartment in center
armrest





5

Remove wooden cover
from shift lever





6

Remove cover below
instrument panel on right





7

Remove automatic A/C
control panel





8

Remove A-pillar paneling
at top right





9

Tie out D-network
antenna lead

 Tied back in radio

shaft.





Installation





10

Install holder on



AZ82.70-P-0001-01A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Parts ordering notes

telephone console

11

Install hands-free
microphone



AZ82.70-P-0001-02A

12

Modify wiring harness
and install



AZ82.70-P-0001-04D

13

Install loudspeaker



AZ82.70-P-0001-03D

14

Install D-net antenna on
roof

 See installation

instructions from the
Kathrein company.
Install antenna without
modification.



15

Retrofit antenna lead

 Only on vehicles with

Audio 30 APS radio

AZ82.70-P-0002-01A

16

Check portable cellular
telephone for proper
function





17

Reassemble vehicle, 8-1



Part no.

Designation

Quantity

B6 787 41 55

Nokia 3110 portable cellular
telephone

1

B6 787 41 60

Motor vehicle installation kit,
Nokia CARK-74

1

B6 788 01 28

Antenna radiator, Kathrein

1

B6 787 41 62

Wiring harness assy.

1

B6 788 03 46

Telephone console, anthracite,
left-hand steering

1

B6 788 03 49

Telephone console, anthracite,
right-hand steering

1

B6 788 03 47

Telephone console, medium orion-
gray, left-hand steering

1

B6 788 03 50

Telephone console, medium orion-
gray, right-hand steering

1

B6 788 03 48

Telephone console, java, left-hand
steering

1

B6 788 03 51

Telephone console, java, right-
hand steering

1

A035 545 0328

Packard connector housing

1

A035 545 1128

Packard terminals

5

N007 985 004 107

Screw

5

N304 032 004 002

Nut

5

commercially available

Foam rubber

as required



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



RETROFIT D-NETWORK CELL PHONE - AZ82.70-P-0001GH

MODEL 163 as of 1.10.01

for D-net portable CTEL only

System illustration for installation

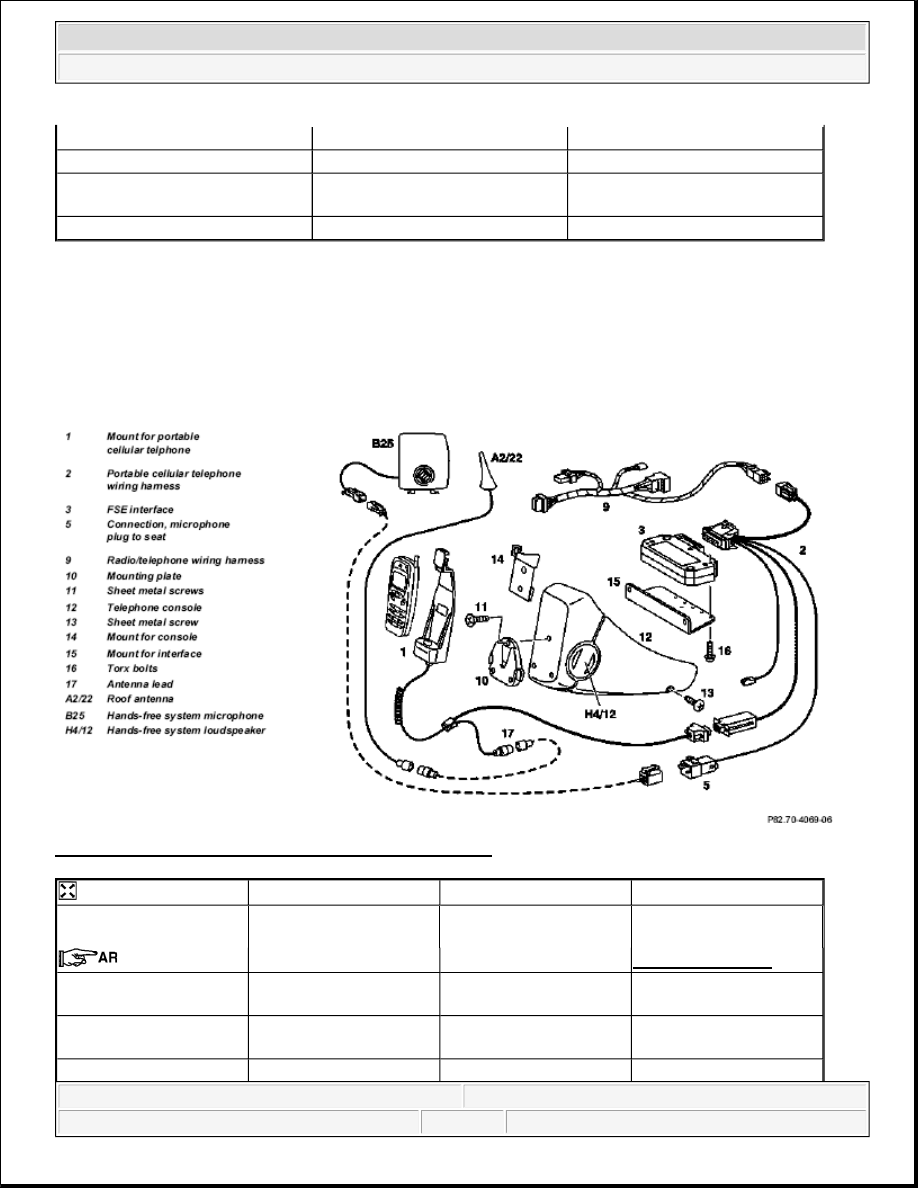

Fig. 398: Identifying D-Network Cell Phone Components

B6 788 03 52

Hands-free unit holder

1

B6 788 03 53

Loudspeaker mount

1

A163 540 02 13

Antenna lead (adapter lead on
Audio 30 APS radio)

1

A000 989 92 71

Special glue

as required



Remove





1

Disconnect ground cable
of battery











AR54.10-P-0003A

2

Remove radio or
COMAND





3

Remove stowage
compartment below radio





4

Remove cover from radio





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
