Mercedes-Benz ML320. Service manual - part 326





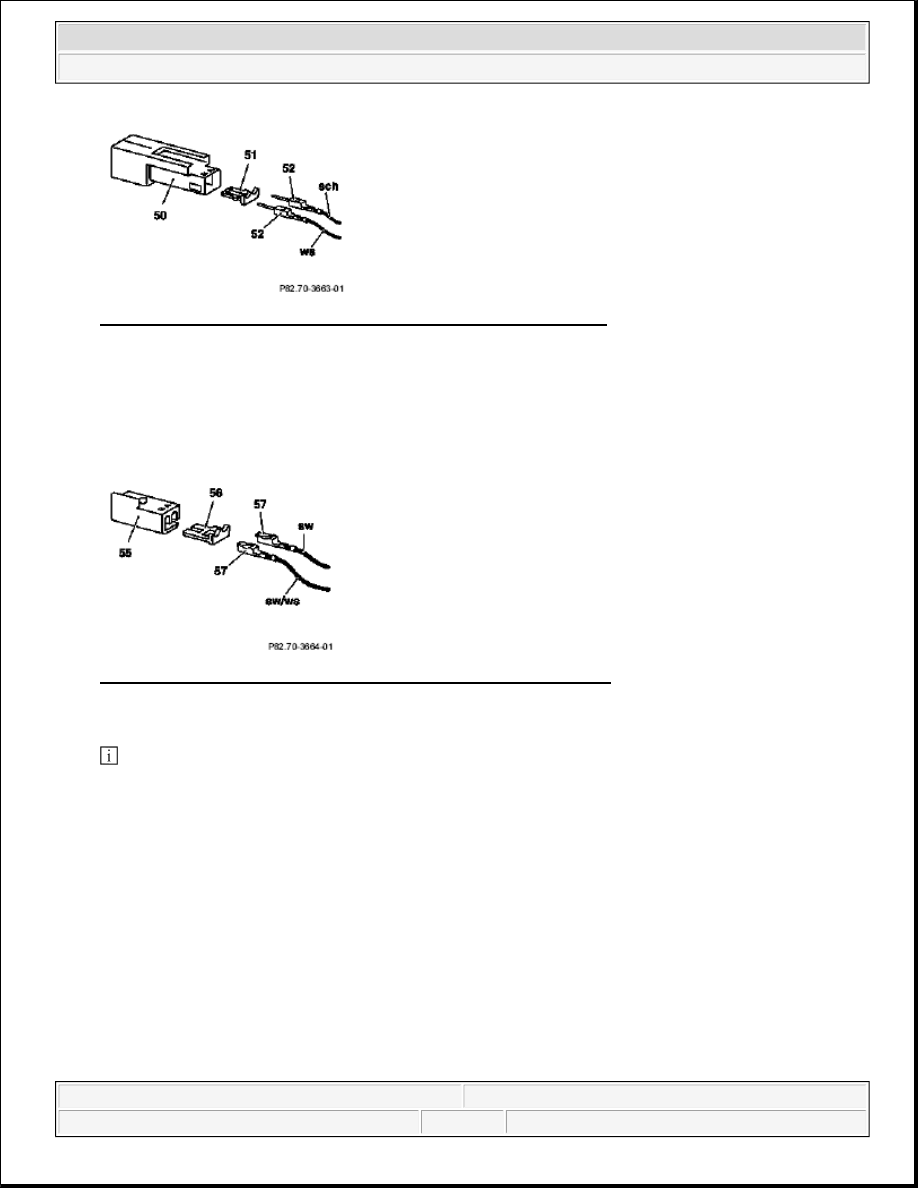

Fig. 390: Identifying Flat Connector, Connector Housing & Catch

16. Fit flat receptacle (57) to the back cable (sw) and insert into chamber A (on left) of the black receptacle

housing (55).

17. Fit flat receptacle (57) to the black/white cable (sw/ws) and insert into chamber B (on right) of the black

receptacle housing (55).

18. Close receptacle housing (55) with catch (56).

Fig. 391: Identifying Flat Receptacle, Receptacle Housing & Catch

19. Insert wiring harness (2) into instrument panel working from the glove compartment.

 The tied-back part must be placed below the strut (arrows) at the glove compartment.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



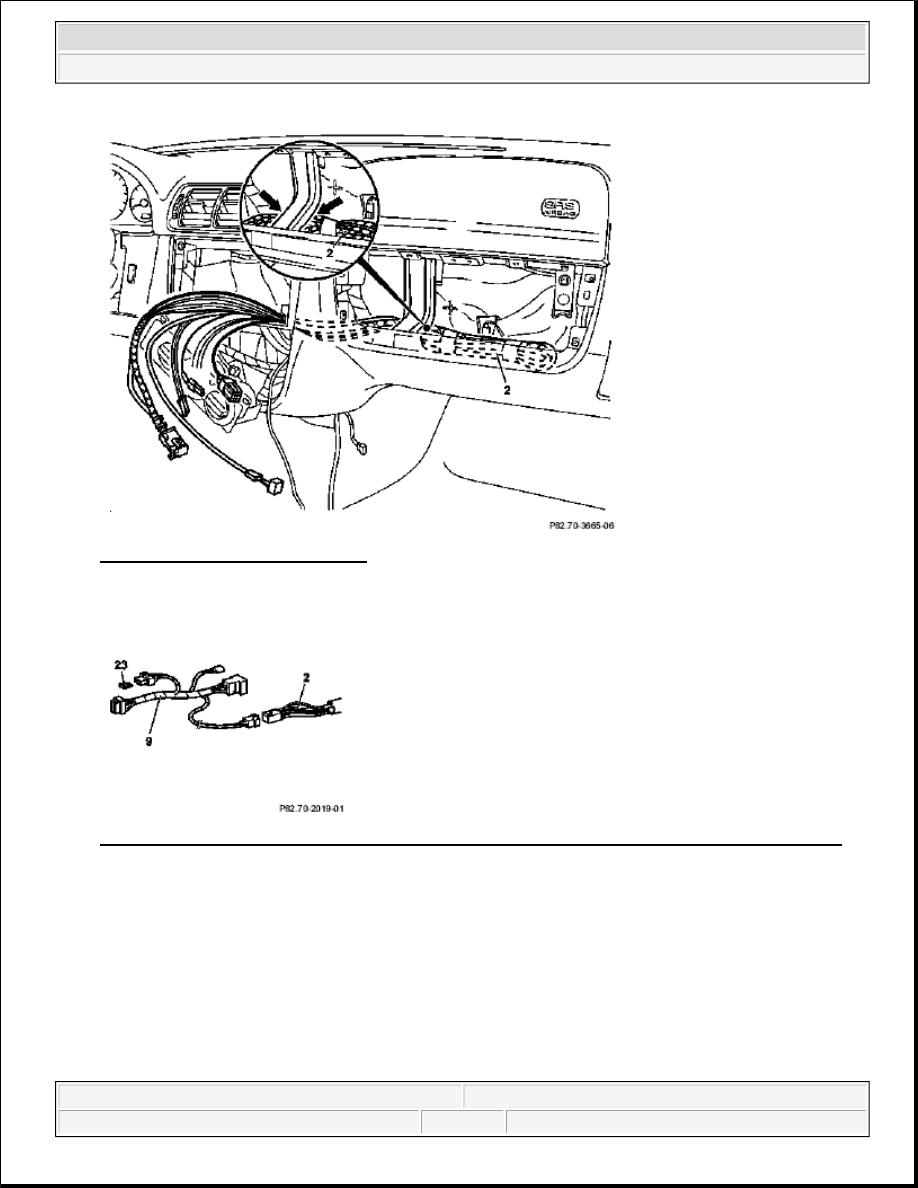

Fig. 392: Locating Wiring Harness

20. Connect telephone wiring harness (2) to adapter wiring harness (9).

21. Check fuse (23) (a 10A fuse should be present).

Fig. 393: Identifying Telephone Wiring Harness To Adapter Wiring Harness Connection & Fuse

22. Connect adapter wiring harness (9) to radio wiring harness and insert into radio slot.

23. Place microphone cable of telephone wiring harness (2) into radio slot.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



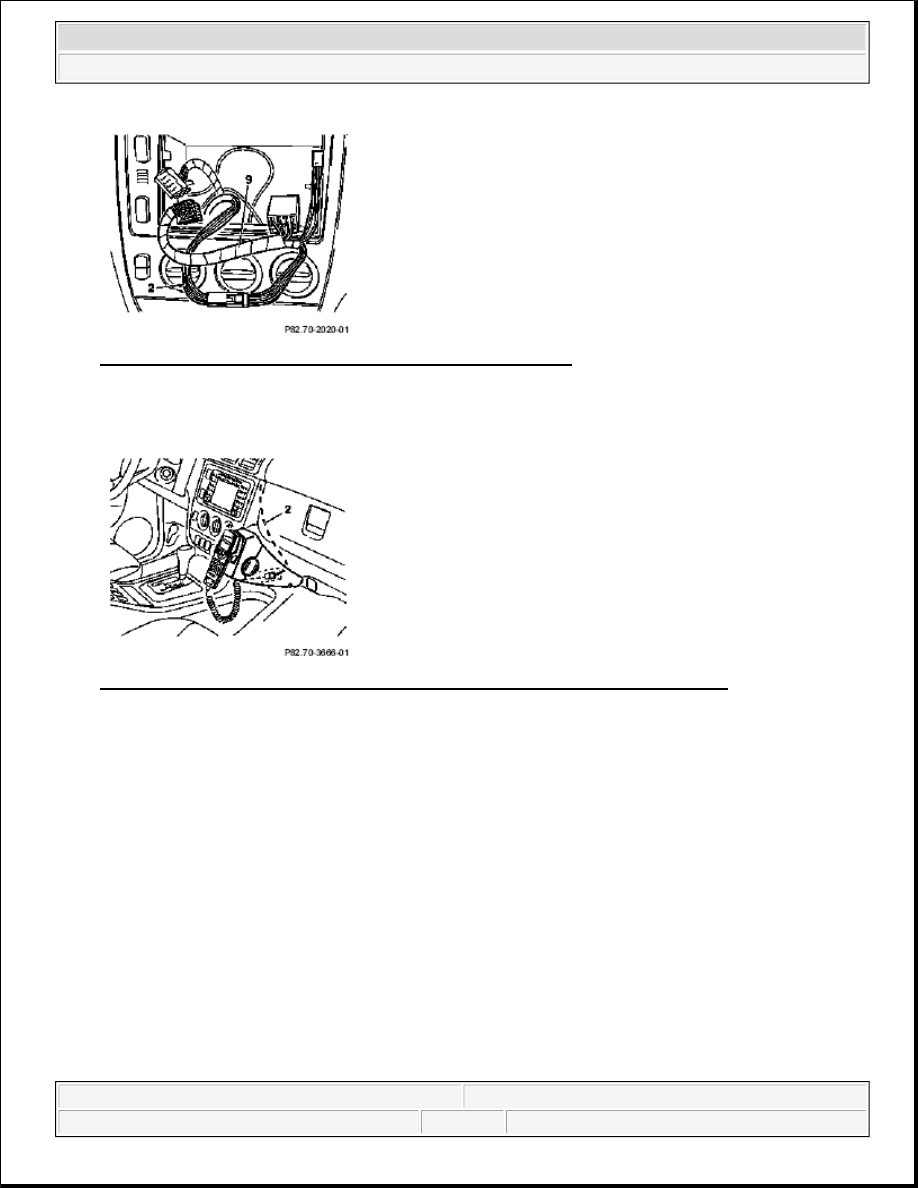

Fig. 394: Identifying Telephone & Adapter Wiring Harnesses

24. Route connection cable of telephone wiring harness (2) to telephone handset in cockpit as shown in

figure.

Fig. 395: Identifying Telephone Wiring Harness & Telephone Handset In Cockpit

RETROFIT D-NETWORK CELL PHONE - AZ82.70-P-0001A

MODEL 163 up to 30.11.99

Nokia 3110 portable cellular telephone

System illustration for installation



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



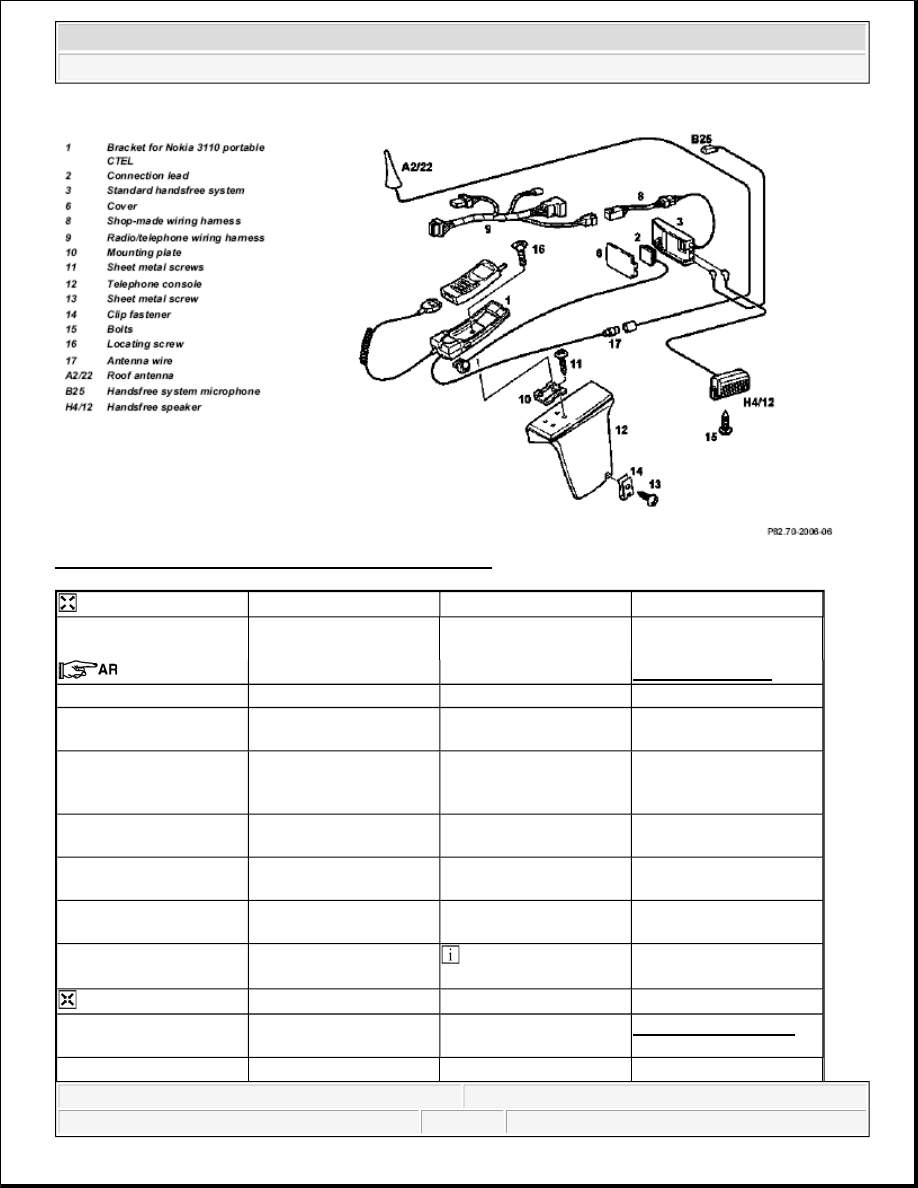

Fig. 396: Identifying D-Network Cell Phone Components



Removal





1

Disconnect ground cable
of battery











AR54.10-P-0003A

2

Remove radio





3

Remove stowage
compartment below radio





4

Remove stowage
compartment in center
armrest





5

Remove wooden cover
from shift lever





6

Remove cover below
right instrument panel





7

Remove A-pillar paneling
at top right





8

Tie out D-net antenna
lead

 Tied back in radio

shaft.





Install





9

Install holder on
telephone console



AZ82.70-P-0001-01A

10

Installing hands free



AZ82.70-P-0001-02A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
