Mercedes-Benz ML320. Service manual - part 295





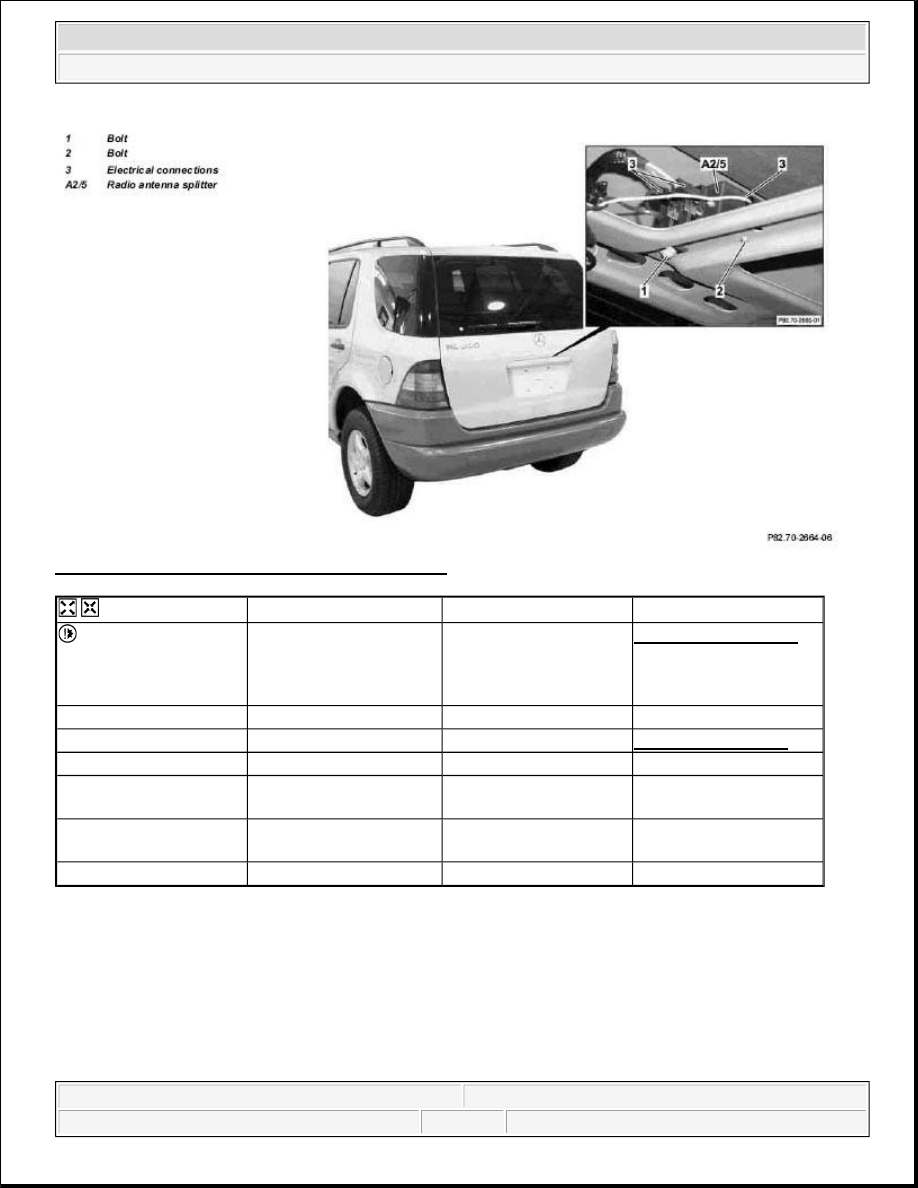

Fig. 216: Identifying Antenna Splitter Components

REMOVE/INSTALL ELECTRONIC COMPASS - AR82.85-P-7371GH

MODELS 163.113 /154 /172 /174 #A as of 221506, 163.113 #X as of 734088, 163.128 /157 /175 with CODE
(245) Trip computer






Remove/install







Information on preventing
damage to electronic
components due to
electrostatic discharge



AH54.00-P-0001-01A

1

Open rear-end door





2

Remove liner on tailgate



AR72.20-P-3520GH

3

Remove bolts (1, 2)





4

Disconnect electrical
connectors (3)





5

Remove radio antenna
splitter (A2/5)





6

Install in the reverse order





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



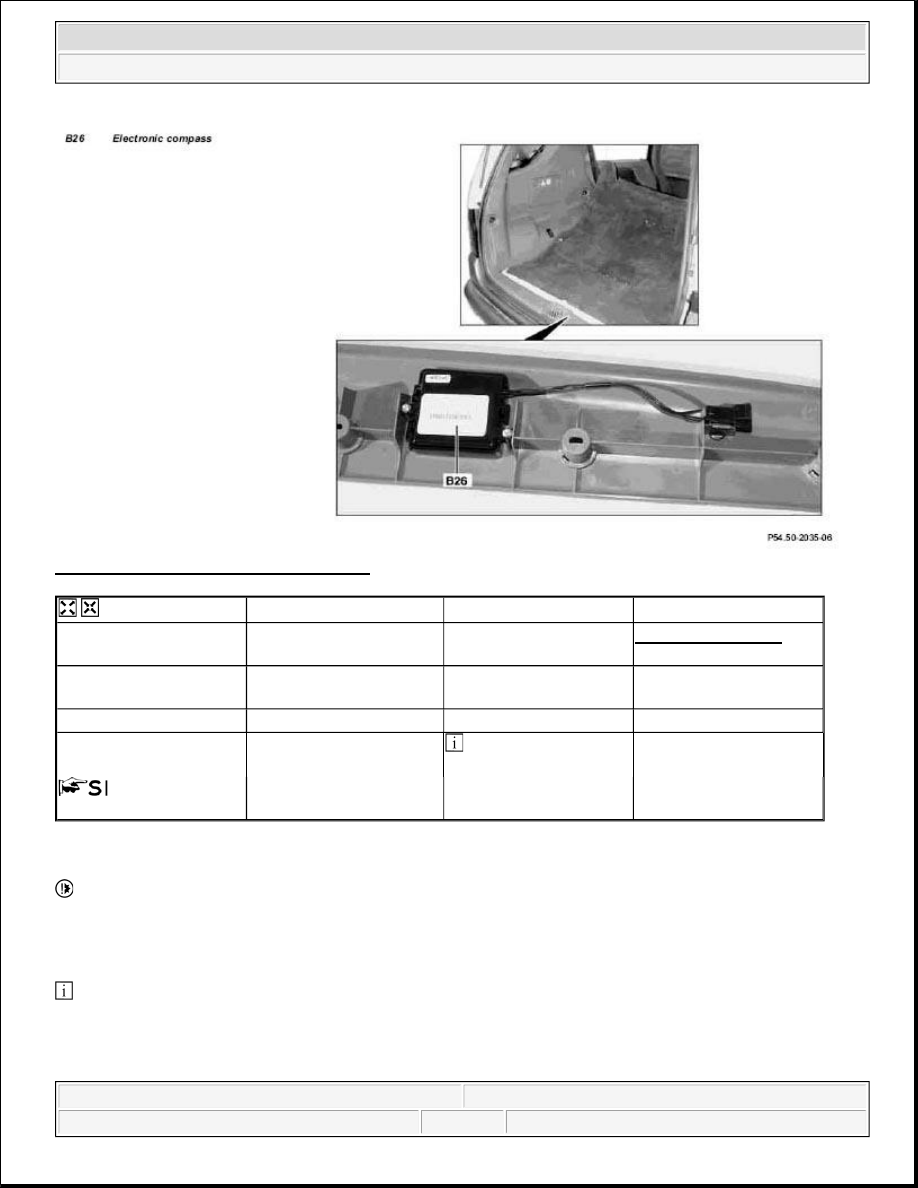

Fig. 217: Identifying Electronic Compass

COVER FIBER OPTIC CABLE - AR82.95-P-0005-01A

 Do not remove protective covers too early from the fiber optic cable coupling (3) or the device connection

(4) because contaminated or scratched surfaces may absorb the light. Fiber optic cables must not be kinked,
routed over sharp edges or bent in radii of less than 25 mm, otherwise the fiber optic cable core will be
yellowed and broken. Yellowed or broken fiber optic cables weaken the light.

 The work procedure is shown on components of the digital data bus (D2B).

1. Carefully detach the fiber optic cable coupling (3) from the device connection (4) and cover it with a

protective cap (1), stop plug (2) or a clean rag.





Remove/Install





1

Remove door sill molding
in load compartment



AR68.30-P-4100GI

2

Remove electronic
compass (B26)





3

Install in the reverse order



4.1

Calibrate compass and
perform zone adjustment

 Only when the

compass is replaced.





Service Information:
Compass in trip computer



SI54.50-P-0001A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



 The protective cap (1) and stop plug (2) for the digital data bus (D2B) components are not separately

available. The protective caps (1) and plugs (2) of installed replacement parts must be used. The components of
the Media Oriented System Transport (MOST) must be covered up with clean rags, as generally they are not
fitted with protective caps (1) and plugs (2).

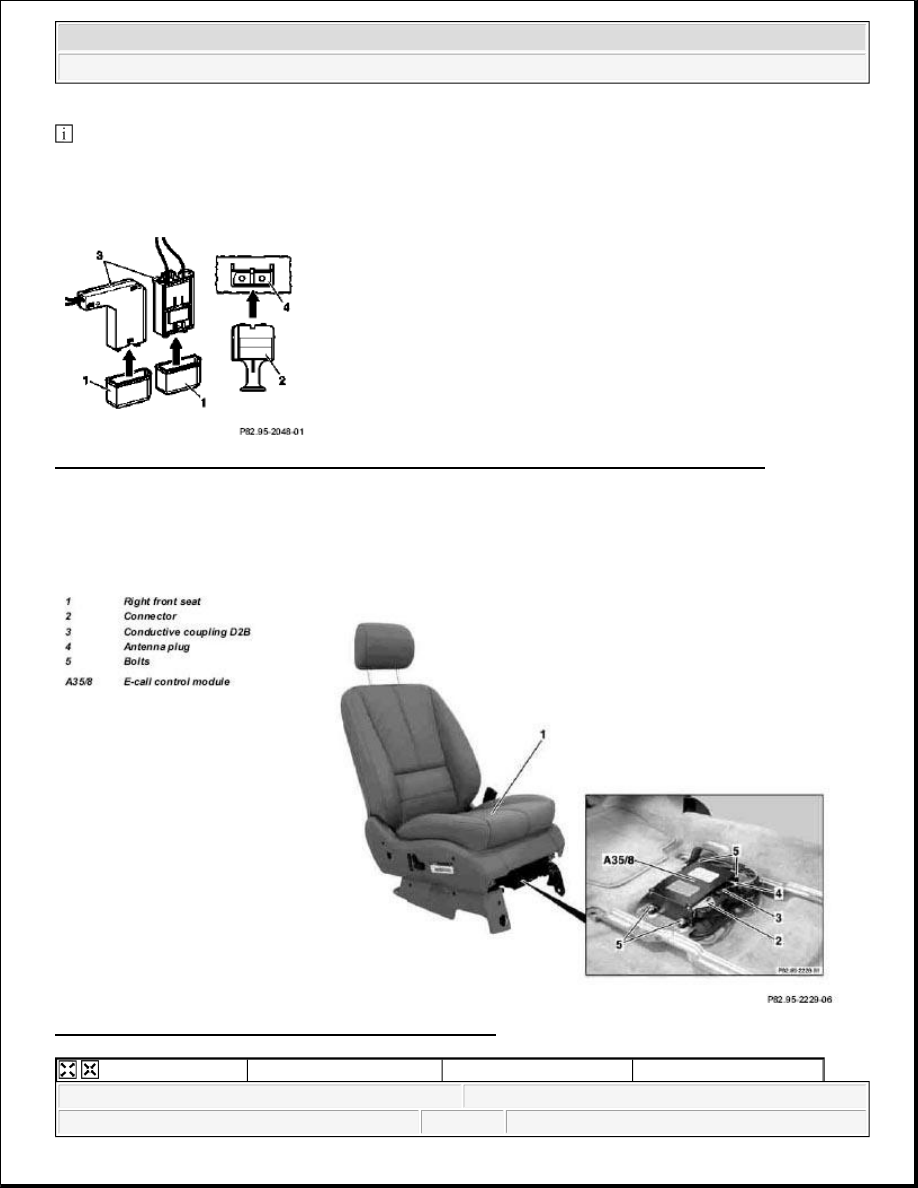

Fig. 218: Covering Fiber Optic Cable Coupling And Device Connection With Protective Cap

REMOVE/INSTALL CONTROL MODULE FOR E-CALL EMERGENCY CALL SYSTEM - AR82.95-P-0008GH

MODELS 163.113 /128 /154 /157 /172 /174 /175 with CODE (349) E Call emergency call system with
CODE (460) Additional parts Canadian vehicles with CODE (494a) USA version


Fig. 219: Identifying E-Call Control Module Components





Remove/install







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



 Front seats

REPLACE FIBER OPTICAL CABLE (D2B) BETWEEN THE RADIO AND E-CALL CONTROL MODULE/CTEL [TEL]
INTERFACE (AFTER TESTING) - AR82.95-P-0015GH

MODEL 163.136 #A as of 051500, 163.136 #X as of 708319, 163.154 #A as of 051500, 163.154 #X as of
708319, 163.172 #A as of 051500, 163.172 #X as of 708319, 163.113/128/157/174/175 with CODE (852)
CTEL preinstallation assembly at dome with CODE (854) MB portable cellular telephone


MODEL 163.154 /172 /174 #A as of 221506, 163.157/175 with CODE (349) E Call emergency call system
with CODE (494a) USA version


1

Remove fuse f8 from fuse
and relay module





2

Unscrew screws on front
seat console



*BA91.10-P-1001-01B

3

Angle front seat back
until it rests against the
rear bench seat and fasten
with outer seat belt

 Remove wiring

harness for E-call speaker
from E-call bracket.
Cover the floor covering
behind the front seat to
avoid contamination.



4

Detach connector (2) and
antenna plug (4) from the
E-call control module
(A35/8)





5

Detach conductive
coupling D2B (3)

 Do not kink or stretch

fiber optic cable. Press
protective caps on
conductive coupling and
device connection.

AR82.95-P-0005-01A

6

Unscrew screws (5)





7

Remove E-call control
module (A35/8)





8

Install in the reverse order



Number

Designation

Model Series 163

BA91.10-P-1001-01B

Bolt of seating mounting
bracket to vehicle floor

Nm 40



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
