Mercedes-Benz ML320. Service manual - part 293

the feed hose of the
liftgate washer system
to the front edge of the
C-pillar paneling

the CD changer bracket. Pull the
C-pillar paneling away from the
body for better accessibility.

13

Route the new D2B
wiring harness along
the feed hose of the
liftgate washer system
up to the right A-pillar

 Fasten the D2B wiring

harness to the body with inline
clips.



14

Route the new D2B
wiring harness along
the vehicle wiring
harness from the right
footwell to the top side
of the transmission
tunnel to the firewall

 Fasten the D2B wiring

harness to the vehicle wiring
harness using tie straps.



15

Route the exchange
D2B wiring harness (1)
on the carpet, through
under the heater
housing (2) to the left
side





16

Route exchange D2B
wiring harness (1) to
the radio installation
opening

 D2Fasten the B-wiring

harness to the vehicle wiring
harness using tie straps.



17

Screw the screw into
the top left corner
behind the cover for the
CD-changer





18

Screw the screw into
the bracket of the load
compartment cover and
install the load
compartment cover





19

Install the front load
compartment hooks on
the right C-pillar





20

Screw in the screw for
the outer rear seat belt
on the right-side



*BA91.40-P-1001-01D

21

Install right footwell
cover



AR68.30-P-4010GH

22

Install right door sill
molding



AR68.30-P-4100GH

23

Install the cover on the

AR68.10-P-1520GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



 Seat belts/emergency tensioning retractors

FIBER OPTICAL CABLE (D2B) REPLACE COMPLETE (AFTER TESTING) - AR82.70-P-0005GI

MODEL 163.136 #A as of 051500, 163.136 #X as of 708319, 163.154 #A as of 051500, 163.154 #X as of
708319, 163.172 #A as of 051500, 163.172 #X as of 708319, 163.113/128/157/174/175 with CODE (852)
CTEL preinstallation assembly at dome with CODE (854) MB portable cellular telephone

ECE-Ausfuhrung

MODEL 163.154 /172 /174 #A as of 221506, 163.157/175 with CODE (349) E Call emergency call system
with CODE (494a) USA version

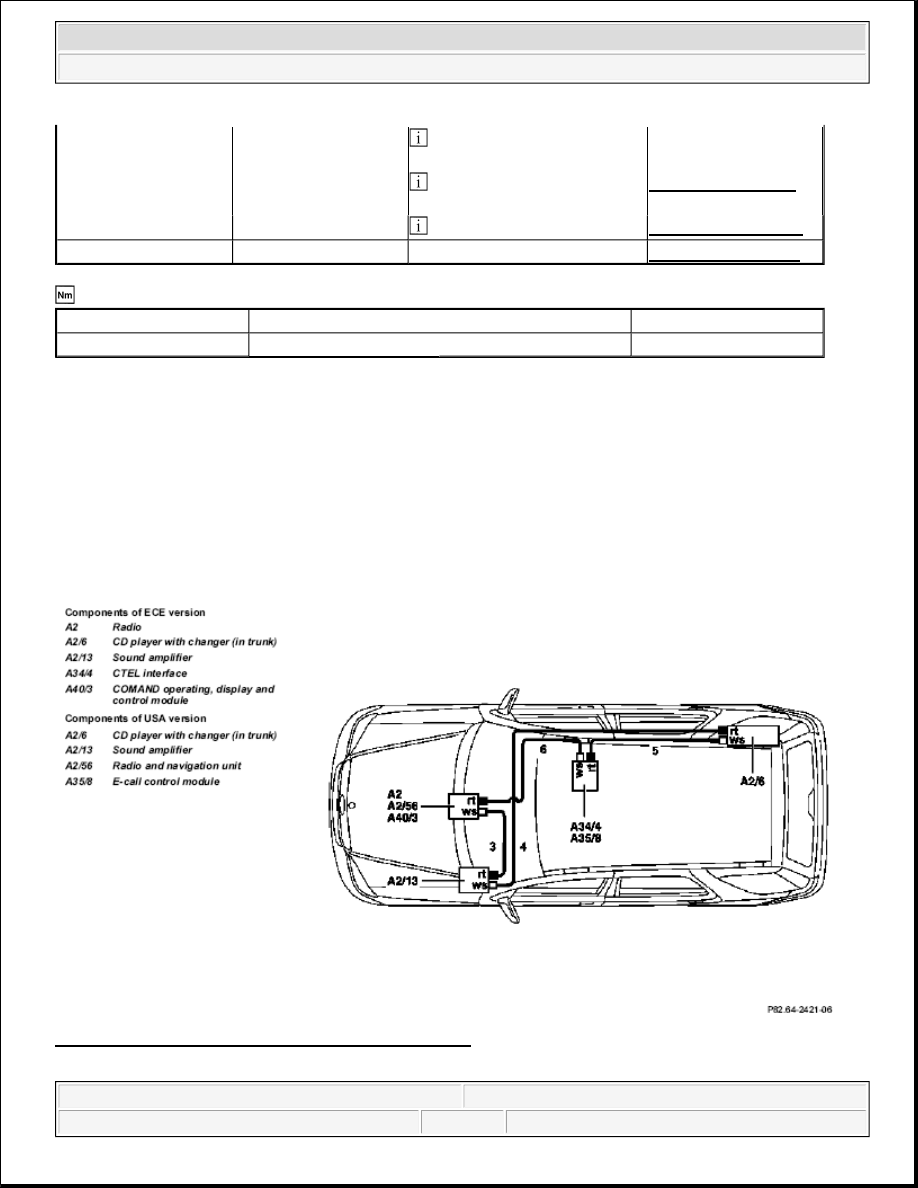

Fig. 210: Identifying Fiber Optical Cable Components

right under the
instrument panel

 Left hand steering vehicle up

to 31.8.99.





 Left hand steering vehicle as

of 1.9.99.

AR68.10-P-1520GI





 Right-hand drive vehicle.

AR68.10-P-1500GH

24

Install radio



AR82.60-P-7502EA

Number

Designation

Model 163 as of 09/99

BA91.40-P-1001-01D

Screw on belt end fitting

Nm 35



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



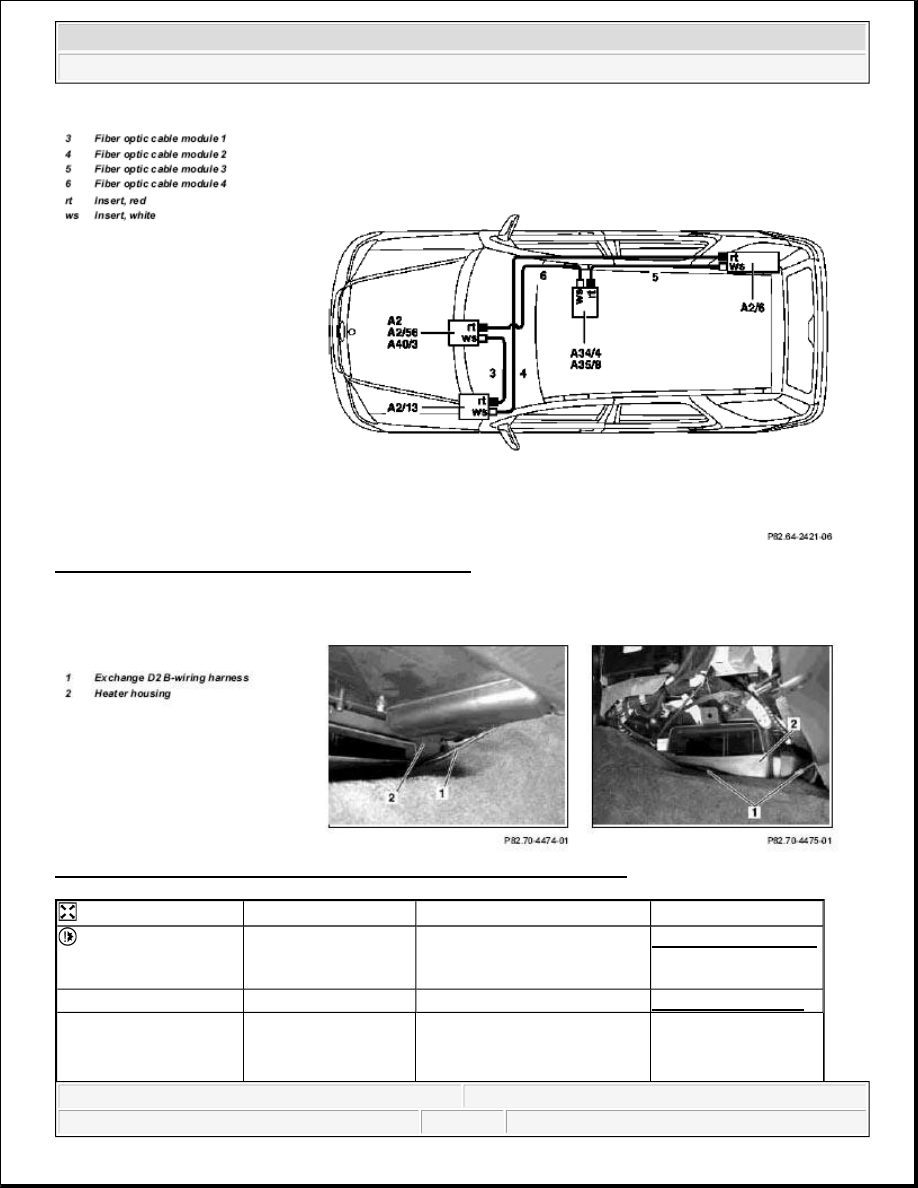

Fig. 211: Identifying Fiber Optical Cable Components

Cover on left under the instrument panel removed for a better display

Fig. 212: Identifying Exchange D2 B-Wiring Harness And Heater Housing



Remove







Notes on fiber optic
cable

Models 129,163, 168, 170, 202,
203, 208, 209,
210,215,220,230,463

AH82.70-P-0001-02A

1

Remove radio



AR82.60-P-7502EA

2

Cut the existing D2B
wiring harness as far as
possible away from the







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



connector to the radio

3

Remove cover on right
under the instrument
panel

 Left hand steering vehicle

up to 31.8.99.

AR68.10-P-1520GH





Left hand steering vehicle as

of 1.9.99.

AR68.10-P-1520GI





 Right-hand drive vehicle.

AR68.10-P-1500GH

4

Remove right-hand
side entrance strip



AR68.30-P-4100GH

5

Remove footwell cover
on right



AR68.30-P-4010GH

6.1

Remove E-Call control
module (A35/8)



AR82.95-P-0008GH

6.2

Remove CTEL [TEL]
interface (A34/4)





7

Disconnect D2B plug
from E-Call control
module (A35/8) or
CTEL [TEL] interface
(A34/4)

 E-call control module: with

USA version, code 494a. CTEL
[TEL] interface: ECE version



8

Remove air duct
behind the E-Call
control module
(A35/8) or CTEL
[TEL] interface
(A34/4)





9

Remove the existing
D2B wiring harness
between the E-call
control module
(A35/8) or CTEL
[TEL] interface
(A34/4) and firewall at
the transmission tunnel

 Cut off the existing D2B

wiring harness at the last tie
strap between the heater
housing (2) and firewall.





Install





10 Copyright
DaimlerChrysler AG
3/16/

Plug the plug from the
exchange D2B wiring
harness (1) into the E-
call control module
(A35/8) or CTEL
[TEL] interface
(A34/4) and route the
wiring harness under
the carpet to the right
A-pillar

 Risk of breakage! Do not

kink or stretch fiber optic cable
Before routing, install the caps
on the fiber optical cable.

 Fasten D2B wiring harness

to the body using existing clips.
