Mercedes-Benz ML320. Service manual - part 292





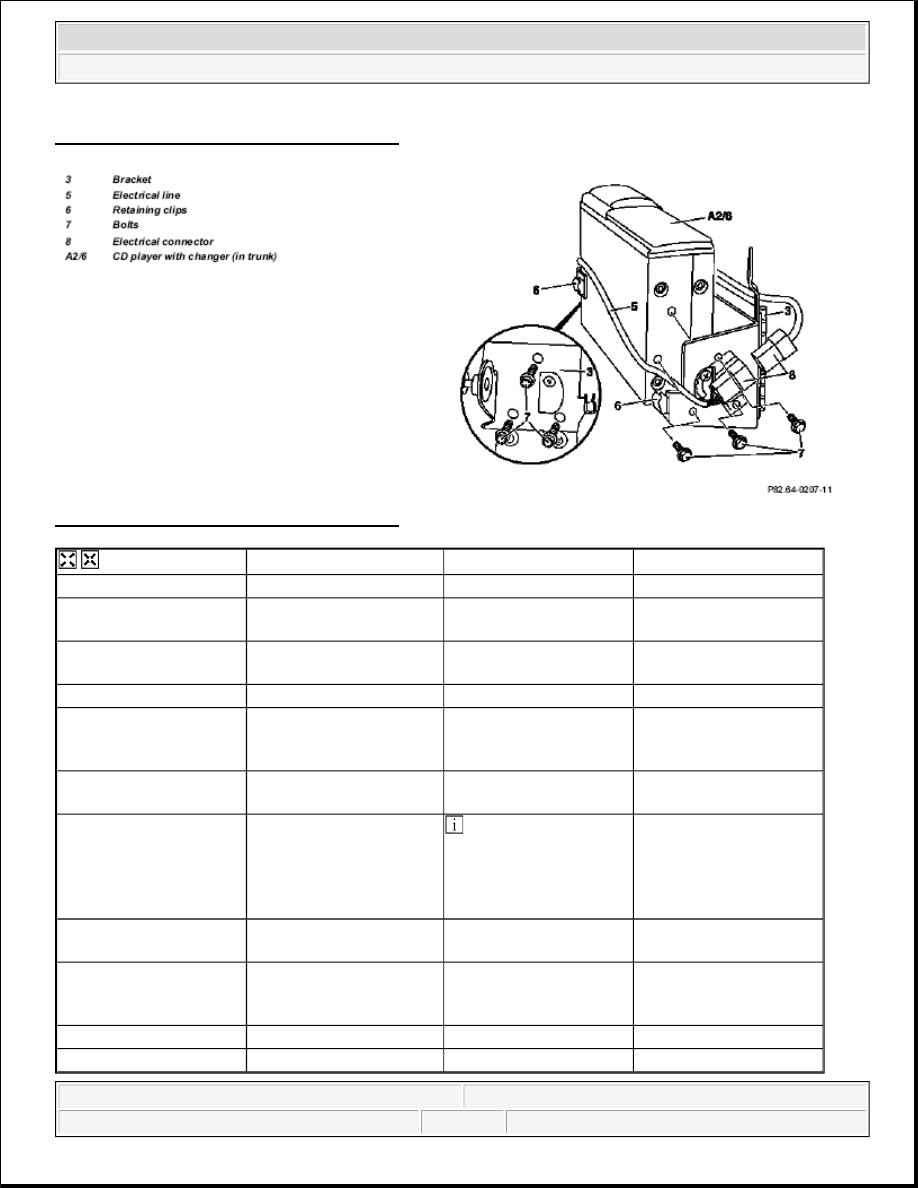

Fig. 205: Identifying CD Player Components

Fig. 206: Identifying CD Player Components





Remove/Install





1

Open tailgate





2

Open cover (1) and
remove





3

Loosen butterfly screw (2)
for mount (3)





4

Remove bolts (4).





5

Pull CD player with
changer (in trunk) (A2/6)
forward





6

Disconnect electrical plug
(8)





7

Remove CD player with
changer

 Installation: Ensure

that the vertical
installation position is set
on the side of the CD
player.



8

Unhook electric lead (5)
from retaining clips (6)





9

Unscrew screws (7) and
remove CD player with
changer from mount





10

Install in the reverse order



11

Perform a function test







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



FIBER OPTICAL CABLE (D2B) REPLACE COMPLETE (AFTER TESTING) - AR82.70-P-0005GH

MODEL 163.154 #A as of 145273, 163.154 #X as of 708319, 163.172 #A as of 145273, 163.172 #X as of
708319, 163.113 /128 /157 /174 /175 with CODE (819) 6-disk CD changer


ECE version

MODEL 163.154/172#A as of 221506, 163.157/174/175 with CODE (494a) USA version with CODE (819)
6-disk CD changer


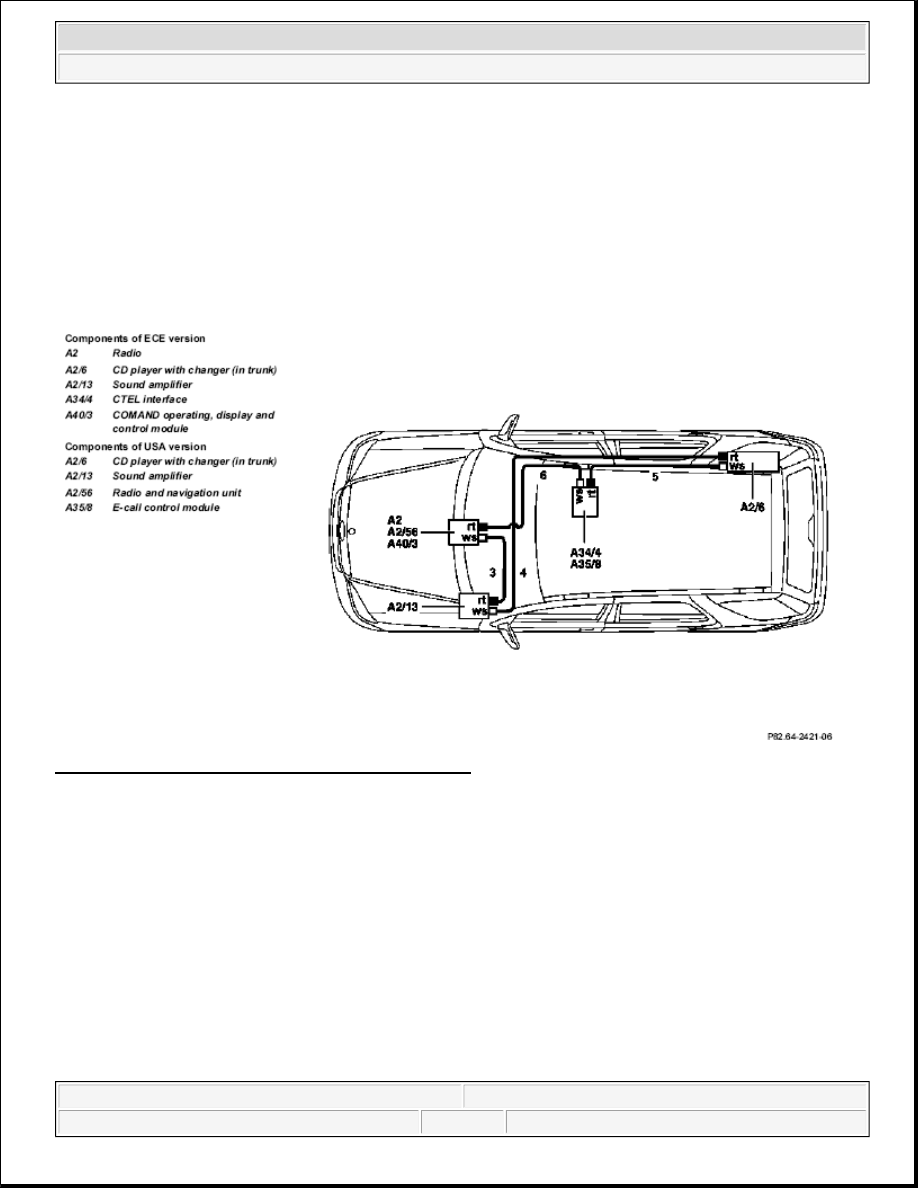

Fig. 207: Identifying Fiber Optical Cable Components



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



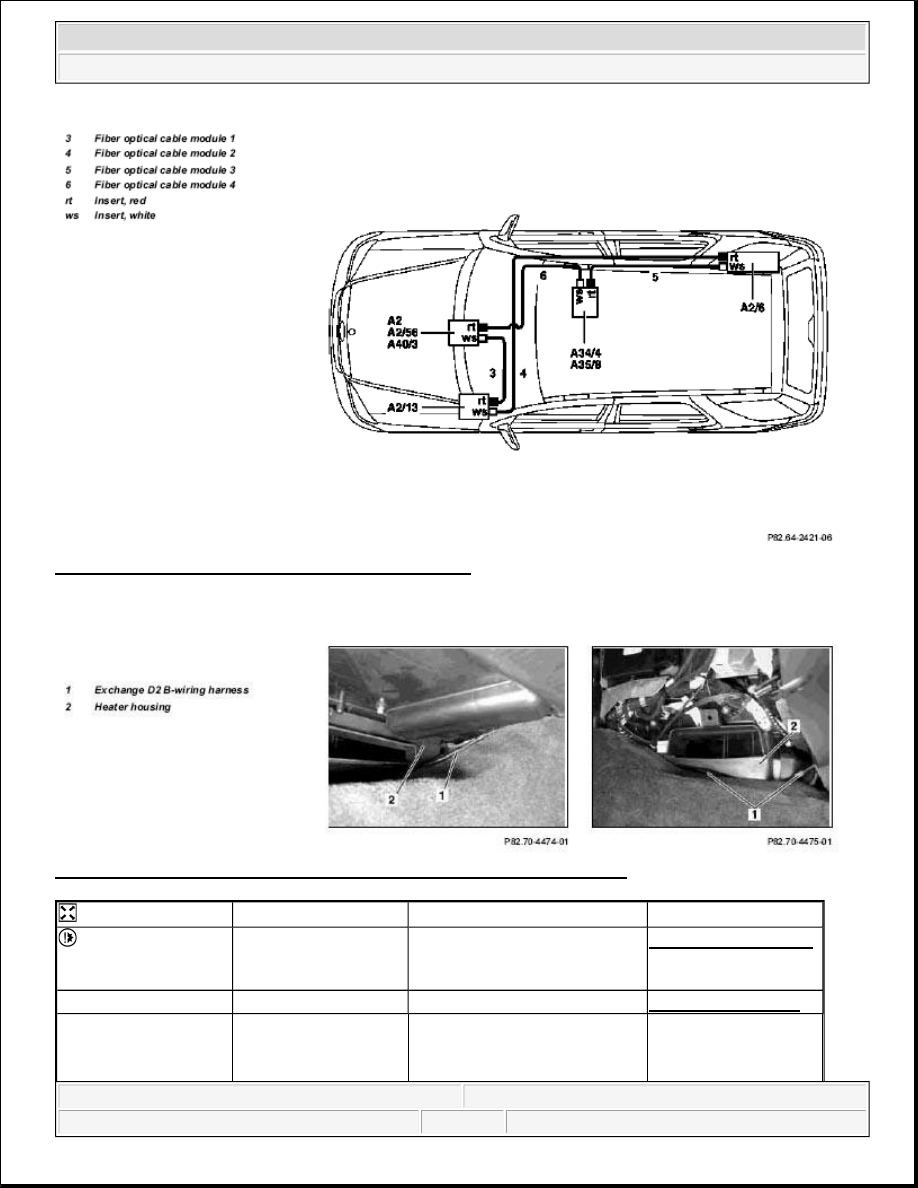

Fig. 208: Identifying Fiber Optical Cable Components

The cover on the left under the instrument panel removed for a better display

Fig. 209: Identifying Exchange D2 B-Wiring Harness And Heater Housing



Remove







Notes on fiber optic
cable

Models 129, 163, 168, 170, 202,
203, 208, 209,
210,215,220,230,463

AH82.70-P-0001-02A

1

Remove radio



AR82.60-P-7502EA

2

Cut through the
existing D2B wiring
harness as far as







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



possible from the
connector on the radio

3

Remove cover on right
under the instrument
panel

 Left hand steering vehicle up

to 31.8.99.

AR68.10-P-1520GH





 Left hand steering vehicle as

of 1.9.99.

AR68.10-P-1520GI





 Right-hand drive vehicle.

AR68.10-P-1500GH

4

Remove right-hand
side entrance strip



AR68.30-P-4100GH

5

Remove footwell cover
on right



AR68.30-P-4010GH

6

Unscrew the bolt for
the outer rear seat belt
on the right side





7

Remove the front load
compartment hooks on
the right C-pillar





8

Remove load
compartment cover and
unscrew the bolt in the
bracket





9

Remove cover for the
CD changer and
unscrew bolt behind
the cover in the top left
corner





10

Disconnect D2B plug
from CD changer and
unclip the wiring
harness from the
bracket





11

Remove the existing
D2B wiring harness
between the CD
changer and firewall at
the transmission tunnel

 Cut off the existing D2B

wiring harness at the last tie
strap between the heater housing
and firewall.
Only if the D2B wiring
harness is NOT in the interior
wiring harness
 .





Install





12

Plug the plug of the
new D2B wiring
harness into the CD
changer and route the
wiring harness along

 Risk of breakage! Do not

kink or stretch fiber optic cable
Before routing, push the caps
onto the fiber optical cable.

 Fasten the wiring harness to

AR82.95-P-0005-01A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
