Mercedes-Benz ML320. Service manual - part 290





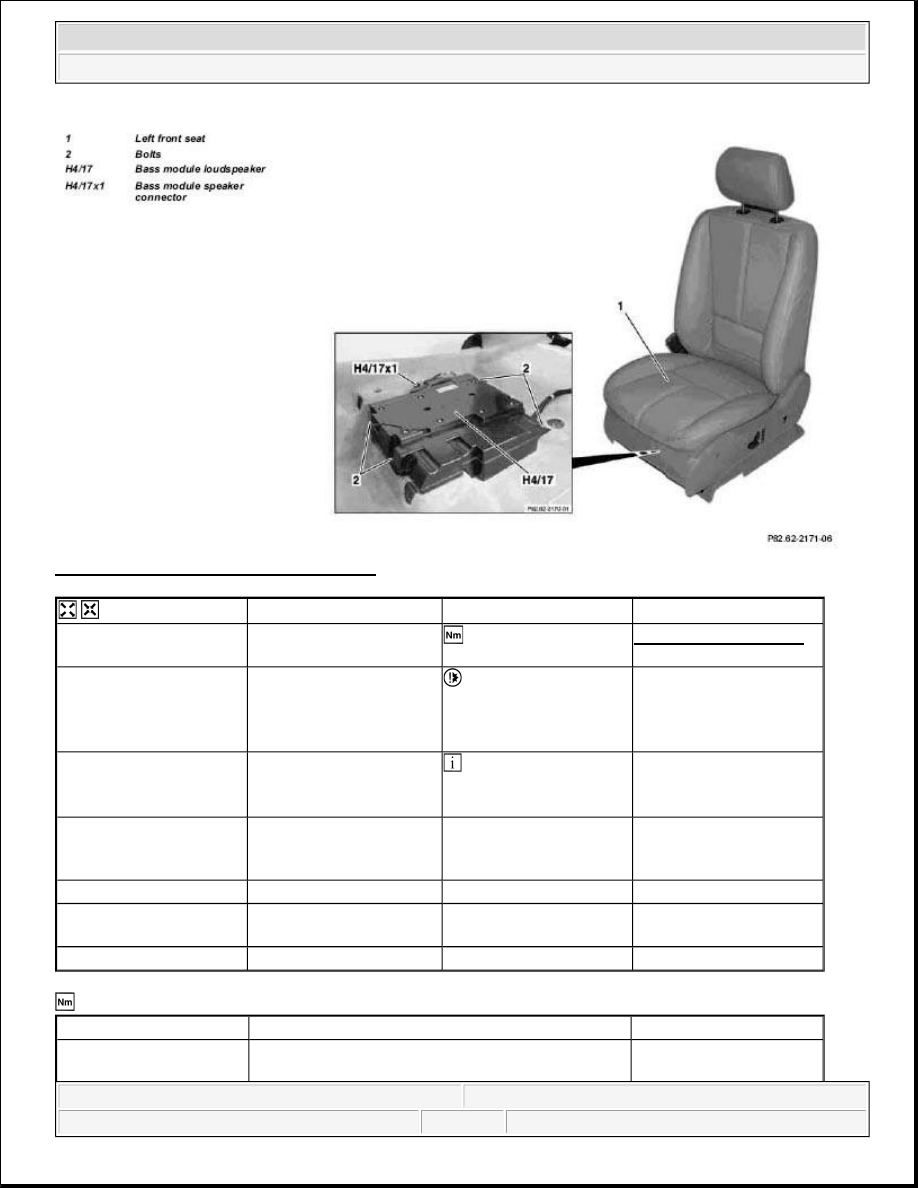

Fig. 197: Identifying Woofer Components

 Front seats





Remove/install





1

Unscrew screws on front
seat console



*BA91.10-P-1001-01B

2

Angle front seat back
until it rests against the
rear bench seat and fasten
with outer seat belt

 Cover the floor

covering behind the front
seat to avoid
contamination.



3.1

Remove air duct at the
rear of the front seat

 Only as of VIN

A289565, X754620. 1
screw.



4

Detach bass module
speaker connector
(H4/17x1)





5

Unscrew screw (2)





6

Remove bass module
speaker (H4/17)





7

Install in the reverse order



Number

Designation

Model Series 163

BA91.10-P-1001-01B

Bolt of seating mounting
bracket to vehicle floor

Nm 40



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



REMOVING AND INSTALLING LOUDSPEAKERS IN FRONT DOORS - AR82.62-P-7845GH

MODEL 163

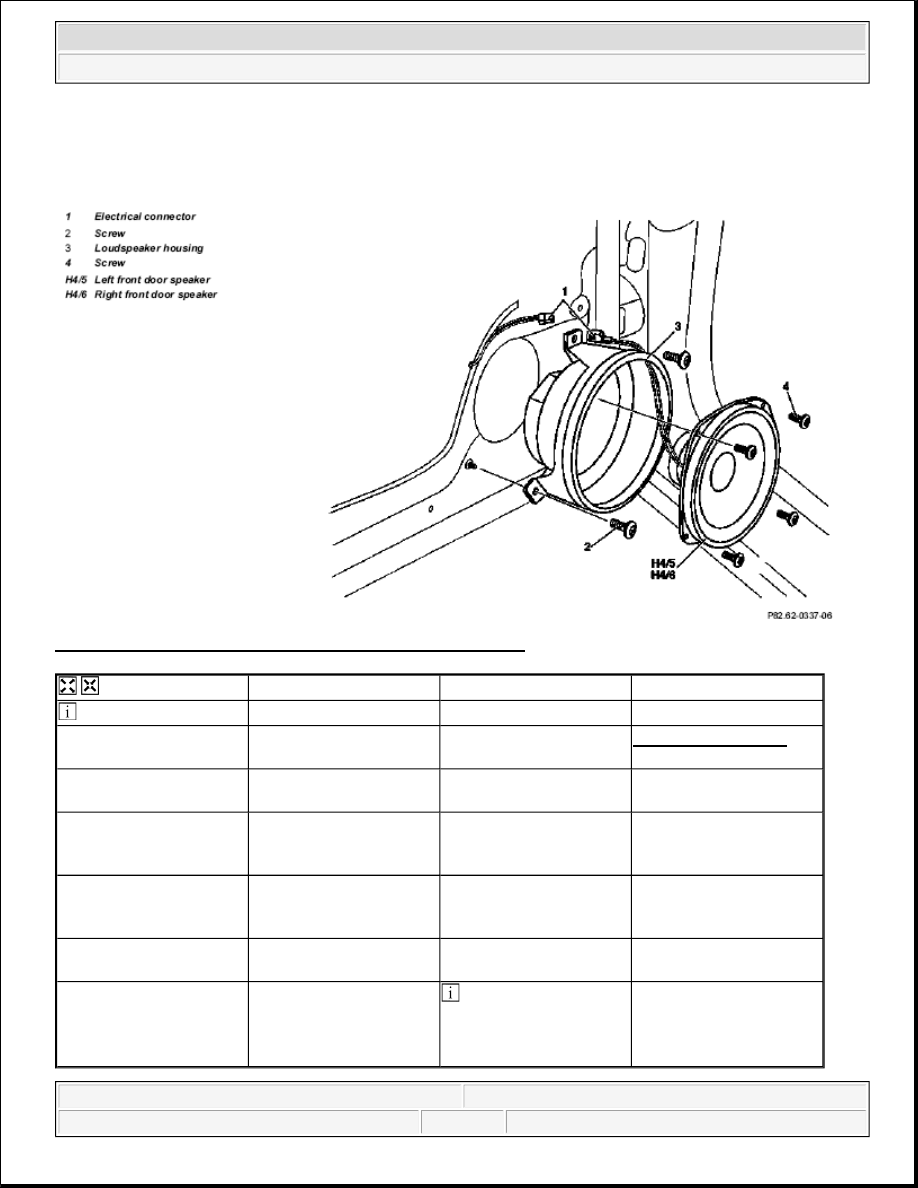

Fig. 198: Identifying Front Doors Loudspeakers Components





Removal, installation







Switch off radio





1

Remove door liner on
front door



AR72.10-P-1000GH

2

Disconnect electrical
connector (1)





3

Unscrew screws (2) and
remove loudspeaker
housing (3)





4

Unscrew screws (4) and
remove loudspeaker
(H4/5, H4/6)





5

Reinstall in opposite
order





6

Check for proper function

 Switch on radio,

actuate balance control,
check left and right
loudspeakers





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



REMOVE/INSTALL FRONT DOOR SPEAKERS IN MIRROR TRIANGLE - AR82.62-P-7850GH

MODELS 163.113 #A as of 289565, 163.113 #X as of 754620, 163.154 /174 #A as of 289565,
163.128/157/175


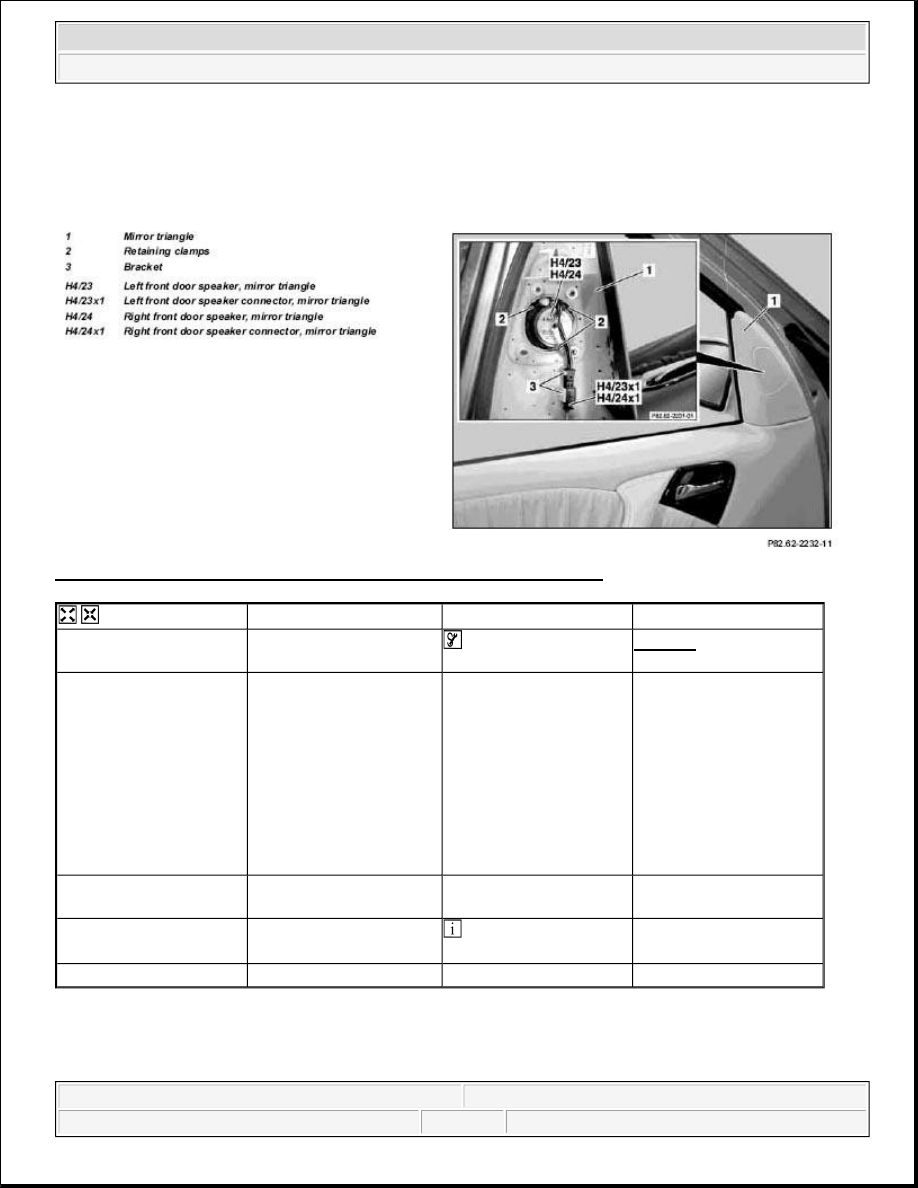

Fig. 199: Identifying Mirror Triangle Front Door Speaker Components





Remove/install





1

Unclip mirror triangle (1)
from door

 Assembly wedge

Fig. 200

2

Disconnect left front door
speaker connector, mirror
triangle (H4/23x1) or
right front door speaker
connector, mirror triangle
(H4/24x1) from left front
door speaker, mirror
triangle (H4/23) or right
front door speaker, mirror
triangle (H4/24)





3

Remove retaining clips
(2)





4

Remove speaker from
mirror triangle

 Disconnect plug from

bracket (3).



5

Install in the reverse order





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



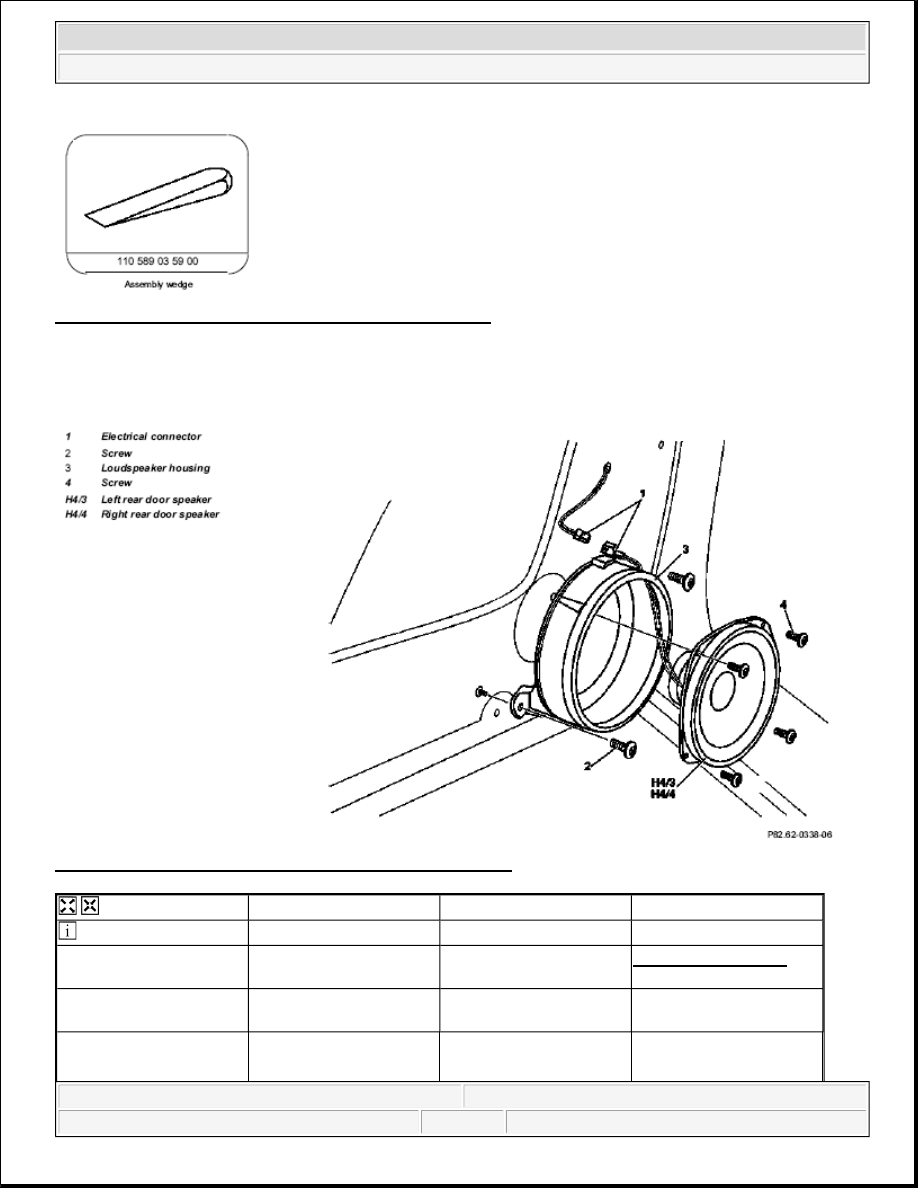

Fig. 200: Identifying Assembly Wedge (110 589 03 59 00)

REMOVING AND INSTALLING LOUDSPEAKERS IN REAR DOORS - AR82.62-P-7874GH

MODEL 163

Fig. 201: Identifying Rear Doors Loudspeaker Components





Removal, installation







Switch off radio





1

Remove door liner on
rear door



AR72.12-P-1010GH

2

Disconnect electrical
connector (1)





3

Unscrew screws (2) and
remove loudspeaker







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
