Mercedes-Benz ML320. Service manual - part 257





First aid measures

Electrical shock

Switch off current, bring injured person to safety.

Immediately notify an emergency physician.

Perform mouth to mouth respiration, if necessary.

Perform cardiopulmonary resuscitation, if necessary.

Burn injuries

Cool affected skin area with cold water.

Cover burn wounds with sterile dressing.

Consult a physician.

Cut injuries/skin injuries

Stop the bleeding.

Dress cut/skin injury.

Consult a physician.

Foreign object in eye

Cover affected eye with a sterile dressing.

Cover both eyes to calm them.

Consult an eye doctor immediately.

Eye contact with mercury vapors/toxic salts

Flush eyes with lukewarm water.

Cover eye with sterile dressing.

Consult an eye doctor immediately.

Eye contact with UV light

Consult an eye doctor immediately.

Poisoning caused by inhaling mercury vapors

Take victim to fresh air.

Consult a physician immediately.

Poisoning caused by ingesting toxic salts or mercury compounds



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Consult a physician immediately.

Always consult a medical service or physician after administering first aid.

INJURY HAZARD FROM PINCHING AND CRUSHING, IN EXTREME CASES EXTREMITIES CAN EVEN BE CUT OFF
WHEN CAUGHT IN WINDSHIELD WIPER MECHANISM. - AS82.30-Z-0001-01A

Always remove ignition key before working on windshield wiper mechanism.

Injury hazard

When working in the area of the windshield wiper mechanism with the ignition key in position "1" or "2" the
wiper arm or wiper linkage can be pushed out of its end position and start running unintentionally . This can
result in severe injuries by cutting, pinching or crushing body parts.

Rules of behavior/protective measures

Always remove ignition key before working on windshield wiper mechanism.

Secure operating range of mechanism against reaching in.

Keep sufficient distance away from moving parts.

Supervise hazard area.

Wear tight fitting clothing and hair net.

TROUBLE DIAGNOSIS

HIGH BEAMS AND/OR LOW BEAMS DO NOT WORK - AF82.10-P-2009B

MODEL 129,140,163,170, 202, 208, 210, 215, 220 with CODE (612) Xenon headlamp unit

Modification notes

4.4.00

Supersedes STIP 82.10-
019 from 24.03.2000





Damage code

Cause

Remedy





Risk of death caused
by high voltage levels
present at xenon
headlamps.
Risk of explosion/risk
of fire
 caused by highly
inflammable substances
at damaged xenon bulbs
Risk of injury caused
by UV light, hot
components at xenon

Do not come into contact with
parts that are under high voltage.
Persons with active electronic
implants
 (e.g. heart pacemakers)
must never work on xenon
headlamps. Switch off the
complete lighting system. Wear
insulated safety shoes, safety
glasses and protective gloves.
Remove highly inflammable
materials from the hazard area.

AS82.10-Z-0001-01A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



WINDSHIELD WASHER WATER RESERVOIR LEAKY - AF82.35-P-4043B

headlamps and glass
splinters from broken
xenon bulbs
Risk of poisoning
caused by inhaling
mercury vapor and by
swallowing/skin contact
with toxic salts and
mercury compounds

Ensure that the working area is
sufficiently ventilated.

82 119



 We receive at the diagnostic

centers of the plants more and
more xenon control units and
xenon lamps which are o.k.
To avoid this high number of
problem parts with no
reproducible faults, we would ask
you to use the following
procedure for troubleshooting:







1 Perform diagnosis according to
instructions in WIS.







Model 202, 208, 210

AD82.10-P-1001AZ





 If the fault cannot be

recognized or the faulty
component determined: ?
2 Interchange the xenon lamps
(right to left).

 For the time being do not

replace system components.







 If the fault of the xenon lamp

still exists: ?
3 Remove/install/replace xenon
lamp.







 If the fault remains in the

headlamp the cause may be the
xenon control unit or a fault on
the vehicle side.







 We are aware of the fact that

this procedure may possibly lead
to another stay in the workshop of
the vehicle in question.
However, we see no other
alternative if the redebiting of
warranty and goodwill costs is to
be avoided.





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



MODEL 163.113/136/154/172 With 5 L reservoir

INSTALLING SOUND SYSTEM JUMPER HARNESS - AF82.60-P-1010-01AG

1. Insert sound system jumper harness through radio opening

 Position jumper harness within cockpit assembly so that jumper harness is routed above HVAC

venturi tube and lays across base of steering column.

2. Plug male radio harness connector A/B (1) into corresponding female connector (2) of jumper harness

3. Secure connectors, phone antenna and phone power lead with cable tie (3) next to radio harness mounting

clip on HVAC case

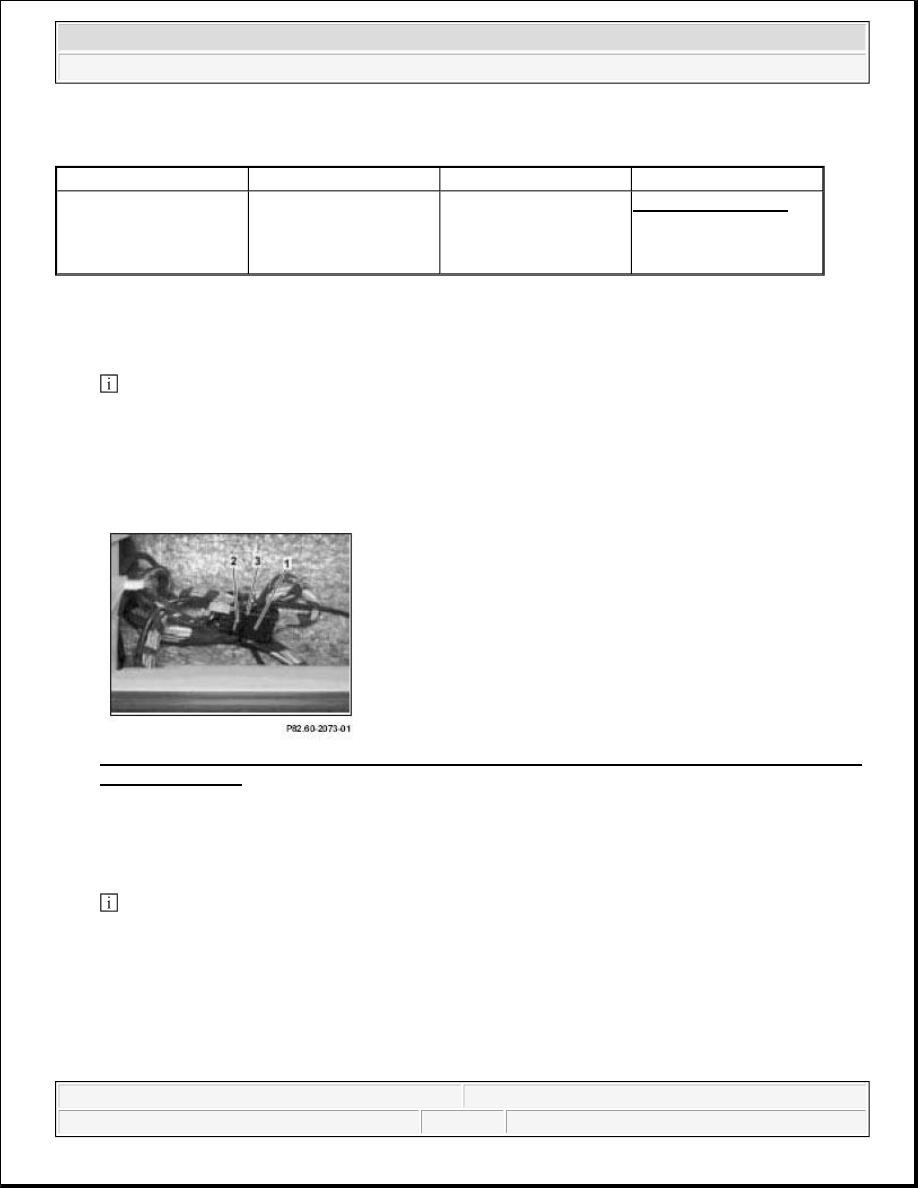

Fig. 98: Identifying Phone Power Lead With Cable Tie, Male Radio Connector And Corresponding
Female Connector


4. Attach jumper harness (4) to steering column mounting bracket with integrated harness clip (5) and clip

on female amplifier connector (6) of jumper harness

5. Secure jumper harness (4) to dash support bracket with cable tie (7)

 Install cable tie on convolute tubing protected area of jumper harness.

Damage code

Cause

Remedy





Stress fracture in
windshield washer water
reservoir.

1 Replace windshield
washer water reservoir
with large capacity
reservoir.

SM82.35-P-0002GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
