Mercedes-Benz ML320. Service manual - part 256





OVERVIEW OF SYSTEM COMPONENTS FOR COCKPIT MANAGEMENT AND DATA SYSTEM (COMAND ),
LOCATION/TASK/DESIGN/FUNCTION - GF82.85-P-9997GHZ

MODEL 163

E-CALL BACKUP ANTENNA, LOCATION/PURPOSE - GF82.95-P-4205GH

MODEL 163 as of 1.9.01 with CODE (349) E-Call emergency call system with CODE (491) U.S. version



FM/AM antenna amplifier,
location/purpose/ design/function



GF82.62-P-4101A



GPS/CTEL roof antenna
location/task/design/ function



GF82.70-P-4111A



CD player with changer,
location/purpose/ design/function

With CD changer
(code 819)

GF82.64-P-3113GI



Modular control system (MCS)
function description contents



GF82.85-P-
0995GIZ



Operating, display and control module,
location/ purpose/design/function



GF82.85-P-3114GH



CD player with changer,
location/purpose/ design/function

with (Code 819) CD
changer

GF82.64-P-3113GH



Sound amplifier,
location/task/design/function

with CODE (810)
sound system

GF82.62-P-3100GH



FM/AM antenna amplifier,
location/purpose/ design/function

MODELS 163, 168,
170, 208, 210

GF82.62-P-4101A



GPS/telephone roof antenna,
location/task/ design/function

MODELS 163, 168,
208.3, 210

GF82.70-P-4111A



Antenna splitter,
location/task/design/function

Model 163

GF82.85-P-3107B



Contents, function description of
cockpit management and data system
(COMAND)



GF82.85-P-
0997GHZ



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



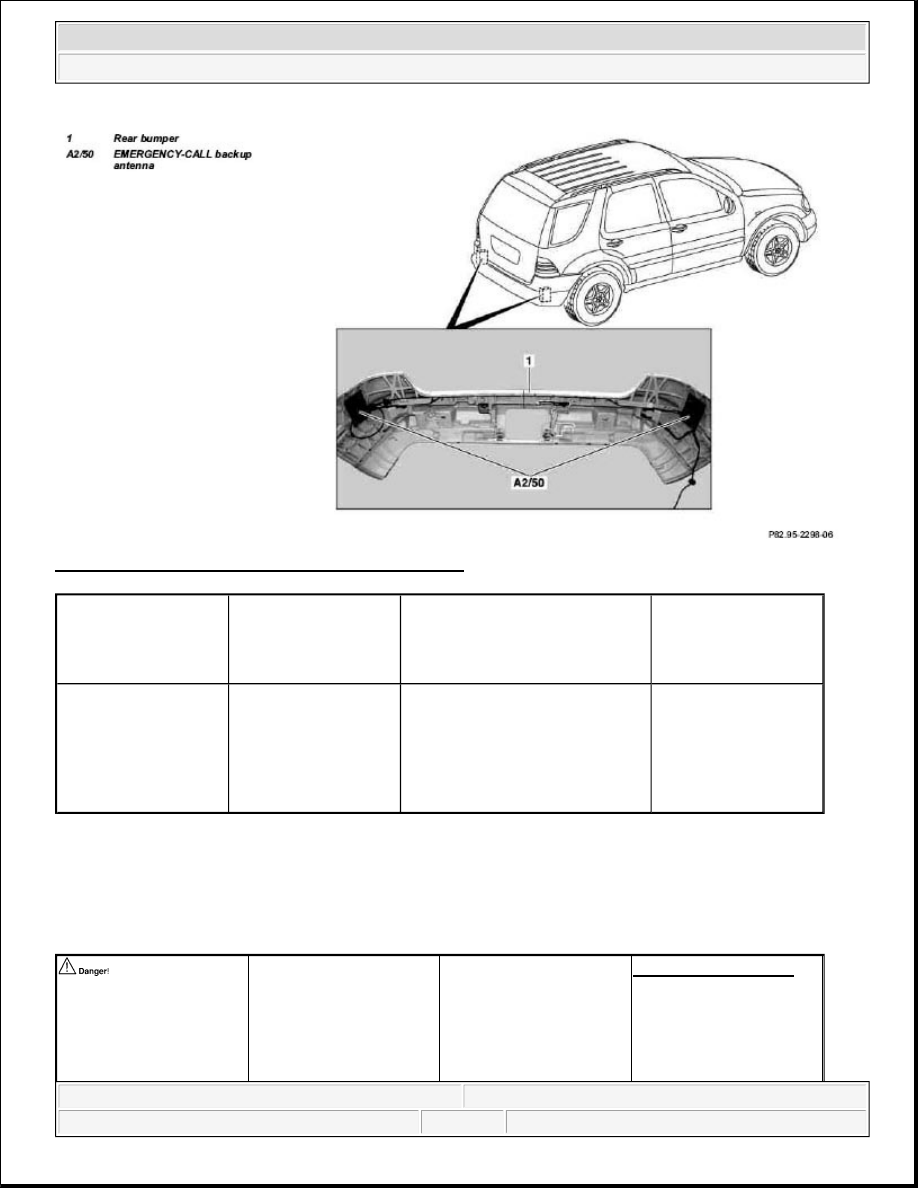

Fig. 97: Identifying E-Call Backup Antenna Location

SAFETY PRECAUTIONS

SAFETY INFORMATION: ELECTRICAL SYSTEM BODY - AS82.00-Z-9999ZZ

MODEL all



E-Call backup antenna,
location

The EMERGENCY
CALL backup antenna
(A2/50)
 is mounted on the
inside of the rear bumper .





E-Call backup antenna,
purpose

Transmitting and
receiving the
EMERGENCY CALL
signals
 if reception via the
CTEL and GPS roof
antenna (A2/49)
 is poor.





Risk of death caused by
high voltage at xenon
headlamps. Risk of
explosion/risk of fire
caused by highly
flammable materials in

MODEL all...

AS82.10-Z-0001-01A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



RISK OF DEATH, RISK OF EXPLOSION/RISK OF FIRE, RISK OF INJURY & RISK OF POISONING - AS82.10-Z-0001-01A

Do not come into contact with parts that are under high voltage. Persons with active electronic implants
(e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear
insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from
the hazard area. Ensure sufficient ventilation in the working area.


Potential risks

Risk of death

Due to the high voltages involved, contact with live components at the xenon headlamps could be life
threatening!

Electric shocks can cause fibrillation of the heart or even cardiac arrest.

In addition, respiratory muscles may cramp up and result in respiratory failure.

Serious, possibly life-threatening, brain function disruptions are also possible.

It may take a few minutes for the consequences of an electrical shock to manifest themselves.

the vicinity of damaged
xenon bulbs. Risk of
injury caused by UV
light, hot components at
xenon headlamps and
glass splinters produced
by bursting xenon bulbs.
Risk of poisoning caused
by inhalation of mercury
vapors and by toxic salts
and mercury compounds
being ingested or coming
into contact with skin



Injury hazard from
pinching and crushing, in
extreme cases extremities
can even be cut off when
caught in windshield
wiper mechanism.

MODEL all

AS82.30-Z-0001-01A



The demagnetizing coil
presents a lethal hazard
for persons with active
electronic implants (e.g.
heart pacemakers).

MODEL 140...

AS82.85-Z-0001-01A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Risk of explosion/risk of fire

Highly flammable materials in the vicinity of damaged, energized xenon bulbs may result in explosion or cause
fires.

Risk of injury

UV light may escape when operating xenon bulbs not properly installed in the xenon headlamps. This UV light
may cause damage to the eyes (conjunctival infection) and to skin burns (sunburns) if skin is unprotected.

In both intact or faulty xenon headlamps, hot or glowing components may cause serious burn injuries if they
come into contact with unprotected skin or eyes.

Glass splinters produced by the destruction of xenon bulbs may cause cut injuries in unprotected skin and
unprotected eyes.

Risk of poisoning

When xenon bulbs are destroyed, serious health problems may be caused if the mercury vapors produced are
inhaled or if mercury compounds or toxic salts are ingested or absorbed through the skin. Possible
consequences include nausea, vomiting and gastrointestinal disruptions as well as degradation of the kidneys
and the central nervous system. Skin and eye damage may also result.

Safety precautions/instructions

Persons with electronic implants (e.g. pacemakers) must never work on xenon headlamps.

Wear safety shoes (with rubber soles).

Prior to working on xenon headlamps (e.g. replacing parts, hooking up test equipment, etc.), the complete
lighting system must be switched off and the xenon headlamps must be disconnected from the on-board
electrical system.

If the xenon headlamps are switched on, never touch components under high voltage.

If the xenon headlamps are switched on, maintain a clearance of at least 30 mm to components under high
voltage.

Avoid all contact with hot components.

Wait at least 3 min after switching off xenon bulbs before touching them.

Do not damage or destroy xenon bulbs.

Safety precautions/instructions

Never operate xenon bulbs unless they are properly installed in xenon headlamps with UV-absorbing
headlamp lenses.

Keep all highly flammable materials away from working area.

Wear suitable protective gloves and safety glasses.

Ensure that the workplace is sufficiently ventilated.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
