Mercedes-Benz ML320. Service manual - part 255





ANTENNA SPLITTER, LOCATION - GF82.85-P-3107-01B

Model 163 with code 353

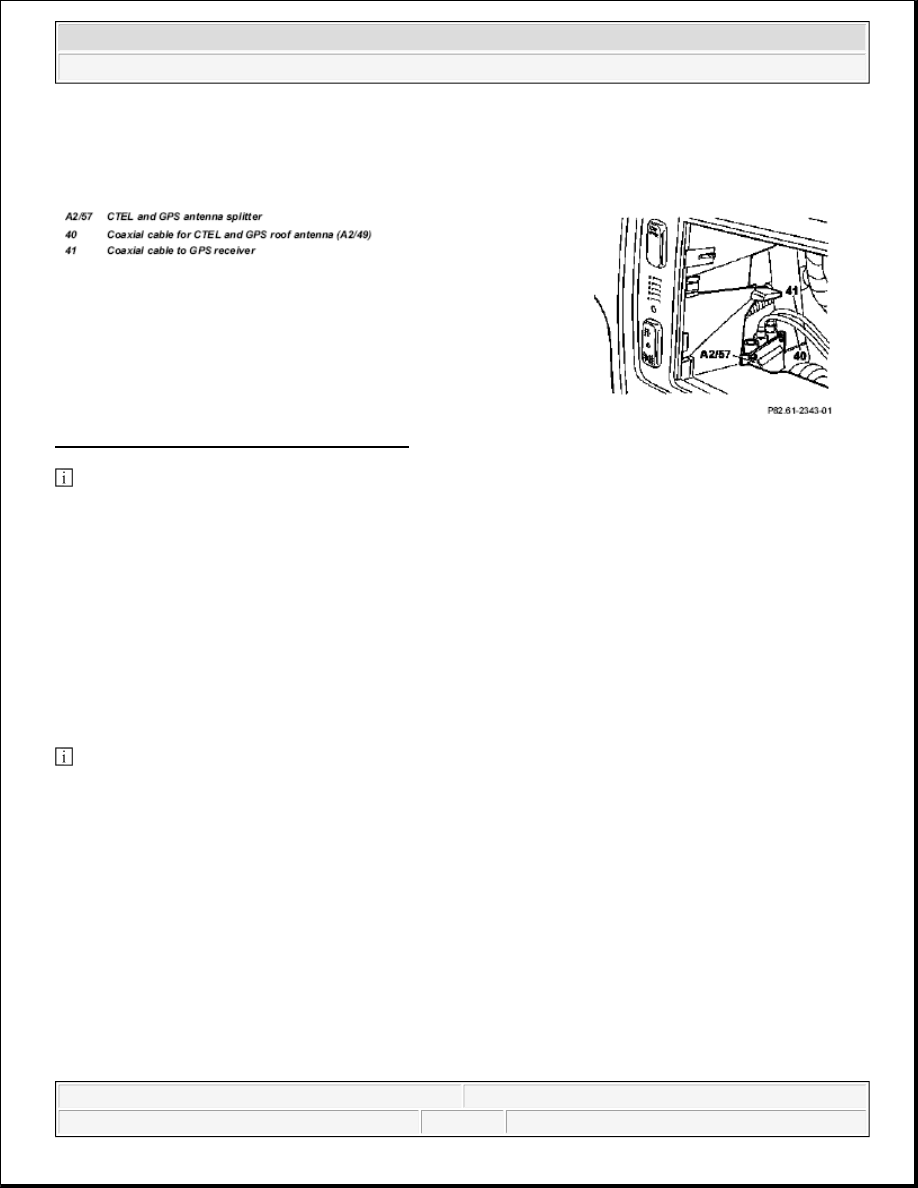

Fig. 93: Identifying Antenna Splitter Location

 It is possible to connect a GSM telephone to the connector not specified using a coaxial cable.

ANTENNA SPLITTER, DESIGN - GF82.85-P-3107-03B

Model 163 with code 353

The CTEL and GPS antenna splitter (A2/57) consists of the following components:

Active frequency splitter with GPS antenna amplifier

Coaxial connection socket for CTEL and GPS roof antenna (A2/49)

Coaxial connection socket for GSM telephone

Coaxial connection socket for GPS receiver

 The power for the CTEL and GPS antenna splitter (A2/57) is supplied via coaxial cable from the GPS

receiver (phantom feed).

ANTENNA SPLITTER, DESIGN - GF82.85-P-3107-03GH

Model 163 up to 31.08.01



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



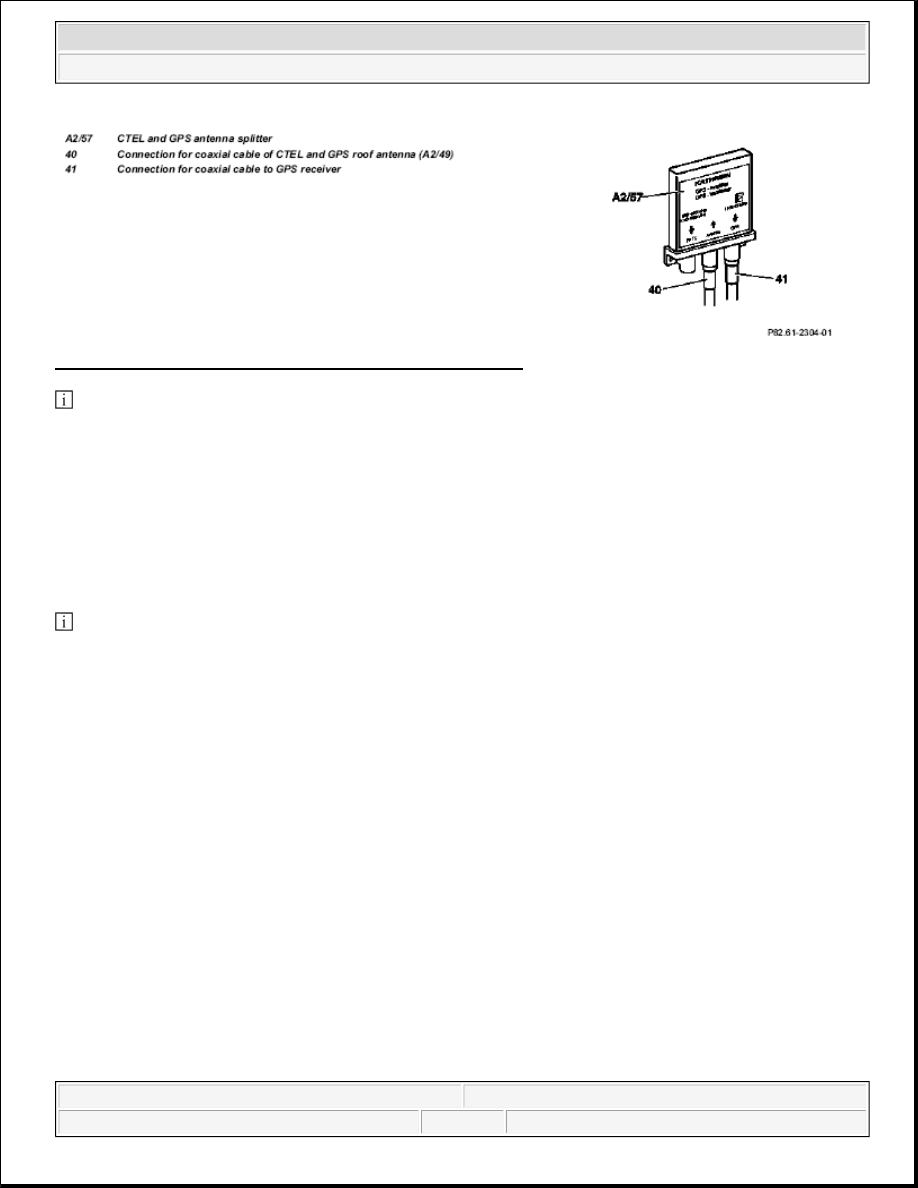

Fig. 94: Identifying CTEL And GPS Antenna Splitter Design

 A GSM cellular telephone can be connected by means of a coaxial cable to the non-designated

connection.

The CTEL and GPS antenna splitter (A2/57) consists of the following components:

Active frequency splitter with GPS antenna amplifier

Coaxial socket for the CTEL and GPS roof antenna (A2/49)

Coaxial socket for a GSM CTEL

Coaxial socket for a GPS receiver

 The voltage for the CTEL and GPS antenna splitter (A2/57) is supplied via the coaxial cable from the

GPS receiver ( phantom feed ).

ANTENNA SPLITTER, FUNCTION - GF82.85-P-3107-04B

Model 163 with code 353

The CTEL and GPS antenna splitter (A2/57) has the following functions:

Separating the signals received from the CTEL and GPS roof antenna (A2/49) :

The GSM and GPS signals are received by the antenna splitter via an antenna lead and leave the CTEL
and GPS antenna splitter (A2/57)
 via two separate coaxial cables. In addition the GPS signals are
amplified.

Decoupling the GPS receiver from the GSM telephone transmitter:

It must be ensured that the telephone transmitter signals do not reach the GPS receiver. The CTEL and
GPS antenna splitter (A2/57)
 allows them to pass only in the direction of the roof antenna.

ANTENNA SPLITTER, FUNCTION - GF82.85-P-3107-04GH

Model 163 up to 31.08.01



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



The CTEL and GPS antenna splitter (A2/57) has the following functions:

Separating the receiving signals from the CTEL and GPS roof antenna (A2/49) :

The GSM and the GPS signals are received along an antenna cable at the antenna splitter and leave the
CTEL and GPS antenna splitter (A2/57) in two separate coaxial cables. The GPS signals are
additionally amplified.

Decoupling the GPS receiver from the transmitter of the GSM cellular telephone:

The transmission signals of the cellular telephone must not reach the GPS receiver. They are passed
through by the CTEL and GPS antenna splitter (A2/57) only in the direction of the roof antenna.

ANTENNA SPLITTER, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.85-P-3107B

MODEL 163 with CODE (353) Audio 30 APS

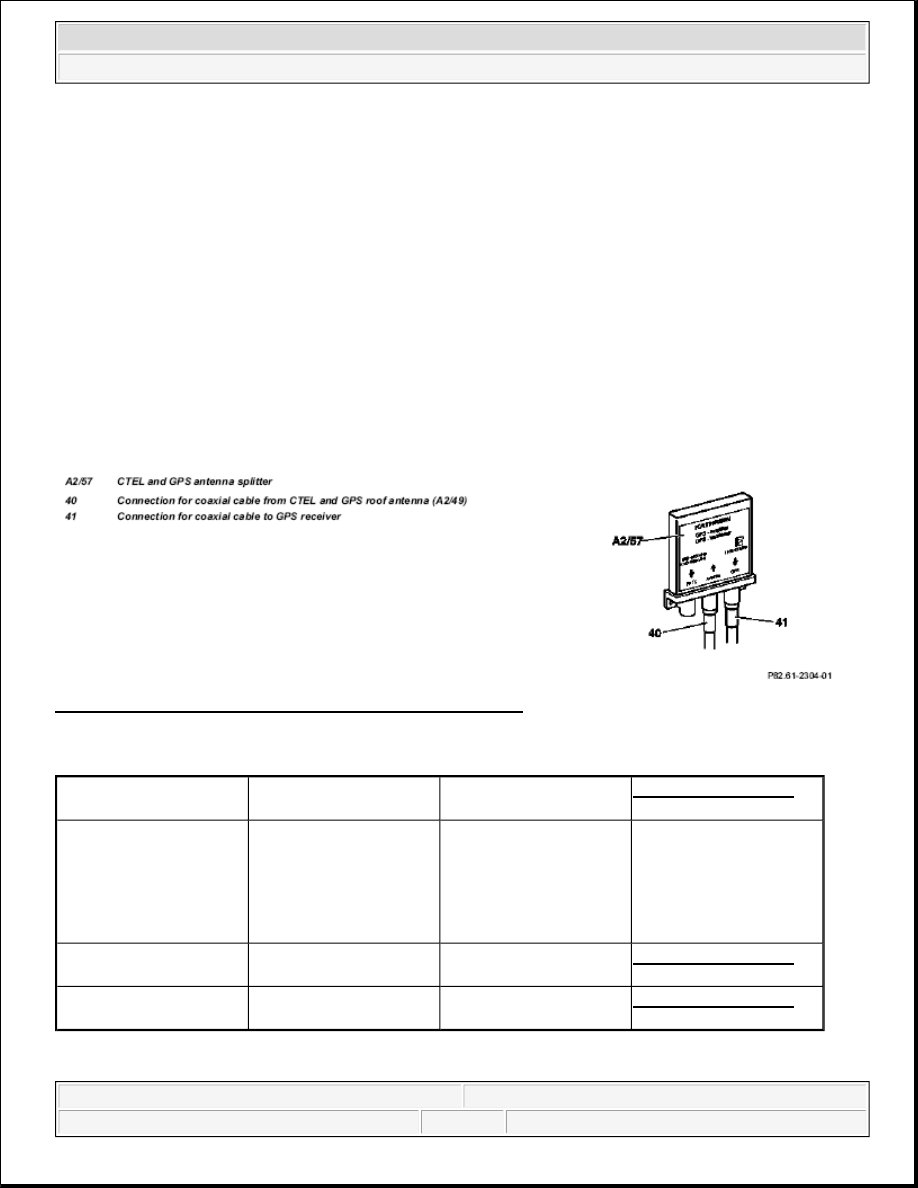

Fig. 95: Identifying CTEL And GPS Antenna Splitter Design

It is possible to connect a GSM telephone to the connector not specified using coaxial cable.

ANTENNA SPLITTER, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.85-P-3107GH



CTEL and GPS antenna
splitter, location



GF82.85-P-3107-01B



CTEL and GPS antenna
splitter, purpose

The CTEL and GPS
antenna splitter (A2/57)
is required for operating a
GSM telephone and a
GPS receiver with one
single antenna cable.





CTEL and GPS antenna
splitter, design



GF82.85-P-3107-03B



CTEL and GPS antenna
splitter, function



GF82.85-P-3107-04B



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



MODEL 163 up to 31.8.01

Location of component

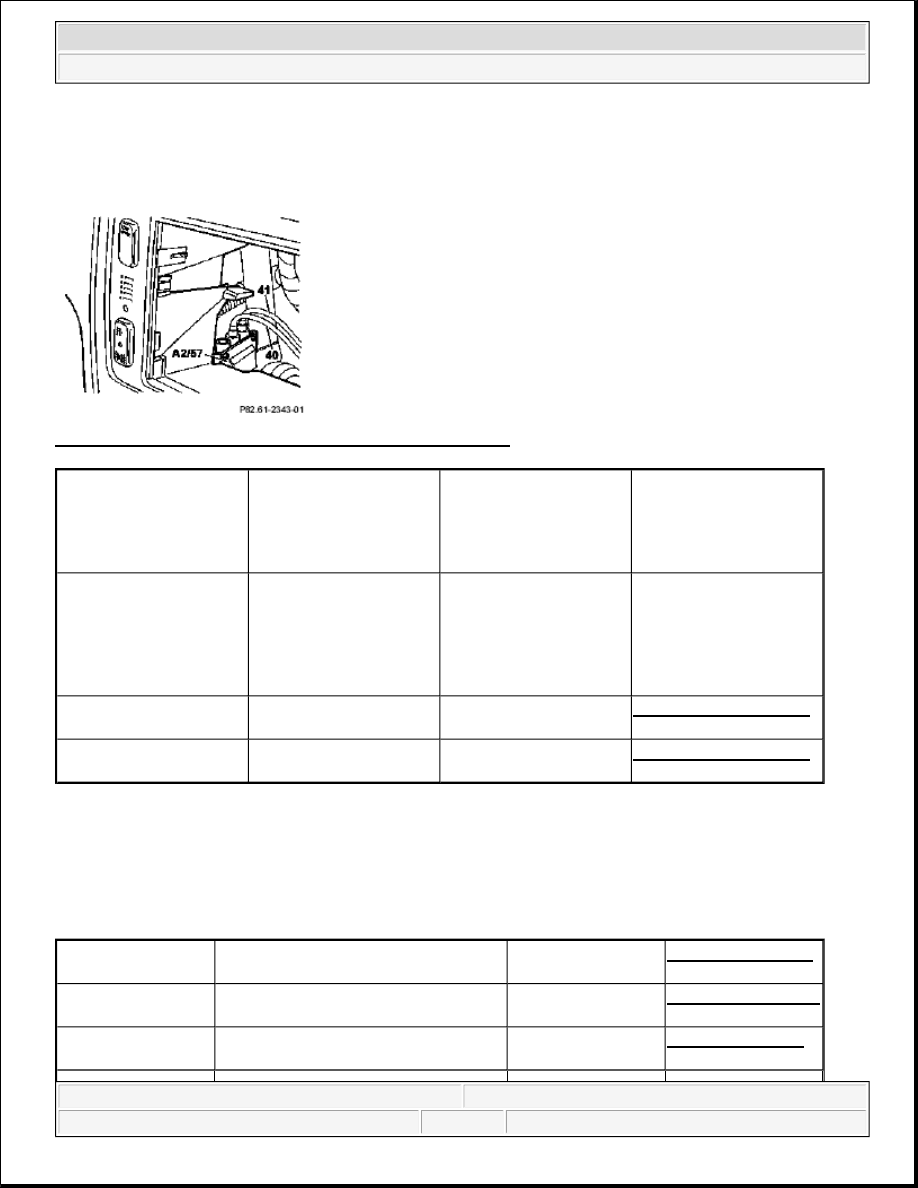

Fig. 96: Identifying Antenna Splitter Components Location

MODULAR CONTROL SYSTEM (MCS) SURVEY OF SYSTEM COMPONENTS LOCATION/TASK/DESIGN/FUNCTION -
GF82.85-P-9995GIZ

MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(819) 6-disk CD changer in trunk with CODE (491) U.S. version




CTEL/GPS antenna
splitter, location

The CTEL and GPS
antenna splitter (A2/57)

is located in the center
console on the left-hand
side in the radio slot.





CTEL/GPS antenna
splitter, purpose

The CTEL and GPS
antenna splitter (A2/57)

is required for operating a
GSM cellular telephone
and a GPS receiver over a
single antenna cable.





CTEL/GPS antenna
splitter, design



GF82.85-P-3107-03GH



CTEL/GPS antenna
splitter, function



GF82.85-P-3107-04GH



Radio/navigation unit
location/task/design/ function



GF82.61-P-4109GI



Sound amplifier
location/task/design/function

with CODE (810)
Sound system

GF82.62-P-3100GH



Antenna splitter,
location/task/design/function



GF82.85-P-3107B



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
