Mercedes-Benz ML320. Service manual - part 214

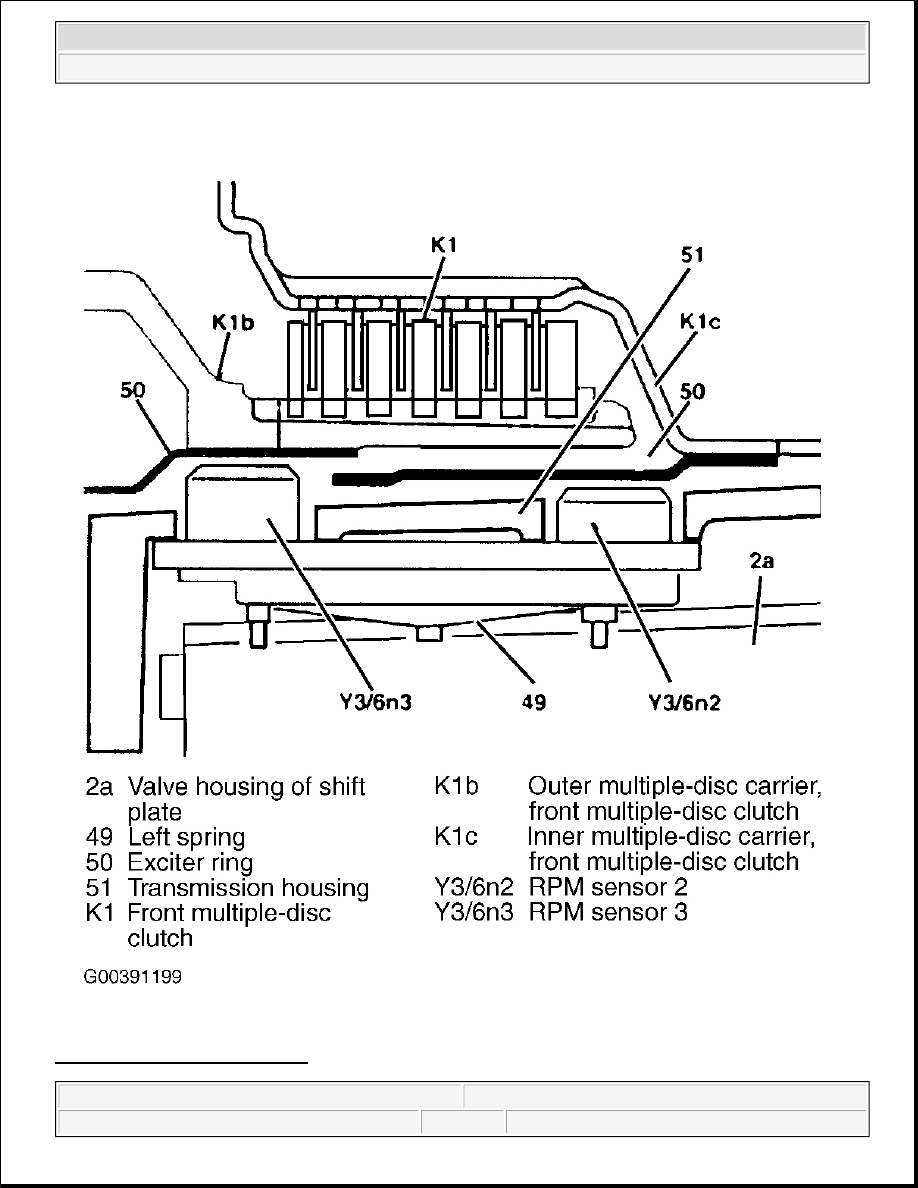

Fig. 179: Speed Sensor, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Operation

The RPM sensors are pressed against the transmission housing (51) by a spring (49) which is held against the
valve housing of the shift plate (2a). See .Fig. 179 This ensures a defined distance between the RPM sensors
and the exciter ring (50). RPM sensor 2 (Y3/6yn2) records the speed of the front planetary gear carrier via the
inner multiple-disc carrier of the front multiple-disc clutch (K1c).



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



AR54.10-P-0005GH

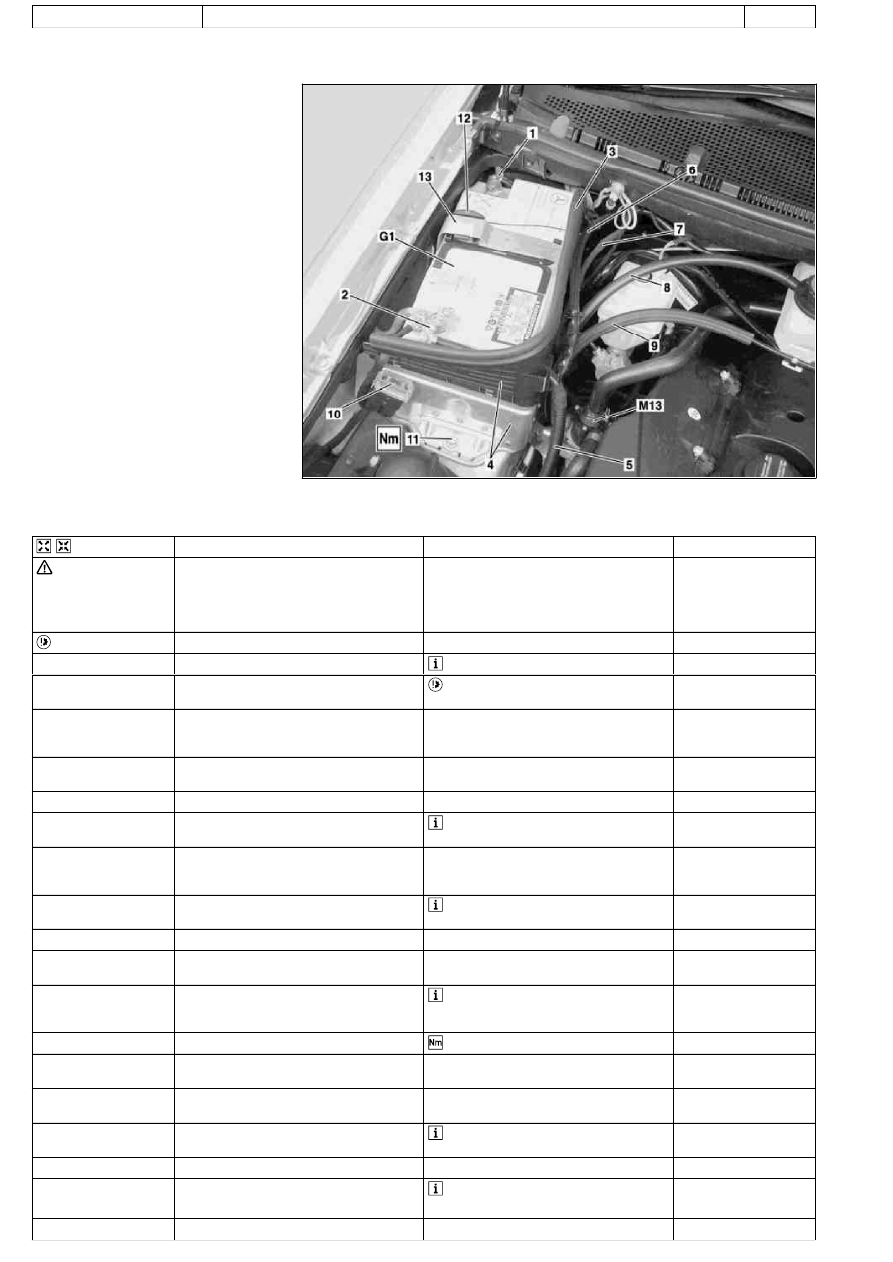

Remove/install battery

23.3.00

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P54.10-2066-06

Right-hand drive vehicle shown

1

Ground line

2

Positive wire

3

Seal

4

Shield

5

Alternator line

6

Starter line

7

Brake booster line

8

Overflow hose

9

Control cable

10

Suction fan locking bracket

11

Bolt

12

Clamping wedge

13

Retaining bracket

G1

Battery

M13

Heating water circulation pump



Remove, Install

Danger!

Risk of explosion from electrolytic gas. Risk
of poisoning and irritation
 if battery acid is
swallowed. Risk of injury through burns to
skin and eyes from battery acid or when
handling damaged lead-acid batteries

No fire, sparks, naked flames or smoking.
Wear acid-resistant gloves, clothing and eye
protection. Pour battery electrolyte only into
suitable and appropriately marked containers.

AS54.10-Z-0001-01A

Notes on battery

All models

AH54.10-P-0001-01A

1

Turn ignition key to position "0"

 to avoid fault codes.

2

Disconnect ground cable (1) from battery



To prevent unintended contact, insulate

the ground lead cable lug.

AR54.10-P-0003A

3

Remove protective shield at positive pole of
battery and remove all lines attached to
positive cable (2)

4

Disconnect positive cable (2) from the battery
(G1).

5

Remove seal (3) at shield (4)

6.1

Unscrew bolt for securing generator line to
shield

 As of VIN A145273, X708319.

7

Slacken retaining clip at side of shield (4),
guide all lines through shield and lay to one
side

8.1

Detach coolant circulation pump (M13) from
shield

 As of VIN A145273, X708319.

9

Remove cable strap at lines at side of shield

10

Detach overflow hose (8) and control cable
(9) at shield

11.1

Detach locking bracket of suction fan (10) at
the front from the shield and remove line from
shield

 Only if fitted.

12

Unscrew bolt (11) at shield



*BA54.10-P-1002-01A

13

Remove clamping wedge (12) at retaining
bracket

14

Detach retaining bracket (13) by pressing
downwards

15

Detach and remove shield (4)

 Rotate the shield forwards and move back

in order to loosen the front retaining lugs.

16

Remove battery (G1).

17.1

Dispose of battery

 If battery is defective.

o



Dispose of battery

All models

OS54.10-P-0001-01Z

18

Install in the reverse order
