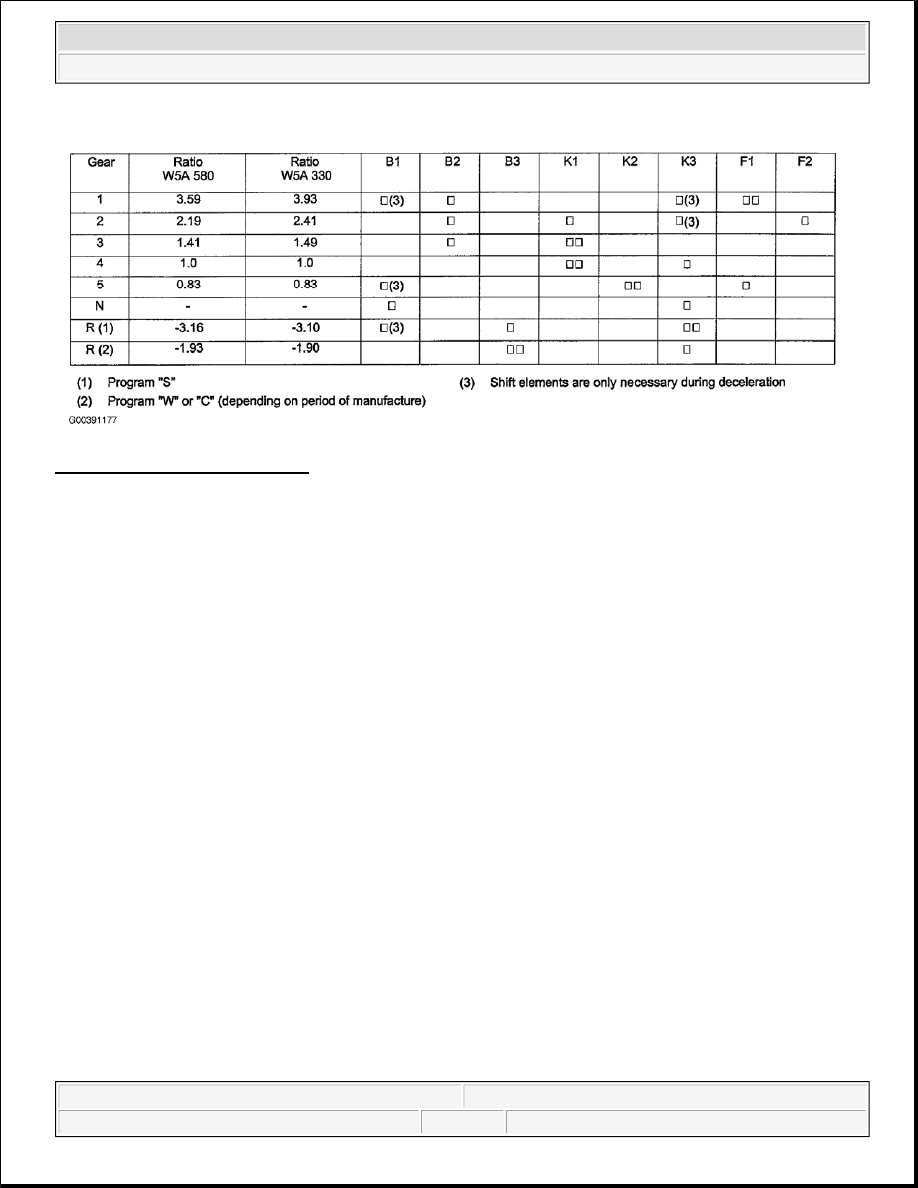

Fig. 174: Identifying Gear Ratios
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shift Pressure Regulating Solenoid Valve, Design



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

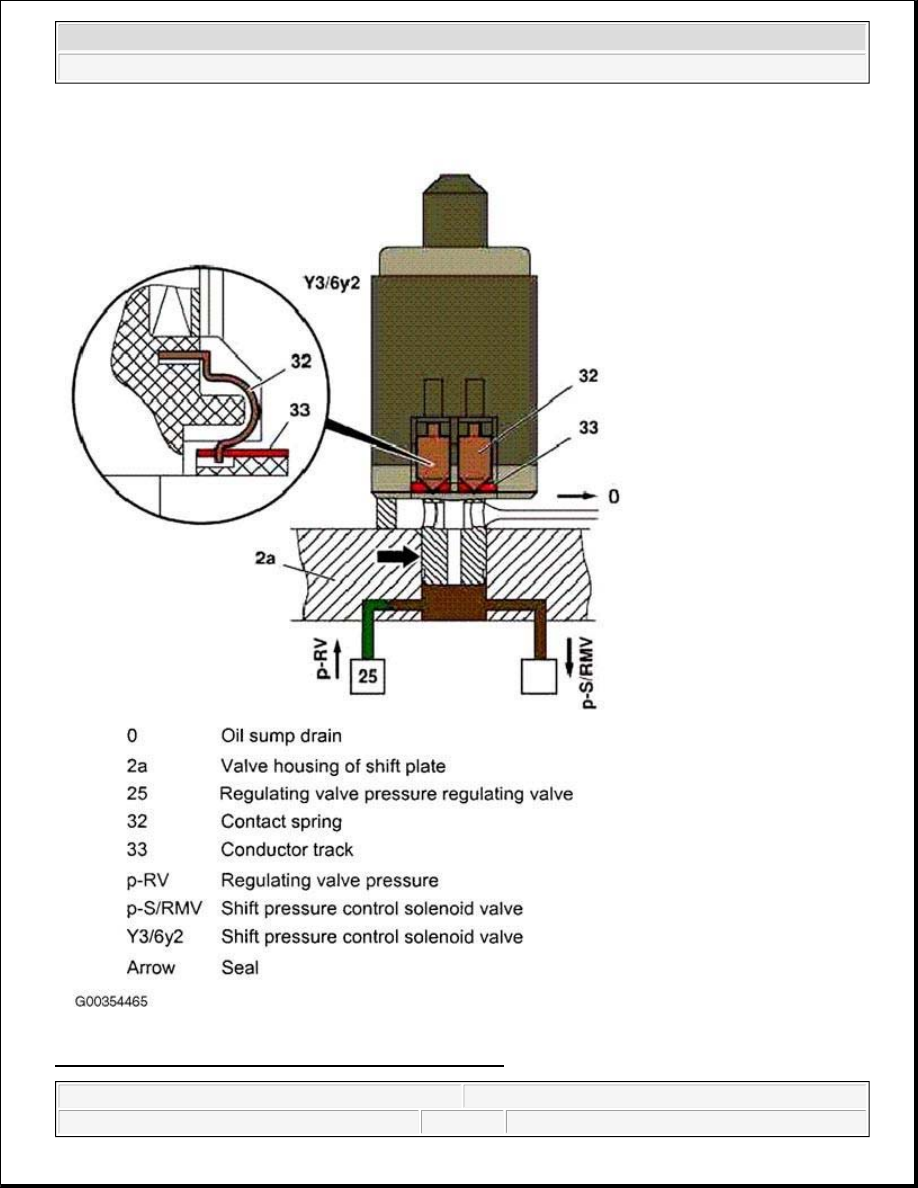

Fig. 175: Shift Pressure Regulating Solenoid Valve, Design



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Structure

The shift pressure regulating solenoid valve (Y3/6y2) has an interference fit and is sealed off to the valve body
of the shift plate (2a) by a seal (arrow). See Fig. 175

The contact springs (32) on the shift pressure solenoid valve (Y3/6y2) engage in a slot in the conductor tracks
(33). The force of the contact spring (32) ensures safe contacts.

Shift Pressure Regulating Valve, Location/Task/Function, Also Float, Location/Function

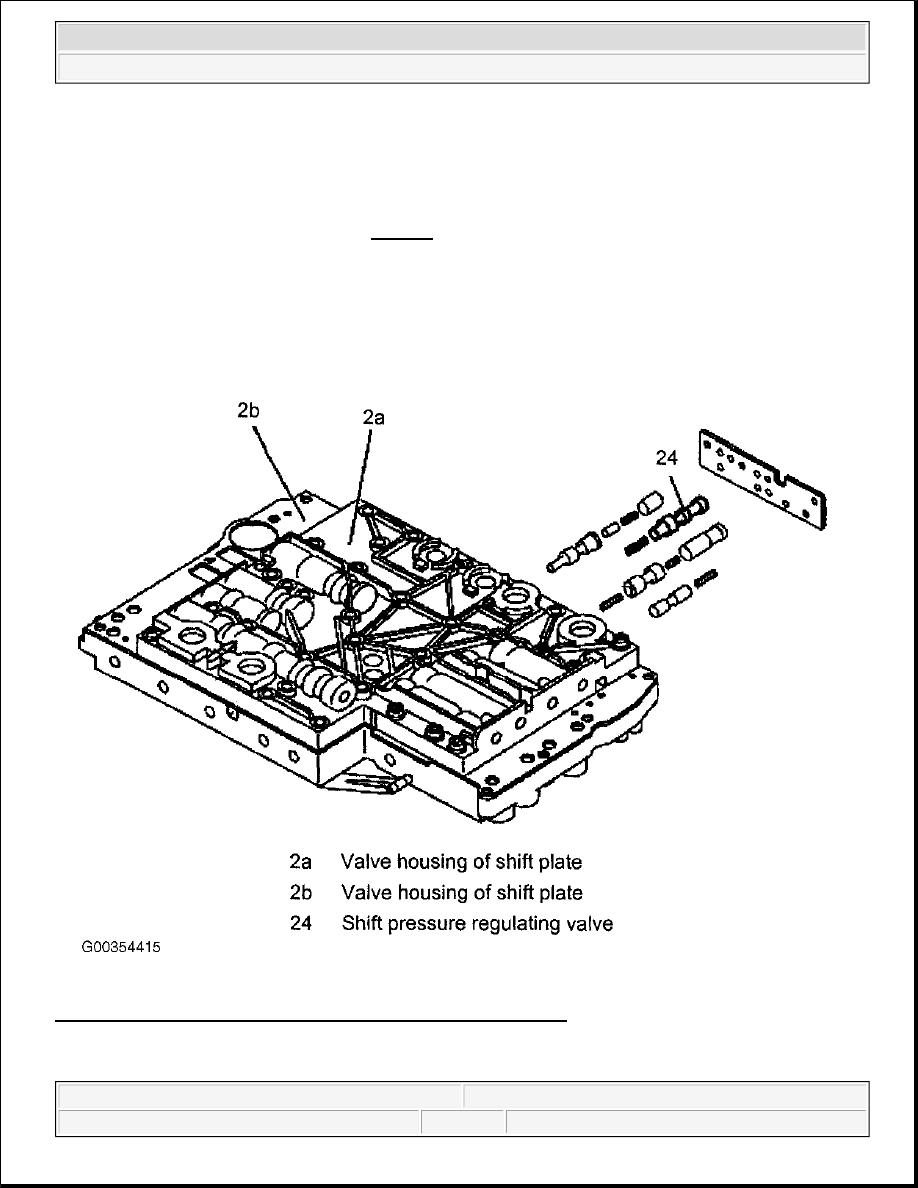

Fig. 176: Shift Pressure Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shift Pressure Regulating Valve, Location



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me




In the valve housing of shift plate (2b). See Fig. 176

Shift Pressure Regulating Valve, Task

Control of shift pressure.

Shift Pressure Regulating Valve, Function

See SHIFT PRESSURE REGULATING VALVE, FUNCTION.

Shift Pressure Regulating Valve, Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
