Controls in detail

Loading

Hooks

Four hooks located on the rear compart-
ment trim panels, two on each side.

Hooks

Use the hooks to secure light weight items.
The maximum permissible weight per hook
is 9 lbs (4 kg).

Partition net*

Use of the partition net is a particularly im-
portant safety factor when the vehicle is
loaded higher than the top of the seat
backrests with smaller objects.

The partition net can be installed behind
the backrests of the front or rear seats.

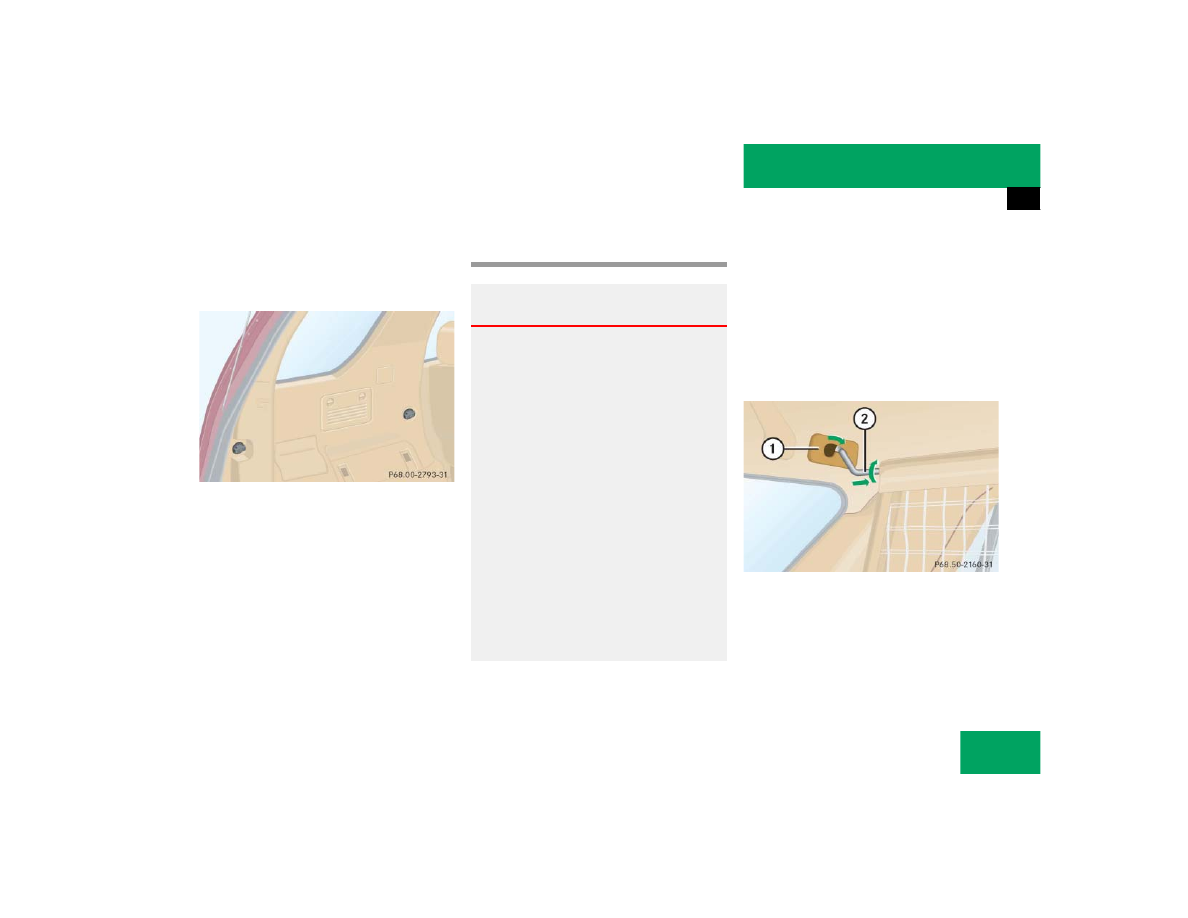

Engaging partition net

1 Holder
2 Mounting hook

Warning!

G

Always lock backrest in its upright position
when rear seat bench is occupied by pas-
sengers, or cargo is being carried behind the
seat bench.

To help avoid personal injury from smaller
objects flying in the occupant area during a
collision or sudden maneuver, always use
partition net when transporting cargo.

The partition net cannot prevent the move-
ment of large, heavier objects into the pas-
senger area in an accident. Such items must
be properly secured using the cargo
tie-down rings in the cargo area floor
(

page 158).

Passenger use of seats behind installed par-
tition net is restricted because of the foot-
well being taken up by the net.

160

Controls in detail

Loading

One after the other, press the two
mounting hooks 2 inward against the
spring pressure and turn them.

The mounting hooks are locked in this
position and you can move the net into
position more easily.

Turn one of the mounting hooks 2 in
the opposite direction.

The spring pressure will push it out.

Engage mounting hook 2 in
holder 1.

Turn the other mounting hook and en-
gage it in the opposite holder.

Push both mounting hooks 2 forward
into holder 1.

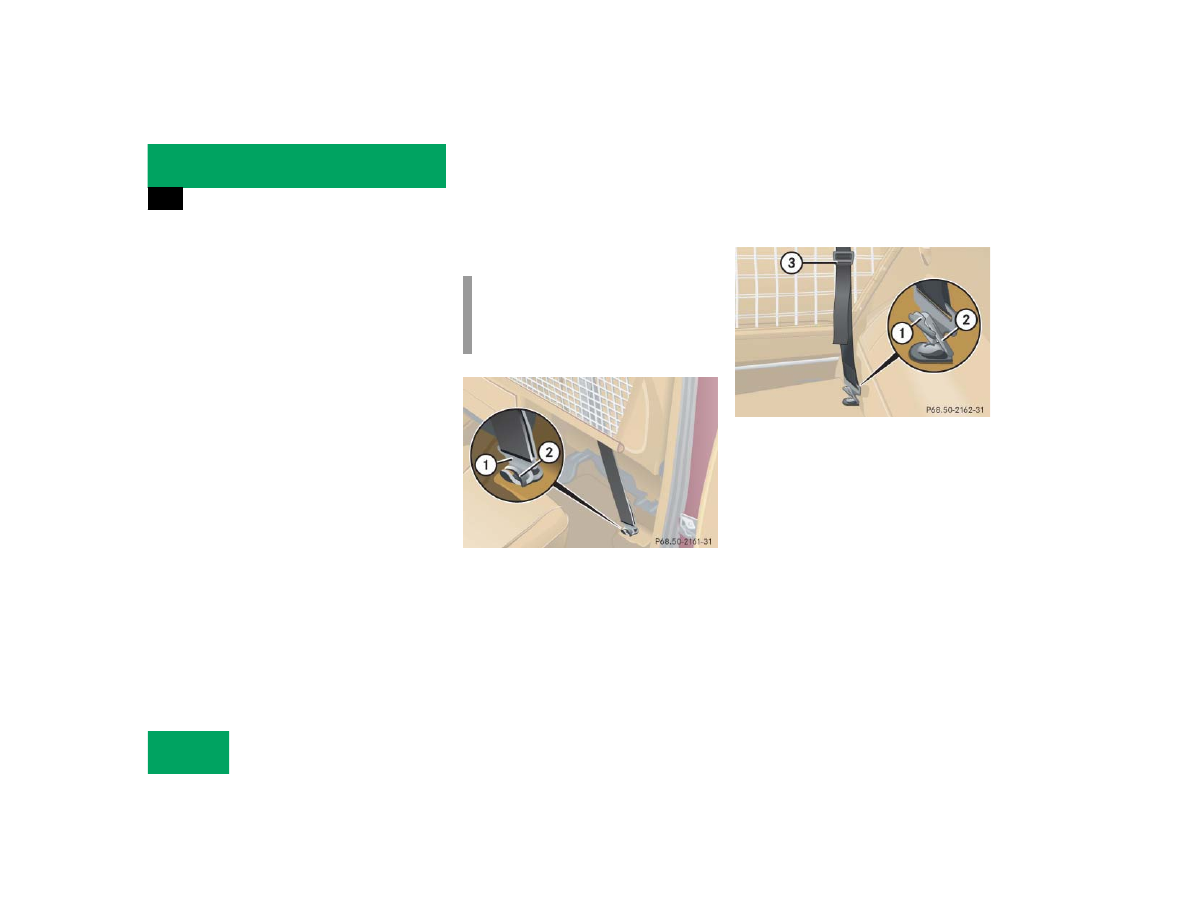

Tightening partition net

Installation behind the front seats

1 Tie-down hook
2 Ring

Installation behind the rear seats

1 Tie-down hook
2 Ring
3 Tensioner

Insert tie-down hook 1 in rings 2.

Pull on loose ends of tie-down straps
until net is tight.

After driving a short distance, check
the tension on the net and retighten if
necessary.

i

Before tightening the partition net,
remove the cargo floor plates
(

page 162).

161

Controls in detail

Loading

Removing partition net

Lift tensioner 3 upward to a horizon-
tal position to release tensioning of the
strap.

Disengage tie-down hooks 1 from
rings 2.

Remove mounting hooks 2
(

page 159) from holder 1

(

page 159).

Roll up and close the partition net.

Store partition net behind rear seat
bench.

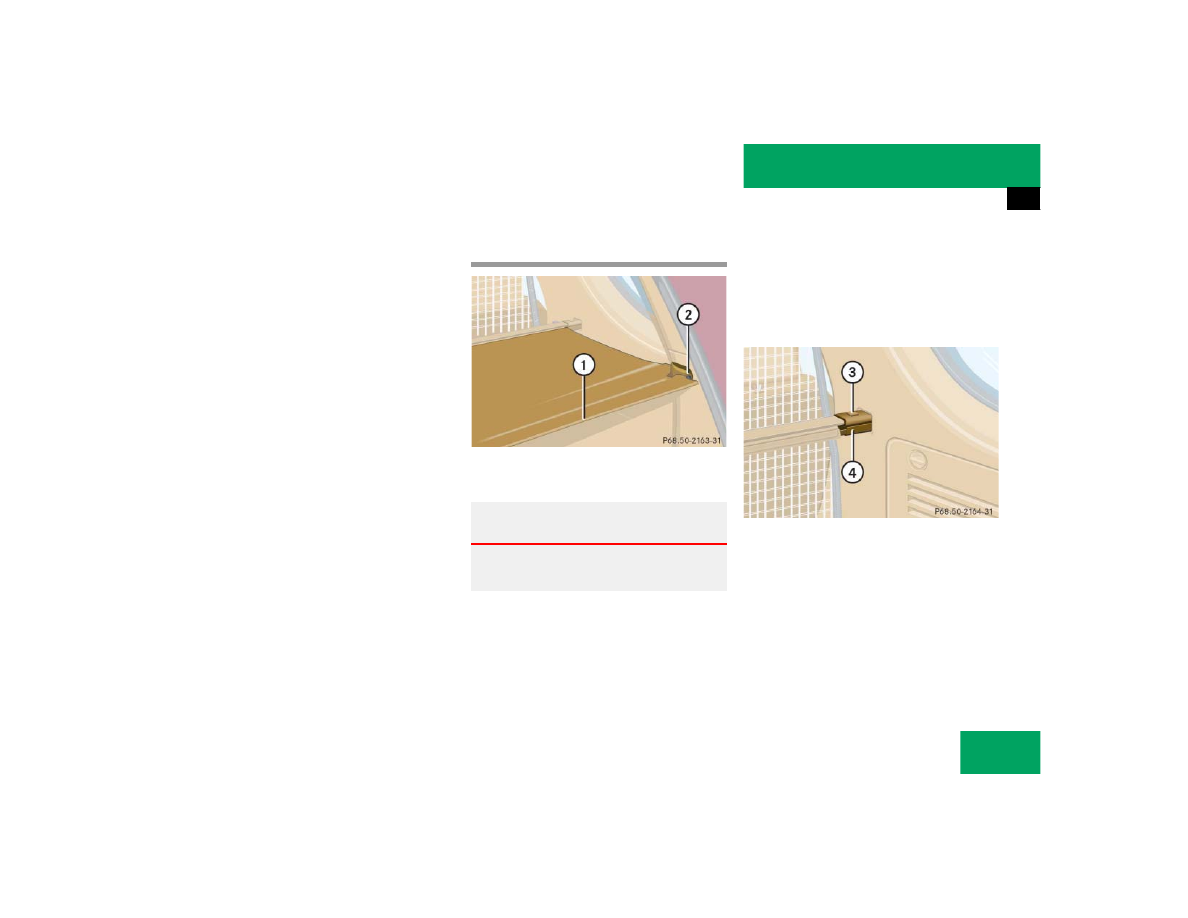

Cargo area cover blind*

1 Handle
2 Holder

Closing blind

Pull blind on handle 1 across the car-
go area.

Guide blind into holders 2.

Opening blind

Disengage blind and guide retraction
by its handle.

Removing blind

3 Button
4 Mounting sleeve

Roll the blind up.

Push mounting sleeve 4 inward
against spring pressure until it engag-
es.

Remove blind from mounts.

Warning!

G

Passenger use of third row seats with cargo
area cover blind installed is restricted.

162

Controls in detail

Loading

Installing blind

Place left side of blind in left mount.

Position right side of blind over right
mount.

Push button 3, releasing mounting
sleeve to slide into mount.

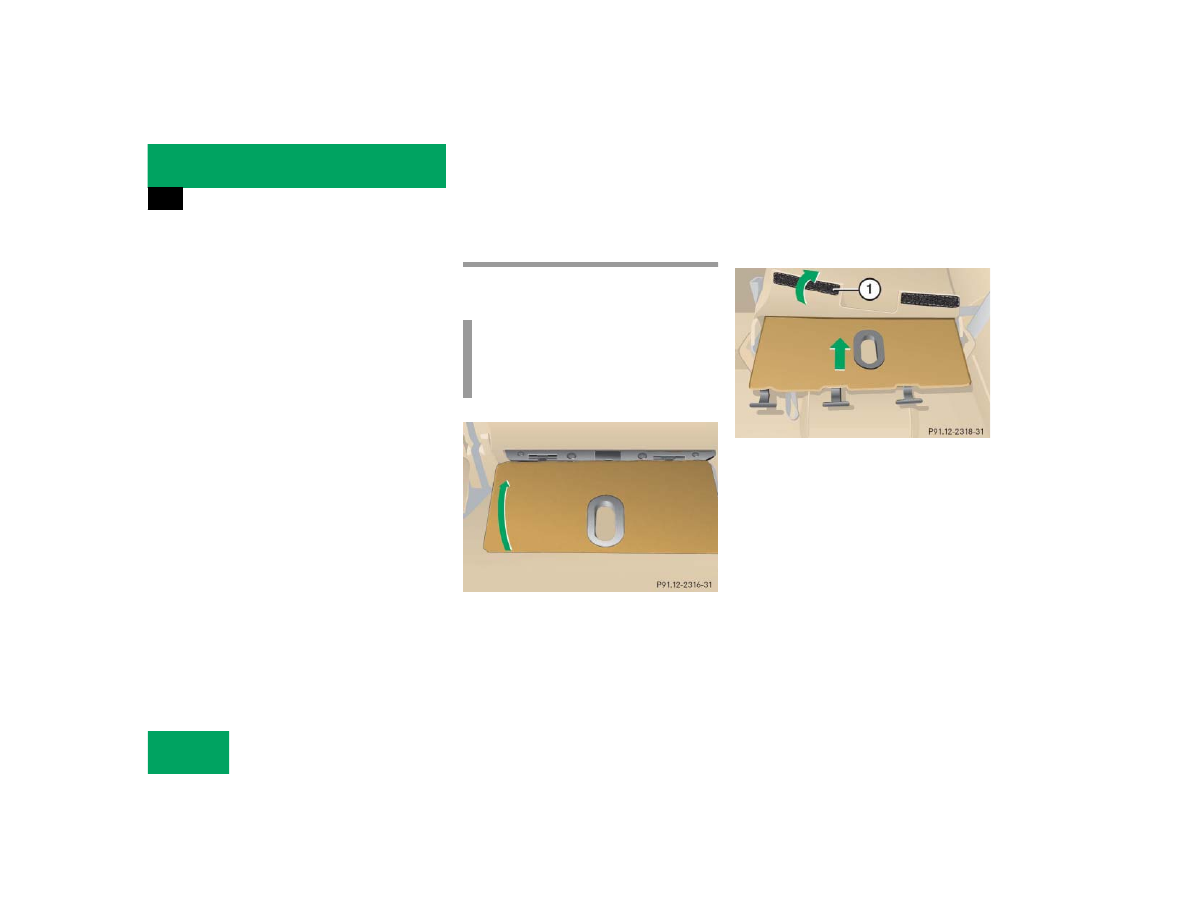

Cargo floor plates

Removing cargo floor plates

Lift cargo floor plate at rear edge
(arrow).

Cargo floor plate unhinges automati-
cally.

Remove cargo floor plate by pulling it
rearwards.

Storing cargo floor plates

1 Hook and loop strip

Fold the left cargo floor plate together.

Open the hook and loop strip at the
bottom of backrest of the third row
seats* and insert cargo floor plate.

Close the hook and loop strip.

i

Before you can remove the cargo floor
plates, it is possible that the third row
seats* (

page 102) must be removed.
