Mazda CX-5 (2019 year). Manual

Jump-Starting

Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you feel
unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.

WARNING

Follow These Precautions Carefully:

To ensure safe and correct handling of the battery, read the following precautions carefully
before using the battery or inspecting it.

Keep flames and sparks away from open battery cells and do not allow metal tools to

contact the positive ( ) or negative ( ) terminal of the battery when working near a battery.
Do not allow the positive ( ) terminal to contact the vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.

Keep all flames and sparks away from open battery cells because hydrogen gas is

produced from open battery cells while charging the battery or adding battery fluid:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.

Do not jump-start a frozen battery or one with a low fluid level:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may rupture or
explode, causing serious injury.

Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative ( ) terminal of the discharged
battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.

If Trouble Arises

Battery Runs Out

7-14

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.

CAUTION

Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and other
electrical parts beyond repair with a 24 V power supply (two 12 V batteries in series or a 24 V
motor generator set).

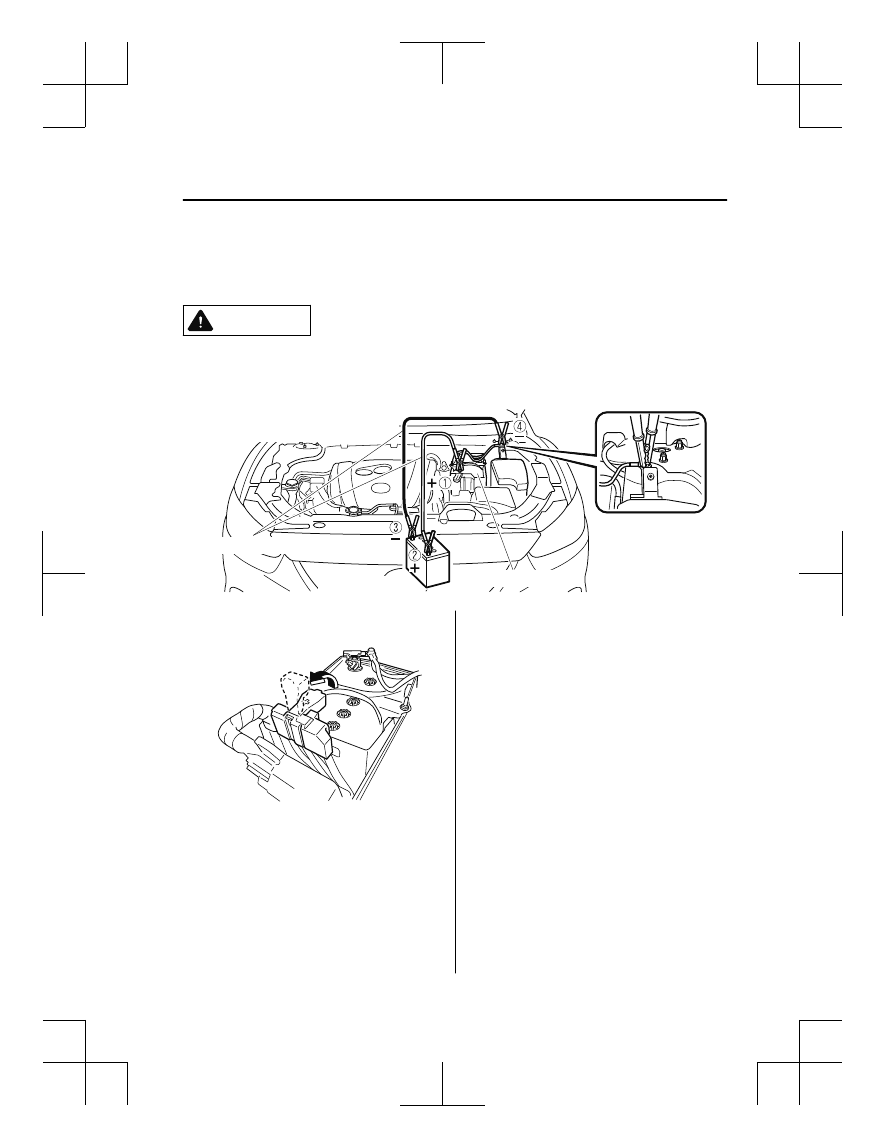

Booster battery

Discharged battery

Jumper cables

Connect cables in numerical order
and disconnect in reverse order.

1. Remove the battery cover.

2. Make sure the booster battery is 12 V

and that its negative terminal is
grounded.

3. If the booster battery is in another

vehicle, do not allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.

4. Connect the jumper cables in the exact

sequence as in the illustration.



Connect one end of a cable to the
positive terminal on the discharged
battery (1).



Attach the other end to the positive
terminal on the booster battery (2).



Connect one end of the other cable
to the negative terminal of the
booster battery (3).



Connect the other end to the ground
point indicated in the illustration
away from the discharged battery
(4).

5. Start the engine of the booster vehicle

and run it a few minutes. Then start the
engine of the other vehicle.

6. When finished, carefully disconnect

the cables in the reverse order
described in the illustration.

If Trouble Arises

Battery Runs Out

7-15

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Starting a Flooded Engine

If the engine fails to start, it may be
flooded (excessive fuel in the engine).

Follow this procedure:

1. If the engine does not start within 5

seconds on the first try, wait 10
seconds and try again.

2. Make sure the parking brake is on.
3. Depress the accelerator all the way and

hold it there.

4. Depress the clutch pedal (Manual

transaxle) or the brake pedal
(Automatic transaxle), then press the
push button start. If the engine starts,
release the accelerator immediately
because the engine will suddenly rev
up.

5. If the engine fails to start, crank it

without depressing the accelerator.

If the engine still does not start using the
previous procedure, have your vehicle
inspected by an Authorized Mazda Dealer.

Push-Starting

Do not push-start your Mazda.

WARNING

Never tow a vehicle to start it:
Towing a vehicle to start it is dangerous.
The vehicle being towed could surge
forward when its engine starts, causing the
2 vehicles to collide. The occupants could
be injured.

CAUTION

Do not push-start a vehicle that has a
manual transaxle. It can damage the
emission control system.

NOTE
You cannot start a vehicle with an
automatic transaxle by pushing it.

If Trouble Arises

Emergency Starting

7-17

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Overheating

If the temperature gauge indicates
overheating or the high engine coolant
temperature warning light turns on, the
vehicle loses power, or you hear a loud
knocking or pinging noise, the engine is
probably too hot.

WARNING

Pull over to a safe location, then switch

the ignition off and make sure the fan is
not running before attempting to work
near the cooling fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if the
engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.

Do not remove either cooling

system cap when the engine and radiator
are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot out
under pressure and cause serious injury.

Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.

If the temperature gauge indicates
overheating or the high engine coolant
temperature warning light turns on:

1. Drive safely to the side of the road and

park off the right-of-way.

2. Put a vehicle with an automatic

transaxle in park (P), a manual
transaxle in neutral.

3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is

escaping from the engine
compartment.

If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.

If neither coolant nor steam is
escaping:
Open the hood and idle the engine
until it cools.

CAUTION

If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.

6. Make sure the cooling fan is operating,

then turn off the engine after the
temperature has decreased.

If Trouble Arises

Overheating

7-18

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

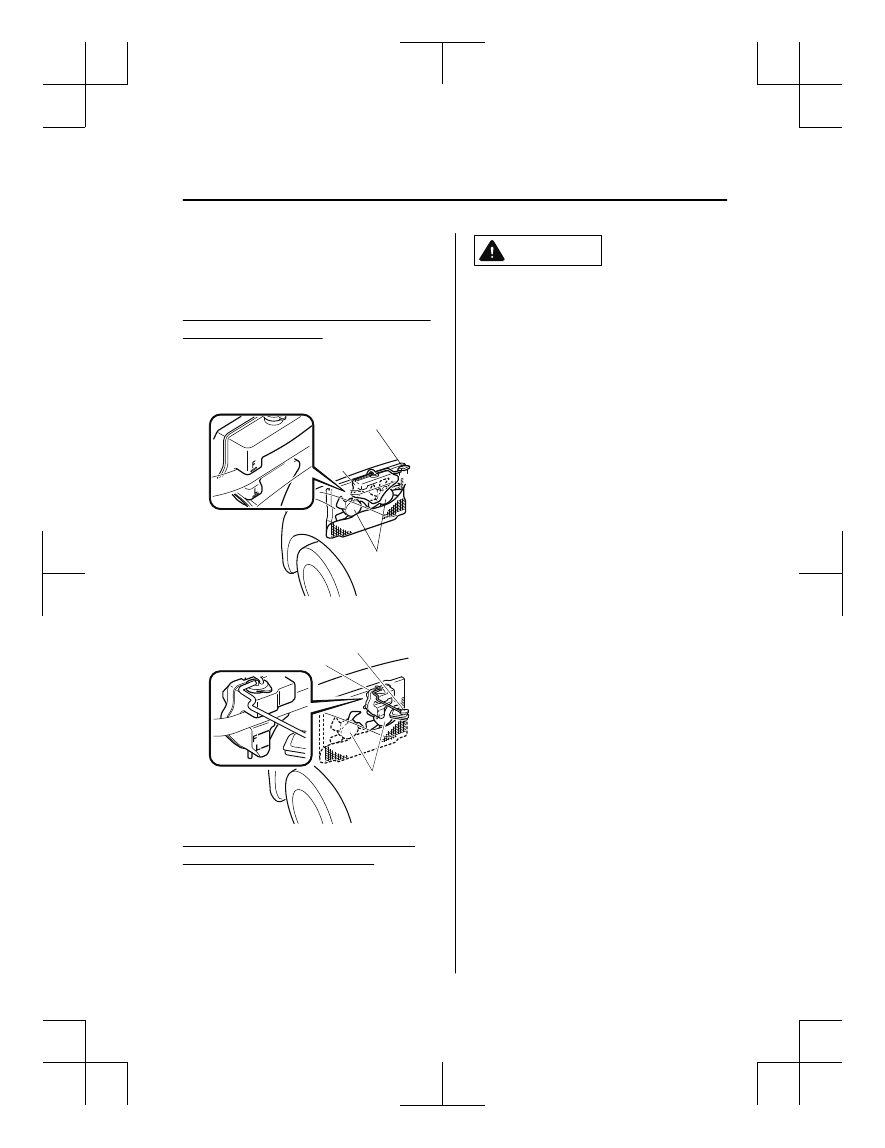

7. When cool, check the coolant level.

If it is low, look for coolant leaks from
the radiator and hoses.

If you find a leak or other damage, or if
coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
SKYACTIV-G 2.0 and SKYACTIV-G
2.5

Cooling system
cap

Coolant
reservoir

Cooling fan

SKYACTIV-G 2.5T

Cooling system cap

Coolant reservoir

Cooling fan

If you find no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
6-27).

CAUTION

If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.

If Trouble Arises

Overheating

7-19

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

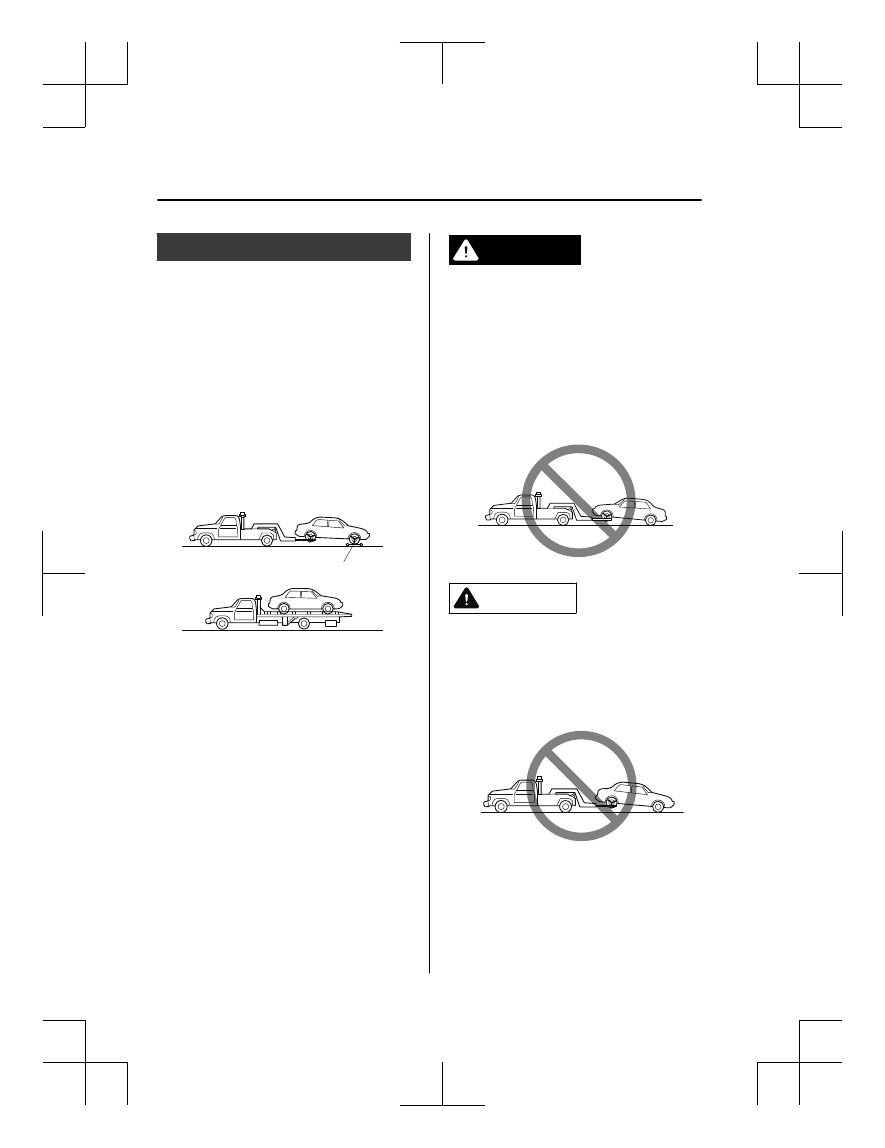

Towing Description

We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.

Proper lifting and towing are necessary to
prevent damage to the vehicle. Particularly
when towing an AWD vehicle, where all
the wheels are connected to the drive train,
proper transporting of the vehicle is
absolutely essential to avoid damaging the
drive system. Government and local laws
must be followed.

Wheel dollies

A towed 2WD vehicle should have its
drive wheels (front wheels) off the ground.
If excessive damage or other conditions
prevent this, use wheel dollies.

When towing a 2WD vehicle with the rear
wheels on the ground, release the parking
brake.
Refer to Electric Parking Brake (EPB) on
page 4-94.

A towed AWD vehicle must have all its
wheels off the ground.

WARNING

Always tow an AWD vehicle with all four
wheels off the ground:
Towing an AWD vehicle with either the
front or rear wheels on the ground is
dangerous as the drive train could be
damaged, or the vehicle could trail away
from the tow truck and cause an accident.
If the drive train has been damaged,
transport the vehicle on a flatbed truck.

CAUTION

Do not tow the vehicle pointed backward

with driving wheels on the ground. This
may cause internal damage to the
transaxle.

If Trouble Arises

Emergency Towing

7-20

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

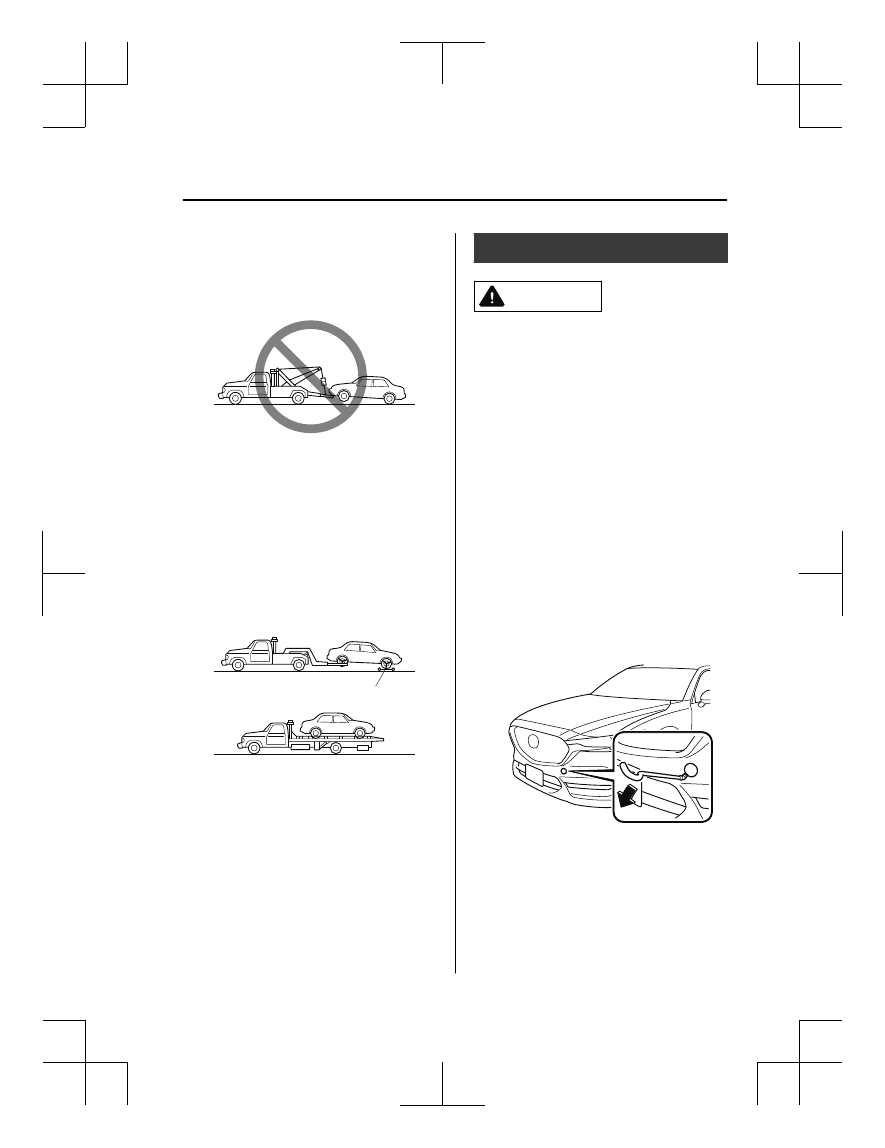

Do not tow with sling-type equipment.

This could damage your vehicle. Use
wheel-lift or flatbed equipment.

If the parking brake cannot be released

when towing the vehicle, transport the
vehicle with all front and rear wheels
raised off the ground as shown in the
figure. If the vehicle is towed without
raising the wheels off the ground, the
brake system could be damaged.

Wheel dollies

Tiedown Hooks

CAUTION

Do not use the front and rear tiedown
eyelets for towing the vehicle.
They have been designed only for securing
the vehicle to a transport vessel during
shipping.
Using the eyelets for any other purpose
could result in the vehicle being damaged.

▼ Tiedown Hooks

1. Remove the tiedown eyelet and the lug

wrench from the luggage compartment
(page 7-3).

2. Wrap a flathead screwdriver or similar

tool with a soft cloth to prevent
damage to a painted bumper, and open
the cap located on the front or rear
bumper.
Front

If Trouble Arises

Emergency Towing

*Some models.

7-21

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

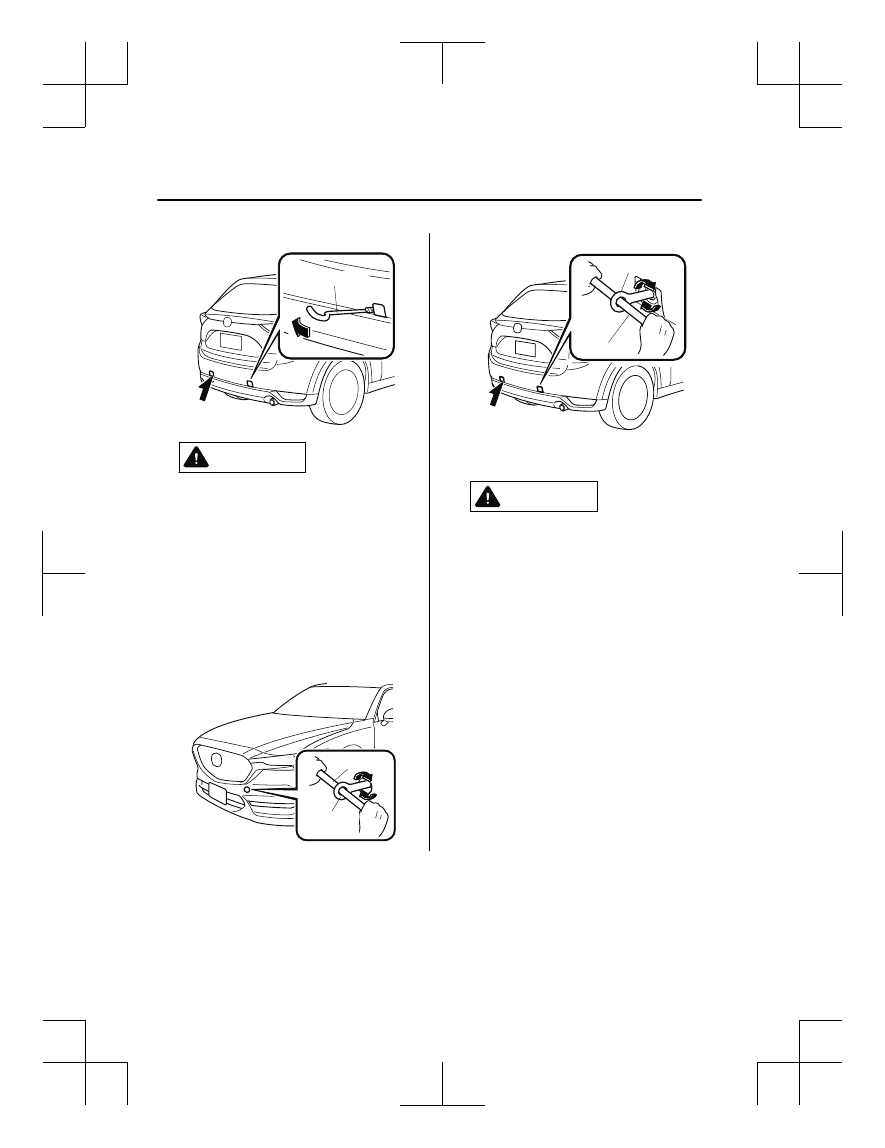

Rear

Jack lever

CAUTION

Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.

NOTE
Remove the cap completely and store it
so as not to lose it.

3. Securely install the tiedown eyelet

using the lug wrench.
Front

Lug wrench

Tiedown
eyelet

Rear

Tiedown eyelet

Lug wrench

4. Hook the tying rope to the tiedown

eyelet.

CAUTION

If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.

If Trouble Arises

Emergency Towing

7-22

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

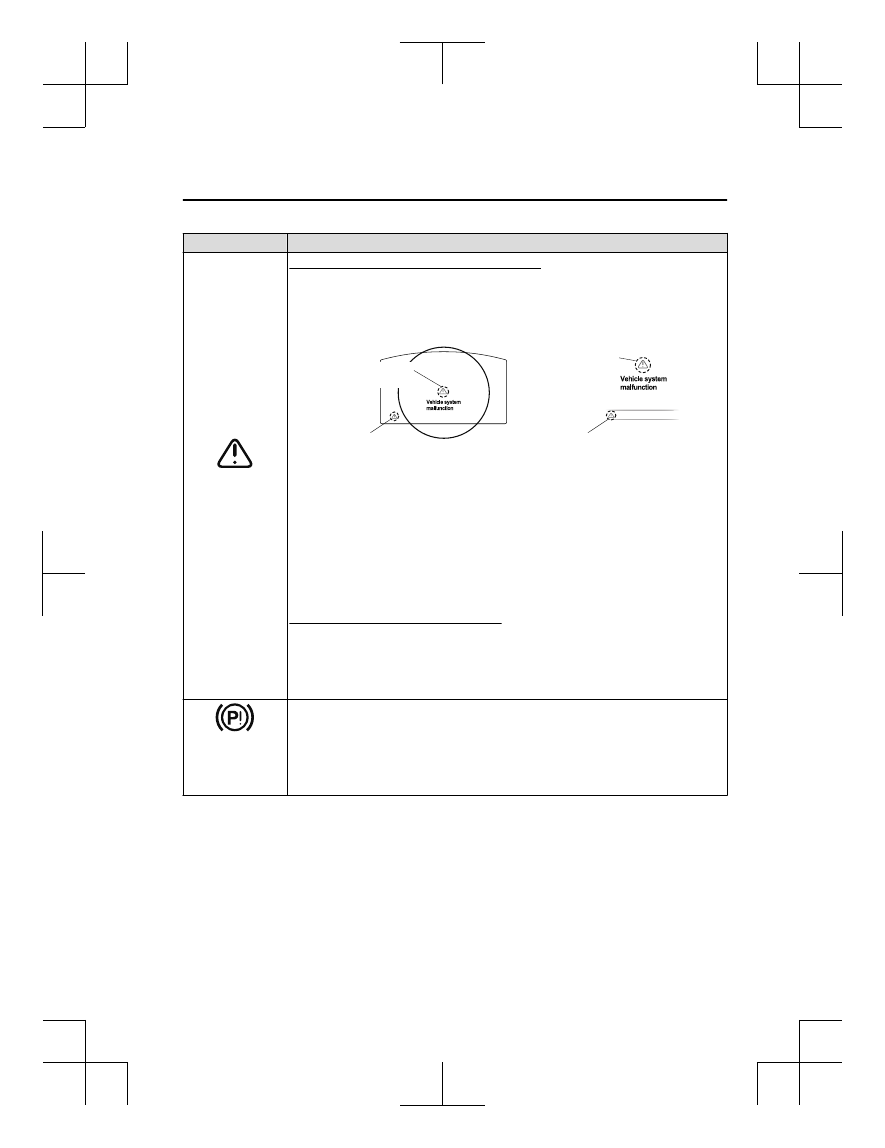

If a Warning Light Turns On or Flashes

If any warning light turns on/flashes, take appropriate action for each light. There is no
problem if the light turns off, however if the light does not turn off or turns on/flashes again,
consult an Authorized Mazda Dealer.
The details for some warnings can be viewed on the center display or multi-information
display (Type A/Type B) in the instrument cluster.

Center display

1. If the warning light is turned on, select the icon on the home screen to display the

Applications screen.

2. Select “Vehicle Status Monitor”.
3. Select “Warning Guidance” to display the current warnings.
4. Select the applicable warning to view the warning details.

Multi-information display (Type A/Type B)

1. Press the INFO switch on the steering switch to display the warning indication screen.

Refer to Multi-information Display (Type A) on page 4-14.
Refer to Multi-information Display (Type B) on page 4-30.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-23

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Stop Vehicle in Safe Place Immediately

If any of the following warning lights turns on, the system may have a malfunction. Stop the
vehicle in a safe place immediately and contact an Authorized Mazda Dealer.

Signal

Warning

Brake System Warning

Indication/Warning

Light

This warning has the following functions:
Parking brake warning/Warning light inspection
The light illuminates when the parking brake is applied with the ignition switched to
START or ON. It turns off when the parking brake is released.
When the light turns on
If the brake system warning light remains turned on even though the parking brake is
released, the brake fluid may be low or there could be a problem with the brake sys‐
tem. Park the vehicle in a safe place immediately and contact an Authorized Mazda
Dealer.
When the light is flashing
The light flashes if the Electric Parking Brake (EPB) has a malfunction.
If the light remains flashing even if the Electric Parking Brake (EPB) switch is oper‐
ated, consult an Authorized Mazda Dealer as soon as possible.

WARNING

Do not drive with the brake system warning light illuminated. Contact an Authorized
Mazda Dealer to have the brakes inspected as soon as possible:
Driving with the brake system warning light illuminated is dangerous. It indicates that
your brakes may not work at all or that they could completely fail at any time. If this
light remains illuminated, after checking that the parking brake is fully released, have
the brakes inspected immediately.

CAUTION

In addition, the effectiveness of the braking may diminish so you may need to depress
the brake pedal more strongly than normal to stop the vehicle.

Electronic Brake Force

Distribution System

Warning

If the electronic brake force distribution control unit determines that some compo‐
nents are operating incorrectly, the control unit may illuminate the brake system
warning light and the ABS warning light simultaneously. The problem is likely to be
the electronic brake force distribution system.

WARNING

Do not drive with both the ABS warning light and brake warning light illuminated.
Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as
soon as possible:
Driving when the brake system warning light and ABS warning light are illuminated
simultaneously is dangerous.
When both lights are illuminated, the rear wheels could lock more quickly in an emer‐
gency stop than under normal circumstances.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-24

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Signal

Warning

Charging System Warn‐

ing Indication/Warning

Light

If the warning light illuminates while driving, it indicates a malfunction of the alter‐
nator or of the charging system.
Drive to the side of the road and park off the right-of-way. Consult an Authorized
Mazda Dealer.

CAUTION

Do not continue driving when the charging system warning light is illuminated be‐
cause the engine could stop unexpectedly.

Engine Oil Warning

Light

This warning light indicates low engine oil pressure.

CAUTION

Do not run the engine if the oil pressure is low. Otherwise, it could result in extensive
engine damage.

If the light illuminates or the warning indication is displayed while driving:
1. Drive to the side of the road and park off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain back into the oil pan.
3. Inspect the engine oil level (page 6-26). If it's low, add the appropriate amount of

engine oil while being careful not to overfill.

CAUTION

Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.

4. Start the engine and check the warning light.

If the light remains illuminated even though the oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an Authorized Mazda
Dealer.

(Red)

High Engine Coolant

Temperature Warning

Indication/Warning

Light

The light flashes when the engine coolant temperature is extremely high, and illumi‐
nates when the engine coolant temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until you can find a safe place to stop the vehicle
and wait for the engine to cool down.
Illuminated light
This indicates the possibility of overheating. Park the vehicle in a safe place immedi‐
ately and stop the engine.
Refer to Overheating on page 7-18.

CAUTION

Do not drive the vehicle with the high engine coolant temperature warning light illumi‐
nated. Otherwise, it could result in damage to the engine.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-25

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Signal

Warning

Power Steering Mal‐

function Indication

The message is displayed if the electric power steering has a malfunction.
If the message is displayed, stop the vehicle in a safe place and do not operate the
steering wheel. There is no problem if the message in the display turns off after a
while. Contact an Authorized Mazda Dealer if the message is displayed continuously.

NOTE



If the message is displayed, the power steering will not operate normally. In this
case, the steering wheel can still be operated, however, the operation may feel
heavy compared to normal, or the steering wheel could vibrate when turning.



Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the power steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and wait several minutes for the system to
return to normal.

Power Steering Mal‐

function Indicator

Light

The light illuminates/flashes if the electric power steering has a malfunction.
If the light illuminates/flashes, stop the vehicle in a safe place and do not operate the
steering wheel. There is no problem if the light turns off after a while. Contact an Au‐
thorized Mazda Dealer if the light illuminates/flashes continuously.

NOTE



If the indicator light illuminates/flashes, the power steering will not operate nor‐
mally. If this happens, the steering wheel can still be operated, however, the opera‐
tion may feel heavy compared to normal, or the steering wheel could vibrate when
turning.



▼ Contact Authorized Mazda Dealer and Have Vehicle Inspected

If any of the following warning lights or the indicator light turns on/flashes, the system may
have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.

Signal

Warning

ABS Warning Light

If the ABS warning light stays on while you're driving, the ABS control unit has detected
a system malfunction. If this occurs, your brakes will function normally as if the vehicle
had no ABS.
Should this happen, consult an Authorized Mazda Dealer as soon as possible.

NOTE



When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.



The brake assist system does not operate while the ABS warning light is illuminated.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-26

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Signal

Warning

Master Warning In‐

dication/Warning

Light

With Multi-information Display (Type A/Type B)

Displays when notification of the system malfunctions is required.
Check the message indicated in the display and consult an Authorized Mazda Dealer.

Master warning
indication

Master
warning light

Master warning
indication

Multi-information Display

Type A

Type B

Indication in display and master warning light in instrument cluster are illuminated at
same time.
This indicates a malfunction with the vehicle system. Check the message indicated in the
display and consult an Authorized Mazda Dealer.
For details, refer to the explanations for the warning/indicator lights, in the warning/indi‐
cator lights section, which match the symbol in the upper part of the display.
If a message is not indicated in the display, operate the INFO switch to display the “Warn‐
ing” screen.
Refer to Message Indicated in Multi-information Display (Type A) on page 4-14.
Refer to Message Indicated in Multi-information Display (Type B) on page 4-30.

With Multi-information Display (Type C)

The light illuminates continuously if any one of the following occurs. Consult an Author‐
ized Mazda Dealer.



There is a malfunction in the battery management system.



There is a malfunction in the brake switch.

Electric Parking

Brake (EPB) Warn‐

ing Indication/
Warning Light

The warning light illuminates when the system has a malfunction. Have your vehicle in‐
spected at an Authorized Mazda Dealer.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-27

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Signal

Warning

(Red)

Brake Pedal Opera‐
tion Demand Warn‐

ing Light

When only flashing

Flashes if there is the possibility of the vehicle not being held in the stopped position by
the AUTOHOLD function, such as on steep slopes. Depress and hold your foot on the
brake pedal.

When flashing and beep sound is activated at the same time

The warning light flashes and the beep sound is activated for about 5 seconds if there is a
problem with the system. If the warning light flashes and the warning sound is activated,
immediately depress the brake pedal and stop using the AUTOHOLD function then con‐
tact an Authorized Mazda Dealer.

WARNING

Immediately depress the brake pedal if the warning light flashes and the beep sound is acti‐
vated while using the AUTOHOLD function:
Because the AUTOHOLD function is canceled forcibly, the vehicle may move unexpectedly
and result in an accident.

Check Engine Light

If this light illuminates while driving, the vehicle may have a problem. It is important to
note the driving conditions when the light illuminated and consult an Authorized Mazda
Dealer.
The check engine light may illuminate in the following cases:



The engine's electrical system has a problem.



The emission control system has a problem.



The fuel tank level being very low or approaching empty.



The fuel-filler cap is missing or not tightened securely.

If the check engine light remains on, or it flashes continuously , do not drive at high
speeds and consult an Authorized Mazda Dealer as soon as possible.

WARNING

If the check engine light turns on, do not disconnect the battery cables.
If the battery cables are disconnected and then reconnected, the engine could be damaged
and catch on fire.

Automatic Trans‐

axle Warning Indi‐

cation/Warning

Light

The indication/light illuminates when the transaxle has a problem.

CAUTION

If the automatic transaxle warning indication/light illuminates, the transaxle has an electri‐
cal problem. Continuing to drive your Mazda in this condition could cause damage to your
transaxle. Consult an Authorized Mazda Dealer as soon as possible.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-28

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Signal

Warning

AWD Warning Indi‐

cation

“4WD System Malfunction” is displayed

The indication is displayed under the following conditions. The system may have a mal‐
function. Have the vehicle checked at an Authorized Mazda Dealer.



When there is a malfunction in the AWD system.



When there is a large difference between the tire size of the front and rear wheels.

“4WD System High Load” is displayed

The indication is displayed under the following conditions. Park the vehicle in a safe place
and check that the warning indication light turns off, and then drive the vehicle. Contact
an Authorized Mazda Dealer if the indication is continuously displayed.



When the differential oil temperature is excessively high.



When there is a large difference between the front and rear wheel rotation, such as
when trying to remove the vehicle from mud.

AWD Warning

Light

When the light is turned on

The light turns on under the following conditions. The system may have a malfunction.
Have the vehicle checked at an Authorized Mazda Dealer.



When there is a malfunction in the AWD system.



When there is a large difference between the tire size of the front and rear wheels.

When the light is flashing

Park the vehicle in a safe place. After a few moments, if the warning light stops flashing,
you can resume driving. If the light does not stop flashing, contact an Authorized Mazda
Dealer.



When the differential oil temperature is excessively high.



When there is a large difference between the front and rear wheel rotation, such as
when trying to remove the vehicle from mud.

(Turns on)

TCS/DSC Indicator

Light

If the light stays on, the TCS, DSC or the brake assist system may have a malfunction and
they may not operate correctly. Take your vehicle to an Authorized Mazda Dealer.

Air Bag/Front Seat

Belt Pretensioner

System Warning

Light

A system malfunction is indicated if the warning light constantly flashes, constantly illu‐
minates or does not illuminate at all when the ignition is switched ON. If any of these oc‐
cur, consult an Authorized Mazda Dealer as soon as possible. The system may not operate
in an accident.

WARNING

Never tamper with the air bag/pretensioner systems and always have an Authorized Mazda
Dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner could
accidentally activate or become disabled causing serious injury or death.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

*Some models.

7-29

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Mazda CX-5 (2019 year). Manual - part 37
