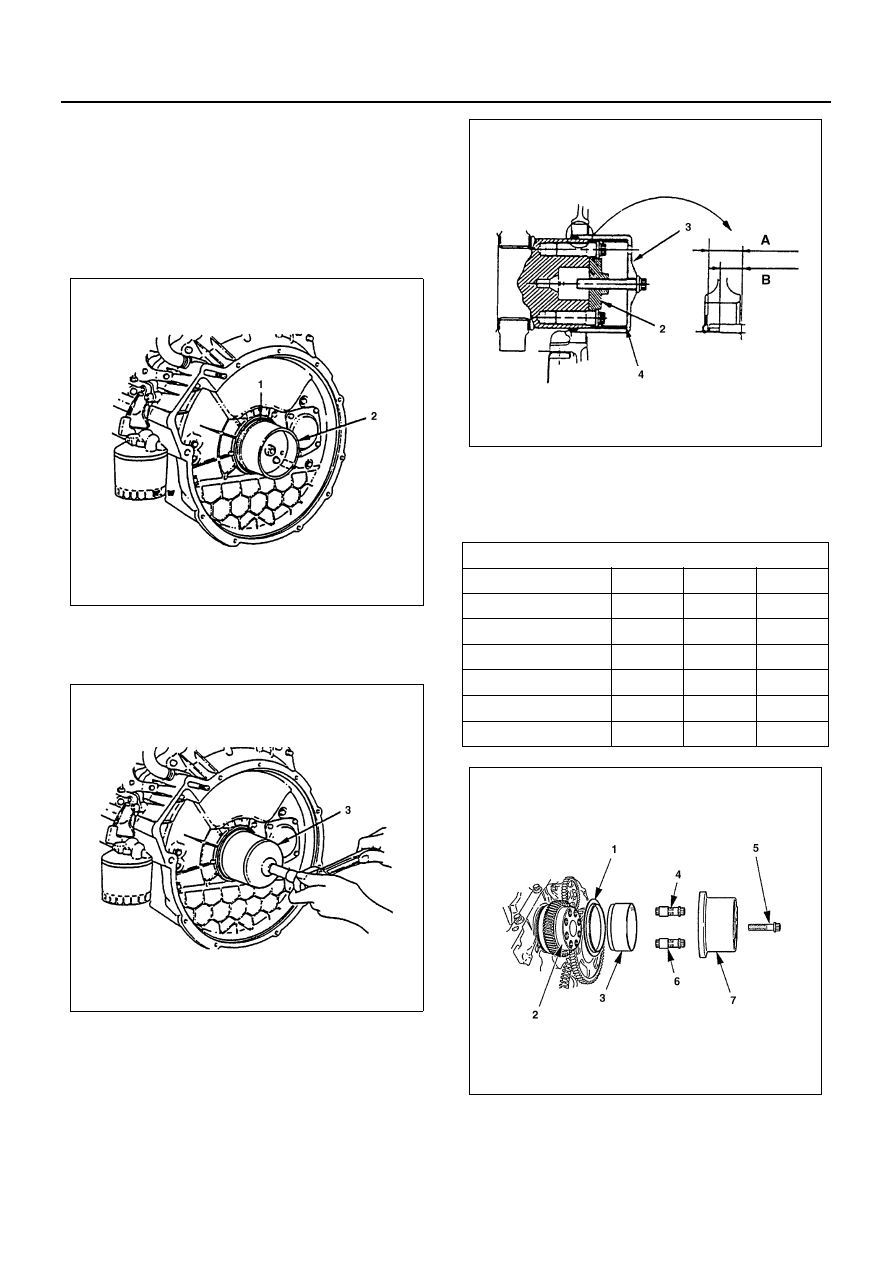

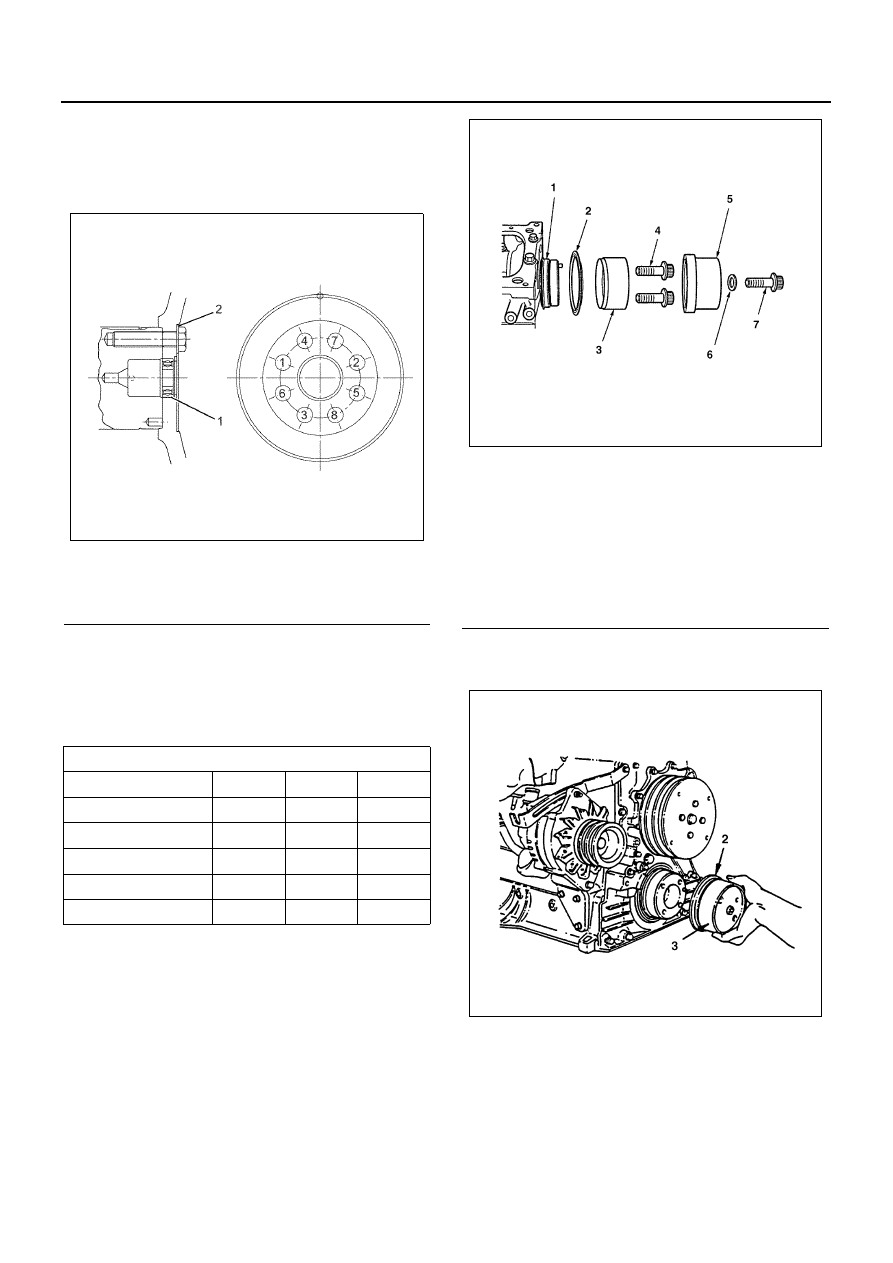

6A-50 ENGINE MECHANICAL 23. Oil Pan Above works refer to “CYLINDER BLOCK” section 25. Crankshaft Rear Slinger Press in the slinger using oil seal setting tool kit. (2) and install the adapter on the crankshaft. 2) Cover the sleeve (3) and tighten the bolt until the sleeve comes to contact the adapter stop- 3) Make sure of measurements specified in the il- lustration as well as of slinger deflection. ± 0.3 mm (0.681 ± 0.012 in) (B): 10.8 ± 0.1 mm (0.425 ± 0.004 in) Notice: Oil Seal Setting Tool Kit: 5-8840-2431-0 N6A0235E N6A0236E Rear slinger and oil seal setting tools Part Name Stamp Slinger Oil Seal Adapter RR ❍ ❍ Sleeve RR ❍ ❍ Oil seal adapter ring RR ❍ Center bolt — ❍ ❍ Adapter bolt — ❍ ❍ Adapter bolt collar RR ❍ ❍ N6A0237E N6A0238E |
