Safety — seats, seat belts and supplemental restraint system

SSS0641

Forward-facing — step 8

8. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The
child restraint should not move more
than 1 inch (25 mm), from side to side.
Try to tug it forward and check to see if
the belt holds the restraint in place. If the
restraint is not secure, tighten the seat
belt as necessary, or put the restraint in
another seat and test it again. You may
need to try a different child restraint. Not
all child restraints fit in all types of
vehicles.

9. Check to make sure the child restraint is

properly secured prior to each use. If the

seat belt is not locked, repeat steps 2
through 8.

SSS0803

Forward-facing — step 10

10. If the child restraint is installed in the

front passenger seat, place the ignition
switch in the ON position. The front
passenger air bag status light

should

illuminate. If this light is not illuminated,
see “Front passenger air bag and status
light” (P.1-59).

Move the child restraint

to another seating position.

Have the

system checked. It is recommended you
visit an INFINITI retailer for this service.

After the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVR0619X

2nd row captain’s seat

JVR0620X

2nd row bench seat

JVR0621X

3rd row bench seat

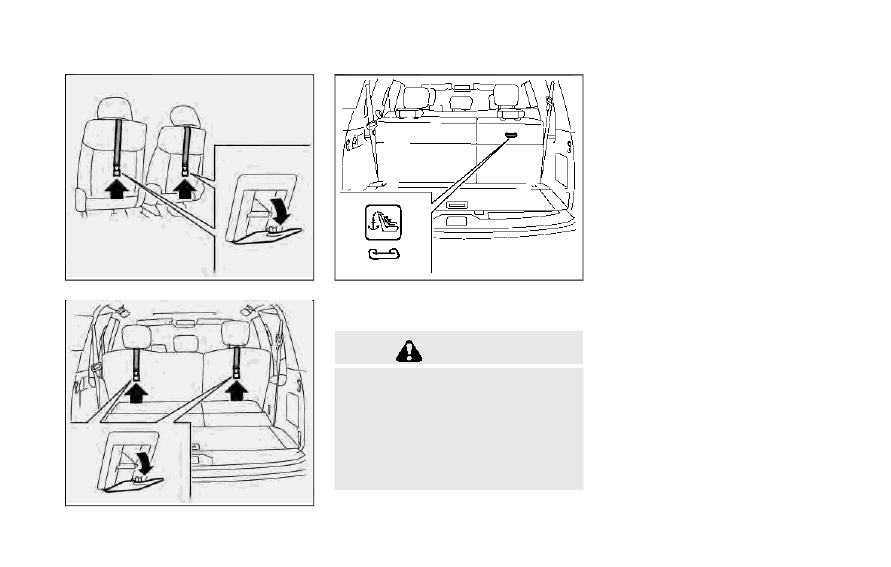

Installing top tether strap

WARNING

In the 3rd row bench seat, a child
restraint with a top tether strap can
only be used in the outboard seating
position (right side). Do not place it in
the outboard seating position (left side)
and center position and attempt to angle
the tether strap to the outboard seating
position (right side).

First, secure the child restraint with the seat
belt.
1. If necessary, raise or remove the head

restraint or headrest to position the top
tether strap over the top of the seatback.
If the head restraint or headrest is
removed, store it in a secure place. Be
sure to reinstall the head restraint or
headrest when the child restraint is
removed. See “Head restraints/head-
rests” (P.1-13) for head restraint or
headrest adjustment, removal and in-
stallation information.

2. Secure the tether strap to the tether

anchor point on the back of each seat-
back (2nd row seat) or right side seat-
back (3rd row bench seat) behind the
child restraint.

3. Tighten the tether strap according to the

manufacturer’s instructions to remove
any slack. Make sure the head restraint
or headrest does not contact the top
tether strap.

If you have any questions when installing a
top tether strap on the rear seat, it is
recommended you visit an INFINITI retailer
for this service.

Safety — seats, seat belts and supplemental restraint system

1-47

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-48

Safety — seats, seat belts and supplemental restraint system

BOOSTER SEATS

Precautions on booster seats

WARNING

If a booster seat and seat belt are not
used properly, the risk of a child being
injured in a sudden stop or collision
greatly increases:

.

Make sure the shoulder portion of
the belt is away from the child’s face
and neck and the lap portion of the
belt does not cross the stomach.

.

Make sure the shoulder belt is not
behind the child or under the child’s
arm.

.

A booster seat must only be installed
in a seating position that has a lap/
shoulder belt.

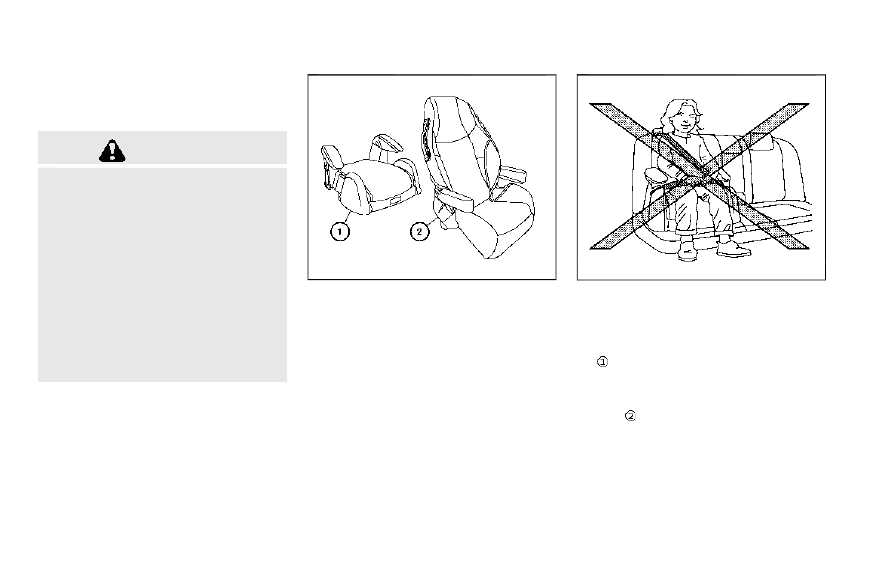

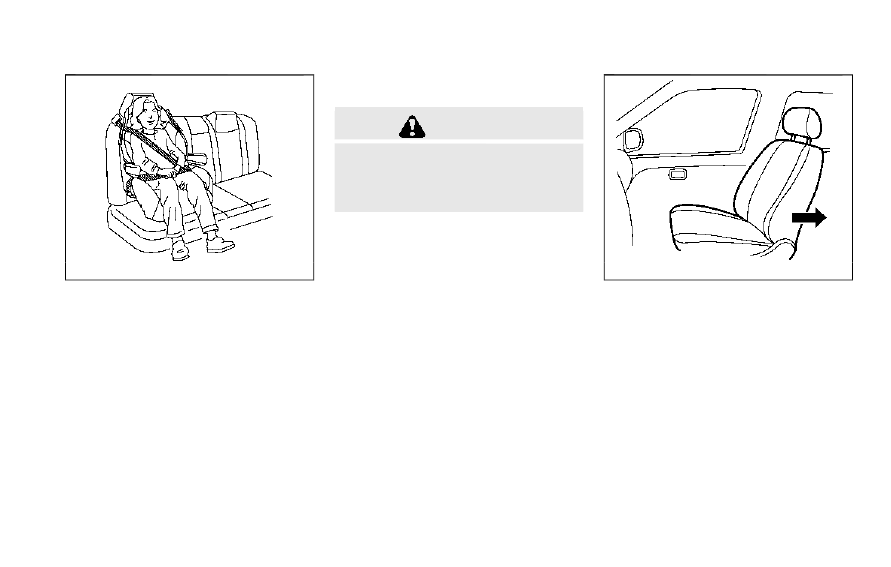

LRS0455

Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in
mind:

.

Choose only a booster seat with a label

certifying that it complies with Federal
Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Stan-
dard 213.

.

Check the booster seat in your vehicle to

be sure it is compatible with the vehicle’s
seat and seat belt system.

LRS0453

.

Make sure the child’s head will be

properly supported by the booster seat
or vehicle seat. The seatback must be at
or above the center of the child’s ears.
For example, if a low back booster seat

is chosen, the vehicle seatback must be

at or above the center of the child’s ears.
If the seatback is lower than the center
of the child’s ears, a high back booster
seat

should be used.

.

If the booster seat is compatible with

your vehicle, place your child in the
booster seat and check the various
adjustments to be sure the booster seat
is compatible with your child. Always
follow all recommended procedures.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LRS0464

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated.

The instructions in this section apply to
booster seat installation in the rear seats or
the front passenger seat.

Booster seat installation

CAUTION

Do not use the lap/shoulder belt Auto-
matic Locking Retractor (ALR) mode
when using a booster seat with the seat
belts.

Refer to all Warnings and Cautions in the
“Child safety”, “Child restraints” and “Boos-
ter seats” sections earlier in this section
before installing a child restraint.
Follow these steps to install a booster seat in
the rear seat or in the front passenger seat:

SSS0640

1.

If you must install a booster seat in the
front seat, move the seat to the rear-
most position.

2. Position the booster seat on the seat.

Only place it in a forward-facing direc-
tion. Always follow the booster seat
manufacturer’s instructions.

Safety — seats, seat belts and supplemental restraint system

1-49

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-50

Safety — seats, seat belts and supplemental restraint system

LRS0454

Front passenger position

3. The booster seat should be positioned on

the vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint or headrest to obtain the
correct booster seat fit. If the head
restraint or headrest is removed, store
it in a secure place.

Be sure to reinstall

the head restraint or headrest when the
booster seat is removed.

See “Head

restraints/headrests” (P.1-13) for head
restraint or headrest adjustment, re-
moval and installation information.
If the seating position does not have an
adjustable head restraint or a headrest
and it is interfering with the proper

booster seat fit, try another seating
position or a different booster seat.

4. Position the lap portion of the seat belt

low and snug on the child’s hips. Be sure
to follow the booster seat manufac-
turer’s instructions for adjusting the seat
belt routing.

5. Pull the shoulder belt portion of the seat

belt toward the retractor to take up
extra slack. Be sure the shoulder belt is
positioned across the top, middle portion
of the child’s shoulder. Be sure to follow
the booster seat manufacturer’s instruc-
tions for adjusting the seat belt routing.

6. Follow the warnings, cautions and in-

structions for properly fastening a seat
belt shown in “Seat belts” (P.1-18).

SSS0803

7. If the booster seat is installed in the front

passenger seat, push the ignition switch
to the ON position. The front passenger
air bag status light

may or may not

illuminate depending on the size of the
child and the type of booster seat used.
See “Front passenger air bag and status
light” (P.1-59).

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PRECAUTIONS ON SUPPLE-
MENTAL RESTRAINT SYSTEM

This Supplemental Restraint System (SRS)
section contains important information con-
cerning the following systems.

.

Driver and passenger supplemental

front-impact air bag (INFINITI Advanced
Air Bag System)

.

Driver and front passenger supplemental

knee air bag

.

Front seat-mounted side-impact supple-

mental air bag

.

Roof-mounted curtain side-impact and

rollover supplemental air bag

.

Seat belt with pretensioner

Supplemental front-impact air bag system:

The INFINITI Advanced Air Bag System can
help cushion the impact force to the head
and chest of the driver and front passenger
in certain frontal collisions.

Driver and front passenger supplemental
knee air bag system:

This system can help

cushion the impact force to the driver’s and
front passenger’s knees in certain collisions.

Front seat-mounted side-impact supple-
mental air bag system:

This system can help

cushion the impact force to the chest and
pelvis area of the driver and front passenger
in certain side impact collisions. The supple-
mental side air bag is designed to inflate on

the side where the vehicle is impacted.

Roof-mounted curtain side-impact and roll-
over supplemental air bag system:

This

system can help cushion the impact force
to the head of occupants in front and rear
(2nd and 3rd) outboard seating positions in
certain side impact or rollover collisions. In a
side impact, the curtain air bags are designed
to inflate on the side where the vehicle is
impacted. In a rollover, the curtain air bags
on both sides are designed to inflate. Under
both side-impact and rollover situations, the
curtain air bags will remain inflated for a
short period of time.
These supplemental restraint systems are
designed to

supplement

the crash protection

provided by the driver and passenger seat
belts and are

not a substitute

for them. Seat

belts should always be correctly worn and
the occupant seated a suitable distance
away from the steering wheel, instrument
panel and door finishers. (See “Seat belts”
(P.1-18) for instructions and precautions on
seat belt usage.)

The supplemental air bags operate only
when the ignition switch is in the ON
position.

After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7

seconds if the systems are operational.

Safety — seats, seat belts and supplemental restraint system

1-51

SUPPLEMENTAL RESTRAINT SYSTEM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-52

Safety — seats, seat belts and supplemental restraint system

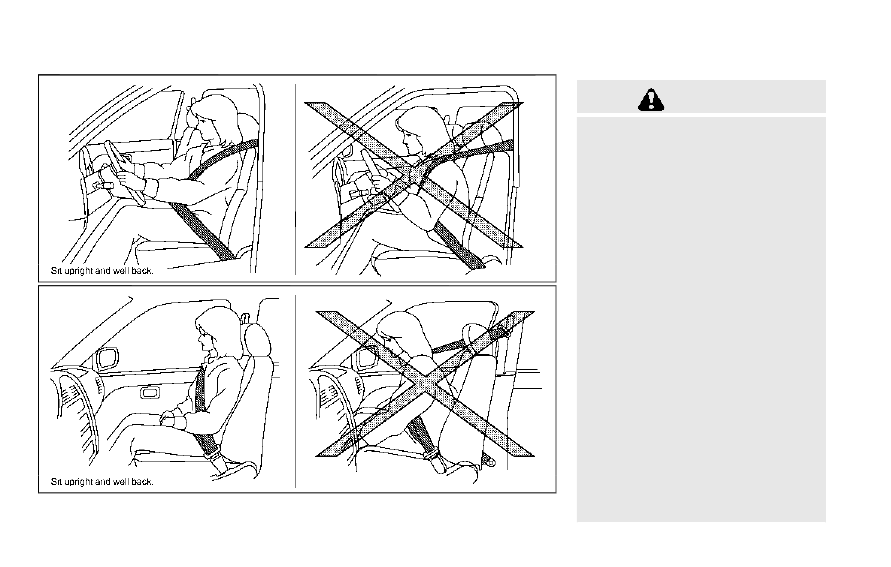

SSS0131

SSS0132

WARNING

.

The supplemental front air bags or-
dinarily will not inflate in the event of
a side impact, rear impact, rollover, or
lower severity frontal collision. Al-
ways wear your seat belts to help
reduce the risk or severity of injury in
various kinds of accidents.

.

The front passenger air bag and front
passenger knee air bag will not
inflate if the front passenger air bag
status light is lit or if the front
passenger seat is unoccupied. See
“Front passenger air bag and status
light” (P.1-59).

.

The seat belts and the front air bags
are most effective when you are
sitting well back and upright in the
seat. The front air bags inflate with
great force. Even with the INFINITI
Advanced Air Bag System, if you are
unrestrained, leaning forward, sitting
sideways or out of position in any
way, you are at greater risk of injury
or death in a crash. You may also
receive serious or fatal injuries from
the front air bag if you are up against
it when it inflates. Always sit back
against the seatback and as far-away
as practical from the steering wheel

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

or instrument panel. Always use the
seat belts.

.

The driver and front passenger seat
belt buckles are equipped with sen-
sors that detect if the seat belts are
fastened. The Advanced Air Bag
System monitors the severity of a
collision and seat belt usage then
inflates the air bags. Failure to prop-
erly wear seat belts can increase the
risk or severity of injury in an acci-
dent.

.

The front passenger seat is equipped
with occupant classification sensors
(weight sensors) that turn the front
passenger air bag and front passen-
ger knee air bag OFF under some
conditions. This sensor is only used in
this seat. Failure to be properly
seated and wearing the seat belt
can increase the risk or severity of
injury in an accident. See “Front
passenger air bag and status light”
(P.1-59).

.

Keep hands on the outside of the
steering wheel. Placing them inside
the steering wheel rim could increase
the risk of injury if the front air bag
inflates.

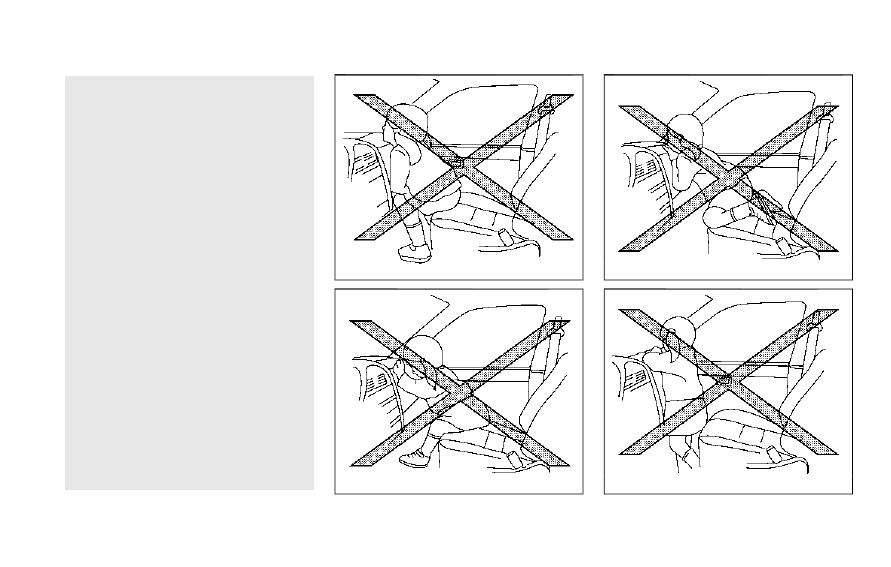

SSS0007

SSS0006

SSS0008

SSS0009

Safety — seats, seat belts and supplemental restraint system

1-53

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-54

Safety — seats, seat belts and supplemental restraint system

SSS0099

SSS0100

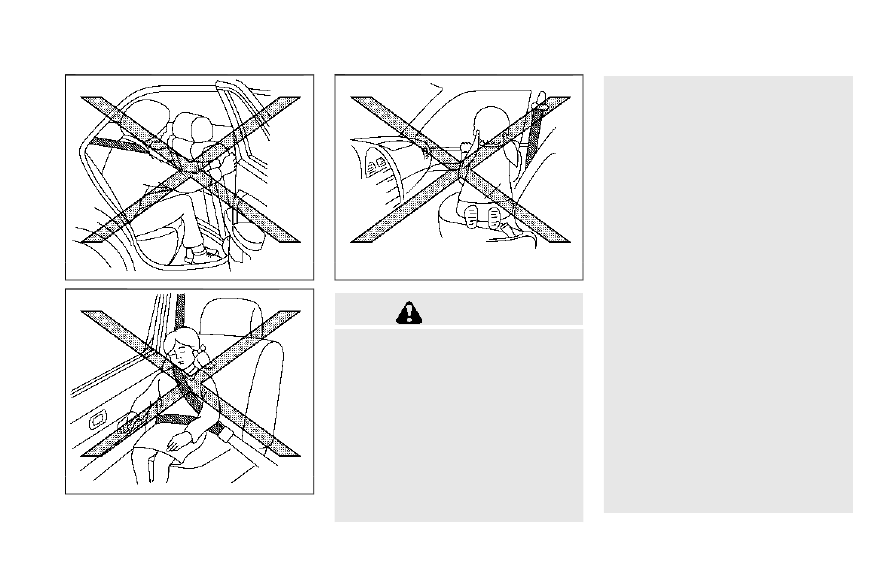

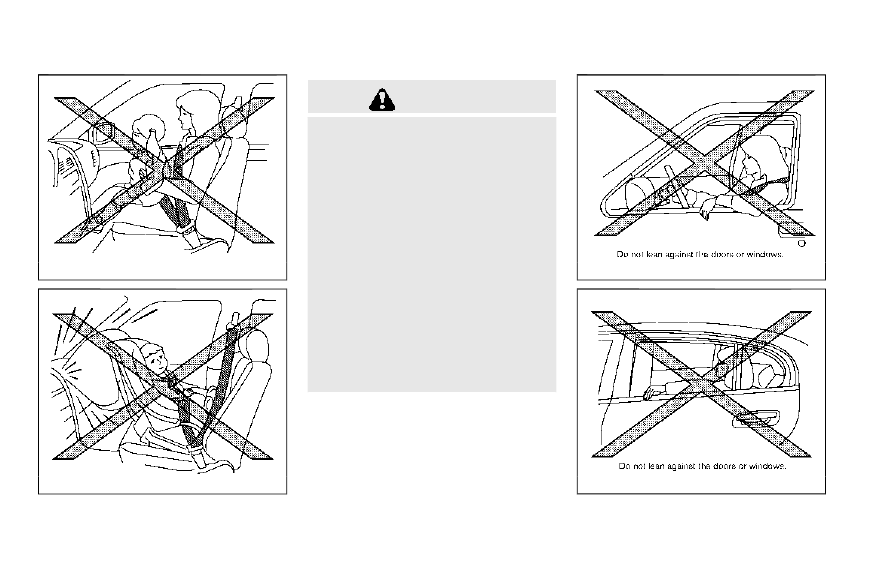

WARNING

.

Never let children ride unrestrained
or extend their hands or face out of
the window. Do not attempt to hold
them in your lap or arms. Some
examples of dangerous riding posi-
tions are shown in the illustrations.

.

Children may be severely injured or
killed when the front air bags, side air
bags or curtain air bags inflate if they
are not properly restrained. Pre-
teens and children should be properly
restrained in the rear seat, if possible.

.

Even with the INFINITI Advanced Air
Bag System, never install a rear-
facing child restraint in the front
seat. An inflating front air bag could
seriously injure or kill your child. See
“Child restraints” (P.1-30) for de-
tails.

SSS0832

SSS0833

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS0140

SSS0162

SSS0159

WARNING

Front seat-mounted side-impact supple-
mental air bags and roof-mounted cur-
t a i n s i d e - i m p a c t a n d r o l l o v e r
supplemental air bags:

.

The side-impact supplemental air
bags ordinarily will not inflate in the
event of a front impact, rear impact,
rollover, or lower severity side colli-
sion. Always wear your seat belts to
help reduce the risk or severity of
injury in various kinds of accidents.

.

The curtain side-impact and rollover
supplemental air bags ordinarily will

not inflate in the event of a front
impact, rear impact, or lower severity
side collision. Always wear your seat
belts to help reduce the risk or
severity of injury in various kinds of
accidents.

.

The seat belts, the side air bags and
curtain air bags are most effective
when you are sitting well back and
upright in the seat. The side air bags
and curtain air bags inflate with
great force. Do not allow anyone to
place their hand, leg or face near the
side air bags on the side of the
seatback of the front seat or near
the side roof rails. Do not allow
anyone sitting in the front seats or
rear outboard seats to extend their
hand out of the window or lean
against the door. Some examples of
dangerous riding positions are shown
in the previous illustrations.

.

When sitting in the rear seat, do not
hold onto the seatback of the front
seat. If the side air bag inflates, you
may be seriously injured. Be espe-
cially careful with children, who
should always be properly restrained.
Some examples of dangerous riding
positions are shown in the illustra-
tions.

Safety — seats, seat belts and supplemental restraint system

1-55

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-56

Safety — seats, seat belts and supplemental restraint system

.

Do not use seat covers on the front
seatbacks. They may interfere with
side air bags inflation.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAB0168X

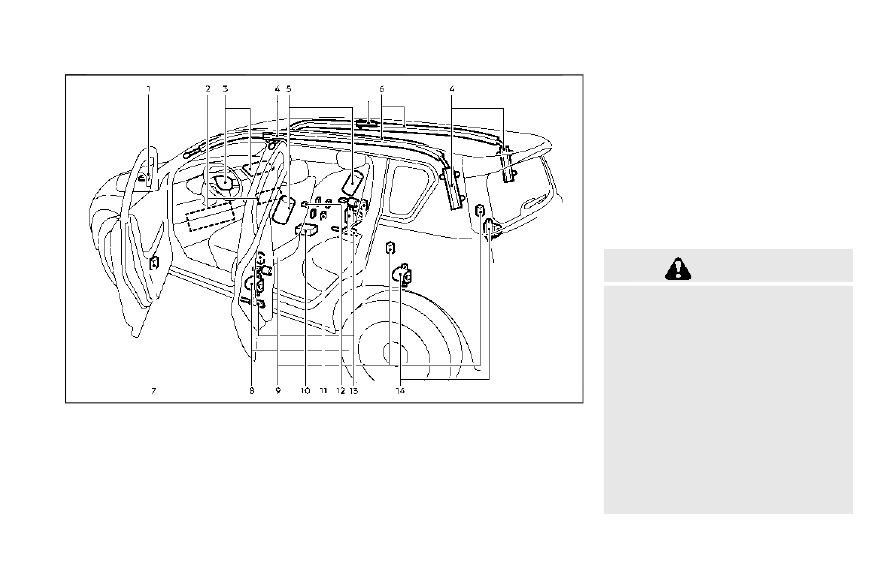

1.

Crash zone sensor

2.

Driver and front passenger supplemen-
tal knee air bags

3.

Supplemental front-impact air bag
modules (INFINITI Advanced Air Bags)

4.

Roof-mounted curtain side-impact and
rollover supplemental air bag inflators

5.

Front seat-mounted side-impact sup-
plemental air bag modules

6.

Roof-mounted curtain side-impact and
rollover supplemental air bags

7.

Door satellite sensors

8.

Seat belt pretensioners (front seats)

9.

Satellite sensors

10. Air bag Control Unit (ACU)
11. Occupant classification sensors

(weight sensors)

12. Occupant classification system control

unit

13. Lap outer pretensioners (front seats)
14. Seat belt pretensioners (second row

outboard seats)

INFINITI ADVANCED AIR BAG
SYSTEM (front seats)

WARNING

To ensure proper operation of the pas-
senger’s advanced air bag system, please
observe the following items.

.

Do not allow a passenger in the rear
seat to push or pull on the seatback
pocket.

.

Do not place heavy loads heavier
than 9 lbs. (4 kg) on the seatback,
head restraint or in the seatback
pocket.

.

Do not store cargo behind the seat
that can press into the seatback.

.

Do not position the front passenger
seat so it contacts the rear seat. If the
front seat does contact the rear seat,

Safety — seats, seat belts and supplemental restraint system

1-57

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-58

Safety — seats, seat belts and supplemental restraint system

the air bag system may determine a
sensor malfunction has occurred and
the front passenger air bag status
light may illuminate and the supple-
mental air bag warning light may
flash.

.

If a forward facing child restraint is
installed in the front passenger seat,
do not position the front passenger
seat so the child restraint contacts
the instrument panel. If the child
restraint does contact the instrument
panel, the system may determine the
seat is occupied and the passenger air
bag and front passenger knee air bag
may deploy in a collision. Also the
front passenger air bag status light
may not illuminate. See “Child re-
straints” (P.1-30) for information
about installing and using child re-
straints.

.

Confirm the operating condition with
the front passenger air bag status
light.

.

If you notice that the front passenger
air bag status light is not operating in
accordance with the above descrip-
tion, it is recommended you visit an
INFINITI retailer to check the pas-
senger seat advanced air bag system.

.

Until you have confirmed with your
retailer that your passenger seat
advanced air bag is working properly,
position the occupants in the rear
seating positions.

This vehicle is equipped with the INFINITI
Advanced Air Bag System for the driver and
front passenger seats. This system is de-
signed to meet certification requirements
under U.S. regulations. It is also permitted in
Canada.

All of the information, cautions and

warnings in this manual apply and must be
followed.

The driver supplemental front-impact air
bag is located in the center of the steering
wheel. The passenger supplemental front-
impact air bag is mounted in the instrument
panel above the glove box. The front air bags
are designed to inflate in higher severity
frontal collisions, although they may inflate
if the forces in another type of collision are
similar to those of a higher severity frontal
impact. They may not inflate in certain
frontal collisions. Vehicle damage (or lack
of it) is not always an indication of proper
front air bag operation.
The INFINITI Advanced Air Bag System
monitors information from the Air bag
Control Unit (ACU), seat belt buckle sensors
and the occupant classification sensors

(weight sensors). Inflator operation is based
on the severity of a collision and seat belt
usage for the driver. For the front passenger,
the occupant classification sensors are also
monitored. Based on information from the
sensors, only one front air bag may inflate in
a crash, depending on the crash severity and
whether the front occupants are belted or
unbelted. Additionally, the front passenger
air bag and front passenger knee air bag may
be automatically turned OFF under some
conditions, depending on the information
provided by the occupant classification
sensors. If the front passenger air bag and
front passenger knee air bag are OFF, the
front passenger air bag status light will be
illuminated (if the seat is unoccupied, the
light will not be illuminated, but the air bag
will be off). (See “Front passenger air bag
and status light” (P.1-59) for further details.)
One front air bag inflating does not indicate
improper performance of the system.
If you have any questions about your air bag
system, it is recommended you visit an
INFINITI retailer. If you are considering
modification of your vehicle due to a dis-
ability, you may also contact INFINITI.
Contact information is contained in the front
of this Owner’s Manual.
When a front air bag inflates, a fairly loud
noise may be heard, followed by release of
smoke. This smoke is not harmful and does

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

not indicate a fire. Care should be taken not
to inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.
Front air bags, along with the use of seat
belts, help to cushion the impact force on the
head and chest of the front occupants. They
can help save lives and reduce serious
injuries. However, an inflating front air bag
may cause facial abrasions or other injuries.
Front air bags, other than the driver’s and
front passenger’s knee air bags, do not
provide restraint to the lower body.
Even with INFINITI advanced air bags, seat
belts should be correctly worn and the driver
and passenger seated upright as far as
practical away from the steering wheel or
instrument panel. The front air bags inflate
quickly in order to help protect the front
occupants. Because of this, the force of the
front air bag inflating can increase the risk of
injury if the occupant is too close to, or is
against, the air bag module during inflation.
The front air bags deflate quickly after a
collision.

The front air bags operate only when the
ignition switch is in the ON position.

After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7

seconds if the system is operational.

SSS0803

Front passenger air bag status light

Front passenger air bag and status
light

WARNING

The front passenger air bag and front
passenger knee air bag are designed to
automatically turn OFF under some
conditions. Read this section carefully
to learn how it operates. Proper use of
the seat, seat belt and child restraints is
necessary for most effective protection.
Failure to follow all instructions in this
manual concerning the use of seats, seat

Safety — seats, seat belts and supplemental restraint system

1-59

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-60

Safety — seats, seat belts and supplemental restraint system

belts and child restraints can increase
the risk or severity of injury in an
accident.

Status light:

The front passenger seat is equipped with
the occupant classification sensors (weight
sensors) that turn the front passenger air
bag and front passenger knee air bag are on
or off depending on the weight applied to
the front passenger seat. The status of the
front passenger air bag and front passenger
knee air bag (ON or OFF) is indicated by the
front passenger air bag status light
which is located on the instrument panel.
After the ignition switch is placed in the ON
position, the front passenger air bag status
light on the instrument panel illuminates for
about 7 seconds and then turns off or
illuminates depending on the front passen-
ger seat occupied status.
The light operates as follows:

.

Unoccupied passenger seat: The

light is OFF and the front passenger air
bag is OFF and will not inflate in a crash.

.

Passenger seat occupied by a small adult,

child or child restraint as outlined in this
section: The

light illuminates to

indicate that the front passenger air
bag is OFF and will not inflate in a crash.

.

Occupied passenger seat and the pas-

senger meets the conditions outlined in
this section: The

light is OFF to

indicate that the front passenger air bag
and front passenger knee air bag are
operational.

In addition to the above, certain objects
placed on the front passenger seat may also
cause the light to operate as described
above depending on their weight.
For additional information related to the
normal operation and troubleshooting of
this occupant classification sensor system,
please refer to “Normal operation” (P.1-61)
and “Troubleshooting” (P.1-62) in this sec-
tion.

Front passenger air bag:

The front passenger air bag is designed to
automatically turn OFF when the vehicle is
operated under some conditions as de-
scribed below as permitted by U.S. regula-
tions. If the front passenger air bag is OFF, it
will not inflate in a crash. The driver air bag
and other air bags in your vehicle are not
part of this system.
The purpose of the regulation is to help
reduce the risk of injury or death from an
inflating air bag to certain front passenger
seat occupants, such as children, by requiring
the air bag to be automatically turned OFF.

The occupant classification sensors (weight
sensors) are on the seat cushion frame under
the front passenger seat and are designed to
detect an occupant and objects on the seat.
For example, if a child is in the front
passenger seat, the Advanced Air Bag
System is designed to turn the passenger
air bag OFF in accordance with the regula-
tions. Also, if a child restraint of the type
specified in the regulations is on the seat, the
occupant classification sensors can detect it
and cause the air bag to turn OFF.
Front passenger seat adult occupants who
are properly seated and using the seat belt
as outlined in this manual should not cause
the passenger air bag and front passenger
knee air bag to be automatically turned OFF.
For small adults it may be turned OFF,
however, if the occupant does not sit in the
seat properly (for example, by not sitting
upright, by sitting on an edge of the seat, or
by otherwise being out of position), this
could cause the sensor to turn the air bag
OFF. Always be sure to be seated and
wearing the seat belt properly for the most
effective protection by the seat belt and
supplemental air bag.
INFINITI recommends that pre-teens and
children be properly restrained in a rear seat.
INFINITI also recommends that appropriate
child restraints and booster seats be prop-
erly installed in a rear seat. If this is not

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

possible, the occupant classification sensors
are designed to operate as described above
to turn the front passenger air bag and front
passenger knee air bag OFF for specified
child restraints. Failing to properly secure
child restrains and to use the ALR mode may
allow the restraint to tip or move in an
accident or sudden stop. This can also result
in the passenger air bag and front passenger
knee air bag inflating in a crash instead of
being OFF. (See “Child restraints” (P.1-30)
for proper use and installation.)
If the front passenger seat is not occupied,
the passenger air bag and front passenger
knee air bag are designed not to inflate in a
crash. However, heavy objects placed on the
seat could result in air bag inflation, because
of the object being detected by the occupant
classification sensors. Other conditions
could also result in air bag inflation, such as
if a child is standing on the seat, or if two
children are on the seat, contrary to the
instructions in this manual. Always be sure
that you and all vehicle occupants are seated
and restrained properly.
Using the front passenger air bag status
light, you can monitor when the front
passenger air bag and front passenger knee
air bag are automatically turned OFF with
the seat occupied. The light will not illumi-
nate when the front passenger seat is
unoccupied.

If an adult occupant is in the seat but the
front passenger air bag status light is
illuminated (indicating that the air bag and
front passenger knee air bag are OFF), it
could be that the person is a small adult, or is
not sitting on the seat properly.
If a child restraint must be used in the front
seat, the front passenger air bag status light
may or may not be illuminated, depending on
the size of the child and the type of child
restraint being used. If the front passenger
air bag status light is not illuminated (in-
dicating that the air bag might inflate in a
crash), it could be that the child restraint or
seat belt is not being used properly. Make
sure that the child restraint is installed
properly, the seat belt is used properly and
the occupant is positioned properly. If the
front passenger air bag status light is still not
illuminated, reposition the occupant or child
restraint in a rear seat.
If the front passenger air bag status light will
not illuminate even though you believe that
the child restraint, the seat belts and the
occupant are properly positioned, the sys-
tem may be sensing an unoccupied seat (in
which case the air bag is OFF). Your
INFINITI retailer can check that the system
is OFF by using a special tool. However, until
you have confirmed with your retailer that
your air bag is working properly, reposition
the occupant or child restraint in a rear seat.

The INFINITI Advanced Air Bag System and
front passenger air bag status light will take
a few seconds to register a change in the
passenger seat status. However, if the seat
becomes unoccupied, the front passenger air
bag status light will remain off.
If a malfunction occurs in the front passen-
ger air bag system, the supplemental air bag
warning light

, located in the meter and

gauges area will blink. Have the system
checked. It is recommended you visit an
INFINITI retailer for this service.

Normal operation:

In order for the occupant classification
sensor system to classify the front passen-
ger based on weight, please follow the
precautions and steps outlined below:

Precautions:

.

Make sure that there are no objects

weighing over 9.1 lbs (4 kg) hanging on
the seat or placed in the seatback pocket.

.

Make sure that a child restraint or other

object is not pressing against the rear of
the seatback.

.

Make sure that a rear passenger is not

pushing or pulling on the back of the
front passenger seat.

.

Make sure that the front passenger seat

or seatback is not forced back against an
object on the seat or floor behind it.

Safety — seats, seat belts and supplemental restraint system

1-61

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-62

Safety — seats, seat belts and supplemental restraint system

.

Make sure that there is no object placed

under the front passenger seat.

Steps:

1. Adjust the seat as outlined. (See “Seats”

(P.1-3).) Sit upright, leaning against the
seatback, and centered on the seat
cushion with your feet comfortably ex-
tended to the floor.

2. Make sure there are no objects on your

lap.

3. Fasten the seat belt as outlined. (See

“Seat belts” (P.1-18).)

4. Remain in this position for 30 seconds

allowing the system to classify the front
passenger before the vehicle is put into
motion.

5. Ensure proper classification by checking

the front passenger air bag status light.

NOTE:

This vehicle’s occupant classification sensor
system locks the classification during driv-
ing so it is important that you confirm that
the front passenger is properly classified
prior to driving. Also, the occupant classifi-
cation sensor system may recalculate the
weight of the occupant when the vehicle
comes to a stop (i.e. stop light, stop sign,
etc.), so the front passenger seat occupant
should continue to remain seated as out-
lined above.

Troubleshooting:

If you think the front passenger air bag
status light is incorrect:

1.

If the light is ON with no front
passenger and no objects on the front
passenger seat:

This may be due to the following conditions
that may be interfering with the weight
sensors:

.

An object weighing over 9.1 lbs (4 kg)

hanging on the seat or placed in the
seatback pocket.

.

A child restraint or other object pressing

against the rear of the seatback.

.

A rear passenger pushing or pulling on

the back of the front passenger seat.

.

Forcing the front seat or seatback

against an object on the seat or floor
behind it.

.

An object placed under the front passen-

ger seat.

.

An object placed between the seat

cushion and center console or between
the seat cushion and the door.

If the vehicle is moving, please come to a
stop when it is safe to do so. Check and
correct any of the above conditions. Restart
the vehicle and wait 1 minute.

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

If the light is still ON after this, it is
recommended that the vehicle be checked
by an INFINITI retailer as soon as possible.

2.

If the light is ON with an adult occupy-
ing the front passenger seat:

.

Occupant is a small adult — the front

passenger air bag status light is func-
tioning as intended. The front passenger
air bag and front passenger knee air bag
are suppressed.

However, if the occupant is not a small adult,
then this may be due to the following
conditions that may be interfering with the
weight sensors:

.

Occupant is not sitting upright, leaning

against the seatback, and centered on
the seat cushion with his/her feet com-
fortably extended to the floor.

.

A child restraint or other object pressing

against the rear of the seatback.

.

A rear passenger pushing or pulling on

the back of the front passenger seat.

.

Forcing the front seat or seatback

against an object on the seat or floor
behind it.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

.

An object placed under the front passen-

ger seat.

.

An object placed between the seat

cushion and center console or between
the seat cushion and the door.

If the vehicle is moving, please come to a
stop when it is safe to do so. Check and
correct any of the above conditions. Restart
the vehicle and wait 1 minute.

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

If the light is still ON after this, the person
should be advised not to ride in the front
passenger seat and it is recommended that
the vehicle be checked by an INFINITI
retailer as soon as possible.

3.

If the light is OFF with a small adult,
child or child restraint occupying the
front passenger seat.
This may be due to the following
conditions that may be interfering with
the weight sensors:

.

Small adult or child is not sitting upright,

leaning against the seatback, and cen-
tered on the seat cushion with his/her
feet comfortably extended to the floor.

.

The child restraint is not properly in-

stalled, as outlined. (See “Child re-
straints” (P.1-30).)

.

An object weighing over 9.1 lbs (4 kg)

hanging on the seat or placed in the
seatback pocket.

.

A child restraint or other object pressing

against the rear of the seatback.

.

A rear passenger pushing or pulling on

the back of the front passenger seat.

.

Forcing the front seat or seatback

against an object on the seat or floor
behind it.

.

An object placed under the front passen-

ger seat.

.

An object placed between the seat

cushion and center console.

If the vehicle is moving, please come to a
stop when it is safe to do so. Check and
correct any of the above conditions. Restart
the vehicle and wait 1 minute.

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

If the light is still OFF after this, the small
adult, child or child restraint should be
repositioned in the rear seat and it is
recommended that the vehicle be checked

by an INFINITI retailer as soon as possible.

Other supplemental front-impact
air bag precautions

WARNING

.

Do not place any objects on the
steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause in-
jury if the front air bags inflate.

.

Do not place objects with sharp edges
on the seat. Also, do not place heavy
objects on the seat that will leave
permanent impressions in the seat.
Such objects can damage the seat or
occupant classification sensors
(weight sensors). This can affect the
operation of the air bag system and
result in serious personal injury.

.

Do not use water or acidic cleaners
(hot steam cleaners) on the seat. This
can damage the seat or occupant
classification sensors. This can also
affect the operation of the air bag
system and result in serious personal
injury.

Safety — seats, seat belts and supplemental restraint system

1-63

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-64

Safety — seats, seat belts and supplemental restraint system

.

Immediately after inflation, several
front air bag system components will
be hot. Do not touch them; you may
severely burn yourself.

.

No unauthorized changes should be
made to any components or wiring of
the supplemental air bag system. This
is to prevent accidental inflation of
the supplemental air bag or damage
to the supplemental air bag system.

.

Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or front end struc-
ture. This could affect proper opera-
tion of the front air bag system.

.

Tampering with the air bag system
may result in serious personal injury.
Tampering includes changes to the
steering wheel and the instrument
panel assembly by placing material
over the steering wheel pad and
above the instrument panel or by
installing additional trim material
around the air bag system.

.

Removing or modifying the front
passenger seat may affect the func-
tion of the air bag system and result
in serious personal injury.

.

Modifying or tampering with the
front passenger seat may result in
serious personal injury. For example,

do not change the front seats by
placing material on the seat cushion
or by installing additional trim mate-
rial, such as seat covers, on the seat
that is not specifically designed to
assure proper air bag operation.
Additionally, do not stow any objects
under the front passenger seat or the
seat cushion and seatback. Such
objects may interfere with the proper
operation of the occupant classifica-
tion sensors.

.

No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect
the front air bag system. Tampering
with the seat belt system may result
in serious personal injury.

.

It is recommended you visit an
INFINITI retailer for work on and
around the front air bag. It is also
recommended you visit an INFINITI
retailer for installation of electrical
equipment. The Supplemental Re-
straint System (SRS) wiring har-
nesses* should not be modified or
disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the air bag
system.

.

A cracked windshield should be re-
placed immediately by a qualified
repair facility. A cracked windshield
could affect the function of the
supplemental air bag system.

*

The SRS wiring harness connectors are
yellow and orange for easy identifica-
tion.

When selling your vehicle, we request that
you inform the buyer about the front air bag
system and guide the buyer to the appro-
priate sections in this Owner’s Manual.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAB0169X

Driver’s side

DRIVER AND FRONT PASSEN-
GER SUPPLEMENTAL KNEE AIR
BAG

The knee air bag is located in the knee
bolster, on the driver’s and front passenger’s
sides.

All of the information, cautions and

warnings in this manual apply and must be
followed.

The knee air bag is designed to

inflate in higher severity frontal collisions,
although it may inflate if the forces in
another type of collision are similar to those
of a higher severity frontal impact. It may
not inflate in certain collisions.

WAB0181X

Front passenger’s side

Vehicle damage (or lack of it) is not always
an indication of proper knee air bag opera-
tion.
When the knee air bag inflates, a fairly loud
noise may be heard, followed by release of
smoke. This smoke is not harmful and does
not indicate a fire. Care should be taken not
to inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.
The knee air bag helps to cushion the impact
force on the knees of the driver and front
passenger. It can help reduce serious injuries.
However, an inflating knee air bag may
cause abrasions or other injuries. The knee

air bag provides restraint to the lower body.
The knee air bag inflates quickly in order to
help protect the occupants. Because of this,
the force of the knee air bag inflating can
increase the risk of injury if the occupant is
too close to, or is against, this air bag module
during inflation. The knee air bag will deflate
quickly after the collision is over OR the knee
air bag will remain inflated for a short time.

The knee air bag operates only when the
ignition switch is placed in the ON position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the system is operational.

WARNING

.

Do not place any objects between the
knee bolster and the driver’s or front
passenger’s seat. Such objects may
become dangerous projectiles and
cause injury if a knee air bag inflates.

.

Right after inflation, the knee air bag
system components will be hot. Do
not touch them; you may severely
burn yourself.

.

No unauthorized changes should be
made to any components or wiring of

Safety — seats, seat belts and supplemental restraint system

1-65

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-66

Safety — seats, seat belts and supplemental restraint system

the knee air bag system. This is to
prevent damage to or accidental
inflation of the knee air bag system.

.

Do not make unauthorized changes
to your vehicle’s electrical system or
suspension system. This could affect
proper operation of the knee air bag
system.

.

Tampering with the knee air bag
system may result in serious personal
injury. For example, do not change
the driver or front passenger knee
bolster or install additional trim ma-
terial around the knee air bag.

.

It is recommended that you visit an
INFINITI retailer for work on and
around the knee air bag. It is also
recommended that you visit an
INFINITI retailer for installation of
electrical equipment. The SRS wiring
harnesses* should not be modified or
disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the knee air
bag system.

*The SRS wiring harness or connectors are
yellow or orange for easy identification.

When selling your vehicle, we request that
you inform the buyer about the knee air bag
system and guide the buyer to the appro-
priate sections in this manual.

SSS1092

FRONT SEAT-MOUNTED SIDE-
IMPACT SUPPLEMENTAL AIR
BAG AND ROOF-MOUNTED
CURTAIN SIDE-IMPACT AND
ROLLOVER SUPPLEMENTAL AIR
BAG SYSTEMS

The side air bags are located in the outside
of the seatback of the front seats. The
curtain air bags are located in the side roof
rails.

All of the information, cautions and

warnings in this manual apply and must be
followed.

The side air bags and curtain air

bags are designed to inflate in higher
severity side collisions, although they may

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

inflate if the forces in another type of
collision are similar to those of a higher
severity side impact. They are designed to
inflate on the side where the vehicle is
impacted. They may not inflate in certain
side collisions on the side where the vehicle is
impacted.
Curtain air bags are also designed to inflate
in certain types of rollover collisions or near
rollovers. As a result, certain vehicle move-
ments (for example, during severe off road-
ing) may cause the curtain air bags to inflate.
Vehicle damage (or lack of it) is not always
an indication of proper side air bag and
curtain air bag operation.
When side air bags and curtain air bags
inflate, a fairly loud noise may be heard,
followed by release of smoke. This smoke is
not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it
may cause irritation and choking. Those with
a history of a breathing condition should get
fresh air promptly.
Side air bags, along with the use of seat
belts, help to cushion the impact force on the
chest and pelvis of the front occupants.
Curtain air bags help to cushion the impact
force to the head of occupants in the front
and rear (2nd and 3rd) outboard seating
positions. They can help save lives and
reduce serious injuries. However, an inflating

side air bag or curtain air bag may cause
abrasions or other injuries. Side air bags and
curtain air bags do not provide restraint to
the lower body.
The seat belts should be correctly worn and
the driver and passenger seated upright as
far as practical away from the side air bag.
Rear seat passengers should be seated as far
away as practical from the door finishers
and side roof rails. The side air bags and
curtain air bags inflate quickly in order to
help protect the occupants. Because of this,
the force of the side air bags and curtain air
bags inflating can increase the risk of injury if
the occupant is too close to, or is against,
these air bag modules during inflation. In a
rollover, the curtain air bags on both sides
are designed to inflate. Under both side-
impact situations, the curtain air bags will
remain inflated for a short period of time.

The side air bags and curtain air bags
operate only when the ignition switch is in
the ON position.

After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The air bag warning light
will turn off after about 7 seconds if the
systems are operational.

WARNING

.

Do not place any objects near the
seatback of the front seats. Also, do
not place any objects (an umbrella,
bag, etc.) between the front door
finisher and the front seat. Such
objects may become dangerous pro-
jectiles and cause injury if side air bag
inflates.

.

Right after inflation, several side air
bags and curtain air bag system
components will be hot. Do not touch
them; you may severely burn your-
self.

.

No unauthorized changes should be
made to any components or wiring of
side air bag and curtain air bags. This
is to prevent damage to or accidental
inflation of the side air bag and
curtain air bag systems.

.

Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or side panel. This
could affect proper operation of the
side air bag and curtain air bag
systems.

.

Tampering with the air bag system
may result in serious personal injury.
For example, do not change the front

Safety — seats, seat belts and supplemental restraint system

1-67

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-68

Safety — seats, seat belts and supplemental restraint system

seats by placing material near the
seatback or by installing additional
trim material, such as seat covers,
around the side air bags.

.

Removing or modifying the front
passenger seat may affect the func-
tion of the air bag system and result
in serious personal injury.

.

It is recommended you visit an
INFINITI retailer for work on and
around the side air bag and curtain
air bag. It is also recommended you
visit an INFINITI retailer for installa-
tion of electrical equipment. The
Supplemental Restraint System
(SRS) wiring harnesses* should not
be modified or disconnected. Un-
authorized electrical test equipment
and probing devices should not be
used on the side-impact air bag
system.

*

The SRS wiring harness connectors are
yellow and orange for easy identifica-
tion.

When selling your vehicle, we request that
you inform the buyer about the side air bag
and curtain air bag systems and guide the
buyer to the appropriate sections in this
Owner’s Manual.

SEAT BELTS WITH PRETEN-
SIONERS (front and second row
outboard seats)

WARNING

.

The pretensioners cannot be reused
after activation. They must be re-
placed together with the retractor
and buckle as a unit.

.

If the vehicle becomes involved in a
collision but a pretensioner is not
activated, be sure to have the pre-
tensioner system checked and, if
necessary, replaced. It is recom-
mended you visit an INFINITI retailer
for this service.

.

No unauthorized changes should be
made to any components or wiring of
the pretensioner system. This is to
prevent damage to or accidental
activation of the pretensioners. Tam-
pering with the pretensioner system
may result in serious personal injury.

.

It is recommended you visit an
INFINITI retailer for work on and
around the pretensioner system. It is
also recommended you visit an
INFINITI retailer for installation of
electrical equipment. Unauthorized

electrical test equipment and probing
devices should not be used on the
pretensioner system.

.

If you need to dispose of a preten-
sioner or scrap the vehicle, it is
recommended you visit an INFINITI
retailer for this service. Correct pre-
tensioner disposal procedures are set
forth in the appropriate INFINITI
Service Manual. Incorrect disposal
procedures could cause personal in-
jury.

The pretensioner system may activate with
the supplemental air bag system in certain
types of collisions. Working with the seat
belt retractor, it helps tighten the seat belt
when the vehicle becomes involved in certain
types of collisions, helping to restrain front
and second row outboard seats occupants.
The pretensioner is encased with the seat
belt retractor and buckle anchor. These seat
belts are used the same way as conventional
seat belts.
When a pretensioner activates, smoke is
released and a loud noise may be heard. The
smoke is not harmful, and it does not
indicate a fire. Care should be taken not to
inhale it as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

After pretensioner activation, load limiters
allow the seat belt to release webbing (if
necessary) to reduce forces against the
chest.
The supplemental air bag warning light
is used to indicate malfunctions in the
pretensioner system. (See “Supplemental
air bag warning light” (P.1-70) for more
details.) If the operation of the supplemental
air bag warning light indicates there is a
malfunction, have the system checked. It is
recommended you visit an INFINITI retailer
for this service.
When selling your vehicle, we request that
you inform the buyer about the pretensioner
system and guide the buyer to the appro-
priate sections in this Owner’s Manual.

SSS1016

SUPPLEMENTAL AIR BAG
WARNING LABELS

Warning labels about the supplemental
front-impact air bag system are placed in
the vehicle as shown in the illustration.

SRS air bag

The warning labels

are located on the

surface of the sun visors.

WARNING

Do not use a rear-facing child restraint
on a seat protected by an air bag in front
of it. If the air bag deploys, it may cause

serious injury or death.

Safety — seats, seat belts and supplemental restraint system

1-69

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-70

Safety — seats, seat belts and supplemental restraint system

SPA1097

SUPPLEMENTAL AIR BAG
WARNING LIGHT

The supplemental air bag warning light,
displaying

in the instrument panel,

monitors the circuits for the air bag systems,
pretensioners and all related wiring.
When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.
If any of the following conditions occur, the
air bag and/or pretensioner systems need
servicing:

.

The supplemental air bag warning light

remains on after approximately 7 sec-
onds.

.

The supplemental air bag warning light

flashes intermittently.

.

The supplemental air bag warning light

does not come on at all.

Under these conditions, the air bag and/or
pretensioner systems may not operate prop-
erly. They must be checked and repaired. It is
recommended you visit an INFINITI retailer
for this service.

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air
bag, knee air bag, side air bag, curtain air
bag and/or pretensioner systems will
not operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked as soon as possible. It is
recommended you visit an INFINITI
retailer for this service.

REPAIR AND REPLACEMENT
PROCEDURE

The front air bags, knee air bags, side air
bags, curtain air bags and pretensioners are
designed to activate on a one-time-only
basis. As a reminder, unless it is damaged,
the supplemental air bag warning light will
remain illuminated after inflation has oc-
curred. These systems should be repaired
and/or replaced as soon as possible. It is
recommended you visit an INFINITI retailer
for this service.
When maintenance work is required on the
vehicle, the front air bags, knee air bags, side
air bags, curtain air bags, pretensioners and
related parts should be pointed out to the
person conducting the maintenance. The
ignition switch should always be in the
LOCK position when working under the
hood or inside the vehicle.

WARNING

.

Once a front air bag, knee air bag,
side air bag or curtain air bag has
inflated, the air bag module will not
function again and must be replaced.
Additionally, the activated preten-
sioner must also be replaced. The air
bag module and pretensioner should

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

be replaced. It is recommended you
visit an INFINITI retailer for this
service. However, the air bag module
and pretensioner system cannot be
repaired.

.

The front air bag, knee air bag, side
air bag, curtain air bag and the
pretensioner should be inspected if
there is any damage to the front end
or side portion of the vehicle. It is
recommended you visit an INFINITI
retailer for this service.

.

If you need to dispose of a supple-
mental air bag or pretensioner or
scrap the vehicle, it is recommended
you visit an INFINITI retailer. Correct
supplemental air bag and preten-
sioner system disposal procedures
are set forth in the appropriate
INFINITI Service Manual. Incorrect
disposal procedures could cause per-
sonal injury.

.

If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should be
checked to verify it is still functioning
correctly. It is recommended that you
visit an INFINITI retailer for this
service. The OCS should be checked
even if no air bags deploy as a result
of the impact. Failure to verify proper

OCS function may result in an im-
proper air bag deployment resulting
in injury or death.

Safety — seats, seat belts and supplemental restraint system

1-71

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-72

Safety — seats, seat belts and supplemental restraint system

MEMO

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2 Instruments and controls

Cockpit ................................................................................. 2-3
Instrument panel ............................................................... 2-5
Meters and gauges .......................................................... 2-6

Speedometer and odometer ..................................... 2-7
Tachometer ................................................................... 2-8
Engine coolant temperature gauge ....................... 2-8
Fuel gauge ..................................................................... 2-9
Engine oil pressure gauge ......................................... 2-9
Voltmeter ..................................................................... 2-10

Warning lights, indicator lights and
audible reminders ............................................................ 2-11

Checking lights ........................................................... 2-12
Warning/indicator lights (red) ............................... 2-12
Warning/indicator lights (yellow) ......................... 2-15
Warning/indicator lights (other) ........................... 2-19
Audible reminders ..................................................... 2-19

Vehicle information display .......................................... 2-20

How to use the vehicle information display ...... 2-21
Startup display ........................................................... 2-21
Settings ........................................................................ 2-21
Operational indicators ............................................. 2-28
Trip computer ............................................................. 2-35
Clock and outside air temperature ....................... 2-37

Security systems ............................................................. 2-37

Vehicle Security System .......................................... 2-38

INFINITI Vehicle Immobilizer System ................ 2-39

Wiper and washer switch ........................................... 2-40

Washer operation ................................................... 2-41
Rain-sensing auto wiper system ........................ 2-41
Rear window wiper and washer operation ..... 2-42

Rear window and outside mirror
defroster switch ............................................................. 2-43

Rear window and outside mirror defroster ..... 2-43

Headlight and turn signal switch .............................. 2-44

Headlight switch .................................................... 2-44
Headlight washer (if so equipped) .................... 2-50
Instrument brightness control ............................. 2-51
Turn signal switch ................................................... 2-52
Fog light switch ....................................................... 2-52

Heated steering wheel ................................................. 2-53
Horn ................................................................................... 2-53
Heated seats ................................................................... 2-54

Front ........................................................................... 2-54
Rear (if so equipped) .............................................. 2-55

Climate controlled seats (if so equipped) ................ 2-56
Warning systems switch .............................................. 2-57
SNOW mode switch ..................................................... 2-57
TOW mode switch ......................................................... 2-58
Vehicle Dynamic Control (VDC) OFF switch ......... 2-58
Rear door alert ................................................................ 2-59

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Power outlet ................................................................... 2-60

USB (Universal Serial Bus)
charging connector ................................................... 2-62
Wireless charger (if so equipped) ......................... 2-63

E-Call (SOS) Button (if so equipped) ........................ 2-65

Emergency support ................................................... 2-65

Storage .............................................................................. 2-66

Cup holders ................................................................. 2-66
Sunglasses holder ...................................................... 2-68
Glove box ..................................................................... 2-69
Console box ................................................................ 2-70
Coat hooks .................................................................. 2-71
Luggage hooks .......................................................... 2-71
Cargo floor box .......................................................... 2-72
Roof rack ..................................................................... 2-72

Windows ........................................................................... 2-73

Power windows ......................................................... 2-73

Moonroof .......................................................................... 2-76

Power moonroof ....................................................... 2-77

Welcome light .................................................................. 2-78

Battery saver system .............................................. 2-78

Interior lights .................................................................... 2-79

Interior light switch .................................................. 2-79
Console light .............................................................. 2-80
Map lights .................................................................. 2-80
Rear personal lights ................................................. 2-80

Vanity mirror lights ........................................................ 2-81

Cargo light ....................................................................... 2-81
HomeLink

®

Universal Transceiver (Type A) (if

so equipped) .................................................................... 2-81

Programming HomeLink

®

..................................... 2-82

Programming HomeLink

®

for Canadian

customers and gate openers ............................... 2-83
Operating the HomeLink

®

Universal Transceiver ............................................ 2-84
Programming troubleshooting ........................... 2-84
Clearing the programmed information ............ 2-84
Reprogramming a single
HomeLink

®

button ................................................. 2-84

If your vehicle is stolen .......................................... 2-85

HomeLink

®

Universal Transceiver (Type B) (if

so equipped) .................................................................... 2-85

Programming HomeLink

®

..................................... 2-86

Using the garage door
two-way communication ..................................... 2-88
Programming HomeLink

®

for Canadian

customers and gate openers ............................... 2-89
Operating the HomeLink

®

Universal Transceiver ............................................ 2-90
Programming troubleshooting ........................... 2-90
Clearing the programmed information ............ 2-90
Reprogramming a single
HomeLink

®

button ................................................. 2-90

If your vehicle is stolen .......................................... 2-91

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

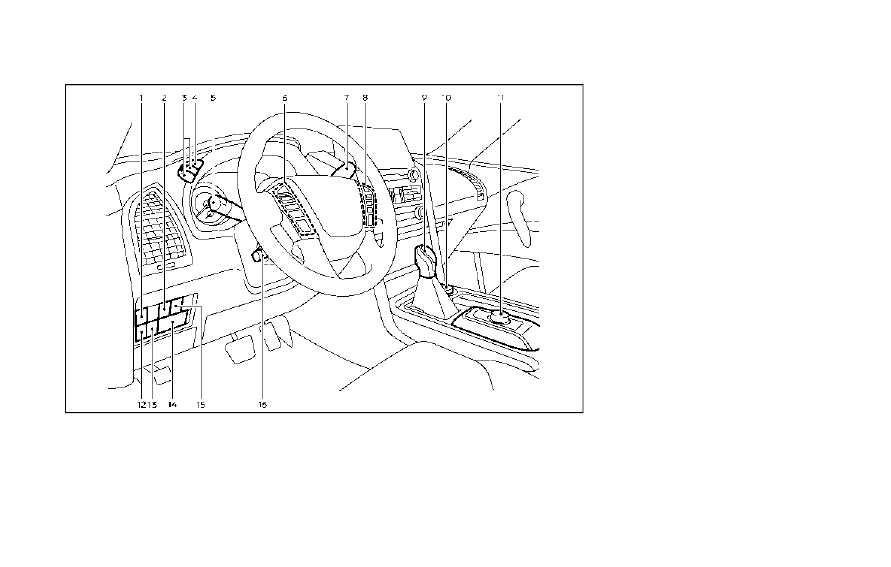

WAA0354X

1.

Power liftgate switch (if so equipped)

2.

Heated steering wheel switch

3.

Instrument brightness control switch

4.

TRIP/RESET switch for twin trip od-
ometer

5.

Headlight, fog light and turn signal

switch
— Headlight
— Turn signal
— Fog light

6.

Steering-wheel-mounted controls (left
side)

— Audio control steering switch
— Vehicle information display control
— Trip computer switch

7.

Wiper and washer switch

8.

Steering-wheel-mounted controls
(right side)
— C r u i s e c o n t r o l s y s t e m ( i f s o
equipped)
— Intelligent Cruise Control (ICC) sys-
tem (if so equipped)
— Lane Departure Prevention (LDP)
system (if so equipped)
— Distance Control Assist (DCA) sys-
tem (if so equipped)
— Blind Spot Intervention

®

(BSI) sys-

tem (if so equipped)
— Hands-Free Phone System switch

9.

Shift lever

10. Four-Wheel Drive (4WD) shift switch

(if so equipped)/SNOW mode switch/
TOW mode switch/Vehicle Dynamic
Control (VDC) OFF switch

11. INFINITI controller
12. Headlight aiming control (if so

equipped)

13. Power liftgate main switch
14. Remote tip-up 2nd row seat switch (if

so equipped)

Instruments and controls

2-3

COCKPIT

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-4

Instruments and controls

15. Warning systems switch

— Lane Departure Warning (LDW)
— Blind Spot Warning (BSW)

16. Electric tilting/telescopic steering

wheel switch

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

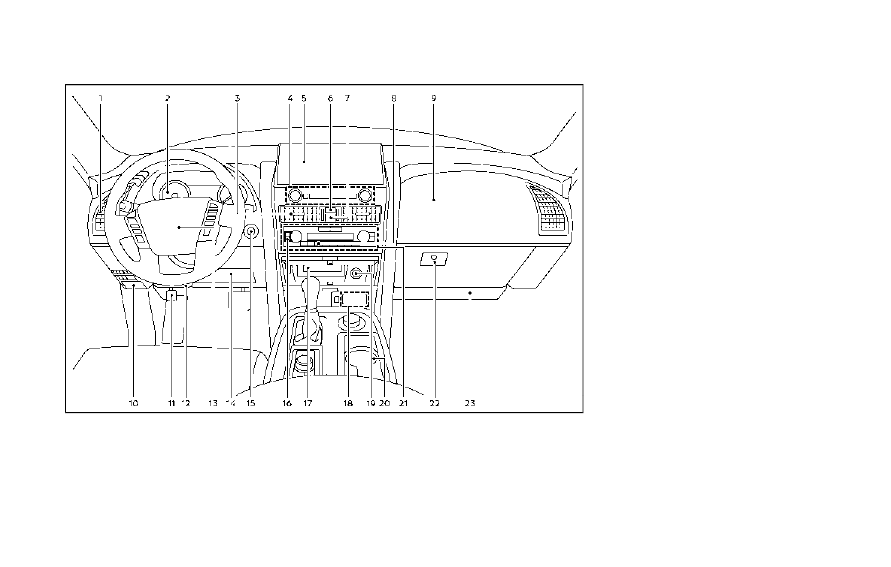

WAA0355X

1.

Side ventilator

2.

Meters and gauges

3.

Center ventilator

4.

Audio system (See INFINITI InTouch

®

Owner’s Manual)

5.

Touch screen display (See INFINITI

InTouch

®

Owner’s Manual)

— Around View

®

Monitor

— Navigation system (See INFINITI
InTouch

®

Owner’s Manual)

6.

Front passenger air bag status light

7.

Hazard warning flasher switch

8.

Defroster switch

9.

Front passenger supplemental air bag

10. Fuse box
11. Parking brake
12. Hood release handle
13. Steering wheel

— Horn
— Driver supplemental air bag
— Power steering

14. Driver supplemental knee air bag
15. Push-button ignition switch
16. Climate controlled seat switch (if so

equipped)/Heated seat switch (if so
equipped)

17. Wireless charger (if so equipped)
18. USB connection ports (See INFINITI

InTouch

®

Owner’s Manual)

19. Power outlet
20. Cup holder
21. Heater and air conditioner
22. Glove box
23. Front passenger supplemental knee air

bag

Instruments and controls

2-5

INSTRUMENT PANEL

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

















Content      ..     1      2      3      4      ..
