Infiniti QX80 (2023 year). Manual in english - page 1





This manual was prepared to help you
understand the operation and maintenance
of your vehicle so that you may enjoy many
miles (kilometers) of driving pleasure. Please
read through this manual before operating
your vehicle.

A separate Warranty Information Booklet
is included in your Owner’s literature port-
folio. The “Maintenance and schedules”
section of this manual explains details
about maintaining and servicing your vehi-
cle. Always carry it with you when you take
your vehicle to an INFINITI retailer. The
Warranty Information Booklet contents
provide complete information about all
warranties covering this vehicle, the re-
quirements to keep the warranties in effect
as well as the INFINITI Roadside Assistance
program.

Additionally, a separate Customer Care and
Lemon Law Information Booklet (U.S. only)
will explain how to resolve concerns you
may have with your vehicle, as well as
reference your rights under applicable law.

In addition to factory installed options, your
vehicle may also be equipped with additional
accessories installed by INFINITI or by your
INFINITI retailer prior to delivery. It is
important that you familiarize yourself with
all disclosures, warnings, cautions and in-
structions concerning proper use of such
accessories prior to operating the vehicle

and/or accessory. It is recommended you
visit an INFINITI retailer for details concern-
ing the particular accessories with which
your vehicle is equipped.

READ FIRST — THEN DRIVE
SAFELY

Before driving your vehicle, read your Own-
er’s Manual carefully. This will ensure famil-
iarity with controls and maintenance
requirements, assisting you in the safe
operation of your vehicle.

WARNING

IMPORTANT SAFETY INFORMATION
REMINDERS!

Follow these important driving rules to
help ensure a safe and comfortable trip
for you and your passengers!

.

NEVER drive under the influence of
alcohol or drugs.

.

ALWAYS observe posted speed lim-
its and never drive too fast for
conditions.

.

ALWAYS give your full attention to
driving and avoid using vehicle fea-
tures or taking other actions that
could distract you.

.

ALWAYS use your seat belts and
appropriate child restraint systems.
Pre-teen children should be seated in
the rear seat.

.

ALWAYS provide information about
the proper use of vehicle safety
features to all occupants of the
vehicle.

.

ALWAYS review this Owner’s Man-
ual for important safety information.

ON-PAVEMENT AND OFF-
ROAD DRIVING

This vehicle will handle and maneuver
differently from an ordinary passenger car
because it has a higher center of gravity
for off-road use. As with other vehicles
with features of this type, failure to
operate this vehicle correctly may result in
loss of control or an accident. Be sure to
read “On-pavement and off-road driving
precautions”, “Avoiding collision and roll-
over” and “Driving safety precautions” in
the “5. Starting and driving” section of this
manual.

Foreword

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MODIFICATION OF YOUR VEHI-
CLE

This vehicle should not be modified. Mod-
ification could affect its performance,
safety or durability, and may even violate
governmental regulations. In addition, da-
mage or performance problems resulting
from modification will not be covered
under the INFINITI warranties.

WARNING

Installing an aftermarket On-Board Di-
agnostic (OBD) plug-in device that uses
the port during normal driving, for
example remote insurance company
monitoring, remote vehicle diagnostics,
telematics or engine reprogramming,
may cause interference or damage to
vehicle systems. We do not recommend
or endorse the use of any aftermarket
OBD plug-in devices, unless specifically
approved by INFINITI. The vehicle war-
ranty may not cover damage caused by
any aftermarket plug-in device.

WHEN READING THE MANUAL

This manual includes information for all
features and equipment available on this
model. Features and equipment in your
vehicle may vary depending on model, trim
level, options selected, order, date of pro-
duction, region or availability. Therefore,
you may find information about features or
equipment that are not included or installed
on your vehicle.

All information, specifications and illustra-
tions in this manual are those in effect at the
time of printing. INFINITI reserves the right
to change specifications, performance, de-
sign or component suppliers without notice
and without obligation. From time to time,
INFINITI may update or revise this manual to
provide owners with the most accurate
information currently available. Please care-
fully read and retain with this manual all
revision updates sent to you by INFINITI to
ensure you have access to accurate and up-
to-date information regarding your vehicle.
Current versions of vehicle Owner’s Manuals
and any updates can also be found in the
Owner section of the INFINITI website at
https://owners.infinitiusa.com/owners/na-
vigation/manualsandGuides. If you have
questions concerning any information in
your Owner’s Manual, contact INFINITI
Consumer Affairs. See the INFINITI CUS-
TOMER CARE PROGRAM page in this

Owner’s Manual for contact information.

IMPORTANT INFORMATION
ABOUT THIS MANUAL

You will see various symbols in this manual.
They are used in the following ways:

WARNING

This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the
risk, the procedures must be followed
precisely.

CAUTION

This is used to indicate the presence of a
hazard that could cause minor or mod-
erate personal injury or damage to your
vehicle. To avoid or reduce the risk, the
procedures must be followed carefully.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIC0697

If you see the symbol above, it means

“Do

not do this”

or

“Do not let this happen”

.

If you see a symbol similar to those above in
an illustration, it means the arrow points to
the front of the vehicle.

Arrows in an illustration that are similar to
those above indicate movement or action.

Arrows in an illustration that are similar to
those above call attention to an item in the

illustration.

CALIFORNIA PERCHLORATE
ADVISORY

Some vehicle parts, such as lithium bat-
teries, may contain perchlorate material.
The following advisory is provided: “Per-
chlorate Material - special handling may
a p p l y ,

S e e

w w w . d t s c . c a . g o v /

hazardouswaste/perchlorate.”

Bluetooth

®

is

a

trademark

owned by Bluetooth SIG, Inc.
and any use of such marks by
Voxx Automotive Corporation
is under license.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INFINITI CUSTOMER CARE PROGRAM

INFINITI CARES ...
Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your
INFINITI retailer are our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service
needs.
However, if there is something that your
INFINITI retailer cannot assist you with or
you would like to provide INFINITI directly
with comments or questions, please contact
our (INFINITI’s) Consumer Affairs Depart-
ment using our toll-free number:

For U.S. customers

1-800-662-6200

For Canadian customers

1-800-361-4792

The Consumer Affairs Department will ask
for the following information:

.

Your name, address, and telephone num-

ber

.

Vehicle identification number (on dash

panel)

.

Date of purchase

.

Current odometer reading

.

Your INFINITI retailer’s name

.

Your comments or questions

OR

You can write to INFINITI with the informa-
tion on the left at:

For U.S. customers

INFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
nnaconsumeraffairs@nissan-usa.com

For Canadian customers

INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada.
com

If you prefer, visit us at:
www.InfinitiUSA.com (for U.S. customers)
or
www.Infiniti.ca (for Canadian customers)
We appreciate your interest in INFINITI and
thank you for buying a quality INFINITI
vehicle.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-2

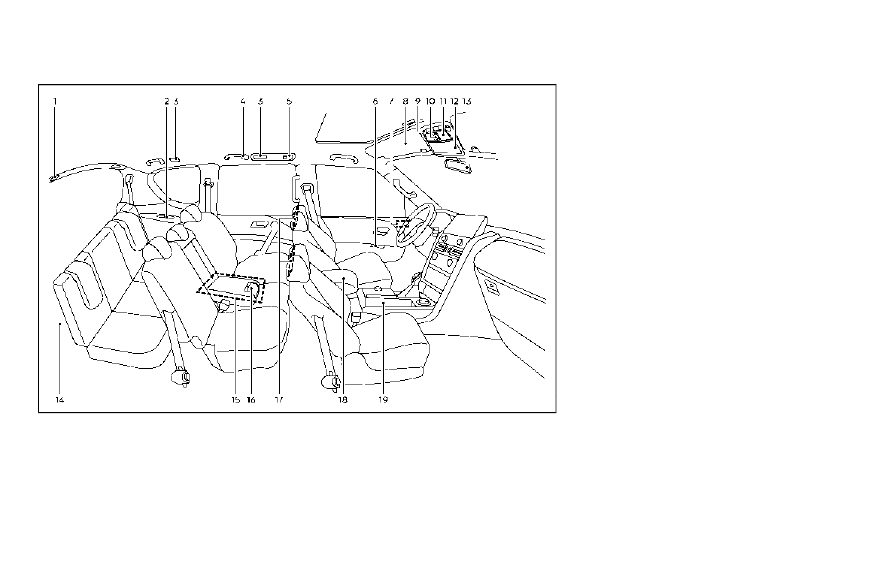

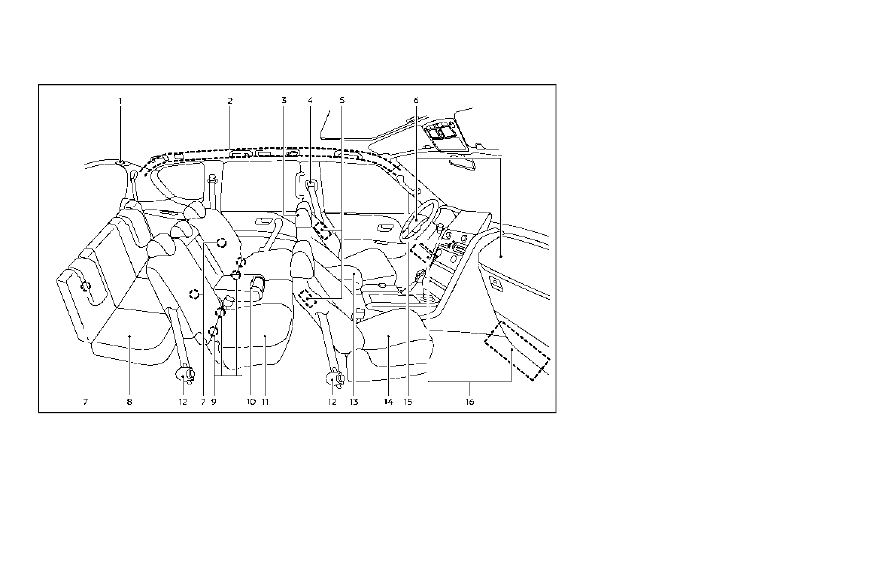

Illustrated table of contents

WAA0352X

1.

Seat belt for 3rd row center seat
(P.1-24)

2.

Roof-mounted curtain side-impact and
rollover supplemental air bags (P.1-51)

3.

Head Restraints (P.1-13)

— Front-seat Active Head Restraints
(P.1-17)

4.

Seat belts (P.1-18)

5.

Front seat-mounted side-impact sup-
plemental air bags (P.1-51)

6.

Supplemental front-impact air bags
(P.1-51)

7.

Child restraint anchor points (for top
tether strap child restraint) (P.1-43,
P.1-47)

8.

3rd row seats (P.1-8)
— Child restraints (P.1-30)

9.

LATCH (Lower Anchors and Tethers
for CHildren) system (P.1-33)

10. Armrest (2nd row seat) (P.1-10)
11. 2nd row seats (P.1-5)

— Child restraints (P.1-30)

12. Seat belt pretensioners (P.1-68)
13. Front armrest (P.1-10)
14. Front seats (P.1-4)

— Occupant classification sensors
(weight sensors) (P.1-57)

15. Front passenger air bag status light

(P.1-59)

16. Driver and front passenger supplemen-

tal knee air bags (P. 1-51)

SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

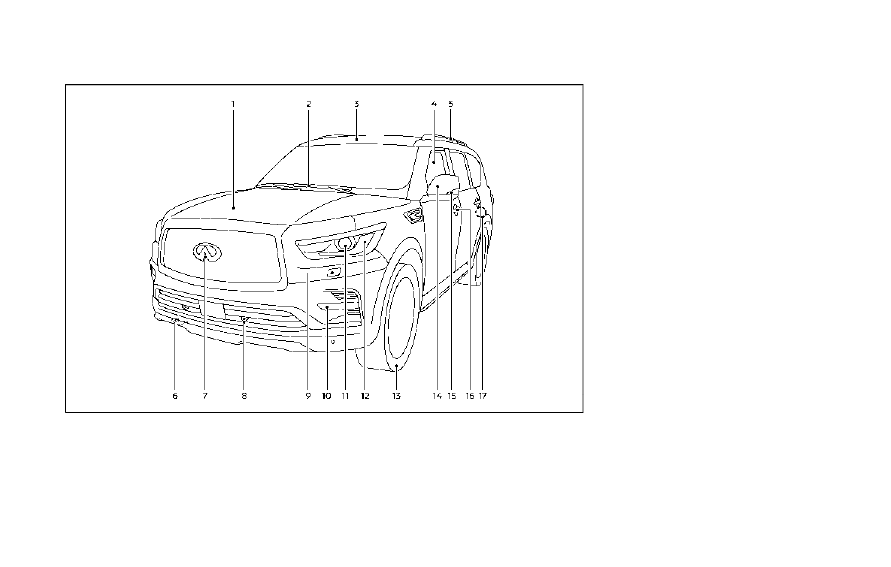

JVC1126X

1.

Hood (P.3-21)

2.

Windshield wiper and washer
— Switch operation (P.2-40)
— Rain-sensing auto wiper system
(P.2-41)
— Wiper blade replacement (P.8-15)

— Window washer fluid (P.8-10)

3.

Moonroof (P.2-76)

4.

Power windows (P.2-73)

5.

Roof rack (P.2-72)

6.

Towing hook (P.6-18)

7.

Front view camera (P.4-4)

8.

Sonar sensors
— Camera aiding sonar function
(P.4-17)

9.

Headlight washers (if so equipped)
(P.2-50)

10. Fog light (P.2-52)
11. Headlight (P.2-44)

— Adaptive Front lighting System
(AFS) (if so equipped) (P.2-50)

12. Front parking light/daytime running

light/front turn signal light (P.2-44)

13. Tires

— Wheel and tires (P.8-27, P.10-9)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System
(TPMS) (P.2-16, P.5-5)

14. Outside mirrors (P.3-37)

— Side view camera (P.4-4)
— Welcome light (P.2-78)

15. Side turn signal lights (P.8-23)
16. Doors

— Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-15)
— Remote engine start (if so equipped)
(P.3-19)

Illustrated table of contents

0-3

EXTERIOR FRONT

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-4

Illustrated table of contents

17. Child safety rear door locks (P.3-6)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

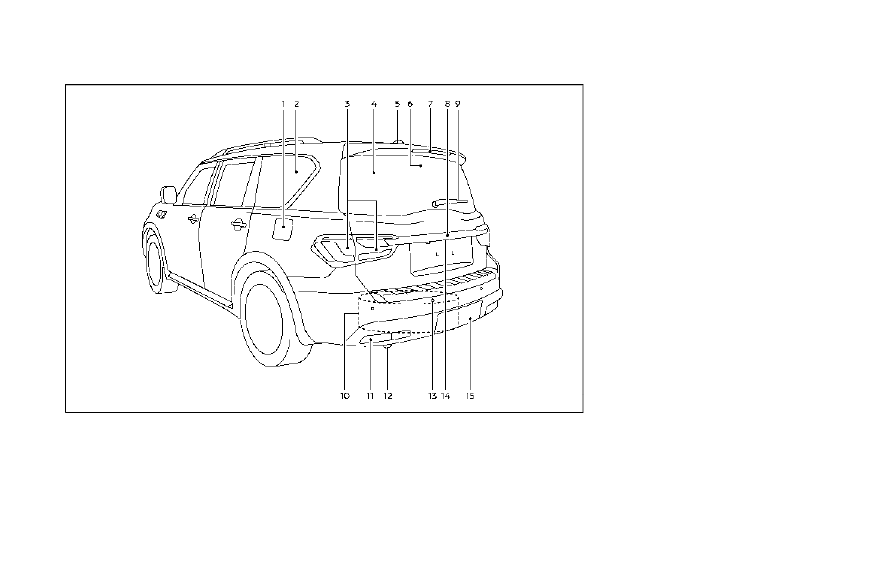

JVC1127X

1.

Fuel-filler door (P.3-26)
— Fuel information (P.10-4)

2.

Antenna (P.4-36)

3.

Rear combination light (P.8-23)

4.

Rear window defroster (P.2-43)

5.

Satellite antenna (P.4-36)

6.

Smart Rearview Mirror camera (if so
equipped) (P.3-31)

7.

High-mounted stop light (P.8-23)

8.

Liftgate (P.3-22)
— Intelligent Key system (P.3-7)

9.

Rear window wiper and washer

— Switch operation (P.2-42)
— Window washer fluid (P.8-10)

10. Spare tire (under the vehicle) (P.6-3)
11. Rear turn signal light

— Switch operation (P.2-52)

12. Towing hook (P.6-18)
13. Sonar sensors

— Camera aiding sonar function
(P.4-17)

14. Rear view camera (P.4-4)
15. Trailer hitch (P.10-23)

Illustrated table of contents

0-5

EXTERIOR REAR

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-6

Illustrated table of contents

WAA0353X

1.

Cargo light (P.2-81)

2.

Cup holders (3rd row seat) (P.2-68)

3.

Rear ventilators (P.4-27)

4.

Coat hooks (P.2-71)

5.

Rear personal lights (P.2-79)

6.

Door armrest

— Power window controls (P.2-73)
— Power door lock switch (P.3-5)
— Outside rearview mirror remote con-
trol switch (driver’s side) (P.3-37)

7.

Memory seat (P.3-39)

8.

Sun visors (P.3-29)

9.

Map lights (P.2-79)

10. Moonroof switch (P.2-76)
11. E-Call (SOS) button (if so equipped)

(P.2-65)

12. Sunglasses holder (P.2-68)
13. Inside rearview mirror (P.3-30)

— Smart Rearview Mirror (if so
equipped) (P.3-31)
— HomeLink

®

universal transceiver

(P.2-81, P.2-85)

14. Cargo area

— Power outlet (P.2-60)
— Cargo floor box (P.2-72)
— Luggage hooks (P.2-71)
— Jacking tools (P.6-5)

15. Rear console box (P.2-70)

— Cup holders (2nd row seat) (if so
equipped) (P.2-66)
— Pocket (if so equipped) (P.2-70)

16. Cup holders (2nd row seat) (if so

equipped) (P.2-66)

17. Rear Seat Infotainment (RSI) system (if

so equipped) (P. 4-37)

18. Console box (P.2-70)

— Power outlet (P.2-60)
— USB charging connector (P.2-62)
— Rear Media Interface

PASSENGER COMPARTMENT

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

— Rear automatic air conditioning sys-
tem (P.4-32)
— Heated seat switch (if so equipped)
(P.2-54)

19. Front cup holders (P.2-66)

Illustrated table of contents

0-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-8

Illustrated table of contents

WAA0354X

1.

Power liftgate switch (if so equipped)
(P.3-22)

2.

Heated steering wheel switch (P.2-53)

3.

Instrument brightness control switch
(P.2-51)

4.

TRIP/RESET switch for twin trip od-
ometer (P.2-7)

5.

Headlight, fog light and turn signal
switch
— Headlight (P.2-44)
— Turn signal (P.2-52)

— Fog light (P.2-52)

6.

Steering-wheel-mounted controls (left
side)
— Audio control steering switch (See
INFINITI InTouch

®

Owner’s Manual.)

— Vehicle information display control
(P. 2-21)
— Trip computer switch (P.2-35)

7.

Wiper and washer switch (P.2-40)

8.

Steering-wheel-mounted controls
(right side)
— C r u i s e c o n t r o l s y s t e m ( i f s o
equipped) (P.5-62)
— Intelligent Cruise Control (ICC) sys-
tem (if so equipped) (P.5-64)
— Lane Departure Prevention (LDP)
system (if so equipped) (P.5-27)
— Distance Control Assist (DCA) sys-
tem (if so equipped) (P.5-85)
— Blind Spot Intervention

®

(BSI) sys-

tem (if so equipped) (P.5-42)
— Hands-Free Phone System switch
(See INFINITI InTouch

®

Owner’s Man-

ual.)

9.

Shift lever (P.5-17)

10. Four-Wheel Drive (4WD) shift switch

(if so equipped) (P.5-116)/SNOW
mode switch (P.2-57)/TOW mode
switch (P.2-58)/Vehicle Dynamic Con-

COCKPIT

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

trol (VDC) OFF switch (P.5-135)

11. INFINITI controller (See INFINITI In-

Touch

TM

Owner’s Manual.)

12. Headlight aiming control (if so

equipped) (P.2-49)

13. Power liftgate main switch (P.3-22)
14. Remote tip-up 2nd row seat switch (if

so equipped) (P.1-6)

15. Warning systems switch (P.2-57)

— Lane Departure Warning (LDW)
(P.5-22)
— Blind Spot Warning (BSW) (P.5-34)

16. Electric tilting/telescopic steering

wheel switch (P.3-29)

Illustrated table of contents

0-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-10

Illustrated table of contents

WAA0355X

1.

Side ventilator (P.4-27)

2.

Meters and gauges (P.2-6)

3.

Center ventilator (P.4-27)

4.

Audio system (See INFINITI InTouch

®

Owner’s Manual)

5.

Touch screen display (See INFINITI

InTouch

®

Owner’s Manual)

— Around View

®

Monitor (P.4-4)

— Navigation system (See INFINITI
InTouch

®

Owner’s Manual)

6.

Front passenger air bag status light
(P.1-59)

7.

Hazard warning flasher switch (P.6-2)

8.

Defroster switch (P.2-43)

9.

Front passenger supplemental air bag
(P.1-51)

10. Fuse box (P.8-20)
11. Parking brake (P.5-22)
12. Hood release handle (P.3-21)
13. Steering wheel

— Horn (P.2-53)
— Driver supplemental air bag (P.1-51)
— Power steering (P.5-132)

14. Driver supplemental knee air bag

(P.1-51)

15. Push-button ignition switch (P.5-12)
16. Climate controlled seat switch (if so

equipped) (P.2-56)/Heated seat switch
(if so equipped) (P.2-54)

17. Wireless charger (if so equipped)

(P.2-63)

18. USB connection ports (See INFINITI

InTouch

®

Owner’s Manual)

19. Power outlet (P.2-60)
20. Cup holder (P.2-66)
21. Heater and air conditioner (P.4-28)
22. Glove box (P.2-69)
23. Front passenger supplemental knee air

bag (P.1-51)

INSTRUMENT PANEL

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVC1182X

1.

Tachometer (P.2-8)

2.

Warning and indicator lights (P.2-11)

3.

Vehicle information display (P.2-20)/
Odometer/twin trip odometer (P.2-7)

4.

Speedometer (P.2-7)

5.

Engine coolant temperature gauge
(P.2-8)

6.

Fuel gauge (P.2-9)

Illustrated table of contents

0-11

METERS AND GAUGES

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-12

Illustrated table of contents

WAA0134X

VK56VD ENGINE

1.

Window washer fluid reservoir
(P.8-10)

2.

Fuse/fusible link holder (P.8-18)

3.

Engine oil dipstick (P.8-6)

4.

Power steering fluid reservoir (P.8-8)

5.

Engine oil filler cap (P.8-6)

6.

Brake fluid reservoir (P.8-9)

7.

Fuse/fusible link holder (P.8-18)

8.

Battery (P.8-11)

9.

Radiator filler cap (P.8-4)

10. Engine coolant reservoir (P.8-4)

11. Drive belts (P.8-13)
12. Air cleaner (P.8-14)

ENGINE COMPARTMENT

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Red light

Name

Page

Automatic Transmission (AT)
oil temperature warning light

2-12

Automatic Transmission (AT)
park warning light

2-12

Brake warning light

2-12

Charge warning light

2-13

Engine oil pressure warning
light

2-13

Master warning light

2-14

Seat belt warning light

2-14

Security indicator light

2-14

Supplemental air bag warn-
ing light

2-14

Yellow

light

Name

Page

Adaptive Front lighting Sys-
tem (AFS) indicator light (if so
equipped)

2-15

Anti-lock Braking System
(ABS) warning light

2-15

Automatic Transmission (AT)
check warning light

2-15

Check suspension indicator
light

2-15

Four-Wheel Drive (4WD)
warning light (4WD models)

2-15

Forward Emergency Braking
(FEB) system warning light

2-16

Low tire pressure warning
light

2-16

Malfunction Indicator Light
(MIL)

2-17

Master warning light

2-18

Vehicle Dynamic Control
(VDC) off indicator light

2-18

Vehicle Dynamic Control
(VDC) warning light

2-18

Other

light

Name

Page

Exterior light indicator

2-19

Front fog light indicator light

2-19

High beam assist indicator
light

2-19

High beam indicator light

2-19

TOW mode indicator light

2-19

Turn signal/hazard indicator
lights

2-19

Illustrated table of contents

0-13

WARNING AND INDICATOR LIGHTS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

0-14

Illustrated table of contents

MEMO

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1 Safety — seats, seat belts and supplemental

restraint system

Seats ...................................................................................... 1-3

Front seats .................................................................... 1-4
2nd row seats ............................................................... 1-5
3rd row seats ............................................................... 1-8
Armrest (if so equipped) .......................................... 1-10
Flexible seating ........................................................... 1-11

Head restraints/headrests ........................................... 1-13

Adjustable head
restraint/headrest components ............................ 1-14
Non-adjustable head
restraint/headrest components ............................ 1-15
Remove ........................................................................ 1-15
Install ............................................................................ 1-16
Adjust ........................................................................... 1-16
Front-seat Active Head Restraint ........................ 1-17

Seat belts .......................................................................... 1-18

Precautions on seat belt usage ............................. 1-18
Pregnant women ....................................................... 1-21
Injured persons ........................................................... 1-21
Three-point type seat belt ...................................... 1-21
Seat belt extenders ................................................... 1-27
Seat belt maintenance ............................................. 1-27

Child safety ...................................................................... 1-28

Infants .......................................................................... 1-29
Small children ............................................................. 1-29

Larger children ......................................................... 1-29

Child restraints ................................................................ 1-30

Precautions on child restraints ............................ 1-31
Lower Anchors and Tethers for CHildren
System (LATCH) ...................................................... 1-33
Top tether strap child restraint ........................... 1-35
Rear-facing child restraint installation
using LATCH ............................................................ 1-36
Rear-facing child restraint installation using
the seat belts ............................................................ 1-38
Forward-facing child restraint installation
using LATCH ............................................................ 1-41
Forward-facing child restraint installation
using the seat belts ................................................ 1-43
Booster seats ........................................................... 1-48

Supplemental restraint system .................................. 1-51

Precautions on supplemental
restraint system ....................................................... 1-51
INFINITI Advanced Air Bag System
(front seats) .............................................................. 1-57
Driver and front passenger supplemental knee
air bag ........................................................................ 1-65
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
and rollover supplemental air bag systems ..... 1-66

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS0133

WARNING

.

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and
receive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.

.

For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with

both feet on the floor and adjust the
seat belt properly. See “Precautions
on seat belt usage” (P.1-18).

.

After adjustment, gently rock in the
seat to make sure it is securely
locked.

.

Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious accidents.

.

To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not

leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.

.

The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured is
increased.

Safety — seats, seat belts and supplemental restraint system

1-3

SEATS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-4

Safety — seats, seat belts and supplemental restraint system

FRONT SEATS

Front power seat adjustment

Operating tips:

.

The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.

.

Do not operate the power seat switch for

a long period of time when the engine is
off. This will discharge the battery.

See “Memory seat” (P.3-39) for the seat
position memory function.

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damages.

SSS1051

Forward and backward:

Moving the switch

forward or backward

will slide the seat forward or backward to
the desired position.

Reclining:

Move the recline switch

backward until

the desired angle is obtained. To bring the
seatback forward again, move the switch
forward.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. (See “Precautions on seat belt
usage” (P.1-18).) Also, the seatback can be
reclined to allow occupants to rest when the

vehicle is stopped and the transmission is in
the P (Park) position.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS1052

Seat lifter:

1. Pull up or push down the adjusting

switch to adjust the seat height until
the desired position is achieved.

2. Tilt up or down the adjusting switch to

adjust the front angle of the seat until
the desired position is achieved (for
driver’s seat).

SSS1053

Lumbar support:

The lumbar support feature provides lower
back support to the occupants.
Push the front or back end of the switch to
adjust the seatback lumbar area.

2ND ROW SEATS

WARNING

.

Never allow anyone to ride in the
cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in ser-
ious injury in an accident or sudden
stop.

.

When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured in
an accident or sudden stop.

.

Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the
seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.

Safety — seats, seat belts and supplemental restraint system

1-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-6

Safety — seats, seat belts and supplemental restraint system

SSS1081

Captain’s seat

SSS1065

Bench seat

Reclining

Pull the reclining lever

and position the

seatback at the desired angle. Release the
reclining lever after positioning the seat at
the desired angle.
To return the seatback, pull the lever.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
to help obtain proper seat belt fit. (See
“Precautions on seat belt usage” (P.1-18).)
The seatback may also be reclined to allow
occupants to rest when the vehicle is parked.

WARNING

.

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and
receive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.

.

For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with
both feet on the floor and adjust the
seat belt properly. See “Precautions
on seat belt usage” (P.1-18).

.

After adjustment, check to be sure
the seat is securely locked.

Entry to 3rd row seat

CAUTION

.

Do not drive with the 2nd row seat
tipped up.

.

Be careful not to allow the 2nd row
seat to pinch, hit any part of your
body or other people when operating
the 2nd row seat. Make sure the seat
path is clear of all objects before
moving the seat.

The 2nd row seat can be tipped forward for
easy entry to or exit from the 3rd row seat.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS1066

For manual type:

To enter the 3rd row seat, pull the lever

or

located on the 2nd row seat and fold the

seatback forward

at an angle over the

seat base. Then lift up the seat base and tip
the 2nd row seat forward

. This will release

the back of the seat so it may be tipped

forward.
To exit the 3rd row seat, pull the lever

or

and fold the seatback forward onto the seat
base. Then lift up on the seat base and tip it
forward.

WAB0053X

For remote release type (if so equipped):

Push and hold the switch located on the
instrument panel. The seatback will fold
down and tip forward.
The lower corner of the seat base will lift and
the 2nd row seat will tip forward.

Safety — seats, seat belts and supplemental restraint system

1-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-8

Safety — seats, seat belts and supplemental restraint system

SSS1116

3RD ROW SEATS

The 3rd row power folding seat controls are
located behind the 2nd row seat (both the
driver’s and passenger’s side) on the 3rd row
cup holder console

. There are also controls

located on the rear quarter trim panel behind
the 3rd row seats (passenger’s side)

.

Before operating the 3rd row seats:

.

Make sure the 2nd row seatback is not

reclined.

.

Lower the 3rd row head restraint to the

full down position.

.

Disconnect and secure the center seat

belt and tongues into the retractor base.
See “3rd row center seat belt” (P.1-24).

— Always reconnect the center seat belt

when the seat is returned to the
upright position

.

Make sure that there are no objects on

the seatback cushion.

SSS1095

Power reclining

Push and hold the rear side of the switch
beside the 3rd row cup holders until the
desired seatback angle (up to 20 degrees) is
obtained. To move the seatback forward
again, push and hold the front side of the
switch

until the desired angle is obtained.

WARNING

.

After adjustment, check to be sure
the seat is securely locked.

.

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

be against your body. In an accident,
you could be thrown into it and
receive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.

.

For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with
both feet on the floor and adjust the
seat belt properly. See “Precautions
on seat belt usage” (P.1-18).

SSS1118

Power folding

Push the front side of the switch

located

on the passenger side of the cargo room. The
corresponding seatback (R: right side, L: left
side) will be folded down automatically.
Push the rear side of the switch

. The

seatback will be returned automatically.

A beep sounds once and the seatback will be
folded down/returned automatically. A
beep sounds twice when the seatback is
fully folded down/returned to the seating
position.
If the control unit detects any obstacles or
malfunctions while in the power operation, a
beep sounds for 4 seconds and seatback will
return to the folded/seating position auto-
matically. Check if there are any obstacles
caught that prevent seats from folding/
returning. Have the system checked if the
beep sounds even though any obstacles are
not caught, or the seatback is not moved
even though the switch is pushed. It is
recommended that you visit an INFINITI
retailer for this service.

NOTE:

.

Operating the power folding seats can

discharge the vehicle battery if the
engine is not running.

.

If the third row seat does not completely

fold or return, move the seatback fully
backward once. Push the rear side of the
switch

, then the seatback will be

returned to the seating position. Push
the rear side of the switch

again, then

the seatback will be moved to fully
backward position.

Safety — seats, seat belts and supplemental restraint system

1-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-10

Safety — seats, seat belts and supplemental restraint system

CAUTION

.

When operating the rear power seat-
back return, make sure that the
vehicle is stopped and the transmis-
sion is in the P (Park) position.

.

The auto reverse function may not
operate depending on the shape or
position of obstacles.

WARNING

.

Never allow anyone to ride in the
cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in ser-
ious injury in an accident or sudden
stop.

.

When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured in
an accident or sudden stop.

.

Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the

seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.

.

Do not fold down the rear seats when
occupants are in the rear seat area or
any cargo is on the rear seats.

WAB0052X

Front seats

ARMREST (if so equipped)

Front seats

The console box lid can be used as an
armrest.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS1070

2nd row seat

2nd row seat

Pull and draw the armrest forward until it is
horizontal.

FLEXIBLE SEATING

WARNING

.

Never allow anyone to ride in the
cargo area or on the rear seats when
they are in the fold-down position. In
a collision, people riding in these
areas without proper restraints are
more likely to be seriously injured or
killed.

.

Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
Be sure everyone in your vehicle is in
a seat and using a seat belt properly.

.

Do not fold down the rear seats when
occupants are in the rear seat area or
any cargo is on the rear seats.

.

Head restraints should be adjusted
properly as they may provide signifi-
cant protection against injury in an
accident. Always replace and adjust
them properly if they have been
removed for any reason.

.

If the head restraints are removed for
any reason, they should be securely
stored to prevent them from causing
injury to passengers or damage to the
vehicle in case of sudden braking or

an accident.

.

When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured in
an accident or sudden stop.

.

Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the
seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.

.

When folding the bench seat seat-
back down for maximum storage,
make sure the seat base is in the
latched position by rocking the seat
base. If the seat base is not properly
secured, cargo stored on top of a
folded seatback may become a pro-
jectile causing personal injury or
vehicle damage.

CAUTION

.

When folding the 2nd row seat for
maximum cargo hauling, be sure that
cargo does not contact the center
console of the captain’s seat (if so

Safety — seats, seat belts and supplemental restraint system

1-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1-12

Safety — seats, seat belts and supplemental restraint system

equipped) to avoid possible damage
to the console.

.

When folding or returning the seat(s)
to the upright position, to avoid
injury to yourself and others:

— Make sure that the seat path is

clear before moving the seat.

— Be careful not to allow hands or

feet to get caught or pinched in
the seat.

Stowing 2nd and 3rd row seats

To stow 2nd and 3rd row seats for maximum
cargo capacity:
Manual Operation:

SSS1119

1. Pull lever located on the 2nd row seat.

The seatback folds down and the seat
base will tip forward. See “Entry to 3rd
row seat” (P.1-6).

Power Operation:
1. Push and hold the corresponding switch

located on the instrument panel below
the audio system. The seatback will fold
down and tip forward. See “Entry to 3rd
row seat” (P.1-6).

SSS1120

2. Push the folded seat down until it locks

in position.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSS1121

3. Fold the 3rd row seat flat using the

switches located in the cargo area. See
“Power folding ” (P.1-9).

4. Return 3rd row seats to seating posi-

tions by raising the 3rd row seatbacks to
an upright position using the switches.
Make sure the seatback is locked in
position. See “Power folding ” (P.1-9).

5. Return the 2nd row seat to a seating

position by raising the 2nd row seat-
backs to an upright position. Make sure
the seatback is locked in position.

CAUTION

When folding the 2nd row seat for
maximum cargo hauling, be sure that
cargo does not contact the center con-
sole of the captain’s seat (if so equipped)
to avoid possible damage to the console.

WARNING

Head restraint/headrest supplement the
other vehicle safety systems. They may
provide additional protection against
injury in certain rear end collisions.
Adjustable head restraints/headrests
must be adjusted properly, as specified
in this section. Check the adjustment
after someone else uses the seat. Do not
attach anything to the head restraint/
headrest stalks or remove the head
restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly
adjust the head restraint/headrest be-
fore an occupant uses the seating posi-
tion. Failure to follow these instructions
can reduce the effectiveness of the head
restraint/headrest. This may increase
the risk of serious injury or death in a
collision.

Safety — seats, seat belts and supplemental restraint system

1-13

HEAD RESTRAINTS/HEADRESTS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

















Content      ..      1       2         ..



//////////////////////////////////////////
