HEADLIGHTS

For additional information on headlight bulb
replacement, refer to the instructions out-
lined in this section.

Replacing the LED headlight bulb

If LED headlight bulb replacement is re-
quired, it is recommended that you visit an
INFINITI retailer for this service.

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight assembly*

High/Low

Park/Daytime running

Turn

Side marker

Door mirror turn signal light*

Map light*

Footwell light*

Personal light**

Glove box light*

1

Front step light*

5

168

Rear step light (if so equipped)*

5

168

Courtesy light*

Puddle light*

Vanity mirror light*

5

W5W

Cargo light*

Back door (Liftgate) light*

5

High-mounted stop light*

Rear combination light

Tail/Stop*

Turn

Side marker*

Backup (reversing) assembly*

Backup

Tail*

License plate light**

* It is recommended that you visit an INFINITI retailer for replacement.

Always check with the Parts Department at an INFINITI retailer for the latest parts
information.

LIGHTS

8-26

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

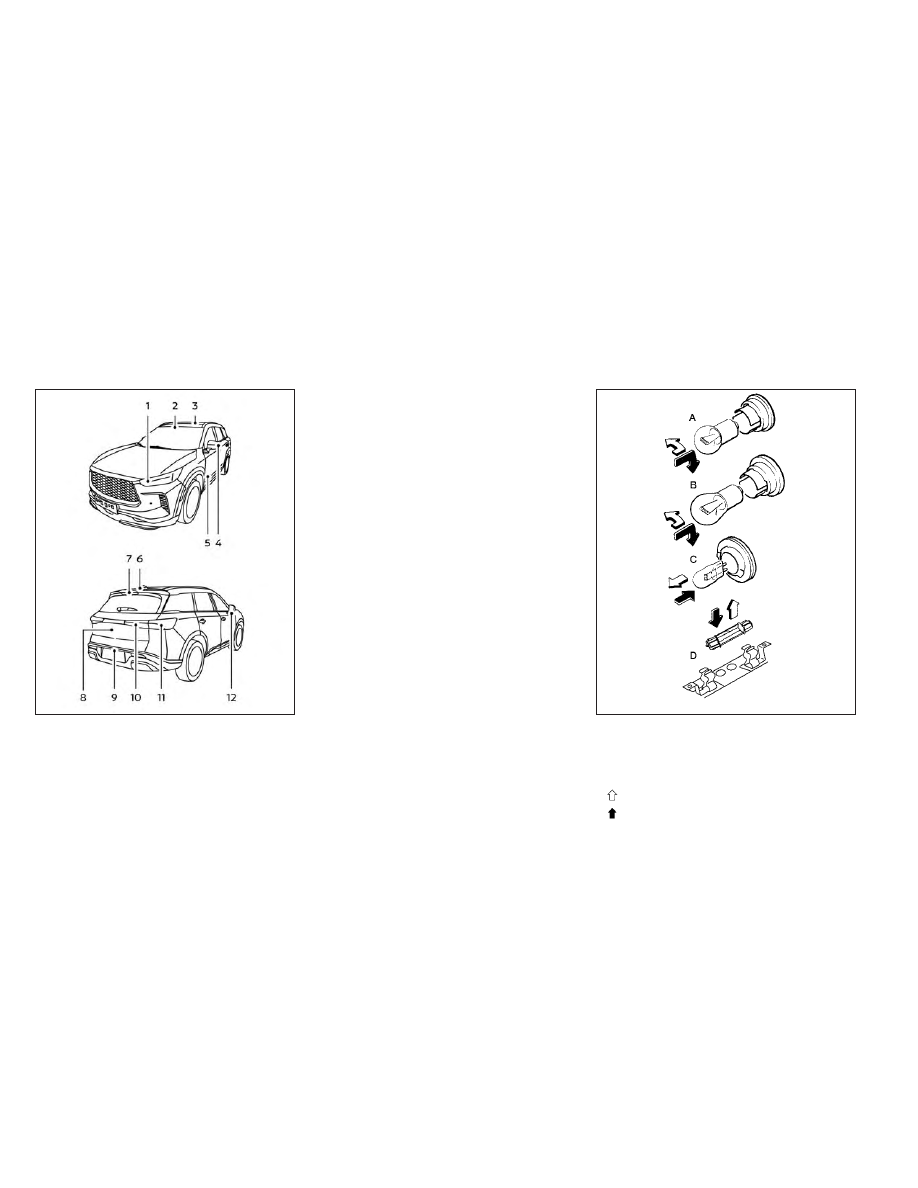

1.

Headlight assembly

2.

Map light

3.

Personal light

4.

Door mirror turn signal light

5.

Step light

6.

Cargo light

7.

High-mounted stop light

8.

Back door (Liftgate) light

9.

License light

10.

Backup (reversing) assembly

11.

Rear combination light

12.

Puddle light

Replacement procedures

All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, light
and/or cover using a cloth and suitable tool.

Indicates bulb removal
Indicates bulb installation

LDI3647

WDI0263

Do-it-yourself

8-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you have a flat tire, see “Flat tire” (P. 6-3).

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

WARNING

Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS).
It monitors tire pressure of all tires
except the spare. When the low tire
pressure warning light is lit and the
“Tire Pressure Low – Add Air” warning
appears in the vehicle information dis-
play, one or more of your tires is sig-
nificantly under-inflated. If equipped,
the system also displays pressure of all

tires (except the spare tire) on the dis-
play screen by sending a signal from a
sensor that is installed in each wheel.

The TPMS will activate only when the
vehicle is driven at speeds above 16
mph (25 km/h). Also, this system may
not detect a sudden drop in tire pres-
sure (for example a flat tire while
driving).

For additional information, see “Low
tire pressure warning light” (P. 2-18),
“Tire Pressure Monitoring System
(TPMS)” (P. 5-5) and “Flat tire” (P. 6-3).

Tire inflation pressure

Check the tire pressures (including the
spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on
the F.M.V.S.S./C.M.V.S.S. certifica-
tion label or the Tire and Loading In-
formation label under the “Cold Tire
Pressure” heading. The Tire and Load-
ing Information label is affixed to the

driver side center pillar. Tire pressures
should be checked regularly because:
• Most tires naturally lose air over

time.

• Tires can lose air suddenly when

driven over potholes or other objects
or if the vehicle strikes a curb while
parking.

The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.

TPMS with Tire Inflation Indicator
provides visual and audible signals
outside the vehicle for inflating the
tires to the recommended COLD tire
pressure. For additional information,
see “TPMS with Tire Inflation Indica-
tor” (P. 5-7).

WHEELS AND TIRES

8-28

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.

WARNING

Improperly inflated tires can fail
suddenly and cause an accident.

The Gross Vehicle Weight Rating
(GVWR)

is

located

on

the

F.M.V.S.S./C.M.V.S.S.

certifica-

tion label. The vehicle weight ca-
pacity is indicated on the Tire and
Loading Information label. Do not
load your vehicle beyond this ca-
pacity. Overloading your vehicle
may result in reduced tire life, un-
safe operating conditions due to
premature tire failure, or unfavor-
able handling characteristics and
could also lead to a serious acci-
dent. Loading beyond the specified
capacity may also result in failure
of other vehicle components.

Before taking a long trip, or when-
ever you heavily load your vehicle,
use a tire pressure gauge to ensure
that the tire pressures are at the
specified level.

For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in
the Warranty Information Booklet.

Do-it-yourself

8-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

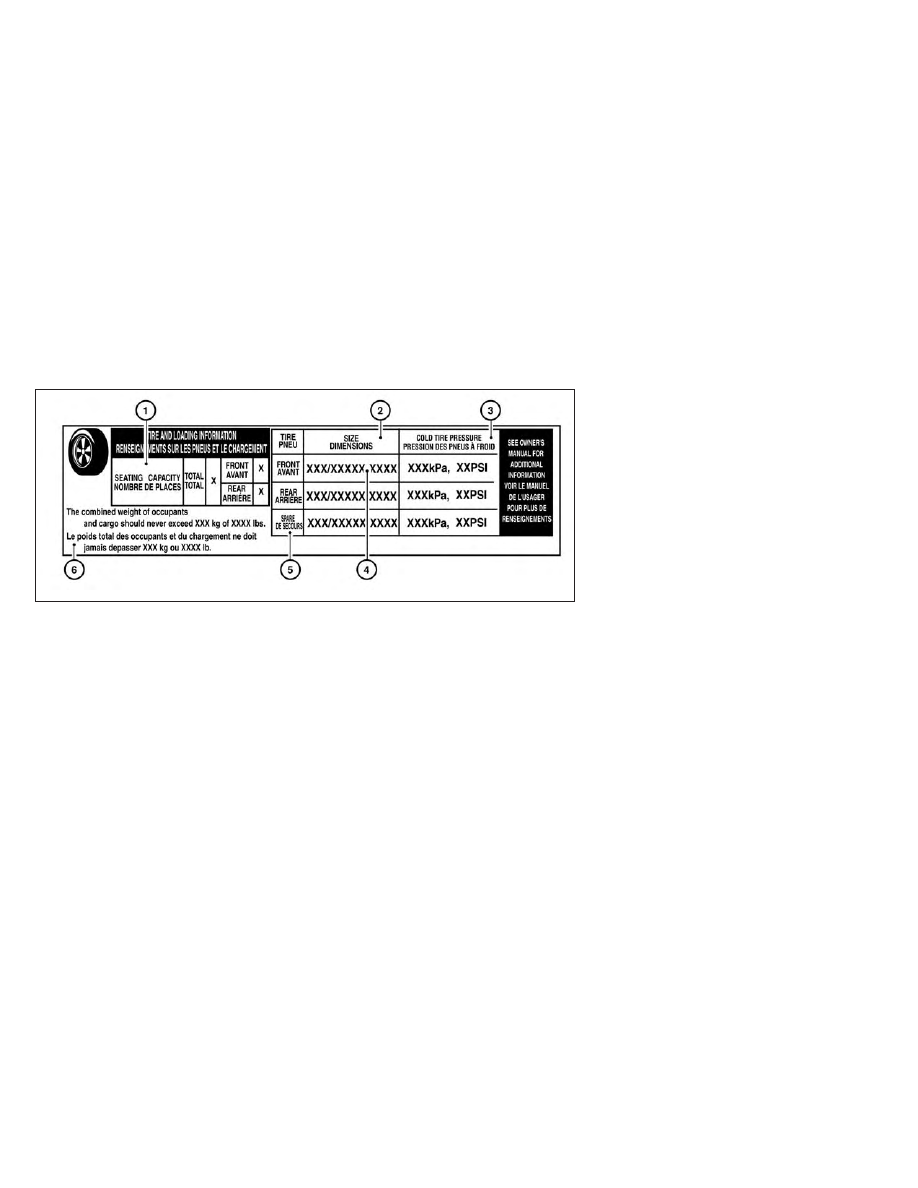

Tire and Loading Information label

1

Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.

2

Original tire size: The size of the
tires originally installed on the ve-
hicle at the factory.

3

Cold tire pressure: Inflate the tires
to this pressure when the tires are
cold. Tires are considered COLD
after the vehicle has been parked

for 3 or more hours, or driven less
than 1 mile (1.6 km) at moderate
speeds. The recommended cold
tire inflation is set by the manufac-
turer to provide the best balance
of tire wear, vehicle handling,
driveability, tire noise, etc., up to
the vehicle's GVWR.

4

Tire size - see “Tire labeling”
(P. 8-33).

5

Spare tire size.

6

Vehicle load limit: see “Vehicle
loading information” (P. 10-15).

LDI2737

8-30

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Checking tire pressure

WARNING

Driving at high speeds, 100 mph
(160 km/h) or higher sustained
where it is legal to do so, can cause
tires to have excessive heat build
up, which may result in a tire fail-
ure causing loss of control, crash,
injuries or even death. Some high-
speed rated tires require inflation
pressure adjustment for high-
speed operation. When speed lim-
its and road conditions allow ve-
hicle driving at high speeds, make
sure tires are rated to support
high speed operation, tires are in
optimal conditions and pressure is
adjusted to correct cold inflation
pressure for high speed operation.

If your vehicle is equipped with
255/50R20 tire sizes, tires re-
quire adjustment to the inflation
pressure when driving the vehicle
at speeds of 100 mph (160 km/h)
or higher where it is legal to do so.
See recommended tire inflation
chart

for

correct

operating

pressure.

After vehicle high speed operation
has ended, readjust the tire pres-
sure to the recommended cold in-
flation pressure. For additional in-
formation, see "Checking tire
pressure" (P. 8-31).

1. Remove the valve stem cap from

the tire.

LDI0393

Do-it-yourself

8-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Press the pressure gauge squarely

onto the valve stem. Do not press
too hard or force the valve stem
sideways, or air will escape. If the
hissing sound of air escaping from
the tire is heard while checking the
pressure, reposition the gauge to
eliminate this leakage.

3. Remove the gauge.

4. Read the tire pressure on the

gauge stem and compare to the
specification shown on the Tire
and Loading Information label.

5. Add air to the tire as needed. If too

much air is added, press the core of
the valve stem briefly with the tip
of the gauge stem to release pres-
sure. Recheck the pressure and add
or release air as needed.

6. Install the valve stem cap.

7. Check the pressure of all other

tires, including the spare.

8. Check the pressure when driving

the vehicle at speeds of 100 mph
(160 km/h) or higher where it is
legal to do so.

Size

Cold Tire Inflation

Pressure

psi

kPa

Front and
Rear Original
Tire:
255/50R20

35

240

Front and
Rear Original
Tire:
255/60R18

33

230

Spare Tire:
T165/90D18

60

420

8-32

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Recommended tire inflation pres-
sures at speeds of 100 mph (160
km/h) or higher where it is legal to do
so.

Size

Cold Tire Inflation

Pressure

psi

kPa

Front and
Rear Original
Tire:
255/50R20

36

250

TIRE LABELING

Federal law requires tire manufactur-
ers to place standardized information
on the sidewall of all tires. This infor-
mation identifies and describes the
fundamental characteristics of the tire
and also provides the Tire Identifica-
tion Number (TIN) for safety standard
certification. The TIN can be used to
identify the tire in case of a recall.

WDI0394

Example

Do-it-yourself

8-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

O

1

Tire size (example: P215/65R15

95H)

1. P: The “P” indicates the tire is de-

signed for passenger vehicles (not
all tires have this information).

2. Three-digit number (215): This

number gives the width in millime-
ters of the tire from sidewall edge
to sidewall edge.

3. Two-digit number (65): This num-

ber, known as the aspect ratio,
gives the tire's ratio of height to
width.

4. R: The “R” stands for radial.

5. Two-digit number (15): This num-

ber is the wheel or rim diameter in
inches.

6. Two- or three-digit number (95):

This number is the tire's load index.
It is a measurement of how much
weight each tire can support.

7. H: Tire speed rating. You should not

drive the vehicle faster than the tire
speed rating.

WDI0395

Example

8-34

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

O

2

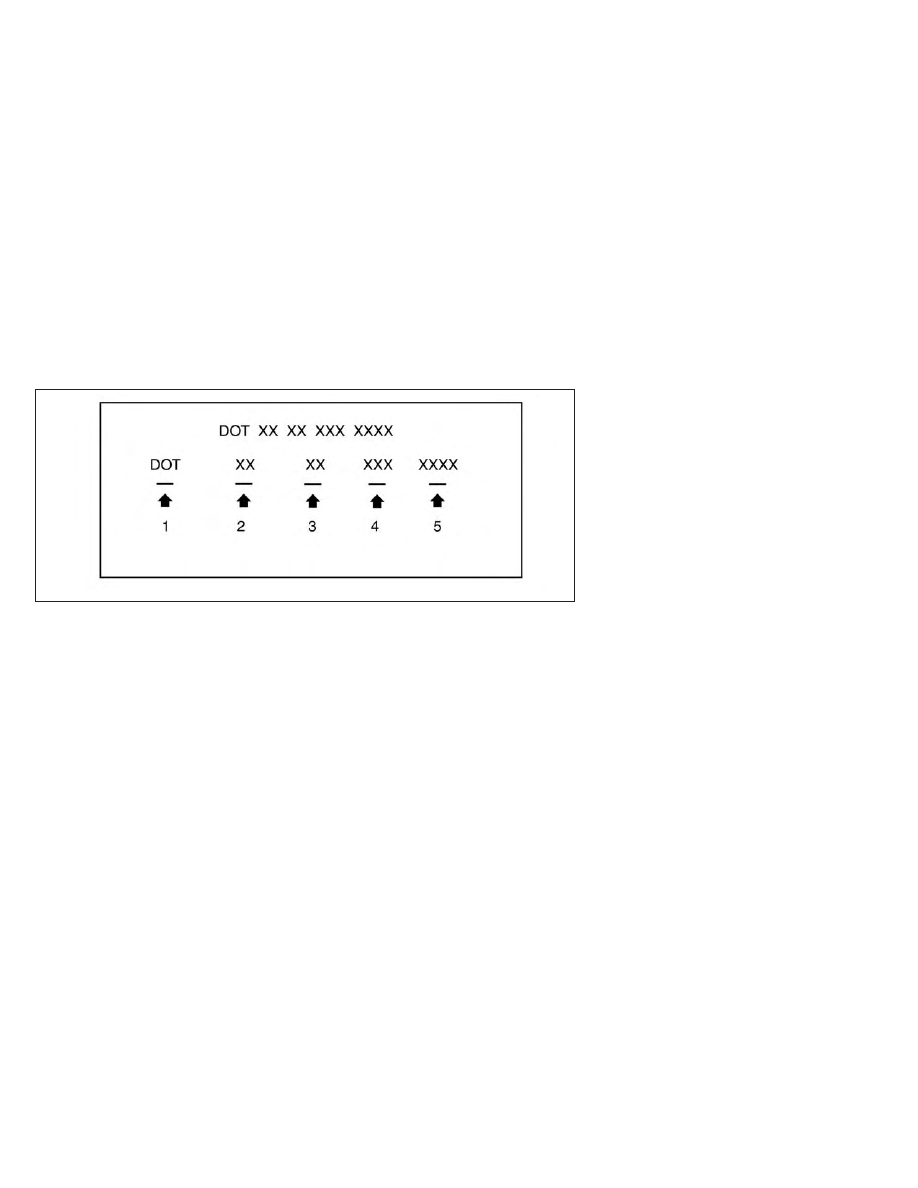

TIN (Tire Identification Number)

for a new tire (example: DOT XX XX
XXX XXXX)

1. DOT: Abbreviation for the “Depart-

ment Of Transportation”. The sym-
bol can be placed above, below or
to the left or right of the Tire Iden-
tification Number.

2. Two-digit code: Manufacturer's

identification mark.

3. Two-digit code: Tire size.

4. Three-digit code: Tire type code

(Optional).

5. Four numbers represent the week

and year the tire was built. For ex-
ample, the numbers 3103 means
the 31st week of 2003. If these
numbers are missing then look on
the other sidewall of the tire.

LDI2786

Example (Type A) (if so equipped)

Do-it-yourself

8-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

O

2

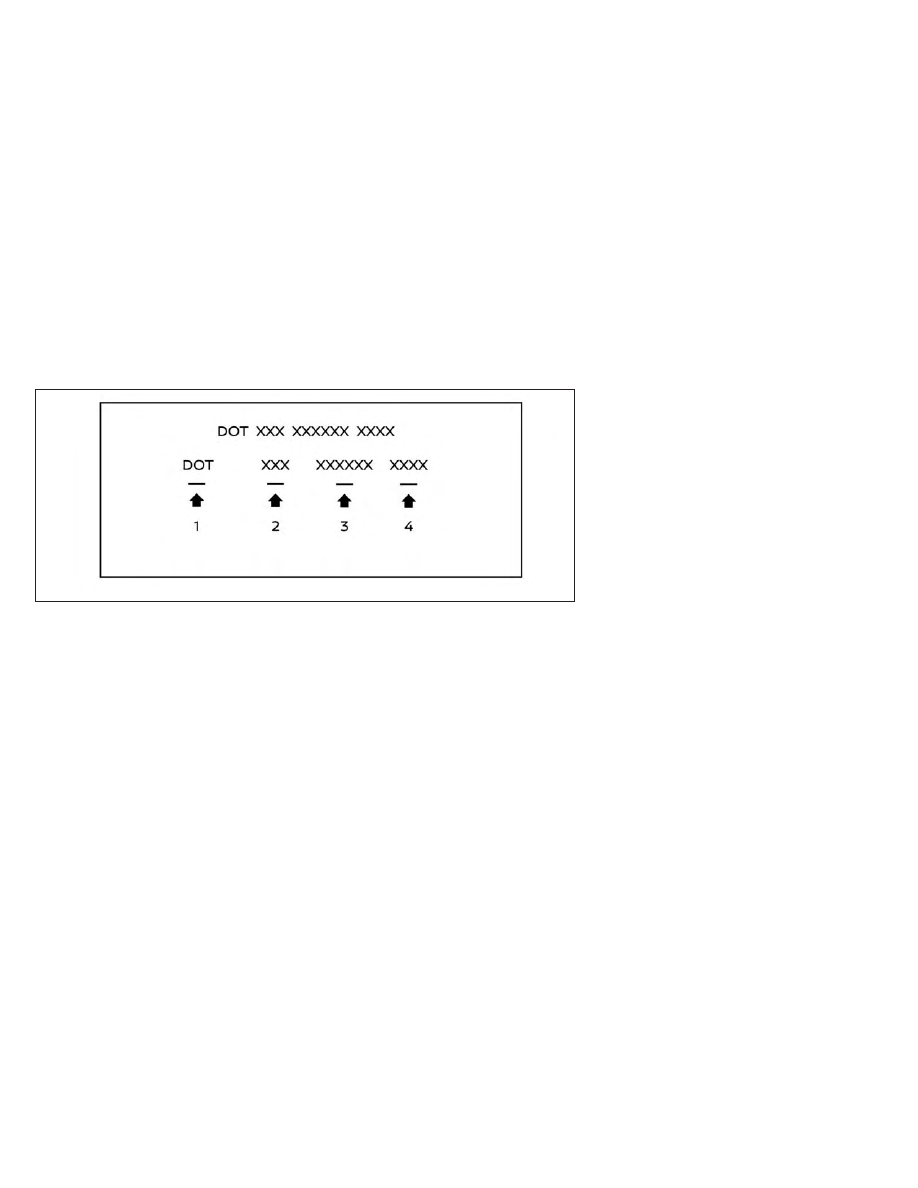

TIN (Tire Identification Number)

for a new tire (example: DOT XXX
XXXXXX XXXX)

1. DOT: Abbreviation for the “Depart-

ment Of Transportation”. The sym-
bol can be placed above, below or
to the left or right of the Tire Iden-
tification Number.

2. Three-digit code: Manufacturer's

identification mark.

3. Six-digit code: Descriptive code

used to identify significant charac-
teristics of the tire.

4. Four numbers represent the week

and year the tire was built. For ex-
ample, the numbers 3103 means
the 31st week of 2003.

O

3

Tire ply composition and material

The number of layers or plies of
rubber-coated fabric in the tire. Tire

manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester and others.

O

4

Maximum permissible inflation

pressure

This number is the greatest amount of
air pressure that should be put in the
tire. Do not exceed the maximum per-
missible inflation pressure.

O

5

Maximum load rating

This number indicates the maximum
load in kilograms and pounds that can
be carried by the tire. When replacing
the tires on the vehicle, always use a
tire that has the same load rating as
the factory installed tire.

O

6

Term of “tubeless” or “tube type”

Indicates whether the tire requires an
inner

tube

(“tube

type”)

or

not

(“tubeless”).

LDI3639

Example (Type B) (if so equipped)

8-36

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

O

7

The word “radial”

The word “radial” is shown if the tire
has radial structure.

O

8

Manufacturer or brand name

Manufacturer

or

brand

name

is

shown.

Other Tire-related Terminology

In addition to the many terms that are
defined throughout this section, In-
tended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears white lettering or bears manu-
facturer, brand, and/or model name
molding that is higher or deeper than
the same molding on the other side-
wall of the tire, or (2) the outward
facing sidewall of an asymmetrical tire
that has a particular side that must
always face outward when mounted
on a vehicle.

TYPES OF TIRES

WARNING

When changing or replacing tires, be sure
all four tires are of the same type (i.e.,
Summer, All Season or Snow) and con-
struction. An INFINITI retailer may be
able to help you with information about
tire

type,

size,

speed

rating

and

availability.

Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed
the maximum speed rating of the tire.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the low tire pressure
warning system.

Always use tires of the same type, size,
brand, construction and tread pattern on
all four wheels. Failure to do so may re-
sult in a circumference difference be-
tween tires on the front and rear axles
which can cause the Vehicle Dynamic
Control (VDC) system to malfunction re-
sulting in personal injury or death, exces-
sive tire wear and may damage the
transmission, transfer case and differen-
tial gears.

For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.

All-Wheel Drive (AWD) models

CAUTION

Always use tires of the same size, brand,
construction (bias, bias-belted or radial),
and tread pattern on all four wheels.
Failure to do so may result in a circumfer-
ence difference between tires on the
front and rear axles which will cause ex-
cessive tire wear and may damage the
transmission and drivetrain parts.

ONLY use spare tires specified for the
AWD model.

If excessive tire wear is found, it is recom-
mended that all four tires be replaced with
tires of the same size, brand, construction
and tread pattern. The tire pressure and
wheel alignment should also be checked and
corrected as necessary. It is recommended
that you visit an INFINITI retailer for this
service.

Do-it-yourself

8-37

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

All season tires

INFINITI specifies All Season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S on the tire sidewall. Snow tires
have better snow traction than All Season
tires and may be more appropriate in some
areas.

Summer tires

INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is sub-
stantially reduced in snow and ice. Summer
tires do not have the tire traction rating
“M&S” on the tire sidewall.

If you plan to operate your vehicle in snowy or
icy conditions, INFINITI recommends the use
of SNOW tires or ALL SEASON tires on all
four wheels.

Snow tires

If snow tires are needed, it is necessary to
select tires equivalent in size and load rating
to the original equipment tires. If you do not,
it can adversely affect the safety and han-
dling of your vehicle.

Generally, snow tires have lower speed rat-
ings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of
the tire.

If you install snow tires, they must be the
same size, brand, construction and tread pat-
tern on all four wheels.

For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction ca-
pabilities of studded snow tires on wet or dry
surfaces may be poorer than that of non-
studded snow tires.

TIRE CHAINS

Use of tire chains may be prohibited accord-
ing to location. Check the local laws before
installing tire chains. When installing tire
chains, make sure they are the proper size for
the tires on your vehicle and are installed
according to the chain manufacturer's sug-
gestions.

Use only SAE class “S” chains.

Class

“S” chains are used on vehicles with restricted
tire to vehicle clearance. Vehicles that can use
Class “S” chains are designed to meet the
minimum clearances between the tire and the
closest vehicle suspension or body compo-

nent required to accommodate the use of a
winter traction device (tire chains or cables).
The minimum clearances are determined us-
ing the factory equipped tire size. Other types
may damage your vehicle. Use chain tension-
ers when recommended by the tire chain
manufacturer to ensure a tight fit. Loose end
links of the tire chain must be secured or
removed to prevent the possibility of whip-
ping action damage to the fenders or under-
body. If possible, avoid fully loading your ve-
hicle when using tire chains. In addition, drive
at a reduced speed. Otherwise, your vehicle
may be damaged and/or vehicle handling
and performance may be adversely affected.

Do not use tire chains on dry roads. Driving
with chains in such conditions can cause
damage to the various mechanisms of the
vehicle due to some overstress.

8-38

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHANGING WHEELS AND TIRES
Tire rotation

INFINITI recommends rotating the
tires every 10,000 miles (16,000 km).

For additional information on tire re-
placing procedures, see “Flat tire”
(P. 6-3).

As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.

Wheel nut tightening torque:

83 ft-lb (113 N·m)

The wheel nuts must be kept tight-
ened to specifications at all times. It is
recommended that wheel nuts be
tightened to specification at each tire
rotation interval.

WARNING

After rotating the tires, check and
adjust the tire pressure.

Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).

Do not include the spare tire in the
tire rotation.

For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire

Safety

Information”

(Canada) in the Warranty Infor-
mation Booklet.

Tire wear and damage

1. Wear indicator

2. Location mark

WARNING

Tires should be periodically in-
spected for wear, cracking, bulg-
ing or objects caught in the tread.
If excessive wear, cracks, bulging
or deep cuts are found, the tire(s)
should be replaced.

WDI0258

WDI0259

Do-it-yourself

8-39

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The original tires have built-in
tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.

Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician because some
tire damage may not be obvious.
Replace the tires as necessary to
prevent tire failure and possible
personal injury.

Improper service of the spare tire
may result in serious personal in-
jury. If it is necessary to repair the
spare tire, it is recommended that
you visit an INFINITI retailer for
this service.

For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in
the Warranty Information Booklet.

Replacing wheels and tires

When replacing a tire, use the same size,
tread design, speed rating and load carrying
capacity as originally equipped. For addi-
tional information, see “Wheels and tires”
(P. 10-9).

WARNING

The use of tires other than those recom-
mended or the mixed use of tires of dif-
ferent brands, construction (bias, bias-
belted or radial), or tread patterns can
adversely affect the ride, braking, han-
dling, VDC system, ground clearance,
body-to-tire clearance, tire chain clear-
ance, speedometer calibration, headlight
aim and bumper height. Some of these
effects may lead to accidents and could
result in serious personal injury.

For 2WD models, if your vehicle was
originally equipped with four tires that
were the same size and you are only re-
placing two of the four tires, install the
new tires on the rear axle. Placing new
tires on the front axle may cause loss of
vehicle control in some driving condi-
tions and cause an accident and personal
injury.

If the wheels are changed for any reason,
always replace with wheels which have
the same off-set dimension. Wheels of a
different off-set could cause premature
tire wear, degrade vehicle handling char-
acteristics, affect the VDC system
and/or interference with the brake
discs. Such interference can lead to de-
creased braking efficiency and/or early
brake pad wear. For additional informa-
tion on wheel off-set dimensions, see
“Wheels and tires” (P. 10-9).

When using a wheel without the TPMS,
such as the spare tire, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain on
after 1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you
visit an INFINITI retailer for this service.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

The TPMS sensor may be damaged if it is
not handled correctly. Be careful when
handling the TPMS sensor.

8-40

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When replacing the TPMS sensor, the ID
registration may be required. It is recom-
mended that you visit an INFINITI re-
tailer for ID registration.

Do not use a valve stem cap that is not
specified by INFINITI. The valve stem cap
may become stuck.

Be sure that the valve stem caps are cor-
rectly fitted. Otherwise the valve may be
clogged up with dirt and cause a mal-
function or loss of pressure.

Do not install a damaged or deformed
wheel or tire even if it has been repaired.
Such wheels or tires could have struc-
tural damage and could fail without
warning.

The

use

of

retread

tires

is

not

recommended.

For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.

Wheel balance

Unbalanced wheels may affect vehicle han-
dling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required.

Wheel balance service should be performed
with the wheels off the vehicle. Spin balanc-
ing the wheels on the vehicle could lead to
mechanical damage.

For additional information regarding tires,
refer to “Important Tire Safety Informa-
tion” (US) or “Tire Safety Information”
(Canada) in the Warranty Information
Booklet.

Care of wheels

• Wash the wheels when washing the vehicle

to maintain their appearance.

• Clean the inner side of the wheels when the

wheel is changed or the underside of the
vehicle is washed.

• Do not use abrasive cleaners when wash-

ing the wheels.

• Inspect wheel rims regularly for dents or

corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.

• INFINITI recommends waxing the road

wheels to protect against road salt in areas
where it is used during winter.

Spare tire (TEMPORARY USE
ONLY spare tire)

When using a wheel without the TPMS such
as the spare tire, the TPMS will not function.

Observe the following precautions if the
TEMPORARY USE ONLY spare tire must be
used. Otherwise, your vehicle could be dam-
aged or involved in an accident:

WARNING

The spare tire should be used for emer-
gency use only. It should be replaced with
the standard tire at the first opportunity
to avoid possible tire or differential
damage.

Drive carefully while the TEMPORARY
USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving.

Periodically check spare tire inflation
pressure. Always keep the pressure of
the TEMPORARY USE ONLY spare tire
at 420 kPa, 4.2 bar (60 psi).

With the TEMPORARY USE ONLY
spare tire installed do not drive the ve-
hicle at speeds faster than 50 mph
(80 km/h).

Do-it-yourself

8-41

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When driving on roads covered with
snow or ice, the TEMPORARY USE
ONLY spare tire should be used on the
rear wheels and the original tire used on
the front wheels (drive wheels).

Tire tread of the TEMPORARY USE
ONLY spare tire will wear at a faster rate
than the standard tire. Replace the spare
tire as soon as the tread wear indicators
appear.

Do not use the spare tire on other
vehicles.

Do not use more than one spare tire at
the same time.

Do not tow a trailer when the TEMPO-
RARY USE ONLY spare tire is installed.

CAUTION

Do not use tire chains on a TEMPORARY
USE ONLY spare tire. Tire chains will not
fit properly and may cause damage to
the vehicle.

Because the TEMPORARY USE ONLY
spare tire is smaller than the original tire,
ground clearance is reduced. To avoid
damage to the vehicle, do not drive over
obstacles. Also, do not drive the vehicle
through an automatic car wash since it
may get caught.

8-42

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Some day-to-day and regular maintenance is
essential to maintain your vehicle good me-
chanical condition, as well as its emissions
and engine performance.

It is the owner's responsibility to make sure
that the scheduled maintenance, as well as
general maintenance, is performed.

As the vehicle owner, you are the only one
who can ensure that your vehicle receives
proper maintenance. You are a vital link in the
maintenance chain.

GENERAL MAINTENANCE

General maintenance includes those items
which should be checked during normal day-
to-day operation. They are essential for
proper vehicle operation. It is your responsi-
bility to perform these procedures regularly
as prescribed.

Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.

These checks or inspections can be done by
yourself, a qualified technician or, if you pre-
fer, an INFINITI retailer.

SCHEDULED MAINTENANCE

The maintenance items listed in this section
are required to be serviced at regular inter-
vals. However under severe driving condi-
tions, additional or more frequent mainte-
nance will be required.

WHERE TO GO FOR SERVICE

If maintenance service is required or your
vehicle appears to malfunction, have the sys-
tems checked and serviced. It is recom-
mended that you visit an INFINITI retailer for
this service.

INFINITI technicians are well-trained spe-
cialists and are kept up-to-date with the lat-
est service information through technical bul-
letins, service tips and training programs.
They are completely qualified to work on
INFINITI vehicles

before

work begins.

If your vehicle is involved in a collision, it is
recommended that you ask your INFINITI
retailer where the nearest INFINITI Certified
Collision

Center

is

located,

or

go

to

http://collision.infinitiusa.com.

You can be confident that an INFINITI retail-
er’s service department can perform the ser-
vice needed to meet the maintenance re-
quirements on your vehicle.

During the normal day-to-day operation of
the vehicle, general maintenance should be
performed regularly as prescribed in this sec-
tion. If you detect any unusual sounds, vibra-
tions or smells, be sure to check for the cause
or have it checked promptly. In addition, it is
recommended that you visit an INFINITI re-
tailer if you think that repairs are required.

When performing any checks or maintenance
work, see “Maintenance precautions” (P. 8-2).

EXPLANATION OF GENERAL
MAINTENANCE ITEMS

WARNING

Failure to follow the procedures listed
within this section may result in personal
injury.

Additional information on the following
items with “ * ” is found in the “Do-it-
yourself” section of this manual.

Outside the vehicle

The maintenance items listed here should be
performed from time to time, unless other-
wise specified.

MAINTENANCE REQUIREMENTS

GENERAL MAINTENANCE

9-2

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Doors and engine hood:

Check that the doors

and engine hood operate properly. Also en-
sure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary
latch keeps the hood from opening when the
primary latch is released.

When driving in areas using road salt or other
corrosive

materials,

check

lubrication

frequently.

Check that the gas stays or struts properly
and securely hold the hood, trunk, or rear
hatch fully open. If the hood, trunk, or rear
hatch is not held open, have the gas stays or
struts replaced.

Lights*:

Clean the headlights on a regular

basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.

Road wheel nuts (lug nuts)*:

When checking

the tires, make sure no wheel nuts are miss-
ing, and check for any loose wheel nuts.
Tighten if necessary.

Tire rotation*:

Rotate tires at the specified

interval shown in the maintenance schedule.

Tires*:

Check the pressure with a gauge

often and always prior to long distance trips.

If necessary, adjust the pressure in all tires,
including the spare, to the pressure specified.
Check carefully for damage, cuts or excessive
wear.

Tire Pressure Monitoring System (TPMS)
tire pressure sensor:

It is recommended that

you replace the TPMS tire pressure sensor
assembly when the tires are replaced due to
wear or age.

Wheel alignment and balance:

If the vehicle

should pull to either side while driving on a
straight and level road, or if you detect un-
even or abnormal tire wear, there may be a
need for wheel alignment.

If the steering wheel or seat vibrates at nor-
mal highway speeds, wheel balancing may be
needed.

For additional information regarding tires, re-
fer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the INFINITI Warranty Information Booklet.

Windshield:

Clean the windshield on a regu-

lar basis. Check the windshield at least
every six months for cracks or other damage.
Have a damaged windshield repaired by a
qualified repair facility. It is recommended
that you have a damaged windshield re-
paired by an INFINITI retailer, or an INFINITI

Certified Collision Center. To locate a colli-
sion

center

in

your

area,

refer

to

http://collision.infinitiusa.com.

Inside the vehicle

The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.

Accelerator pedal:

Check the pedal for

smooth operation and make sure the pedal
does not catch or require uneven effort. Keep
the floor mat away from the pedal.

Automatic transmission P (Park) position
mechanism:

On a fairly steep hill check that

the vehicle is held securely with the shift po-
sition in the P (Park) position without apply-
ing any brakes.

Brake pedal:

Check the pedal for smooth op-

eration. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, have your vehicle checked immediately.
It is recommended that you visit an INFINITI
retailer for this service. Keep the floor mat
away from the pedal.

Brakes:

Check that the brakes do not pull the

vehicle to one side when applied.

Maintenance and schedules

9-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Parking brake:

Check the parking brake op-

eration regularly. The vehicle should be se-
curely held on a fairly steep hill with only the
parking brake applied. If the parking brake
needs adjustment, it is recommended that
you visit an INFINITI retailer for this service.

Seat belts:

Check that all parts of the seat

belt system (for example, buckles, anchors,
adjusters and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.

Seats:

Check seat position controls such as

seat adjusters, seatback recliner, etc., to en-
sure they operate smoothly and all latches
lock securely in every position. Check that the
head restraints/headrests move up and
down smoothly and the locks (if so equipped)
hold securely in all latched positions.

Steering wheel:

Check for changes in the

steering system, such as excessive free play,
hard steering or strange noises.

Warning lights and chimes:

Make sure all

warning lights and chimes are operating
properly.

Windshield defroster:

Check that the air

comes out of the defroster outlets properly
and in sufficient quantity when operating the
heater or air conditioner.

Windshield wiper and washer*:

Check that

the wipers and washer operate properly and
that the wipers do not streak.

Under the hood and vehicle

The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).

Battery (for maintenance free batteries)*:

This vehicle is equipped with a sealed main-
tenance free battery. It is recommended that
you visit an INFINITI retailer for this service.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:

1. Installation or extended use of electronic

accessories that consume battery power
when the engine is not running (Phone
chargers, GPS, DVD players, etc.).

2. Vehicle is not driven regularly and/or

only driven short distances.

In these cases, the battery may need to be
charged to maintain battery health.

Brake fluid level*:

Make sure that the brake

fluid level is between the MAX and MIN lines
on the reservoir.

Engine coolant level*:

Check the coolant level

when the engine is cold.

Engine drive belt*:

Make sure the drive belt is

not frayed, worn, cracked or oily.

Engine oil level*:

Check the level after parking

the vehicle on a level spot and turning off the
engine. Wait more than 15 minutes for the oil
to drain back into the oil pan.

Exhaust system:

Make sure there are no

loose supports, cracks or holes. If the sound
of the exhaust seems unusual or there is a
smell of exhaust fumes, immediately have the
exhaust system inspected. It is recommended
that you visit an INFINITI retailer for this
service. For additional information, see “Ex-
haust gas (carbon monoxide)” (P. 5-4).

Fluid leaks:

Check under the vehicle for fuel,

oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping
from the air conditioner after use is normal. If
you should notice any leaks or if fuel fumes
are evident, check for the cause and have it
corrected immediately.

Radiator and hoses:

Check the front of the

radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure
the hoses have no cracks, deformation, rot or
loose connections.

9-4

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Underbody:

The underbody is frequently ex-

posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, oth-
erwise rust may form on the floor pan, frame,
fuel lines and around the exhaust system. At
the end of winter, the underbody should be
thoroughly flushed with plain water, being
careful to clean those areas where mud and
dirt may accumulate. For additional informa-
tion, see “Cleaning exterior” (P. 7-2).

Windshield-washer fluid*:

Check that there

is adequate fluid in the reservoir.

The following descriptions are provided to
give you a better understanding of the sched-
uled maintenance items that should be regu-
larly checked or replaced. The maintenance
schedule indicates at which mileage/time in-
tervals each item requires service.

In addition to scheduled maintenance, your
vehicle requires that some items be checked
during normal day-to-day operation. For ad-
ditional information, see “General mainte-
nance” (P. 9-2).

Items marked with

“*”

are recommended by

INFINITI for reliable vehicle operation. You
are not required to perform maintenance on
these items in order to maintain the warran-
ties which come with your INFINITI. Other
maintenance items and intervals are required.

When applicable, additional information can
be found in the “Do-it-yourself” section of
this manual.

NOTE:

INFINITI does not advocate the use of non-
OEM approved aftermarket flushing sys-
tems and strongly advises against perform-
ing these services on an INFINITI product.
Many of the aftermarket flushing systems
use non-OEM approved chemicals or sol-
vents, the use of which has not been vali-
dated by INFINITI.
For recommended fuel, lubricants, fluids,
grease, and refrigerant, see “Recommended
fluids/lubricants and capacities” (P. 10-2).

EMISSION CONTROL SYSTEM
MAINTENANCE:

Drive belt*:

Check engine drive belt for wear,

fraying or cracking and for proper tension.
Replace any damaged drive belt.

Engine air filter:

Replace at specified inter-

vals. When driving for prolonged periods in
dusty conditions, check/replace the filter
more frequently.

EXPLANATION OF SCHEDULED
MAINTENANCE ITEMS

Maintenance and schedules

9-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Engine coolant*:

Replace coolant at the

specified interval. When adding or replacing
coolant, be sure to use only Genuine NISSAN
Long

Life

Antifreeze/Coolant

(blue)

or

equivalent with the proper mixture. (For ad-
ditional information on the proper mixture for
your area, see “Engine cooling system”
(P. 8-4).)

NOTE: Mixing any other type of coolant or
the use of non-distilled water may reduce
the recommended service interval of the
coolant.

Engine oil and oil filter:

Replace engine oil

and oil filter at the specified intervals. For
recommended oil grade and viscosity, see
“Recommended fluids/lubricants and capaci-
ties” (P. 10-2).

Engine valve clearance*:

Inspect only if valve

noise increases. Adjust valve clearance if
necessary.

Evaporative emissions control vapor lines*:

Check vapor lines for leaks or looseness.
Tighten connections or replace parts as
necessary.

Fuel filter:

Periodic maintenance is not re-

quired. (in-tank type filter)

Fuel lines*:

Check the fuel hoses, piping and

connections for leaks, looseness, or deterio-
ration. Tighten connections or replace parts
as necessary.

Spark plugs:

Replace at specified intervals.

Install new plugs of the same type as origi-
nally equipped.

CHASSIS AND BODY
MAINTENANCE:

Brake lines and cables:

Visually inspect for

proper installation. Check for chafing, cracks,
deterioration, and signs of leaking. Replace
any

deteriorated

or

damaged

parts

immediately.

Brake pads and rotors:

Check for wear, de-

terioration and fluid leaks. Replace any dete-
riorated or damaged parts immediately.

Exhaust system:

Visually inspect the exhaust

pipes, muffler and hangers for leaks, cracks,
deterioration, and damage. Tighten connec-
tions or replace parts as necessary.

In-cabin microfilter:

Replace at specified in-

tervals. When driving for prolonged periods in
dusty conditions, replace the filter more
frequently.

Propeller shaft(s):

Check for damage, loose-

ness, and grease leakage. (AWD)

Steering gear and linkage, axle and suspen-
sion parts, drive shaft boots:

Check for dam-

age, looseness, and leakage of oil or grease.
Under severe driving conditions, inspect more
frequently.

Tire rotation:

Rotate tires at the specified

interval shown in the maintenance schedule.
When rotating tires, check for damage and
uneven wear. Replace if necessary.

Transmission fluid/oil, differential oil and
transfer case oil:

Visually inspect for signs of

leakage at specified intervals.

Replace at specified intervals.

9-6

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To help ensure smooth, safe and economical
driving, INFINITI provides two maintenance
schedules that may be used, depending upon
the conditions in which you usually drive.
These schedules contain both distance and
time

intervals,

up

to

120,000

miles

(192,000

km)/144

months.

For

most

people, the odometer reading will indicate
when service is needed. However, if you drive
very little, your vehicle should be serviced at
the regular time intervals shown in the
schedule.

After 120,000 miles (192,000 km)/144
months, continue maintenance at the same
mileage/time intervals.

ADDITIONAL MAINTENANCE
ITEMS FOR SEVERE OPERATING
CONDITIONS

Additional maintenance items for severe op-
erating conditions

should be performed on

vehicles that are driven under especially de-
manding conditions. Additional maintenance
items should be performed if you primarily
operate your vehicle under the following
conditions:
• Repeated short trips of less than 5 miles

(8 km).

• Repeated short trips of less than 10 miles

(16 km) with outside temperatures remain-
ing below freezing.

• Operating in hot weather in stop-and-go

“rush hour” traffic.

• Extensive idling and/or low speed driving

for long distances, such as police, taxi or
door-to-door delivery use.

• Driving in dusty conditions.
• Driving on rough, muddy or salt spread

roads.

• Towing a trailer, using a camper or using a

car-top carrier.

If your vehicle is mainly operated under the
severe conditions, follow the severe use
maintenance intervals shown in the mainte-
nance schedule.

OIL CONTROL SYSTEM

Your vehicle is equipped with oil control sys-
tem. It calculates engine oil and filter change
intervals based on driving conditions. Driving
in the following severe conditions will shorten
the engine oil and filter change interval.

MAINTENANCE SCHEDULES

Maintenance and schedules

9-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

How driving conditions affect OCS display
timing

3.5L 6 cylinder (VQ35DD engine model):

Conditions

Driving Scene

Display timing

Light

• Freeway driving
• City driving (flat/moderate hills)
• No towing or heavy loads
• No extended engine idling

Normal

Extreme

• Repeated short trips of less than 5 miles (8 km).
• Repeated short trips of less than 10 miles (16 km) with outside temperatures remaining below

freezing.

• Operating in hot weather in stop-and-go “rush hour” traffic.
• Extensive idling and/or low speed driving for long distances, such as police, taxi or door-to-door

delivery use.

• Using a car-top carrier.
• Driving with frequent use of braking or in mountainous areas.
• Sustained high speed driving.

Early

CAUTION

If the oil replacement indicator is dis-
played, change the engine oil within two
weeks or less than 500 miles (800 km).

Operating your vehicle with deterio-
rated oil can damage the engine.

If your oil replacement indicator resets
prematurely or becomes inoperative,
please change the oil within six months
or 5,000 miles (8,000 km) from your
last oil change.

9-8

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3.5L 6 CYLINDER (VQ35DD
engine model)

The

following

shows

the

maintenance

schedule.

Choose the maintenance schedule needed
based on your vehicle driving conditions.

After 120,000 miles (192,000 km)/144
months, continue maintenance at the same
mileage/time interval.

5,000 miles/(8,000 km)/6 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Not applicable. Proceed to next interval.

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

10,000 miles/(16,000 km)/
12 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• Drive shaft boots
• Propeller shaft (AWD models)
• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replace engine oil & oil filter (5)
• Tire rotation

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Maintenance and schedules

9-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Essential:
• Replace brake fluid

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

15,000 miles/(24,000 km)/
18 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Intelligent Key battery

Essential:
• Replace in-cabin microfilter

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

20,000 miles/(32,000 km)/
24 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• EVAP vapor lines & fuel lines*
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replace brake fluid
• Replace engine oil & oil filter (5)
• Tire rotation

9-10

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Essential:
• Replace brake fluid
• Replace differential oil (AWD models)
• Replace transfer case oil (AWD models)

* Maintenance items and intervals with “*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emis-
sion warranty or manufacturer recall liability.
Other maintenance items and intervals are
required.

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

25,000 miles/(40,000 km)/
30 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Not applicable. Proceed to next interval

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

30,000 miles/(48,000 km)/
36 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• Drive shaft boots
• Propeller shaft (AWD models)
• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replace air cleaner filter (1)
• Replace engine oil & oil filter (5)
• Replace in-cabin microfilter
• Replace Intelligent Key battery
• Tire rotation

Maintenance and schedules

9-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Essential:
• Replace brake fluid

(1) If operating mainly in dusty conditions,
more frequent maintenance may be required.

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

35,000 miles/(56,000 km)/
42 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Not applicable. Proceed to next interval

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

40,000 miles/(64,000 km)/
48 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• Drive belts*
• EVAP vapor lines & fuel lines*
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replace brake fluid
• Replace engine oil & oil filter (5)
• Tire rotation

9-12

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Essential:
• Replace brake fluid
• Replace differential oil (AWD models)
• Replace transfer case oil (AWD models)

* Maintenance items and intervals with “*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emis-
sion warranty or manufacturer recall liability.
Other maintenance items and intervals are
required.

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

45,000 miles/(72,000 km)/
54 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Essential:
• Replace in-cabin microfilter
• Replace Intelligent Key battery

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

50,000 miles/(80,000 km)/
60 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• Drive belts*
• Drive shaft boots
• Propeller shaft (AWD models)
• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replace engine oil & oil filter (5)
• Tire rotation

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Maintenance and schedules

9-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Essential:
• Replace brake fluid

* Maintenance items and intervals with “*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emis-
sion warranty or manufacturer recall liability.
Other maintenance items and intervals are
required.

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

55,000 miles/(88,000 km)/
66 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Not applicable. Proceed to next interval

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

60,000 miles/(96,000 km)/
72 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• Drive belts*
• EVAP vapor lines & fuel lines*
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replaced air cleaner filter (1)
• Replace brake fluid
• Replace engine oil & oil filter (5)
• Replace in-cabin microfilter
• Replace Intelligent Key battery
• Tire rotation

9-14

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Essential:
• Replace brake fluid
• Replace differential oil (AWD models)
• Replace transfer case oil (AWD models)

* Maintenance items and intervals with “*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emis-
sion warranty or manufacturer recall liability.
Other maintenance items and intervals are
required.

(1) If operating mainly in dusty conditions,
more frequent maintenance may be required.

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

65,000 miles/(104,000 km)/
78 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Not applicable. Proceed to next interval

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

70,000 miles/(112,000 km)/
84 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• Drive belts*
• Drive shaft boots
• Propeller shaft (AWD models)
• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replace engine oil & oil filter (5)
• Tire rotation

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Maintenance and schedules

9-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     16      17      18      19     ..
