Infiniti QX60 (2023 year). Manual in english - page 19







Essential:
• Replace brake fluid

* Maintenance items and intervals with “*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emis-
sion warranty or manufacturer recall liability.
Other maintenance items and intervals are
required.

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

75,000 miles/(120,000 km)/
90 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Essential:
• Replace in-cabin microfilter
• Replace Intelligent Key battery

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

80,000 miles/(128,000 km)/
96 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• Drive belts*
• EVAP vapor lines & fuel lines*
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replace brake fluid
• Replace engine oil & oil filter (5)
• Tire rotation

9-16

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Essential:
• Replace brake fluid
• Replace differential oil (AWD models)
• Replace transfer case oil (AWD models)

* Maintenance items and intervals with “*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emis-
sion warranty or manufacturer recall liability.
Other maintenance items and intervals are
required.

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

85,000 miles/(136,000 km)/
102 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Not applicable. Proceed to next interval

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

90,000 miles/(144,000 km)/
108 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• Drive belts*
• Drive shaft boots
• Propeller shaft (AWD models)
• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replace air cleaner filter (1)
• Replace automatic transmission fluid (6)
• Replace engine oil & oil filter (5)
• Replace in-cabin microfilter
• Replace Intelligent Key battery
• Tire rotation

Maintenance and schedules

9-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Essential:
• Replace brake fluid

* Maintenance items and intervals with “*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emis-
sion warranty or manufacturer recall liability.
Other maintenance items and intervals are
required.

(1) If operating mainly in dusty conditions,
more frequent maintenance may be required.

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

(6) Performed based on the number of miles
only.

95,000 miles/(152,000 km)/
114 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Not applicable. Proceed to next interval

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

100,000 miles/(160,000 km)/
120 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• Drive belts*
• EVAP vapor lines & fuel lines*
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replace brake fluid
• Replace engine oil & oil filter (5)
• Tire rotation

9-18

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Essential:
• Replace brake fluid
• Replace differential oil (AWD models)
• Replace transfer case oil (AWD models)

* Maintenance items and intervals with “*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emis-
sion warranty or manufacturer recall liability.
Other maintenance items and intervals are
required.

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

105,000 miles/(168,000 km)/
126 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Essential:
• Replace in-cabin microfilter
• Replace Intelligent Key battery
• Replace spark plugs (6)(7)
• Replace engine coolant* (3)(4)

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

* Maintenance items and intervals with “*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emis-
sion warranty or manufacturer recall liability.
Other maintenance items and intervals are
required.

(3) First replacement interval is 105,000
miles (168,000 km) or 84 months. After first
replacement, replace every 75,000 miles
(120,000 km) or 60 months.

(4) Use only Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent with
proper mixture ratio of 50% antifreeze and
50% demineralized or distilled water. Mixing
any other type of coolant or the use of non-
distilled water may reduce the life expectancy
of the factory fill coolant.

(6) Performed based on the number of miles
only.

(7) Replace spark plug when the plug gap
exceeds 0.053 in (1.35 mm) even if within
specified replacement mileage.

Maintenance and schedules

9-19

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

110,000 miles/(176,000 km)/
132 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• Drive belts*
• Drive shaft boots
• Propeller shaft (AWD models)
• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replace engine oil & oil filter (5)
• Tire rotation

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Essential:
• Replace brake fluid

* Maintenance items and intervals with “*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emis-
sion warranty or manufacturer recall liability.
Other maintenance items and intervals are
required.

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

115,000 miles/(184,000 km)/
138 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Not applicable. Proceed to next interval

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

9-20

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

120,000 miles/(192,000 km)/
144 months

Perform at number of miles, kilometers or
months, whichever comes first.

Standard maintenance:

Inspections:
• Brake lines and cables
• Brake pads and rotors
• Drive belts*
• EVAP vapor lines & fuel lines*
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

• Differential oil (AWD models)
• Transfer case oil (AWD models)

Essential:
• Replaced air cleaner filter (1)
• Replace brake fluid
• Replace engine oil & oil filter (5)
• Replace in-cabin microfilter
• Replace Intelligent Key battery
• Tire rotation

Severe use maintenance:

Inspections:
• Brake pads and rotors
• Exhaust system
• Drive shaft boots
• Propeller shaft (AWD models)
• Steering gear and linkage, axle and suspen-

sion parts

Essential:
• Replace brake fluid
• Replace differential oil (AWD models)
• Replace transfer case oil (AWD models)

* Maintenance items and intervals with “*” are
recommended by INFINITI for reliable vehicle
operation. The owner need not perform such
maintenance in order to maintain the emis-
sion warranty or manufacturer recall liability.
Other maintenance items and intervals are
required.

(1) If operating mainly in dusty conditions,
more frequent maintenance may be required.

(5) If the oil replacement indicator is dis-
played, change the engine oil and filter within
two weeks or less than 500 miles (800 km).

Maintenance and schedules

9-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEMO

9-22

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10 Technical and consumer information

Recommended fluids/lubricants and capacities . . 10-2

Fuel recommendation . . . . . . . . . . . . . . . . . . . . . . . 10-4
Engine oil and oil filter recommendations . . . . . 10-6
Air conditioner system refrigerant and oil
recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8

Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8
Wheels and tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9
Dimensions and weights . . . . . . . . . . . . . . . . . . . . 10-9

When traveling or registering in another
country . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
Vehicle identification . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10

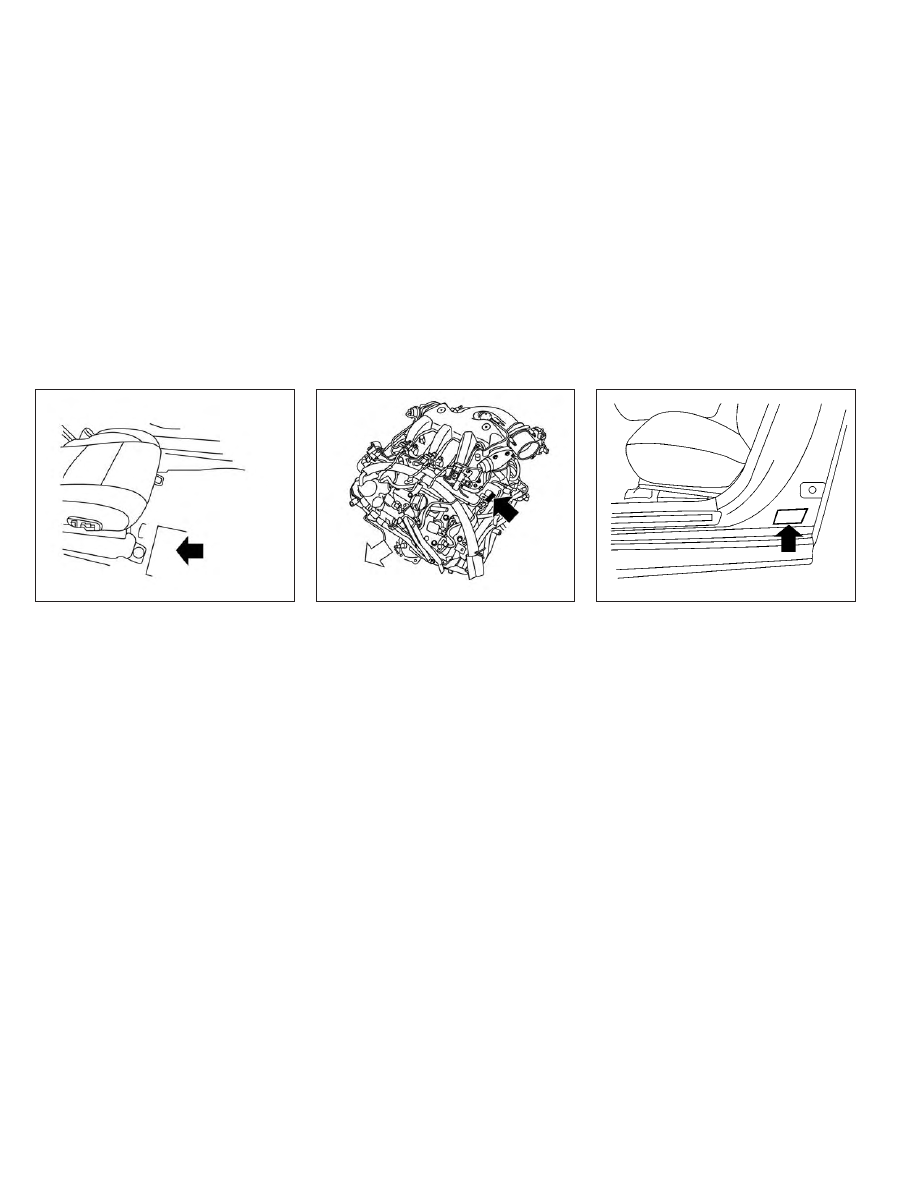

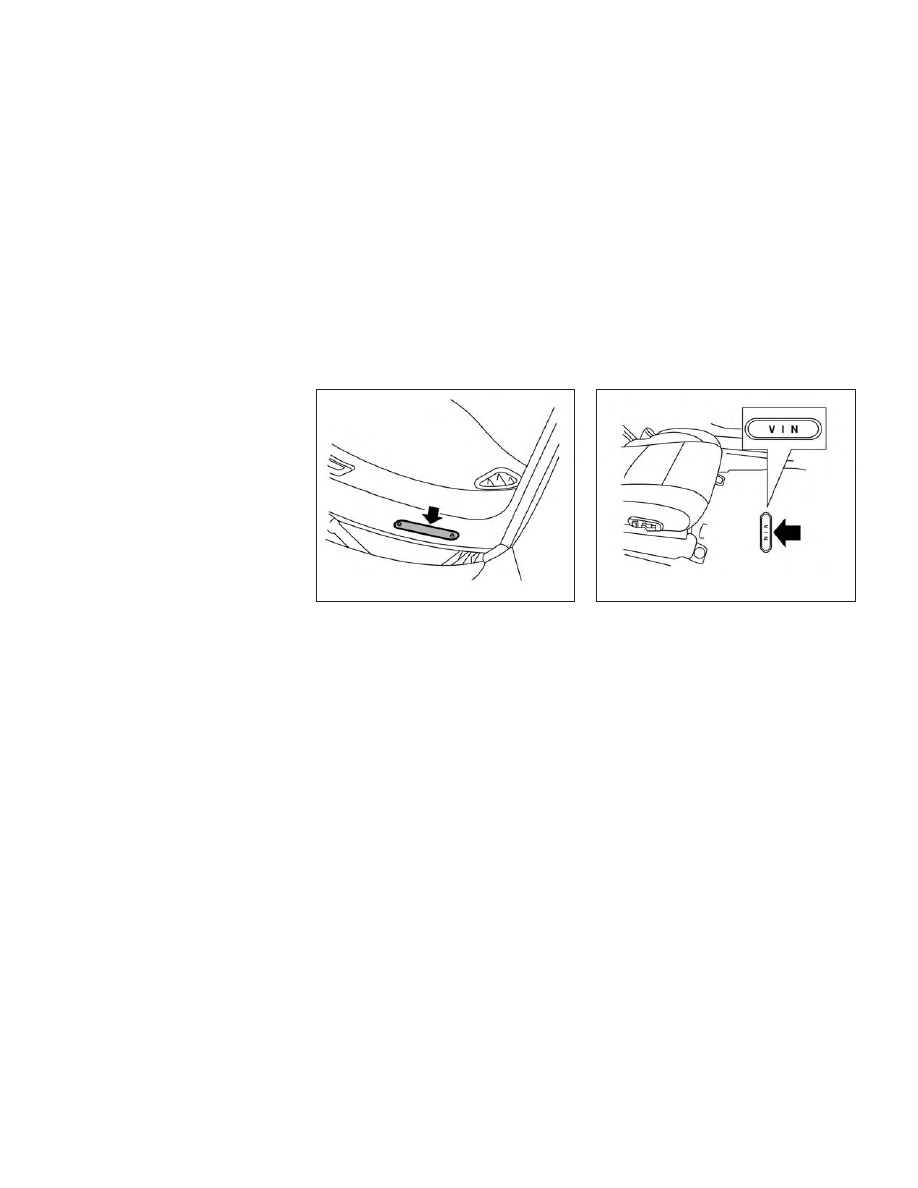

Vehicle Identification Number (VIN) plate . . . 10-10
Vehicle identification number
(chassis number) . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10
Engine serial number . . . . . . . . . . . . . . . . . . . . . . . 10-11
F.M.V.S.S./C.M.V.S.S. certification label . . . . . 10-11

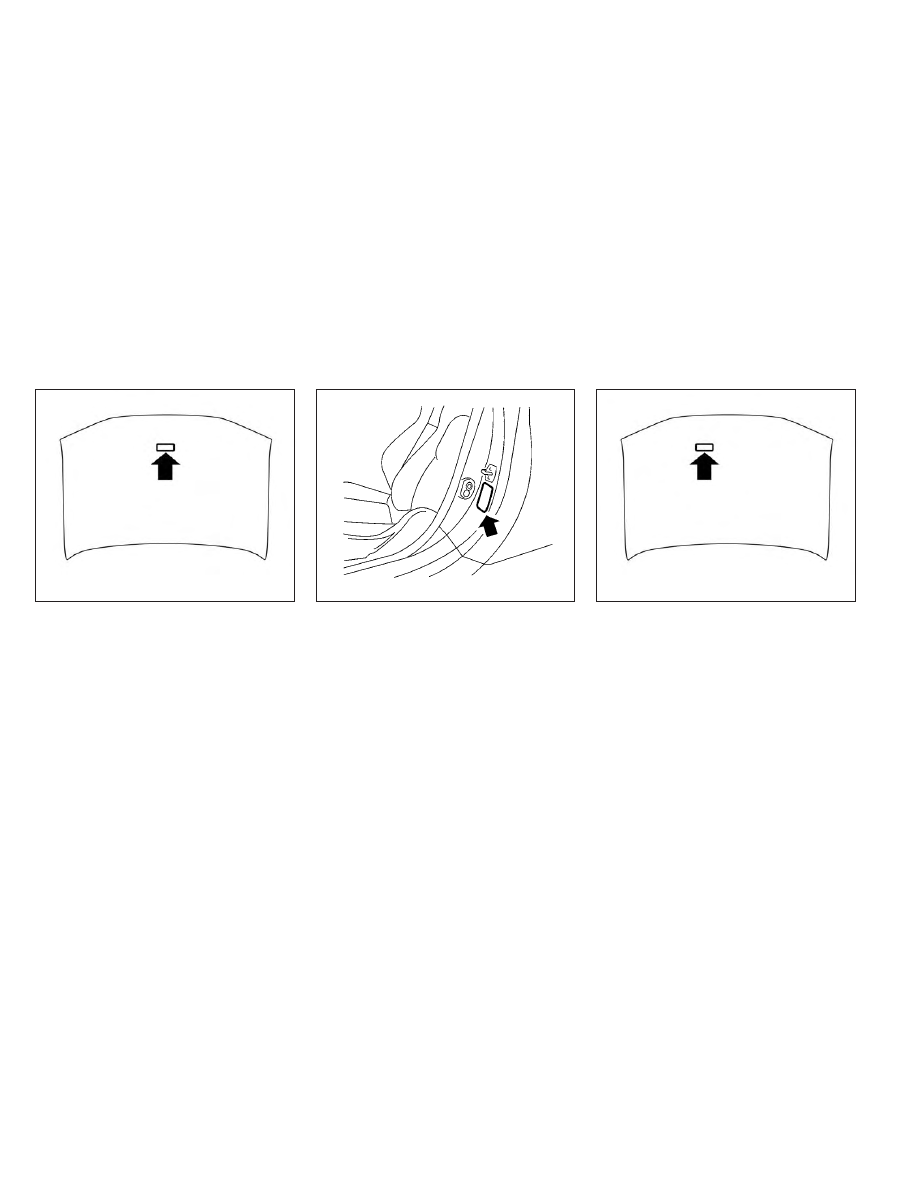

Emission control information label . . . . . . . . . . 10-12
Tire and Loading Information label . . . . . . . . . . 10-12
Air conditioner specification label . . . . . . . . . . . 10-12

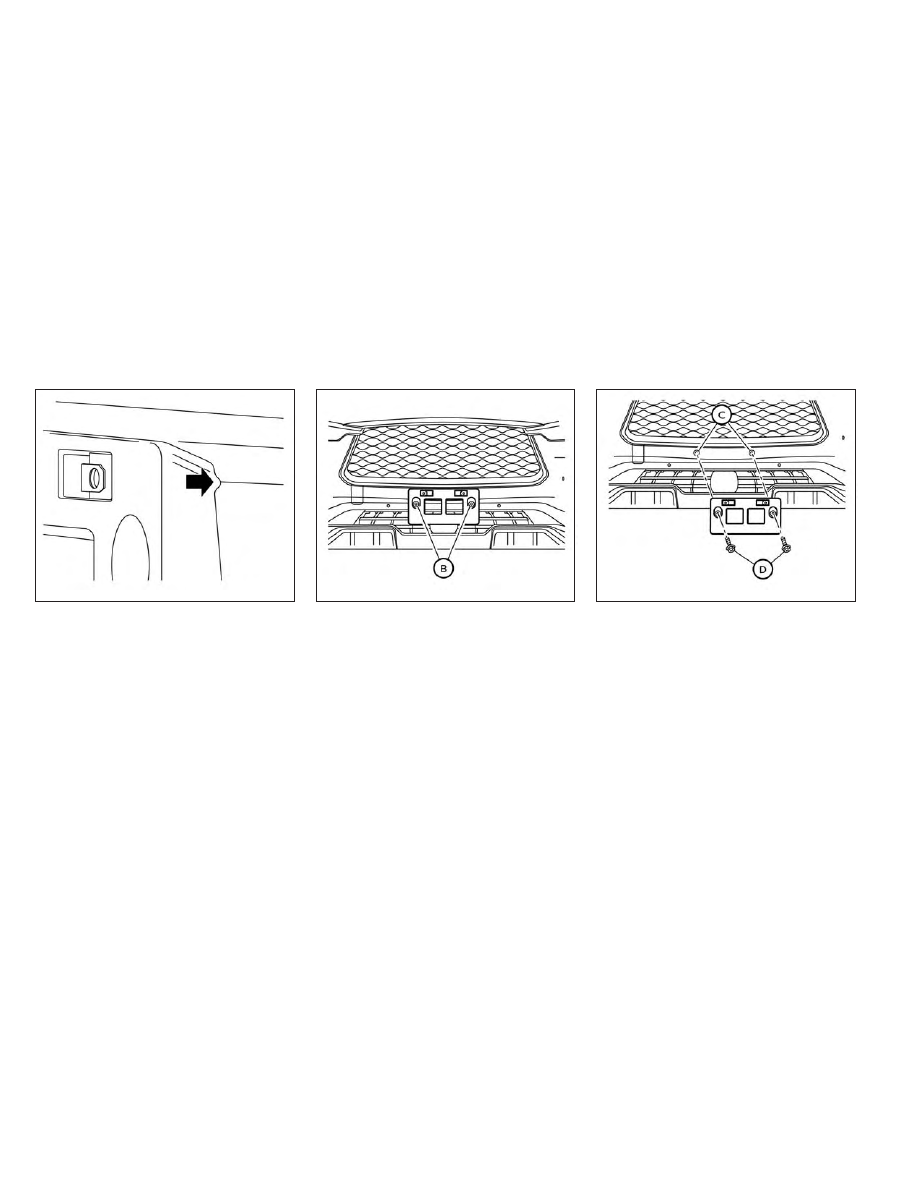

Installing front license plate . . . . . . . . . . . . . . . . . . . . 10-13
Vehicle loading information . . . . . . . . . . . . . . . . . . . . 10-15

Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-15

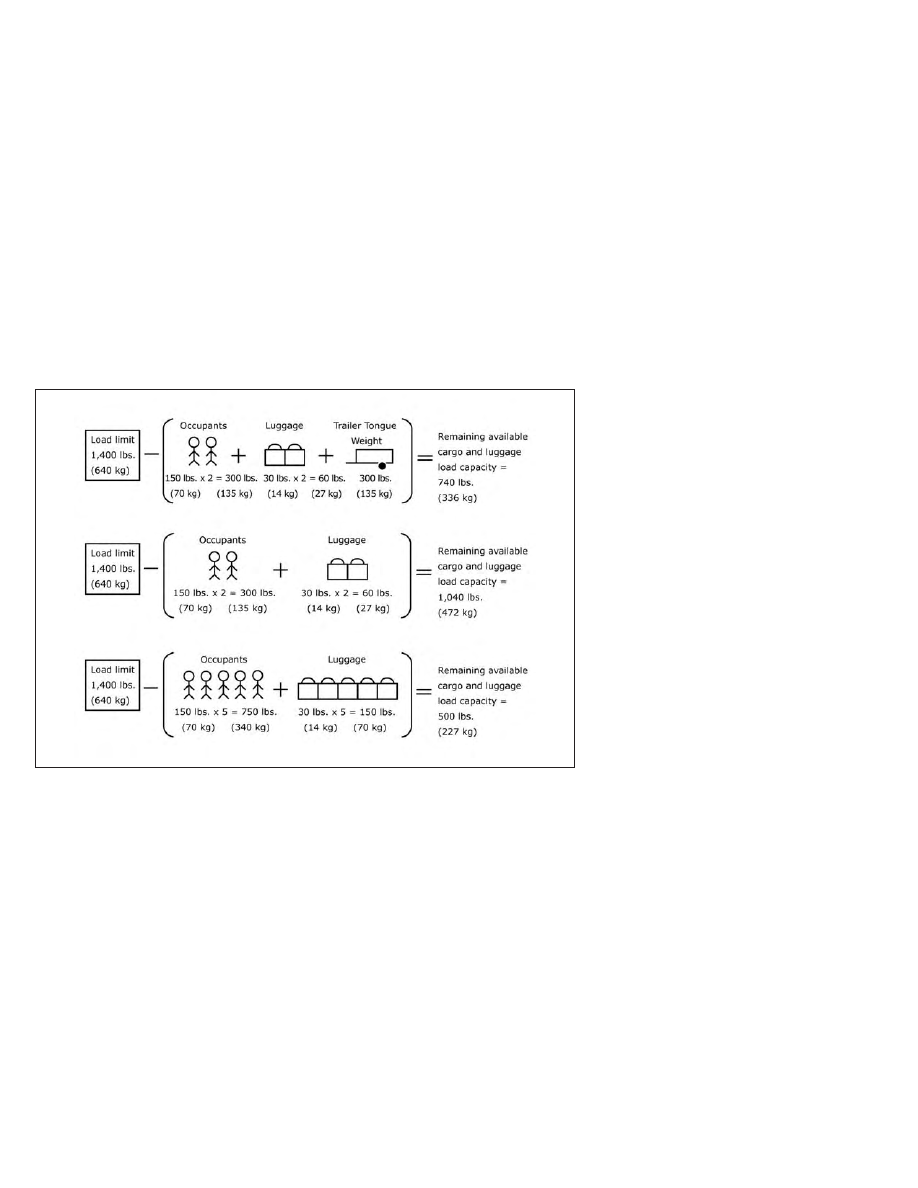

Vehicle load capacity . . . . . . . . . . . . . . . . . . . . . . . 10-16

Securing the load . . . . . . . . . . . . . . . . . . . . . . . . . . 10-18
Loading tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-19
Measurement of weights . . . . . . . . . . . . . . . . . . . 10-19

Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-20

Maximum load limits . . . . . . . . . . . . . . . . . . . . . . . 10-20
Towing load/specification . . . . . . . . . . . . . . . . . . 10-23
Towing safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-24
Flat towing for all–wheel drive vehicle
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-30
Flat towing for front wheel drive vehicle
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-31

Uniform tire quality grading . . . . . . . . . . . . . . . . . . . 10-31
Emission control system warranty . . . . . . . . . . . . . 10-32
Reporting safety defects . . . . . . . . . . . . . . . . . . . . . . 10-33
Readiness for Inspection/Maintenance (I/M)
test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-34
Event Data Recorders (EDR) . . . . . . . . . . . . . . . . . . 10-34

Additional Data Recording (on vehicles
equipped with optional ProPILOT Assist) . . . 10-35

Owner's Manual/Service Manual order
information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-36
Intelligent key system . . . . . . . . . . . . . . . . . . . . . . . . . 10-36

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure described
in the “Do-it-yourself” section to determine the proper refill capacity.

Fluid Type

Capacity (approximate)

Recommended Fluids/Lubricants

Metric

Measure

US

Measure

Imperial

Measure

Fuel

70 L

18-1/2 gal

15-3/8 gal

• For additional information, see “Fuel recommendation” (P. 10-4).

Engine oil*
Drain and refill
* For additional informa-
tion, see “Engine oil”
(P. 8-6).

With oil filter

change

4.8 L

5-1/8 qt

4-1/4 qt

• Genuine “NISSAN Motor Oil 0W-20 SP” (or equivalent) is rec-
ommended.
• If the above motor oil (or engine oil) is not available, a synthetic
0W-20 GF-6 SP motor oil (or engine oil) may be used. Damage
caused by the use of motor oil (or engine oil) other than as recom-
mended is not covered under INFINITI’s New Vehicle Limited
Warranty. For additional information, see “Engine oil and oil filter
recommendations” (P. 10-6).

Without oil filter

change

4.5 L

4-3/4 qt

4 qt

Engine coolant
with reservoir

With tow

package

11.9 L

3-1/8 gal

2-5/8 gal

• Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant
(blue) or equivalent

without tow

package

11.6 L

3-1/8 gal

2-1/2 gal

Automatic Transmission Fluid (ATF)

• Genuine NISSAN Matic R ATF
• INFINITI recommends using Genuine NISSAN Matic R ATF
ONLY in INFINITI automatic transmissions. Do not mix with other
fluids. Using fluids that are not equivalent to Genuine NISSAN
Matic R ATF may damage the automatic transmission. Damage
caused by the use of fluids other than as recommended is not
covered under the INFINITI’s New Vehicle Limited Warranty.

Differential gear oil

• Genuine NISSAN Differential Oil Hypoid Super Semi-synthetic
API GL-5, Viscosity SAE 75W-90
• The use of differential gear oil other than the specified may
cause vehicle malfunctions and result in non-warranty vehicle
repairs.

Coupling oil

• Genuine NISSAN LSC Coupling Transmission Fluid 12-301 or
equivalent

RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES

10-2

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fluid Type

Capacity (approximate)

Recommended Fluids/Lubricants

Metric

Measure

US

Measure

Imperial

Measure

Transfer fluid

• Genuine NISSAN Differential Oil Hypoid Super-S GL-5 synthetic
75W-90 or equivalent

Brake fluid

• Genuine NISSAN Super Heavy Duty Brake Fluid or equivalent
DOT 3
• Available in mainland U.S.A. through an INFINITI retailer.

Multi-purpose grease

• NLGI No. 2 (Lithium Soap base)

Air conditioning system refrigerant

• HFO-1234yf (R-1234yf)
• For additional information, see “Air conditioner system refriger-
ant and oil recommendations” (P. 10-7).

Air conditioning system oil

• Genuine NISSAN A/C System Oil Type PAG (VC100YF) or
equivalent
• For additional information, see “Air conditioner system refriger-
ant and oil recommendations” (P. 10-7).

Windshield-washer fluid

4.2 L

1-1/8 gal

7/8 gal

• Genuine NISSAN Windshield Washer Concentrate Cleaner &
Antifreeze fluid or equivalent

Technical and consumer information

10-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FUEL RECOMMENDATION

INFINITI recommends the use of unleaded
premium gasoline with an octane rating of at
least 91 AKI (Anti-Knock Index) number (Re-
search octane number 96). If unleaded pre-
mium gasoline is not available, you may use
unleaded regular gasoline with an octane rat-
ing of at least 87 AKI number (Research oc-
tane number 91), but you may notice a de-
crease in performance.

CAUTION

Only vehicles with the E-85 filler door
label can operate on E-85. Fuel system
or other damage can occur if E-85 is used
in vehicles that are not designed to run
on E-85.

Using a fuel other than that specified
could adversely affect the emission con-
trol system, and may also affect the war-
ranty coverage.

Under no circumstances should a leaded
gasoline be used, because this will dam-
age the three-way catalyst.

Do not use a fuel containing more than
15% ethanol in your vehicle. Your vehicle
is not designed to run on a fuel contain-
ing more than 15% ethanol. Using a fuel
containing more than 15% ethanol in a
vehicle not specifically designed for a
fuel containing more than 15% ethanol
can adversely affect the emission control
devices and systems of the vehicle. Dam-
age caused by such fuel is not covered
by the INFINITI New Vehicle Limited
Warranty.

Do not use fuel that contains the octane
booster methylcyclopentadienyl manga-
nese tricarbonyl (MMT). Using fuel con-
taining MMT may adversely affect ve-
hicle performance and vehicle emissions.
Not all fuel dispensers are labeled to in-
dicate MMT content, so you may have to
consult your gasoline retailer for more
details. Note that Federal and California
laws prohibit the use of MMT in refor-
mulated gasoline.

U.S. government regulations require
ethanol dispensing pumps to be identi-
fied by a small, square, orange and black
label with the common abbreviation or
the appropriate percentage for that
region.

Gasoline specifications

INFINITI recommends using gasoline that
meets

the

World-Wide

Fuel

Charter

(WWFC) specifications where it is available.
Many of the automobile manufacturers de-
veloped this specification to improve emis-
sion control system and vehicle performance.
Ask your service station manager if the gaso-
line meets the WWFC specifications.

Reformulated gasoline

Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are spe-
cially designed to reduce vehicle emissions.
INFINITI supports efforts towards cleaner air
and suggests that you use reformulated
gasoline when available.

Gasoline containing oxygenates

Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and
methanol with or without advertising their
presence. INFINITI does not recommend the
use of fuels of which the oxygenate content
and the fuel compatibility for your INFINITI
cannot be readily determined. If in doubt, ask
your service station manager.

10-4

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you use oxygenate-blend gasoline, please
take the following precautions as the usage
of such fuels may cause vehicle performance
problems and/or fuel system damage.

The fuel should be unleaded and have an
octane rating no lower than that recom-
mended for unleaded gasoline.

If an oxygenate-blend other than metha-
nol blend is used, it should contain no more
than 15% oxygenate.

If a methanol blend is used, it should con-
tain no more than 5% methanol (methyl
alcohol, wood alcohol). It should also con-
tain a suitable amount of appropriate co-
solvents and corrosion inhibitors. If not
properly formulated with appropriate co-
solvents and corrosion inhibitors, such
methanol blends may cause fuel system
damage and/or vehicle performance prob-
lems. At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in INFINITI
vehicles.

If any driveability problems such as engine
stalling and difficult hot-starting are experi-
enced after using oxygenate-blend fuels, im-
mediately change to a non-oxygenate fuel or
a fuel with a low blend of MTBE.

Take care not to spill gasoline during refuel-
ing. Gasoline containing oxygenates can
cause paint damage.

E–15 fuel

E-15 fuel is a mixture of approximately 15%
fuel ethanol and 85% unleaded gasoline.
E-15 can only be used in vehicles designed to
run on E-15 fuel. U.S. government regula-
tions require fuel ethanol dispensing pumps
to be identified with small, square, orange
and black label with the common abbrevia-
tion or the appropriate percentage for that
region.

E–85 fuel

E-85 fuel is a mixture of approximately 85%
fuel ethanol and 15% unleaded gasoline.
E-85 can only be used in a Flexible Fuel Ve-
hicle (FFV). Do not use E-85 in your vehicle.
U.S. government regulations require fuel
ethanol dispensing pumps to be identified by
a small, square, orange and black label with
the common abbreviation or the appropriate
percentage for that region.

Fuel containing MMT

MMT, or methylcyclopentadienyl manganese
tricarbonyl, is an octane boosting additive.
INFINITI does not recommend the use of fuel
containing MMT. Such fuel may adversely
affect vehicle performance, including the
emissions control system. Note that while
some fuel pumps label MMT content, not all
do, so you may have to consult your gasoline
retailer for more details.

Aftermarket fuel additives

INFINITI does not recommend the use of any
aftermarket fuel additives (for example, fuel
injector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold com-
mercially. Many of these additives intended
for gum, varnish or deposit removal may con-
tain active solvents or similar ingredients that
can be harmful to the fuel system and engine.

Technical and consumer information

10-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Octane rating tips

Using unleaded gasoline with an octane rat-
ing lower than recommended can cause per-
sistent, heavy “spark knock.” (“Spark knock”
is a metallic rapping noise.) If severe, this can
lead to engine damage. If you detect a per-
sistent heavy spark knock even when using
gasoline of the stated octane rating, or if you
hear steady spark knock while holding a
steady speed on level roads, it is recom-
mended that you have an INFINITI retailer
correct the condition. Failure to correct the
condition is misuse of the vehicle, for which
INFINITI is not responsible.

Incorrect ignition timing may result in spark
knock, after-run and/or overheating, which
may cause excessive fuel consumption or en-
gine damage. If any of the above symptoms
are encountered, have your vehicle checked.
It is recommended that you visit an INFINITI
retailer.

However, now and then you may notice light
spark knock for a short time while accelerat-
ing or driving up hills. This is not a cause for
concern, because you get the greatest fuel
benefit when there is light spark knock for a
short time under heavy engine load.

ENGINE OIL AND OIL FILTER
RECOMMENDATIONS

Selecting the correct oil

It is essential to choose the correct grade,
quality and viscosity engine oil to ensure sat-
isfactory engine life and performance. For
additional information, see "Recommended
fluids/lubricants and capacities" (P. 10-2).
INFINITI recommends the use of an energy
conserving oil in order to improve fuel
economy.

Select only engine oils that meet the Ameri-
can Petroleum Institute (API) certification or
International Lubricant Standardization and
Approval Committee (ILSAC) certification
and SAE viscosity standard. These oils have
the API certification mark on the front of the
container. Oils which do not have the speci-
fied quality label should not be used as they
could cause engine damage.

Oil additives

INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.

LTI2587

10-6

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Oil which may contain foreign matter or has
been previously used should not be used.

Oil viscosity

The engine oil viscosity or thickness changes
with temperature. Because of this, it is impor-
tant to select the engine oil viscosity based on
the temperatures at which the vehicle will be
operated before the next oil change. Choos-
ing an oil viscosity other than that recom-
mended could cause serious engine damage.

Selecting the correct oil filter

Your new INFINITI vehicle is equipped with a
high-quality Genuine NISSAN oil filter. When
replacing, use a Genuine NISSAN oil filter or
its equivalent for the reason described in
“Change intervals”.

Change intervals

The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and
filters that are not of the specified quality, or
exceeding recommended oil and filter change
intervals could reduce engine life. Damage to
the engine caused by improper maintenance
or use of incorrect oil and filter quality and/or
viscosity is not covered by the INFINITI New
Vehicle Limited Warranty.

Your engine was filled with a high-quality
engine oil when it was built. You do not have
to change the oil before the first recom-
mended change interval. Oil and filter change
intervals depend upon how you use your
vehicle.

Operation under the following conditions
may require more frequent oil and filter
changes:
• repeated short distance driving at cold out-

side temperatures

• driving in dusty conditions
• extensive idling
• towing a trailer
• stop and go commuting

For additional information, see the “Mainte-
nance and schedules” section of this manual.

AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS

The air conditioner system in your INFINITI
vehicle must be charged with the refrigerant
HFO-1234yf (R-1234yf) and NISSAN A/C
system oil Type PAG (VC100YF) or the ex-
act equivalents.

CAUTION

The use of any other refrigerant or oil will
cause severe damage to the air condition-
ing system and will require the replacement
of all air conditioner system components.

The refrigerant HFO-1234yf (R-1234yf) in
your INFINITI vehicle does not harm the
earth's ozone layer. Although this refrigerant
does not affect the earth's atmosphere, cer-
tain government regulations require the re-
covery and recycling of any refrigerant during
automotive air conditioner system service. Air
conditioner system should only be serviced by
trained and certified technicians to ensure
proper and safe operation (SAE J2845). An
INFINITI retailer has the trained technicians
and equipment needed to recover and recycle
your air conditioner system refrigerant. Only
new and SAEJ2842 certified evaporator(s)
shall be used as replacement parts.

A damaged or leaking air conditioning evapo-
rator shall never be repaired or replaced with
one removed from a used or salvaged vehicle.
To replace a damaged or leaking evaporator,
use only new and SAE J2842 certified
evaporator(s). It is recommended that you
visit an INFINITI retailer when servicing your
air conditioner system.

Technical and consumer information

10-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENGINE

Model

3.5L 6-cylinder (VQ35DD engine model)

Type

Gasoline, 4-cycle, DOHC

Cylinder arrangement

6-cylinder, V-block, Slanted at 60°

Bore x Stroke

Metric measure

95.5 mm x 81.4 mm

US measure

3.760 in x 3.205 in

Displacement

Metric measure

3,498 cm

3

US measure

213.45 cu in

Firing order

1–2–3–4–5–6

Idle speed

No adjustment is necessary.

A/T in N (Neutral) position

Ignition timing (degree B.T.D.C. at idle speed)

CO % at idle

Spark plug

FXE22HR-11

Spark plug gap (Nominal)

Metric measure

1.1 mm

US measure

0.043 in

Camshaft operation

Timing chain

This spark ignition system complies with the Canadian standard ICES-002.

SPECIFICATIONS

10-8

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEELS AND TIRES

Wheels

Offset
Metric
Measure

Offset
US
Measure

Size

Alloy

50 mm

1.97 in

18 x 8J

Alloy

50 mm

1.97 in

20 x 8J

T-type (Steel spare)

25 mm

0.98 in

18 x 4T

Tire size

255/60R18
255/50R20

Spare tire

Temporary spare

T165/90D18

DIMENSIONS AND WEIGHTS

Metric
Measure

US
Measure

Overall length

with front license plate

bracket

5,046.6 mm

198.7 in

without front license plate

bracket

5,033.3 mm

198.2 in

Overall width

with mirrors

2,185 mm

86.0 in

without mirrors

1,981 mm

78.0 in

Overall height

1,770 mm

69.7 in

Front and rear track

1,700 mm

66.9 in

Wheelbase

2,900 mm

114.2 in

Gross vehicle weight rating

Refer to the
“F.M.V.S.S./
C.M.V.S.S. certifi-
cation label” on
the center pillar
between the driv-
er's side front and
rear doors.

Gross axle weight rating

Front

Rear

Technical and consumer information

10-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When planning to drive your INFINITI ve-
hicle in another country,

you should first find

out if the fuel available is suitable for your
vehicle's engine.

Using fuel with an octane rating that is too
low may cause engine damage. All gasoline
vehicles must be operated with unleaded
gasoline. Therefore, avoid taking your vehicle
to areas where appropriate fuel is not
available.

When transferring the registration of your
vehicle to another country, state, province
or district,

it may be necessary to modify the

vehicle to meet local laws and regulations.

The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.

When any vehicle is to be taken into another
country, state, province or district and reg-
istered, its modifications, transportation,
and registration are the responsibility of the
user. INFINITI is not responsible for any in-
convenience that may result.

VEHICLE IDENTIFICATION
NUMBER (VIN) PLATE

The VIN plate is located as shown. This num-
ber is the identification for your vehicle and is
used in the vehicle registration.

The VIN number is also available through the
center display screen. For additional informa-
tion, refer to the separate INFINITI InTouch™
Owner's Manual.

VEHICLE IDENTIFICATION
NUMBER (chassis number)

LTI2050

LTI2028

Type A (if so equipped)

WHEN TRAVELING OR
REGISTERING IN ANOTHER
COUNTRY

VEHICLE IDENTIFICATION

10-10

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The vehicle identification number is located
as shown.

ENGINE SERIAL NUMBER

The number is stamped on the engine as
shown.

F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABEL

The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certifica-
tion label is affixed as shown. This label con-
tains valuable vehicle information, such as:
(GVWR), (GAWR), month and year of manu-
facture, (VIN), etc. Review it carefully.

LTI2684

Type B (if so equipped)

LTI2255

WTI0172

Technical and consumer information

10-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMISSION CONTROL
INFORMATION LABEL

The emission control information label is at-
tached to the underside of the hood as
shown.

TIRE AND LOADING
INFORMATION LABEL

The cold tire pressure is shown on the Tire
and Loading Information label. The label is
located as shown.

AIR CONDITIONER
SPECIFICATION LABEL

The air conditioner specification label is af-
fixed to the underside of the hood as shown.

LTI2577

LTI0197

LTI2268

10-12

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Symbol Name

Reference

Graphic

Caution

ISO 7000 0434

Air Conditioning System
(MAC)

ISO 2575 D01

MAC System Lubricant Type
(PAG–POE)

Requires Registered Technician to
Service MAC System

Flammable Refrigerant

Air Conditioner Specification Label Symbols

1. Hold the license bracket to the fascia and

vertically align with the notches on sides
(Figure A.) Find the center line and align
with arrow on the bracket.

LTI2588

INSTALLING FRONT LICENSE PLATE

Technical and consumer information

10-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Mark hole location

O

B

on the fascia once

the license bracket is held in position.

3. Remove the license plate bracket and drill

two 0.39 in (10 mm) holes in the locations
marked in the previous step.

4. Insert two screw grommets

O

C

into the

fascia.

5. Install the license plate bracket to the fas-

cia with two screws

O

D

.

LTI2589

Figure A

LTI2579

LTI2580

10-14

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

It is extremely dangerous to ride in
a cargo area inside a vehicle. In a
collision, people riding in these ar-
eas are more likely to be seriously
injured or killed.

Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat
belts.

Be sure everyone in your vehicle is
in a seat and using a seat belt
properly.

TERMS

It is important to familiarize yourself
with the following terms before load-
ing your vehicle:
• Curb Weight (actual weight of your

vehicle) - vehicle weight including:
standard and optional equipment,
fluids, emergency tools, and spare
tire assembly. This weight

does not

include passengers and cargo.

• GVW (Gross Vehicle Weight) - curb

weight plus the combined weight of
passengers and cargo.

• GVWR (Gross Vehicle Weight Rat-

ing) - maximum total combined
weight of the unloaded vehicle, pas-
sengers, cargo, hitch, trailer tongue
load and any other optional equip-
ment. This information is located on
the F.M.V.S.S./C.M.V.S.S. certifica-
tion label.

• GAWR (Gross Axle Weight Rating) -

maximum weight (load) limit speci-
fied for the front or rear axle. This
information

is

located

on

the

F.M.V.S.S./C.M.V.S.S. certification
label.

• GCWR (Gross Combined Weight

Rating) - The maximum total weight
rating of the vehicle, passengers,
cargo, and trailer.

• Vehicle Capacity Weight, Load limit,

Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the ve-
hicle. This is the maximum combined
weight of occupants and cargo that
can be loaded into the vehicle. If the
vehicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load. This
information is located on the Tire
and Loading Information label.

VEHICLE LOADING INFORMATION

Technical and consumer information

10-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Cargo capacity - permissible weight

of cargo, the subtracted weight of
occupants from the load limit.

VEHICLE LOAD CAPACITY

Before driving a loaded vehicle, con-
firm that you do not exceed the Gross
Vehicle Weight Rating (GVWR) or the
Gross Axle Weight Rating (GAWR) for
your vehicle. Both the GVWR and
GAWR are located on the F.M.V.S.S./
C.M.V.S.S. certification label. For ad-
ditional information, see “Measure-
ment of weights” (P. 10-19).

Do not exceed the load limit of your
vehicle shown as “The combined
weight of occupants and cargo” on the
Tire and Loading Information label. Do
not exceed the number of occupants
shown as “Seating Capacity” on the
Tire and Loading Information label.

To get “the combined weight of occu-
pants and cargo”, add the weight of all
occupants, then add the total cargo
weight. Examples are shown in the
following illustration.

10-16

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Steps For Determining Correct
Load Limit

1. Locate the statement “The com-

bined weight of occupants and
cargo should never exceed XXX kg
or XXX lbs.” on your vehicle’s
placard.

2. Determine the combined weight of

the driver and passengers that will
be riding in your vehicle.

3. Subtract the combined weight of

the driver and passengers from
XXX kg. or XXX lbs.

4. The resulting figure equals the

available amount of cargo and lug-
gage load capacity. For example, if
the “XXX” amount equals 1400 lbs.
and there will be five 150 lb. pas-
sengers in your vehicle, the amount
of available cargo and luggage
load capacity is 650 lbs. (1400-
750 (5 X 150) = 650 lbs.)

LTI2320

Example

Technical and consumer information

10-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5. Determine the combined weight of

luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity calcu-
lated in step 4.

6. If your vehicle will be towing a

trailer, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and
luggage load capacity of your
vehicle.

Before driving a loaded vehicle, con-
firm that you do not exceed the GVWR
or the GAWR for your vehicle. For ad-
ditional information, see “Measure-
ment of weights” (P. 10-19).

Also check tires for proper inflation
pressures. For additional information,
see “Tire and Loading Information la-
bel” (P. 8-30).

SECURING THE LOAD

There are luggage/cargo hooks located in
the cargo area as shown. The hooks can be
used to secure cargo with ropes or other
types of straps.

When securing items using luggage hooks
located on the upper side finisher do not ap-
ply a load over more than 6.5 lbs. (29 N) to a
single hook.

The cargo hooks that are located closer to
the floor should have loads less than 110 lbs.
(490 N) to a single hook.

WARNING

Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.

The child restraint top tether strap may
be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.

Do not load your vehicle any heavier than
the GVWR or the maximum front and
rear GAWRs. If you do, parts of your ve-
hicle can break, tire damage could occur,
or it can change the way your vehicle
handles. This could result in loss of con-
trol and cause personal injury.

LTI2581

Cargo area luggage hooks

10-18

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOADING TIPS

• The GVW must not exceed GVWR

or GAWR as specified on the
F.M.V.S.S./C.M.V.S.S. certification
label.

• Do not load the front and rear axle

to the GAWR. Doing so will exceed
the GVWR.

WARNING

Properly secure all cargo with
ropes or straps to help prevent it
from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.

Do not load your vehicle any
heavier than the GVWR or the
maximum front and rear GAWRs.
If you do, parts of your vehicle can
break, tire damage could occur, or
it can change the way your vehicle
handles. This could result in loss of
control and cause personal injury.

Overloading not only can shorten
the life of your vehicle and the tire,
but can also cause unsafe vehicle
handling and longer braking dis-
tances. This may cause a prema-
ture tire failure which could result
in a serious accident and personal
injury. Failures caused by over-
loading are not covered by the ve-
hicle’s warranty.

MEASUREMENT OF WEIGHTS

Secure loose items to prevent weight
shifts that could affect the balance of
your vehicle. When the vehicle is
loaded, drive to a scale and weigh the
front and the rear wheels separately
to determine axle loads. Individual axle
loads should not exceed either of the
Gross Axle Weight Ratings (GAWR).
The total of the axle loads should not
exceed the Gross Vehicle Weight Rat-
ing (GVWR). These ratings are given
on the vehicle certification label. If
weight ratings are exceeded, move or
remove items to bring all weights be-
low the ratings.

Technical and consumer information

10-19

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Overloading or improper loading of a
trailer and its cargo can adversely affect
vehicle handling, braking and performance
and may lead to accidents.

CAUTION

Do not tow a trailer or haul a heavy load
for the first 500 miles (805 km). Your
engine, axle or other parts could be
damaged.

For the first 500 miles (805 km) that you
tow a trailer, do not drive over 50 mph
(80 km/h) and do not make starts at full
throttle. This helps the engine and other
parts of your vehicle wear in at the
heavier loads.

NOTE:

Tow hitches are available as an accessory for
this vehicle. Please visit an INFINITI retailer
for additional equipment required for this
accessory.

Your new vehicle was designed to be used
primarily to carry passengers and cargo. Re-
member that towing a trailer places addi-
tional loads on your vehicle's engine, drive
train, steering, braking and other systems.

An INFINITI Towing Guide (U.S. only) is avail-
able on the website at

www.InfinitiUSA.com.

This guide includes information on trailer
towing capability and the special equipment
required for proper towing.

MAXIMUM LOAD LIMITS

Maximum trailer loads

Never allow the total trailer load to exceed
the value specified in the following Towing
Load/Specification Chart found in this sec-
tion. The total trailer load equals trailer
weight plus its cargo weight.

When towing a trailer load of 3,500 lbs.
(1,587 kg) or more, trailers with a brake
system MUST be used.

The maximum Gross Combined Weight Rat-
ing (GCWR) should not exceed the value
specified in the following Towing Load/
Specification Chart.

The GCWR equals the combined weight of
the towing vehicle (including passengers and
cargo) plus the total trailer load. Towing
loads greater than these or using improper
towing equipment could adversely affect ve-
hicle handling, braking and performance.

The ability of your vehicle to tow a trailer is
not only related to the maximum trailer loads,
but also the places you plan to tow. Tow
weights appropriate for level highway driving
may have to be reduced for low traction situ-
ations (for example, on slippery boat ramps).

LTI2582

TOWING A TRAILER

10-20

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Temperature conditions can also affect tow-
ing. For example, towing a heavy trailer in
high outside temperatures on graded roads
can affect engine performance and cause
overheating. Vehicle speed may decrease un-
der high load. Plan your trip carefully to ac-
count for trailer and vehicle load, weather
and road conditions.

WARNING

Overheating can result in reduced engine
power and vehicle speed. The reduced
speed may be lower than other traffic,
which could increase the chance of a colli-
sion. Be especially careful when driving.
If the vehicle cannot maintain a safe driving
speed, pull to the side of the road in a safe
area. Allow the engine to cool and return
to normal operation. For additional infor-
mation, see “If your vehicle overheats”
(P. 6-14).

CAUTION

Vehicle damage resulting from improper
towing procedures is not covered by
INFINITI warranties.

Tongue load

When using a weight carrying or a weight
distributing hitch, keep the tongue load be-
tween 10 - 15% of the total trailer load or use
the trailer tongue load specified by the trailer
manufacturer. The tongue load must be
within the maximum tongue load limits
shown in the following “Towing Load/
Specification” chart. If the tongue load be-
comes excessive, rearrange cargo to allow
for proper tongue load.

Maximum Gross Vehicle Weight
(GVW)/maximum Gross Axle
Weight (GAW)

The GVW of the towing vehicle must not
exceed the Gross Vehicle Weight Rating
(GVWR) shown on the F.M.V.S.S./C.M.V.S.S.
certification label. The GVW equals the com-
bined weight of the unloaded vehicle, pas-
sengers, luggage, hitch, trailer tongue load
and any other optional equipment. In addi-
tion, front or rear GAW must not exceed the
Gross Axle Weight Rating (GAWR) shown on
the F.M.V.S.S./C.M.V.S.S. certification label.

WTI0160

LTI2583

Technical and consumer information

10-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Towing capacities are calculated assuming a
base vehicle with driver and any options re-
quired to achieve the rating. Additional pas-
sengers, cargo and/or optional equipment,
such as the trailer hitch, will add weight to the
vehicle and reduce your vehicle’s maximum
towing capacity and trailer tongue load.

The vehicle and trailer need to be weighed to
confirm the vehicle is within the GVWR,
Front GAWR, Rear GAWR, Gross Combined
Weight Rating (GCWR) and Towing capacity.

All vehicle and trailer weights can be mea-
sured using platform type scales commonly
found at truck stops, highway weigh stations,
building supply centers or salvage yards.

To determine the available payload capacity
for tongue/king pin load, use the following
procedure.

1. Locate the GVWR on the F.M.V.S.S./

C.M.V.S.S. certification label.

2. Weigh your vehicle on the scale with all of

the passengers and cargo that are nor-
mally in the vehicle when towing a trailer.

3. Subtract the actual vehicle weight from

the GVWR. The remaining amount is the
available maximum tongue/king pin load.

To determine the available towing capacity,
use the following procedure.

1. Find the GCWR for your vehicle on the

"Towing Load/Specification" chart found
in this section.

2. Subtract the actual vehicle weight from

the GCWR. The remaining amount is the
available maximum towing capacity.

To determine the Gross Trailer Weight, weigh
your trailer on a scale with all equipment and
cargo, that are normally in the trailer when it
is towed. Make sure the Gross trailer weight
is not more than the Gross Trailer Weight
Rating shown on the trailer and is not more
than the calculated available maximum tow-
ing capacity.

Also weigh the front and rear axles on the
scale to make sure the Front Gross Axle
Weight and Rear Gross Axle Weight are not
more than Front Gross Axle Weight and Rear
Gross Axle Weight on the F.M.V.S.S./
C.M.V.S.S. certification label. The cargo in the
trailer and vehicle may need to be moved or
removed to meet the specified ratings.

Example:
• Gross Vehicle Weight (GVW) as weighed

on a scale - including passengers, cargo
and hitch - 6,350 lbs. (2,880 kg).

• Gross Vehicle Weight Rating (GVWR) from

F.M.V.S.S./C.M.V.S.S. certification label -
7,250 lbs. (3,289 kg).

• Gross Combined Weight Rating (GCWR)

from “Towing Load/Specification" chart -
15,100 lbs. (6,849 kg).

• Maximum Trailer towing capacity from

“Towing Load/Specification" chart - 9,100
lbs. (4,128 kg).

7,250 lbs. (3,289 kg)

GVWR

– 6,350 lbs. (2,880 kg)

GVW

= 900 lbs. (409 kg)

Available for

tongue weight

15,100 lbs. (6,849 kg)

GCWR

– 6,350 lbs. (2,880 kg)

GVW

= 9,123 lbs. (4,138 kg) Capacity available

for towing

900 lbs. (409 kg)

Available tongue

weight

/ 8,750 lbs. (3,969 kg) Available capacity

=

10 % tongue

weight

The available towing capacity may be less
than the maximum towing capacity due to
the passenger and cargo load in the vehicle.

10-22

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Remember to keep trailer tongue weight be-
tween 10 - 15% of the trailer weight or within
the trailer tongue load specification recom-
mended by the trailer manufacturer. If the
tongue load becomes excessive, rearrange
the cargo to obtain the proper tongue load.
Do not exceed the maximum tongue weight
specification shown in the “Towing Load/
Specification” chart even if the calculated
available tongue weight is greater than 15%.
If the calculated tongue weight is less than
10%, reduce the total trailer weight to match
the available tongue weight.

Always verify that available capacities are
within the required ratings.

TOWING LOAD/SPECIFICATION

WARNING

The towing capacities provided in this
manual are for general reference only. The
safe towing capacity of your vehicle is af-
fected by dealer and factory installed op-
tions and passenger and cargo loads. You
must weigh the vehicle and trailer as de-
scribed in this manual to determine the ac-
tual vehicle towing capacity. Do not exceed
the published maximum towing capacity or
the GCWR or the GVWR shown on the
FMVSS/CMVSS label. Doing so can result
in an accident causing serious personal in-
jury or property damage.

TOWING LOAD/SPECIFICATION CHART

With Tow Package*1

Without Tow Package

Metric measure

US measure

Metric measure

US measure

Maximum Towing Capacity*2

2,722 kg

6,000 lbs.

1,588 kg

3,500 lbs.

Maximum Tongue Load

272 kg

600 lbs.

158 kg

350 lbs.

Maximum Gross Combined
Weight Rating

5,035 kg

11,102 lbs.

4,000 kg

8,820 lbs.

*1 Vehicles equipped with the towing package include additional powertrain cooling capacity that is specifically designed to handle the higher towing weight.
*2 The towing capacity values are calculated assuming a base vehicle with driver and any options required to achieve the rating. Additional passengers, cargo and/or

optional equipment will add weight to the vehicle and reduce your vehicle's maximum towing capacity.

Technical and consumer information

10-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TOWING SAFETY
Trailer hitch

Your vehicle may be equipped with an op-
tional trailer tow package. The trailer tow
package includes a receiver-type frame
mounted hitch. This hitch is rated for the
maximum towing capacity of this vehicle
when the proper towing equipment is used.
Choose a proper ball mount and hitch ball
that is rated for the trailer to be towed.
Genuine INFINITI ball mounts and hitch balls
are available from an INFINITI retailer.

If your vehicle is not equipped with the op-
tional trailer tow package, check the towing
capacity of your bumper hitch or receiver-
type frame mounted hitch. Choose a proper
hitch for your vehicle and trailer. A Genuine
INFINITI trailer hitch is available from an
INFINITI retailer. Make sure the trailer hitch is
securely attached to the vehicle to help avoid
personal injury or property damage due to
sway caused by crosswinds, rough road sur-
faces or passing trucks.

WARNING

Trailer hitch components have specific
weight ratings. Your vehicle may be ca-
pable of towing a trailer heavier than the
weight rating of the hitch components.
Never exceed the weight rating of the hitch
components. Doing so can cause serious
personal injury or property damage.

Hitch ball

Choose a hitch ball of the proper size and
weight rating for your trailer:
• The required hitch ball size is stamped on

most trailer couplers. Most hitch balls also
have the size printed on the top of the ball.

• Choose the proper class hitch ball based on

the trailer weight.

• The diameter of the threaded shank of the

hitch ball must be matched to the ball
mount hole diameter. The hitch ball shank
should be no more than 1/16” smaller than
the hole in the ball mount.

• The threaded shank of the hitch ball must

be long enough to be properly secured to
the ball mount. There should be at least 2
threads showing beyond the lock washer
and nut.

Ball mount

The hitch ball is attached to the ball mount
and the ball mount is inserted into the hitch
receiver. Choose a proper class ball mount
based on the trailer weight. Additionally, the
ball mount should be chosen to keep the
trailer tongue level with the ground.

Weight carrying hitches

A weight carrying or “dead weight” ball
mount is one that is designed to carry the
whole amount of tongue weight and gross
weight directly on the ball mount and on the
receiver.

Weight distribution hitch

This type of hitch is also called a “load-
leveling” or “equalizing” hitch. A set of bars
attach to the ball mount and to the trailer to
distribute the tongue weight (hitch weight) of
your trailer. Many vehicles can't carry the full
tongue weight of a given trailer, and need
some of the tongue weight transferred
through the frame and pushing down on the
front wheels. This gives stability to the tow
vehicle.

10-24

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

A weight-distributing hitch system (Class IV)
is recommended if you plan to tow trailers
with a maximum weight over 5,000 lbs.
(2,268 kg). Check with the trailer and towing
equipment manufacturers to determine if
they recommend the use of a weight-
distributing hitch system.

NOTE:

A weight-distributing hitch system may af-
fect the operation of trailer surge brakes. If
you are considering use of a weight-
distributing hitch system with a surge
brake-equipped trailer, check with the surge
brake, hitch or trailer manufacturer to de-
termine if and how this can be done.

Follow the instructions provided by the
manufacturer for installing and using the
weight-distributing hitch system.

General set-up instructions are as follows:

1. Park unloaded vehicle on a level surface.

With the ignition switch in the ON position
and the doors closed, allow the vehicle to
stand for several minutes so that it can
level.

2. Measure the height of a reference point

on the front and rear bumpers at the cen-
ter of the vehicle.

3. Attach the trailer to the vehicle and adjust

the hitch equalizers so that the front bum-
per height is within 0 - .5 inches (0 – 13
mm) of the reference height measured in
step 2. The rear bumper should be no
higher than the reference height mea-
sured in step 2.

WARNING

Properly adjust the weight distributing
hitch so the rear of the bumper is no higher
than the measured reference height when
the trailer is attached. If the rear bumper is
higher than the measured reference height
when loaded, the vehicle may handle un-
predictably which could cause a loss of ve-
hicle control and cause serious personal in-
jury or property damage.

Sway control device

Sudden maneuvers, wind gusts, and buffet-
ing caused by other vehicles can affect trailer
handling. Sway control devices may be used
to help control these affects. If you choose to
use one, contact a reputable trailer hitch sup-
plier to make sure the sway control device will
work with the vehicle, hitch, trailer and the
trailer's brake system. Follow the instructions
provided by the manufacturer for installing
and using the sway control device.

Class I hitch

Class I trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 2,000 lbs.
(907 kg).

Class II hitch

Class II trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 3,500 lbs.
(1,587 kg).

Class III hitch

Class III trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 5,000 lbs.
(2,268 kg).

Tire pressures

• When towing a trailer, inflate the

vehicle tires to the recommended
cold tire pressure indicated on the
Tire and Loading Information label.

• Trailer tire condition, size, load rating

and proper inflation pressure should
be in accordance with the trailer and
tire manufacturer's specifications.

Technical and consumer information

10-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Safety chains

Always use suitable safety chains between
your vehicle and the trailer. The safety chains
should be crossed and should be attached to
the hitch, not to the vehicle bumper or axle.
The safety chains can be attached to the
bumper if the hitch ball is mounted to the
bumper. Be sure to leave enough slack in the
chains to permit turning corners.

Trailer lights

CAUTION

When splicing into the vehicle electrical
system, a commercially available power-
type module/converter must be used to
provide power for all trailer lighting. This
unit uses the vehicle battery as a direct
power source for all trailer lights while us-
ing the vehicle tail light, stop light and turn
signal circuits as a signal source. The
module/converter must draw no more
than 15 milliamps from the stop and tail
lamp circuits. Using a module/converter
that exceeds these power requirements
may damage the vehicle's electrical sys-
tem. See a reputable trailer retailer to ob-
tain the proper equipment and to have it
installed.

Trailer lights should comply with federal
and/or local regulations. For assistance in
hooking up trailer lights, contact an INFINITI
retailer or reputable trailer retailer. Vehicles
equipped with the optional trailer tow pack-
age are equipped with a 7-pin trailer harness
connector. If your trailer is equipped with a
flat 4-pin connector, an adapter will be
needed to connect the trailer lights to the
vehicle. Adapters are available at auto parts
stores and hitch retailers.

Trailer brakes

When towing a trailer load of 3,500 lbs.
(1,587 kg) or more, trailers with a brake sys-
tem MUST be used.

However, most states

require a separate braking system on trailers
with a loaded weight above a specific
amount. Make sure the trailer meets the local
regulations and the regulations where you
plan to tow.

Several

types

of

braking

systems

are

available.

Surge Brakes -

The surge brake actuator is

mounted on the trailer tongue with a hydrau-
lic line running to each trailer wheel. Surge
brakes are activated by the trailer pushing
against the hitch ball when the tow vehicle is
braking. Hydraulic surge brakes are common
on rental trailers and some boat trailers. In
this type of system, there is no hydraulic or
electric connection for brake operation be-
tween the tow vehicle and the trailer.

Electric Trailer Brakes -

Electric braking sys-

tems are activated by an electronic signal
sent from a trailer brake controller (special
brake-sensing module). For additional infor-
mation, see “Electric trailer brake controller”
(P. 10-27).

Have a professional supplier of towing
equipment make sure the trailer brakes are
properly installed and demonstrate proper
brake function testing.

WARNING

Never connect a trailer brake system di-
rectly to the vehicle brake system.

10-26

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Electric trailer brake controller (if so
equipped)

Trailers equipped with electric brakes may
require the installation of an aftermarket
trailer brake controller.

Your vehicle may be equipped with a connec-
tor and jumper harness that is specifically
designed to be used when installing an after-
market brake controller.

To install the electric trailer brake controller
jumper

harness,

perform

the

following

procedure:

1. Open the driver door. Move the seat to the

rearmost position.

LTI0117

Jumper Harness

LTI2555

Connector Location

Technical and consumer information

10-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Locate the jumper harness connector un-

der the lower portion of the instrument
panel. The connector is taped to the wir-
ing harness

O

1

as indicated.

• The connector is marked with a white tag

with “elec brake conn”.

If you have trouble locating the wiring har-
ness, it is recommended that you visit an
INFINITI retailer for assistance.

Wire color designation for electric trailer
brake controller jumper harness.

WIRE COLOR

NOTE

WHITE

Vehicle stop lamp switch
to trailer brake controller.

BLACK

Brake controller ground
(-).

WHITE

Trailer brake controller
switched output.

RED/BLUE

Not used

GREEN

Fused trailer brake con-
troller battery feed (B+).

3. Peel off the tape and connect the jumper

harness to the connector.

4. Release the parking brake.

5. Install the aftermarket electric trailer

brake controller according to the manu-
facturer's instructions.

Pre-towing tips

• Be certain your vehicle maintains a level

position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if
it has an abnormal nose-up or nose-down
condition; check for improper tongue load,
overload, worn suspension or other pos-
sible causes of either condition.

• Always secure items in the trailer to prevent

load shift while driving.

• Keep the cargo load as low as possible in

the trailer to keep the trailer center of grav-
ity low.

• Load the trailer so approximately 60% of

the trailer load is in the front half and 40%
is in the back half. Also make sure the load is
balanced side to side.

• Check your hitch, trailer tire pressure, ve-

hicle tire pressure, trailer light operation,
and trailer wheel lug nuts every time you
attach a trailer to the vehicle.

• Be certain your rearview mirrors conform

to all federal, state or local regulations. If
not, install any mirrors required for towing
before driving the vehicle.

• Determine the overall height of the vehicle

and trailer so the required clearance is
known.

Trailer towing tips

In order to gain skill and an understanding of
the vehicle's behavior, you should practice
turning, stopping and backing up in an area
which is free from traffic. Steering stability and
braking performance will be somewhat differ-
ent than under normal driving conditions.
• Always secure items in the trailer to prevent

load shift while driving.

LTI2046

Connector

10-28

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Lock the trailer hitch coupler with a pin or

lock to prevent the coupler from inadver-
tently becoming unlatched.

• Avoid abrupt starts, acceleration or stops.
• Avoid sharp turns or lane changes.
• Always drive your vehicle at a moderate

speed.

• When backing up, hold the bottom of the

steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.

Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:

CAUTION

If you push the park button to engage the P
(Park) position before blocking the wheels
and applying the parking brake, transmis-
sion damage could occur.

1. Apply and hold the brake pedal.

2. Have someone place blocks on the down-

hill side of the vehicle and trailer wheels.

3. After the wheel blocks are in place, slowly

release the brake pedal until the blocks
absorb the vehicle load.

4. Apply the parking brake.

5. Push the park button to engage the P

(Park) position.

6. Turn off the engine.

To drive away:

1. Start the vehicle.

2. Apply and hold the brake pedal.

3. Shift the transmission into gear.

4. Release the parking brake.

5. Drive slowly until the vehicle and trailer

are clear from the blocks.

6. Apply and hold the brake pedal.

7. Have someone retrieve and store the

blocks.

• While going downhill, the weight of the

trailer pushing on the tow vehicle may de-
crease overall stability. Therefore, to main-
tain adequate control, reduce your speed
and shift to a lower gear. Avoid long or
repeated use of the brakes when descend-
ing a hill, as this reduces their effectiveness
and could cause overheating. Shifting to a
lower gear instead provides “engine brak-
ing” and reduces the need to brake as
frequently.

• If the engine coolant temperature rises to a

high temperature, see “If your vehicle over-
heats” (P. 6-14).

• Trailer towing requires more fuel than nor-

mal circumstances.

• Avoid towing a trailer for your vehicle's first

500 miles (805 km).

• For the first 500 miles (805 km) that you do

tow, do not drive over 50 mph (80 km/h).

• Have your vehicle serviced more often than

at intervals specified in the recommended
maintenance schedule in the “Maintenance
and schedules” section of this manual.

• When making a turn, your trailer wheels will

be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.

Technical and consumer information

10-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Crosswinds and rough roads will adversely

affect vehicle/trailer handling, possibly
causing vehicle sway. When being passed
by larger vehicles, be prepared for possible
changes in crosswinds that could affect
vehicle handling.

Do the following if the trailer begins to sway:

1. Take your foot off the accelerator pedal

to allow the vehicle to coast and steer as
straight ahead as the road conditions al-
low. This combination will help stabilize
the vehicle.
– Do not correct trailer sway by steering

or applying the brakes.

2. When the trailer sway stops, gently apply

the brakes and pull to the side of the road
in a safe area.

3. Try to rearrange the trailer load so it is

balanced. For additional information, see
“Pre-towing tips” (P. 10-28).

• Be careful when passing other vehicles.

Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember, the length of the trailer
must also pass the other vehicle before you
can safely change lanes.

• Downshift the transmission to a lower gear

for engine braking when driving down
steep or long hills. This will help slow the
vehicle without applying the brakes.

• Avoid holding the brake pedal down too

long or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.

• Increase your following distance to allow

for greater stopping distances while tow-
ing a trailer. Anticipate stops and brake
gradually.

• INFINITI recommends that the cruise con-

trol not be used while towing a trailer.

• Some states or provinces have specific

regulations and speed limits for vehicles
that are towing trailers. Obey the local
speed limits.

• Check your hitch, trailer wiring harness

connections, and trailer wheel lug nuts af-
ter 50 miles (80 km) of travel and at every
break.

• When launching a boat, don't allow the

water level to go over the exhaust tail pipe
or rear bumper.

• Make sure you disconnect the trailer lights

before backing the trailer into the water or
the trailer lights may burn out.

When towing a trailer, differential gear oil,
transfer fluid and transmission oil/fluid
should be changed more frequently. For ad-
ditional information, see the “Maintenance
and schedules” section of this manual.

FLAT TOWING FOR ALL–WHEEL
DRIVE VEHICLE (if so equipped)

Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when towing
a vehicle behind a recreational vehicle, such
as a motor home.

CAUTION

Failure to follow these guidelines can re-
sult in severe transmission damage.

Never flat tow your All-wheel drive
(AWD) vehicle.

DO NOT tow your All-wheel drive
(AWD) vehicle with any wheels on the
ground. Doing so may cause serious and
expensive damage to the powertrain.

For emergency towing procedures, see
“Towing recommended by INFINITI”
(P. 6-16).

10-30

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FLAT TOWING FOR FRONT
WHEEL DRIVE VEHICLE (if so
equipped)

Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when towing
a vehicle behind a recreational vehicle, such
as a motor home.

CAUTION

Failure to follow these guidelines can re-
sult in severe transmission damage.

Whenever flat towing your vehicle, al-
ways tow forward, never backward.

Never tow your front wheel drive vehicle
with the front tires on the ground. Doing
so may cause serious and expensive dam-
age to the powertrain.

DO NOT tow your front wheel drive au-
tomatic transmission vehicle with all
four wheels on the ground (flat towing).
Doing so WILL DAMAGE internal trans-
mission parts due to lack of transmission
lubrication.

For emergency towing procedures, see
“Towing recommended by INFINITI”
(P. 6-16).

Automatic transmission

To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly

MUST

be placed under the towed vehicle's

drive wheels.

Always

follow the dolly manu-

facturer's recommendations when using their
product.

NOTE:

If the battery is completely drained the
transmission will not manually shift to other
positions.

DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform
to federal safety requirements in addition to
these grades.

Quality grades can be found where applicable
on the tire sidewall between tread shoulder
and maximum section width. For example:

Treadwear 200 Traction AA Temperature A

Treadwear

The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2)
times as well on the government course as a
tire graded 100. The relative performance of
tires depends upon the actual conditions of
their use, however, and may depart signifi-
cantly from the norm due to variations in driv-
ing habits, service practices and differences in
road characteristics and climate.

Traction AA, A, B and C

The traction grades, from highest to lowest,
are AA, A, B, and C. Those grades represent
the tire's ability to stop on wet pavement as
measured under controlled conditions on
specified government test surfaces of as-
phalt and concrete. A tire marked C may have
poor traction performance.

UNIFORM TIRE QUALITY GRADING

Technical and consumer information

10-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.

Temperature A, B and C

The temperature grades are A (the highest),
B, and C, representing the tire’s resistance to
the generation of heat, and its ability to dis-
sipate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature can
cause the material of the tire to degenerate
and reduce tire life, and excessive tempera-
ture can lead to sudden tire failure. The grade
C corresponds to a level of performance
which all passenger car tires must meet under
the Federal Motor Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.

WARNING

The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, ei-
ther separately or in combination, can
cause heat build-up and possible tire
failure.

Your INFINITI is covered by the following
emission warranties:

For USA

1. Emission Defects Warranty

2. Emissions Performance Warranty

Details of these warranties may be found
with other vehicle warranties in your War-
ranty Information Booklet which comes with
your INFINITI. If you did not receive a War-
ranty Information Booklet, or it is lost, you
may obtain a replacement by writing to:

• INFINITI Division

Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003

For Canada

Emission Control System Warranty

Details of these warranties may be found
with other vehicle warranties in your War-
ranty Information Booklet which comes with
your INFINITI. If you did not receive a War-
ranty Information Booklet, or it is lost, you
may obtain a replacement by writing to:

• Nissan Canada Inc.

5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5

EMISSION CONTROL SYSTEM
WARRANTY

10-32

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For USA

If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should imme-
diately inform the National Highway
Traffic Safety Administration (NHTSA) in
addition to notifying INFINITI.

If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and

remedy

campaign.

However,

NHTSA cannot become involved in in-
dividual problems between you, your
retailer, or INFINITI.

To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov;
or write to: Administrator, NHTSA,
400 Seventh Street, SW., Washington,
D.C. 20590. You can also obtain other
information about motor vehicle safety
from http://www.safercar.gov.

You may notify INFINITI by contacting
our Consumer Affairs Department,
toll-free, at 1-800-662-6200.

For Canada

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform Transport Canada
in addition to notifying INFINITI.

If Transport Canada receives com-
plaints, it may open an investigation,
and if it finds that a safety defect exists
in a group of vehicles, it may request
that INFINITI conduct a recall cam-
paign. However, Transport Canada
cannot become involved in individual
problems between you, your retailer, or
INFINITI.

You may contact Transport Canada's
Defect

Investigations

and

Recalls

Division toll free at 1-800-333-0510.
You may also report safety defects
online at: http://www.tc.gc.ca/eng/

motorvehiclesafety/menu.htm (English
speakers) or http://www.tc.gc.ca/fra/
securiteautomobile/menu.htm (French
speakers)

Or contact Transport Canada by mail
at:
Transport

Canada

Motor

Vehicle

Safety Investigations Laboratory
80 Noel Street Gatineau, QC J8Z0A1

Additional

information

concerning

motor vehicle safety may be obtained
from Transport Canada's Road Safety
Information Centre at 1-800-333-
0371 or online at www.tc.gc.ca/
roadsafety

(English

speakers)

or

www.tc.gc.ca/securiteroutiere
(French speakers).

To notify INFINITI of any safety
concerns please contact our Con-
sumer Information Centre toll free at
1-800-361-4792.

REPORTING SAFETY DEFECTS

Technical and consumer information

10-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a two
wheel dynamometer (such as the dyna-
mometers used by some states for emis-
sions testing), or similar equipment. Make
sure you inform the test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer. Us-
ing the wrong test equipment may result in
transmission damage or unexpected ve-
hicle movement which could result in seri-
ous vehicle damage or personal injury.

Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready con-
dition” for an Inspection/Maintenance (I/M)
test of the emission control system.

The vehicle is set to the “ready condition”
when it is driven through certain driving pat-
terns. Usually, the ready condition can be
obtained by ordinary usage of the vehicle.

If a powertrain system component is repaired
or the battery is disconnected, the vehicle
may be reset to a “not ready” condition. Be-
fore taking the I/M test, check the vehicle's
inspection/maintenance test readiness con-
dition. Place the ignition switch in the ON
position without starting the engine. If the
Malfunction Indicator Light (MIL) comes on
steady for 20 seconds and then blinks for
10 seconds , the I/M test condition is “not
ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready”. It is
recommended that you visit an INFINITI re-
tailer to set the “ready condition” or to pre-
pare the vehicle for testing.

This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an EDR
is to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle's systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety sys-
tems for a short period of time, typically 30
seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were

operating;

• Whether or not the driver and passenger

safety belts were buckled/fastened;

• How far (if at all) the driver was depressing

the accelerator and/or brake pedal; and,

• How fast the vehicle was traveling.
• Sounds are not recorded.

These data can help provide a better under-
standing of the circumstances in which
crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-
trivial crash situation occurs; no data are re-
corded by the EDR under normal driving con-
ditions and no personal data (e.g., name,
gender, age, and crash location) are recorded.
However, other parties, such as law enforce-
ment, could combine the EDR data with the

READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST

EVENT DATA RECORDERS (EDR)

10-34

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

type of personally identifying data routinely
acquired during a crash investigation.

To read data recorded by an EDR, special
equipment is required, and access to the ve-
hicle or the EDR is needed. In addition to the
vehicle manufacturer and INFINITI retailer,
other parties, such as law enforcement, that
have the special equipment, can read the in-
formation if they have access to the vehicle or
the EDR.

EDR data will only be accessed with the con-
sent of the vehicle owner or lessee or as
otherwise required or permitted by law.

ADDITIONAL DATA RECORDING
(on vehicles equipped with optional
ProPILOT Assist)

If your vehicle is equipped with the optional
ProPILOT Assist, it will also be equipped with
a

supplemental

vehicle

data

recording

function.

The data recording function is designed to
record such data as:
• Driver operational status of accelerator,

brakes, steering, etc.

• Detection status of a vehicle ahead and

lane markers

• Vehicle information including distance to

vehicle ahead and lateral position

• Information on the operation of the ProPI-

LOT Assist and other crash avoidance
features

• ProPILOT Assist malfunction diagnosis

information

• External images from multi-sensing front

camera (Available only when SRS air bag or
FEB with Pedestrian Detection system is
activated)

ProPILOT Assist does not record conversa-
tions, sounds or images of the inside of the
vehicle.

To read this vehicle data, special equipment is
required and access to the vehicle or the re-
cording unit is needed. This vehicle data will
only be accessed with the consent of the
vehicle owner or lessee or as otherwise re-
quired or permitted by law.

If downloaded, NISSAN may use the data
recorded for the purpose of improving
NISSAN's vehicle safety performance.

NISSAN will not disclose/provide the re-
corded data to a third party except:
• With the consent of the vehicle owner or

with the consent of the lessee

• In response to an official request from law

enforcement, a court order, governmental
agency,

or

other

legally

enforceable

requests

• For use as part of NISSAN's defense of

litigation

• For research purposes after the data is

modified such that it is no longer tied to a
specific vehicle or vehicle owner

If you have any questions regarding the data
NISSAN may collect about you, please visit our
Privacy Policy: https://www.infinitiusa.com.

Technical and consumer information

10-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Genuine INFINITI Service Manuals for this
model year and prior can be purchased. A
Genuine INFINITI Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory-trained technicians
working

at

INFINITI

retailers.

Genuine

INFINITI Owner’s Manuals can also be
purchased.

For USA

For current pricing and availability of Genuine

INFINITI Service Manuals

, contact:

www.infiniti-techinfo.com

For current pricing and availability of Genuine

INFINITI Owner's Manuals

, contact:

1-800-247-5321

For Canada

To purchase a copy of a Genuine INFINITI
Service Manual or Owner’s Manual, for this
model year and prior, please contact your
nearest INFINITI retailer. For the phone num-
ber and location of an INFINITI retailer in
your area call the INFINITI Satisfaction Cen-
ter at 1-800-361-4792 and a bilingual
INFINITI representative will assist you.

FCC Notice:

For USA:

FCC ID: KR5TXN1

FCC ID: KR5TXN3

FCC ID: KR5TXN4

FCC ID: KR5HFM401

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.

NOTE:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user's authority to oper-
ate the equipment.

For Canada:

IC ID: 7812D-TXN1

IC ID: 7812D-TXN4

IC ID: 7812D-HFM401

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
This device may not cause interference, and
(2) This device must accept any interference,
including interference that may cause unde-
sired operation of the device.

FCC Notice:

For USA:

Body Control Module (BCM)

40406557
Continental

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.

NOTE:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user's authority to oper-
ate the equipment.

OWNER'S MANUAL/SERVICE
MANUAL ORDER INFORMATION

INTELLIGENT KEY SYSTEM

10-36

Technical and consumer information

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For Canada:

Body Control Module (BCM)
Model: 40406557
IC: 7812D-RXIDP434
Continental

This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
This device may not cause interference, and
(2) This device must accept any interference,
including interference that may cause unde-
sired operation of the device.

Technical and consumer information

10-37

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     17      18      19
