Infiniti QX55 (2023 year). Manual in english - page 7





WARNING

Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.

Do not adjust the steering wheel any
closer to you than is necessary for proper
steering operation and comfort. The
driver's air bag inflates with great force.
If you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, you are at greater risk of injury or
death in a crash. You may also receive
serious or fatal injuries from the air bag if
you are up against it when it inflates.
Always sit back against the seatback and
as far away as practical from the steer-
ing wheel. Always use the seat belts.

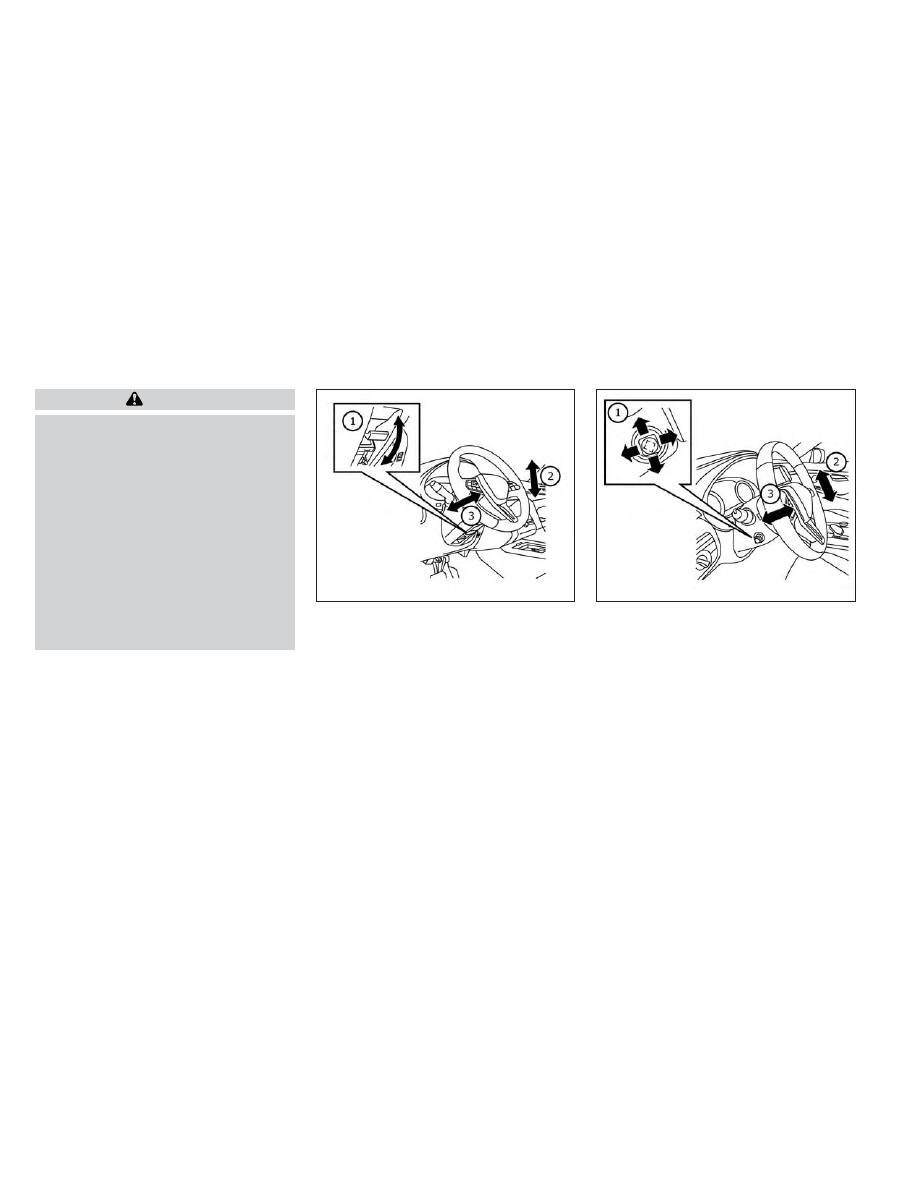

MANUAL OPERATION (if so
equipped)

Tilt and telescopic operation

Push the lock lever

O

1

down:

• Adjust the steering wheel up or down in

direction

O

2

to the desired position.

• Adjust the steering wheel forward or back-

ward in direction

O

3

to the desired position.

Pull the lock lever

O

1

up firmly to lock the

steering wheel in place.

AUTOMATIC OPERATION (if so
equipped)

Tilt and telescopic operation

To adjust the steering wheel move the switch

O

1

in the following directions:

• Adjust the steering wheel up or down in

direction

O

2

to the desired tilt position.

• Adjust the steering wheel forward or back-

ward in direction

O

3

to the desired tele-

scopic position.

LPD2728

LPD2752

STEERING WHEEL

3-32

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Entry/Exit function (if so equipped)

The memory seat system will make the steer-
ing wheel move up automatically when the
driver's door is opened and the ignition switch
is in the LOCK position. This lets the driver get
into and out of the seat more easily. The
steering wheel moves back into position
when the driver's door is closed and the igni-
tion switch is pushed.

For additional information, see “Memory
seat” (P. 3-37).

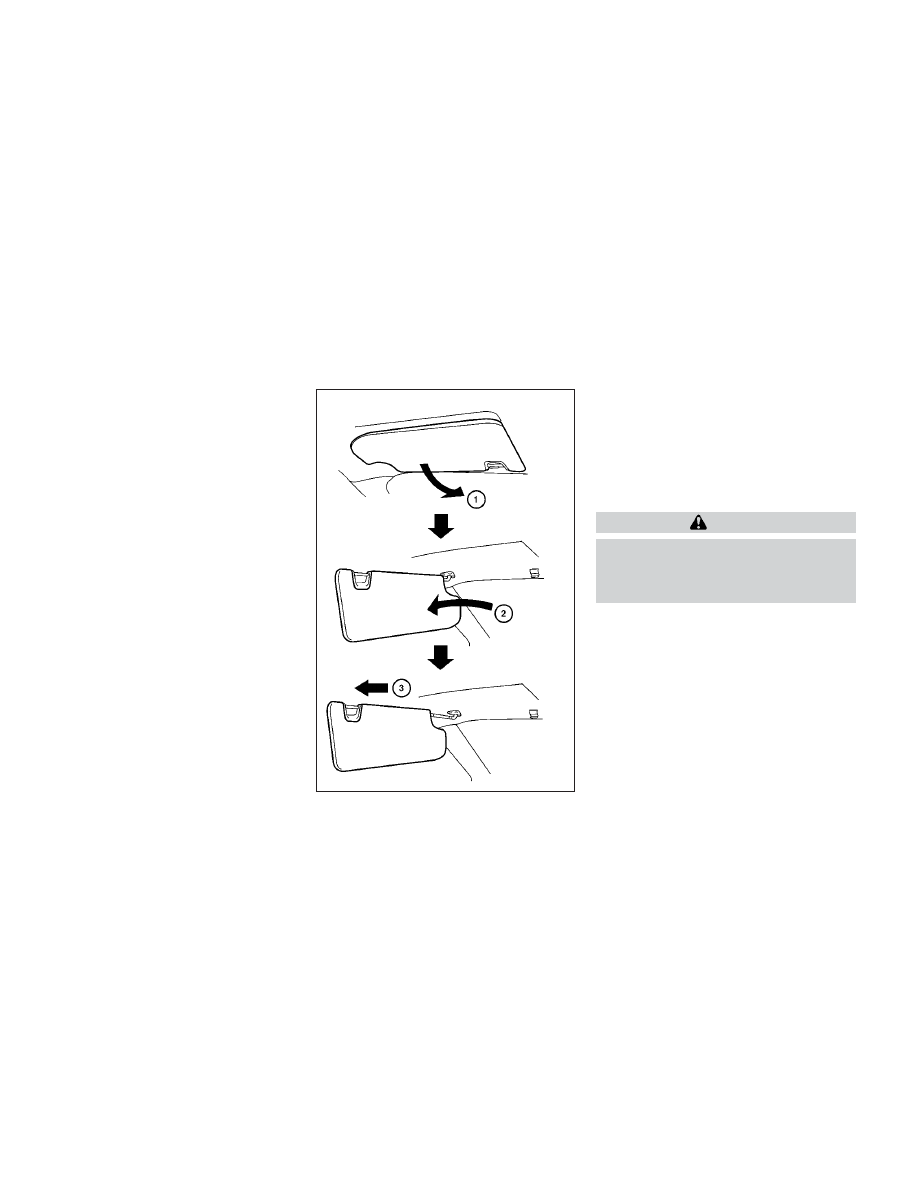

1. To block glare from the front, swing down

the sun visor

O

1

.

2. To block glare from the side, remove the

sun visor from the center mount and
swing the visor to the side

O

2

.

3. Slide the extension

O

3

sun visor in or out

as needed.

CAUTION

Do not store the sun visor before return-
ing the extension to its original position.

Do not pull the extension sun visor forc-
ibly downward.

WPD0344

SUN VISORS

Pre-driving checks and adjustments

3-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

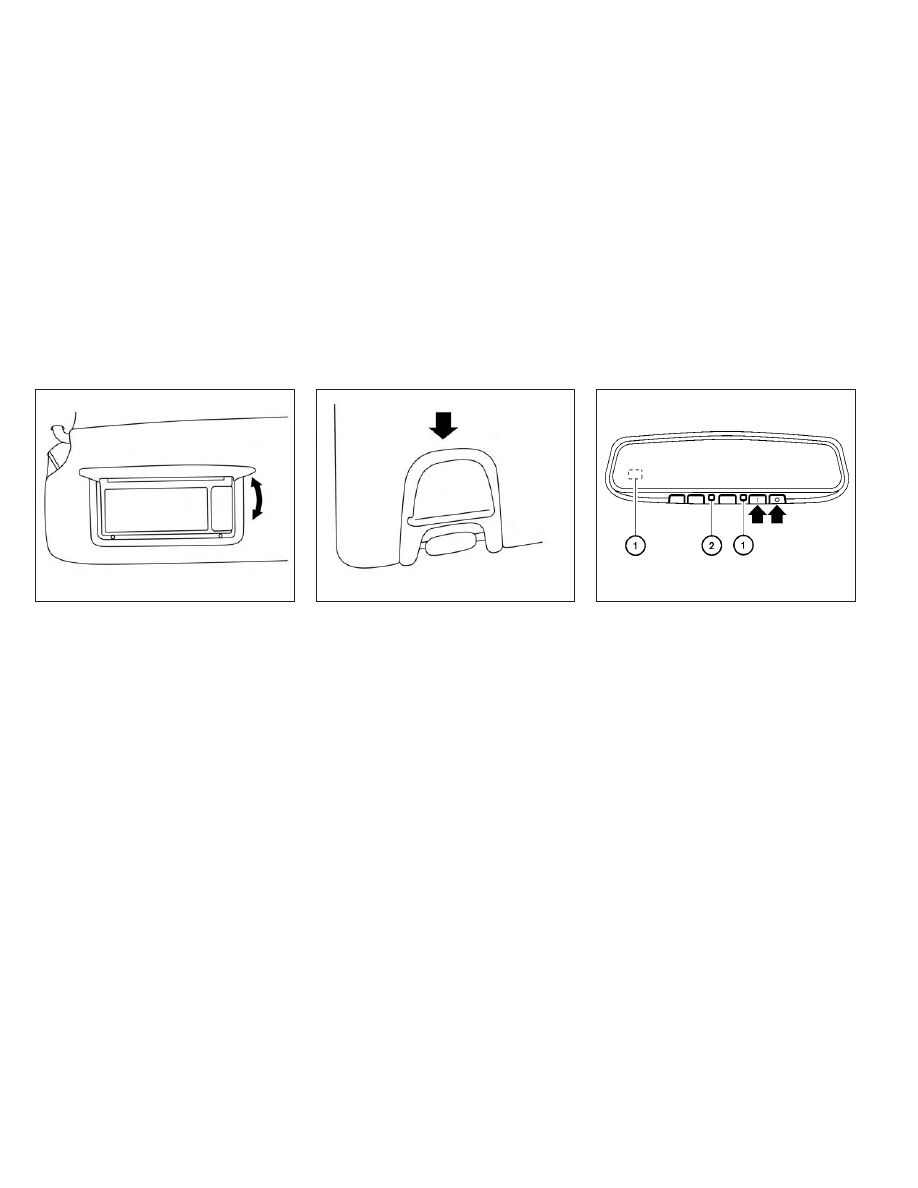

VANITY MIRRORS

To access the vanity mirror, pull the sun visor
down and flip open the mirror cover. The
vanity mirror will illuminate when the mirror
cover is open.

CARD HOLDER

To use the card holder, slide card into the clip.
Do not view information while operating the
vehicle.

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR

The inside mirror is designed so that it auto-
matically dims during nighttime conditions
and according to the intensity of the head-
lights of the vehicle following you. The auto-
matic anti-glare feature is activated when
the ignition switch is in the ON position.

The indicator light

O

2

will illuminate when the

automatic anti-glare feature is operating.

LPD2583

Driver’s and passenger’s side

LPD2340

Driver’s and passenger’s side

LPD0469

MIRRORS

3-34

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

Do not hang any objects over the sensors

O

1

or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting in improper operation.

The indicator light

O

2

will illuminate when the

automatic anti-glare feature is operating.

To turn off the automatic anti-glare feature,
press the O button. The indicator light will
turn off.

To turn on the automatic anti-glare feature
again, press the | button again. The indica-
tor light will turn on.

For additional information on HomeLink®
Universal

Transceiver

operation,

see

“HomeLink® Universal Transceiver” (P. 2-71).

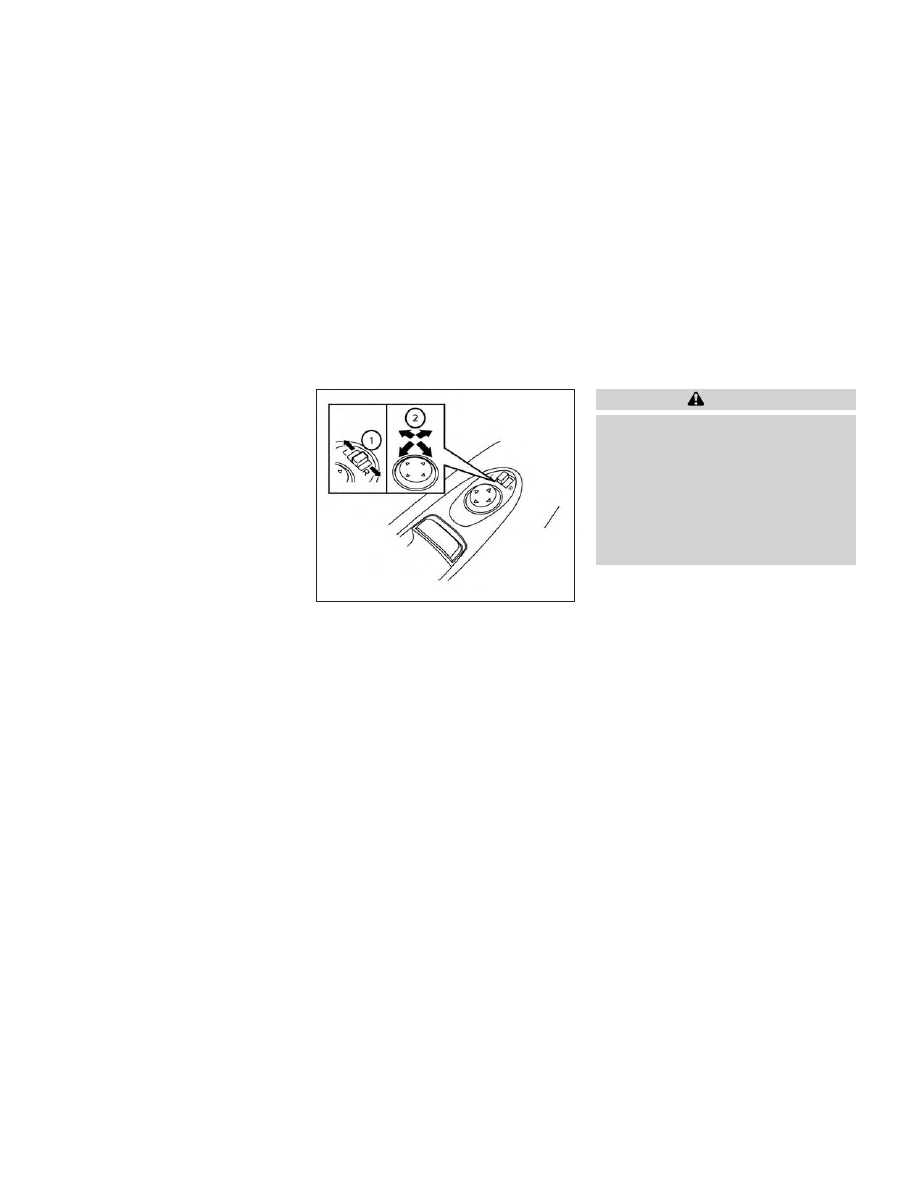

OUTSIDE MIRRORS

The outside mirror remote control will oper-
ate only when the ignition switch is in the ON
position.

Move the small switch

O

1

to select the left or

right mirror. Adjust each mirror to the desired
position using the large switch

O

2

. Move the

small switch

O

1

to the center (neutral) posi-

tion to prevent accidentally moving the
mirror.

WARNING

Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.

Do not adjust the mirrors while driving.
You could lose control of your vehicle and
cause an accident.

LPD3035

Pre-driving checks and adjustments

3-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

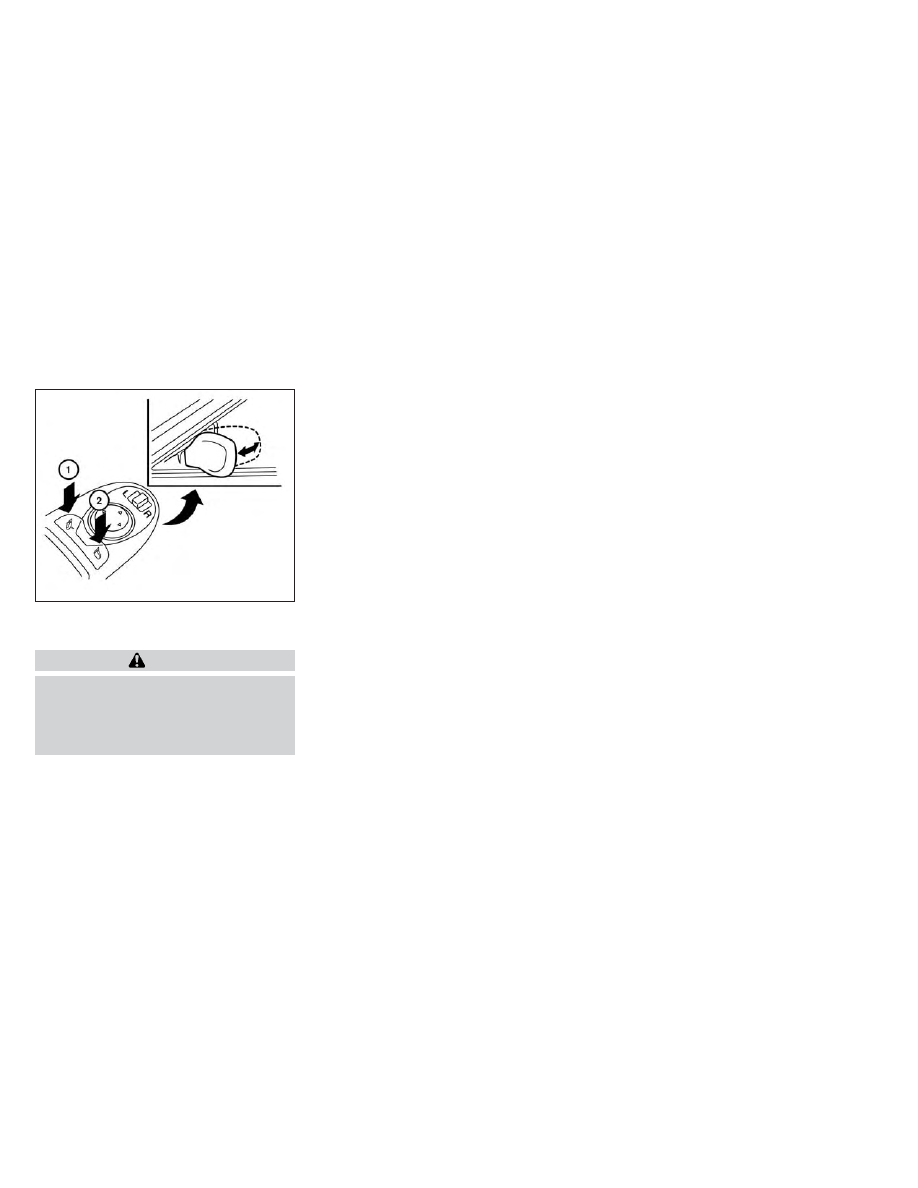

Power folding outside mirrors

CAUTION

Do not touch the mirrors while they are
moving. Your hand may be pinched, and
the mirror may malfunction.

Do not drive with the mirrors stored. You
will be unable to see behind the vehicle.

Push the switch

O

2

to open or the switch

O

1

to close the mirrors.

If one of the mirrors are manually operated or
bumped, the mirror body can become loose
at the pivot point. To correct electronic mirror
operation, cycle the mirrors by pushing the
switch

O

1

until completely closed, then push

the switch

O

2

until the mirrors are in the open

position.

Automatic folding outside mirrors

The outside mirrors fold automatically when
the vehicle is locked with the Intelligent Key
or by using the request switch. The outside
mirrors unfold automatically when the igni-
tion switch is placed in the ON position.

Heated mirrors

The electric control type outside mirrors can
be heated to defrost, defog, or de-ice for
improved visibility. Push the rear window de-
froster switch to activate the heating func-
tion. Push the switch again to deactivate, or
the heating function will automatically turn
off after approximately 15 minutes. For ad-
ditional information, see “Rear window de-
froster, outside mirror defroster and wiper
deicer (if so equipped) switch” (P. 2-39).

Reverse tilt-down feature (if so
equipped)

The reverse tilt-down feature will turn both
outside mirror surfaces downward to provide
better rear visibility close to the vehicle when
the mirror control switch is in either the L or R
position.

The mirrors automatically return to their
original position when you shift out of R
(Reverse).

The outside mirror surfaces will return to
their original position when one of the fol-
lowing has occurred:
• The shift lever is moved to any position

other than R (Reverse).

• The outside mirror control switch is set to

the neutral or center position.

• The ignition switch is placed in the OFF

position.

NOTE:

If the outside mirror control switch is in the
center (neutral) position, mirror surface will
NOT turn downward when the shift lever is
moved to R (Reverse).

For additional information regarding this fea-
ture, see “Memory seat” (P. 3-37).

LPD2303

3-36

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

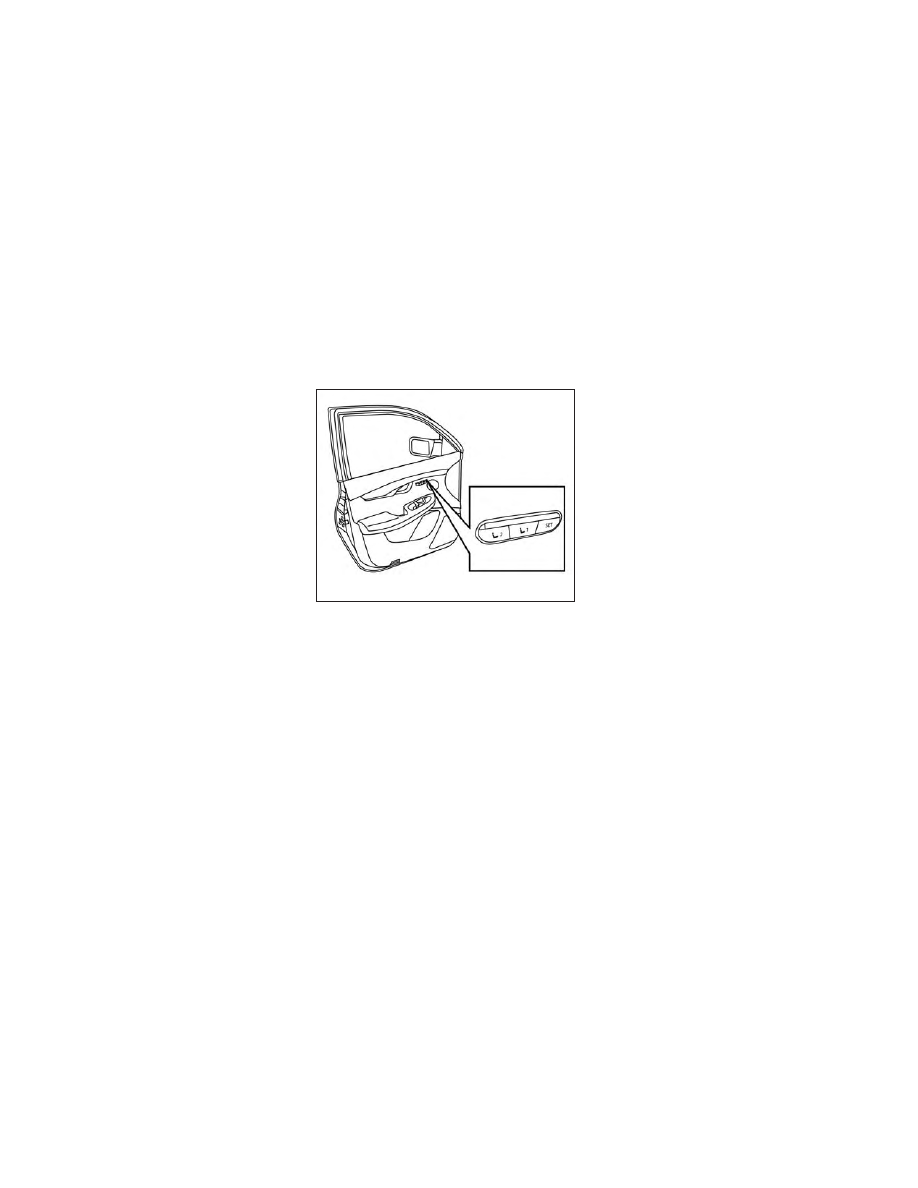

The memory seat system has two features:
• Memory storage function
• Entry/exit function

MEMORY STORAGE FUNCTION

Two positions for the driver's seat, steering
column, and outside mirrors can be stored in
the memory seat system.

NOTE:

The vehicle should be stopped while setting
the memory.

Follow these procedures to set the memory
system.

1. Place the ignition in the ON position.

2. Adjust the driver's seat, steering column,

and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information, see
“Seats” (P. 1-2), “Steering wheel” (P. 3-32)
and “Outside mirrors” (P. 3-35).

3. Push the SET switch and, within 5 sec-

onds, push the memory switch (1 or 2).

4. The indicator light for the pushed memory

switch will come on and stay on for ap-
proximately 5 seconds.

5. The chime will sound when the memory is

stored.

NOTE:

If a new memory position is stored in the
same memory switch, the previous memory
position will be overwritten by the new
stored position.

Confirming memory storage

• Push the SET switch.
• If a memory position has been stored in the

switch (1 or 2) then the indicator light for
the respective switch will stay on for ap-
proximately 5 seconds.

LPD2729

MEMORY SEAT (if so equipped)

Pre-driving checks and adjustments

3-37

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Linking log-in function to a stored
memory position

The log-in function can be linked to a stored
memory

position

with

the

following

procedure.

1. Place the ignition switch in the ON posi-

tion while carrying the Intelligent Key that
was registered to the vehicle with a log-in
function.

NOTE:

Make sure the Intelligent Keys are far apart.
Otherwise, the vehicle may detect the
wrong Intelligent Key.

2. Adjust the position of the driver’s seat,

steering column and outside mirrors. For
additional

information,

see

“Seats”

(P. 1-2), “Steering wheel” (P. 3-32) and
“Outside mirrors” (P. 3-35).

3. Place the ignition switch in the OFF

position.

The next time you log in (selecting the user on
the display) after placing the ignition switch in
the ON position while carrying the Intelligent
Key, the system will automatically adjust to
the memorized driving position.

For additional information, see the separate
INFINITI InTouch™ Owner’s Manual and
“Log-in function” (P. 3-18).

ENTRY/EXIT FUNCTION

This system is designed so that the driver's
seat and steering column will automatically
move when the vehicle is engaged in the P
(Park) position. This allows the driver to easily
get in and out of the driver’s seat.

The driver’s seat will slide backward and the
steering column will move up when the igni-
tion is switched to OFF and the driver’s door
is opened.

The driver’s seat and steering wheel will re-
turn to the previous position when the igni-
tion is switched to ON.

The entry/exit function can be adjusted or
canceled through the “Comfort & Conve-
nience” options of the “Settings” menu in the
lower touch-screen display by performing the
following:
• Switch the Lift Steering upon Exit from ON

to OFF.

• Switch the Slide Driver Seat Back on Exit

from ON to OFF.

For additional information, refer to the sepa-
rate INFINITI InTouch™ Owner’s Manual.

Restarting the entry/exit function

If the battery cable is disconnected, or if the
fuse opens, the stored memory positions will
be lost and some of the functions will be
restricted:

1. Drive the vehicle over 25 mph (40 km/h).

OR

2. Open and close the driver's door more

than two times with the ignition switch in
the OFF position.

The entry/exit function should now work
properly.

SETTING MEMORY FUNCTION

The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.
• Climate control system
• Navigation system
• Audio system

3-38

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To use the memory function, set the climate
and audio systems to the driver's preferred
settings. Lock the doors with the Intelligent
Key. Each Intelligent Key may be set with the
driver's individual preferences. When a new
Intelligent Key is used, “Connection with the
key has been done” will be displayed on the
vehicle information display and the memo-
rized settings are available.

To engage the memorized settings, perform
the following:

1. Carry the Intelligent Key that is linked to

the memorized settings.

2. Unlock the doors by pushing the driver’s

door handle request switch or the
button on the Intelligent Key.

3. Place the ignition switch in the ON posi-

tion. The settings linked to the Intelligent
Key will start.

For additional information on using the cli-
mate control system, see “Heater and air con-
ditioner (automatic)” (P. 4-33).

For additional information on using the navi-
gation and audio systems, refer to the sepa-
rate INFINITI InTouch™ Owner’s Manual.

SYSTEM OPERATION

The memory seat system will not work or will
stop

operating

under

the

following

conditions:
• When the vehicle speed is above 4 mph (7

km/h).

• When any of the memory switches are

pushed while the memory seat system is
operating.

• When the switch for the driver’s seat and

steering column is pushed while the
memory seat system is operating.

• When the seat has already been moved to

the memorized position.

• When no seat position is stored in the

memory switch.

• When the shift lever is moved from P (Park)

to any other position.

The memory seat system can be adjusted and
canceled. It is recommended you visit an
INFINITI retailer for this service.

Pre-driving checks and adjustments

3-39

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEMO

3-40

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4 Monitor, climate, audio, phone and voice
recognition systems

INFINITI InTouch™ Owner’s Manual . . . . . . . . . . . . . .4-2
RearView Monitor (if so equipped) . . . . . . . . . . . . . . . .4-3

RearView Monitor system operation . . . . . . . . . . .4-4
How to read the displayed lines . . . . . . . . . . . . . . . .4-4
Difference between predicted and actual
distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
How to park with predicted course lines . . . . . . .4-6
Adjusting the screen . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
How to turn on and off predicted course
lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
RearView Monitor system limitations . . . . . . . . . .4-9
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Around View® Monitor (if so equipped) . . . . . . . . . .4-11

Around View® Monitor system operation . . . . 4-12
Difference between predicted and actual
distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
How to park with predicted course lines . . . . . 4-18
How to switch the display . . . . . . . . . . . . . . . . . . . 4-19
Around View® Monitor settings . . . . . . . . . . . . . 4-20
Adjusting the screen . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Around View® Monitor system
limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Camera aiding sonar (parking sensor)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Sonar system operation . . . . . . . . . . . . . . . . . . . . . 4-24
Turning on and off the sonar function . . . . . . . . 4-25
Sonar system limitations . . . . . . . . . . . . . . . . . . . . 4-26
System temporarily unavailable . . . . . . . . . . . . . . 4-26
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 4-26

Moving Object Detection (MOD)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

MOD system operation . . . . . . . . . . . . . . . . . . . . . 4-28
Turning MOD on and off . . . . . . . . . . . . . . . . . . . . 4-30
MOD system limitations . . . . . . . . . . . . . . . . . . . . . 4-30
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 4-31

Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Heater and air conditioner (automatic) . . . . . . . . . . 4-33

Automatic operation . . . . . . . . . . . . . . . . . . . . . . . . 4-34
Manual operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
Operating tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
CLIMATE setting screen . . . . . . . . . . . . . . . . . . . . 4-37
Rear climate control (if so equipped) . . . . . . . . . 4-39

Heater and air conditioner settings
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Servicing air conditioner . . . . . . . . . . . . . . . . . . . . . . . . 4-41
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41
Car phone or CB radio . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
iPod®/iPhone® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Refer to the digital INFINITI InTouch™ Own-
er’s manual using the QR code on this page,
or your printed INFINITI InTouch™ Owner’s
manual (if so equipped). This manual includes
the following information:
• INFINITI InTouch™ Services
• Navigation system (if so equipped)
• Audio system
• Apple CarPlay®
• Android Auto™
• Bluetooth® Hands-Free Phone system
• Viewing information
• Other settings

• Voice recognition
• General system information

LHA5678

INFINITI INTOUCH™ OWNER’S
MANUAL

4-2

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

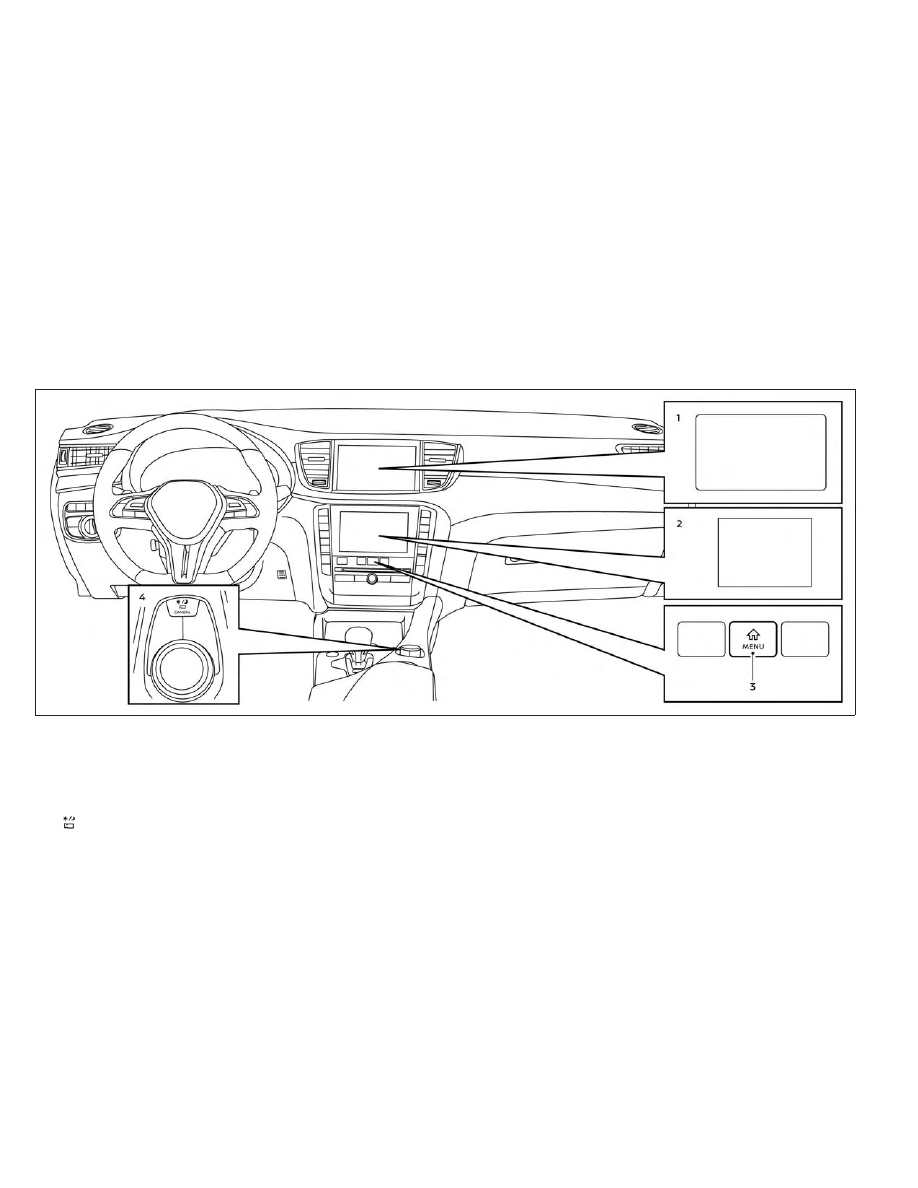

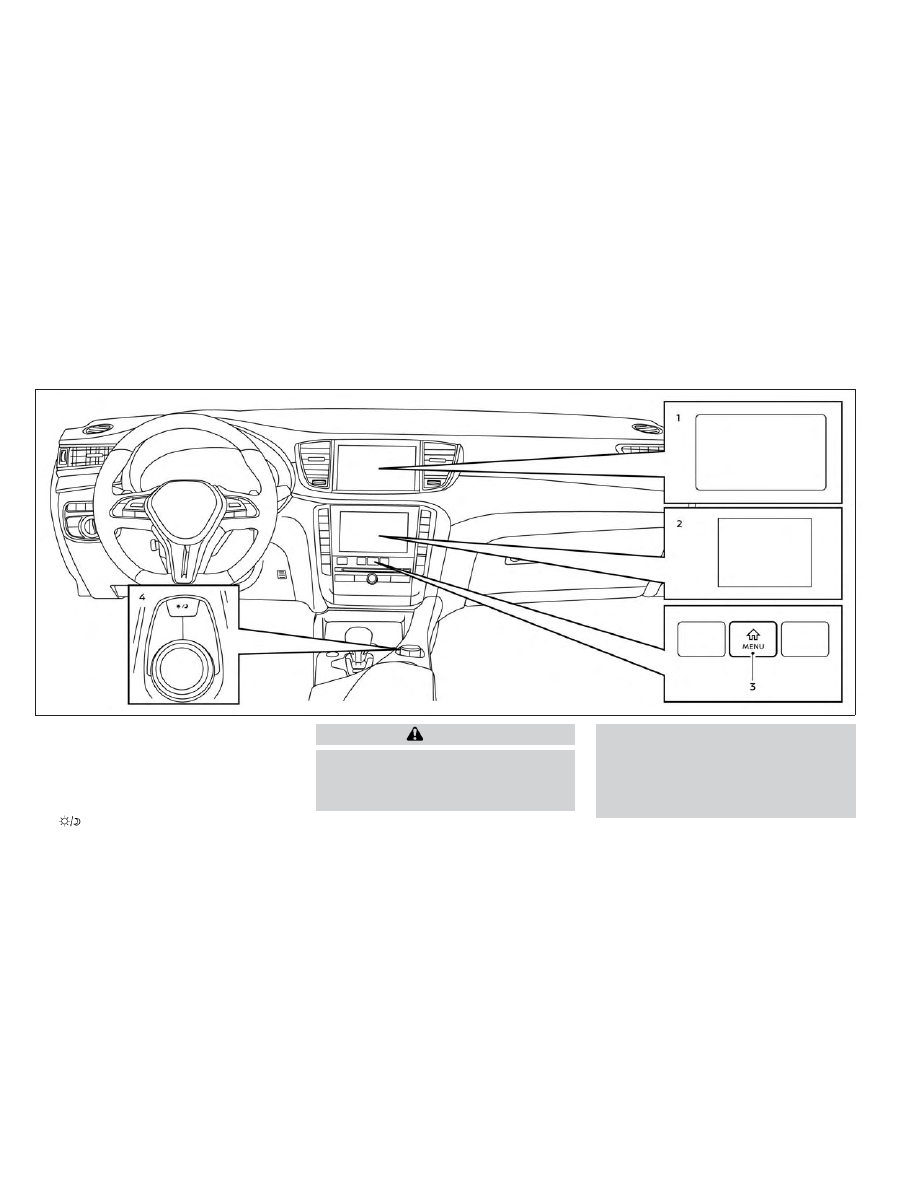

1. Upper

touch-screen

display

(upper

display)

2. Lower

touch-screen

display

(lower

display)

3. MENU button

4.

button

WARNING

Failure to follow the warnings and in-
structions for proper use of the Rear-
View Monitor system could result in se-
rious injury or death.

RearView Monitor is a convenience fea-
ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.

LHA5414

REARVIEW MONITOR (if so
equipped)

Monitor, climate, audio, phone and voice recognition systems

4-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The system is designed as an aid to the
driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.

The distance guide line and the vehicle
width line should be used as a reference
only when the vehicle is on a level paved
surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance be-
tween the vehicle and displayed objects.

CAUTION

Do not scratch the camera lens when clean-
ing dirt or snow from the front of the
camera.

The RearView Monitor system automatically
shows a rear view of the vehicle in the upper
touch-screen display (upper display) when
the shift lever is shifted into the R (Reverse)
position. When activating the RearView
Monitor, the guide lines, the icons and the
messages may not be displayed immediately.
The radio can still be heard while the Rear-
View Monitor is active.

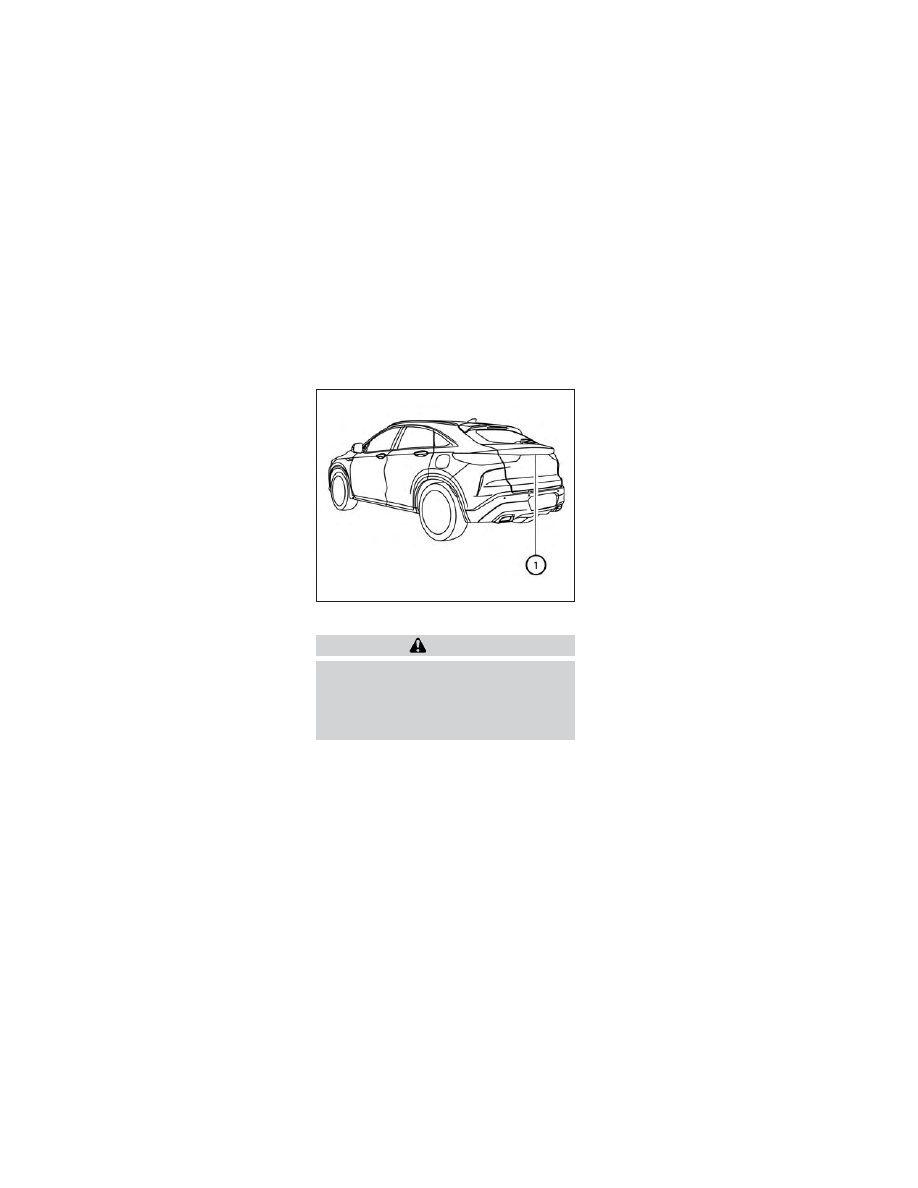

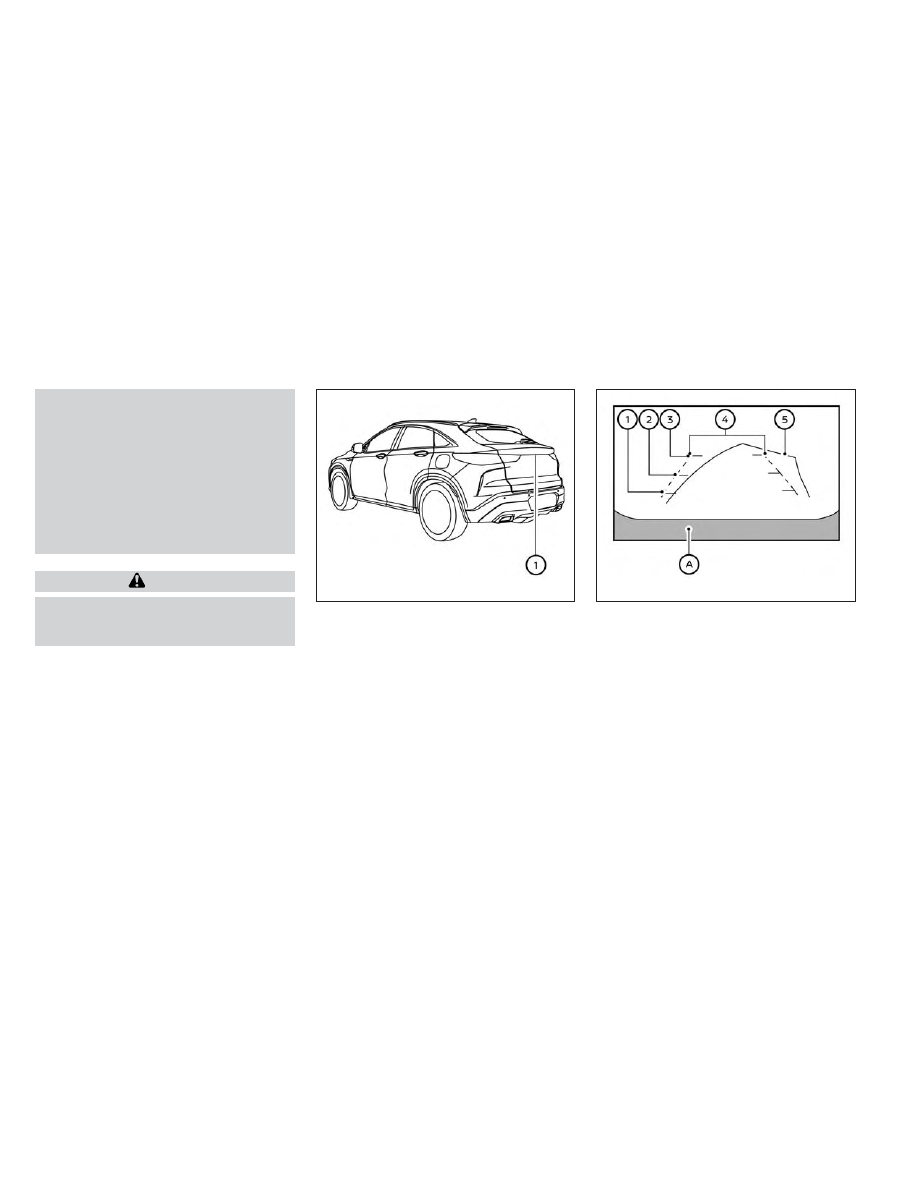

To display the rear view, the RearView Moni-
tor system uses a camera located just above
the vehicle’s license plate

O

1

.

REARVIEW MONITOR SYSTEM
OPERATION

With the engine running, move the shift lever
to the R (Reverse) position to operate the
RearView Monitor. When activating the
RearView Monitor, the guide lines, the icons
and the messages may not be displayed
immediately.

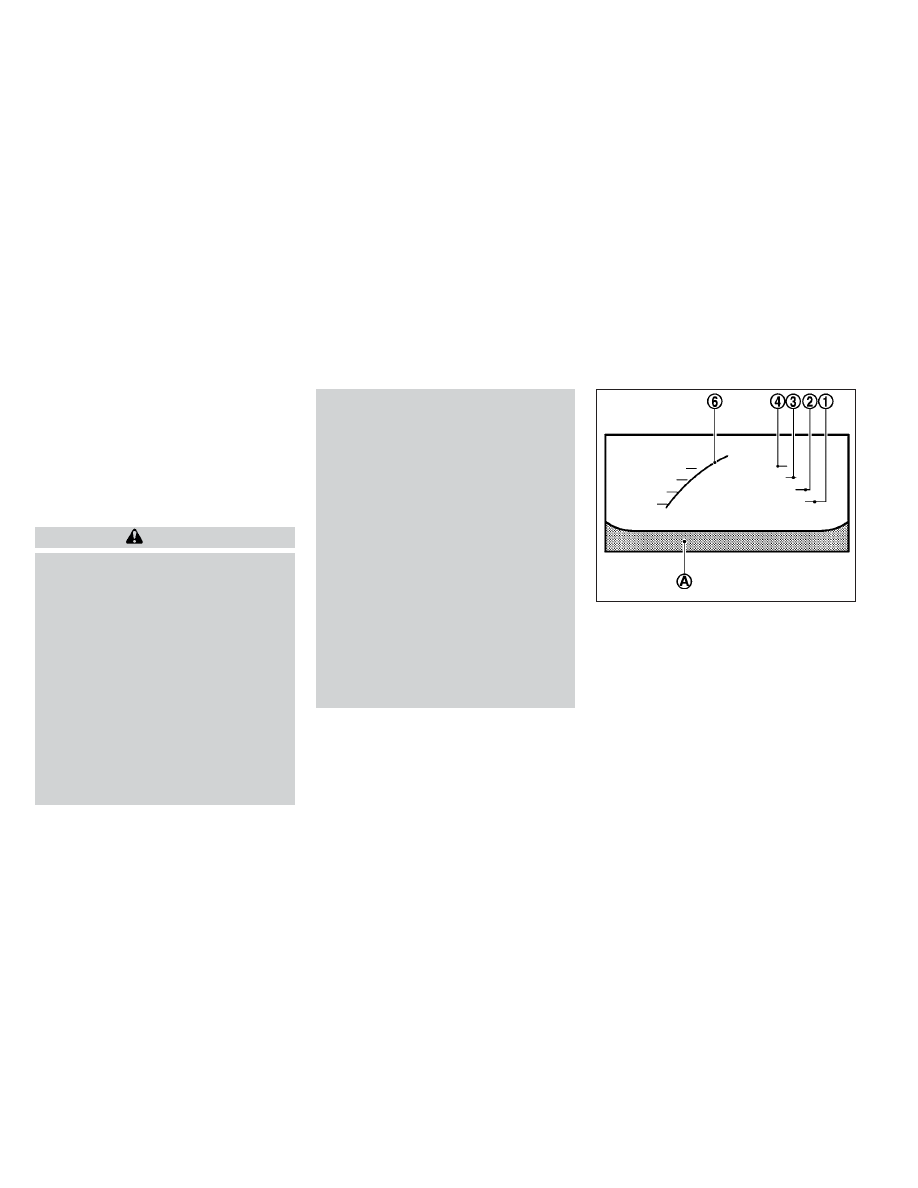

HOW TO READ THE DISPLAYED
LINES

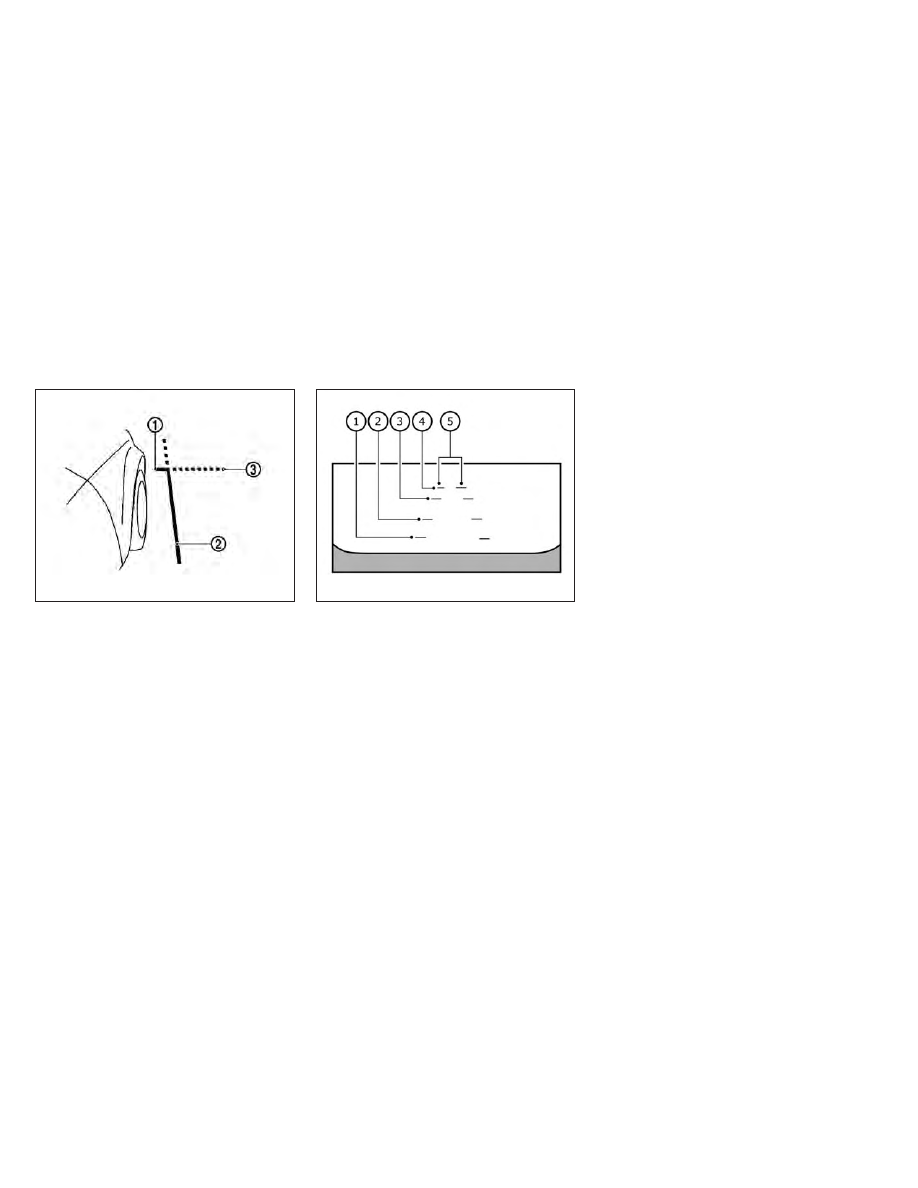

Guiding lines which indicate the vehicle width
and distances to objects with reference to
the vehicle body line

O

A

are displayed on the

monitor.

Distance guide lines

Indicate distances from the vehicle body.
• Red line

O

1

: approx. 1.5 ft (0.5 m)

• Yellow line

O

2

: approx. 3 ft (1 m)

• Green line

O

3

: approx. 7 ft (2 m)

LHA5415

LHA4805

4-4

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle width guide lines

O

4

Indicate the vehicle width when backing up.

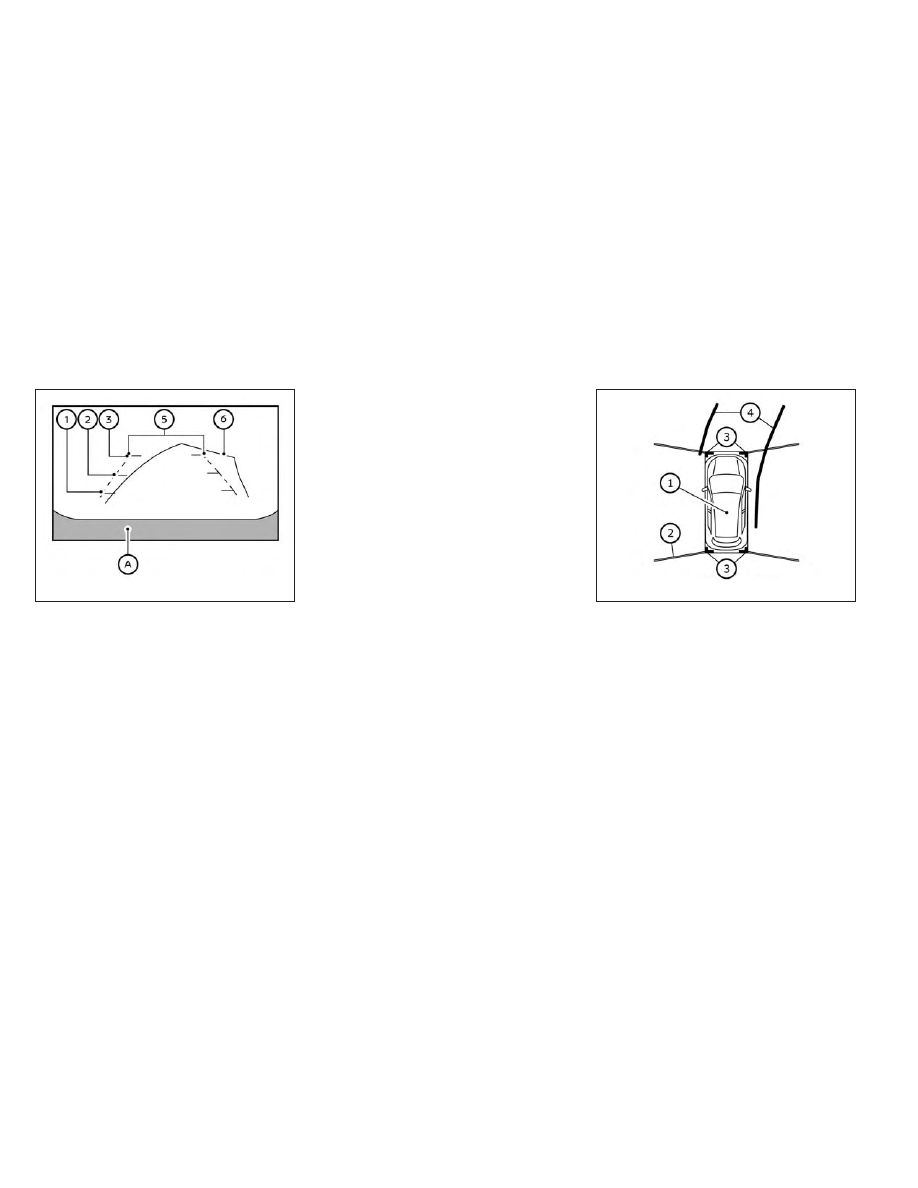

Predicted course lines

O

5

Indicate the predicted course when backing
up. The predicted course lines will be dis-
played on the monitor when the shift lever is
in the R (Reverse) position and the steering
wheel is turned. The predicted course lines
will move depending on how much the steer-
ing wheel is turned and will not be displayed
while the steering wheel is in the straight-
ahead position.

The vehicle width guide lines and the width of
the predicted course lines are wider than the
actual width and course.

DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES

The displayed guidelines and their locations
on the ground are for approximate reference
only. Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in
the monitor relative to the guidelines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or
park and exit the vehicle to view the position-
ing of objects behind the vehicle.

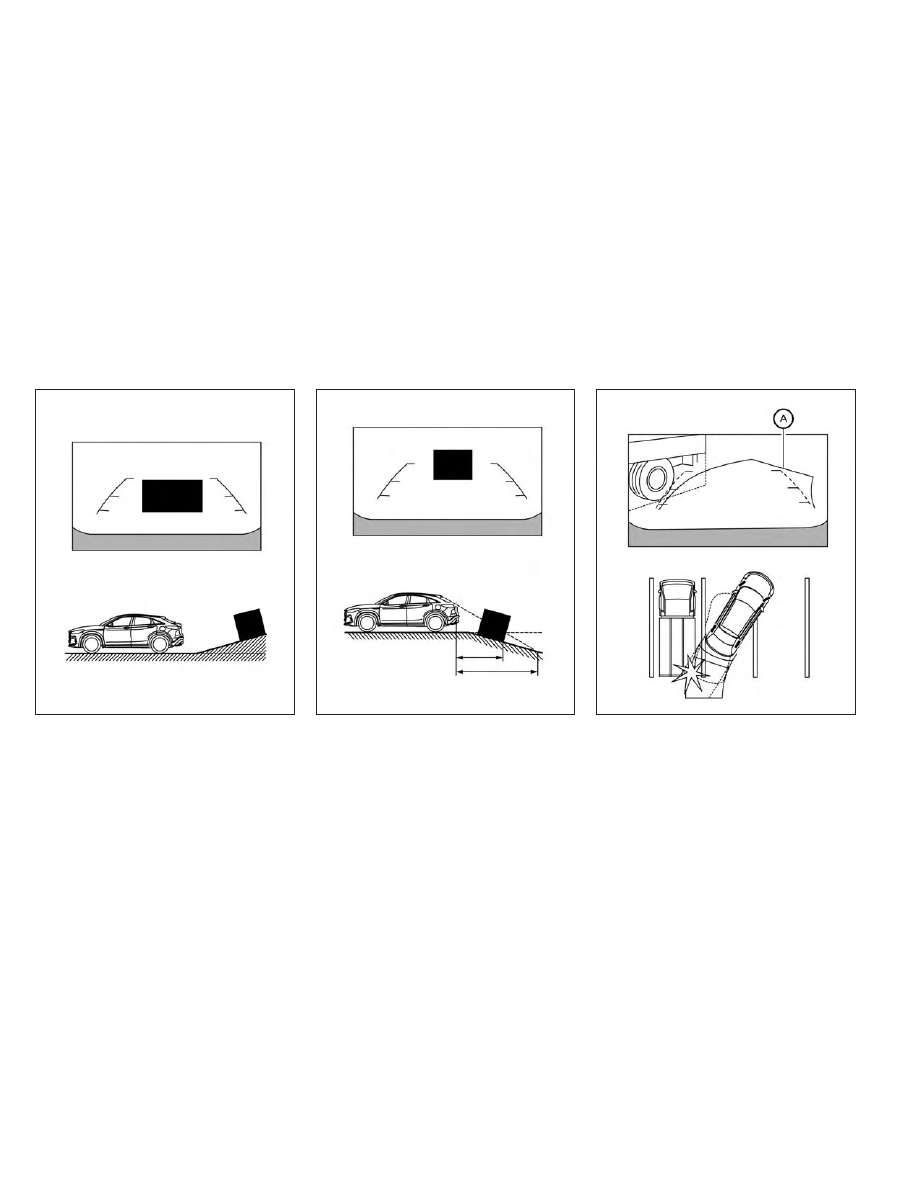

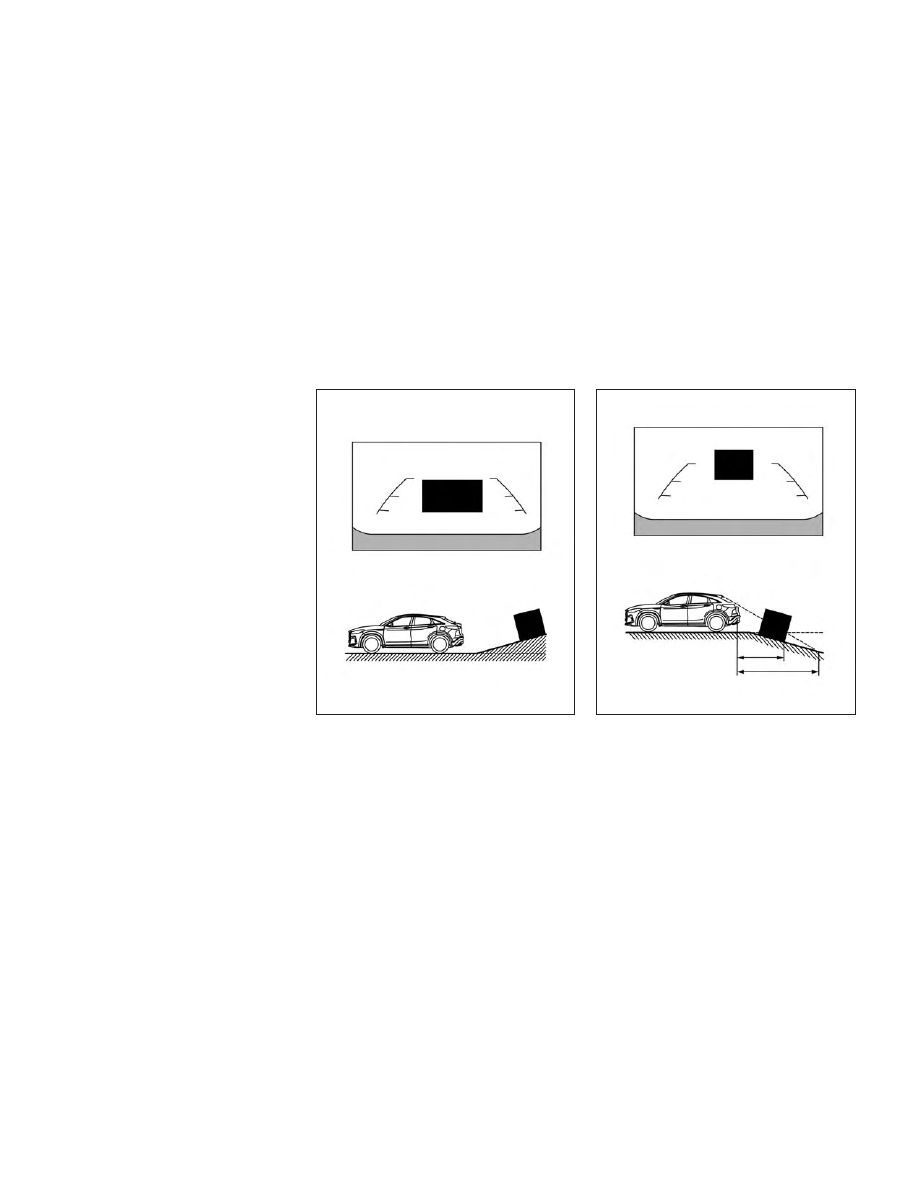

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the upper display.

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the upper display.

LHA5416

LHA5417

Monitor, climate, audio, phone and voice recognition systems

4-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

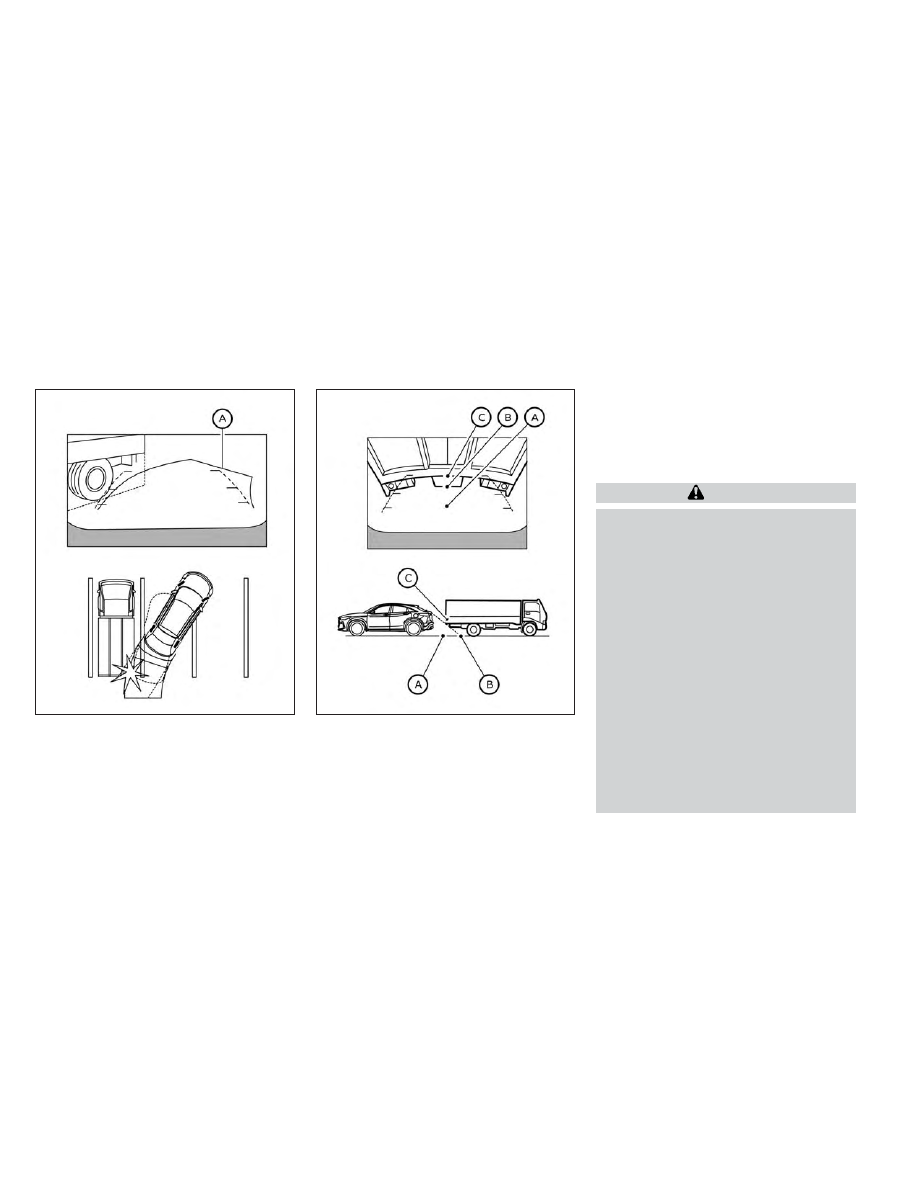

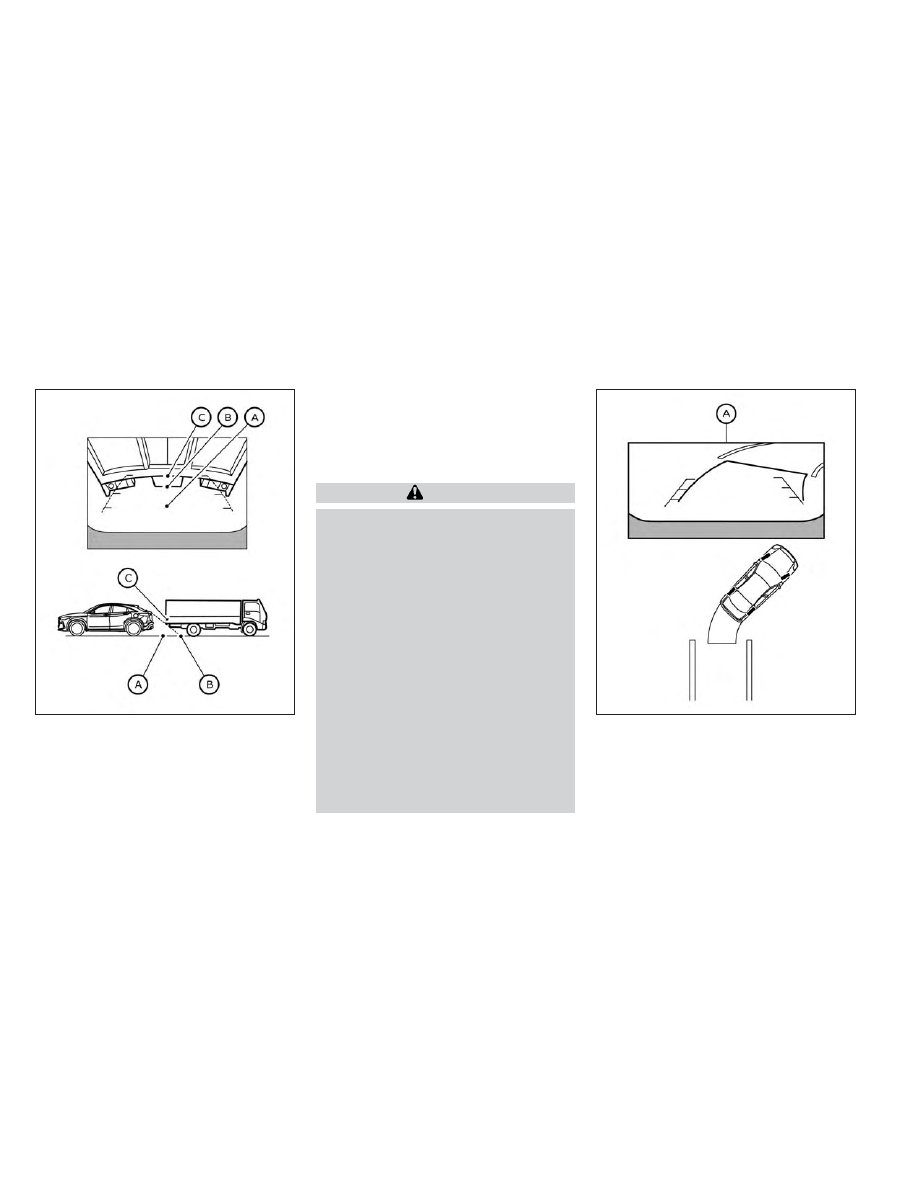

Backing up near a projecting object

The predicted course lines

O

A

do not touch

the object in the display. However, the vehicle
may hit the object if it projects over the actual
backing up course.

Backing up behind a projecting
object

The position

O

C

is shown farther than the

position

O

B

in the display. However, the po-

sition

O

C

is actually at the same distance as

the position

O

A

. The vehicle may hit the object

when backing up to the position

O

A

if the

object projects over the actual backing up
course.

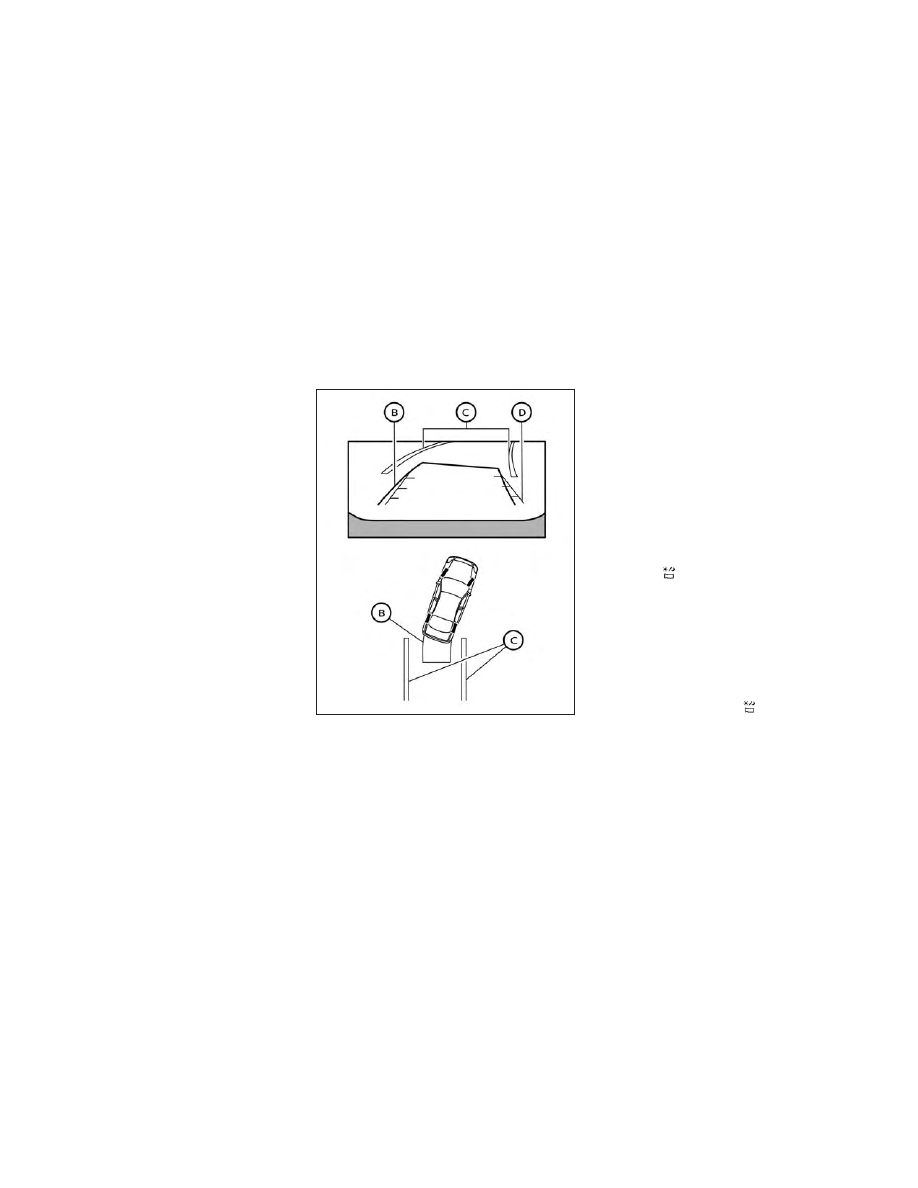

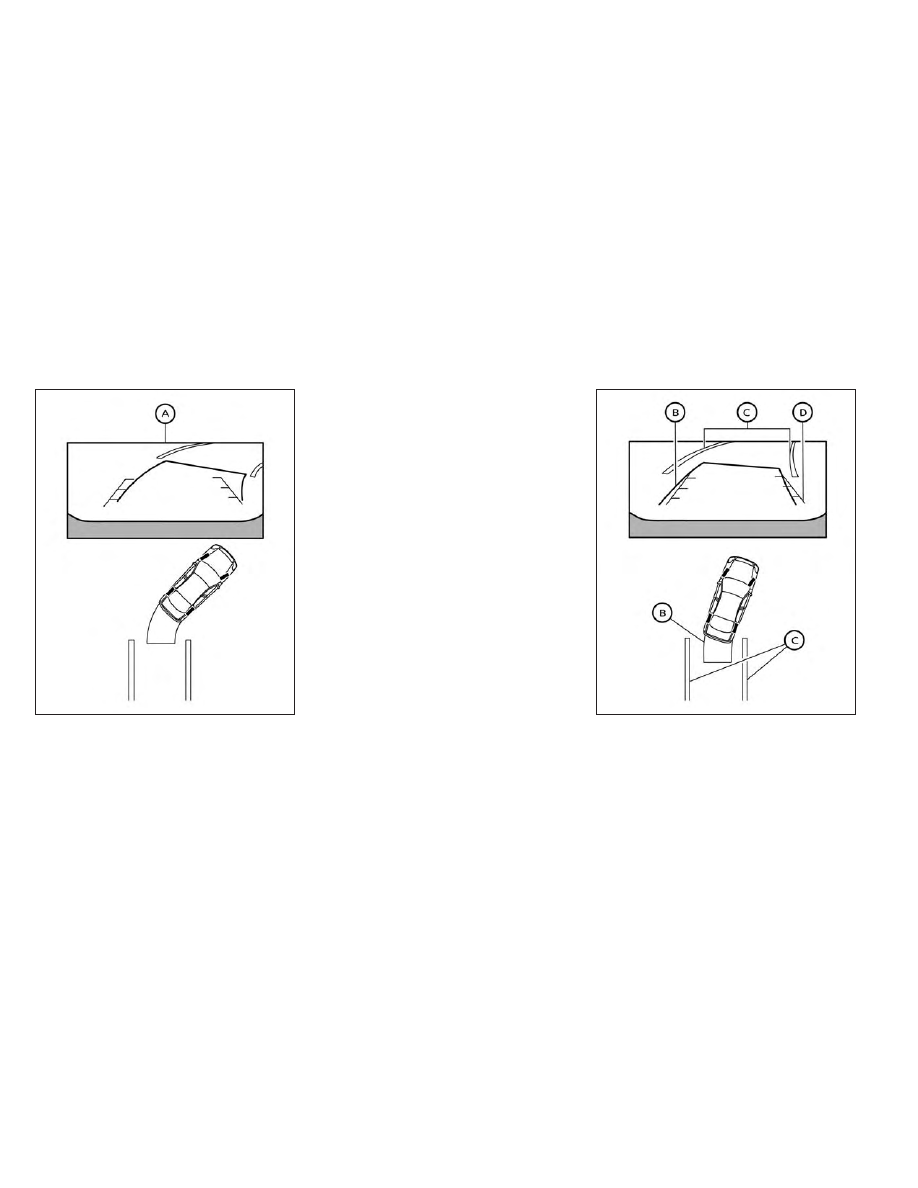

HOW TO PARK WITH
PREDICTED COURSE LINES

WARNING

If the tires are replaced with different
sized tires, the predicted course lines
may be displayed incorrectly.

On a snow-covered or slippery road,
there may be a difference between the
predicted course line and the actual
course line.

If the battery is disconnected or becomes
discharged, the predicted course lines
may be displayed incorrectly. If this oc-
curs, please perform the following
procedures:

Turn the steering wheel from lock to
lock while the engine is running.

Drive the vehicle on a straight road
for more than 5 minutes.

When the steering wheel is turned with
the ignition switch in the ON position,
the predicted course lines may be dis-
played incorrectly.

LHA4995

LHA5418

4-6

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Visually check that the parking space is

safe before parking your vehicle.

2. The rear view of the vehicle is displayed on

the screen

O

A

when the shift lever is

moved to the R (Reverse) position. When
activating the RearView Monitor, the
guide lines, the icons and the messages
may not be displayed immediately.

3. Slowly back up the vehicle adjusting the

steering wheel so that the predicted
course lines

O

B

enter the parking space

O

C

.

LHA5043

LHA4770

Monitor, climate, audio, phone and voice recognition systems

4-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Maneuver the steering wheel to make the

vehicle width guide lines

O

D

parallel to the

parking space

O

C

while referring to the

predicted course lines.

5. When the vehicle is parked in the space

completely, press the P (Park) button lo-
cated near the shift lever to place the
vehicle in the P (Park) position and apply
the parking brake.

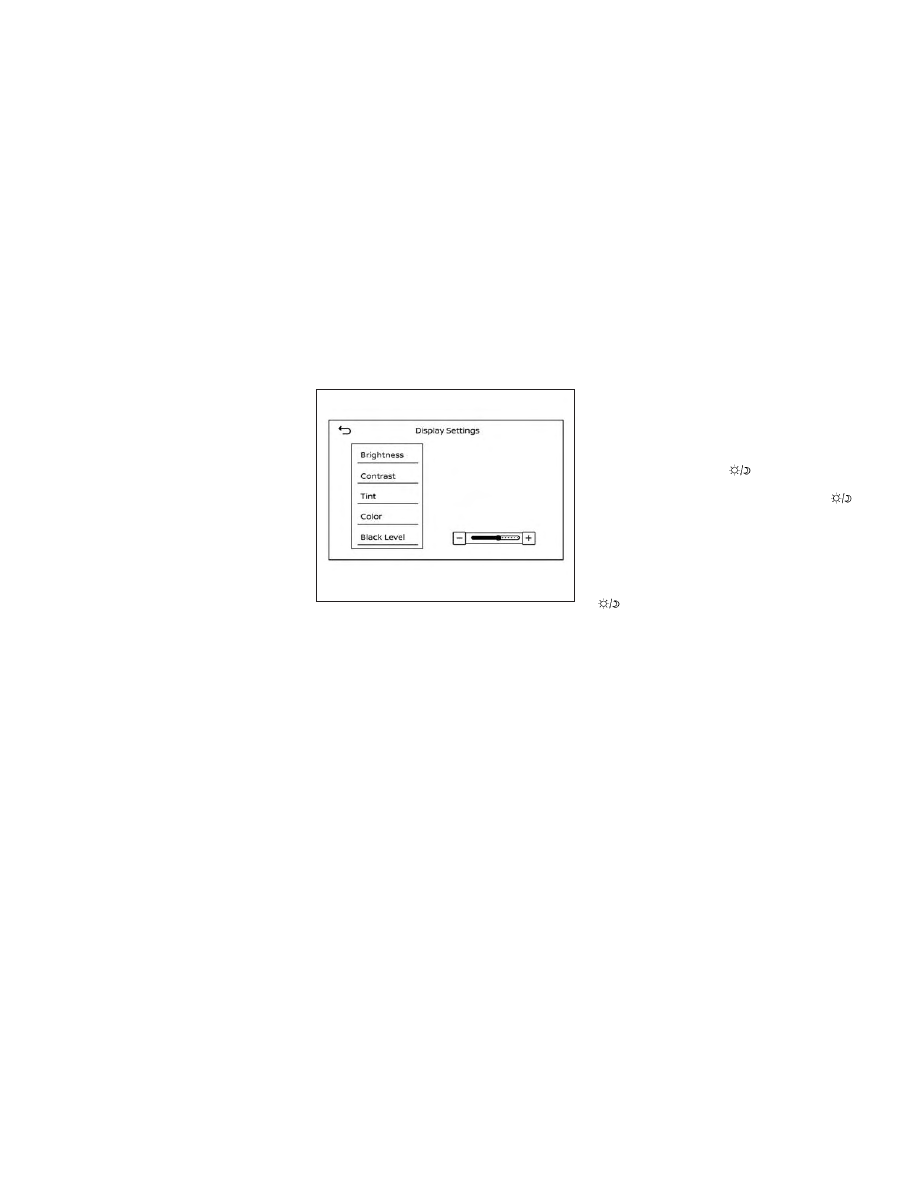

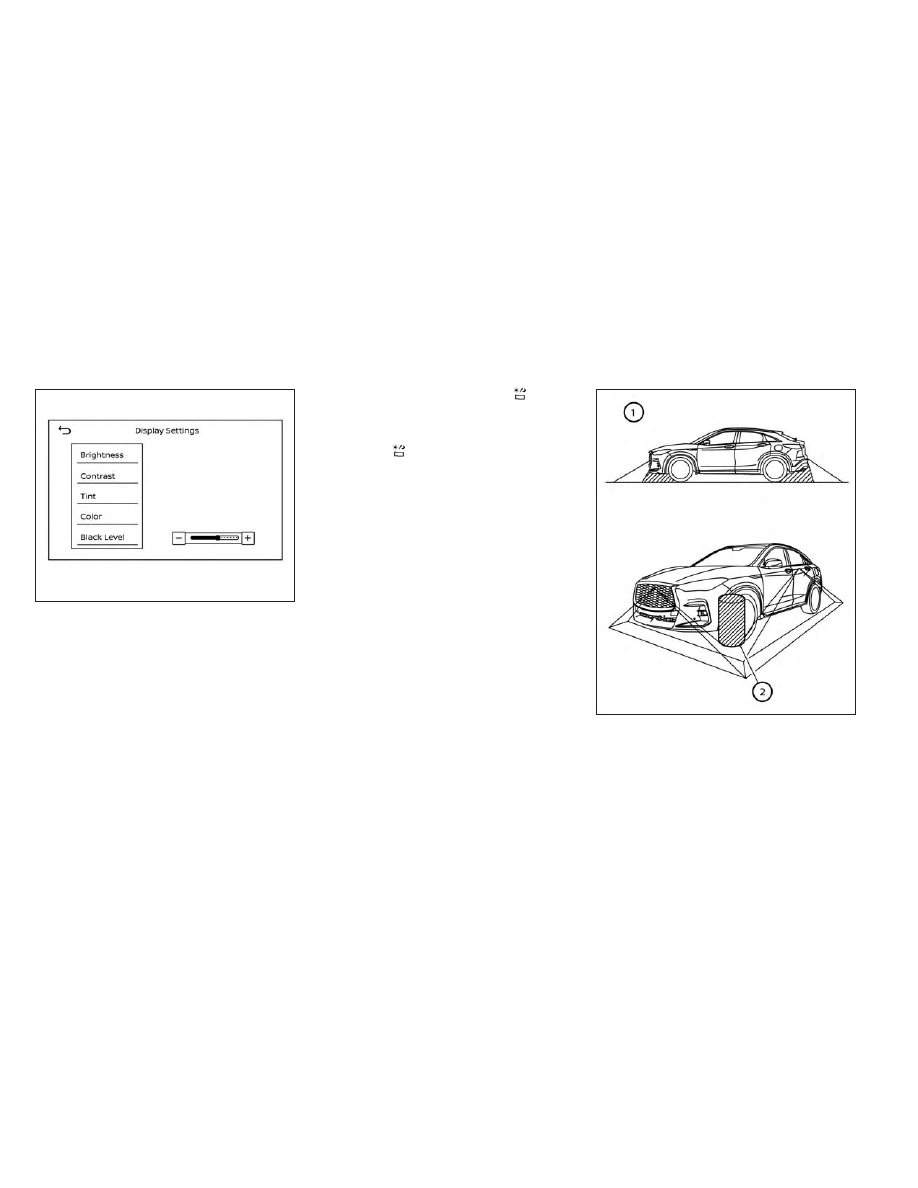

ADJUSTING THE SCREEN

The RearView Monitor settings can be
changed with the following procedure on the
upper display.

1. Press the MENU button while the Rear-

View Monitor screen is shown on the up-
per display.

2. Touch the “Settings” key and then the

“Camera” key.

3. Touch the “Display Settings” key. Select a

preferred item, “Brightness”, “Contrast”,
Tint”, “Color”, and “Black Level” of the
RearView Monitor and adjust the value by
touching the “+” or “-” key.

You can also press the

button and either

turn or move the INFINITI controller to adjust
the day/night settings. Pressing the
button again will switch the screen to AUTO
mode. While the adjustment screen is shown
on the upper display you can also touch either
“+” or “-” key.

The upper and lower display screens can be
turned on or off by pressing and holding the

button.

NOTE:

Do not adjust the Brightness, Contrast, Tint,
Color, and Black Level of the RearView
Monitor while the vehicle is moving. Make
sure the parking brake is firmly applied.

LHA5228

4-8

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

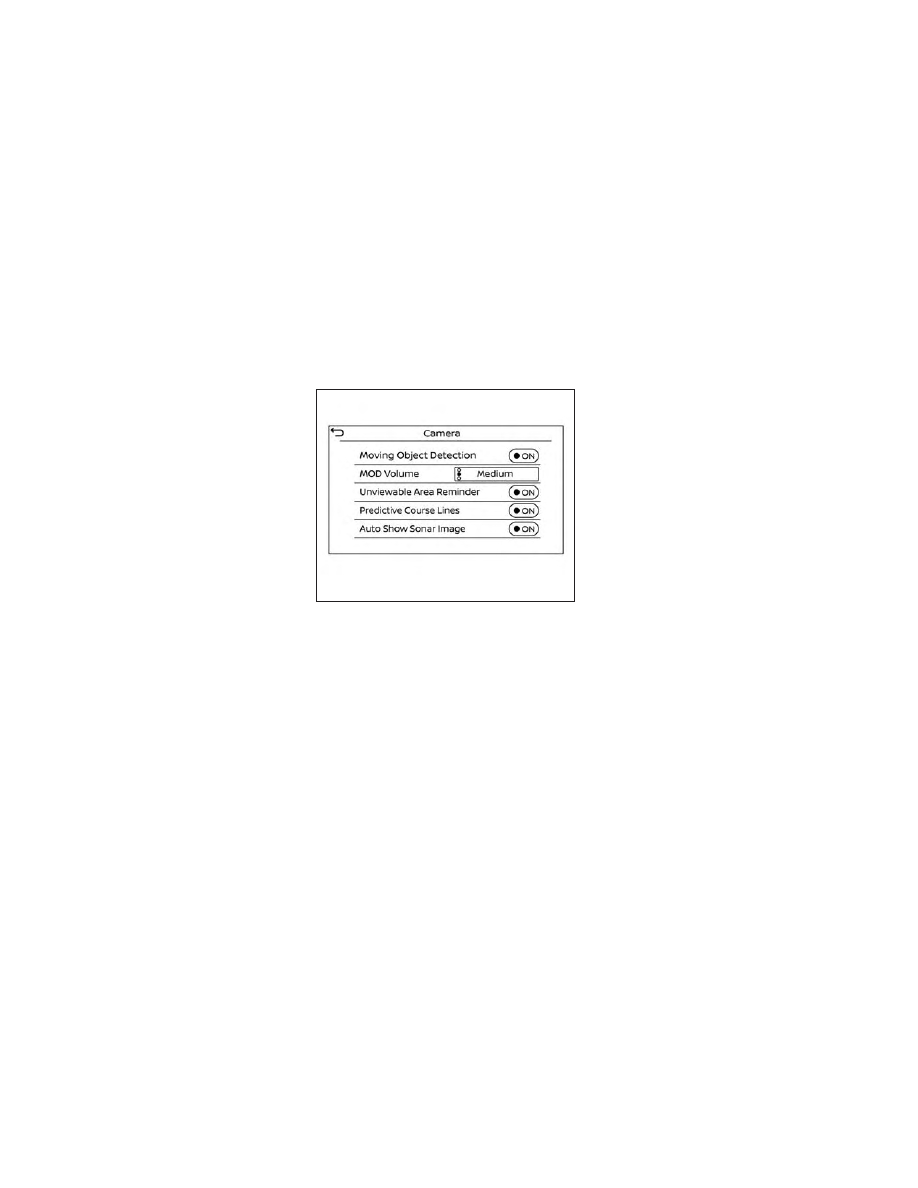

HOW TO TURN ON AND OFF
PREDICTED COURSE LINES

To toggle on and off the predicted course
lines while in the P (Park) position:

1. Press the MENU button.

2. Touch the “Settings” key.

3. Touch the “Camera” key.

4. Touch the “Predicted Course Lines” key to

turn the feature on or off.
When the predicted course lines are
turned on, the indicator light is on.

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations for
RearView Monitor. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.

The system cannot completely eliminate
blind spots and may not show every
object.

Underneath the bumper and the corner
areas of the bumper cannot be viewed on
the RearView Monitor because of its
monitoring range limitation. The system
will not show small objects below the
bumper, and may not show objects close
to the bumper or on the ground.

Objects viewed in the RearView Monitor
differ from actual distance because a
wide-angle lens is used.

Objects in the RearView Monitor will ap-
pear visually opposite compared to when
viewed in the rearview and outside
mirrors.

Use the displayed lines as a reference.
The lines are highly affected by the num-
ber of occupants, fuel level, vehicle posi-
tion, road conditions and road grade.

Make sure that the liftgate is securely
closed when backing up.

Do not put anything on the rearview
camera. The rearview camera is installed
above the license plate.

When washing the vehicle with high
pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing water
condensation on the lens, a malfunction,
fire or an electric shock.

Do not strike the camera. It is a precision
instrument. Otherwise, it may malfunc-
tion or cause damage resulting in a fire or
an electric shock.

The following are operating limitations and
do not represent a system malfunction:
• When the temperature is extremely high or

low, the screen may not clearly display
objects.

• When strong light directly shines on the

camera, objects may not be displayed
clearly.

• Vertical lines may be seen in objects on the

screen. This is due to strong reflected light
from the bumper.

• The screen may flicker under fluorescent

light.

• The colors of objects on the RearView

Monitor may differ somewhat from the ac-
tual color of objects.

• Objects on the monitor may not be clear in

a dark environment.

• There may be a delay when switching be-

tween views.

• If dirt, rain or snow accumulate on the cam-

era, the RearView Monitor may not display
objects clearly. Clean the camera.

Monitor, climate, audio, phone and voice recognition systems

4-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Do not use wax on the camera lens. Wipe

off any wax with a clean cloth dampened
with a diluted mild cleaning agent, then
wipe with a dry cloth.

SYSTEM MAINTENANCE

CAUTION

Do not use alcohol, benzine or thinner to
clean

the

camera.

This

will

cause

discoloration.

Do not damage the camera as the moni-
tor screen may be adversely affected.

If dirt, rain or snow accumulates on the cam-
era

O

1

, the RearView Monitor may not dis-

play objects clearly. Clean the camera by wip-
ing it with a cloth dampened with a diluted
mild cleaning agent and then wiping it with a
dry cloth.

LHA5415

4-10

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Upper

touch-screen

display

(upper

display)

2. Lower

touch-screen

display

(lower

display)

3. MENU button

4.

CAMERA button

LHA5419

AROUND VIEW® MONITOR (if so
equipped)

Monitor, climate, audio, phone and voice recognition systems

4-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and in-
structions for the proper use of the
Around View® Monitor system could re-
sult in serious injury or death.

The Around View® Monitor is a conve-
nience feature and is not a substitute for
proper vehicle operation because it has
areas where objects cannot be viewed.
The four corners of the vehicle in particu-
lar, are areas where objects do not al-
ways appear in the bird’s-eye, front, or
rear views. Always check your surround-
ings to be sure that it is safe to move
before operating the vehicle. Always op-
erate the vehicle slowly.

The driver is always responsible for
safety

during

parking

and

other

maneuvers.

CAUTION

Do not scratch the camera lens when clean-
ing dirt or snow from the front of the
camera.

The Around View® Monitor system is de-
signed as an aid to the driver in situations
such as slot parking or parallel parking.

The monitor displays various views of the
position of the vehicle in a split screen format.
Not all views are available at all times.

Available views:

• Front View

An approximately 150–degree view of the
front of the vehicle.

• Rear View

An approximately 150–degree view of the
rear of the vehicle.

• Bird's-Eye View

The surrounding views of the vehicle from
above.

• Front-Side View

The view around and ahead of the front
passenger's side wheel.

• Front-Wide View

An approximately 180–degree view of the
front the vehicle.

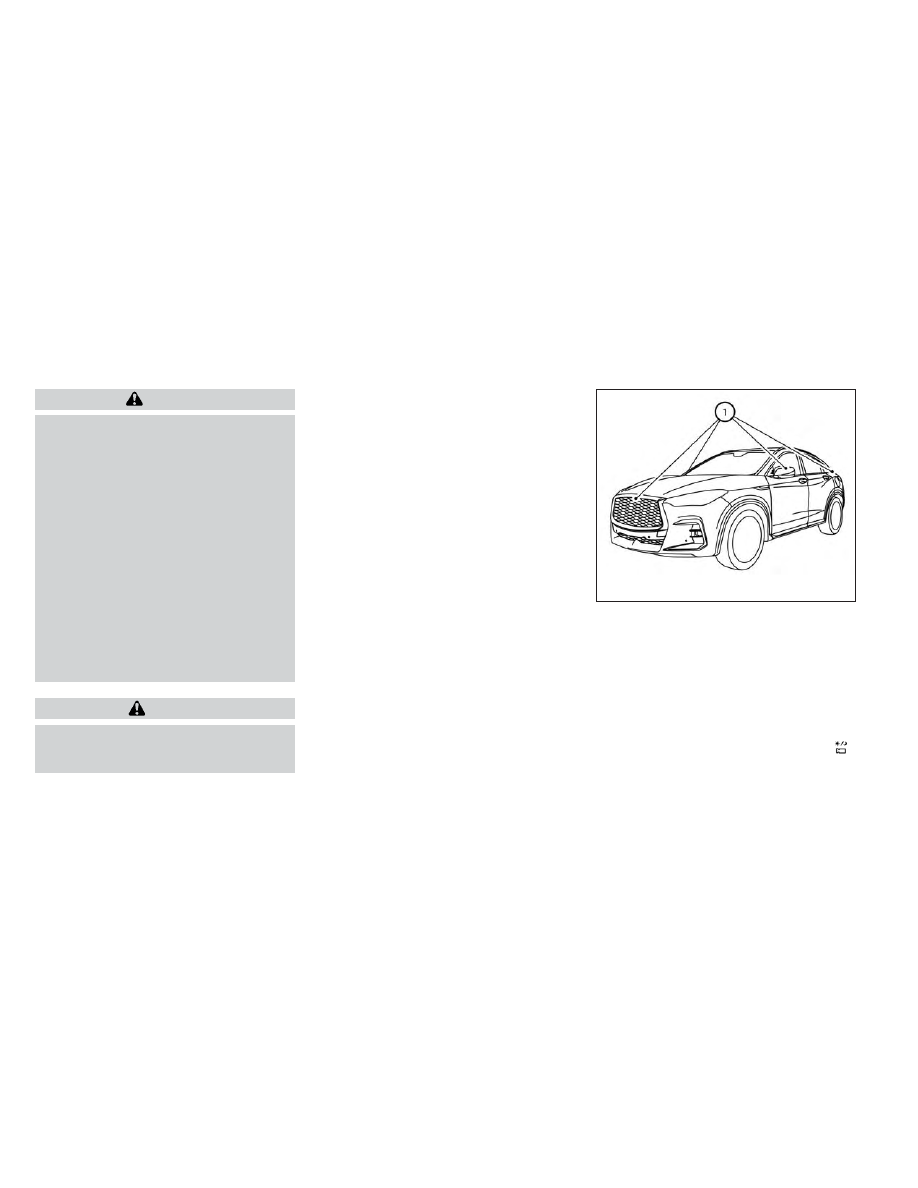

To display the multiple views, the Around
View® Monitor system uses cameras located
in the front grille, on the vehicle’s outside
mirrors and one just above the vehicle’s li-
cense plate

O

1

.

AROUND VIEW® MONITOR
SYSTEM OPERATION

With the engine running, move the shift lever
to the R (Reverse) position or press the
CAMERA button to operate the Around
View® Monitor. When activating the Around
View® Monitor, the guide lines, the icons and
the

messages

may

not

be

displayed

immediately.

LHA5420

4-12

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the camera is first activated with the
bird’s-eye view in the display, a red icon will
flash on the upper display. This indicates that
the sonar system is activated. For additional
information on the front and rear sonar sys-
tem, see “Front and rear sonar system”
(P. 5-147).

Available views

WARNING

The distance guide lines and the vehicle
width lines should be used as a reference
only when the vehicle is on a paved, level
surface. The apparent distance viewed
on the monitor may be different than the
actual distance between the vehicle and
displayed objects.

Use the displayed lines and the bird’s-
eye view as a reference. The lines and the
bird’s-eye view are greatly affected by
the number of occupants, cargo, fuel
level, vehicle position, road condition
and road grade.

If the tires are replaced with different
sized tires, the predicted course lines and
the bird's-eye view may be displayed
incorrectly.

When driving the vehicle up a hill, objects
viewed in the monitor are further than
they appear. When driving the vehicle
down a hill, objects viewed in the monitor
are closer than they appear.

Objects in the rear view will appear visu-
ally opposite compared to when viewed
in the monitor and outside mirrors.

Use the mirrors or actually look to prop-
erly judge distances to other objects.

On a snow-covered or slippery road,
there may be a difference between the
predicted course lines and the actual
course line.

The vehicle width and predicted course
lines are wider than the actual width and
course.

The displayed lines will appear slightly
off to the right, because the rearview
camera is not installed in the rear center
of the vehicle.

Front and rear view

Guiding lines that indicate the approximate
vehicle width and distance to objects with
reference to the vehicle body line

O

A

are dis-

played on the monitor.

Distance guide lines

Indicate distances from the vehicle body:
• Red line

O

1

: approximately 1.5 ft (0.5 m)

• Yellow line

O

2

: approximately 3 ft (1 m)

• Green line

O

3

: approximately 7 ft (2 m)

• Green line

O

4

: approximately 10 ft (3 m) (if

so equipped)

SAA1840

Front view

Monitor, climate, audio, phone and voice recognition systems

4-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle width guide lines

O

5

Indicate the approximate vehicle width when
backing up.

Predicted course lines

O

6

Indicate the predicted course when operating
the vehicle. The predicted course lines will be
displayed on the monitor when the steering
wheel is turned. The predicted course lines
will move depending on how much the steer-
ing wheel is turned and may not be displayed
while the steering wheel is in the straight-
ahead position.

The front view will not be displayed when the
vehicle speed is above 6 mph (10 km/h).

NOTE:

When the monitor displays the front view
and the steering wheel turns about 90 de-
grees or less from the straight-ahead posi-
tion, both the right and left predicted course
lines

O

6

are displayed. When the steering

wheel turns about 90 degrees or more, a line
is displayed only on the opposite side of the
turn.

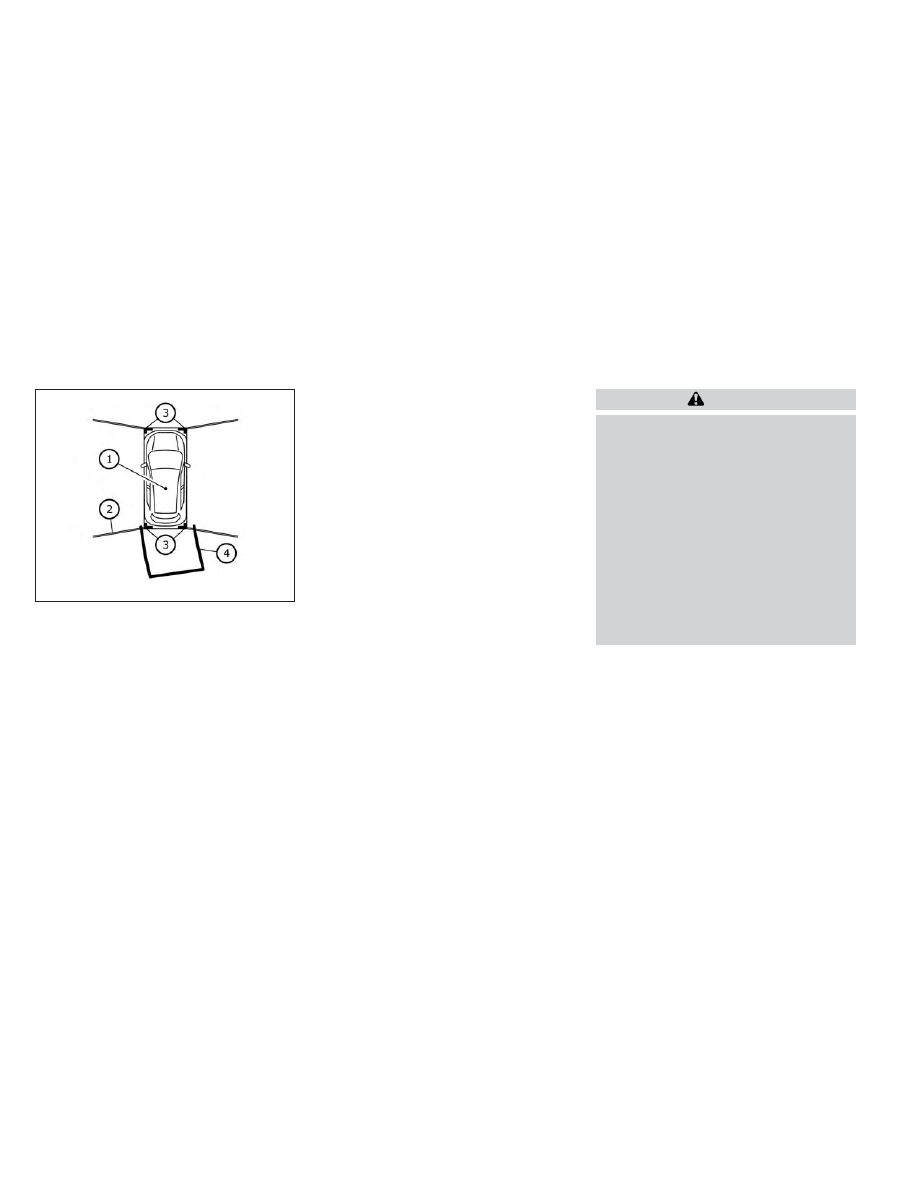

Bird’s-eye view

The bird's-eye view shows the overhead view
of the vehicle, which helps confirm the vehicle
position and the predicted course to a park-
ing space.

The vehicle icon

O

1

shows the position of the

vehicle. Note that the apparent distance be-
tween objects viewed in the bird's-eye view
may differ somewhat from the actual dis-
tance to the vehicle.

The areas that the cameras cannot cover

O

2

are indicated in black.

LHA4992

Rear view

LHA4534

Front view

4-14

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The non-viewable area

O

2

is highlighted in

yellow for several seconds after the bird’s-
eye view is displayed. It will be shown only the
first time after the ignition switch is placed in
the ON position.

In addition, the non-viewable corners are dis-
played in red and will blink for the first 3
seconds

O

3

to remind the drivers to be

cautious.

Predicted course lines

O

4

indicate the pre-

dicted course when operating the vehicle.
The predicted course lines will be displayed
on the monitor when the steering wheel is
turned. The predicted course lines will move
depending on how much the steering wheel is
turned.

When the monitor displays the front view and
the steering wheel turns about 90 degrees or
less from the neutral position, the two green
predicted course lines are shown in front of
the vehicle.

When the steering wheel turns about 90 de-
grees or more, one green predicted course
line is shown in front of the vehicle and the
other predicted course line is shown at the
side of the vehicle.

When the monitor displays the rear view, the
predicted course lines are shown at the back
of the vehicle.

WARNING

Objects in the bird's-eye view will appear
further than the actual distance.

Tall objects, such as a curb or vehicle,
may be misaligned or not displayed at
the seam of the views.

Objects that are above the camera can-
not be displayed.

The view of the bird's-eye view may be
misaligned when the camera position
alters.

A line on the ground may be misaligned
and is not seen as being straight at the
seam of the views. The misalignment will
increase as the line proceeds away from
the vehicle.

LHA4535

Rear view

Monitor, climate, audio, phone and voice recognition systems

4-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Front-side view

Guiding lines

Guiding lines that indicate the approximate
width and the front end of the vehicle are
displayed on the monitor.

The front-of-vehicle line

O

1

shows the front

part of the vehicle.

The side-of-vehicle line

O

2

shows the ap-

proximate vehicle width including the outside
mirrors.

The extensions

O

3

of both the front

O

1

and

side

O

2

lines are shown with a green dotted

line.

Front-wide view

The front-wide view shows a wider area on
the entire screen and allows the checking of
the blind corners on right and left sides. The
front-view displays an approximately 150-
degree area. The predicted course lines are
not displayed when using the front-wide
view.

Distance guide lines

Indicates distances from the vehicle body:
• Red line

O

1

: approximately 1.5 ft (0.5 m)

• Yellow line

O

2

: approximately 3 ft (1 m)

• Green line

O

3

: approximately 7 ft (2 m)

• Green line

O

4

: approximately 10 ft (3 m) (if

so equipped)

Vehicle width guide lines

O

5

Indicate the vehicle width when backing up.

DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES

The displayed guidelines and their locations
on the ground are for approximate reference
only. Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in
the monitor relative to the guidelines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or
park and exit the vehicle to view the position-
ing of objects behind the vehicle.

LHA2652

LHA4555

Front-wide view

4-16

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the upper display.

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the upper display.

Backing up near a projecting object

The predicted course lines

O

A

do not touch

the object in the display. However, the vehicle
may hit the object if it projects over the actual
backing up course.

LHA5416

LHA5417

LHA4995

Monitor, climate, audio, phone and voice recognition systems

4-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Backing up behind a projecting
object

The position

O

C

is shown farther than the

position

O

B

in the display. However, the po-

sition

O

C

is actually at the same distance as

the position

O

A

. The vehicle may hit the object

when backing up to the position

O

A

if the

object projects over the actual backing up
course.

HOW TO PARK WITH
PREDICTED COURSE LINES

WARNING

If the tires are replaced with different
sized tires, the predicted course lines
may be displayed incorrectly.

On a snow-covered or slippery road,
there may be a difference between the
predicted course line and the actual
course line.

If the battery is disconnected or becomes
discharged, the predicted course lines
may be displayed incorrectly. If this oc-
curs, please perform the following
procedures:

Turn the steering wheel from lock to
lock while the engine is running.

Drive the vehicle on a straight road
for more than 5 minutes.

When the steering wheel is turned with
the ignition switch in the ON position,
the predicted course lines may be dis-
played incorrectly.

1. Visually check that the parking space is

safe before parking your vehicle.

LHA5418

LHA5043

4-18

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. The rear view of the vehicle is displayed on

the screen

O

A

when the shift lever is

moved to the R (Reverse) position. When
activating the Around View® Monitor, the
guide lines, the icons and the messages
may not be displayed immediately.

3. Slowly back up the vehicle adjusting the

steering wheel so that the predicted
course lines

O

B

enter the parking space

O

C

.

4. Maneuver the steering wheel to make the

vehicle width guide lines

O

D

parallel to the

parking space

O

C

while referring to the

predicted course lines.

5. When the vehicle is parked in the space

completely, press the P (Park) button lo-
cated near the shift lever to place the
vehicle in the P (Park) position and apply
the parking brake.

HOW TO SWITCH THE DISPLAY

With the ignition switch in the ON position,
press the

CAMERA button or with the

engine running, move the shift lever to the R
(Reverse) position to operate the Around
View® Monitor.

The Around View® Monitor displays differ-
ent split screen views depending on the posi-
tion of the shift lever. When activating the
Around View® Monitor, the guide lines, the
icons and the messages may not be displayed
immediately. Press the

CAMERA but-

ton or touch the “Change View” key to switch
between the available views.

If the shift lever is in the R (Reverse) position,
the available views are:
• Rear view/bird’s-eye view split screen
• Rear view/front-side view split screen

LHA4770

Monitor, climate, audio, phone and voice recognition systems

4-19

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the shift position is in the P (Park) or D
(Drive) position, the available views are:
• Front view/bird’s-eye view split screen
• Front view/front-side view split screen
• Front-wide view

The display will switch from the Around
View® Monitor screen when:
• The shift lever is in the D (Drive) position

and the vehicle speed increases above ap-
proximately 6 mph (10 km/h).

• A different screen is selected.

AROUND VIEW® MONITOR
SETTINGS

To set up the Around View® Monitor to your
preferred settings, press the MENU button,
touch the “Settings” key, then touch the
“Camera” key on the lower display then touch
the “Camera” key again.
For additional information about the sonar,
see “Camera aiding sonar (parking sensor)”
(P. 4-24). For information about the display
screen adjustment, see “Adjusting the screen”
(P. 4-21).

Designs and items displayed on the screen
may vary depending on model.

Moving Object Detection

When this item is turned on, the MOD is
activated. When this item is turned off (indi-
cator turns off), the

MOD

system is

deactivated.

MOD Volume

Adjusts the MOD volume between “High”,
“Medium” or “Low” by touching the key on the
display screen.

Unviewable Area Reminder

With this item turned on, the non-viewable
area is highlighted in yellow for three seconds
after the bird's-eye view is displayed. It will
only be shown the first time after the ignition
switch is placed in the ON position.

Predicted Course Lines

When this item is turned on, the predicted
course lines are displayed in the front view,
rear view and bird's-eye view.

Auto Show Sonar Image

When the sonar detects an object while this
item is turned on, the Around View® Monitor
will interrupt the current view in the display to
show the surrounding area of the vehicle.

LHA5460

4-20

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ADJUSTING THE SCREEN

The Around View® Monitor settings can be
changed with the following procedure on the
upper display.

1. Press the MENU button.

2. Touch the “Settings” key and then the

“Camera” key.

3. Touch the “Display Settings” key. Select a

preferred item, “Brightness”, ”Contrast”,
Tint”, “Color”, and “Black Level” of the
Around View® Monitor and adjust the
value by touching the “+” or “-” key.

You can also press and hold the

CAM-

ERA button and either turn or move the
INFINITI controller to the left or the right to
adjust the day/night settings. Pressing and
holding the

CAMERA button again will

switch the screen to AUTO mode. While the
adjustment screen is shown on the upper or
lower display you can also touch either “+” or
“-” key.

NOTE:

Do not adjust the Brightness, Contrast, Tint,
Color, and Black Level of the Around View®
Monitor while the vehicle is moving. Make
sure the parking brake is firmly applied.

AROUND VIEW® MONITOR
SYSTEM LIMITATIONS

LHA5228

LHA5421

Monitor, climate, audio, phone and voice recognition systems

4-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Listed below are the system limitations for
Around View® Monitor. Failure to operate
the vehicle in accordance with these sys-
tem limitations could result in serious in-
jury or death.

Do not use the Around View® Monitor
with the outside mirrors in the stored po-
sition, and make sure that the liftgate is
securely closed when operating the ve-
hicle using the Around View® Monitor.

The apparent distance between objects
viewed on the Around View® Monitor
differs from the actual distance.

The cameras are installed on the front
grille, the outside mirrors and above the
rear license plate. Do not put anything on
the vehicle that covers the cameras.

When washing the vehicle with high
pressure water, be sure not to spray it
around the cameras. Otherwise, water
may enter the camera unit causing water
condensation on the lens, a malfunction,
fire or an electric shock.

Do not strike the cameras. They are pre-
cision instruments. Doing so could cause
a malfunction or cause damage resulting
in a fire or an electric shock.

There are some areas where the system will
not show objects and the system does not
warn of moving objects. When in the front or
rear view display, an object below the bum-
per or on the ground may not be viewed

O

1

.

When in the bird’s-eye view, a tall object near
the seam

O

2

of the camera viewing areas will

not appear in the monitor.

The following are operating limitations and
do not represent a system malfunction:
• There may be a delay when switching be-

tween views.

• When the temperature is extremely high or

low, the screen may not display objects
clearly.

• When strong light directly shines on the

camera, objects may not be displayed
clearly.

• The screen may flicker under fluorescent

light.

• The colors of objects on the Around View®

Monitor may differ somewhat from the ac-
tual color of objects.

• Objects on the Around View® Monitor may

not be clear and the color of the object may
differ in a dark environment.

• There may be differences in sharpness be-

tween each camera view of the bird's-eye
view.

• Do not use wax on the camera lens. Wipe

off any wax with a clean cloth that has
been dampened with a diluted mild clean-
ing agent, then wipe with a dry cloth.

4-22

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

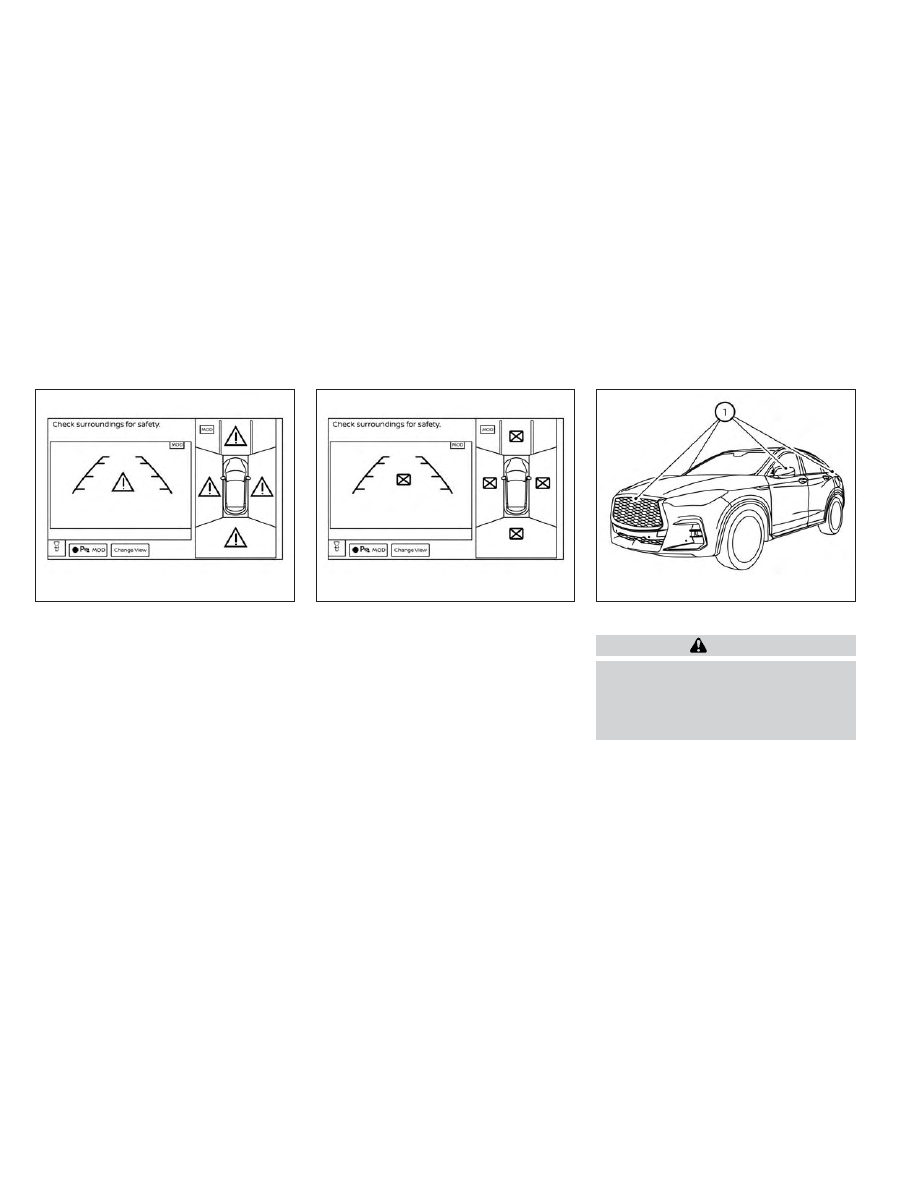

System temporarily unavailable

When the “!” icon is displayed on the screen,
there are abnormal conditions in the Around
View® Monitor. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit an
INFINITI retailer for this service.

When the “[X]” icon is displayed on the
screen, the camera image may be receiving
temporary electronic disturbances from sur-
rounding devices. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit an
INFINITI retailer for this service.

SYSTEM MAINTENANCE

CAUTION

Do not use alcohol, benzine or thinner to
clean

the

camera.

This

will

cause

discoloration.

Do not damage the cameras as the moni-
tor screen may be adversely affected.

If dirt, rain or snow accumulates on any of the
cameras

O

1

, the Around View® Monitor may

not display objects clearly. Clean the camera
by wiping with a cloth dampened with a di-
luted mild cleaning agent and then wiping
with a dry cloth.

LHA5236

LHA5237

LHA5420

Monitor, climate, audio, phone and voice recognition systems

4-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     5      6      7      8     ..
