High Beam Assist operation

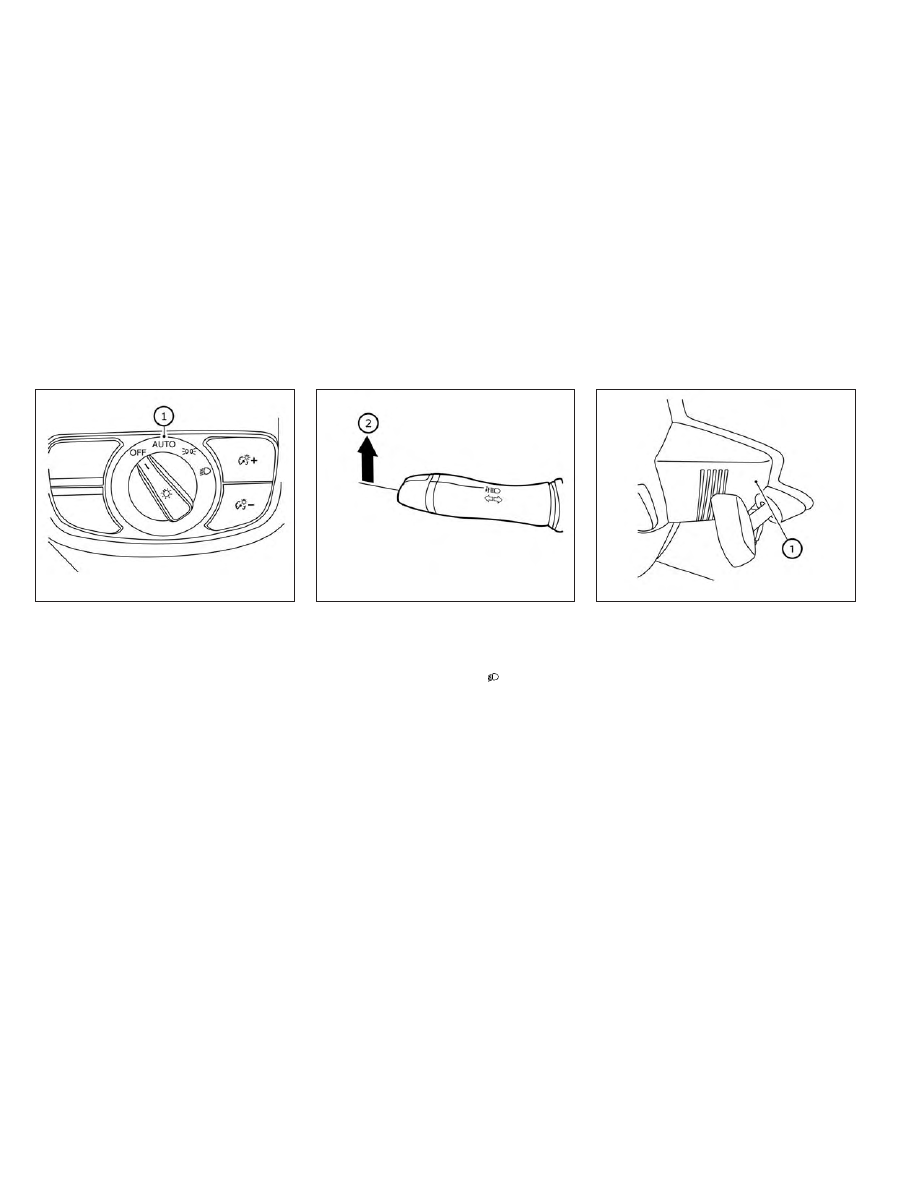

To activate the High Beam Assist system,
turn the headlight switch to the AUTO posi-
tion

O

1

and push the lever forward

O

2

(high

beam position). The High Beam Assist indica-
tor light in the meter will illuminate while the
headlights are turned on.

If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. Have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.

When the vehicle speed lowers to less than
approximately 16 mph (25 km/h), the head-
light uses the low beam.

To turn off the High Beam Assist system, turn
the headlight switch to the

position or

select the low beam position by placing the
lever in the neutral position.

Ambient image sensor maintenance

The ambient image sensor

O

1

for the High

Beam Assist system is located in front of the
inside mirror. To maintain the proper opera-
tion of the High Beam Assist system and
prevent a system malfunction, be sure to ob-
serve the following:
• Always keep the windshield clean.
• Do not attach a sticker (including transpar-

ent material) or install an accessory near
the ambient image sensor.

• Do not strike or damage the areas around

the ambient image sensor. Do not touch the
sensor lens that is located on the ambient
image sensor.

LIC3819

LIC3821

LIC4259

2-44

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.

Battery saver system

The battery saver system automatically turns
off the ignition after a period of time when
the ignition switch is left in the AUTO ACC or
ON position.

The battery saver system automatically turns
off the following lights after a period of time
when the ignition switch is placed in the OFF
position and the doors are closed:
• Headlights, when the headlight switch is in

the

or

position

• Interior lights, when left in the ON position

CAUTION

Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.

Adaptive Front lighting System
(AFS) (if so equipped)

The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low
beam) toward the turning direction to im-
prove the driver’s view. When the headlight
switch is on and the driver operates the steer-
ing wheel in a turn, the AFS system will be
activated.

The AFS will operate:
• when the headlight switch is on.
• when the shift position is in any position

other than P (Park) or R (Reverse).

• when the vehicle is driven at above 16 mph

(25 km/h) for the left-side headlight. Note
that the right-side low beam headlight will
swivel but the left side will not swivel when
the vehicle is at a stop and the steering
wheel is turned. The vehicle must attain a
speed above 16 mph (25 km/h) before AFS
activates the left-side headlight.

AFS will also adjust the headlight to a proper
axis automatically, depending on the number
of occupants in the vehicle, the load the ve-
hicle is carrying and the road conditions.

If the AFS OFF indicator blinks or the vehicle
information display shows an AFS system
error message after the ignition switch has

been pushed to the ON position, this may
indicate that the AFS is not functioning prop-
erly. Have the system checked. It is recom-
mended you visit an INFINITI retailer for this
service. When the engine is started, the head-
lights will vibrate to check the system condi-
tion. This is not a malfunction.

Automatic headlight aiming control
(if so equipped)

Your vehicle is equipped with an automatic
headlight levelling system. The headlight axis
is controlled automatically.

INFINITI recommends that you consult the
local regulations on the use of lights.

LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM

The LED portion of the headlights automati-
cally illuminate at 100% intensity when the
engine is started and the parking brake re-
leased. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the AUTO or OFF position. When
you turn the headlight switch to the
position for full illumination, the LED lights
switch from LED DRL system to the park
function.

Instruments and controls

2-45

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the parking brake is applied before the
engine is started, the LED DRL system does
not illuminate. The LED DRL system illumi-
nates when the parking brake is released. The
LED DRL system will remain on until the
ignition switch is placed in the OFF position.

It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the AUTO or OFF position.

WARNING

When the LED DRL system is active, tail
lights on your vehicle are not on. It is nec-
essary at dusk to turn on your headlights.
Failure to do so could cause an accident
injuring yourself and others.

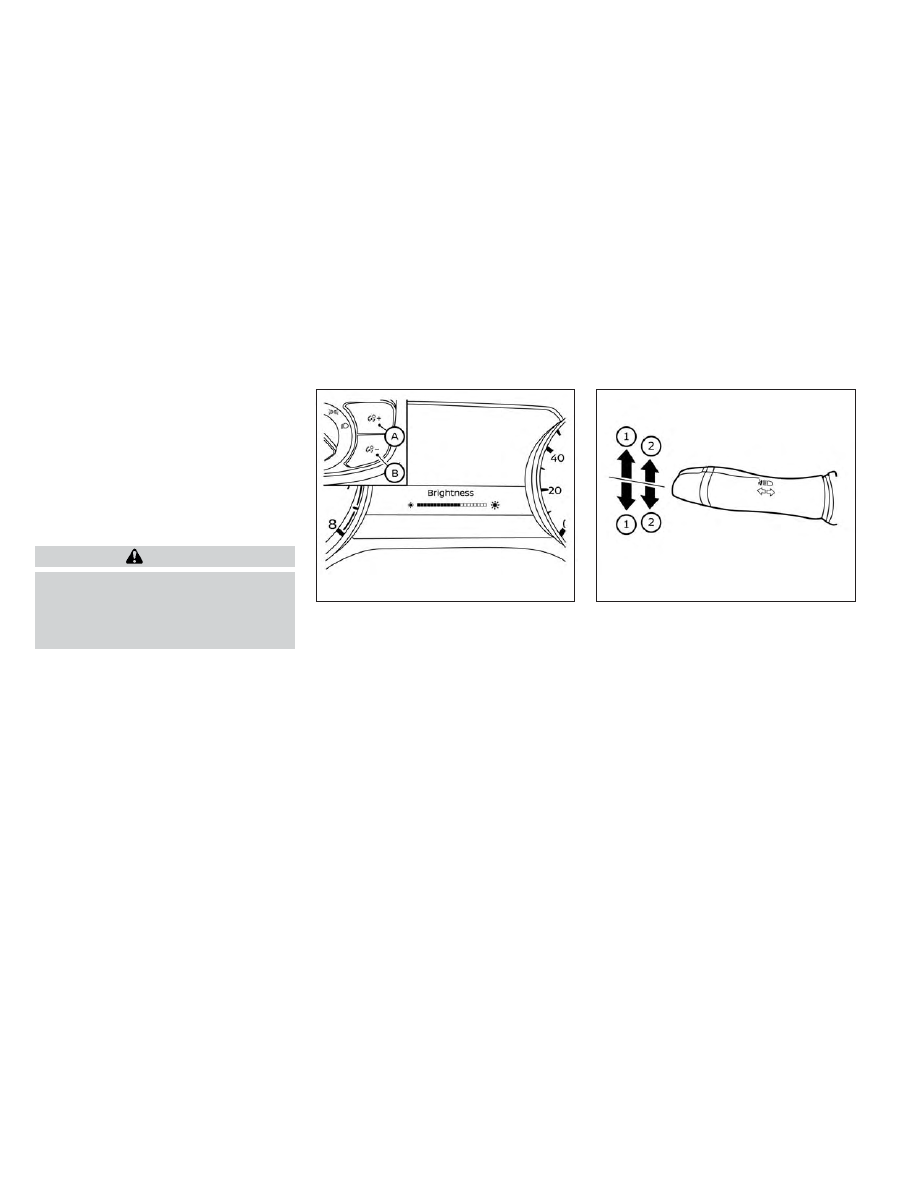

INSTRUMENT BRIGHTNESS
CONTROL

Press the “+” button

O

A

to increase the bright-

ness of instrument panel lights.

Press the “-” button

O

B

to decrease the

brightness of instrument panel lights.

TURN SIGNAL SWITCH
Turn signal

1

Move the lever up or down to signal the
turning direction. When the turn is com-
pleted,

the

turn

signal

cancels

automatically.

Lane change signal

2

Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, to signal a lane change. Hold
the lever until the lane change is
completed.

LIC4267

LIC3823

2-46

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, and release the lever. The turn signal
will automatically flash three times.

Choose the appropriate method to signal a
lane change based on road and traffic
conditions.

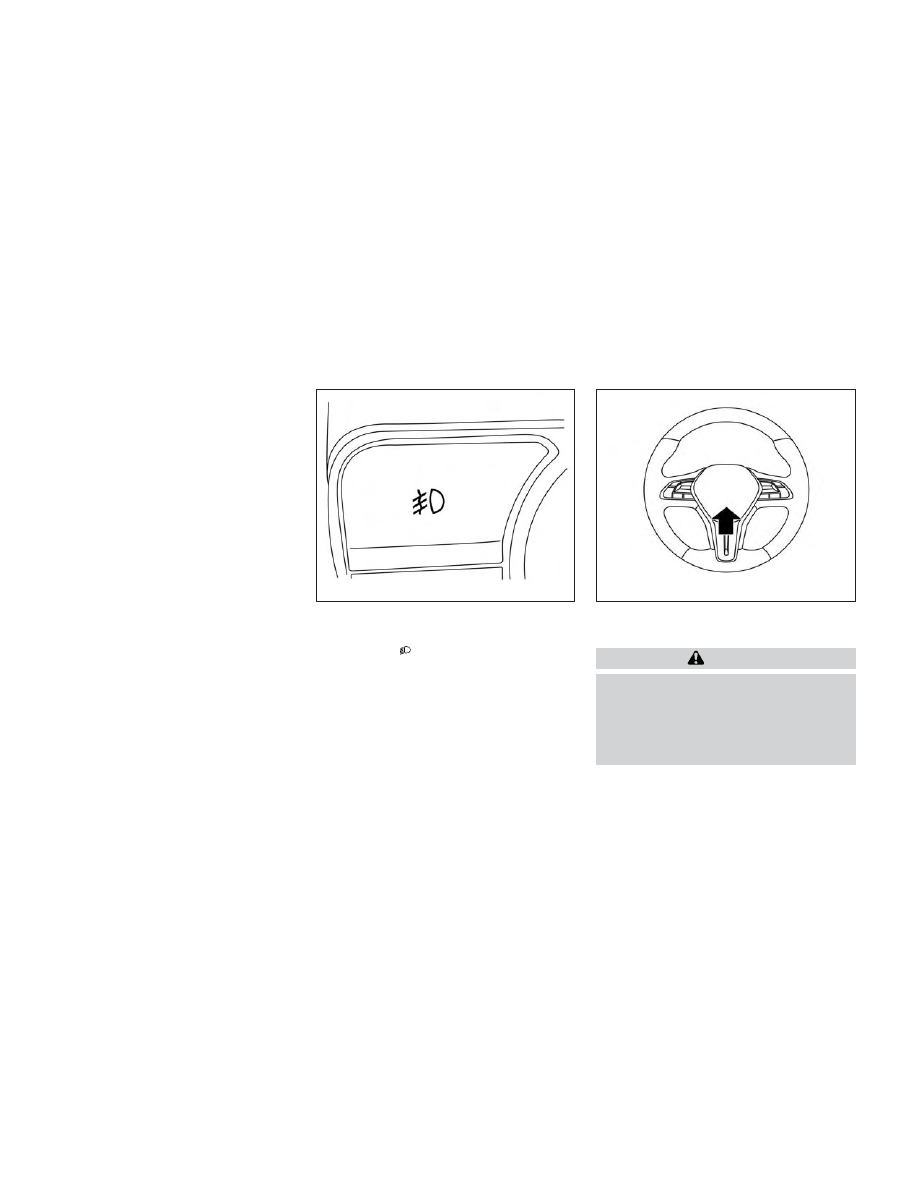

FOG LIGHT SWITCH

To turn the fog lights on, turn the headlight
switch to the

position, then push the fog

light switch on.

To turn the fog lights on with the headlight
switch in the AUTO position, the headlights
must be on, then push the fog light switch on.

To turn the fog lights off, push the fog light
switch again.

The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high
beam headlights are selected.

To sound the horn, push near the horn icon on
the steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
injury.

LIC3824

LIC4757

HORN

Instruments and controls

2-47

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not use or allow occupants to use the
climate controlled seats if you or the occu-
pants cannot monitor seat temperatures
or have an inability to feel pain in those
body parts in contact with the seat. Use of
the climate controlled seats by such people
could result in serious injury.

CAUTION

The battery could run down if the climate
control seat is operated while the engine
is not running.

Do not use the climate control seat for
extended periods or when no one is using
the seat.

Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.

Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
objects. This may result in damage to the
climate controlled seat.

Any liquid spilled on the seat should be
removed immediately with a dry cloth.

When cleaning the seat, never use gaso-
line, benzine, thinner, or any similar
materials.

If any malfunctions are found or the cli-
mate controlled seat does not operate,
turn the switch off and have the system
checked. It is recommended that you
visit an INFINITI retailer for this service.

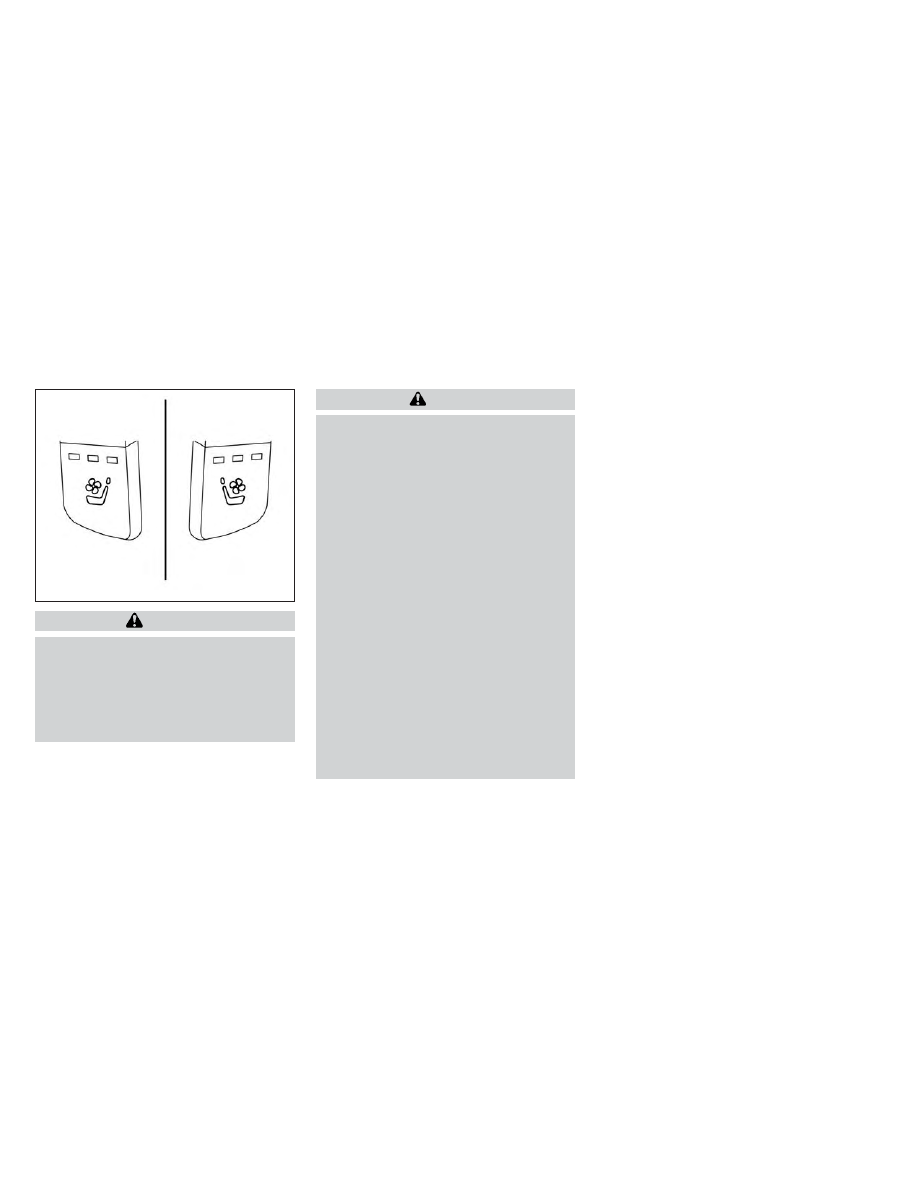

The climate controlled seat cools down the
front seat by blowing cool air from under the
surface of the seat. The climate control
switch is located on the center console.

The climate controlled seat can be operated
as follows:

1. Place the ignition switch in the ON

position.

2. Push the climate controlled seat switches

to cool the seat. The indicator light on the
corresponding switch will illuminate.

3. Adjust the desired amount of air by push-

ing the switch again. The climate con-
trolled seat blower remains on low speed
for approximately 60 seconds after push-
ing the switch on.

4. When the vehicle's interior is warmed or

cooled, or before you leave the vehicle, be
sure to turn off the climate controlled
seats. To turn off the climate controlled
seats, push the switch until the indicator
light does not illuminate.

LIC3905

CLIMATE CONTROLLED SEAT
SWITCHES (if so equipped)

2-48

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in seri-
ous injury.

CAUTION

The battery could run down if the seat
heater is operated while the engine is not
running.

Do not use the seat heater for extended
periods or when no one is using the seat.

Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.

Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.

Any liquid spilled on the heated seat
should be removed immediately with a
dry cloth.

When cleaning the seat, never use gaso-
line, benzine, thinner, or any similar
materials.

If any malfunctions are found or the
heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service.

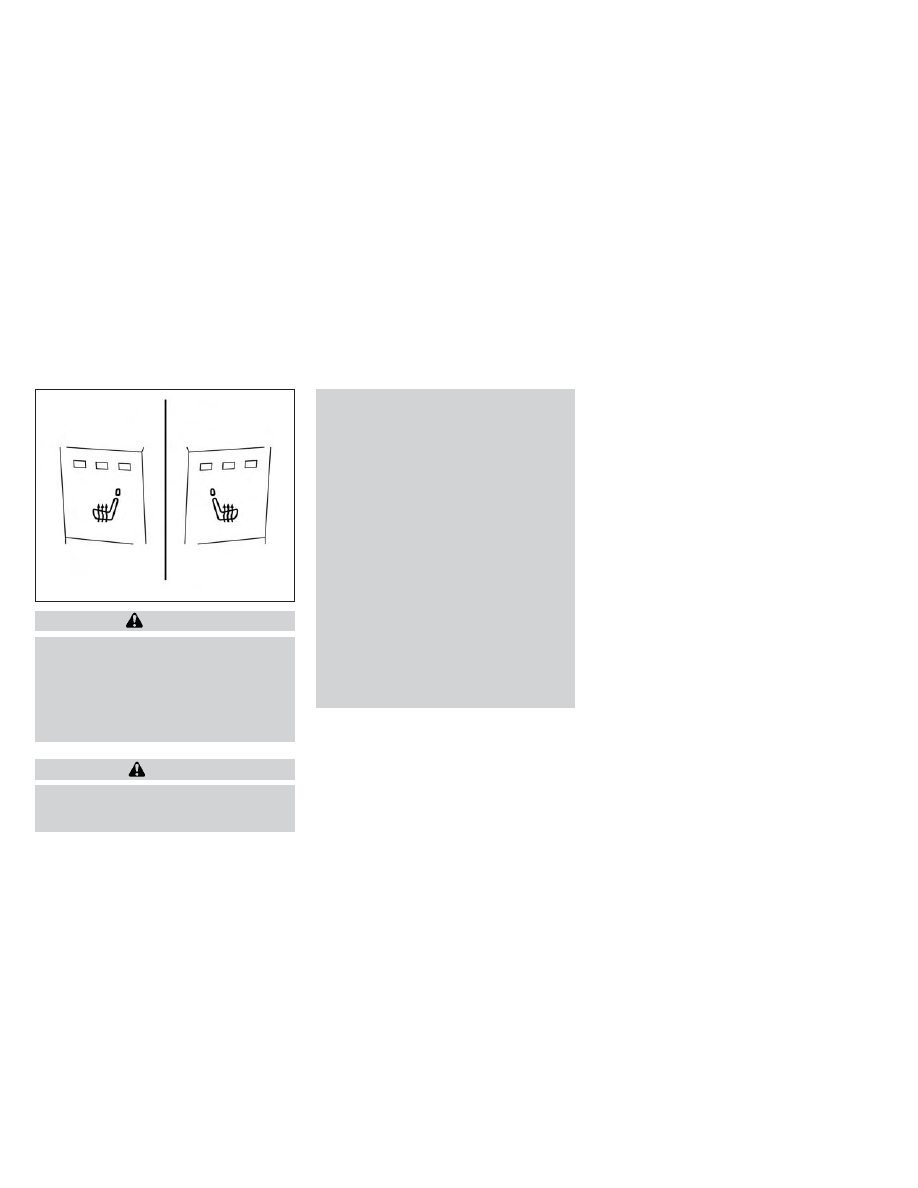

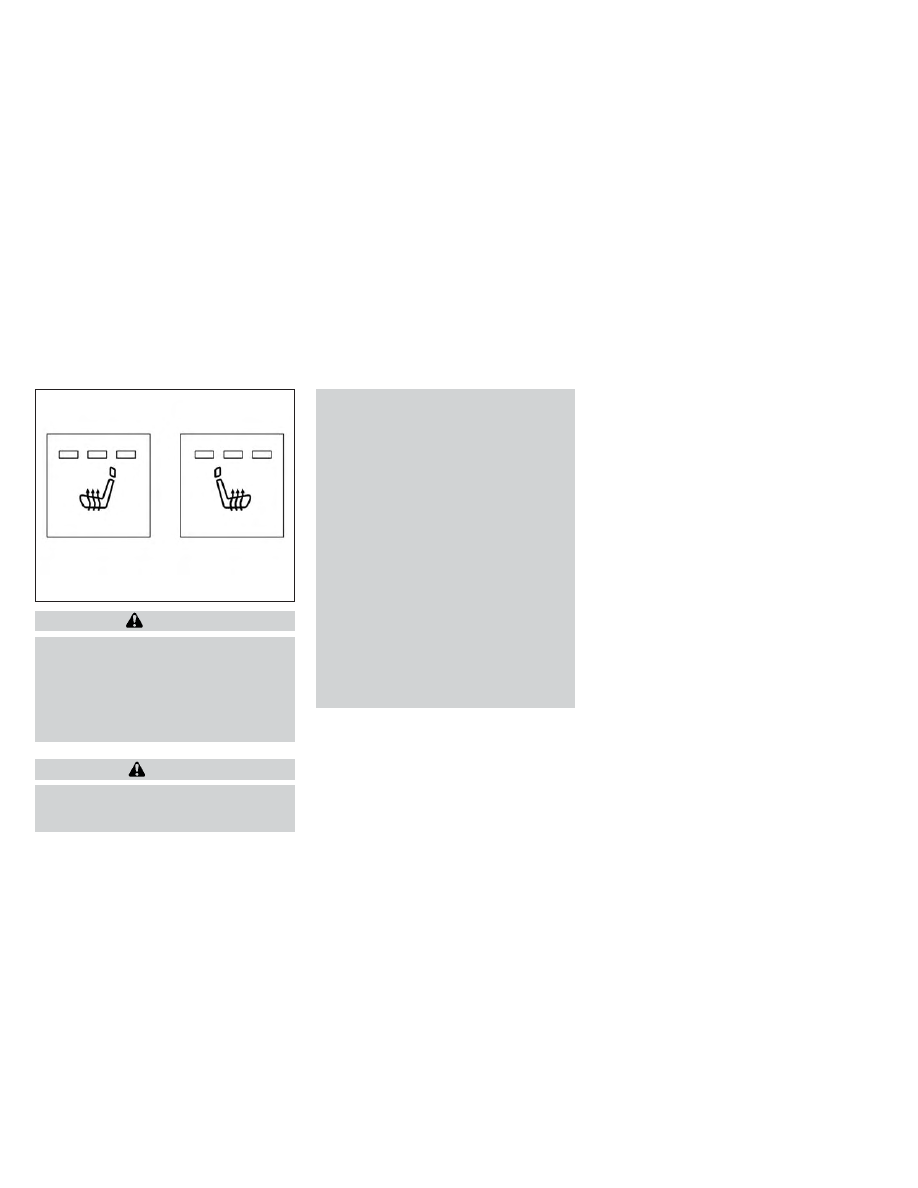

The front seats are warmed by built-in heat-
ers. The switches are located on the center
console and can be operated independently
of each other.

1. Place the ignition switch in the ON

position.

2. Push the heated seat switch and select

the desired heat range.

• For high heat, push the switch once.
• For medium heat, push the switch twice.
• For low heat, push the switch three times.
• The indicator light will illuminate when the

heater is on.

3. To turn off the heater, push the heated

seat switch again. Make sure that the in-
dicator light turns off.

The heater is controlled by a control mod-
ule, automatically turning the heater on
and off.

The indicator light will remain on as long
as the switch is on.

When the seat is warmed, or before you
leave the vehicle, be sure to turn the
switch off.

NOTE:

For additional information, see “Heater and
air conditioner (automatic)” (P. 4-33).

LIC3906

HEATED SEATS (if so equipped)

Instruments and controls

2-49

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in seri-
ous injury.

CAUTION

The battery could run down if the seat
heater is operated while the engine is not
running.

Do not use the seat heater for extended
periods or when no one is using the seat.

Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.

Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.

Any liquid spilled on the heated seat
should be removed immediately with a
dry cloth.

When cleaning the seat, never use gaso-
line, benzine, thinner, or any similar
materials.

If any malfunctions are found or the
heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service.

Switch operation:

The rear seats are warmed by built-in heat-
ers. The switches are located on the center
console and can be operated independently
of each other.

1. Place the ignition switch in the ON

position.

2. Push the heated seat switch and select

the desired heat range.

• For high heat, push the switch once.
• For medium heat, push the switch twice.
• For low heat, push the switch three times.
• The indicator light will illuminate when the

heater is on.

3. To turn off the heater, push the heated

seat switch again. Make sure that the in-
dicator light turns off.

The heater is controlled by a control mod-
ule, automatically turning the heater on
and off.

The indicator light will remain on as long
as the switch is on.

When the seat is warmed, or before you
leave the vehicle, be sure to turn the
switch off.

NOTE:

For additional information, see “Heater and
air conditioner (automatic)” (P. 4-33).

LIC4697

HEATED REAR SEAT SWITCHES (if
so equipped)

2-50

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The Steering Assist switch is used to turn on
and off the Steering Assist system that is
activated using the settings menu of the ve-
hicle information display.

The Steering Assist system controls the
steering system to help keep your vehicle
near the center of the lane when driving. For
additional information, see “ProPILOT As-
sist” (P. 5-73).

WARNING

The front sonar system is a convenience
but it is not a substitute for proper
driving.

The rear sonar system is a convenience
but it is not a substitute for proper back-
ing. Always turn and check that it is safe
to do so before backing up. Always back
up slowly.

The front sonar system:
• is active when the ignition switch is in the

ON position and the shift lever is in a for-
ward gear position.

• a beeping tone is emitted when the sensors

detect obstacles within 3 ft (1.0 m) of the
front bumper.

The rear sonar system:
• is active when the ignition is in the ON

position and the shift lever is in R (Reverse).

• a beeping tone is emitted when the sensors

detect obstacles within 4.9 ft (1.5 m) of the
rear bumper.

The front and rear sonar system may be en-
abled by pushing the front and rear sonar
switch. Push the switch again to disable the
system.

The system will automatically reset the next
time the ignition switch is turned on.

For additional information, see “Front and
rear sonar system” (P. 5-147).

LIC4495

LIC4270

STEERING ASSIST SWITCH

FRONT AND REAR SONAR SYSTEM
SWITCH (if so equipped)

Instruments and controls

2-51

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to properly adjust the brightness
and position of the displayed image may
interfere with the drivers ability to see
through the windshield which could
cause an accident leading to severe in-
jury or death.

Do not use the head up display for ex-
tended periods of time as that can cause
you to not see other vehicles, pedestri-
ans or objects, which could cause an ac-
cident leading to severe injury or death.

The HUD can display one or more of the
following features (if so equipped):

1

Traffic Sign Recognition

2

Navigation/Warning

3

Vehicle speed display

4

Driving Aids

NOTE:

• Do not place any type of liquid on or near

the projector. Doing so may cause mal-
function of the equipment.

• Do not touch any internal parts of the pro-

jector. Doing so may cause malfunction of
the equipment.

• To prevent scratches to the projector

glass, do not place any sharp objects on or
near the projector opening.

• Do not place any objects on the instrument

panel which may obstruct the display of
the HUD.

• When wearing polarized sunglasses it may

be difficult to recognize the display.

• Depending on weather conditions (rain,

snow, sun light, temperature), it may be
difficult to recognize the display.

NOTE:

• If juices are spilled, wipe with a dry soft

cloth* lightly. (*clean cloth, eyeglass
cleaner, etc.).

• If they are not removed completely, wipe

with water first and then wipe with a dry
cloth.

Otherwise,

water

stains

may

remain.

• It is not recommended to use acids or alka-

lis (acidic/alkaline detergents, etc.) and
organic solvents (ethanol, etc.), since the
screen quality may deteriorate by the
residue.

• It is not recommended to use tissues and

wet wipes since they may damage the
screen.

• If the displayed image appears distorted, it

is recommended you have the system
checked by an INFINITI retailer or qualified
workshop.

• The HUD has a special windshield to allow

the image to be displayed clearly. If your
windshield needs replacing, this should be
completed by an INFINITI retailer.

LIC4747

HEAD UP DISPLAY (HUD) (if so
equipped)

2-52

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO USE THE HUD

To turn the HUD system on, push the HUD
switch. To turn the HUD off, push the switch
again.

If the HUD system is turned off, it will remain
off even if the vehicle is restarted.

To adjust the HUD settings when the system
is on:

1. Press the MENU button below the lower

display.

2. Touch the “Settings” key and then the

“Head Up Display” key.

3. Adjust the positioning of the HUD on the

windshield by touching the arrows, and
the brightness by touching the brightness
keys. To change what items are shown in
the HUD, touch the “Display items” key.
The following items (if so equipped) may
be turned on or off:

– Driving Aids
– Navigation
– Traffic Sign Recognition

NOTE:

The emergency information may appear
even if the display contents are turned off.

DRIVER ASSISTANCE/
NAVIGATION LINKING

The HUD will display driver assistance and
navigation information.

The driver assistance display will display
warning situations for the following systems:
• FEB with Pedestrian Detection
• LDW
• PFCW
• Hands-free warning (for vehicles with Pro-

PILOT Assist) (if so equipped)

The Navigation System linking display will
display the following items:
• Arrows indicating turning direction
• Distance to the next intersection

LIC3829

Instruments and controls

2-53

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Display brightness

The brightness of the display may be con-
trolled by the Navigation System. The bright-
ness will also be adjusted automatically ac-
cording to the exterior ambient lighting
brightness.

NOTE:

• A sensor

O

1

is built into the Head Up Dis-

play to control the brightness of the im-
age. Make sure the sensor is clear of ob-
structions or the display may become dark
and difficult to recognize.

• Do not apply strong light to the sensor of

Head Up Display. Doing so may cause a
malfunction.

The Emergency call (SOS) button is used in
combination with an INFINITI InTouch™ Ser-
vices subscription to call for assistance in
case of an emergency.

Pressing the button will (with a paid subscrip-
tion) reach a response specialist that will pro-
vide assistance based on the situation de-
scribed by the vehicle’s occupant. For
additional information, or to enroll your ve-
hicle, refer to www.InfinitiUSA.com/intouch,
or call 855–444–7244.

LIC4264

LIC3830

EMERGENCY CALL (SOS) BUTTON

2-54

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Type-A USB

2. Type-C USB

There are USB/iPod® charging ports located
in the 1st row on the inside of the console box
and in the rear seat area on the back of the
center console. These ports will charge com-
patible devices.

NOTE:

• The USB/iPod® charging ports will not

operate with the display screen. Only the
USB connection port located beneath the
instrument panel will operate USB/iPod®
devices.

• For best results, it is recommended to use

the manufacturer cables, which are sold
separately. A USB Type-A to USB Type-C
adapter can also be purchased separately;
however, results may vary.

12V OUTLETS

The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.

The instrument panel and luggage area
power outlets are powered only when the
ignition switch is in the AUTO ACC or ON
position.

LIC5027

1st row

LIC5028

Rear seat

LIC4260

Instrument Panel

USB/iPod® CHARGING PORTS

POWER OUTLETS

Instruments and controls

2-55

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

The outlet and plug may be hot during or
immediately after use.

Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
that you visit an INFINITI retailer for ad-
ditional information.

Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw.

Do not use double adapters or more than
one electrical accessory.

Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.

Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.

Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned off.

Push the plug in as far as it will go. If good
contact is not made, the plug may over-
heat or the internal temperature fuse
may open.

When not in use, be sure to close the cap.
Do not allow water or any other liquid to
contact the outlet.

The extended storage switch is used when
shipping the vehicle. It is located in the fuse
panel on the driver’s side of the instrument
panel. If any electrical equipment does not
operate, ensure the extended storage switch
is pushed fully in place, as shown.

To inspect the extended storage switch, en-
sure the ignition switch and headlight switch
are off, remove the fuse box cover

O

A

using a

suitable tool in combination with a cloth to
avoid damaging the trim.

LIC3833

Cargo Area

LIC3359

EXTENDED STORAGE SWITCH

2-56

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FRONT-DOOR POCKETS

LIC3266

OFF position

LIC3268

ON position

LIC3834

STORAGE

Instruments and controls

2-57

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATBACK POCKETS

The seatback pockets may be located on the
back of the driver’s and/or passenger’s seats.
The pockets can be used to store maps.

WARNING

To ensure proper operation of the driver’s
and/or front passenger's INFINITI Ad-
vanced Air Bag System (if so equipped),
please observe the following items:

Do not allow a passenger in the rear seat
to push or pull on the seatback pocket or
head restraint/head rest.

Do not place heavy loads heavier than
9.1 lbs. (4 kg) on the seatback, head
restraint/head rest or in the seatback
pocket.

FRONT CONSOLE LID

The front console lid covers the front console
storage tray and the front cup holders.

Slide the pocket lid towards the front of the
vehicle to open.

LIC1328

LIC4550

2-58

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STORAGE TRAYS

WARNING

Do not place sharp objects in the trays to
help prevent injury in an accident or sudden
stop.

The front console storage tray is equipped
with a rubber mat, which may be removed.

GLOVE BOX

Open the glove box by pulling the handle. Use
the master key when locking

O

1

or unlocking

O

2

the glove box.

WARNING

Keep glove box lid closed while driving to
help prevent injury in an accident or a sud-
den stop.

LIC4261

Front console

LIC2214

Rear armrest

LIC3902

Instruments and controls

2-59

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONSOLE BOX

To open the console box, press down on the
latch. The latch will release.

To close, push the lid down until the lock
latches.

OVERHEAD SUNGLASSES
STORAGE

To open the sunglasses holder, push

O

1

and

release.

Only store one pair of sunglasses in the
holder.

WARNING

Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.

CAUTION

Do not use for anything other than
sunglasses.

Do not leave sunglasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the sunglasses.

LIC3836

LIC3837

2-60

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CUP HOLDERS

The front console cup holders are equipped
with a rubber mat, which may be removed.

CAUTION

Do not recline the rear seatback when
you use the cup holders on the rear arm-
rest. Doing so may cause the beverages
to spill over, and if they are hot, they may
scald the passengers.

Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it can
scald you or your passenger.

CAUTION

Use only soft cups in the cup holder. Hard
objects can injure you in an accident.

LIC4262

Front console

LIC2212

Rear

Instruments and controls

2-61

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Do not use bottle holder for any other
objects that could be thrown about in the
vehicle and possibly injure people during
sudden braking or an accident.

Do not use bottle holder for open liquid
containers.

CARGO AREA STORAGE BIN

To access the floor storage area, pull up on
the handle

O

1

to lift the luggage board.

LIC3839

Bottle holder — front

LIC3840

Bottle holder — rear

LIC2244

2-62

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LUGGAGE HOOKS

When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a single
hook.

The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.

The luggage hooks can be used to secure
cargo with ropes or other types of straps.

WARNING

Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.

Use suitable ropes and hooks to secure
cargo.

Never allow anyone to ride in the lug-
gage area. It is extremely dangerous to
ride in a cargo area inside of a vehicle. In a
collision, people riding in these areas are
more likely to be seriously injured or
killed.

Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts.

The child restraint top tether strap may
be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.

Be sure everyone in your vehicle is in a
seat and using a seat belt properly.

COAT HOOKS

The coat hooks, located on the rear side pil-
lars or on the rear assist grips, may be used to
store coats and other articles of clothing.

LTI2556

LIC3943

Instruments and controls

2-63

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Do not apply a total load of more than 7.3
lbs. (3.3 kg) to the side pillar coat hook or
33 lbs. (15 kg) to the rear assist grip coat
hook.

CARGO COVER (if so equipped)

WARNING

Do not place objects on the cargo cover
while the vehicle is parked or in motion,
no matter how small. The object on the
cargo cover could cause an injury in an
accident or sudden stop, and/or the
cargo cover can become damaged.

Do not leave the cargo cover in the ve-
hicle with it disengaged from the holder.

Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.

Properly secure cargo and do not allow it
to contact the top tether strap when it is
attached to the top tether anchor. Cargo
that is not properly secured or cargo that
contacts the top tether strap may dam-
age the top tether strap during a colli-
sion. If the cargo cover contacts the top
tether strap when it is attached to the
top tether anchor, remove the cargo
cover from the vehicle or secure it on the
cargo floor below its attachment loca-
tion. If the cargo cover is not removed, it
may damage the top tether strap during
a collision. Your child could be seriously
injured or killed in a collision if the child
restraint top tether strap is damaged.

LIC4173

2-64

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The cargo cover keeps the luggage compart-
ment contents hidden from the outside.

To close the cargo cover, remove the cover
from the grooves

O

1

and retract.

To open the cargo cover, extend the cover
into the grooves

O

1

to lock into place.

POWER WINDOWS

WARNING

Make sure that all passengers have their
hands, etc., inside the vehicle while it is in
motion and before closing the windows.
Use the window lock switch to prevent
unexpected use of the power windows.

To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.

The power windows operate when the igni-
tion switch is placed in the ON position or for
a period of time after the ignition switch is
placed in the OFF position. If the driver's or
passenger's door is opened during this period
of time, the power to the windows is
canceled.

Driver's side power window switch

The driver's side control panel is equipped
with switches to open or close the front and
rear passenger windows.

The window can be partially opened by push-
ing the switch

O

A

down lightly until the de-

sired window position is reached. To close

LIC3971

SIC4352

1. Driver side automatic switch

2. Front passenger side automatic switch

3. Left rear passenger automatic switch

4. Right rear passenger automatic switch

5. Window lock button

WINDOWS

Instruments and controls

2-65

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

the window partially, pull the switch

O

B

up

until the desired window position is reached.

Locking passengers' windows

When the window lock button

O

C

is de-

pressed, only the driver's side window can be
opened or closed. Press it again to cancel the
window lock function.

Front passenger's power window
switch

The passenger's window switch operates
only the corresponding passenger's window.
To open the window partially, push the
switch down lightly until the desired window
position is reached. To close the window par-
tially, pull the switch up until the desired win-
dow position is reached.

Rear power window switch

The rear power window switches open or
close only the corresponding windows. To
partially open the window, push the switch
down lightly until the desired window posi-
tion is reached. To partially close the window,
pull the switch up lightly until the desired
window position is reached.

SIC4353

LIC0410

2-66

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Automatic operation

To fully open a window equipped with auto-
matic operation, push the window switch
down to the second detent and release it; it
need not be held. The window automatically
opens all the way. To stop the window, lift
the switch up while the window is opening.

To fully close a window equipped with auto-
matic operation, pull the switch up to the
second detent and release it; it need not be
held. To stop the window, push the switch
down while the window is closing.

Auto-reverse function

The auto-reverse function can be activated
when a window is closed by automatic
operation.

Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.

WARNING

There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the window.

If the vehicle's battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate prop-
erly. If this occurs, it is recommended that you
visit an INFINITI retailer to re-initialize the
power window auto-reverse system.

If the control unit detects something caught
in a window equipped with automatic opera-
tion as it is closing, the window will be imme-
diately lowered.

POWER MOONROOF

The moonroof will only operate when the
ignition switch is placed in the ON position.
The power moonroof is operational for a pe-
riod of time, even if the ignition switch is
placed in the AUTO ACC or OFF position. If
the driver's door or the front passenger's
door is opened during this period of time, the
power to the moonroof is canceled.

Sliding the moonroof

To fully open or close the moonroof, push the
switch to the open

O

1

or close

O

2

position

and release it; it need not be held. The roof

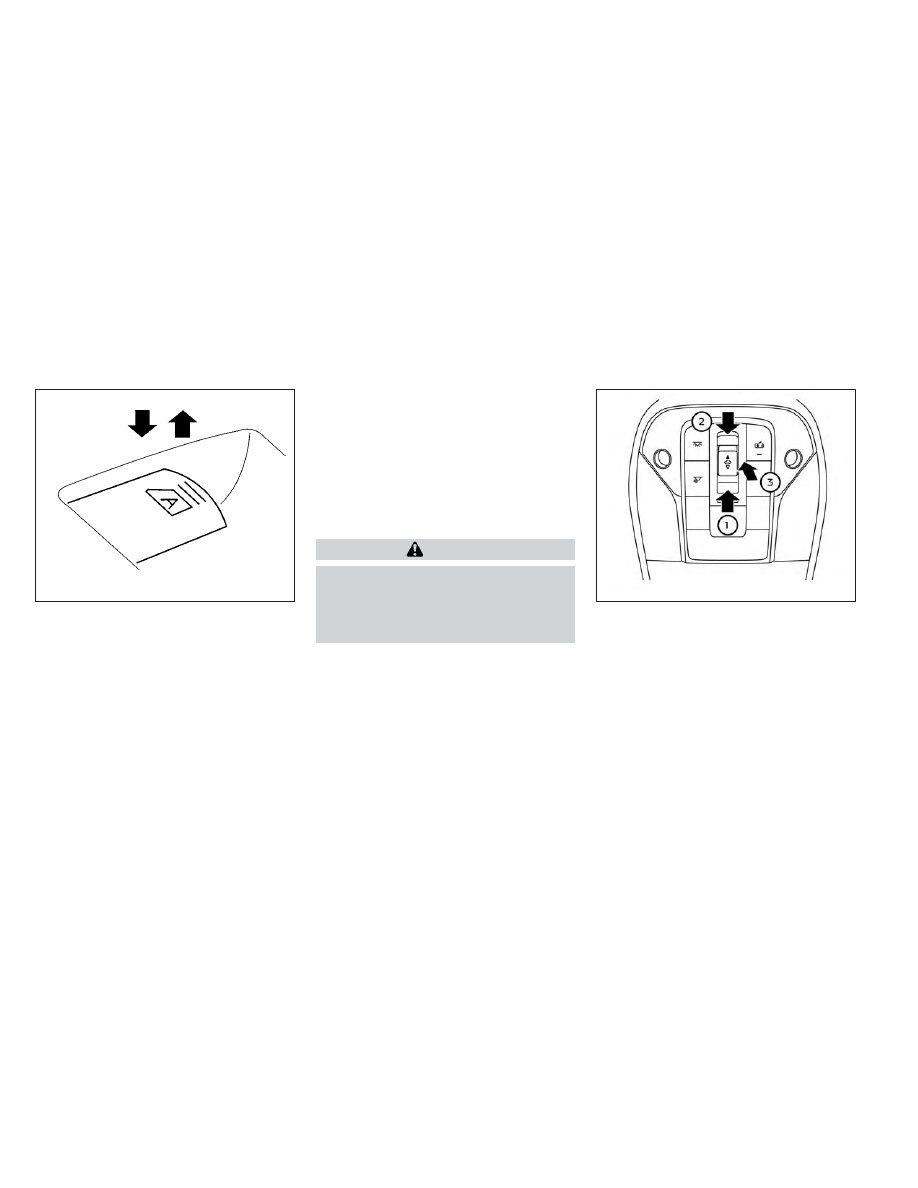

LIC0410

LIC4748

MOONROOF

Instruments and controls

2-67

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

will automatically open or close all the way.
To stop the roof, push the switch once more
while it is opening or closing.

Tilting the moonroof

To tilt up, first close the moonroof, then push
the switch

O

3

and release it; it need not be

held. To tilt down the moonroof, push the
switch to the tilt down position

O

2

.

Resetting the moonroof switch

If the moonroof does not operate properly,
perform the following procedure to initialize
the moonroof operation system.

1. If the moonroof is open, close it fully by

repeatedly pushing the moonroof switch
to the closed position

O

2

.

2. Push and hold the switch to the closed

position

O

2

for approximately 15 seconds.

3. Release the switch after the moonroof

moves up, down, then back to the full tilt
up position.

4. Push and hold the switch to the closed

position

O

2

.

5. Release the switch after the moonroof

completes one full cycle from the tilt up
position to the closed position, then to the
open position, and again to the fully
closed position.

6. Check if the moonroof switch operates

normally.

If the moonroof does not operate properly
after performing the procedure above, have
your vehicle serviced. It is recommended that
you visit an INFINITI retailer for this service.

Auto-reverse function (when
closing or tilting down the
moonroof)

The auto-reverse function can be activated
when the moonroof is closed or tilted down
by automatic operation when the ignition
switch is placed in the ON position or for a
period of time after the ignition switch is
placed in the OFF position.

Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.

WARNING

There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the moonroof.

When closing

If the control unit detects something caught
in the moonroof as it moves to the front, the
moonroof will immediately open backward.

When tilting down

If the control unit detects something caught
in the moonroof as it tilts down, the moon-
roof will immediately tilt up.

If the auto-reverse function malfunctions
and repeats opening or tilting up the moon-
roof, keep pushing the tilt down switch within
5 seconds after it happens; the moonroof will
fully close gradually. Make sure nothing is
caught in the moonroof.

2-68

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

In an accident you could be thrown from
the vehicle through an open moonroof.
Always

use

seat

belts

and

child

restraints.

Do not allow anyone to stand up or ex-
tend any portion of their body out of the
moonroof opening while the vehicle is in
motion or while the moonroof is closing.

CAUTION

Remove water drops, snow, ice or sand
from the moonroof before opening.

Do not place heavy objects on the moon-
roof or surrounding area.

Sunshade

Open and close the sunshade by sliding it
forward or backward.

If the moonroof does not close

Have your moonroof checked and repaired. It
is recommended that you visit an INFINITI
retailer for this service.

The interior lights will automatically turn on
and stay on for a period of time when:
• The doors are unlocked by the Intelligent

Key, a key or the request switch while all
doors are closed and the ignition switch is
in the OFF position.

• The doors and/or liftgate is opened.
• The switch is individually pushed.

When the on switch

O

1

is pushed, the interior

lights illuminate.

When the door/off switch

O

2

is pushed, the

interior lights do not illuminate unless indi-
vidually pushed.

NOTE:

The footwell lights and step lights illuminate
when the driver and passenger doors are
open regardless of the interior light switch
position. These lights will turn off automati-
cally after a period of time while doors are
open to prevent the battery from becoming
discharged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

LIC3841

INTERIOR LIGHTS

Instruments and controls

2-69

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAP LIGHTS

To turn the map lights on, push the switches.
To turn them off, push the switches again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

PERSONAL LIGHTS

To turn the rear personal lights on, push the
switch. To turn them off, push the switch
again.

CARGO LIGHT

The light illuminates when the liftgate is
opened. When the liftgate is closed, the light
goes off.

The light will go off after a period of time if
the liftgate is left open, unless the ignition
switch is placed in the ON position.

For additional information, see “Exterior and
interior lights” (P. 8-24).

LIC3842

LIC3907

Rear personal lights

2-70

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-held
transmitters into one built-in device.

HomeLink® Universal Transceiver:
• Will operate most radio frequency devices

such as garage doors, gates, home and
office lighting, entry door locks and security
systems.

• Is powered by your vehicle's battery. No

separate batteries are required. If the vehi-
cle's battery is discharged or is discon-
nected,

HomeLink®

will

retain

all

programming.

When the HomeLink® Universal Transceiver
is programmed, retain the original transmit-
ter for future programming procedures (Ex-
ample: new vehicle purchases). Upon sale of
the vehicle, the programmed HomeLink®
Universal Transceiver buttons should be
erased for security purposes. For additional
information,

see

“Programming

HomeLink®” (P. 2-71).

WARNING

Your vehicle's engine should be turned
off while programming the HomeLink®
Universal Transceiver. For additional in-
formation, see “Push-button ignition
switch” (P. 5-14).
Do not breathe ex-
haust gases; they contain colorless and
odorless carbon monoxide. Carbon mon-
oxide is dangerous. It can cause uncon-
sciousness or death.

Do not use the HomeLink® Universal
Transceiver with any garage door opener
that lacks safety stop and reverse fea-
tures as required by federal safety stan-
dards. (These standards became effec-
tive for opener models manufactured
after April 1, 1982.) A garage door
opener which cannot detect an object in
the path of a closing garage door and
then automatically stop and reverse
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.

During the programming procedure your
garage door or security gate will open
and close (if the transmitter is within
range). Make sure that people or objects
are clear of the garage door, gate, etc.,
that you are programming.

PROGRAMMING HOMELINK®

If you have any questions or are having diffi-
culty programming your HomeLink® but-
tons, refer to the HomeLink® web site at:
www.homelink.com

or

call

1-800-355-3515.

NOTE:

Place the ignition switch in the ON position
(without starting the engine) when pro-
gramming HomeLink®. It is also recom-
mended that a new battery be placed in the
hand-held transmitter of the device being
programmed to HomeLink® for quicker pro-
gramming and accurate transmission of the
radio frequency.

HOMELINK® UNIVERSAL
TRANSCEIVER

Instruments and controls

2-71

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Position the end of your hand-held trans-

mitter 1–3 in (2–8 cm) away from the
HomeLink®

surface,

keeping

the

HomeLink® indicator light

O

1

in view.

2. Using both hands, simultaneously press

and hold the desired HomeLink® button
and hand-held transmitter button. DO
NOT release until the HomeLink® indica-
tor light

O

1

flashes slowly and then rap-

idly. When the indicator light flashes rap-
idly, both buttons may be released. (The
rapid

flashing

indicates

successful

programming.)

NOTE:

Some devices may require you to replace
Step 2 with the cycling procedure noted in
“Programming HomeLink® for Canadian
customers and gate openers” (P. 2-73).

3. Press

and

hold

the

programmed

HomeLink® button and observe the indi-
cator light.

• If the indicator light

O

1

is solid/continuous,

programming is complete

and your device

should activate when the HomeLink® but-
ton is pressed and released.

• If the indicator light

O

1

blinks

rapidly for 2

seconds and then turns to a solid/
continuous light, continue with Steps 4-6

for a rolling code device. A second person
may make the following steps easier. Use a
ladder or other device. Do not stand on
your vehicle to perform the next steps.

4. At the receiver located on the garage door

opener motor in the garage, locate the
“learn” or “smart” button (the name and
color of the button may vary by manufac-
turer but it is usually located near where
the hanging antenna wire is attached to
the unit). If there is difficulty locating the
button, reference the garage door open-
er’s manual.

5. Press and release the “learn” or “smart”

button.

NOTE:

Once the button is pressed, you have ap-
proximately 30 seconds to initiate the next
step.

LIC2365

LIC4095

2-72

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6. Return to the vehicle and firmly press and

hold the trained HomeLink® button for 2
seconds and release. Repeat the “press/
hold/release” sequence up to three times
to

complete

the

training

process.

HomeLink® should now activate your
rolling code equipped device.

7. If you have any questions or are having

difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site
at:

www.homelink.com

or

call

1-800-355-3515.

PROGRAMMING HOMELINK®
FOR CANADIAN CUSTOMERS
AND GATE OPENERS

Canadian

radio-frequency

laws

require

transmitter signals to “time-out” (or quit) af-
ter several seconds of transmission – which
may not be long enough for HomeLink® to
pick up the signal during training. Similar to
this Canadian law, some U.S. gate operators
are designed to “timeout” in the same
manner.

If you live in Canada or you are having diffi-
culties training a gate operator

or

garage

door opener by using the “Training” proce-
dures,

replace

“Programming HomeLink®”

step 2

with the following:

NOTE:

When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.

1. For additional information, see “Program-

ming HomeLink®” step 1, (P. 2-71).

2. Using both hands, simultaneously press and

hold the desired HomeLink® button and
the hand-held transmitter button. During
training, your hand-held transmitter may
automatically stop transmitting. Continue
to press and hold the desired HomeLink®
button while you press and re-press
(“cycle”) your hand-held transmitter every 2
seconds until the frequency signal has been
learned. The HomeLink® indicator light will
flash slowly and then rapidly after several
seconds upon successful training. DO NOT
release until the HomeLink® indicator light
flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. The rapid flashing indi-
cates successful training.
Proceed with “Programming HomeLink®”
step 3 to complete.
If the device was unplugged during the pro-
gramming procedure, remember to plug it
back in when programming is completed.

OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER

The HomeLink® Universal Transceiver, after
it is programmed, can be used to activate the
programmed device. To operate, simply press
and release the appropriate programmed
HomeLink® Universal Transceiver button.
The amber indicator light will illuminate while
the signal is being transmitted.

For convenience, the hand-held transmitter
of the device may also be used at any time.

PROGRAMMING TROUBLE-
DIAGNOSIS

If the HomeLink® does not quickly learn the
hand-held transmitter information:
• replace the hand-held transmitter batteries

with new batteries.

• position the hand-held transmitter with its

battery

area

facing

away

from

the

HomeLink® surface.

• press and hold both the HomeLink® and

hand-held transmitter buttons without
interruption.

Instruments and controls

2-73

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• position the hand-held transmitter 1 - 3 in

(2 - 8 cm) away from the HomeLink® sur-
face. Hold the transmitter in that position
for up to 15 seconds. If HomeLink® is not
programmed within that time, try holding
the transmitter in another position – keep-
ing the indicator light in view at all times.

If you continue to have programming difficul-
ties, please contact the INFINITI Consumer
Affairs Department. The phone numbers are
located in the Foreword of this manual.

CLEARING THE PROGRAMMED
INFORMATION

The following procedure clears the pro-
grammed information from both buttons. In-
dividual buttons cannot be cleared. However,
individual buttons can be reprogrammed. For
additional information, see “Reprogramming
a single HomeLink® button” (P. 2-74).

To clear all programming:

1. Press and hold the two outer HomeLink®

buttons until the indicator light begins to
flash in approximately 10 seconds. Do not
hold for longer than 20 seconds.

2. Release both buttons.

HomeLink® is now in the programming mode
and can be programmed at any time begin-
ning with “Programming HomeLink®” - Step
1 (P. 2-71).

REPROGRAMMING A SINGLE
HOMELINK® BUTTON

To reprogram a HomeLink® Universal Trans-
ceiver button, complete the following:

1. Press and hold the desired HomeLink®

button.

DO NOT

release the button.

2. The indicator light will begin to flash after

20

seconds.

Without

releasing

the

HomeLink® button, proceed with “Pro-
gramming HomeLink®” - Step 1 (P. 2-71).

For

questions

or

comments,

contact

HomeLink®

at:

www.homelink.com

or

1–800–355–3515 (except Mexico).

The HomeLink® Universal Transceiver but-
ton has now been reprogrammed. The new
device can be activated by pressing the
HomeLink® button that was just pro-
grammed. This procedure will not affect any
other programmed HomeLink® buttons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change
the codes of any non-rolling code device that
has been programmed into HomeLink®.
Consult the Owner's Manual of each device
or call the manufacturer or dealer of those
devices for additional information.

When your vehicle is recovered, you will
need to reprogram the HomeLink® Univer-
sal Transceiver with your new transmitter
information.

FCC Notice:

For USA:

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.

NOTE:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

2-74

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For Canada:

This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Develop-
ment Canada’s licence-exempt RSS(s). Op-
eration is subject to the following two con-
ditions: (1) This device may not cause
interference. (2) This device must accept any
interference, including interference that
may cause undesired operation of the
device.

Instruments and controls

2-75

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
