WARNING

Children may be severely injured or killed
when the front air bags, side air bags or
curtain air bags inflate if they are not
properly restrained. Pre-teens and chil-
dren should be properly restrained in the
rear seat, if possible.

Even with the INFINITI Advanced Air
Bag System, never install a rear-facing
child restraint in the front seat. An in-
flating front air bag could seriously injure
or kill your child. For additional informa-
tion, see “Child restraints” (P. 1-21).

WARNING

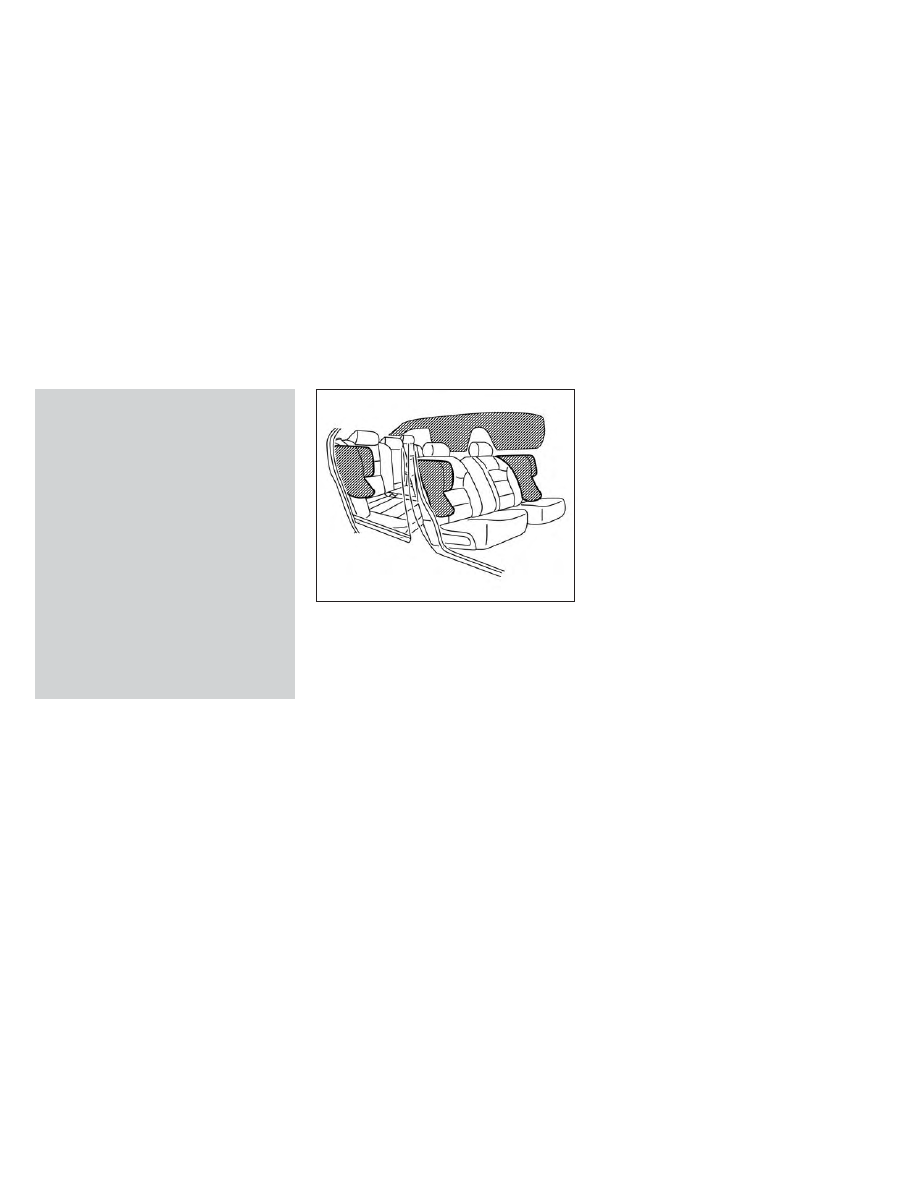

Front seat-mounted side-impact supple-
mental air bags and roof-mounted curtain
side-impact and rollover supplemental air
bags:

The side air bags and curtain air bags
ordinarily will not inflate in the event of a
frontal impact, rear impact, or lower se-
verity side collision. Always wear your
seat belts to help reduce the risk or se-
verity of injury in various kinds of
accidents.

ARS1045

ARS1046

WRS0431

1-46

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

The seat belts, the side air bags and cur-
tain air bags are most effective when you
are sitting well back and upright in the
seat with both feet on the floor. The side
air bag and curtain air bag inflate with
great force. Do not allow anyone to place
their hand, leg or face near the side air
bag on the side of the seatback of the
front seat or near the side roof rails. Do
not allow anyone sitting in the front
seats or rear outboard seats to extend
their hand out of the window or lean

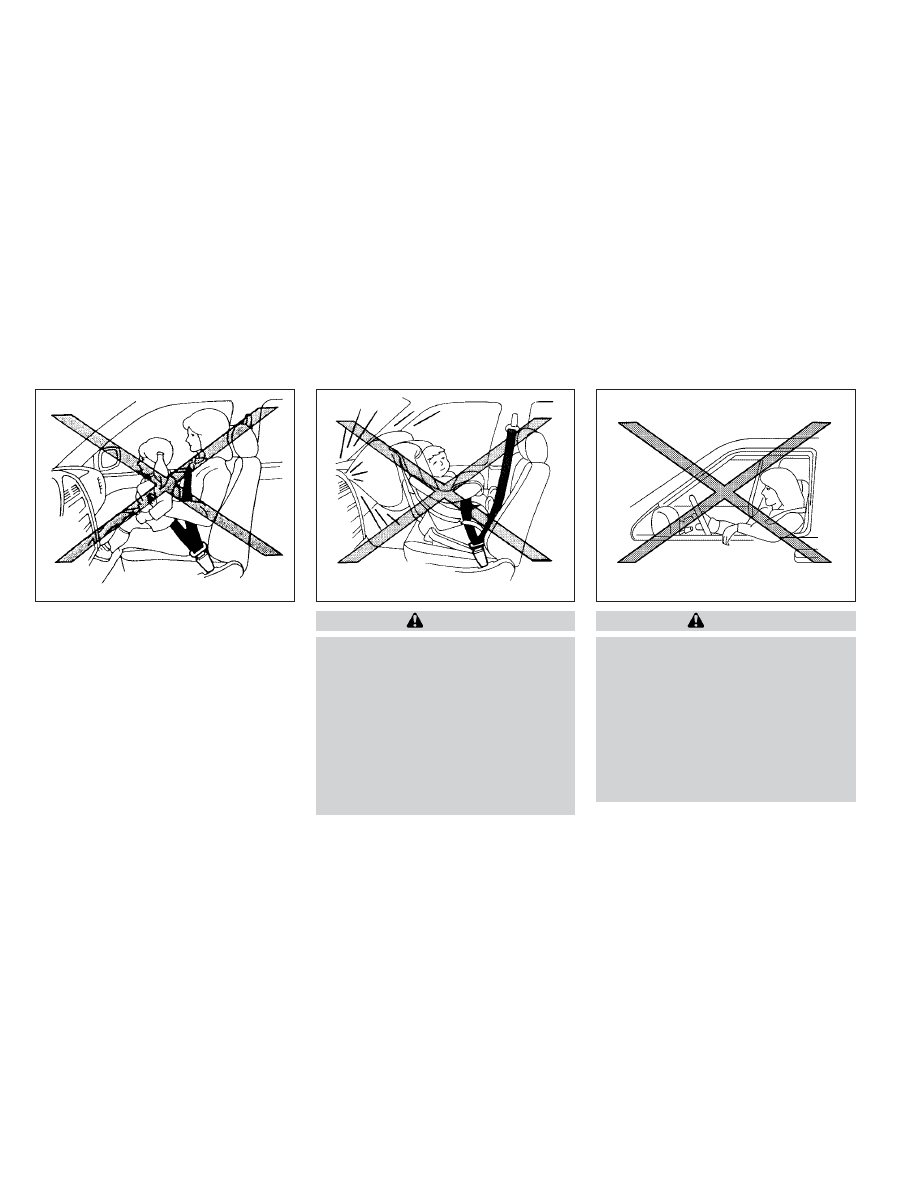

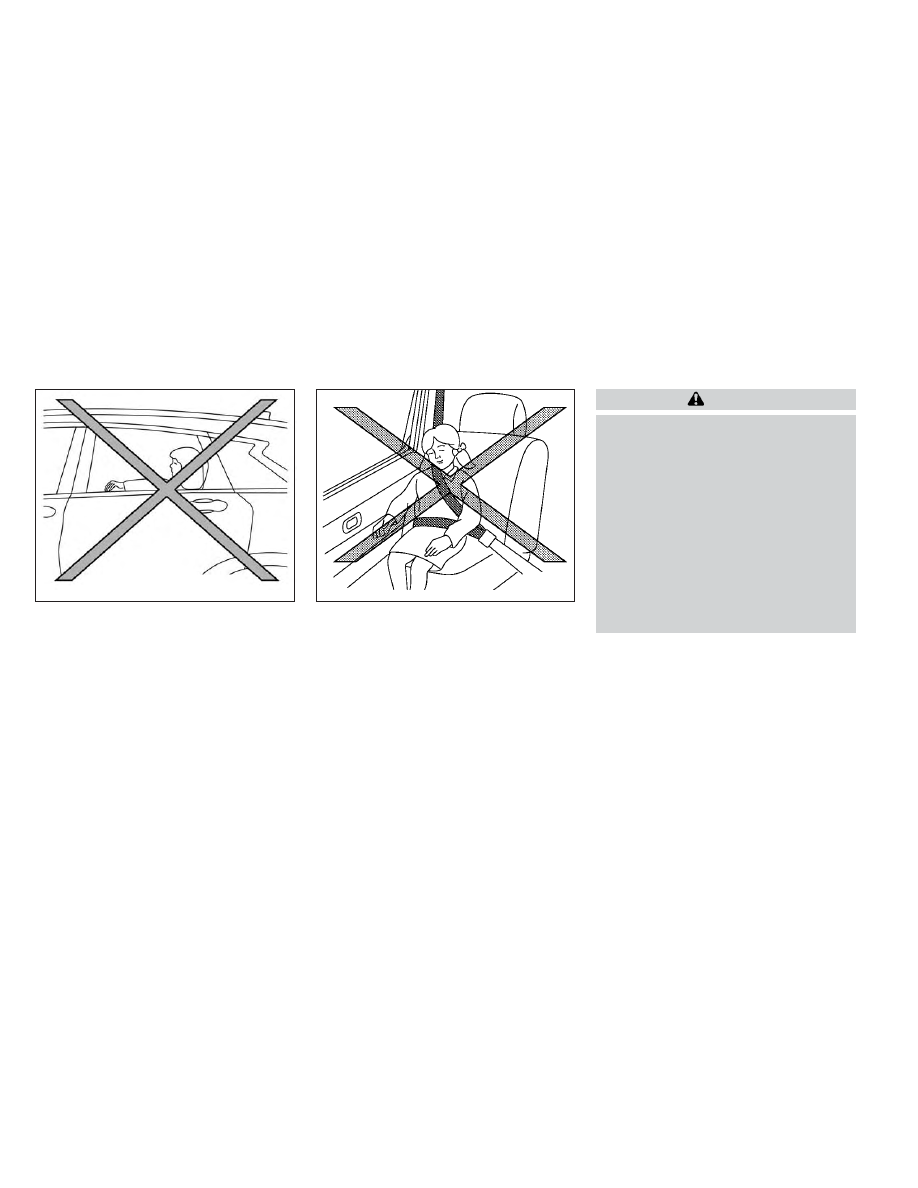

against the door. Some examples of dan-
gerous riding positions are shown in the
previous illustrations.

LRS3042

SSS0162

Safety-Seats, seat belts and supplemental restraint system

1-47

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

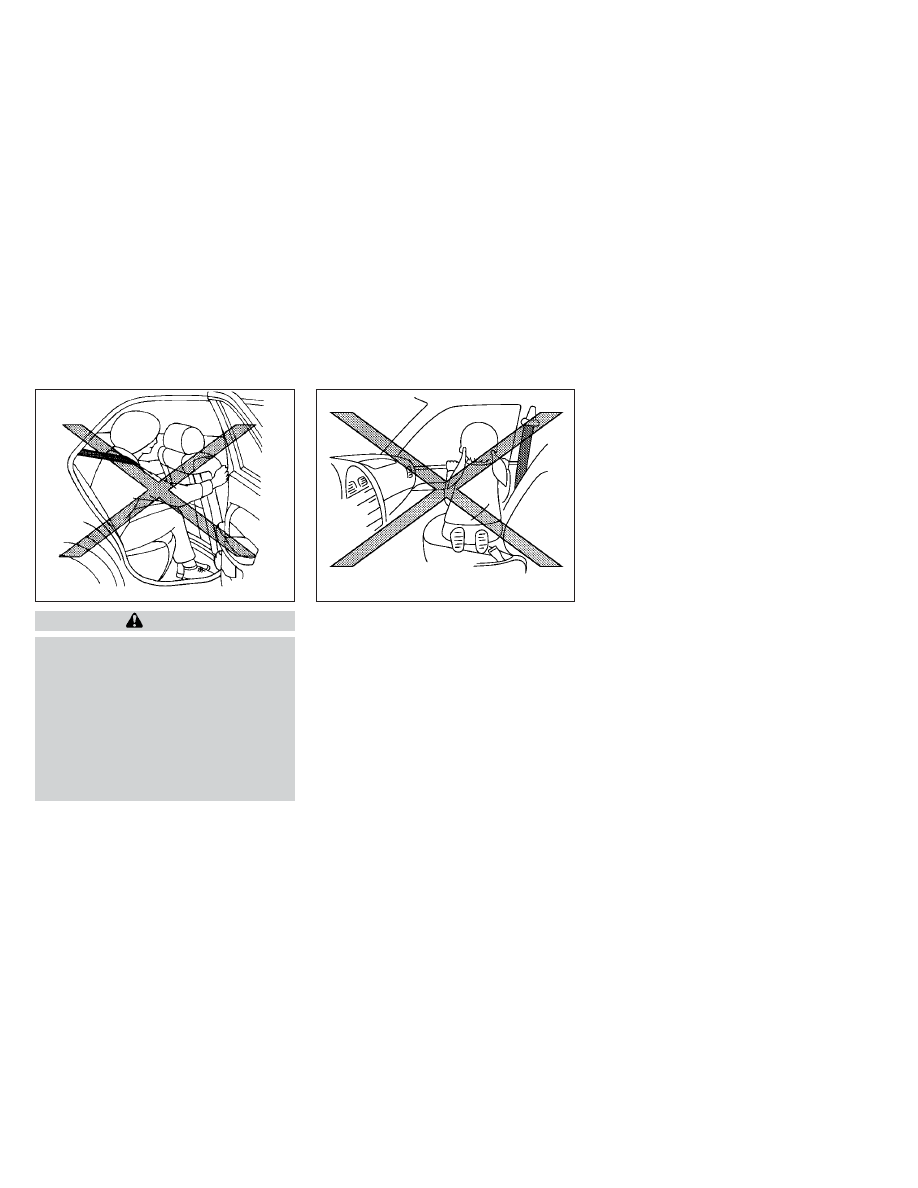

WARNING

When sitting in the rear seat, do not hold
onto the seatback of the front seat. If the
side air bag inflates, you may be seriously
injured. Be especially careful with chil-
dren, who should always be properly re-
strained. Some examples of dangerous
riding

positions

are

shown

in the

illustrations.

Do not use seat covers on the front seat-
backs. They may interfere with side air
bag inflation.

WRS0032

SSS0159

1-48

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

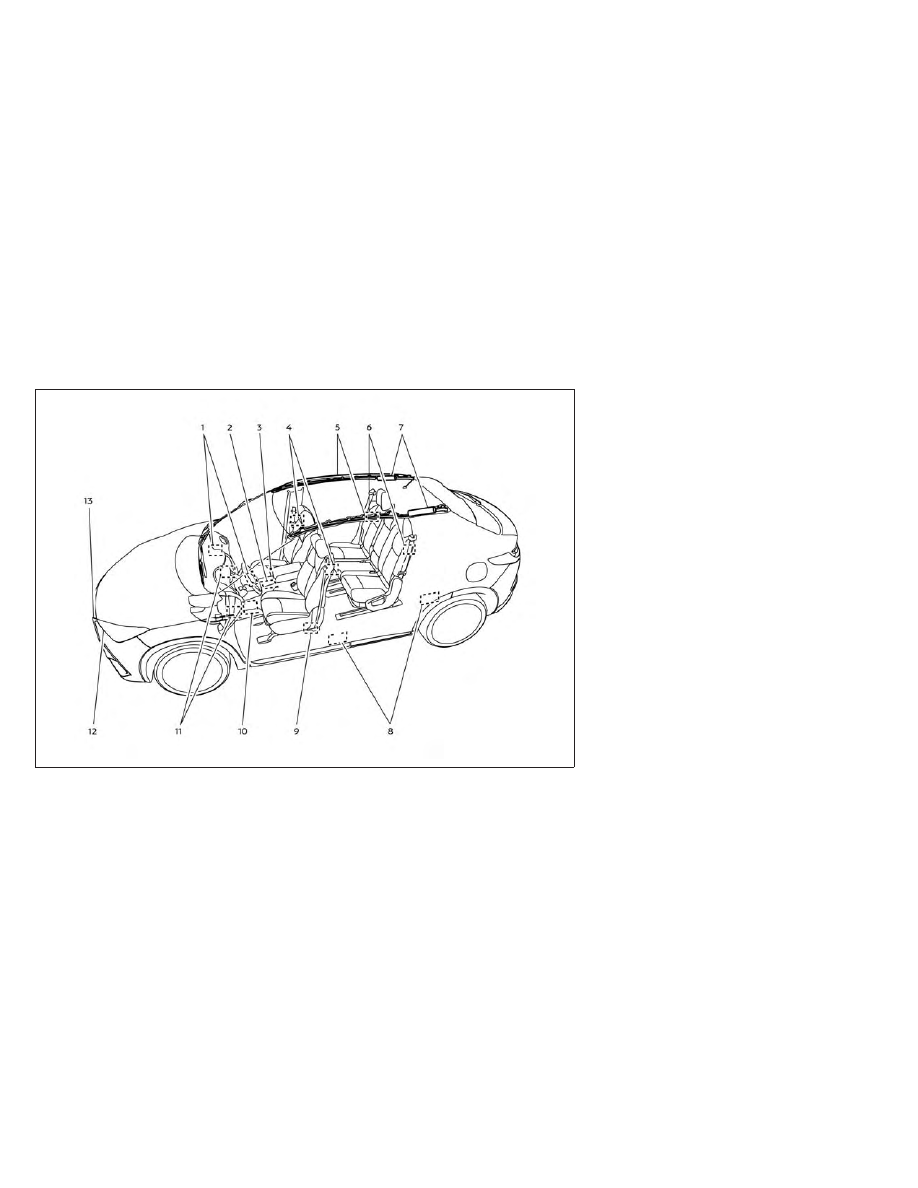

INFINITI Advanced Air Bag System

1. Supplemental

front-impact

air

bag

modules

2. Air bag Control Unit (ACU)

3. Occupant classification sensor (weight

sensor)

4. Front seat-mounted side-impact supple-

mental air bag modules

5. Roof-mounted curtain side-impact and

rollover supplemental air bags

6. Rear outboard seat-mounted side-impact

supplemental air bag modules

7. Roof-mounted curtain side-impact and

rollover supplemental air bag inflators

8. Satellite sensors (driver’s side shown; pas-

senger side similar)

9. Seat belt with pretensioner(s) (front and

rear outboard seats)

10. Pressure sensors in door (driver’s side

shown; front passenger side similar)

11. Driver and front passenger supplemental

knee air bags

12. Crash zone sensor

13. Pop-up engine hood sensors

LRS3555

Safety-Seats, seat belts and supplemental restraint system

1-49

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

To ensure proper operation of the passen-
ger’s INFINITI Advanced Air Bag System,
please observe the following items.

Do not allow a passenger in the rear seat
to push or pull on the seatback pocket.

Do not place heavy loads heavier than
9.1 lbs. (4 kg) on the seatback, head
restraint/headrest or in the seatback
pocket.

Make sure that there is nothing pressing
against the rear of the seatback, such as
a child restraint installed in the rear seat
or an object stored on the floor.

Make sure that there is no object placed
under the front passenger seat.

Make sure that there is no object placed
between the seat cushion and the center
console or between the seat cushion and
the door.

If a forward-facing child restraint is in-
stalled in the front passenger seat, do
not position the front passenger seat so
the child restraint contacts the instru-
ment panel. If the child restraint does
contact the instrument panel, the sys-
tem may determine the seat is occupied
and the passenger air bag and front pas-
senger supplemental knee air bag may
deploy in a collision. Also the front pas-
senger air bag status light may not illu-
minate. For additional information, see
“Child restraints” (P. 1-21).

Confirm the operating condition with
the front passenger air bag status light.

If you notice that the front passenger air
bag status light is not operating as de-
scribed in this section, get the occupant
classification system checked. It is rec-
ommended that you visit an INFINITI re-
tailer for this service.

Until you have confirmed with a retailer
that your passenger seat occupant clas-
sification system is working properly,
position the occupants in the rear seat-
ing positions.

Do not position the front passenger seat
so it contacts the rear seat. If the front
seat does contact the rear seat, the air
bag system may determine a sensor mal-
function has occurred and the front pas-
senger air bag status light may illuminate
and the supplemental air bag warning
light may flash.

This vehicle is equipped with the INFINITI
Advanced Air Bag System for the driver and
front passenger seats. This system is de-
signed to meet certification requirements un-
der U.S. regulations. It is also permitted in
Canada.

All of the information, cautions and

warnings in this manual still apply and must
be followed.

The driver supplemental front-impact air bag
is located in the center of the steering wheel.
The front passenger supplemental front-
impact air bag is mounted in the dashboard
above the glove box. The front air bags are
designed to inflate in higher severity frontal
collisions, although they may inflate if the
forces in another type of collision are similar
to those of a higher severity frontal impact.
They may not inflate in certain frontal colli-
sions. Vehicle damage (or lack of it) is not
always an indication of proper front air bag
system operation.

1-50

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The INFINITI Advanced Air Bag System
monitors information from the crash zone
sensor, door sensors, satellite sensors, the Air
bag Control Unit (ACU), seat belt buckle sen-
sor

and

occupant

classification

sensor

(weight sensor). Inflator operation is based
on the severity of a collision and seat belt
usage for the driver. For the front passenger,
the occupant classification sensor is also
monitored. Based on information from the
sensor, only one front air bag may inflate in a
crash, depending on the crash severity and
whether the front occupants are belted or
unbelted. Additionally, the front passenger
air bag and front passenger supplemental
knee air bag may be automatically turned off
under some conditions, depending on the
weight detected on the passenger seat and
how the seat belt is used. If the front passen-
ger air bag and front passenger supplemental
knee air bag are OFF, the front passenger air
bag status light will be illuminated. For addi-
tional information, see “Front passenger air
bag and status light” (P. 1-52). One front air
bag inflating does not indicate improper per-
formance of the system.

If you have any questions about your air bag
system, it is recommended that you visit an
INFINITI retailer to obtain information about
the system. If you are considering modifica-
tion of your vehicle due to a disability, you

may also contact INFINITI. Contact informa-
tion is contained in the front of this Owner's
Manual.

When a front air bag inflates, a fairly loud
noise may be heard, followed by the release
of smoke. This smoke is not harmful and does
not indicate a fire. Care should be taken to
not inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.

Front air bags, along with the use of seat
belts, help to cushion the impact force on the
face and chest of the front occupants. They
can help save lives and reduce serious injuries.
However, an inflating front air bag may cause
facial abrasions or other injuries. Front air
bags, other than the driver and front passen-
ger supplemental knee air bags, do not pro-
vide restraint to the lower body.

Even with INFINITI Advanced Air Bags, seat
belts should be correctly worn and the driver
and passenger seated upright as far as prac-
tical away from the steering wheel or instru-
ment panel. The front air bags inflate quickly
in order to help protect the front occupants.
Because of this, the force of the front air bag
inflating can increase the risk of injury if the
occupant is too close to, or is against, the
front air bag module during inflation.

The front air bags deflate quickly after a
collision.

The front air bags operate only when the
ignition switch is placed in the ON position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.

Safety-Seats, seat belts and supplemental restraint system

1-51

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Front passenger air bag and status light

WARNING

The front passenger air bag and front pas-
senger supplemental knee air bag are de-
signed to automatically turn OFF under
some conditions. Read this section care-
fully to learn how it operates. Proper use of
the seat, seat belt, and child restraints is
necessary for most effective protection.
Failure to follow all instructions in this
manual concerning the use of seats, seat
belts, and child restraints can increase the
risk or severity of injury in an accident.

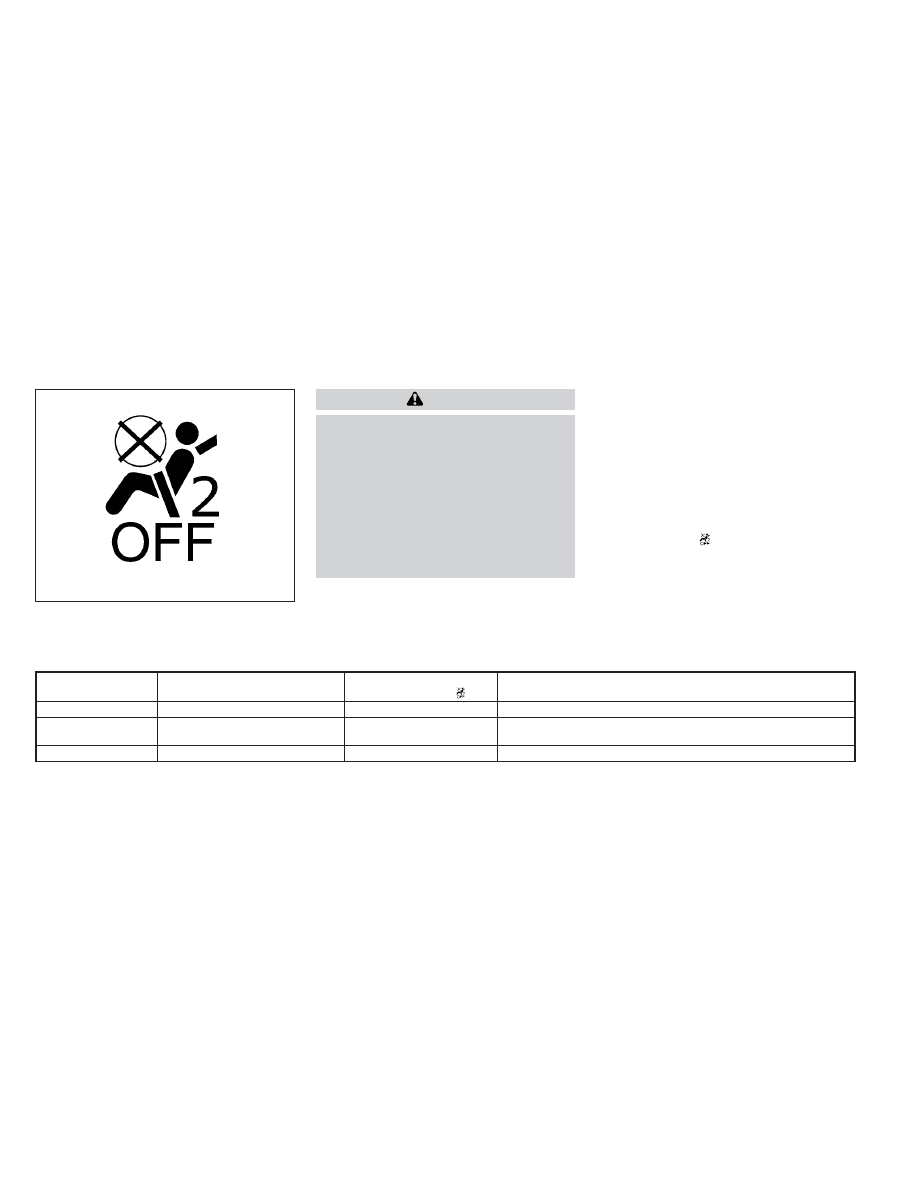

Status light

The front passenger seat is equipped with an
occupant classification sensor (weight sen-
sor) that turns the front passenger air bag
and front passenger supplemental knee air
bag on or off depending on the weight ap-
plied to the front passenger seat. The status
of the front passenger air bag and front pas-
senger supplemental knee air bag (ON or
OFF) is indicated by the front passenger air
bag status light

which is located on the

instrument panel.

After the ignition switch is placed in the "ON"
position, the front passenger air bag status
light on the instrument panel illuminates for
about 7 seconds and then turns off or re-
mains illuminated depending on the front
passenger seat occupied status. The light op-
erates as follows:

CONDITION

DESCRIPTION

PASSENGER AIR BAG
STATUS LIGHT (

)

FRONT PASSENGER AIR BAG AND FRONT PASSENGER

SUPPLEMENTAL KNEE AIR BAG STATUS

Empty

Empty front passenger seat

ON (illuminated)

INHIBITED

Nobody/Somebody

Bag or Child or Child Restraint or

Small Adult in front passenger seat

ON (illuminated)

INHIBITED

Adult

Adult in the front passenger seat

OFF (dark)

ACTIVATED

In addition to the above, certain objects
placed on the front passenger seat may also
cause the light to operate as described above
depending on their weight.

For additional information, see “Normal op-
eration” (P. 1-54) and “Troubleshooting”
(P. 1-55).

LRS0865

1-52

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Front passenger air bag

The front passenger air bag and front pas-
senger supplemental knee air bag are de-
signed to automatically turn OFF when the
vehicle is operated under some conditions as
described below in accordance with U.S.
regulations. If the front passenger air bag and
front passenger supplemental knee air bag
are OFF, they will not inflate in a crash. The
driver air bag and other air bags in your ve-
hicle are not part of this system.

The purpose of the regulation is to help re-
duce the risk of injury or death from an inflat-
ing air bag to certain front passenger seat
occupants, such as children, by requiring the
air bag to be automatically turned OFF. Cer-
tain

sensors

are

used

to

meet

the

requirements.

The occupant classification sensor in this ve-
hicle is a weight sensor. It is designed to
detect an occupant and objects on the seat
by weight. For example, if a child is in the
front passenger seat, the INFINITI Advanced
Air Bag System is designed to turn the front
passenger air bag OFF in accordance with
the regulations. Also, if a child restraint of the
type specified in the regulations is on the
seat, its weight and the child’s weight can be
detected and cause the air bag to turn OFF.

Front passenger seat adult occupants who
are properly seated and using the seat belt as
outlined in this manual should not cause the
front passenger air bag and front passenger
supplemental knee air bag to be automati-
cally turned OFF. For small adults it may be
turned OFF, however, if the occupant takes
his/her weight off the seat cushion (for ex-
ample, by not sitting upright, by sitting on an
edge of the seat, or by otherwise being out of
position), this could cause the sensor to turn
the air bags OFF. Always be sure to be
seated and wearing the seat belt properly for
the most effective protection by the seat belt
and supplemental air bag.

INFINITI recommends that pre-teens and
children be properly restrained in a rear seat.
INFINITI also recommends that appropriate
child restraints and booster seats be properly
installed in a rear seat. If this is not possible,
the occupant classification sensor is designed
to operate as described above to turn the
front passenger air bag and front passenger
supplemental knee air bag OFF for specified
child restraints as required by the regulations.
Failing to properly secure child restraints and
to use the ALR mode may allow the restraint
to tip or move in a collision or sudden stop.
This can also result in the front passenger air
bag and front passenger supplemental knee
air bag inflating in a crash instead of being

OFF. For additional information, see “Child
restraints” (P. 1-21).

If the front passenger seat is not occupied,
the front passenger air bag and front passen-
ger supplemental knee air bag is designed not
to inflate in a crash. However, heavy objects
placed on the seat could result in air bag
inflation, because of the object’s weight de-
tected by the occupant classification sensor.
Other conditions could also result in air bag
inflation, such as if a child is standing on the
seat, or if two children are on the seat, con-
trary to the instructions in this manual. Al-
ways be sure that you and all vehicle occu-
pants are seated and restrained properly.

Using the front passenger air bag status light,
you can monitor when the front passenger air
bag and front passenger supplemental knee
air bag is automatically turned OFF.

If an adult occupant is in the seat but the
front passenger air bag status light is illumi-
nated (indicating that the front passenger air
bag and front passenger supplemental knee
air bag is OFF), it could be that the person is a
small adult, or is not sitting on the seat prop-
erly or not using the seat belt properly.

If a child restraint must be used in the front
seat, the front passenger air bag status light
may or may not be illuminated, depending on

Safety-Seats, seat belts and supplemental restraint system

1-53

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

the size of the child and the type of child
restraint being used. If the air bag status light
is not illuminated (indicating that the front
passenger air bag and front passenger
supplemental knee air bag might inflate in a
crash), it could be that the child restraint or
seat belt is not being used properly. Make
sure that the child restraint is installed prop-
erly, the seat belt is used properly and the
occupant is positioned properly. If the air bag
status light is still not illuminated, reposition
the occupant or child restraint in a rear seat.

If the front passenger air bag status light will
not illuminate even though you believe that
the child restraint, the seat belts and the oc-
cupant are properly positioned, it is recom-
mended that you take your vehicle to an
INFINITI retailer. An INFINITI retailer can
check system status by using a special tool.
However, until you have confirmed with a
retailer that your air bag is working properly,
reposition the occupant or child restraint in a
rear seat.

The INFINITI Advanced Air Bag System and
front passenger air bag status light will take a
few seconds to register a change in the front
passenger seat status. This is normal system
operation

and

does

not

indicate

a

malfunction.

If a malfunction occurs in the front passenger
air bag system, the supplemental air bag
warning light

, located in the meter and

gauges area of the instrument panel, will be
illuminated (blinking or steadily lit). Have the
system checked. It is recommended that you
visit an INFINITI retailer for this service.

Normal operation

In order for the occupant classification sen-
sor system to classify the front passenger
based on weight, please follow the precau-
tions and steps outlined below:

Precautions

• Make sure that there are no objects weigh-

ing over 9.1 lbs. (4 kg) hanging on the seat
or placed in the seatback pocket.

• Make sure that a child restraint or other

object is not pressing against the rear of the
seatback.

• Make sure that a rear passenger is not

pushing or pulling on the back of the front
passenger seat.

• Make sure that the front passenger seat or

seatback is not forced back against an ob-
ject on the seat or floor behind it.

• Make sure that there is no object placed

under the front passenger seat.

Steps

1. Adjust the seat as outlined in the “Seats”

(P. 1-2) section of this manual. Sit upright,
leaning against the seatback, and cen-
tered on the seat cushion with your feet
comfortably extended to the floor.

2. Make sure there are no objects on your

lap.

3. Fasten the seat belt as outlined in the

“Seat belts” (P. 1-11) section of this
manual. Front passenger seat belt buckle
status is monitored by the occupant clas-
sification system, and is used as an input
to determine occupancy status. So, it is
highly recommended that the front pas-
senger fasten their seat belt.

4. Remain in this position for 30 seconds

allowing the system to classify the front
passenger before the vehicle is put into
motion.

5. Ensure proper classification by checking

the front passenger air bag status light.

1-54

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

This vehicle’s occupant classification sensor
system generally keeps the classification
locked during driving, so it is important that
you confirm that the front passenger is
properly classified prior to driving. However,
the occupant classification sensor may re-
calculate the weight of the occupant under
some conditions (both while driving and
when stopped), so front passenger seat oc-
cupants should continue to remain seated as
outlined above.

Troubleshooting

If you think the front passenger air bag status
light is incorrect:

1. If the light is ON with an adult occupying

the front passenger seat:

• Occupant is a small adult — the air bag light

is functioning as intended. The front pas-
senger air bag and front passenger supple-
mental knee air bag are suppressed.

However, if the occupant is not a small adult,
then this may be due to the following condi-
tions that may be interfering with the weight
sensors:

• Occupant is not sitting upright, leaning

against the seatback, and centered on the
seat cushion with his/her feet comfortably
extended to the floor.

• A child restraint or other object pressing

against the rear of the seatback.

• A rear passenger pushing or pulling on the

back of the front passenger seat.

• Forcing the front seat or seatback against

an object on the seat or floor behind it.

• An object placed under the front passenger

seat.

• An object placed between the seat cushion

and center console or between the seat
cushion and the door.

If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct
any of the above conditions. Restart the ve-
hicle and wait 1 minute.

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

If the light is still ON after this, the person
should be advised not to ride in the front
passenger seat and the vehicle should be
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.

2. If the light is OFF with a small adult, child

or child restraint occupying the front pas-
senger seat.

This may be due to the following condi-
tions that may be interfering with the
weight sensors:

• Small adult or child is not sitting upright,

leaning against the seatback, and centered
on the seat cushion with his/her feet com-
fortably extended to the floor.

• The child restraint is not properly installed,

as

outlined

in

the

“Child

Restraints”

(P. 1-21) section of this manual.

• An object weighing over 9.1 lbs. (4 kg)

hanging on the seat or placed in the seat-
back pocket.

• A child restraint or other object pressing

against the rear of the seatback.

• A rear passenger pushing or pulling on the

back of the front passenger seat.

• Forcing the front seat or seatback against

an object on the seat or floor behind it.

Safety-Seats, seat belts and supplemental restraint system

1-55

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• An object placed under the front passenger

seat.

• An object placed between the seat cushion

and center console.

If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct
any of the above conditions. Restart the ve-
hicle and wait 1 minute.

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

If the light is still OFF after this, the small
adult, child or child restraint should be repo-
sitioned in the rear seat and the vehicle
should be checked as soon as possible. It is
recommended that you visit an INFINITI re-
tailer for this service.

3. If the light is OFF with no front passenger

and no objects on the front passenger
seat, the vehicle should be checked. It is
recommended that you visit an INFINITI
retailer as soon as possible.

Other supplemental front-impact air bag
precautions

WARNING

Do not place any objects on the steering
wheel pad or on the instrument panel.
Also, do not place any objects between
any occupant and the steering wheel or
instrument panel. Such objects may be-
come dangerous projectiles and cause in-
jury if the front air bags inflate.

Immediately

after

inflation,

several

front air bag system components will be
hot. Do not touch them; you may se-
verely burn yourself.

No unauthorized changes should be
made to any components or wiring of the
supplemental air bag system. This is to
prevent accidental inflation of the
supplemental air bag or damage to the
supplemental air bag system.

Do not make unauthorized changes to
your vehicle's electrical system, suspen-
sion system or front end structure. This
could affect proper operation of the
front air bag system.

Tampering with the front air bag system
may result in serious personal injury.
Tampering includes changes to the
steering wheel and the instrument panel
assembly by placing material over the
steering wheel pad and above the instru-
ment panel or by installing additional
trim material around the air bag system.

Removing or modifying the front pas-
senger seat may affect the function of
the air bag system and result in serious
personal injury.

Modifying or tampering with the front
passenger seat may result in serious per-
sonal injury. For example, do not change
the front seats by placing material on the
seat cushion or by installing additional
trim material, such as seat covers, on the
seat that are not specifically designed to
assure proper air bag operation. Addi-
tionally, do not stow any objects under
the front passenger seat or the seat
cushion and seatback. Such objects may
interfere with the proper operation of
the

occupant

classification

sensor

(weight sensor).

1-56

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

No unauthorized changes should be
made to any components or wiring of the
seat belt system. This may affect the
front air bag system. Tampering with the
seat belt system may result in serious
personal injury.

It is recommended that you visit an
INFINITI retailer for work on and around
the front air bags. It is also recommended
that you visit an INFINITI retailer for in-
stallation of electrical equipment. The
Supplemental Restraint System (SRS)
wiring harnesses* should not be modified
or disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the air bag system.

A cracked windshield should be replaced
immediately by a qualified repair facility.
A cracked windshield could affect the
function of the supplemental air bag
system.

*The SRS wiring harness connectors are yel-
low and orange for easy identification.

When selling your vehicle, we request that
you inform the buyer about the front air bag
system and guide the buyer to the appropri-
ate sections in this Owner's Manual.

Front and rear outboard
seat-mounted side-impact
supplemental air bag and
roof-mounted curtain side-impact
and rollover supplemental air bag
systems

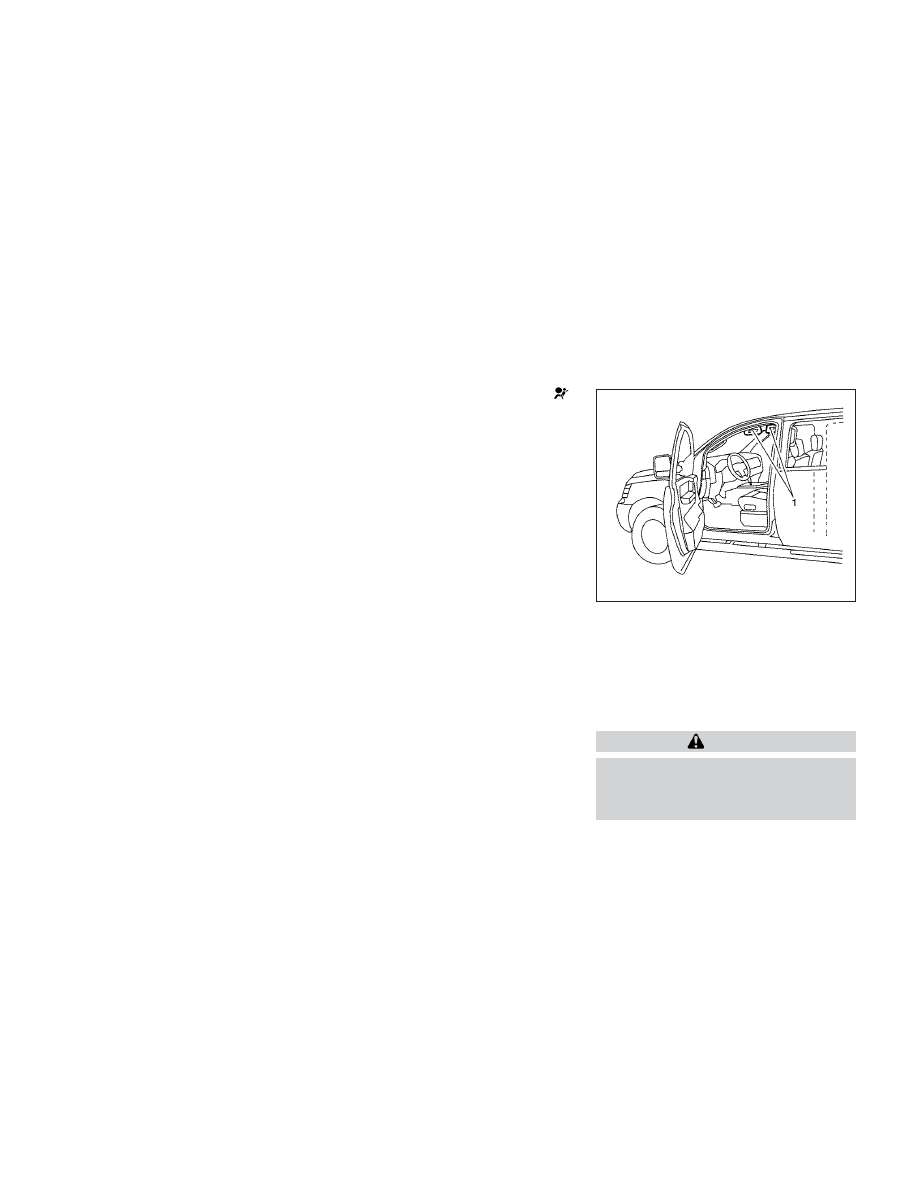

The side air bags are located in the outside of
the seatback of the front and rear outboard
seats. The curtain air bags are located in the
side roof rails.

All of the information, cau-

tions and warnings in this manual must be
followed.

The side air bags and curtain air

bags are designed to inflate in higher severity
side collisions, although they may inflate if

the forces in another type of collision are
similar to those of a higher severity impact.
They are designed to inflate on the side
where the vehicle is impacted. They may not
inflate in certain side collisions.

Curtain air bags are also designed to inflate in
certain types of rollover collisions or near
rollovers. As a result, certain vehicle move-
ments (for example, during severe off-
roading) may cause the curtain air bags to
inflate.

Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain
air bag operation.

When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard, fol-
lowed by the release of smoke. This smoke is
not harmful and does not indicate a fire. Care
should be taken not to inhale it, as it may
cause irritation and choking. Those with a
history of a breathing condition should get
fresh air promptly.

Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest
and pelvic area of the front and rear outboard
occupants. Curtain air bags help to cushion
the impact force to the head of occupants in
the front and rear outboard seating positions.
They can help save lives and reduce serious

LRS3142

Safety-Seats, seat belts and supplemental restraint system

1-57

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

injuries. However, an inflating side air bag
and curtain air bag may cause abrasions or
other injuries. Side air bags and curtain air
bags do not provide restraint to the lower
body.

The seat belts should be correctly worn and
the driver, front passenger and rear outboard
occupants seated upright as far as practical
away from the side air bag. Rear seat passen-
gers should be seated as far away as practi-
cal from the door finishers and side roof rails.
The side air bags and curtain air bags inflate
quickly in order to help protect the occupants.
Because of this, the force of the side air bag
and curtain air bag inflating can increase the
risk of injury if the occupant is too close to, or
is against, these air bag modules during infla-
tion. The side air bag will deflate quickly after
the collision is over.

The curtain air bag will remain inflated for a
short time.

The side air bags and curtain air bags oper-
ate only when the ignition switch is placed in
the ON position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.

WARNING

Do not place any objects near the seat-
back of the front and rear seats. Also, do
not place any objects (an umbrella, bag,
etc.) between the front and rear door
finisher and the front and rear seat. Such
objects may become dangerous projec-
tiles and cause injury if a side air bag
inflate.

Right after inflation, several side air bag
and curtain air bag system components
will be hot. Do not touch them; you may
severely burn yourself.

No unauthorized changes should be
made to any components or wiring of the
side air bag and curtain air bag systems.
This is to prevent damage to or acciden-
tal inflation of the side air bag and cur-
tain air bag or damage to the side air bag
and curtain air bag systems.

Do not make unauthorized changes to
your vehicle's electrical system, suspen-
sion system or side panel. This could af-
fect proper operation of the side air bag
and curtain air bag systems.

Tampering with the side air bag system
may result in serious personal injury. For
example, do not change the front and
rear seats by placing material near the
seatbacks or by installing additional trim
material, such as seat covers, around the
side air bag.

It is recommended that you visit a
INFINITI retailer for work on and around
the side air bag and curtain air bag. It is
also recommended that you visit a
INFINITI retailer for installation of elec-
trical equipment. The SRS wiring har-
nesses* should not be modified or dis-
connected. Unauthorized electrical test
equipment and probing devices should
not be used on the side air bag or curtain
air bag system.

* The SRS wiring harness connectors are yel-
low and orange for easy identification.

When selling your vehicle, we request that
you inform the buyer about the side air bag
and curtain air bag systems and guide the
buyer to the appropriate sections in this
Owner's Manual.

1-58

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver and front passenger
supplemental knee air bag

The knee air bag is located in the knee bolster,
on the driver’s and passenger’s side.

All of the

information, cautions and warnings in this
manual apply and must be followed.

The

knee air bag is designed to inflate in higher
severity frontal collisions, although it may in-
flate if the forces in another type of collision
are similar to those of a higher severity fron-
tal impact. It may not inflate in certain
collisions.

Vehicle damage (or lack of it) is not always an
indication of proper knee air bag operation.

When the knee air bag inflates, a fairly loud
noise may be heard, followed by release of
smoke. This smoke is not harmful and does
not indicate a fire. Care should be taken not
to inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.

The knee air bag helps to cushion the impact
force on the knees of the driver and passen-
ger. It can help reduce serious injuries. How-
ever, an inflating knee air bag may cause
abrasions or other injuries. The knee air bag
provides restraint to the lower body.

The knee air bag inflates quickly in order to
help protect the occupants. Because of this,
the force of the knee air bag inflating can
increase the risk of injury if the occupant is
too close to, or is against, this air bag module
during inflation. The knee air bag will deflate
quickly after the collision is over OR the knee
air bag will remain inflated for a short time.

The knee air bag operates only when the ig-
nition switch is placed in the ON position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.

LRS3279

Driver’s side

LRS3280

Passenger’s side

Safety-Seats, seat belts and supplemental restraint system

1-59

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not place any objects between the
knee bolster and the driver’s or passen-
ger’s seat. Such objects may become
dangerous projectiles and cause injury if
a knee air bag inflates.

Right after inflation, the knee air bag
system components will be hot. Do not
touch them; you may severely burn
yourself.

No unauthorized changes should be
made to any components or wiring of the
knee air bag system. This is to prevent
damage to or accidental inflation of the
knee air bag system.

Do not make unauthorized changes to
your vehicle's electrical system or sus-
pension system. This could affect proper
operation of the knee air bag system.

Tampering with the knee air bag system

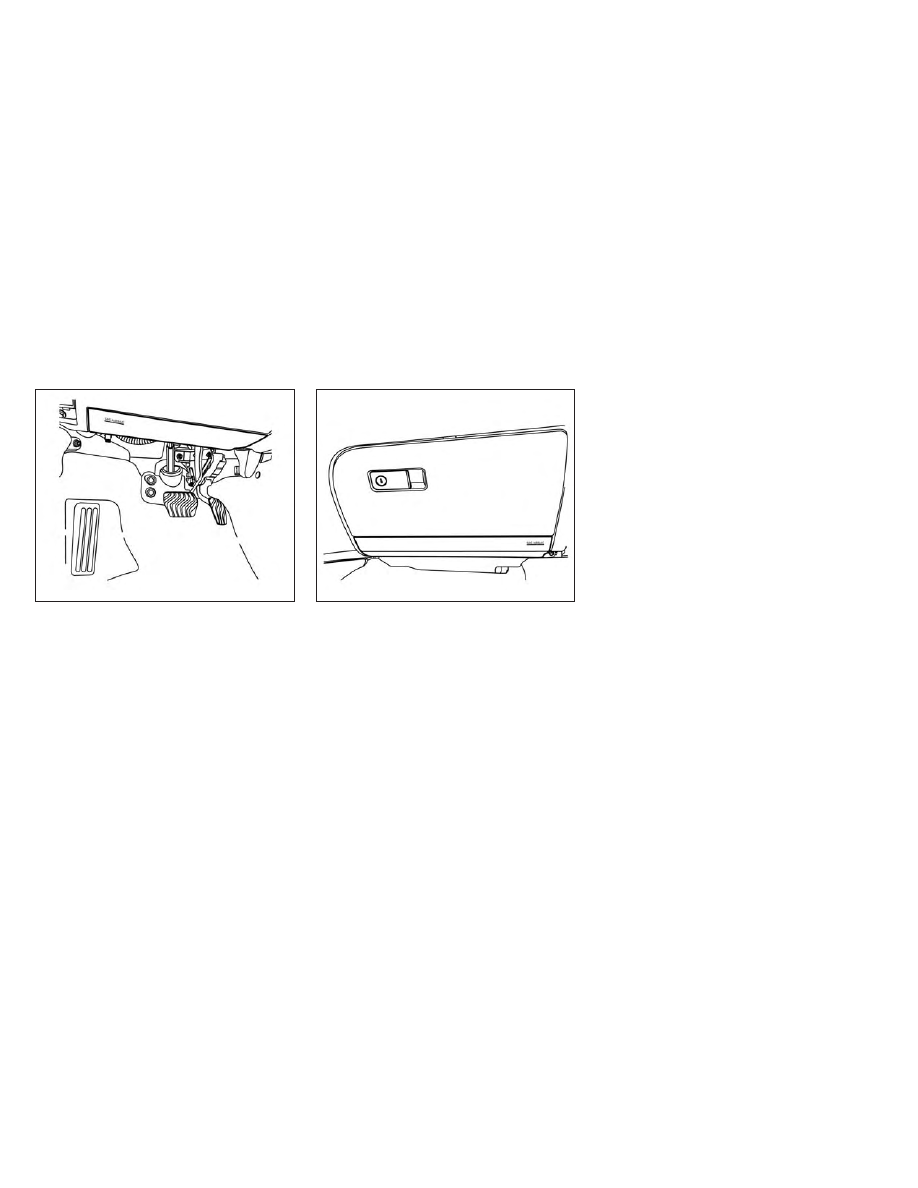

may result in serious personal injury. For
example, do not change the driver knee
bolster or install additional trim material
around the knee air bag.

It is recommended that you visit an
INFINITI retailer for work on and around
the knee air bag. It is also recommended
that you visit an INFINITI retailer for in-
stallation of electrical equipment. The
SRS wiring harnesses* should not be
modified or disconnected. Unauthorized
electrical test equipment and probing
devices should not be used on the knee
air bag system.

*The SRS wiring harness or connectors are
yellow or orange for easy identification.

When selling your vehicle, we request that
you inform the buyer about the knee air bag
system and guide the buyer to the appropri-
ate sections in this manual.

Seat belt with pretensioner(s) (front
and rear outboard seats)

WARNING

The pretensioner(s) cannot be reused af-
ter activation. They must be replaced to-
gether with the retractor and buckle as a
unit.

If the vehicle becomes involved in a colli-
sion but pretensioner(s) are not acti-
vated, be sure to have the pretensioner
system checked and, if necessary, re-
placed. It is recommended that you visit
an INFINITI retailer for this service.

No unauthorized changes should be
made to any components or wiring of the
pretensioner system. This is to prevent
damage to or accidental activation of the
pretensioner(s). Tampering with the pre-
tensioner system may result in serious
personal injury.

It is recommended that you visit an
INFINITI retailer for work on and around
the pretensioner system. It is also recom-
mended that you visit an INFINITI re-
tailer for installation of electrical equip-
ment.

Unauthorized

electrical

test

equipment and probing devices should
not be used on the pretensioner system.

If you need to dispose of the pretension-
er(s) or scrap the vehicle, it is recom-
mended that you visit an INFINITI re-
tailer for this service. Incorrect disposal
procedures could cause personal injury.

1-60

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The pretensioner system may activate with
the supplemental air bag system in certain
types of collisions. Working with the seat belt
retractor, the pretensioner(s) help tighten the
seat belt when the vehicle becomes involved
in certain types of collisions, helping to re-
strain

front

and

rear

outboard

seat

occupants.

The pretensioner(s) are encased within the
seat belt retractor and to the seat belt anchor
affixed to the floor of the vehicle. These seat
belts are used the same way as conventional
seat belts.

When pretensioner(s) activate, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indicate a
fire. Care should be taken not to inhale it, as it
may cause irritation and choking. Those with
a history of a breathing condition should get
fresh air promptly.

After the pretensioner(s’) activation, load lim-
iters allow the seat belt to release webbing (if
necessary) to reduce forces against the chest.

The supplemental air bag warning light
is used to indicate malfunctions in the preten-
sioner system. For additional information,
see "Supplemental air bag warning light"
(P. 1-62). If the operation of the supplemen-
tal air bag warning light indicates there is a
malfunction, have the system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.

When selling your vehicle, we request that
you inform the buyer about the pretensioner
system and guide the buyer to the appropri-
ate sections in this Owner's Manual.

SUPPLEMENTAL AIR BAG
WARNING LABELS

Warning labels about the supplemental
front-impact air bag systems are placed in
the vehicle as shown in the illustration.

WARNING

Do not use a rear-facing child restraint on a
seat protected by an air bag in front of it. If
the air bag deploys, it may cause serious
injury or death.

WRS0885

1. SRS air bag warning labels (located on the

sun visors)

Safety-Seats, seat belts and supplemental restraint system

1-61

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SUPPLEMENTAL AIR BAG
WARNING LIGHT

The supplemental air bag warning light, dis-
playing

in the instrument panel, moni-

tors the circuits for the air bag systems, pre-
tensioner(s) and all related wiring.

When the ignition switch is placed in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and then
turns OFF. This means the system is
operational.

If any of the following conditions occur, the
front air bag, side air bag, curtain air bag,
knee air bag and pretensioner systems need
servicing:
• The supplemental air bag warning light re-

mains on after approximately 7 seconds.

• The supplemental air bag warning light

flashes intermittently.

• The supplemental air bag warning light

does not come on at all.

Under these conditions, the front air bag, side
air bag, curtain air bag, knee air bag or pre-
tensioner systems may not operate properly.
They must be checked and repaired. It is rec-
ommended that you visit an INFINITI retailer
for this service.

WARNING

If the supplemental air bag warning light is
on, it could mean that the front air bag, side
air bag, curtain air bag, knee air bag and/or
pretensioner systems will not operate in an
accident. To help avoid injury to yourself or
others, have your vehicle checked as soon
as possible. It is recommended that you
visit an INFINITI retailer for this service.

Repair and replacement procedure

The front air bags, side air bags, curtain air
bags, knee air bags and pretensioner(s) are
designed to inflate on a one-time-only basis.
As a reminder, unless it is damaged, the
supplemental air bag warning light remains
illuminated after inflation has occurred.
These systems should be repaired and/or re-
placed as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.

When maintenance work is required on the
vehicle, the front air bags, side air bags, cur-
tain air bags, knee air bags, pretensioner(s)
and related parts should be pointed out to the
person performing the maintenance. The ig-
nition switch should always be in the LOCK
position when working under the hood or
inside the vehicle.

LRS0100

1-62

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Once a front air bag, side air bag, curtain
air bag or knee air bag has inflated, the
air bag module will not function again
and must be replaced. Additionally, the
activated pretensioner(s) must also be
replaced. The air bag module and preten-
sioner(s) should be replaced. It is recom-
mended that you visit an INFINITI re-
tailer for this service. However, the air
bag module and pretensioner(s) cannot
be repaired.

The front air bag, side air bag, curtain air
bag, knee air bag systems and the pre-
tensioner system should be inspected if
there is any damage to the front end or
side portion of the vehicle. It is recom-
mended that you visit an INFINITI re-
tailer for this service.

If you need to dispose of a supplemental
air bag or pretensioner systems or scrap
the vehicle, it is recommended that you
visit an INFINITI retailer. Incorrect dis-
posal procedures could cause personal
injury.

If there is an impact to your vehicle from
any direction, your Occupant Classifica-
tion Sensor (OCS) should be checked to
verify it is still functioning correctly. It is
recommended that you visit an INFINITI
retailer for this service. The OCS should
be checked even if no air bags deploy as a
result of the impact. Failure to verify
proper OCS function may result in an im-
proper air bag deployment resulting in
injury or death.

In certain frontal collisions with a pedestrian,
the pop-up engine hood system can help re-
duce impact to the head of a pedestrian. This
system is designed to pop up the rear end of
the hood in certain frontal collisions to pro-
vide specified clearance between the hood
and the engine compartment to reduce im-
pact to a pedestrian.

The pop-up engine hood system activates in
certain frontal collisions with pedestrians or
objects when the vehicle is driven at speeds
between approximately 12 and 37 mph (20
and 60 km/h). While driving, the pop-up en-
gine hood may activate in the event of an
impact collision involving the bottom of the
vehicle or bumper. The system activates
when the collision impact reaches a certain
level even though the collision does not cause
damage to the bumper.

The pop-up engine hood operates only when
the ignition switch is in the ON position.
When the ignition switch is in the ON posi-
tion, the pop-up engine hood warning light
illuminates for about 7 seconds and then
turns off. This indicates that the pop-up en-
gine hood is operational. For additional in-
formation, see “Warning lights, indicator
lights and audible reminders” (P. 2-9).

POP-UP ENGINE HOOD

Safety-Seats, seat belts and supplemental restraint system

1-63

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

The pop-up engine hood will not activate
in the event of a side impact, rear impact
or rollover collision.

The pop-up engine hood may not acti-
vate in the event of a corner impact col-
lision of the front bumper.

No unauthorized changes should be
made to any components including hood
and front bumper, or wiring of the
pop-up engine hood system. This is to
prevent accidental or improper activa-
tion, or damage to the pop-up engine
hood system.

It is recommended that work performed
around or on the pop-up engine hood
system should be done by an INFINITI
retailer. The wiring of the pop-up engine
hood system should not be modified or
disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the pop-up engine
hood system. This could affect proper
operation of the pop-up engine hood and
cause

accidental

and

improper

activation.

Do not pull the hood lock release handle
or push the hood down after the pop-up
engine hood system activates. Doing so
could cause personal injury or damage to
the hood because the hood cannot be
closed manually after the system is acti-
vated. When the pop-up engine hood ac-
tivates, it is recommended that you visit
an INFINITI retailer.

If you need to dispose of the pop-up en-
gine hood system, or scrap the vehicle, it
is recommended that you visit an
INFINITI retailer. Correct pop-up engine
hood system disposal procedures are set
forth in the appropriate INFINITI Service
Manual. Incorrect disposal procedures
could cause personal injury.

The pop-up engine hood cannot be re-
used after activation. It is recommended
that you visit an INFINITI retailer for re-
placement. If the vehicle becomes in-
volved in a frontal collision but the
pop-up engine hood system is not acti-
vated, it is recommended that you have
the pop-up engine hood system checked
and,

if

necessary,

replaced

by

an

INFINITI retailer.

Immediately after the pop-up engine
hood has been activated, do not touch
the components because the lifters will
be hot. You may severely burn yourself.

POP-UP ENGINE HOOD
ACTIVATION CONDITIONS

When the pop-up engine hood will activate

The pop-up engine hood activates in certain
frontal collisions with pedestrians or objects
when the vehicle is driven at speeds between
approximately 12 and 37 mph (20 and 60
km/h).

The pop-up engine hood activates when the
collision impact reaches a certain level even if
the collision does not cause damage to the
front bumper. In addition, it may activate
when the vehicle collides with small animals,
lumps of snow or any other objects, depend-
ing on the condition and speed of collision.

When the vehicle receives an impact to the
undercarriage or a lower part of the front
bumper, the pop-up engine hood may also
activate. Reduce speed and be careful when
driving on a road surface that seems likely to
impact the undercarriage or a lower part of
the front bumper. Some examples are shown
in the following illustrations.

1-64

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

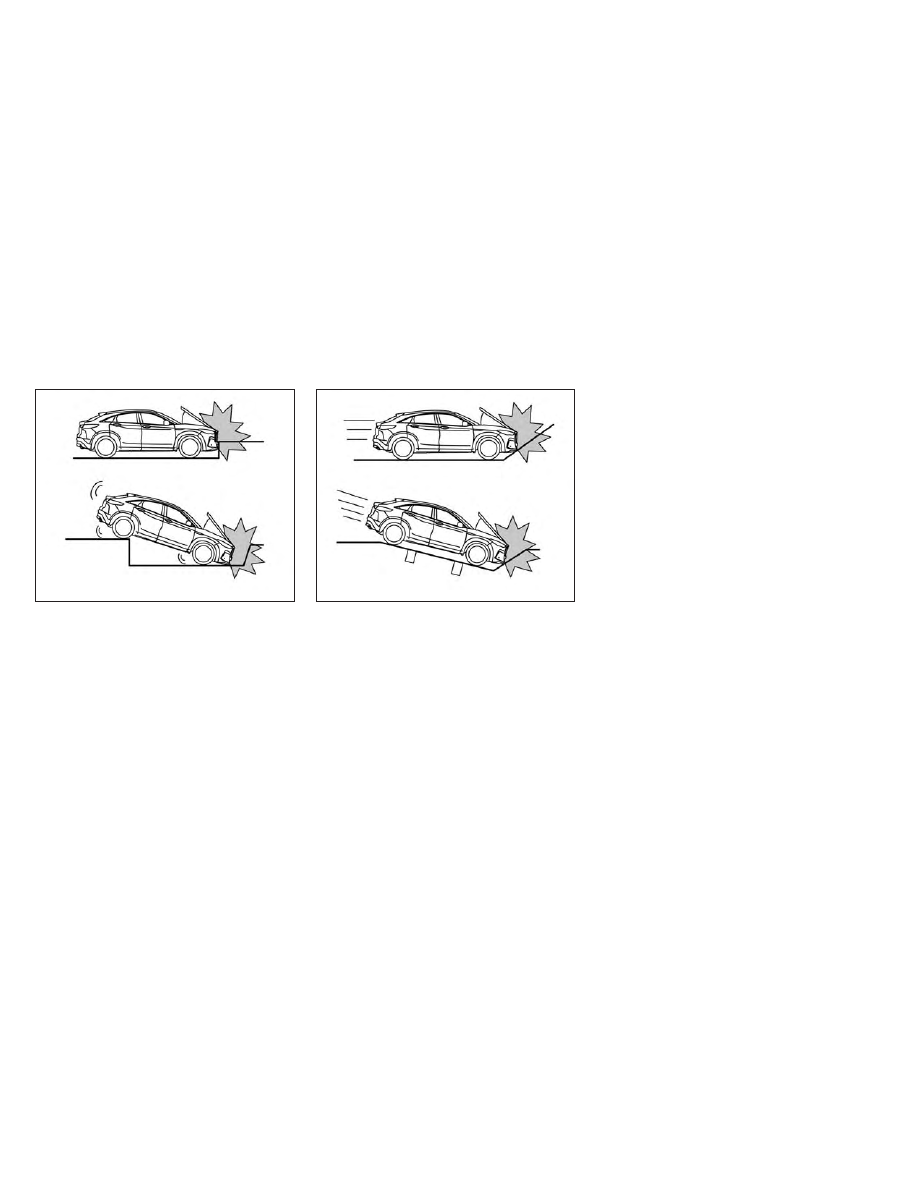

• Hitting a curb, pavement edge or hard

surface

• Falling into a deep hole or ditch

• Hitting the front bumper on a slope
• Hitting the front bumper on an uneven road

surface, such as a railroad crossing

LRS3552

LRS3553

Safety-Seats, seat belts and supplemental restraint system

1-65

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2 Instruments and controls

Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Meters and gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

Speedometer and odometer . . . . . . . . . . . . . . . . . . .2-4
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
Engine coolant temperature gauge . . . . . . . . . . . .2-6
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Distance To Empty (DTE) . . . . . . . . . . . . . . . . . . . . . 2-7
Variable Compression Turbo . . . . . . . . . . . . . . . . . .2-8

Warning lights, indicator lights and audible
reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9

Checking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Warning/Indicator lights (red) . . . . . . . . . . . . . . . 2-10
Warning/Indicator lights (yellow) . . . . . . . . . . . . 2-13
Warning/Indicator lights (other) . . . . . . . . . . . . . .2-17
Audible reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Vehicle information display . . . . . . . . . . . . . . . . . . . . . 2-19

How to use the vehicle information
display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Startup display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-21
Resetting the trip computer . . . . . . . . . . . . . . . . . 2-24
Tire Pressure Information (Display
Settings) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
Oil control system . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
Vehicle information display warnings and
indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25

Security systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-33

Vehicle security system . . . . . . . . . . . . . . . . . . . . . . 2-33
INFINITI Vehicle Immobilizer System . . . . . . . . . 2-34

Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . 2-36

Switch operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-36
Rain-sensing auto wiper system
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-37
Rear switch operation . . . . . . . . . . . . . . . . . . . . . . . 2-38

Rear window defroster, outside mirror
defroster, and wiper deicer (if so equipped)
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-39
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-40

Headlight control switch . . . . . . . . . . . . . . . . . . . . 2-40
LED Daytime Running Lights (DRL)
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-45
Instrument brightness control . . . . . . . . . . . . . . . . 2-46
Turn signal switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-46
Fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-47

Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-47
Climate controlled seat switches
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-48
Heated seats (if so equipped) . . . . . . . . . . . . . . . . . . . 2-49
Heated rear seat switches (if so equipped) . . . . . . 2-50
Steering Assist switch . . . . . . . . . . . . . . . . . . . . . . . . . . .2-51
Front and rear sonar system switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-51
Head Up Display (HUD) (if so equipped) . . . . . . . . . 2-52

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

How to use the HUD . . . . . . . . . . . . . . . . . . . . . . . . 2-53
Driver Assistance/Navigation linking . . . . . . . . . 2-53

Emergency call (SOS) button . . . . . . . . . . . . . . . . . . . 2-54
USB/iPod® charging ports . . . . . . . . . . . . . . . . . . . . . 2-55
Power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-55

12v outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-55

Extended storage switch . . . . . . . . . . . . . . . . . . . . . . . 2-56
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-57

Front-door pockets . . . . . . . . . . . . . . . . . . . . . . . . . 2-57
Seatback pockets . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-58
Front console lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-58
Storage trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-59
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-59
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-60
Overhead sunglasses storage . . . . . . . . . . . . . . . . 2-60
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-61
Cargo area storage bin . . . . . . . . . . . . . . . . . . . . . . 2-62
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-63
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-63
Cargo cover (if so equipped) . . . . . . . . . . . . . . . . . 2-64

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-65

Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-65

Moonroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-67

Power moonroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-67

Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-69

Map lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-70
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-70
Cargo light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-70

HomeLink® Universal Transceiver . . . . . . . . . . . . . . .2-71

Programming HomeLink® . . . . . . . . . . . . . . . . . . . .2-71
Programming HomeLink® for Canadian
customers and gate openers . . . . . . . . . . . . . . . . . 2-73
Operating the HomeLink® Universal
Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-73
Programming trouble-diagnosis . . . . . . . . . . . . . 2-73
Clearing the programmed information . . . . . . . 2-74
Reprogramming a single HomeLink®
button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-74
If your vehicle is stolen . . . . . . . . . . . . . . . . . . . . . . 2-74

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

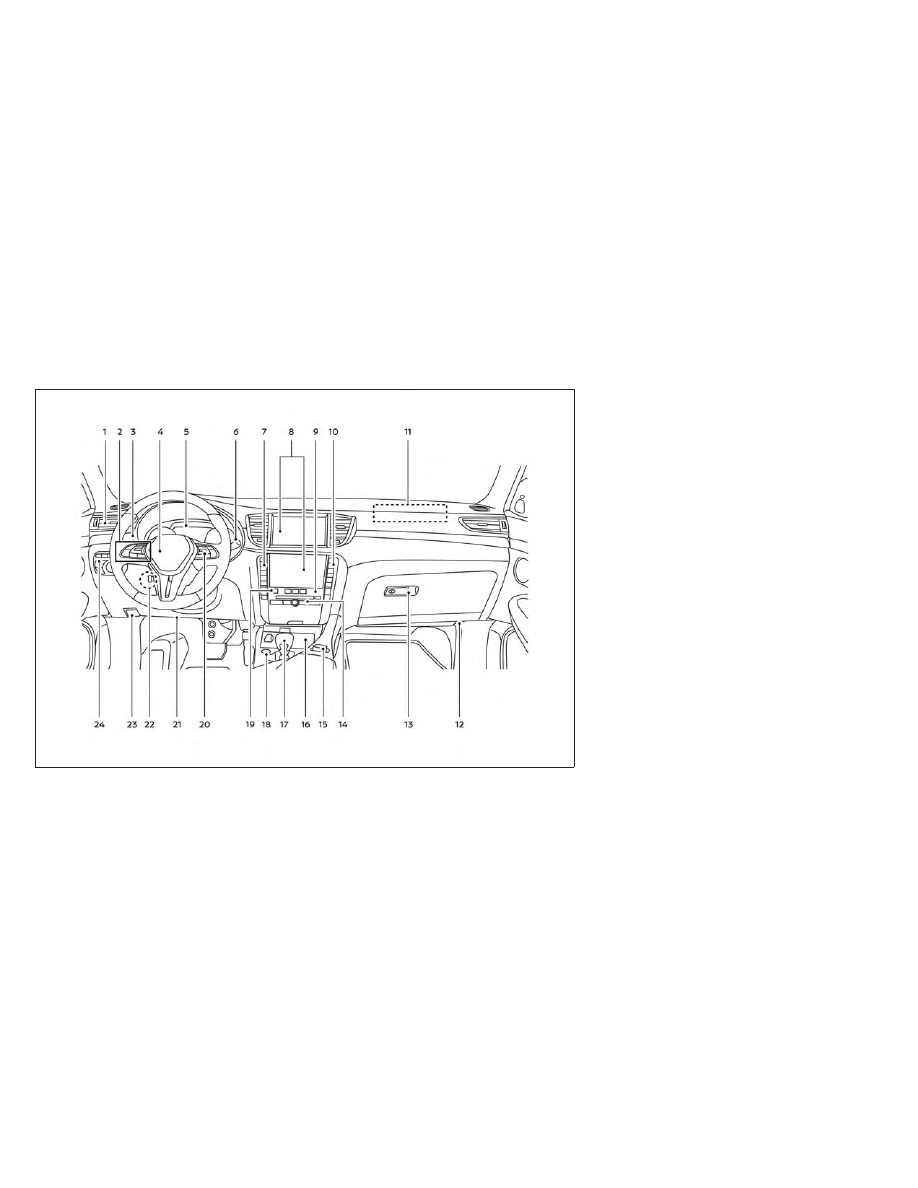

1.

Vents (P. 4-32)

2.

Bluetooth® Hands-Free Phone System*
Steering wheel switch for audio control*

Center display multi-function control
buttons*

3.

High beam/turn signal switch (P. 2-46)
Paddle shifters (P. 5-22)
Trip reset switch (P. 2-5)

4.

Driver supplemental air bag (P. 1-41)
Horn (P. 2-47)

5.

Meters and gauges (P. 2-4)
Warning and indicator lights (P. 2-9)
Vehicle information display (P. 2-19)

6.

Wiper and washer switch (P. 2-36)
Rear wiper and washer switch (P. 2-38)

7.

Automatic heater and air conditioning
controls (P. 4-33)
Driver side climate controlled seat
switches (if so equipped) (P. 2-48)
Driver side heated seat switches
(if so equipped) (P. 2-49)

8.

Upper and lower displays*
Navigation system* (if so equipped)

9.

Front passenger air bag status light
(P. 1-52)

10.

Automatic heater and air conditioning
controls (P. 4-33)
Passenger side climate controlled seat
switches (if so equipped) (P. 2-48)
Passenger side heated seat switches
(if so equipped) (P. 2-49)
Rear window defroster, outside mirror
defroster, and wiper deicer
(if so equipped) switch (P. 2-39)

11.

Front passenger supplemental air bag
(P. 1-41)

LII2682

INSTRUMENT PANEL

2-2

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

12.

Front passenger supplemental knee air
bag (P. 1-41)

13.

Glove box (P. 2-59)

14.

Audio system controls*

15.

INFINITI controller*

16.

Power outlet (P. 2-55)
USB port*
Cup holders (P. 2-61)
Storage (P. 2-57)

17.

Shift lever (P. 5-18)

18.

Push-button ignition switch (P. 5-13)
Electronic parking brake switch (P. 5-24)
Automatic brake hold switch (P. 5-27)
INFINITI Drive Mode Selector (P. 5-29)

19.

Hazard warning flasher switch (P. 6-2)

20.

ProPILOT Assist switches (P. 5-76)
Control panel and vehicle information
display switches (P. 2-20)

21.

Driver supplemental knee air bag
(P. 1-41)

22.

Tilt and telescopic steering wheel control
(P. 3-32)

23.

Hood release (P. 3-21)

24.

Instrument brightness control (P. 2-46)
Front and rear sonar system switch
(P. 5-147)
Steering assist switch (for vehicles with
ProPILOT Assist) (P. 5-83)
Instrument panel liftgate switch (P. 3-27)
Headlight switch (P. 2-40)
Fog light switch (P. 2-47)
Head Up Display (HUD) OFF switch
(if so equipped) (P. 2-53)

*: Refer to the separate INFINITI InTouch

TM

Owner's Manual.

Refer to the page number indicated in paren-
theses for operating details.

Instruments and controls

2-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

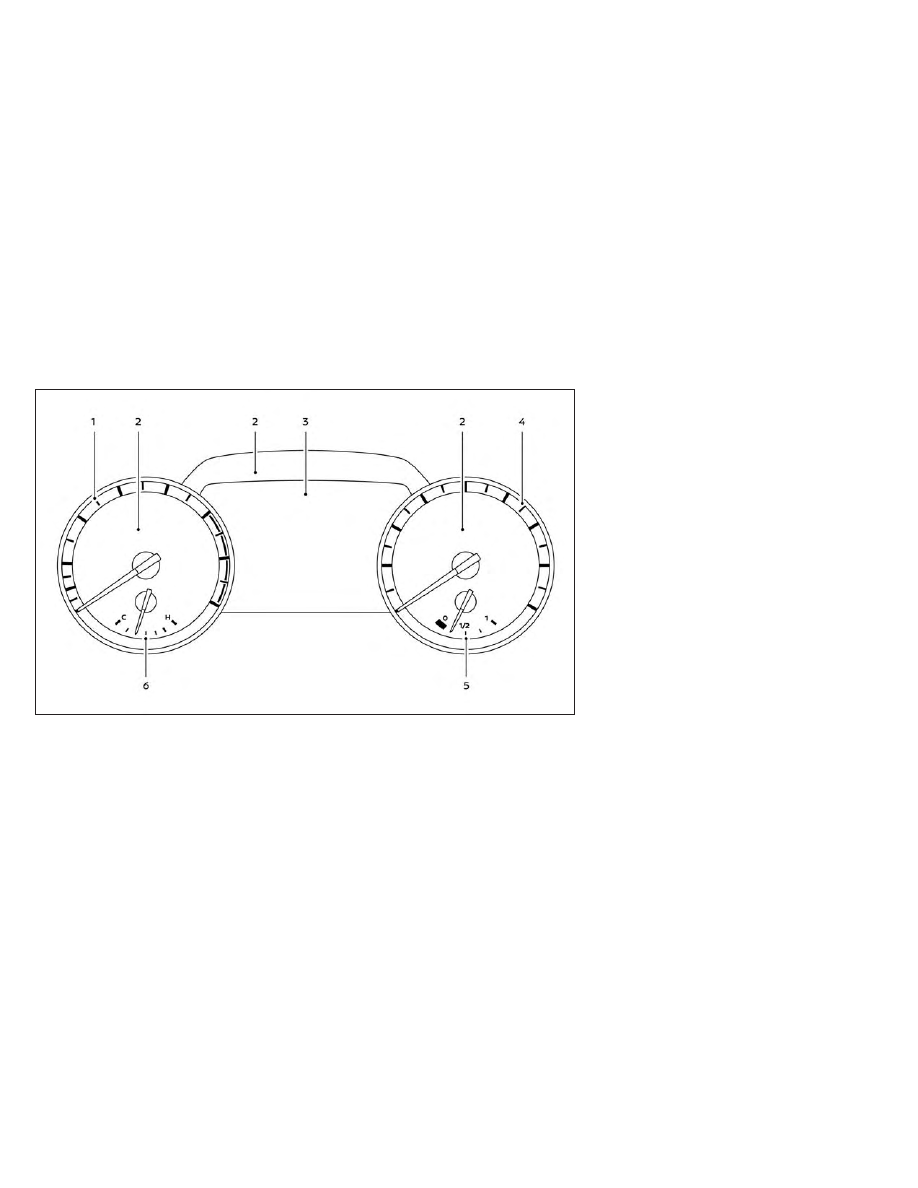

1.

Tachometer

2.

Warning and indicator lights

3.

Vehicle information display
Odometer
Twin trip odometer
Transmission position indicator

4.

Speedometer

5.

Fuel gauge

6.

Engine coolant temperature gauge

SPEEDOMETER AND
ODOMETER

This vehicle is equipped with a speedometer
and odometer. The speedometer is located
on the right side of the meter cluster. The
odometer is located within the vehicle infor-
mation display.

LIC4174

METERS AND GAUGES

2-4

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

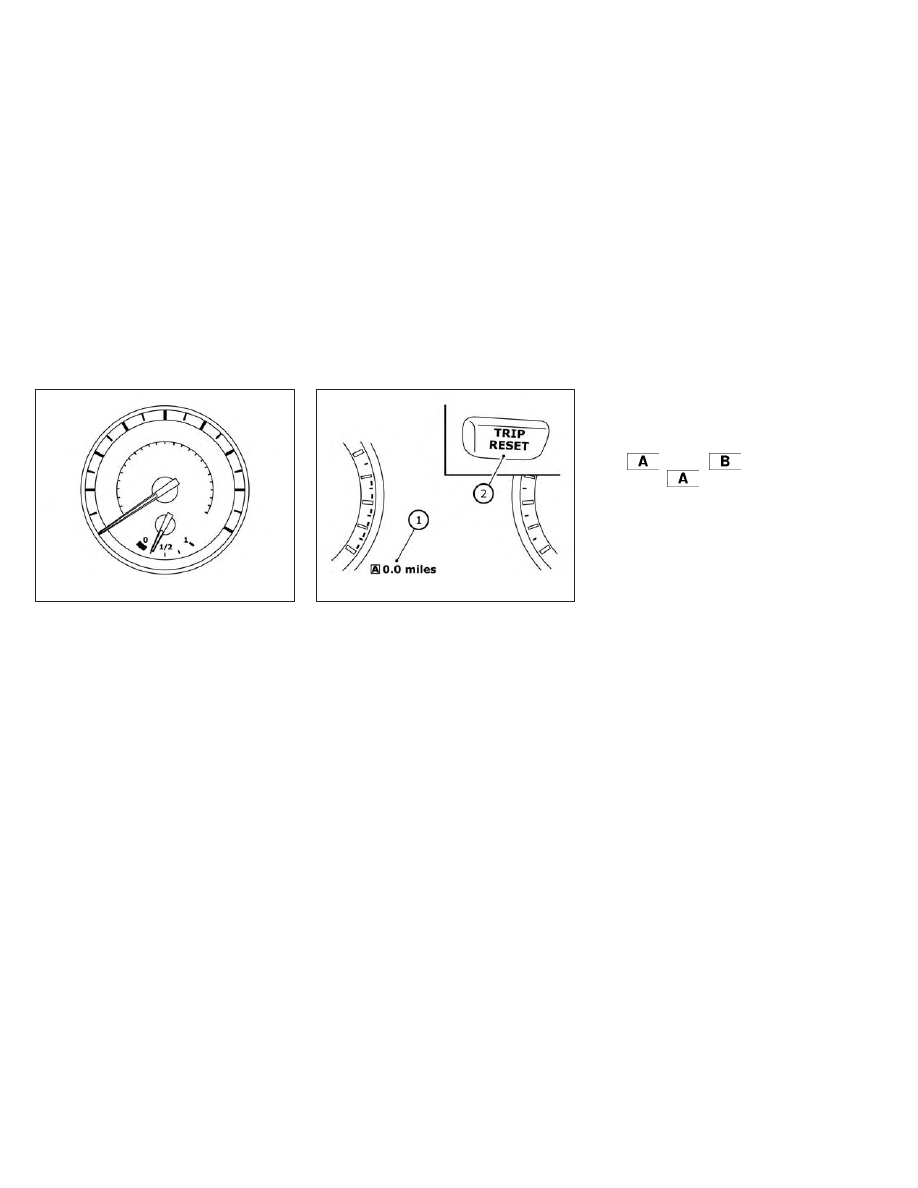

Speedometer

The speedometer indicates vehicle speed.

Odometer/Twin trip odometer

The odometer and the twin trip odometer

O

1

are displayed in the vehicle information dis-
play when the ignition switch is placed in the
ON position.

The odometer records the total distance the
vehicle has been driven.

The twin trip odometer records the distance
of individual trips.

Changing the display

Push the TRIP RESET switch

O

2

on the left

side of the steering column to change the
display as follows:

Trip

Trip

Odometer Mile-

age

Trip

Resetting the trip odometer

Pushing the TRIP RESET switch

O

2

for more

than 1 second resets the currently displayed
trip odometer to zero.

LIC3847

LIC3848

Instruments and controls

2-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

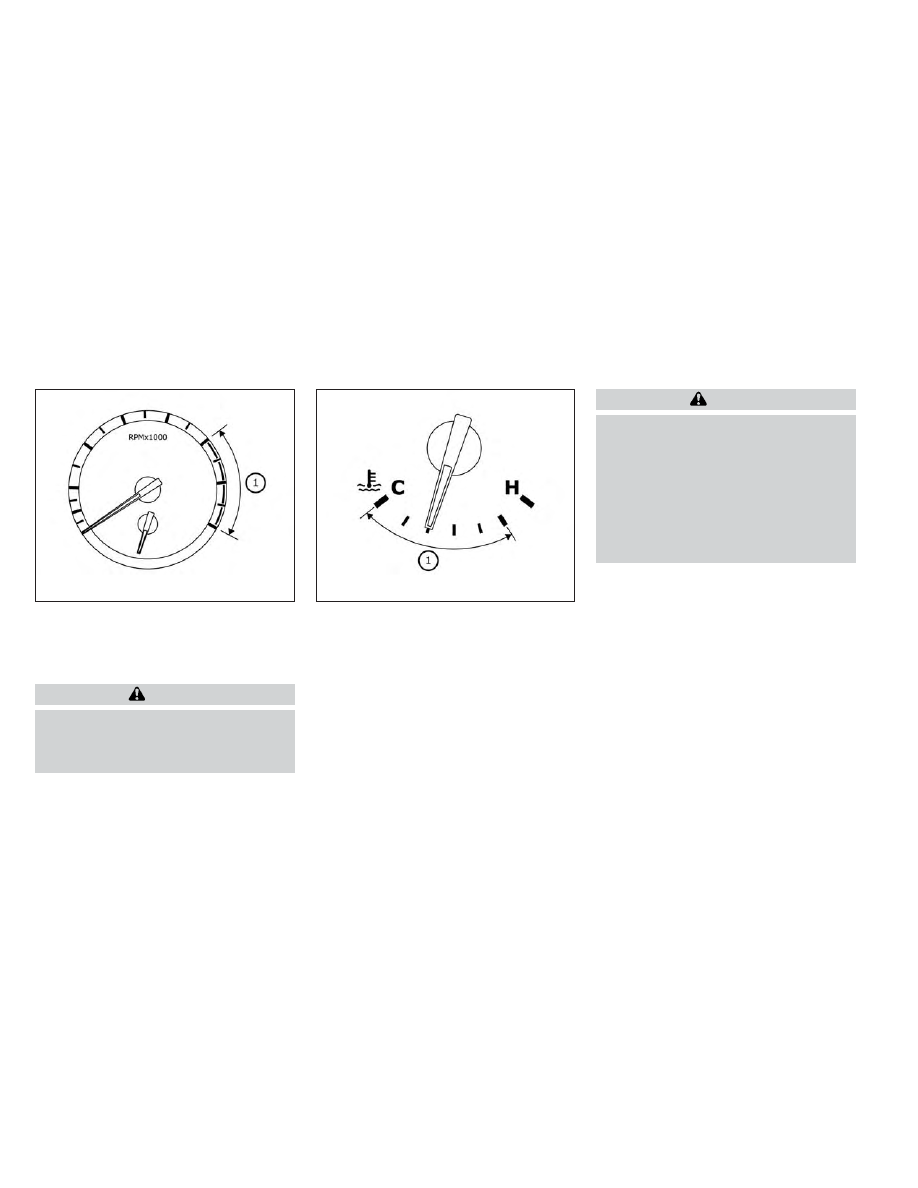

TACHOMETER

The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev the
engine into the red zone

O

1

.

CAUTION

When engine speed approaches the red
zone, reduce engine speed. Operating the
engine in the red zone may cause serious
engine damage.

ENGINE COOLANT
TEMPERATURE GAUGE

The gauge indicates the engine coolant tem-
perature. The engine coolant temperature is
within the normal range

O

1

when the gauge

needle points within the zone shown in the
illustration.

The engine coolant temperature varies with
the outside air temperature and driving
conditions.

CAUTION

If the gauge indicates coolant temperature
near the hot (H) end of the normal range,
reduce vehicle speed to decrease tempera-
ture. If the gauge is over the normal range,
stop the vehicle as soon as safely possible.
If the engine is overheated, continued op-
eration of the vehicle may seriously dam-
age the engine. For additional information,
see “If your vehicle overheats” (P. 6-7)
for
immediate action required.

LIC3849

LIC3850

2-6

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

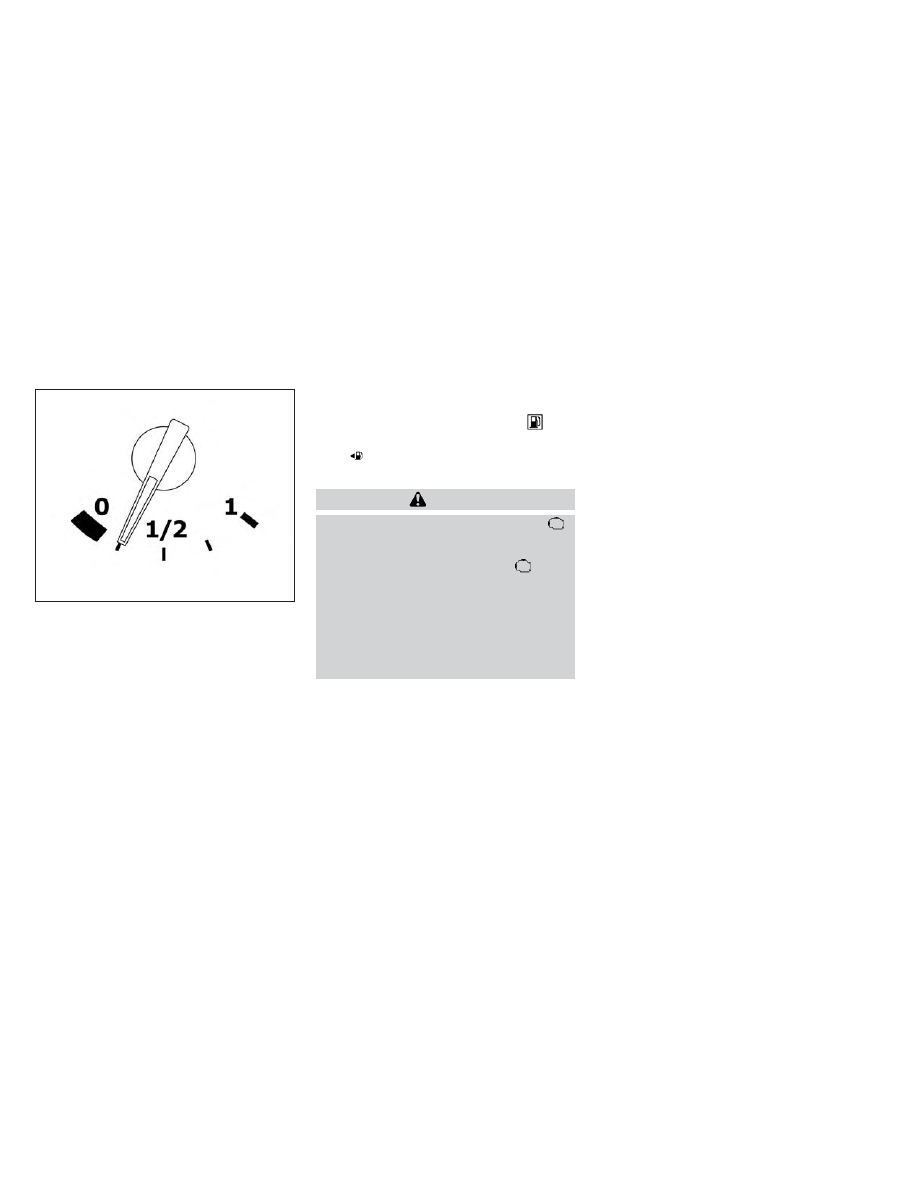

FUEL GAUGE

The gauge indicates the

approximate

fuel

level in the tank.

The gauge may move slightly during braking,
turning, acceleration, or going up or down
hills.

The gauge needle returns to 0 (Empty) after
the ignition switch is placed in the OFF
position.

The low fuel warning comes on when the
amount of fuel in the tank is getting low.

Refill the fuel tank once the Low Fuel
warning indicator in the vehicle information
display illuminates as indicated by

Low

Fuel.

The

indicates that the fuel-filler door is

located on the driver's side of the vehicle.

CAUTION

If the vehicle runs out of fuel, the
Malfunction Indicator Light (MIL) may
come on. Refuel as soon as possible. Af-
ter a few driving trips. the

light

should turn off. If the light remains on
after a few driving trips, have the vehicle
inspected. It is recommended that you
visit an INFINITI retailer for this service.

For additional information, see “Mal-
function

Indicator

Light

(MIL)”

(P. 2-15).

DISTANCE TO EMPTY (DTE)

Displays the estimated distance the vehicle
can be driven before refueling. The value is
calculated based on recent fuel economy, the
amount of fuel remaining in the fuel tank, and
the actual fuel consumption.

Changes in driving patterns or conditions can
cause the DTE value to vary. As a result, the
value displayed may differ from the actual
distance that can be driven.

DTE display will change to “---” when the fuel
level in the tank is getting low, prior to the fuel
gauge reaching 0 (Empty).

NOTE:

• The DTE value after refill is estimated

based on recent fuel economy and amount
of fuel added.

• If a small amount of fuel is added, or the

ignition is on during refueling, the display
may not be updated.

• Conditions that affect the fuel economy

will also affect the estimated DTE value
(city/highway driving, idle time, remote
start time, terrain, seasonal weather,
added vehicle weight, added deflectors,
roof racks, etc.).

LIC3851

Instruments and controls

2-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

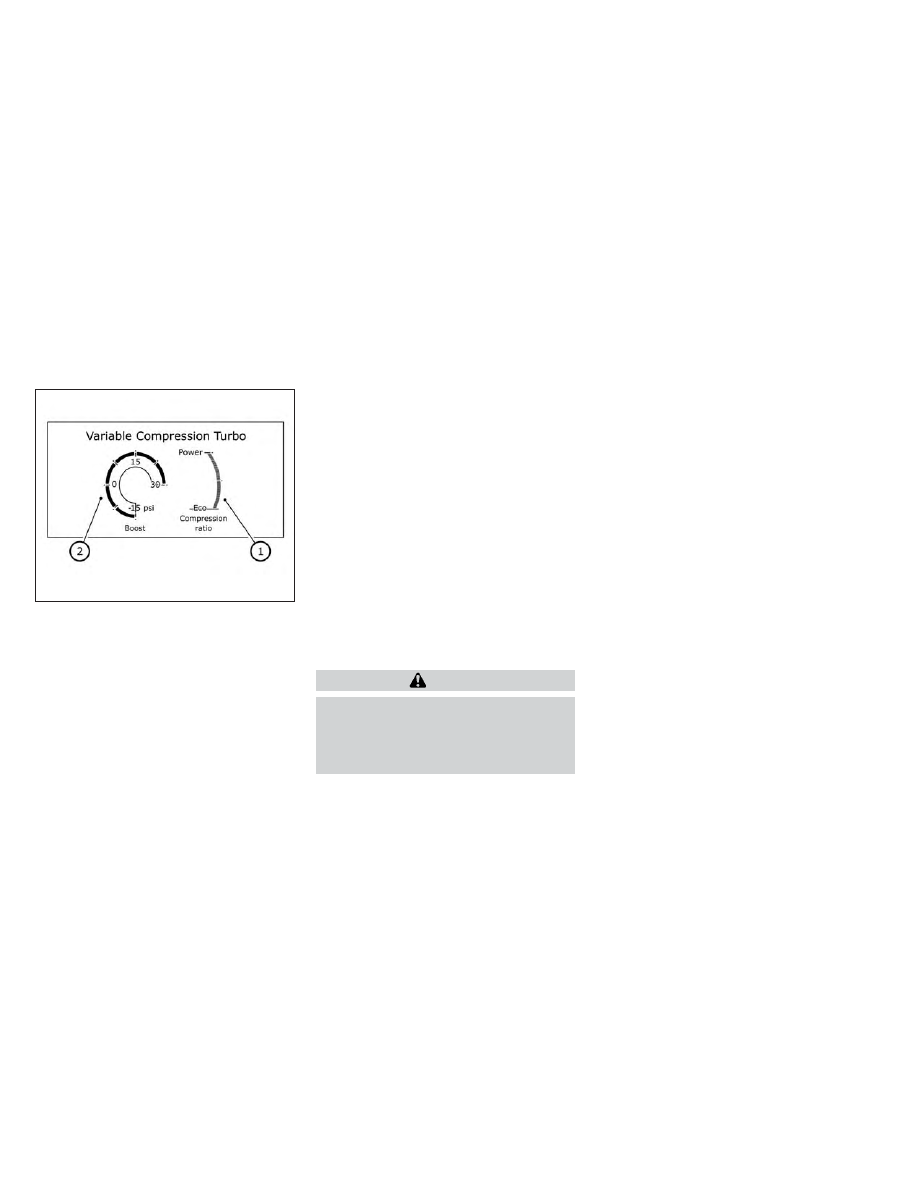

VARIABLE COMPRESSION
TURBO

Your engine is equipped with a variable com-
pression ratio system called “Variable Com-
pression Turbo”. This system can vary the
engine compression ratio continuously.

According to driving conditions, the system
applies optimum compression ratio auto-
matically to achieve both high output and
high fuel economy efficiency.

This is not a physical gauge. It is a display
option in the vehicle information display that
can be selected. For additional information,
see “Vehicle information display” (P. 2-19).

1

Compression ratio status display
Displays the status of compression ratio
controlled

by

Variable

Compression

Turbo. The lowest compression ratio
(8:1) and the highest (14:1) are displayed
as “Power” and ”Eco” respectively.

2

Turbo charger boost pressure gauge
Displays

the

turbo

charger

boost

pressure.

NOTE:

Under some conditions, the compression ra-
tio may not change. This is not a malfunction
of the system.

CAUTION

If the Variable Compression Turbo be-
comes faulty, the Malfunction Indicator
Light (MIL) may come on. For additional
information, see “Malfunction Indicator
Light (MIL)” (P. 2-15).

LIC3924

2-8

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

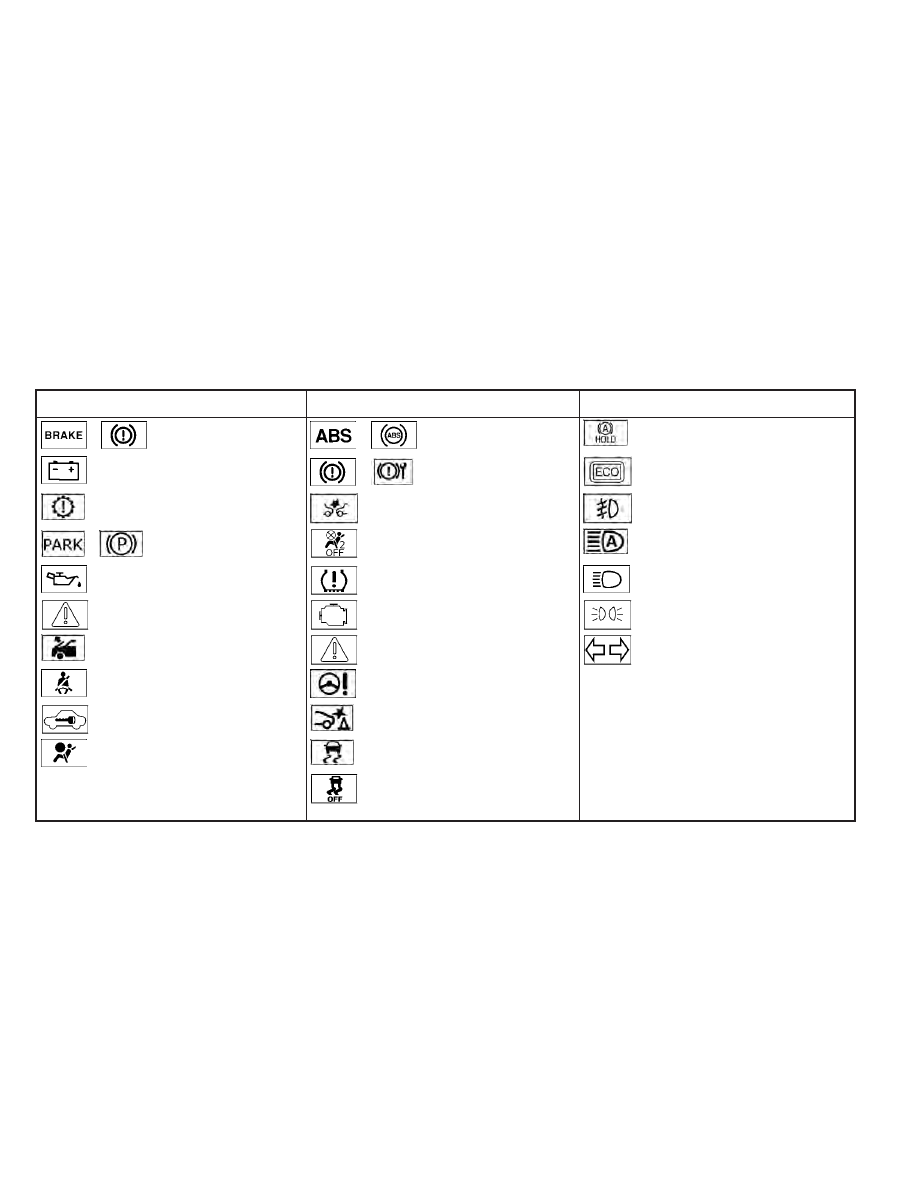

Warning/Indicator light (red)

Warning/Indicator light (yellow)

Warning/Indicator light (other)

or

Brake warning light

or

Anti-lock Braking System (ABS)
warning light

Automatic brake hold indicator light (white/
green)

Charge warning light

or

Electronic parking brake warning
light

Eco drive indicator light (green)
(if so equipped)

Electric shift control system warning light

Forward Emergency Braking (FEB) with
Pedestrian Detection system warning light

Front fog light indicator light (green)

or

Electronic parking brake
indicator light

Front passenger air bag status light

High Beam Assist indicator light (green)

Engine oil pressure warning light

Low tire pressure warning light

High beam indicator light (blue)

Master warning light

Malfunction Indicator Light (MIL)

Side light and headlight indicator light
(green)

Pop-up engine hood warning light
(if so equipped)

Master warning light

Turn signal/hazard indicator lights (green)

Seat belt warning light and chime

Power steering warning light

Security indicator light

Rear Automatic Braking (RAB) warning light

Supplemental air bag warning light

Slip indicator light

Vehicle Dynamic Control (VDC) OFF indica-
tor light

WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS

Instruments and controls

2-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHECKING LIGHTS

With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine. The following lights (if so
equipped) will come on:

,

,

,

,

or

,

The following lights (if so equipped) come on
briefly and then go off:

or

,

,

,

,

,

or

,

,

,

If any light fails to come on or operate in a
way other than described, it may indicate a
burned-out bulb and/or a system malfunc-
tion. Have the system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.

Some indicators and warnings are also dis-
played in the vehicle information display be-
tween the speedometer and tachometer. For
additional information, see “Vehicle informa-
tion display” (P. 2-19).

WARNING/INDICATOR LIGHTS
(red)

For additional information, see “Vehicle in-
formation display” (P. 2-19).

or

Brake warning
light

This light functions for the foot brake system.

Low brake fluid warning light

When the ignition switch is placed in the ON
position, the light warns of a low brake fluid
level. If the light comes on while the engine is
running, with the parking brake not applied,
stop the vehicle and perform the following:

1. Check the brake fluid level. Add brake fluid

as necessary. For additional information,
see “Brake fluid” (P. 8-10).

2. If the brake fluid level is correct, have the

warning system checked. It is recom-
mended that you visit an INFINITI retailer
for this service.

WARNING

Your brake system may not be working
properly if the warning light is on. Driv-
ing could be dangerous. If you judge it to
be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driving
it could be dangerous.

Pressing the brake pedal with the engine
stopped and/or a low brake fluid level
may increase your stopping distance and
braking will require greater pedal effort
as well as pedal travel.

If the brake fluid level is below the MINI-
MUM or MIN mark on the brake fluid
reservoir, do not drive until the brake
system has been checked. It is recom-
mended that you visit an INFINITI re-
tailer for this service.

Charge warning light

If this light comes on while the engine is run-
ning, it may indicate the charging system is
not functioning properly. Turn the engine off
and check the generator belt. If the belt is
loose, broken, or missing or if the light re-
mains on, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.

CAUTION

Do not continue driving if the generator
belt is loose, broken or missing.

2-10

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Electric shift control system
warning light

This light illuminates when a malfunction oc-
curs in the electric shift control system. When
the master warning light illuminates, the
chime sounds and the following message is
displayed in the vehicle information display:
“When parked apply parking brake”.

When the ignition is placed in the OFF posi-
tion, the chime sounds continuously. Ensure
the parking brake is applied

Have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.

or

Electronic parking
brake indicator
light

This light illuminates when the electronic
parking brake system is operating.

When the ignition switch is placed in the ON
position, the electronic parking brake indica-
tor light illuminates. When the engine is
started and the parking brake is released, the
indicator light turns off.

If the parking brake is not released, the elec-
tronic parking brake indicator light remains
illuminated. Ensure the electronic parking
brake indicator light has turned off before
driving.

If the electronic parking brake indicator light
illuminates or flashes while the electronic
parking brake system warning light

or

(yellow) illuminates, it may indicate that

the electronic parking brake system is not
functioning

properly.

Have

the

system

checked. It is recommended that you visit an
INFINITI retailer for this service.

For additional information, see “Electronic
parking brake” (P. 5-24).

Engine oil pressure warning
light

This light warns of low engine oil pressure. If
the light flickers or comes on during normal
driving, pull off the road in a safe area, stop
the engine

immediately

and call an INFINITI

retailer or other authorized repair shop.

The engine oil pressure warning light is not
designed to indicate a low oil level.

Use the

dipstick to check the oil level. For additional
information, see “Engine oil” (P. 8-6).

CAUTION

Running the engine with the engine oil
pressure warning light on could cause seri-
ous damage to the engine almost immedi-
ately. Such damage is not covered by war-
ranty. Turn off the engine as soon as it is
safe to do so.

Master warning light

When the ignition switch is in the ON posi-
tion, the master warning light illuminates if
any of the following (if so equipped) are dis-
played on the vehicle information display:
• Parking brake warning
• Door warning (when vehicle is moving)
• Shift position warning
• Low battery warning
• Handle Release warning

For additional information, see “Vehicle in-
formation display” (P. 2-19).

Instruments and controls

2-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

















Content      ..     1      2      3      4      ..
