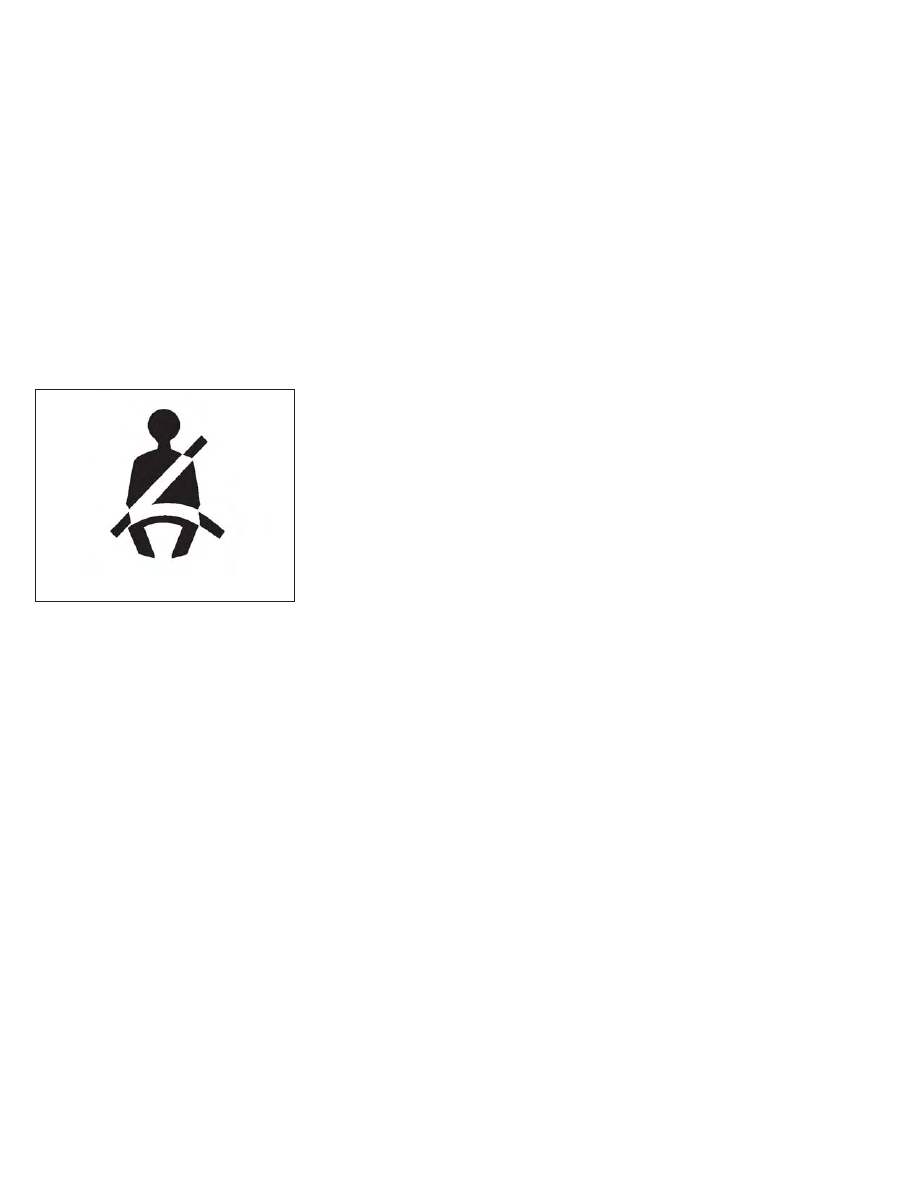

SEAT BELT WARNING LIGHT
AND CHIME

The driver and front passenger seat is
equipped with an enhanced seat belt re-
minder function. If your vehicle is equipped
with an enhanced seat belt reminder func-
tion, a visual and audible alert will operate if a
driver or front passenger seat belt is unbuck-
led at speeds of approximately 9 mph (15
km/h) or more under the following condi-
tions:
• If the driver seat belt is not fastened.

• The front passenger’s seat belt is not fas-

tened and the seat is occupied by a passen-
ger for 7 seconds after the ignition switch is
placed in the ON position.

• The front passenger’s seat belt is not fas-

tened and objects or external force on the
passenger seat change the seat belt re-
minder classification to Occupied.

The seat belt warning light will flash under
the conditions shown above until the neces-
sary seat belt is securely fastened.

A warning chime will sound for approxi-
mately 90 seconds or until one of the follow-
ing conditions is met:
• The unbuckled front occupant’s seat belt is

securely fastened.

• The seat belt reminder function in the front

passenger seat no longer detects that the
front passenger seat is occupied.

• The ignition is turned off or the vehicle is

parked.

The below situations could result in the seat
belt reminder light being illuminated and the
chime sounding, even with no occupant pres-
ent in the passenger seat:
• Heavy objects placed on the seat.
• Someone pushing or pulling on the front

passenger seat.

• An object placed under the front passenger

seat.

• An object placed between the seat cushion

and center console or between the seat
cushion and the door.

• An object hanging on the seat or placed in

the seatback pocket.

• A child restraint or other object pressing

against the rear of the seatback.

NOTE:

The rear seats are equipped with a seat belt
reminder in the vehicle information display.

The rear seat belt icons will illuminate in red
when not fastened. When a rear passenger's
seat belt has been securely fastened, the
color of the corresponding seat belt icon will
change.

For additional information, see “Vehicle in-
formation display” (P. 2-19).

PREGNANT WOMEN

INFINITI recommends that pregnant women
use seat belts. The seat belt should be worn
snug and always position the lap belt as low
as possible around the hips, not the waist.
Place the shoulder belt over your shoulder
and across your chest. Never run the lap/

LRS0786

1-14

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

shoulder belt over your abdominal area. Con-
tact

your

doctor

for

specific

recommendations.

INJURED PERSONS

INFINITI recommends that injured persons
use seat belts. Check with your doctor for
specific recommendations.

THREE-POINT TYPE SEAT BELT
WITH RETRACTOR

WARNING

Every person who drives or rides in this
vehicle should use a seat belt at all times.
Children should be in the rear seats and in
an appropriate restraint.

Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries.

For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat with both feet on the
floor and adjust the seat belt properly.

Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the seat
belt becomes wrapped around a child’s
neck with the ALR mode activated, the
child can be seriously injured or killed if
the seat belt retracts and becomes tight.
This can occur even if the vehicle is
parked. Unbuckle the seat belt to release
the child. If the seat belt cannot be un-
buckled or is already unbuckled, release
the child by cutting the seat belt with a
suitable tool (such as a knife or scissors)
to release the seat belt.

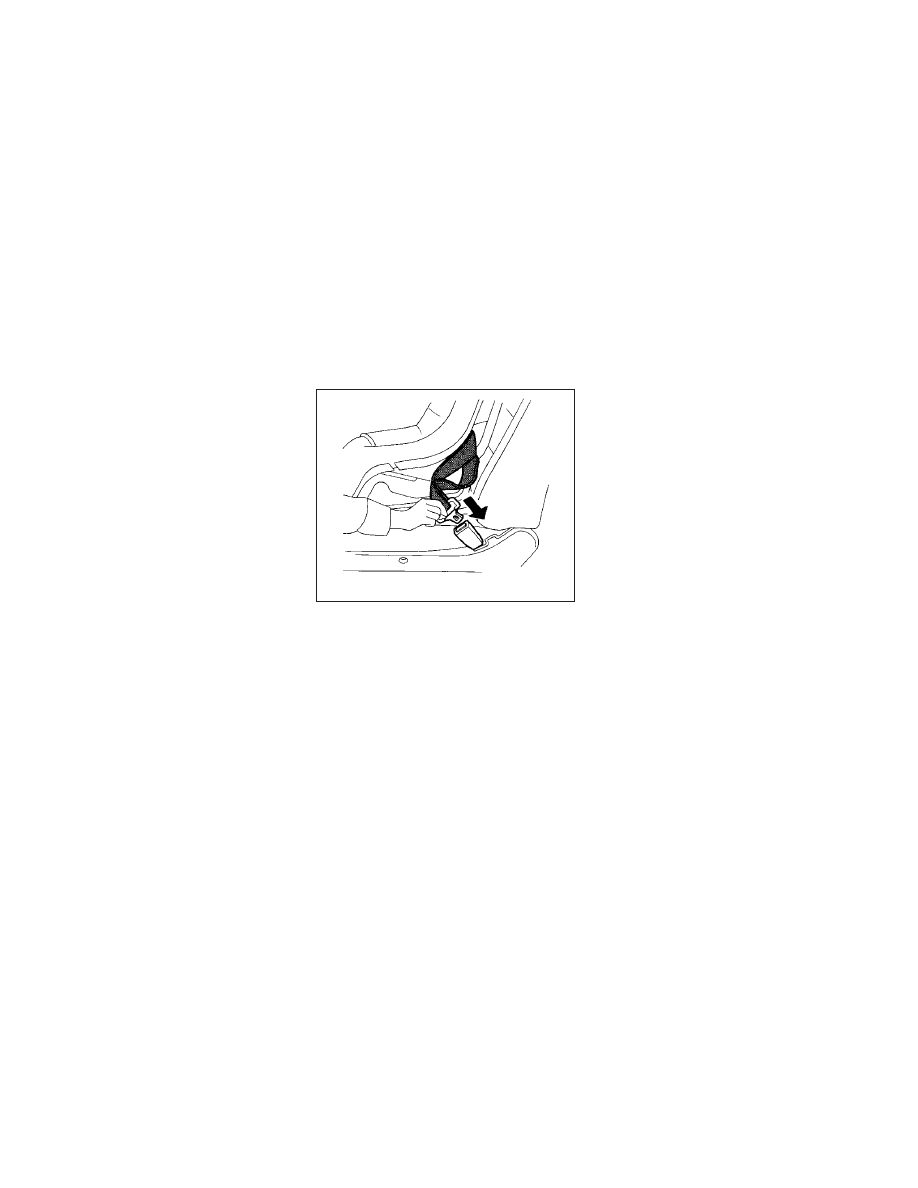

Fastening the seat belts

1. Adjust the seat. For additional informa-

tion, see “Front Power Seat Adjustment”
(P. 1-3).

2. Slowly pull the seat belt out of the retrac-

tor and insert the tongue into the buckle

O

A

until you hear and feel the latch

engage.

The retractor is designed to lock during
a sudden stop or on impact. A slow pull-
ing motion permits the seat belt to
move and allows you some freedom of
movement in the seat.

If the seat belt cannot be pulled from its
fully retracted position, firmly pull the
belt and release it. Then smoothly pull
the belt out of the retractor.

LRS2674

Safety-Seats, seat belts and supplemental restraint system

1-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Position the lap belt portion

low and snug

on the hips

O

B

as shown.

4. Pull the shoulder belt portion toward the

retractor to take up extra slack

O

C

. Be sure

the shoulder belt is routed over your
shoulder and across your chest.

The front passenger seat and the rear seating
positions three-point seat belts have two
modes of operation:
• Emergency Locking Retractor (ELR)
• Automatic Locking Retractor (ALR)

The ELR mode allows the seat belt to extend
and retract to allow the driver and passen-
gers some freedom of movement in the seat.

The ELR locks the seat belt when the vehicle
slows down rapidly or during certain impacts.

The ALR mode (child restraint mode) locks
the seat belt for child restraint installation.

When the ALR mode is activated, the seat
belt cannot be extended again until the seat
belt tongue is detached from the buckle and
fully retracted. The seat belt returns to the
ELR mode after the seat belt fully retracts.

The ALR mode should be used only for child
restraint installation. During normal seat
belt use by an occupant, the ALR mode
should not be activated. If it is activated, it
may cause uncomfortable seat belt tension.
It can also change the operation of the front
passenger air bag. For additional informa-
tion, see “Front passenger air bag and status
light” (P. 1-52).

WARNING

When fastening the seat belts, be certain
that the seatbacks are completely secured
in the latched position. If they are not com-
pletely secured, passengers may be injured
in an accident or sudden stop.

Unfastening the seat belts

To unfasten the seat belt, press the button on
the buckle

O

1

. The seat belt automatically

retracts.

Checking seat belt operation

Seat belt retractors are designed to lock seat
belt movement by two separate methods:
• When the seat belt is pulled quickly from

the retractor.

• When the vehicle slows down rapidly.

LRS2675

WRS0139

1-16

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To increase your confidence in the seat belts,
check the operation as follows.
• Grasp the shoulder belt and pull forward

quickly. The retractor should lock and re-
strict further belt movement.

If the retractor does not lock during this
check, get the system checked. It is recom-
mended that you visit an INFINITI retailer for
this service, or to learn more about seat belt
operation.

Shoulder belt height adjustment
(front seats)

The shoulder belt anchor height should be
adjusted to the position best for you. For
additional information, see “Precautions on
seat belt usage” (P. 1-11).

To adjust, push the button and then move the
shoulder belt anchor to the desired position
so that the belt passes over the center of the
shoulder. The belt should be away from your
face and neck, but not falling off of your
shoulder. Release the adjustment button to
lock the shoulder belt anchor into position.

WARNING

After adjustment, release the adjust-
ment button and try to move the shoul-
der belt anchor up and down to make
sure it is securely fixed in position.

The shoulder belt anchor height should
be adjusted to the position best for you.
Failure to do so may reduce the effec-
tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident.

The shoulder belt should rest on the
middle of the shoulder. It must not rest
against the neck.

Be sure that the seat belt is not twisted
in any way.

Be sure that the shoulder belt anchor is
secured by trying to move the shoulder
belt

anchor

up

and

down

after

adjustment.

SSS0896

A

Shoulder belt height adjust button

Safety-Seats, seat belts and supplemental restraint system

1-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat belt hook

When the seat belt is not in use and when
folding down the rear seats, hook the rear
seat belts on the seat belt hooks.

SEAT BELT EXTENDERS

If, because of body size or driving position, it
is not possible to properly fit the lap/shoulder
belt and fasten it, an extender that is compat-
ible with the installed seat belts is available
for purchase. The extender adds approxi-
mately 8 in (200 mm) of length and may be
used for the driver and front passenger seat-
ing positions.

It is recommended that you visit an INFINITI
retailer for assistance with purchasing an ex-
tender if an extender is required.

WARNING

Only INFINITI seat belt extenders, made
by the same company which made the
original equipment seat belts, should be
used with INFINITI seat belts.

Adults and children who can use the
standard seat belt should not use an ex-
tender. Such unnecessary use could re-
sult in serious personal injury in the event
of an accident.

Never use seat belt extenders to install
child restraints. If the child restraint is
not secured properly, the child could be
seriously injured or killed in a collision or
a sudden stop.

SEAT BELT MAINTENANCE

To clean the seat belt webbing,

apply a

mild soap solution or any solution recom-
mended for cleaning upholstery or carpet.
Then wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are com-
pletely dry.

If dirt builds up in the shoulder belt guide of
the seat belt anchors,

the seat belts may

retract slowly. Wipe the shoulder belt guide
with a clean, dry cloth.

Periodically check to see that the seat belt
and the metal components,

such as buck-

les, tongues, retractors, flexible wires and
anchors, work properly. If loose parts, de-
terioration, cuts or other damage on the
webbing is found, the entire seat belt as-
sembly should be replaced.

LRS3371

1-18

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not allow children to play with the seat
belts. Most seating positions are equipped
with Automatic Locking Retractor (ALR)
mode seat belts. If the seat belt becomes
wrapped around a child’s neck with the
ALR mode activated, the child can be seri-
ously injured or killed if the seat belt re-
tracts and becomes tight. This can occur
even if the vehicle is parked. Unbuckle the
seat belt to release the child. If the seat belt
cannot be unbuckled or is already unbuck-
led, release the child by cutting the seat
belt with a suitable tool (such as a knife or
scissors) to release the seat belt.

Children need adults to help protect them.
They need to be properly restrained.

In addition to the general information in this
manual, child safety information is available
from many other sources, including doctors,
teachers, government traffic safety offices,
and community organizations. Every child is
different, so be sure to learn the best way to
transport your child.

There are three basic types of child restraint
systems:
• Rear-facing child restraint

• Forward-facing child restraint
• Booster seat

The proper restraint depends on the child's
size. Generally, infants up to about 1 year and
less than 20 lbs. (9 kg) should be placed in
rear-facing child restraints. Forward-facing
child restraints are available for children who
outgrow rear-facing child restraints and are
at least 1 year old. Booster seats are used to
help position a vehicle lap/shoulder belt on a
child who can no longer use a forward-facing
child restraint.

WARNING

Infants and children need special protec-
tion. The vehicle's seat belts may not fit
them properly. The shoulder belt may come
too close to the face or neck. The lap belt
may not fit over their small hip bones. In an
accident, an improperly fitting seat belt
could cause serious or fatal injury. Always
use appropriate child restraints.

All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children. For
additional information, see “Child restraints”
(P. 1-21).

A child restraint may be secured in the vehicle
by using either the LATCH (Lower Anchor
and Tethers for CHildren) system or with the
vehicle seat belt. For additional information,
see “Child restraints” (P. 1-21).

INFINITI recommends that all pre-teens and
children be restrained in the rear seat. Stud-
ies show that children are safer when prop-
erly restrained in the rear seat than in the
front seat.

This is especially important because your ve-
hicle has a supplemental restraint system
(air bag system) for the front passenger. For
additional information, see “Supplemental
Restraint System (SRS)” (P. 1-41).

INFANTS

Infants up to at least 1 year old should be
placed in a rear facing child restraint.
INFINITI recommends that infants and small
children be placed in child restraints. You
should choose a child restraint that fits your
vehicle and always follow the manufacturer's
instructions for installation and use.

CHILD SAFETY

Safety-Seats, seat belts and supplemental restraint system

1-19

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SMALL CHILDREN

Children that are over 1 year old and weigh at
least 20 lbs. (9 kg) should remain in a rear-
facing child restraint as long as possible up to
the height or weight limit of the child re-
straint. Children who outgrow the height or
weight limit of the rear-facing child restraint
and are at least 1 year old should be secured
in a forward-facing child restraint with a har-
ness. Refer to the manufacturer’s instructions
for minimum and maximum weight and
height recommendations. INFINITI recom-
mends that small children be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose
a child restraint that fits your vehicle and
always follow the manufacturer’s instruc-
tions for installation and use.

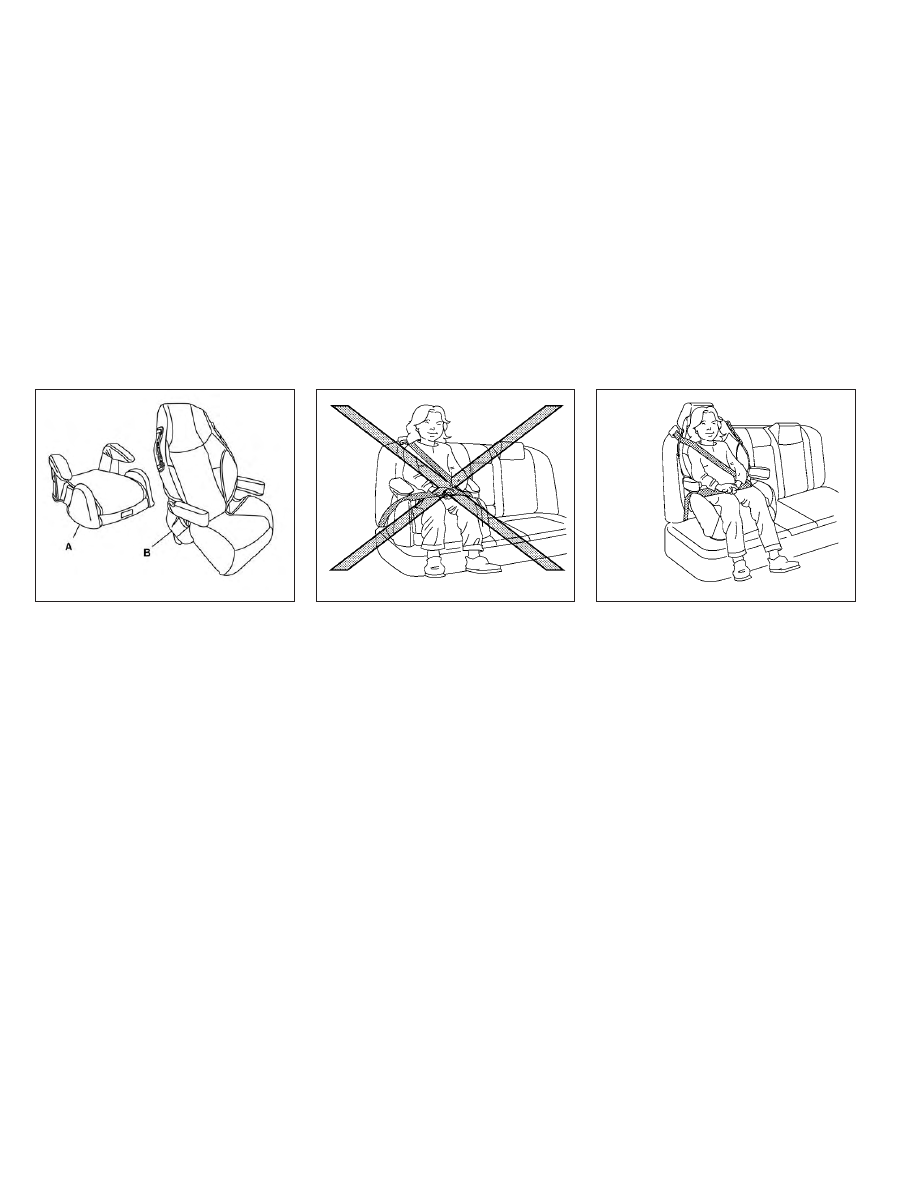

LARGER CHILDREN

Children should remain in a forward-facing
child restraint with a harness until they reach
the maximum height or weight limit allowed
by the child restraint manufacturer.

Once a child outgrows the height or weight
limit of the harness-equipped forward-facing
child restraint, INFINITI recommends that
the child be placed in a commercially available
booster seat to obtain proper seat belt fit. For
a seat belt to fit properly, the booster seat
should raise the child so that the shoulder belt
is properly positioned across the chest and
the top, middle portion of the shoulder. The
shoulder belt should not cross the neck or
face and should not fall off the shoulder. The
lap belt should lie snugly across the lower hips
or upper thighs, not the abdomen. A booster
seat can only be used in seating positions that
have a three-point type seat belt. The
booster seat should fit the vehicle seat and
have a label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.

A booster seat should be used until the child
can pass the seat belt fit test below:
• Are the child’s back and hips against the

vehicle seatback?

• Is the child able to sit without slouching?
• Do the child’s knees bend easily over the

front edge of the seat with feet flat on the
floor?

• Can the child safely wear the seat belt (lap

belt low and snug across the hips and
shoulder

belt

across

mid-chest

and

shoulder)?

• Is the child able to use the properly adjusted

head restraint/headrest?

• Will the child be able to stay in position for

the entire ride?

1-20

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you answered no to any of these questions,
the child should remain in a booster seat us-
ing a three-point type seat belt.

NOTE:

Laws in some communities may follow dif-
ferent guidelines. Check local and state
regulations to confirm your child is using the
correct restraint system before traveling.

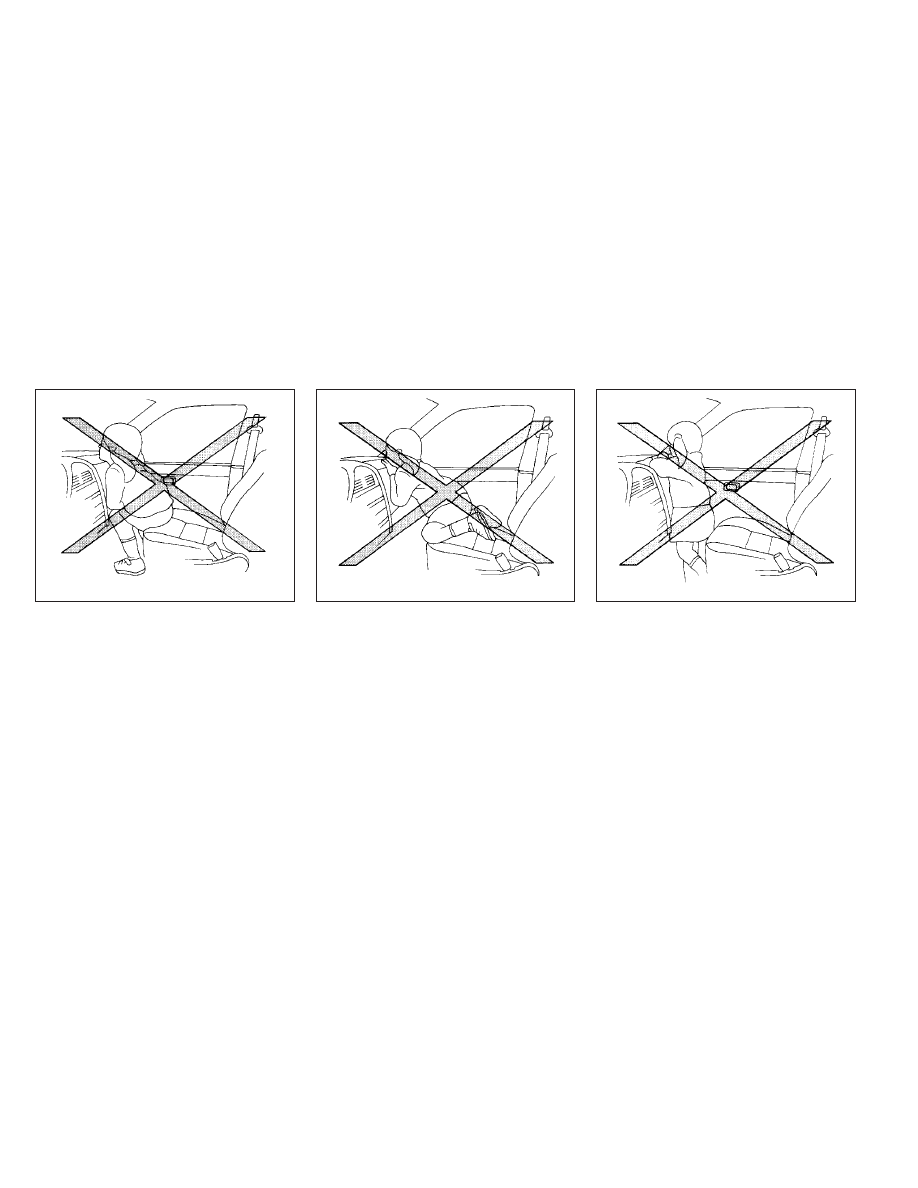

WARNING

Never let a child stand or kneel on any seat
and do not allow a child in the cargo area.
The child could be seriously injured or killed
in a sudden stop or collision.

PRECAUTIONS ON CHILD
RESTRAINTS

WARNING

Failure to follow the warnings and in-
structions for proper use and installation
of child restraints could result in serious
injury or death of a child or other passen-
gers in a sudden stop or collision:

The child restraint must be used and
installed properly. Always follow all
of the child restraint manufacturer's
instructions for installation and use.

LRS2690

ARS1098

CHILD RESTRAINTS

Safety-Seats, seat belts and supplemental restraint system

1-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infants and children should never be
held on anyone's lap. Even the stron-
gest adult cannot resist the forces of
a collision.

Do not put a seat belt around both a
child and another passenger.

INFINITI recommends that all child
restraints be installed in the rear seat.
Studies show that children are safer
when properly restrained in the rear
seat than in the front seat. If you must
install a forward-facing child re-
straint

in

the

front

seat,

see

“Forward-facing child restraint in-
stallation

using

the

seat

belts”

(P. 1-34).

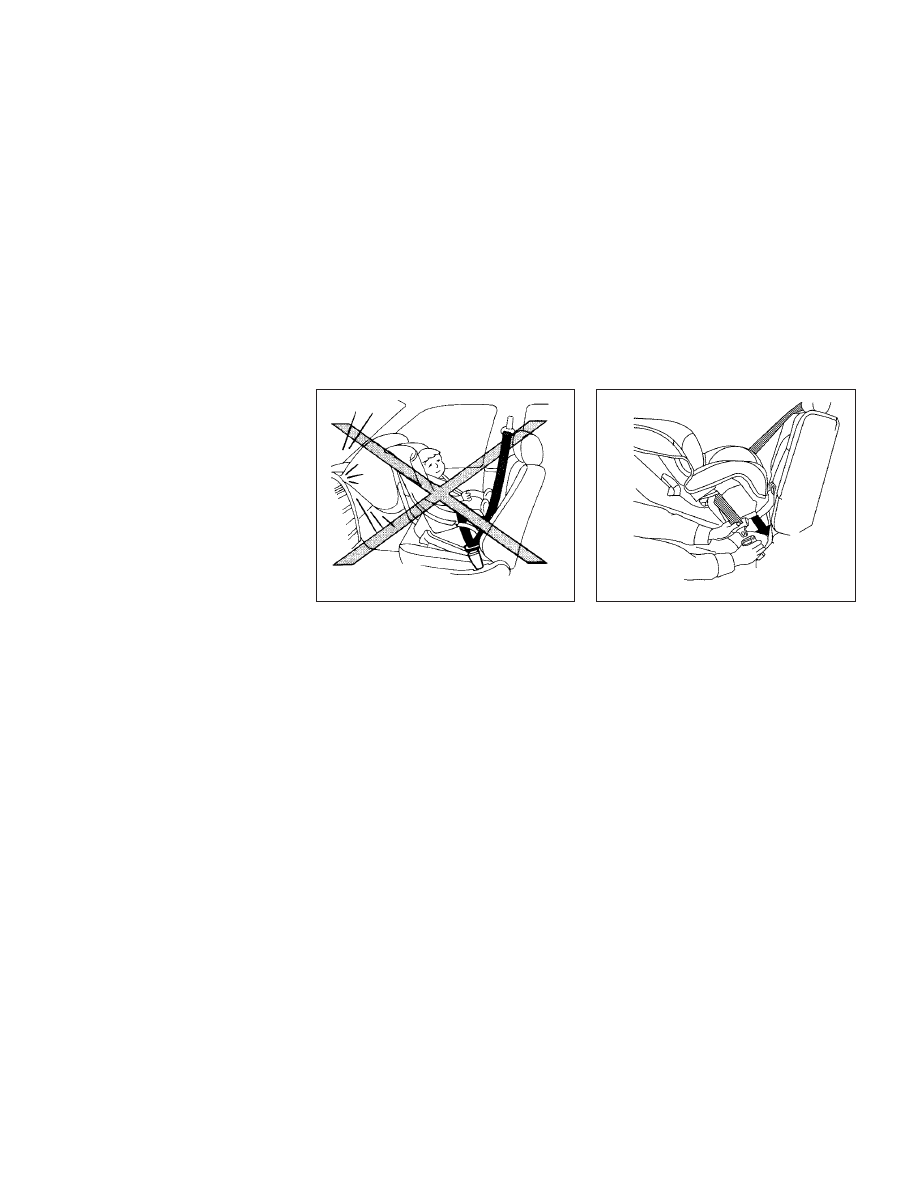

Even with the INFINITI Advanced Air
Bag System, never install a rear-
facing child restraint in the front seat.
An inflating air bag could seriously in-
jure or kill a child. A rear-facing child
restraint must only be used in the rear
seat.

Be sure to purchase a child restraint
that will fit the child and vehicle.
Some child restraints may not fit
properly in your vehicle.

Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage
the child restraint anchorages. The
child restraint will not be properly in-
stalled using the damaged anchorage,
and a child could be seriously injured
or killed in a collision.

Never use the anchor points for adult
seat belts, or other items.

A child restraint with a top tether
strap should not be used in the front
passenger seat.

Keep seatbacks as upright as possible
after fitting the child restraint.

Infants and children should always be
placed in an appropriate child re-
straint while in the vehicle.

When the child restraint is not in use,
keep it secured with the LATCH system
or a seat belt. In a sudden stop or colli-
sion, loose objects can injure occupants
or damage the vehicle.

CAUTION

A child restraint in a closed vehicle can be-
come very hot. Check the seating surface
and buckles before placing a child in the
child restraint.

This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for
CHildren) system. Some child restraints in-
clude rigid or webbing-mounted attachments
that can be connected to these anchors. For
additional information, see “LATCH (Lower
Anchors and Tethers for CHildren) system”
(P. 1-23).

WRS0256

1-22

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.

Several manufacturers offer child restraints
for infants and children of various sizes.
When selecting any child restraint, keep the
following points in mind:
• Choose only a restraint with a label certify-

ing that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.

• Check the child restraint in your vehicle to

be sure it is compatible with the vehicle's
seat and seat belt system.

• If the child restraint is compatible with your

vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child's height and weight.
Always

follow

all

recommended

procedures.

• If the combined weight of the child and

child restraint is less than 65 lbs. (29.5 kg),
you may use either the LATCH anchors or
the seat belt to install the child restraint (not
both at the same time).

• If the combined weight of the child and

child restraint is greater than 65 lbs. (29.5
kg), use the vehicle's seat belt (not the lower
anchors) to install the child restraint.

• Be sure to follow the child restraint manu-

facturer's instructions for installation.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is be-
ing operated. Canadian law requires the top
tether strap on forward-facing child re-
straints be secured to the designated anchor
point on the vehicle.

LATCH (Lower Anchors and
Tethers for CHildren) SYSTEM

Your vehicle is equipped with special anchor
points that are used with LATCH system
compatible child restraints. This system may
also be referred to as the ISOFIX or ISOFIX
compatible system. With this system, you do
not have to use a vehicle seat belt to secure
the child restraint unless the combined
weight of the child and child restraint exceeds
65 lbs. (29.5 kg). If the combined weight of
the child and child restraint is greater than 65
lbs. (29.5 kg), use the vehicle's seat belt (not

LRS2990

LATCH system lower anchor locations -

bench seat

Safety-Seats, seat belts and supplemental restraint system

1-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

the lower anchors) to install the child re-
straint. Be sure to follow the child restraint
manufacturer's instructions for installation.

The LATCH lower anchor points are provided
to install child restraints in the following po-
sitions only:
• Rear bench seat – outboard seating

positions

LATCH lower anchor

WARNING

Failure to follow the warnings and instruc-
tions for proper use and installation of child
restraints could result in serious injury or
death of a child or other passengers in a
sudden stop or collision:

Attach LATCH system compatible child
restraints only at the locations shown in
the illustration.

Do not secure a child restraint in the rear
center position using the LATCH system
anchors. The child restraint will not be
secured properly.

Inspect the lower anchors by inserting
your fingers into the lower anchor area.
Feel to make sure there are no obstruc-
tions over the anchors such as seat belt
webbing or seat cushion material. The
child restraint will not be secured prop-
erly if the lower anchors are obstructed.

Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used to
attach adult seat belts, or other items or
equipment to the vehicle. Doing so could
damage the child restraint anchorages.
The child restraint will not be properly
installed using the damaged anchorages,
and a child could be seriously injured or
killed in a collision.

LATCH lower anchor location

The LATCH lower anchors are located as
shown. A label is attached to the seatback to
help you locate the LATCH lower anchors.

LRS3036

LATCH lower anchor location

1-24

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installing child restraint LATCH
lower anchor attachments

LATCH compatible child restraints include
two rigid or webbing-mounted attachments
that can be connected to two anchors lo-
cated at certain seating positions in your ve-
hicle. With this system, you do not have to
use a vehicle seat belt to secure the child
restraint. Check your child restraint for a label
stating that it is compatible with LATCH. This
information may also be in the instructions
provided by the child restraint manufacturer.

When installing a child restraint, carefully
read and follow the instructions in this
manual and those supplied with the child
restraint.

Top tether anchor

WARNING

Do not allow cargo to contact the top
tether strap when it is attached to the
top tether anchor. Properly secure the
cargo so it does not contact the top
tether strap. Cargo that is not properly
secured or cargo that contacts the top
tether strap may damage it during a col-
lision. A child could be seriously injured or
killed in a collision if the top tether strap
is damaged.

LRS3045

LATCH label locations rear bench

LRS0661

LATCH webbing-mounted attachment

LRS0662

LATCH rigid-mounted attachment

Safety-Seats, seat belts and supplemental restraint system

1-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used to
attach adult seat belts, or other items or
equipment to the vehicle. Doing so could
damage the child restraint anchorages.
The child restraint will not be properly
installed using the damaged anchorages,
and a child could be seriously injured or
killed in a collision.

Top tether anchor point locations

Anchor points are located in the following
locations:
• Rear bench on the bottom of the seatback

in the seating positions shown.

If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.

REAR-FACING CHILD
RESTRAINT INSTALLATION
USING LATCH

WARNING

Child restraint anchorages are designed to
withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorages, and a child could
be seriously injured or killed in a collision.

For additional information, see “Child safety”
(P. 1-19) and “Child restraints” (P. 1-21) be-
fore installing a child restraint.

Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs. (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lbs. (29.5 kg), use the vehi-
cle's seat belt (not the lower anchors) to in-
stall the child restraint. Be sure to follow the
child restraint manufacturer's instructions for
installation.

LRS3040

Rear bench seat

1

Top tether strap

2

Anchor point

1-26

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Follow these steps to install a rear-facing
child restraint in the rear seats using the
LATCH system:

1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer's instructions.

2. Secure the child restraint anchor attach-

ments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors.

LRS2997

Rear-facing webbing-mounted – step 2

LRS2996

Rear-facing rigid-mounted – step 2

Safety-Seats, seat belts and supplemental restraint system

1-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. For child restraints that are equipped with

webbing-mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rear-
ward firmly in the center of the child re-
straint with your hand to compress the
vehicle seat cushion and seatback while
tightening the webbing of the anchor
attachments.

4. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to see
if the LATCH attachment holds the re-
straint in place. If the restraint is not se-
cure, tighten the LATCH attachment as
necessary, or put the restraint in another
seat and test it again. You may need to try
a different child restraint or try installing
by using the vehicle seat belt (if appli-

cable). Not all child restraints fit in all types
of vehicles.

5. Check to make sure the child restraint is

properly secured prior to each use. If the
child restraint is loose, repeat steps 2
through 4.

REAR-FACING CHILD
RESTRAINT INSTALLATION
USING THE SEAT BELTS

WARNING

The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure to
use the ALR mode will result in the child
restraint not being properly secured. The
restraint could tip over or be loose and
cause injury to a child in a sudden stop or
collision.

For additional information, see “Child safety”
(P. 1-19) and “Child restraints” (P. 1-21) be-
fore installing a child restraint.

LRS0673

Rear-facing – step 3

LRS0674

Rear-facing – step 4

1-28

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs. (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lbs. (29.5 kg), use the vehi-
cle's seat belt (not the lower anchors) to in-
stall the child restraint. Be sure to follow the
child restraint manufacturer's instructions for
installation.

Follow these steps to install a rear-facing
child restraint using the vehicle seat belts in
the rear seats:

1.

Child restraints for infants must be used
in the rear-facing direction and therefore
must not be used in the front seat.

Posi-

tion the child restraint on the seat. Always
follow the child restraint manufacturer’s
instructions.

2. Route the seat belt tongue through the

child restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer’s instructions for belt routing.

WRS0256

Rear-facing – step 1

WRS0761

Rear-facing – step 2

Safety-Seats, seat belts and supplemental restraint system

1-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt re-
tractor is in the ALR mode (child restraint
mode). It reverts to the ELR mode when
the seat belt is fully retracted.

4. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack in
the belt.

5. Remove any additional slack from the seat

belt; press downward and rearward firmly
in the center of the child restraint to com-
press the vehicle seat cushion and seat-
back while pulling up on the seat belt.

LRS2395

Rear-facing – step 3

LRS2396

Rear-facing – step 4

WRS0762

Rear-facing – step 5

1-30

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The child
restraint should not move more than 1
inch (25 mm), from side to side. Try to tug
it forward and check to see if the belt
holds the restraint in place. If the restraint
is not secure, tighten the seat belt as nec-
essary, or put the restraint in another seat
and test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles.

7. Check to make sure that the child restraint

is properly secured prior to each use. If the
seat belt is not locked, repeat steps 1
through 6.

After the child restraint is removed and the
seat belt fully retracted, the ALR mode (child
restraint mode) is canceled.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION
USING LATCH

For additional information, see “Child safety”
(P. 1-19) and “Child restraints” (P. 1-21) be-
fore installing a child restraint.

Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs. (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lbs. (29.5 kg), use the vehi-
cle's seat belt (not the lower anchors) to in-
stall the child restraint. Be sure to follow the
child restraint manufacturer's instructions for
installation.

Follow these steps to install a forward-
facing child restraint in the rear seats using
the LATCH system:

1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer's instructions.

2. Secure the child restraint anchor attach-

ments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors.

If the child restraint is equipped with a top
tether strap, route the top tether strap
and secure the tether strap to the tether
anchor point. For additional information,
see “Installing top tether strap” (P. 1-38).

Do not install child restraints that require
the use of a top tether strap in seating
positions that do not have a top tether
anchor.

LRS2397

Rear-facing – step 6

LRS2995

Forward-facing webbing-mounted – step 2

Safety-Seats, seat belts and supplemental restraint system

1-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. The back of the child restraint should be

secured against the vehicle seatback.

If necessary, adjust or remove the head
restraint/headrest to obtain the correct
child restraint fit. If the head restraint/
headrest is removed, store it in a secure
place.

Be sure to reinstall the head

restraint/headrest when the child re-
straint is removed.

For additional infor-

mation, see “Head restraints/headrests”
(P. 1-7).

If the seating position does not have an
adjustable head restraint/headrest and it
is interfering with the proper child re-
straint fit, try another seating position or a
different child restraint.

4. For child restraints that are equipped with

webbing-mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rear-
ward firmly in the center of the child re-
straint with your knee to compress the
vehicle seat cushion and seatback while
tightening the webbing of the anchor
attachments.

5. Tighten the tether strap according to the

manufacturer's instructions to remove
any slack.

LRS2994

Forward-facing rigid-mounted – step 2

LRS0671

Forward-facing – step 4

1-32

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to see
if the LATCH attachment holds the re-
straint in place. If the restraint is not se-
cure, tighten the LATCH attachment as
necessary, or put the restraint in another
seat and test it again. You may need to try
a different child restraint. Not all child re-
straints fit in all types of vehicles.

7. Check to make sure the child restraint is

properly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 6.

INSTALLING TOP TETHER STRAP

1

Top tether strap

2

Anchor point

The child restraint top tether strap must be
used when installing the child restraint with
the LATCH lower anchor attachments.

First, secure the child restraint with the
LATCH lower anchors (rear bench outboard
seating positions only).

WRS0697

Forward-facing – step 6

LRS3040

Rear bench seat

Safety-Seats, seat belts and supplemental restraint system

1-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Rear bench seat

1. Remove the head restraint/headrest and

store it in a secure place. Be sure to rein-
stall the head restraint/headrest when the
child restraint is removed. For additional
information,

see

“Head

restraints/

headrests” in (P. 1-7).

2. Position the top tether strap

O

1

as shown.

3. Secure the tether strap to the tether an-

chor point

O

2

as shown.

4. Tighten the tether strap according to the

manufacturer’s instructions to remove
any slack.

If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.

WARNING

Child restraint anchorages are designed to
withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorage, and a child could
be seriously injured or killed in a collision.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION
USING THE SEAT BELTS

WARNING

The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure to
use the ALR mode will result in the child
restraint not being properly secured. The
restraint could tip over or be loose and
cause injury to a child in a sudden stop or
collision. Also, it can change the operation
of the front passenger air bag. For addi-
tional information, see “Front passenger
air bag and status light” (P. 1-52).

For additional information, see “Child safety”
(P. 1-19) and “Child restraints” (P. 1-21) be-
fore installing a child restraint.

Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs. (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lbs. (29.5 kg), use the vehi-
cle's seat belt (not the lower anchors) to in-
stall the child restraint. Be sure to follow the
child restraint manufacturer's instructions for
installation.

WRS0699

Forward-facing (front passenger seat) –

step 1

1-34

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Follow these steps to install a forward-facing
child restraint using the vehicle seat belt in the
rear seats or in the front passenger seat:

1.

If you must install a child restraint in the
front seat, it should be placed in a
forward-facing direction only. Move the
seat to the rearmost position. Child re-
straints for infants must be used in the
rear-facing direction and, therefore,
must not be used in the front seat.

2. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

The back of the child restraint should be
secured against the vehicle seatback.

If necessary, adjust or remove the head
restraint/headrest to obtain the correct
child restraint fit. If the head restraint/
headrest is removed, store it in a secure
place.

Be sure to reinstall the head

restraint/headrest when the child re-
straint is removed.

For additional infor-

mation, see “Head restraints/headrests”
(P. 1-7).

If the seating position does not have an
adjustable head restraint/headrest and it
is interfering with the proper child re-
straint fit, try another seating position or a
different child restraint.

3. Route the seat belt tongue through the

child restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer’s instructions for belt routing.

If the child restraint is equipped with a top
tether strap, route the top tether strap
and secure the tether strap to the tether
anchor point (rear seat installation only).
For additional information, see “Installing
top tether strap” (P. 1-38).

Do not install child restraints that require
the use of a top tether strap in seating
positions that do not have a top tether
anchor.

WRS0680

Forward-facing – step 3

Safety-Seats, seat belts and supplemental restraint system

1-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt re-
tractor is in the ALR mode (child restraint
mode). It reverts to ELR mode when the
seat belt is fully retracted.

5. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack in
the belt.

6. Remove any additional slack from the seat

belt; press downward and rearward firmly
in the center of the child restraint with
your knee to compress the vehicle seat
cushion and seatback while pulling up on
the seat belt.

7. Tighten the tether strap according to the

manufacturer's instructions to remove
any slack.

LRS0667

Forward-facing – step 4

LRS0668

Forward-facing – step 5

WRS0681

Forward-facing – step 6

1-36

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The child
restraint should not move more than 1
inch (25 mm), from side to side. Try to tug
it forward and check to see if the belt
holds the restraint in place. If the restraint
is not secure, tighten the seat belt as nec-
essary, or put the restraint in another seat
and test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles.

9. Check to make sure the child restraint is

properly secured prior to each use. If the
seat belt is not locked, repeat steps 2
through 8.

10. If the child restraint is installed in the

front passenger seat, place the ignition
switch in the ON position. The front pas-
senger air bag status light

should

illuminate. If this light is not illuminated
see “Front passenger air bag and status
light” (P. 1-52).

Move the child restraint

to another seating position.

Have the

system checked. It is recommended that
you visit an INFINITI retailer for this
service.

After the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.

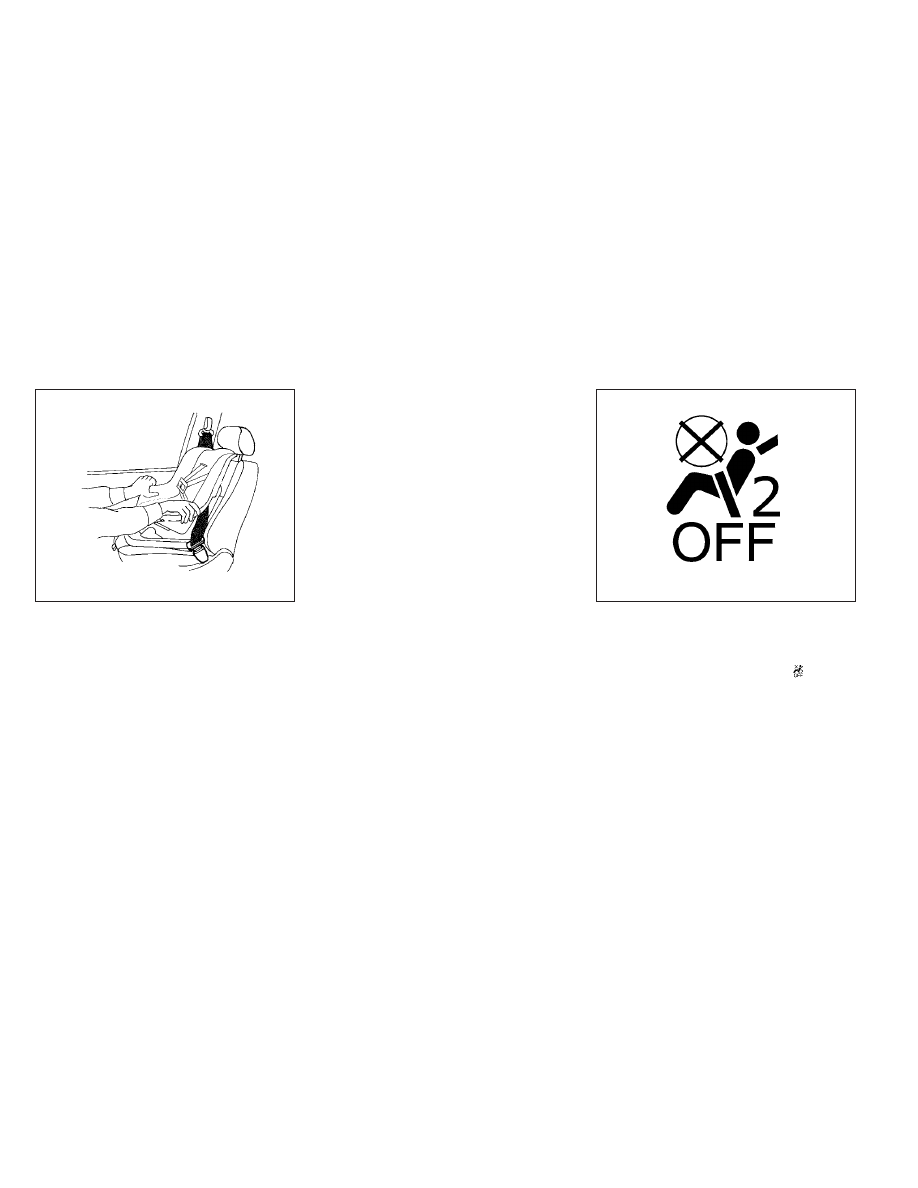

WRS0698

Forward-facing – step 8

LRS0865

Forward-facing – step 10

Safety-Seats, seat belts and supplemental restraint system

1-37

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installing top tether strap

The child restraint top tether strap must be
used when installing the child restraint with
seat belts.

First, secure the child restraint with the seat
belt.

Rear bench seat

1. Remove the head restraint/headrest and

store it in a secure place. Be sure to rein-
stall the head restraint/headrest when the
child restraint is removed. For additional
information,

see

“Head

restraints/

headrests” in (P. 1-7).

2. Position the top tether strap

O

1

as shown.

3. Secure the tether strap to the tether an-

chor point

O

2

as shown.

4. Tighten the tether strap according to the

manufacturer’s instructions to remove
any slack.

If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.

WARNING

Child restraint anchorages are designed to
withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorage, and a child could
be seriously injured or killed in a collision.

BOOSTER SEATS

For additional information on installing a
booster seat in your vehicle, follow the in-
structions outlined in this section.

Precautions on booster seats

WARNING

If a booster seat and seat belt are not used
properly, the risk of a child being injured or
killed in a sudden stop or collision greatly
increases:

Make sure the shoulder portion of the
belt is away from the child's face and
neck and the lap portion of the belt does
not cross the stomach.

Make sure the shoulder belt is not be-
hind the child or under the child's arm.

A booster seat must only be installed in a
seating position that has a lap/shoulder
belt.

LRS3040

Rear bench seat

1

Top tether strap

2

Anchor point

1-38

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in
mind:
• Choose only a booster seat with a label

certifying that it complies with Federal Mo-
tor Vehicle Safety Standard 213 or Cana-
dian Motor Vehicle Safety Standard 213.

• Check the booster seat in your vehicle to be

sure it is compatible with the vehicle’s seat
and seat belt system.

• Make sure the child’s head will be properly

supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat is chosen, the vehicle
seatback must be at or above the center of
the child’s ears. If the seatback is lower than
the center of the child’s ears, a high back
booster seat should be used.

• If the booster seat is compatible with your

vehicle, place the child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with the
child. Always follow all recommended
procedures.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is be-
ing operated.

The instructions in this section apply to
booster seat installation in the rear seats or
the front passenger seat.

LRS2479

A. Low back booster seat

B. High back booster seat

LRS0453

LRS0464

Safety-Seats, seat belts and supplemental restraint system

1-39

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Booster seat installation

WARNING

To avoid injury to child, do not use the lap/
shoulder belt in the Automatic Locking Re-
tractor (ALR) mode when using a booster
seat with the seat belts.

For additional information, see “Child safety”
(P. 1-19), “Child restraints” (P. 1-21) and
“Booster seats” (P. 1-38) before installing a
child restraint.

Follow these steps to install a booster seat in
the rear seats or in the front passenger seat:

1.

If you must install a booster seat in the
front seat, move the seat to the rearmost
position.

2. Position the booster seat on the seat.

Only place it in a front-facing direction.
Always follow the booster seat manufac-
turer’s instructions.

3. The booster seat should be positioned on

the vehicle seat so that it is stable.

If necessary, adjust or remove the head
restraint/headrest to obtain the correct
booster seat fit. If the head restraint/
headrest is removed, store it in a secure
place.

Be sure to reinstall the head

restraint/headrest when the booster
seat is removed.

For additional informa-

tion, see “Head restraints/headrests”
(P. 1-7).

WRS0699

LRS0454

1-40

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the seating position does not have an
adjustable head restraint/headrest and it
is interfering with the proper booster seat
fit, try another seating position or a differ-
ent booster seat.

4. Position the lap portion of the seat belt

low and snug on the child’s hips. Be sure to
follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.

5. Pull the shoulder belt portion of the seat

belt toward the retractor to take up extra
slack. Be sure the shoulder belt is posi-
tioned across the top, middle portion of
the child’s shoulder. Be sure to follow the
booster seat manufacturer’s instructions
for adjusting the seat belt routing.

6. Follow the warnings, cautions and in-

structions for properly fastening a seat
belt shown in “Three-point type seat belt
with retractor” (P. 1-15).

7. If the booster seat is installed in the front

passenger seat, place the ignition switch
in the ON position. The front passenger air
bag status light

may or may not

illuminate, depending on the size of the
child and the type of booster seat being
used. For additional information, see
“Front passenger air bag and status light”
(P. 1-52).

PRECAUTIONS ON SRS

This SRS section contains important infor-
mation concerning the following systems:
• Driver and front passenger supplemental

front-impact air bag (INFINITI Advanced
Air Bag System)

• Front seat-mounted side-impact supple-

mental air bag

• Rear outboard seat-mounted side-impact

supplemental air bag system

• Roof-mounted curtain side-impact and

rollover supplemental air bag

• Driver and front passenger supplemental

knee air bags

• Seat belt with pretensioner(s) (front and

rear outboard seats)

Supplemental front-impact air bag system

The INFINITI Advanced Air Bag System can
help cushion the impact force to the head and
chest of the driver and front passenger in
certain frontal collisions.

Front seat-mounted side-impact supple-
mental air bag system

This system can help cushion the impact
force to the chest area of the driver and front
passenger in certain side-impact collisions.
The side air bags are designed to inflate on
the side where the vehicle is impacted.

LRS0865

SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

Safety-Seats, seat belts and supplemental restraint system

1-41

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Rear outboard seat-mounted side-impact
supplemental air bag system

This system can help cushion the impact
force to the chest area of the rear seat pas-
sengers in certain side-impact collisions. The
side air bags are designed to inflate on the
side where the vehicle is impacted.

Roof-mounted curtain side-impact and roll-
over supplemental air bag system

This system can help cushion the impact
force to the head of occupants in front and
rear outboard seating positions in certain
side-impact or rollover collisions. In a side
impact, the curtain air bags are designed to
inflate on the side where the vehicle is im-
pacted. In a rollover, the curtain air bags are
designed to inflate and remain inflated for a
short time.

The SRS is designed to

supplement

the crash

protection provided by the driver and front
passenger seat belts and is

not a substitute

for them. Seat belts should always be cor-
rectly worn and the occupant seated a suit-
able distance away from the steering wheel,
instrument panel and door finishers. For ad-
ditional information, see “Seat belts” (P. 1-11).

Driver and front passenger supplemental
knee air bags

This system can help cushion the impact
force to the driver’s and front passenger’s
knees in certain collisions.

The SRS is designed to

supplement

the crash

protection provided by the driver and front
passenger seat belts and is

not a substitute

for them. Seat belts should always be cor-
rectly worn and the occupant seated a suit-
able distance away from the steering wheel,
instrument panel and door finishers. For ad-
ditional information, see “Seat belts” (P. 1-11).

The supplemental air bags operate only
when the ignition switch is placed in the ON
position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.

1-42

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

The front air bags ordinarily will not in-
flate in the event of a side impact, rear
impact, rollover, or lower severity fron-
tal collision. Always wear your seat belts
to help reduce the risk or severity of in-
jury in various kinds of accidents.

The front passenger air bag and front
passenger supplemental knee air bag will
not inflate if the passenger air bag status
light is lit. For additional information,
see “Front passenger air bag and status
light” (P. 1-52).

The seat belts and the front air bags are
most effective when you are sitting well
back and upright in the seat. The front air
bags inflate with great force. Even with
the INFINITI Advanced Air Bag System,
if you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, you are at greater risk of injury or
death in a crash. You may also receive
serious or fatal injuries from the front air
bag if you are up against it when it in-
flates. Always sit back against the seat-
back and as far away as practical from
the steering wheel or instrument panel.
Always properly use the seat belts.

The driver and front passenger seat belt
buckles are equipped with sensors that
detect if the seat belts are fastened. The
INFINITI Advanced Air Bag System
monitors the severity of a collision and
seat belt usage then inflates the air bags
as needed. Failure to properly wear seat
belts can increase the risk or severity of
injury in an accident.

The front passenger seat is equipped
with an occupant classification sensor
(weight sensor) that turns the front pas-
senger air bag and front passenger
supplemental knee air bag OFF under
some conditions. This sensor is only used
in this seat. Failure to be properly seated
and wearing the seat belt can increase
the risk or severity of injury in an acci-
dent. For additional information, see
“Front passenger air bag and status
light” (P. 1-52).

Keep hands on the outside of the steer-
ing wheel. Placing them inside the steer-
ing wheel rim could increase the risk that
they are injured when the front air bag
inflates.

WRS0031

Safety-Seats, seat belts and supplemental restraint system

1-43

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Never let children ride unrestrained or
extend their hands or face out of the
window. Do not attempt to hold them in
your lap or arms. Some examples of dan-
gerous riding positions are shown in the
illustrations.

ARS1133

ARS1041

1-44

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ARS1042

ARS1043

ARS1044

Safety-Seats, seat belts and supplemental restraint system

1-45

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..      1      2      3      ..
