Pre-driving checks and adjustments

for approximately 5 seconds.

SETTING MEMORY FUNCTION

The status of the following settings can be
linked to the Intelligent Key and the memor-
ized settings can be available for each
Intelligent Key.
. Climate control system

. Navigation system (if so equipped)

. Audio system
To use the memory function, lock the doors
with the Intelligent Key that is linked to the
settings.

To enable the memorized settings:

1. Carry the Intelligent Key that is linked to

the settings, and unlock the doors by
pushing the driver’s door handle request
switch or UNLOCK

button on the

Intelligent Key.

2. Push the ignition switch to the “ON”

position. “Connection with the key has
been done” will be displayed on the
screen and the memorized settings are
available (only when a new Intelligent
Key is used).

SYSTEM OPERATION

The automatic drive positioner system will
not work or will stop operating under the
following conditions:
. When the vehicle speed is above 0 mph

(0 km/h) or 4 mph (7 km/h) for the Exit
function.

. When any of the memory switches are

pushed while the automatic drive posi-
tioner is operating.

. When the adjusting switch for the dri-

ver’s seat and steering column is turned
on while the automatic drive positioner is
operating.

. When the seat has already been moved

to the memorized position.

. When no seat position is stored in the

memory switch.

. When the shift lever is moved from the P

(Park) position to any other position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-2

Monitor, climate, audio, phone and voice recognition systems

Refer to the INFINITI InTouch

Owner’s

Instruction that includes the following informa-
tion.
. Audio system

. Bluetooth

Hands-Free Phone system

. INFINITI InTouch

Apps

. INFINITI InTouch

Services

. SiriusXM Traffic

. SiriusXM

Travel Link

. SiriusXM

Satellite Radio

. Navigation system

. Voice Recognition System

. Information and settings viewable on

INFINITI InTouch

WARNING

. Do not disassemble or modify this

system. If you do, it may result in
accidents, fire, or electric shock.

. Do not use this system if you notice

any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.

. In case you notice any foreign object

in the system hardware, spill liquid on
it, or notice smoke or smell coming
from it, stop using the system im-
mediately. Ignoring such conditions
may lead to accidents, fire, or electric
shock. It is recommended you visit an
INFINITI retailer for servicing.

. Park the vehicle in a safe location and

apply the parking brake to view the
images on the front center display
screen.

Do not attempt to operate the system in
extreme temperature conditions [below
−4°F (−20°C) and above 158°F (70°C)].
Operating this system under these condi-
tions may result in system malfunctions.

INFINITI INTOUCH

OWNER’S MANUAL

SAFETY NOTE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVH1705X

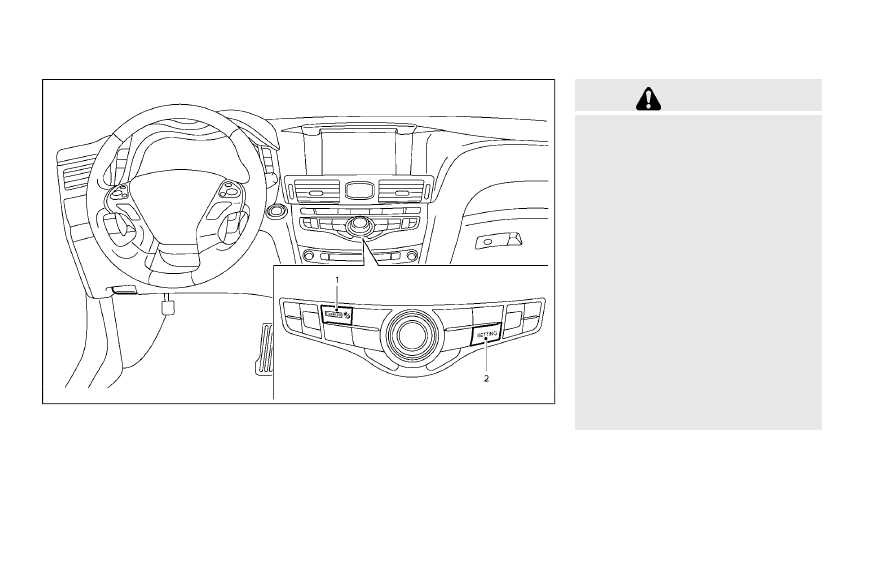

1. SETTING button

WARNING

Failure to follow the warnings and
instructions for proper use of the Rear-

View Monitor system could result in
serious injury or death.
. The RearView Monitor is a conveni-

ence but it is not a substitute for
proper backing. Always turn and look
out the windows, and check mirrors

to be sure that it is safe to move
before operating the vehicle. Always
back up slowly.

. The system is designed as an aid to

the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.

. The distance guide line and the

vehicle width line should be used as
a reference only when the vehicle is
on a level paved surface. The distance
viewed on the monitor is for refer-
ence only and may be different than
the actual distance between the
vehicle and displayed objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automatically
shows a rear view of the vehicle when the
shift lever is placed in the R (Reverse)
position.

The radio can still be heard while the Rear-
View Monitor is active.

Monitor, climate, audio, phone and voice recognition systems

4-3

REARVIEW MONITOR (if so equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-4

Monitor, climate, audio, phone and voice recognition systems

JVH1267X

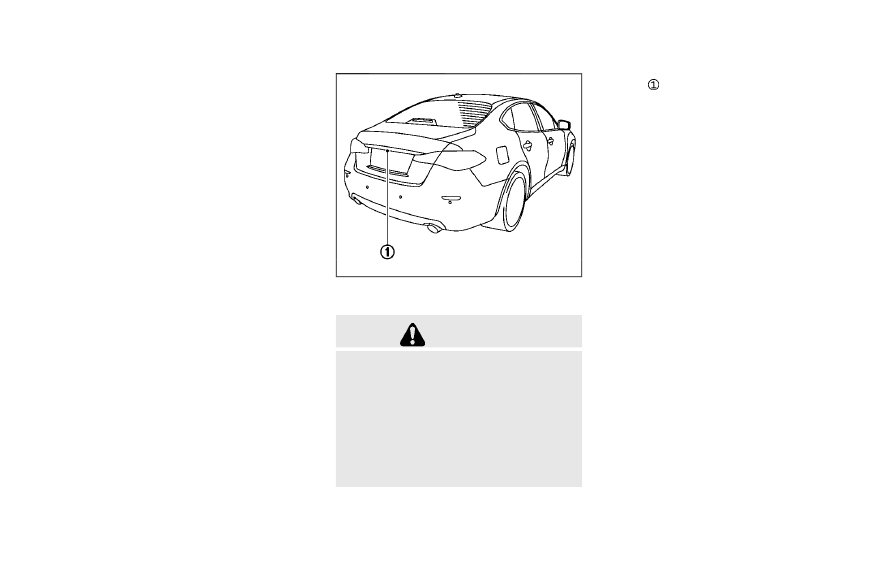

To display the rear view, the RearView
Monitor system uses a camera located just
above the vehicle’s license plate

REARVIEW MONITOR SYSTEM
OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse)
position to operate the RearView Monitor.

SAA1896

HOW TO READ DISPLAYED
LINES

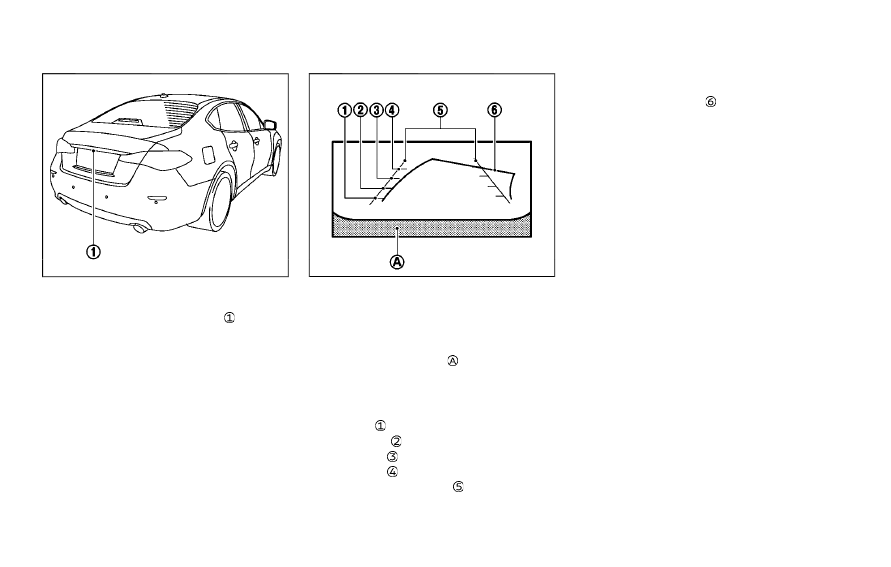

Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the bumper line

are displayed on

the monitor.

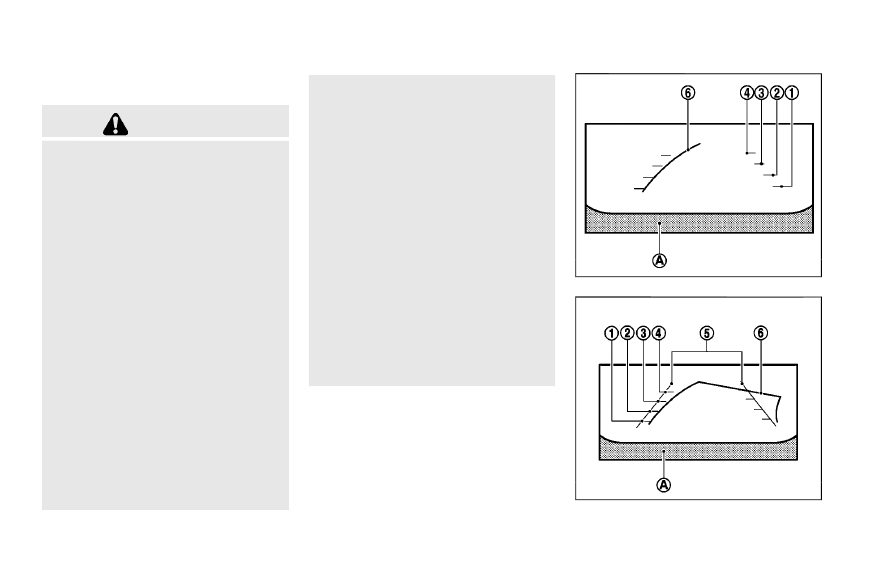

Distance guide lines:

Indicate distances from the bumper.
. Red line : approx. 1.5 ft (0.5 m)

. Yellow line : approx. 3 ft (1 m)

. Green line : approx. 7 ft (2 m)

. Green line : approx. 10 ft (3 m)
Vehicle width guide lines

Indicate the approximate vehicle width when

backing up.

Predictive course lines

Indicate the predictive course when backing
up. The predictive course lines will be
displayed on the monitor when the shift
lever is in the R (Reverse) position and the
steering wheel is turned. The predictive
course lines will move depending on how
much the steering wheel is turned and will
not be displayed while the steering wheel is
in the neutral position.

The vehicle width guide lines and the width
of the predictive course lines are wider than
the actual width and course.

DIFFERENCE BETWEEN PRE-
DICTIVE AND ACTUAL DIS-
TANCES

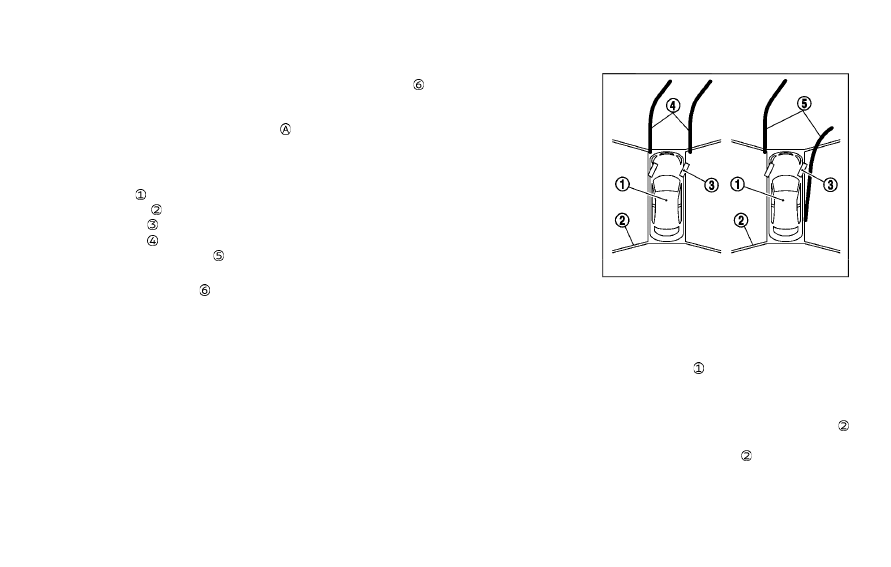

The displayed guide lines and their locations
on the ground are for approximate reference
only. Objects on uphill or downhill surfaces
or projecting objects will be actually located
at distances different from those displayed
in the monitor relative to the guide lines
(refer to illustrations). When in doubt, turn
around and view the objects as you are
backing up, or park and exit the vehicle to
view the positioning of objects behind the
vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

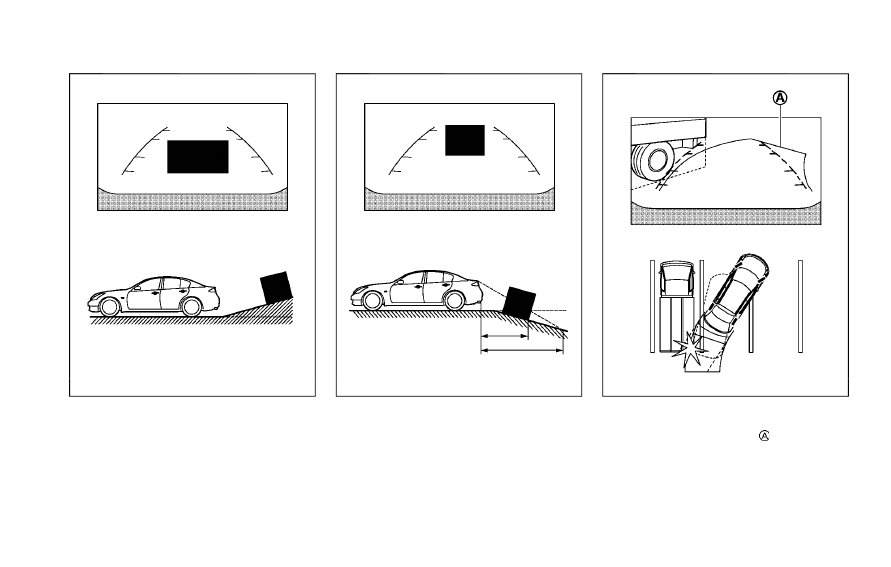

JVH1268X

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.

JVH1269X

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.

SAA1923

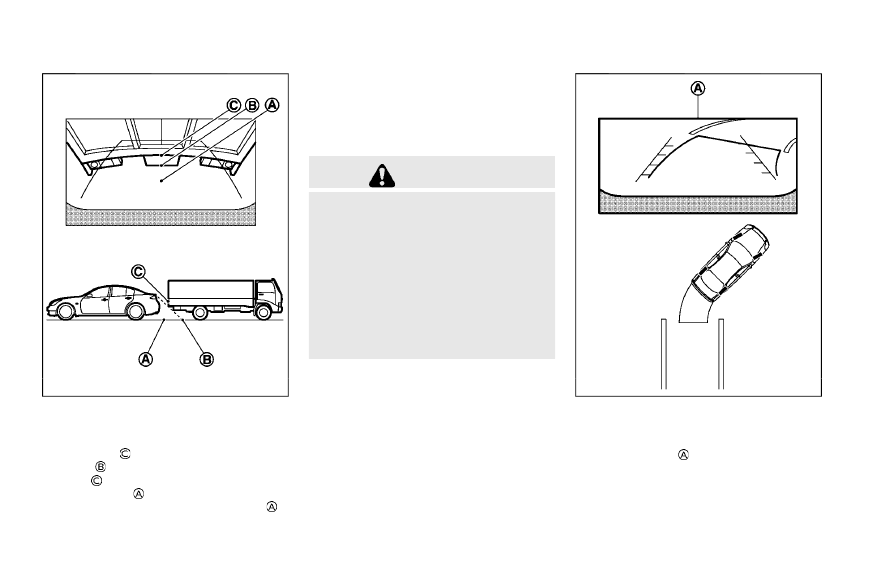

Backing up near a projecting object

The predictive course lines

do not touch

the object in the display. However, the
vehicle may hit the object if it projects over
the actual backing up course.

Monitor, climate, audio, phone and voice recognition systems

4-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-6

Monitor, climate, audio, phone and voice recognition systems

SAA2244

Backing up behind a projecting
object

The position

is shown further than the

position

in the display. However, the

position

is actually at the same distance

as the position

. The vehicle may hit the

object when backing up to the position

the object projects over the actual backing
up course.

HOW TO PARK WITH PREDIC-
TIVE COURSE LINES

WARNING

. If the tires are replaced with different

sized tires, the predictive course line
may not be displayed correctly.

. On a snow-covered or slippery road,

there may be a difference between
the predictive course line and the
actual course line.

. The displayed lines will appear

slightly off to the right because the
rearview camera is not installed in the
rear center of the vehicle.

SAA1897

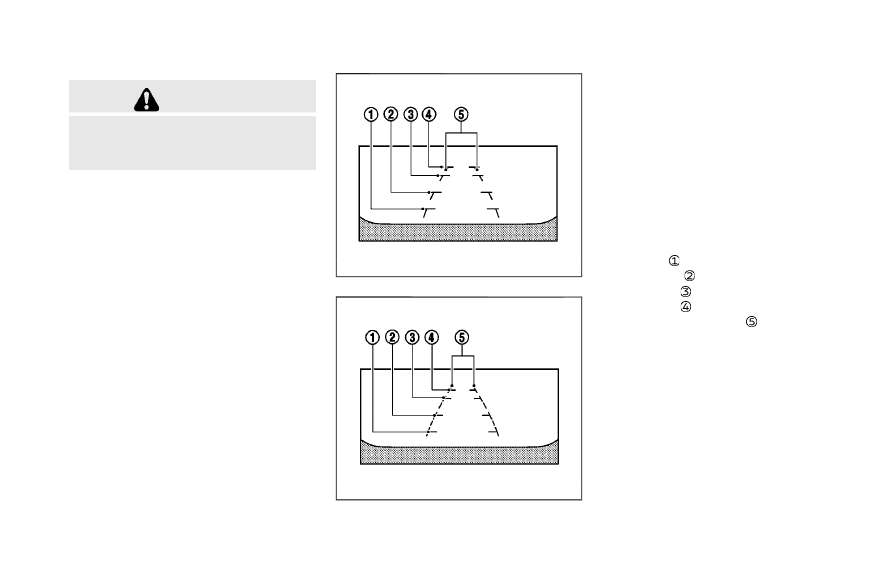

1. Visually check that the parking space is

safe before parking your vehicle.

2. The rearview of the vehicle is displayed

on the screen

when the shift lever is

moved to the R (Reverse) position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SAA1898

3. Slowly back up the vehicle adjusting the

steering wheel so that the predictive
course lines

enter the parking space

4. Maneuver the steering wheel to make

the vehicle width guide lines

parallel to

the parking space

while referring to

the predictive course lines.

5. When the vehicle is parked in the space

completely, move the shift lever to the P
(Park) position and apply the parking
brake.

JVH1690X

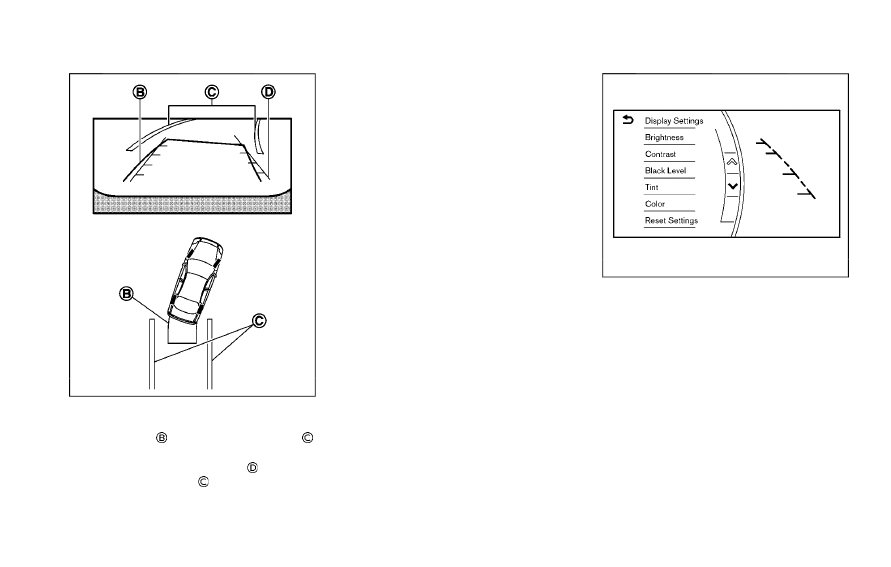

ADJUSTING THE SCREEN

The display settings such as Brightness,
Contrast, Black Level, Tint and Color of the
RearView Monitor can be adjusted.

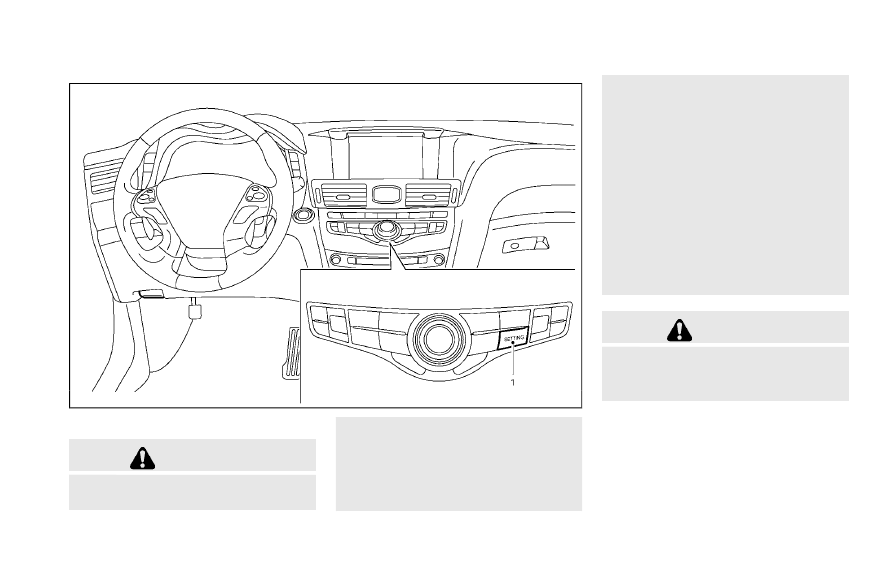

1. Push the SETTING button while the

RearView Monitor screen is displayed.

2. The Display settings menu is displayed.

Select an item you wish to adjust.

3. Adjust the selected item using the “+” or

“-” key.

Select the “Reset Settings” key to return all
settings to default.

Display settings menu can also be accessed
while the RearView Monitor screen is not
displayed. Push the SETTING button and

Monitor, climate, audio, phone and voice recognition systems

4-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-8

Monitor, climate, audio, phone and voice recognition systems

select “Camera” key, and then select “Dis-
play” key.

NOTE:

Do not adjust any of the display settings of
the RearView Monitor while the vehicle is
moving. Make sure the parking brake is
firmly applied.

PREDICTIVE COURSE LINE SET-
TINGS

To toggle on and off the predictive course
lines:

1. Push the SETTING button while the

RearView Monitor screen is not dis-
played.

2. Select the “Camera” key.

3. Select the “Camera” key.

4. Select the “Predictive Course Lines” key

to turn the feature on or off. When this
item is turned on, the predictive course
lines will be displayed on the monitor.

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to oper-
ate the vehicle in accordance with these
system limitations could result in serious
injury or death.
. The system cannot completely elim-

inate blind spots and may not show
every object.

. Underneath the bumper and the

corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range lim-
itation. The system will not show
small objects below the bumper, and
may not show objects close to the
bumper or on the ground.

. Objects viewed in the RearView

Monitor differ from actual distance
because a wide-angle lens is used.

. Objects in the RearView Monitor will

appear visually opposite compared to
when viewed in the rear view and
outside mirrors.

. Use the displayed lines as a reference.

The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.

. Make sure that the trunk lid is

securely closed when backing up.

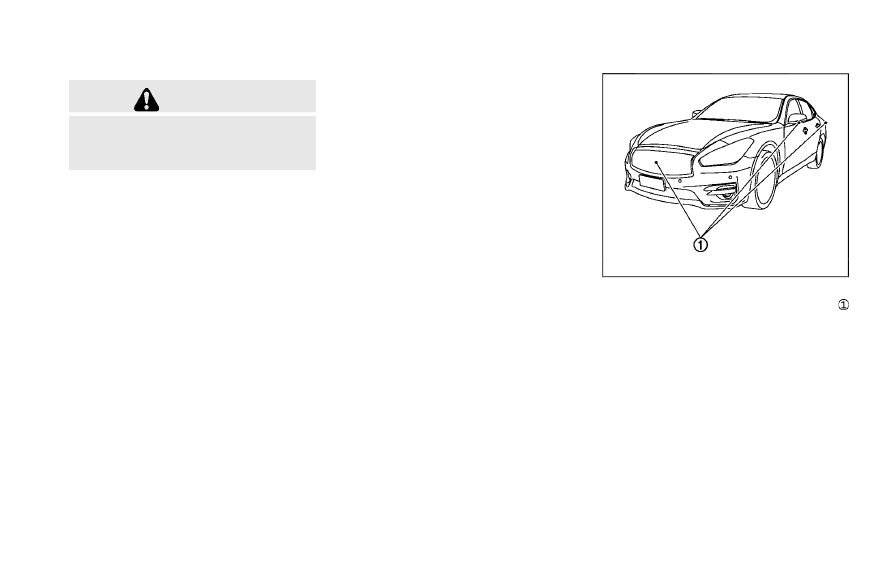

. Do not put anything on the rearview

camera. The rearview camera is in-
stalled above the license plate.

. When washing the vehicle with high-

pressure water, be sure not to spray
it around the camera. Otherwise,
water may enter the camera unit
causing water condensation on the
lens, a malfunction, fire or an electric
shock.

. Do not strike the camera. It is a

precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric shock.

The following are operating limitations and
do not represent a system malfunction:
. When the temperature is extremely high

or low, the screen may not clearly display
objects.

. When strong light is directly coming on

the camera, objects may not be displayed
clearly.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

. Vertical lines may be seen in objects on

the screen. This is due to strong reflected
light from the bumper.

. The screen may flicker under fluorescent

light.

. The colors of objects on the RearView

Monitor may differ somewhat from the
actual color of objects.

. Objects on the monitor may not be clear

in a dark environment.

. There may be a delay when switching to

the RearView Monitor.

. When activating the RearView Monitor,

the guide lines, the icons and the mes-
sages may not be displayed for a while.

. If dirt, rain or snow accumulates on the

camera, the RearView Monitor may not
display object clearly. Clean the camera.

. Do not use wax on the camera window.

Wipe off any wax with a clean cloth
dampened with mild detergent diluted
with water.

JVH1267X

SYSTEM MAINTENANCE

CAUTION

. Do not use alcohol, benzine or thinner

to clean the camera. This will cause
discoloration. To clean the camera,
wipe with a cloth dampened with
diluted mild cleaning agent and then
wipe with a dry cloth.

. Do not damage the camera as the

monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on the

camera

, RearView Monitor may not dis-

play objects clearly. Clean the camera by
wiping it with a cloth dampened with a
diluted mild cleaning agent and then wiping
it with a dry cloth.

Monitor, climate, audio, phone and voice recognition systems

4-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-10

Monitor, climate, audio, phone and voice recognition systems

JVH1706X

1. CAMERA button

2. SETTING button

WARNING

Failure to follow the warnings and
instructions for the proper use of the
Around View

Monitor system could

result in serious injury or death.
. The Around View

Monitor is a

convenience feature and is not a
substitute for proper vehicle opera-
tion because it has areas where
objects cannot be viewed. The four
corners of the vehicle in particular,
are areas where objects do not al-
ways appear in the bird’s-eye, front,
or rear views. Always check your
surroundings to be sure that it is safe
to move before operating the vehicle.
Always operate the vehicle slowly.
Always look out the windows and
check mirrors to be sure that it is safe
to move.

. The driver is always responsible for

safety during parking and other
maneuvers.

AROUND VIEW

MONITOR (if so

equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Do not scratch the lens when cleaning
dirt or snow from the front of the
camera.

The Around View

Monitor system is de-

signed as an aid to the driver in situations
such as slot parking or parallel parking.

The monitor displays various views of the
position of the vehicle in a split screen
format. All views are not available at all
times.

Available views:
. Front view

An approximately 150-degree view of
the front of the vehicle.

. Rear view

An approximately 150-degree view of
the rear of the vehicle.

. Bird’s-eye view

The surrounding view of the vehicle from
above.

. Front-side view

The view around and ahead of the front
passenger’s side wheel.

. Front-wide view

An approximately 180-degree view of

the front of the vehicle.

. Rear-wide view

An approximately 180-degree view of
the rear of the vehicle.

JVH1271X

To display the multiple views, the Around
View

Monitor system uses cameras

located in the front grill, on the vehicle’s
outside mirrors and one just above the
vehicle’s license plate.

AROUND VIEW

MONITOR SYS-

TEM OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse)
position or push the CAMERA button to
operate the Around View

Monitor.

Monitor, climate, audio, phone and voice recognition systems

4-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-12

Monitor, climate, audio, phone and voice recognition systems

Available views

WARNING

. The distance guide lines and the

vehicle width lines should be used as
a reference only when the vehicle is
on a paved, level surface. The appar-
ent distance viewed on the monitor
may be different than the actual
distance between the vehicle and
displayed objects.

. Use the displayed lines and the bird’s-

eye view as a reference. The lines and
the bird’s-eye view are greatly af-
fected by the number of occupants,
fuel level, vehicle position, road con-
dition and road grade.

. If the tires are replaced with different

sized tires, the predictive course lines
and the bird’s-eye view may be dis-
played incorrectly.

. When driving the vehicle up a hill,

objects viewed in the monitor are
further than they appear. When
driving the vehicle down a hill, objects
viewed in the monitor are closer than
they appear.

. Objects in the monitor will appear

visually opposite compared to when

viewed in the rear view and outside
mirrors.

. Use the mirrors or actually look to

properly judge distances to other
objects.

. The distance between objects viewed

in the rear view differs from actual
distance because a wide-angle lens is
used.

. On a snow-covered or slippery road,

there may be a difference between
the predictive course line and the
actual course line.

. The vehicle width and predictive

course lines are wider than the actual
width and course.

. The displayed lines on the rear view

will appear slightly off to the right
because the rear view camera is not
installed in the rear center of the
vehicle.

SAA1840

Front view

SAA1896

Rear view

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Front and rear view:
Guiding lines that indicate the approximate
vehicle width and distances to objects with
reference to the vehicle body line

are

displayed on the monitor.

Distance guide lines

Indicate distances from the vehicle body.
. Red line : approx. 1.5 ft (0.5 m)

. Yellow line : approx. 3 ft (1 m)

. Green line : approx. 7 ft (2 m)

. Green line : approx. 10 ft (3 m)
Vehicle width guide lines

Indicates the approximate vehicle width.

Predictive course lines

Indicate the predictive course when operat-
ing the vehicle. The predictive course lines
will be displayed on the monitor when the
steering wheel is turned. The predictive
course lines will move depending on how
much the steering wheel is turned and will
not be displayed while the steering wheel is
in the straight-ahead position.

The front view will not be displayed when
the vehicle speed is above 6 MPH (10 km/h).

NOTE:

When the monitor displays the front view
and the steering wheel turns about 90
degrees or less from the straight ahead
position, both the right and left predictive

course lines

are displayed. When the

steering wheel turns about 90 degrees or
more, a line is displayed only on the
opposite side of the turn.

JVH1140X

Bird’s-eye view:
The bird’s-eye view shows the overhead
view of the vehicle, which helps confirm the
vehicle position and the predictive course to
a parking space.

The vehicle icon

shows the position of the

vehicle. Note that the size of the vehicle icon
on the bird’s-eye view may differ somewhat
from the actual distance to the vehicle.

The areas that the cameras cannot cover
are indicated in black.

The non-viewable area

is highlighted in

yellow for several seconds after the bird’s-
eye view is displayed. It will be shown only
the first time after the ignition switch is
placed in the ON position.

Monitor, climate, audio, phone and voice recognition systems

4-13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-14

Monitor, climate, audio, phone and voice recognition systems

The driver can check the approximate direc-
tion and angle of the tire on the display by
tire icon

when driving the vehicle forward

or backward.

Predictive course lines (

and

) indicate

the predictive course when operating the
vehicle. The predictive course lines will be
displayed on the monitor when the steering
wheel is turned. The predictive course lines
will move depending on how much the
steering wheel is turned and will not be
displayed while the steering wheel is in the
straight-ahead position.

When the monitor displays the front view
and the steering wheel turns about 90
degrees or less from the straight-ahead
position, the two green predictive course
lines

are shown in front of the vehicle.

When the steering wheel turns about 90
degrees or more, one green predictive course
line

is shown in front of the vehicle and the

other green predictive course line

is shown

at side of the vehicle.

When the monitor displays the rear view, the
predictive course lines are shown at back of
the vehicle.

WARNING

. Objects in the bird’s-eye view will

appear further than the actual dis-
tance.

. Tall objects, such as a curb or vehicle,

may be misaligned or not displayed at
the seam of the views.

. Objects that are above the camera

cannot be displayed.

. The view for the bird’s-eye view may

be misaligned when the camera posi-
tion alters.

. A line on the ground may be mis-

aligned and is not seen as being
straight at the seam of the views.
The misalignment will increase as the
line proceeds away from the vehicle.

. Tire angle display does not indicate

the actual tire angle.

JVH1141X

Front-side view:
Guiding lines:

Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.

The front-of-vehicle line

shows the front

part of the vehicle.

The side-of-vehicle line

shows the vehicle

width including the outside mirrors.

The extensions

of both the front

and

side

lines are shown with a green dotted

line.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

The turn signal light may look like the
side-of-vehicle line. This is not a mal-
function.

JVH1142X

Front-wide view

JVH1143X

Rear-wide view

Front-wide/rear-wide view:
The front-wide/rear-wide view shows a
wider area on the entire screen and allows
the checking of the blind corners on the right
and left sides. The front-wide/rear-wide
view displays an approximately 180-degree
area while the front view and the rear view
display an approximately 150-degree area.
The predictive course lines are not displayed
when using the front-wide/rear-wide view.

Distance guide lines

Indicates distances from the vehicle body.
. Red line : approx. 1.5 ft (0.5 m)

. Yellow line : approx. 3 ft (1 m)

. Green line : approx. 7 ft (2 m)

. Green line : approx. 10 ft (3 m)
Vehicle width guide lines

Indicates the approximate vehicle width.

Monitor, climate, audio, phone and voice recognition systems

4-15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infiniti Q70 (2019 year). Instruction - part 11
