Infiniti Q50 (2018 year). Instruction - part 9





2-54

Instruments and controls

will automatically open or close all the way.
To stop the roof, push the switch once more
while it is opening or closing.

Operating moonroof with Intelli-
gent Key (if so equipped)

The moonroof can be opened by pushing the
UNLOCK button on the Intelligent Key. This
function will not operate while the moonroof
timer is activated or when the moonroof
need to be initialized. For details about the
Intelligent Key button usage, see “How to
use remote keyless entry system” (P.3-17).

Opening:
To open the sunroof, push the UNLOCK
button on the Intelligent Key for about 3
seconds after the door is unlocked.
To stop opening, release the

button.

Auto reverse function

WARNING

There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.

If the control unit detects something caught
in the moonroof when it is closing, the
moonroof will be immediately opened.
The auto reverse function can be activated
when the moonroof is closed by automatic
operation when the ignition switch is in the
ON position or for about 45 seconds after
the ignition switch is pushed to the OFF
position.
If the moonroof cannot be closed automa-
tically when the auto reverse function
activates due to a malfunction, push and
hold the moonroof switch to the close
position

.

Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.

If the moonroof does not operate

If the moonroof does not operate properly,
perform the following procedure to initialize
the moonroof operation system.
1. If the moonroof is open, close it fully by

repeatedly pushing the moonroof switch
to the close position

to tilt the moon-

roof up.

2. Push and hold the switch to the close

position

.

3. Release the moonroof switch after the

moonroof moves slightly up and down.

4. Push and hold the switch to the open

position

to fully tilt the moonroof

down.

5. Check if the moonroof switch operates

normally.

If the moonroof does not operate properly
after performing the procedure above, have
your moonroof checked and repaired. It is
recommended you visit an INFINITI retailer
for this service.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVI0656X

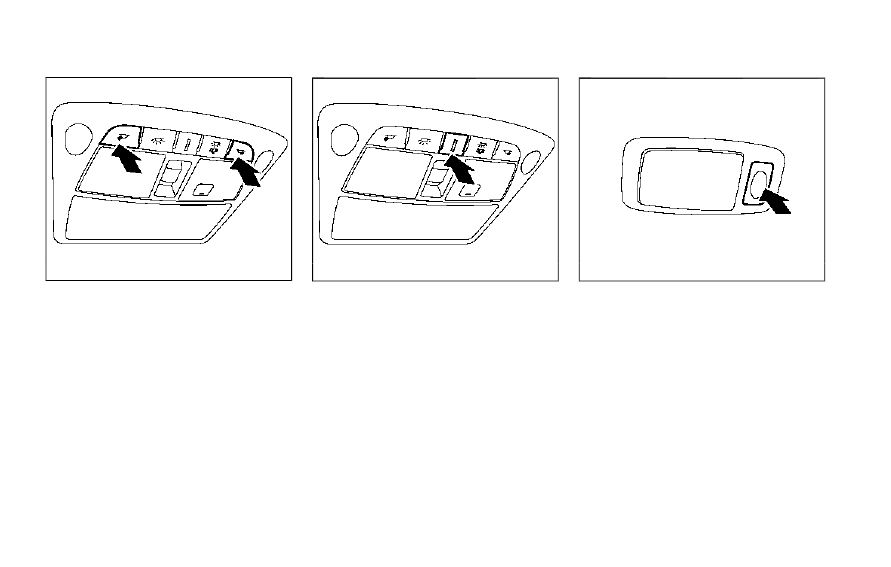

MAP LIGHTS

Push the button as illustrated to turn the
light on or off.

JVI0726X

CONSOLE LIGHT (if so equipped)

The console light will turn on whenever the
front parking lights or headlights are illumi-
nated.

SIC3250

PERSONAL LIGHTS

Push the button as illustrated to turn the
light on or off.

Instruments and controls

2-55

INTERIOR LIGHTS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-56

Instruments and controls

JVI0657X

INTERIOR LIGHT CONTROL
SWITCH

ON switch

When the ON switch

is pushed in, the map

lights and rear personal lights will illuminate.
When the switch is pushed off, the lights will
not illuminate, regardless of the condition.

DOOR OFF switch

When the DOOR OFF switch

is not

pushed in, the map lights and rear personal
lights will illuminate under the following
conditions:

. ignition switch is switched to the OFF

position
— remain on for about 15 seconds.

. doors are unlocked by pushing the UN-

LOCK button on the Intelligent Key or
one touch unlock sensor with the ignition
switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened and then closed with

the ignition switch in the LOCK position
— remain on for about 15 seconds.

. any door is opened

— remain on while the door is opened.

When the door is closed, the lights go
off.

When the DOOR OFF switch

is pushed in,

the map and rear personal lights will not
illuminate under the above condition. The
map and rear personal lights can be turned
on only with the ON switch

.

The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
When [Lamp ON When Door Unlocks] is set
to the OFF position (see the Infiniti InTouch
Owner’s Instruction), the lights will illuminate
under the following condition:

. any door is opened with the ignition

switch in any position
— remain on while the door is opened.

When the door is closed, the lights go
off.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIC3869

The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.
When the cover is closed, the light will turn
off.
The lights will also turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.

The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light will turn off.
The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.

SIC4328

When the doors are unlocked by pushing the
UNLOCK button on the Intelligent Key or
touching the one touch unlock sensor with
the ignition switch in the LOCK position, the
courtesy light

will illuminate.

To activate or deactivate the courtesy light,
set [Lamp ON When Door Unlocks]. See the
Infiniti InTouch Owner’s Instruction.

Instruments and controls

2-57

VANITY MIRROR LIGHTS

TRUNK LIGHT

COURTESY LIGHT

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-58

Instruments and controls

The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-held
transmitters into one built-in device.
HomeLink® Universal Transceiver:
. Will operate most Radio Frequency (RF)

devices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.

. Is powered by your vehicle’s battery. No

separate batteries are required. If the
vehicle’s battery is discharged or is
disconnected, HomeLink® will retain all
programming.

When the HomeLink® Universal Transcei-
ver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases).
Upon sale of the vehicle, the programmed
HomeLink® Universal Transceiver buttons
should be erased for security purposes. For
additional information, refer to “Program-
ming HomeLink®” (P.2-58).

WARNING

Do not use the HomeLink® Universal

Transceiver with any garage door
opener that lacks safety stop and
reverse features as required by fed-
eral safety standards. (These stan-

dards became effective for opener
models manufactured after April 1,
1982). A garage door opener which
cannot detect an object in the path of
a closing garage door and then auto-
matically stop and reverse, does not
meet current federal safety stan-
dards. Using a garage door opener
without these features increases the
risk of serious injury or death.

During the programming procedure

your garage door or security gate will
open and close (if the transmitter is
within range). Make sure that people
or objects are clear of the garage
door, gate, etc. that you are pro-
gramming.

Your vehicle’s engine should be

turned off while programming the
HomeLink® Universal Transceiver.
Do not breathe exhaust gases; they
contain colorless and odorless carbon
monoxide. Carbon monoxide is dan-
gerous. It can cause unconsciousness
or death.

PROGRAMMING HomeLink®

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site
at: www.homelink.com or call 1-800-355-
3515.

NOTE:
It is also recommended that a new battery
be placed in the hand-held transmitter of
t h e d e v i c e b e i n g p r o g r a m m e d t o
HomeLink® for quicker programming and
accurate transmission of the radio-fre-
quency.
1. Position the end of your hand-held

transmitter 1-3 in (26-76 mm) away
from the HomeLink® surface, keeping
the HomeLink® indicator light

in view.

HomeLink® UNIVERSAL TRANSCEIVER

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVI0428X

2. Using both hands, simultaneously press

and hold the desired HomeLink® button
and handheld transmitter button. DO
NOT release until the HomeLink® indi-
cator light

flashes slowly and then

rapidly. When the indicator light flashes
rapidly, both buttons may be released.
(The rapid flashing indicates successful
programming.)

NOTE:
Some devices to be programmed may
require you to replace Step 2 with the
cycling procedure noted in the “Pro-
gramming HomeLink® for Canadian
customers and gate openers” (P.2-60).

JVI0429X

3. Press and hold the programmed

HomeLink® button and observe the
indicator light.

.

If the indicator light

is solid/con-

tinuous, programming is complete
and your device should activate when
the HomeLink® button is pressed and
released.

.

If the indicator light

blinks rapidly

for two seconds and then turns to a
solid/continuous light, continue with
Steps 4-6 for a rolling code device. A
second person may make the follow-
ing steps easier. Use a ladder or other
device. Do not stand on your vehicle
to perform the next steps.

4. At the receiver located on the garage

door opener motor in the garage, locate
the “learn” or “smart” button (the name
and color of the button may vary by
manufacturer but it is usually located
near where the hanging antenna wire is
attached to the unit). If there is difficulty
locating the button, reference the garage
door opener’s instruction.

5. Press and release the “learn” or “smart”

button.

NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate the
next step.

6. Return to the vehicle and firmly press

and hold the programmed HomeLink®
button for two seconds and release.
Repeat the “press/hold/release” se-
quence up to 3 times to complete the
programming process. HomeLink®
should now activate your rolling code
equipped device.

7. If you have any questions or are having

difficulty programming your HomeLink®
buttons, refer to the HomeLink® web
site at: www.homelink.com or call 1-
800-355-3515.

Instruments and controls

2-59

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-60

Instruments and controls

PROGRAMMING HomeLink® FOR
CANADIAN CUSTOMERS AND
GATE OPENERS

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink® to pick up the signal during
programming. Similar to this Canadian law,
some U.S. gate operators are designed to
“time-out” in the same manner.
If you live in Canada or you are having
difficulties programming a gate operator or
garage door opener by using the “Program-
ming HomeLink®” procedures, replace “Pro-
gramming HomeLink®” Step 2 with the
following:

NOTE:
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.
Step 2: Using both hands, simultaneously
press and hold the desired HomeLink®
button and the hand-held transmitter but-
ton. During programming, your hand-held
transmitter may automatically stop trans-
mitting. Continue to press and hold the
desired HomeLink® button while you press
and re-press (“cycle”) your hand-held trans-

mitter every two seconds until the frequency
signal has been learned. The HomeLink®
indicator light will flash slowly and then
rapidly after several seconds upon success-
ful programming. DO NOT release until the
HomeLink® indicator light flashes slowly
and then rapidly. When the indicator light
flashes rapidly, both buttons may be re-
leased. The rapid flashing indicates success-
ful programming.
Proceed with “Programming HomeLink®”
step 3 to complete.
Remember to plug the device back in when
programming is completed.

OPERATING THE HomeLink®
UNIVERSAL TRANSCEIVER

The HomeLink® Universal Transceiver, after
it is programmed, can be used to activate the
programmed device. To operate, simply
press and release the appropriate pro-
grammed HomeLink® Universal Transceiver
button. The amber indicator light will illumi-
nate while the signal is being transmitted.
For convenience, the hand-held transmitter
of the device may also be used at any time.

PROGRAMMING TROUBLE-
SHOOTING

If the HomeLink® does not quickly learn the
hand-held transmitter information:
. replace the hand-held transmitter bat-

teries with new batteries.

. position the hand-held transmitter with

its battery area facing away from the
HomeLink® surface.

. press and hold both the HomeLink® and

hand-held transmitter buttons without
interruption.

. position the hand-held transmitter 1-3 in

(26-76 mm) away from the HomeLink®
surface. Hold the transmitter in that
position for up to 15 seconds. If
HomeLink® is not programmed within
that time, try holding the transmitter in
another position - keeping the indicator
light in view at all times.

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site
at: www.homelink.com or 1-800-355-
3515.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLEARING THE PROGRAMMED
INFORMATION

The following procedure clears the pro-
grammed information from both buttons.
Individual buttons cannot be cleared. How-
ever, individual buttons can be repro-
grammed, see “Reprogramming a single
HomeLink® button” (P.2-61).

To clear all programming

1. P r e s s a n d h o l d t h e t w o o u t e r

HomeLink® buttons until the indicator
light begins to flash in approximately 10
seconds. Do not hold for longer than 20
seconds.

2. Release both buttons.
HomeLink® is now in the programming
mode and can be programmed at any time
beginning with “Programming HomeLink®” -
Step 1.

REPROGRAMMING A SINGLE
HomeLink® BUTTON

To reprogram a HomeLink® Universal
Transceiver button, complete the following.
1. Press and hold the desired HomeLink®

button. Do not release the button.

2. The indicator light will begin to flash

after 20 seconds. Without releasing the
HomeLink® button, proceed with “Pro-

gramming HomeLink®” - Step 1.

For questions or comments, contact
HomeLink® at: www.homelink.com or 1-
800-355-3515.
The HomeLink® Universal Transceiver but-
ton has now been reprogrammed. The new
device can be activated by pushing the
HomeLink® button that was just pro-
grammed. This procedure will not affect
any other programmed HomeLink® buttons.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change
the codes of any non-rolling code device that
has been programmed into HomeLink®.
Consult the Owner’s Instruction of each device
or call the manufacturer or retailer of those
devices for additional information.
When your vehicle is recovered, you will
need to reprogram the HomeLink® Univer-
sal Transceiver with your new transmitter
information.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.

NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any inter-
ference, including interference that may
cause undesired operation of the device.

Instruments and controls

2-61

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-62

Instruments and controls

MEMO

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3 Pre-driving checks and adjustments

Keys........................................................................................ 3-2

Intelligent Key................................................................ 3-2
Valet hand-off............................................................... 3-4

Doors..................................................................................... 3-4

Locking with mechanical key.................................... 3-4
Opening and closing windows with
mechanical key.............................................................. 3-5
Locking with inside lock knob................................... 3-5
Locking with power door lock switch.................... 3-5
Automatic door locks.................................................. 3-6
Child safety rear door lock ........................................ 3-6

Intelligent Key system........................................................ 3-7

Intelligent Key operating range................................ 3-8
Door locks/unlocks precaution ............................... 3-9
Intelligent Key operation.......................................... 3-10
Battery saver system................................................. 3-13
Warning signals........................................................... 3-14
Troubleshooting guide.............................................. 3-15
Log-in function ........................................................... 3-16

Remote keyless entry system....................................... 3-16

How to use remote keyless entry system........... 3-17

Remote engine start (if so equipped)........................ 3-20

Remote engine start operating range.................. 3-21
Remote starting the engine..................................... 3-21
Extending engine run time....................................... 3-21

Canceling a remote start........................................ 3-21
Conditions the remote start will not work ....... 3-22

Hood ................................................................................... 3-23
Trunk lid ............................................................................. 3-23

Trunk lid release switch.......................................... 3-24
Trunk open request switch.................................... 3-24
TRUNK button.......................................................... 3-24
Trunk release power cancel switch..................... 3-25
Interior trunk lid release ......................................... 3-25

Fuel-filler door ................................................................. 3-26

Opening the fuel-filler door................................... 3-26
Fuel-filler cap............................................................. 3-26

Tilt/telescopic steering.................................................. 3-28

Instruction operation (if so equipped)...................... 3-29
Electric operation (if so equipped)....................... 3-29

Sun visors ......................................................................... 3-30
Mirrors............................................................................... 3-30

Inside mirror.............................................................. 3-30
Outside mirrors......................................................... 3-31
Vanity mirror.............................................................. 3-32

Automatic drive positioner (if so equipped) ............ 3-33

Entry/exit function.................................................. 3-33
Memory storage....................................................... 3-33
System operation ..................................................... 3-34

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-2

Pre-driving checks and adjustments

A key number plate is supplied with your
keys. Record the key number and keep it in a
safe place (such as your wallet), not in the
vehicle. If you lose your keys, it is recom-
mended you visit an INFINITI retailer for
duplicates by using the key number. INFINITI
does not record any key numbers so it is very
important to keep track of your key number
plate.
A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can
be duplicated without knowing the key
number.

SPA2865

Type A (if so equipped)

JVP0414X

Type B (if so equipped)

1.

Intelligent Keys (2)

2.

Mechanical keys (inside the Keys) (2)

3.

Key number plate (1)

INTELLIGENT KEY

Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components
and INFINITI Vehicle Immobilizer System
components. As many as 4 Intelligent Keys
can be registered and used with one vehicle.
The new keys must be registered by an
INFINITI retailer prior to use with the
Intelligent Key system and INFINITI Vehicle
Immobilizer System of your vehicle. Since the
registration process requires erasing all
memory in the Intelligent Key components
when registering new keys, be sure to take
all Intelligent Keys that you have to the
INFINITI retailer.
It is possible that the Intelligent Key func-
tions become canceled. Contact an INFINITI
retailer.

CAUTION

Be sure to carry the Intelligent Key

with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.

KEYS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

— The Intelligent Key is water re-

sistant; however, wetting may
damage the Intelligent Key. If the
Intelligent Key gets wet, immedi-
ately wipe until it is completely
dry.

— Do not bend, drop or strike it

against another object.

— If the outside temperature is

below 14°F (−10°C), the battery
of the Intelligent Key may not
function properly.

— Do not place the Intelligent Key

for an extended period in a place
where temperatures exceed
140°F (60°C).

— Do not change or modify the

Intelligent Key.

— Do not use a magnet key holder.

— Do not place the Intelligent Key

near an electric appliance such as
a television set or personal com-
puter.

— Do not allow the Intelligent Key

to come into contact with water
or salt water, and do not wash it
in a washing machine. This could
affect the system function.

If an Intelligent Key is lost or stolen,

INFINITI recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from un-
authorized use to unlock the vehicle.
For information regarding the eras-
ing procedure, it is recommended you
visit an INFINITI retailer.

SPA2033

Mechanical key

To remove the mechanical key, release the
lock knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.
Use the mechanical key to lock or unlock the
doors, glove box and trunk pass-through lid,
if they are equipped with a key cylinder.
See “Doors” (P.3-4), “Glove box” (P.2-48)
and “Trunk pass-through” (P.1-7).

Pre-driving checks and adjustments

3-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-4

Pre-driving checks and adjustments

CAUTION

Always carry the mechanical key in-
stalled in the key.

VALET HAND-OFF

When you have to leave a key with a valet,
give them the Intelligent Key itself and keep
the mechanical key with you to protect your
belongings.
To prevent the glove box and the trunk from
being opened during valet hand-off, follow
the procedures below.
1. Push the trunk release power cancel

switch to the OFF (cancel) side.

2. Remove the mechanical key from the

Intelligent Key.

3. Lock the glove box and the trunk pass-

through with the mechanical key.

4. Hand the Intelligent Key to the valet,

keeping the mechanical key in your
pocket or bag for insertion into the
Intelligent Key when you retrieve your
vehicle.

See “Trunk lid” (P.3-23), “Glove box” (P.2-
48) and “Trunk pass-through” (P.1-7).

WARNING

Always have the doors locked while

driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping to
prevent persons from being thrown
from the vehicle. This also helps keep
children and others from unintention-
ally opening the doors, and will help
keep out intruders.

Before opening any door, always look

for and avoid oncoming traffic.

To help avoid risk of injury or death

through unintended operation of the
vehicle and or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not
leave children, people who require
the assistance of others or pets
unattended in your vehicle. Addition-
ally, the temperature inside a closed
vehicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.

JVP0231X

LOCKING WITH MECHANICAL
KEY

The power door lock system allows you to
lock or unlock all doors, trunk lid simulta-
neously using the mechanical key.
. Turning the driver’s door key cylinder to

the front of the vehicle

will lock all

doors and trunk lid.

. Turning the driver’s door key cylinder

once to the rear of the vehicle

will

unlock the driver’s door. After returning
the key to the neutral position

, turning

it to the rear again within 60 seconds will
unlock all doors and trunk lid.

DOORS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

. You can switch the lock system to the

mode that allows you to open all the
doors when the key is turned once. (See
the Infiniti InTouch Owner’s Instruction for
details.)

OPENING AND CLOSING WIN-
DOWS WITH MECHANICAL KEY

The driver’s door key operation also allows
you to open and close the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-50).)
To open the window, turn the driver’s door
key cylinder to the rear of the vehicle for
longer than 1 second. The door is unlocked
and the window keeps opening while turning
the key.
This function can also be performed by
pushing and holding the UNLOCK button
on the Intelligent Key. (See “Remote keyless
entry system” (P.3-16).)
To close the window, turn the driver’s door
key cylinder to the front of the vehicle for
longer than 1 second. The door is locked and
the window keeps closing while turning the
key.

SPA2726

LOCKING WITH INSIDE LOCK
KNOB

To lock the door individually, move the inside
lock knob to the lock position

then close

the door.
To unlock, move the inside lock knob to the
unlock position

.

When locking the door without an Intelli-
gent Key, be sure not to leave the Intelligent
Key inside the vehicle.

JVP0319X

LOCKING WITH POWER DOOR
LOCK SWITCH

Operating the power door lock switch will
lock or unlock all the doors and trunk lid. The
switches are located on the driver’s and
front passenger’s door armrests.
To lock the doors and trunk lid, push the
power door lock switch to the lock position

with the driver’s or front passenger’s door

open, then close the door.
When locking the door this way, be certain
not to leave the Intelligent Key inside the
vehicle.
To unlock the doors including the fuel-filler
door and trunk lid, push the power door lock

Pre-driving checks and adjustments

3-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3-6

Pre-driving checks and adjustments

switch to the unlock position

.

Lockout protection

When the power door lock switch is moved
to the lock position and any door open, all
doors will lock and unlock automatically.
With the Intelligent Key left in the vehicle
and any door open, all doors will unlock
automatically and a chime will sound after
the door is closed.
These functions help to prevent the Intelli-
gent Key from being accidentally locked
inside the vehicle.

AUTOMATIC DOOR LOCKS

. All doors and trunk lid lock automatically

when the vehicle speed reaches 15 MPH
(24 km/h).

. All doors and trunk lid unlock automati-

cally when the ignition switch is placed in
the OFF position or when the shift lever
is moved to the P (Park) position, if
selected.

The automatic unlock function can be
deactivated or activated.
To deactivate or
activate the automatic door unlock system,
perform the following procedure:
1. Close all doors.
2. Place the ignition switch in the ON

position.

3. Within 20 seconds of performing Step 2,

push and hold the power door lock
switch to the

position (UNLOCK)

for more than 5 seconds.

4. When activated, the hazard indicator will

flash twice. When deactivated, the ha-
zard indicator will flash once.

5. The ignition switch must be placed in the

OFF and ON position again between
each setting change.

When the automatic door unlock system is
deactivated, the doors do not unlock when
the ignition switch is placed in the OFF
position. To unlock the door instructionly, use
the inside lock knob or the power door lock
switch (driver’s or front passenger’s side).
The automatic door unlock function can be
changed on the lower display. (See the
Infiniti InTouch Owner’s Instruction.)

SPA2536

CHILD SAFETY REAR DOOR
LOCK

The child safety rear door lock helps prevent
doors from being opened accidentally, espe-
cially when small children are in the vehicle.
When the levers are in the lock position

,

the rear doors can be opened only from the
outside.
To disengage, move the levers to the unlock
position

.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment man-
ufacturer for the possible influences
before use.

The Intelligent Key transmits radio

waves when the buttons are pushed.
The FAA advises that the radio
waves may affect aircraft navigation
and communication systems. Do not
operate the Intelligent Key while on
an airplane. Make sure the buttons
are not operated unintentionally
when the unit is stored during a
flight.

The Intelligent Key system can operate all
the doors and the trunk lid using the remote
controller function, using one touch unlock
function or pushing the request switch on
the vehicle without taking the key out from a
pocket or purse. The operating environment
and/or conditions may affect the Intelligent
Key system operation.
Be sure to read the following before using
the Intelligent Key system.

CAUTION

Be sure to carry the Intelligent Key

with you when operating the vehicle.

Never leave the Intelligent Key in the

vehicle when you leave the vehicle.

The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions.
. When operating near a location where

strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.

. When in possession of wireless equip-

ment, such as a cellular telephone,
transceiver, and CB radio.

. When the Intelligent Key is in contact

with or covered by metallic materials.

. When any type of radio wave remote

control is used nearby.

. When the Intelligent Key is placed near

an electric appliance such as a personal
computer.

. When the vehicle is parked near a parking

meter.

In such cases, correct the operating condi-
tions before using the Intelligent Key func-
tion or use the mechanical key.
Although the life of the battery varies
depending on the operating conditions, the
battery’s life is approximately 2 years. If the
battery is discharged, replace it with a new
one.
When the Intelligent Key battery is almost
discharged, see “Intelligent Key battery dis-
charge” (P.5-14) to start the engine.
Since the Intelligent Key is continuously
receiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and
personal computer, the battery life may
become shorter.
For information regarding replacement of a
battery, see “Intelligent Key battery replace-
ment” (P.8-26).
As many as 4 Intelligent Keys can be
registered and used with one vehicle. For
information about the purchase and use of
additional Intelligent Keys, contact an
INFINITI retailer.

Pre-driving checks and adjustments

3-7

INTELLIGENT KEY SYSTEM

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     7      8      9      10     ..
