Infiniti M45 (2010 year). Instruction - part 7





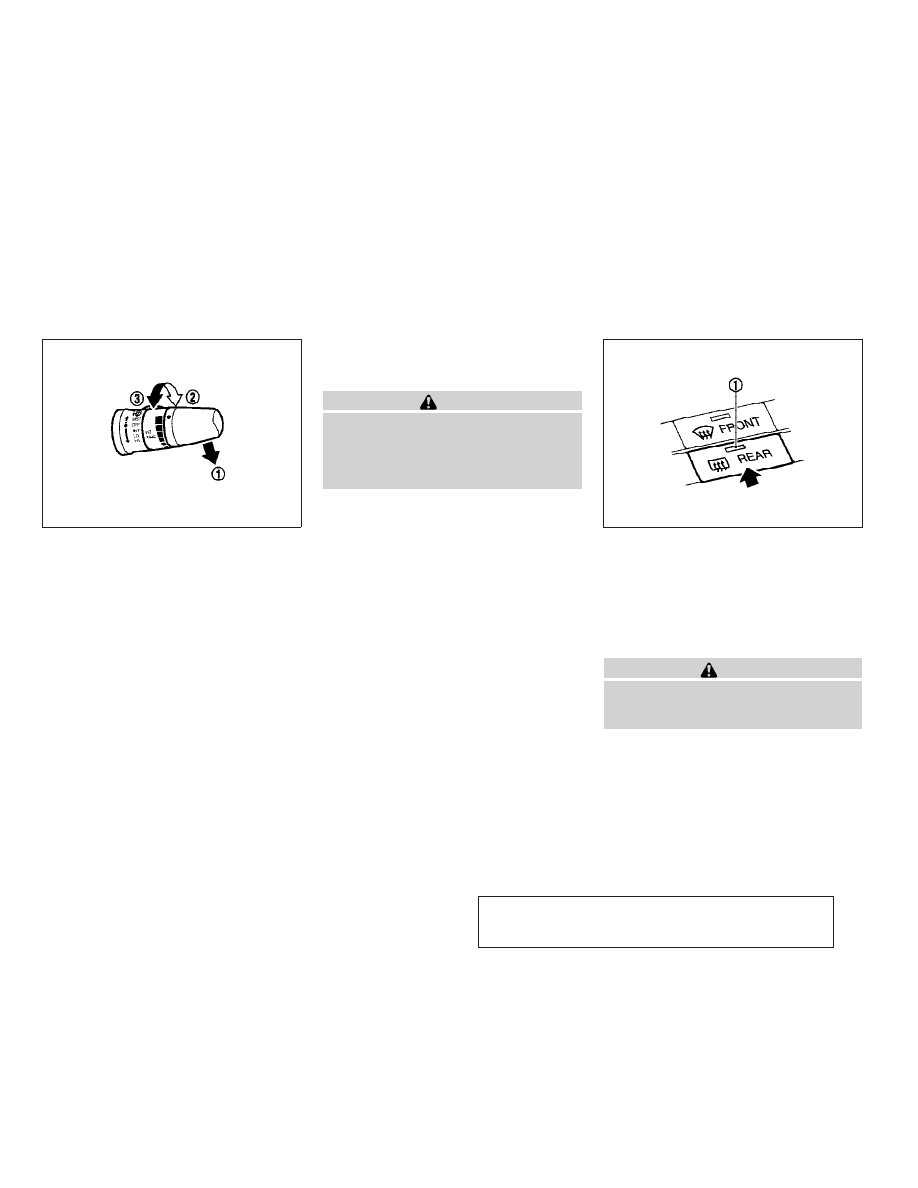

RAIN-SENSING AUTO WIPER SYSTEM

The rain-sensing auto wiper system can auto-

matically turn on the wipers and adjust the

wiper speed depending on the rainfall and the

vehicle speed by using the rain sensor located

on the upper part of the windshield.
To set the rain-sensing auto wiper system, push

the lever down to the INT (intermittent) position

s

1

. The wiper will sweep once while the ignition

switch is in the ON position.
The rain sensor sensitivity level can be adjusted

by turning the knob toward the front

s

2

(High)

or toward the rear

s

3

(Low).

● High — High sensitive operation
● Low — Low sensitive operation

To turn the rain-sensing auto wiper system off,

push up the lever to the OFF position, or pull

down the lever to the LO or HI position.

CAUTION

Do not touch the rain sensor and around it when

the wiper switch is in the INT position and the

ignition switch is in the ON position. The wipers

may operate unexpectedly and cause to an in-

jury or a wiper damage.

● The rain-sensing auto wipers are intended for

use during rain. If the switch is left in the INT

position, the wipers may operate unexpect-

edly when dirt, fingerprints, oil film or insects

are stuck on or around the sensor. The wipers

may also operate when exhaust gas or mois-

ture affect the rain sensor.

● The rain-sensing auto wipers may not oper-

ate if rain does not hit the rain sensor even if

it is raining.

To defog/defrost the rear window glass and

outside mirrors (if so equipped with defroster),

start the engine and push the switch on. The

indicator light

s

1

will come on. Push the switch

again to turn the defroster off.
It will automatically turn off in approximately 15

minutes.

CAUTION

When cleaning the inner side of the rear win-

dow, be careful not to scratch or damage the

rear window defroster.

SIC3887

SIC2767B

REAR WINDOW AND OUTSIDE MIRROR

DEFROSTER SWITCH

2-28

Instruments and controls

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

XENON HEADLIGHTS

WARNING

HIGH VOLTAGE

● When xenon headlights are on, they produce

a high voltage. To prevent an electric shock,

never attempt to modify or disassemble. Al-

ways have your xenon headlights replaced

at an INFINITI retailer.

● Xenon headlights provide considerably

more light than conventional headlights. If

they are not correctly aimed, they might

temporarily blind an oncoming driver or the

driver ahead of you and cause a serious acci-

dent. If headlights are not aimed correctly,

immediately take your vehicle to an INFINITI

retailer and have the headlights adjusted

correctly.

When the xenon headlight is initially turned on,

its brightness or color varies slightly. However,

the color and brightness will soon stabilize.
● The life of xenon headlights will be shortened

by frequent on-off operation. It is generally

desirable not to turn off the headlights for

short intervals (for example, when the ve-

hicle stops at a traffic signal). Even when the

daytime running lights are active (Canada

only), the xenon headlights do not turn on.

This way the life of the xenon headlights is

not reduced.

● If the xenon headlight bulb is close to burn-

ing out, the brightness will drastically de-

crease, the light will start blinking, or the

color of the light will become reddish. If one

or more of the above signs appear, contact an

INFINITI retailer.

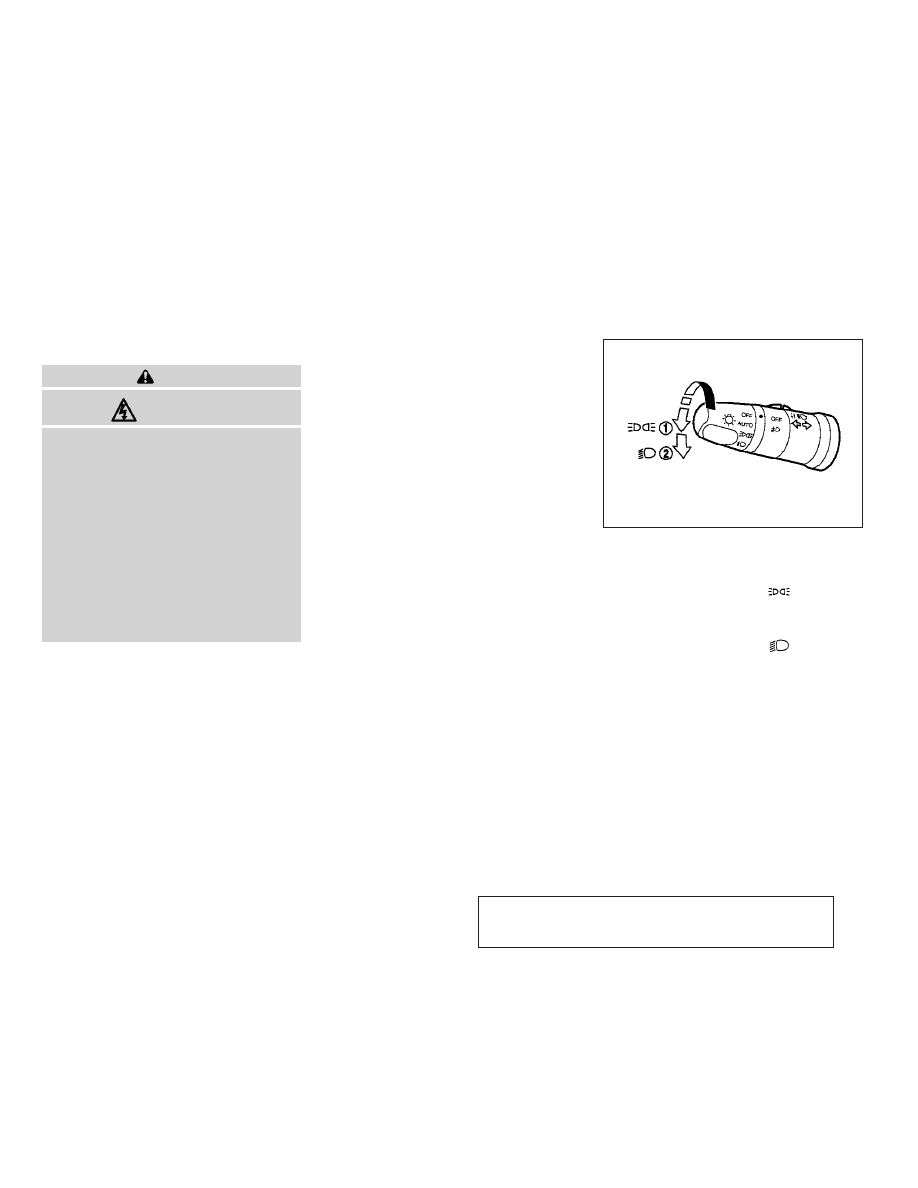

HEADLIGHT SWITCH
Lighting

s

1

Turn the switch to the

position:

The front park, side marker, tail, license

plate and instrument lights will come on.

s

2

Turn the switch to the

position:

Headlights will come on and all the other

lights remain on.

SIC2411

HEADLIGHT AND TURN SIGNAL SWITCH

Instruments and controls

2-29

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

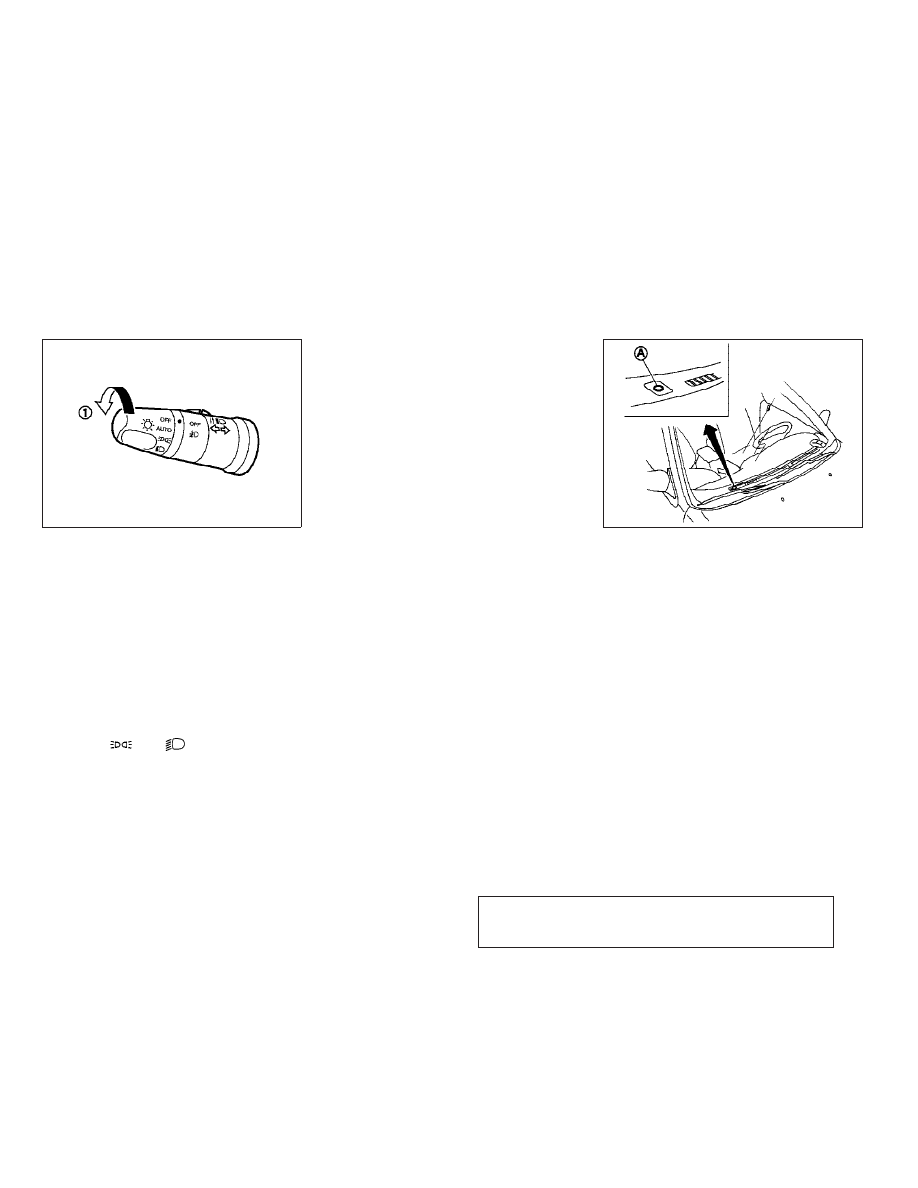

Autolight system

The autolight system allows the headlights to

be set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in the

AUTO position

s

1

.

2. Push the ignition switch to the ON posi-

tion.

3. The autolight system automatically turns

the headlights on and off.

To turn the autolight system off, turn the switch
to the OFF,

or

position.

The autolight system can turn on the headlights

automatically when it is dark and turn off the

headlights when it is light.
If the ignition switch is pushed to the LOCK

position and one of the doors is opened and

this condition is continued, the headlights re-

main on for 5 minutes.
Automatic headlights off delay :
You can keep the headlights on for up to 180

seconds after you push the ignition switch to

LOCK and open any door then close all the

doors.
You can adjust the period of the automatic

headlights off delay from 0 seconds (OFF) to 180

seconds.
For automatic headlights off delay setting, see

“Comfort & Conv. settings” in the “4. Monitor,

climate, audio, phone and voice recognition

systems” section.

Be sure not to put anything on top of the photo

sensor

s

A

located on the top of the instrument

panel. The photo sensor controls the autolight;

if it is covered, the photo sensor reacts as if it is

dark and the headlights will illuminate.

SIC2412

SAA0642A

2-30

Instruments and controls

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

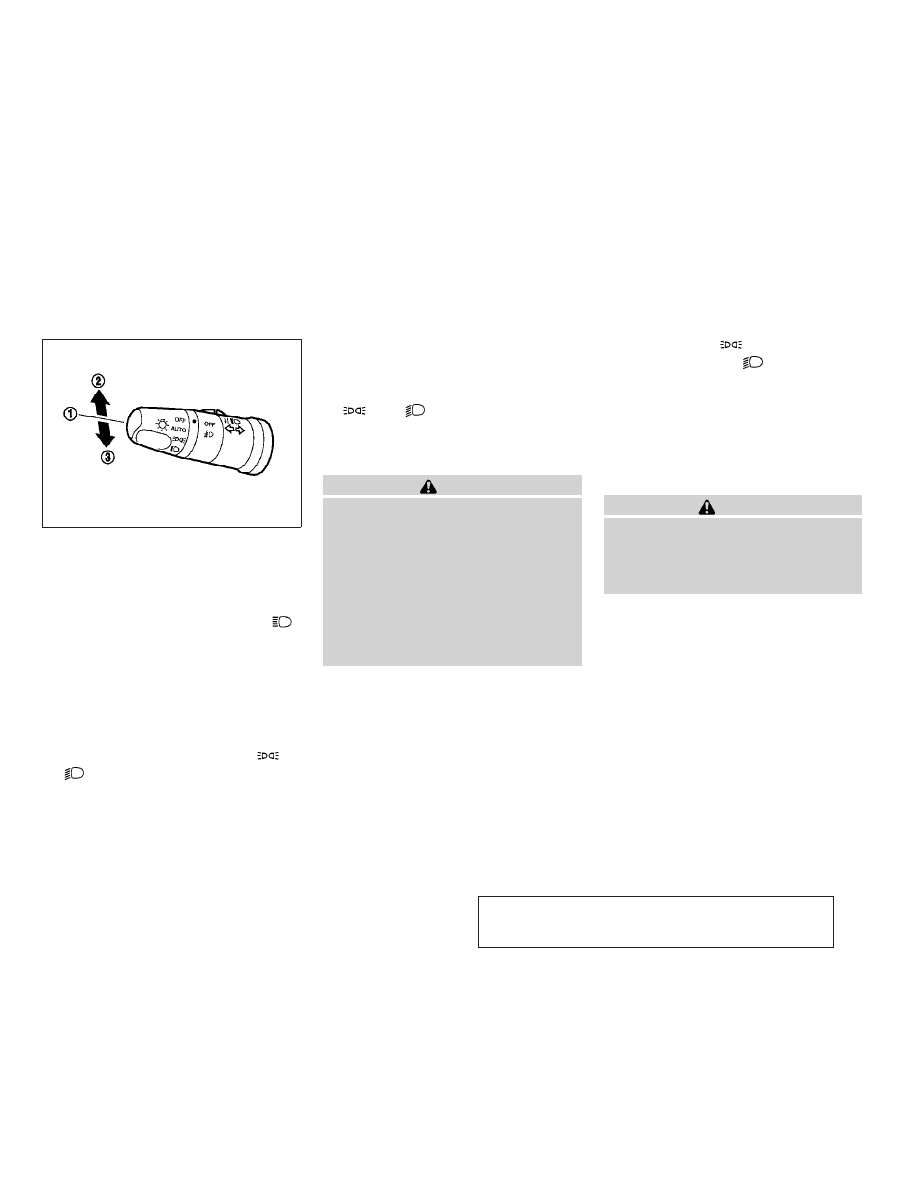

Headlight beam select

s

1

To select the low beam, put the lever in

the neutral position as shown.

s

2

To select the high beam, push the lever

forward while the switch is in the

position. Pull it back to select the low

beam.

s

3

Pulling the lever toward you will flash the

headlight high beam even when the

headlight switch is in the OFF position.

Battery saver system

● When the headlight switch is in the

or

position while the ignition switch is in

the ON position, the lights will automatically

turn off 5 minutes after the ignition switch

has been pushed to the LOCK position.

● When the headlight switch remains in the

or

position after the lights

automatically turn off, the lights will turn on

when the ignition switch is pushed to the ON

position.

CAUTION

● When you turn on the headlight switch again

after the lights automatically turn off, the

lights will not turn off automatically. Be sure

to turn the light switch to the OFF position

when you leave the vehicle for extended pe-

riods of time, otherwise the battery will be

discharged.

● Never leave the light switch on when the

engine is not running for extended periods of

time even if the headlights turn off

automatically.

Daytime running light system

(Canada only)

The daytime running lights automatically illumi-

nate when the engine is started with the park-

ing brake released. The daytime running lights

operate with the headlight switch in the OFF

position or in the

position. Turn the

headlight switch to the

position for full

illumination when driving at night.
If the parking brake is applied before the engine

is started, the daytime running lights do not

illuminate. The daytime running lights illumi-

nate once the parking brake is released. The

daytime running lights will remain on until the

ignition switch is pushed to the LOCK position.

WARNING

When the daytime running light system is ac-

tive, tail lights on your vehicle are not on. It is

necessary at dusk to turn on your headlights.

Failure to do so could cause an accident injur-

ing yourself and others.

Adaptive Front lighting System (AFS)

The Adaptive Front lighting System (AFS) will

automatically adjust the headlights (low beam)

toward the turning direction to improve the

driver’s view. When the headlight switch is ON

and the driver operates the steering wheel in a

turn, the AFS system will be activated.
The AFS will operate:
● when the headlight switch is ON.

SIC2413

Instruments and controls

2-31

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

● when the selector lever is in any position

other than P (Park) or R (Reverse).

● when the vehicle is driven at above 16 MPH

(25 km/h) for the left-side headlight. Note

that the right-side low beam headlight will

swivel but the left side will not swivel when

the vehicle is at a stop and the steering

wheel is turned. The vehicle must attain a

speed above 16 MPH (25 km/h) before AFS

activates the left-side headlight.

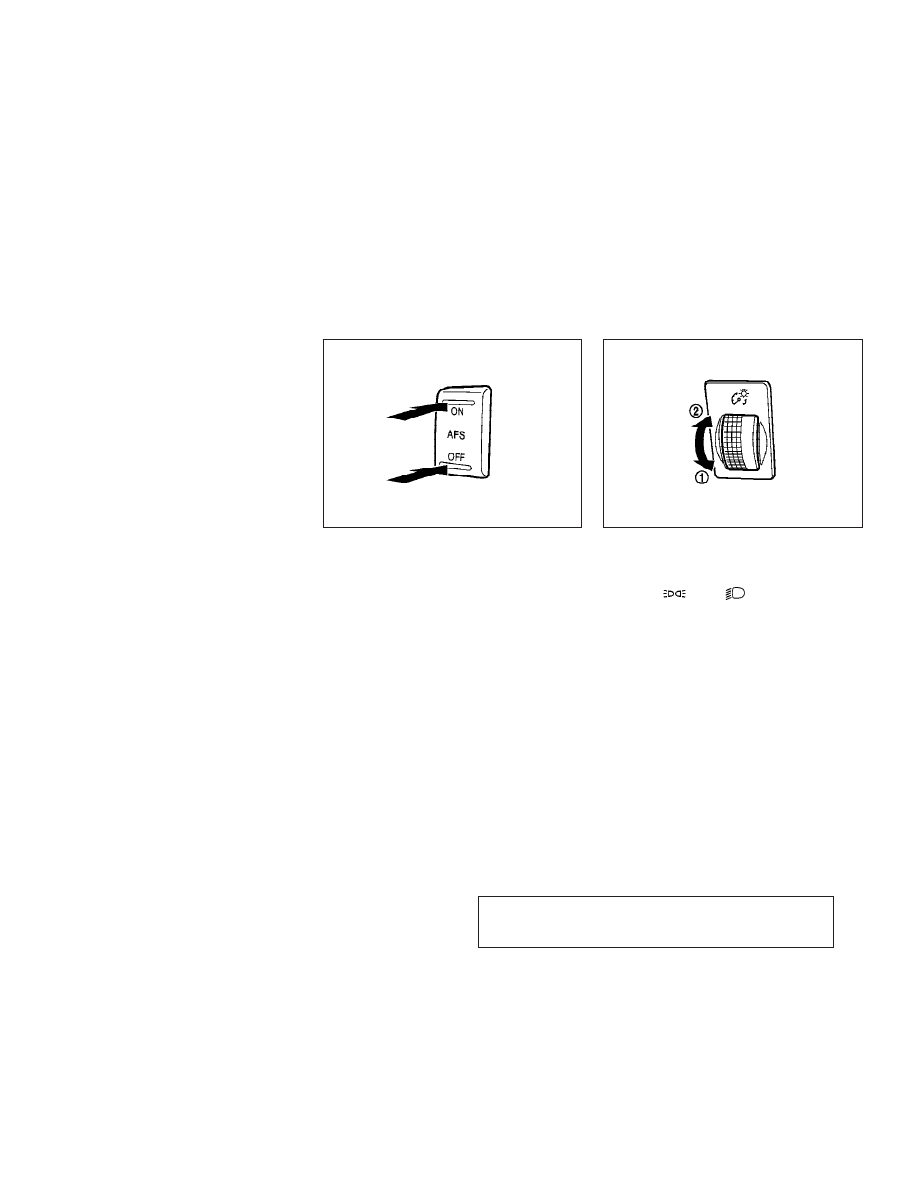

To turn the AFS off, push the OFF side of the AFS

switch. (The AFS OFF indicator light will illumi-

nate.) Push the ON side of the switch to turn the

system on again.
AFS will also adjust the headlight to a proper

axis automatically, depending on the number of

occupants in the vehicle, the load the vehicle is

carrying and the road conditions.
If the AFS OFF indicator light blinks after the

ignition switch has been pushed to the ON

position, this may indicate that the AFS is not

functioning properly. Have the system checked

by an INFINITI retailer. When the engine is

started, the headlights will vibrate to check the

system condition. This is not a malfunction.

Instrument brightness control

The instrument brightness control operates

when the light switch is in the AUTO (when
lighting),

or

position with the

ignition switch in the ON position.
Turn the control to the darkening direction

s

1

or the brightening direction

s

2

to adjust the

brightness of instrument panel lights.
When the control is turned to the upper end, the

light intensity will be at maximum. When the

control is turned to the lower end, the light will

be turned off.

SIC2645

SIC3554

2-32

Instruments and controls

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

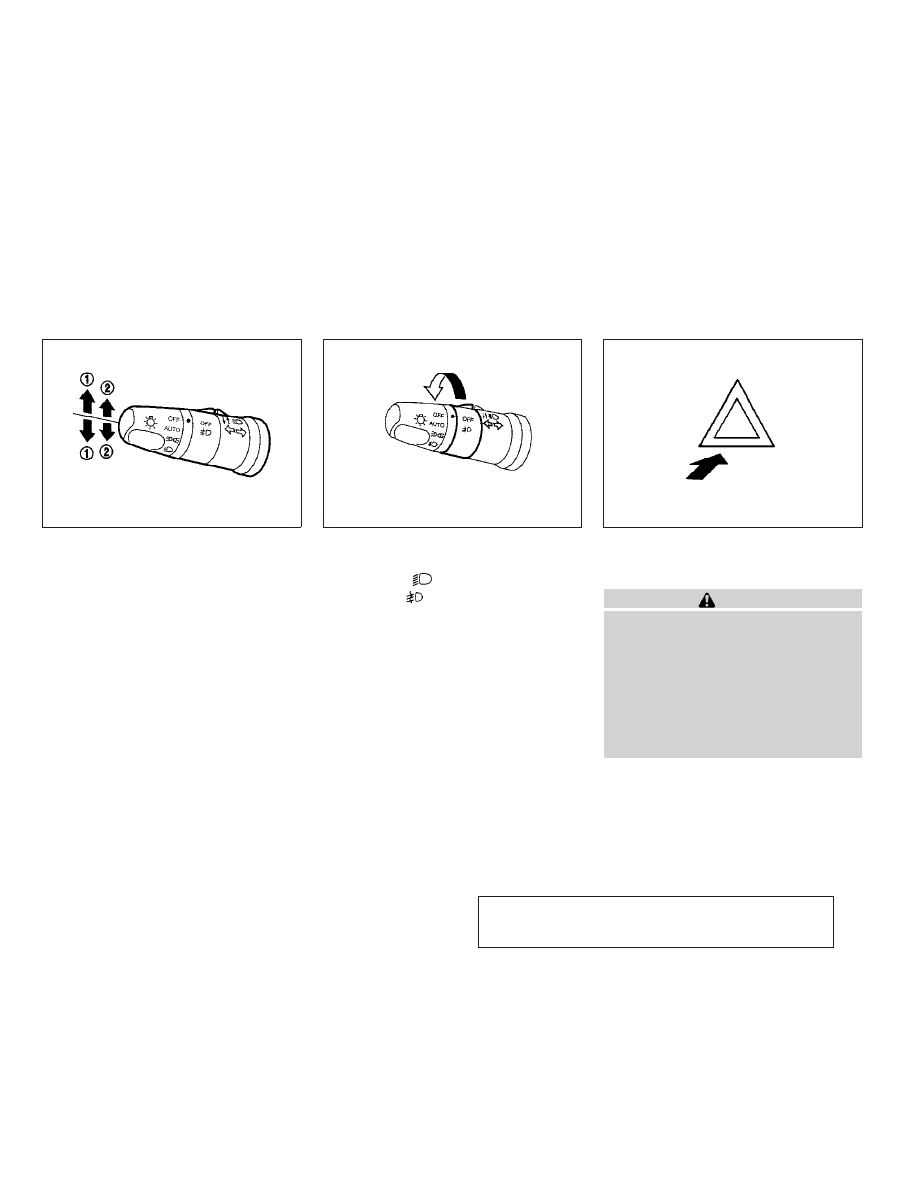

TURN SIGNAL SWITCH

s

1

Turn signal

Move the lever up or down to signal the turning

direction. When the turn is completed, the turn

signals cancel automatically.

s

2

Lane change signal

To indicate a lane change, move the lever up or

down to the point where lights begin flashing.

FOG LIGHT SWITCH

To turn the fog lights on, turn the headlight
switch to the

position, then turn the

switch to the

position. To turn them off,

turn the switch to the OFF position.
The headlights must be on for the fog lights to

operate.

Push the switch on to warn other drivers when

you must stop or park under emergency condi-

tions. All turn signal lights will flash.

WARNING

● If stopping for an emergency, be sure to

move the vehicle well off the road.

● Do not use the hazard warning flashers while

moving on the highway unless unusual cir-

cumstances force you to drive so slowly that

your vehicle might become a hazard to other

traffic.

● Turn signals do not work when the hazard

warning flasher lights are on.

SIC2231

SIC2465

SIC2574

HAZARD WARNING FLASHER SWITCH

Instruments and controls

2-33

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The flasher can be actuated with the ignition

switch in any position.
Some state laws may prohibit the use of the

hazard warning flasher switch while driving.

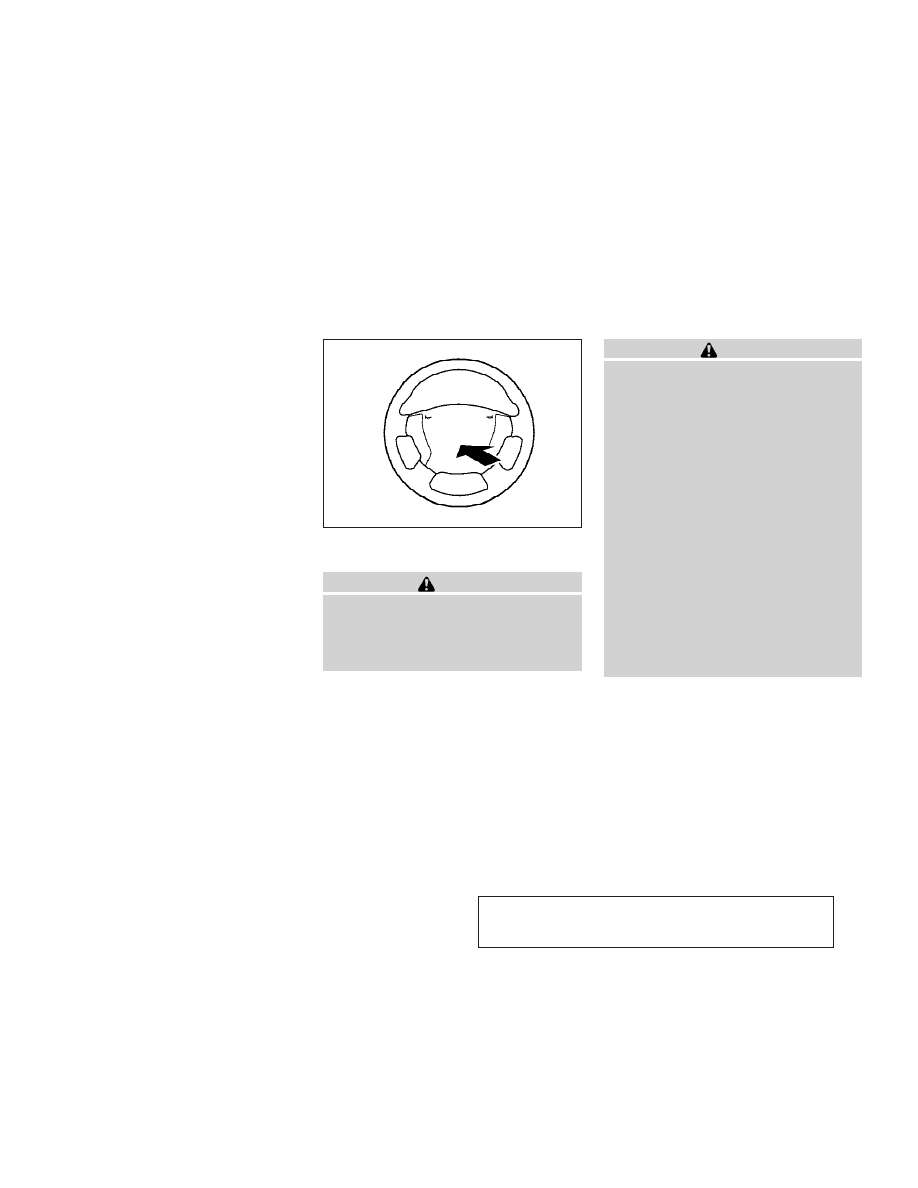

To sound the horn, push the center pad area of

the steering wheel.

WARNING

Do not disassemble the horn. Doing so could

affect proper operation of the supplemental

front air bag system. Tampering with the

supplemental front air bag system may result

in serious personal injury.

CAUTION

● The battery could run down if the seat heater

is operated while the engine is not running.

● Do not use the seat heater for extended pe-

riods or when no one is using the seat.

● Do not put anything on the seat which insu-

lates heat, such as a blanket, cushion, seat

cover, etc. Otherwise, the seat may become

overheated.

● Do not place anything hard or heavy on the

seat or pierce it with a pin or similar object.

This may result in damage to the heater.

● Any liquid spilled on the heated seat should

be removed immediately with a dry cloth.

● When cleaning the seat, never use gasoline,

thinner, or any similar materials.

● If any malfunctions are found or the heated

seat does not operate, turn the switch off

and have the system checked by an INFINITI

retailer.

SIC2769

HORN

HEATED SEATS (rear seats) (if so

equipped)

2-34

Instruments and controls

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

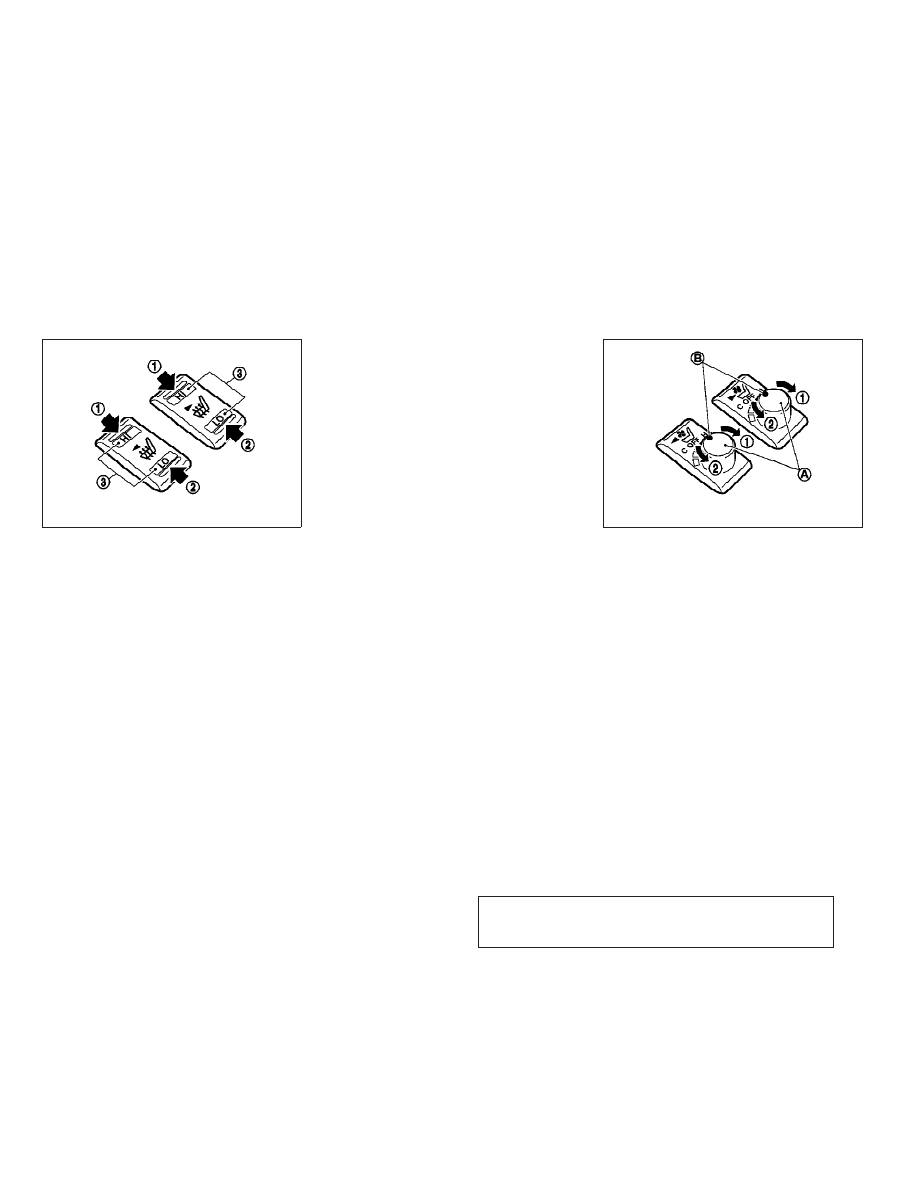

The rear outboard seats are warmed by built-in

heaters. The switches located on the inside of

the rear center armrest can be operated inde-

pendently of each other.
1. Start the engine.
2. Select heat range.

s

1

For high heat, push the HI (High) side of

the switch.

s

2

For low heat, push the LO (Low) side of

the switch.

The indicator light in the switch

s

3

will

illuminate when low or high is selected.

3. To turn off the heater, push the HI or LO

side (which is selected) of the switch.

Make sure the indicator light turns off.
The heater is controlled by a thermostat,

automatically turning the heater on and off.

The indicator light will remain on as long as

the switch is on.
When the vehicle’s interior is warmed, or

before you leave the vehicle, be sure to turn

off the switch.

The climate controlled seat warms up or cools

down the front seats by blowing warm or cool

air from the surface of the seat. The switches

located on the center console can be operated

independently of each other.
1. Start the engine.
2. Turn the control knob

s

A

to the H (Heat)

side

s

1

or to the C (Cool) side

s

2

. The

indicator light

s

B

on the control knob will

illuminate.

3. Adjust the desired amount of the air using

the control knob

s

A

.

The climate controlled seat blower remains

on low speed for approximately 60 seconds

after turning the switch on or selecting the

desired temperature.

SIC2770

SIC2771

CLIMATE CONTROLLED SEATS (front seats)

Instruments and controls

2-35

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. When the vehicle’s interior is warmed or

cooled, and/or before you leave the ve-

hicle, be sure to turn the control knob to

the OFF position (center). The indicator

light

s

B

on the control knob goes off at

the OFF position.
To check the air filter for the climate con-

trolled seat, contact an INFINITI retailer.

CAUTION

● The battery could run down if the climate

controlled seat is operated while the engine

is not running.

● Do not use the climate controlled seat for

extended periods or when no one is using

the seat.

● Do not put anything on the seat which insu-

lates heat, such as a blanket, cushion, seat

cover, etc. Otherwise, the seat may become

overheated.

● Do not place anything hard or heavy on the

seat or pierce it with a pin or similar object.

This may result in damage to the climate

controlled seat.

● Any liquid spilled on the seat should be re-

moved immediately with a dry cloth.

● The climate controlled seat has an air filter.

Do not operate climate controlled seat with-

out an air filter. This may result in damage to

the system.

● When cleaning the seat, never use gasoline,

thinner, or any similar materials.

● If any malfunctions are found or the climate

controlled seat does not operate, turn the

switch off and have the system checked by

an INFINITI retailer.

The Lane Departure Warning (LDW) system will

sound a warning chime and blink the lane
departure warning light

(orange) to alert

the driver if the vehicle is traveling close to

either the left or the right of a traveling lane

with detectable lane markers.
The LDW system activates automatically when

the ignition switch is pushed to the ON posi-

tion. (This is the automatic setting mode.) The

LDW ON indicator

s

1

on the switch will illumi-

nate.
To cancel the LDW system, push the LDW switch

to turn off the system. The LDW ON indicator

s

1

will turn off.

SSD0671

LANE DEPARTURE WARNING (LDW) SWITCH

(if so equipped)

2-36

Instruments and controls

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Push the LDW switch again to turn the LDW

system on. The LDW automatic setting mode

can be changed to the instruction setting mode. To

change the mode, push and hold the LDW

switch for more than 4 seconds when the LDW

ON indicator is off. In the instruction setting mode,

push the LDW switch on and off to turn the LDW

system on and off.
See “LANE DEPARTURE WARNING (LDW)

SYSTEM/LANE DEPARTURE PREVENTION (LDP)

SYSTEM” in the “5. Starting and driving” sec-

tion for more details.

For driving or starting the vehicle on snowy

roads or slippery areas, turn on the SNOW

mode switch. The indicator light

s

1

on the

switch will illuminate. When the SNOW mode is

activated, engine output is controlled to avoid

wheel spin.
Turn off the SNOW mode for normal driving.

The vehicle should be driven with the Vehicle

Dynamic Control (VDC) system on for most

driving conditions.
If the vehicle is stuck in mud or snow, the VDC

system reduces the engine output to reduce

wheel spin. The engine speed will be reduced

even if the accelerator is depressed to the floor.

If maximum engine power is needed to free a

stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The

indicator will illuminate.

Push the VDC OFF switch again or restart the

engine to turn on the system. (See “VEHICLE

DYNAMIC CONTROL (VDC) SYSTEM” in the “5.

Starting and driving” section.)

SIC3602

SIC1881

SNOW MODE SWITCH (if so equipped)

VEHICLE DYNAMIC CONTROL (VDC) OFF

SWITCH

Instruments and controls

2-37

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

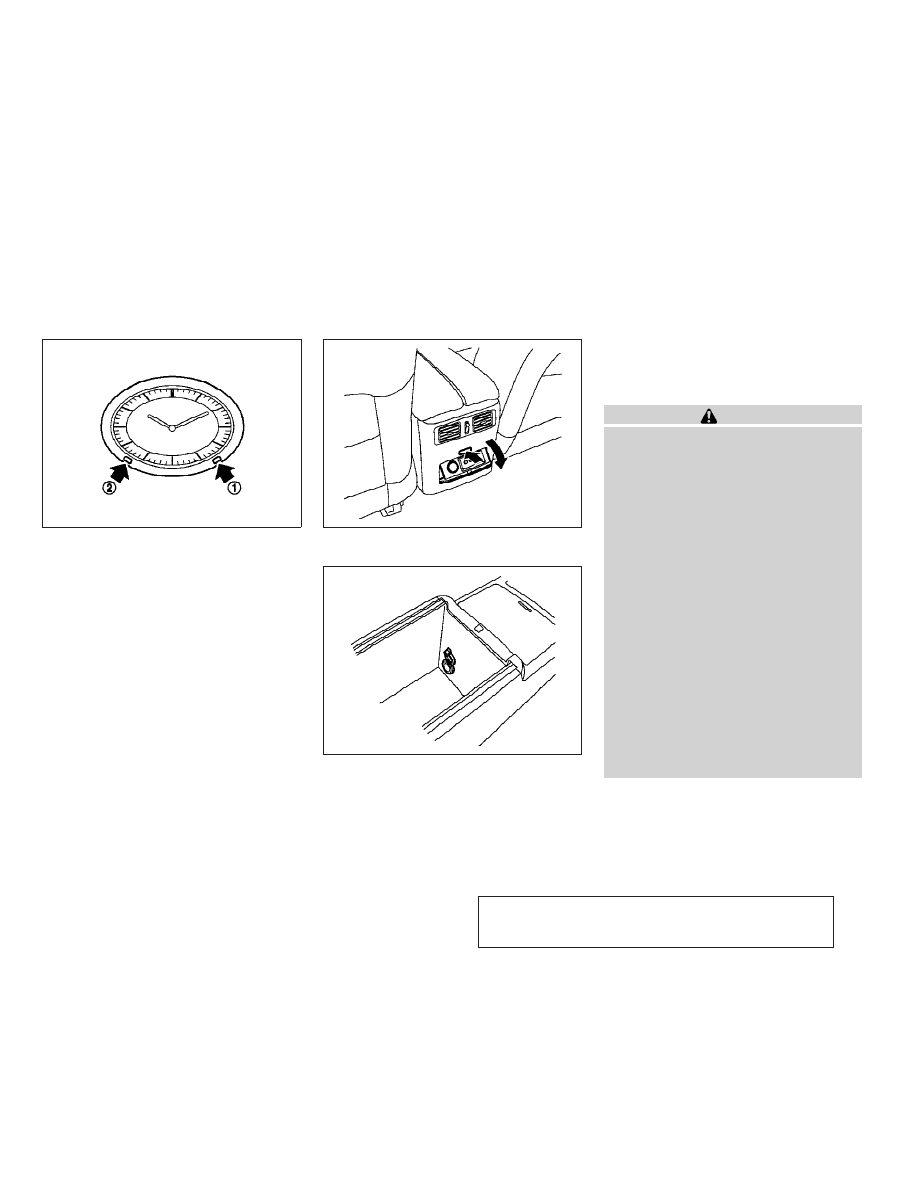

If the power supply is disconnected, the clock

will not indicate the correct time. Readjust the

time.

ADJUSTING THE TIME

1. To set the clock forward, push the button

s

1

.

2. To set the clock backward, push the but-

ton

s

2

.

3. To move forward or backward faster, push

and hold the button more than 5 seconds.

For details about display clock adjustment (if so

equipped), see “HOW TO USE SETTING BUTTON”

in the “4. Monitor, climate, audio, phone and

voice recognition systems” section.

The power outlets are located on the back side

and inside (if equipped) of the center console

for powering electrical accessories such as a

cellular telephone.

CAUTION

● The outlet and plug may be hot during or

immediately after use.

● Do not use with accessories that exceed a 12

volt, 120W (10A) power draw. Do not use

double adapters or more than one electrical

accessory.

● Use power outlet with the engine running to

avoid discharging the vehicle battery.

● Avoid using power outlet when the air condi-

tioner, headlights or rear window defroster

is on.

● This power outlet is not designed for use

with a cigarette lighter unit.

● Push the plug in as far as it will go. If good

contact is not made, the plug may overheat

or the internal temperature fuse may open.

● Before inserting or disconnecting a plug, be

sure the electrical accessory being used is

turned OFF.

● When not in use, be sure to close the cap. Do

not allow water to contact the outlet.

SIC2772

SIC2773

Only for model without DVD player

SIC2774

CLOCK

POWER OUTLETS

2-38

Instruments and controls

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

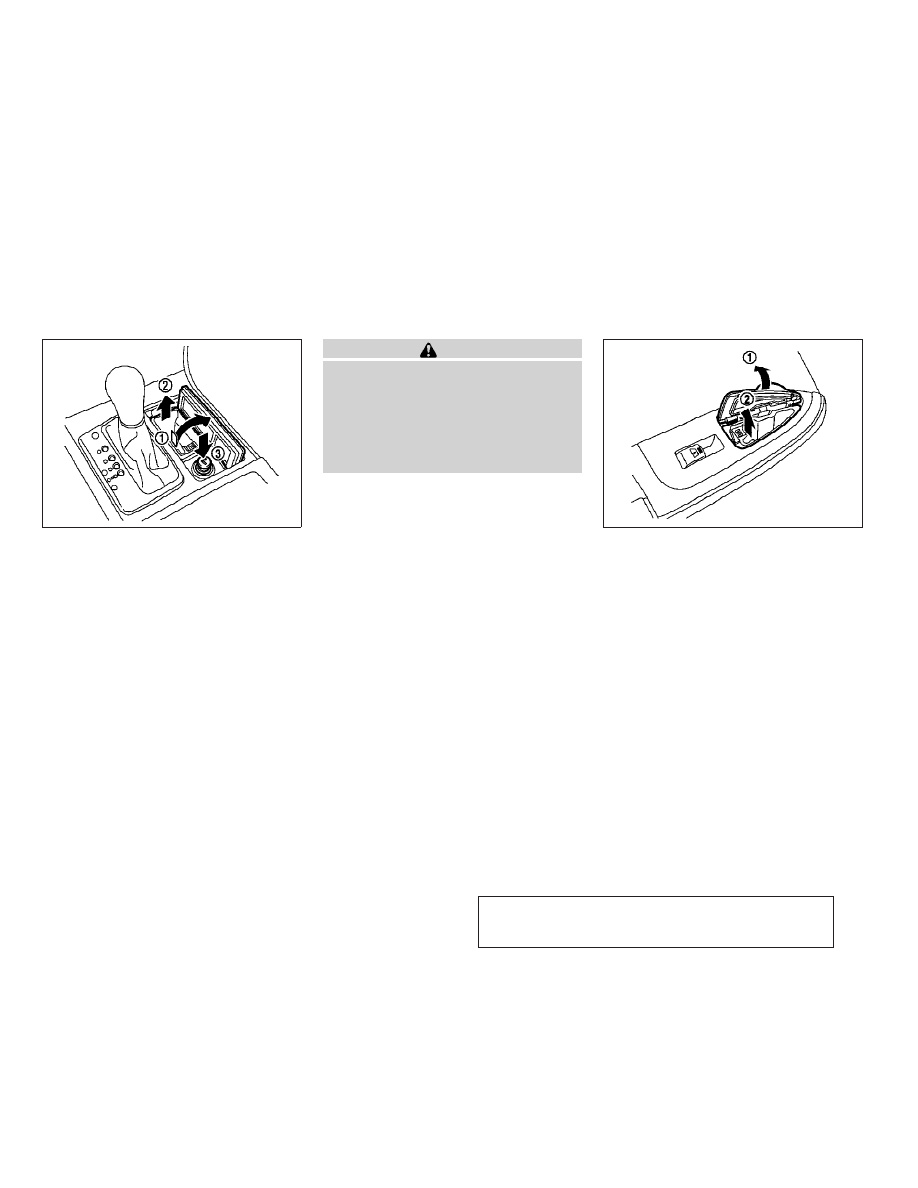

FRONT

To open the ashtray lid, push the lid down and

release it

s

1

.

To empty the ashtray, pull out

s

2

.

The cigarette lighter operates when the ignition

switch is in the ON position.
Push the lighter in all the way

s

3

, then release

it. When the lighter is heated, it will spring out.

Return the lighter to its original position after

use.

CAUTION

● The cigarette lighter socket is a power

source for the cigarette lighter element only.

The use of the cigarette lighter socket as a

power source for any other accessory is not

recommended.

● Do not use any other power outlet for an

accessory lighter.

REAR

To open the ashtray lid, pull

s

1

.

To empty the ashtray, and pull out

s

2

.

SIC2775B

SIC3693

CIGARETTE LIGHTER AND ASHTRAYS

Instruments and controls

2-39

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

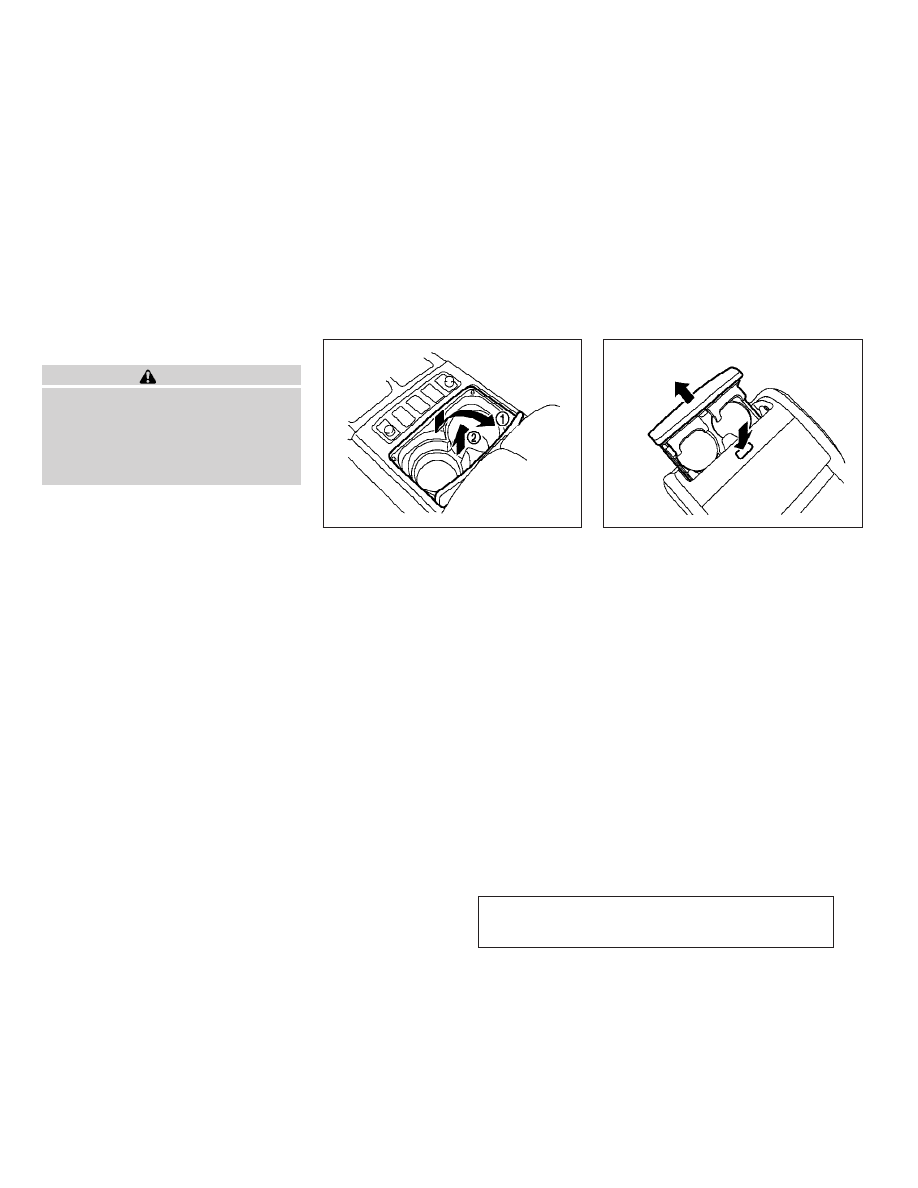

CUP HOLDERS

CAUTION

● Avoid abrupt starting and braking when the

cup holder is being used to prevent spilling

the drink. If the liquid is hot, it can scald you

or your passenger.

● Use only soft cups in the cup holder. Hard

objects can injure you in an accident.

Front

To open the cup holder, push the lid down and

release it

s

1

.

To remove the inner tray for cleaning, pull it up

as illustrated

s

2

.

Rear

Type A :
Push the button as illustrated on the rear center

armrest to use the cup holder.

Front

SIC2777B

Rear — Type A

SIC2778B

STORAGE

2-40

Instruments and controls

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

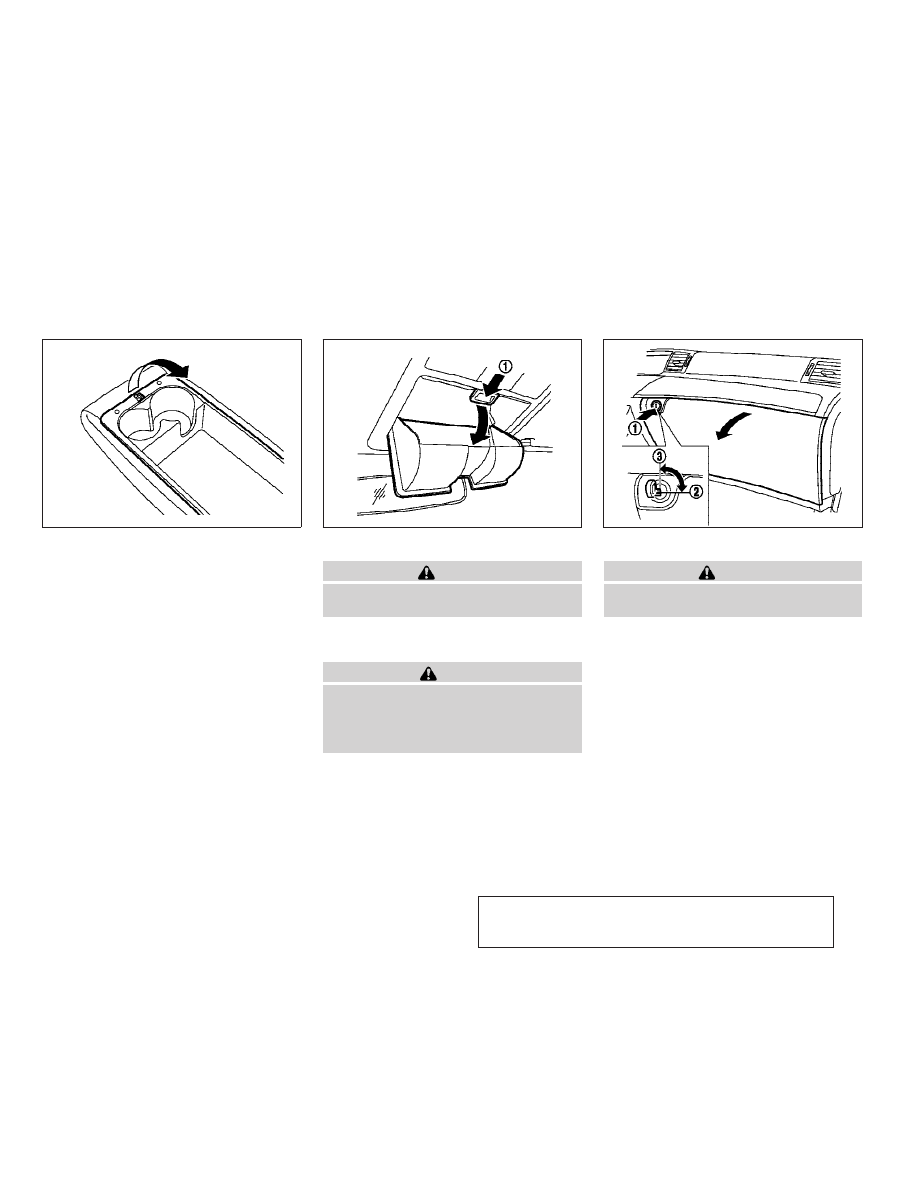

Type B :
Open the lid of the rear center armrest to use

the cup holder.

SUNGLASSES HOLDER

WARNING

Keep the sunglasses holder closed while driv-

ing to prevent an accident.

To open the sunglasses holder, push

s

1

.

CAUTION

● Do not use for anything other than glasses.
● Do not leave glasses in the sunglasses

holder while parking in direct sunlight. The

heat may damage the glasses.

GLOVE BOX

WARNING

Keep glove box lid closed while driving to help

prevent injury in an accident or a sudden stop.

To open the glove box, push the glove box lid

release button

s

1

.

To close, push the lid in until the lock latches.
To lock

s

2

/unlock

s

3

the glove box, use the

mechanical key. For the mechanical key usage,

see “KEYS” in the “3. Pre-driving checks and

adjustments” section.

Rear — Type B

SIC2875

SIC2779B

SIC2930A

Instruments and controls

2-41

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

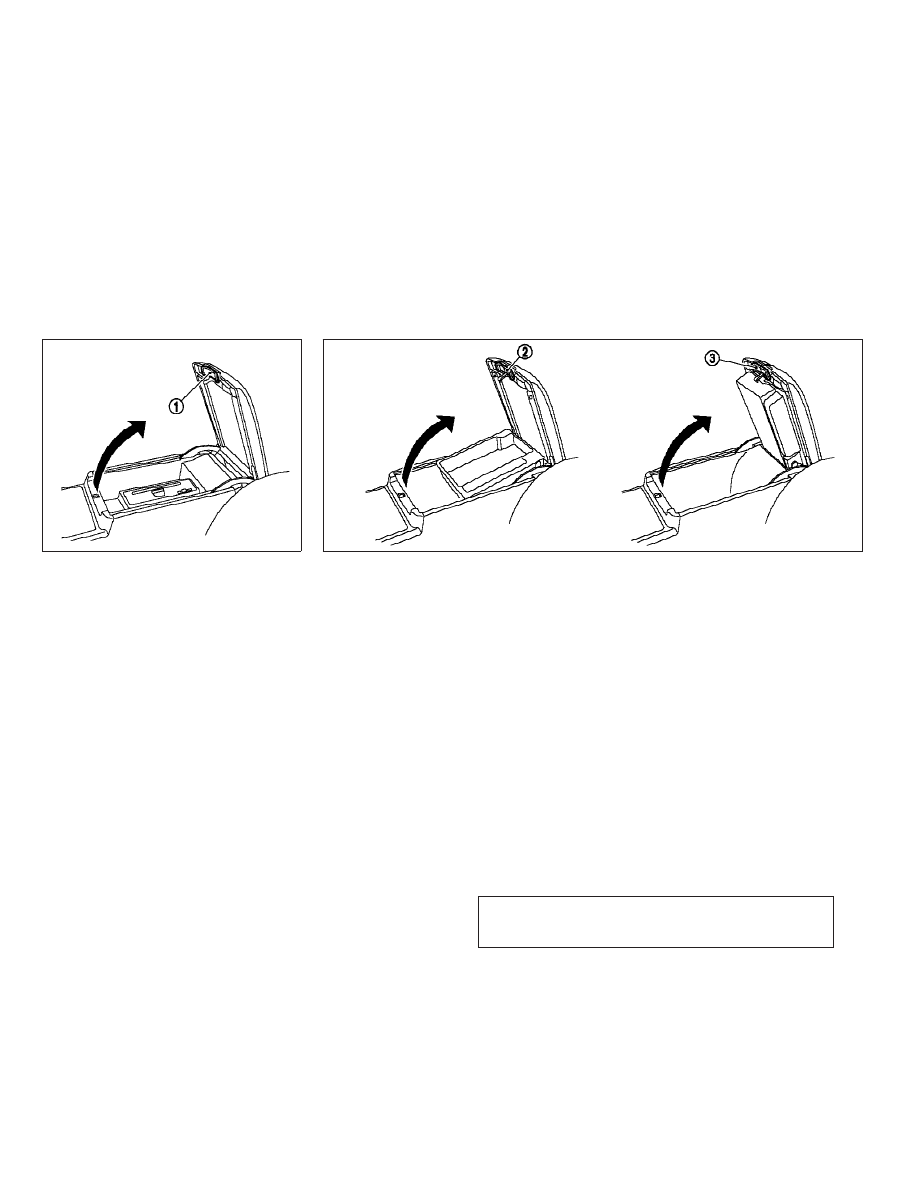

CONSOLE BOX
Model with DVD player

To open the console box lid, pull the lever

s

1

.

To close, push the lid down until the lock

latches.

Model without DVD player

To open the console box lid, pull the lever

s

2

or

s

3

and pull up the lid.

When the lever

s

2

(driver’s seat side) is pulled,

the upper case is available for storing some

small items. When the lever

s

3

(front passen-

ger’s seat side) is pulled, the bottom case is

available for storing some larger ones.
To close, push the lid down until the lock

latches.

Model with DVD player

SIC2781A

Model without DVD player

SIC2782A

2-42

Instruments and controls

w

05/19/09—tbrooks

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

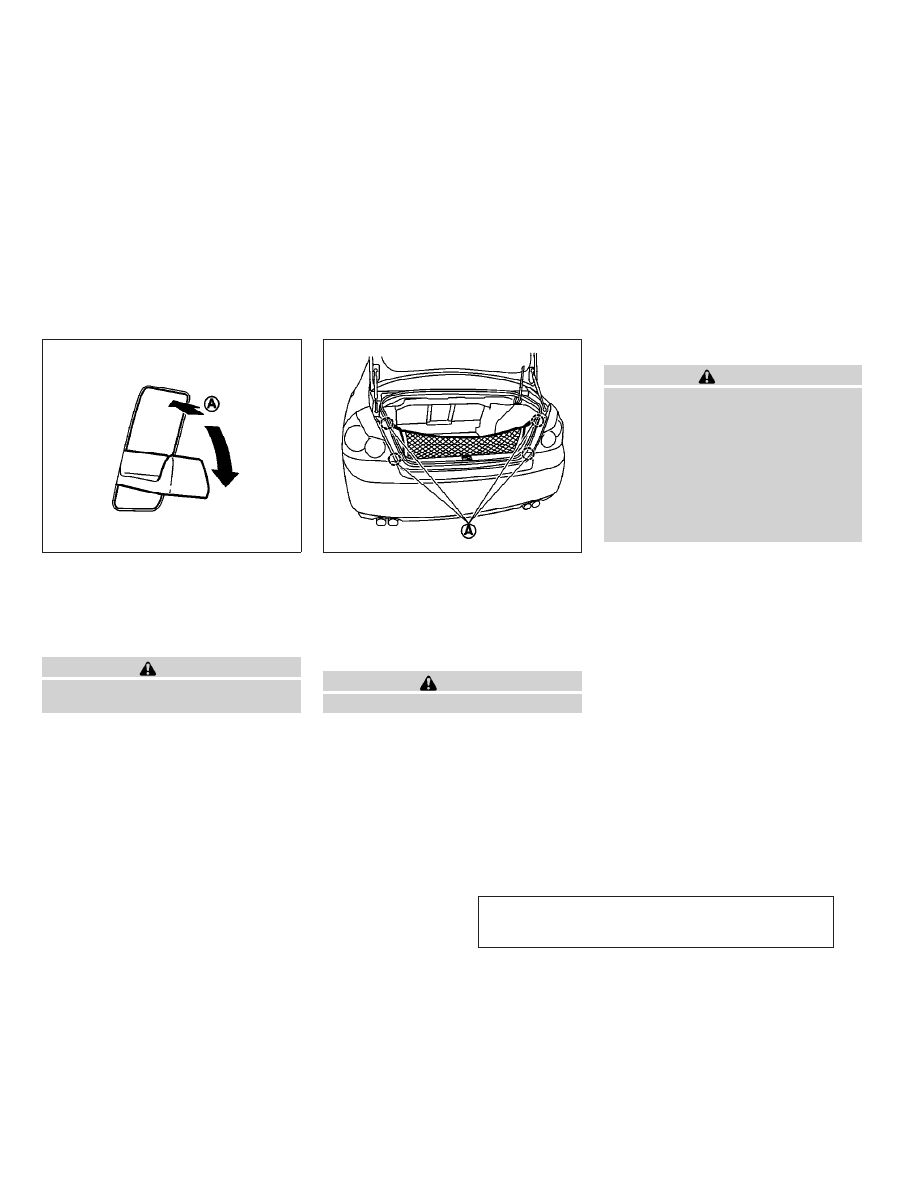

COAT HOOKS

The coat hooks are equipped beside the rear

personal lights.
To use the coat hook, push the hook

s

A

to

release.

CAUTION

Do not place items which are more than 2 lb (1

kg) on the hook.

CARGO NET (if so equipped)

The cargo net helps keep packages in the cargo

area from moving around while your vehicle is

driven.
To install the cargo net, attach the hooks to the

retainers

s

A

.

CAUTION

Avoid keeping heavy objects in the net.

POWER WINDOWS

WARNING

● Make sure that all passengers have their

hands, etc. inside the vehicle while it is in

motion and before closing the windows. Use

the window lock switch to prevent unex-

pected use of the power windows.

● Do not leave children unattended inside the

vehicle. They could unknowingly activate

switches or controls and become trapped in

the window. Unattended children could be-

come involved in serious accidents.

The power windows operate when the ignition

switch is in the ON position or for about 45

seconds after the ignition switch is pushed to

the LOCK position. If the driver’s or front pas-

senger’s door is opened during this period of

about 45 seconds, power to the windows is

canceled.

SIC2077A

SIC2784

WINDOWS

Instruments and controls

2-43

w

05/14/09—pattie

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     5      6      7      8     ..
