Citroen C1 (2016 year). Manual - part 3

Access

C1_en_Chap02_ouvertures_ed01-2016

The keys allow you to switch on the ignition and operate the locks on the front doors, the boot, the steering lock and the passenger's front airbag
deactivation switch.

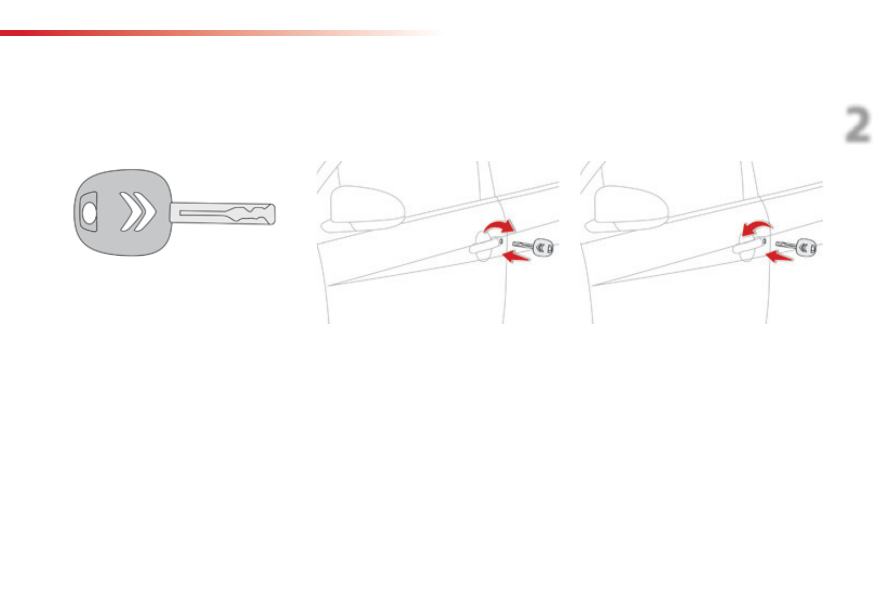

Keys

Locking

Unlocking

- Insert the key in one of the front door lock

barrels and turn it towards the rear of the
vehicle to lock the door in question.

- Insert the key in the boot lock barrel and

turn it to the right to lock the boot.

- Insert the key in one of the front door lock

barrels and turn it towards the front of the
vehicle to unlock the door in question.

- Insert the key in the boot lock barrel and

turn it to the left to unlock the boot.

Access

C1_en_Chap02_ouvertures_ed01-2016

Remote control

This is used to lock, unlock and locate the vehicle at a distance.

Unfolding / Folding the key

Locking

Press this button to unfold / fold the key.

Press the closed padlock to lock

the vehicle.

The direction indicators flash once.

After locking, if you notice that a door
is not closed properly, close it then lock
the vehicle again.

Press the open padlock to unlock

the vehicle.

Unlocking

The direction indicators flash twice.

Press the closed padlock to

locate your locked vehicle in a
car park.

Locating your vehicle

This is indicated by lighting of the direction
indicators for a few seconds.

The high frequency remote control is
a sensitive system; do not handle it in
your pockets as there is a risk that it may
unlock the vehicle without you being
aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inoperative.

Access

C1_en_Chap02_ouvertures_ed01-2016

Battery ref.: CR 2016 / 3 volts.
F

Unclip the cover using a small screwdriver

in the cut-out.

Lift of the cover.

Remove the old battery from its housing.

Fit the new battery in its place, observing

the direction of fitment.

Clip the cover in place.

Changing the remote
control battery

Do not discard the remote control
batteries, they contain metals which are
harmful to the environment.
Take them to a CITROËN dealer, or to
an approved collection point.

Access

C1_en_Chap02_ouvertures_ed01-2016

Keyless Entry and Starting system

System that allows the opening, closing and starting of the vehicle while keeping the electronic key on your person.

Electronic key

This electronic key can also be used as a
remote control.
It includes an integral emergency key.
For more information on the remote control,
refer to the corresponding section.

Unlocking the vehicle

Unlocking by the doors

With the electronic key on your person

and in one of the recognition zones, press
one of the buttons on the door handles to
unlock the vehicle.

Then pull on the door handle to open the

door.

Unlocking by the boot

With the electronic key on your person

and in the recognition zone located at the
rear, press the button on the boot handle to
unlock the vehicle and release the tailgate.

Then raise the tailgate to open it.

The direction indicators flash twice to
confirm the unlocking of the vehicle.

As a safety measure, the detection
zones in which the the electronic key
is operational have a radius of about
70 cm around each opening button.

Access

C1_en_Chap02_ouvertures_ed01-2016

Locking the vehicle

Locking

With the electronic key in the recognition

zone, press one of the buttons on the front
door handles or press the button on the
boot sill.

The direction indicators flash once.

If one of the doors or the boot is still
open or if the electronic key for the
Keyless Entry and Starting system has
been left inside the vehicle, you are
warned by an audible signal and the
central locking does not take place.

If the vehicle is unlocked and no door
or the boot is opened, the vehicle will
lock again automatically after about
30 seconds.

For reasons of safety and theft
protection, do not leave your electronic
key in the vehicle, even when you are
close to it.
It is recommended that you keep it on
your person.

Never expose the electronic key to
extreme temperatures (below -20°C or
above +60°C); this could cause faults.

Access

C1_en_Chap02_ouvertures_ed01-2016

Emergency procedure

Unlocking

Insert the integral key into the driver's door

lock barrel and turn it towards the front of
the vehicle to unlock the vehicle.

Locking

Insert the integral key into the driver's door

lock barrel and turn it towards the rear of
the vehicle to lock the vehicle.

The integral key is used to lock and unlock the
vehicle when the electronic key cannot operate
and in the event of a fault with the Keyless
Entry and Starting system:
- cell battery discharged, vehicle battery

discharged or disconnected, ...

- vehicle located in an area with strong

electromagnetic signals.

Press and hold the latch 1 to extract the

integral key 2.

Saving the electronic key
battery

To preserve the battery, it is possible to prevent
the electronic key working (no reception of
radio waves).

When this function is activated, the "Keyless
Entry and Starting" system is inoperative.

To reactivate the electronic key, press one of
the buttons (open or closed padlock).

Press on the open padlock twice,

while pressing on and holding
the closed padlock.

Check that the indicator lamp in the electronic
key flashes 4 times.

Access

C1_en_Chap02_ouvertures_ed01-2016

Changing the battery of
the electronic key

Battery ref.: CR2032 / 3 volts.

When replacement of the battery is
needed, this warning lamp comes on
in the instrument panel.

Unclip the cover using a small screwdriver

at the cutout.

Remove the cover.

Remove the protective battery holder,

pulling it upwards.

Remove the discharged battery from its

housing.

Fit the new battery into its housing

observing the original direction of fitment.

Refit the battery holder.

Clip the cover onto the casing.

Lost keys

Go to a CITROËN dealer with the vehicle's registration document, your personal
identification documents and if possible the key code label.
The CITROËN dealer will be able to look up the key code and the transponder code
required to order a new key.

Remote control / Electronic key

These high frequency devices are sensitive systems; do not handle them while in your
pocket as there is a risk of unlocking the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control or electronic key out of range
and out of sight of your vehicle. You run the risk of stopping it from working and the remote
control would have to be reinitialised.

Locking the vehicle

As a safety precaution, never leave children alone in the vehicle, except for a very short
period.
In all cases, it is essential to remove the key from the ignition switch, or take the electronic
key with you when leaving the vehicle.

When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to
ensure that only your keys can be used to open and start the vehicle.

Driving with the doors locked may make access to the passenger compartment by the
emergency services more difficult in an emergency.

Access

C1_en_Chap02_ouvertures_ed01-2016

Locking/unlocking from
the inside

Doors

To lock/unlock a door, press/pull button A.

Vehicles with central locking

Pressing button A, driver's side, locks/unlocks
all of the doors and the boot.
Pressing button A, passenger's side, locks/
unlocks just that door.

Door open

If a door is open, the courtesy lamp remains on
if the button is in this position.

Operating the handle always opens the
door, even if it is locked.

Vehicles without central locking

Pressing button A locks/unlocks the driver's
door only.

Access

C1_en_Chap02_ouvertures_ed01-2016

Locking / unlocking and opening the boot

Using the key

Using the remote control

Press the open padlock to unlock

the vehicle and boot.

- Insert the key in the lock barrel and turn

it to the right to unlock and release the
tailgate.

The vehicle remains locked.

- Raise the tailgate by the exterior handle to

open it.

Press the opening button to release the

tailgate.

Raise the tailgate by the exterior handle to

open it.

Press the closed padlock to

unlock the boot and vehicle.

As soon as you close the tailgate, it locks
again.

Access

C1_en_Chap02_ouvertures_ed01-2016

With the electronic key on your person,

press the boot opening control to unlock
and release the tailgate.

The vehicle is unlocked as well.

Raise the tailgate by the exterior handle to

open it.

Using the Keyless Entry
and Starting system

If the vehicle had been previously unlocked by
the front door, it is not necessary to have the
electronic key on your person to use the boot
opening control.

With the electronic key on your person,

press the button on the boot sill to lock it.

Lock the vehicle by the front doors.

When closing the boot, do not slam shut
the tailgate: guide it down and release it
at the end of its travel.

Boot release

System for mechanical unlocking of the boot
in the event of a battery or central locking
malfunction.

Unlocking

Fold the rear seat backrest to gain access

to the lock from inside the boot.

Using a screwdriver protected by a cloth,

remove the 4 fixing clips, then the boot
trim.

Move the trigger to the right to unlock the

tailgate.

Access

C1_en_Chap02_ouvertures_ed01-2016

Rear quarter windows

Opening

Closing

Tilt the lever outwards.

Push it fully to secure the window in the

open position.

Pull the lever to release the window.

Tilt the lever fully inwards to secure the

window in the closed position.

On the 5-door versions, system for ventilation
of the rear seats by the partial opening of the
window.

Front electric windows*

The driver has controls for both front
windows.

The electric windows do not work with
the ignition off.

Left hand front electric window.

Right hand front electric window.

After the ignition has been switched on, press
one of the control switches to open or pull to
close the window. The window stops when you
release the control switch.

* Depending on version.

Closing the windows can cause serious
injury.
Ensure that nothing is preventing
the closing of the windows and take
particular care with children.

Access

C1_en_Chap02_ouvertures_ed01-2016

* Depending on version.

Your vehicle may be fitted with an electrically operated fabric roof.

Electric fabric roof*

Electric opening and closing

The roof is opened and closed by pressing
the control at the interior lamp, in the opening
direction 1 and in the closing direction 2.

In order to maintain the state of charge of
the battery, it is recommended that the roof
be operated with the engine running.

Operation of the roof is possible with
the ignition on and when driving.

Operation of the roof could cause
serious injuries: before operating the
roof, ensure that no occupant of the
vehicle or person outside the vehicle
could be subject to any risk related
to the movement of the roof and that
no object could interfere with the
operation.

During operation of the roof with just
the ignition on, starting the engine may
cause the roof to stop, depending on
the state of charge of the battery. To
have the roof continue the operation,
operate the control again after the
engine has started.

The asymmetric shape of the opening
control avoids closing the roof by
mistake.

Position of the roof

Position 0

: Roof completely closed.

Position 1

: Automatic stop position for

the roof.

Position 2

: Roof completely open.

Access

C1_en_Chap02_ouvertures_ed01-2016

Opening

Briefly press the control in the opening

direction to open the the roof in stages.

or
F

Press and hold the control in the opening

direction, until the manoeuvre is complete,
to open the roof completely.

Pressing again stops the movement of
the roof.

Closing

Briefly press the control in the closing

direction to open the the roof in stages.

or
F

Press and hold the control in the closing

direction, until the manoeuvre is complete,
to close the roof to position 1

Pressing again stops the movement of
the roof.

To close the roof completely, press and

hold the control (between positions 1
and 0) until the roof locks closed.

The closing manoeuvre of the roof
could cause serious injuries: take
particular care with children.

If the roof does not close correctly:
- check that nothing is blocking the roof

(ignition off),

- repeat the closing command (with the

engine running).

If the problem persists, contact a CITROËN
dealer or a qualified workshop.

Operating fault

In the event of an electrical fault,
contact a CITROËN dealer or a
qualified workshop.

Protection of the electric motors
used for opening and closing the
roof

Following repeated opening and closing of the
roof, the electric motors may become too warm
and no longer allow the roof to be opened or
closed. Allow the motors to cool down with no
operation of the roof for 10 minutes.

Access

C1_en_Chap02_ouvertures_ed01-2016

An aero-acoustic deflector is available to
improve the acoustic comfort of occupants of
the vehicle in certain driving conditions
(high speed), by reducing the turbulence in
the passenger compartment resulting from the
displacement of air.
On opening the roof, the aero-acoustic
deflector is deployed.
On closing the roof, the deflector folds away
automatically.

Aero-acoustic deflector

Precautions for use

Never place objects on the roof,
whether open or closed.
Never sit on or place objects on the
transverse roof support when the roof
is open.

In the event of prolonged storage of the
vehicle outside, it is recommended that
the roof be protected with a cover.

To avoid damaging the roof, do
not open it under snowy or frosty
conditions.
Never use sharp tools to remove ice or
accumulations of snow on the roof.

To limit the creation of folds in the roof
fabric, it is recommended that the roof
not be left open for long periods.
The vehicle's air conditioning system
should not be operated while the roof
is open.

It is recommended that the roof be
closed when the vehicle is left parked.
Even if the roof is closed, it is prudent
not to leave any valuable objects inside
the vehicle.
When you leave the vehicle, switch off
the ignition and remove the key (take
the electronic key with you) to avoid any
unwanted operation of the roof.

Access

C1_en_Chap02_ouvertures_ed01-2016

Recommendations on care of your vehicle

The general recommendations on the care of your vehicle are given in the maintenance and warranty guide.

Fabric roof

To avoid damaging the roof.
- never use a high pressure jet wash,
- never wash your vehicle in an

automatic roller-brush car wash.

Remove bird droppings or tree resins as
their acidity may damage the roof.

Never use chemical products,
detergents, stain removers, solvents,
alcohol, petrol, ... to clean the roof.

We recommend that you clean the
aero-acoustic defector with care using
a soft brush.

Before washing the fabric roof, first
remove as much dirt as possible from
the surface using a soft brush or a
vacuum cleaner.

To waterproof the roof, use only special
waterproofing products for fabric roofs.

To remove marks, sponge them
(but never rub them) using soapy water,
then immediately rinse with clean water.

Allow the vehicle to dry in a shaded
area and avoid direct exposure to
the sun.

For the regular maintenance of the
fabric roof and to conserve its original
appearance, we recommend an
ecological "Fly remover - Fabric roof
cleaner" from the "TECHNATURE"
range. To obtain this product go to a
CITROËN dealer.

Aero-acoustic deflector

Ease of use and comfort

C1_en_Chap03_ergonomie-confort_ed01-2016

Front seats with manual adjustments

Raise the control and slide the seat

forwards or backwards.

Pull the control upwards to raise or push

it downwards to lower, as many times as
required, to obtain the position required.

Take the weight of the backrest with your

body.

Turn the knob to obtain the desired angle.

Forwards-backwards

Driver's seat height*

Seat backrest angle

As a safety measure, seat adjustments should only be carried out when stationary.

Before moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of jamming the seat caused by the presence of
objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement
immediately.

* Depending on version.

Content .. 1 2 3 4 ..
