Citroen C1 (2016 year). Manual

On-line handbook

If the "MyCITROËN" function is not available on the CITROËN public website for your country,

you can find your handbook at the following address:
http://service.citroen.com/ddb/

Find your handbook on the CITROËN website, under "MyCITROËN".

Select:

Select one of the following means of access to

view your handbook on-line...

This personal and customisable space allows you to establish direct and special contact with

the manufacturer.

the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of your vehicle.

Scan this code for direct access to your handbook.

Referring to the handbook on-line also gives

you access to the latest information available,

easily identified by the bookmark, associated

with this symbol:

Key

safety warning

additional information

contributes to the protection of the environment

CITROËN has a presence on every continent,

a complete product range,

bringing together technology and a permanent spirit of innovation,

for a modern and creative approach to mobility.

We thank you and congratulate you on your choice.

Happy motoring!

At the wheel of your new vehicle,

getting to know each system,

each control, each setting,

makes your trips, your journeys

more comfortable and more enjoyable.

This handbook has been designed to help to make the
most of your C1 in all circumstances and in complete
safety.
Take the time to read through it so as to familiarise
yourself with your vehicle.

This handbook covers all of the variations in equipment
available across the whole C1 range.
Your vehicle will be fitted with only some of the
equipment described in this document, depending on its
trim level, version and the specification for the country in
which it was sold.

The descriptions and illustrations are given as indications
only.
Automobiles CITROËN reserves the right to modify the
technical characteristics, equipment and accessories
without having to update this edition of the handbook.

This document forms an integral part of your vehicle.
Remember to pass it on to the new owner in the event of
the sale of the vehicle.

Contents

C1_en_Chap00a_sommaire_ed01-2016

Instrument panels

Display screens

Indicator and warning lamps

Keyless Entry and Starting system

Doors

Boot

Front electric windows

Steering wheel adjustment

Ventilation

Heating

Manual air conditioning

Automatic air conditioning

Front demist - defrost

Rear screen demist - defrost

Ease of use and comfort

Driving recommendations

Starting - switching off the engine

with the key

Starting - switching off the engine with

the Keyless Entry and Starting system

Manual parking brake

5-speed manual gearbox

ETG electronic gearbox

Lane departure warning system

Under-inflation detection

Driving

Eco-driving

Overview

C1_en_Chap00b_vue-ensemble_ed01-2016

Keys

Remote control

32-33

"Keyless Entry and Starting"

system

34-37

Remote control battery

33, 37

Starting

71, 72-73

Exterior

Door mirrors

Lighting control stalk

98-103

Adjusting the headlamps

103

Changing bulbs

163-165, 167

- front lamps

- direction indicator repeaters

Doors

38-40

- opening / closing

- central locking

Electric windows

Quarter lights (5-door)

Wipers

104-105

Changing a wiper blade

144

Boot

39-40

Temporary puncture repair kit 153-157

Reversing camera

Towing

180

Changing bulbs

166-167

- rear lamps

- 3

brake lamp

- number plate lamps

Fuel tank, refuelling

138-139

Fuel gauge

Electronic stability programme 107-109

Snow chains

140

Under-inflation detection

95-97

Tyre pressures

156-157, 184

Changing a wheel

158-162

- tools

- removal / fitting

Electric fabric roof

42-45

Roof bars

144

Accessories

142-143

Overview

C1_en_Chap00b_vue-ensemble_ed01-2016

Rear parcel shelf

Boot fittings

68-69

- hooks

- storage box

Interior

Child seats

123-131, 136

ISOFIX child seats

132-135, 136

Child lock

137

Rear seats, bench seat

Rear head restraints

Interior fittings

63-66

- glove box

- 12 V accessory socket

- USB port / Jack auxiliary socket

- mats

Deactivating the passenger's front

airbag

119

Airbags

118-122

Seat belts

115-117

Front seats

Heated seats

Access to rear seats (3-door)

Overview

C1_en_Chap00b_vue-ensemble_ed01-2016

Dashboard fuses

168-172

Instruments and controls

Door mirrors

Electric windows

Courtesy lamp

Control for electric fabric roof

Rear view mirror

Sun visors

Manual parking brake

Heating, ventilation

52-54

Manual air conditioning

55-56

Automatic air conditioning

57-59

Windscreen demist / defrost

Rear screen demist / defrost

7-inch touch screen tablet

185-234

Audio system

235-254

Setting the time

29, 30

Manual gearbox

ETG electronic gearbox

77-80

Gear shift indicator

Hill start assist

12 V accessory socket

USB port

Jack auxiliary socket

Instrument panel

11-12

Rev counter

Central screen

Indicator and warning lamps

15-25

Indicators

Trip computer

27-28

Side air vents

Passenger's front airbag

119

Glove box

Deactivating the passenger's front

airbag

119

Reinitialising the under-inflation

detection

96-97

Overview

C1_en_Chap00b_vue-ensemble_ed01-2016

Opening the bonnet

146

Steering wheel, adjusting the height 51

Horn

106

Driver's front airbag

119

Ignition, starting/switching off

(key)

71-72

Ignition, starting/switching off ("Keyless

Entry and Starting" system)

72-74

Steering mounted controls

- Touch screen tablet, Audio

system

188, 241

- Lane departure warning

system

93-94

Instruments and controls (continued)

Lighting controls

Direction indicators

Stop & Start

Active City Brake

Adjusting the mirrors

Adjusting the headlamp beam

heightt

103

Deactivating the CDS/ TRC

109

Wipers, screenwash control

stalk

104-105

Speed limiter

(PureTech 82 engine)

86-88

Speed limiter (VTi 68 engine)

89-91

Opening the fuel filler flap

138

Hazard warning lamps

106

Steering mounted controls for

the ETG gearbox

Front foglamps (accessory)

Overview

C1_en_Chap00b_vue-ensemble_ed01-2016

Changing bulbs

163-167

- front

- rear

Maintenance - Technical data

Opening the bonnet

Underbonnet, petrol

Petrol engines

12 V battery

Economy mode

Engine compartment

fuses

168-169, 173-176

Petrol weights

182

Checking levels

148-150

- engine oil

- brake fluid

- coolant

- screenwash fluid

Checking components

151-152

- clutch

- battery

- air / passenger compartment filter

- oil filter

- brake pads / discs

Dimensions

183

Identification markings

184

Eco-driving

C1_en_Chap00c_eco-conduite_ed01-2016

Optimise the use of your gearbox

With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.

With an ETG electronic gearbox, give preference to automatic (Easy)
mode and avoid pressing the accelerator pedal heavily or suddenly.

Control the use of your electrical
equipment

Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light
does not require their use.

Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

The gear shift indicator invites you to engage the most suitable gear:
as soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an ETG electronic gearbox, this indicator
appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO

emissions and also helps reduce the background traffic noise.

Eco-driving

C1_en_Chap00c_eco-conduite_ed01-2016

Limit the causes of excess consumption

Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack...). Use a roof box in preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit your summer tyres.

Observe the recommendations on
maintenance

Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-  before a long journey,
-  at each change of season,
-  after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.

Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the maintenance and warranty guide.

When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.

Instruments

C1_en_Chap01_instrument-de-bord_ed01-2016

Instrument panels

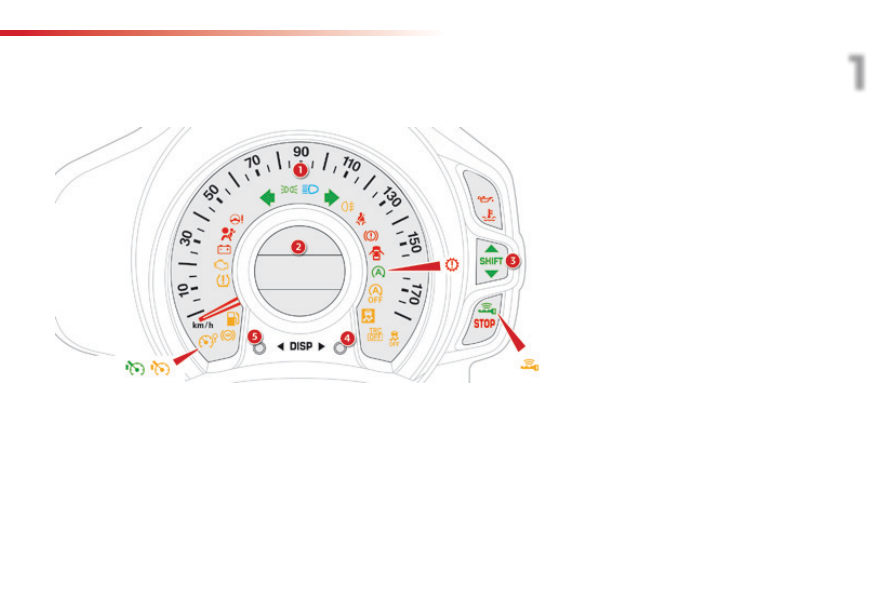

Type 1 instrument panel

Speedometer (mph or km/h).

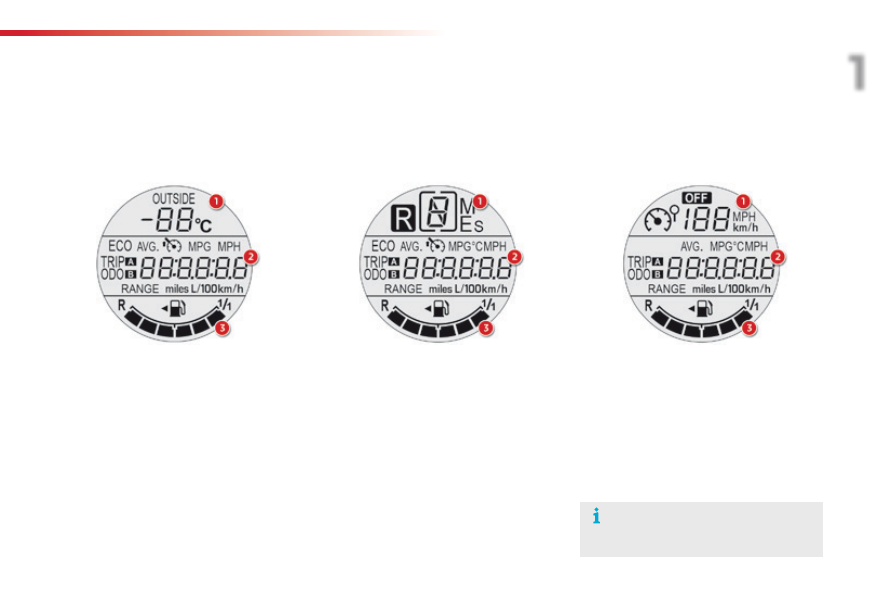

Central display screen.

For more information, refer to the
corresponding section.

Gear shift indicator.

Display management button (DISP).

Display of information in ascending order.

Display management button (DISP).

Display of information in descending order.

Instruments

Speedometer (mph or km/h).

Central display screen.

For more information, refer to the
corresponding section.

Gear shift indicator.

Display management button (DISP).

Display of information in ascending order.

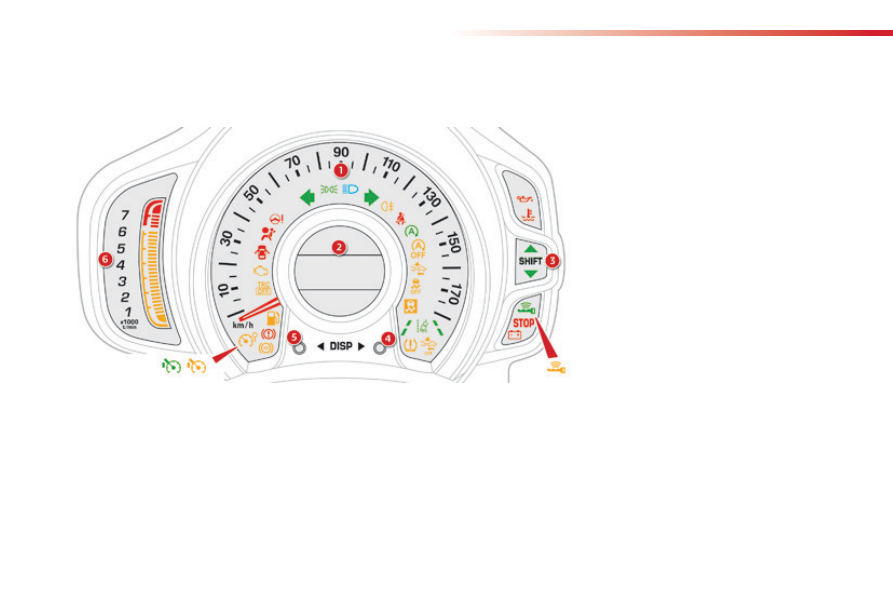

Type 2 instrument panel

Display management button (DISP).

Display of information in descending order.

6. Rev counter

The engine speed is indicated by the
display of orange illuminated bars.

Above the maximum engine speed, the
bars are displayed in red to warn you of the
need to change up.

Instruments

C1_en_Chap01_instrument-de-bord_ed01-2016

Central display screen

The information displayed varies according to your vehicle's engine and type of gearbox.

Central display screen
with the VTi 68 engine and
manual gearbox

Central display screen
with the VTi 68 and ETG
electronic gearbox

Central display screen with
the PureTech 82 engine and
manual gearbox

Ambient temperature.

It flashes if there is a risk of ice.

Vehicle information with:

-  Total and trip distance recorders.
-  Trip computer information.
-  Speed limiter information.

Fuel gauge.

Gear selector position and gear engaged.

Vehicle information with:

-  Total and trip distance recorders.
-  Trip computer information.
-  Speed limiter information.
-  Ambient temperature.
  It flashes if there is a risk of ice.

Fuel gauge.

Speed limiter information.

Vehicle information with:

-  Total and trip distance recorders.
-  Trip computer information.
-  Ambient temperature.
  It flashes if there is a risk of ice.

Fuel gauge.

For more information, refer to the
section corresponding to the function
and its associated display.

Instruments

Seat belts and passenger's
front airbag warning lamps
display screen

Left hand rear seat belt unfastened

warning.

Right hand rear seat belt unfastened

warning.

Passenger's front airbag deactivated

warning lamp.

Passenger's front airbag activated warning

lamp.

Warning lamp C or D remains on,
depending on the state of the passenger's
front airbag (deactivated or activated).

Citroen C1 (2016 year). Manual - part 1
