 TECHNICAL SPECIFICATIONS

238

IDENTIFICATION DATA

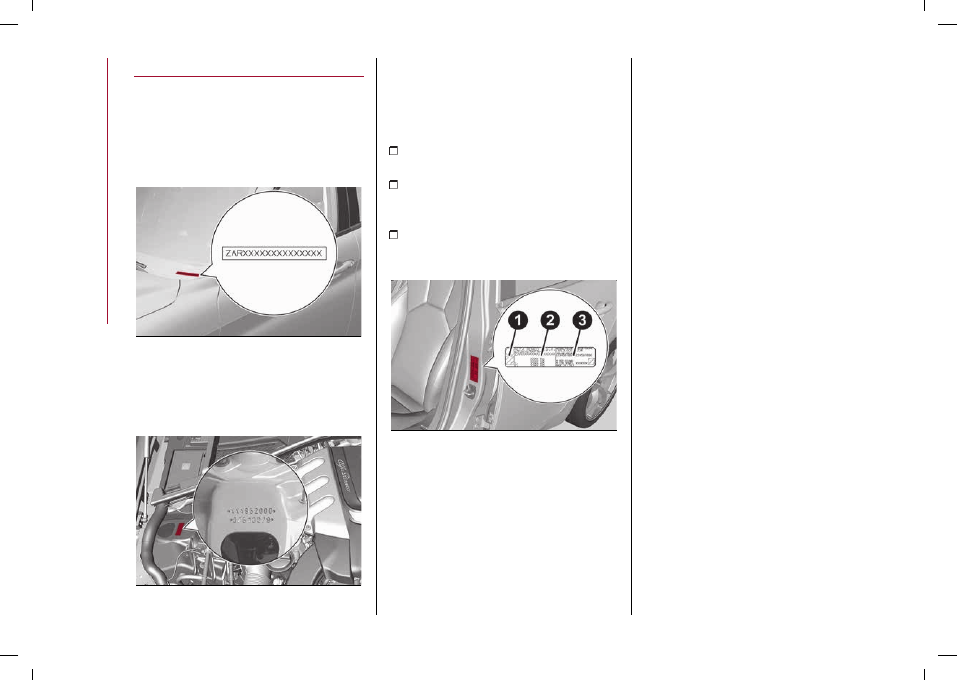

VEHICLE IDENTIFICATION NUMBER

The Car Identification Number (VIN)

is stamped on a plate on the front left
corner of the dashboard cover fig. 260,

which can be seen from outside the car,

through the windscreen.

260

10016S0001EM

This number is also printed on the

chassis at the front right shock absorber

and can be seen by opening the bonnet
fig. 261.

261

10016S0002EM

VEHICLE IDENTIFICATION NUMBER

(VIN) PLATE

The plate is located on the left side front
door pillar fig. 262 and shows the data

about:

1: correct value of smoke coefficient

(for Diesel engines);

2: name of the manufacturer, car

type-approval number, car identification

number, max. permitted weights;

3: engine identification, type variant

version, spare part number, colour code,

additional information.

262

10016S0003EM

CarManuals2.com

239

ENGINE

2.9 V6

2.0 T4 MAir

Cycle

Otto

Otto

Number and position of cylinders

6 a V

4 in line

Piston bore and stroke (mm)

86.5 x 82

84 x 90

Total displacement (cm³)

2891

1995

Compression ratio

9.3: 1

10 ± 0.35

Maximum power (ECE) (kW)

375

206

Maximum power (ECE) (HP)

510

280

Corresponding engine speed (rpm)

6500

5250

Maximum torque (ECE) (Nm)

600

400

Maximum torque (ECE) (kgm)

61

40.8

Corresponding engine speed (rpm)

2500

2250

Spark plugs

NGK LKAR8APTJDS

NGK ILZKR7G

Fuel

Unleaded petrol with at least

95 R.O.N.

(EN228 specifications) (*)

Unleaded petrol with at least 95

R.O.N.

(EN228 specifications)

(*) In order to comply with all emission limits while simultaneously guaranteeing minimal consumption and maximum performance, use premium

unleaded petrol with octane rating (R.O.N.) 98 or more.

CarManuals2.com

 TECHNICAL SPECIFICATIONS

240

2.2 JTD

160 HP

210 HP

Cycle

Diesel

Diesel

Number and position of cylinders

4 in line

4 in line

Piston bore and stroke (mm)

83 / 99

83 / 99

Total displacement (cm³)

2143

2143

Compression ratio

15.5 ± 0.4

15.5 ± 0.4

Maximum power (ECE) (kW)

118

154

Maximum power (ECE) (HP)

160

210

Corresponding engine speed (rpm)

3500

3500

Maximum torque (ECE) (Nm)

450

470

Maximum torque (ECE) (kgm)

45.89

47.9

Corresponding engine speed (rpm)

1750

1750

Fuel

Diesel for motor vehicles (EN590 Specification)

CarManuals2.com

241

TRANSMISSION

Version

Gearbox

Traction

2.9 V6

Eight forward gears plus reverse with

synchronisers for forward gears and reverse

Rear

2.0 T4 MAir

Eight forward gears plus reverse with

synchronisers for forward gears and reverse

Rear

or

All-wheel drive

2.2 JTD

Eight forward gears plus reverse with

synchronisers for forward gears and reverse

Rear

or

All-wheel drive

CarManuals2.com

 TECHNICAL SPECIFICATIONS

242

RIMS AND WHEELS

Alloy rims. Tubeless radial carcass tires.
All approved tires are listed in the

Registration Certificate.
WARNING If there are any discrepancies

between the Owner Handbook and

the Registration Document, take the

information from the latter. For safe

driving, the car must be fitted with tyres

of the same make and type on all wheels.
WARNING Do not use air chambers with

tubeless tyres.
WARNING Using tyres of a different

size, type, brand or design at the front

and rear may adversely affect car

driveability. We recommend using tyres

approved by the manufacturer. The

manufacturer cannot determine if

unapproved tyres are suitable for use

and therefore cannot guarantee vehicle

safety in those conditions.

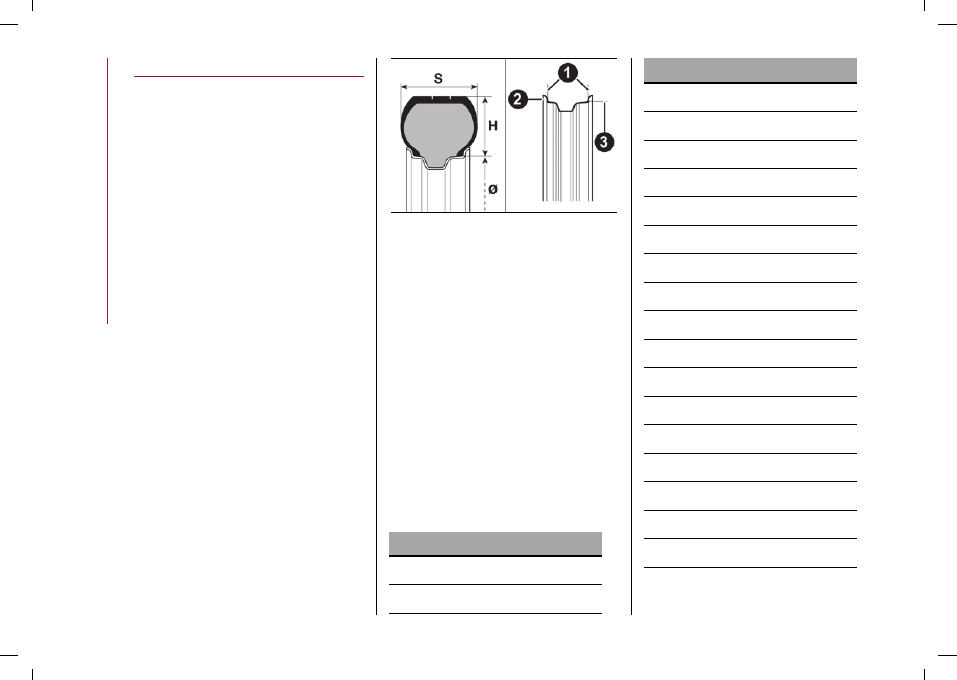

CORRECT READING OF THE TYRE

Example

fig. 263: 215/65 R16 98H

215

Nominal width (S, distance in mm

between sides)

65

Height/width ratio (H/S), expressed

as a percentage

R

Radial tyre

16

Rim diameter in inches (Ø)

98

Load rating (capacity)

H

Maximum speed rating

263

10096S0001EM

Maximum speed index

Q

up to 160 km/h

R

up to 170 km/h

S

up to 180 km/h

T

up to 190 km/h

U

up to 200 km/h

H

up to 210 km/h

V

up to 240 km/h

W

up to 270 km/h

Y

up to 300 km/h

Maximum speed index for snow tyres

QM+S

up to 160 km/h

TM+S

up to 190 km/h

HM+S

up to 210 km/h

Load index (capacity) (*)

60

= 250 kg

80

= 450 kg

61

= 257 kg

81

= 462 kg

Load index (capacity) (*)

62

= 265 kg

82

= 475 kg

63

= 272 kg

83

= 487 kg

64

= 280 kg

84

= 500 kg

65

= 290 kg

85

= 515 kg

66

= 300 kg

86

= 530 kg

67

= 307 kg

87

= 545 kg

68

= 315 kg

88

= 560 kg

69

= 325 kg

89

= 580 kg

70

= 335 kg

90

= 600 kg

71

= 345 kg

91

= 615 kg

72

= 355 kg

92

= 630 kg

73

= 365 kg

93

= 650 kg

74

= 375 kg

94

= 670 kg

75

= 387 kg

95

= 690 kg

76

= 400 kg

96

= 710 kg

77

= 412 kg

97

= 730 kg

78

= 425 kg

98

= 750 kg

CarManuals2.com

243

Load index (capacity) (*)

79

= 437 kg

(*) The capacity may be less, depending on

the tyre inflation pressure prescribed for

the car. The load index remains the same

and does not depend on the pressure of

use.

CORRECT READING OF THE RIM CODE

Example

fig. 263: 7J x 17 H2 ET 40

7

width of the rim in inches (1).

J

rim drop centre outline (side projection

where the tyre bead rests) (2).

17

fitting diameter, expressed in inches

(corresponds to the diameter of the tyre

that should be fitted) (3 = Ø).

H2

shape and number of "humps"

(circumference measurement which

keeps the bead of tubeless tyres in

position on the rim).

ET 40

: wheel compensation (distance

between the disc/rim supporting plane

and the wheel rim centre line).

Tyre types - All Season tyres

(where provided)
All Season tyres ensure perfect traction

in all seasons of the year (spring,

summer, autumn and winter). Their

traction capacity may vary from one All

Season tyre manufacturer to another.
This type of tyre has an M+S, M&S, M/S

or MS marking on its side.

WARNING Always fit four All Season

tyres on the car: failure to do so could

compromise the driving stability of the

car and damage the suspension.

SNOW CHAINS

103)

Rear-Wheel Drive and All-wheel drive

versions

7-mm snow chains can be used on all

tyres. 9-mm snow chains can be fitted on

tyres up to 225 mm in width (225/55 R16,

225/50 R17, 225/45 R18).

QV version

It is possible to put chains on the rear

265/35 R19 tyre (winter tyre size).

Avoid using traditional chains as

they can damage the braking system

if not installed correctly, thereby

compromising the car’s safety.
We strongly advise using zero-clearance

chains and to use equipment proposed

by the Dedicated Alfa Romeo Dealership.

Warnings

The use of snow chains should be in

compliance with local regulations of

each country. In certain countries, tyres

marked with code M+S (Mud and Snow)

are considered as winter equipment;

therefore their use is equivalent to that

of the snow chains.
The snow chains may be applied only to

the rear wheel tyres.

Check the tension of the snow chains

after the first few feet/meters have

been driven.
WARNING Using snow chains with

tyres with non-original dimensions may

damage the car.
WARNING Using different size or

type (M+S, snow, etc.) tyres between

front and rear axle may adversely

affect car driveability, with the risk of

losing control of the car and resulting

accidents.

IMPORTANT

103)

Keep your speed down when snow

chains are fitted; do not exceed 50 km/h.

Avoid potholes, do not drive over steps or

pavements and do not drive long distances

over roads without snow, to avoid damaging

both your car and the road surface.

CarManuals2.com

 TECHNICAL SPECIFICATIONS

244

RIMS AND TYRES PROVIDED

202)

Model

Position

Rims

Tires

2.9 V6

Front

19x8.5J

245/35 ZR19 93Y XL

Rear

19x10J

285/30 ZR19 98Y XL

2.0 T4 MAir
2.2 JTD

Front & Rear

16x7J (*)

225/55 R16 95W (*)

Front & Rear

17x7.5J

225/50 R17 98Y XL or 94W

Front & Rear

18x8J

225/45 R18 91Y or 91W / 95V (**)

Front

Rear

18x8J (***)
18x9J (***)

225/45 R18 91Y (***)

255/40 R18 95Y (***)

Front & Rear

19x8J

225/40 R19 89W or 89Y or 93Y

Front

Rear

19x8J (***)
19x9J (***)

225/40 R19 89W or 89Y or 93Y (***)

255/35 R19 92W or 92Y or 96Y (***)

(*) Incompatible with augmented braking systems
(**) All Season tyres, where available
(***) Matching rims/tyres

NOTE In partnership with Pirelli, Alfa Romeo has developed a range of winter tyres specially for the Alfa Romeo Giulia. They can be

identified by the "AR" mark. The "AR" tyres ensure the best vehicle performance and safety. Alfa Romeo cannot guarantee that non-

approved tyres are suitable, and they may cause vehicle malfunctions.

2.9 V6 engine

: winter tyres are available in the following sizes: 245/35 R19 93V XL and 285/30 R19 98V XL.

2.0 T4 MAir and 2.2 JTD engines

: winter tyres are available in the following sizes: 225/50 R17 94H, 225/45 R18 91H (on 18x8J rims) and

225/40 R18 95H (on 18x9J rims).
Always check the registration certificate for the tyres that can be installed (size, load index, speed symbol).

CarManuals2.com

245

COLD TYRE INFLATION PRESSURE

When the tyres are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck the

correct value when the tyre is cold.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" chapter in the "In an emergency" section.
The pressures given below apply to all tyre types: summer, winter and all season (where provided).

2.9 V6 Engine

Tyres

Unladen/medium load [bar]

Full load [bar]

Front

Rear

Front

Rear

245/35 R19

2.4

2.9

265/35 R19 (*)

2.2

2.9

285/30 R19

2.2

2.9

(*) Recommended tyre when it is necessary to install snow chains (refer to the “Snow chains” chapter for further details).

2.0 T4 MAir and 2.2 JTD engines

Tyres

Unladen/medium load [bar]

Full load [bar]

Front

Rear

Front

Rear

225/55 R16

2.2

2.4

2.7

3.0

225/50 R17

2.2

2.4

2.7

3.0

225/45 R18

2.2

2.4

2.7

3.0

225/45 R18

2.0

2.4

255/40 R18

2.2

2.6

225/40 R19

2.4

2.6

2.7

3.0

225/40 R19

2.4

2.7

CarManuals2.com

 TECHNICAL SPECIFICATIONS

246

Tyres

Unladen/medium load [bar]

Full load [bar]

Front

Rear

Front

Rear

255/35 R19

2.3

2.9

WARNING

202)

If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed

corresponding to the speed rating of the tyres used.

CarManuals2.com

247

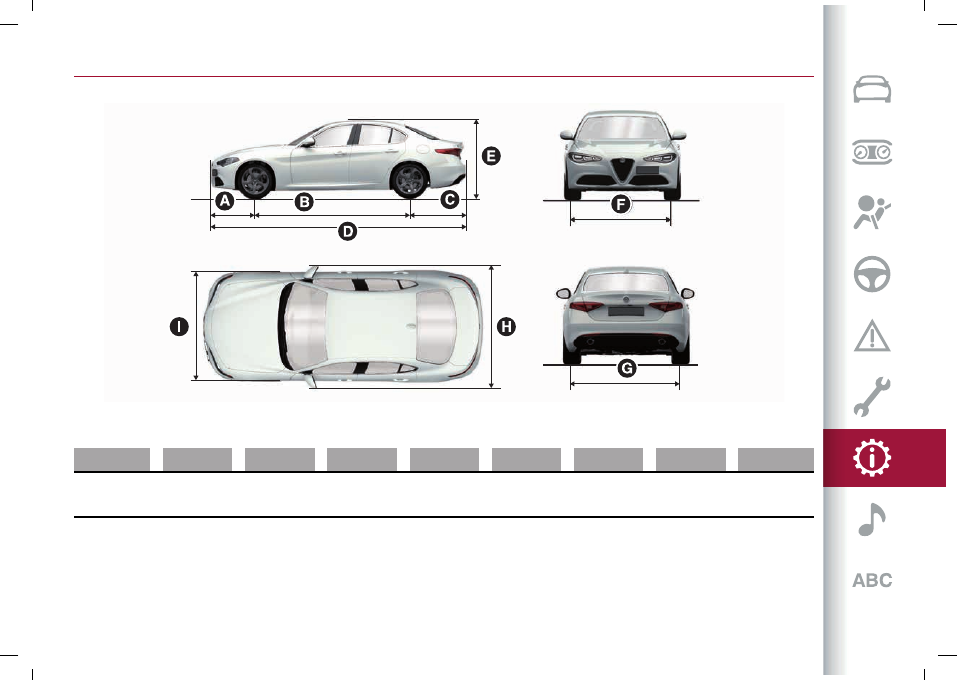

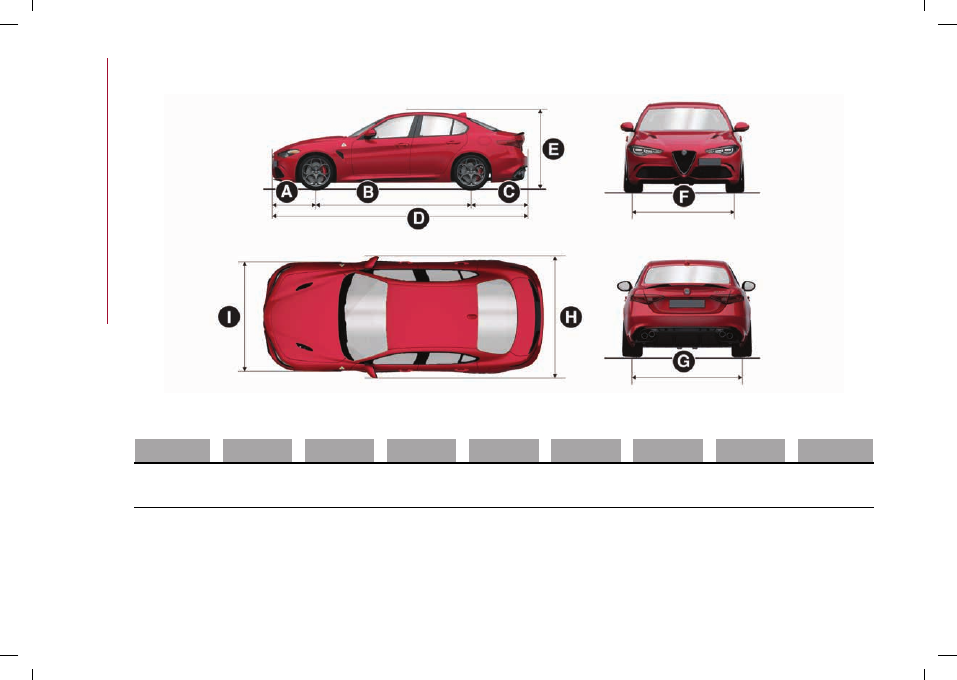

DIMENSIONS

Dimensions are expressed in inches/mm and refer to the car equipped with its original tyres. Height is measured with car unladen.

264

9550102

A

B

C

D

E

F

G

H

I

31.3 / 795

111 / 2820

40.5 / 1028

182.8 / 4643

183 / 4650 (*)

55.5 / 1411

56.6 / 1438

61.3 / 1557

64.2 / 1630

79.7 / 2024

73.2 / 1860

(*) Veloce version

Small variations with respect to the reported values are possible depending on the dimensions of the rims.

CarManuals2.com

 TECHNICAL SPECIFICATIONS

248

QV VERSION

Dimensions are expressed in inches/mm and refer to the car equipped with its original tyres. Height is measured with car unladen.

265

9550103

A

B

C

D

E

F

G

H

I

31.3 / 795

111 / 2820

40.3 / 1024

182.6 / 4639

56.2 / 1428
56.4 / 1433

61.22 / 1554

63.27 / 1606

79.68 / 2024

73.74 / 1873

LUGGAGE COMPARTMENT VOLUME
Capacity (V.D.A. standards)

Non-folding rear seats (unladen car):

480 litres

CarManuals2.com

249

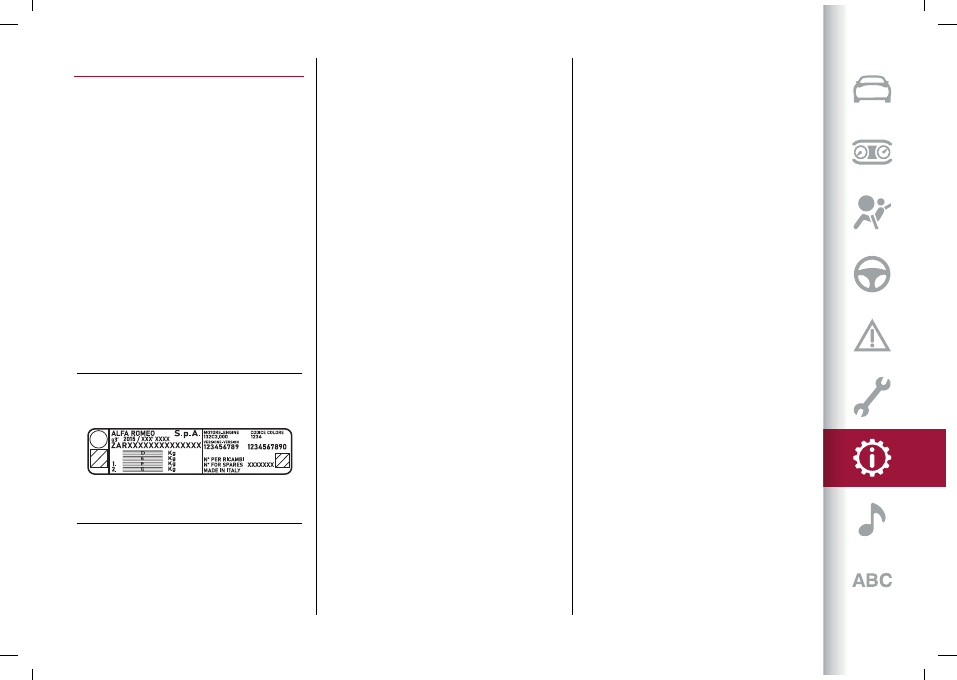

WEIGHTS AND LOADS

To identify the weights and loads for

your car, refer to the plate shown in
fig. 266 and described in the “Vehicle

identification number (VIN) plate"

chapter or refer to the car registration

certificate showing the type-approved

weights (for markets, where provided).

D

: Maximum authorised weight of car

fully laden (GVW).

E

: Maximum authorised weight of fully

laden car (GVW) plus trailer. If there is no

value in the field or if there is a dash, it

means that the car cannot tow.

F

: Maximum permitted weight on first

front axle.

G

: Maximum permitted weight on second

rear axle.

266

10106S0090EM

To calculate the towable weight with

a braked trailer, take the difference

between values (E) e (D) shown on the

plate.

E.g.: E=8052 lb (3660 kg) - D= 4532 lb

(2060 kg)
Braked trailer = 3527 lb (1600 kg)
WARNING

Do not exceed the indicated

trailer and towable weights

.

WARNING

Respect the vehicle towing

capacities

.

WARNING

Never exceed the maximum

permitted load indicated on the plate

(

E

).

CarManuals2.com

 TECHNICAL SPECIFICATIONS

250

TOWABLE WEIGHTS (lb / kg)

2.9 V6

2.0 T4 MAir

2.2 JTD

RWD versions

RWD versions

AWD versions

RWD versions

AWD versions

GVW

4740 / 2150

4532 / 2060

4664 / 2120

4598 / 2090

4785 / 2175

Towable loads

A

3527 / 1600

3527 / 1600

3527 / 1600

3527 / 1600

B

1642 / 745

1642 / 745

1642 / 745

1642 / 745

C

141/ 64

141/ 64

141/ 64

141/ 64

D

110 / 50

110 / 50

110 / 50

110 / 50

A

= TOWABLE WEIGHT

B

= UNBRAKED TRAILER

C

= LOAD ON TOW HOOK

D

= LOAD ON ROOF

CarManuals2.com

251

REFUELLING

2.9 V6

2.0 T4 MAir

Prescribed fuels and original

lubricants

Fuel tank [UK gal / litres]

12.76 (58)

12.76 (58)

Unleaded petrol
(EN228 specifications)

including a reserve of [UK gal /

litres]

1.98 (9.0)

1.98 (9.0)

Main cooling system [UK gal / litres]

2.46 (11.2)

1.89 (8.6)

50% mixture of distilled water and

PARAFLU UP (*)

Secondary cooling system [UK gal /

litres]

1.21 (5.5)

0.95 (4.3)

Engine oil filter [UK gal / litres]

0.08 (0.4)

SELENIA QUADRIFOGLIO (2.9 V6

engine) / SELENIA DIGITEK P.E. (2.0

T4 MAir engine)

Engine oil sump [UK gal / litres]

1.01 (4.6)

Engine sump and filter [UK gal /

litres]

1.42 (6.5)

Hydraulic brake circuit [UK gal /

litres]

0.2 (0.9)

0.2 (0.9)

TUTELA BRAKE FLUID TOP EVO

Windscreen washer tank [UK gal /

litres]

0.92 (4.2)

0.92 (4.2)

PETRONAS DURANCE SC 35

ZF 8HP75 automatic/ 2.9 V6 RWD

engine) [UK gal / litres]

2.01 (9.11)

TUTELA TRANSMISSION AS 8

Automatic/ 2.0 T4 MAir engine) [UK

gal / litres]

2.07 (9.4) (RWD versions)

2.06 (9.3) (AWD versions)

RDU 230-LSD differential [UK gal /

litres]

0.25 (1.1)

0.2 (0.9)

TUTELA TRANSMISSION LS AXLE

FLUID

CarManuals2.com

 TECHNICAL SPECIFICATIONS

252

2.9 V6

2.0 T4 MAir

Prescribed fuels and original

lubricants

RDU 210-eLSD differential (where

provided) [UK gal / litres]

0.31 (1.4)

TUTELA TRANSMISSION LS AXLE

FLUID

RDU 210/215-LSD differential [UK

gal / litres]

0.24 (1.1)

AWD System FAD transfer case

[UK gal / litres]

0.11 (0.5)

TUTELA TRANSMISSION

HYPOIDE GEAR OIL (2.0 T4 MAir

engine)

AWD System TRANSFER CASE [UK

gal / litres]

0.15 (0.7)

TUTELA TRANSMISSION

TRANSFER CASE (2.0 T4 MAir

engine)

(*) For particularly harsh climate conditions, a mixture of 60% PARAFLU UP and 40% demineralised water is recommended.

CarManuals2.com

253

104) 105)

2.2 JTD

Prescribed fuels and original lubricants

Fuel tank [UK gal / litres]

11.4 (52)

Diesel for motor vehicles (EN590 Specification)

including a reserve of [UK gal / litres]

1.76 (8.0)

AdBlue® tank (where provided) capacity

approximately [UK gal (litres)]

3.5 (16.1)

AdBlue® (DIN 70 070 and ISO 22241-1

specifications)

Main cooling system [UK gal / litres]

1.92 (8.75) (**) /

1.96 (8.9) (***)

50% mixture of distilled water and

PARAFLU UP (*)

Secondary cooling system [UK gal / litres]

1.16 (5.3) (***)

Engine oil filter [UK gal / litres]

0.11 (0.5)

SELENIA W.R. FORWARD 0W-20

Engine oil sump [UK gal / litres]

0.68 (3.1) (RWD) / 0.85 (3.9) (AWD)

Hydraulic brake circuit [UK gal / litres]

0.2 (0.9)

TUTELA BRAKE FLUID TOP EVO

Windscreen washer tank [UK gal / litres]

0.92 (4.2)

PETRONAS DURANCE SC 35

Automatic transmission
(2.2 JTD 160 HP RWD engine) [UK gal / litres]

2.02 (9.2)

TUTELA TRANSMISSION AS8

Automatic transmission

(2.2 JTD 210 HP AWD engine) [UK gal / litres]

2.0 (9.1)

RDU 230-LSD differential [UK gal / litres]

0.2 (0.9)

TUTELA TRANSMISSION LS AXLE FLUID

RDU 210-eLSD differential (where provided) [UK

gal / litres]

0.31 (1.4)

CarManuals2.com

 TECHNICAL SPECIFICATIONS

254

2.2 JTD

Prescribed fuels and original lubricants

RDU 210/215-LSD differential [UK gal / litres]

0.24 (1.1)

TUTELA TRANSMISSION LS AXLE FLUID

AWD System FAD transfer case [UK gal / litres]

0.11 (0.5)

TUTELA TRANSMISSION HYPOIDE GEAR OIL

AWD System TRANSFER CASE [UK gal / litres]

0.15 (0.7)

TUTELA TRANSMISSION TRANSFER CASE

(*) For particularly harsh climate conditions, a mixture of 60% PARAFLU UP and 40% demineralised water is recommended.
(**) 160 HP RWD version
(***) 210 HP AWD version

IMPORTANT

104)

Only use AdBlue® (UREA) compliant with DIN 70 070 and ISO 22241-1. Other fluids may cause damage to the system: also exhaust emissions

would no longer comply with the law.

105)

The distribution companies are responsible for the compliance of their product. Observe the precautions of storage and servicing, in order to

preserve the initial qualities. The manufacturer will not recognise any guarantee in case of malfunctions and damage caused to the car due to the
use of AdBlue® (UREA) not in accordance with regulations.

CarManuals2.com

255

FLUIDS AND LUBRICANTS

Your car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of the

Service Schedule. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant

quality is crucial for engine operation and duration.

106)

PRODUCT SPECIFICATIONS

ENGINE LUBRICATION

Use

Features

Specification

Original liquids and

lubricants

Replacement frequency

2.9 V6

SAE 5W-40

ACEA C3

9.55535-GH2

SELENIA QUADRIFOGLIO

Contractual Technical

Reference N°F022.B18

According to Service

Schedule

2.0 T4 MAir

SAE 0W-30

ACEA C2

9.55535-GS1

SELENIA DIGITEK P.E.

Contractual Technical

Reference N°F020.B12

According to Service

Schedule

2.2 JTD

SAE 0W-20

ACEA C5

9.55535-DSX

SELENIAW.R.FORWARD

0W-20

Contractual Technical
Reference N°F013.K15

According to Service

Schedule

If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to top

up; in this case optimal performance of the engine is not guaranteed.

CarManuals2.com

 TECHNICAL SPECIFICATIONS

256

Use

Features

Specification

Original liquids and

lubricants

Applications

Lubricants and greases for

drive transmission

ATF Synthetic lubricant

9.55550-AV5

TUTELA TRANSMISSION

AS 8

Contractual Technical

Reference N° F139.I11

Automatic transmission

SAE 75W-85 synthetic

lubricant

9.55550-DA9

TUTELA TRANSMISSION

LS AXLE FLUID

Contractual Technical

Reference N° F059.N15

RDU 230-LSD RDU

210-eLSD RDU 210/215 -LSD

differential

SAE 75W-80 API GL-5

synthetic lubricant

9.55550-DA10

TUTELA TRANSMISSION

HYPOIDE GEAR OIL

Contractual Technical

Reference n° F060.N15

AWD System FAD Transfer

case

SAE 75W synthetic

lubricant

9.55550-DA11

TUTELA TRANSMISSION

TRANSFER CASE

Contractual Technical

Reference N° F061.N15

AWD System TRANSFER

CASE

NLGI 0-1 grease for

constant velocity joints

with low friction

coefficient

9.55580-GRAS II

TUTELA STAR 700

Contractual Technical

Reference N°F701.C07

Differential side constant

velocity joints

NLGI 1-2 molybdenum

disulphide grease for high

temperatures

9.55580-GRAS II

TUTELA ALL STAR

Contractual Technical

Reference N°F702.G07

Wheel side constant

velocity joints

CarManuals2.com

257

Use

Features

Specification

Original liquids and

lubricants

Applications

Brake fluid

Synthetic fluid for brake

and clutch systems.

Exceeds specifications:

FMVSS n° 116 DOT 4, ISO

4925 Class 6, SAE J1704.

9.55597 or MS.90039

TUTELA BRAKE FLUID

TOP EVO

Contractual Technical

Reference N°F002.L18

Hydraulic brakes and clutch

controls

Protective agent for

radiators

Protective with antifreeze,

ethylene glycol based

organic formula, free from

amine and 2–EH (2–ethyl

hexanoic acid), containing

corrosion inhibitors and

anti-foam additives. CUNA

NC 956-16, ASTM D 3306

9.55523 or MS.90032

PARAFLU UP

Contractual Technical

Reference N°F101.M01

Percentage of use 50%

Mixture with different

formulation products not

allowed (*)

Windscreen washer fluid

CUNA NC 956–11

9.55522

PETRONAS DURANCE SC

35

Contractual Technical

Reference N° F001.D16

To be used diluted or

undiluted in windscreen

washer/wiper systems

AdBlue® additive for diesel

emissions

Water-AdBlue® solution

DIN 70 070 and ISO 22241-1

AdBlue®

To be used for filling the

AdBlue® tank on versions

equipped with Selective

Catalytic Reduction (SCR)

system (2.2 JTD engine)

Diesel fuel additive

Antifreeze additive for

diesel fuel, with protective

action for diesel engines

PETRONAS DURANCE

DIESEL ART

Contractual Technical

Reference N°F601.C06

To be mixed with diesel fuel

(25 cc per 10 litres)

CarManuals2.com

 TECHNICAL SPECIFICATIONS

258

Use

Features

Specification

Original liquids and

lubricants

Applications

Automatic climate control

system (HVAC)

R1234yf or R134a

(depending on market)

(*) For particularly harsh climate conditions, a mixture of 60% PARAFLU UP and 40% demineralised water is recommended.
AdBlue® is a registered trademark of Verband der Automobilindustrie e.V. (VDA)

IMPORTANT

106)

The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.

CarManuals2.com

259

PERFORMANCE

Top performance after the initial period of vehicle usage.

Versions

Maximum speed (mph - km/h)

Acceleration from 0-100 km/h (sec)

2.9 V6 RWD

191 / 307

3.9

2.0 T4 MAir RWD

149 / 240

5.7

2.0 T4 MAir AWD

149 / 240

5.2

2.2 JTD 160 HP RWD

149 / 240

8.2

2.2 JTD 210 HP AWD

146 / 235

6.8

CarManuals2.com

 TECHNICAL SPECIFICATIONS

260

FUEL CONSUMPTION AND CO2 EMISSIONS

The fuel consumption and CO2 emission figures declared by the manufacturer are determined on the basis of the type-approval tests

laid down by the applicable standards in the country where the vehicle is registered.
The type of route, traffic conditions, weather conditions, driving style, general condition of the car, trim level/equipment/accessories,

use of the climate control system, car load, presence of roof racks and other situations that adversely affect the aerodynamics or

wind resistance lead to different fuel consumption values than those measured.
The fuel consumption will only become more regular after driving the first 3000 km.
To find the specific fuel consumption and CO2 emission figures for this car, please refer to the data in the Certificate of Conformity,

and the related documentation that accompanies the car.

CarManuals2.com

261

PRESCRIPTIONS FOR HANDLING THE CAR AT THE END OF ITS LIFE

(where provided)
For years, Alfa Romeo S.p.A. has pursued a global commitment to protect and respect the environment by continually improving its

production processes and developing increasingly "eco-compatible" products. To grant customers the best possible service in terms

of respecting environmental laws and in response to European Directive 2000/53/EC governing cars at the end of their life, Alfa

Romeo S.p.A. is offering its customers the chance to hand over their car at the end of its life without incurring any additional costs.

The European Directive sets out that when the car is handed over the last keeper or owner should not incur any expenses as a result

of it having a zero or negative market value.
To hand your car over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another car or an

Alfa Romeo S.p.A.-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality service

for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an Alfa Romeo S.p.A. dealership or by calling

the number in the Warranty Booklet or by consulting the Alfa Romeo S.p.A. website.

CarManuals2.com

This section describes the main features of the Connect

system that can be fitted on the car.

MULTIMEDIA

TIPS INFORMATION AND GENERAL INFORMATION . . . . . . . . . . . . . . 264
CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
CONTROLS ON THE STEERING WHEEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
TOUCHSCREEN FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .270
WIDGETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .271
RADIO (TUNER) MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .274
MEDIA MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .274
Bluetooth® SOURCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
USB/iPod/AUX SUPPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
CLIMATE CONTROL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .276
PHONE MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
NAVIGATION MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .278

Tom Tom® ONLINE SERVICES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .282
PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
CAR INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
DRIVER ASSISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
VOICE COMMANDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
CONNECTED SERVICES - ALFA CONNECT SERVICES . . . . . . . . . . . . 289
WIRELESS CHARGING SYSTEM– WCPM (Wireless Charge Pad

Module) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
OFFICIAL TYPE APPROVALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .295

CarManuals2.com

 MULTIMEDIA

264

TIPS INFORMATION AND

GENERAL INFORMATION

ROAD SAFETY

203) 204)

Learn how to use the varied system

functions before starting to drive.
Read the instructions for the system

carefully before starting to drive.
WARNING Look at the screen only and

when it is necessary and safe. If you need

to look at the screen for a long time,

pull over to a safe place so as not to be

distracted while driving. Immediately

stop using the system in the event of

a fault. Otherwise the system might

be damaged. Contact an Alfa Romeo

Dealership as soon as possible to have

the system repaired.

RECEPTION CONDITIONS

(where provided)
Reception conditions change constantly

while driving. Reception may be

interfered with by the presence of

mountains, buildings or bridges,

especially when you are far away from

the broadcaster.
WARNING The volume may be adjusted

when receiving traffic information and

news.
NOTE The DAB frequency can be used

in countries where digital transmission

technology is available. The device will

tuned to any frequency if the DAB button

is pressed in a country where the service

is not provided.

CARE AND MAINTENANCE

107) 108)

Observe the following precautions to

ensure the system is fully operational:

avoid hitting the display lens with

pointed or hard objects that could

damage its surface.

clean with a damp cloth (microfibre

if possible). If necessary, you can use a

delicate mild soap and water solution,

then dry with a soft, dry cloth. Do not

apply pressure to the display lens while

cleaning;

do not use alcohol, petrol and derived

products them to clean the display lens

and make sure that the Connect system

is switched off during cleaning;

prevent any liquid from entering the

system: this could damage it beyond

repair.

CONNECT SYSTEM USE

To interact with the Connect system

you can use the controls on the central

tunnel, on the steering wheel, using

the touchscreen function or the voice

controls.

ANTI-THEFT PROTECTION

The system is equipped with an

anti-theft protection system based on

the exchange of information with the

electronic control unit (Body Computer)

on the vehicle.
This guarantees maximum security

and prevents the system from being

used on other cars in the event of theft.

If necessary contact an Alfa Romeo

Dealership.

IMPORTANT NOTES

Look at the screen only and when it is

necessary and safe. If you need to look

at the screen for a long time, pull over to

a safe place so as not to be distracted

while driving.
Immediately stop using the system in the

event of a fault.
Otherwise the system might be

damaged. Contact an Alfa Romeo

Dealership as soon as possible to have

the system repaired.

WARNING

203)

Follow the safety rules below:

otherwise serious injuries may occur to the

occupants or the system may be damaged.

204)

If the volume is too loud this can be

dangerous. Adjust the volume so that you

can still hear background noises (e.g. horns,

ambulances, police vehicles, etc.).

CarManuals2.com

265

IMPORTANT

107)

Only clean the front panel and the

display with a soft, clean, dry, anti-static

cloth. Cleaning and polishing products may

damage the surface. Do not use alcohol or

similar products to clean the control panel

or the display.

108)

Do not use the display as a base for

supports with suction pads or adhesives

for external navigators or smartphones or

similar devices.

CarManuals2.com

 MULTIMEDIA

266

CONTROLS

CONTROLS ON TUNNEL

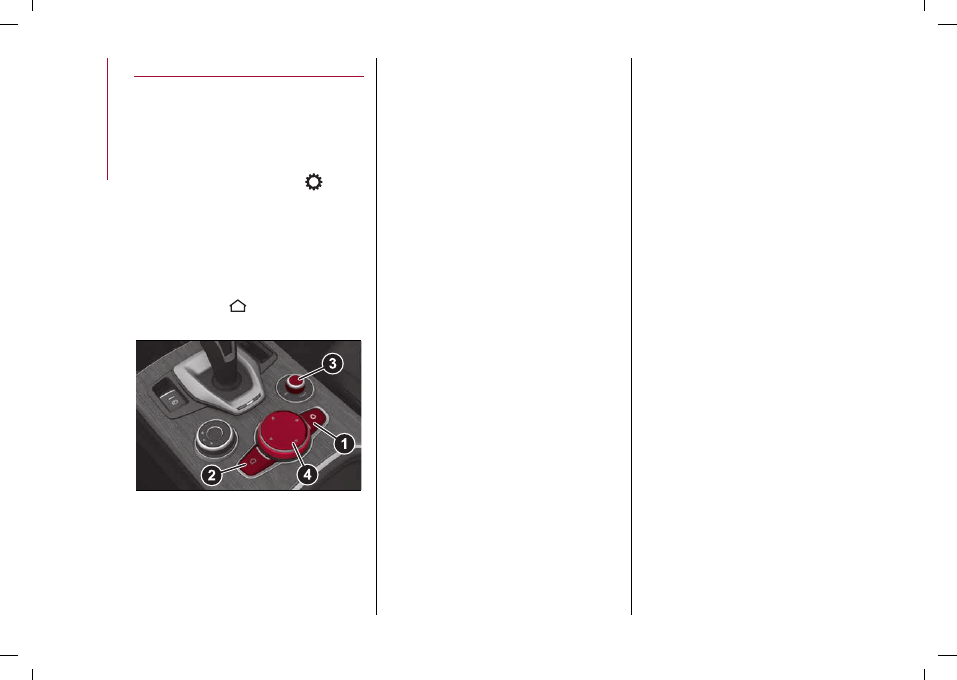

On the central tunnel, fig. 267, there are

commands to interact with the Connect

system.

SETTINGS button (1)

Pressing the "Settings" button

while

within the modes (”RADIO”, “MEDIA”,

“PHONE”, “NAVIGATION”) will open the

"Settings" Display the mode in question.
Press the button it again will return to

the previously selected mode.

MENU button (2)

Press the button

to access the Main

Menu.

267

12126S0300EM

CarManuals2.com

267

DESCRIPTION OF CONTROLS TABLES

ON/OFF and VOLUME control (3)

Action

Function

LONG PRESS

Switching the Connect system on/off

SHORT PRESS

Radio Mode

: Activate/deactivate the Mute function

Media Mode

: Activate/deactivate play/pause

Phone Mode

: Activate/deactivate the microphone during a phone call

ROTATION

Turn clockwise to increase the volume/turn anticlockwise to decrease the volume

MOVE TO THE SIDE

Radio mode

: on the right to select next/left radio station/on the left to select previous station

(radio station search can be done by "Frequency"/"Name"/"Favourites")

Media mode

: short press on the right: select next track/short press on left select previous track

Long press on right

("Media" mode): go to next track/long press on left, go to previous track

CarManuals2.com

 MULTIMEDIA

268

Rotary Pad (4)

Action

Function

ROTATION

In the Menus

: confirms selection

In Navigation mode

(where provided): zooms the maps (where provided)

SHORT PRESS

In the Menus

: confirms selection

LONG PRESS

Radio mode

: store radio station on the radio station bar/store a favourite on the preset bar

BRIEF TOUCH RIGHTWARDS (*)

In the Menus

: goes to the submenu of the selected function

In Navigation mode

(where provided), in "Browse Map": moves rightwards on the Navigation

map to move inside the navigation map (where provided)

BRIEF TOUCH LEFTWARDS (*)

In the Menus

: goes back to the previous menu ("Esc" function)

In Navigation mode

(where provided), in "Browse Map": moves leftwards on the map Navigation

to move inside the navigation map (where provided)

BRIEF TOUCH UPWARDS (*)

In the Menus

: closes the preset bar

In Navigation mode

(where provided), in "Browse Map": moves upwards on the map to move

inside the navigation map (where provided)

BRIEF TOUCH DOWNWARDS (*)

Activating radio presettings/Saving "Contacts" and "Destinations"

In the Menus

: opens the preset bar

In Navigation mode

(where provided), in "Browse Map": moves downwards on the map

Navigation to move inside the navigation map (where provided)

(*) The Rotary Pad must be tilted in the indicated direction ("tilt" function)

CarManuals2.com

269

CONTROLS ON THE STEERING

WHEEL

DESCRIPTION

The controls fig. 268 for the main system

functions are present on the steering

wheel to make control easier. The

activation of the function selected is

controlled, in some cases, by the length

of the press (short or long press) as

described below.

268

9550179

(1) (2) Volume controls (

/

)

Short press

: turn the volume up/down

by one step

Long press

: turn the volume up/down

by one step

(3) Screen selection / main widget /
default

Short press

: switch between the

main (or default) screen display (in the

central area of the instrument panel

display), or the widget display (inside

the tachometer on the instrument panel

display)

(4) Telephone / Voice commands
Short press (Phone Mode)

Answer / end call

Short press (Voice commands)

With voice session not active

:

activation of Connect system voice

controls if no phone mode is active

With voice session active

:

immediately close voice session in

progress

Long press (Voice commands)

With voice session active

: interrupt

voice session in progress (a new voice

command can be imparted)

With the voice session not active and

an external audio device connected (e.g.

Apple CarPlay / Android Auto)

: activate

a voice session on the connected device
NOTE Connection to the phone disables

voice command.
NOTE If Apple CarPlay and Android Auto

apps are present, Siri voice assistant

(for Apple CarPlay) or Google Assistant

(for Android Auto) will be activated. In

this case you can use "Natural language"

voice controls and not just the specific

ones preset for the Alfa Connect system.

The voice assistants of Siri (for Apple

CarPlay) or Google Assistant (for

Android Auto) will only be activated by

holding the button

pressed on the

right side of the steering wheel.

(5) Selection of items displayed on

screens/widgets (

/

)

Upward rotation

: select next radio

station (Radio mode) / select next track

(Media mode).

Downward rotation

: select previous

radio station (Radio mode) / select

previous track (Media mode).

Short press

: confirm the actions

suggested by the messages on the

instrument panel display.

Long press

: reset the Trip Computer

readings on the instrument panel display.

CarManuals2.com

 MULTIMEDIA

270

TOUCHSCREEN FUNCTION

The Connect system is also equipped with a touchscreen function: in addition to the selection of items using the controls on the

central tunnel and on the steering wheel, it is possible to interact with the various functions/modes by pressing on the icons shown

the display.

ACTIONS THAT CAN BE PERFORMED USING THE TOUCHSCREEN FUNCTION

Function

Action on the display

SCROLL UP

SCROLL DOWN

MOVE LEFTWARDS

MOVE RIGHTWARDS

SHORT PRESS

LONG PRESS

CarManuals2.com















Content      ..     6      7      8      9     ..
