 MAINTENANCE AND CARE

206

SCHEDULED SERVICING

Correct servicing is crucial for

guaranteeing a long life for the car under

the best conditions.
For this reason, Alfa Romeo has planned

a series of checks and maintenance

operations at fixed distance intervals

and, for versions/markets, where

provided, at fixed time intervals, as

described in the Service Schedule.
Before each scheduled service deadline,

it is always necessary to carefully follow

the instructions in the Service Schedule

(e.g. periodically check level of fluids,

tyre pressure, etc.).
Scheduled Servicing is offered by an Alfa

Romeo Dealership according to a set

time schedule. If, during each operation,

in addition to the ones scheduled, the

need arises for further replacements or

repairs, these may be carried out with

the owner's explicit consent only.
WARNING The scheduled service

deadlines are set out by the

Manufacturer. Failure to have them

carried out may invalidate the New

Vehicle Limited Warranty.
It is advisable to inform the Alfa Romeo

Dealership of any small operating

irregularities without waiting for the next

scheduled service deadline.

PERIODIC CHECKS

Every year or

1000

km or before long

journeys, check and top up, if necessary:

engine coolant level;
brake fluid level (if insufficient, see

an Alfa Romeo dealership as soon as

possible);

AdBlue® (UREA) diesel emissions

additive (2.2 JTD versions only);

windscreen washer fluid level;
tyre inflation pressure and condition;
operation of lighting system

(headlights, direction indicators, hazard

warning lights, etc.);

operation of windscreen washer/wiper

system and positioning/wear of wiper

blades.
Oil consumption of the engine depends

on conditions and driving style. For this

reason, the engine oil level must be

checked

every 3000 km

and topped

up, if necessary (see the "Engine

compartment - Checking the levels"

chapter for information on the quantity

to be topped up).

DEMANDING USE OF THE CAR

If the car is used in one of the following

conditions:

dusty roads;
short, repeated journeys (less than 7-

8 km) at sub-zero external temperatures;

engine often idling or driving long

distances at low speeds or long periods

of inactivity;

in the event of a long period of

inactivity;
the following checks must be carried out

more often than indicated in the Service

Schedule:

check front and rear disc brake pad

condition and wear;

check cleanliness of bonnet and boot

locks, cleanliness and lubrication of

linkage;

visually inspect conditions of:

engine, gearbox, transmission,

pipes and hoses (exhaust/fuel

system/brakes) and rubber elements

(gaiters/sleeves/bushes, etc.);

check battery charge and battery fluid

level (electrolyte);

visually inspect conditions of the

accessory drive belts;

check and, if necessary, change engine

oil and replace oil filter;

check and, if necessary, replace cabin

air filter;

check and, if necessary, replace air

cleaner;

check and, if necessary, replace the

Bad Fuel filter (where provided).

CarManuals2.com

207

SCHEDULED SERVICING PROGRAMME (2.9 V6 engine)

WARNING Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the

frequency indicated in the plan by marking each operation with a dot or dedicated note. Warning: simply restarting the maintenance

from the start of the plan may cause the allowed interval to be exceeded for some operations!

Thousands of miles

9

18

27

36

45

54

63

72

81

90

Thousands of kilometres

15

30

45

60

75

90

105

120

135

150

Years

1

2

3

4

5

6

7

8

9

10

Check battery state of charge with the proper instrument

Check tyre conditions/wear and adjust pressure, if necessary. Check

Tire Repair Kit condition/expiry

Check operation of lighting system (headlights, direction indicators,

hazard warning lights, boot, passenger compartment, glove

compartment, instrument panel warning lights, etc.)

Check and, if necessary, top up fluid levels in engine compartment

(engine oil, windscreen washer, etc.) (1)

Check the supply/engine management systems operation using the

diagnosis equipment

Visually inspect condition of: exterior bodywork, underbody

protection, pipes and hoses (exhaust, fuel system, brakes), rubber

elements (gaiters, sleeves, bushes, etc.)

Check windscreen wiper blade position/wear

Check operation of the windscreen wiper/washer system and adjust

nozzles, if necessary

CarManuals2.com

 MAINTENANCE AND CARE

208

Thousands of miles

9

18

27

36

45

54

63

72

81

90

Thousands of kilometres

15

30

45

60

75

90

105

120

135

150

Years

1

2

3

4

5

6

7

8

9

10

Check cleanliness of bonnet and luggage compartment locks,

cleanliness and lubrication of linkage

Visually inspect conditions and wear of front/rear disc brake pads and

operation of pad wear indicators

Visually inspect the surface and edge of the carbon-ceramic brake

discs (where provided)

Replace brake pads/carbon-ceramic brake discs (where provided)

(5)

Visually inspect the condition and tensioning of the accessory drive

belt(s)

Change engine oil and replace oil filter

Spark plug replacement

Replace accessory drive belt/s

(2)

Replace air cleaner cartridge (3)

Change the brake fluid

(4)

Replace passenger compartment filter (3)

CarManuals2.com

209

Thousands of miles

9

18

27

36

45

54

63

72

81

90

Thousands of kilometres

15

30

45

60

75

90

105

120

135

150

Years

1

2

3

4

5

6

7

8

9

10

Alfa Connect Box system battery replacement (where provided)

(6)

(1) Always only use the liquids shown in the handbook for topping up after having checked that the system is not damaged.
(2) Areas that are not dusty: the maximum mileage is 60,000 km. The belt must be replaced every 4 years, regardless of distance travelled. If the

vehicle is used in heavy conditions (dusty areas, especially severe weather conditions, very low or very high temperatures for extended periods,

urban driving, long periods of idling), the maximum mileage is 30,000 km. The belt must be replaced every 2 years regardless of the mileage.
(3) If the car is used in dusty areas, this cleaner should be replaced every 15,000 km.
(4) The brake fluid replacement has to be done every two years, irrespective of the mileage.
(5) The actual interval for changing the brake pads and the carbon ceramic brake discs depends on the car usage conditions and is signalled by the

warning light or message on the instrument panel. Use the diagnosis equipment to reset the warning light every time the discs are replaced.
(6) The battery in the Alfa Connect Box system must be replaced every 5 years, regardless of mileage.
(o) Recommended operations
(●) Mandatory operations

CarManuals2.com

 MAINTENANCE AND CARE

210

SERVICE SCHEDULE (2.0 T4 MAir engine)

WARNING Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the

frequency indicated in the plan by marking each operation with a dot or dedicated note. Warning: simply restarting the maintenance

from the start of the plan may cause the allowed interval to be exceeded for some operations!

Thousands of miles

9

18

27

36

45

54

63

72

81

90

Thousands of kilometres

15

30

45

60

75

90

105

120

135

150

Years

1

2

3

4

5

6

7

8

9

10

Check battery state of charge with the proper instrument

Check tyre conditions/wear and adjust pressure, if necessary. Check

Tire Repair Kit condition/expiry

Check operation of lighting system (headlights, direction indicators,

hazard warning lights, boot, passenger compartment, glove

compartment, instrument panel warning lights, etc.)

Check and, if necessary, top up fluid levels in engine compartment

(engine oil, windscreen washer, etc.) (1)

Check the supply/engine management systems operation using the

diagnosis equipment

Visually inspect condition of: exterior bodywork, underbody

protection, pipes and hoses (exhaust, fuel system, brakes), rubber

elements (gaiters, sleeves, bushes, etc.)

Check windscreen wiper blade position/wear

Check operation of the windscreen wiper/washer system and adjust

nozzles, if necessary

Check cleanliness of bonnet and luggage compartment locks,

cleanliness and lubrication of linkage

CarManuals2.com

211

Thousands of miles

9

18

27

36

45

54

63

72

81

90

Thousands of kilometres

15

30

45

60

75

90

105

120

135

150

Years

1

2

3

4

5

6

7

8

9

10

Visually inspect conditions and wear of front/rear disc brake pads and

operation of pad wear indicators

Visually inspect the condition and tensioning of the accessory drive

belt(s)

Change engine oil and replace oil filter

(2)

Replace Transfer Case oil (for AWD versions)

Spark plug replacement

Replace accessory drive belt/s

(3)

Replace air cleaner cartridge (4)

Change the brake fluid

(5)

Replace passenger compartment filter (4)

Alfa Connect Box system battery replacement (where provided)

(6)

(1) Only ever use the fluids shown in the handbook for topping up, and only after checking that the system is intact.
(2) The actual interval for changing engine oil and replacing the engine oil filter depends on the car usage conditions and is signalled by the warning

light or message on the instrument panel. In any cases, never exceed 1 year.
(3) Areas that are not dusty: the maximum mileage is 60,000 km. The belt must be replaced every 4 years, regardless of distance travelled. If the

car is used in heavy conditions (dusty areas, particularly harsh weather conditions, very low or very high temperatures for extended periods, urban

driving, long periods of idling), the maximum mileage is 30,000 km. The belt must be replaced every 2 years regardless of the mileage.
(4) If the car is used in dusty areas, this cleaner should be replaced every 15,000 km.
(5) The brake fluid replacement has to be done every two years, irrespective of the mileage.
(6) The battery in the Alfa Connect Box system must be replaced every 5 years, regardless of mileage.
(o) Recommended operations
(●) Mandatory operations

CarManuals2.com

 MAINTENANCE AND CARE

212

SERVICE SCHEDULE (2.2 JTD engine)

WARNING Once you have carried out the last intervention in the table, continue with the scheduled servicing, maintaining the

frequency indicated in the plan by marking each operation with a dot or dedicated note. Attention: simply restarting the maintenance

from the start of the plan may cause the allowed interval to be exceeded for some operations!

Thousands of miles

12

24

36

48

60

72

84

96

108

120

Thousands of kilometres

20

40

60

80

100

120

140

160

180

200

Years

1

2

3

4

5

6

7

8

9

10

Check battery state of charge with the proper instrument

Check tyre conditions/wear and adjust pressure, if necessary. Check

Tire Repair Kit condition/expiry

Check operation of lighting system (headlights, direction indicators,

hazard warning lights, boot, passenger compartment, glove

compartment, instrument panel warning lights, etc.)

Check and, if necessary, top up fluid levels in engine compartment

(engine oil, windscreen washer, etc.) (1)

Check the supply/engine management systems operation using the

diagnosis equipment

Visually inspect condition of: exterior bodywork, underbody

protection, pipes and hoses (exhaust, fuel system, brakes), rubber

elements (gaiters, sleeves, bushes, etc.)

Check windscreen wiper blade position/wear

Check operation of the windscreen wiper/washer system and adjust

nozzles, if necessary

Check cleanliness of bonnet and luggage compartment locks,

cleanliness and lubrication of linkage

CarManuals2.com

213

Thousands of miles

12

24

36

48

60

72

84

96

108

120

Thousands of kilometres

20

40

60

80

100

120

140

160

180

200

Years

1

2

3

4

5

6

7

8

9

10

Visually inspect conditions and wear of front/rear disc brake pads and

operation of pad wear indicators

Visually inspect the condition and tensioning of the accessory drive

belt(s)

Visually inspect the toothed timing drive belt

Check engine air cleaner

Change engine oil and replace oil filter

(2)

Replace Transfer Case oil (for AWD versions)

Replace accessory drive belt/s

(3)

Replace toothed timing drive belt

(3)

Replace air cleaner cartridge (4)

Replace fuel filter cartridge (6)

Change the brake fluid

(5)

Replace passenger compartment filter (4)

CarManuals2.com

 MAINTENANCE AND CARE

214

Thousands of miles

12

24

36

48

60

72

84

96

108

120

Thousands of kilometres

20

40

60

80

100

120

140

160

180

200

Years

1

2

3

4

5

6

7

8

9

10

Alfa Connect Box system battery replacement (where provided)

(7)

(1) Only ever use the fluids shown in the handbook for topping up, and only after checking that the system is intact.
(2) The actual interval for changing engine oil and replacing the engine oil filter depends on the car usage conditions and is signalled by the warning

light or message on the instrument panel. In any case, it must never exceed 2 years. If the car is used mainly on urban routes or it runs on diesel fuel

that does not meet the EN590 Specification, the engine oil and engine oil filter must be changed every year.
(3) Areas that are not dusty: the maximum mileage is 120,000 km. The belt must be replaced every 5 years, regardless of distance travelled. If the

car is used in heavy conditions (dusty areas, particularly harsh weather conditions, very low or very high temperatures for extended periods, urban

driving, long periods of idling), the maximum mileage is 60,000 km. The belt must be replaced every 4 years regardless of the mileage.
(4) If the car is used in dusty areas, this cleaner should be replaced every 20,000 km.
(5) The brake fluid replacement has to be done every two years, irrespective of the mileage.
(6) If the car runs on fuel with quality below the relevant European specification, this filter must be replaced every 20,000 km.
(7) The battery in the Alfa Connect Box system must be replaced every 5 years, regardless of mileage.
(O) Recommended operations
(●) Mandatory operations

CarManuals2.com

215

ENGINE COMPARTMENT

CHECKING LEVELS

180) 181)

80)

Quadrifoglio Version - 2.9 V6 engine

, fig. 248

248

09026S0001EM

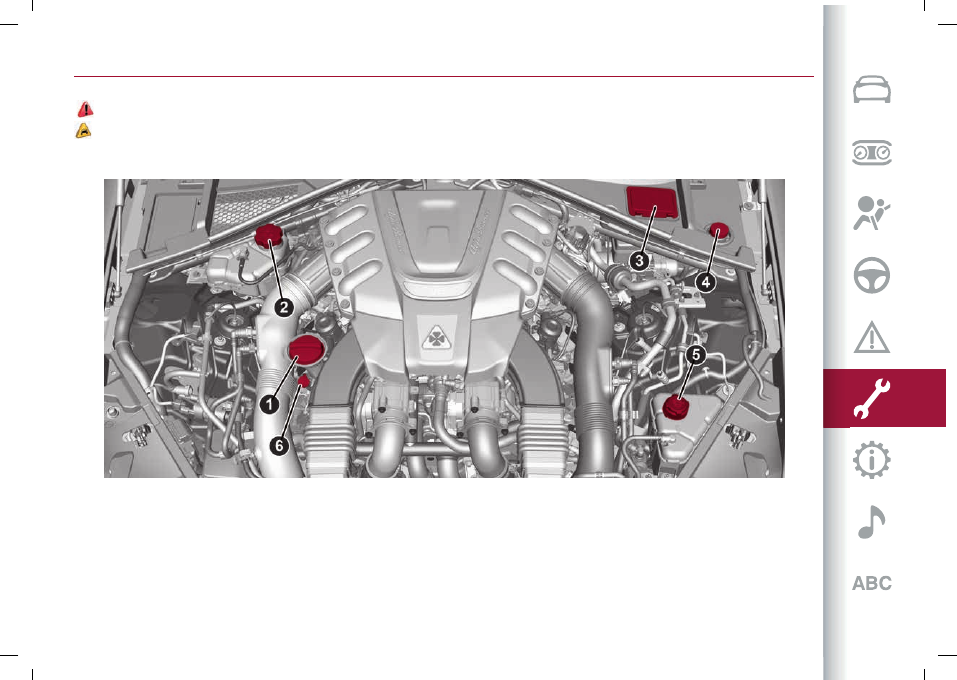

1. Engine oil filler 2. Primary engine cooling reservoir plug 3. Brake fluid reservoir plug access cover 4. Windscreen washer fluid

reservoir cap 5. Secondary engine cooling reservoir plug 6. Engine oil level dipstick

CarManuals2.com

 MAINTENANCE AND CARE

216

WARNING

180)

Never smoke while working in the engine compartment: gas and inflammable vapours may be present, with the risk of fire.

181)

Be very careful when working in the engine compartment when the engine is hot: you may get burned. Do not get too close to the radiator

cooling fan: the electric fan may start; danger of injury. Scarves, ties and other loose clothing might be pulled by moving parts.

IMPORTANT

80)

Be careful not to confuse the various types of fluids while topping up: they are not compatible with one another! Topping up with an unsuitable

fluid could severely damage your vehicle.

CarManuals2.com

217

2.0 T4 MAir engine

fig. 249

249

09026S0002EM

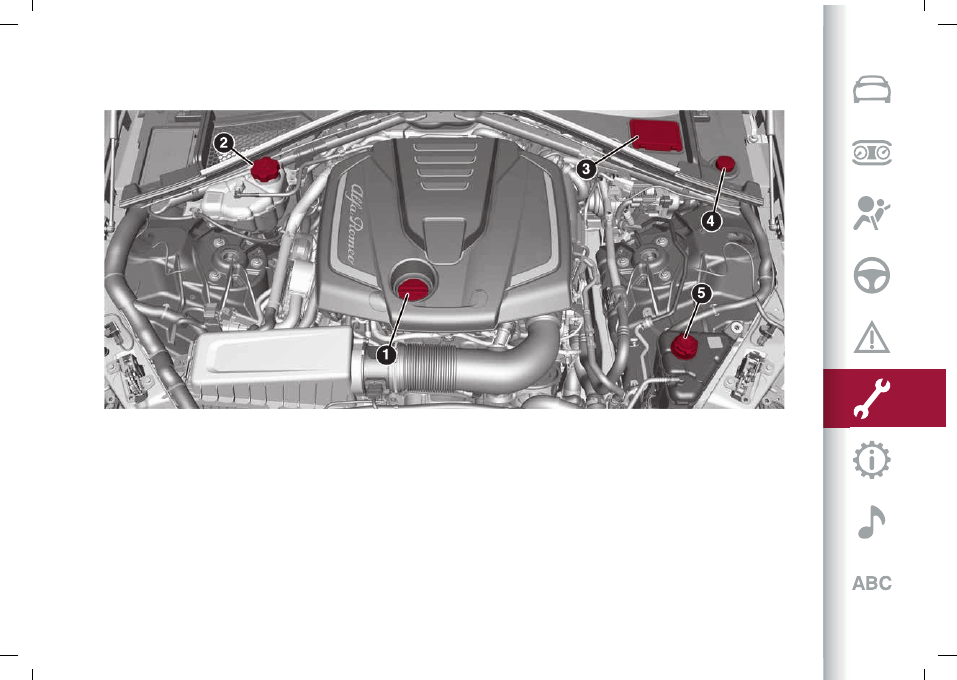

1. Engine oil filler 2. Primary engine cooling reservoir plug 3. Brake fluid reservoir plug access cover 4. Windscreen washer fluid

reservoir cap 5. Secondary engine cooling reservoir plug

CarManuals2.com

 MAINTENANCE AND CARE

218

2.2 JTD Engine

fig. 250

250

09026S0003EM

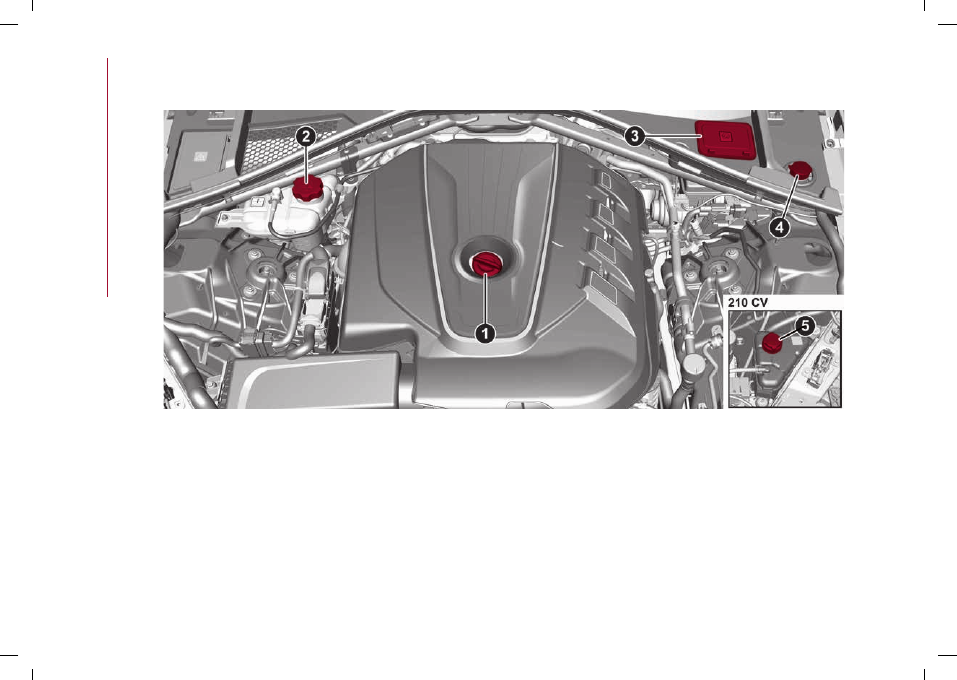

1. Engine oil filler 2. Engine coolant reservoir cap 3. Brake fluid reservoir plug access cover 4. Windscreen washer fluid reservoir cap 5.

Secondary engine cooling reservoir plug

CarManuals2.com

219

 ENGINE OIL

182)

81)

WARNING It is advisable to check the

engine oil level indication before long

journeys.
The engine oil level can be seen on the

instrument panel display every time the

engine is started, or on the Connect

system display using the "Vehicle

Information" widget (see the Connect

supplement for more information).
Use the 6 segments on the display to

check that the oil level is between MIN

and MAX level: 1 segment = MIN level,

6 segments = MAX level. If the oil level

indication reaches the first red mark,

add oil through the filler 1, considering

that each notch shown on the display

corresponds to approximately:

2.9 V6 Engine

0.055 UK gal (250 ml)

2.0 T4 MAir engine

0.055 UK gal (250 ml)

2.2 JTD Engine

0.053 UK gal (200 ml)

If the

symbol and the corresponding

message "Insufficient engine oil level"

light up on the display of the instrument

panel, top up 1 litre of engine oil as soon

as possible.

In case of oil change or top-up, check the

amount introduced using the dipstick.

The level must NEVER be over the MAX

line.
The oil level must be checked with

the dipstick with the engine warm

(temperature of about 198°F/ 90°C) after

waiting 5 minutes.

82)

WARNING Make sure not to add too

much engine oil when topping up. Engine

oil in excess may damage the engine.

Have the car checked. Never exceed the

MAX level when topping up engine oil.

It is advisable to check the oil level in

intermediate steps on the instrument

panel display. Use the oil dipstick on the

QV version to check the level.

2.9 V6 engine

: If the level is over the MAX

line on the dipstick, go to a dedicated

Alfa Romeo Dealership.
WARNING The oil level is not refreshed

immediately on the display of the

instrument panel after topping up.

Consequently, wait for the oil level to

be refreshed on the display following to

procedure shown below.

Oil level manual checking procedure

2.9 V6 Engine

With the car on level ground, check that

the oil level is between the MIN and MAX

marks on the dipstick (6). Take out the

engine oil dipstick (6), clean it with a lint-

free cloth and reinsert it. Extract the

dipstick again and check that the level is

between the MIN and MAX marks on it.

82)

WARNING Make sure not to add too

much engine oil when topping up. Engine

oil in excess may damage the engine.

Have the car checked. Never exceed

the MAX level when topping up engine

oil. It is advisable to check the oil level

in intermediate steps using the oil that

dipstick.
WARNING The oil level is not refreshed

immediately on the display of the

instrument panel after topping up.

Consequently, wait for the oil level to

be refreshed on the display following to

procedure shown below.
WARNING The manual engine oil level

checking procedure must be carried out,

when necessary, on a cold engine only.

Never attempt to carry out the manual

engine oil checking procedure (using the

dipstick) with the engine hot. Contact

with the surrounding hot engine parts

could cause burns.

2.0 T4 MAir and 2.2 JTD engines

Have this operation performed at an Alfa

Romeo Dealership.

Oil level indication update on display

If a top-up is needed, proceed as follows

to ensure correct indication of the oil

level on the display.

CarManuals2.com

 MAINTENANCE AND CARE

220

2.9 V6 Engine

Proceed as follows:

with the car level, run the engine for

approximately 5 minutes (temperature

of approximately 198°F/ 90°C) and then

stop the engine;

wait for at least 5 minutes, turn the

ignition switch in ON position without

starting the engine and wait for a few

seconds.
If the level indication is not updated after

the previously described procedure,

repeat the engine adjustment, stop the

engine and wait a further 5 minutes

before starting it again. If the indication

is not updated after the second start,

contact the dedicated Alfa Romeo

Dealership.
WARNING In normal working conditions,

the oil level indication is shown on the

instrument panel display. In case of oil

level sensor failure (condition indicated
by the lighting of the

symbol on the

instrument panel display), use the oil

dipstick in the engine compartment

EXCLUSIVELY for the time needed to

restore correct operation of the oil level

sensor. The latter operation must be

performed at a dedicated Alfa Romeo

Dealership.

2.2 JTD Engine

Proceed as follows:

with the car level, leave the engine

running until the third oil temperature

segment lights on the display on the

instrument panel, then stop the engine;

wait for at least 3 minutes, turn the

ignition switch to ON without starting the

engine and wait for 20 seconds.

Procedure for reading the engine oil level

with the engine running and idling

Proceed as follows:

with the car stopped, parked on level

ground, run the engine until the second

oil temperature notch lights on the

display on the instrument panel;

idle the engine and wait at least 1

minute for the correct reading.

2.0 T4 MAir engine

Proceed as follows:

with the car level, run the engine for

approximately 5 minutes (temperature

higher than 176°F/ 80°C) and then stop

the engine;

start the engine again and idle it for

about 2 minutes.
WARNING If the indication is not correct

after the procedure, contact an Alfa

Romeo Dealership.

Engine oil consumption

83)

4)

The maximum engine oil consumption

is usually 0.88 lb (400 grams every

620 miles (1000 km). When the car is new,

the engine needs to be run in, therefore

the engine oil consumption can only be

considered stable after the first 3100 –

3700 miles (5000 – 6000 km).

ENGINE COOLANT

183)

84)

If the level is too low, unscrew reservoir

cap and add the fluid described in the

"Technical Specifications" section.

WINDSCREEN WASHER FLUID

184) 185)

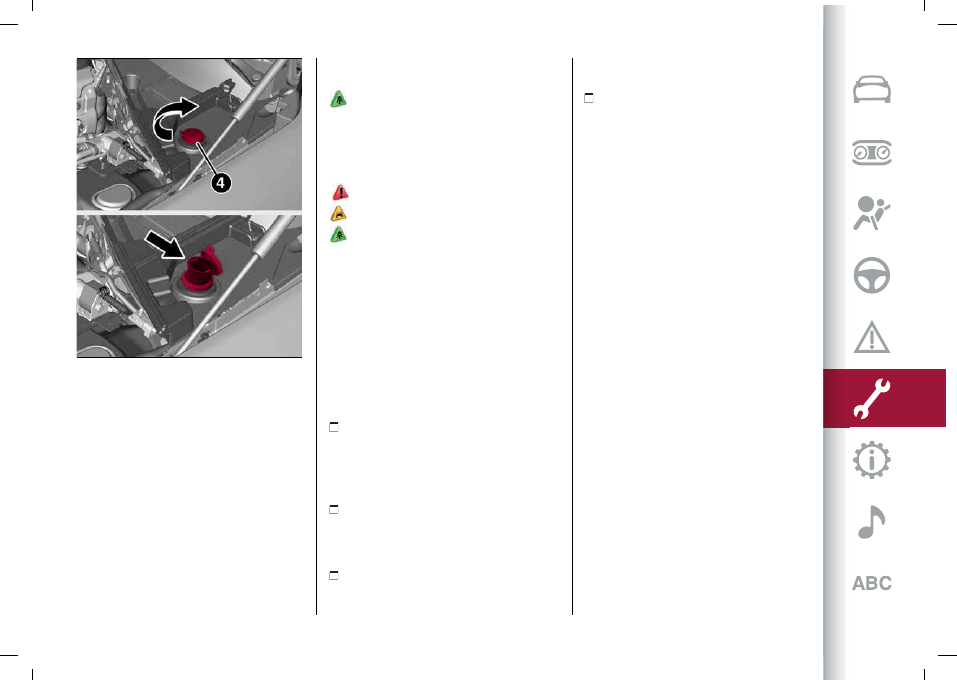

The windscreen fluid reservoir is

equipped with a telescopic filler.
If the level is too low, lift the reservoir

cap (4) fig. 251 upwards and then lift the

filler, as shown in the figure, and add

the fluid described in the "Technical

Specifications" section.
After having topped up the fluid, arrange

the filler correctly and then press on the

cap until you hear it click.

CarManuals2.com

221

251

09086S0666EM

BRAKE FLUID

Check that the fluid is at the max. level.
If the liquid level in the tank is

insufficient, contact an Alfa Romeo

Dealership to have the system checked.
WARNING Contact an Alfa Romeo

Dealership for any filling/replacement

operation.

AUTOMATIC TRANSMISSION

ACTIVATION SYSTEM OIL

5)

The transmission control oil level should

only be checked at an Alfa Romeo

Dealership.

BATTERY

186) 187) 188) 189)

85)

6)

The battery does not require the

electrolyte to be topped up with distilled

water. A periodic check carried out at

an Alfa Romeo Dealership is, however,

necessary to check efficiency.

Useful advice for extending the life of

your battery

To avoid draining your battery and make

it last longer, observe the following

instructions:

when you park the car, ensure that

the doors, boot and bonnet are closed

properly, to prevent any lights from

remaining on inside the passenger's

compartment;

switch off all ceiling lights inside the

car: the car is however equipped with a

system which switches all ceiling lights

off automatically;

do not keep accessories (e.g. Connect

system, hazard warning lights, etc.)

switched on for a long time when the

engine is not running;

before performing any operation on

the electrical system, disconnect the

negative battery cable.
If, after purchasing the car, you wish

to install electrical accessories

which require permanent electrical

supply (e.g. alarm, etc.) or accessories

which influence the electrical supply

requirements, contact an Alfa Romeo

Dealership, whose qualified staff

will evaluate the overall electrical

consumption.
WARNING If the battery was

disconnected, do not start the engine

immediately after reconnecting the

terminals, but press the start button,

without operating the pedals, to turn on

the instrument panel and then start the

engine.
WARNING If the charge level remains

under 50% for a long time, the battery

is damaged by sulphation, reducing its

capacity and efficiency at start-up. The

battery is also more prone to the risk

of freezing (at temperatures of 14°F / -

10°C).

Replacing the battery

If necessary, replace the battery with

another original battery with the same

specifications. Follow the battery

CarManuals2.com

 MAINTENANCE AND CARE

222

Manufacturer’s instructions for

maintenance.
WARNING It will not be possible to open

the boot with a key or by pressing the

button in the passenger compartment

when the battery is disconnected.

So, always extract the manual boot

opening strap before disconnecting the

battery. The procedure is described in

the "Prolonged car inactivity” chapter

this section.

WARNING

182)

If the engine oil is being topped up, wait

for the engine to cool down before loosening

the filler cap, particularly for vehicles with

aluminium cap (where provided). WARNING:

risk of burns!

183)

The cooling system is pressurised.

If necessary, only replace the plug with

another original or the operation of the

system may be adversely affected. Do not

remove the reservoir plug when the engine is

hot: you risk scalding yourself.

184)

Do not travel with the windscreen

washer fluid reservoir empty: the

windscreen washer is essential for

improving visibility.

185)

Some commercial additives for

windscreen washer fluid are flammable.

The engine compartment contains hot

components which may start a fire.

186)

Battery fluid is poisonous and

corrosive. Avoid contact with the skin and

eyes. Keep open flames away from the

battery and do not use objects that might

create sparks: risk of explosion and fire.

187)

Using the battery with low fluid will

irreparably damage the battery and may

cause an explosion.

188)

If the car must remain unused for a long

time at a very low temperature, remove the

conventional battery and take it to a warm

place, to avoid freezing.

189)

Always wear appropriate goggles to

protect your eyes when working on or near

the conventional battery.

IMPORTANT

81)

The oil level must never exceed the MAX

mark.

82)

If the MAX mark is exceeded (last notch

on the right turns red) after the top-up, go

to an Alfa Romeo Dealership as soon as

possible to have the oil in excess removed.

83)

Always top up using engine oil of the

same specifications as that already in the

engine.

84)

Use a fluid of the same type as that

already present in the reservoir for any

topping up of the engine cooling system.

The fluid cannot be mixed with other types

of antifreeze fluids. In the event of topping

up with an unsuitable product, under no

circumstances start the engine and contact

an Alfa Romeo Dealership.

85)

When you need to disconnect or remove

the battery, do not close the boot. In order

to avoid possible accidental closure, it is

recommended to place an obstacle (e.g.

a cloth) on the lock that would physically

avoid closure.

IMPORTANT

4)

Used engine oil and oil filters contain

substances which are harmful to the

environment. To change the oil and filters,

we advise you to contact an Alfa Romeo

Dealership.

5)

Used transmission oil contains

substances that may be dangerous for the

environment. You are advised to contact an

Alfa Romeo Dealership for oil changes.

6)

Batteries contain substances which

are very harmful for the environment.

For battery replacement, contact an Alfa

Romeo Dealership.

RECHARGING THE BATTERY

WARNINGS

190) 191)

86)

WARNING Before using the charging

device, always make sure that it is

appropriate for the installed battery,

with constant voltage (below 14.8 V) and

low amperage (maximum 15 A).
WARNING Recharge the battery in a well

ventilated environment.
WARNING Never charge or recharge a

frozen battery: it may explode because

of the hydrogen trapped inside the ice

crystals.
WARNING Whenever charging or

recharging the battery, make sure that

CarManuals2.com

223

any sparks or open flames are kept

sufficiently far away from the battery.
WARNING Before using any devices

to charge or maintain the battery

charge, carefully follow the instructions

provided with the device in order to

properly and safely connect it to the car

battery.
You can recharge the battery without

disconnecting the wires of the electrical

system of the car.
Proceed as follows:

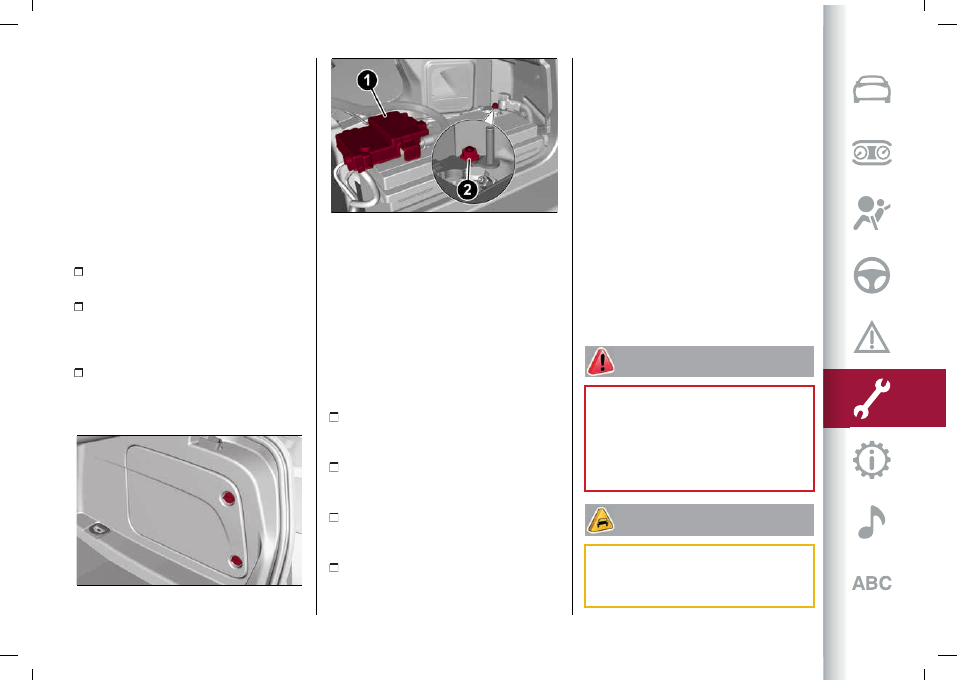

to access the battery, remove the

access panel inside the boot fig. 252;

remove the protective cover (1) fig. 253

and connect the positive cable terminal

of the charger (usually red) to the

positive terminal (+) of the battery;

connect the terminal of the negative

cable of the charger (usually black) to nut

(2) next to the negative terminal (-) of the
battery, as shown in fig. 253;

252

09036S0001EM

253

09036S0002EM

The car is equipped with an IBS

(Intelligent Battery Sensor) on the

negative battery terminal (-), which

is able to measure the charge and

discharge voltage and calculate the

charge level and the general condition of

the battery.
For a correct charge/discharge

procedure, the charge voltage must go

through the IBS sensor.

switch the charger on and follow the

instructions on the user's manual to

completely recharge the battery;

when the battery is charged, turn the

charger off before disconnecting it from

the battery;

first disconnect the black cable

terminal of the battery charger and then

the red cable terminal;

refit the protective cover of the

positive terminal of the battery

and the access cover to the battery

compartment.
WARNING If a "quick-type" battery

charger is used with the battery fitted

on the vehicle, before connecting it

disconnect both cables of the battery

itself. Do not use a "quick-type" battery

charger to provide the starting voltage.
WARNING It will not be possible to open

the tailgate with a key or by pressing the

button in the passenger compartment

when the battery is disconnected. So,

always extract the manual tailgate

opening strap before disconnecting the

battery. The procedure is described in

the "Prolonged car inactivity” chapter

this section.

WARNING

190)

The process of charging or recharging

the battery produces hydrogen, a

flammable gas that can explode and cause

serious injury.

191)

When charging or recharging the

battery, always follow the precautions

listed.

IMPORTANT

86)

When you need to disconnect or remove

the battery, do not close the boot. In order

to avoid possible accidental closure, it is

recommended to place an obstacle (e.g.

CarManuals2.com

 MAINTENANCE AND CARE

224

a cloth) on the lock that would physically

avoid closure.

SERVICING PROCEDURES

192) 193) 194)

87) 88) 89) 90) 91) 92) 86)

The following pages contain the rules on

the

required

maintenance envisaged by

the technical personnel who designed

the car.
In addition to these specific maintenance

instructions specified for routine

scheduled servicing, there are other

components which may require

intervention or replacements over the

vehicle’s life cycle.

ENGINE OIL

Engine oil level check

89)

To ensure correct engine lubrication, the

oil must always be kept at the prescribed

level (see "Engine compartment" in this

chapter).
Check the oil level at regular intervals,

for example every 1860 mi (3000 km).
It must be checked about 5 minutes after

stopping the engine, once full operating

temperature is reached. The vehicle must

also be parked on as level a surface as

possible.

Ensure that the oil level is always

between the minimum and maximum

limits.

Quadrifoglio versions

: Ensure that

the oil level is within the interval on the

dipstick between the minimum and

maximum limits.
The engine oil level can be checked using

the Connect system.
To access the function, use the "Vehicle

settings" widget and then press the

corresponding graphic button (for

more information see the "Vehicle

information" chapter in the Connect

supplement).

Changing the engine oil

See the "Scheduled servicing plan" for

the correct servicing intervals.

Choice of engine oil type

To ensure optimal performance and

maximum protection in all operating

conditions, it is advisable to use

solely ACEA-certified engine oils (see

description in "Fluid and lubricants" in the

"Technical specifications" chapter).

Additives for engine oil

It is strongly recommended not to use

additives (other than leak detection

dyes) with the engine oil.
The engine oil is a product designed

specially for the car and its performance

may be deteriorated through the use of

further additives.

Disposal of used engine oil and filters

For the disposal of the engine oil and

filters, contact the appropriate body to

determine local regulations.
WARNING Used engine oil disposed

of incorrectly may seriously harm the

environment.

ENGINE OIL FILTER

Replacing the engine oil filter

The engine oil filter must be replaced

each time the engine oil is changed. It

is advisable to replace it with a genuine

spare part, specifically designed for this

car.

AIR FILTER

192)

Replacing the air cleaner

See the "Scheduled servicing plan" for

the correct servicing intervals. It is

advisable to replace it with a genuine

spare part, specifically designed for this

car.

AIR CONDITIONING SYSTEM

MAINTENANCE

94) 95)

To ensure the best possible

performance, the air conditioning

system must be checked and undergo

maintenance at an Alfa Romeo

Dealership at the beginning of the

summer.

CarManuals2.com

225

WARNING Do not use chemicals to clean

the air conditioning system, since the

internal components may be damaged.

This kind of damage is not covered by

warranty.

Replace the pollen filter

See the "Scheduled servicing plan" for

the correct servicing intervals. For

cleaner replacement, contact an Alfa

Romeo Dealership.

LUBRICATING MOVING PARTS OF THE

BODYWORK

Ensure that the locks and bodywork

junction points, including components

such as the seat guides, door hinges

(and rollers), tailgate and bonnet are

periodically lubricated with lithium-

based grease to ensure correct, silent

operation and to protect them from rust

and wear.
Thoroughly clean the components,

eliminating every trace of dirt and dust.
After lubricating, eliminate excess oil

and grease. Also pay particular attention

to the bonnet closing devices, to ensure

correct operation. During operations on

the bonnet, to be carried out with the

engine cold, also remember to check,

clean and lubricate the locking, release

and safety devices.
Lubricate the external lock barrels twice

a year. Apply a small amount of high-

quality lubricant directly into the lock

barrel.
If necessary, contact an Alfa Romeo

Dealership as soon as possible.

WINDSCREEN WIPER

Periodically clean the windscreen and

rear window and rubber profile of the

windscreen wiper blades, using a sponge

or a soft cloth and a non-abrasive

detergent. This eliminates the salt or

impurities accumulated when driving.
Prolonged operation of the windscreen

window wipers with dry glass may

cause the deterioration of the blades, in

addition to abrasion of the surface of the

glass. To eliminate the impurities on the

dry glass, always operate the windscreen

washers.
In the event of very low outdoor

temperatures, below zero degrees,

ensure that the movement of the rubber

part in contact with the glass is not

obstructed.
Use a suitable deicing product to release

it if required.
Avoid using the windscreen wipers to

remove frost or ice.
Also avoid contact of the rubber profile

of the blades with petroleum derivatives

such as engine oil, petrol, etc.
WARNING The envisaged life of the

windscreen wiper blades varies

according to the usage frequency. In any

case, it is advisable to replace the blades

approximately once a year. When the

blades are worn, noise, marks on the

glass or streaks of water may be noticed.

In the presence of these conditions,

clean the windscreen wiper blades or, if

necessary, replace them.
WARNING Driving with worn windscreen

wiper blades is a serious hazard, because

visibility is reduced in bad weather

conditions.

Raising the windscreen wiper blades

("Service position" function)

The "Service position" function allows

the driver to replace the windscreen

wiper blades more easily. It is also

recommended to activate this function

when it is snowing and to make it easier

to remove any dirt deposits in the

area where the blades are normally

positioned, when washing.

Activation of the function

To activate this function, deactivate the

windscreen wiper (ring fig. 254 in position

O

) before setting the ignition device to

STOP.
This function can only be activated within

2 minutes of setting the ignition device

to STOP.
To activate this function, move the lever

upwards (unstable position) for at least

three seconds.

CarManuals2.com

 MAINTENANCE AND CARE

226

254

09046S0001EM

Function deactivation

The function is deactivated if:

wait for longer than 2 minutes before

turning the ignition device to the STOP

position, after having raised the lever,

and starting the Service procedure in this

way;

the ignition device is taken to position

ON and the windscreen wiper control.
If, after using the function, the ignition

device is set back to ON with the blades

in a position other than rest position (at

the base of the windscreen), they will

only return to rest position following a

command given using the stalk (stalk

upwards, into unstable position) or when

a speed of 3 mph (5 km/h) is exceeded.

Replacing the windscreen wiper blades

Proceed as follows:

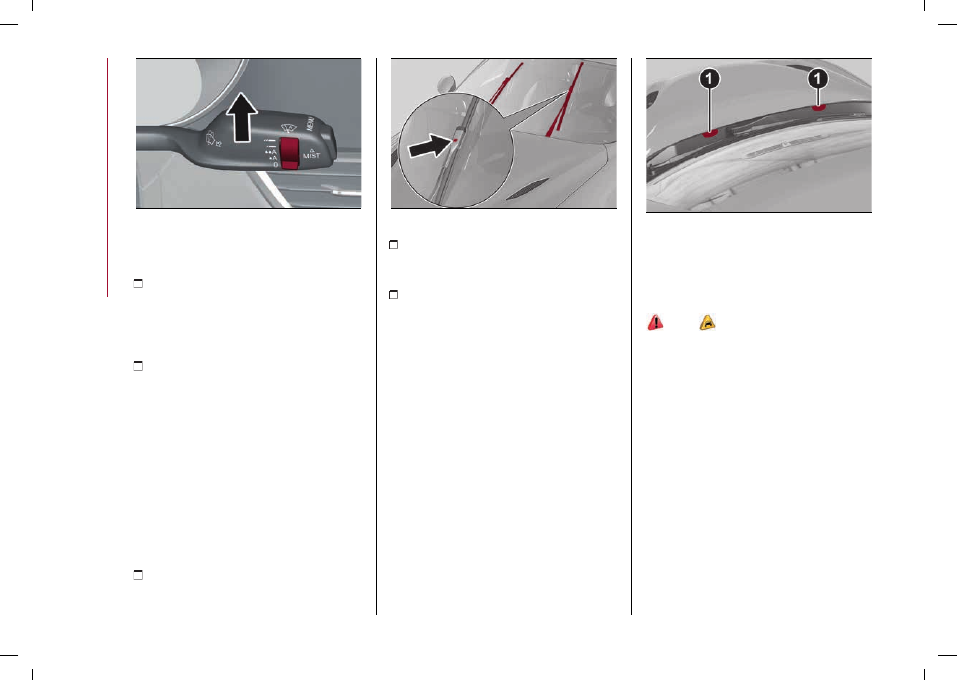

raise the wiper arm, press tab fig. 255

of the attachment spring and remove the

blade from the arm;

255

09046S0002EM

fit the new blade, inserting the tab in

the dedicated housing in the arm and

checking that it is locked;

lower the wiper arm onto the

windscreen.
WARNING Do not operate the

windscreen wiper with the blades lifted

from the windscreen.

Windscreen washer

The windscreen washer nozzles fig. 256

are fixed.
If there is no jet of fluid, firstly check

that there is fluid in the reservoir (see

paragraph “Engine compartment” in this

chapter).

256

09046S0003EM

Then check that the nozzle holes are not

clogged; use a needle to unblock them if

necessary.

EXHAUST SYSTEM

193) 194)

90)

Adequate maintenance of the engine

exhaust system represents the

best protection against leaks of

carbon monoxide into the passenger

compartment.
If an unusual noise from the exhaust or

the presence of smoke in the passenger

compartment is identified, or if the

underbody or rear part of the car have

been damaged, have the entire exhaust

system and adjoining bodywork areas

checked at an Alfa Romeo Dealership

to identify any components which are

broken, damaged, worn or have moved

from their correct fitting position.

CarManuals2.com

227

Open welding or loose connections

may permit exhaust gas to enter the

passenger compartment.
Have the exhaust system checked every

time the car is raised.
Replace the components where

necessary (for these operations, contact

an Alfa Romeo Dealership).
In normal operating conditions, the

catalytic converter does not require

maintenance. To ensure that it operates

correctly, however, and prevent it

from getting damaged, it is extremely

important that the engine operates

perfectly.
To minimise the risk of damaging the

catalytic converter, proceed as follows:

do not stop the engine or deactivate

the ignition device with gear engaged and

car in motion;

do not attempt to start the engine by

bump starting;

do not persist in using the car if

idling is very irregular or the operating

conditions are very notably irregular.

COOLING SYSTEM

Coolant (antifreeze) exiting from

the engine or vapour exiting from the

radiator can cause serious burns.
If vapour is seen coming from the engine

compartment, or its hissing is heard, do

not open the bonnet until the radiator

has cooled.
WARNING Never attempt to remove the

cap with radiator or expansion tank hot:

DANGER OF SCALDING!

Engine coolant check

Check the engine coolant level every

620 mi (1000 km) or before long trips.
If there are impurities in the engine

coolant, the system must be drained,

flushed and refilled: contact an Alfa

Romeo Dealership.
Check the front part of the condenser to

check for any build-up of insects, leaves

or other debris.
Should it be dirty, clean it by spraying

delicately with water.
Check the hoses of the engine cooling

system to ensure that the rubber has

not deteriorated and that there are no

cracks, tears, cuts or obstructions in

the expansion tank side and radiator

side connectors. Should there be any

doubt regarding leaks from the system

(e.g. if frequent top ups are required),

have the seal checked at an Alfa Romeo

Dealership.
With the engine off and at normal

operating temperature, check that the

cooling system radiator cap is closed

properly.

WARNING DO NOT remove the cap if the

fluid is boiling: DANGER OF SCALDING.
WARNING Before removing the engine

coolant reservoir cap, wait for the

system to cool down.

Topping up / draining / flushing the

engine coolant

If the engine coolant (antifreeze) is dirty,

have cleaning and flushing carried out at

an Alfa Romeo Dealership.
See the "Scheduled servicing plan" for

the correct servicing intervals.

Important notes

For topping up, use a fluid with the

same characteristics as those indicated

in the "Fluids and lubricants" table (see

"Technical specifications" chapter).

Do not use pure water, alcohol-based

coolants, corrosions inhibitors or

additional anti-rust products because

they may be incompatible with the

engine coolant and cause the clogging of

the radiator. The use of propylene glycol-

based coolant is also not recommended.

Engine cooling system cap

To prevent loss of engine coolant, make

sure that the expansion tank cap is

closed. If it is open, screw it completely

until you reach/hear the click.
Periodically check the cap and clean it

from any foreign bodies that may have

deposited on the external surface.

CarManuals2.com

 MAINTENANCE AND CARE

228

Important notes

Never add coolant with the engine hot

or overheated.

Do not attempt to cool an overheated

engine by loosening or removing the cap.

The heat causes a considerable increase

in pressure in the cooling system.

To prevent damage to the engine,

only use the engine cooling circuit caps

provided.

Disposal of used engine coolant

Disposal of engine coolant is subject

to legal requirements: contact the

appropriate body to determine local

regulations.

Important notes

To prevent the fluid from being

ingested by children or animals, do not

keep it in open containers or pour it on

the ground. If ingested, contact a doctor

immediately. Eliminate any traces of

fluid from the ground immediately.

When the car stops after a short

journey, vapour may be seen coming

out from front of the bonnet. This is a

normal phenomenon which is due to

the presence of rain, snow or a lot of

moisture on the surface of the radiator.

With engine and system cold, do not

top up with coolant beyond the maximum

level indicated on the reservoir in the

engine compartment.

BRAKING SYSTEM

The guarantee the efficiency of the

braking system, periodically check its

components: for this operation, contact

an Alfa Romeo Dealership.
See the "Scheduled servicing plan" for

the correct servicing intervals.
WARNING Driving with the pedal resting

on the brake pedal may compromise

its efficiency, increasing the risk of

accidents. While driving, never keep your

foot on the brake pedal and do not put

unnecessary strain on it to prevent the

brakes from overheating: excess pad

wear may cause damage to the braking

system.

Important notes

When a low oil level is detected,

contact an Alfa Romeo Dealership as

soon as possible to have the system

checked.

Always keep the cap of the brake fluid

reservoir (in the engine compartment)

completely closed.

TRANSMISSION

91)

Use only transmission oil with the same

specifications as those indicated in

the "Fluids and lubricants" table (see

"Technical specifications" chapter).

Special additives

Do not use any type of additive with

the automatic transmission oil. The

automatic transmission oil is a product

designed specially for this car and its

performance may be compromised

through the use of further additives.
Avoid the use of transmission sealers,

since they may compromise the

efficiency of the automatic transmission

seals.
WARNING Do not use chemicals to flush

the transmission, since this may damage

its components.

Frequency of oil changes

In normal car operating conditions,

it is not necessary to change the

transmission oil.
If fluid leaks are noticed or irregular

operation of the transmission is

detected, have it checked immediately at

an Alfa Romeo Dealership.
WARNING Driving the vehicle with an

insufficient oil level may cause serious

damage to the transmission.

REPLACING THE BATTERY

If necessary, replace the battery

with another battery with the same

specifications. It is advisable to

contact an Alfa Romeo Dealership for

replacement.

CarManuals2.com

229

Follow the battery manufacturer's

instructions for maintenance.
WARNING It will not be possible to open

the boot with a key or by pressing the

button in the passenger compartment

when the battery is disconnected. So,

always extract the manual boot opening

strap before disconnecting the battery.

The procedure is described in the

"Prolonged vehicle inactivity" paragraph

in this chapter.

93)

WARNING

192)

The air intake system (air cleaner,

rubber hoses, etc.) can be a protection in

the case of blowbacks from the engine. DO

NOT REMOVE this system unless you need

to carry out repair or maintenance. Before

starting the engine, ensure that the system

has not been removed: failure to observe

this precaution may result in serious injury.

193)

Exhaust emissions are very dangerous,

and may be lethal. They contain carbon

monoxide, a colourless, odourless gas which

can cause fainting and poisoning if inhaled.

194)

The exhaust system may reach high

temperatures and may cause a fire if the

car is parked on flammable material. Dry

grass or leaves can also catch fire if they

come into contact with the exhaust system.

Do not park or use the car in a place in which

the exhaust system might come into contact

with flammable material.

IMPORTANT

87)

Incorrect servicing of the car or failure

to carry out operations or repairs (when

necessary) may lead to more expensive

repairs, damage to other components

or have a negative impact on the car

performance. Have any malfunction

inspected immediately by an Alfa Romeo

Dealership.

88)

The car is filled with fluids which are

optimised or protecting its performance

and life and extending service intervals.

Do not use chemicals for washing these

components since they may damage the

engine, the transmission or the climate

control system. This damage is not covered

by the car’s warranty. If any component

needs to be washed due to malfunctioning,

use only the specific liquid for that

procedure.

89)

An excessive or insufficient amount of

oil inside the base is extremely damaging

to the engine. Make sure it is always at an

adequate level.

90)

Vehicles equipped with catalytic

converter must be fuelled only with

unleaded petrol. Leaded petrol would

permanently damage the catalytic

converter and eliminate its ability to reduce

polluting emissions, seriously compromising

the engine performance, which would be

irreparably damaged. If the engine does

not work correctly, especially if it starts

irregularly or if there is a reduction of

its performance, immediately go to an

Alfa Romeo Dealership. Prolonged and

faulty operation of the engine may cause

overheating of the converter and, as a

consequence, possible damage to the

converter and the car.

91)

Using transmission fluid different from

that approved may compromise the quality

of gear changes and/or cause vibration of

the transmission.

92)

It is recommended to have the car

serviced by an Alfa Romeo Dealership.

When carrying out normal periodic

operations and small servicing interventions

personally on the car, it is recommended

to use suitable equipment, genuine spare

parts and the necessary fluids. Do not carry

out any interventions if you do not have the

necessary experience.

93)

When you need to disconnect or remove

the battery, do not close the boot. In order

to avoid possible accidental closure, it is

recommended to place an obstacle (e.g.

a cloth) on the lock that would physically

avoid closure.

94)

Always require the use of only

compressor coolants and lubricants

approved and suitable for the specific air

conditioning system fitted on the car. Some

non-approved coolants are flammable and

may explode, with the risk of injuries. The

use of non-approved coolants or lubricants

may adversely affect system efficiency,

leading to expensive repairs.

95)

The air conditioner system contains

coolant under high pressure: to avoid

injuries to people or damage to the system,

any coolant addition or repair that requires

to disconnect the cables must be carried out

by an Alfa Romeo Dealership.

CarManuals2.com

 MAINTENANCE AND CARE

230

LIFTING THE CAR

If the car needs to be jacked up, go to

an Alfa Romeo Dealership which is

equipped with shop jacks or jack arms.
The car lifting points are marked on
the side skirts with the symbols

(see

illustration in fig. 257).

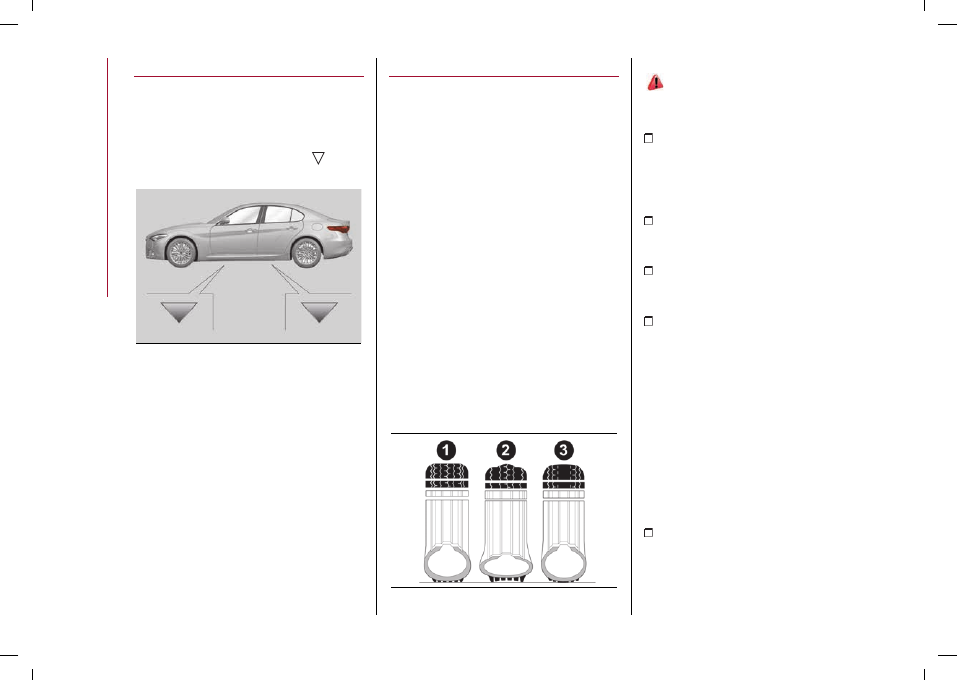

257

09056S0001EM

WHEELS AND TYRES

SAFETY INFORMATION

Before embarking on a long trip, and

every two weeks, check the tyre inflation

pressure. Check the tyres when cold.
It is normal for the pressure to

increase when the vehicle is used due

to tyre heating; for the correct tyre

inflation pressure, see the "Rims and

Tyres" paragraph in the "Technical

specifications" chapter.
Incorrect pressure causes abnormal tyre
wear fig. 258:
1 -

normal pressure

: tread evenly worn;

2 -

low pressure

: tread particularly worn

at the edges;
3 -

high pressure

: tread particularly worn

in the centre.
The tyres must be replaced when the

tread reaches the minimum thickness

reference on the tyres themselves.

258

09066S0001EM

GENERAL INFORMATION

195) 196) 197)

Take the following precautions to

prevent damage to the tyres:

avoid braking suddenly, racing starts

and violent impact against the curb,

potholes or other obstacles and driving

for extended periods on uneven road

surfaces;

periodically check that the tyres

have no cuts in the side wall, abnormal

swelling or irregular tread wear;

avoid travelling with the vehicle

overloaded. If a tyre is punctured, stop

immediately and change it;

every 6200/9300 miles (10000/15000

kilometres) switch the tyres, keeping

them on the same side of the car in order

not to change the rotation direction

(if the tyres are the "one-way" type).

Tyres with unidirectional tread can be

recognised by arrows on the side of

the tyre which indicate the direction of

rotation. It is compulsory to comply with

this direction. Only in this way can the

tyres maintain their characteristics in

terms of grip, noise, resistance to wear

and drainage on wet surfaces;

tyres age even if they are not used

much. Cracks in the tread and on the

sidewalls are a sign of ageing. In any

event, have the tyres checked by

CarManuals2.com

231

specialised personnel if they have been

fitted for longer than 6 years;

in the case of replacement, always fit

new tyres, avoiding those of unknown

origin.

RIMS AND TYRES

For the type of wheel rims and tyres

fitted on the vehicle see the "Rims and

Tyres" paragraph in the "Technical data"

chapter.

SNOW CHAINS

96)

Rear Wheel Drive and All-wheel drive

versions

0.28 inch (7 mm) snow chains can be used

on all tyres. For tyres up to 8.86 in (225

mm in width (225/55 R16, 225/50 R17,

225/45 R18), it is also possible to install

0.35 in (9 mm) chains.

Quadrifoglio version

It is possible to put chains on the rear

265/35R19 tyre (winter tyre size).

Avoid using traditional chains as

they can damage the braking system

if not installed correctly, thereby

compromising the car’s safety.
We strongly advise using zero-clearance

chains and to use equipment proposed

by the Dedicated Alfa Romeo Dealership.

Important notes

The use of snow chains should be in

compliance with local regulations of

each country. In certain countries, tyres

marked with code M+S (Mud and Snow)

are considered as winter equipment;

therefore their use is equivalent to that

of the snow chains.
The snow chains may be applied only to

the rear wheel tyres.
Check the tension of the snow chains

after the first few metres have been

driven.
WARNING Using snow chains with

tyres with non-original dimensions may

damage the vehicle.
WARNING Using different size or

type (M+S, snow, etc.) tyres between

front and rear axle may adversely

affect car driveability, with the risk of

losing control of the car and resulting

accidents.

SUGGESTIONS ABOUT THE ROTATION

OF THE TYRES

The front and rear tyres are subject

to different loads and stress due to

steering, manoeuvres and braking. For

this reason they are subject to uneven

wear.
To resolve this problem, tyres should be

rotated at the appropriate (6200/9300

miles - 10000/15000 km). Inverting the

tyres means moving them to different

positions on the same side of the car

(front to back and vice versa).

WARNING Crossing the tyres is not

advised, so placing a tyre on a different

axle on the other side of the car is

impossible.
WARNING On cars equipped with

differentiated tyres (tyre size different

between front and rear axles, ex. QV

version) rotation of any of the tyres is

not advised.
Tyre rotation contributes to the

preservation of the grip and traction

performance on wet, muddy or snowy

roads, guaranteeing optimal driveability

of the vehicle.
In the case of irregular wear of the tyres

identify the cause and correct it as soon

as possible, by contacting an Alfa Romeo

Dealership.
The suggested method for inverting
the tyres is shown in fig. 259 (the arrow

indicates the travel direction of the car).

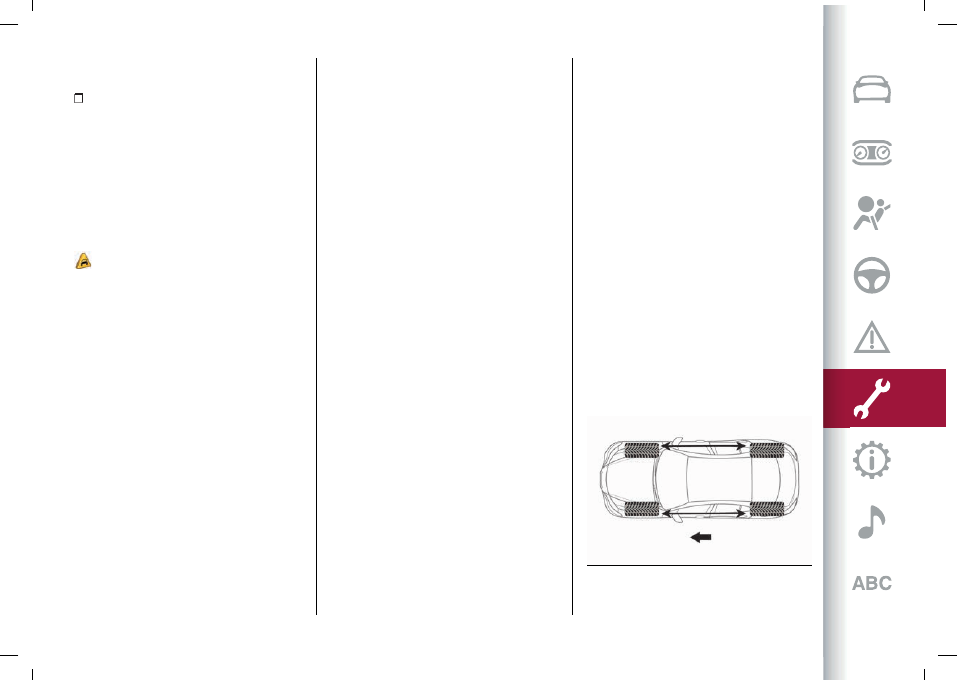

259

09066S0002EM

CarManuals2.com

 MAINTENANCE AND CARE

232

It is recommended to avoid situations

with a large difference in wear between

the front and rear tyres and to strictly

use winter tyres of the sizes given in the

“Rims and tyres provided” table.
The AWD systems and the original

tyres were developed together to

ensure the vehicle’s best performance.

When changing the tyres, it is therefore

recommended to use the same “AR”

marked tyres, to maintain the same level

of performance and component life.

WARNING

195)

The road holding qualities of the

car also depend on the correct inflation

pressure of the tyres.

196)

If tyre pressure is too low, it may

overheat and be severely damaged as a

result.

197)

Do not repaint alloy wheel rims at

temperatures higher than 150°C. The

mechanical features of the wheels could be

compromised.

IMPORTANT

96)

Keep your speed down when snow

chains are fitted; do not exceed 50 km/h (or

the equivalent in miles). Avoid potholes, do

not drive over steps or pavements and do

not drive long distances over roads without

snow, to avoid damaging both your vehicle

and the road surface.

CAR INACTIVITY

If the car is left inactive for longer than a

month, the following precautions should

be observed:

park the car in covered, dry and if

possible well-ventilated premises and

slightly open the windows;

check that the electric parking brake is

not activated;

carry out the procedure: “Opening the

tailgate manually”, in the “Boot” chapter

of the “Knowing your car" section;

disconnect the negative battery

terminal and check the battery charge.

Repeat this check once every three

months during storage;

if the battery is not disconnected from

the electrical system, check its state of

charge every thirty days;

clean and protect the painted parts

using protective wax;

clean and protect the shiny metal

parts using special compounds available

commercially;

sprinkle talcum powder on the

windscreen wiper rubber blades and lift

them off the glass;

cover the car with a fabric or

perforated plastic sheet, paying

particular care not to damage the

painted surface by dragging any dust

that may have accumulated on it.
Do not use compact plastic sheets which

do not allow humidity to evaporate from

the surface of the car;

inflate tyres to 7.2 psi (+0.5 bar) above

the standard prescribed pressure and

check it periodically;

do not drain the engine cooling system;
any time the car is left inactive for

two weeks or more, operate the air

conditioning system with engine idling

for at least 5 minutes, setting external

air and with fan set to maximum speed.

This operation will ensure appropriate

lubrication for the system, thus

minimising the possibility of damage to

the compressor when the system is

operated again.
WARNING After setting the ignition

device to STOP and having closed

the driver side door, wait at least

one minute before disconnecting the

electrical supply from the battery. When

reconnecting the electrical supply to the

battery, make sure that the ignition

device is in the STOP position and the

driver's door is closed.

All-Wheel Drive (AWD) versions

CarManuals2.com

233

BODYWORK

PROTECTION AGAINST ATMOSPHERIC

AGENTS

The car is equipped with the best

available technological solutions to

protect the bodywork against corrosion.
These include:

painting products and systems which

give the car resistance to corrosion and

abrasion;

use of galvanised (or pre-treated) steel

sheets, with high resistance to corrosion;

spraying of plastic parts, with a

protective function in the more exposed

points: underdoor, inner wing, edges, etc.;

use of “open” boxed sections to

prevent condensation and pockets

of moisture which could favour the

formation of rust inside;

use of special films to protect against

abrasion in exposed areas (e.g. rear wing,

doors, etc.).

BODY AND UNDERBODY WARRANTY

Your car is covered by warranty against

perforation due to rust of any original

element of the structure or bodywork.

For the general terms of this warranty,

refer to the Warranty Booklet.

PRESERVING THE BODYWORK

Paintwork

97) 98)

7)

Touch up abrasions and scratches

immediately to prevent the formation of

rust.
Maintenance of paintwork consists of

washing the car: the frequency depends

on the conditions and environment

where the car is used. For example, it is

advisable to wash the car more often in

areas with high levels of atmospheric

pollution or salted roads.
Some parts of the car may be coated

with matt paintwork which, in order to be

maintained intact, requires special care:

see the instructions in the warning at the

end of this paragraph.

99)

To correctly wash the car, follow these

instructions:

if high pressure jets or cleaners are

used to wash the car, hold at least 15.8 in

(40 cm) away from the bodywork to

avoid damage or alteration. Build up of

water could cause damage to the car in

the long term;

in order to make it easier to remove

any debris in the area where the brushes

are normally placed, it is advised to put

vertically the windscreen wiper (Service

Position). For more information refer to

the “Maintenance procedures” chapter in

this section;

wash the bodywork using a low

pressure jet of water if possible;

wipe a sponge with a slightly soapy

solution over the bodywork, frequently

rinsing the sponge;

rinse well with water and dry with a jet

of air or a chamois leather.
Dry the less visible parts (e.g. door

frames, bonnet, headlight frames, etc.)

with special care, as water may stagnate

more easily in these areas. Do not wash

the car after it has been left in the sun or

with the bonnet hot: this may alter the

shine of the paintwork.
Exterior plastic parts must be cleaned in

the same way as the rest of the car.
If you want to wash the car in a car

wash which moves it, you must do the

following:

make sure that the car is on a flat

surface and that automatic engagement

of the parking brake when the engine

is switched off is disabled (for how to

disable it, refer to the "Electric parking

brake" chapter in the "Starting and

driving" section);

with the car stationary, the gear in N

(Neutral) and the brake pedal up: press

the start button. The car will remain in

N (Neutral) for 15 minutes, after which P

(Park) mode will be activated.
Avoid parking under trees; the resin

dropped by trees makes the paintwork

CarManuals2.com

 MAINTENANCE AND CARE

234

go opaque and increases the possibility

of corrosion.

Windows

Use specific detergents and clean cloths

to prevent scratching or altering the

transparency.
WARNING Wipe the rear window inside

gently with a cloth following the direction

of the filaments to avoid damaging the

heating device.

Headlights

Use a soft cloth soaked in water and

detergent for washing cars.
WARNING Never use aromatic

substances (e.g. petrol) or ketones (e.g.

acetone) for cleaning the plastic lenses

of the headlights.
WARNING When cleaning the car with

a pressure washer, keep the water jet

at least 8 in (20 cm) away from the

headlights.

ENGINE COMPARTMENT WASHING

100)

If the engine compartment is washed (at

low pressure, e.g. in very dusty areas),

this must be done with the engine cold

and with ignition device turned to STOP.

Take care not to direct the water

jet straight at the electronic control

modules or the wiper motors. Have this

operation performed by a specialised

workshop. After washing, check that the

various protective components (e.g.

rubber guards and caps) have not been

removed or damaged.

IMPORTANT

97)

In order to preserve the appearance of

the paint abrasive products and/or polishes

should not be used for cleaning the car.

98)

Abrasive products and/or polishes

should not be used for cleaning the car. Bird

droppings must be washed off immediately

and thoroughly as the acid they contain is

particularly aggressive. Avoid parking the

vehicle under trees (unless it is absolutely

necessary). Remove any resinous plant

matter immediately because, once it has

dried, it may require the use of abrasive

and/or polishing products to be removed,

which are strongly discouraged as they

could potentially alter the characteristics of

the paintwork. Do not use pure windscreen

washer fluid for cleaning the front

windscreen and rear window; dilute it min.

50% with water. Only use pure screen

washer fluid when strictly necessary due to

outside temperature conditions. Do not use

chemicals/acids to defrost windows/vehicle

glass as they can damage the paint.

99)

Avoid washing with rollers and/or

brushes or a pressure washer with a

high-pressure jet in washing stations.

Wash the car only by hand using neutral

pH detergents; dry it with a wet chamois

leather. Abrasive products and/or polishes

should not be used for cleaning the car. Bird

droppings must be washed off immediately

and thoroughly as the acid they contain is

particularly aggressive. Avoid (if at all

possible) parking the car under trees;

remove vegetable resins immediately

as, when dried, it may only be possible to

remove them with abrasive products and/or

polishes, which is highly inadvisable as they

could alter the typical opacity of the paint.

Do not use pure windscreen washer fluid

for cleaning the front windscreen and rear

window; dilute it min. 50% with water. Only

use pure screen washer fluid when strictly

necessary due to external temperature

conditions. Do not use chemicals/acids to

defrost windows/vehicle glass as they can

damage the paint.

100)

A high pressure jet cleaner should

not be used for cleaning the engine

compartment. The appropriate precautions

have been taken to protect all parts and

connections, but the pressures generated by

these devices are so high that complete

protection against water seepages cannot

be guaranteed.

IMPORTANT

7)

Detergents pollute the water. The vehicle

should be washed in areas equipped for

collecting and purifying the liquid used in the

washing process.

CarManuals2.com

235

INTERIOR

198) 199) 200) 201)

Periodically check the cleanliness of the

interior, beneath the mats, which could

cause oxidation of the sheet metal.

SEATS AND FABRIC PARTS

Use a specific product to clean carpets

and fabric upholstery.
Remove dust with a soft brush or a

vacuum cleaner.
It is advisable to use a moist brush on

velvet upholstery. Rub the seats using a

soft microfibre cloth moistened with a

solution of water and neutral detergent.

LEATHER SEATS

(where provided)
Remove the dry dirt with a chamois or

slightly damp cloth, without exerting too

much pressure.
Remove any liquid or grease stains using

an absorbent dry cloth, without rubbing.

Then clean with a soft cloth or chamois

leather dampened with water and mild

soap. If the stain persists, use specific

products and observe the instructions

carefully.
WARNING Never use alcohol. Make sure

that the cleaning products used contain

no alcohol or alcohol derivatives, even in

small quantities.

Cleaning heat press images on seats

(where provided)
Due to the colour, opacity and wear-

resistant protection with which the heat

press images on some seat versions are

made, they may be subject to temporary

scratching if they are touched by finger

nails, keys, or other hard objects.
In such cases, the visible signs do not

impair the profiled images, and can easily

be removed by wiping the affected area

with a microfibre cloth moistened with

water (not dry) to restore the seat to its

original condition.
WARNING The microfibre cloth must not

have been previously soaked in other

substances or detergents.

PLASTIC AND COATED PARTS

101)

Clean interior plastic parts with a damp

cloth (if possible made from microfibre),

and a solution of water and neutral, non-

abrasive detergent.
To clean oily or persistent stains,

use specific products free from

solvents and designed to maintain the

original appearance and colour of the

components.
Remove any dust using a microfibre

cloth, if necessary moistened with

water. The use of paper tissues is not

recommended as these may leave

residues.

ALCANTARA PARTS

(where provided)

102)

Alcantara parts maintenance procedure:

treat the surface with a microfibre

cloth moistened with mild marseille soap

and water, taking care to cover the entire

covered area and applying a uniform light

pressure (do not rub vigorously);

rinse and wring out the microfibre

cloth, and pass it again over the covered

area treated according to the previous

point;

let it dry then brush gently with a soft

brush.

LEATHER AND SOFT TOUCH PARTS

(where provided)
To clean these components, use a soft

microfibre cloth moistened with a

solution of water and neutral detergent.
Before using a specific product for

cleaning interiors, make sure that it does

not contain alcohol and/or alcohol-based

substances or solvents.

CARBON FIBRE PARTS

To eliminate small scratches and

marks on the carbon, contact an Alfa

Romeo Dealership Authorized Point. An

improperly performed operation may

irreparably damage the carbon.

CarManuals2.com

 MAINTENANCE AND CARE

236

WARNING

198)

ever use flammable products, such as

petrol ether or rectified petrol to clean the

inside of the car. The electrostatic charges

which are generated by rubbing during the

cleaning operation may cause a fire.

199)

Do not keep aerosol cans in the car:

they might explode. Aerosol cans must not

be exposed to temperatures above 50°C.

Temperatures may greatly exceed this

value inside a car exposed to direct sunlight.

200)

There must be no obstacles on the

floor under the pedals. Make sure that mat

are always flat and do not interfere with the

pedals.

201)

Do not use aggressive organic

substance such as: petrol, kerosene, oil,

acetone or solvents.

IMPORTANT

101)

Never use alcohol, petrols and

derivatives to clean the dashboard and

instrument panel lens.

102)

Do not use "hard" synthetic brushes as

they could damage the fabric irreparably.

Do not perform partial, localized

interventions that could cause "aesthetic"

differences between the treated and

untreated areas. Do not use alcohol or

acetone-based solvents.

CarManuals2.com

Everything you may find useful for understanding how your

vehicle is made and works is contained in this section and

illustrated with data, tables and graphics.

For the enthusiasts and the technician, but also just for those

who want to know every detail of their car.

TECHNICAL SPECIFICATIONS

IDENTIFICATION DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .238
ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .239
TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
RIMS AND WHEELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .242
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .247
WEIGHTS AND LOADS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
REFUELLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
FLUIDS AND LUBRICANTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255
PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .259
FUEL CONSUMPTION AND CO2 EMISSIONS . . . . . . . . . . . . . . . . . . . . . . . 260
PRESCRIPTIONS FOR HANDLING THE CAR AT THE END OF ITS

LIFE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

CarManuals2.com















Content      ..     5      6      7      8     ..
