173

fault persist, contact an Alfa Romeo

Dealership.

System Fault Message

If the system switches off and the
system

appears on the instrument

panel display, it means that there is a

failure on the system.
In this case, it is still possible to drive the

vehicle, but you are advised to contact

an Alfa Romeo Dealership as soon as

possible.

IMPORTANT

59)

Projecting loads on the roof of the car

may interfere with the correct operation of

the camera. Before starting make sure the

load is correctly positioned, in order not to

cover the camera operating range.

60)

If the windscreen must be replaced due

to scratches, chipping or breakage, contact

exclusively an Alfa Romeo Dealership. Do

not replace the windscreen on your own, risk

of malfunction! It is advisable to replace the

windscreen if it is damaged in the area of

the camera.

61)

Do not tamper with nor operate on the

camera. Do not close the openings in the

aesthetic cover located under the interior

rear-view mirror. In the event of a failure

of the camera, contact an Alfa Romeo

Dealership.

62)

Do not cover the operating range of the

camera with stickers or other objects. Also

pay attention to other objects on the bonnet

(e.g. a layer of snow) and make sure they do

not interfere with the camera.

63)

The camera may have limited or absent

operation due to weather conditions such

as: heavy rain, hail, thick fog, heavy snow,

formation of ice layers on the windscreen

glass.

64)

Camera operation may also be

compromised by the presence of dust,

condensation, dirt or ice on the windscreen

glass, by traffic conditions (e.g. cars that

are driving not aligned with yours, car

driving in a transverse or opposite way on

the same lane, bend with a small radius of

curvature), by road surface conditions and

by driving conditions (e.g. off-road driving).

Make sure the windscreen is always clean.

Use specific detergents and clean cloths

to avoid scratching the windscreen. The

camera operation may also be limited or

absent in some driving, traffic and road

surface conditions.

LANE KEEPING ASSIST (LKA)

SYSTEM

(where provided)

DESCRIPTION

59) 60) 61) 62)

The Lane Keeping Assist system

makes use of a camera located on the

windscreen to detect the lane limits and

calculate the position of the car within

such limits, in order to make sure that it

remains inside the lane.
When one or both lane limits are

detected and the vehicle approaches one

of them without the driver signalling the

intention to to do so (direction indicator

not on), the system will apply a torque to

the steering wheel to keep the vehicle in

the lane and will generate a visual signal

(the left or right lane will turn yellow).

According to the type of signal set, it can

also emit an acoustic signal and/or apply

a vibration to the steering wheel.
If the vehicle continues to pass the lane

without any intervention by the driver,

the surpassed line will light up on the

instrument panel display (the left or right

lane will turn yellow) to urge the driver to

return the vehicle into the limits of the

lane.

CarManuals2.com

 STARTING AND DRIVING

174

SYSTEM ON/OFF

The system can be turned on/off by
pressing the fig. 200 button or using

the "Driver Assistance" menu and then

selecting "Safety " on the Connect

system.
Each time the engine is started the

system maintains the operating mode

that was selected when it was previously

switched off.
The system is automatically switched off

when a trailer is coupled.

200

07226S0001EM

Activation conditions

Once switched on, the system becomes

active only if the following conditions are

met:

the car speed is equal to or higher

than 40 mph (60 km/h) (the system

is deactivated at speeds higher than

110 mph/ 180 km/h);

the lane limit lines are visible at least

on one side;

there are suitable visibility conditions;
the road is straight or with wide radius

bends;

a safe distance is kept from the vehicle

in front;

the direction indicator (for leaving the

lane) is not active.

SYMBOLS AND MESSAGES ON THE

DISPLAY

The Lane Keeping Assist system also

advises the driver when the car changes

lane by showing symbols and messages

on the instrument panel display.
Lane Keeping Assist information can

be displayed in the right-hand dial,
fig. 201, or in the central area (“Driver

Assistance”) of the display.
NOTE The information is only displayed

in the right-hand dial if the “Driver

Assistance” screen is not selected.
The different colours of the icons shown

on the display show the status of the

system (for more information, see the

description under “Lane keeping assist

symbols” in the “Warning lights and

messages” chapter in the “Knowing the

instrument panel” section).

201

9550224

When the system is active and the

lane limits have not been detected,

the display shows the following page,
fig. 202.

202

9550500

Exiting a lane with detection of a single

limit

When the system is active and only, for

example, the right lane limit has been

detected, the detected lane lights up

in white on the display; the system is

ready to provide visual warnings on the

display in the event of unintentional

CarManuals2.com

175

exiting of the lane (direction indicator

not activated) to the left.

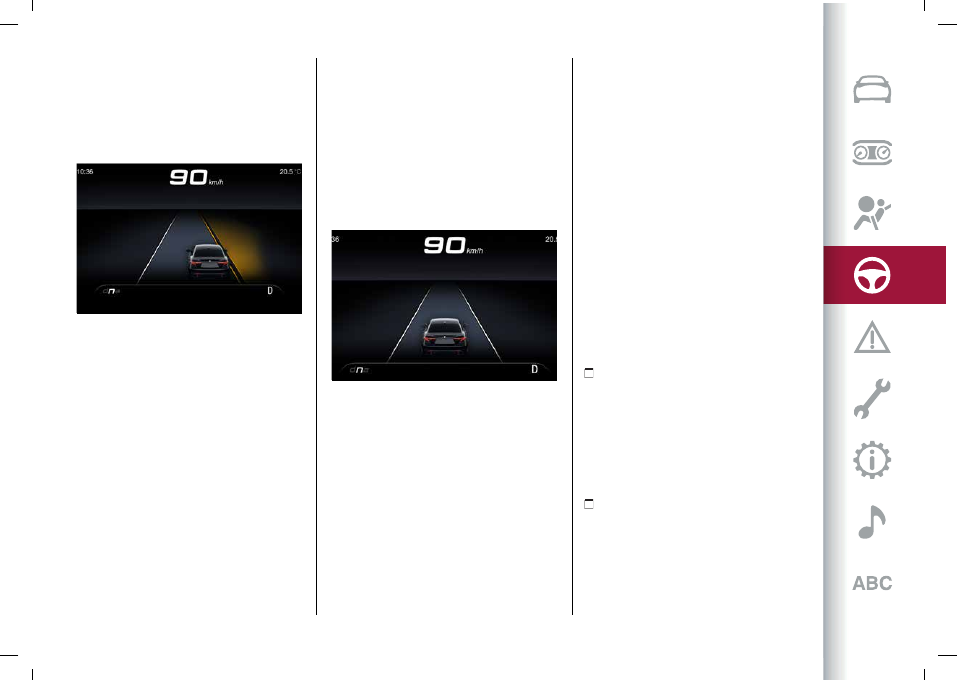

When the system detects that the car

has approached the lane line and is about

to pass it, the right line on the display
lights up in yellow, fig. 203.

203

9550496

If the system intervention lasts longer

than 10 seconds, an additional acoustic

and visual warning will be provided by

displaying a dedicated message on the

instrument panel display to prompt the

driver to regain control of the vehicle.
If Lane Keeping Assist intervenes several

times in a relatively short time without

the driver acting on the steering wheel,

increasingly longer warning tones will be

emitted to draw the driver's attention.
The system operates in the same way,

but mirrored, in the event of exiting the

left lane when only the left lane limit has

been detected.

Exiting a lane with detection of both

limits

When the system is active, the lane lines

on the display become white to indicate

the successful detection of the limits

fig. 204.
The system is ready to provide

indications in case it is accidentally

abandoned (direction indicator not

engaged).

204

9550497

In accordance with the different

conditions detected, the system can

attract the attention of the driver by

altering the lines that identify the lanes

on the instrument panel display. In

particular, the system can alter their

colour (from white to yellow and vice

versa).
The passing of the line is indicated also

by means of an acoustic warning, is

emitted from the loudspeakers on the

side of the lane limit being crossed (e.g. if

the vehicle is crossing the left line of the

lane, the acoustic warning will come from

the loudspeakers on the left).
If the system intervention lasts longer

than 10 seconds, an additional acoustic

and visual warning will be provided by

displaying a dedicated message on the

instrument panel display to prompt the

driver to regain control of the vehicle.
If Lane Keeping Assist intervenes several

times in a relatively short time without

the driver acting on the steering wheel,

increasingly longer warning tones will be

emitted to draw the driver's attention.

Hands presence on the steering wheel

detection

The system is able to detect the

presence of the driver's hands on the

steering wheel:

if you do not put your hands on

the steering wheel and the system

intervenes during a loss of control in a

lateral direction, the instrument panel

display will show dedicated screens and

beeps of progressive duration will be

emitted to prompt you to put your hands

back on the steering wheel;

if you continues not to put your hands

to the steering wheel after the system

intervenes, the read steering wheel and

a dedicated message will appear on the

instrument panel display.
In these two cases, the driver's hands

must be put back on the steering wheel.

CarManuals2.com

 STARTING AND DRIVING

176

Changing the system sensitivity

The system intervention sensitivity can

be adjusted using the "Driver Assistance"

menu on the Connect system. The

possible options are "High" or "Low".

Change of indications provided by the

system

The indications provided by the Lane

Keeping Assist system may be modified

using the Connect system.
Proceed as follows:

use the "Driver Assistance" menu;
select "Settings" and then select

"Warning type" or "Mode" and select one

of the required settings.

System limited operation warning

69) 70)

If the dedicated message is shown on

the instrument panel display, a condition

limiting the system operation may have

occurred. The possible reasons of this

limitation are something blocking the

camera view or a fault.
If an obstruction is signalled, clean the

area of the windscreen by the interior

rear-view mirror.
Although the car can still be driven in

normal conditions, the system may be

not completely available.
When the conditions limiting the system

functions end, this will go back to normal

and complete operation. Should the

fault persist, contact an Alfa Romeo

Dealership.

System Fault Message

If the system switches off and the
system

appears on the instrument

panel display, it means that there is a

failure on the system.
In this case, it is still possible to drive the

vehicle, but you are advised to contact

an Alfa Romeo Dealership as soon as

possible.

IMPORTANT

65)

Projecting loads on the roof of the car

may interfere with the correct operation of

the camera. Before starting make sure the

load is correctly positioned, in order not to

cover the camera operating range.

66)

If the windscreen must be replaced due

to scratches, chipping or breakage, contact

exclusively an Alfa Romeo Dealership. Do

not replace the windscreen on your own, risk

of malfunction! It is advisable to replace the

windscreen if it is damaged in the area of

the camera.

67)

Do not tamper with nor operate on the

camera. Do not close the openings in the

aesthetic cover located under the interior

rear-view mirror. In the event of a failure

of the camera, contact an Alfa Romeo

Dealership.

68)

Do not cover the operating range of the

camera with stickers or other objects. Also

pay attention to other objects on the bonnet

(e.g. a layer of snow) and make sure they do

not interfere with the camera.

69)

The camera may have limited or absent

operation due to weather conditions such

as: heavy rain, hail, thick fog, heavy snow,

formation of ice layers on the windscreen

glass.

70)

Camera operation may also be

compromised by the presence of dust,

condensation, dirt or ice on the windscreen

glass, by traffic conditions (e.g. cars that

are driving not aligned with yours, car

driving in a transverse or opposite way on

the same lane, bend with a small radius of

curvature), by road surface conditions and

by driving conditions (e.g. off-road driving).

Make sure the windscreen is always clean.

Use specific detergents and clean cloths

to avoid scratching the windscreen. The

camera operation may also be limited or

absent in some driving, traffic and road

surface conditions.

CarManuals2.com

177

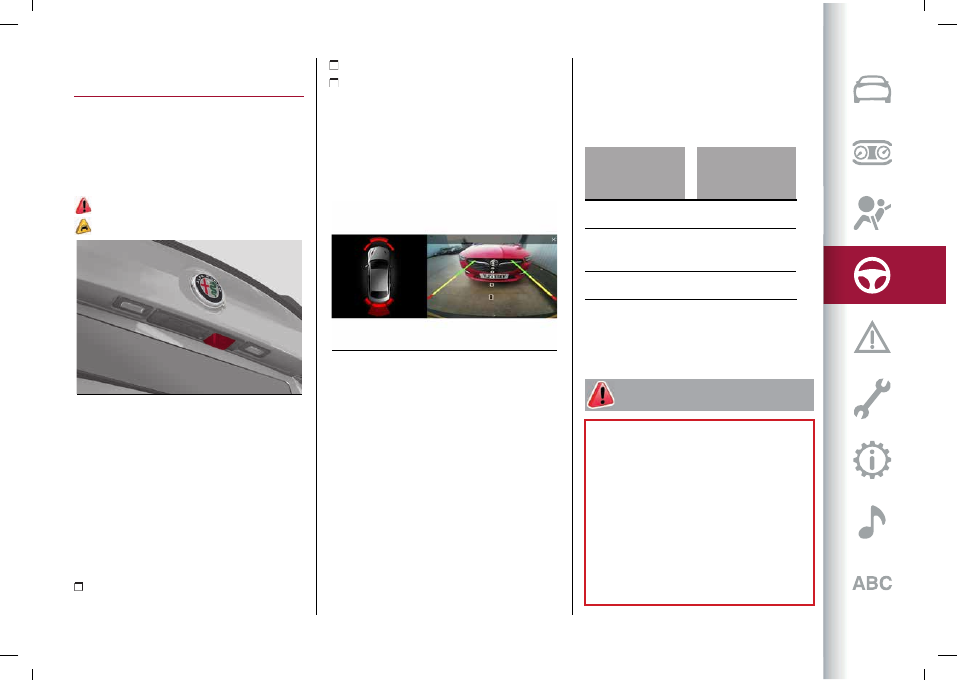

REAR BACK-UP CAMERA /

DYNAMIC GRIDLINES

(where provided)

DESCRIPTION

The Rear Back-up Camera is located on

the tailgate, near the opening button,
fig. 205.

150)

71)

205

07186S0001EM

Camera activation/deactivation

The function can be

activated/deactivated using the "Driver

Assistance" menu and then selecting

"Comfort" on the Connect system.

Activating the device

After activating the camera, it will be

possible to select one of the following

options:

"

Activate

"

"

Cam Delay

"

"

Camera Guidelines

"

Select "Activate" to activate the camera

view on the Connect system display.
Whenever reverse gear is engaged, the
Connect system display, fig. 206, will

show the area around the car, as seen by

the Rear View Camera.

Controllare l'intera area circostante

206

07186S0060EM

SYMBOLS AND MESSAGES ON THE

DISPLAY

Activating the "Camera Guidelines"

shows the guidelines on the display.

If activated, the grid is positioned on

the image to highlight the width of the

car and the expected reversing path in

accordance with the steering wheel

position.
A superimposed central broken line

indicates the centre of the car to

facilitate parking manoeuvres or tow

hook alignment. The various coloured

areas indicate the distance from the rear

of the car.
The table below shows the approximate
distances for each area fig. 206:

Area

Distance from the

rear of the

vehicle

Red

0 - 1 ft (0 – 30 cm)

Yellow

1 - 3.3 ft (30 cm - 1

m)

Green

3.3 ft (1 m) or more

WARNING When parking, take the

utmost care over obstacles that may be

above or under the operating range of

the camera.

WARNING

150)

Parking and other potentially

dangerous manoeuvres are, however,

always the driver’s responsibility. While

carrying out these manoeuvres, always

make sure that no people (especially

children) or animals are in the area

concerned. The camera is an aid for the

driver, but the driver must never allow

his/her attention to lapse during potentially

dangerous manoeuvres, even those

executed at low speeds. Always keep a slow

speed, so as to promptly brake in the case of

obstacles.

CarManuals2.com

 STARTING AND DRIVING

178

IMPORTANT

71)

It is vital, for correct operation, that

the camera is always kept clean and free

from any mud, dirt, snow or ice. Be careful

not to scratch or damage the camera while

cleaning it. Avoid using dry, rough or hard

cloths. The camera must be washed using

clean water, with the addition of vehicle

shampoo if necessary. In washing stations

which use steam or high-pressure jets, clean

the camera quickly, keeping the nozzle more

than 10 cm away from the sensors. Also, do

not apply stickers to the camera.

REFUELLING THE CAR

151) 152) 153)

Always stop the engine before refuelling.

PETROL ENGINES

Only use unleaded petrol with an octane

number (R.O.N.) not lower than 95

(EN228 specification).

DIESEL ENGINES

Only use Diesel fuel for motor cars

(EN590 specification).

Operation at low temperatures

If the external temperature is very low,

Diesel thickens due to the formation of

paraffin clots with consequent defective

operation of the fuel supply system.
In order to avoid these problems,

different types of Diesel are distributed

according to the season: summer type,

winter type and arctic type (cold,

mountain areas).
In the event of refuelling with diesel

which is unsuitable for the operating

temperature, it is advisable to mix

the diesel with a specific additive,

introducing it to the tank before the

anti-freeze and then the diesel.

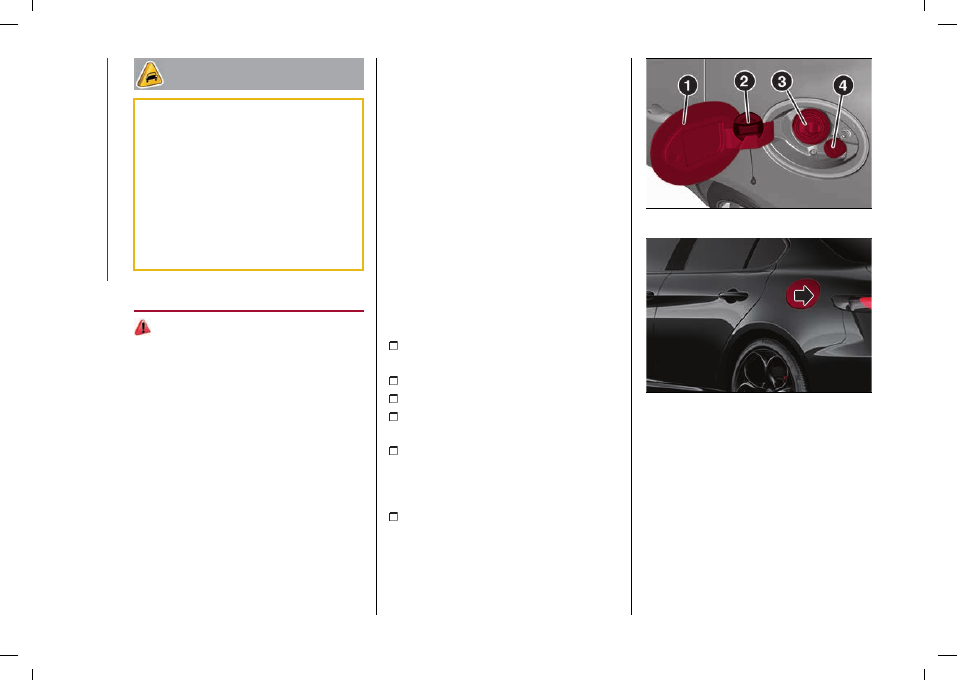

REFUELING PROCEDURE

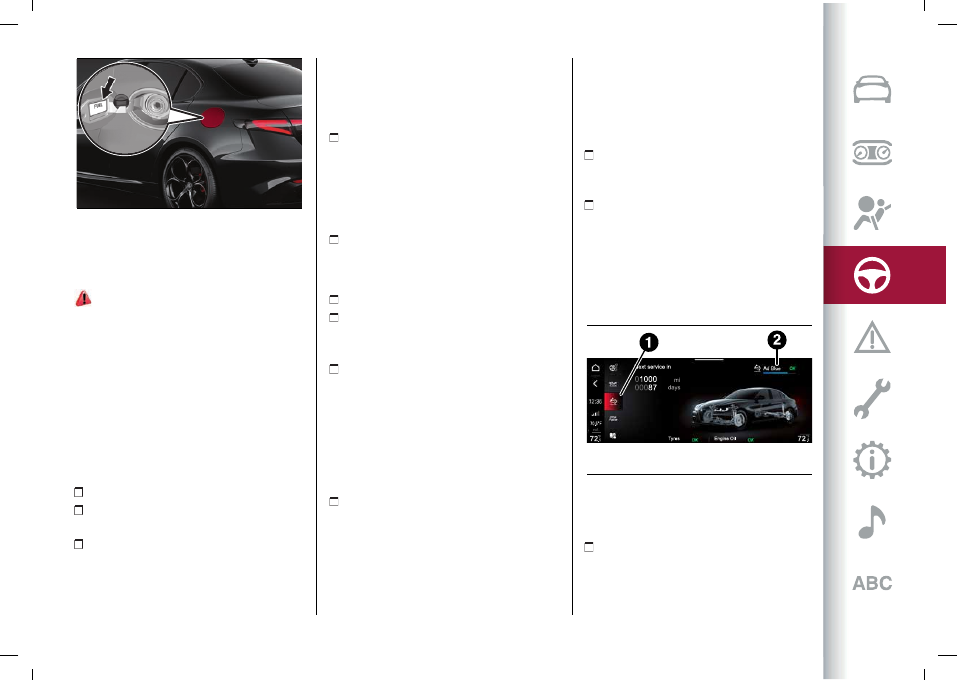

The fuel flap is unlocked when the central

door locking system is released, while it

is automatically locked when the central

locking system is applied.

Opening the flap

To refuel proceed as follows:

open the flap (1) fig. 207 by pressing on

the point shown by the arrow fig. 208;

remove the closing cap (2) fig. 207;
put the cap back in position;
insert the nozzle in the filler (3) fig. 207

and refuel;

once refuelling is complete, before

removing the fuel nozzle, wait at least 10

seconds to allow the fuel to flow into the

tank;

then remove the dispenser from the

filler, close the cap and then close the

flap.

207

07226S0041EM

208

07206S0001EM

The refuelling procedure described

previously is illustrated on the label

applied inside the fuel flap.
The label also has the fuel type

(UNLEADED FUEL = petrol; DIESEL =

diesel fuel) and the symbol that certifies

compliance with the EN228 (petrol),
EN590 (diesel) standards, fig. 209.

CarManuals2.com

179

209

9550503

TOPPING UP AdBlue® DIESEL

EMISSIONS ADDITIVE

(2.2 JTD versions only)

154)

Preliminary Conditions

AdBlue® freezes at temperatures lower

than 12.2 °F (-11 °C). If the car stands for

a long time at this temperature refilling

could be difficult. For this reason, it is

advised to park the car in a garage and/or

heated environment and wait for the

AdBlue® to return to liquid state before

topping up.
Proceed as follows:

park the car on level ground;
switch off the engine by turning the

ignition device to STOP;

open the fuel flap (1) fig. 207, undo

and remove the cap (4) (blue) from the
AdBlue® filler and place it in the specific

housing (the same one used for housing
the fuel cap (2), see fig. 207).

Refilling with nozzles

You can fill up at any AdBlue®

distributor.
Proceed as follows:

insert the AdBlue® nozzle in the filler,

start refilling and stop refilling at the

first shut-off (the shut-off indicates that
the AdBlue® tank is full). Do not proceed

with the refilling, to prevent spillage of
AdBlue®;

extract the nozzle.

Refilling with containers

Proceed as follows:

check the expiration date;
read the advice for use on the label

before pouring the content of the bottle
into the AdBlue® tank;

if systems which cannot be screwed in

(e.g. tanks) are used for refilling, after the

indication appears on the instrument

panel display (see “Indicator lights and

messages" chapter in the “Knowing

the instrument panel” section), fill the
AdBlue® tank with at least 1.11 UK gal (5

litres);

if containers which can be screwed to

the filler are used, the reservoir is full

when the AdBlue® level in the container

stops pouring out. Do not proceed

further.

AdBlue® level display

The level of AdBlue® inside the tank can

be viewed on the Connect system display
fig. 210.
Proceed as follows:

activate the "Vehicle Information"

function pressing the appropriate widget

on the Connect system display.

press the graphic button (1) fig. 210: the

level (2) of AdBlue® will appear on the

display.
If the AdBlue® level is not in reserve, the

message "OK" will appear on the display.
If the AdBlue® level is insufficient the

message "KO" will appear on the display.

210

12126S2311EM

Operations after refilling

Proceed as follows:

fit the cap (4) fig. 207 back on the

AdBlue® filler by turning it clockwise and

screwing it completely;

CarManuals2.com

 STARTING AND DRIVING

180

set the ignition device to ON (it is not

necessary to start the engine);

wait for the indication on the

instrument panel to switch off before

moving the car. The indication may stay

on for a few seconds to approximately

half a minute. If the engine is started

and the car is moved, the indication

will remain on for longer. This will not

compromise engine operation;

if the AdBlue® was topped up when

the tank was empty, see the “Refilling”

chapter in the “Technical Specifications”

section and wait for 2 minutes before

starting the engine.
WARNING If AdBlue® is spilled out of

the filler neck, clean up well the area and

proceed to filling up again. If the liquid

crystallises, eliminate it with a sponge

and warm water.

WARNING

DO NOT EXCEED THE MAXIMUM

LEVEL: this could cause damage to
the reservoir. AdBlue® freezes under

12.2 °F (-11 °C). Although the system is

designed to operate below the freezing
point of the AdBlue®, it is advisable not

to fill the tank beyond the maximum
level because if the AdBlue® freezes

the system can be damaged.
Comply with the instructions provided

in this paragraph.

If the AdBlue® is spilled on painted

surfaces or aluminium, immediately

clean the area with water and use

absorbent material to collect the fluid

that has been spilled on the ground.

Do not try to start the engine if the

AdBlue® was accidentally added to

the Diesel fuel tank, this can result in

serious engine damage, contact a Alfa

Romeo Dealership.

Do not add additives or other fluids

to AdBlue®, doing so could damage the

system.

The use of non-conforming

or degraded AdBlue® may lead

to indications appearing on the

instrument panel display (see

“Indicator lights and messages" chapter

in the “Knowing the instrument panel”

section).

Never pour AdBlue® into another

container: it could be contaminated.

In case of damage to the sewage

system of exhaust gas resulting from

the use of additives / tap water, the

introduction of diesel fuel, or at least

by not fulfilling the requirements, the

warranty expires.

If the AdBlue® runs out, see the

"Indicator lights and messages" chapter

in the "Knowing the instrument panel”

section to continue using the car

normally.

The AdBlue® level is not updated if

the car is parked on a sloping road.

The consumption of AdBlue®

emissions additive depends on the

conditions of use of the car and is

indicated by means of the symbol and a

dedicated message on the instrument

panel display.

Fuels - identification of vehicle

compatibility. Graphic symbol for

consumer information in accordance

with EN16942

The symbols, shown below, make it

easier to recognise the correct fuel type

to use with your car.
Before refuelling, check the symbols

(where provided) inside the fuel

filler flap and compare them with the

symbols shown on the fuel pump (where

provided).

Symbols for petrol powered cars

E5

: unleaded petrol containing up to 2.7%

(m/m) oxygen and with maximum 5.0%

(V/V) ethanol compliant with the EN228

specification.

E10

: unleaded petrol containing up to

3.7% (m/m) oxygen and with maximum

10.0% (V/V) ethanol compliant with the

EN228 specification.

CarManuals2.com

181

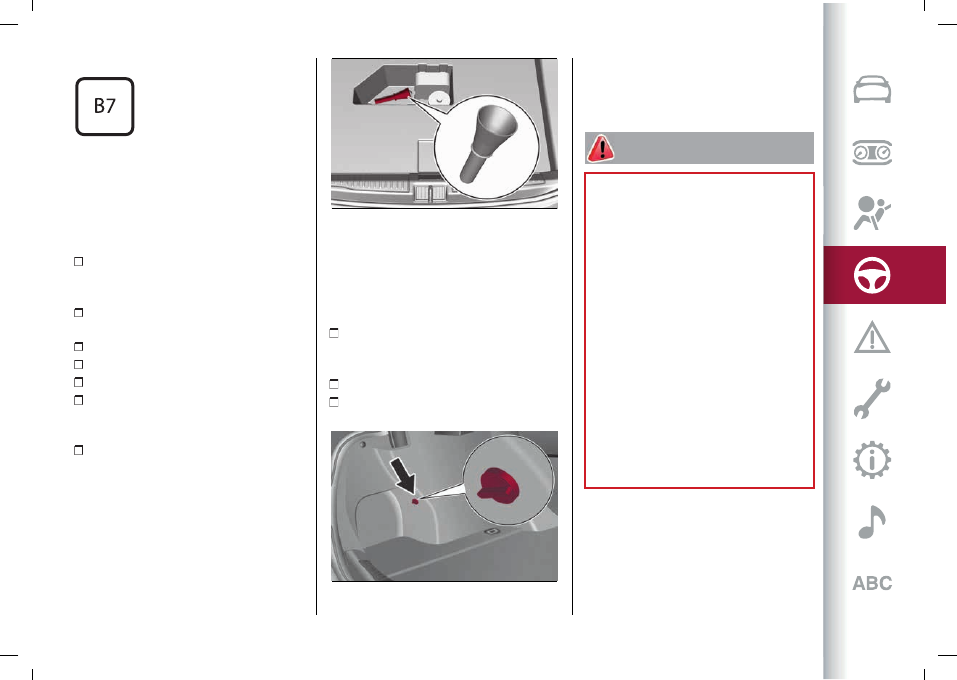

Symbols for diesel fuelled cars

B7

: diesel containing up to 7% (V/V)

of FAME (Fatty Acid Methyl Esters)

compliant with the EN590 specification.

Emergency diesel version refuelling

(where provided)
Proceed as follows:

open the boot and take out the

dedicated adapter, located under the
load platform fig. 211;

open flap fig. 208, pressing on the

point shown by the arrow;

remove the closing cap;
put the cap back in position;
insert the adapter into the filler;
when you have finished refuelling,

remove the adapter, close the cap and

then close the flap;

finally put the adaptor back in the

boot.

211

07206S0005EM

Emergency fuel flap opening

In the event of an emergency the fuel flap

can be opened by operating from inside

the boot.
Proceed as follows:

open the boot and reach the

emergency opening cable placed on the
side of the fuel filler fig. 212;

pull the cord to unlock the fuel flap;
open the fuel flap by pressing on it (see

the previous instructions).

212

07206S0006EM

WARNING If the filler compartment is

washed with a high-pressure jet, keep it

at a distance of at least 8 in (20 cm).

WARNING

151)

Do not apply any object/cap to the end

of the filler which is not provided for the

car. The use of non-compliant objects/plugs

could cause a pressure increase inside the

tank, resulting in dangerous situations.

152)

Do not approach naked flames or lit

cigarettes to the fuel tank filler: fire risk.

Keep your face away from the fuel filler to

prevent breathing in harmful vapours.

153)

Do not use a mobile phone near the

refuelling pump: risk of fire.

154)

If the AdBlue overheats for a prolonged

period inside the tank to over 50 °C (for

example, due to direct solar irradiation),

the AdBlue may decompose and produce

ammonia vapours. Ammonia vapours have

a pungent odour when the cap of the AdBlue

tank is unscrewed, therefore be careful

not to inhale any ammonia vapours in the

tank outlet. In this concentration, however,

the ammonia vapours are not harmful or

dangerous to health.

CarManuals2.com

 STARTING AND DRIVING

182

AdBlue® (UREA) ADDITIVE FOR

DIESEL EMISSIONS

(2.2 JTD versions only)
The car is equipped with an AdBlue®

(UREA) injection system and Selective

Catalytic Reduction to meet emission

standards.
These two systems ensure compliance

with the diesel emissions requirements;

at the same, they ensure fuel-efficiency,

handling, torque and power. For

messages and system warnings, refer

to the "Warning lights and messages"

chapter in the "Knowing the instrument

panel" section.
AdBlue® (UREA) is considered a very

stable product with a long shelf life.

Stored at temperatures LOWER than

89.6°F (32°C), it has a shelf life of at least

one year.
For more information on the AdBlue®

(UREA) liquid type, see the "Fluids and

Lubricants" chapter in the "Technical

Specifications" section.
The car is provided with an automatic
AdBlue® (UREA) system which, when the

engine is running, allows the system to

work correct at temperatures lower than

12.2°F (–11°C).
WARNING AdBlue® (UREA) freezes at

temperatures lower than 12.2°F (–11°C).

DRIVING TIPS

SAVING FUEL

Below are some suggestions which may

help you save fuel and thus lower the

amount of harmful emissions released

into the atmosphere.

Car maintenance

Checks and operations should be carried

out in accordance with the "Service

Schedule" (see the "Maintenance and

care" chapter).

Tyres

Check the tyre pressures at least once

every four weeks: if the pressure is too

low, consumption levels increase as

resistance to rolling is higher.

Unnecessary loads

Do not travel with an overloaded

boot. The weight of the car and its

arrangement greatly affect fuel

consumption and stability.

Electric devices

Use electrical devices only for the

amount of time needed. The heated

rear window, additional headlights,

screen wipers and heater fan require

a considerable amount of energy;

increasing the current uptake increases

fuel consumption (by up to +25% in an

urban cycle).

Climate control system

Using the climate control system will

increase consumption: use standard

ventilation when the temperature

outside permits.

Devices for aerodynamic control

The use of non-certified devices for

aerodynamic control may adversely

affect air drag and consumption levels.

DRIVING STYLE

Start

Do not warm up the engine at low or

high revs when the car is stationary;

this causes the engine to warm up

more slowly, thereby increasing fuel

consumption and emissions. It is

therefore advisable to move off

immediately, slowly, avoiding high

speeds: in this way the engine will warm

up more quickly.

Unnecessary actions

Avoid pressing the accelerator when

stationary.

Gear selection

Use a high gear when traffic and road

conditions allow it. Using a low gear

for faster acceleration will increase

fuel consumption. In the same way,

improper use of a high gear increases

consumption, emissions and engine wear.

CarManuals2.com

183

Top speed

Fuel consumption considerably increases

as speed increases. Maintain a constant

speed, avoiding unnecessary braking and

acceleration, which cost in terms of both

fuel consumption and emissions.

Acceleration

Accelerating violently severely affects

consumption and emissions: acceleration

should be gradual and should not exceed

the maximum torque.

CONDITIONS OF USE

Cold starting

Short journeys and frequent cold starts

do not allow the engine to reach optimum

operating temperature. Consequently,

both consumption (from +15 to +30%

on the urban cycle) and emissions will

increase.

Traffic and road conditions

High fuel consumption is caused

by heavy traffic, for instance when

travelling in a queue with frequent use of

low gears or in cities with many traffic

lights. Winding mountain roads and rough

road surfaces also adversely affect

consumption.

TRANSPORTING PASSENGERS

Warnings

WARNING It is extremely dangerous to

leave children in a parked car when the

temperature outside is very high. The

heat inside the passenger compartment

may have serious, or even fatal,

consequences.
WARNING Never travel in the internal

load compartment. In the event of an

accident, anyone inside the boot would

be at greater risk of serious or even fatal

injury.
WARNING Ensure that all the occupants

of the car wear their seat belts correctly

and that any children are positioned

correctly on the dedicated child restraint

systems.

TRANSPORTING ANIMALS

Deployment of the airbags may be

dangerous for an animal on the front

seat. It is therefore advisable to arrange

animals on the rear seat inside dedicated

cages restrained by the car’s seat belts.
Bear in mind also that, in the event of

a sudden braking or an accident, an

inadequately restrained animal may

be projected within the passenger

compartment, risking injury to the animal

itself and the other occupants of the car.

EXHAUST GAS

Adequate maintenance of the exhaust

system represents the best protection

against leaks of carbon monoxide into

the passenger compartment.
Should an unusual noise from the

exhaust system or the presence

of exhaust gas in the passenger

compartment be identified, or if the

underbody or rear part of the car is

damaged, have the entire exhaust

system and adjoining bodywork areas

checked to identify any components

which are broken, damaged, worn or have

moved from their correct fitting position.

For these operations, contact an Alfa

Romeo Dealership.

QV VERSION

PERFORMANCE

For safe driving, it is essential,

particularly during the first days of

use, to get to know the car by driving

carefully and gradually discovering its

performance.

BRAKES

155)

WARNING Water, ice and salt spread on

the roads may deposit on the brake discs,

reducing braking efficiency the first time

the brakes are applied.
WARNING For maximum efficiency of

the braking system, a bedding-in period

of about 310 mi (500 km) is needed:

during this period it is better to avoid

sharp, repeated and prolonged braking.
The car braking system may optionally

fit four carbon-ceramic material brake

discs, one on each wheel.
In order to guarantee the maximum

braking capacity for the first use, Alfa

CarManuals2.com

 STARTING AND DRIVING

184

Romeo performs a "run-in" procedure for

discs and pads directly at the factory.
The use of carbon-ceramic material

brake discs guarantees braking features

(better deceleration/pedal load ratio,

braking distances, fading resistance)

proportional to the dynamic features

of the car in addition to considerably

decreasing the unsprung component

weight.
The materials used and the structural

features of the system could generate

anomalous noises which have absolutely

no adverse effect on correct operation

and reliability of the braking system.
Greater pressure may need to be applied

to the brake pedal the first time to keep

the same braking capacity in presence

of condensation or salt on the braking

surfaces, for example after washing or if

the car is not used for a long time.
WARNING Given the high technological

level of this system, any servicing on it

must be performed by a Dedicated Alfa

Romeo Dealership with the exclusive

skills needed for the repair operations.
WARNING In case of intensive, high-

performance use of the car, have the

condition of the carbon-ceramic material

braking system inspected at a Dedicated

Alfa Romeo Dealership, as shown on the

Service Schedule.

DRIVING ON RACE TRACKS

Before driving on a track using a racing

style, it is necessary to:

Attend a race track driving course.
Check the liquid levels in the engine

compartment. For more information,

see the “Checking levels” paragraph in

the “Servicing and care” chapter of the

Owner Handbook.

Have the vehicle inspected at a

Dedicated Alfa Romeo Dealership.
Remember that the car was not designed

to be driven exclusive on the race track

and that this use increases stress and

component wear.

Overheating of the brakes

The braking system components may

overheat when driving on mountain roads

with steep gradients or during sporty use

of the car. When this happens, there may

be noise/vibrations while braking.
When you reach the destination, do not

stop the engine immediately, but leave it

idling for a few minutes to let the braking

system components cool down and to

lubricate the engine parts properly.
To make the car safe when it is parked,

apply the safety provisions of the

Highway Code before leaving the car:

engage P (Park) mode;
position the wheels at full lock;

engage the electric parking brake;
when parked on a steep slope, place

chocks or stones behind the wheels.

Preheating the carbon ceramic material

brake discs

The brake discs must be warmed up

to make them fully efficient. You are

advised to perform the following

procedure:

brake nine times from 80 mph

(130 km/h) to 20 mph (30 km/h) with

deceleration equal to 0.7 g (the

longitudinal acceleration value is shown

on the instrument panel display by

setting RACE mode and selecting the

“Performance” page) with 20 second

intervals between brake applications;

keep the car at a speed comprised

between 37 mph (60 km/h) and 60 mph

(100 km/h) and do not brake for 240

seconds to allow the brakes to cool

down;

then brake three times from 230

mph (200 km/h) to 20 mph (30 km/h)

with deceleration equal to 1.1 g (ABS

operation) with 30 second intervals

between brake applications; keep the car

at a speed comprised between 37 mph

(60 km/h) and 60 mph (100 km/h) and do

not brake for 300 seconds to allow the

brakes to cool down.

CarManuals2.com

185

WARNING

155)

After the car has been stopped for a

long time in a very cold place (temperature

below 0 °C), for the first five brakes, the

carbon-ceramic braking system efficiency is

not optimal, so you may need slightly more

pressure on the brake pedal.

CarManuals2.com

Have a flat tyre or a burnt-out bulb?

At times, a problem such as these may interfere with your

driving experience.

The pages on emergencies can help you to deal with critical

situations independently and calmly.

In an emergency, we recommend that you call the phone

number found in the Warranty Booklet.

You can also use the universal, national or international

freephone number to find your nearest Alfa Romeo

Dealership.

IN AN EMERGENCY

HAZARD WARNING LIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
SOS CALL AND ASSIST CALL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
REPLACING A BULB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .191
FUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

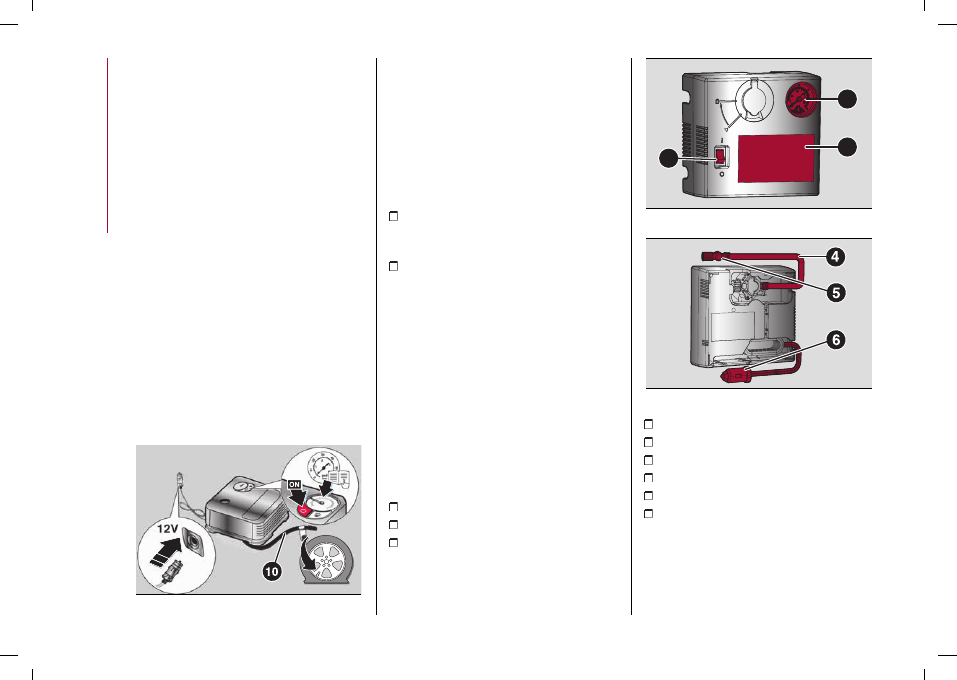

TYRE REPAIR KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
RUN FLAT TYRES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
JUMP STARTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
FUEL CUT-OFF SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .202
ENGINE OVERHEATING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .202
AUTOMATIC TRANSMISSION GEAR LEVER RELEASE . . . . . . . . . . . . .203
TOWING A BROKEN-DOWN CAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203
TOWING THE CAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

CarManuals2.com

 IN AN EMERGENCY

188

HAZARD WARNING LIGHTS

CONTROL

72)

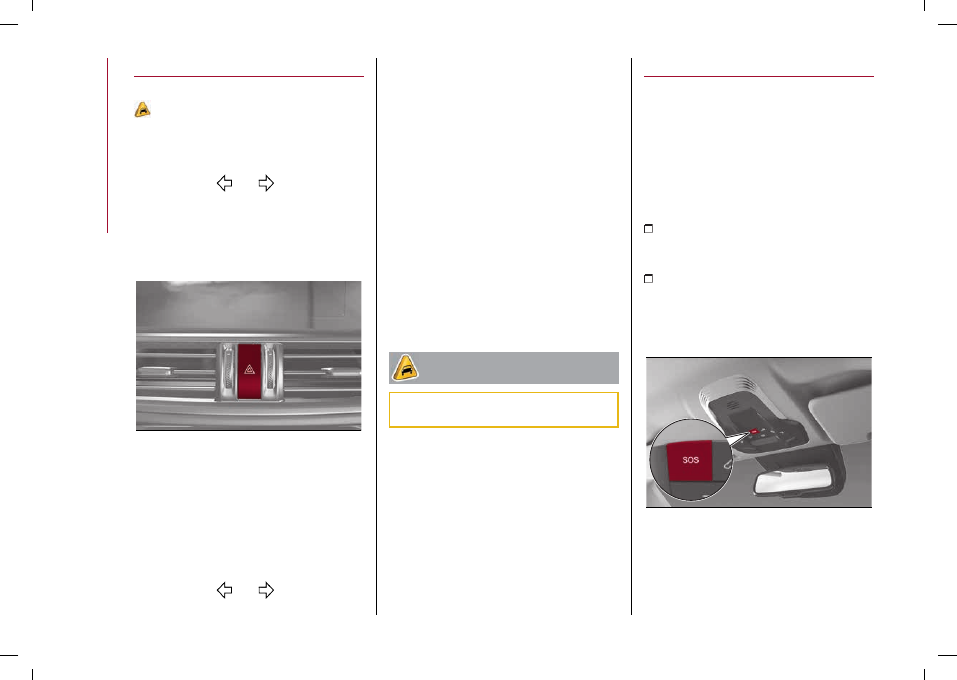

Press hazard lights button fig. 213 to

switch the lights on/off.
When the hazard lights are on, the
warning lights

and

flash.

When you need to move away from

the vehicle to look for help, the hazard

warning lights will continue flashing

even if the ignition device is in the STOP

position.

213

08016S0001EM

WARNING The use of hazard warning

lights is governed by the highway code

of the country you are driving in: comply

with legal requirements.

Emergency braking

In the event of emergency braking, the

hazard lights are switched on and the
warning lights

and

appear on

the instrument panel, depending on the

mode selected by the “Alfa DNA™ Pro”

selector.
When the "Alfa DNA™ Pro" selector

is in position "n" or "a", the activation

threshold of the hazard warning lights is

higher; on the other hand, in position "d"

the sensitivity of the activation is lower

than that in the "n" and "a" modes.
With the "Alfa DNA™ Pro" selector in the

"RACE” position (where provided), the

hazard warning lights do not activate.
The lights switch off automatically when

emergency braking ceases. For further

details about the emergency braking, see

the "Active safety systems" chapter in

the "Safety" section.

IMPORTANT

72)

A prolonged use of the hazard warning

lights may discharge the battery.

SOS CALL AND ASSIST CALL

(for versions/markets where provided)
The car is equipped with on-board

assistance functions designed to provide

support in the event of accident and/or

emergency (SOS) or malfunctions of the

vehicle (roadside assistance - ASSIST)

managed by means of Alfa Connect Box.
The SOS function is activated:

automatically in the event of a major

collision recorded by the device aboard

the car;

manually, by pressing the SOS button

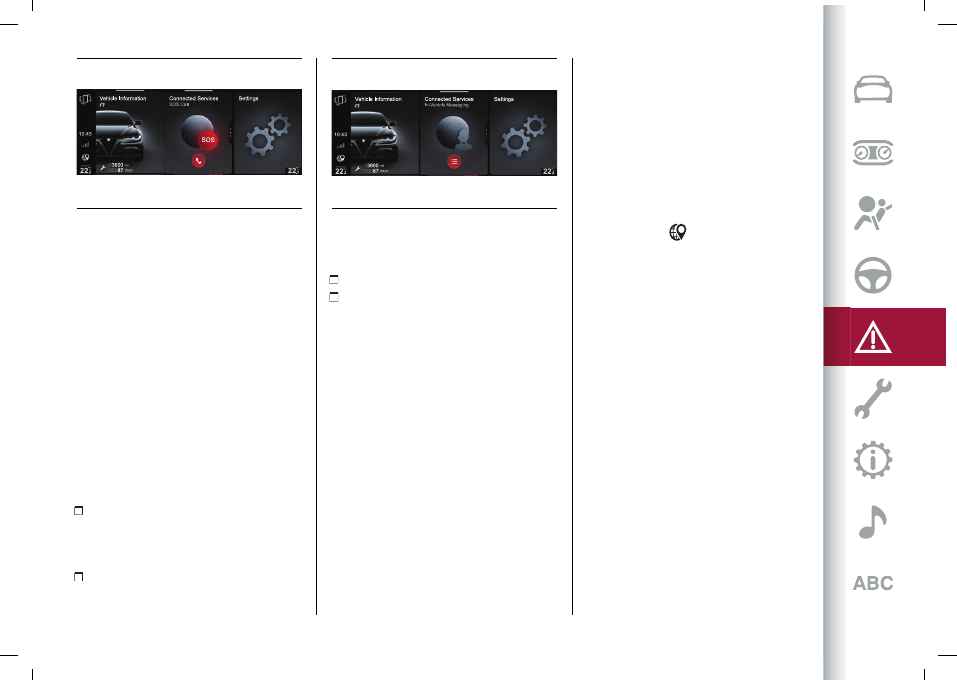

located on the ceiling light fig. 214 or

by means of the appropriate menu
fig. 215 on the Connect system (for

versions/markets, where provided).

214

04136S0073EM

CarManuals2.com

189

215

12126S2330EM

WARNING

If the SOS emergency

service is activated, the call will be

automatically routed to a private

Call Centre. We hereby specify that,

whenever the SOS call is referred to the

text, the SOS call is to be considered

managed by private service providers.

This SOS call service is not the e-call

service.

.

The SOS service is valid for 5 years from

delivery of the vehicle; in any case, it is

advisable to consult the Connectivity

section of the official Alfa Romeo

website for updates on the terms of

service.
The ASSIST function is activated:

automatically (for versions/markets,

where provided) following malfunctions

of the braking system, fuel system,

engine, etc.

manually by selecting the appropriate

menu fig. 216 on the Connect system (for

versions/markets where provided).

216

12126S2331EM

The SOS and ASSIST functions are

active with:

ignition device is at ON;
ignition device in STOP position and

Connect system display on.
After the SOS and ASSIST functions

(for versions/markets, where provided)

have been activated automatically or

manually, pressing the corresponding

button will send the position data to the

operational centre and make a voice call

to an operator.
NOTE If the SOS or Assist functions do

not work, the fault in the system will be

indicated on the display. Go as soon as

possible to an authorised workshop to

have the function repaired.
NOTE The correct operation of the SOS

and ASSIST services will be guaranteed

only by a good network coverage.

WARNING The SOS Call and ASSIST Call

functions may not be available for the

first minute after the car is started.

Privacy

: GPS location is always

active, for both SOS and Assist calls.

Deactivating it via the menu items in the

"Settings" menu of the Connect system

will make some with other services

unavailable (see the "Settings" chapter

of the Connect system for more details).
WARNING The

icon is shown at the

bottom left of the Connect system

display when the geolocation function

is active (ON). When geolocation is on,

the vehicle position is tracked to enable

the functions that require it. When

geolocation is off, the vehicle position is

only tracked by the navigation, safety,

insurance and driver assistance systems

(where provided). See the Connect

system "Settings" chapter to deactivate

the function.

MANUAL SOS CALL

In the event of need, hold the SOS

button on the front ceiling light fig. 214

pressed for 2 seconds or press the
button fig. 215 on the Connect display

(for versions/markets where provided).
The SOS button located on the ceiling

light will light up after connecting to an

SOS operator and will turn off when the

connection is ended.

CarManuals2.com

 IN AN EMERGENCY

190

NOTE If the SOS call button is pressed

by mistake, it is possible to press it

again within 10 seconds to cancel the

operation or press the cancel button on

the Connect system display.
Once the connection has been

established, the following data will

be automatically transmitted to the

Operations Centre, as authorised by the

customer:

indication that the occupant has made

an SOS call;

the brand of the car;
the most recent known GPS

coordinates of the car.
If you are able to speak to the operator,

do so through the car audio to provide

additional information about the request

for help.
If the system is unable to establish the

voice call, or the line disconnects due to

insufficient coverage, the SOS service

will try to call the operational centre

again for 5 minutes.
If the operational centre needs to

contact the car again, the system can

receive an incoming call, which will be

accepted automatically.
WARNING

Once the service has expired,

you will not be put in contact with an

operational centre and the system

will alert you that the service is not

available

.

WARNING Any malfunctions detected by

the SOS calling system will be notified:

during the start-up phase;
when the malfunction is detected;

by displaying a respective message on

the Connect system display. Contact

an Alfa Romeo Dealership as soon as

possible.
WARNING In the event of danger

(fire, visible smoke or hazardous road

conditions or dangerous positions), do

not wait for voice contact with the SOS

service operator, but exit from the car

immediately and go to a safe place, if in a

condition to do so.
WARNING Do not place network

antennas, CB radios or aftermarket

electrical equipment to avoid

interference. Such interference could

prevent the system form making the

emergency call.
WARNING Ignoring malfunction

warnings displayed by the Connect

system for a long time could lead to

being unable to make an SOS call when

needed.
Even if the SOS call system is fully

functional, factors outside the control

of FCA could interfere with or prevent

operation of the SOS call. Such factors

can be caused by the car electrical

systems not being intact, damage to

the SOS system during the accident,

obstructed or unavailable satellite

signals, network congestion, adverse

weather conditions, buildings, interfering

structures, tunnels, etc.

ASSIST CALL

(for versions/markets where provided)
Pressing the graphic buttons fig. 216

located on the display of the Connect

system makes a call to one or more of

the following services:

Roadside Assistance

: if case of need,

a connection will be established with the

roadside assistance authority which will

receive the vehicle type and its position

directly. Additional roadside assistance

charges may apply.

Customer Care

(for versions/markets,

where provided): Customer service to

provide support in case of problems to

the car.
NOTE The relative menus and the

Connect system status bar will change

display state depending on the actions

performed, and it will be possible to

monitor each stage of the assist call

(connection, duration, ending, connection

errors, etc.).
NOTE If the ASSIST call button is

pressed by mistake, the call can be ended

by pressing the cancel button on the

Connect system display.
Once the connection has been

established, the following data will be

CarManuals2.com

191

automatically transmitted, as authorised

by the customer:

indication that the occupant has made

an ASSIST call;

the brand of the car;
the most recent known GPS

coordinates of the car;

the type of error that occurred on the

car that automatically sent the ASSIST

request (in the case of an automatic call -

for versions/markets, where provided).
The call will be made through the car

sound system to provide any additional

information about the assistance

request.
If the system is unable to establish the

voice call, or the line disconnects due

to insufficient coverage, the ASSIST

service will try to call the Operations

Centre again for certain number of times.
WARNING If you have not subscribed

to the related services or the Roadside

Assistance package has expired or is

unavailable for purchase, the ASSIST

call will not be available. For further

information visit the Alfa Romeo official

website.
WARNING If the ASSIST call system

detects a malfunction, it is indicated by a

corresponding message on the Connect

system display. Contact an Alfa Romeo

Dealership as soon as.

If an emergency call (SOS) is active and

an ASSIST call is requested, the latter

will not be delivered.

Alfa Connect Box SYSTEM BATTERY

The Alfa Connect Box system is provided

with an independent battery that allows

the operation of some connected

services even if the car battery is

disconnected.
The system will warn the user of

the need to replace this battery by

displaying a dedicated message on

the display of the Connect system (for

versions/markets where provided) and

by means of a notification via mobile app

(for versions/markets, where provided).
Go to an Alfa Romeo dealership as soon

as possible.
NOTE Failure to replace the battery

and, consequently, failure to observe

the warnings provided by the system

could affect or entirely prevent service

operation.
NOTE Regardless of charge, the battery

must be replaced every 5 years by an

Alfa Romeo dealership.

REPLACING A BULB

FRONT AND REAR LIGHT CLUSTERS/

DIRECTION INDICATORS / THIRD

BRAKE LIGHT / LICENCE PLATE

LIGHTS

73)

WARNING When the weather is cold or

damp or after heavy rain or washing,

the surface of headlights or rear lights

may steam up and/or form drops of

condensation on the inside. This is

a natural phenomenon due to the

difference in temperature and humidity

between the inside and the outside of the

glass which does not indicate an anomaly

fault and does not compromise the

normal operation of lighting devices. The

mist disappears quickly when the lights

are turned on, starting from the centre of

the diffuser, extending progressively

towards the edges.

REPLACING AN INTERNAL BULB

Courtesy mirror light

: lift the cover (1)

fig. 217and replace the bulb 2, releasing

it from the side contacts, making sure

that it is correct blocked between the

contacts themselves.

CarManuals2.com

 IN AN EMERGENCY

192

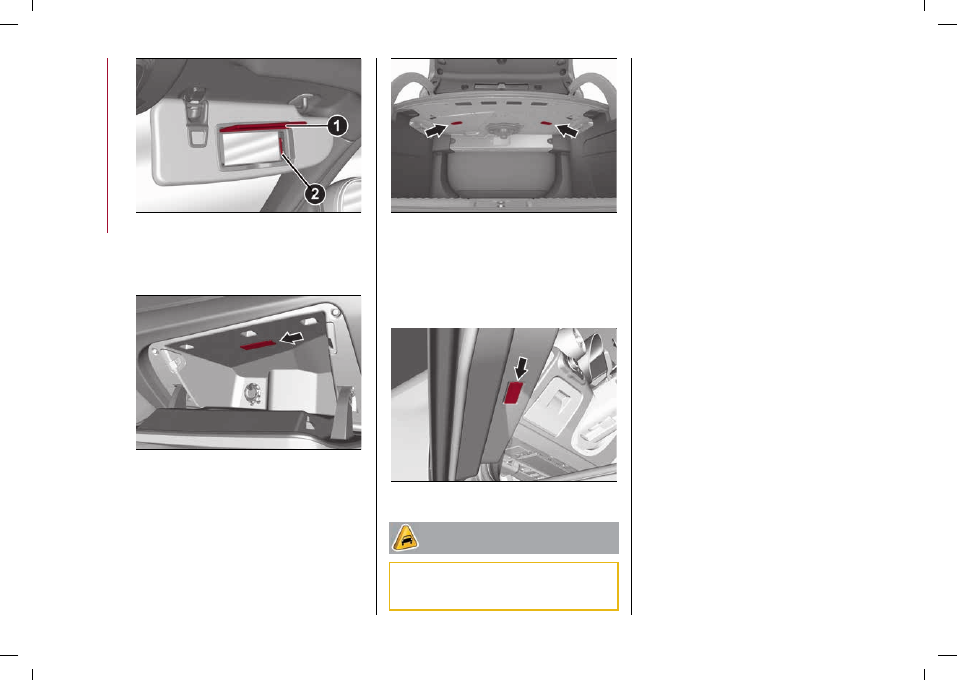

217

08026S0008EM

Glove compartment light

: replace the

bulb in the seat fig. 218, making sure it is

locked correctly.

218

08026S0009EM

Boot ceiling light

: act at the point

indicated by the arrow fig. 219, remove

the ceiling light and replace the lamp,

making sure that it is correctly blocked

between the contacts.

219

08026S0010EM

Puddle light on door panel

: act at the

point indicated by the arrow fig. 220,

remove the ceiling light and replace the

lamp, making sure that it is correctly

blocked between the contacts.

220

08026S0012EM

IMPORTANT

73)

The number plate lights are of the LED-

type. For bulb replacement, contact an Alfa

Romeo Dealership.

CarManuals2.com

193

Light bulbs

Type

Power

Sun visor light

1.5CP

2.1W

Glove compartment light

W5W

4W

Boot light

W5W

5W

Puddle lights (under door panel)

W5W

5W

CarManuals2.com

 IN AN EMERGENCY

194

FUSES

156) 157)

74)

WARNING

156) Replacement of a fuse.

Any service

must be carried out exclusively by the Alfa

Romeo Dealership or by a qualified repairer.

The replacement of a fuse by a third party

may cause a serious car fault.

157) Installation of electrical accessories.

The vehicle's electrical circuit is designed

to operate with standard or optional

equipment, before installing other electrical

equipment or accessories on the vehicle,

contact the Alfa Romeo Dealership or a

qualified repairer.

IMPORTANT

74)

FCA declines all responsibility for

expenses arising from the repair of the

vehicle or for anomalies resulting from the

installation of accessories not supplied or

not recommended by Alfa Romeo and not

installed according to specifications, in

particular when the combined consumption

of all the additional equipment connected

exceeds 10 mA.

TYRE REPAIR KIT

(where provided)

158) 159) 160) 161) 162) 163) 164) 165) 166) 167) 168) 169)

170)

75) 76) 77)

3)

The car may be equipped with a different

Tire Repair Kit (OPT1 kit or OPT2 kit),

depending on the version.
The Tyre Repair Kit is located in the boot,

inside a specific container.
To access the Tyre Repair Kit, open the

boot, lift the load platform.

PRELIMINARY OPERATIONS

Proceed as follows:

stop the car in a position that is not

dangerous for oncoming traffic where

you can carry out the procedure safely.

The car must be stopped in a lay-by, car

park or parking or service area, and the

ground must be as level as possible and

sufficiently compact;

Stop the engine, turn on the hazard

warning lights, engage the electric

parking brake and set the gear lever to

“P” (Park);

steer the wheels completely;
When parked on a steep slope, place a

wedge or stone behind the wheels;

Put on the reflective safety jacket

before getting out of the car (if required

by the regulations in force). In any case,

follow the road safety laws in force in the

country where you are driving;

make sure that any passengers get

out of the car and go to a safe place

where they will not obstruct traffic or

be exposed to the risk of injury. In the

event of a puncture, change the tyre in

accordance with the laws of the country

in which you are travelling.

OPT1 KIT DESCRIPTION

The Tire Repair Kit consists of:

one cartridge (1) fig. 221 containing

sealant and fitted with: transparent tube

for injecting the sealant (2) and sticker (3)

with the wording MAX. 80 km/h / 50 mph

to be applied in a clearly visible position

(e.g. on the dashboard) after repairing

the tyre;

one compressor (4) complete with

pressure gauges and connectors;

an instruction leaflet, to refer to for

prompt and correct use of the Tire

Repair Kit and that must be then given

to the personnel dealing with the tyre

treated with sealant;

a pair of protective gloves;
some adaptors, for inflating different

elements.

CarManuals2.com

195

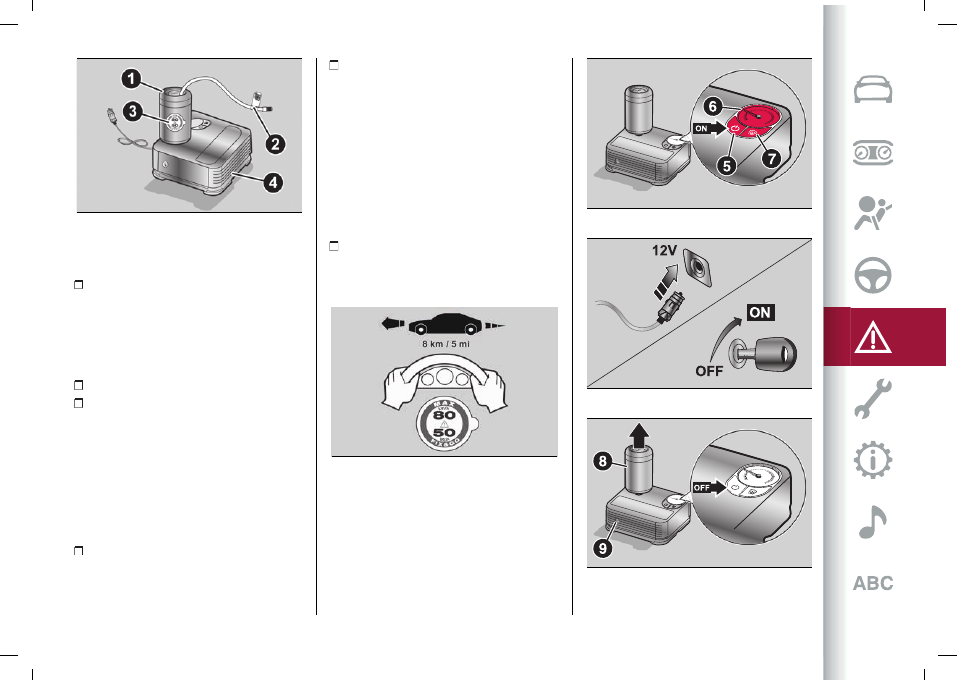

221

08066S0002EM

Repair procedure

Proceed as follows:

insert the sealant cartridge (1)

fig. 221into the corresponding

compressor compartment (4)and press

it down hard. Remove the speed limit

sticker (3) and apply it in a clearly visible
position fig. 222;

wear the gloves;
remove the cap from the tyre valve

and connect and screw the transparent
tube of the sealing fluid (2) fig. 221

onto the valve. If a 250 ml cartridge is

present the housing of the transparent

tube is provided with removable ring to

facilitate extraction. Make sure that the

ON/OFF button (5) fig. 223 is in the off

position (button not pressed);

insert the electrical connector fig. 224

into the 12V power socket in the car and

start the engine;

operate the compressor by pressing

the ON/OFF button (5) fig. 223. When

the pressure gauge (6) reaches the

prescribed pressure (see the “Wheels”

chapter in the “Technical specifications”

section) or the pressure indicated on the

specific label, press the ON/OFF button
(5) fig. 223 again to stop the compressor.

In order to obtain a more precise reading,

check the pressure value on pressure

gauge (6) with the compressor off;

disconnect the cartridge (8) fig. 225

from the compressor, by pressing

the release button (9) and lifting the

cartridge upwards.

222

08066S0547EM

223

08066S0005EM

224

08066S0546EM

225

08066S0545EM

CarManuals2.com

 IN AN EMERGENCY

196

If the pressure gauge (6) fig. 223

indicates a pressure lower than 1.8 bar

(26 psi) 15 minutes after starting the

compressor, switch off the compressor,

disconnect the sealing fluid tube (2)
fig. 221 from the tyre valve and remove

the cartridge (1) from the compressor.
Move the car by approximately 10

metres to distribute the sealant inside

the tyre.
Stop safely, switch on the hazard

warning lights, set the gear lever to P,

leave the wheels fully steered and then

stop the engine. When parked on a steep

slope, place a wedge or stone behind the

wheels.
Restore pressure to the prescribed value
using the black inflation pipe (10) fig. 226.
If also in this case the pressure is lower

than 1.8 bar (26 psi) 15 minutes after

switching on the compressor, do not

resume driving and contact an Alfa

Romeo Dealership.

226

08066S0544EM

If the pressure shown is higher than 1.8

bar (26 psi), restore the pressure and

drive safely to an Alfa Romeo Dealership

as soon as possible. If the pressure is

lower than 1.8 bar (26 psi), do not resume

driving but contact an Alfa Romeo

Dealership.

Inflation procedure

Proceed as follows:

stop the car safely, as described

above, and operate the electric parking

brake;

extract the black inflation tube (10)

fig. 226 and screw it firmly onto the tyre

valve. Then follow the instructions below.
Press the air release button (7) fig. 223 to

adjust any excessive tyre pressure.

Cartridge replacement

To remove the cartridge, press the

release button and lift it (see the

description above).
WARNING Only use original cartridges

which can be purchased at an Alfa Romeo

Dealership.

OPT2 KIT DESCRIPTION

The Tire Repair Kit consists of:

(1) fig. 227 Pressure gauge
(2) Instruction label
(3) ON-FF switch

1

2

3

227

9550445

228

9550446

(4) fig. 228 Air tube
(5) Deflation button
(6) 12V power supply cable/plug
(7) fig. 229 Cap for the sealant bottle
(8) Sealant bottle and expiry date
(9) Speed label

CarManuals2.com

197

< 8 bar

7

8

9

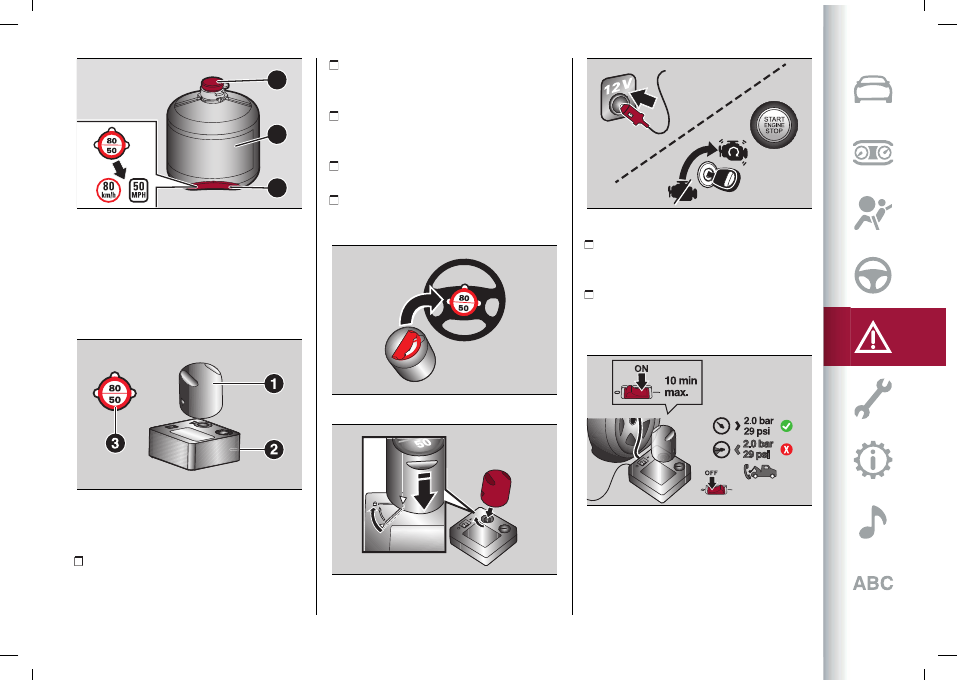

229

9550447

The kit comprises a compressor (1)
fig. 230, one cartridge (2) containing

sealant, and a sticker (3) with the words

"Max 80 km/h" to be applied in a clearly

visible position (e.g. on the dashboard or

steering wheel) after repairing the tyre.

230

9550448

Repair procedure

Proceed as follows:

take the kit, detach the speed limit

sticker (9) fig. 229 and apply it in a clearly

visible position, e.g. on the steering wheel
fig. 231;

open the cap on the compressor,

engage the cartridge and turn it one
quarter turn clockwise fig. 232;

remove the cap from the tyre valve

and screw the black compressor tube

onto the valve;

ensure that the ON/OFF switch is in

the "0" (off) position;

plug the electrical connector fig. 233

into the 12V socket in the car and then

start the engine;

231

9550449

232

9550450

233

9550451

move the ON/OFF switch fig. 234

to the "I" (on) position to start the

compressor;

when the pressure gauge indicates the

prescribed pressure, move the ON/OFF

switch to the "0" (off) position to stop the

compressor.

234

9550452

CarManuals2.com

 IN AN EMERGENCY

198

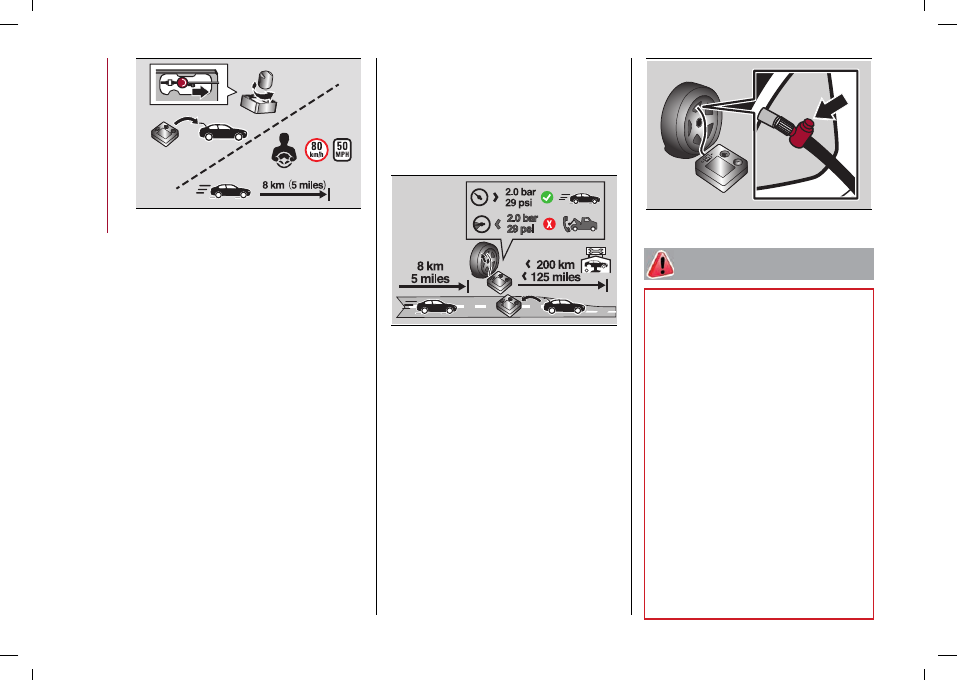

235

9550453

If the pressure gauge fig. 235 indicates

a pressure lower than 2 bar/29 psi 10

minutes after starting the compressor,

switch off the compressor, disconnect

the black compressor tube from the tyre

valve, unscrew the cartridge by turning it

anticlockwise by a quarter of a turn and

lift it. Move the car by approximately 10

metres to allow the distribution of the

sealant.
Stop safely, switch on the hazard

warning lights, set the gear lever to P,

leave the wheels fully steered and then

stop the engine. When parked on a steep

slope, place a wedge or stone behind the

wheels and restore the pressure to

the prescribed value using the black
compressor tube, fig. 235.
Also in this case, if the pressure is lower

than 2.0 bar / 29 psi after 10 minutes

from switching on the compressor, do

not resume driving but contact an Alfa

Romeo Dealership.

After driving for about 8 km / 5 miles,
fig. 236, stop safely, switch on the hazard

warning lights, set the gear lever to P,

leave the wheels fully steered and then

stop the engine. When parked on a steep

slope, place a wedge or stone behind the

wheels.

236

9550454

Take the compressor and restore the

pressure using the black inflation tube. If

the pressure shown is higher than 2.0 bar

/ 29 psi, restore the pressure and drive

safely to an Alfa Romeo Dealership as

soon as possible. If the pressure is lower

than 2.0 bar / 29 psi, do not resume

driving but contact an Alfa Romeo

Dealership.

Pressure relief valve

If the tyre pressure is higher than it

should be, it can be lowered using the
fig. 237 button near the black tube fitting

after switching off the compressor.

237

9550455

WARNING

158)

ATTENTION: Do not exceed 80 km/h.

Avoid sudden acceleration or braking. The

Tire Repair Kit provides a temporary repair,

so the tyre must be examined and repaired

by a specialist as soon as possible. Before

using the Tire Repair Kit, ensure that the

tyre is not damaged excessively and that

the rim is in good condition, otherwise do not

use it and call roadside assistance. Do not

remove foreign bodies from the tyre.

159)

Punctures on the sides of the tyre may

not be repaired. Do not use the Tyre Repair

kit if the tyre was damaged as a result of

being used when underinflated.

160)

Wear the protective gloves provided

with the Tire Repair kit.

161)

Apply the sticker where it can be easily

seen by the driver as a reminder that the

tyre has been treated with the Tire Repair

Kit. Drive carefully, particularly on bends.

162)

As required by current regulations,

the information on chemical substances

for the protection of human health and the

CarManuals2.com

199

environment and on the safe use of the

sealing fluid are on the packaging label.

Compliance with the indications on the

label is an essential condition to ensure

the safety and the effectiveness of the

product. Remember to carefully read the

label before use; the user of the product

is responsible for any damages caused

by improper use. The sealing fluid has an

expiration date. Replace the bottle if the

sealant has expired.

163)

Repairs are not possible in the case

of damage to the wheel rim (bad groove

distortion causing air loss). Do not remove

the foreign body (screws or nails) from the

tyre.

164)

The Tyre Repair Kit is not suitable for

definitive repairs, so the repaired tyres

may only be used temporarily. The Tirekit

provides a temporary repair, therefore the

tyre must be examined and repaired by a

specialist as soon as possible.

165)

Alert other drivers that the car

is stationary in compliance with local

regulations: hazard warning lights, warning

triangle, etc. Any passengers on board

should leave the car, especially if it is

heavily laden. Passengers should stay

away from on-coming traffic while the

wheel is being changed. On gradients or on

unsurfaced roads, chock the wheels with the

wedge provided.

166)

If the pressure falls below 1.8 bar, do

not drive any further: the Tyre Repair Kit

cannot guarantee proper seal because the

tyre is too damaged. Contact an Alfa Romeo

Dealership.

167)

Carefully read the cartridge label

before use and avoid improper use. The kit

should be used by adults and cannot be used

by children.

168)

You must always indicate that the tyre

was repaired using the Tyre Repair Kit. Give

the booklet to the technicians who will be

handling the tyre that was treated using the

Tyre Repair Kit.

169)

Do not let the compressor turned on

for longer than 10 consecutive minutes -

overheating hazard

170)

Use the kit only in case of a punctured

tyre.

IMPORTANT

75)

The sealant fluid is effective with

external temperatures from -40°C to +50°C.

The sealant fluid has an expiry date and

must be replaced periodically.

76)

The surface of the tube may be hot.

77)

In the event of a puncture caused by

foreign bodies, the kit may be used to repair

tyres showing damage on the tyre tread up

to max. 6 mm diameter.

IMPORTANT

3)

Dispose of the bottle and the sealant

liquid properly. Have them disposed of

in compliance with national and local

regulations.

RUN FLAT TYRES

(where provided)

171) 172) 173)

"Run Flat" tyres allow you to maintain

control of the car after a puncture and to

continue driving safely for about 50 mi

(80 km) at a maximum speed of 50 mph

(80 km/h).
The reinforced tyre wall retains its shape

and supports the weight of the car in the

event of pressure loss.
Cars equipped with Run Flat tyres are

NOT provided with Tyre Repair Kits. For

repair, contact an Alfa Romeo Dealership

as soon as possible.

WARNING

171)

Do not exceed the maximum distance

or speed (80 km - 80 km/h) in the event of

pressure loss-puncture.

172)

A pressure loss alters the driving

behaviour of the car, for example, causing

less directional stability when braking,

longer braking distances and altered

steering geometry. Therefore, adjust your

driving style to avoid sudden turns or

obstacles such as pavements and potholes.

173)

Do not exceed 60 km/h when driving

with an especially heavy trailer.

CarManuals2.com

 IN AN EMERGENCY

200

JUMP STARTING

If the battery is flat, a jump starting can

be performed using the battery and

the cables of another car, or using an

auxiliary battery. In all cases, the battery

used must have a capability equal to or a

little higher than the flat one.
Jump starting may be dangerous if

carried out incorrectly: carefully follow

the procedures described below.

78)

WARNINGS

Do not use an auxiliary battery or any

other source of external supply with

a voltage above 12V: the battery, the

starter, the alternator and the electrical

system of the car could be damaged.
Do not attempt jump starting if the

battery is frozen. The battery could

break and explode!

REMOTE BATTERY CONNECTION

POLES

To facilitate the operation, the remote

poles of the battery for the jump starting

can be found in the engine compartment:

the battery, on the other hand, is placed

in the boot.
The negative terminal (-) fig. 238 is

located next to the right bonnet catch.

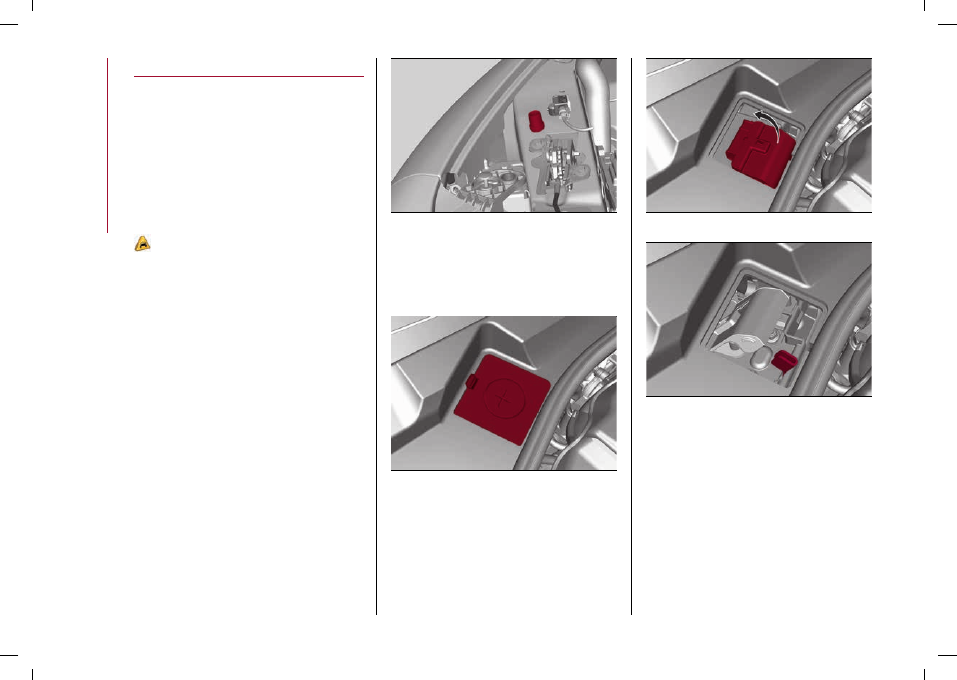

238

08076S0006EM

You can access the positive terminal (+)
by remove the cover fig. 239 and lifting
the protective flap fig. 240.
The pole is shown in fig. 241.

239

08076S0007EM

240

08076S0002EM

241

08076S0001EM

QV version

The negative terminal (-) fig. 238 is

located next to the right bonnet catch.
The positive terminal (+) can be reached
by lifting the protective flap fig. 242 and
is shown in fig. 243.

CarManuals2.com

201

242

08076S0004EM

243

08076S0005EM

To carry out the operation, you need to

have the correct cables to connect the

auxiliary battery to the remote poles of

the flat battery.
Usually, these cables have terminals at

the ends and are identified by different

sheath colours (red = positive, black =

negative).

STARTING WITH AUXILIARY BATTERY

174) 175) 176)

Proceed as follows:

switch off all electrical devices in the

car;

engage the parking brake, activate P

(Park) mode and then put the ignition

device in the STOP position;

should you be using the battery of

another car, park the other car within

the range of the cables used for the

connection, operate the parking brake

and ensure that its ignition is off.
WARNING If the auxiliary battery is

installed on another car, check that there

is no accidental contact of metal parts

between the two cars, since an earth

connection may result, with the risk of

serious injury to any people who may be

nearby.
WARNING If the procedure below is

carried out incorrectly, it can cause

severe injury to people or damage the

recharging system of one or both cars.

Carefully follow the instructions given

below.

Cable connection

79)

Proceed as follows to carry out a jump

starting:

connect a terminal on the end of the

positive cable from the remote positive

pole (+) of the car with flat battery;

connect the terminal on the opposite

end of the positive (+) cable to the

positive (+) pole of the auxiliary battery;

connect a negative cable end terminal

to the negative (-) pole of the auxiliary

battery;

connect the terminal on the opposite

end of the negative (-) cable to the earth

point (-) on the car with the battery flat;

start the engine of the car with an

auxiliary battery, let it run for some

minutes at idle and then start the engine

of the car with flat battery.
In case a portable battery is used, before

starting the car, wait a few seconds after

completing the connection.

Cable disconnection

Once the engine is started, remove the

connection cables in reverse sequence,

as shown below:

disconnect the negative cable end

terminal (-) from the earth point (-) of the

car with flat battery;

disconnect the terminal on the

opposite end of the negative cable from

the negative (-) pole of the auxiliary

battery;

disconnect the terminal on the

opposite end of the positive (+) cable

from the positive (+) pole of the auxiliary

battery;

disconnect the terminal on the end

of the positive cable from the remote

positive pole (+) of the car with flat

battery.

CarManuals2.com

 IN AN EMERGENCY

202

WARNING

174)

Do not get too close to the radiator

cooling fan: the electric fan may start;

danger of injury. Scarves, ties and other

loose clothing might be pulled by moving

parts.

175)

Remove any metal objects (e.g. rings,

watches, bracelets), that might cause an

accidental electrical contact and cause

serious injury.

176)

The batteries contain acid that can

burn skin or eyes. Batteries produce

hydrogen, which is easily flammable and

explosive. Thus keep away flames or

devices which may cause sparks.

IMPORTANT

78)

Never use a fast battery charger to

start the engine as this could damage the

electronic systems, particularly the engine

ignition and fuel supply control units.

79)

Do not connect the cable to the negative

terminal (–) of the flat battery. The following

spark could lead to battery explosion and

cause serious harm. Only use the specific

earth point; do not use any other exposed

metallic part.

FUEL CUT-OFF SYSTEM

DESCRIPTION

The vehicle is equipped with a system

that cuts off the fuel supply in the event

of an impact, causing the engine to stop.
This safety device is controlled by the

ORC control unit, which manages all the

occupant protection systems. Depending

on the type and violence of the impact,

this control unit determines whether or

not to activate the airbags and the front

seatbelt pretensioners and whether or

not to immediately interrupt the current

from the batteries to the supply pumps

and to the devices that make the engine

operate. The power from the battery is

interrupted by "skipping" the pyrotechnic

fuse placed on the fusebox next to the

positive pole of the battery.
When the fuse is "skipped", only some

services, necessary for the safety of the

vehicle (e.g.: door locks, anti-theft device,

etc.), remain powered.
WARNING After the impact, carefully

check the vehicle for fuel leaks, for

instance in the engine compartment,

under the vehicle or near the tank area.
WARNING Contact an Alfa Romeo

Dealership to have the system checked.

ENGINE OVERHEATING

WARNING An overheated cooling

system can damage the car. In the case

of overheating, pull over and stop the

car. Keep the engine at idling with air

conditioning off until the temperature

decreases. If temperature does not

decrease, contact an Alfa Romeo

Dealership as soon as possible.
WARNING Coolant (antifreeze) exiting

from the engine or vapour exiting from

the radiator can cause serious burns. If

vapour is seen or heard coming from the

engine compartment, do not open the

bonnet until the radiator has had enough

time to cool down. Never try to remove

the cap when the radiator is hot.

CarManuals2.com

203

AUTOMATIC TRANSMISSION

GEAR LEVER RELEASE

To release the automatic transmission

lever, contact an Alfa Romeo Dealership.

TOWING A BROKEN-DOWN CAR

This chapter describes the conditions

and methods to transport and tow a

broken-down car with a breakdown truck.
The assistance car operators must be

informed about the minimum ground

clearance of the car in order to avoid

contact between the ends of the bumper

with the tow truck equipment.
The front and rear attachment corners

of the car, to be taken into consideration

when loading the car on the roadside
assistance vehicle are shown in fig. 244.

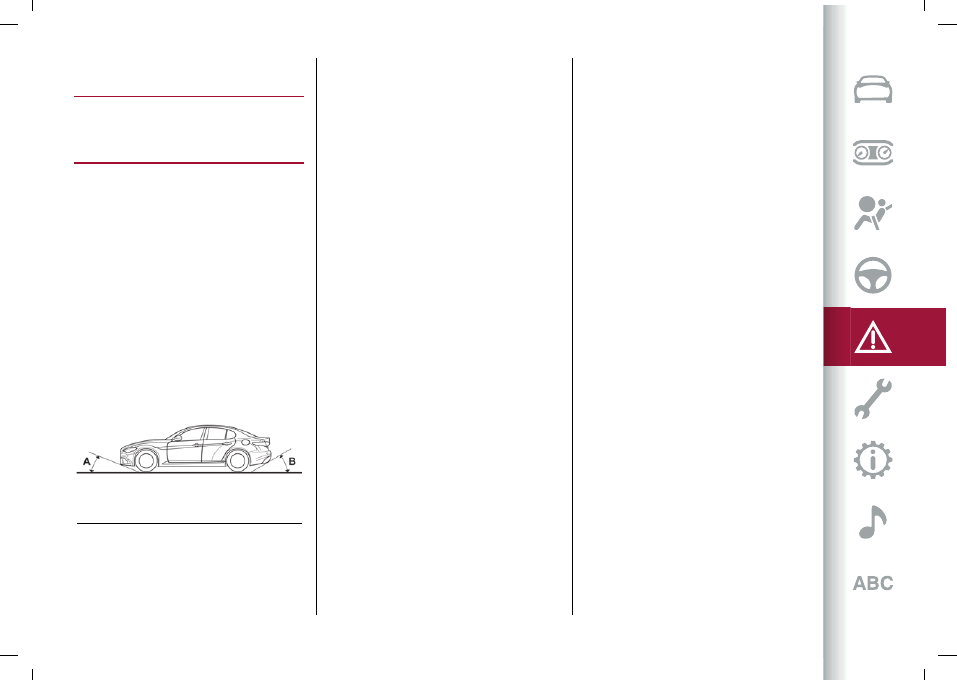

244

9550113

RWD versions

A

: 12.880°

B

: 17.105°

AWD versions

A

: 15.160°

B:

18.400°

QV versions

A

: 12.045°

B

: 11.830°

REAR-WHEEL DRIVE (RWD) VERSIONS

It is recommended to tow the car with all

four wheels lifted from the ground on the

platform of a roadside assistance car.
If a tow truck with platform is not

available, the car must be towed with

the rear wheels LIFTED from the ground

(using a trailer or special equipment

allowing lifting of the rear wheels).

ALL-WHEEL DRIVE (AWD) VERSIONS

It is recommended to tow the car with all

four wheels lifted from the ground on the

platform of a roadside assistance car.
WARNING Avoid lifting the front (or

rear) wheels only, using a trailer or car

that allows lifting the wheels of one axle

only. Lifting the front (or rear) wheels

only while towing might damage the

transmission or the transfer unit.

WARNINGS

If a car is towed without complying

with the above requirements, the

transmission and/or the transfer unit

might be seriously damaged (on AWD

versions). Damage due to incorrect

towing is not covered by warranty.

The car should be transported with all

four wheels lifted from the ground on the

platform of a roadside assistance car.

Avoid towing with only the front (or rear)

wheels lifted. When towing with only the

front (or rear) wheels lifted, in addition to

damaging the body, it could damage the

gearbox.
To carry out the operation, the

assistance car must be equipped with

an appropriate movement/lifting

equipment to avoid damaging the car.

For loading on the towing car, attach the

tow equipment to the main structural

components of the car and not to the

bumpers or other related brackets.
Comply with the regulations regarding

assistance and car towing in force in each

country.
When securing the car to a tow truck, do

not attach to front or rear suspension

components. Damage to your car may

result from improper towing.

CarManuals2.com

 IN AN EMERGENCY

204

TOWING THE CAR

177) 178) 179)

In order to be able to tow the car, which

has been in an accident or has broken

down, on the road surface and only for

short distances, a tow ring is provided in

the tools container inside the boot.
Proceed as follows to use the tow ring:

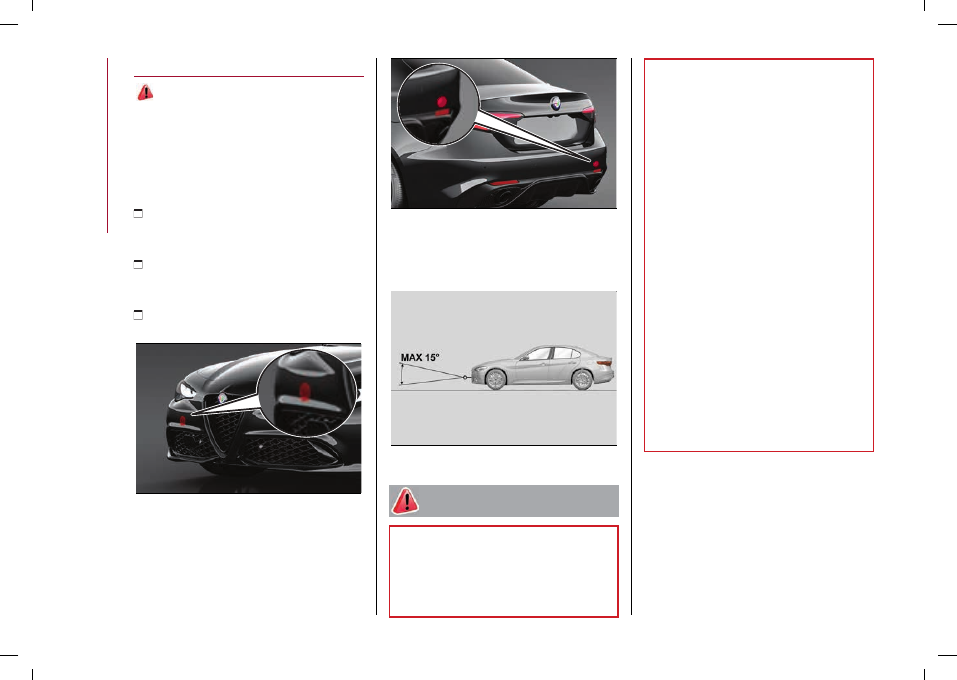

release the cap fig. 245 on the front or

rear bumper (where provided) fig. 246,

pressing on the upper part;

take the tow hook from its housing in

the boot and carefully clean the threaded

housing on the car before using it;

tighten the car's tow ring in its place

for about 11 turns.

245

9550114

246

9550115

WARNING The largest work angle of

the cable to fix on the tow ring must not
exceed 15°, as shown in fig. 247.

247

08136S0002EM

WARNING

177)

Move the ignition device to ON and then

to STOP, without opening the door.

178)

The brake servo and the

electromechanical power steering will not

work while the vehicle is being towed. You

will therefore need to apply more force on

the brake pedal and steering wheel. Do not

use flexible ropes when towing, and avoid

jerky movements. While towing, make sure

that the trailer hitch does not damage any

components it is touching. When towing the

car, you must comply with all specific traffic

regulations and adopt an appropriate

driving behaviour. Do not start the engine

while towing the car. Before tightening the

ring, clean the threaded housing thoroughly.

Make sure that the ring is fully screwed into

the housing before towing the car.

179)

The front and rear tow hooks should

be used only for emergencies on the road.

You are allowed to tow the vehicle for short

distances using an appropriate device in

accordance with the highway code (a rigid

bar), to move the vehicle on the road in

readiness for towing or transport via a

breakdown vehicle. Tow hooks MUST NOT

be used to tow vehicles off the road or

where there are obstacles and/or for towing

operations using cables or other non-rigid

devices. In compliance with the above

conditions, towing must take place with the

two vehicles (one towing, the other towed)

aligned as much as possible along the same

centre line.

CarManuals2.com

Proper maintenance allows car performance to be maintained

over time, operating costs to be contained, and safety system

performance to be safeguarded. This section explains how.

MAINTENANCE AND CARE

SCHEDULED SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
ENGINE COMPARTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
RECHARGING THE BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
SERVICING PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .224
LIFTING THE CAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .230
WHEELS AND TYRES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .230
CAR INACTIVITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .232
BODYWORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233
INTERIOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .235

CarManuals2.com















Content      ..     4      5      6      7     ..
