FM 4-20.198 Multiservice Helicopter Sling Load: Single-Point Load Rigging Procedures (February 2009) - page 14





Suitable Single-Point Rigging Procedures for Miscellaneous Equipment
Figure 23-2. Light Tactical Floating Raft Bridge
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
23-7
Chapter 23

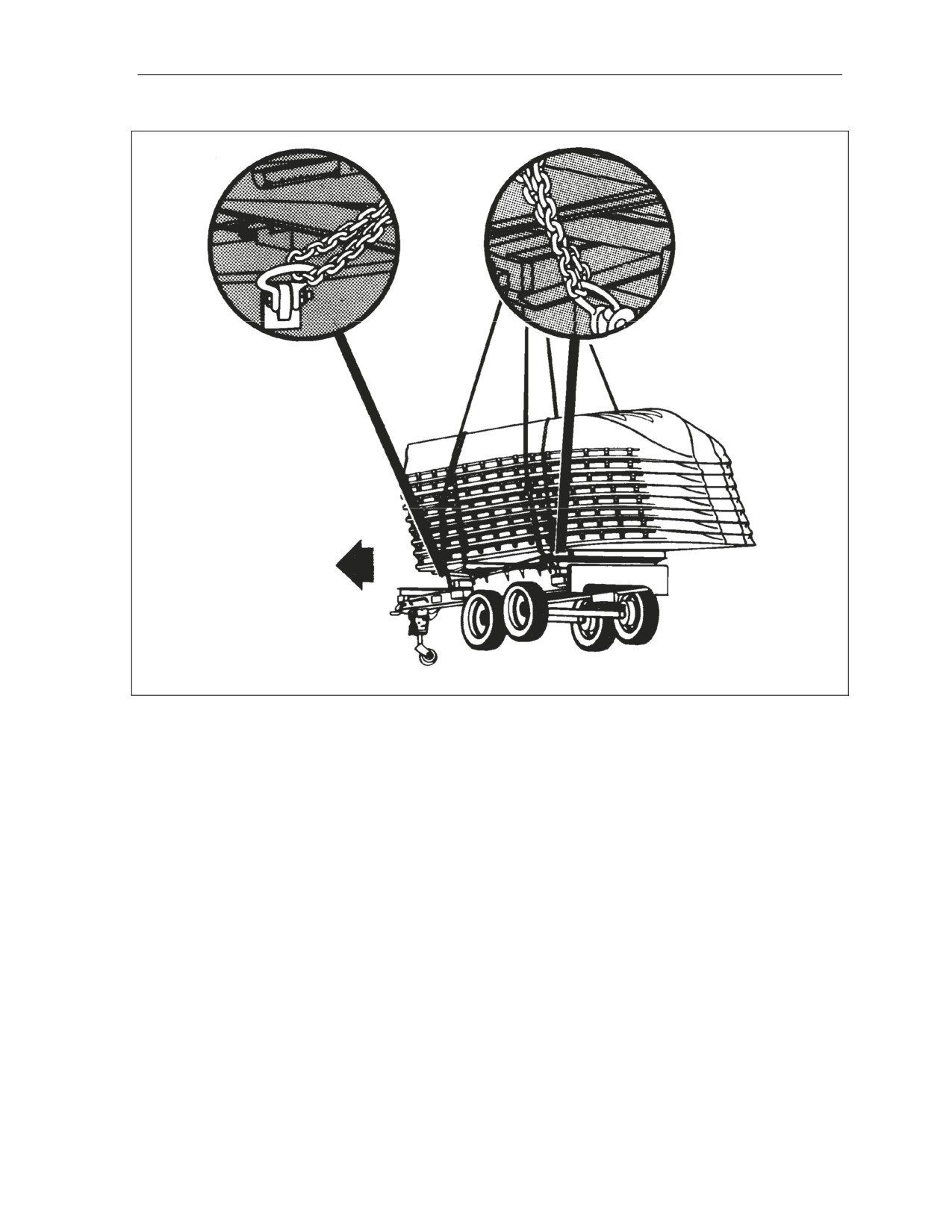

RIGGING STEPS (BOLSTER TRAILER)
1. Position apex fitting on top of the pontoons. Route outer sling legs 1 and 2 to the front of the
trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision mounted on the left front
corner of the frame. Place the correct link from Table 23-2 in the grab hook. Repeat with
sling leg 2 and the right front corner of the trailer.
3. Loop the chain end of sling leg 3 through the left rear lift provision mounted on the left rear
corner of the trailer. Place the correct link from Table 23-2 in the grab hook. Repeat with
sling leg 4 and the right rear corner of the trailer. Secure the excess chain with Type III nylon
cord.
4. Pull each grab hook up and tie to one of the boat rails with 1/4-inch cotton webbing. Cluster
and tie (breakaway technique) all sling legs together to prevent entanglement during hookup
and lift-off.
RIGGING STEPS (CRADLE AND PONTOONS ONLY)
1. Position apex fitting on top of the pontoons. Route outer sling legs 1 and 2 to the front of the
trailer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the cross beam
of the cradle. Place the correct link from Table 23-2 in the grab hook. Repeat with sling leg 2
and the right front lift provision.
3. Loop the chain end of sling leg 3 through the left rear lift provision located on the cross beam
of the cradle. Place the correct link from Table 23-2 in the grab hook. Repeat with sling leg 4
and the right rear lift provision.
4. Pull each grab hook up and tie to one of the boat rails with 1/4-inch cotton webbing. Cluster
and tie or tape (breakaway technique) all sling legs together to prevent entanglement during
hookup and lift-off.
Figure 23-2. Light Tactical Floating Raft Bridge (Continued)
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
23-8
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Suitable Single-Point Rigging Procedures for Miscellaneous Equipment

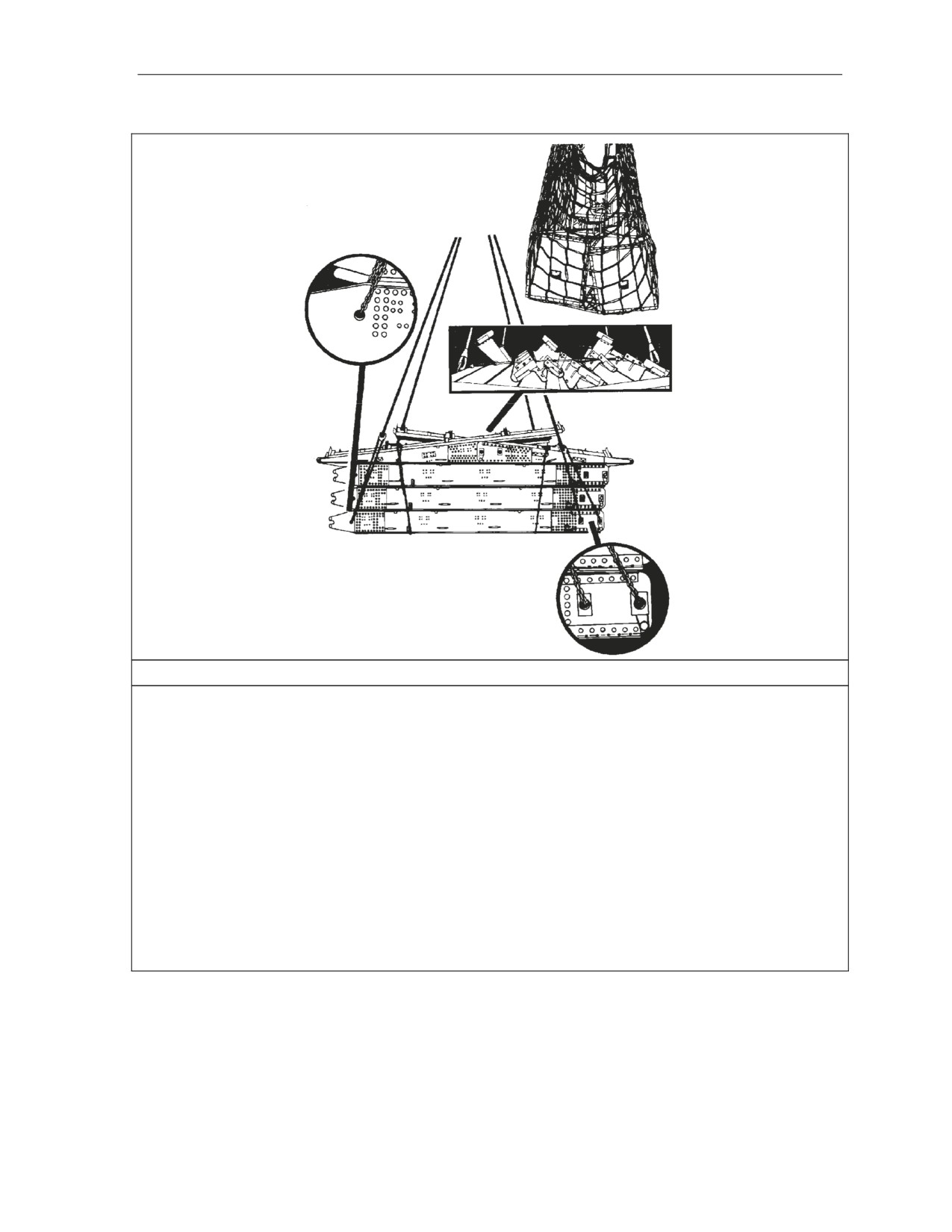

RIGGING STEPS (LIGHT, MEDIUM, HEAVY)
1. Position apex fitting on top of the load. Route outer sling legs 1 and 2 to the female end of
the deck panels and inner sling legs 3 and 4 to the male ends. Sling legs 1 and 3 must be on
the left side of the load.
2. Loop the chain end of sling leg 1 through the inside hole and back out through the outside
hole of the bottom deck panel. Place the correct link from Table 23-2 in the grab hook.
Repeat with sling leg 2 on the opposite side of the load.
3. Loop the chain end of sling leg 3 through the hole at the male end of the bottom deck panel.
Place the correct link from Table 23-2 in the grab hook. Repeat with sling leg 4 on the
opposite side of the load.
4. Remove the safety pins and place them in the boat motor box or safety tie them with Type III
nylon cord.
5. Cluster and tie (breakaway technique) all sling legs together to prevent entanglement during
hookup and lift-off.
Figure 23-2. Light Tactical Floating Raft Bridge (Continued)
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
23-9
Chapter 23
RIGGING STEPS (MOTORS AND BRACKETS)
1. Spread the 5,000-pound capacity cargo net on the ground.
2. Secure the motors, pins, paddles, and miscellaneous items in the containers. Secure the lid
closed with Type III nylon cord.
3. Center the containers on the cargo net.
4. Place the mounting brackets on top of the containers.
5. Rig and close the cargo net in accordance with FM 4-20.197.
Figure 23-2. Light Tactical Floating Raft Bridge (Continued)
MEDIUM-SPAN BRIDGE
23-4. The medium-span bridge is rigged for single-point sling load using the following procedures:
z
Applicability. The following item in Table 23-3 is suitable for all ARMY helicopters with
suitable lift capacity by the US Army Natick Soldier Center:
Table 23-3. Medium-Span Bridge
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Bridge Erection Set, Medium Girder Section
13,800
25K
5/5
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity).
„ Multiloop line, Type XXVI nylon, 12-foot, 4-loop (4 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Padding, felt or suitable substitute.
„ Clevis, large (4 each).
„ Tie-down strap, cargo, CGU-1/B (as required).
z
Personnel. Six persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Position the ramp sections on top of the bridge main structure. Secure with tie-down
straps.
─ Secure the four pieces of padding on the bottom side at each corner where the nylon
straps are choker-hitched.
„ Rigging. Rig the load according to the steps in Figure 23-3.
„ Hookup. The hookup team stands on top of the bridge center. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the load but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
23-10
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Suitable Single-Point Rigging Procedures for Miscellaneous Equipment
RIGGING STEPS
1. Position apex fitting on top of the bridge. Route outer sling legs 1 and 2 to the front of the
load and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of
the load.
2. Choker-hitch a 12-foot, 4-loop, Type XXVI nylon sling through the opening in each corner of
the bridge.
3. Insert a large clevis in the running end of each 12-foot sling. Ensure the bolt runs through the
sling and the nut is tight on the bolt.
4. Loop the chain end of sling leg 1 through the large clevis on the 12-foot sling on the front left
corner of the bridge. Place the correct link from Table 23-3 in the grab hook. Repeat with
sling leg 2 and the right front corner of the bridge.
5. Loop the chain end of sling leg 3 through the large clevis on the 12-foot sling on the rear left
corner of the bridge. Place the correct link from Table 23-3 in the grab hook. Repeat with
sling leg 4 and the right rear corner of the bridge.
6. Cluster and tie (breakaway technique) all sling legs together to prevent entanglement during
hookup and lift-off.

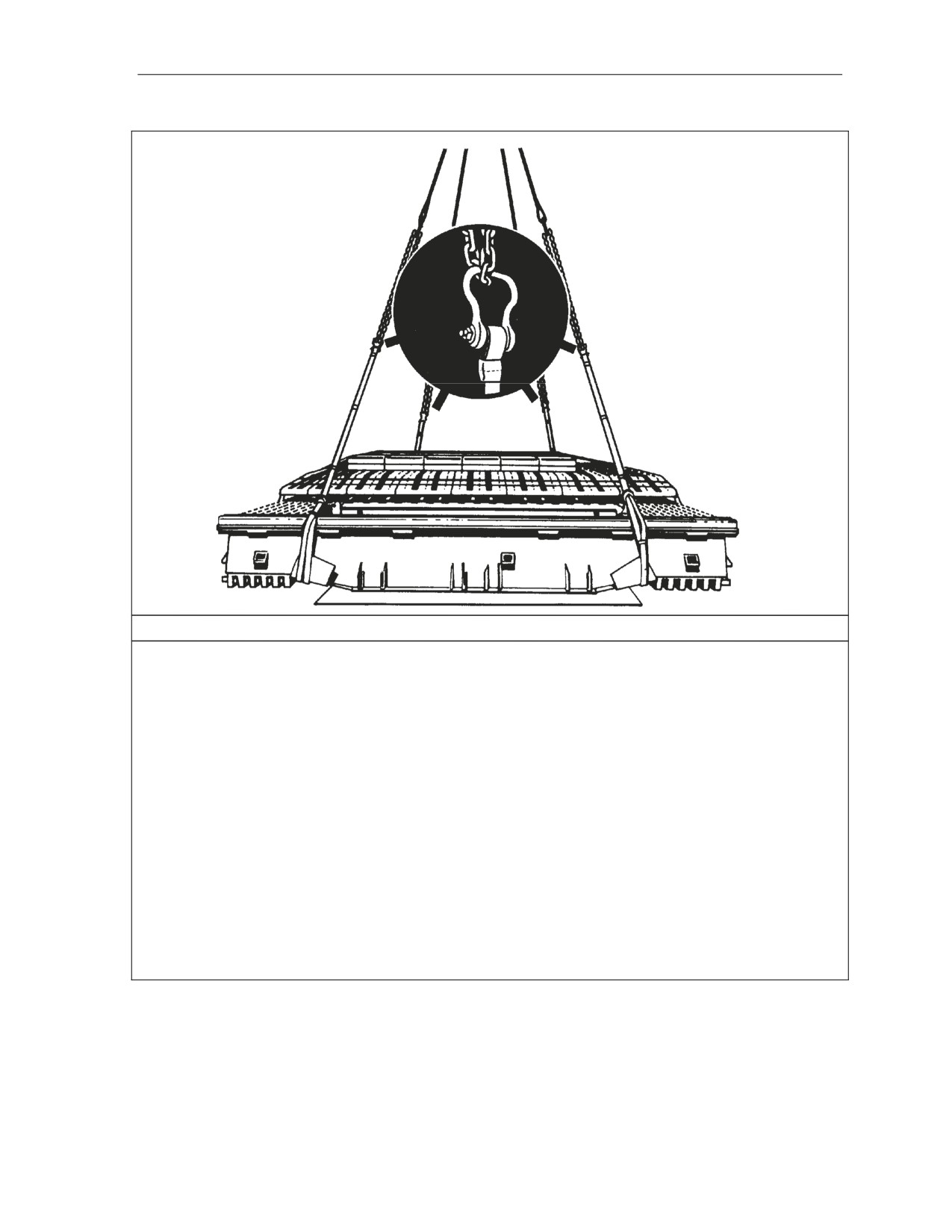

Figure 23-3. Medium-Span Bridge
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
23-11
Chapter 23

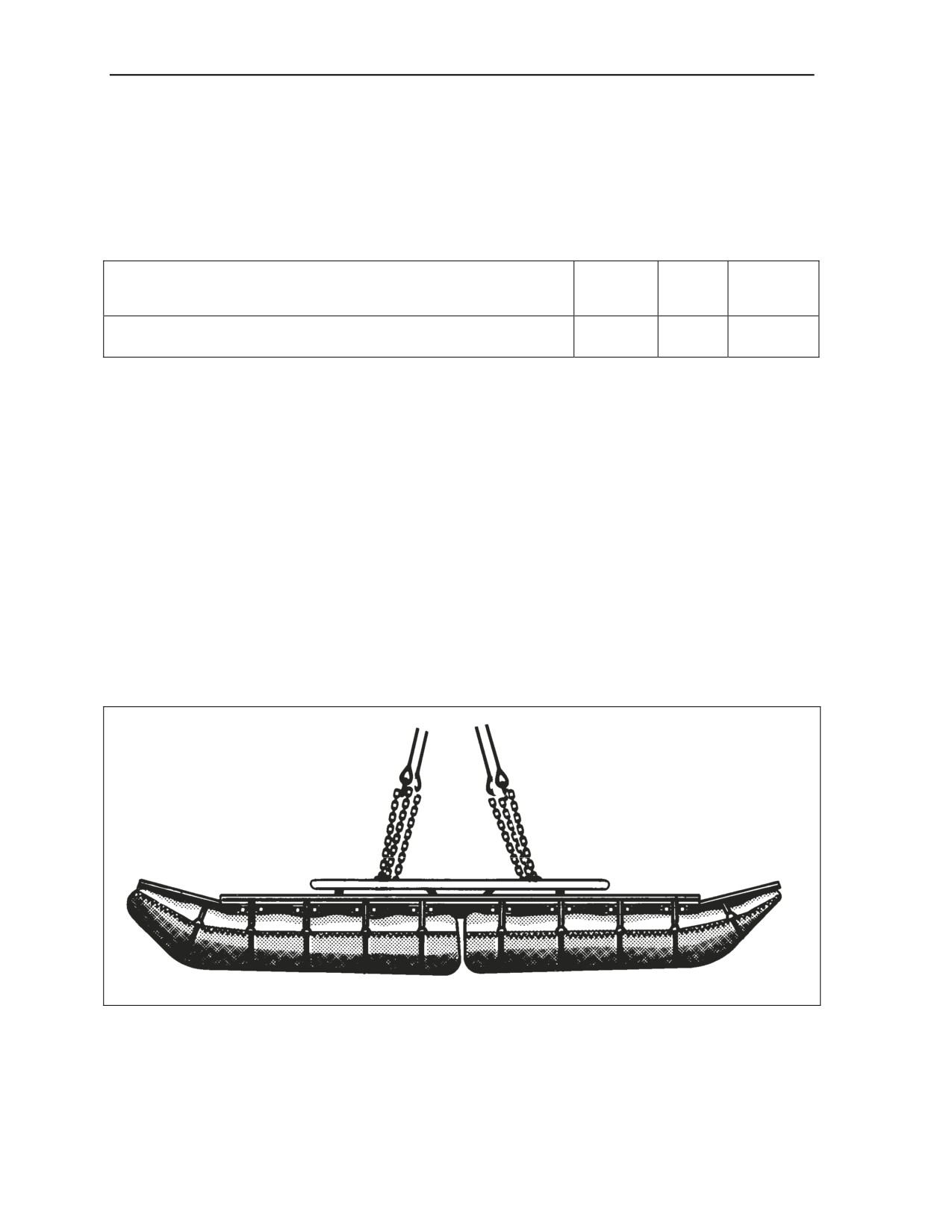

M4T6 BRIDGE
23-5. The M4T6 bridge is rigged for single-point sling load using the following procedures:
z
Applicability. The following item in Table 23-4 is suitable for all ARMY helicopters with
suitable lift capacity by the US Army Natick Soldier Center:
Table 23-4. M4T6 Bridge
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
Bridge Floating, Aluminum, Highway Type, Deck-Balk
9,000
25K
4/4
Superstructure on Pneumatic Floats, M4T6
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Ensure all components are securely attached together.
„ Rigging. Rig the load according to the steps in Figure 23-4.
„ Hookup. The hookup team stands on top of the bridge. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then moves clear of the load but remains close to the load
as the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
Figure 23-4. M4T6 Bridge
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
23-12
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Suitable Single-Point Rigging Procedures for Miscellaneous Equipment
RIGGING STEPS
1. Position apex fitting on top of the center of the bridge. Route outer sling legs 1 and 2 to the
forward end of the balk connecting stiffener and inner sling legs 3 and 4 to the rear. Sling
legs 1 and 3 must be on the left side of the load.
2. Loop the chain end of sling leg 1 around the seventh balk connection pin from the forward
end on the left balk connecting stiffener. Place the correct link from Table 23-4 in the grab
hook. Repeat with sling leg 2 and the seventh connection pin from the forward end of the
right balk stiffener.
3. Loop the chain end of sling leg 3 around the seventh balk connection pin from the rear end
on the left balk connecting stiffener. Place the correct link from Table 23-4 in the grab hook.
Repeat with sling leg 4 and the seventh connection pin from the rear end of the right balk
stiffener.
4. Cluster and tie (breakaway technique) all sling legs together to prevent entanglement during
hookup and lift-off.
Figure 23-4. M4T6 Bridge (Continued)
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
23-13
This page intentionally left blank.
Appendix A
National Stock Numbers for Slings, Nets, and Spare Parts

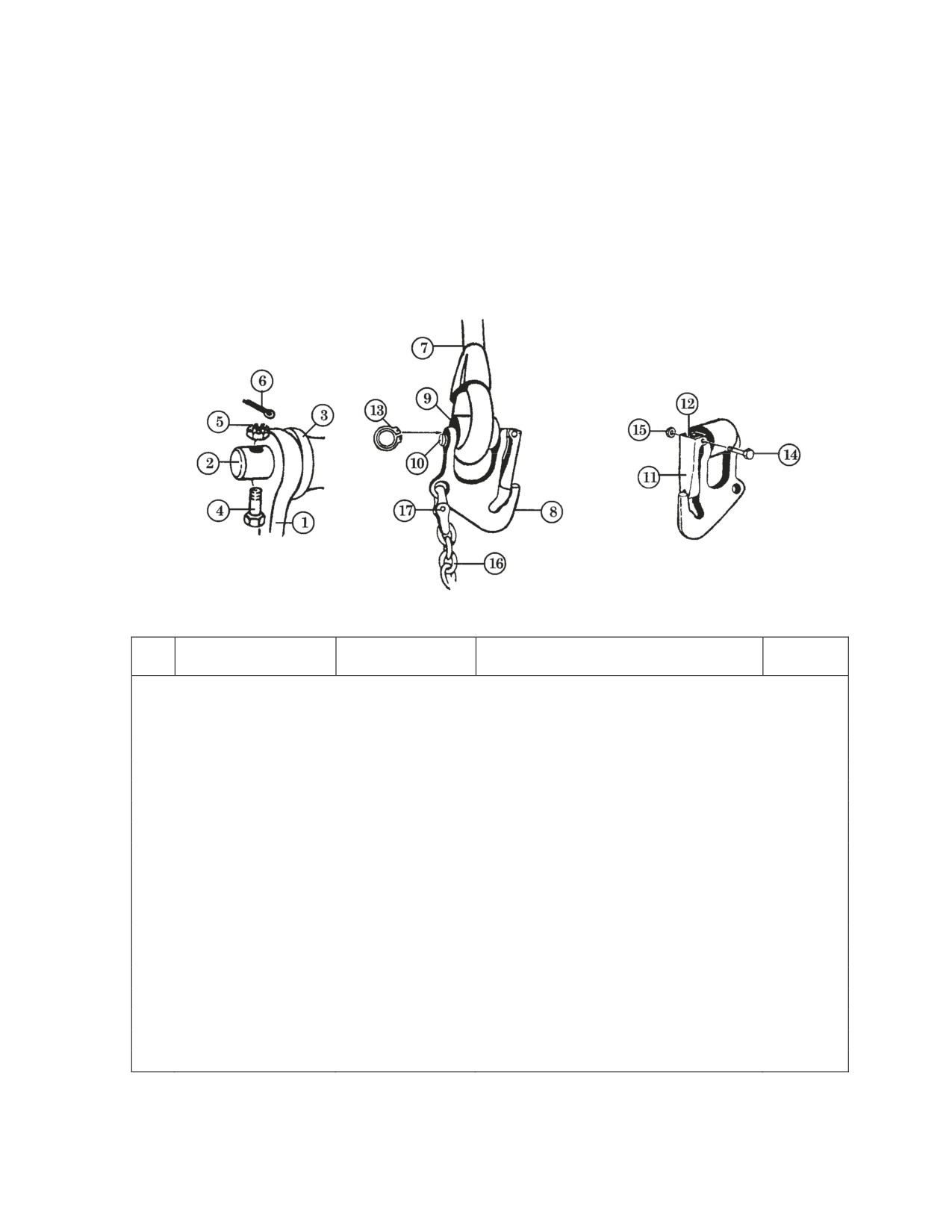

10,000- OR 25,000- POUND CAPACITY SLING SET (CIRCLED NUMBERS CORRESPOND WITH
NSNs OF IDENTIFIED PARTS)
10,000-POUND CAPACITY SLING SET COMPONENTS
NSN
PART NUMBER
DESCRIPTION
QTY PER
SET
1670-01-027-2902
38850-00001-043
Sling Set Assembly Complete LIN T79003
1 ea
1
4030-01-048-4045
38850-00004-045
Shackle Assembly
1 ea
2
5315-01-115-3482
38850-00008-101
Pin, Apex Fitting
1 ea
3
5365-01-235-0908
38850-00015-104
Spacer, Apex
1 ea
4
5306-00-944-1536
NAS1306-16D
Bolt
1 ea
5
5310-00-207-9274
AN 320C6
Nut, Castellated
1 ea
6
5315-00-2341864
MS 24665-302
Cotter Pin
1 ea
7
4020-01-047-6814
38850-00009-055
Rope Assembly
4 ea
8
4030-01-048-4046
38850-00011-041
Grabhook Assembly
4 ea
9
5364-01-109-2543
38850-00015-101
Spacer, Grabhook
4 ea
10
5315-01-121-0497
38850-00008-103
Pin, Spacer
4 ea
11
4030-01100-1684
38850-00017-101
Keeper, Grabhook
4 ea
12
5360-01-115-6833
38850-00019-101
Keeper, Spring
4 ea
13
5325-01-046-3670
MS 3217-1050
Snap Ring
4 ea
14
5306-00-771-7621
NAS 1303-21
Bolt, Shear
4 ea
15
5310-00-807-1467
MS 21042-3
Nut, Lock
4 ea
16
4010-01-058-4772
38850-00053-101
Chain, 8-foot Length
4 ea
17
4010-01-231-3388
5779125/664228
Link, Coupling
4 ea
18
8460-00-606-8366
Mil-41835
Kit Bag, Flyer's
1 ea
FM 4-20.197/MCRP 4-11.3E, VOL I/NTTP 3-04.11/
20 February 2009
AFMAN 11-223 (I), VOL I/COMDTINST M13482.2B
A-1
Appendix A
25,000-POUND CAPACITY SLING SET COMPONENTS
NSN
PART NUMBER
DESCRIPTION
QTY PER
SET
1670-01-027-2900
38850-00001-044
Sling Set Assembly Complete LIN T79009
1 ea
1
4030-01-048-4044
38850-00004-046
Shackle Assembly
1 ea
2
5315-01-119-9065
38850-00008-102
Pin, Apex Fitting
1 ea
3
1670-01-235-0907
38850-00015-105
Spacer, Apex
1 ea
4
5306-00-944-2659
NAS1306-22D
Bolt
1 ea
5
5310-00-207-9274
AN 320C6
Nut, Castellated
1 ea
6
5315-00-234-1864
MS 24665-302
Cotter Pin
1 ea
7
1670-01-047-6815
38850-00009-056
Rope Assembly
4 ea
8
4030-01-048-4047
38850-00011-046
Grabhook Assembly
4 ea
9
1670-01-109-2544
38850-00015-102
Spacer, Grabhook
4 ea
10
5315-01-121-2874
38850-00008-104
Pin, Spacer
4 ea
11
4030-01-100-1685
38850-00017-102
Keeper, Grabhook
4 ea
12
5360-01-115-6833
38850-00019-101
Keeper, Spring
4 ea
13
5365-00-261-3918
MS 3217-1075
Snap Ring
4 ea
14
5306-00-771-7621
NAS 1303-21
Bolt, Shear
4 ea
15
5310-00-807-1467
MS 21042-3
Nut, Lock
4 ea
16
4010-01-058-4771
38850-00053-102
Chain, 8-foot Length
4 ea
17
4010-01-231-3388
664241
Link, Coupling
4 ea
18
8460-00-606-8366
Mil-k-41835
Kit Bag, Flyer's
1 ea
15,000-POUND CAPACITY MULTILEG SLING SET ASSEMBLY
NSN
PART NUMBER
DESCRIPTION
QTY PER
SET
1670-00-902-3080
3900061
Sling Multileg Assembly, LIN T79009,
1 ea
TAMCN B2030
1
1670-00-946-8719
AC6000292
Web Ring Assembly
1 ea
2
1670-00-719-6243
MS24553-1
Link Assembly, Web Ring
1 ea
3
1670-00-946-8631
3110167
Sling Leg Assembly
4 ea
4
N/A
3910112-5
Keeper, 5-inch, Leg Assembly
4 ea
5
N/A
391011-1
Keeper, 6 1/4-inch, Leg Assembly
4 ea
6
1670-00-719-6243
MS24553-1
Link Assembly, Sling Leg
4 ea
7
N/A
31610
Grab Link
4 ea
8
N/A
FE 7623-3
Keeper, Grab Link
4 ea
9
N/A
34012-18
Spring Keeper, Grab Link
4 ea
10
5310-00-167-0818
AN960-10
Pin, Keeper, Grab Link
4 ea
11
5315-00-812-3765
MS20392-2033
Latch, Safety Hook
4 ea
12
5315-00-839-2325
MS24665-132
Cotter Pin, Keeper, Grab Link
4 ea
13
N/A
31611
Coupling Link
4 ea
14
N/A
34080-4
Chain
4 ea
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
A-2
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
National Stock Numbers for Slings, Nets, and Spare Parts
40,000-POUND CAPACITY SLING SET COMPONENTS
NSN
PART NUMBER
DESCRIPTION
QTY PER
SET
3940-01-183-2118
TAMCN B 2035
Sling Set Assembly Complete
1 ea
1
4838-01-199-9562
FE8109-1
Apex Shackle Assembly
1 ea
2
N/A
FE8109-5
Shackle
1 ea
3
N/A
FE8109-3
Pin, Shackle, Apex
1 ea
4
N/A
FE8109-2
Spacer, Shackle, Apex
1 ea
5
5306-00-944-1538
NAS1306-21D
Bolt
1 ea
6
5310-00-176-8110
AN 320C6
Nut, Castellated
1 ea
7
5315-00-234-1864
MS 24665-302
Cotter Pin
1 ea
8
3940-01-194-9364
JETSWMC-2000
Sling Leg
4 ea
9
4030-01-197-1629
FE8103-1
Grab Link Assembly
4 ea
10
N/A
FE8103-4
Spacer, Grab Link
4 ea
11
5306-00-151-1482
AN12-42
Bolt, Grab Link
4 ea
12
5310-00-167-1292
AN310-12
Nut, Grab Link
4 ea
13
5315-00-285-7161
MS24665-377
Cotter Pin, Grab Link
4 ea
14
N/A
FE7623-3
Keeper, Grab Link
4 ea
15
5310-00-812-3765
MS20392-2033
Pin, Keeper, Grab Link
4 ea
16
N/A
34012-18
Spring, Keeper, Grab Link
4 ea
17
5310-00-167-0818
AN960-10
Washer, Keeper, Grab Link
4 ea
18
5315-00-839-2325
MS24665-132
Cotter Pin, Keeper, Grab Link
4 ea
19
4010-01-081-5114
577-0815
Link, Coupling
4 ea
20
N/A
607050
Chain, 8-Foot
4 ea
TYPE XXVI NYLON MULTILOOP LINE
NSN
Description
1670-01-062-6301
2-loop, 3 foot
1670-01-062-6306
4-loop, 3 foot
1670-01-062-6304
2-loop, 9 foot
1670-01-062-6305
4-loop, 9 foot
1670-01-063-7760
2-loop, 11 foot
1670-01-062-6310
4-loop, 11 foot
1670-01-062-6303
2-loop, 12 foot
1670-01-062-6307
4-loop, 12 foot
1670-01-063-7761
2-loop, 16 foot
1670-01-062-6308
4-loop, 16 foot
1670-01-062-6302
2-loop, 20 foot
1670-01-064-4453
4-loop, 20 foot
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
A-3
Appendix A
ROUNDSLINGS
NSN
PART NUMBER
CAPACITY
LENGTH
1670-01-388-6789
PRS 2E008
5,300-pound
8 foot
1670-01-388-3845
PRS 2E017
5,300-pound
17 foot
1670-01-388-8480
PRS 3E008
8,400-pound
8 foot
1670-01-388-8479
PRS 3E017
8,400-pound
17 foot
1670-01-388-3917
PRS 5E030
13,200-pound
30 foot
1670-01-388-3901
PRS 7E065
21,200-pound
65 foot
1670-01-388-3965
PRS 7E070
21,200-pound
70 foot
5,000- AND 10,000-POUND CAPACITY CARGO NETS AND COMPONENTS
NSN
PART NUMBER
DESCRIPTION
QTY
1670-01-058-3811
6018-5
Net, 5,000-pound capacity,
1 ea
LIN N02776, TAMCN J3121
1670-01-058-3810
6018-10
Net, 10,000-pound capacity,
1 ea
LIN N02708, TAMCN J3120
1670-01-070-5276
6019
Apex fitting
1 ea
1670-01-067-9989
6020
Hook
4 ea
4020-01-118-5826
6018-15
Repair cord, used on part no. 6018-5
As req
4020-01-119-5994
6018-20
Repair cord, used on part no. 6018-10
As req
8030-01-152-2286
2300-3
Antiabrasion compound, olive drab
As req
8030-01-154-2327
WB1003 black
Antiabrasion compound, black
As req
1080-00-108-1155
13226EO964-2
Transportease
1 ea*
8460-00-606-8366
MIL-K-41835
Kit bag, flyers
1 ea*
* Alternate NSN is 1080-00-107-8580. These cases are designed and marked for use with the
camouflage screen. Camouflage system markings should be replaced with “Helicopter
External Cargo Net, 10,000-pound capacity.”
PROTECTIVE EQUIPMENT
NSN
Description
4240-00-052-3776
Eye goggles
8415-01-158-9445
Gloves, electrical workers, size 9
8415-01-158-9446
Gloves, electrical workers, size 10
8415-01-158-9447
Gloves, electrical workers, size 11
8415-01-158-9448
Gloves, electrical workers, size 12
8415-00-268-7859
Gloves, leather
4240-00-759-3290
Protector, hearing
8415-00-071-8786
Helmet, flight deck (USN/USMC/USAF)
6515-00-137-6345
Plugs, ear, hearing protection
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
A-4
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
National Stock Numbers for Slings, Nets, and Spare Parts
MISCELLANEOUS EQUIPMENT AND MATERIAL
NSN
Description
4030-00-360-0304
Clevis assembly, small, MS 70087-1
5305-00-726-2553
Bolt
5310-00-835-2037
Nut
4030-00-678-8562
Clevis assembly, medium, MS 70087-2
5305-00-940-8069
Bolt
5310-00-842-1190
Nut
4030-00-090-5354
Clevis assembly, large, MS 70087-3
5305-00-177-5617
Bolt
5310-00-891-3428
Nut
4020-00-240-2146
Cord, nylon, Type III, 550-pound breaking strength
8305-00-958-3685
Felt sheeting, 1/2-inch thick, 30-inch wide
8305-00-191-1101
Felt sheeting, 1/2-inch thick, 60-inch wide
7520-00-079-0286
Ink, marking, parachute, orange-yellow, marker
7520-00-634-6583
Ink, marking, parachute, orange-yellow, liquid
7520-00-230-2734
Ink, marking, parachute, strata-blue, marker
7520-00-286-5362
Ink, marking, parachute, strata-blue, liquid
5825-00-917-3738
Light, beacon, beanbag
6260-01-074-4230
Light, chemical wand, 30-minute glow time
6260-00-106-7478
Light, chemical wand, 6-hour glow time
6260-01-074-4229
Light, chemical wand, 12-hour glow time
1670-00-783-5988
Link assembly, Type IV
1670-00-212-1149
MB-1 chain assembly, 10,000-pound capacity
1670-00-516-8405
Chain assembly
1670-00-753-3928
Pad, energy-dissipating, honeycomb
8135-00-664-6958
Padding, cellulose, 20-inch by 60-foot
8135-00-808-6446
Padding, cellulose, 24-inch by 125-foot
8345-00-174-6865
Panel, marker, red-yellow, VS-17
4020-00-231-2581
Rope, 3/8-inch, TR605
4020-00-968-1357
Rope, fibrous, 1/2-inch, MIL-R-17343
6850-00-264-9038
Solvent, dry cleaning, PD-680
7510-00-266-5016
Tape, adhesive, pressure-sensitive, 2-inch wide roll, green
7510-00-074-4969
Tape, adhesive, pressure-sensitive, 2-inch wide roll, red
1670-00-725-1437
Tie-down strap, CGU-l/B, 5,000-pound capacity
5340-01-204-3009
Tie-down strap, web nylon, 5,000-pound capacity
1670-00-937-0271
Tie-down strap, web nylon, 10,000-pound capacity
5365-00-937-0147
D-Ring, aerial delivery
1670-00-937-0272
Load binder assembly
1670-00-360-0340
Quick-fit strap fastener
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
A-5
Appendix A
Two-point link assembly components:
NSN
Description
5306-00-435-8994
Bolt, 1-inch diameter, 4-inch long (2 each)
5310-00-232-5165
Nut, 1-inch diameter (2 each)
1670-00-003-1954
Plate, side, 5 1/2-inch long (2 each)
5365-00-007-3414
Spacer, large
Wand
NSN
Description
1670-00-574-8044
Wand, static discharge
1670-01-192-5535
Wand, static discharge, 3-foot, PN 1610AS100-1, TAMCN C6254
5920-01-347-0728
Wand, static discharge, 5-foot, PN 1610AS100-2, TAMCN C6252
Webbing
NSN
Description
8305-00-082-5752
Webbing, nylon, tubular, 1/2-inch, 1,000-pound breaking strength
8305-00-268-2411
Webbing, cotton, 1/4-inch, 80-pound breaking strength
External Lift Devices
NSN
Description
1670-00-587-3421
Bag, cargo, A-22, LIN B 14181, TAMCN C4070
3940-00-892-4380
Cargo net, 14-foot square, 10-inch mesh
3940-00-892-4374
Cargo net, 14-foot square, 8-inch mesh
1450-01-219-4360
Mk105 pendant
1450-00-414-7172
Mk105 hoisting sling assembly, 6,000-pound capacity
1450-00-881-8736
Mk105 sling leg assembly
4020-01-365-3115
Pendant, reach, 11,000-pound capacity
4020-01-337-3185
Pendant, reach, 25,000-pound capacity
1670-01-003-0803
Releasable swivel hook pendant sling AC6000500 Mod
1
1450-00-169-6927
Sling, pallet, Mk86, LIN S80670
1398-00-004-9175
Sling, pallet, Mk100, LIN S80738
1670-00-103-6617
Swivel hook sling leg, AC6000153 (USMC, USN)
1670-01-531-1882
Spreader bar, 15,000-pound
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
A-6
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Appendix B
Sling Conversion Chart
Sling Conversion Chart
15,000-POUND
10,000-POUND
25,000-POUND
40,000-POUND
MULTILEG SLING
SLING SET
SLING SET
SLING SET
SET
CHAIN LINK
CHAIN LINK
CHAIN LINK
CHAIN LINK
NUMBER
NUMBER
NUMBER
NUMBER
3
51
4
52
3
5
53
4
6
54
5
6
54
6
7
3
55
7
8
4
56
8
9
4
57
9
9
5
57
10
10
6
58
11
11
6
59
12
11
7
59
13
12
7
60
14
13
8
61
15
14
9
62
16
14
9
62
17
15
10
18
16
11
19
16
11
NO FURTHER
20
17
12
CONVERSIONS
21
18
13
FOR 15,000-POUND
22
19
13
MULTILEG SLING
23
19
14
SET
24
20
15
25
21
15
26
21
16
27
22
16
28
23
17
29
24
18
30
24
28
31
25
19
32
26
20
33
27
20
34
27
21
FM 4-20.197/MCRP 4-11.3E, VOL I/NTTP 3-04.11/
20 February 2009
AFMAN 11-223 (I), VOL I/COMDTINST M13482.2B
B-1
Appendix B
Sling Conversion Chart (Continued)
15,000-POUND
10,000-POUND
25,000-POUND
40,000-POUND
MULTILEG SLING
SLING SET
SLING SET
SLING SET
SET
CHAIN LINK
CHAIN LINK
CHAIN LINK
CHAIN LINK
NUMBER
NUMBER
NUMBER
NUMBER
35
28
21
36
29
22
NO FURTHER
37
30
22
CONVERSIONS
38
31
23
FOR 15,000-POUND
39
31
24
MULTILEG SLING
40
32
24
SET
41
33
25
42
34
25
43
34
26
44
35
26
45
36
27
46
37
28
47
38
28
48
39
29
49
39
29
50
40
30
51
41
30
52
42
31
53
43
32
54
44
32
55
45
33
56
45
33
57
46
34
58
47
34
59
48
35
60
49
36
61
50
36
62
50
37
63
51
37
64
52
38
65
53
38
66
54
39
67
54
40
68
55
40
69
56
41
70
57
41
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
B-2
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Sling Conversion Chart
Sling Conversion Chart (Continued)
15,000-POUND
10,000-POUND
25,000-POUND
40,000-POUND
MULTILEG SLING
SLING SET
SLING SET
SLING SET
SET
CHAIN LINK
CHAIN LINK
CHAIN LINK
CHAIN LINK
NUMBER
NUMBER
NUMBER
NUMBER
71
57
42
72
58
42
NO FURTHER
73
59
43
CONVERSIONS
74
60
44
FOR 15,000-POUND
75
61
44
MULTILEG SLING
76
61
45
SET
77
62
46
78
63
46
79
64
47
80
65
48
81
65
48
82
66
49
83
67
49
84
68
50
85
68
51
86
69
51
87
70
52
88
71
53
89
72
53
90
72
54
91
73
55
92
74
55
93
75
56
94
76
57
95
76
57
96
77
58
97
78
58
98
79
59
99
79
60
100
80
60
101
81
61
102
82
62
103
83
62
104
83
63
105
84
64
106
64
107
65
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
B-3
Appendix C
Air Speed Factors
Each certified sling load under goes a flight test before it is certified. In the table that follows: the
nomenclature, weight of the item, paragraph number of the item, and the maximum tested airspeed is
represented.
Airspeed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
Truck, Ambulance, M996, HMMWV
2-2
7,400
UH-60 / 60
CH-47 / 110
Truck, Ambulance, M997, HMMWV
2-2
7,400
UH-60 / 80
CH-47 / 75
Truck, Ambulance, M997A2, HMMWV
2-2
10,300
CH-47 / 75
TOW Missile Carrier, HMMWV,
2-3
Varies by
CH-47 / 90
M966/M1036/M1045/M1046
Model
CH-53 / See Note
1
UH-60 / See Note
2
TOW Missile Carrier, HMMWV, M1045A2
2-3
10,300
CH-47 / 90
CH-53 / See Note
1
Armament Carrier, HMMWV,
2-3
Varies by
CH-47 / 90
M1025/M1026/M1043A2
Mode
CH-53 / See Note
1
UH-60 / See Note
2
Armament Carrier, HMMWV,
2-3
10,300
CH-47 / 90
M1025A2/M1043A2
CH-53 / See Note
1
Armament Carrier, HMMWV, M1025A2, Line
2-3
8,240
CH-47 / 80
of Sight Anti-Tank (LOSAT), Resupply
CH-53 / See Note
Vehicle with Reloader Crane
1
UH-60L / 80
Armament Carrier, HMMWV, M1043A2 with
2-3
10,300
CH-53 / 85
MAK (USMC)
Armament Carrier, HMMWV, M1151 (Empty)
2-3
7,300
CH-47 / 90
UH-60 / 100
CH-53 / 80
Armament Carrier, HMMWV, M1151
2-3
11,500
CH-47 / 90
(Loaded)
CH-53 / 80
Truck, 1 1/4-ton, HMMWV, M998/M1038
2-4
7,700
CH-47 / 90
CH-53 / See Note
1
FM 4-20.197/MCRP 4-11.3E, VOL I/NTTP 3-04.11/
20 February 2009
AFMAN 11-223 (I), VOL I/COMDTINST M13482.2B
C-1
Appendix C
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
UH-60 / See Note
2
Truck, 1 1/4-ton, HMMWV, M998A1
2-4
7,500
CH-47 / 90
CH-53 / See Note
1
UH-60 / See Note
2
Truck, 1 1/4-ton, HMMWV, M998 with
2-4
7,700
CH-47 / 90
AN/MRC110-A Radio Set
CH-53 / See Note
1
UH-60 / See Note
2
Truck, 1 1/4-ton, HMMWV, Modified , (GVW
2-4
9,400
90
9,400 lbs), M1037
Truck, 1 1/4-ton, Heavy HMMWV, Cargo
2-4
10,001
90
Variant, M1097
Truck, 1 1/4-ton, Heavy HMMWV, Cargo
2-4
10,300
90
Variant, M1097A2
Integrated System Control (ISYSCON),
2-4
10,300
90
Support Carrier/Radio, Truck, 1 1/4-ton,
Heavy HMMWV, M1097
Truck, 1 1/4-ton, HMMWV, with MAK, M1123,
2-4
10,300
90
2 Door or 4 Door Passenger Compartment
Truck, 1 1/4-ton, Heavy HMMWV, Cargo
2-4
7,300
90
Variant M1152 (Empty)
Truck, 1 1/4-ton, Heavy HMMWV, Cargo
2-4
11,500
90
Variant M1152 (Loaded)
Shelter Carriers, M1037/M1042
2-5
5,220
100
Shelter Carriers, M1097/M1097A1
2-5
10,000
100
Shelter Carrier, M1097A2
2-5
10,300
100
Shelter Carrier, M1113 (Empty)
2-5
6,400
100
Shelter Carrier, M1152 (Empty)
2-5
7,300
100
Shelter Carrier, M1152 (Loaded)
2-5
11,500
100
NC Operations
2-6
8,800
110
NC Switch
2-6
8,513
100
NC LOS (V3)
2-6
8,611
100
NC Management
2-6
8,800
100
NC Support
2-6
8,400
100
LEN Operations
2-6
8,800
100
LEN Switch
2-6
8,800
100
LEN LOS (V4)
2-6
8,800
100
LEN Management
2-6
8,800
100
LEN Cable Vehicle
2-6
8,180
100
SSC Command
2-6
8,800
100
SSC Planning
2-6
8,300
100
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
C-2
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Air Speed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
SSC Technical
2-6
8,507
100
LOS(V1)
2-6
8,800
100
LOS(V2)
2-6
8,500
100
Radio Access Unit
2-6
8,800
100
SEN(V1)
2-6
8,800
100
SEN(V2)
2-6
8,800
100
Maintenance #1
2-6
8,084
100
Maintenance #2
2-6
8,350
100
Battalion Spares
2-6
8,800
100
Company Spares
2-6
7,850
100
AN/TLQ-17A (V3)
2-6
8,040
100
Deployable Media Production Center
2-6
7,840
120
Operational Control Group (OCG), Firefinder
2-6
7,500
100
AN/TPQ-36 Block I
TLQ-37 Intelligence and Electronic Warfare
2-6
8,200
100
(IEW) System
S-250/S-250E
2-7
10,001
120
AN/TRC-170 Communication Shelter
2-7
9,240
130
TRQ-32, Intelligence and Electronic Warfare
2-7
9,700
120
(IEW) System
Platoon Operations Center (POC),
2-7
9,700
120
Intelligence and Electronic Warfare (IEW)
System
Mobile Subscriber Equipment Contingency
2-7
9,993
120
Communications Package/Light Forces
Contingency Communications Package in S-
250E
Mobile Subscriber Equipment Contingency
2-7
8,913
120
Communications Package/Light Forces
Contingency Communications Package in
S250
LOS (V1)
2-7
9,038
120
LOS (V2)
2-7
9,038
120
LOS (V3)
2-7
9,038
120
LOS (V4)
2-7
9,038
120
NODAL Support Vehicle
2-7
8,250
120
NC Operations
2-7
9,100
120
NC Switch
2-7
8,813
120
NC LOS (V3)
2-7
8,911
120
NC Management
2-7
9,100
120
NC Support
2-7
8,700
120
LEN Operations
2-7
9,100
120
LEN Switch
2-7
9,100
120
LEN LOS (V4)
2-7
9,100
120
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
C-3
Appendix C
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
LEN Management
2-7
9,100
120
LEN Cable Vehicle
2-7
8,480
120
SSC Command
2-7
9,100
120
SSC Planning
2-7
8,600
120
SSC Technical
2-7
8,807
120
LOS(V1)
2-7
9,100
120
LOS(V2)
2-7
8,800
120
Radio Access Unit
2-7
9,100
120
SEN(V1)
2-7
9,100
120
SEN(V2)
2-7
9,100
120
Maintenance #1
2-7
8,384
120
Maintenance #2
2-7
8,650
120
Battalion Spares
2-7
9,100
120
Company Spares
2-7
8,150
120
ANTLQ-17A (V3)
2-7
8,340
120
Deployable Media Production Center
2-7
8,140
120
Operational Control Group (OCG) / Firefinder
2-7
7,800
120
AN/TPQ-36 Bloc II
TLQ37 Intelligence and Electronic Warfare
2-7
8,500
120
(IEW) System
Downsized Direct Support Section (DDSS)
2-8
8,030
100
S-318 Shelter Mounted on M1037
2-9
7,440
100
Spare Equipment and Maintenance Shelter
2-10
9,220
120
AN/TSQ-190 (V) 1
Tactical Remote Sensor System (TRSS)
2-10
7,685
120
Sensor Mobile Monitoring System (SMMS)
Meteorological Measuring Set AN/TMQ-41
2-10
7,770
120
(USMC)
Meteorological Measuring Set AN/TMQ-41
2-10
8,200
120
Air Defense Communications Platform
2-10
10,000
120
AN/MSQ-124
Forward Area Air Defense Command Control
2-10
9,800
100
System AN/TSQ-182
Forward Area Air Defense Command Control
2-10
7,297
100
System AN/TSQ-184
Mobile Radio Broadcasting Subsystem
2-10
9,746
120
(MRBS)
Mobile Radio (MR) Cargo Vehicle
2-10
9,907
120
Mobile Television Broadcasting Subsystem
2-10
9,295
120
(MTBS)
Mobile Television (MT) Cargo Vehicle
2-10
9,637
120
Common Ground Station, Joint Surveillance
2-10
10,300
120
Target Attack Radar (JSTAR) System
Advanced Field Artillery Tactical Data
2-10
8,882
100
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
C-4
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Air Speed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
Systems (AFATADS), System #1, RWS
with a CHS-2 AN/GYG-3(V)1
Marine Expeditionary Force Intelligence
2-10
9,194
100
Analysis System S1
Marine Expeditionary Force Intelligence
2-10
9,126
100
Analysis System S2
Tactical Control and Analysis Center
2-10
9,300
100
High Mobility Downsized (HMD) Direct Air
2-10
8,420
120
Support Central
Operations Central (OC) Group Firefinder
2-10
8,620
120
AN/TPQ-36 (V) 8
Biological Integrated Detection System
2-10
9,000
110
(BIDS)
Integrated Meteorological Systems (IMETS),
2-10
9,050
120
Block I & II
Enhanced Position Location Reporting
2-10
10,000
120
System (EPLRS) Downsized Net Control
Station (NCS-E(D)
Digital Group Multiplexer (DGM) AN/TRC-
2-10
9,020
115
138C
High Mobility Digital Group Multiplexer
2-10
9,100
100
Assemblage (HMDA) AN/TRC-173B,
AN/TRC-174B, AN/TRC-175B
High Frequency Communications Central
2-10
8,765
120
AN/TRC 120
Marine Expeditionary Force Intelligence
2-10
9,220
120
Analysis System (IAS)
Communications Data Link System on
2-10
9,900
120
M1097A2
Analysis Control Team-Enclave, AN/TYQ-103
2-11
10,300
125
High Frequency Communications Central,
2-12
8,365
120
AN/TSC-120
Analysis Control Team-Enclave (ACT-E)
2-13
11,500
125
Common Ground Station (CGS), Joint
2-13
11,500
100
Surveillance Target Attack Radar (JSTAR)
System (V)2
Digital Topographic Support System-Light
2-13
11,500
100
(DTSS-L)
Integrated System Control (ISYSCON),
2-13
11,500
100
AN/TYQ-76B, (V)1, (V)2, and Degraded
configurations
Meteorological Measuring System Profiler,
2-13
11,500
100
(MMS-P), AN/TMQ-52
Shadow Tactical Unmanned Vehicle (TUAV),
2-13
11,500
100
Air Vehicle Transport
Shadow Tactical Unmanned Vehicle (TUAV),
2-13
11,500
100
Ground Control Station
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
C-5
Appendix C
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
Shadow Tactical Unmanned Vehicle (TUAV),
2-13
11,500
100
Maintenance Section Multifunctional
Single Shelter Switch (SSS), AN/TTC-56
2-13
11,500
120
Tactical Airspace Integration System (TAIS)
2-13
11,500
100
Trojan Spirit Lite (V)3 Support Vehicle,
2-13
11,500
100
AN/TSQ-226 (V)3
Joint Tactical Information Distribution System
2-14
10,000
120
(JTIDS), AN/TYQ-JTIDS Shelter on M1097
HMMWV
AN/TSM-210 Electronic Shop on Enhanced
2-14
10,360
120
Capacity Vehicle, M1113 HMMWV
Special Operations Media System
2-15
9,080
120
Tactical Data Network (TDN) Gateway on
2-16
9,580
100
M1097A1 HMMWV
Smoke Generator Set, M157 on M1037
2-17
7,400
100
Smoke Generator Set, M157 on M1097
2-17
8,025
120
Smoke Generator Set, M157A1E1 on M1097
2-17
8,035
120
M1113 (HMMWV) With M56 Smoke
2-18
9,400
120
Generating System with Graphite in Tank
M1113 (HMMWV) With M56 Smoke
2-18
9,400
120
Generating System without Graphite in Tank
Cargo Bed Cover, HMMWV, Type I,
2-19
10,000
90
Camouflage, NSN: 5411-01-647-3246
Cargo Bed Cover, HMMWV, Type I, Sand,
2-19
10,000
90
NSN: 5411-01-479-1928
CMTH, Aviation Section (AS)
2-20
9,400
120
M1097A1 (HMMWV) With Remote Landing
2-21
8,460
120
Site Tower (RLST)
Prophet AN/MLQ-40 (V) 1
2-22
10,000
90
Prophet AN/MLQ-40 (V) 3
2-22
10,000
90
Prophet Control Vehicle
2-22
10,000
90
Measurements and Signature Intelligence
2-23
10,300
90
(MASINT)
OA-9134/TSC Pallet Group, Antenna AS-
2-24
7,129
110
3036/TSC on M1097
2 Mast AETC Configuration
2-25
8,500
110
3 Mast AETC Configuration
2-25
9,500
110
M1097A2 (HMMWV) With Secure Mobile
2-26
8,540
100
Anti-Jam Tactical Terminal (SMART-T) Pallet
M1113 HMMWV with ATNAVICS Radar
2-27
11,500
120
Sensor Pallet
Trojan Spirit Lite (V)2, Central
2-28
11,500
100
Communications AN/TSQ-226 (V)2 on
M1113 HMMWV
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
C-6
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Air Speed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
AN/MRC-142B Radio Terminal Set w/ 30
2-29
7,500
110
Meter Mast on M998
M998 with Two MRC-127 Stacks
2-30
8,010
110
LTACFIRE, Single Station
2-31
5,927
90
LTACFIRE, Dual Station
2-31
6,215
90
AN/TSQ-198 TTCS
2-31
6,015
90
System 2: CHS-2 AN/GYG-3(V)1, with
2-32
8,103
100
SINCGARS AN/VRC-90, AN/VRC-92, and
EPLRS installed in the bed. AN/VRC-92
installed in cab.
System 3: CHS-2 AN/GYG-3(V)3, with
2-32
8,366
100
SINCGARS AN/VRC-90, AN/VRC-92, and
EPLRS installed in the bed. AN/VRC-92
installed in cab.
System 4: 2 each AN/GYK-37(V)2, with
2-32
7,790
100
SINCGARS AN/VRC-89, AN/VRC-92, and
EPLRS
System 2: CHS-2 AN/GYG-3(V)1, with
2-33
8,103
100
SINCGARS AN/VRC-90, AN/VRC-92, and
EPLRS installed in the bed. AN/VRC-92
installed in cab. Full Size Stick.
System 3: CHS-2 AN/GYG-3(V)3, with
2-33
8,366
100
SINCGARS AN/VRC-90, AN/VRC-92, and
EPLRS installed in the bed. AN/VRC-92
installed in cab. Full Size Stick.
System 4: 2 each AN/GYK-37(V)2, with
2-33
7,790
100
SINCGARS AN/VRC-89, AN/VRC-92, and
EPLRS. Full Size Stick.
ANTPQ-36 Firefinder Generator Pallet
2-34
7,700
110
M1097 with Sentinel AN/MPQ-64 Tactical
2-35
7,800
120
Quiet Generator
AN/TPQ-42, Meteorological Hydrogen
2-36
10,000
120
Generator
Compressed Air Foam System, Mobile
2-37
6,400
120
(Empty)
M1113 with Tactical Super High Frequency
2-38
10,340
120
Satellite Terminal
M1113 with Tactical Super High Frequency
2-39
10,520
120
Satellite Terminal Mobile Power Unit MEP
803A, 10 KW, TQG
PQAS Mission Vision, M1113 with PQAS
2-40
9,460
110
Shelter
Interim Fast Attack Vehicle Truck, Long
2-41
5,720
120
Wheel Base
John Deere M-Gator, Empty, (Model #
2-42
1,400
90
VGM6X01001)
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
C-7
Appendix C
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
John Deere M-Gator, with load, (Model #
2-42
2,450
90
VGM6X01001)
Two John Deere M-Gators, Empty, (Model #
2-43
1,450
75
VGM6X01001)
Command and Control, TAMCN E0946
2-44
27,060
95
25-MM, TAMCN E0947
2-44
28,200
85
Logistics, TAMCN E0948
2-44
28,200
90
Mortar, TAMCN E0949
2-44
27,400
95
Recovery Unit, TAMCN E0950
2-44
28,400
90
Tow Anti-Tank, TAMCN E0942
2-44
27,650
90
M416 1/4-Ton Trailer
3-2
1,080
90
M101A2/A3 with Accompanying Load
3-3
3,000
65
Command Version 1 Trailer
3-3
1,958
65
Command Version 2 Trailer
3-3
1,981
65
Len Cable Trailer
3-3
2,796
65
NC Support Trailer
3-3
2,643
65
Maintenance Trailer #2
3-3
1,430
65
Battalion Spares Trailer #1
3-3
1,594
65
Battalion Spares Trailer #2
3-3
2,206
65
Marine Expeditionary Force Intelligence
3-3
3,000
65
Analysis System M101A3 Trailer
Technical Control and Analysis Center
3-3
3,000
65
Production Improvement Program M101A3
Trailer
M1048 Trailer
3-4
5,880
120
M1073 Trailer
3-4
6,260
110
M1048 Trailer (TSS)
3-5
7,880
120
M149A2 Water Trailer Modified with Clevis
3-6
6,100
90
Type Lift Provisions
M989 HEMAT (Empty)
3-7
7,640
120
M989A1 HEMAT II
3-8
10,650
125
Mk14 Container Hauler Trailer
3-9
16,000
100
Mk15 Wrecker/Recovery Trailer
3-10
26,000
90
Mk16 Fifth-Wheel Adapter Trailer
3-11
16,000
90
Mk17 Drop-Side Cargo Trailer
3-12
23,000
75
M116A2 Trailer with Antenna Groups, AS-
3-13
3,230
65
3954/TRC (2 each)
M116A2 Trailer with AN/TPQ-36 Firefinder
3-14
3,320
105
Antenna Transceiver Group
M116A2 Trailer with M894 18,000-BTU Air
3-15
2,620
80
Conditioner and MEP-003A Generator
M116A2 Trailer, Single Channel Objective
3-16
2,830
85
Tactical Terminal
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
C-8
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Air Speed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
M116A3 Trailer with OE334 Antenna Coupler
3-17
3,280
80
Group
M105A3 Trailer (Empty)
3-18
2,600
80
M105A3 Trailer (Loaded)
3-18
5,580
110
High Mobility Trailer (Light), M1101
3-19
3,400
120
High Mobility Trailer (Light), M1102
3-19
4,200
120
Tactical Messaging System (TMS) Cargo
3-19
4,200
120
Carrier, M1102
Sentinel AN/MPQ-64 Antenna Transmitter
3-20
3,900
80
Group
HMT Trailer With Remote Landing Site
3-21
3,600
120
Tower
Line of Sight Anti-Tank Resupply Trailer with
3-22
4,230
100
8 Missiles and 4 Crew Doors from the LOSAT
Vehicle
MKT-90
3-23
5,730
70
MKT-95
3-23
6,731
70
MKT-99
3-23
6,731
70
Hydraulic System Test and Repair Unit
3-24
2,878
70
Desert Operation Trailer with Desert
3-25
3,300
80
Operation Motorcycle
M332 Ammunition Trailer, 1 1/2-Ton
3-26
5,780
120
AS-4492/TSC, Lightweight, High Gain, X-
3-27
3,820
90
band Antenna Trailer
M1112 400 Gallon Water Trailer, Empty
3-28
3,860
80
M1082 LMTV Trailer
3-29
11,510
70
M1095 MTV Trailer
3-29
15,780
70
Small Portable Expeditionary Aeromedical
3-30
6,100
80
Rapid Response Trailer
Minimum Operating Strip Lighting System
3-31
3,350
70
with Spreader Bars
Assault Command Post, Housed in
3-32
13,240
80
Expandable Light Airmobile Shelter with High
Speed Mobile Wheel Set
Upgraded, Assault Command Post, Housed
3-32
14,600
80
in Expandable Light Airmobile Shelter with
High Speed Mobile Wheel Set
Trailer Support System (TSS 2000655) on
3-33
4,320
80
Crash-Out-Package System (COPS) Trailer
with Base-X Expeditionary Shelter
Shadow Tactical Unmanned Aerial Vehicle
3-34
4,100
100
(TUAV) Launcher/Recovery Trailer
Transporter (Trailer), SEE, 2-Axel, 20,000-
3-35
10,800
110
Pound Capacity
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
C-9
Appendix C
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
Trailer Mounted Environmental Control
3-36
4,200
70
System
Petroleum Quality Analysis System Trailer
3-37
3,380
70
M353 Trailer Chassis
4-2
2,720
100
MEP-005A
4-2
6,220
100
MEP-006A
4-2
7,720
100
MEP-0114A
4-2
6,220
100
MEP-0115A
4-2
6,320
100
Generator set, 15 kW, 6113
4-3
5,119
100
Generator set, 30 kW, CE301ACWK1
4-3
5,625
100
Generator set, 45 kW, 52300
4-3
6,885
100
Generator set, 60 kW, MEP-006A
4-3
7,347
100
AN/MJQ-12A, Unit A, 60 kW, 50/60 Hz Power
4-3
8,060
90
Unit with MEP 006A, 60 kW, 50/60 Hz,
generator set with switch box
AN/MJQ-12A, Unit B, 60 kW, 50/60 Hz Power
4-3
7,980
90
Unit with MEP 806A, 60 kW, 50/60 Hz,
generator set (no switch box)
AN/MJQ-39, Unit A, 15 kW, 400 Hz Power
4-3
5,255
80
Unit with MEP 814A, 15 kW, 400 Hz,
generator set with switch box
AN/MJQ-39, Unit B, 15 kW, 400 Hz Power
4-3
5,255
80
Unit with MEP 814A, 15 kW, 400 Hz,
generator set (no switch box)
AN/MJQ-40, Unit A, 30 kW, 50/60 Hz Power
4-3
6,100
90
Unit with MEP 805A, 30 kW, 50/60 Hz,
generator set with switch box
AN/MJQ-40, Unit B, 30 kW, 50/60 Hz Power
4-3
6,100
90
Unit with MEP 805A, 30 kW, 50/60 Hz,
generator set (no switch box)
AN/MJQ-40B, Unit A, PU-803B/G, PU-
4-3
7,410
110
804B/G
AN/MJQ-40B, Unit B, PU-803B/G, PU-
4-3
7,410
110
804B/G
AN/MJQ-41B, Unit A, PU-805B/G, PU-
4-3
7,410
90
806B/G
AN/MJQ-41, Unit A, 60 kW, 50/60 Hz Power
4-3
6,720
70
Unit with MEP 806A, 60 kW, 50/60 Hz,
generator set with switch box
AN/MJQ-41, Unit B, 60 kW, 50/60 Hz Power
4-3
6,720
70
Unit with MEP 806A, 60 kW, 50/60 Hz,
generator set (no switch box)
AN/MJQ-41B, Unit B, PU-805B/G, PU-
4-3
7,410
90
806B/G
PU-405 A/M Power Unit, 15 kW, without
4-3
6,119
100
acoustic suppression kit (ASK)
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
C-10
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Air Speed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
PU-405 A/M Power Unit, 15 kW, with acoustic
4-3
6,740
80
suppression kit (ASK)
PU-406 B/M Power Unit, 30 kW, with acoustic
4-3
7,520
80
suppression kit (ASK)
PU-650 B/G, 60 kW , 50/60 Hz Power Unit
4-3
7,800
90
with MEP 006A, 60 kW, 50/60 Hz generator
set
PU-707 A/M, 60 kW , 400 Hz Power Unit with
4-3
7,800
90
MEP 115A, 60 kW, 400 Hz generator set
PU-732 Power Unit, 15 kW, with acoustic
4-3
6,690
80
suppression kit (ASK)
PU-760 Power Unit, 30 kW, with acoustic
4-3
7,240
80
suppression kit (ASK)
PU-800, 15 kW, 400 Hz Power Unit with MEP
4-3
5,255
80
814A, 15 kW, 400 Hz, generator set
PU-802, 15 kW, 50/60 Hz Power Unit with
4-3
5,320
80
MEP 804A, 15 kW, 50/60 Hz, generator set
PU-803, 30 kW, 50/60 Hz Power Unit with
4-3
6,100
90
MEP 805A, 30 kW, 50/60 Hz, generator set
PU-804, 30 kW, 400 Hz Power Unit with MEP
4-3
6,130
90
815A, 30 kW, 400 Hz, generator set
PU-805, 60 kW, 50/60 Hz Power Unit with
4-3
7,120
70
MEP 806A, 60 kW, 50/60 Hz, generator set
PU-806, 60 kW, 400 Hz Power Unit with MEP
4-3
7,215
70
816A, 60 kW, 400 Hz, generator set
PU-794/G Regency Net Power Unit
4-3
6,600
90
AN/MJQ-16 Power Unit, 5 kW, 60 Hz
4-4
5,100
120
AN/MJQ-18 Power Unit, 10 kW, 60Hz
4-4
5,765
120
AN/MJQ-25 Power Unit, 10 kW, 400 Hz
4-4
5,750
120
AN/MJQ-37 Power Unit with Two (2) MEP-
4-5
4,735
90
803A, 10kW, 60 Hz, Generator Sets
AN/MJQ-38 Power Unit with Two (2) MEP-
4-5
4,735
90
813A, 10kW,400 Hz, Generator Sets
PU-751/M, 5 kW Generator Variants, LOS
4-6
3,000
75
V1,V2/V3/V4, Planning Trailer, Radio Access
Trailer
PU-753/M, 10 kW Generator Variants
NC OPS Trailer
SCC TECH Trailer
NC MGMT Trailer
4-6
3,000
75
LEN MGMT Trailer
LEN OPS Trailer
SEN V1 Trailer
SEN V2 Trailer
Maintenance #1 Trailer AN/TSQ-182
AN/MJQ-32 Power Unit with Acoustic
4-6
3,120
120
Suppression Kit, 3 kW
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
C-11
Appendix C
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
AN/MJQ-33 Power Unit with Acoustic
4-6
2,858
100
Suppression Kit, 3 kW
AN/MJQ-43 Power Unit with Two (2) MEP-
4-7
2,060
80
831A, 3 kW, 60 Hz, Generator Sets
AN/MJQ-35 Power Unit with Two (2) MEP-
4-7
3,160
80
802A, 5 kW, 60 Hz, Generator Sets
PU-797 5 kW, 60Hz Power Unit with MEP-
4-7
2,720
70
802A, 5 kW, 60 Hz, 60 Hz, Generator Set
PU-798 10 kW, 60Hz Power Unit with MEP-
4-7
2,860
70
803A,10 kW, 60 Hz, Generator Set
PU-799 10 kW, 400 Hz Power Unit with
4-7
3,160
70
MEP-813A, 10 kW, 400 Hz, Generator Set
PU-801 15 kW, 50/60Hz Power Unit with
4-7
3,160
100
MEP-804A, 15 kW, 50/60 Hz, Generator Set
AN/MJQ-33 Tactical Quiet Generator (TQG)
4-7
2,100
100
AN/TMQ-35A, 5 kW, 60 Hz Power Plant
4-8
3,540
80
PU-797A 5 kW, 60 Hz, Power Unit with 802A
4-9
2,657
70
Generator Set
PU-798A 10 kW, 60 Hz, Power Unit with
4-9
2,880
70
803A Generator Set
PU-799A 10 kW, 400 Hz, Power Unit with
4-9
2,910
70
813A Generator Set
PU-801A 15 kW, 60Hz Power Unit with
4-9
3,800
100
MEP-804A Generator Set
Mission Trailer, without Transit Cases
4-10
3.960
90
Support Trailer, without Transit Cases
4-10
3.878
90
M973, Cargo, Tracked
5-2
Front-6,380
80
Rear-6,600
Total-12,980
M973E1, Cargo, Tracked
5-2
Front-6,380
80
Rear-6,600
Total-12,980
M1065, Command Post, Tracked
5-2
Front-6,380
80
Rear-6,600
Total-12,980
M1066,Ambulance, Tracked
5-2
Front-6,380
80
Rear-6,600
Total-12,980
M1067 Flatbed, Tracked
5-3
Front-6,600
70
Rear-7,150
Total-12,980
M101A1 Howitzer
6-2
4,980
95
M101A1 Howitzer with one A-22 Cargo Bag
6-2
7,180
75
M101A1 Howitzer with two A-22 Cargo Bags
6-2
9,380
80
M101A1 Howitzer with three A-22 Cargo
6-2
11,580
75
Bags
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
C-12
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Air Speed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
M102 Howitzer
6-3
3,330
80
M102 Howitzer with One A-22 Cargo Bag
6-4
5,660
90
M102 Howitzer with Two A-22 Cargo Bags
6-5
7,560
80
M102 Howitzer with Three A-22 Cargo Bags
6-5
9,760
80
Two M102 Howitzers
6-6
6,660
90
Two M102 Howitzers with One A-22 Cargo
6-7
8,860
90
Bag
Two M102 Howitzers with Two A-22 Cargo
6-7
11,060
90
Bags
Two M102 Howitzers with Three A-22 Cargo
6-7
13,260
90
Bag
M119/M119A2 Howitzer Folded/Towed
6-8
4,400
120
M119/M119A2 Howitzer with accompanying
6-8
7,400
120
load Folded/Towed
M119/M119A2 Howitzer Forward/Firing
6-9
4,400
110
M119/M119A2 Howitzer with Accompanying
6-9
7,400
110
Load Forward/Firing
M119/M119A2 Howitzer with Two Boxes of
6-10
4,850
80
Ammunition on Firing Platform
M119/M119A2 Howitzer with Two Boxes of
6-10
7,500
110
Ammunition on Firing Platform and
Ammunition in A-22 or Cargo Net
M114A2 Howitzer
6-11
12,700
110
M198 Howitzer in Towed Position
6-12
15,740
110
M198 Howitzer in Stowed Position
6-12
15,740
110
Two M101A1 Howitzers
6-13
9,960
100
BMS120, Carriage Mounted
6-15
764
60
M777, 155-mm, Lightweight Howitzer
6-16
9,300
120
M777A1, 155-mm, Lightweight Howitzer
6-16
9,800
120
M777A2, 155-mm, Lightweight Howitzer
6-16
9,920
120
Stinger, Pedestal-Mounted on M998
7-2
8,513
90
(Avenger)
Stinger, Pedestal-Mounted on M1097
7-2
9,087
90
(Avenger)
Stinger, Pedestal-Mounted, with ECU/PPU on
7-3
9,800
70
M1097 HMMWV
Stinger, Pedestal-Mounted, with ECU/PPU on
7-3
9,800
70
M1097A1 HMMWV
Stinger, Pedestal-Mounted, with ECU/PPU on
7-3
10,300
70
M1097A2 HMMWV
Tractor, Full-Tracked, JD550 with Roll Over
8-2
16,662
90
Protection System (ROPS), Towing Winch
and Hydraulic Angle Blade
D5B Tractor, Dozer, Type II, Power Section
8-3
18,915
70
without ROPS
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
C-13
Appendix C
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
D5B Tractor, Dozer, Type II, Track Section
8-3
13,735
90
MC1150E Full Tracked Tractor
8-4
24,062
75
Tractor (Dozer), Full-Tracked, Type III,
8-5
18,400
100
JD450G
Tractor (Dozer), Full-Tracked, Type III,
8-5
17,700
100
JD450G, without ROPS
Tractor (Dozer), Full-Tracked, Type III,
8-5
16,160
100
JD450G,without ROPS and Winch
Tractor, Case, Model 850
8-6
10,500
80
Small Emplacement Excavator
8-7
16,240
95
High Mobility Materiel Handler
8-8
15,650
115
Ditching Machine
8-9
3,340
100
950BS Scoop Loader, Type II, Work Section
8-10
15,830
100
950BS Scoop Loader, Type II, Power Section
8-10
16,110
90
130GS Grader Front Section with Scarifier
8-11
16,120
100
and ROPS, Low-Velocity Airdrop Suspension
Provisions Removed
130GS Grader Rear Section
8-11
14,270
100
613BS Elevating Scraper Work Section
8-12
16,330
110
613BS Elevating Scraper Power Section
8-12
16,860
110
613WDS Water Distributor Power Section
8-13
16,960
110
613WDS Water Distributor Work Section
8-13
15,400
110
Roller, Towed, Vibrating
8-14
4,830
120
Roller, Towed, RO3402
8-15
4,600
120
Roller, Hercules, PT-11
8-15
3,520
85
Vibrating Roller, Caterpillar, RO-33
8-16
16,425
120
Mk155 Launcher, Mine Clearing
8-17
860
80
M68A2 Line Charge, Demolition Inert
818
2,486
70
M68A2 Line Charge, Demolition with Mk22
8-18
2,672
70
Rocket Motor
Mk155 Launcher
8-19
3,700
90
Mk155 Launcher with M68A2, Demolition
8-19
6,312
100
Charge and Mk22 Rocket Motor
Mk155 Launcher on M200A1 Trailer
8-20
3,330
90
Mk155 Launcher with M68A2, Demolition
8-20
5,620
110
Charge and Mk22 Rocket Motor on M200A1
Trailer
Mk155 Launcher with M68A2, Demolition
8-20
7,172
110
Charge and Mk22 Rocket Motor on Mobile-
Trac System Trailer
LRT-110, 7 ½-Ton Crane
8-21
24,230
120
LRT-110 7 ½-Ton Crane Boom
8-22
8,600
140
LRT-110, 7 ½-Ton Crane Power Unit
8-23
15,600
140
Truck, Forklift, MC-4000 TAMCN B2565
8-24
8,600
90
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
C-14
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Air Speed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
Truck, Forklift, Rough Terrain, RT4000,
8-25
10,860
120
TAMCN B2566
MHE-270 without Cab, NSN: 3930-01-330-
8-26
11,700
125
8907
MHE-270 with Cab, NSN: 3930-01-330-8967
8-26
11,920
125
Truck, Forklift, MC6000
8-27
19,800
85
Extendable Boom Forklift
8-28
25,640
105
Extendable Boom Forklift (New Version)
8-29
28,400
110
Light Rough Terrain Forklift
8-30
13,700
110
Welding Shop on M200A1 Trailer
8-31
7,220
120
250 CFM Air Compressor
8-32
7,425
100
Pneumatic Pool and Compressor, TAMCN
8-33
8,040
75
B0395
Hydraulic Pioneer Tool Outfit
8-33
6,740
100
Fuel Dispensing System, Tactical Airfield
8-34
3,500
60
Boat, Bridge Erection
8-35
6,000
60
Medium Girder Bridge, Ramp Section,
8-36
6,500
70
Palletized TAMCN BO152
Ribbon Bridge, Ramp Bay
8-37
11,560
90
Improved Ribbon Bridge, Ramp Bay
8-37
13,270
90
Ribbon Bridge, Interior Bay
8-38
11,800
70
Improved Ribbon Bridge, Interior Bay
8-38
13,860
70
MC257 Water Purification Unit-Reverse
8-39
7,400
90
Osmosis, 600 Gallons per Hour, Skid
Mounted, TAMCN B2064
MS114 WFD Concrete Mixer
8-40
4,223
70
Countermine Mini-Flail
8-41
2,420
100
Bobcat 863 Skid-Steer Loader with
8-42
6,870
100
Construction and Industrial Bucket
Bobcat 863 Skid-Steer Loader with
8-42
7,720
100
Construction and Industrial Bucket and
Tracks
Bobcat 863 Skid-Steer Loader with Pallet
8-42
7,235
100
Forks
Bobcat 863 Skid-Steer Loader with Pallet
8-42
8,085
100
Forks and Tracks
Bobcat 863 Skid-Steer Loader with 36-inch
8-42
7,690
100
Auger Bit
Bobcat 863 Skid-Steer Loader with 36-inch
8-42
8,540
100
Auger Bit and Tracks
Bobcat 863 Skid-Steer Loader with Dozer
8-42
7,770
100
Blade
Bobcat 863 Skid-Steer Loader with Dozer
8-42
8,620
100
Blade and Tracks
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
C-15
Appendix C
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
Bobcat 863 Skid-Steer Loader with Angle
8-42
7,910
100
Broom
Bobcat 863 Skid-Steer Loader with Angle
8-42
8,760
100
Broom and Tracks
Bobcat 763 Skid-Steer Loader with no
8-42
4,840
100
Attachments
Bobcat 763 Skid-Steer Loader with Clamshell
8-42
5,660
100
Bucket Attachment (NSN 3815-01-502-3528)
Bobcat 763 Skid-Steer Loader with Hydraulic
8-42
5,600
100
Breaker Attachment (NSN 3820-01-502-
3530)
Bobcat 763 Skid-Steer Loader with Auger
8-42
5,220
100
Attachment (NSN 3830-01-502-5470)
Bobcat 763 Skid-Steer Loader with Pallet
8-42
5,480
100
Lifting Fork Attachment (NSN 3940-01-502-
5469)
Bobcat S150 Compact Skid-Steer Loader
8-42
5,530
100
with no Attachments
Bobcat S150 Compact Skid-Steer Loader
8-42
6,410
100
with Clamshell Bucket Attachment (NSN
3815-01-502-3528)
Bobcat S150 Compact Skid-Steer Loader
842
6,290
100
with Hydraulic Breaker Attachment (NSN
3820-01-502-3530)
Bobcat S150 Compact Skid-Steer Loader
8-42
5,910
100
with Auger Attachment (NSN 3830-01-502-
5470)
Bobcat S150 Compact Skid-Steer Loader
8-42
6,170
100
with Pallet Lifting Fork Attachment (NSN
3940-01-502-5469)
277-Multi-Terrain Loader
8-43
10,900
140
420-D Backhoe Loader
8-44
19,450
110
IC45 Crawler Carrier
8-45
16,540
115
All-Purpose Remote Transport System
8-46
9,200
110
Vehicle
M4 Robotic Mine Flail
8-47
12,440
90
Tank, Fabric, Lightweight Collapsible, 160
9-2
1,400
N/A
Gallon
Drum, Fabric, Fuel, 500Gallon (1 each)
9-3
4,200
80
Drum, Fabric, Fuel, 500Gallon (2 each)
9-3
8,400
80
Drum, Fabric, Fuel, 500Gallon (3 each)
9-3
12,600
80
Drum, Fabric, Fuel, 500Gallon (4 each)
9-3
16,800
80
Drum, Fabric, Fuel, 500Gallon, Empty
9-4
4,500
90
(6 each)
Storage Module, Fuel/Water, Six
9-5
10,000
100
Compartment Container, Individual
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
C-16
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Air Speed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
Two, Storage Modules, Fuel/Water, Six
9-6
20,100
110
Compartment Container, Stacked
AN/ASM-146
10-2
3,940
80
AN/MSM-108
10-2
3,940
80
AN/TRC-93B (V)1 or (V)2
10-3
3,250
115
AN/TRC-93B (Reconfiguration)
10-3
3,660
115
AN/TSC-124, Single Channel Objective
10-3
2,100
60
Tactical Terminal (SCOTT)
Operations Central Shelter, Firefinder
10-4
2,869
80
AN/TPQ-36 (V)8, S-788
Biological Agent, Automatic: Integrated
10-4
3,300
100
Detection System, S-788
Downsized Direct Support Section,
10-4
2,400
90
Standardized Integrated, Command Post
Systems (SICPS)
Tactical Airspace Integration System (TAIS),
10-4
3,965
100
AN/TSQ-221
Meteorological Measuring System, Profiler
10-4
3,700
100
Shelter (SICPS only)
Digital Tech Controller Housed in a Modified
10-5
9,100
90
Gitchner Shelter
Shelter, Battery Servicing, AN/TSM-133
10-6
5,240
65
Facility, Improved Message, AN/TSC-58A
10-6
5,368
55
Facility, Improved Message, AN/MSC-29A
10-6
5,368
55
Station, System Master, Reporting, Position
10-6
6,050
75
Location, AN/TSQ-129
Station, Enhanced Position Location
10-6
6,289
75
Reporting System Net AN/TSQ-158
Terminal, Regency Net Force,
10-6
8,200
70
AN/TRC-179(V)1
Communications Nodal Control Element,
10-6
10,000
80
AN/TSQ-111
Multiplexer Terminal Set, AN/TSQ-146(V)
10-6
6,190
90
IFTE Base Shop Test Facility (BSTF), Basic,
10-6
7,806
50
S-280C/G Shelter, AN/TSM-191(V)3
IFTE BSTF, Hawk, S-280C/G Shelter,
10-6
7,748
50
AN/TSM-191(V)2
IFTE 60 Hz Storage Shelter, S-280C/G
10-6
6,365
70
Shelter, S-744/TSM-191(V)
IFTE 400 Hz Storage Shelter, S-280C/G
10-6
5,119
70
Shelter, S-175/TSM-191(V)
Tactical Satellite Terminal, AN/TSC-85B
10-6
6,200
70
E1045 Bottle Cleaning and Charging Station
10-6
6,400
70
E1022 Maintenance Facility Night Sight
10-6
6,400
70
AN/TYA-16B, TAMCN A0294
10-6
3,325
65
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
C-17
Appendix C
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
Airborne Reconnaissance Low-Imagery
10-6
8,500
80
(ARL-I) and Airborne Reconnaissance Low-
Comint (ARL-C) Fly Away Kit, Type A-1
ARL-I and ARL-C Fly Away Kit, Type B-1
10-6
8,500
80
ARL-I and ARL-C Fly Away Kit, Type C-1
10-6
8,500
80
Shelter, Electromechanical Induction (EMI),
10-7
7,700
70
TAMCN C6110
S-715/T, Reproduction/Distribution Facility
10-7
4,826
50
Shelter
Electronic EMI HSOP Shelter
10-7
4,140
60
Shelter, Radar Set, Precision Approach,
10-7
7,200
80
AN/TPN-22, TAMCN Q2115
Shelter, Communications Central, AN/MSC-
10-7
6,619
85
63A, TAMCN A0258
Air Radar Shelter, AN/TPS-73
10-7
14,500
80
Radar Shelter, AN/TPS-63B
10-7
7,360
70
10 Foot Rigid EMD Communications Shelter
10-7
7,000
70
(Minimum
Weight)
AN/TRC-173A
10-8
3,500
80
AN/TRC-174A
10-8
3,425
80
AN/TRC-175A
10-8
3,350
80
AN/TRC-138B
10-8
3,525
80
AN/TRC-138C
10-8
3,430
80
AN/TYC-5A Data Communications Terminal
10-9
7,451
70
AN/TRN-44 Tactical Air Navigation Shelter
10-10
6,800
75
Hardened Army Tactical Shelter
10-11
8,160
70
Cradle Mounted AN/TPQ-32A Radar Set,
10-12
7,100
90
Component of the AN/MPQ-49A Forward
Area Alerting Radar System
NATO Air Base Satcom (NABS) Shelter
10-13
5,751
90
Pallet, AN/TSC-93B (V)2
Refrigerator, Rigid Box without Refrigerator
10-14
3,500
90
Unit
PQAS Shelter, Dismounted
10-15
3,200
110
ISU60 (Loaded)
11-2
11,650
80
ISU90 (Loaded)
11-2
11,900
100
ISU90 (Empty)
11-2
1,900
105
ISU60 with Jump Forward Arming and
11-2
4,000
65
Refueling Point (FARP), Advanced Aviation
Forward Area Refueling System (AAFARS)
Advanced Design Refrigerator, 300 Cubic
11-2
11,900
80
Feet (ADR300), Produced by AAR Cadillac
Manufacturing Inc.
One (1) Quadcon, Empty
11-3
1,764
100
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
C-18
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Air Speed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
One (1) Quadcon, Loaded
11-3
7,000
100
Two (2) Quadcons, Empty
11-3
3,528
90
Two (2) Quadcons, Loaded
11-3
10K-10,000
100
25K-14,000
ASLMS, Field Pack-Up (FPU), FPU-12
11-4
20,000
100
(12-Foot Section Only)
ASLMS, FPU-8 (8-Foot Section Only)
11-4
18,000
90
ASLMS, Field Pack-Up (FPU), FPU-8/12 (8 &
11-5
26,000
100
12-Foot Sections Connected)
Oxygen Generation/Distribution Module
11-6
3,405
70
(OGDM)
Cylinder Filling Module (CFM)
11-6
2,049
70
Oxygen Generation/Distribution Module and
11-7
5,454
85
Cylinder Filling Module
Multiple Launch Rocket System with Rocket
11-8
5,005
90
Pod Container (with Six Rockets)
Guided Missile Launch Assembly (GMLA)
11-8
5,071
90
Multiple Launch Rocket System with Two
11-9
10,010
85
Rocket Pods/Containers (with Six Rockets)
Two Enclosure Assembly Launch Pods,
11-9
10,142
85
Guided Missile Launch Assembly
M1A1 Full-Up Power Pack) Container with
11-10
13,620
110
Full-Up Power Pack, (Metal or Fiberglass)
Distributed Explosive Technology (DET)
11-11
4,000
90
System, Array Container
Distributed Explosive Technology System, Landing
11-12
1,550
80
Craft, Air Cushioned, Landing Interface Kit
Distributed Explosive Technology System,
11-13
2,400
85
Landing Craft, Air Cushioned, Landing
Interface Kit, Doubled, Stacked
AN/TPQ-37 Artillery-Loading Radar Set
12-2
10,800
90
AN/TMQ-31 Radio Direction Finder, Pedestal
12-3
5,010
90
Mounted on M103A3 Trailer
AN/TPQ-36 Firefinder Antenna Radar Set on
12-4
4,110
110
M103A1
Firefinder II, AN/TPQ-36 Block II
12-5
9,673
120
OE-36/G Quick Reaction Satellite
12-6
4,830
80
Antenna(QRSA)
AS-3471/TPN-22 Antenna Pallet, TAMCN
12-7
5,700
80
Q2115
SM-F 973604-1 used with AN/TSC-93B
12-8
1,970
75
SM-F 973604-21 used with AN/TSC-85B
12-8
2,107
75
DGM, DAMP Pallet, 2 Antenna Configuration
12-9
4,300
90
DGM, DAMP Pallet, 3 Antenna Configuration
12-9
5,500
90
DGM, AETC, 2 Antenna Configuration
12-10
3,028
100
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
C-19
Appendix C
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
DGM, AETC, 3 Antenna Configuration
12-10
4,014
100
AN/TSC-93B Satellite Communications
12-11
3,644
110
Terminal without ALTA
AN/TSC-93B Satellite Communications
12-11
3,957
110
Terminal with ALTA
Secure Mobile Anti/Jam Reliable Tactical
12-12
2,440
100
Terminal Pallet
Remote Power Unit, PU-818/TPT-T1 (V)
12-13
3,941
70
(P/N9805-8500-1) without Antenna
Remote Power Unit, PU-818/TPT-T1 (V)
12-13
4,006
70
(P/N9805-8500-1) with TK1, 51-inch Antenna
(8811-1900)
Remote Power Unit, PU-818/TPT-T1 (V)
12-13
4,006
70
(P/N9805-8500-1) with TK2, 28-inch Antenna
(8811-2900)
Remote Power Unit, PU-818/TPT-T1 (V)
12-13
4,006
70
(P/N9805-8500-1) with TK3, 46-inch Antenna
(8811-3900)
Remote Power Unit, PU-818/TPT-T1 (V)
12-13
4,061
70
(P/N9805-8500-1) with TK4, 76-inch Antenna
(8811-4900)
Remote Power Unit, PU-818/TPT-T1 (V)
12-13
3,979
70
(P/N9805-8500-1) with TK9, 40.4-inch Antenna
(9805-8900)
Remote Power Unit, PU-809A/TPT-T1 (V)
12-13
4,085
70
(P/N100905-8500-1) without Antenna
Remote Power Unit, PU-809A/TPT-T1 (V)
12-13
4,150
70
(P/N1009-8500-1) with TK1, 51-inch Antenna
(8811-1900)
Remote Power Unit, PU-809A/TPT-T1 (V)
12-13
4,150
70
(P/N1009-8500-1) with TK2, 28-inch Antenna
(8811-2900)
Remote Power Unit, PU-809A/TPT-T1 (V)
12-13
4,150
70
(P/N1009-8500-1) withTK3, 46-inch Antenna
(8811-3900)
Remote Power Unit, PU-809A/TPT-T1 (V)
12-13
4,205
70
(P/N1009-8500-1) with TK4, 76-inch Antenna
(8811-4900)
Remote Power Unit, PU-809A/TPT-T1 (V)
12-13
4,123
70
(P/N1009-8500-1) withTK9, 40.4-inch
Antenna (9805-8900)
Remote Emitter Unit (REU) Threat Kit (TK) 1,
12-13
3,712
70
(P/N 1006-1001-1)
Remote Emitter Unit (REU) Threat Kit (TK) 4,
12-13
3,986
70
(P/N 1006-4001-1)
Remote Emitter Unit (REU) Threat Kit (TK) 9,
12-13
3,497
70
(P/N 9805-8001-1)
Aviation Ground Power Unit
13-2
4,190
90
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
C-20
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Air Speed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
Aviation Direct Current Generator Set
13-3
1,100
90
MEP-004AAS with Acoustic Suppression Kit,
13-4
4,031
40
15KW
MEP-005AAS with Acoustic Suppression Kit,
13-4
4,556
65
30KW
MEP-103A with Acoustic Suppression Kit,
13-4
4,230
40
15KW
MEP-104A with Acoustic Suppression Kit,
13-4
4.830
40
30KW
MEP-113A with Acoustic Suppression Kit,
13-4
4,230
40
15KW
MEP-114A with Acoustic Suppression Kit,
13-4
4.830
40
30KW
MEP-813 TQG Generator Pallet, Sentinel
13-5
1,600
70
Radar System
MEP-812A Generator Pallet
13-5
2,150
70
NATO Air Base Satcom (NABS) Power Pallet
13-6
8,630
120
AN/TSC-85(V)2
MEP-831, 3KW, 60HZ Generator Set
13-7
325
80
MEP-802A, 5KW, 60HZ Generator Set
13-7
890
50
MEP-812A, 5KW, 400HZ Generator Set
13-7
900
50
MEP-803A, 10KW, 60HZ Generator Set
13-7
1,180
50
MEP-813A, 10KW, 400HZ Generator Set
13-7
1,280
50
MEP-804A, 15KW, 50/60HZ Generator Set
13-7
2,125
70
MEP-814A, 15KW, 50/60HZ Generator Set
13-7
2,240
70
MEP-805A, 30KW, 50/60HZ Generator Set
13-7
3,005
70
MEP-805B, 30KW, 50/60HZ Generator Set
13-7
3,040
70
MEP-815A, 30KW, 400HZ Generator Set
13-7
3,015
70
MEP-815B, 30KW, 400HZ Generator Set
13-7
3,060
70
MEP-806A, 60KW, 50/60HZ Generator Set
13-7
3,760
80
MEP-806B, 60KW, 5060HZ Generator Set
13-7
4,042
80
MEP-816A, 60KW, 400HZ Generator Set
13-7
3,850
80
MEP-816B, 60KW, 400HZ Generator Set
13-7
4,240
80
Generator, 1.5KW, Fuel Hoses with Reels
14-2
820
60
and Carrying Bags (2 each), Assembly Pump,
Fire Extinguishers (3 each)
Fire Extinguisher, Dry Chemical, Self
14-3
3,000
100
Contained, TAMCN C4765
Rigid Raiding Craft
14-4
3,200
75
PA 150 Pallet with Twelve (12) 2.75-inch
14-5
2,200
60
Rockets
PA 151 Pallet with Twelve (12) 2.75-inch
14-5
2,000
60
Rockets
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
C-21
Appendix C
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
Four SDASS Racks with Two Empty Air
14-6
1,800
70
Cylinders each in a 2 X 2 Configuration
Polaris Indy Wide-Track Snowmobile
14-7
638 each
70
Norwegian Pulk Sled, Model BN 2010C
14-7
381 each
70
Two CROPs, M3/M3A1Empty, Stacked
14-8
7,300
110
Special Operations Craft-Riverine (SOC-R)
14-9
3,716
50
Trailer
Naval Special Warfare Rigid Inflatable Boat
14-9
4,300
50
(NSWRIB) Trailer
M342A2 2 ½-Ton Dump Truck with Winch
15-2
15,770
85
M335A1 2 ½-Ton Cargo Truck with Winch
15-3
13,550
90
M335A2 2 ½-Ton Cargo Truck with Winch
15-3
13,570
90
M54A2 5-Ton Cargo Truck with Winch
15-4
20,782
80
M52A2 5-Ton Tractor with Winch
15-5
18,430
85
M818 5-Ton Tractor with Winch
15-5
20,107
85
Crane, Self-Propelled, for Army Aircraft
15-6
14,600
85
Maintenance and Positioning
M105 1 ½-Ton Trailer
16-2
5,750
45
Semitrailer, Lowbed, Wrecker, 12-Ton, 4-Wheel
16-3
17,500
80
M172A1 Semitrailer, Lowbed
16-4
16,500
80
Trailer, Flatbed, Tilt Deck, 15-Ton, 8-Wheel
16-5
9,000
70
Trailer-Mounted Welding Shop
16-6
2,960
110
Welding Machine, Arc, LEB 300 on 2 ½-ton
16-7
5,310
100
Trailer
Trailer-Mounted Compressor, Reciprocating
16-8
900
90
AN/MTC-10 Telephone Control Office Group
16-9
1,800
70
on M416 Trailer
Trailer-Mounted Tool Outfit
16-10
2,450
70
Lube Service Unit, Engine 3A, Trailer-
16-11
5,540
120
Mounted
Trailer, Bolster, M796
16-12
6,340
110
Trailer, Water, M149
16-13
6,060
80
Trailer, Water, M149A1
16-13
6,060
80
Trailer, Water, M149A2
16-13
6,320
80
MRS-100 Wheeled Industrial Tractor
17-2
21,100
80
M5 8-Foot Aggregate Spreader
17-3
2,290
90
Roller, Towed, Vibrating, 1-Drum, 5-Ton,
17-4
3,450
90
VR55TM
Roller, Road, Towed, Wheeled, 13-Tire,
17-5
3,300
90
9-Ton
Kettle, Heating, Bitumen, 165-Gallon
17-6
1,750
70
Kettle, Bitumen, Trailer-Mounted,7ZPSAP
17-6
1,900
70
Mixer, Concrete, Trailer-Mounted, 16SM
17-7
6,040
90
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
C-22
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Air Speed Factors
Nomenclature
Paragraph
Max Weight
Tested Air Speed
Number
(Pounds)
(Knots)
Sweeper, Rotary, Towed, with 150-Gallon
17-8
2,120
80
Water Tank Sprinkling System
Sheepsfoot Roller, Two-Drum, MD-96
17-9
7,500
80
Tractor, Full-Tracked, Case Model 1150
17-10
21,930
90
without Roll Over Protection, System
Tractor, Full-Tracked, Case Model 1150
17-10
18,740
90
without Blade
Blade
17-10
N/A
90
Forklift Rough Terrain, 4000-Pound, M4K
17-11
9,725
100
Floodlight Set, Trailer-Mounted, Model No.
17-12
2,300
85
HLT-3KW-M.1
Tank, Fabric, Collapsible, 10,000-Gallon
18-2
1,040
35
Net #1 Pump, 60,000-Gallon Fuel System
18-3
1,300
100
Supply Point
Net #2 Tanks, 60,000Gallon Fuel System
18-3
6,000
100
Supply Point
Net #3 Hoses, 60,000-Gallon Fuel System
18-3
2,000
100
Supply Point
Net #4 Hoses, 60,000-Gallon Fuel System
18-3
2,200
100
Supply Point
Net #5 Hoses, 60,000-Gallon Fuel System
18-3
4,000
100
Supply Point
One Drum, Fabric, Water, 250-Gallon
18-4
2,210
80
Two Drums, Fabric, Water, 250-Gallon
18-4
4,420
80
Three Drums, Fabric, Water, 250-Gallon
18-4
6,630
80
Four Drums, Fabric, Water, 250-Gallon
18-4
8,840
80
Five Drums, Fabric, Water, 250-Gallon
18-4
11,050
80
Six Drums, Fabric, Water, 250-Gallon
18-4
13,260
80
Tool Set, Aviation Maintenance, SE 1,
19-2
3,030
90
Airmobile
Shop, Portable, Aircraft Maintenance
19-3
5,425
60
Box, Metal , Shipping, Conex, 270 Cubic Feet
20-2
1,560
60
Box, Metal , Shipping, Conex, 295 Cubic Feet
20-2
2,140
60
Two Boxes, Metal , Shipping, Conex, 270
20-3
10,000
95
Cubic Feet
Two Boxes, Metal , Shipping, Conex, 295
20-3
10,000
95
Cubic Feet
Radar Set, Trailer-Mounted, AN/MPQ-4A
21-2
6,290
80
Radar Set without 55-Gallon Drum of Fuel
Radar Set, Trailer-Mounted, AN/MPQ-4A
21-2
6,690
80
Radar Set with 55-Gallon Drum of Fuel
Generator Set, 5KW, PU-620/M Mounted on
22-2
2,840
58
M116 Trailer
Generator Set, 10KW, PU-619 Mounted on
22-2
3,530
120
M105 Trailer
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
C-23















Content      ..     12      13      14      15     ..
