Chapter 5
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down strap, CGU/1B (as required).
„ Cord, nylon, Type III, 550-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all internal cargo and loose items with Type III nylon cord or tie-down straps.
─ Lock the articulated steering unit with the steering cylinder locks.
Secure all doors, windows, and roof hatches in the closed position.
─ Tape all lights and glass fixtures including the windshield.
─ Fold side mirrors inboard and tie or tape as required.
─ Tape windshield wipers to windshield.
─ Secure all hoses and cables located between the two cars with tape or nylon cord to avoid
entanglement with sling legs.
─ Screw the lifting eyes in as far as possible while ensuring that they are pointing towards
the middle of each car. Tie diagonally opposing rings of each car together (for
example, the front right ring to the left rear ring) with Type III nylon cord.
─ Place the mud flaps in the up position and tape them in place.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery
caps for proper installation.
„ Rigging. Rig the load according to the steps in Figure 5-1.
„ Hookup. The helicopter lands near the vehicle. The hookup team crawls under the
helicopter. The static wand person discharges the static electricity with the static wand. The
hookup person places the apex fitting onto the aircraft cargo hook. The hookup team then
moves clear of the helicopter but remains close to the load as the helicopter removes slack from
the sling legs. When successful hookup is assured, the hookup team quickly exits the area
underneath the helicopter to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
5-2
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Truck and Towed Combinations

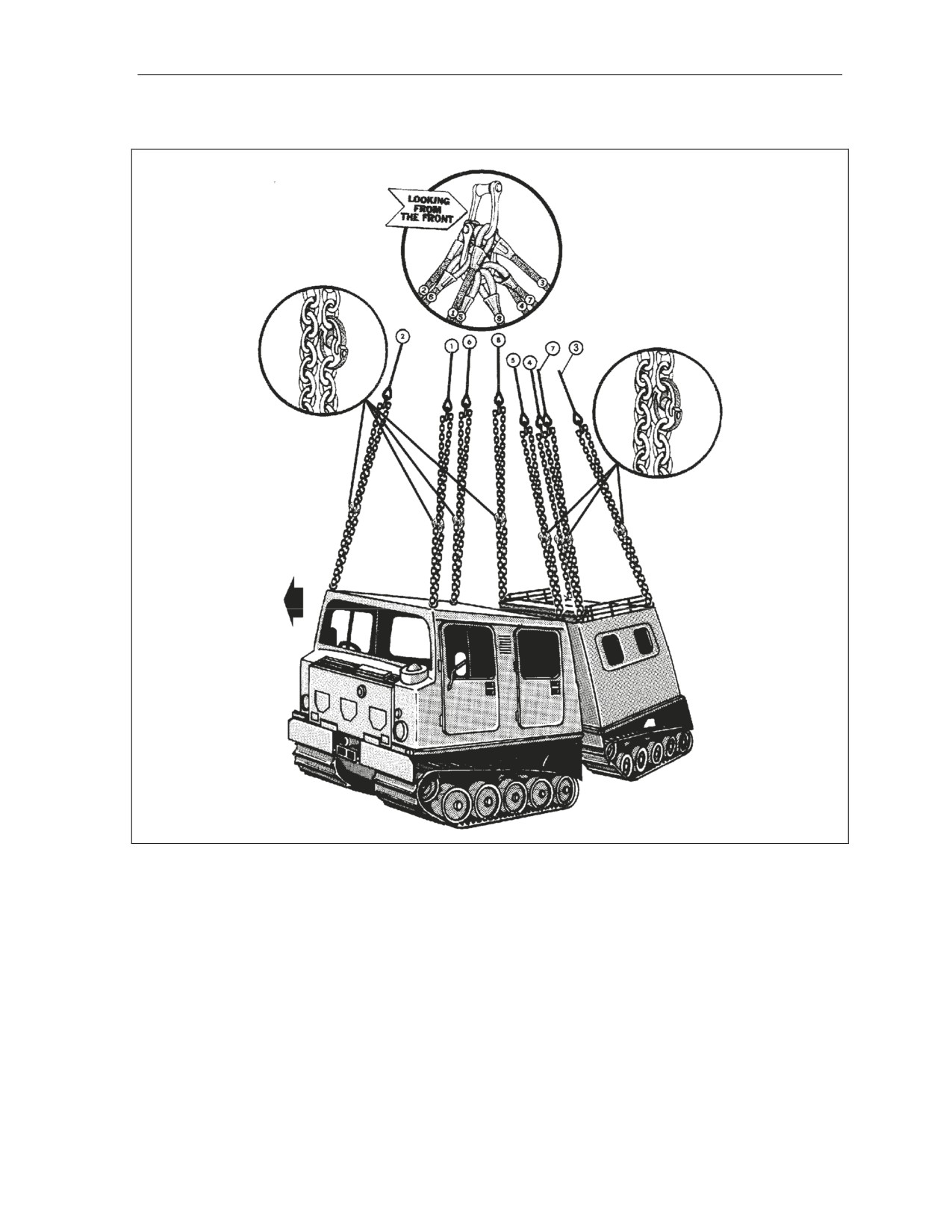

Figure 5-1. Small Unit Support Vehicle
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
5-3
Chapter 5
RIGGING STEPS
1.
Assemble the two sling sets as shown in the insert on page 5-3. Note the sling numbering
sequences.
2.
Route outer sling legs 1 and 2 to the front of the front provisions of the front car. Route inner
sling legs 3 and 4 under the roof rack and to the rear provisions of the rear car. Sling legs 1
and 3 must be on the left side of the load.
3.
Route sling legs 5 and 6 to the rear provisions of the front car. Route sling legs 7 and 8 to
the front provisions of the rear car. Sling legs 5 and 7 must be on the left side of the load.
4.
Loop the chain end of sling leg 1 through the left front lift provision of the front car. Add an
additional chain length using the coupling links. The chain must be looped through the lifting
provision prior to attaching the additional chain. Place link 40 in the grab hook. Repeat with
sling leg 2 through the right front lift provision of the front car. Secure the excess chain with
Type III nylon cord.
5.
Route the chain end of sling leg 5 through the left rear lift provision of the front car. Add an
additional chain length using the coupling links. The chain must be looped through the lifting
provision prior to attaching the additional chain. Place link 67 in the grab hook. Repeat with
sling leg 6 through the right rear lift provision of the front car. Secure the excess chain with
Type III nylon cord.
6.
Route the chain end of sling leg 7 through the left front lift provision of the rear car. Add an
additional chain length using the coupling links. The chain must be looped through the lifting
provision prior to attaching the additional chain. Place link 67 in the grab hook. Repeat with
sling leg 8 through the right front lift provision of the rear car. Secure the excess chain with
Type III nylon cord.
7.
Route the chain end of sling leg 3 through the left rear lift provision of the rear car. Add an
additional chain length using the coupling links. The chain must be looped through the lifting
provision prior to attaching the additional chain. Place link 40 in the grab hook. Repeat with
sling leg 4 through the right rear lift provision of the rear car. Ensure sling legs 3 and 4 are
routed under the roof rack. Secure the excess chain with Type III nylon cord.
8.
Cluster and tie (breakaway technique) the sling legs together on top of the vehicle to prevent
entanglement during hookup and lift-off.
9.
When using a CH-47 helicopter, assemble a 40-foot vertical pendant using two 20-foot aerial
delivery slings and two 25,000-pound capacity apex fittings. Attach the end of the 40-foot
vertical pendant to the top apex fitting of the sling set by removing the bolt from the apex
fitting. Insert the looped end of the vertical pendant into the apex fitting and replace the bolt.
Figure 5-1. Small Unit Support Vehicle (Continued)
5-4
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Truck and Towed Combinations
M1067 FLATBED SMALL UNIT SUPPORT VEHICLE (SUSV)
5-3. The M1067 flatbed small unit support vehicle is rigged for single-point sling load using the
following procedures:
z
Applicability. The following item in Table 5-2 is certified for the CH-47 HELICOPTER
ONLY by the US Army Natick Soldier Center:
Table 5-2. M1067 Flatbed Small Unit Support Vehicle
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
Front-6,600
Listed in
M1067, Flatbed, Tracked
Rear-7150
25K
Rigging
Total-13,750
Steps
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity) (2 sets).
─ Additional chain length, part number 38850-00053-102, from 25,000-pound capacity
sling sets (12 each).
─ Additional coupling links, part number 664241, from 25,000-pound capacity sling sets
(12 each).
„ Aerial delivery slings, Type XXVI nylon, 4 loop, 20 foot length (2 each) (Used to form
40 foot vertical pendant) (For CH-47 use only).
„ Apex fitting (25,000-pound capacity) (2 each) (For CH-47 use only).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down strap, CGU/1B (as required).
„ Cord, nylon, Type III, 550-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all internal cargo and loose items with Type III nylon cord or tie-down straps.
─ Lock the articulated steering unit with the steering cylinder locks.
Secure all doors, windows, and roof hatches in the closed position.
─ Tape all lights and glass fixtures including the windshield.
─ Fold side mirrors inboard and tie or tape as required.
─ Tape windshield wipers to windshield.
─ Secure all hoses and cables located between the two cars with tape or nylon cord to avoid
entanglement with sling legs.
─ Screw the lifting eyes in as far as possible while ensuring that they are pointing towards
the middle of each car. Tie diagonally opposing rings of each car together (for
example, the front right ring to the left rear ring) with Type III nylon cord.
─ Place the mud flaps in the up position and tape them in place.
─ Cargo in the rear car must be loaded so that it will not make contact with the sling legs
and that it is not higher than the sides of the rear car.
„ Rigging. Rig the load according to the steps in Figure 5-2.
„ Hookup. The helicopter lands near the vehicle. The hookup team crawls under the
helicopter. The static wand person discharges the static electricity with the static wand. The
hookup person places the apex fitting onto the aircraft cargo hook. The hookup team then
moves clear of the helicopter but remains close to the load as the helicopter removes slack from
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
5-5
Chapter 5
the sling legs. When successful hookup is assured, the hookup team quickly exits the area
underneath the helicopter to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

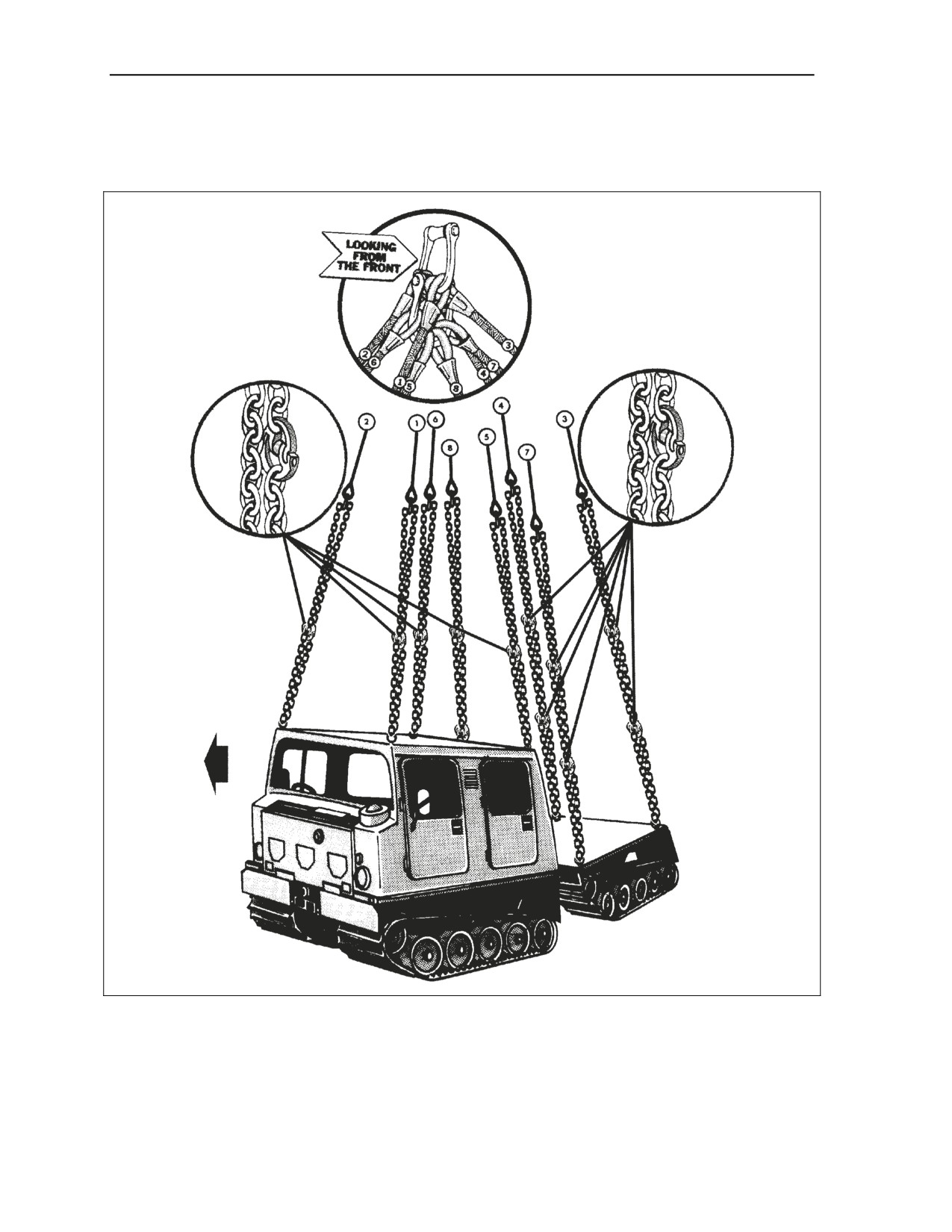

Figure 5-2. Flatbed Small Unit Support Vehicle
5-6
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Truck and Towed Combinations
RIGGING STEPS
1.
Assemble the two sling sets as shown on page 5-7. Note the sling numbering sequences.
2.
Route outer sling legs 1 and 2 to the front of the front provisions of the front car. Route inner
sling legs 3 and 4 to the rear provisions of the rear car. Sling legs 1 and 3 must be on the left
side of the load.
3.
Route sling legs 5 and 6 to the rear provisions of the front car. Route sling legs 7 and 8 to
the front provisions of the rear car. Sling legs 5 and 7 must be on the left side of the load.
4.
Loop the chain end of sling leg 1 through the left front lift provision of the front car. Attach an
additional chain length using the coupling links. The chain must be looped through the lifting
provision prior to attaching the additional chain. Place link 40 in the grab hook. Repeat with
sling leg 2 through the right front lift provision of the front car. Secure the excess chain with
Type III nylon cord.
5.
Route the chain end of sling leg 5 through the left rear lift provision of the front car. Attach an
additional chain length using the coupling links. The chain must be looped through the lifting
provision prior to attaching the additional chain. Place link 67 in the grab hook. Repeat with
sling leg 6 through the right rear lift provision of the front car. Secure the excess chain with
Type III nylon cord.
6.
Route the chain end of sling leg 7 through the left front lift provision of the rear car. Attach
two additional chain lengths using the coupling links. The chain must be looped through the
lifting provision prior to attaching the additional chains. Place link 67 in the grab hook.
Repeat with sling leg 8 through the right front lift provision of the rear car. Secure the excess
chain with Type III nylon cord.
7.
Route the chain end of sling leg 3 through the left rear lift provision of the rear car. Attach
two additional chain lengths using the coupling links. The chain must be looped through the
lifting provision prior to attaching the additional chains. Place link 40 in the grab hook.
Repeat with sling leg 4 through the right rear lift provision of the rear car.
8.
Cluster and tie or tape (breakaway technique) the sling legs together on top of the vehicle to
prevent entanglement during hookup and lift-off.
9.
Secure legs 7 and 8 to the outside supports of the spare fuel can racks using 1/4-inch cotton
webbing to prevent damage to the racks during lift-off.
10. Assemble a 40-foot vertical pendant using two 20-foot aerial delivery slings and two 25,000-
pound capacity apex fittings. Attach the end of the 40-foot vertical pendant to the top apex
fitting of the sling set by removing the bolt from the apex fitting, inserting the looped end of
the vertical pendant into the apex fitting and replacing the bolt.
Figure 5-2. Flatbed Small Unit Support Vehicle (Continued)
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
5-7
This page intentionally left blank.
Chapter 6
Certified Single-Point Rigging Procedures for Howitzers
and Weapons Systems
INTRODUCTION
6-1. This chapter contains rigging procedures for howitzers and weapons systems that have been certified
for sling load. Each rigging procedure is found in a paragraph that includes a description of the load,
materials required for rigging, and steps to complete the procedure. An applicability paragraph is also a
part of each paragraph and identifies the certified loads. The certified single-point rigging procedures for
howitzers and weapons systems are in this section. Paragraphs 6-2 through 6-15 give detailed instructions
for rigging loads.
Note. Reach pendants may be used on all single point loads. A static discharge person is not
required when using a reach pendant.
M101A1 105-MM HOWITZER, WITH OR WITHOUT A-22 CARGO
BAGS
6-2. The M101A1 105-MM howitzer, with or without A-22 cargo bags is rigged for single-point sling
load using the following procedures:
z
Applicability. The following items in Table 6-1 are certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 6-1. M101A1 105-MM Howitzer, with or without A-22 Cargo Bags
Nomenclature
Max
Sling
Link Count
Weight
Set
Front/Rear
(Pounds)
10K
30/30
M101A1 Howitzer
4,980
15K
33/3
25K
12/12
40K
22/3
10K
30/30
M101A1 Howitzer with one A-22 Cargo Bag
7,180
15K
33/3
25K
12/12
40K
22/3
10K
30/30
M101A1 Howitzer with two A-22 Cargo Bags
9,380
15K
33/3
25K
12/12
40K
22/3
10K
30/30
M101A1 Howitzer with three A-22 Cargo Bags
11,580
15K
33/3
25K
12/12
40K
22/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000 or 25,000-pound capacity) (USA).
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-1
Chapter 6
„ Sling set (15,000 or 40,000-pound capacity) (USMC).
„ Sling leg assembly (2,500-pound capacity) from a 10,000-pound sling set, one per A-22
container.
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
„ Tie-down strap, CGU/1B (as required).
„ Bag, cargo, A-22, as required.
„ Apex fitting (10,000-pound capacity), one per A-22 container.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Close and lock the breech.
─ Close and secure the trails. Rotate the lunette to the down position. Secure the trail
closing lock handle with Type III nylon cord or tape.
─ Remove and secure the muzzle, breech, and tube covers.
─ Pad or remove all sight mounts.
─ Place the gun section equipment chest and other equipment on the trails and secure it
with tie-down straps.
─ Engage one hand brake.
─ Pad the gun tube above the cradle and around the forward edge of the recoil damper
assembly. Secure the padding with tape or 1/4-inch cotton webbing.
─ Pad the left and right trails aft of the traveling lock shaft area. Secure the padding with
tape or 1/4-inch cotton webbing.
„ Rigging. Rig the load according to the steps in Figure 6-1.
„ Hookup. The hookup team stands on top of the trails or alongside the howitzer. The static
wand person discharges the static electricity with the static wand. The hookup person places the
apex fitting onto the aircraft cargo hook. The hookup team then moves clear of the helicopter
but remains close to the load as the helicopter removes slack from the sling legs. When
successful hookup is assured, the hookup team quickly exits the area underneath the helicopter
to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
6-2
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
RIGGING STEPS
1.
Position the apex fitting on top of the breech. Route outer sling legs 1 and 2 to the trails.
Route inner sling legs 3 and 4 to the muzzle. Sling legs 1 and 3 must be on the left side of
the load.
2.
Wrap the chain end of sling leg 1 around the padded area of the left trail. When using the
10,000 or 25,000-pound capacity sling set, make two complete wraps around the left trail.
Place the correct link from Table 6-1 in the grab hook. Repeat with sling leg 2 on the right
trail. Secure the excess chain with Type III nylon cord.
3.
Position the grab hook sling leg 3 on the left side of the gun tube padded area. Wrap the
chain end of sling leg 3 one complete turn around the gun tube padded area. Place the
correct link from Table 6-1 in the grab hook. Repeat with sling leg 4 with the grab hook on
the opposite side of the gun tube. Ensure the chains completely encircle and not just cradle
the gun tube.
4.
Cluster and tie (breakaway technique) the sling legs together on top of the howitzer to
prevent entanglement during hookup and lift-off.
5.
Attach the accompanying A-22 (s) by placing an additional apex fitting around the inner
chains of sling legs 1 and 2, so the fitting is between the trails. Route the chain end of the
additional sling leg through the clevis on the A-22 cargo bag and insert link 3 in the grab
hook. Place the other end of the sling leg in the additional apex fitting between the trails.
Repeat this procedure for each A-22 cargo bag being lifted.

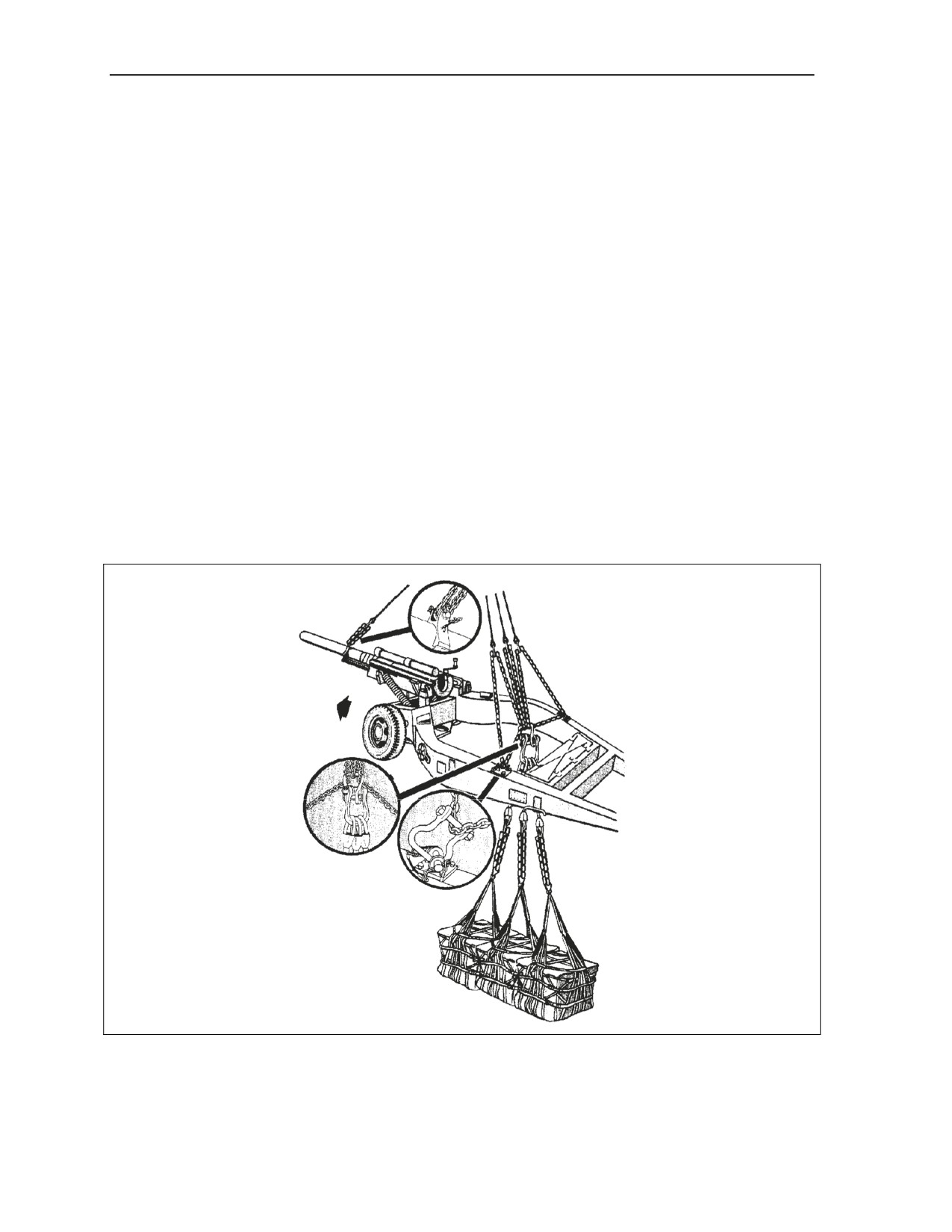

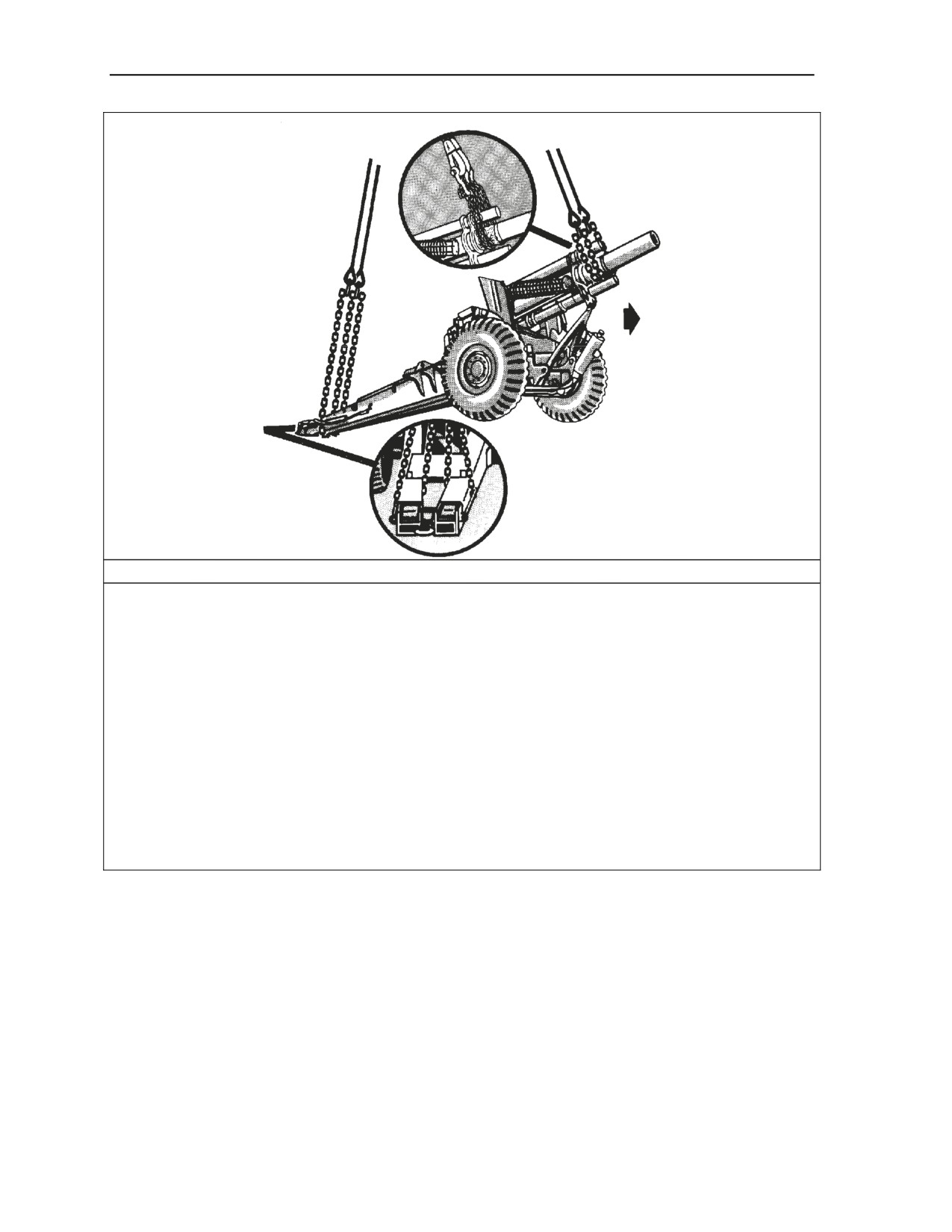

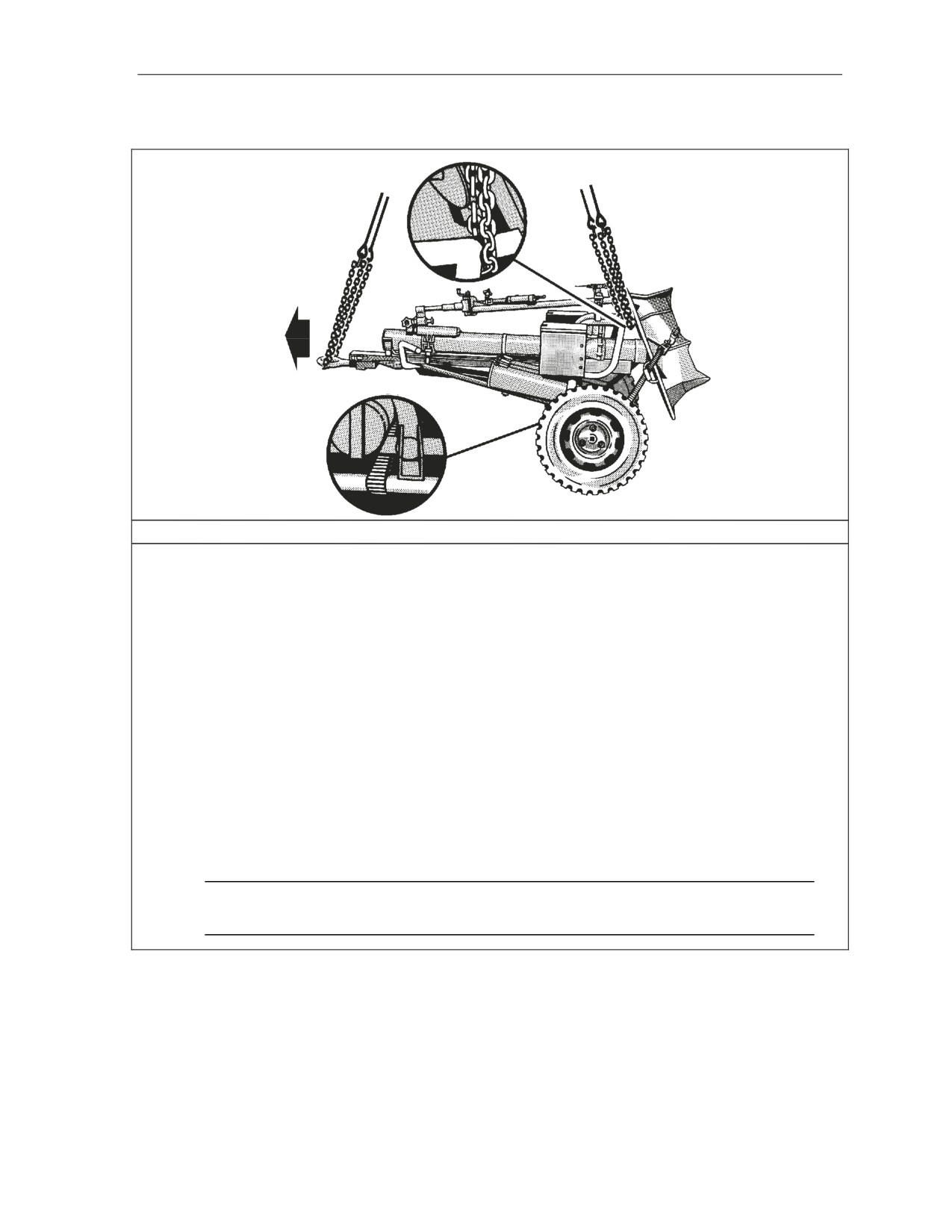

Figure 6-1. M101A1 105-MM Howitzer, with or without A-22 Cargo Bags
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-3
Chapter 6
M102 105-MM HOWITZER
6-3. The M102 105-MM howitzer is rigged for single-point sling load using the following procedures:
z
Applicability. The following item in Table 6-2 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 6-2. M102 105-MM Howitzer
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
M102 Howitzer
3,330
10K
55/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down strap, CGU/1B (as required).
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Place the muzzle and sight covers on the howitzer and secure them with Type III nylon
cord.
─ Place the section equipment chest on the end of the trails and secure it with tie-down
straps.
„ Rigging. Rig the load according to the steps in Figure 6-2.
„ Hookup. The hookup team stands on top of the trails next to the breech. The static wand
person discharges the static electricity with the static wand. The hookup person places the apex
fitting onto the aircraft cargo hook. The hookup team then moves clear of the helicopter but
remains close to the load as the helicopter removes slack from the sling legs. When successful
hookup is assured, the hookup team quickly exits the area underneath the helicopter to the
designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

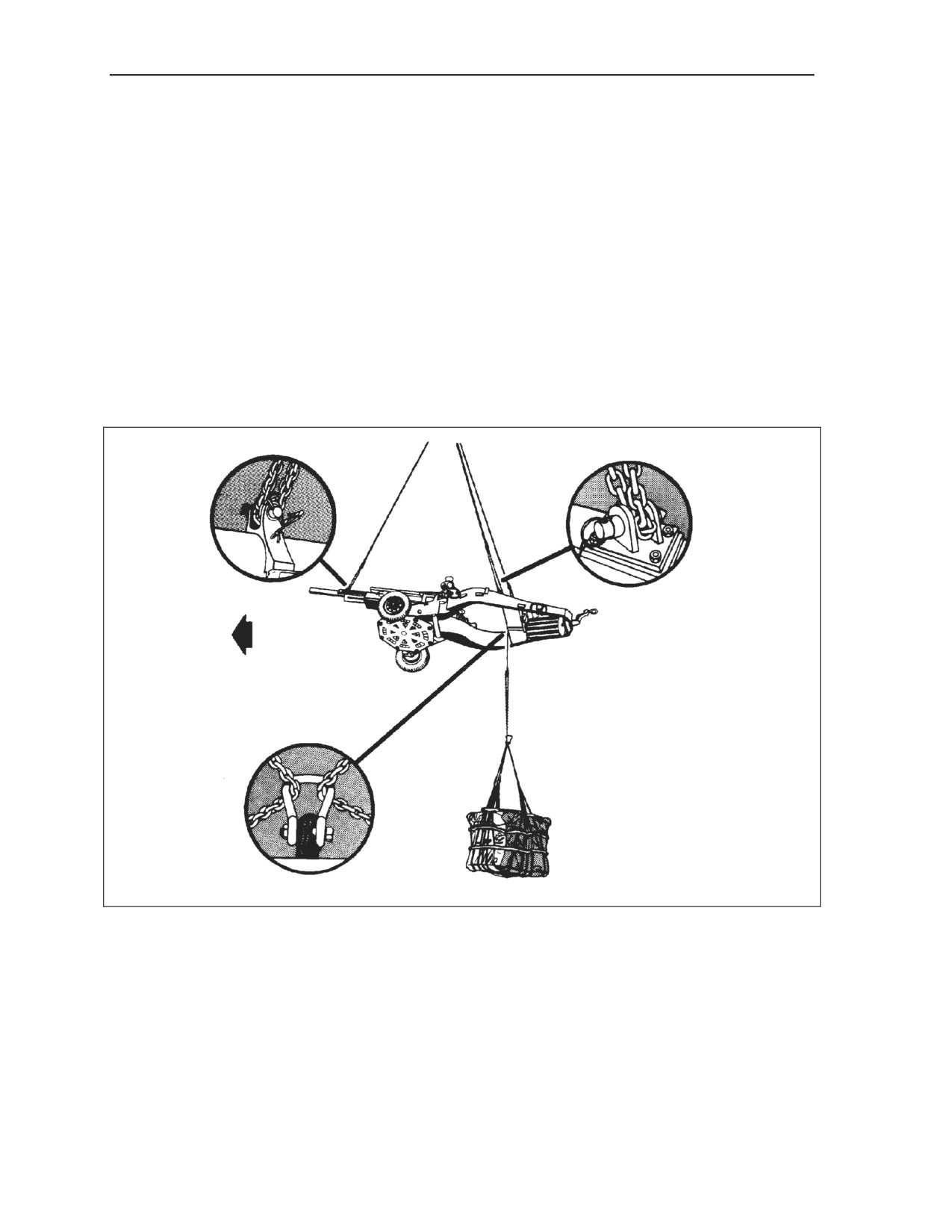

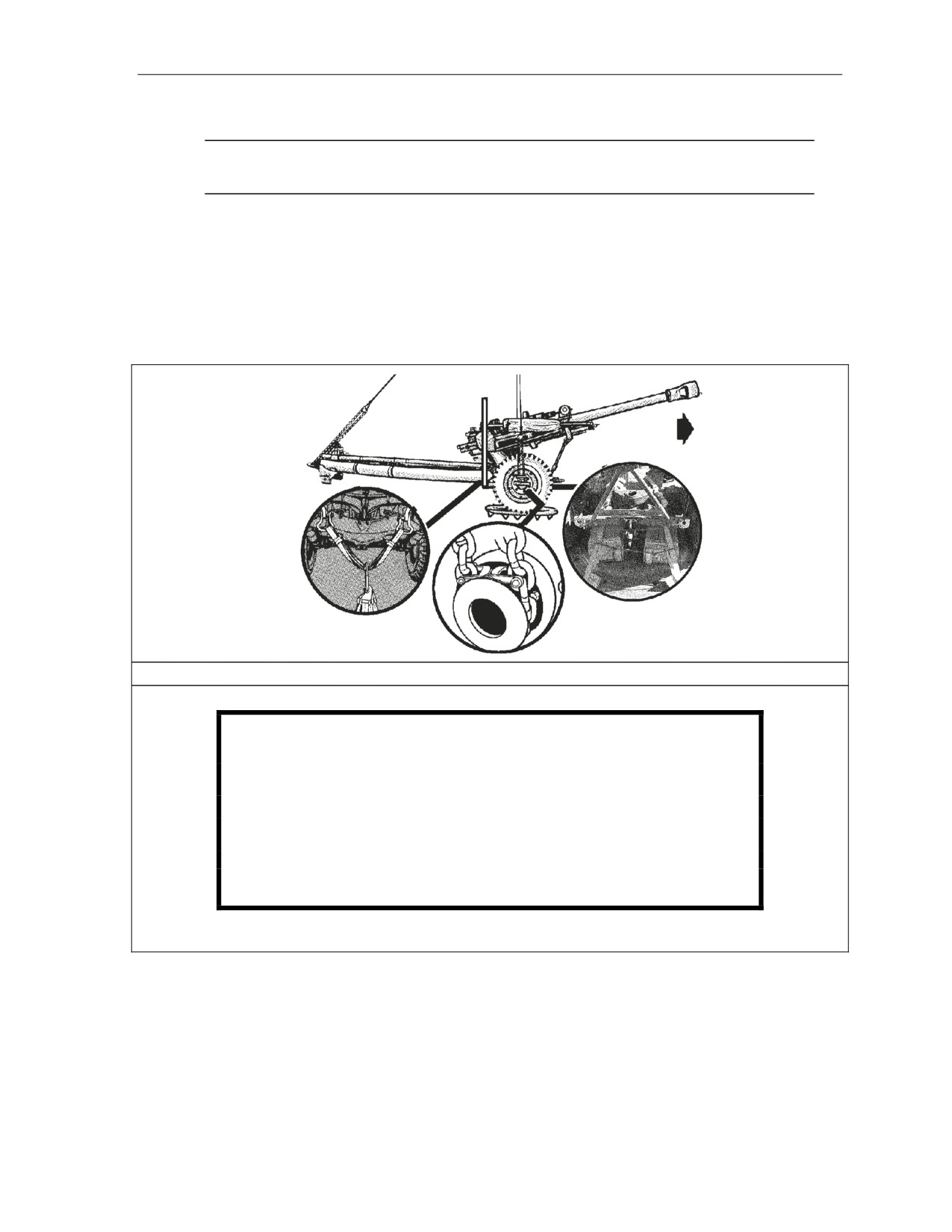

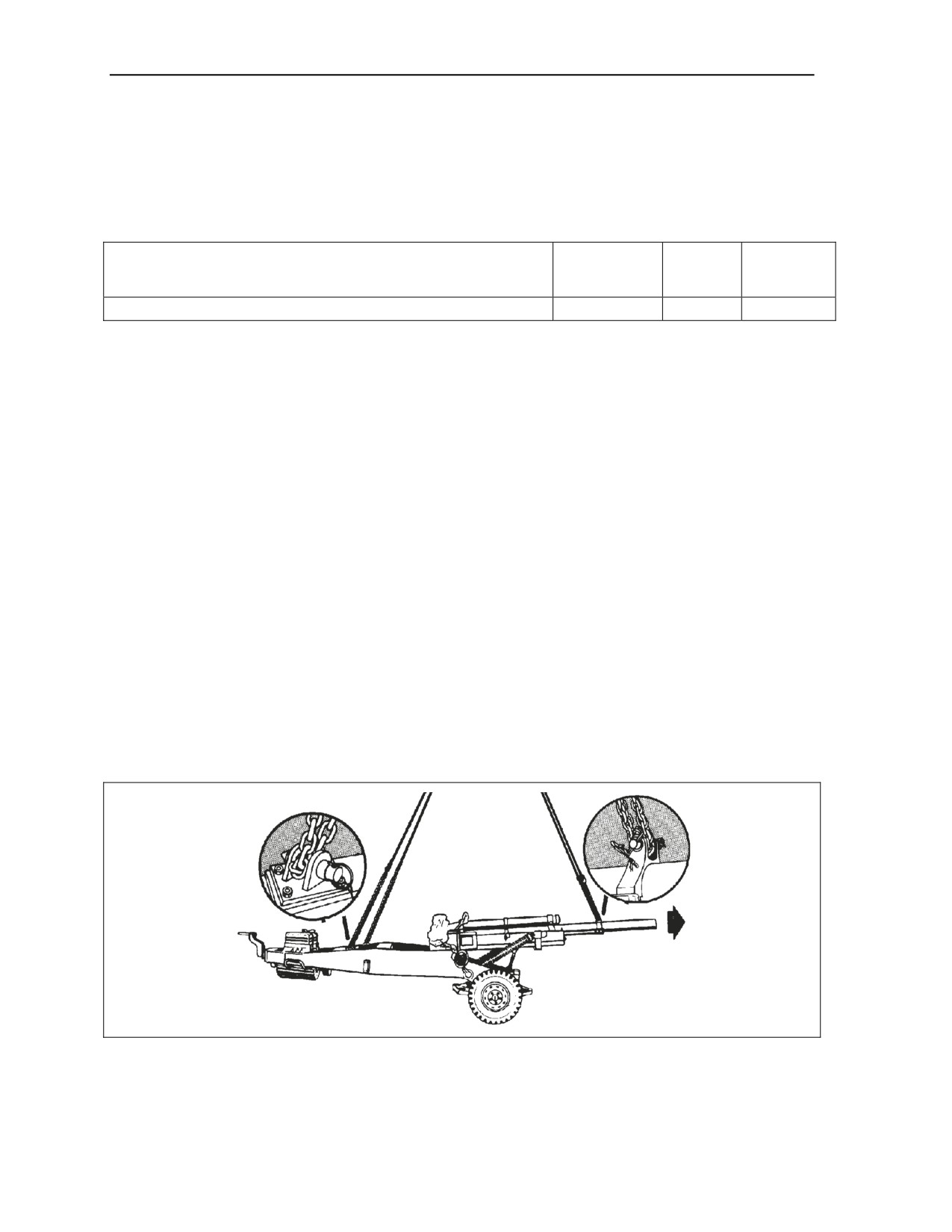

Figure 6-2. M102 105-MM Howitzer
6-4
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
RIGGING STEPS
1. Position the apex fitting on top of the breech. Route outer sling legs 1 and 2 to the trails.
Route inner sling legs 3 and 4 to the muzzle. Sling legs 1 and 3 must be on the left side of
the load.
2. Remove the pin from the lift provision on the left trail. Center the chain end of sling leg 1 in
the lift provision. Reinstall the pin in the lift provision. Place the correct link from Table 6-2 in
the grab hook. Repeat with sling leg 2 on the right trail. Secure the excess chain with Type
III nylon cord.
3. Remove the pin from the lift provision on the gun tube. Center the chain end of sling legs 3
and 4 in the lift provision. Reinstall the pin in the lift provision. Place the correct link from
Table 6-2 in the grab hook. Secure the excess chain with Type III nylon cord.
Note. This item may be rigged with only three legs by eliminating one of the sling legs to the
gun tube.
4. Cluster and tie (breakaway technique) the sling legs together on top of the howitzer to
prevent entanglement during hookup and lift-off.

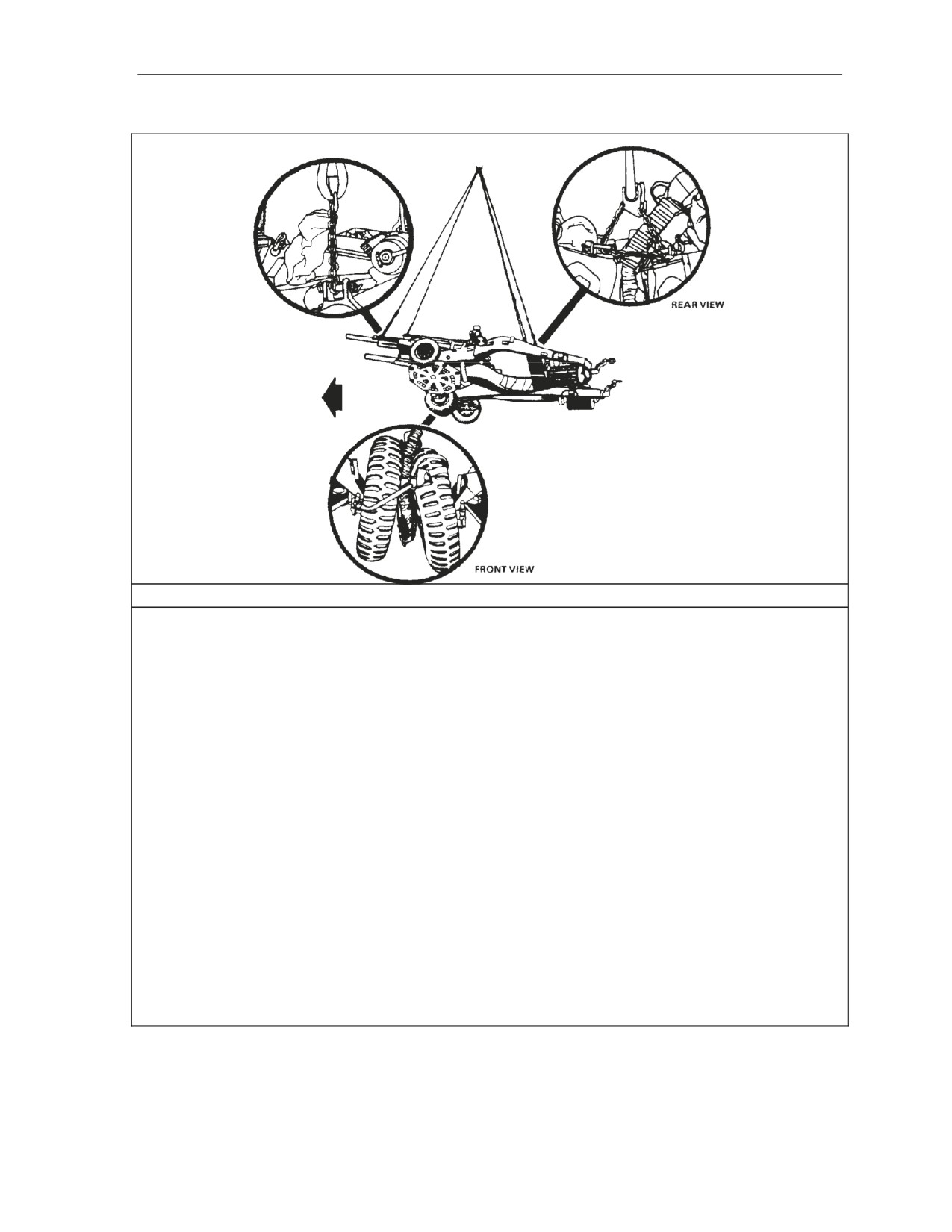

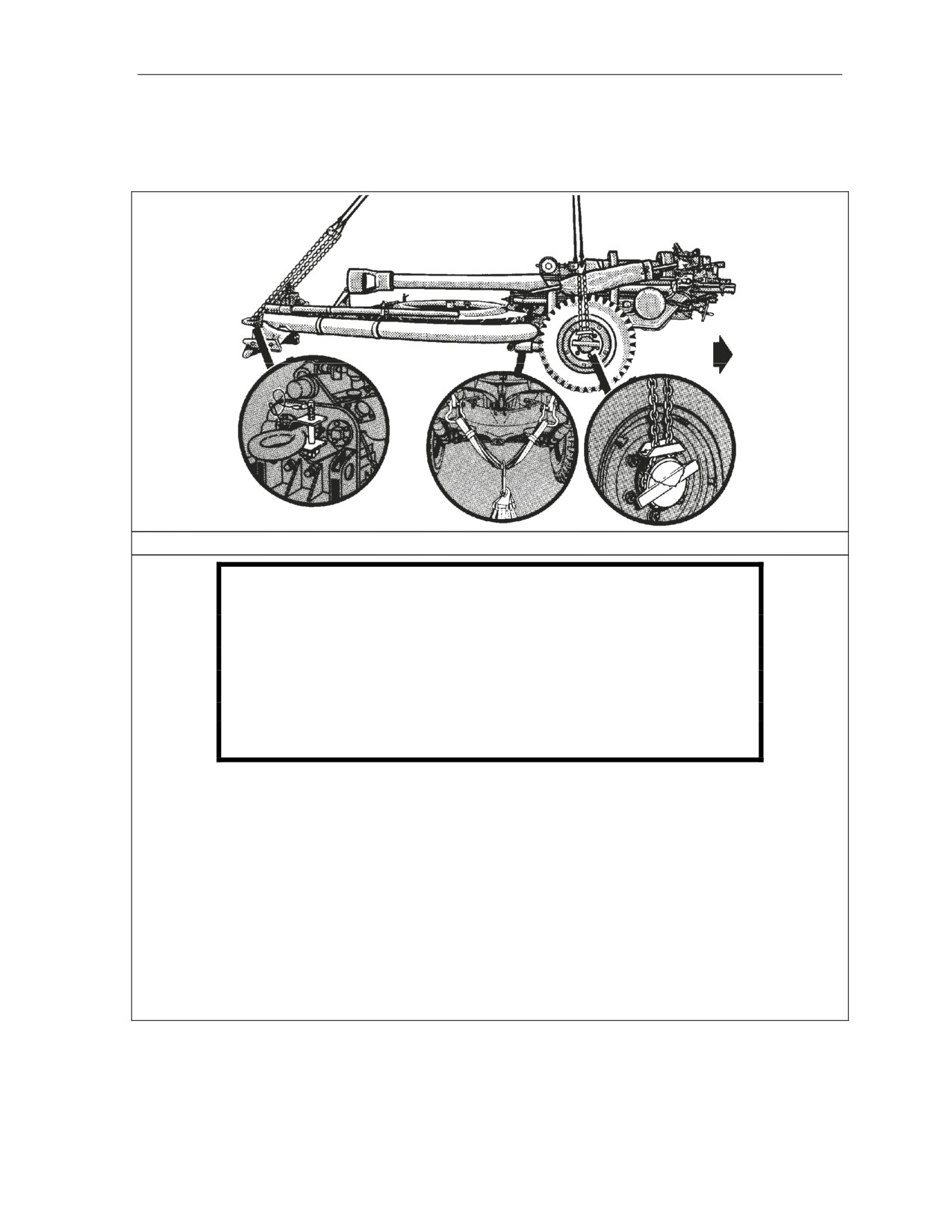

Figure 6-2. M102 105-MM Howitzer (Continued)
M102 105-MM HOWITZER WITH ONE A-22 CARGO BAG
6-4. The M102 105-MM howitzer with one A-22 cargo bag is rigged for single-point sling load using the
following procedures:
z
Applicability. The following item in Table 6-3 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 6-3. M102 105-MM Howitzer with One A-22 Cargo Bag
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
M102 Howitzer with One A-22 Cargo Bag
5,660
10K
105/3
Note. More than one A-22 may be used with these rigging procedures as long as the total
weight of the A-22s does not exceed 2,500 pounds.
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Assembly, tie-down (10,000-pound capacity).
„ Clevis, large
„ Bag, Cargo, A-22.
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-5
Chapter 6
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Place the muzzle and sight covers on the howitzer and secure them with Type III nylon
cord.
─ Place the section equipment chest on the end of the trails and secure it with tie-down
straps.
─ Place a large clevis assembly on the ground between the howitzer trails.
„ Rigging. Rig the load according to the steps in Figure 6-3.
„ Hookup. The hookup team stands on top of the trails next to the breech. The static wand
person discharges the static electricity with the static wand. The hookup person places the apex
fitting onto the aircraft cargo hook. The hookup team then moves clear of the helicopter but
remains close to the load as the helicopter removes slack from the sling legs. When successful
hookup is assured, the hookup team quickly exits the area underneath the helicopter to the
designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.

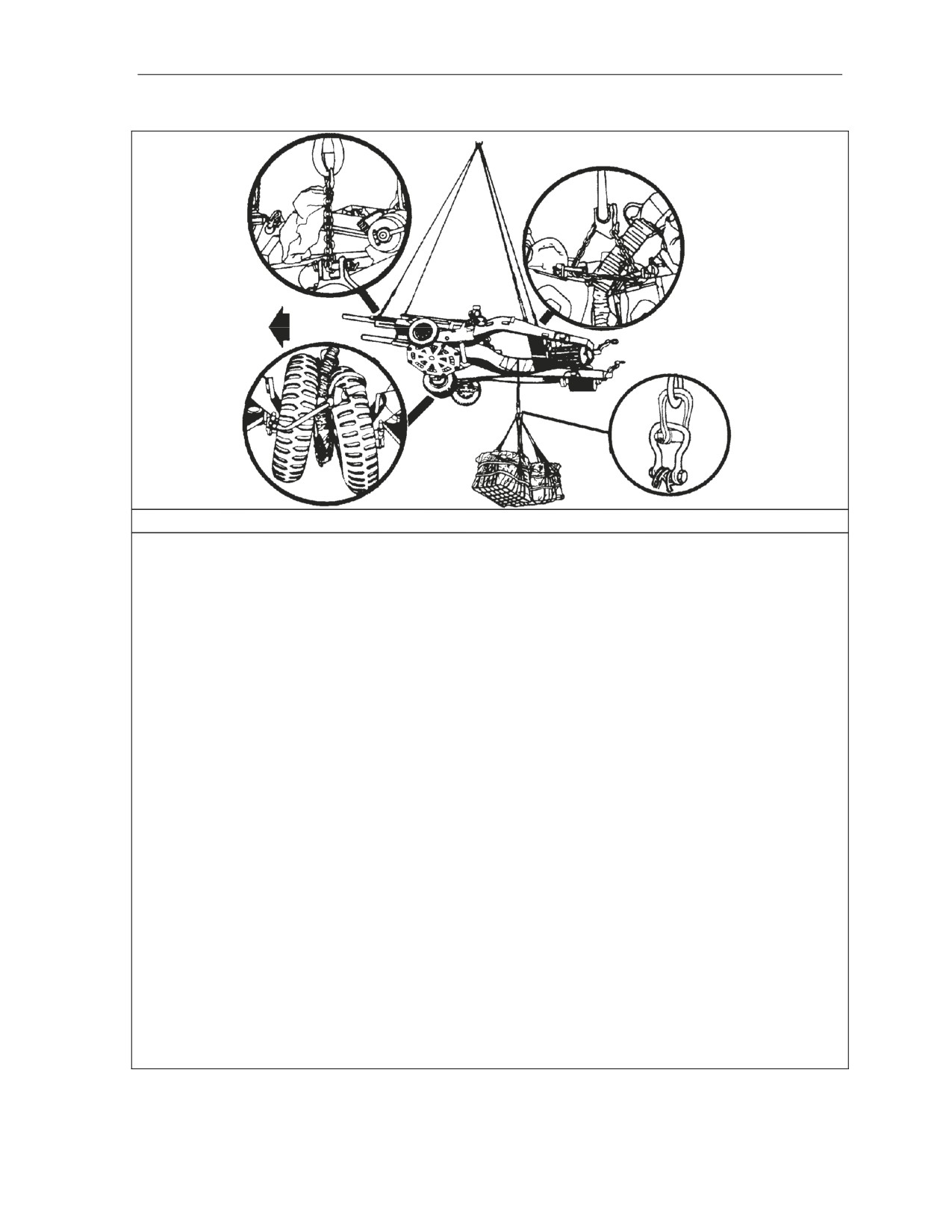

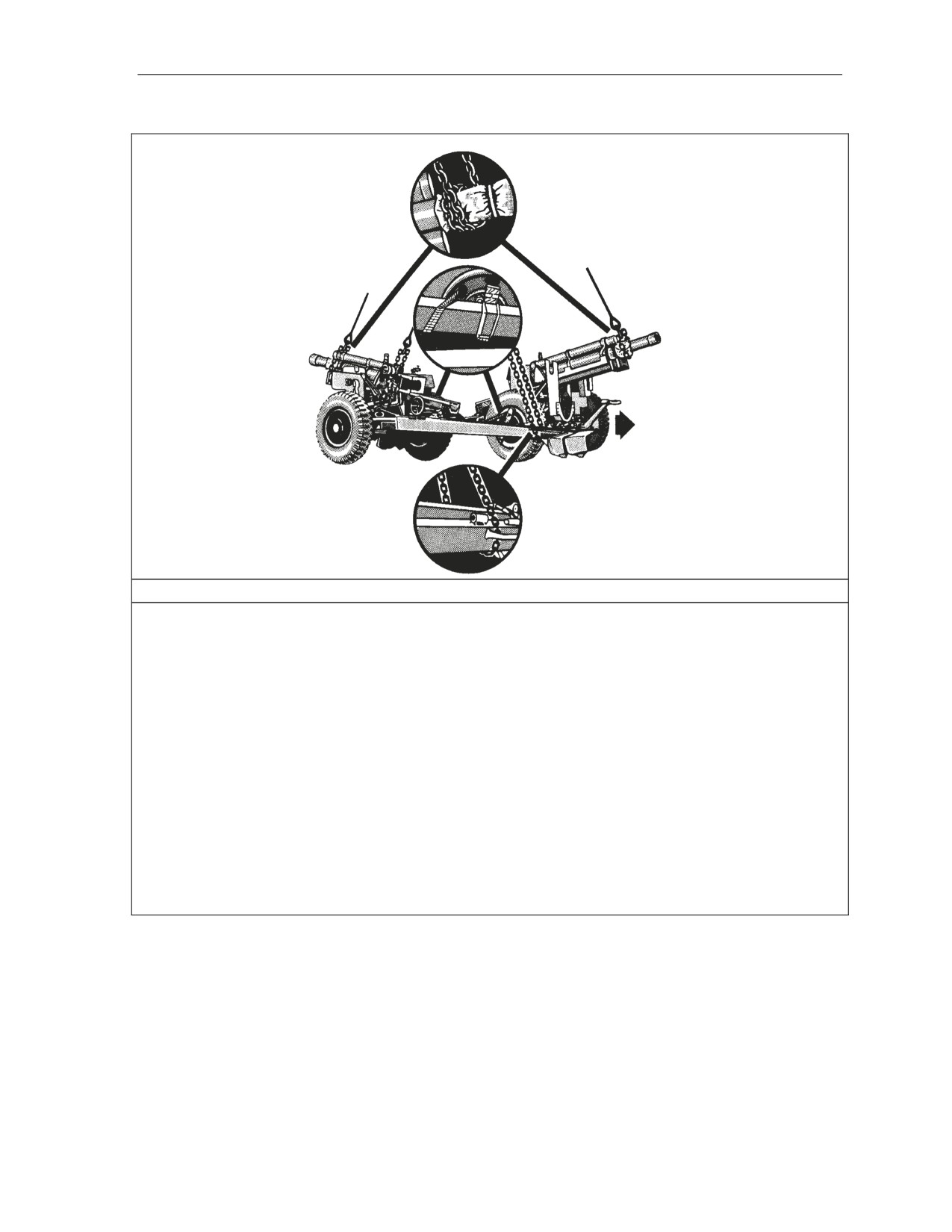

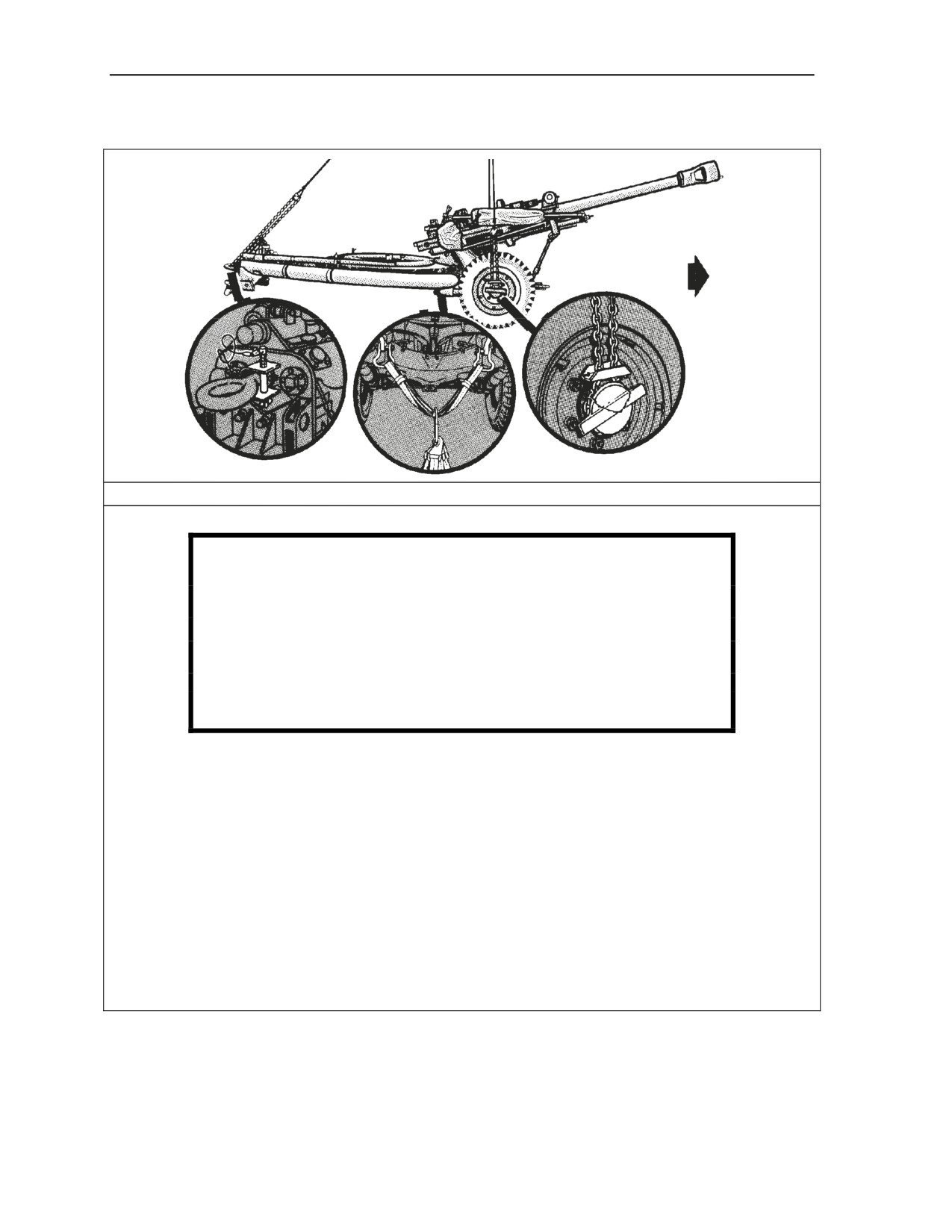

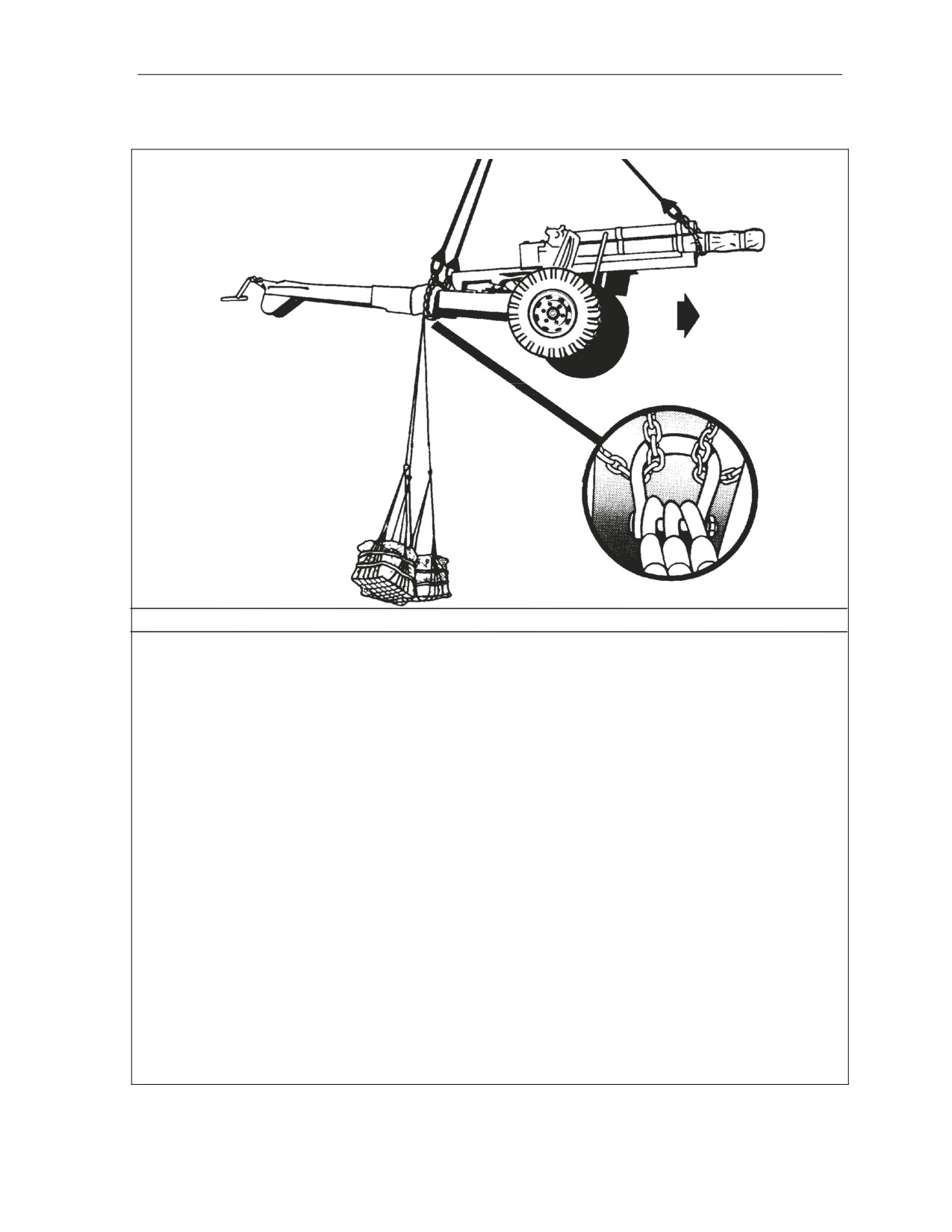

Figure 6-3. M102 105-MM Howitzer with One A-22 Cargo Bag
6-6
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
RIGGING STEPS
1.
Remove one sling leg from the sling set. This sling leg will be used to lift the A-22 cargo bag.
2.
Position the apex fitting on top of the breech. Route outer sling legs 1 and 2 to the trails.
Route inner sling leg 3 to the muzzle.
3.
Remove the pin from the lift provision on the left trail. Center the chain end of sling leg 1 in
the lift provision. Reinstall the pin in the lift provision. Place the correct link from Table 6-3 in
the grab hook. Repeat with sling leg 2 on the right trail. Secure the excess chain with Type
III nylon cord.
4.
Remove the pin from the lift provision on the gun tube. Center the chain end of sling leg 3 in
the lift provision. Reinstall the pin in the lift provision. Place the correct link from Table 6-3 in
the grab hook. Secure the excess chain with Type III nylon cord.
5.
Cluster and tie (breakaway technique) the sling legs together on top of the howitzer to
prevent entanglement during hookup and lift-off.
6.
Attach the large clevis around the inner chains of sling legs 1 and 2, so the clevis is between
the trails. Route the chain end of the additional sling leg through the clevis on the A-22 cargo
bag and insert link 3 in the grab hook. Route the sling leg under the trail and place eye of the
sling leg on the bolt of the large clevis between the trails.
Figure 6-3. M102 105-MM Howitzer with One A-22 Cargo Bag (Continued)
M102 105-MM HOWITZER WITH TWO OR THREE A-22 CARGO
BAGS
6-5. The M102 105-MM howitzer with two or three A-22 cargo bags is rigged for single-point sling load
using the following procedures:
z
Applicability. The following items in Table 6-4 are certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 6-4. M102 105-MM Howitzer with Two or Three A-22 Cargo Bags
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
M102 Howitzer with Two A-22 Cargo Bags
7,560
25K
83/3
M102 Howitzer with Three A-22 Cargo Bags
9,760
25K
83/3
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity).
„ Sling leg assembly (2,500-pound capacity) from a 10,000-pound capacity sling set. One for
each A-22 cargo bag.
„ Bag, Cargo, A-22, as required.
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Tie-down strap, cargo, CGU-1/B, as required.
„ Clevis, large.
„ Clevis, medium (2 each).
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-7
Chapter 6
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Fitting, apex (10,000-pound capacity).
z
Personnel. Two persons can prepare and rig this load in 60 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Place the muzzle and sight covers on the howitzer and secure them with Type III nylon
cord.
─ Place the section equipment chest on the end of the trails and secure it with tie-down
straps.
─ Place a large clevis assembly on the ground between the howitzer trails.
─ Remove the left trail lift provision pin and place a medium clevis assembly, bell portion
down, in the provision. Reinstall the lift provision pin. Repeat the procedures for the
lift provision on the right trail.
„ Rigging. Rig the load according to the steps in Figure 6-4.
„ Hookup. The hookup team stands on top of the trails next to the breech. The static wand
person discharges the static electricity with the static wand. The hookup person places the apex
fitting onto the aircraft cargo hook. The hookup team then moves clear of the helicopter but
remains close to the load as the helicopter removes slack from the sling legs. When successful
hookup is assured, the hookup team quickly exits the area underneath the helicopter to the
designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
Figure 6-4. M102 105-MM Howitzer with Two or Three A-22 Cargo Bags
6-8
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
RIGGING STEPS
1. Position the apex fitting on top of the breech. Route outer sling legs 1 and 2 to the trails.
Route inner sling leg 3 to the howitzer tube, and sling leg 4 to the area between the trails.
2. Route sling leg 1 through the medium clevis installed on the left trail and through the large
clevis on the ground. Place the correct link from Table 6-4 in the grab hook. Repeat with
sling leg 2 on the right trail. Secure the excess chain with Type III nylon cord
3. Remove the pin from the lift provision on the gun tube. Center the chain end of sling leg 3 in
the lift provision. Reinstall the pin in the lift provision. Place the correct link from Table 6-4 in
the grab hook. Secure the excess chain with Type III nylon cord.
4. Route the chain end of sling leg 4 through the large clevis on the ground and insert link 56 in
the grab hook.
5. Cluster and tie (breakaway technique) the sling legs together on top of the howitzer to
prevent entanglement during hookup and lift-off.
6. Route the chain end of the additional sling legs through the clevis on the A-22 cargo bags,
one sling leg for each A-22 cargo bag, and insert link 3 in the grab hook. Route the sling legs
under the trail and place the eye of the sling legs on an apex fitting. Attach the apex fitting to
the large clevis between the trails.
Figure 6-4. M102 105-MM Howitzer with Two or Three A-22 Cargo Bags (Continued)
TWO M102 105-MM HOWITZERS
6-6. The two M102 105-MM howitzers are rigged for single-point sling load using the following
procedures:
z
Applicability. The following items in Table 6-5 are certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center :
Table 6-5. Two M102 105-MM Howitzers
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Center/Rear
(Pounds)
Two M102 Howitzers
6,660
10K
60/20/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity) with one additional sling leg.
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down strap, cargo, CGU-1/B.
„ Pad, energy dissipating, honeycomb, 30- x 36-inch.
(A wooden block or four sheets of felt
may be substituted for the honeycomb.)
„ Felt sheet, 24- x 60-inch (2 each) or equivalent padding.
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-9
Chapter 6
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Position two howitzers side by side with the wheels approximately 18 inches apart and
the barrels facing the same direction.
─ Place honeycomb padding between the inside wheels of the howitzers. Slide the
howitzers together and securely lash the wheels together with the tie-down straps.
─ Wrap one sheet of felt around each inboard trail. Secure the felt with tape or Type III
nylon cord. Ensure the lift provisions are accessible.
─ Place the muzzle and sight covers on the howitzer and secure them with Type III nylon
cord.
„ Rigging. Rig the load according to the steps in Figure 6-5.
„ Hookup. The hookup team stands on top of the padding wrapped around the inside trails.
The static wand person discharges the static electricity with the static wand. The hookup person
places the apex fitting onto the aircraft cargo hook. The hookup team then moves clear of the
helicopter but remains close to the load as the helicopter removes slack from the sling legs.
When successful hookup is assured, the hookup team quickly exits the area underneath the
helicopter to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
6-10
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
RIGGING STEPS
1.
Add the additional sling leg to the sling set. The outer sling legs are numbers 1 and 2, the
inner sling legs are numbers 3 and 4, and the center sling leg is number 5.
2.
Position the apex fitting on top of the inner wheels at the center of the load. Route outer sling
legs 1 and 2 to the barrels. Route inner sling legs 3 and 4 to the outside trails, and center
sling leg 5 to the inside trails of both howitzers. Sling legs 1 and 3 must be connected to the
left howitzer.
3.
Route the chain end of sling leg 1 through the lift provision on the barrel of the left howitzer.
Place the correct link from Table 6-5 in the grab hook. Repeat with sling leg 2 on the right
howitzer. Secure the excess chain with Type III nylon cord
4.
Route the chain end of sling leg 3 through the lift provision on the outside trail of the left
howitzer. Place the correct link from Table 6-5 in the grab hook. Repeat with sling leg 4 on
the right howitzer. Secure the excess chain with Type III nylon cord.
5.
Route the chain end of sling leg 5 through the lift provisions on the inside trails of both
howitzers. Place the correct link from Table 6-5 in the grab hook. Secure the excess chain
with Type III nylon cord.
6.
Cluster and tie (breakaway technique) the sling legs together on top of the howitzers to
prevent entanglement during hookup and lift-off.
Figure 6-5. Two M102 105-MM Howitzers
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-11
Chapter 6
TWO M102 105-MM HOWITZERS WITH ONE, TWO, OR THREE A-22
CARGO BAGS
6-7. The two M102 105-MM howitzers with one, two, or three A-22 cargo bags are rigged for single-
point sling load using the following procedures:
z
Applicability. The following items in Table 6-6 are certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 6-6. Two M102 105-MM Howitzers with One, Two, or Three A-22 Cargo Bags
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Center/Rear
(Pounds)
Two M102 Howitzers with One A-22 Cargo Bag
8,860
10K
60/20/3
Two M102 Howitzers with Two A-22 Cargo Bags
11,060
25K
48/16/3
Two M102 Howitzers with Three A-22 Cargo Bags
13,260
25K
48/16/3
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000 or 25,000-pound capacity) with additional sling leg(s) (as required).
„ Bag, Cargo, A-22, as required.
„ Apex fitting (10,000 or 25,000-pound capacity) (as required) (1 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Tie-down strap, cargo, CGU-1/B.
„ Pad, energy dissipating, honeycomb, 30- x 36-inch.
(A wooden block or four sheets of felt
may be substituted for the honeycomb.)
„ Felt sheet, 24- x 60-inch (2 each) or equivalent padding.
z
Personnel. Two persons can prepare and rig this load in 30 minutes. Add 15 minutes for each
A-22 cargo bag.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Position two howitzers side by side with the wheels approximately 18 inches apart and
the barrels facing the same direction.
─ Place honeycomb padding between the inside wheels of the howitzers. Slide the
howitzers together and securely lash the wheels together with the tie-down straps.
─ Wrap one sheet of felt around each inboard trail. Secure the felt with tape or Type III
nylon cord. Ensure the lift provisions are accessible.
─ Place the muzzle and sight covers on the howitzer and secure them with Type III nylon
cord.
„ Rigging. Rig the load according to the steps in Figure 6-6.
„ Hookup. The hookup team stands on top of the padding wrapped around the inside trails.
The static wand person discharges the static electricity with the static wand. The hookup person
places the apex fitting onto the aircraft cargo hook. The hookup team then moves clear of the
helicopter but remains close to the load as the helicopter removes slack from the sling legs.
When successful hookup is assured, the hookup team quickly exits the area underneath the
helicopter to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
6-12
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
FRONT VIEW
REAR VIEW
RIGGING STEPS
1.
Add the additional sling leg to the sling set. The outer sling legs are numbers 1 and 2, the
inner sling legs are numbers 3 and 4, and the center sling leg is number 5.
2.
Position the apex fitting on top of the inner wheels at the center of the load. Route outer sling
legs 1 and 2 to the barrels. Route inner sling legs 3 and 4 to the outside trails, and center
sling leg 5 to the inside trails of both howitzers. Sling legs 1 and 3 must be connected to the
left howitzer.
3.
Route the chain end of sling leg 1 through the lift provision on the barrel of the left howitzer.
Place the correct link from Table 6-6 in the grab hook. Repeat with sling leg 2 on the right
howitzer. Secure the excess chain with Type III nylon cord
4.
Route the chain end of sling leg 3 through the lift provision on the outside trail of the left
howitzer. Place the correct link from Table 6-6 in the grab hook. Repeat with sling leg 4 on
the right howitzer. Secure the excess chain with Type III nylon cord.
5.
Route the chain end of sling leg 5 through the lift provisions on the inside trails of both
howitzers. Place the correct link from Table 6-6 in the grab hook. Secure the excess chain
with Type III nylon cord.
6.
Cluster and tie (breakaway technique) the sling legs together on top of the howitzers to
prevent entanglement during hookup and lift-off.
7.
Wrap the chain end of the sling leg(s) around both inboard trails over the felt sheets and
insert link 60 in the grab hook. Secure the excess chain with Type III nylon cord.
8.
Route the other end of the sling leg(s) under the outside trail of the howitzers and attach the
additional apex fitting. Place the medium clevis of the A-22s on the bolt of the apex fitting.
Figure 6-6. Two M102 105-MM Howitzers with One, Two, or Three A-22 Cargo Bags
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-13
Chapter 6
M119/M119A2 105-MM HOWITZER, FOLDED/TOWED POSITION
6-8. The M119/M119A2 105-MM howitzers, folded/towed position are rigged for single-point sling load
using the following procedures:
z
Applicability. The following items in Table 6-7 are certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 6-7. M119/M119A2 105-MM Howitzer, Folded/Towed Position
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
M119/M119A2 Howitzer
4,400
10K
50/10
M119/M119A2 Howitzer with Accompanying Load
7,400
25K
40/10
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity) (when moving the howitzer without accompanying load).
„ Sling set (25,000-pound capacity) (when moving the howitzer with an accompanying load).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Sling set chain safety clamp.
„ Webbing, nylon, tubular, 1/2-inch (as required).
„ Line, multiloop, Type XXVI, 4-loop, 3-foot.
„ Clevis, suspension, medium (2 each).
„ Bag, cargo A-22 or net, cargo (5,000- or 10,000-pound capacity).
„ Apex fitting (10,000- or 25,000-pound capacity) (1 each).
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Place the howitzer in the folded/towed position. Ensure the wheel knock-off hub is
horizontal. Engage the right wheel parking brake (wheel with the knock-off hub).
─ Secure the sight cover to the dial sight with tape or Type III nylon cord.
─ Secure the firing platform, hand spike, and jack to the trail assembly with Type III nylon
cord.
─ Ensure the lunette is in the extended position. Install the towing eye stop (C-clamp) on
the lunette and secure in place with its retaining pins, when applicable.
─ The sling set chain safety clamp is an additional authorized item. Refer to TM 9-1015-
252-10 for NSN and installation information.
─ When the detachable field spade is attached, ensure the two locking pins are installed and
locked. Route and tie a length of Type III nylon cord through the key ring of the cable
and around the end of the locking pin.
„ Rigging. Rig the load according to the steps in Figure 6-7.
Note. When an accompanying load requires a sling leg, you may remove and use one of the
inner sling legs from the sling set, leaving one sling leg attached to the lunette of the howitzer.
„ Hookup. The hookup team stands beside the howitzer on the trails. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the helicopter but remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
6-14
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
WARNING
When moving the howitzer with an accompanying load, the
25,000-pound capacity sling set must be used.
Accompanying loads must not exceed the weight limits of the
cargo net, cargo bag, sling leg, or exceed the lift capability of the
helicopter.
1.
Position the apex fitting on the barrel over the firing platform. Route outer sling legs 1 and 2
to the wheel hubs. Route inner sling legs 3 and 4 to the lunette. Sling legs 1 and 3 must be
on the left side of the load.
2.
Route the chain end of sling leg 1 around the left wheel hub. Place the link from Table 6-7 in
the grab hook. Pull the chain taut and ensure the chain is centered on the hub. Install the
sling set chain safety clamp on the two chain links closest to the top of the wheel hub. If
using the 25,000-pound capacity sling set, tie the two chain links together with 1/2-inch
tubular nylon webbing. Repeat with sling leg 2 on the right wheel hub. Secure the excess
chain with Type III nylon cord.
3.
Route the chain end of sling legs 3 and 4 through the lunette. Place the correct link from
Table 6-7 in the grab hook.

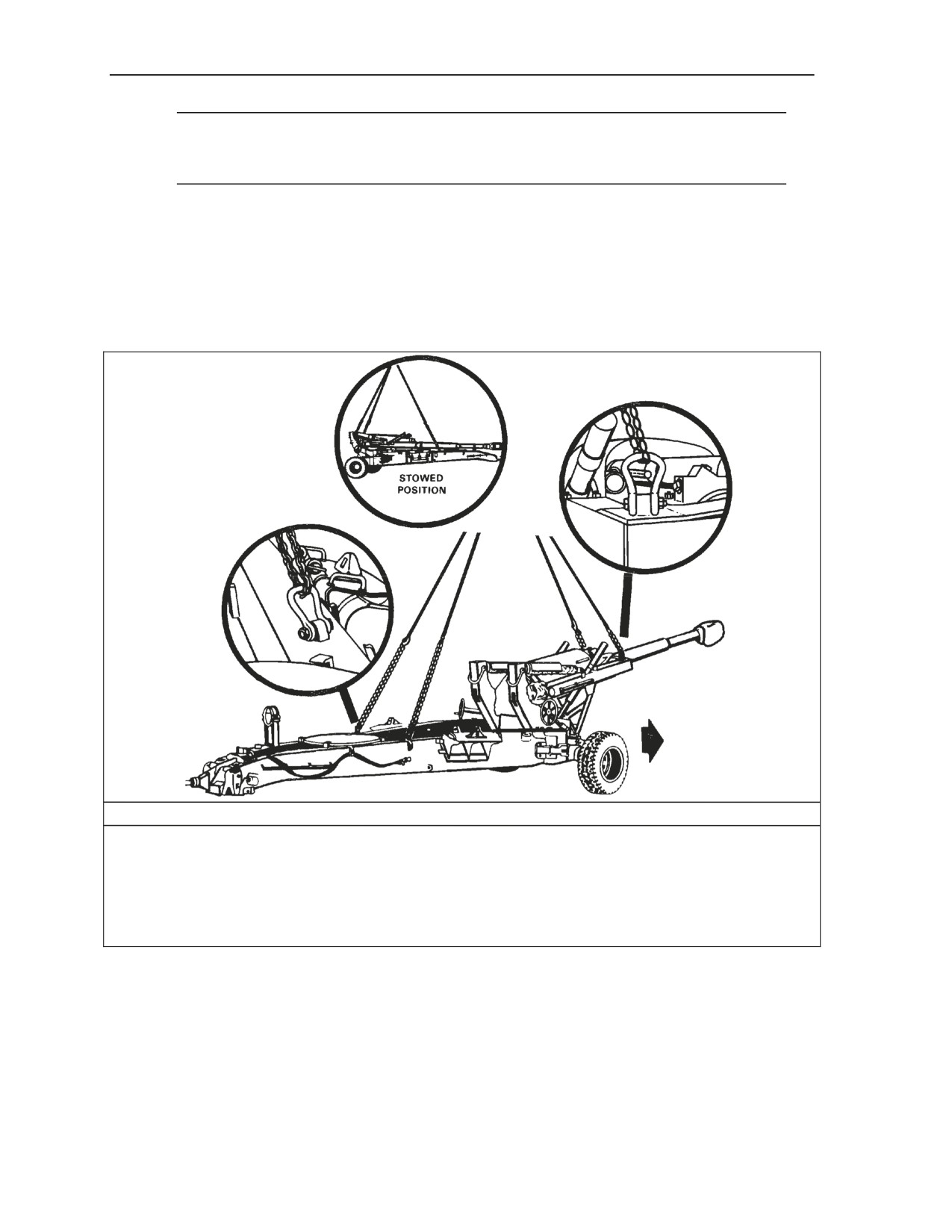

Figure 6-7. M119/M119A2 105-MM Howitzer, Folded/Towed Position
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-15
Chapter 6
RIGGING STEPS (Continued)
4. Cluster and tie or tape (breakaway technique) the sling legs together on top of the howitzers
to prevent entanglement during hookup and lift-off.
5. Attach the accompanying load by routing the 3-foot, 4-loop, Type XXVI multiloop line through
the eye of the sling leg attached to an A-22 or the apex fitting of a cargo net. Place a medium
suspension clevis through the loop on each end of the multiloop line and attach to the
provisions located under the howitzer carriage and inboard of the wheels.
Figure 6-7. M119/M119A2 105-MM Howitzer, Folded/Towed Position (Continued)
M119 105-MM HOWITZER, FORWARD/FIRING POSITION
6-9. The M119/M119A2 105-MM howitzers, forward/firing position are rigged for single-point sling
load using the following procedures:
z
Applicability. The following items in Table 6-8 are certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 6-8. M119/M119A2 105-MM Howitzer, Forward/Firing Position
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
M119/M119A2 Howitzer
4,400
10K
Listed in Rigging Steps
M119/M119A2 Howitzer with Accompanying Load
7,400
25K
Listed in Rigging Steps
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity) (when moving the howitzer without accompanying load).
„ Sling set (25,000-pound capacity) (when moving the howitzer with an accompanying load).
„ Reach pendant (11,000 or 25,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Sling set chain safety clamp.
„ Webbing, nylon, tubular, 1/2-inch (as required).
„ Line, multiloop, Type XXVI, 4-loop, 3-foot (for accompanying load).
„ Clevis, suspension, medium (2 each) (for accompanying load).
„ Bag, cargo A-22 or net, cargo (5,000- or 10,000-pound capacity).
„ Chain length, part number 38850-00053-102, from a 25,000-pound capacity sling set (1
each) (for accompanying load).
„ Coupling link, part number 664241, from a 25,000-pound capacity sling set (1 each) (for
accompanying load).
„ Strap, cargo, tiedown, CGU-1/B (as required).
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Place the howitzer in the forward/firing position.
If the firing platform is to be carried in the down position, follow these steps:
6-16
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
─ Mark the wheel hubs at the center of gravity (CG) with tape. The CG is located 6 inches
behind (towards the lunette) the center of the hub.
─ Mark the center of the firing platform with tape. Roll the howitzer onto the firing
platform aligning the tape strips. The wheel knock-off hub must be horizontal.
Engage both parking brakes.
─ Connect the firing platform to the weapon and add an additional CGU-1/B tiedown strap.
─ When the firing platform is carried on top of the trails ensure the wheel knock-off hub is
horizontal. Engage the right wheel parking brakes.
─ Secure the sight cover to the dial sight with tape or Type III nylon cord.
─ Secure the firing platform (if carried), hand spike, and jack to the trail assembly with
Type III nylon cord.
─ Ensure the lunette is in the extended position. Install the towing eye stop (C-clamp) on
the lunette and secure in place with its retaining pins, when applicable.
─ The sling set chain safety clamp is an additional authorized item. Refer to TM 9-1015-
252-10 for NSN and installation information.
─ When the detachable field spade is attached to the permanent spades, ensure the two
locking pins are installed and locked. Route and tie a length of Type III nylon cord
through the key ring of the cable and around the end of the locking pin.
─ When moving the howitzer without an accompanying load, extend the chain on sling leg
3 by removing the chain length and coupling link from sling leg 4 and attaching them
to the end of the chain on sling leg 3.
─ When moving the howitzer with an accompanying load and using sling leg 4 on the
accompanying load, extend the chain on sling leg 3 by adding an additional length of
chain with a coupling link from a 25,000-pound capacity sling set.
„
Rigging. Rig the load according to the steps in Figure 6-8.
Note. When an accompanying load requires a sling leg, you may remove and use one of the
inner sling legs from the sling set, leaving one sling leg attached to the lunette of the howitzer.
„ Hookup. The hookup team stands beside the howitzer on the trails. The static wand person
discharges the static electricity with the static wand. The hookup person places the top loop of
the reach pendant onto the aircraft cargo hook. The hookup team then moves clear of the
helicopter but remains close to the load as the helicopter removes slack from the sling legs.
When successful hookup is assured, the hookup team quickly exits the area underneath the
helicopter to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-17
Chapter 6
RIGGING STEPS
WARNING
When moving the howitzer with an accompanying load, the
25,000-pound capacity sling set must be used.
Accompanying loads must not exceed the weight limits of the
cargo net, cargo bag, sling leg, or exceed the lift capability of the
helicopter.
1.
Attach a reach pendant on the sling set apex fitting.
2.
Position the apex fitting and the reach pendant on the breech assembly. Route outer sling
legs 1 and 2 to the wheel hubs. Route inner sling leg 3 to the lunette.
3.
Route the chain end of sling leg 1 around the left wheel hub. Place link 55 (when using the
10,000-pound capacity sling set) or link 45 (when using the 25,000-pound capacity sling set)
in the grab hook. Pull the chain taut and ensure the chain is centered on the hub. Install the
sling set chain safety clamp on the two chain links closest to the top of the wheel hub. If the
sling set chain safety clamp is unavailable or if the 25,000-pound capacity sling set is being
used, tie the two chain links together with 1/2-inch tubular nylon webbing. Repeat with sling
leg 2 on the right wheel hub. Place link 50 (when using the 10,000-pound capacity sling set)
or link 40 (when using the 25,000-pound capacity sling set) in the grabhook. Secure the
excess chain with Type III nylon cord.

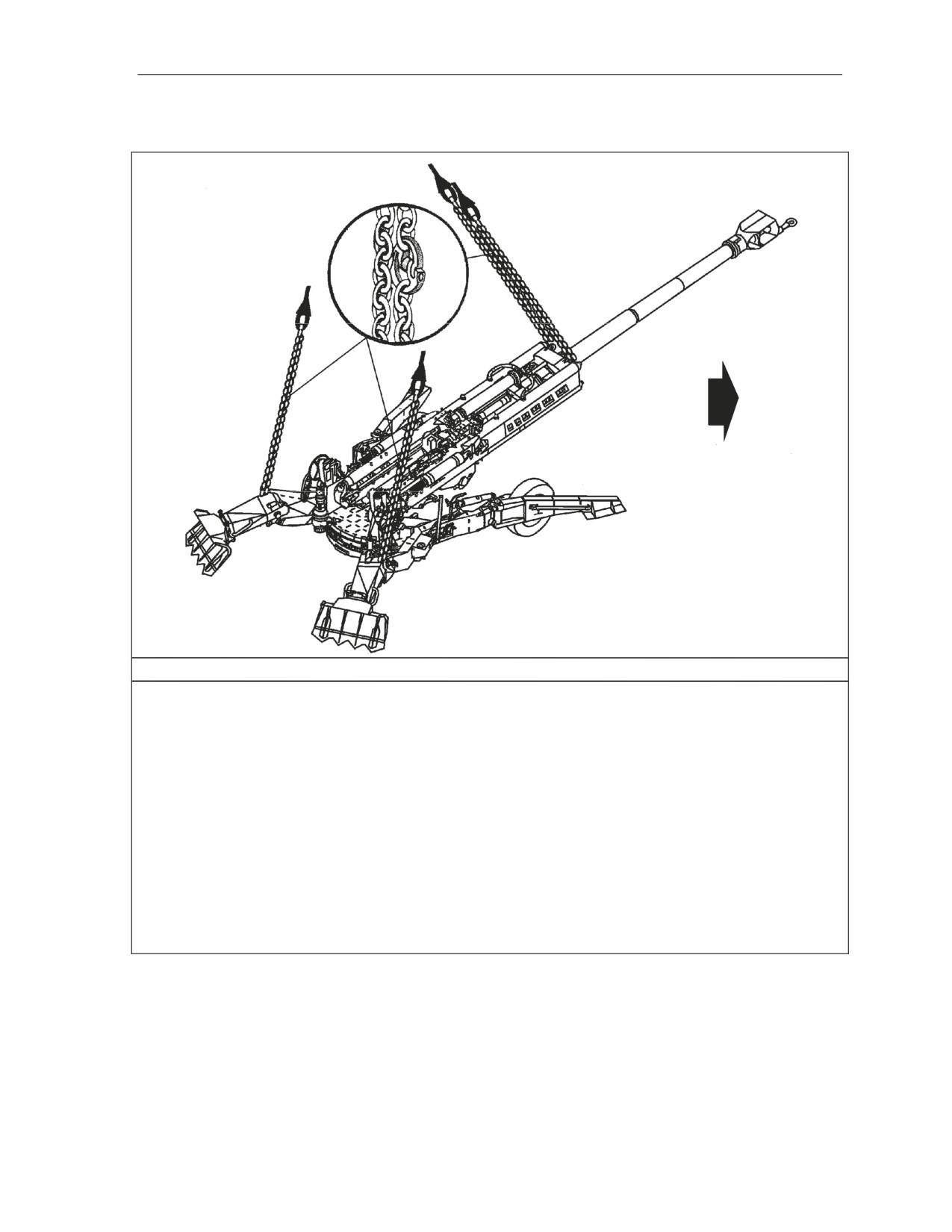

Figure 6-8. M119/M119A2 105-MM Howitzer, Forward/Firing Position
6-18
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
RIGGING STEPS (Continued)
4. Route the chain end of the extended sling leg 3 through the lunette. Place link 35 (when using the
10,000-pound capacity sling set) or link 28 (when using the 25,000-pound capacity sling set) in the grab
hook. Secure the excess chain with Type III nylon cord
5. Cluster and tie or tape (breakaway technique) the sling legs together on top of the howitzers to prevent
entanglement during hookup and lift-off.
6. Attach the accompanying load (if required) by routing the 3-foot, 4-loop, Type XXVI multiloop line
through the eye of the sling leg attached to an A-22 or the apex fitting of a cargo net. Place a medium
suspension clevis through the loop on each end of the multiloop line and attach to the provisions located
under the howitzer carriage and inboard of the wheels.
Figure 6-8. M119/M119A2 105-MM Howitzer, Forward/Firing Position (Continued)
M119/M119A2, 105-MM HOWITZER, FORWARD/FIRING POSITION,
PLATFORM DOWN, WITH ADDITIONAL BOXES OF AMMUNITION
6-10. The M119/M119A2 105-MM howitzer, forward/firing position, platform down, with additional
boxes of ammunition are rigged for single-point sling load using the following procedures:
z
Applicability. The following items in Table 6-9 are certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 6-9. M119/M119A2 105-MM Howitzer, Forward/Firing Position, Platform Down, with
Additional Boxes of Ammunition
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
M119/M119A2 Howitzer with Two Boxes of
4,850
10K
Listed in Rigging Steps
Ammunition on the Firing Platform
M119/M119A2 Howitzer with Two Boxes of
7,500
25K
Listed in Rigging Steps
Ammunition on the Firing Platform and
Ammunition in A-22 Cargo Bag or Cargo Net
WARNINGS
The ammunition boxes must be securely lashed to the firing
platform.
When using the A-22 cargo bag for an accompanying load do not
exceed 2,200 pounds.
When using the cargo net for an accompanying load do not
exceed 2,650 pounds.
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity) (when moving the howitzer without A/22 or cargo net).
OR
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-19
Chapter 6
„ Sling set (25,000-pound capacity) (when moving the howitzer with an A/22 or cargo net).
„ Reach pendant (11,000 or 25,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Sling set chain safety clamp is an authorized item. Refer to TM 9-1015-252-10 for NSN and
installation information. Also authorized is the Suncor Stainless 316 precision cast, heavy duty
Jaw and Swivel device, Item # S0156-HD008 (for use with 10K and 25K sling sets) or a safety
clamp (Picatinny Arsenal Part # 12591189; Cage Code 19200) designed for the 25K sling set .
„ Line, multiloop, Type XXVI, 4-loop, 3-foot (for accompanying load).
„ Clevis, suspension, medium (2 each) (for A/22 or cargo net).
„ Bag, cargo A/22 or net, cargo (5,000- or 10,000-pound capacity).
„ Chain length, part number 38850-00053-102, from a 25,000-pound capacity sling set
(1 each) (for A/22 or cargo net).
„ Coupling link, part number 664241, from a 25,000-pound capacity sling set (1 each) (for
A/22 or cargo net).
„ Strap, cargo, tiedown, CGU-1/B (as required).
z
Personnel. Two persons can prepare and rig this load in 30 minutes.
z
Procedures. The following procedures apply to this load:
„
Preparation. Prepare the load using the following steps:
─ Place the howitzer in the forward/firing position.
If the firing platform is to be carried in the down position, follow these
steps:
─ Mark the wheel hubs with tape at the center of gravity (CG). The CG is located 6 inches
behind (towards the lunette) the center of the hub.
─ Mark the center of the firing platform along the length (lunette to muzzle) and width
(side to side) with strips of tape. Ensure the hand holes (used to secure the
ammunition boxes) are equally spaced on either side of the long axis of the
gun.
─ Roll the howitzer onto the firing platform. Align the CG masking tape with the side to
side tape strips. The wheel knock-off hub must be horizontal. Engage both parking
brakes.
─ Connect the firing platform to the weapon. Tie the ammunition boxes together with
Type III nylon cord. Secure the two ammunition boxes (if carried) by routing a CGU-
1/B tiedown strap through the platform hand holes and the carrying handles of each
box. Pad the CGU-1/B where it rubs on the boxes and platform.
─ Pad and tape the trailing edge of the platform when carrying an accompanying load in an
A/22 cargo bag or a cargo net.
Secure the sight cover to the dial sight with tape or Type III nylon cord.
─ Secure the firing platform (if carried), hand spike, and jack to the trail assembly with
Type III nylon cord.
─ When the detachable field spade is attached to the permanent spades, ensure the two
locking pins are installed and locked. Route and tie a length of Type III nylon cord
through the key ring of the cable and around the end of the locking pin.
─ When moving the howitzer without an A/22 cargo bag or a cargo net load, extend the
chain on sling leg 3 by removing the chain length and coupling link from sling leg 4
and attaching them to the end of the chain on sling leg 3.
─ When moving the howitzer with an accompanying load and using sling leg 4 on the
accompanying load, extend the chain on sling leg 3 by adding an additional length of
chain with a coupling link from a 25,000-pound capacity sling set.
6-20
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
„ Rigging. Rig the load according to the steps in Figure 6-9.
Note. When an accompanying load requires a sling leg, you may remove and use one of the
inner sling legs from the sling set, leaving one sling leg attached to the lunette of the howitzer.
„ Hookup. The hookup team stands on the howitzer or on the trails. The static wand person
discharges the static electricity with the static wand. The hookup person places the top loop of
the reach pendant onto the aircraft cargo hook. The hookup team then moves clear of the
helicopter but remains close to the load as the helicopter removes slack from the sling legs.
When successful hookup is assured, the hookup team quickly exits the area underneath the
helicopter to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
WARNING
When moving the howitzer with an accompanying load, the
25,000-pound capacity sling set must be used.
Accompanying loads must not exceed the weight limits of the
cargo net, cargo bag, sling leg, or exceed the lift capability of the
helicopter.
Figure 6-9. M119/M119A2 105-MM Howitzer, Forward/Firing Position, Platform Down, with
Additional Boxes of Ammunition
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-21
Chapter 6
RIGGING STEPS (Continued)
1.
Attach a reach pendant on the sling set apex fitting.
2.
Position the apex fitting and the reach pendant on the breech assembly. Route outer sling
legs 1 and 2 to the wheel hubs. Route inner sling leg 3 to the lunette.
3.
Route the chain end of sling leg 1 around the left wheel hub (looking at the howitzer from the
lunette). Place link 50 (when using the 10,000-pound capacity sling set) or link 40 (when
using the 25,000-pound capacity sling set) in the grab hook. Pull the chain taut and ensure
the chain is centered on the hub. Install the sling set chain safety clamp on the two chain
links closest to the top of the wheel hub. If the sling set chain safety clamp is unavailable, tie
the two chain links together with 1/2-inch tubular nylon webbing. Repeat with sling leg 2 on
the right (knock-off) wheel hub. Place link 55 (when using the 10,000-pound capacity sling
set) or link 45 (when using the 25,000-pound capacity sling set) in the grabhook. Secure the
excess chain with Type III nylon cord.
4.
Route the chain end of the extended sling leg 3 through the lunette. Place link 35 (when
using the 10,000-pound capacity sling set) or link 28 (when using the 25,000-pound capacity
sling set) in the grab hook. Secure the excess chain with Type III nylon cord
5.
Cluster and tie or tape (breakaway technique) the sling legs together on top of the howitzers
to prevent entanglement during hookup and lift-off.
6.
Attach the accompanying load (if required) by routing the 3-foot, 4-loop, Type XXVI multiloop
line through the eye of the sling leg attached to an A-22 or the apex fitting of a cargo net.
Place a medium suspension clevis through the loop on each end of the multiloop line and
attach to the provisions located under the howitzer carriage and inboard of the wheels.
Figure 6-9. M119/M119A2 105-MM Howitzer, Forward/Firing Position, Platform Down, with
Additional Boxes of Ammunition (Continued)
M114A2 155-MM HOWITZER, TOWED
6-11. The M114A2 155-MM howitzer, towed is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 6-10 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
Table 6-10. M114A2 155-MM Howitzer, Towed
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
M114A2 Howitzer
12,700
40K
50/10
z
Materials. The following materials are required to rig this load:
„ Sling set (40,000-pound capacity) with two additional 8-foot chain lengths and coupling
links.
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
6-22
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
„ Tie-down strap, cargo, CGU-1/B (2 each).
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Stow all howitzer equipment, including sights, in the proper place, except the spade key.
Stow the spade key in the section chest. Secure all equipment with tape or Type III
nylon cord.
─ Position the section chest on the rear of the trails.
─ Secure the section chest to the trails by routing the tie-down strap through the handles of
the chest and both trail lifting handles.
─ Secure the spades to the brackets with Type III nylon cord. Secure all hoses and cables
to the sides of the trails with tape or Type III nylon cord.
─ Engage one parking brake.
─ Pad the barrel forward of the recoil mechanism. Ensure all sight mounts are removed or
padded. Ensure the gun jack pin is locked in place.
─ Remove or secure all gun covers.
„ Rigging. Rig the load according to the steps in Figure 6-10.
„ Hookup. The hookup team stands on the wheels or on the firing platform. The static wand
person discharges the static electricity with the static wand. The hookup person places the apex
fitting onto the aircraft cargo hook. The hookup team then moves clear of the helicopter but
remains close to the load as the helicopter removes slack from the sling legs. When successful
hookup is assured, the hookup team quickly exits the area underneath the helicopter to the
designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-23
Chapter 6
RIGGING STEPS
1. Position the apex fitting on the breech assembly. Route outer sling legs 1 and 2 to the barrel.
Route inner sling legs 3 and 4 to the trail. Sling legs 1 and 3 must be on the left side of the
load. Attach the additional chain lengths to sling legs 3 and 4 using the coupling links.
2. Position the grab link of sling leg 1 on the left side of the gun tube padded area. Route the
chain end under the tube and back up to the grab link. Place the correct link from Table 6-10
in the grab hook. Repeat with sling leg 2 with the grab link on the right side of the gun tube.
Secure the excess chain with Type III nylon cord.
3. Route the chain end of sling leg 3 down through the spade key bracket on the outboard side
of the left trail, under the trail, and up the inboard side of the trail. Place the correct link from
Table 6-10 in the grab hook. Repeat with sling leg 4 on the right trail.
4. Cluster and tie (breakaway technique) the sling legs together on top of the howitzers to
prevent entanglement during hookup and lift-off.
Figure 6-10. M114A2 155-MM Howitzer, Towed
6-24
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
M198 155-MM HOWITZER, TOWED/STOWED
6-12. The M198 155-MM howitzer, towed/stowed is rigged for single-point sling load using the following
procedures:
z
Applicability. The following items in Table 6-11 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
Table 6-11. M198 155-MM Howitzer, Towed/Stowed
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
M198 Howitzer in Towed Position
15,740
25K
50/3
M198 Howitzer in Stowed Position
15,740
25K
70/3
z
Materials. The following materials are required to rig this load:
„ Sling set (25,000-pound capacity) with two additional 8-foot chain lengths and coupling
links.
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
„ Tie-down strap, cargo, CGU-1/B (2 each).
„ Clevis assembly, suspension, large, one per lift provision.
„ Reach pendant (25,000-pound capacity) required for sling loading in the towed position.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure the spades to the trails with the tie-down straps.
─ Secure all hoses and cables to the outboard side of the right trail with tape or Type III
nylon cord.
─ Pad the sight mounts and secure the padding with tape or Type III nylon cord.
─ Attach a large clevis assembly to the trail lift provisions located forward of the stowed
firing baseplate.
─ Ensure the top carriage locking pin is in place and is secured with a locking safety clip
for the towed position.
CAUTION:
Do not attempt to lift the howitzer if the top carriage lock pin will not
drop into place or if the locking safety clip is missing. Either of these
conditions could result in the top carriage rotating in flight.
─ Position the barrel and install the travel lock; secure with the pins for the towed position.
─ Attach a large clevis assembly to the lift provision on each side of the carriage for the
towed position.
─ Attach a large clevis assembly to the two lift provisions located at the upper end of the
equilibrator for the towed position.
„ Rigging. Rig the load according to the steps in Figure 6-11.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-25
Chapter 6
Notes. 1. Hookup of this load presents substantial risk of damage to the load or injury to the
hookup personnel. Use of a reach pendant is recommended for this load.
2. The helicopter must approach the howitzer over the trails.
„ Hookup. The hookup team stands on the carriage. The static wand person discharges the
static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then moves clear of the helicopter but remains close to
the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS (TOWED POSITION)
1. Install the 25,000-pound capacity reach pendant on the bolt of the apex fitting. Position the
reach pendant and apex fitting on top of the breech block. Route outer sling legs 1 and 2 to
the front of the carriage. Route inner sling legs 3 and 4 to the trails. Sling legs 1 and 3 must
be on the left side of the load. Attach the additional chain lengths to sling legs 3 and 4 using
the coupling links.
Figure 6-11. M198 155-MM Howitzer, Towed/Stowed
6-26
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
RIGGING STEPS (TOWED POSITION) (Continued)
2.
Route the chain end of sling leg 1 through the clevis on the lifting provision on the left side of
the carriage assembly. Place the correct link from Table 6-11 in the grab hook. Repeat with
sling leg 2 and the right front lift provision on the right side of the carriage. Secure the excess
chain with Type III nylon cord.
3.
Route the chain end of sling leg 3 through the clevis on the lift provision on top of the left trail.
Place the correct link from Table 6-11 in the grab hook. Repeat with sling leg 4 on the right
trail.
4.
Cluster and tie (breakaway technique) the sling legs together on top of the howitzers to
prevent entanglement during hookup and lift-off.
RIGGING STEPS (STOWED POSITION)
1.
Position the apex fitting on top of the barrel centered on the load. Route outer sling legs 1
and 2 to the trails. Route inner sling legs 3 and 4 to the breech end. Sling legs 1 and 3 must
be on the left side of the load. Attach the additional chain lengths to sling legs 1 and 2 using
the coupling links.
2.
Route the chain end of sling leg 1 through the clevis on the left trail. Place the correct link
from Table 6-11 in the grab hook. Repeat with sling leg 2 and the right trail.
3.
Route the chain end of sling leg 3 through the clevis on the left side of the equilibrator above
the breech. Place the correct link from Table 6-11 in the grab hook. Repeat with sling leg 4
on the right side. Secure the excess chain with Type III nylon cord.
4.
Cluster and tie (breakaway technique) the sling legs together on top of the howitzers to
prevent entanglement during hookup and lift-off.
Figure 6-11. M198 155-MM Howitzer, Towed/Stowed (Continued)
TWO M101A1 105-MM HOWITZERS
6-13. The two M101A1 105-MM howitzers are rigged for single-point sling load using the following
procedures:
z
Applicability. The following items in Table 6-12 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
Table 6-12. Two M101A1 105-MM Howitzers
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
Two M101A1 Howitzers
9,960
40K
Listed in Rigging Steps
z
Materials. The following materials are required to rig this load:
„ Sling set (40,000-pound capacity) with two additional chain lengths and coupling links for
the sling set being used.
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-27
Chapter 6
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
„ Tie-down strap, cargo, CGU-1/B (as required).
„ Pad, energy-dissipating, 24- x 24-inch (2 each) or 4-x 4- x 24-inch lumber (2 each).
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
Note. The howitzer with the gun tube facing in the direction of flight is designated as
howitzer 1.
─ Position the howitzers side by side with the gun tubes facing in opposite directions.
Howitzer 1 is on the left side facing forward and howitzer 2 is on the right side facing
aft.
─ Ensure the trails are secured. Rotate the lunette to the down position. Secure the trail
closing lock handles with Type III nylon cord or tape.
─ Place honeycomb between the right wheel of howitzer 1 and the right trail of howitzer 2.
Route two CGU-1/B cargo tie-down straps through the top of the wheel rim, out the
bottom of the rim, and around the honeycomb and trail of howitzer 2. Repeat with the
right wheel of howitzer 2 and the right trail of howitzer 1.
─ Ratchet the howitzers together as securely as possible. Add more straps as required. A
minimum of two straps per wheel is required.
─ Close and lock the breech of each gun. Secure or remove the muzzle, breech, and tube
covers. Remove or pad the sight mounts.
─ Place the gun section equipment chest on the trails and secure it with CGU-1/B tie-down
straps.
─ Pad the gun tubes above the cradles and around the forward edge of the recoil damper
assemblies. Secure the padding with tape or Type III nylon cord.
─ Pad the gun trails on both howitzers aft of the traveling lock shaft area.
─ Set the hand brakes.
„ Rigging. Rig the load according to the steps in Figure 6-12.
„ Hookup. The hookup team stands alongside the howitzer or on top of the trails. The static
wand person discharges the static electricity with the static wand. The hookup person places the
apex fitting onto the aircraft cargo hook. The hookup team then moves clear of the helicopter
but remains close to the load as the helicopter removes slack from the sling legs. When
successful hookup is assured, the hookup team quickly exits the area underneath the helicopter
to the designated rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
6-28
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
HOWITZER 2
HOWITZER 1
RIGGING STEPS
1. Position the apex fitting between the breech area of the two howitzers. Route outer sling leg
1 to the barrel end of howitzer 1. Route outer sling leg 2 to the trail end of howitzer 2. Route
inner sling leg 3 to the trail end of howitzer 1. Route inner sling leg 4 to the barrel end of
howitzer 2. Sling legs 1 and 3 must be on the left side of the load. Attach the additional
chain lengths to sling legs 2 and 3 using the coupling links.
2. Wrap the chain end of sling leg 1 once around the padding on the barrel of howitzer 1 and
insert link 30 in the grab link. Repeat with sling leg 2 on the barrel end of howitzer 2. Secure
the excess chain with Type III nylon cord.
3. Wrap the chain end of sling leg 2 around the padded area on the trail end of howitzer 2 and
insert link 55 in the grab link. Repeat with sling leg 3 and the trails on howitzer 1. Secure the
excess chain with Type III nylon cord.
4. Cluster and tie (breakaway technique) the sling legs together on top of the howitzers to
prevent entanglement during hookup and lift-off.
Figure 6-12. Two M101A1 105-MM Howitzers
BMS-120 BATTALION MORTAR SYSTEM
6-14. The BMS-120 battalion mortar system is rigged for single-point sling load using the following
procedures:
z
Applicability. The following item in Table 6-12 is certified for all helicopters with suitable lift
capacity by the US Army Natick Soldier Center:
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-29
Chapter 6
Table 6-12. BMS-120 Battalion Mortar System
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
BMS 120, Carriage Mounted
764
10K
3/67
z
Materials. The following materials are required to rig this load:
„ Sling set (10,000-pound capacity).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
„ Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
„ Tie-down strap, cargo, CGU-1B (as required).
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Secure all loose equipment, chains and wires with tape or Type III nylon cord.
─ Secure the mortar to the carriage by routing the tie-down strap across the mortar base
plate and around the axle. Route one end of the strap through the base plate left
handle, around the axle, and back through the base plate handle. Continue the strap
across the base plate, through the base plate right handle, around the axle, back
through the base plate handle, and attach the end of the tie-down strap to the ratchet.
Pad the tie-down strap where it makes contact with the sharp edges of the base plate.
„ Rigging. Rig the load according to the steps in Figure 6-12.
„ Hookup. The hookup team stands alongside the carriage. The static wand person
discharges the static electricity with the static wand. The hookup person places the apex fitting
onto the aircraft cargo hook. The hookup team then moves clear of the helicopter but remains
close to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
6-30
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
RIGGING STEPS
1.
Position the apex fitting on top of the carriage. Route outer sling legs 1 and 2 to the anchor
points behind the base plate supports. Route inner sling legs 3 and 4 to the lunette. Sling
legs 1 and 3 must be on the left side of the load. Sling legs 1 and 2 are on the rear of the
load.
2.
Route the chain end of sling leg 1 around the horizontal pipe on the left side of the carriage
between the vertical pipe and the base plate. Place the correct link from Table 6-12 in the
grab hook. Repeat with sling leg 2 and the right side of the carriage. Secure the excess
chain with Type III nylon cord.
3.
Route the chain end of sling leg 3 through the lunette. Place the correct link from Table 6-12
in the grab hook. Repeat with sling leg 4 on the lunette.
4.
Cluster and tie (breakaway technique) the grab hooks from sling legs 1 and 2 together on top
of the bipod assembly and sling legs 3 and 4 together on top of the lunette to prevent
entanglement during hookup and lift-off.
Note. Failure to use the proper breakaway technique in taping or tying the sling legs could
result in damage to the load.
Figure 6-12. BMS-120 Battalion Mortar System
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-31
Chapter 6
M777/M777A1/M777A2, 155-MM, LIGHTWEIGHT HOWITZER
6-15. The M777/M777A1/M777A2, 155-mm, lightweight howitzer is rigged for single-point sling load
using the following procedures:
z
Applicability. The following items in Table 6-13 are certified for all helicopters with suitable
lift capacity by the US Army Natick Soldier Center:
Table 6-13. M777/M777A1/M777A2, 155-mm, Lightweight Howitzer
Nomenclature
Max
Sling Set
Link Count
Weight
Front/Rear
(Pounds)
M777, 155-mm, Lightweight Howitzer
9,300
15K
80/3
25K
80/3
M777A1, 155-mm, Lightweight Howitzer
9,800
15K
80/3
25K
80/3
M777A2, 155-mm, Lightweight Howitzer
9,920
15K
80/3
25K
80/3
z
Materials. The following materials are required to rig this load:
„ Sling set (15,000-pound capacity) with one additional web ring.
─ Chain length, part number 34080-4, from a 15,000-pound capacity sling set (4 each).
─ Coupling link, part number 31611, from a 15,000-pound capacity sling set (4 each).
OR
„ Sling set (25,000-pound capacity).
─ Chain length, part number 38850-00053-102, from a 25,000-pound capacity sling set (4
each).
─ Coupling link, part number 577-0615, from a 25,000-pound sling set (4 each).
„ Tape, adhesive, pressure-sensitive, 2-inch wide roll.
„ Cord, nylon, Type III, 550-pound breaking strength.
„ Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
„ Preparation. Prepare the load using the following steps:
─ Ensure the stabilizers are in the firing position.
─ The spades may be in the up (stowed position) or down ( firing position).
─ Secure the air hoses and electrical cable to the supporting structure with Type III nylon
cord.
─ Stow and secure all equipment with tape or Type III nylon cord.
─ Ensure the barrel is in the firing position.
─ Extend the sling leg chains by connecting one additional chain length to each chain on
the sling set with coupling links.
„ Rigging. Rig the load according to the steps in Figure 6-13.
„ Hookup. The hookup team stands on top of the gun carriage. The static wand person
discharges the static electricity with the static wand. The hookup person places the web ring
onto the cargo hook. The hookup team then carefully dismounts the howitzer and remains close
to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
Note. The helicopter must approach the howitzer over the spades.
6-32
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
20 February 2009
Certified Single-Point Rigging Procedures for Howitzers and Weapons Systems
„ Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Position the web ring on top of the forward end of the breech. Route outer sling legs 1 and 2
to the front of the howitzer and inner sling legs 3 and 4 to the rear. Sling legs 1 and 3 must
be on the left side of the load.
2. Loop the chain end of sling leg 1 through the left front lift provision located on the left side of
the barrel. Place the correct link from Table 6-13 in the grab hook. Repeat with sling leg 2
through the right front lift provision. Secure all excess chain with tape or Type III nylon cord.
3. Loop the chain end of sling leg 3 through the left rear lift provision located on the left side of
the supporting frame near the left spade. Place the correct link from Table 6-13 in the grab
hook. Repeat with sling leg 4 through the right rear lift provision.
4. Cluster and tie (breakaway technique) the sling legs in each sling set together to prevent
entanglement during hookup and lift-off.
Figure 6-13. M777/M777A1/M777A2, 155-mm, Lightweight Howitzer
20 February 2009
FM 4-20.198/MCRP 4-11.3E, VOL II/NTTP 3-04.12/
AFMAN 11-223 (I), VOL II/COMDTINST M13482.3B
6-33















Content      ..     4      5      6      7     ..
