Certified Dual-Point Rigging Procedures for Wheeled Vehicles
─ Secure all equipment inside the shelter with tape, nylon cord, or lashings; close and
secure shelter vents and door with nylon cord or tape.
─ Secure environmental control unit cover with duct tape.
─ Disconnect the power cord from the rear panel and secure it to the rear platform with
Type III nylon cord. Lower the power panel door and secure the door.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Install the lift provisions on the outer ends of the rear bumper.
─ Tie the shelter's rear lift rings together across the top of the shelter with Type III nylon
cord. Place the rings in the up position facing the front of the vehicle.
Rigging. Rig the load according to the steps in Figure 2-8.
Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The forward hookup person places apex fitting 1
onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.

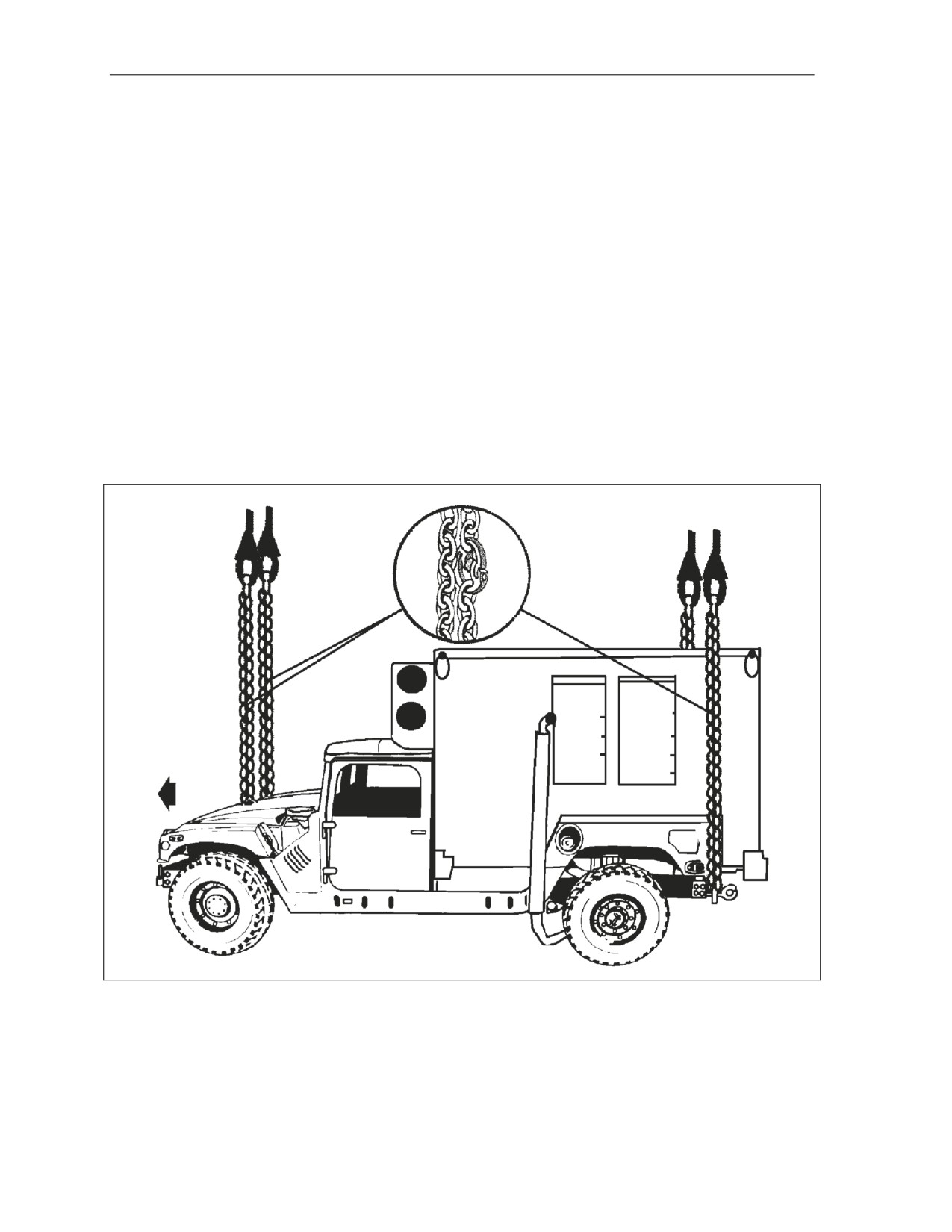

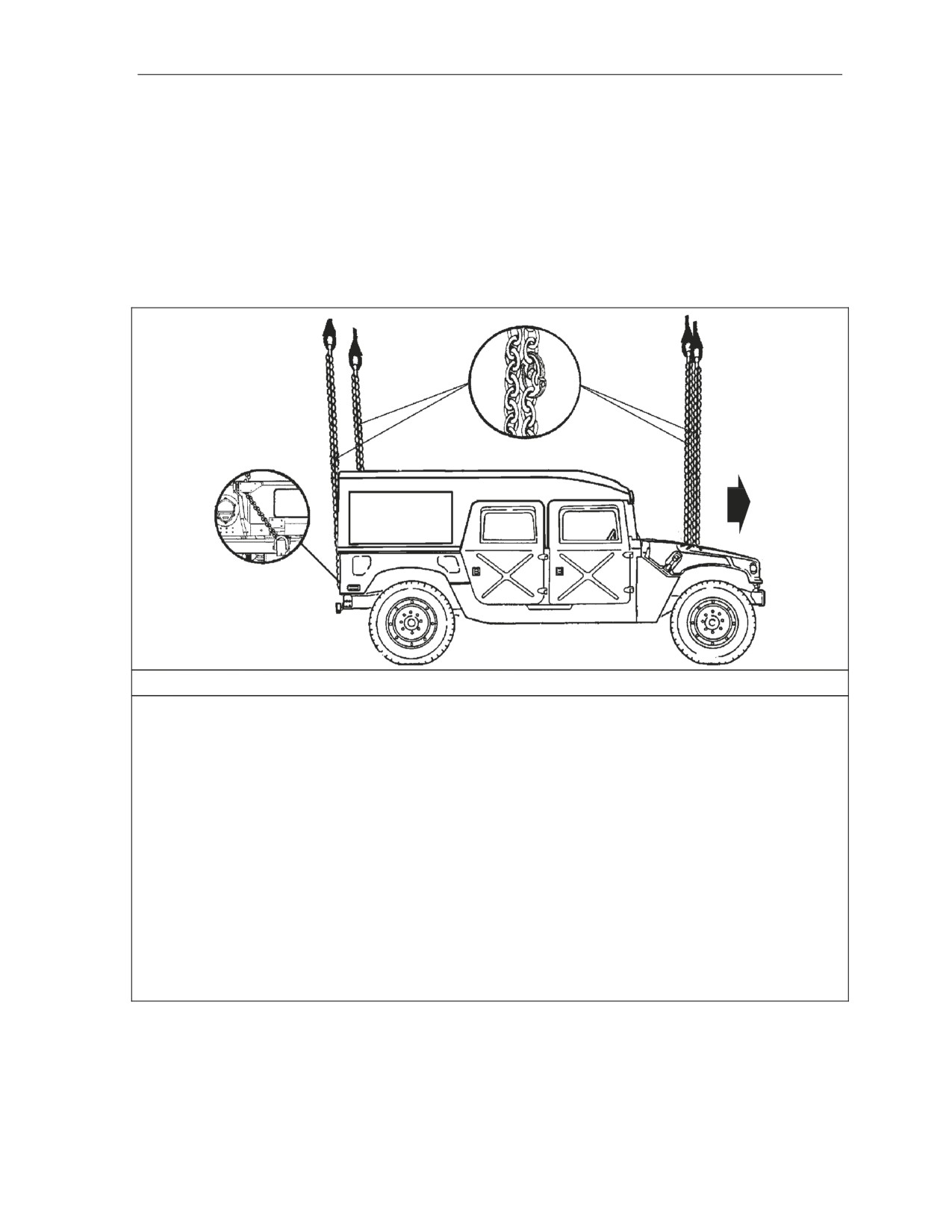

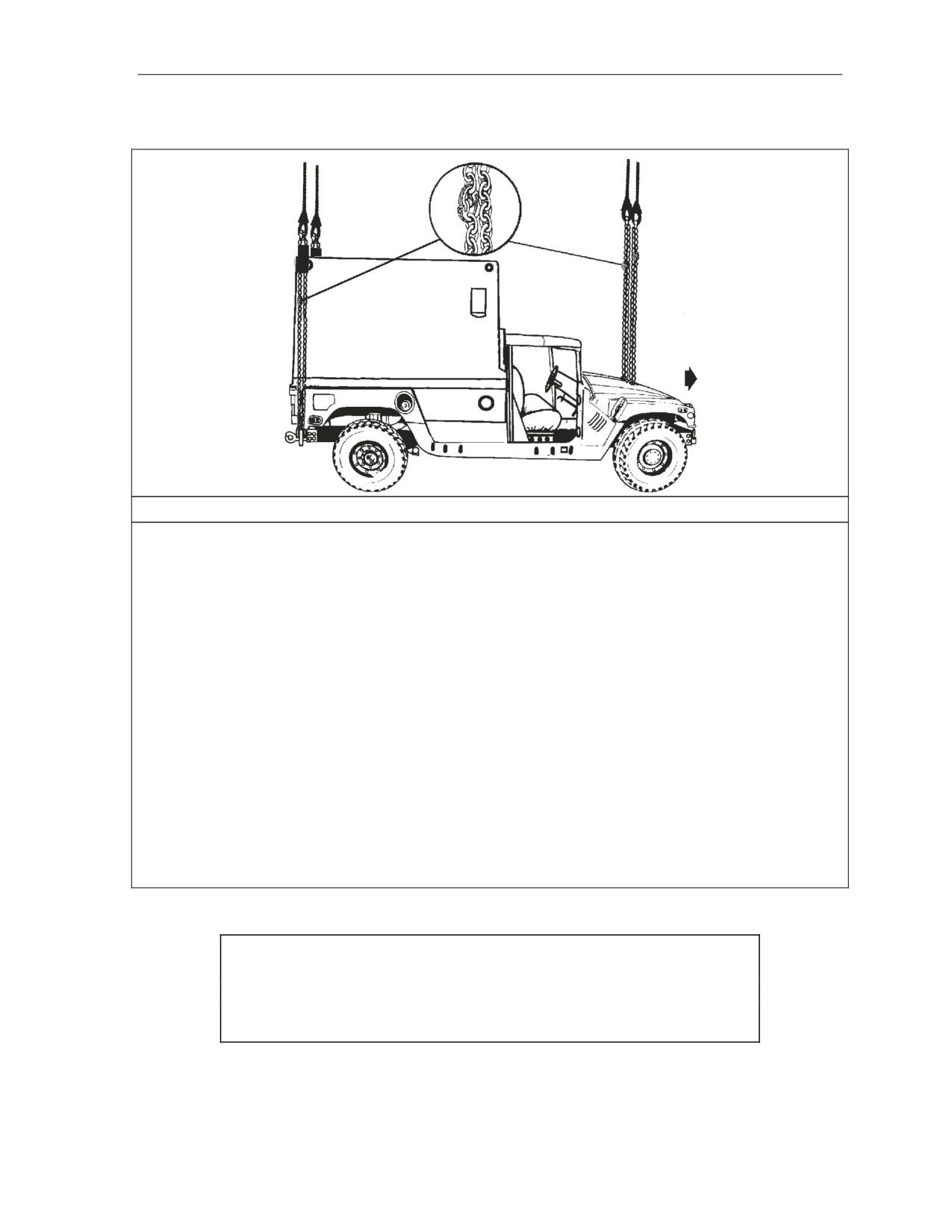

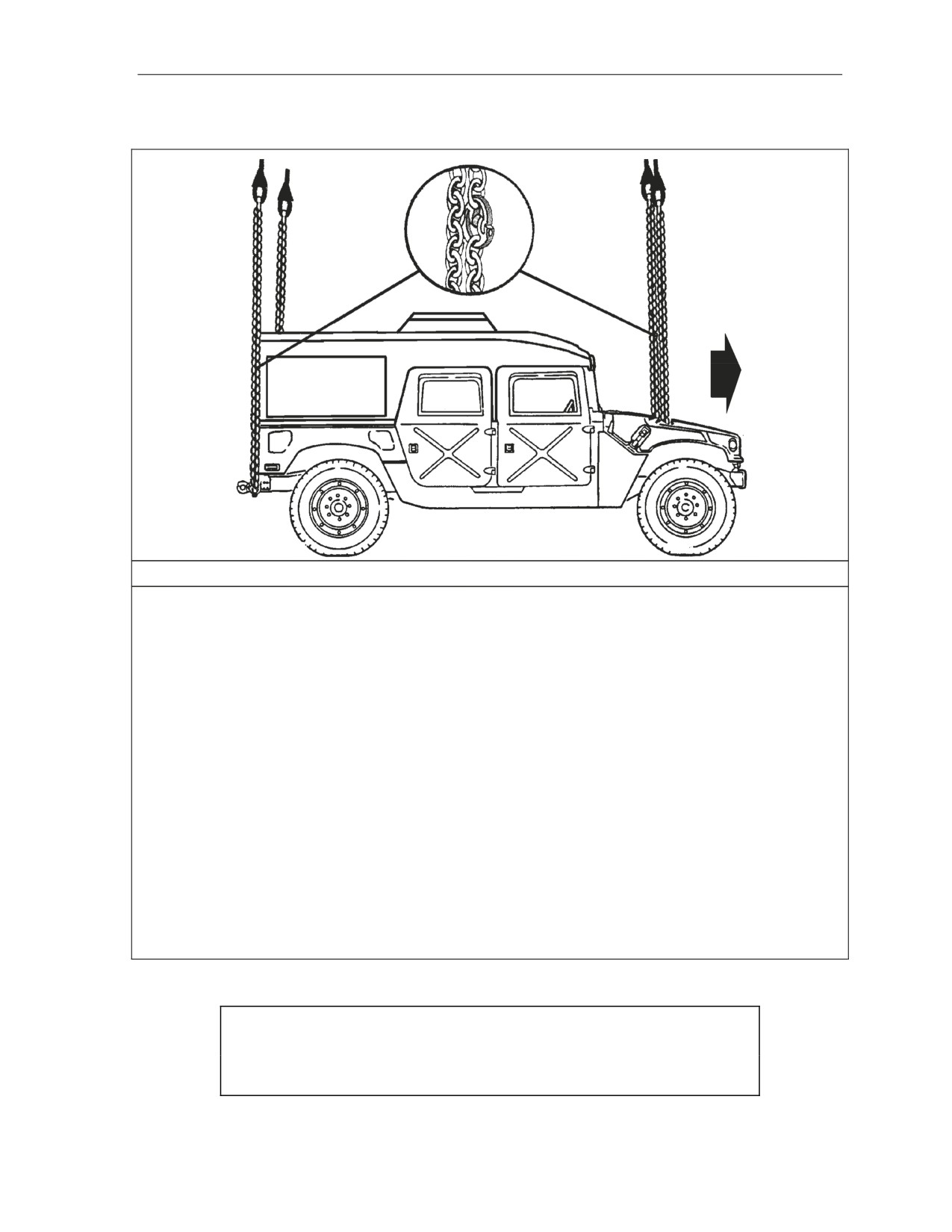

Figure 2-8. LMS Shelter Mounted on M1113 using Shelter Lift Rings as Sling Guides
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-23
Chapter 2

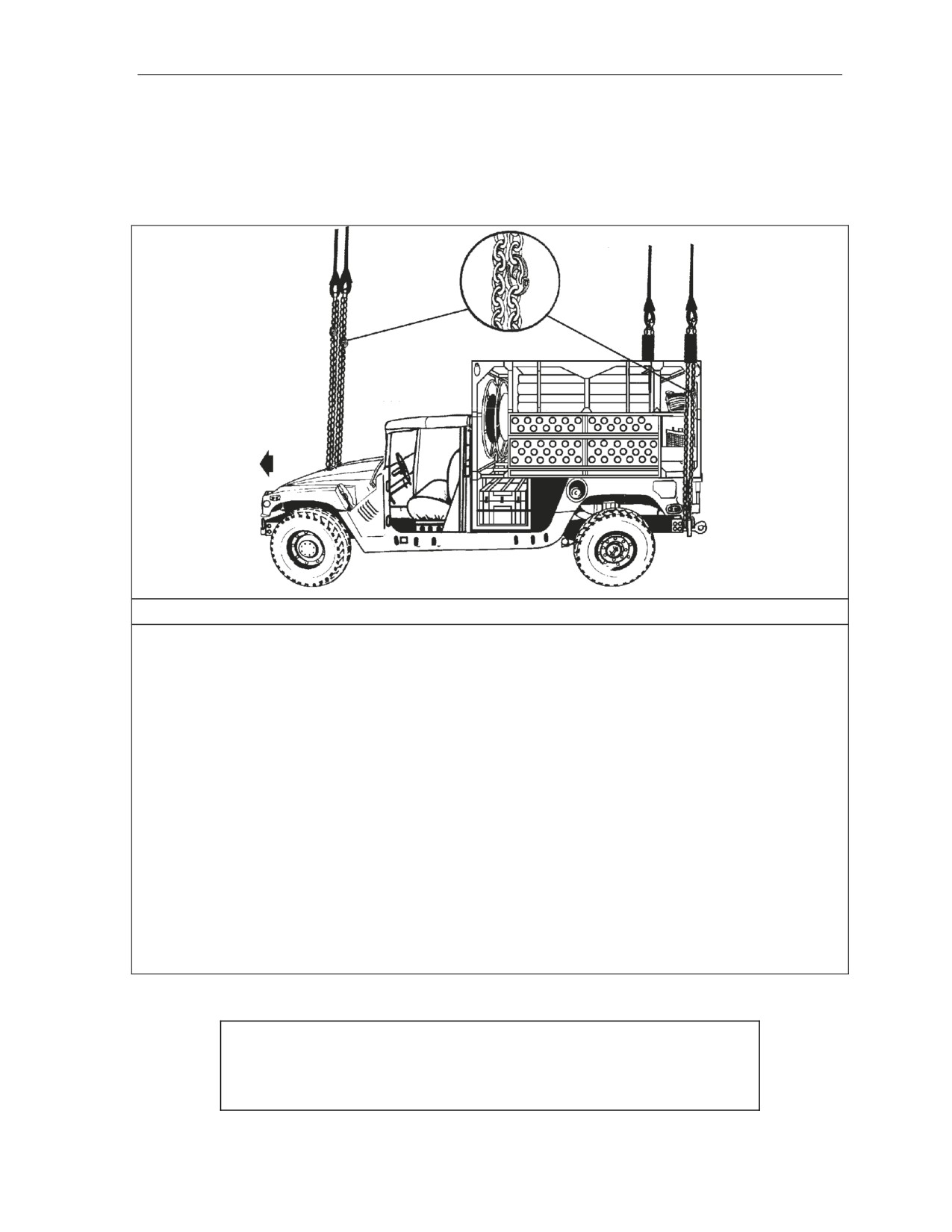

RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the shelter.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-9 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the shelter.
4. Route the right sling leg chain through the right rear shelter lift ring to the right rear lift
provision located on the outer end of the rear bumper. Continue routing the chain back
through the right rear shelter lift ring and back to the grab hook. Place the correct link from
Table 2-9 in the grab hook. Repeat the procedure using the left sling leg chain, left rear
shelter lift ring, and the left lift provision located on the end of the bumper.
5. Remove all the excess slack between the lift provisions and the shelter lift rings.
6. Secure all excess chain with tape or Type III nylon cord.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.

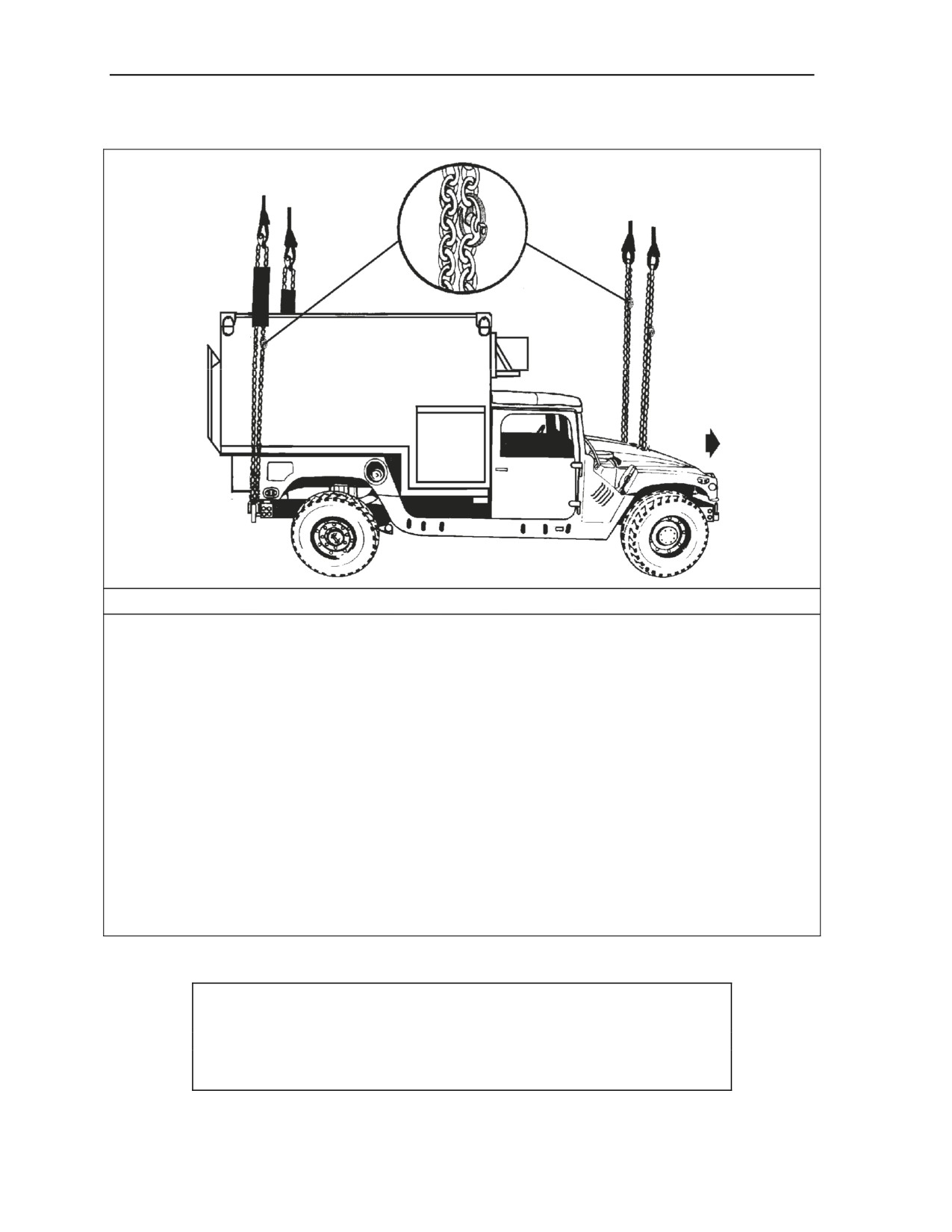

Figure 2-8. LMS Shelter Mounted on M1113 using Shelter Lift Rings as Sling Guides
(Continued)
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
M1097/M1113 SHELTER CARRIER (HMMWV) WITH GITCHNER
MODEL 1497A SHELTER
2-11. The M1097/M1113 shelter carrier with Gitchner model 1497A shelter is rigged for dual-point sling
load using the following procedures:
z
Applicability. The following items in Table 2-10 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-10. M1097/M1113 Shelter Carrier with Gitchner Model 1497A Shelter
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
Joint Tactical Information Distribution System (JTIDS),
10,000
10K
30/3
CH-47
AN/TYQ-JTIDS Shelter on M1097 HMMWV
AN/TSM-210 Electronic Shop on M1113 HMMWV
10,360
25K
24/5
CH-47
Deployable Print Production Center
11,145
25K
5/32
CH-47
15K
3/40
CH-53
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-24
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
z
Materials. The following materials are required to rig this load:
Sling set (see table) with one additional apex fitting.
─ Chain length, for the sling set being used (4 each) (8 each for 15K).
─ Coupling link, for the sling set being used (4 each) (8 each for 15K).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
Padding, cellulose.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 10,000- or 25,000-pound capacity sling set and two chain lengths to each chain on
the 15,000-pound capacity sling set with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Secure all equipment inside the shelter with tape, nylon cord, or lashings; close and
secure shelter vents and door with nylon cord or tape.
─ Secure environmental control unit cover with duct tape.
─ Disconnect the power cord from the rear panel and secure it to the rear platform with
Type III nylon cord. Lower the power panel door and secure the door.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Install the lift provisions on the outer ends of the rear bumper.
Rigging. Rig the load according to the steps in Figure 2-9.
Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The forward hookup person places apex fitting 1
onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-25
Chapter 2
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the shelter.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-10 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the shelter.
4. Loop the chain end of the sling legs through their respective lift provisions located on the
outer ends of the rear bumper. Place the correct link from Table 2-10 in the grab hook.
5. Wrap the rear slings with padding where they contact the shelter sides.
6. Secure all excess chain with tape or Type III nylon cord.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.

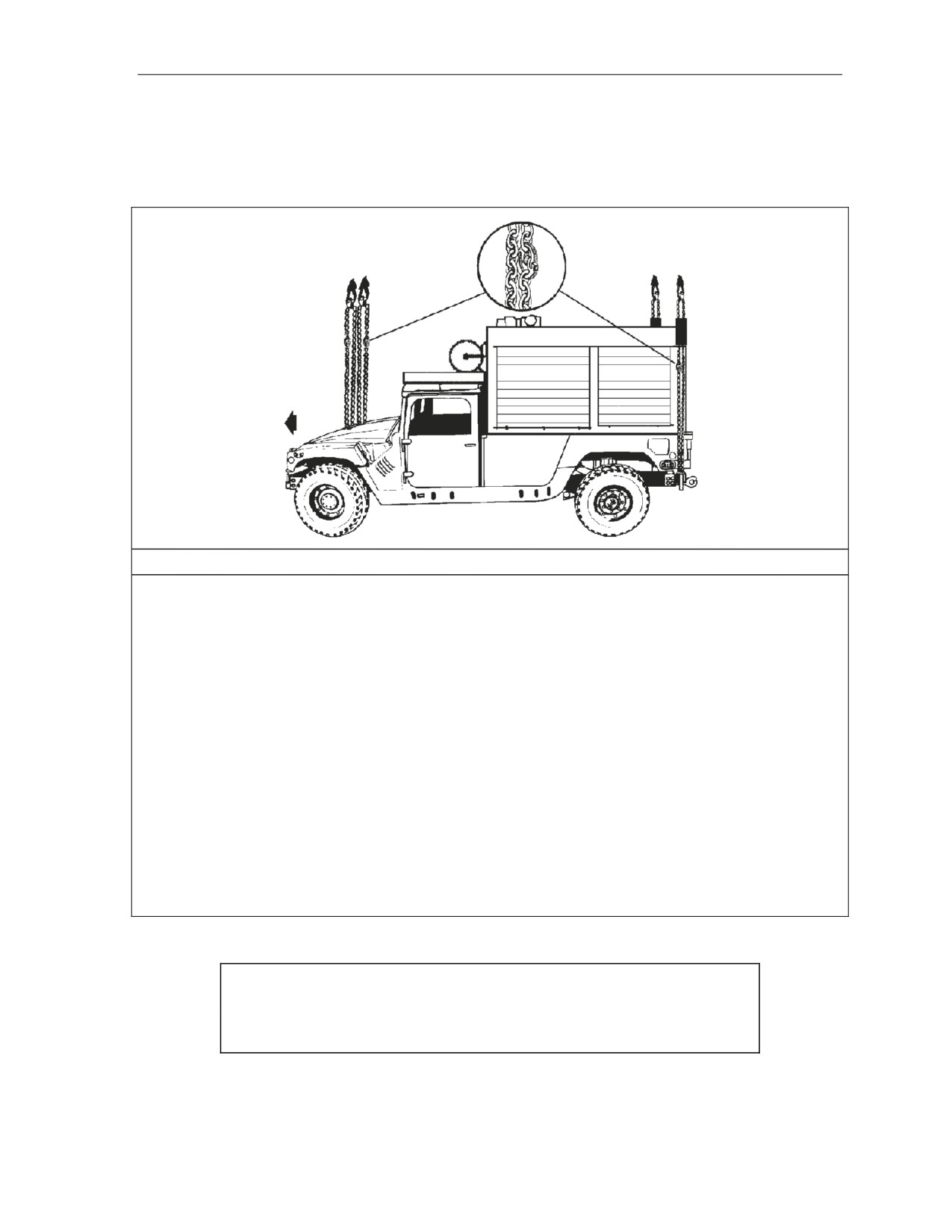

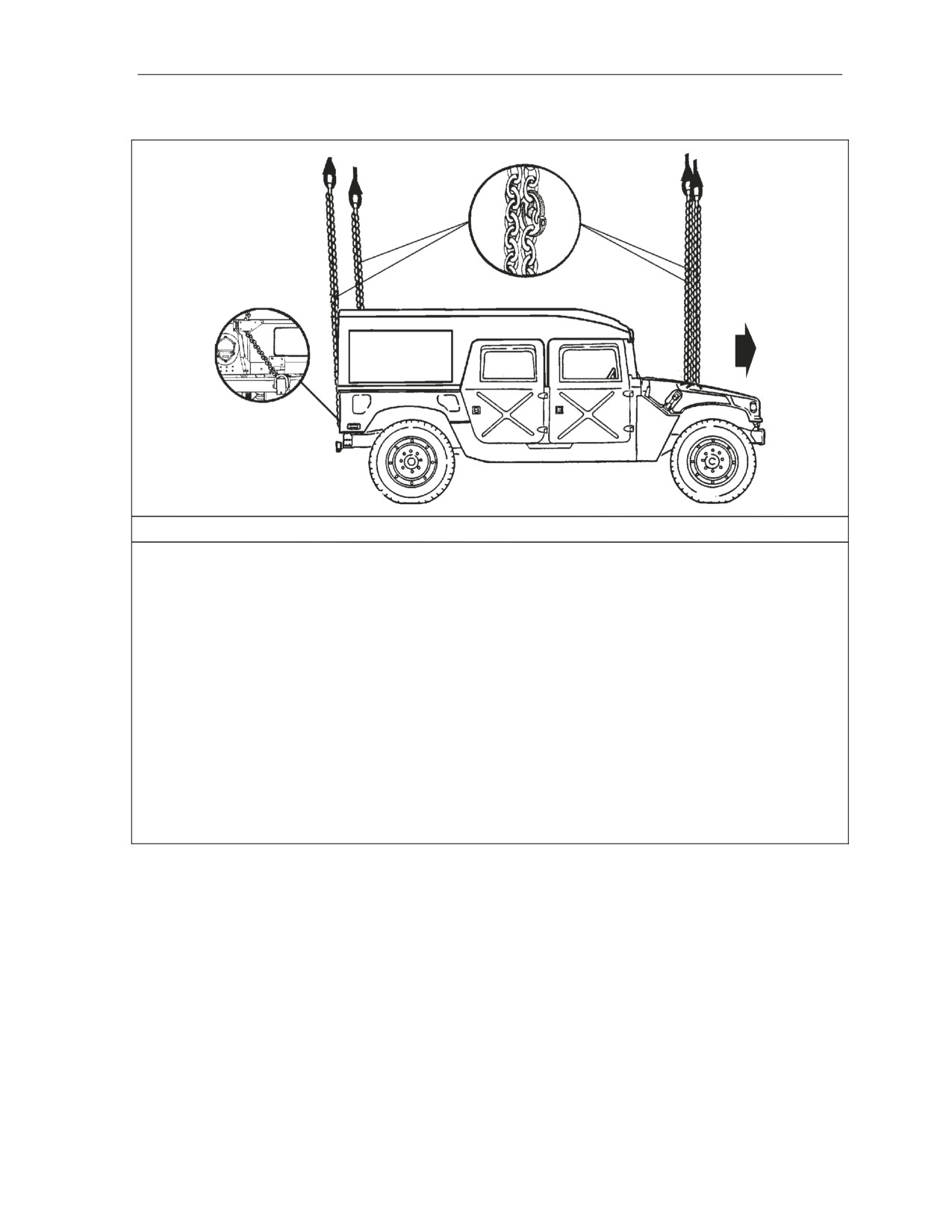

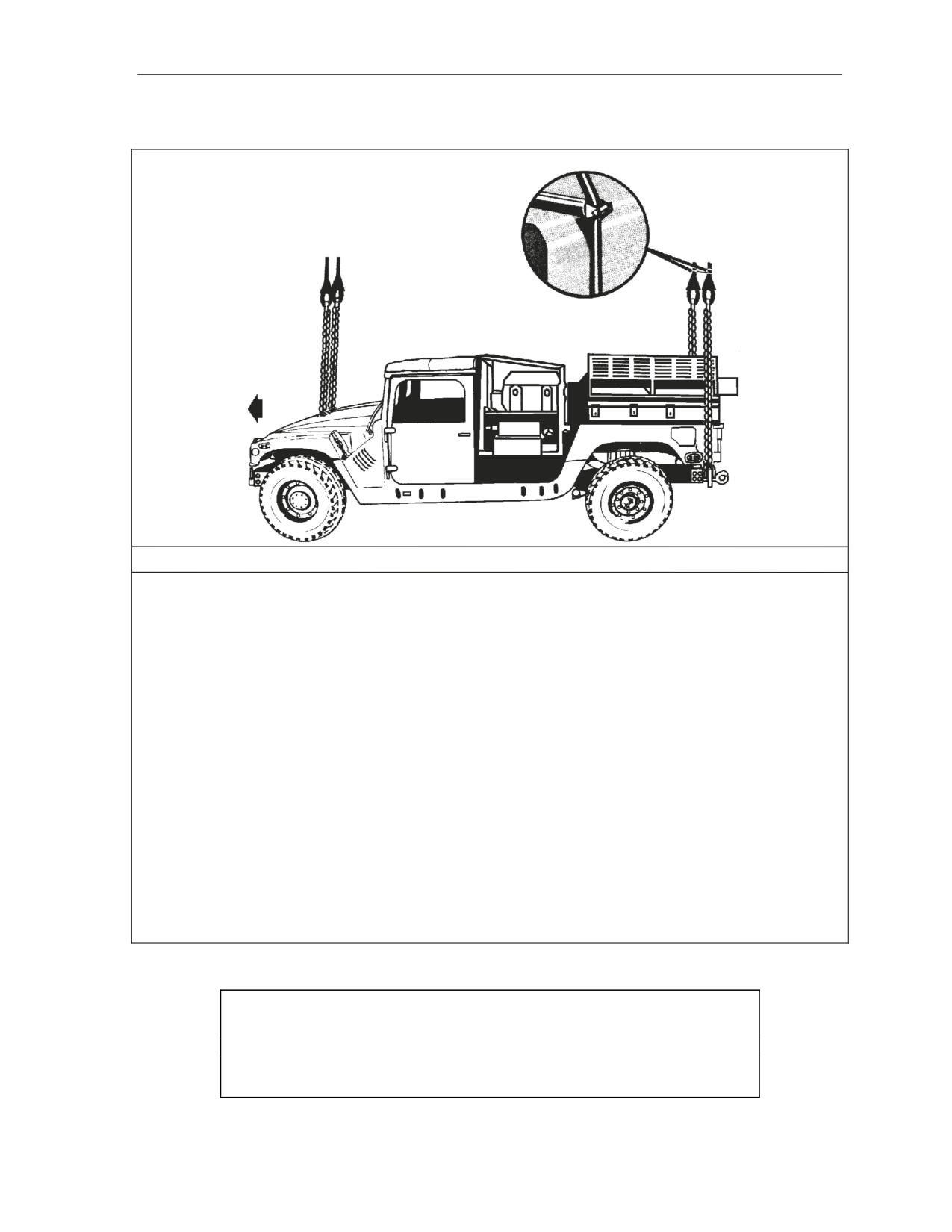

Figure 2-9. M1097/M1113 Shelter Carrier with Gitchner Model 1497A Shelter
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-26
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
M1097A2 SHELTER CARRIER (HMMWV) WITH SPECIAL
OPERATIONS MEDIA SYSTEM (SOMS-B) IN S-788G SHELTER
(LMS)
2-12. The M1097A2 shelter carrier with special operations media system in S-788G shelter is rigged for
dual-point sling load using the following procedures:
z
Applicability. The following item in Table 2-11 is certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-11. M1097A2 Shelter Carrier with Special Operations Media System in S-788G Shelter
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
Special Operations Media System
9,080
10K
50/3
CH-47
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) with one additional apex fitting.
─ Chain length, part number 38850-00053-101, from a 10,000-pound capacity sling set
(4 each).
─ Coupling link, part number 5779125, from a 10,000-pound capacity sling set (4 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 10,000-pound capacity sling set with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Secure all equipment inside the shelter with tape, nylon cord, or lashings; close and
secure shelter vents and door with nylon cord or tape.
─ Secure environmental control unit cover with duct tape.
─ Disconnect the power cord from the rear panel and secure it to the rear platform with
Type III nylon cord. Lower the power panel door and secure the door.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Install the lift provisions on the outer ends of the rear bumper.
─ Tie the shelter's rear lift rings together across the top of the shelter with Type III nylon
cord. Place the rings in the up position facing the front of the vehicle.
Rigging. Rig the load according to the steps in Figure 2-10.
Note: Ensure the chains on the left rear sling leg are routed between the shelter and the 30
meter mast.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-27
Chapter 2
Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The forward hookup person places apex fitting 1
onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Note: Hookup of this load presents substantial risk of damage to the load or injury to the
hookup personnel. Use of a reach pendant is recommended for this load.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the shelter.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-11 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the shelter.
4. Route the right sling leg chain through the right rear shelter lift ring to the right rear lift
provision located on the outer end of the rear bumper. Continue routing the chain back
through the right rear shelter lift ring and back to the grab hook. Place the correct link from
Table 2-11 in the grab hook. Repeat the procedure using the left sling leg chain, left rear
shelter lift ring, and the left lift provision located on the end of the bumper.

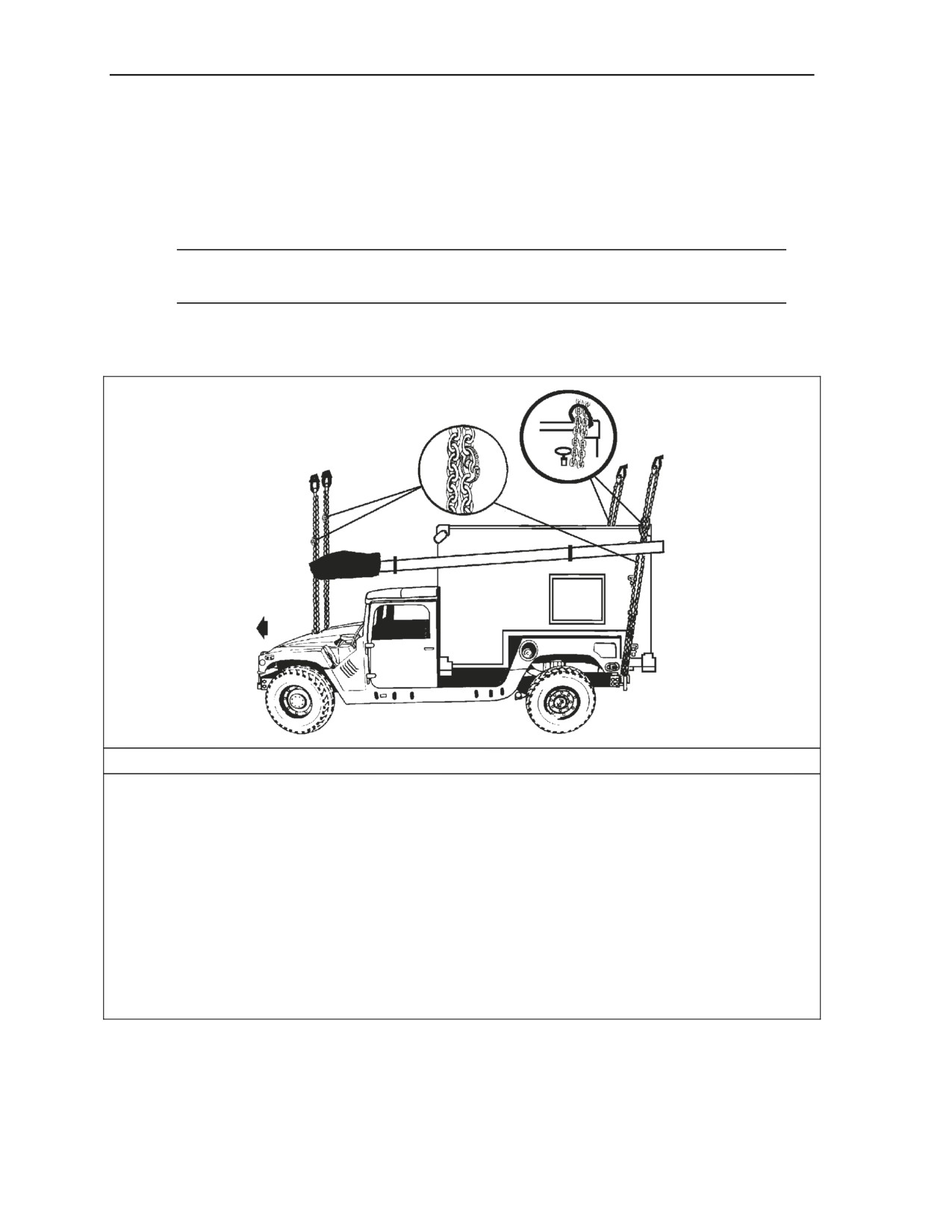

Figure 2-10. M1097A2 Shelter Carrier with Special Operations Media System in S-788G Shelter
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-28
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS (Continued)
5. Remove all the excess slack between the lift provisions and the shelter lift rings.
6. Secure all excess chain with tape or Type III nylon cord.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.

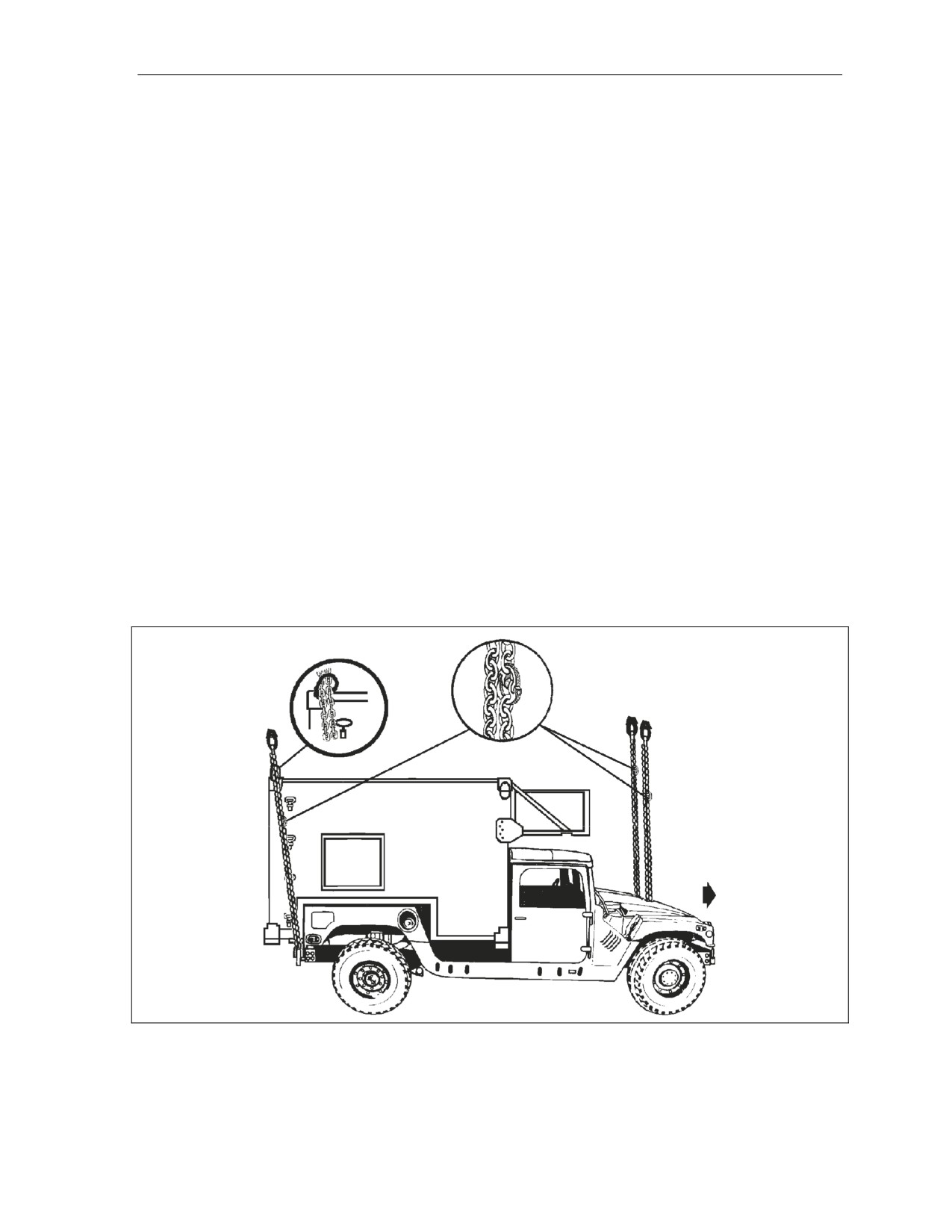

Figure 2-10. M1097A2 Shelter Carrier with Special Operations Media System in S-788G Shelter
(Continued)
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
M1097A1 (HMMWV) WITH TACTICAL DATA NETWORK (TDN)-
GATEWAY (USMC)
2-13. The M1097A1 with tactical data network gateway shelter is rigged for dual-point sling load using
the following procedures:
z
Applicability. The following item in Table 2-12 is certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-12. M1097A1 with Tactical Data Network Gateway Shelter
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
Tactical Data Network-Gateway on M1097A1
9,580
15K
30/3
CH-53
z
Materials. The following materials are required to rig this load:
Sling set, multileg with one additional web ring.
─ Chain length, from a multileg sling set (8 each).
─ Coupling link, from a 15,000-pound capacity sling set (8 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting two additional chain lengths to each chain
on a multileg sling set with coupling links.
─ Fold mirrors forward inward and tie together with Type III nylon cord.
─ Secure all equipment inside the shelter with tape, Type III nylon cord, or tiedown
straps. Close and secure all doors and vents with tape or Type III nylon cord.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-29
Chapter 2
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Secure the rear lift provisions in the up position with Type III nylon cord.
Rigging. Rig the load according to the steps in Figure 2-11.
Hookup. The hookup team stands on top of the vehicle. The static wand person
discharges the static electricity with the static wand. The forward hookup person places apex
fitting 1 onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft
cargo hook. The hookup team then carefully dismounts the vehicle and remains close to the
load as the helicopter removes slack from the sling legs. When successful hookup is assured,
the hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
Figure 2-11. M1097A1 with Tactical Data Network Gateway Shelter
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-30
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Connect 2 sling legs to web ring number 1. Position the web ring on top of the vehicle.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-12 in the grab hook. Secure all
excess chain with tape or Type III nylon cord.
3. Connect 2 sling legs to web ring number 2. Position the web ring on top of the shelter.
4. Loop the chain end through the respective lift provision located on the outside end of the
bumper. Place the correct links from Table 2-12 in the grab hooks. Secure all excess chain
with tape or Type III nylon cord.
5. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-11. M1097A1 with Tactical Data Network Gateway Shelter (Continued)
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
M1037/M1097 SHELTER CARRIER (HMMWV) WITH G15840 SMOKE
GENERATOR SET, M157/M157A1E1
2-14. The M1037/M1097 shelter carrier with G15840 smoke generator set, M157/M157A1E1 is rigged for
dual-point sling load using the following procedures:
z
Applicability. The following items in Table 2-13 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-13. M1037/M1097 Shelter Carrier with G15840 Smoke Generator Set, M157/M157A1E1
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
Smoke, Generator Set, M157 on M1037
7,400
10K
40/3
CH-47
Smoke, Generator Set, M157 on M1097
8,025
10K
40/3
CH-47
Smoke, Generator Set, M157A1E1 on M1097
8,035
10K
40/3
CH-47
z
Materials. The following materials are required to rig this load.
Sling set (10,000-pound capacity) with one additional apex fitting.
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-31
Chapter 2
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Install the lift provisions on the outer ends of the rear bumper.
Rigging. Rig the load according to the steps in Figure 2-12.
Hookup. The hookup team stands in the bed of the vehicle. The static wand person
discharges the static electricity with the static wand. The forward hookup person places apex
fitting 1 onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft
cargo hook. The hookup team then carefully dismounts the vehicle and remains close to the
load as the helicopter removes slack from the sling legs. When successful hookup is assured,
the hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
Figure 2-12. M1037/M1097 Shelter Carrier with G15840 Smoke Generator Set, M157/M157A1E1
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-32
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on the hood of the
vehicle.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-13 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the smoke
generator.
4. Loop the chain end of the sling legs through their respective lift provisions located on the
outer ends of the rear bumper. Place the correct link from Table 2-13 in the grab hook.
5. Wrap the rear slings with padding where they contact the vehicle sides.
6. Secure all excess chain with tape or Type III nylon cord.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.

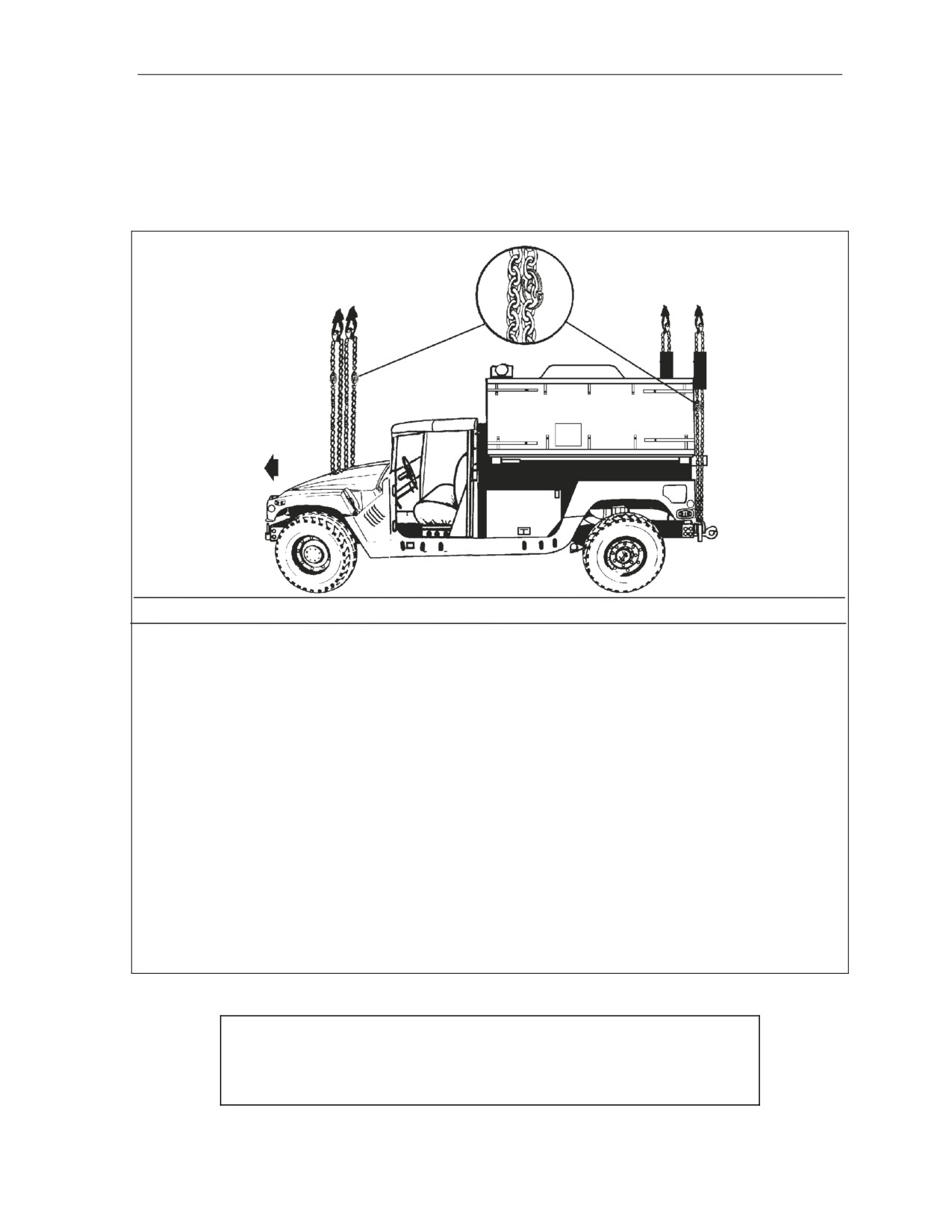

Figure 2-12. M1037/M1097 Shelter Carrier with G15840 Smoke Generator Set, M157/M157A1E1
(Continued)
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
M1113 (HMMWV) WITH M56 SMOKE GENERATING SYSTEM
2-15. The M1113 with M56 smoke generating system is rigged for dual-point sling load using the
following procedures:
z
Applicability. The following items in Table 2-14 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-14. M1113 with M56 Smoke Generating System
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
M1113 with M56 Smoke Generating System without
9,400
10K
50/3
CH-47
Graphite in Tank
M1113 with M56 Smoke Generating System with
9,400
10K
50 Front
CH-47
Graphite in Tank
3 Right Rear
14 Left Rear
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) with one additional apex fitting.
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-33
Chapter 2
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
Spreader bar, ambulance, NSN 4910-01-313-8839.
z
Personnel. Two persons can prepare and rig this load in 10 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Place the transmission in neutral and set the parking brake.
─ Ensure the fuel tank, the turbine fuel, and both fog oil tanks are not over 3/4 full.
─ Set the three-way valve to the OFF position.
─ Ensure the IR hopper cover latches are securely closed and the auxiliary hoses are
attached to the mounting bracket at the forward end of the inboard fog oil tank.
─ Secure all latches and doors with tape or Type III nylon cord.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Fold the mirrors inward. Remove the doors and store and secure the doors in the cab
with lashings or Type III nylon cord.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Extend the spreader bar until the holes line up. Install the pin and engage the keeper.
─ Position the spreader bar across the rear of the vehicle, resting on the power module
and the weapons case. Attach the two spreader bar check cables to the larger hole
openings, footman's loop, on the vehicle fenders.
Rigging. Rig the load according to the steps in Figure 2-13.
Hookup. The hookup team stands on the IR hopper-loading platform on the left side of the
vehicle. The static wand person discharges the static electricity with the static wand. The
forward hookup person places apex fitting 1 onto the forward cargo hook. The aft hookup
person places apex fitting
2 onto the aft cargo hook. The hookup team then carefully
dismounts the vehicle and remains close to the load as the helicopter removes slack from the
sling legs. When successful hookup is assured, the hookup team quickly exits the area
underneath the helicopter to the designated rendezvous point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-34
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the IR
hopper or on the forward end of the fog oil tanks.
2. Loop the chain end of the sling legs through their respective lift provisions. Place the correct
link from Table 2-14 in the grab hook. Secure the excess chain with tape or Type III nylon
cord.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the IR
hopper or on the forward end of the fog oil tanks.
4. Place the nylon rope of sling legs 3 and 4 in the guides on the end of the spreader bar. Loop
the chain end of the sling legs through their respective lift provision located on the outside
end of the rear bumper. Place the correct link from Table 2-14 in the grab hook.
5. Pad the slings where they contact the vehicle.
6. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the load to
prevent entanglement during hookup and lift-off.
Figure 2-13. M1113 with M56 Smoke Generating System
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-35
Chapter 2
DUAL M56 SMOKE GENERATING SYSTEMS ON M1113 HMMWV,
SIDE BY SIDE (SHOTGUN METHOD)
2-16. The dual M56 smoke generating systems on M1113, side by side is rigged for dual-point sling load
using the following procedures:
z
Applicability. The following item in Table 2-15 is certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-15. Dual M56 Smoke Generating Systems on M1113, Side by Side
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
M56 Smoke Generating System on M1113
9,387
10K
Listed in
CH-47
Rigging
Procedures
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) (2 each).
─ Additional chain length, part number 38850-00053-101, from a 10,000-pound capacity
sling set (8 each).
─ Additional coupling link, part number 5779125, from a 10,000-pound capacity sling
set (8 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Strap, tiedown, cargo, CGU-1/B (4 each).
Spreader bar ambulance NSN 4910-01-313-8839 (2 each).
z
Personnel. Four persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Fold mirrors inward and tie together with Type III nylon cord.
─ Secure all equipment and cargo inside the vehicles with tape, nylon cord, or lashings.
Secure the doors shut, if installed.
─ Ensure the fuel tanks, turbine fuel, and both fog oil tanks are not over 3/4 full. Inspect
the fuel tank caps, oil filler caps, and battery caps for proper installation.
─ Secure the vehicle camouflage net (in the bag) to each vehicle. Attach one camouflage
net to the forward door post of one vehicle and the other camouflage net to the hard
part of the body covering the fuel tank of the other vehicle.
─ Position the vehicles perpendicular to the direction of flight. The front of the vehicles
face to the right side of the direction of flight. Position the vehicles, as close as
possible, next to each other. Ensure both vehicles are facing in the same direction.
─ Engage the vehicle parking brakes and put the transmissions in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard or Type III nylon cord.
─ Set the three-way valve to the OFF position.
─ Tape the windshield and side windows with an X formation from corner to corner.
─ Ensure the IR hopper cover latches are securely closed and the auxiliary hoses are
attached to the mounting bracket at the forward end of the inboard fog oil tank.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-36
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
─ Route a CGU-1/B cargo tiedown strap from the front inside tiedown on the front
bumper of one vehicle, through the front inside tiedown of the other vehicle and
connect the hooks together. Tighten the strap. Repeat the procedure with the front
outer tiedowns.
─ Route a CGU-1/B cargo tiedown strap from the rear inside lift shackle of one vehicle,
through the rear inside lift shackle of the other vehicle and connect the hooks together.
Tighten the strap. Repeat the procedure between the vehicle pintles.
─ Extend the spreader bars until the holes line up. Install the pin and engage the keeper.
─ Position the spreader bar across the rear of each vehicle resting on the power module
and the weapons case.
─ Extend each of the sling leg chains by connecting one additional chain length to each
chain on the 10,000-pound capacity sling sets with coupling links.
Rigging. Rig the load according to the steps in Figure 2-14.
Note: The front of this load is the side of the forward vehicle. The fronts of the vehicles face to
the right side of the direction of flight.
Hookup. The hookup teams stand in the cargo bed and on the hood of the vehicles. The
static wand person discharges the static electricity with the static wand. The forward hookup
person places apex fitting 1 onto the forward cargo hook. The aft hookup person places apex
fitting 2 onto the aft cargo hook. The hookup team then carefully dismounts the vehicle and
remains close to the load as the helicopter removes slack from the sling legs. When successful
hookup is assured, the hookup team quickly exits the area underneath the helicopter to the
designated rendezvous point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.

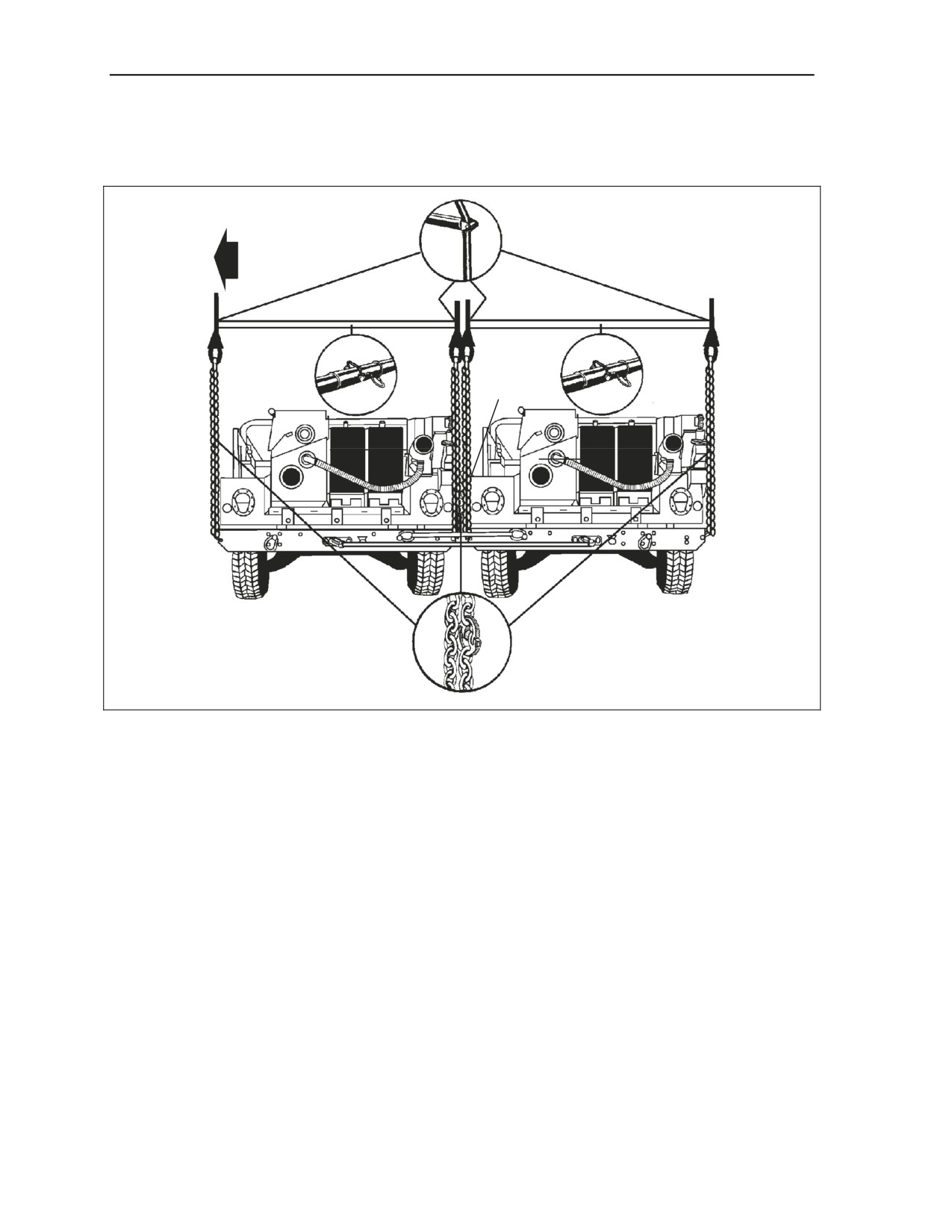

CAMO
NET
FRONT VIEW

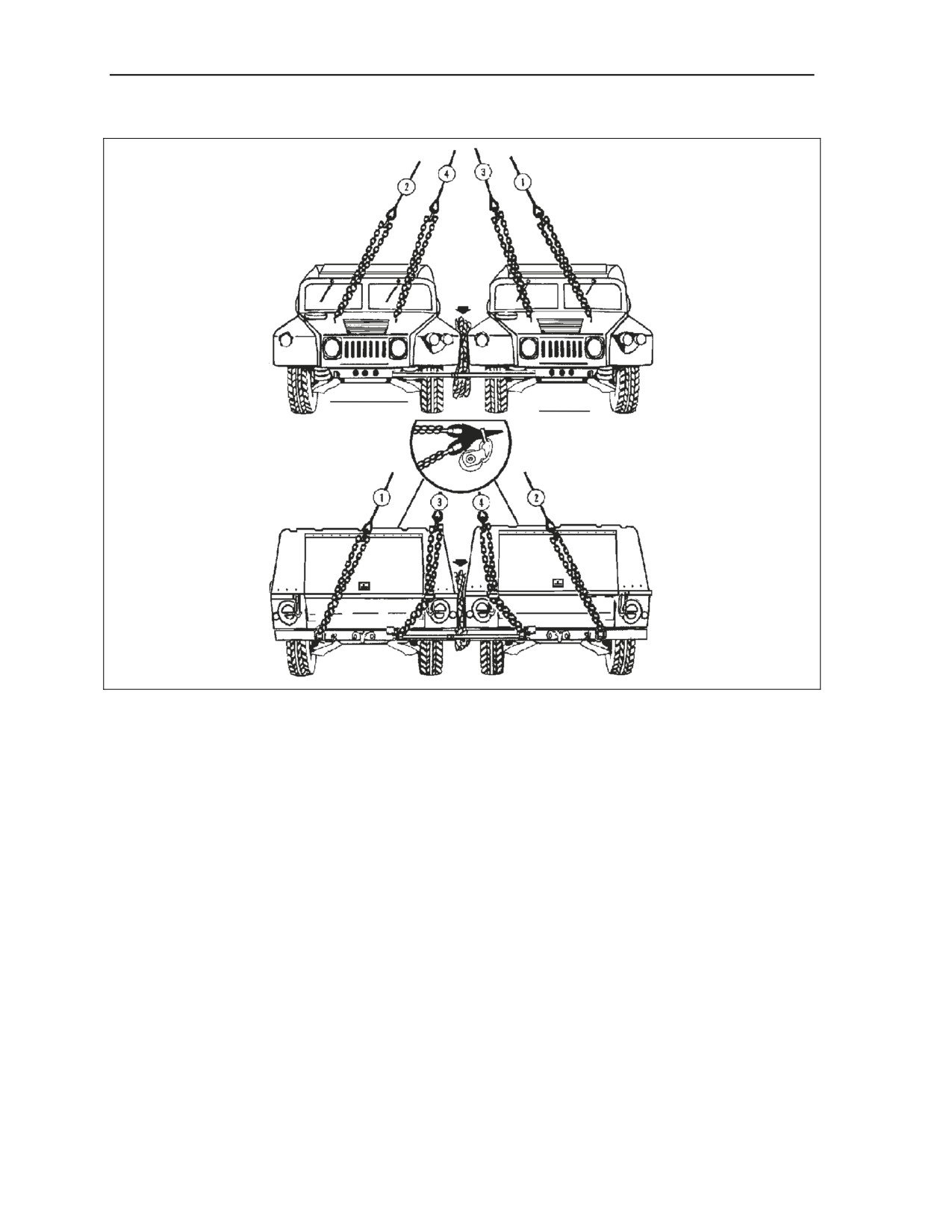

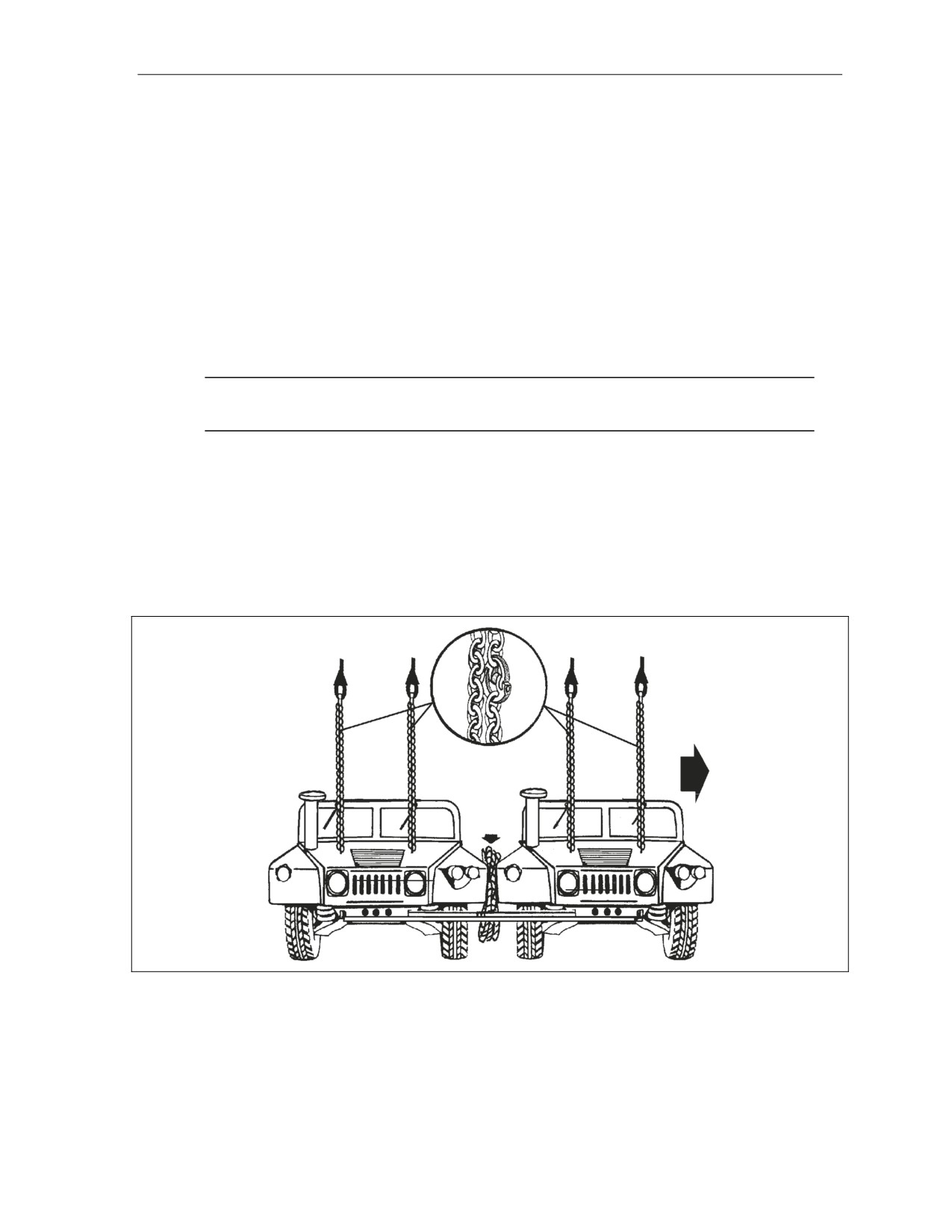

Figure 2-14. Dual M56 Smoke Generating Systems on M1113 HMMWV, Side by Side
(Shotgun Method)
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-37
Chapter 2
REAR VIEW
CAMO
NET

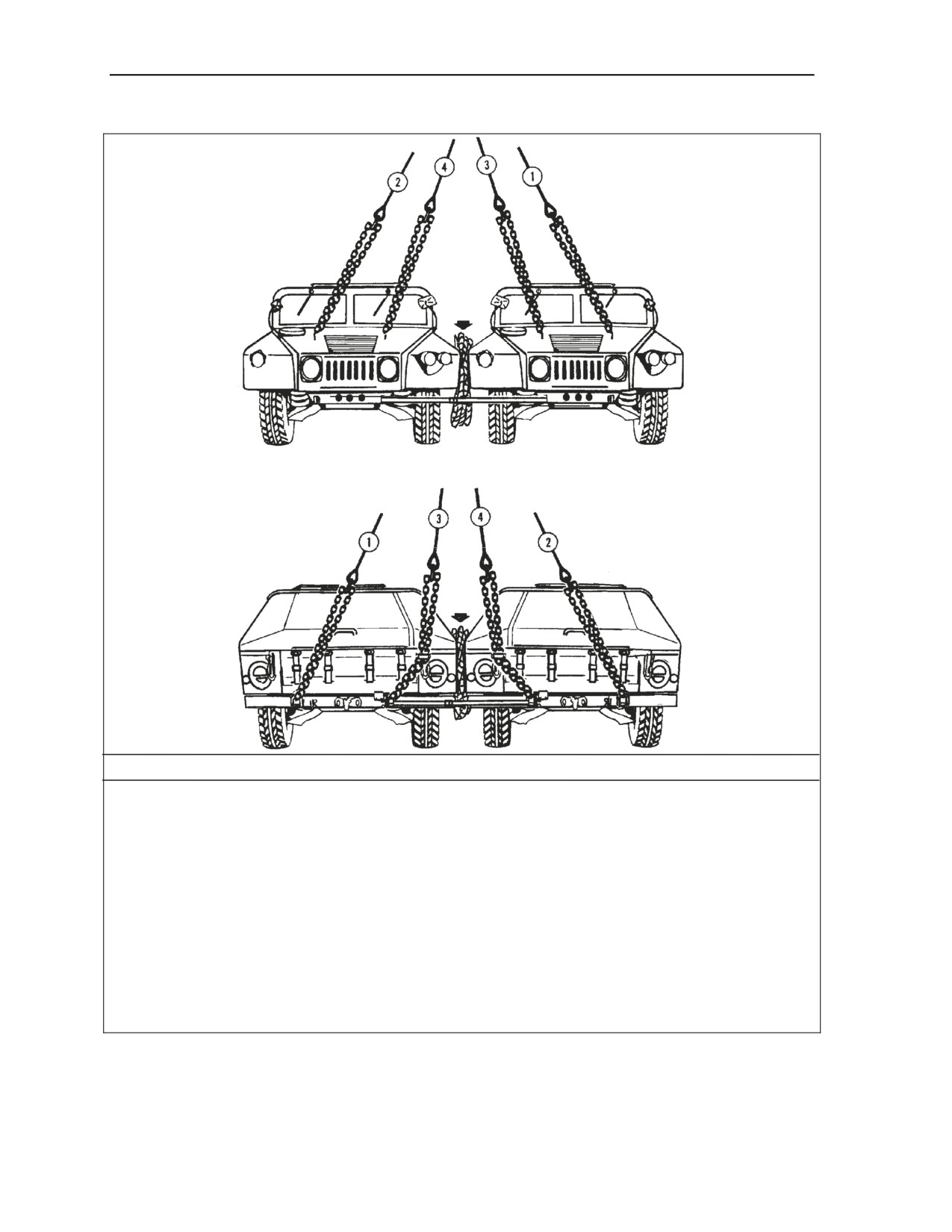

Figure 2-14. Dual M56 Smoke Generating Systems on M1113 HMMWV, Side by Side
(Shotgun Method) (Continued)
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-38
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1.
Position one sling set on top of the IR hopper of the forward vehicle (with respect to the
direction of flight). Route outer sling legs 1 and 2 to the front of the vehicle and inner sling
legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of the vehicle.
2.
Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place link 85 in the grab hook. Repeat with sling leg 2 and
the right front lift provision. Place link 65 in the grab hook. Secure the excess chain with
tape or Type III nylon cord.
3.
Place the nylon rope portion of sling legs 3 and 4 in the guides on the end of the spreader
bar. Loop the chain end of sling leg 3 through the lift provision located on the left end of the
bumper from inboard to outboard. Place link 15 in the grab hook. Repeat with sling leg 4
and the right rear lift provision. Place link 15 in the grab hook. Secure the excess chain with
tape or Type III nylon cord.
4.
Position second sling set on top of the IR hopper of the rear vehicle (with respect to the
direction of flight). Route outer sling legs 1 and 2 to the front of the vehicle and inner sling
legs 3 and 4 to the rear. Sling legs 1 and 3 must be on the left side of the vehicle.
5.
Loop the chain end of sling leg 1 through the left front lift provision that protrudes through the
hood from inboard to outboard. Place link 65 in the grab hook. Repeat with sling leg 2 and
the right front lift provision. Place link 85 in the grab hook. Secure the excess chain with
tape or Type III nylon cord.
6.
Place the nylon rope portion of sling legs 3 and 4 in the guides on the end of the spreader
bar. Loop the chain end of sling leg 3 through the lift provision located on the left end of the
bumper from inboard to outboard. Place link 5 in the grab hook. Repeat with sling leg 4 and
the right rear lift provision. Place link 25 in the grab hook. Secure the excess chain with tape
or Type III nylon cord.
7.
Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-14. Dual M56 Smoke Generating Systems on M1113 HMMWV, Side by Side
(Shotgun Method) (Continued)
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
DUAL HMMWV, SIDE BY SIDE (SHOTGUN METHOD)
2-17. The dual HMMWVs, side by side are rigged for dual-point sling load using the following
procedures:
z
Applicability. The following items in Table 2-16 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-39
Chapter 2
Table 2-16. Dual HMMWVs, Side by Side
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
Cargo Troop Carrier, M998/M1038
8,400
10K
Listed in Rigging
CH-47
15K
Steps
CH-53
Cargo Troop Carrier, M998A1/M1038A1
7,880
10K
Listed in Rigging
CH-47
15K
Steps
CH-53
Armament Carrier,
8,400
10K
Listed in Rigging
CH-47
M1025/M1026/M1025A1/M1026A1/M1043/M1044
15K
Steps
CH-53
Armament Carrier, M1025A2
10,000
10K
Listed in Rigging
CH-47
15K
Steps
CH-53
Armament Carrier, M1043A1/M1044A1
8,580
10K
Listed in Rigging
CH-47
15K
Steps
CH-53
Armament Carrier, M1043A2
10,000
10K
Listed in Rigging
CH-47
15K
Steps
CH-53
Tow Missile Carrier, M966/M966A1/M1036/M1045/M1046
8,400
10K
Listed in Rigging
CH-47
15K
Steps
CH-53
Tow Missile Carrier, M1045A1/M1046A1
8,580
10K
Listed in Rigging
CH-47
15K
Steps
CH-53
Tow Missile Carrier, M1045A2
10,000
10K
Listed in Rigging
CH-47
15K
Steps
CH-53
M1037 Modified
9,400
10K
Listed in Rigging
CH-47
15K
Steps
CH-53
Shelter Carrier, M1097/M1097A1/M1097A2
10,000
10K
Listed in Rigging
CH-47
15K
Steps
CH-53
M1123 HMMWV
10,000
10K
Listed in Rigging
CH-47
15K
Steps
CH-53
WARNINGS
1. Only HMMWVs with the 3/4-inch front lift provisions are
certified for sling loading in the side by side (shotgun) method.
2. HMMWVs with a manufacturer's serial number of less than
100000 are equipped with the 5/8-inch front lift provisions by the
manufacturer but can be changed to the 3/4-inch front lift
provisions by qualified maintenance personnel. HMMWVs with
manufacturer's serial number of 100000 or greater are equipped
with the 3/4-inch front lift provisions by the manufacturer. Prior
to sling loading HMMWVs in the side by side (shotgun) method,
verify that the HMMWVs are equipped with 3/4-inch front lift
provisions by checking the manufacturer's serial number or
measuring the diameter of the front lift provision. The HMMWV
manufacturer's serial number is located on a data plate on the
lower right corner of the driver's side door opening.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-40
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
CAUTION
DO NOT sling load (Shotgun Method) any HMMWV shelter carrier
(M1097, M1037, etc.) with the shelter installed in the bed of the truck.
Ensure all equipment in the bed of the truck is properly secured and
does not interfere with the routing of the sling legs.
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) (2 each).
OR
Multileg sling set (15,000-pound capacity) for the CH-53 only.
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Strap, tiedown, cargo, CGU-1/B (2 each).
z
Personnel. Four persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord. Remove the canvas bedcovers from the vehicles. Fold and
secure the canvas over the windshields with Type III nylon cord. Remove the doors
and secure inside the vehicle.
─ Secure all equipment and cargo inside the vehicles with tape, nylon cord, or lashings.
─ Ensure the fuel tanks are not over 3/4 full. Inspect the fuel tank caps, oil filler caps,
and battery caps for proper installation.
─ Secure the vehicle camouflage net (in the bag) to each vehicle. Attach one camouflage
net to the forward door post of one vehicle and the other camouflage net to the hard
part of the body covering the fuel tank of the other vehicle.
─ Position the vehicles, as close as possible, next to each other. Ensure both vehicles are
facing in the same direction.
─ Engage the vehicle parking brakes and put the transmissions in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
Rigging. Rig the load according to the steps in Figure 2-15.
Hookup. The hookup teams stand in the cargo bed and on the hood of the vehicles. The
static wand person discharges the static electricity with the static wand. The forward hookup
person places apex fitting 1 onto the forward cargo hook. The aft hookup person places apex
fitting 2 onto the aft cargo hook. The hookup team then carefully dismounts the vehicle and
remains close to the load as the helicopter removes slack from the sling legs. When successful
hookup is assured, the hookup team quickly exits the area underneath the helicopter to the
designated rendezvous point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-41
Chapter 2
CAMO
NET
FRONT VIEW
CAMO
NET
REAR VIEW
RIGGING STEPS
1. Position one sling set on the hood of one of the vehicles.
2. Loop the chain end of the outside sling legs through their respective outside lift provisions
that protrude through the hoods of the vehicles. Place link 30 in the grab hooks.
3. Loop the chain end of the inside sling legs through their respective inside lift provisions that
protrude through the hoods of the vehicles. Place link 50 in the grab hooks.
4. Position the other sling set in the bed or on the roof of one of the vehicles.
5. Loop the chain end of the outside sling legs through their respective lift shackle on the
outside end of the rear bumper. Place link 3 in the grab hooks.
Figure 2-15. Dual HMMWVs, Side by Side
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-42
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS (Continued)
CAUTION
Do not route the outside sling legs through the tailgate sling guides.
6. Route the chain ends of the inside sling legs through their respective inside tailgate guides.
Loop the chain ends through their respective lift provisions located on the inside of the rear
bumpers and back through the tailgate guides. Place link 7 in the grab hooks.
7. Secure all excess chain with tape or Type III nylon cord.
8. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
9. Route a CGU-1/B cargo tiedown strap from the front inside lift shackle of one vehicle, through
the front inside lift shackle of the other vehicle and connect the hooks together. Tighten the
strap.
10. Route a CGU-1/B cargo tiedown strap from the rear inside lift shackle of one vehicle, through
the rear inside lift shackle of the other vehicle and connect the hooks together. Ensure the
strap is positioned below the sling leg chains. Tighten the strap.
Figure 2-15. Dual HMMWVs, Side by Side (Continued)
M1097A1 (H-HMMWV) WITH FIBERGLASS CARGO BED COVER
(CBC)
2-18. The M1097A1 with fiberglass cargo bed cover is rigged for dual-point sling load using the following
procedures:
z
Applicability. The following item in Table 2-17 is certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-17. M1097A1 with Fiberglass Cargo Bed Cover
Nomenclature
Max Weight
Sling
Link Count
Type of
(Pounds)
Set
Front/Rear
Aircraft
Cargo Bed Cover, HMMWV Type I, Camouflage,
10,000
10K
50/3
CH-47
NSN: 5411-01-647-3243
15K
62/2
CH-53
Cargo Bed Cover, HMMWV Type I, Sand,
10,000
10K
50/3
CH-47
NSN: 5411-01-479-1928
15K
62/2
CH-53
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) with one additional apex fitting.
─ Additional chain length, part number 38850-00053-101, from a 10,000-pound capacity
sling set (4 each).
─ Additional coupling link, part number 5779125, from a 10,000-pound sling set (4
each).
OR
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-43
Chapter 2
Multileg sling set (15,000-pound capacity for the CH-53E only) with one additional web
ring.
─ Additional chain lengths, part number 34080-4 (8 each).
─ Additional coupling links, part number 31611 (8 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 10,000-pound capacity sling set with coupling links. Connect two additional chain
lengths to each chain on the 15,000-pound multileg sling set chain with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Secure the cargo bed cover to the truck using wire rope or tie-down assemblies.
Remove the doors. Store and secure the doors in the cab or in the cargo bed cover.
─ Secure all equipment inside the cargo bed cover with tape, nylon cord, or lashings.
Close and secure shelter vents and door with nylon cord or tape.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Install the lift provisions on the outer ends of the rear bumper by removing the tiedown
provisions located inboard of the bumper end and installing them on the outer ends of
the rear bumper.
Rigging. Rig the load according to the steps in Figure 2-16.
Hookup. The hookup team stands on top of the cargo bed cover. The static wand person
discharges the static electricity with the static wand. The forward hookup person places apex
fitting 1 onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft
cargo hook. The hookup team then carefully dismounts the vehicle and remains close to the
load as the helicopter removes slack from the sling legs. When successful hookup is assured,
the hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-44
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the hood of
the vehicle.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-17 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the cargo
bed cover.
4. Loop the chain end of the sling legs through their respective lift provisions located on the
outside end of the bumper. Place the correct link from Table 2-17 in the grab hook.
5.
Secure all excess chain with tape or Type III nylon cord.
6. Pad the chains where they contact the cargo bed cover.
7. Cluster and tie or tape (breakaway technique) the sling legs in each sling set on top of the
vehicle to prevent entanglement during hookup and lift-off.
Figure 2-16. M1097A1 with Fiberglass Cargo Bed Cover
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-45
Chapter 2
M998 TRUCK, CARGO, 1 1/4-TON (HMMWV) WITH AMTECH
HELMET HARDTOP
2-19. The M998 truck, cargo, 1 1/4-ton with AMTECH helmet hardtop is rigged for dual-point sling load
using the following procedures:
z
Applicability. The following item in Table 2-18 is certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-18. M998 Truck, Cargo, 1 1/4-Ton with AMTECH Helmet Hardtop
Nomenclature
Max Weight
Sling
Link Count
Type of
(Pounds)
Set
Front/Rear
Aircraft
Truck, 1 1/4-Ton, HMMWV, M998 with Helmet
Hardtop, Basic, Models 1551/1551-0/1551-1/1551-
7,700
10K
50/3
CH-47
3/1551-4/1551-5/1551-6/1552/1552-0/1552-1/1552-
3/1552-4/1552-5/1552-6
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) with one additional apex fitting.
─ Additional chain length, part number 38850-00053-101, from a 10,000-pound capacity
sling set (4 each).
─ Additional coupling link, part number 5779125, from a 10,000-pound capacity sling
set (4 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 10,000-pound capacity sling set with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Ensure the cargo bed cover is secured to the truck. Secure all equipment inside the
shelter with tape, nylon cord, or lashings; close and secure shelter vents and door with
nylon cord or tape.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-46
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
Rigging. Rig the load according to the steps in Figure 2-17.
Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The forward hookup person places apex fitting 1
onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the shelter.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-18 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the shelter.
4. Route the chain end of the sling legs through their respective eyelet openings in the upper
corner of the tailgate. Loop the chain end through the respective lift provision and back
through the tailgate eyelets. Place the correct links from Table 2-18 in the grab hooks.
5. Secure all excess chain with tape or Type III nylon cord.
6. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-17. M998 Truck, Cargo, 1 1/4-Ton with AMTECH Helmet Hardtop
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-47
Chapter 2
DUAL HMMWV, SIDE BY SIDE (SHOTGUN METHOD), WITH
AMTECH HELMET HARDTOP BASIC
2-20. The dual HMMWV, side by side, with AMTECH helmet hardtop basic is rigged for dual-point sling
load using the following procedures:
z
Applicability. The following item in Table 2-19 is certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-19. Dual HMMWV, Side by Side, with AMTECH Helmet Hardtop Basic
Nomenclature
Max Weight
Sling
Link Count
Type of
(Pounds)
Set
Front/Rear
Aircraft
Truck, 1 1/4-Ton, HMMWV, M998 with Helmet
Listed in
Hardtop, Basic, Models 1551/1551-0/1551-1/1551-
7,700
10K
Rigging
CH-47
3/1551-4/1551-5/1551-6/1552/1552-0/1552-1/1552-
each
Steps
3/1552-4/1552-5/1552-6
WARNINGS
1. Only HMMWVs with the 3/4-inch front lift provisions are
certified for sling loading in the side by side (shotgun) method.
2. HMMWVs with a manufacturer's serial number of less than
100000 are equipped with the 5/8-inch front lift provisions by the
manufacturer but can be changed to the 3/4-inch front lift
provisions by qualified maintenance personnel. HMMWVs with
manufacturer's serial number of 100000 or greater are equipped
with the 3/4-inch front lift provisions by the manufacturer. Prior
to sling loading HMMWVs in the side by side (shotgun) method,
verify that the HMMWVs are equipped with 3/4-inch front lift
provisions by checking the manufacturer's serial number or
measuring the diameter of the front lift provision. The HMMWV
manufacturer's serial number is located on a data plate on the
lower right corner of the driver's side door opening.
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) (2 each).
─ Additional chain length, part number 38850-00053-101, from a 10,000-pound capacity
sling set (8 each).
─ Additional coupling link, part number 5779125, from a 10,000-pound capacity sling
set (8 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Strap, tiedown, cargo, CGU-1/B (2 each).
z
Personnel. Four persons can prepare and rig this load in 20 minutes.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-48
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 10,000-pound capacity sling set with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Ensure the cargo bed cover is secured to the truck. Secure all equipment inside the
shelter with tape, nylon cord, or lashings; close and secure shelter vents and door with
nylon cord or tape.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery caps for
proper installation.
─ Secure the vehicle camouflage net (in the bag) to each vehicle. Secure one net to the forward
doorpost of one vehicle and the other net to the hard part of the body covering the fuel tank
opening of the other vehicle.
─ Position the vehicles next to each other, as close as possible. Both vehicles must face the same
direction.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using the
securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Remove and stow the fuel can holders from the tailgates.
Rigging. Rig the load according to the steps in Figure 2-18.
Hookup. The hookup teams stand on the cargo bed cover and on the hood of the vehicles. The static
wand person discharges the static electricity with the static wand. The forward hookup person places
apex fitting 1 onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as the
helicopter removes slack from the sling legs. When successful hookup is assured, the hookup team
quickly exits the area underneath the helicopter to the designated rendezvous point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-49
Chapter 2
CAMO
NET
FRONT VIEW
CAMO
NET
REAR VIEW
Figure 2-18. Dual HMMWVs, Side by Side, with AMTECH Helmet Hardtop Basic
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-50
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Position one sling set on the hood of one of the vehicles.
2. Loop the chain end of the outside sling legs through their respective outside lift provisions
that protrude through the hoods of the vehicles. Place link 35 in the grab hooks.
3. Loop the chain end of the inside sling legs through their respective inside lift provisions that
protrude through the hoods of the vehicles. Place link 50 in the grab hooks.
4. Position the other sling set on the roof of one of the vehicles.
5. Loop the chain end of the outside sling legs through their respective lift shackle on the
outside end of the rear bumper. Place link 8 in the grab hooks.
CAUTION
Do not route the outside sling legs through the tailgate sling guides.
6. Route the chain ends of the inside sling legs through their respective inside tailgate guides.
Loop the chain ends through their respective lift provisions located on the inside of the rear
bumpers and back through the tailgate guides. Place link 7 in the grab hooks.
7. Secure all excess chain with tape or Type III nylon cord.
8. Direct the front sling legs from each vehicle to the inside front tiedown provision on the top of
the helmet hardtop. Tie the sling legs to the tiedown provision with Type I, 1/4-inch cotton
webbing. Ensure all the slack is removed from the chain.
9. Remove the slack in the rear sling chains. Tie the sling legs from each vehicle to the inside
rear tiedown provision on the helmet hardtop with Type I, 1/4-inch cotton webbing.
10. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
11. Route a CGU-1/B cargo tiedown strap from the front inside tie down shackle of one vehicle,
through the front inside tie down shackle of the other vehicle and connect the hooks together.
Tighten the strap.
12. Route a CGU-1/B cargo tiedown strap from the rear inside lift shackle of one vehicle, through
the rear inside lift shackle of the other vehicle and connect the hooks together. Ensure the
strap is positioned below the sling leg chains. Tighten the strap.
Figure 2-18. Dual HMMWVs, Side by Side, with AMTECH Helmet Hardtop Basic (Continued)
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-51
Chapter 2
HELMET HARDTOP (AMTECH) CARGO BED COVER ON M1097A2
HMMWV
2-21. The helmet hardtop (AMTECH) cargo bed cover on M1097A2 is rigged for dual-point sling load
using the following procedures:
z
Applicability. The following item in Table 2-20 is certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-20. Helmet Hardtop (AMTECH) Cargo Bed Cover on M1097A2
Nomenclature
Max Weight
Sling
Link Count
Type of
(Pounds)
Set
Front/Rear
Aircraft
Measurement and Signature Intelligence (MASINT)
10,300
25K
36/10
CH-47
z
Materials. The following materials are required to rig this load:
Sling set (25,000-pound capacity) with one additional apex fitting.
─ Additional chain length, part number 38850-00053-102, from a 25,000-pound capacity
sling set (4 each).
─ Additional coupling link, part number 5779135, from a 25,000-pound capacity sling
set (4 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 25,000-pound capacity sling set with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Ensure the cargo bed cover is secured to the truck. Secure all equipment inside the
shelter with tape, nylon cord, or lashings; close and secure shelter vents and door with
nylon cord or tape.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
Rigging. Rig the load according to the steps in Figure 2-19.
Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The forward hookup person places apex fitting 1
onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-52
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the shelter.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-20 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the shelter.
4. Route the chain end of the sling legs through their respective eyelet openings in the upper
corner of the tailgate. Loop the chain end through the respective lift provision and back
through the tailgate eyelets. Place the correct links from Table 2-20 in the grab hooks.
5. Secure all excess chain with tape or Type III nylon cord.
6. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-19. Helmet Hardtop (AMTECH) Cargo Bed Cover on M1097A2
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-53
Chapter 2
PROPHET AN/MLQ-40(V) ON M1097 HMMWV
2-22. The prophet AN/MLQ-40(V) on M1097 is rigged for dual-point sling load using the following
procedures:
z
Applicability. The following items in Table 2-21 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-21. Prophet AN/MLQ-40(V) on M1097
Nomenclature
Max Weight
Sling
Link Count
Type of
(Pounds)
Set
Front/Rear
Aircraft
Prophet, AN/MLQ-40 (V) 1
10,000
10K
45/10
CH-47
Prophet, AN/MLQ-40 (V) 3
10,000
10K
45/10
CH-47
Prophet, Control Vehicle
10,000
10K
45/10
CH-47
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) with one additional apex fitting.
─ Additional chain length, part number 38850-00053-101, from a 10,000-pound capacity
sling set (4 each).
─ Additional coupling link, part number 5779125, from a 10,000-pound capacity sling
set (4 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 10,000-pound capacity sling set with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Ensure the cargo bed cover is secured to the truck. Secure all equipment inside the
shelter with tape, nylon cord, or lashings; close and secure shelter vents and door with
nylon cord or tape.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Install the lift provisions on the outer ends of the rear bumper.
Rigging. Rig the load according to the steps in Figure 2-20.
Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The forward hookup person places apex fitting 1
onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-54
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the shelter.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-21 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the shelter.
4. Route the right sling leg chain through the right rear lift provision located on the outer end of
the rear bumper. Place the correct link from Table 2-21 in the grab hook. Repeat the
procedure using the left sling leg chain and the left lift provision located on the end of the
bumper.
5. Remove all the excess slack between the lift provisions and the shelter lift rings.
6. Secure all excess chain with tape or Type III nylon cord.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-20. Prophet AN/MLQ-40(V) on M1097
CAUTION
Do not route the outside sling legs through the tailgate sling guides.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-55
Chapter 2
M1097 (HMMWV) WITH CONTACT MAINTENANCE TRUCK,
HEAVY (CMTH)
2-23. The M1097 with contact maintenance truck, heavy is rigged for dual-point sling load using the
following procedures:
z
Applicability. The following items in Table 2-22 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-22. M1097 with Contact Maintenance Truck, Heavy
Nomenclature
Max Weight
Sling
Link Count
Type of
(Pounds)
Set
Front/Rear
Aircraft
CMTH, Shop Equipment (SE) on M1097
8,760
10K
50/3
CH-47
CMTH, Aviation Section (AS) on M1097
9,400
10K
50/3
CH-47
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) with one additional apex fitting.
─ Additional chain length, part number 38850-00053-101, from a 10,000-pound capacity
sling set (4 each).
─ Additional coupling link, part number 5779125, from a 10,000-pound capacity sling
set (4 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 10,000-pound capacity sling set with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord. Secure the doors.
─ Ensure the shelter is securely attached to the vehicle.
─ Secure all equipment and cargo inside the vehicle with tape, Type III nylon cord, or
lashings.
─ Secure all equipment, doors, and drawers inside the shelter with tape, Type III nylon
cord, or lashings. Close and secure all shelter doors and vents with tape or Type III
nylon cord.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Install the lift provisions on the outer ends of the bumper.
Rigging. Rig the load according to the steps in Figure 2-21.
Hookup. The hookup team stands on top of the cargo bed cover. The static wand person
discharges the static electricity with the static wand. The forward hookup person places apex
fitting 1 onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft
cargo hook. The hookup team then carefully dismounts the vehicle and remains close to the
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-56
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
load as the helicopter removes slack from the sling legs. When successful hookup is assured,
the hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on the hood of the
vehicle.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-22 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the shelter.
4. Loop the chain end of the sling legs through their respective lift provisions located on the
outer ends of the rear bumper. Place the correct link from Table 2-22 in the grab hook.
5. Wrap the rear slings with padding where they contact the vehicle sides.
6. Secure all excess chain with tape or Type III nylon cord.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-21. M1097 with Contact Maintenance Truck, Heavy
CAUTION
Do not route the outside sling legs through the tailgate sling guides.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-57
Chapter 2
M1098 HMMWV WITH REMOTE LANDING SITE TOWER (RLST)
2-24. The M1098 with remote landing site tower is rigged for dual-point sling load using the following
procedures:
z
Applicability. The following item in Table 2-23 is certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-23. M1098 with Remote Landing Site Tower
Nomenclature
Max Weight
Sling
Link Count
Type of
(Pounds)
Set
Front/Rear
Aircraft
Remote Landing Site Tower
8,460
15K
60/3
CH-53
z
Materials. The following materials are required to rig this load:
Sling set (15,000-pound capacity) with one additional web ring.
─ Additional chain length, part number 34080-4, from a 15,000-pound capacity sling set
(8 each).
─ Additional coupling link, part number 31611, from a 15,000-pound capacity sling set
(8 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
Strap, cargo, tie-down, CGU-1/B (as required).
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Attach two chain lengths to each sling leg using the coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Remove the cab doors. Stow and secure the doors against the rear of the seats with the
tiedown straps. Tape the windshield, mirrors, and all glass items.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap (should be in the vent
position), oil filler cap, and battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Install the lift provisions on the outer ends of the rear bumper by removing the tiedown
provisions located inboard of the bumper end and installing them on the outer ends of
the bumper.
─ Place the RLST in the TRANSPORT mode according to the operator's manual.
─ Ensure the RLST is securely attached to the truck. Secure all loose equipment inside
the RLST with the hold down straps, tape, or Type III nylon cord. Close and secure
the door.
─ Secure the RSLT cover with the straps provided. Secure the loose ends with tape.
Rigging. Rig the load according to the steps in Figure 2-22.
Hookup. The hookup team stands beside the vehicle. The static wand person discharges
the static electricity with the static wand. The forward hookup person places apex fitting 1
onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-58
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Connect 2 sling legs to web ring number 1. Position the apex fitting beside the hood of the
vehicle.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-26 in the grab hook.
3. Connect 2 sling legs to web ring number 2. Position the apex fitting the rear of the vehicle.
4. Loop the chain end of the sling legs through their respective lift provisions located on the
outside end of the bumper. Place the correct link from Table 2-26 in the grab hook.
5. Secure all excess chain with tape or Type III nylon cord.
6. Pad the chains where they contact the RLST.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-22. M1098 with Remote Landing Site Tower
CAUTION
Do not route the outside sling legs through the tailgate sling guides.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-59
Chapter 2
M1097 (HMMWV) WITH HIGH MOBILITY DIGITAL GROUP
MULTIPLEXER (DGM) AUXILIARY EQUIPMENT
TRANSPORTATION CONTAINER (AETC) IN 2 AND 3 MAST
CONFIGURATIONS
2-25. The M1097 with high mobility digital group multiplexer auxiliary equipment transportation
container in
2 and 3 mast configurations are rigged for dual-point sling load using the following
procedures:
z
Applicability. The following items in Table 2-24 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-24. M1097 with High Mobility Digital Group Multiplexer Auxiliary Equipment
Transportation Container in 2 and 3 Mast Configurations
Nomenclature
Max Weight
Sling
Link Count
Type of
(Pounds)
Set
Front/Rear
Aircraft
2 Mast, AETC Configuration
8,500
10K
55/3
CH-47
3 Mast, AETC Configuration
9,500
10K
55/3
CH-47
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) with one additional apex fitting.
─ Additional chain length, part number 38850-00053-101, from a 10,000-pound capacity
sling set (4 each).
─ Additional coupling link, part number 5779125, from a 10,000-pound capacity sling
set (4 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 10,000- pound capacity sling set with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord. Remove the canvas cab top and the doors. Secure to the
seats with Type III nylon cord.
─ Remove, fold, stow, and secure the canvas cover for the AETC using Type III nylon
cord.
─ Secure all equipment and cargo inside the vehicle with tape, Type III nylon cord, or
lashings.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
Rigging. Rig the load according to the steps in Figure 2-24.
Hookup. The hookup team stands on top of the container. The static wand person
discharges the static electricity with the static wand. The forward hookup person places apex
fitting 1 onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-60
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
cargo hook. The hookup team then carefully dismounts the vehicle and remains close to the
load as the helicopter removes slack from the sling legs. When successful hookup is assured,
the hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on the hood of the
vehicle.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-24 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting in the cargo bed of the
vehicle.
4. Loop the chain end of the sling legs through their respective lift shackle on the outside end of
the rear bumper. Place the correct link from Table 2-24 in the grab hook.
5. Secure all excess chain with tape or Type III nylon cord.
6. Wrap the rear slings with padding where they contact the vehicle.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-23. M1097 with 2 or 3 Mast AETC Configuration
CAUTION
Do not route the outside sling legs through the tailgate sling guides.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-61
Chapter 2
M1097A2 (H-HMMWV) WITH THE SECURE MOBILE ANTI-JAM
RELIABLE TACTICAL TERMINAL (SMART-T)
2-26. The M1097A2 with the secure mobile anti-jam reliable tactical terminal is rigged for dual-point
sling load using the following procedures:
z
Applicability. The following item in Table 2-25 is certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-25. M1097A2 with the Secure Mobile Anti-Jam Reliable Tactical Terminal
Nomenclature
Max Weight
Sling
Link Count
Type of
(Pounds)
Set
Front/Rear
Aircraft
Secure Mobile Anti-Jam Reliable Tactical Terminal
8,450
10K
30/3
CH-47
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) with one additional apex fitting.
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable substitute.
Strap, tiedown, cargo, CGU-1/B (as required).
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Remove the cab doors. Stow and secure the doors against the rear of the seats with the
tiedown straps. Tape the windshield, mirrors, and all glass items.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap (should be in the vent
position), oil filler cap, and battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Ensure the two fuel cans on the rear of the pallet are locked in place. Secure all loose
equipment on the pallet with tape or Type III nylon cord.
─ Secure the antenna dish.
Rigging. Rig the load according to the steps in Figure 2-24.
Hookup. The hookup team stands on truck. The static wand person discharges the static
electricity with the static wand. The forward hookup person places apex fitting 1 onto the
forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo hook. The
hookup team then carefully dismounts the vehicle and remains close to the load as the
helicopter removes slack from the sling legs. When successful hookup is assured, the hookup
team quickly exits the area underneath the helicopter to the designated rendezvous point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-62
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
|
|
