FM 4-20.199 (FM 10-450-5)
MCRP 4-11.3E, VOL III
NTTP 3-04.13
AFMAN 11-223 (I), VOL III
COMDINST M13482.4B
Multiservice Helicopter Sling Load:
Dual-Point Load Rigging Procedures
February 2009
DISTRIBUTION RESTRICTION. Approved for public release; distribution is unlimited.
Headquarters
Department of the Army
United States Marine Corps
Department of the Navy
Department of the Air Force
United States Coast Guard
*FM 4-20.199 (FM 10-450-5)/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
AFMAN 11-223 (I), VOL III/COMDTINST M13482.4B
Field Manual
Headquarters, Department of the Army
Washington, DC
No. 4-20.199 (10-450-5)
Marine Corps Reference Publication
United States Marine Corps
No. 4-11.3E, Vol III
Navy Tactics, Techniques, and Procedures
Department of the Navy
No. 3-04.13
Air Force Manual
Department of the Air Force
No. 11-223 (I), Vol III
Commandant Instruction
United States Coast Guard
No. M13482.4B
20 February 2009
Multiservice Helicopter Sling Load:
Dual-Point Load Rigging Procedures
Contents
Page
PREFACE
ix
Chapter 1
FUNDAMENTAL PRINCIPLES OF SLING LOAD
1-1
Introduction
1-1
Classification Definitions of Sling Load
1-1
Certification of Equipment for Helicopter Sling Load
1-2
Requests for Sling Load Certification
1-2
Unique Items of Equipment or Operational Requirements
1-3
Equipment Rigging Procedures
1-3
General Rigging Instructions
1-4
Chapter 2
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR WHEELED VEHICLES
............................................................................................................................ 2-1

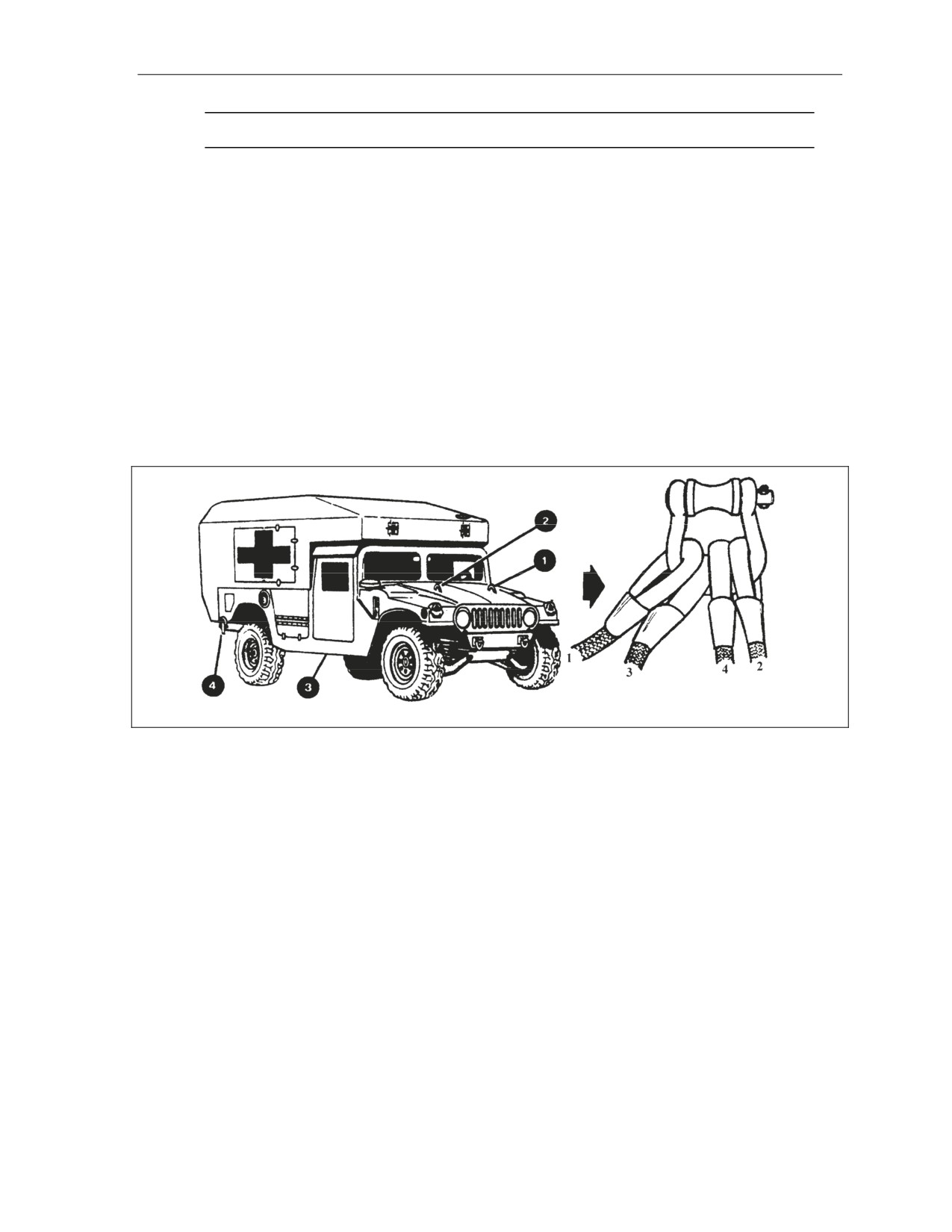

M996/M997/M997A1/M997A2 Truck, Ambulance, (HMMWV)
2-1
Distribution Restriction: Approved for public release; distribution is unlimited
*This publication supersedes FM. 10-450-5/MCRP 4-23E, Vol III/NWP 3-04.13/AFMAN 11-223, Vol III/
COMDINST M13482.4A, 30 August 1999
MARINE CORPS PCN: 144 000072 00
i
Contents
M966/M1036/M1045/M1045A2/M1046 TOW Missile Carrier
(HMMWV)M1025/M1025A2/M1026/M1043/M1043A2/M1043A2 with Marine
Armor Kit (MAK)(USMC)/M1044/M1151 Armament Carrier (HMMWV)/M1114
Up-Armored HMMWV
2-4
M998/M1123 with Marine Armor Kit (MAK) (USMC)/M1037 Modified (GVW
9,400 lbs)/M1038/M1097/M1097A1/ M1097A2/M1152 Truck, Cargo, 1 1/4-
ton (HMMWV)
2-6

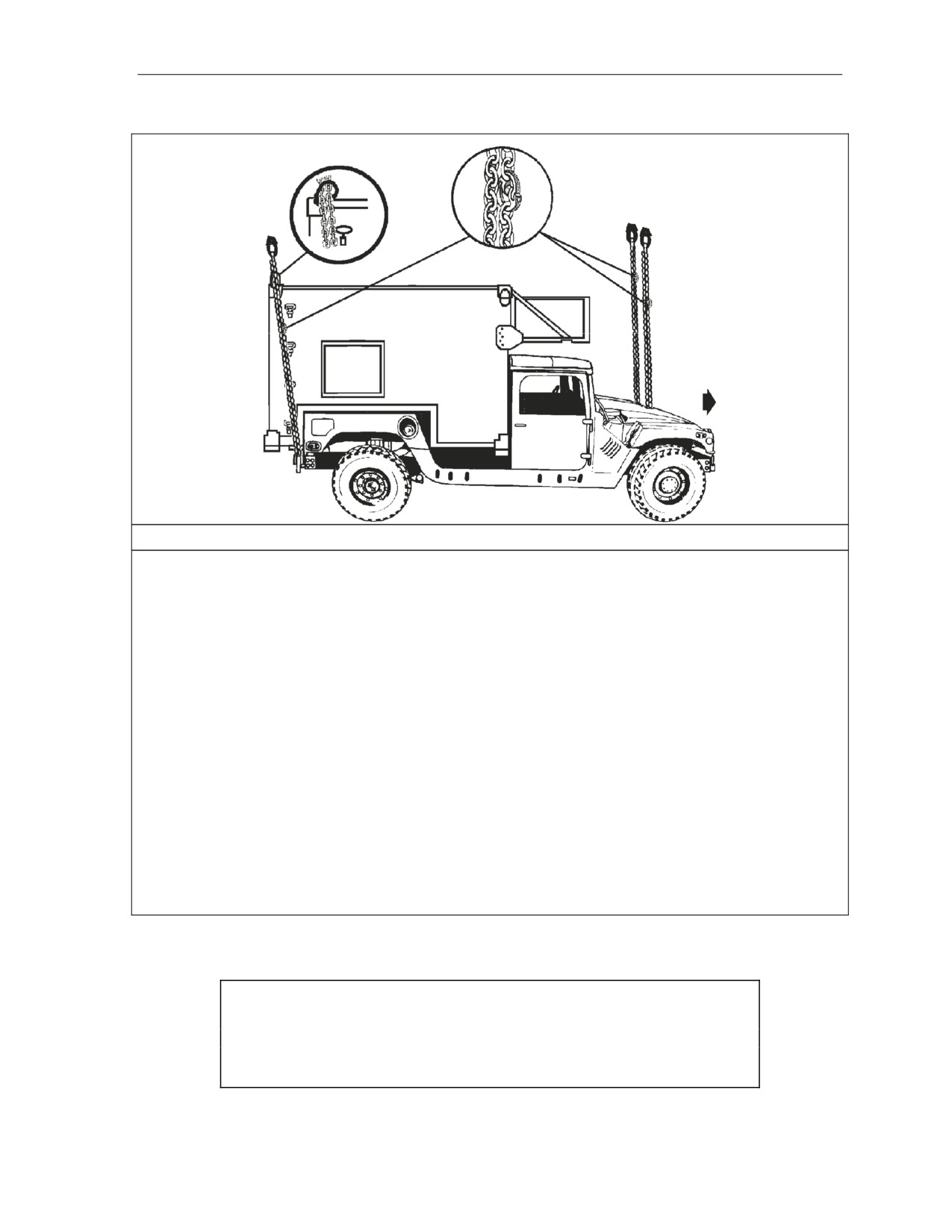

M1037 Shelter Carrier (HMMWV) with S-250 or S-250E Shelter
2-10
M1097 Shelter Carrier, Heavy HMMWV, with S-250 or S-250E Shelter
2-13
M1037/M1042 Shelter Carrier (HMMWV) with Lightweight Multipurpose
Shelter (LMS)
2-15
M1097/M1097A2 Shelter Carrier (HMMWV) with Lightweight Multipurpose
Shelter (LMS) (USMC)
2-16
M1097/M1097A2 Shelter Carrier (HMMWV) with Lightweight Multipurpose
Shelter (LMS) using Shelter Lift Rings as Sling Guides
2-19
M1113 Truck, Utility, Expanded Capacity (HMMWV) with Lightweight
Multipurpose Shelter (LMS) using Shelter Lift Rings as Sling Guides
2-22
M1097/M1113 Shelter Carrier (HMMWV) with Gitchner Model 1497A Shelter 2-24
M1097A2 Shelter Carrier (HMMWV) with Special Operations Media System
(SOMS-B) in S-788G Shelter (LMS)
2-27
M1097A1 (HMMWV) with Tactical Data Network (TDN)- Gateway (USMC) ... 2-29
M1037/M1097 Shelter Carrier (HMMWV) with G15840 Smoke Generator
Set, M157/M157A1E1
2-31
M1113 (HMMWV) with M56 Smoke Generating System
2-33
Dual M56 Smoke Generating Systems on M1113 HMMWV, Side by Side
(Shotgun Method)
2-36
Dual HMMWV, Side by Side (Shotgun Method)
2-39
M1097A1 (H-HMMWV) with Fiberglass Cargo Bed Cover (CBC)
2-43
M998 Truck, Cargo, 1 1/4-Ton (HMMWV) with AMTECH Helmet Hardtop
2-46
Dual HMMWV, Side by Side (Shotgun Method), with AMTECH Helmet
Hardtop Basic
2-48
Helmet Hardtop (AMTECH) Cargo Bed Cover on M1097A2 HMMWV
2-52
Prophet AN/MLQ-40(V) on M1097 HMMWV
2-54
M1097 (HMMWV) with Contact Maintenance Truck, Heavy (CMTH)
2-56
M1098 HMMWV with Remote Landing Site Tower (RLST)
2-58
M1097 (HMMWV) with High Mobility Digital Group Multiplexer (DGM)
Auxiliary Equipment Transportation Container (AETC) in 2 and 3 Mast
Configurations
2-60
M1097A2 (H-HMMWV) with the Secure Mobile Anti-Jam RELIABLE Tactical
Terminal (SMART-T)
2-62
Trojan Spirit Lite (V)2 Central Communications, AN/TSQ-226 (V)2 on M1113
HMMWV
2-64
Tactical Super High Frequency (SHF) Satellite Terminal (TSST) on M1113
HMMWV
2-66
Tactical Super Satellite Terminal (TSST) Mobile Power Unit (MPU) on
M1113 HMMWV
2-68
AN/MRC-142B Radio Terminal Set with 30M Mast on M998 HMMWV
2-70
M998 (HMMWV) with Two MRC-127 Stacks
2-72
M998/M1038 (HMMWV) with Lightweight Tactical Fire Control Systems
(LTACFIRE)/Tactical Terminal Control Systems (TTCS)
2-74
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
ii
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Contents
M1097A2 (HMMWV) with Advanced Field Artillery Tactical Data System
(AFATDS) Full Size or Partial Soft Top Installation Kit (STIK)
2-76
M1037 (HMMWV) with AN/TPQ-36 Firefinder Generator Pallet
2-78
M998 HMMWV with Man Portable Air Defense Systems (MANPADS)
2-80
M1097 (H-HMMWV) with AN/TPQ-42, Meteorological Hydrogen Generator
(MHG)
2-81
M1037 (H-HMMWV) with Compressed Air-Foam System, Mobile (CAFSM) .. 2-83
M1113 (HMWWV) with Petroleum Quality Analysis System (PQAS) Shelter . 2-85
M1123 Cargo/Troop Carrier (HMMWV) with Marine Armor Kit, Fully Armored
Troop Section (USMC)
2-87
Interim Fast Attack Vehicle Truck (IFAV), Long Wheel Base
2-89
Interim Fast Attack Vehicle Truck (IFAV), Long Wheel Base, Side by Side
(Shotgun)
2-90
Medium Tactical Vehicles M1083/M1083A1/M1084/M1085/
M1086/M1090/M1090A1/M1093/M1094
2-93
Light Medium Tactical Vehicles (LMTV) M1078/M1078A1/ M1079A1/M1081 2-96
Light Medium Tactical Vehicles (LMTV) M1078/M1078A1/ M1081 with Type
III Cargo Bed Cover and Medium Tactical Vehicles (MTV)
M1083/M1083A1/M1093 with Type IV Cargo Bed Cover
2-99
Medium Tactical Vehicle, Tractor, M1088/M1088A1
2-103
Truck, Cargo, 5-Ton, M813A1/M923/M925
2-105
Truck, Cargo, 2 1/2-Ton, M35A2 Modified, Part of an AN/MPQ-49A Forward
Area Alerting Radar (FAAR) System
2-107
M35A3 2 1/2-Ton Cargo Truck
2-109
Medium Tactical Vehicle Replacement (MTVR) (USMC)
2-111
Front Power Unit, MK48
2-113
Light Armored Vehicle (LAV) (USMC)
2-115
Chapter 3
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR TRAILERS
3-1
Introduction
3-1
M101A2 3/4-Ton Trailer
3-1
M1048 Trailer with Tracked Suspension System (TSS)
3-3
M989 Heavy-Expanded Mobility Ammunition Trailer (HEMAT)
3-5
M989A1 Heavy-Expanded Mobility Ammunition Trailer (HEMAT II)
3-7
Mk14 Trailer, Container Hauler
3-9
Mk15 Trailer, Wrecker/Recovery
3-11
Mk16 Trailer, Fifth-Wheel Adapter
3-13
Mk17 Trailer, Drop Side, Cargo
3-15
M871A1 Semitrailer
3-17
High Mobility Trailers (HMT), M1101/M1102
3-19
High Mobility Trailers (HMT) with Generator for Joint Surveillance Target
Attack Radar (JSTAR) SystemS
3-21
High Mobility Trailer-Light (HMT), M1101 with AN/TSQ-198, Tactical
Terminal Control System (TTCS)
3-23
Special Operations Media Systems (SOMS B) on Commander's Crash-Out-
Package System (COPS) Trailer
3-25
Deployable Print Production Center (DPPC) on COPS Trailer
3-27
M1112 400 Gallon Water Trailer
3-29
M105A3 Trailer
3-31
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
iii
Contents
M1082 Light Medium Tactical Vehicle (LMTV) and M1095 Medium Tactical
Vehicle (MTV) Trailers
3-33
Assault Command Post With High Mobility Wheel Set
3-35
Containerized Kitchen Mounted on the Containerized Kitchen Trailer
3-37
M31 Expeditionary Arresting Gear System (EAGS)
3-39
Standard Automotive Tools Set (SATS) Trailer
3-41
Small Emplacement Excavator (SEE) Transporter
3-42
Standard Automotive Tools Set (SATS) Mounted on Sats Trailer
3-44
M817A3 Semi-Trailer
3-46
Chapter 4
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR TRAILERS WITH
MOUNTED GENERATORS
4-1
Introduction
4-1
M116A2 Trailer-Mounted Power Units, Generators, and Power Plants
4-1
M353 Trailer Chassis with Mounted Generators
4-3
M200A1 Trailer-Mounted Power Units, Generators, and Power Plants
4-5
High Mobility Trailer with AN/MJQ-35A Power Unit
4-7
Aviation Ground Power Unit
4-9
Chapter 5
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR TANDEM LOADS 5-1
Introduction
5-1
M998/M1038 Truck, Utility, 1-1/4 Ton (HMMWV) with M101A1/A2 Trailer,
Cargo
5-1
M1037 Shelter Carrier (HMMWV) with M101A2 Trailer, Cargo
5-4
M1037 Shelter Carrier (HMMWV) with S-250/S-250E Shelter and M116A2
Trailer Mounted Generators, PU-751/PU753/PU-620/M
5-7
M998/M1038 Truck, Utility, 1-1/4 Ton (HMMWV) and G-85/TPQ-36 (V)7
Generator Group on M116A2 Modified Trailer
5-11
M1097 Truck, Utility, 1-1/4 Ton (HMMWV) with Pallet Group OA-9134/TSC,
Antenna AS-3036/TSC and PU-753 Generator Set on M116A2 Trailer
5-14
M1097 Shelter Carrier, 1-1/4 Ton (HMMWV) with AN/TPQ-36 (V) 7, (S-250
Shelter), Operations Control Group and Radar Set Antenna Mounted on
M116A2 Trailer
5-17
M1097, 1-1/4 Ton (HMMWV) with Generator Pallet Group, G-86-TPQ-36
(V)7, and Radar Set Antenna Mounted on M116A2 Trailer
5-20
M1037 Shelter Carrier, 1-1/4 Ton (HMMWV) with AN/TPQ-36, (S-250
Shelter), Operations Control Group and Radar Set Antenna Mounted on
M103A1 Trailer
5-23
M1097 Shelter Carrier (HMMWV) with S-250 Shelter and Trailer Generator
Sets on M116A2 Trailer
5-26
M1097 (HMMWV) with AN/TSQ-183, Counter Battery Radar and MEP802A
Generator on M116A3 Trailer
5-29
M1097 (HMMWV) with AN/TSQ-183, Counter Battery Radar and M101A2
Trailer
5-31
Joint Surveillance Target Attack Radar (JSTAR) System, with LMS Shelter
and Mission Trailer, HMT with Generator
5-34
M1097 Shelter Carrier, 1-1/4 Ton (HMMWV) with AN/TPQ-36(V)7, (S-250
Shelter), Operations Control Group, OKG-398/TPW, and M116A2 Equipment
Trailer Group
5-37
M1097A2 (HMMWV) with Advanced Field Artillery Tactical Data System
(AFATDS) Full Size Soft Top Installation Kit (STIK) and M101A1 Trailer
5-39
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
iv
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Contents
M1097 (HMMWV) and High Mobility Trailer (HMT)
5-42
M1113 (HMMWV) with LMS Shelter and High Mobility Trailer (HMT)
5-44
JSTAR Common Ground Station (CGS) Support Vehicle, M1097 HMMWV
and M1102 High Mobility Trailer
5-49
M1097 Truck, Utility, 1 1/4-Ton (HMMWV) with AN/MPQ-64 Tactical Quiet
Generator (TQG) and High Mobility Trailer (HMT) with Sentinel Antenna
Transceiver Group (ATG)
5-52
M1097, 1-1/4 Ton (HMMWV) with Generator Pallet Group and PU 799 G-
85/TPQ-36 Generator Group on M116A3 Trailer
5-55
M1113 Shelter Carrier (HMMWV) with LMS Shelter and PU-798 Generator
on M116A3 Trailer
5-57
M1097A2 Shelter Carrier (HMMWV) with LMS Shelter Using Shelter Lift
Rings as Sling Guides and PU-798 Generator on M116A3 Trailer
5-60
M1113 Shelter Carrier (HMMWV) with LMS Shelter Using Shelter Lift Rings
as Sling Guides and PU-798 Generator on M116A3 Trailer
5-63
M1097A2 Shelter Carrier (HMMWV) with S-250 Shelter and Trailer
Generator Sets on M116A3 Trailer
5-66
M1097A2 (HMMWV) with Advanced Field Artillery Tactical Data System
(AFATDS) Soft Top Installation Kit (STIK) and PU-797 Generator Set on
M116A3 Trailer
5-68
M1097 (HMMWV) with Meteorological Measuring Set in LMS Shelter and
AN/MJQ-35 Power Plant on M116A3 Trailer
5-71
M1113 (HMMWV) with LMS Shelter and Shadow Tactical Unmanned Aerial
Vehicle (TUAV) Launch Recovery Trailer
5-74
M998/M1038 1 1/4-Ton Cargo Truck (HMMWV) and M102, 105-mm
Howitzer
5-77
M1037/M1097 Truck, Utility, 1 1/4-Ton (HMMWV) and M119, 105-mm
Howitzer
5-80
M1025A2 Truck, 1 1/4-Ton (HMMWV) with Line of Sight Anti-Tank (LOSAT)
Reloader Crane and High Mobility Resupply Trailer (HMT)
5-83
M1113 Truck, 1 1/4-Ton (HMMWV) with Line of Sight Anti-Tank (LOSAT)
Fire Unit and High Mobility Resupply Trailer (HMT)
5-86
M1113 Truck, 1 1/4-Ton (HMMWV) with M56 Smoke Generator and M101A2
Trailer
5-88
M1113 Truck, 1 1/4-Ton (HMMWV) Petroleum Quality Analysis System
(PQAS) Shelter and PQAS Trailer
5-91
Chapter 6
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR HOWITZERS AND
WEAPONS SYSTEMS
6-1
Introduction
6-1
M101A1 Howitzer, 105-mm, with or without A-22 Cargo Bags
6-1
Two M101A1 Howitzers, 105-mm, Side by Side (USMC)
6-4
M102 Howitzer, 105-mm
6-6
Two M102 Howitzers, 105-mm, with or without One, Two, or Three A-22
Cargo Bags
6-7
Two M119A2 Howitzers, 105-mm, Forward Firing Position, Side by Side
6-10
M198 Howitzer, 155-mm, Towed with External Airlift Travel Lock Assembly .. 6-13
M777/M777A1/M777A2, 155-mm Lightweight Howitzer
6-15
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
v
Contents
Chapter 7
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR MISSILE
SYSTEMS
7-1
Introduction
7-1
Avenger
7-1
Avenger on M1097/M1097A1/M1097A2 with ECU and PPU with or without
Bustle Box Stowed on Roof
7-3
M1113 Truck, 1 1/4-Ton (HMMWV) with Line of Sight Anti-Tank (LOSAT)
Fire Unit with Reloader Crane and Four Missiles
7-6
M1097A2 Truck, 1 1/4-Ton (HMMWV) with Complementary Low Altitude
Weapons System (CLAWS)
7-8
AN/MPQ-57 and AN/MPQ-61 High-Power Illuminator Radar (HIPIR) Phase II
and Phase III Mounted on the M390 (Modified) Trailer
7-10
Platoon Support Van/Maintenance Center (PSV/MC)
7-12
Field Maintenance Equipment Shop (FME)
7-14
Field Maintenance Equipment Shop 21, Unmanned Shop, Electrical
Equipment
7-16
Platoon Command Post (PCP)/Battery Command Post (BCP)
7-17
Chapter 8
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR ENGINEER
EQUIPMENT
8-1
Introduction
8-1
D5B Tractor Dozer, Sectionalized
8-1
Tractor Full Tracked, Case Model 1150
8-3
Tractor Full Tracked, Case Model 1150E
8-5
Tractor (Dozer), Full Tracked, Type III, JD 450G
8-7
IC45 Crawler Carrier
8-9
Tractor, Wheeled, Industrial, Case Model 580
8-11
420-D Backhoe Loader
8-13
Small Emplacement Excavator (SEE)
8-15
High Mobility Materiel Handler (HMMH)
8-17
950BS Scoop Loader, Sectionalized
8-19
130GS Grader, Sectionalized
8-22
613BS Scraper, Elevating, Sectionalized
8-24
613WDS Water Distributor, Sectionalized
8-26
Roller, Towed, Vibrating
8-28
Rollers, Towed
8-29
Vibrating Roller, Caterpillar, RO-33
8-31
Roller, Compactor, Vibrator
8-33
Mine Clearing Line Charge Mounted on M353 Trailer
8-35
Mine Clearing Line Charge Mounted on M200A1 Trailer
8-37
LRT-110, 7 ½-Ton Crane
8-39
LRT-110, 7 ½-Ton Crane Boom
8-40
LRT-110, 7 ½-Ton Crane Power Unit
8-42
SP-7 Wheel-Mounted Crane
8-44
Truck Forklift, MC-4000
8-45
Truck Forklift, RT-4000
8-47
Truck Forklift, MC-6000
8-49
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
vi
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Contents
Extendable Boom Forklift (USMC)
8-50
Extendable Boom Forklift (EBFL) (New Version) (USMC)
8-52
Light Rough Terrain Forklift (LRTF) (USMC)
8-54
Boat, Bridge, Erection
8-56
Ribbon Bridge Erection Boat, MK2
8-58
Ribbon Bridge Interior Bay
8-59
Ribbon Bridge Ramp Bay
8-61
Medium Girder Bridge (MGB) (USMC)
8-63
Dry Support Bridge on M1077 Flatrack
8-64
SRS-106 Integrated Tower Systems Portable Tower Trailer (PTT)
8-67
M4 Robotic Mine Flail
8-68
Pneumatic Tool and Compressor Outfit/Hydraulic Pioneer Tool Outfit (PTO)
on M353 Trailer
8-70
Water Purification Unit, Reverse Osmosis (ROWPU)
8-72
Water Purification Unit, Reverse Osmosis (ROWPU), Trailer Mounted
8-74
Inland Petroleum Distribution System (IPDS), Mainline Pump on 20-Foot
Flatrack
8-76
Chapter 9
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR LIQUID CONTAINERS
............................................................................................................................ 9-1
Introduction
9-1
Two Storage Modules, Fuel/Water (Side by Side)
9-1
Three Storage Modules, Fuel/Water (Side by Side)
9-3
Five 500-Gallon Fuel Drums
9-7
Load Handling System-Compatible Water Tank Rack System (LHS-CWTRS) 9-9
Chapter 10
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR SHELTERS
10-1
Introduction
10-1
Communication or Electronic Systems Housed in S-250 Shelters
10-1
Communication or Electronic Systems Housed in Lightweight Multipurpose
Shelters (LMS)
10-3
Communication or Electronic Systems Housed in S-280 Shelters
10-4
8- x 8- x 10-Foot Shelters
10-7
8- x 8- x 20-Foot Shelters
10-9
AN/TYC-5A Data Communications Terminal
10-13
Shelter, Knockdown, 8- x 8- x 20-Foot
10-14
Jam-Resistant Secure Communications (JRSC) Satellite Communications
Terminal with Mobilizer
10-16
Downsized Digital Group Multiplexer (DGM) Assemblages
10-18
NATO Airbase Satcom (NABS) Shelter Pallet, AN/TSC-93B (V) 2
10-20
Trojan Air Transportable Electronic Reconnaissance System (TATERS) High
Gain Antenna Group (HGAG) Shelter
10-22
Digital Tech Controller (DTC) Housed in a Modified Gitchner Shelter
10-24
Chapter 11
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR CONTAINERS .. 11-1
Introduction
11-1
Full-Up Power Pack (FUPP) Container, M1A1
11-1
Tandem Lift of Two ISU-90 Shipping/Storage Containers
11-3
Authorized Stockage List Mobility System (ASLMS), 12-Foot Section
11-5
Authorized Stockage List Mobility System (ASLMS), 8- and 12-Foot
Sections Connected
11-7
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
vii
Contents
Quadcons
11-9
Launch Pod Container (LPC) with Multiple Launch Rocket System (MLRS)
Rockets or Guided Multiple Launch Rocket System (G-MLRS) Rockets /
Guided Missile Launch Assembly (GMLA)Pods with Army Tactical Missile
System (ATACMS) Missiles, Two Containers
11-10
Launch Pod Container (LPC) with Multiple Launch Rocket System (MLRS)
Rockets or Guided Multiple Launch Rocket System (G-MLRS) Rockets /
Guided Missile Launch Assembly (GMLA)Pods with Army Tactical Missile
System (ATACMS) Missiles, Four Containers
11-13
Chapter 12
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR RADAR AND
SATELLITE EQUIPMENT
12-1
Introduction
12-1
OE-361/G Quick Reaction Satellite Antenna
12-1
NATO Air Base SATCOM (NABS) Power Pallet, AN/TSC-85B (V)2
12-3
Digital Group Multiplexer (DGM) Digital Antenna Mast Program (DAMP)
Pallet Trailer
12-5
Lightweight Generator Frame Assembly (AN/TSC-93B Reconfiguration),
Satellite Communications Terminal
12-7
Chapter 13
CERTIFIED DUAL-POINT RIGGING PROCEDURES FOR MISCELLANEOUS
EQUIPMENT
13-1
Introduction
13-1
Palletized Loading System (PLS), M1077 Flatrack, Loaded
13-1
Palletized Loading System (PLS), M1077 Flatrack, Empty
13-3
Enhanced Palletized Loading System, Flatrack, Loaded
13-5
Enhanced Palletized Loading System, Flatrack, Empty
13-7
Container Roll-In/Out Platform (CROP), Loaded
13-8
Container Roll-In/Out Platform (CROP), Empty, Stacked
13-10
Naval Special Warfare Rigid Inflatable Boat (NSWRIB) with or without Trailer13-11
Special Operations Craft-Riverine (SOC-R) and Naval Special Warfare Rigid
Inflatable Boat (NSWRIB) Trailer
13-14
Special Operations Craft-Riverine (SOC-R)
13-15
Special Operations Craft-Riverine (SOC-R) with SOC-R Trailer
13-17
35-Foot Riverine Assault Craft (RAC) with or without Trailer
13-19
Small Unit Riverine Craft (SURC) with Trailer
13-20
Chapter 14
SUITABLE DUAL-POINT RIGGING PROCEDURES
14-1
Introduction
14-1
M35A1/A2 2 ½-Ton Cargo Truck
14-1
M149-Series Water Trailer
14-3
M114A1 155-mm Howitzer
14-5
One Conex Container
14-6
One MILVAN Container
14-8
Appendix A
NATIONAL STOCK NUMBERS FOR SLINGS, NETS, AND SPARE PARTS A-1
Appendix B
SLING CONVERSION CHART
B-1
Appendix C
AIRSPEED FACTORS
C-1
GLOSSARY
Glossary-1
REFERENCES
References-1
INDEX
Index-1
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
viii
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Preface
SCOPE
This manual is one of a series of manuals for aviation and ground personnel who perform helicopter sling load
missions ashore or aboard ship. Other manuals in this series are FM 4-20.197(FM 10-450-3)/MCRP 4-11.3E,
VOL I/NWP 3-04.11/AFMAN (I) 11-223, VOL I/COMDTINST M13482.2B and FM 4-20.198/MCRP 4-
11.3E, VOL II/NWP 3-04.12/AFMAN (I) 11-223, VOL II/COMDTINST M13482.3B.
These manuals are a coordinated effort of the US Army, US Marine Corps, US Navy, US Air Force, and US
Coast Guard. All services participate in the sling load certification program begun by the Army in 1984. These
manuals include standardized rigging procedures and other information from that program. Chapters 2 through
13 contain rigging procedures for dual-point loads which have been certified for sling load. Chapter 14
contains rigging procedures which have not been certified but have demonstrated acceptable static lift and flight
characteristics during a flight test.
Efforts were made to standardize ground crew and hookup procedures and terminology. Where service-unique
requirements apply to an entire chapter or body of text, the service initials are at the beginning of the chapter or
text. Otherwise the initials are at the end of the applicable sentence.
Rigging equipment and procedures described in this manual may not be authorized for all aircraft or services
because of equipment or service restrictions.
This publication applies to the Active Army, the Army National Guard (ARNG)/Army National Guard of the
United States (ARNGUS), and the United States Army Reserve (USAR) unless otherwise stated.
USER INFORMATION
The proponent of this publication is the United States Army Training and Doctrine Command (TRADOC).
Recommendations for changes or improvement to the manual are requested.
Army personnel submit DA Form 2028 (Recommended Changes to Publications and Blank Forms) to:
Aerial Delivery and Field Services Department
USA Quartermaster Center and School
ATTN: ADMMO
710 Adams Avenue
Fort Lee, VA 23801-1502
Navy personnel submit recommended changes to:
Commander
Navy Warfare Development Command
ATTN: N5
686 Cushing Road
Newport, RI 02841-1207
Marine Corps. Readers of this publication are encouraged to submit suggestions and changes through the
Universal Need Statement (UNS) process. The UNS submission process is delineated in Marine Corps Order
3900.15A, Marine Corps Expeditionary Force Development System, which can be obtained from the Marine
Corps Publications Electronic Library Online (universal reference locator:
information:
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
ix
Preface
z
Location of change
Publication number and title
Current page number
Paragraph number (if applicable)
Line number
Figure or table number (if applicable)
z
Nature of change
Addition/deletion of text
Proposed new text
With a copy to:
Commanding General
Marine Corps Systems Command (PSE)
Quantico, VA 22134-5021
Air Force personnel submit AF Form 847 (Recommendation for Change of Publication) to:
HQ AFSOC/A3TW
Hurlburt Field, FL 32544-5273
Coast Guard personnel submit rapidraft letter (CG-3883) or AF Form 847 to:
Commandant (G-OCA)
US Coast Guard
2100 2nd Street SW
Washington, DC 20593
With a copy to:
Commander
Aviation Training Center (TRADIV)
Mobile, AL 36117
REQUEST FOR WAIVERS
Services should submit requests for waivers to their respective points of contact.
USA - Director, Aerial Delivery and Field Services Department, 710 Adams Avenue, Ft. Lee, VA
23801-
1502
USMC -CG, MCCDC, Quantico, VA
22134-5021 with copy to CG, MARCORSYSCOM (PSE), Quantico,
VA 2314-5021
USN - Naval Air Systems Command, AIR-4.3.5.4, Mechanical Systems Branch, External Loads Transport
Systems, NAVAIR Lakehurst NJ 08733
USAF - Applicable major command (A3)
USCG - Cmdt (G-OCA), Washington, DC 20330
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
x
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Chapter 1
Fundamental Principles of Sling Load
INTRODUCTION
1-1. This chapter contains general information about certification for helicopter sling load and explains
the role of the Military Surface Deployment and Distribution Command Transportation Engineering
Agency (SDDCTEA) and the Department of Defense (DOD) sling load certification authority. This
authority rests with the US Army Natick Soldier Center (NSC). This chapter also explains the information
contained in the equipment rigging procedures and gives some general rigging instructions.
CLASSIFICATION DEFINITIONS OF SLING LOAD
1-2.
All sling loads are classified under one of the following definitions:
z
Certified Sling Loads. Certified sling loads are those items of equipment and their associated
rigging procedures which have completed the evaluation and testing required by the US Army
Natick Soldier Center (NSC) for sling load certification. These rigging procedures are in
Chapters 2 through 13. Only certified sling loads are authorized for the Marine Corps. The
following restrictions apply for dual-point sling load certification to remain in effect:
The load must be within the lifting capability of the desired helicopter model and not
exceed the rated capacity of the sling set being used.
The load shall be rigged in accordance with the certified dual-point rigging procedure.
Failure to rig the load exactly as directed by the certified dual-point rigging procedure creates a
unique load.
The maximum tested stable airspeed (straight and level flight determined during one flight
test) specified for the load in the applicability section of the rigging procedure or in appendix
C of this manual is a recommendation and not a restriction, unless so stated.
Changes or modifications to load characteristics (weight, model, national stock number
(NSN), accompanying load, structure of items etc.) creates a unique load.
This certification does not apply to helicopters of different designations (for example, CH-
47 verses CH-53E helicopter) because of possible differences in hook spacing, dynamic
vibration, helicopter/load mass differential, and rotor wash pattern.
Note. When carrying loads at weights close to the aircraft hook limitations, close coordination
with the aviation unit is required
z
Suitable Sling Loads. Suitable sling loads are those items of equipment and their associated
rigging procedures that have not been certified but have demonstrated acceptable static lift and
flight characteristics during a flight test. In most cases these loads were not pull tested in
accordance with MIL- STD-913, but are known loads which have been flown without incident
for years and which NSC considers to be proven safe. These rigging procedures are in Chapter
14.
z
Unique Sling Loads. Unique loads are equipment carried on a one time or low-frequency basis,
such as telephone poles, artillery targets, or barrier material. The lack of sling load certification
in itself does not preclude a commander from carrying a unique load. Due to the lack of rigging
procedures, unique loads should be considered high risk loads. Each service is responsible for
determining its policy on carrying unique loads.
(USA) The movement of unique loads
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
1-1
Chapter 1
should be approved by the high risk approving authority. The name and rank of the
approving authority should be printed in the bottom right corner of the remarks block on DA
Form 7382-R, Sling Load Inspection Record. Only the most experienced personnel should
attempt to rig and inspect a unique load. When possible static lift the load prior to flight.
z
Prohibited Sling Loads. Prohibited sling loads are items of equipment that are prohibited from
sling loading as determined by each service. These loads have been denied sling load
certification and are a safety hazard if carried. They have either structural deficiencies or have
exhibited unstable flight characteristics during flight testing. Each service will identify these
loads and transmit this information by separate list. Contact your service point of contact
identified in the Preface if you have any questions regarding the classification of a particular
load.
CERTIFICATION OF EQUIPMENT FOR HELICOPTER SLING LOAD
1-3. Certification for sling load assures the user that the item has met minimum standards.
z
Objective. The objective of sling load certification is to assure the user that the
equipment being transported can withstand the stresses of a sling load flight
environment. Certification for sling load assures the user that the item has met minimum
standards for structural integrity and that the associated rigging procedures have been developed
specifically for that item.
z
Responsibilities. Within the US Army, the SDDCTEA is responsible for transportability
approval of developmental equipment. Within the DOD, NSC is the lead activity responsible
for providing sling load certification and rigging procedures for military equipment. When an
item is certified for sling load, it means that NSC, in cooperation with various test activities, has:
Conducted an engineering analysis of the load and lifting provisions for structural
adequacy during sling loading.
Verified that the lift provisions meet the strength requirements of the applicable military
standard by means of proof load testing.
Developed and/or validated sling load rigging procedures through static lift testing.
Evaluated flight reports and determined that the particular load meets acceptable flight
characteristics with the type helicopter flown during the flight test.
Issued a statement of sling load certification for the particular load, including load
configuration(s), weight(s), types of helicopter(s), and maximum tested stable airspeed
(straight and level flight as attained during the one flight evaluation). Certification is valid
only for the conditions specified in the rigging procedures.
REQUESTS FOR SLING LOAD CERTIFICATION
1-4. Each service headquarters must designate, request, and prioritize the fielded equipment to be
evaluated by NSC for sling load certification. Individual units can request sling load certification for
fielded equipment through the appropriate service agency which will add the item to the prioritized list.
The NSC will evaluate the equipment on a priority basis. Dual-point loads cannot be certified for dual-
point lift based on previously certified dual-point rigging procedures because of the difference in dual hook
helicopters, such as the distance between the cargo hooks. Rigging procedures for dual-point loads must
be developed and/or approved by NSC before the evaluation flight. The following agencies are
responsible for their branch of service:
z
US Army - Commander, Combined Arms Support Command, ATTN: QM Combat
Developments, Suite 250, 3901 A Avenue, Fort Lee, VA 23801-1809.
z
US Marine Corps - Commanding General, Marine Corps Systems Command (PSE) Quantico,
VA 22134-5021.
z
US Navy - Naval Air Systems Command (NAVAIR).
z
US Air Force - US Air Force Material Command.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
1-2
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Fundamental Principles of Sling Load
UNIQUE ITEMS OF EQUIPMENT OR OPERATIONAL
REQUIREMENTS
1-5. Helicopter sling loading of unique items, due to operational requirements, will be at the discretion of
the commander. Equipment not listed in this manual should be static lifted (when possible) by a crane to
determine proper rigging and stability characteristics. Personnel thoroughly familiar with sling load
rigging procedures should assist in the static lift testing. Flight evaluating may be conducted after a
satisfactory static rigging configuration has been determined.
Note: Low density equipment with low weight and large surface area (flat surfaces), such as
shelters, empty trailers, pallet loads, boat shaped items, and empty fuel or water drums, are
likely to become extremely unstable when flown during sling load operations, even at low
airspeeds, and should be flown with extreme caution.
EQUIPMENT RIGGING PROCEDURES
1-6. This section explains the information that is contained in the rigging procedures for each load.
Chapters 2 through 13 contain the rigging procedures for certified dual-point loads and Chapter 14
contains the rigging procedures for suitable dual-point loads.
z
Applicability Paragraph. The applicability paragraph states whether a load is “certified” or
“suitable” for sling load and the types of helicopters. The maximum tested stable airspeed is
listed in Appendix C. For certified loads, this airspeed is the maximum airspeed attained by the
helicopter during the evaluation flight before the load became unstable or before the aircraft
power requirements were exceeded. For suitable loads, the maximum recommended airspeed is
based on previous experience with this helicopter/load combination. For either certified or
suitable loads, the airspeed listed is a recommendation and not a restriction, unless so
stated. The aircrew should closely monitor the load during the flight, especially if the
helicopter exceeds the recommended airspeed.
z
Load Description. The load description paragraph identifies the load, model, national stock
number (NSN) or other identification, and the weight of the load for certification.
The actual weight of the equipment may vary somewhat from the actual rigged weight
during the flight evaluation due to equipment modifications, fuel, equipment added to the load,
or different models of the same item. The load weight on the equipment data plate or in the
operator’s manual takes precedence over the load weight in this manual. Weigh the load if
there is any doubt about its actual weight. If the load weight exceeds the weight listed in the
load description paragraph, the load becomes a unique load. Contact your service point of
contact if you have any questions about the load description or weight.
Equipment such as cargo trailers and cargo trucks contain descriptions of the allowable
additional cargo weight. Do not exceed the fully loaded weight. Some trailers become
extremely unstable at low weights; therefore, a minimum weight is identified. If your trailer is
below that weight, add more cargo or dummy weight as close to the center of the trailer as
possible until you reach the minimum weight.
z
Preparation. The preparation steps are intended to reduce the possibility of damage to the
equipment caused by sling leg entanglement during the hookup and lift-off operation or by wind
resistance encountered during the flight. Since these preparation steps are not directive in
nature, the commander assumes responsibility for any damage to the equipment caused by
deviation from the preparation steps.
z
Rigging. The rigging steps give information as to the position of the apex fitting on the load,
routing orientation of the sling legs, location of the lift provisions, chain link number for each
sling leg, and steps required to prevent the sling legs from becoming entangled on the load. Do
not change the chain link number in the rigging procedures under any circumstances as it may
change sling leg loading and cause lift provision failure.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
1-3
Chapter 1

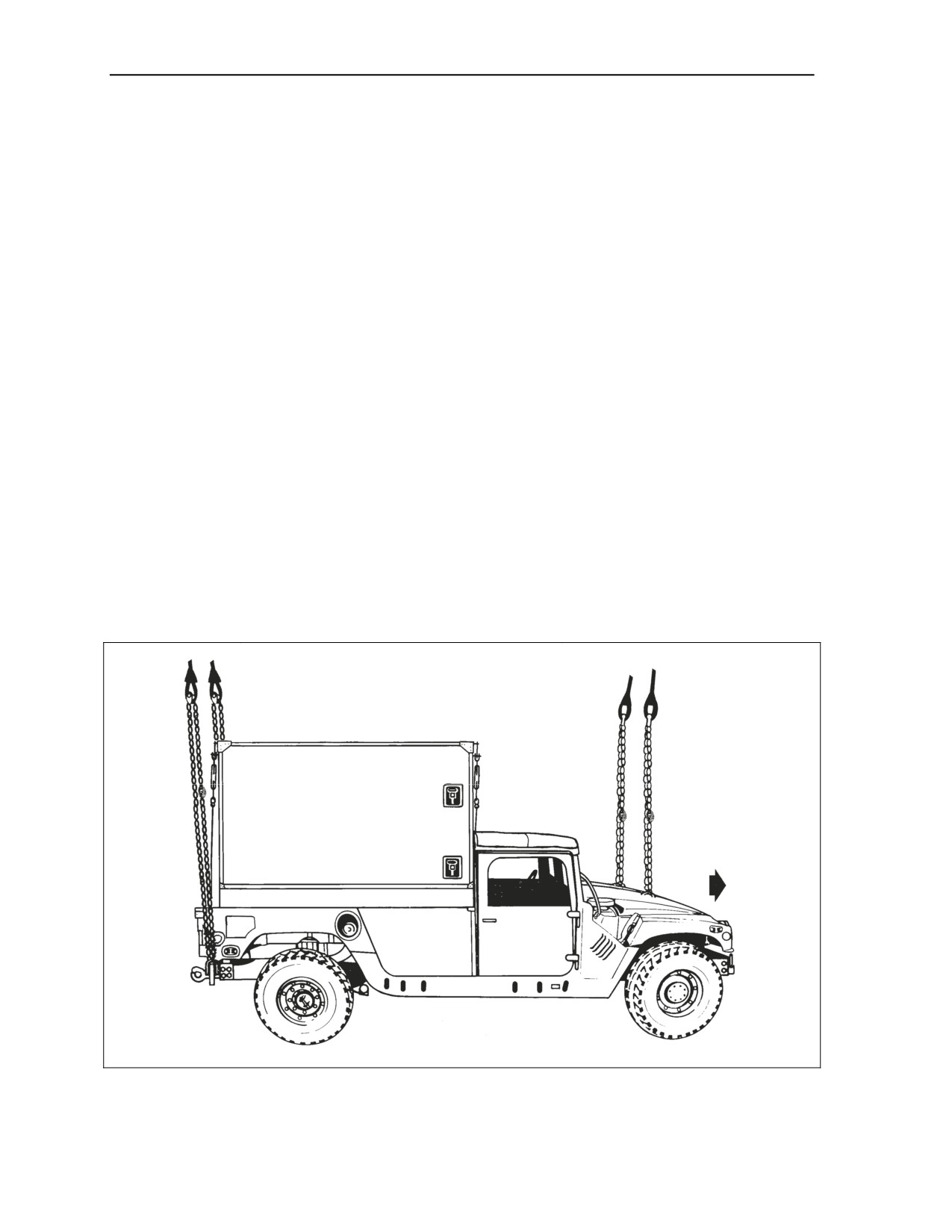

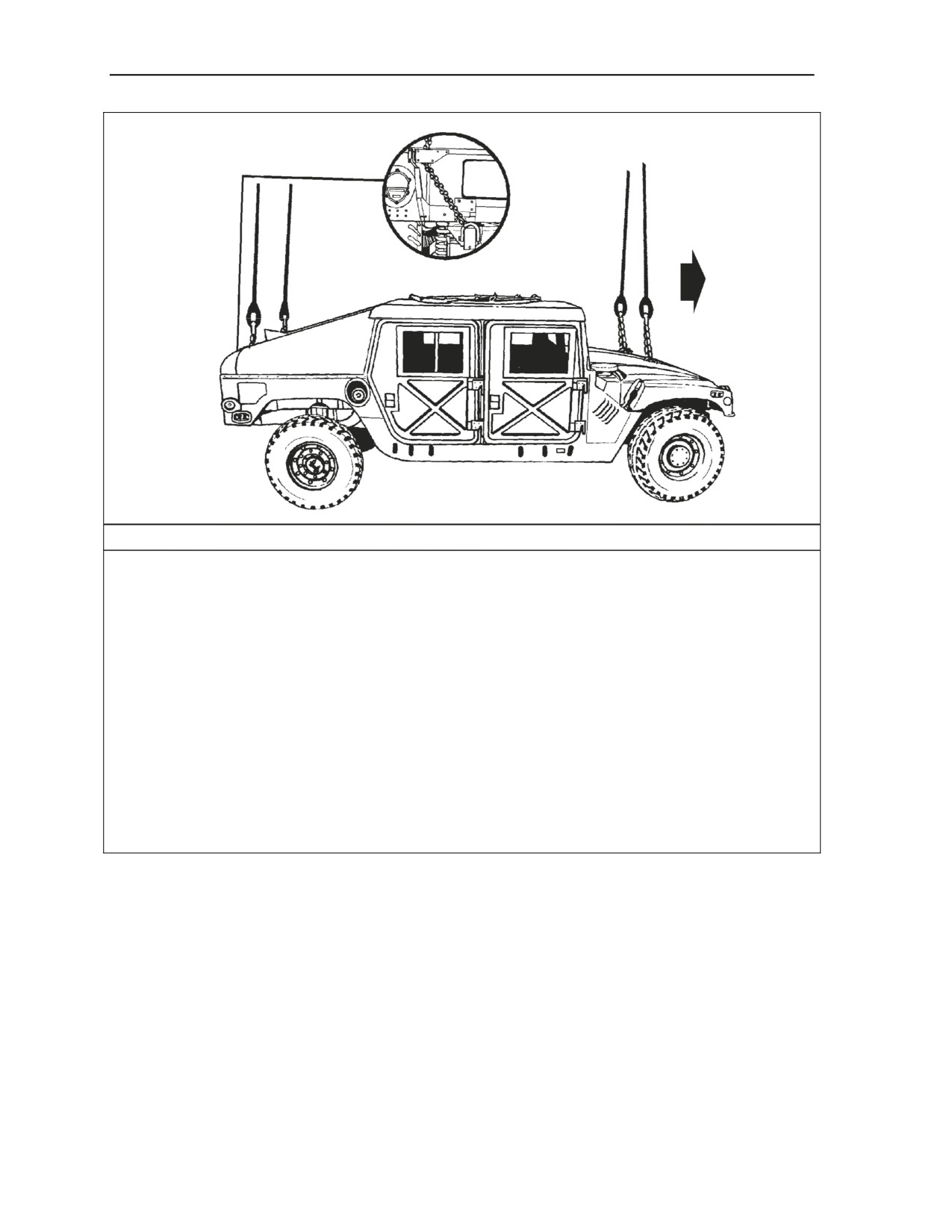

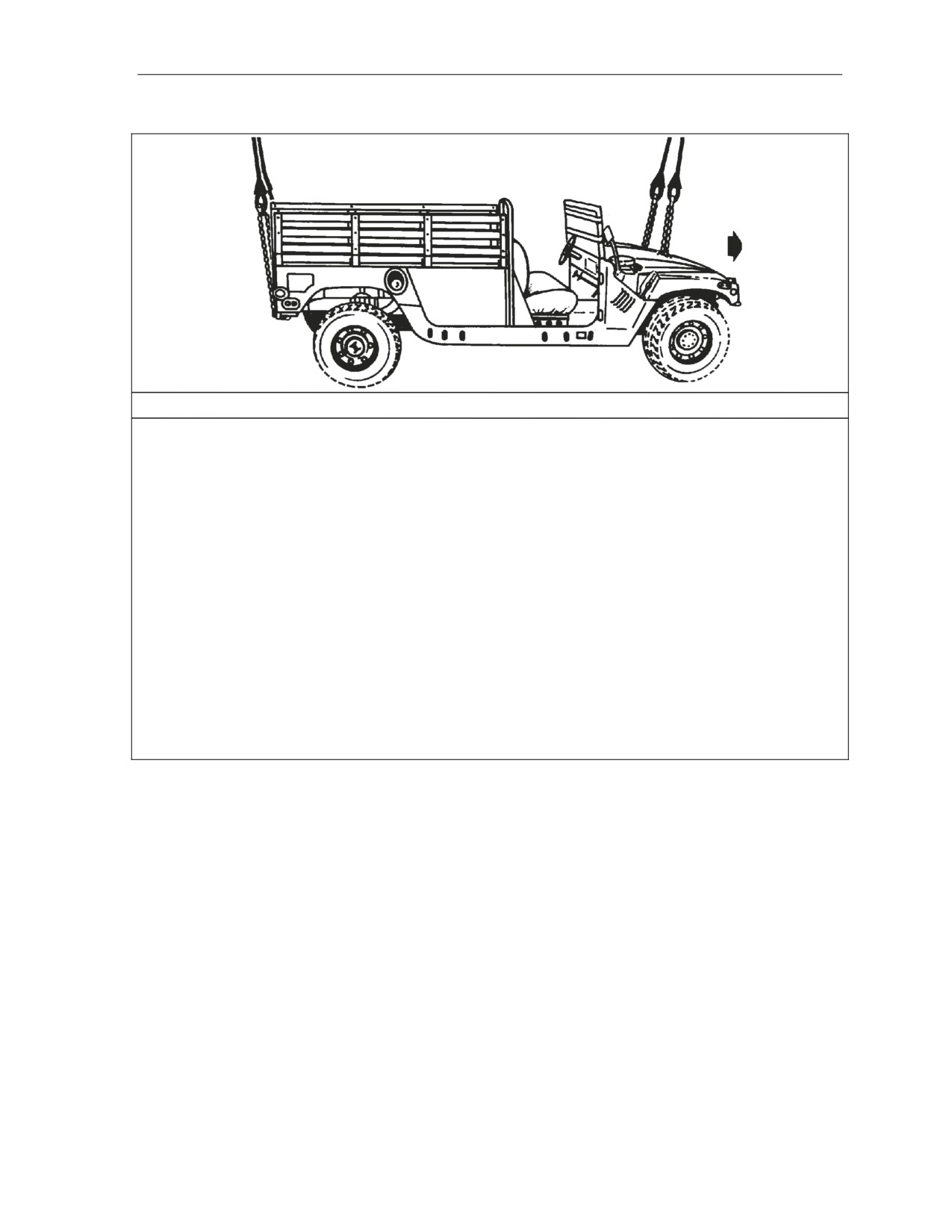

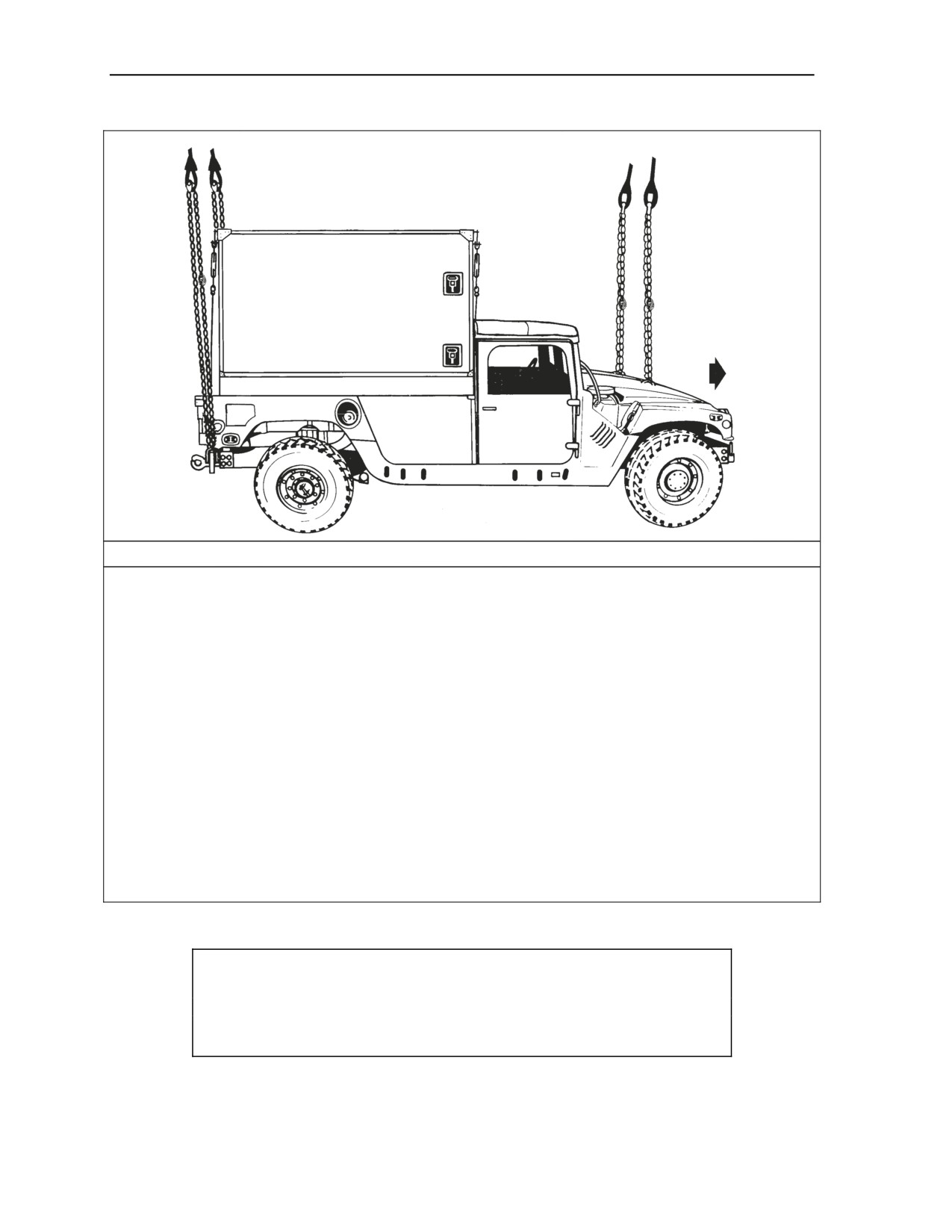

The purpose of the illustration accompanying the rigging procedures is to depict what a
properly rigged load looks like with the slack removed from the sling legs. The arrow
identifies the direction of flight.
Appendix A contains NSN component listings for slings, sling sets, cargo nets, and other
miscellaneous equipment and materials.
z

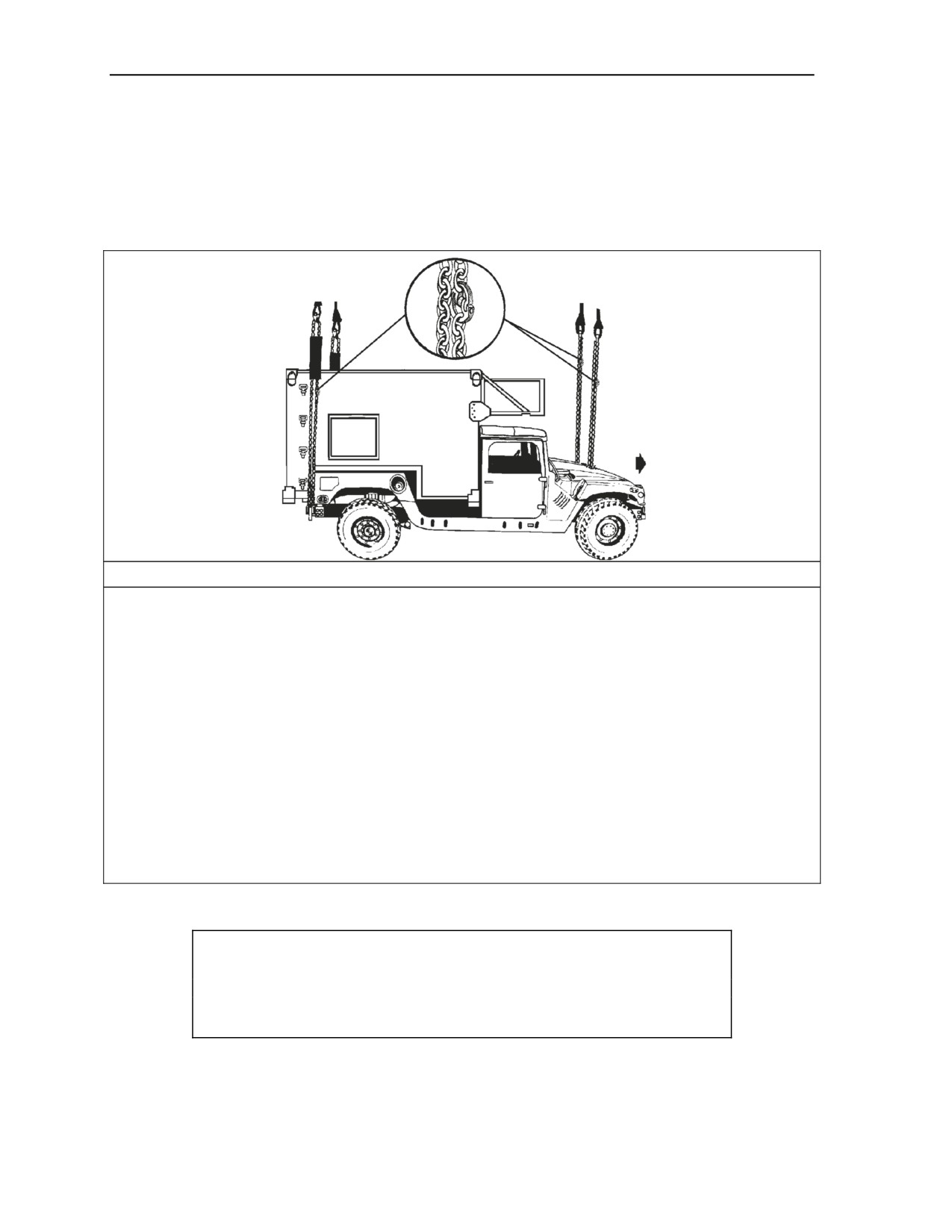

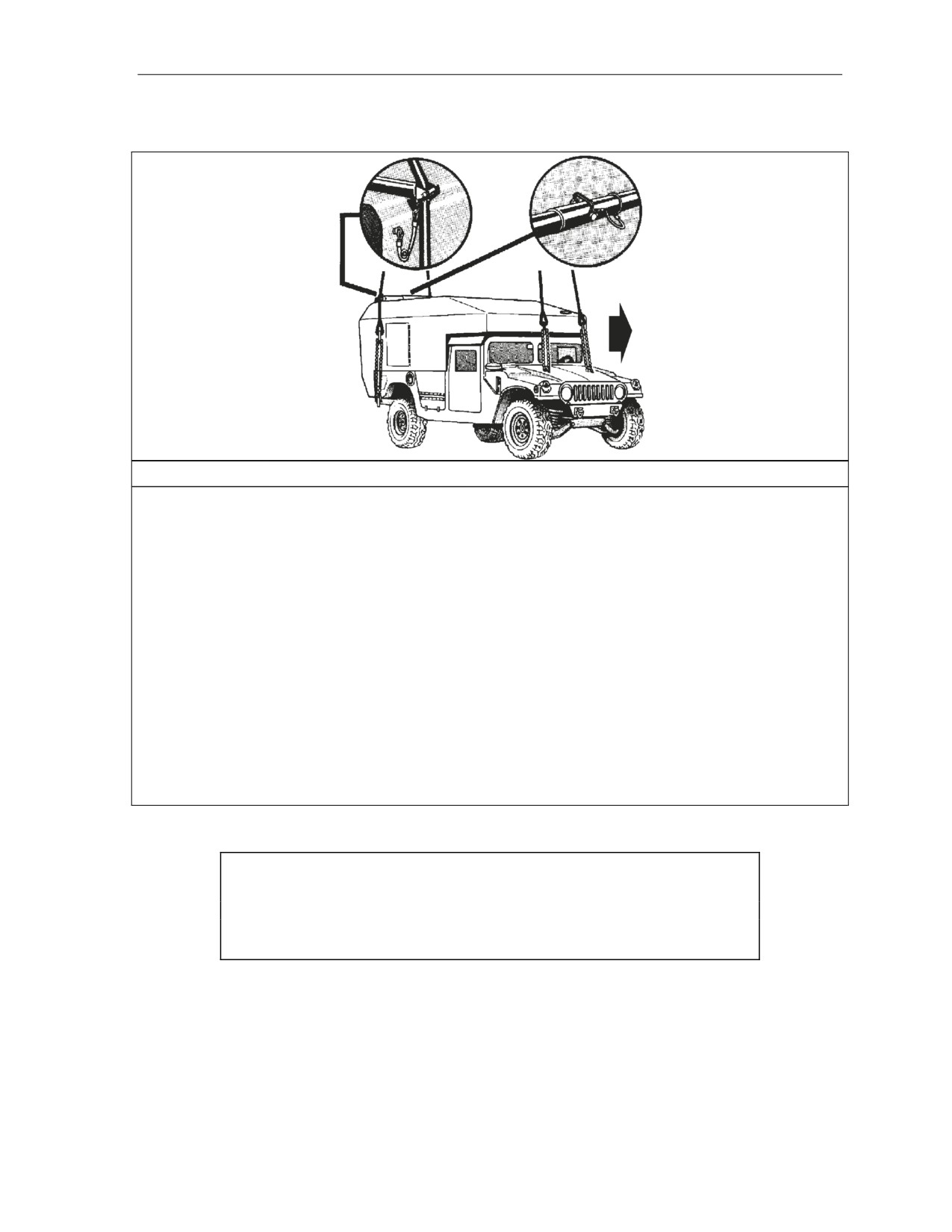

Hookup. Certain sling loads, such as HMMWVs with shelters, present substantial risk of
damage to the load or injury to the hookup personnel. This risk is increased during dual point
hookup or night operations.
To reduce the risk of damage to the load or injury to the hookup personnel an extended
sling system or reach pendant as defined in FM 4-20.197 may be used.
Using a reach pendant increases the distance between the load and the helicopter. Reach
pendants should not be used on loads that have a tendency to spin during flight. A static
discharge person is not required when using a reach pendant.
If the tactical environment permits, the use of a longline sling set may reduce the risk.
GENERAL RIGGING INSTRUCTIONS
CAUTIONS
1. Inspect lifting provisions and supporting structure for damage or
degradation prior to sling loading. Do not transport loads with
damaged or degraded lift provisions.
2. Do not mix different capacity reach pendants. Use two 11,000-
pound capacity or two 25,000-pound capacity reach pendants.
1-7.
All dual-point loads have rigging instructions.
z
Preparing the Load. Prepare the load to be transported by following the preparation and
rigging instructions for each item. Typical preparation instructions will provide information to
secure loose items, remove or secure canvas covers, and remove obstructions, such as antennas.
Place protective padding on windshields and other components that could be damaged by the
metal parts of the sling set during hookup or release. The load should be secure enough to
withstand winds in excess of 120 knots caused by the forward airspeed of the aircraft. If
possible, position the load in the takeoff direction so the pilot does not have to pick the load up
and then turn the aircraft into the takeoff direction.
z
Preparing the Equipment. Inspect and assemble the slings and miscellaneous equipment
required to prepare and rig the load. Following the instructions in Chapter 6 of FM 4-
20.197/MCRP
4-11.3E, VOL I/NWP
3-04.11/AFMAN
11-223(I), VOL I/COMDTINST
M13482.2B, add or remove sling legs, chains, or apex fittings as required. Never exceed the
capacity of the sling legs or apex fitting/web ring. If you have a sling set with a higher capacity
than the sling set prescribed, use the chain link conversion chart in Appendix B to determine the
corresponding chain link for your sling set.
z
Positioning and Attaching the Sling Set. Position the sling set near the load. The sling legs
for a typical load with four lifting points are routed as shown in Figure 1-1.
Rigging a typical load with four lifting points is begun by connecting:
─ Sling leg 1 to the left front lifting provision.
─ Sling leg 2 to the right front lifting provision.
─ Sling leg 3 to the left rear lifting provision.
─ Sling leg 4 to the right rear lifting provision.
─ If a six-leg sling set is required, the innermost sling legs, 5 and 6, are connected to the
left and right middle lift provisions.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
1-4
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Fundamental Principles of Sling Load
Note. Odd numbered sling legs go to the same side of the load.
Following the equipment rigging procedures, loop the free end of the chain end through the
lift provision and insert the specified chain link in the grabhook/grab link. Tie or tape the
excess chain end to prevent the unrestrained chain from damaging the load. If necessary, wrap
padding around the chain or rope assembly to prevent damage to the load or sling set. If the
procedures prescribe a spreader bar, install and pad it according to the rigging instructions.
Breakaway safety ties are used to temporarily restrain the sling legs to keep them from
becoming entangled on the load as the helicopter lifts the load. These safety ties are made of
Type I, 1/4-inch cotton webbing or duct tape.
z
Viewing the Load. Left, right, front, and rear directions are designated from the driver’s
perspective for vehicles and towed equipment. Howitzer gun tubes are considered the front of
the load. The front or rear is identified on other items of equipment. The sling leg numbering
system prevents sling legs from crossing each other and causing damage to the sling legs or
causing the load to twist in flight. To improve flight stability, some loads are transported
backwards. Do not confuse the front of the load as it is carried with the end designated as the
front for rigging purposes. The arrow shown in the illustration identifies the direction of flight.
Figure 1-1. Sling Leg Lifting Point Designation
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
1-5
This page intentionally left blank.
Chapter 2
Certified Dual-Point Rigging Procedures for Wheeled
Vehicles
2-1. This chapter contains rigging procedures for dual-point wheeled vehicle loads that have been
certified for sling load. Each rigging procedure is found in a paragraph that includes a description of the
load, materials required for rigging, and steps to complete the procedure. An applicability paragraph is
also a part of each paragraph and identifies the certified loads. The certified dual-point rigging procedures
for wheeled vehicles are in this section. Paragraphs 2-2 through 2-51 give detailed instructions for rigging
loads.
Notes:
1. Reach Pendants may be used on dual-point loads. Place a reach pendant on each
apex
fitting. A static discharge person is not required when using a Reach Pendant.
2. Canvas tops and doors should be removed and stowed inside the vehicle if time
allows. These items may be damaged if the airspeed exceeds 100 knots.
M996/M997/M997A1/M997A2 TRUCK, AMBULANCE, (HMMWV)
2-2. The M996/M997/M997A1/M997A2 ambulance is rigged for dual-point sling load using the
following procedures:
z
Applicability. The following items in Table 2-1 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-1. Truck, Ambulance, (HMMWV)
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
Truck, Ambulance, M996
7,400
10K
80/45
CH-47
25K
66/38
Truck, Ambulance, M997
7,400
10K
80/45
CH-47
25K
66/38
Truck, Ambulance, M997A1
7,600
15K
25/3
CH-53
40K
30/9
Truck, Ambulance, M997A2
7,600
10K
80/45
CH-47
z
Materials. The following materials are required to rig this load:
Sling set (see table) with one additional apex fitting or web ring for the sling set being
used.
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Spreader bar assembly, NSN: 4910-01-313-8839 (component of vehicle).
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-1
Chapter 2
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Fold the mirrors forward in front of the windshield and tie together with Type III nylon
cord. Tape the windshield in an X formation from corner to corner.
─ Remove the spreader bar from under the right hand seat inside the ambulance.
─ Secure all equipment inside the rear compartment with tape, nylon cord, and/or
lashings. Close and secure the door.
─ Secure all other equipment inside the vehicle with tape, nylon cord, and/or lashings.
Close and secure the doors.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake. Place the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel using
the securing device attached under the dashboard.
─ Secure the Red Cross insignia covers in the closed position.
─ Remove the keeper from the spreader bar and extend the bar so the holes line up.
Reinstall pin and engage keeper. Use the sighting hole in the tube to assist in aligning
holes for the pin. See top view insert in Figure 2-1.
─ Position the spreader bar across the rear end of the vehicle roof. Attach the spreader
bar check cables to the eyebolts located on the aft exterior sidewall of the rear
compartment. See rear view insert in Figure 2-1.
─ Install lift provisions on the outer ends of the rear bumper by removing the tie-down
provisions located inboard of the bumper ends and installing them on the outer ends of
the rear bumper, if necessary.
Rigging. Rig the load according to the steps in Figure 2-1.
Hookup. The static wand person discharges the static electricity with the static wand. The
forward hookup person stands on the hood and places apex fitting 1 onto the forward cargo
hook. The aft hookup person stands on the roof and places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-2
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the hood.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes through the
hood. Place the correct link from Table 2-1 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the rear compartment.
Place the nylon rope of the sling legs in the guides on the ends of the spreader bar. Attach the spreader
bar guide retainer pins and keepers. Lay the spreader bar on the roof. Ensure the sling legs are in front
of the check cable eyebolts.
4. The rear lift provisions are located on the outer ends of the rear bumper. Loop the chain end of sling
legs through their respective lift provisions. Place the correct link from Table 2-1 in the grab hook.
5. Secure all excess chain with tape or Type III nylon cord.
6. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to prevent
entanglement during hookup and lift-off.
Figure 2-1. M996/M997/M997A1/M997A2 Ambulance
CAUTION
Do not use the lift shackles located near the center of the rear bumper
or sling load lift provisions.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-3
Chapter 2
M966/M1036/M1045/M1045A2/M1046 TOW MISSILE CARRIER
(HMMWV)M1025/M1025A2/M1026/M1043/M1043A2/M1043A2 WITH
MARINE ARMOR KIT (MAK)(USMC)/M1044/M1151 ARMAMENT
CARRIER (HMMWV)/M1114 UP-ARMORED HMMWV
2-3. The M966/M1036/M1045/M1045A2/M1046 TOW missile carrier, M1025/M1025A2/M1026/
M1043/M1043A2/ M1043A2 with Marine Armor Kit (MAK)(USMC)/M1044 armament carrier, M1114 Up-Armored
HMMWV are rigged for dual-point sling load using the following procedures:
z
Applicability. The following items in Table 2-2 are certified for the helicopter(s) listed in the following
table by the US Army Natick Soldier Center:
Table 2-2. TOW Missile/Armament Carrier
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
TOW Missile Carrier (HMMWV), M966/M1036/M1045/
Varies by
10K
80/45
CH-47
M1046
Model
15K
25/3
CH-53
40K
30/9
CH-53
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
TOW Missile Carrier, HMMWV, M1045A2
10,300
25K
65/36
CH-47
15K
CH-53
25/3
40K
CH-53
30/9
Armament Carrier, HMMWV, M1025/M1026
8,200
15K
25/3
CH-53
40K
40/9
CH-53
10K
80/45
CH-47
Armament Carrier, HMMWV, M1043/M1044
8,400
15K
25/3
CH-53
40K
CH-53
40/9
10K
CH-47
80/45
Armament Carrier, HMMWV, M1025A2/M1043A2
10,300
15K
25/3
CH-53
40K
CH-53
40/9
25K
CH-47
65/36
Up-Armored HMMWV, M1114
12,100
25K
60/30
CH-47
15K
30/3
CH-53
Armament Carrier, HMMWV, M1043A2 with MAK
10,300
15K
35/3
CH-53
(USMC)
Armament Carrier, HMMWV, M1151 (Empty)
7,300
25K
30/3
CH-47
Armament Carrier, HMMWV, M1151 (Loaded))
11,500
25K
20/3
CH-47
15K
CH-53
WARNING
The M1151 armament carrier HMMWV should not be flown empty
under the CH-53 in a dual-point configuration. The weight
distribution may exceed aircraft limitations.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-4
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity, 25,000-pound capacity, or 40,000-pound capacity) with
one additional apex fitting for the sling set being used.
OR
Sling set (15,000-pound capacity) with one additional web ring.
─ Chain length, from a 15,000-pound capacity sling set (4 each) (used on M1043A2 with
MAK).
─ Coupling link, from a 15,000-pound sling set (4 each) (used on M1043A2 with MAK).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 15,000-pound capacity sling set with a coupling link (used on M1043A2 with
MAK).
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Remove antennas and stow inside vehicle.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and place the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
CAUTION
Do not apply tape to the windows or windshield of the M1114 up-
armored HMMWV. Tape will damage the windows.
Rigging. Rig the load according to the steps in Figure 2-2.
Hookup. The hookup team stands on the roof of the vehicle. The static wand person
discharges the static electricity with the static wand. The forward hookup person places apex
fitting 1 onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft
cargo hook. The hookup team then carefully dismounts the vehicle and remains close to the
load as the helicopter removes slack from the sling legs. When successful hookup is assured,
the hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-5
Chapter 2
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the hood.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes through the
hood. Place the correct link from Table 2-2 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on the roof of the vehicle.
4. Loop the chain end of the sling legs through their respective eyelet openings in the upper corner of the
tailgate. Loop the chain end through the lift shackle on the rear bumper and thread back through the
eyelet opening in the tailgate. Place the correct link from Table 2-2 in the grab hook. Pad the chains
with felt where they contact the vehicle.
5. Secure all excess chain with tape or Type III nylon cord.
6. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to prevent
entanglement during hookup and lift-off.
Figure 2-2. TOW Missile/Armament Carrier
M998/M1123 WITH MARINE ARMOR KIT (MAK) (USMC)/M1037
MODIFIED (GVW 9,400 LBS)/M1038/M1097/M1097A1/
M1097A2/M1152 TRUCK, CARGO, 1 1/4-TON (HMMWV)
2-4. The M998/M1123 with MAK/M1037 modified
(GVW 9,400 lbs)/M1038/M1097/M1097A1/
M1097A2/M1152 trucks, cargo, 1 1/4-ton are rigged for dual-point sling load using the following
procedures:
z
Applicability. The following items in Table 2-3 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-6
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
Table 2-3. 1 1/4-Ton Cargo Truck
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
Truck, 1 1/4-ton, HMMWV, M998/M1038
7,700
10K
80/45
CH-47
15K
25/3
CH-53
40K
30/9
Truck, 1 1/4-ton, HMMWV, M998 with AN/MRC-110A
7,700
10K
80/45
CH-47
Radio Set
15K
25/3
CH-53
30/9
Truck, 1 1/4-ton, HMMWV, M998A1, Joint Surveillance
7,500
10K
80/45
CH-47
Target Attack Radar (JSTAR), Support Vehicle
Truck, 1 1/4-ton, HMMWV, Modified, (GVW 9,400 lbs),
9,400
10K
80/25
CH-47
M1037
Truck, 1 1/4-ton, Heavy HMMWV, Cargo Variant, M1097
10,000
10K
80/45
CH-47
Truck, 1 1/4-ton, Heavy HMMWV, Cargo Variant, M1097
10,001
25K
60/10
CH-47
Truck, 1 1/4-ton, Heavy HMMWV, Cargo Variant,
10,300
25K
80/45
CH-47
M1097A1
Truck, 1 1/4-ton, Heavy HMMWV, Cargo Variant,
10,300
25K
60/10
CH-47
M1097A2
Truck, 1 1/4-ton, Heavy HMMWV, Cargo Variant,
10,300
25K
60/10
CH-47
M1097/M1097A2, Integrated System Control (ISYSCON),
Support Carrier/Radio Vehicle
Truck, 1 1/4-ton, Heavy HMMWV, Cargo Variant,
10,300
25K
60/10
CH-47
M1097/M1097A2, Tactical Messaging System, Transit
Case Carrier
Truck, 1 1/4-ton, HMMWV with MAK, M1123, 2 Door or 4
10,300
15K
35/3
CH-53
Door Passenger Compartment (USMC)
Truck, 1 1/4-ton, Heavy HMMWV, Cargo Variant, M1152
7,300
25K
30/3
Ch-47
(Empty)
Truck, 1 1/4-ton, Heavy HMMWV, Cargo Variant, M1152
11,500
25K
20/3
CH-47
(Loaded)
WARNING
This cargo vehicle (M1037 modified, 9,400-lb GVW) should not be
confused with the shelter carrier (M1037, 8,600-lb GVW). The
M1037 modified has improved lift provisions which allows it to be
lifted at higher gross vehicle weights.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-7
Chapter 2
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity, 25,000-pound capacity, or 40,000-pound capacity) with
one additional apex fitting for the sling set being used.
OR
Multileg sling set (15,000-pound capacity) (2 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord. If installed, remove canvas covering over the bed of the
truck. Remove the doors. If time permits, fold canvas top and tie to windshield for
added protection.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Remove antennas and stow inside vehicle.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
Rigging. Rig the load according to the steps in Figure 2-3.
Hookup. The static wand person discharges the static electricity with the static wand. The
forward hookup person stands in the driver’s compartment and places apex fitting 1 onto the
forward cargo hook. The aft hookup person stands in the bed of the truck and places apex
fitting 2 onto the aft cargo hook. The hookup team then carefully dismounts the vehicle and
remains close to the load as the helicopter removes slack from the sling legs. When successful
hookup is assured, the hookup team quickly exits the area underneath the helicopter to the
designated rendezvous point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-8
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the hood.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-3 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting in the bed of the
vehicle.
4. Loop the chain end of the sling legs through their respective eyelet openings in the upper
corner of the tail gate. Loop the chain end through the lift shackle on the rear bumper and
thread back through the eyelet opening in the tailgate. Place the correct link from Table 2-3
in the grab hook.
5. Secure all excess chain with tape or Type III nylon cord.
6. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-3. 1 1/4-Ton Cargo Truck
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-9
Chapter 2
M1037 SHELTER CARRIER (HMMWV) WITH S-250 OR S-250E
SHELTER
2-5. The M1037 shelter carrier with S-250 or S-250E shelter is rigged for dual-point sling load using the
following procedures:
z
Applicability. The following items in Table 2-4 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-4. M1037 Shelter Carrier with S-250 or S-250E Shelter
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
NC Operations
8,800
10K
80/45
CH-47
NC Switch
8,513
10K
80/45
CH-47
NC LOS (V3)
8,611
10K
80/45
CH-47
NC Management
8,800
10K
80/45
CH-47
NC Support Vehicle
8,400
10K
80/45
CH-47
LEN Operations
8,800
10K
80/45
CH-47
LEN Switch
8,800
10K
80/45
Ch-47
LEN LOS (V4)
8,800
10K
80/45
CH-47
LEN Management
8,800
10K
80/45
CH-47
LEN Cable Vehicle
8,180
10K
80/45
CH-47
SCC Command
8,800
10K
80/45
CH-47
SCC Planning
8,300
10K
80/45
CH-47
SCC Technical
8,507
10K
80/45
CH-47
LOS (V1)
8,800
10K
80/45
CH-47
LOS (V2)
8,500
10K
80/45
CH-47
Radio Access Unit
8,800
10K
80/45
CH-47
SEN (V1)
8,800
10K
80/45
CH-47
SEN (V2)
8,800
10K
80/45
CH-47
Maintenance #1
8,084
10K
80/45
CH-47
Maintenance #2
8,350
10K
80/45
CH-47
Battalion Spares
8,800
10K
80/45
CH-47
Company Spares
7,850
10K
80/45
CH-47
AN/TLQ-17
8,200
10K
80/45
CH-47
AN/TLQ-17A (V3)
8,040
10K
80/45
CH-47
Deployable Media Production Center
7,840
10K
80/45
CH-47
Operational Control Group (OCG) /Firefinder AN/TPQ-36
7,500
10K
80/45
CH-47
(V) Block IIB
15K
48/27
CH-53
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) with one additional apex fitting.
Chain length, part number 38850-00053-101, from a 10,000-pound capacity sling set
(4 each).
Coupling link, part number 577-9125, from a 10,000-pound sling set (4 each).
OR
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-10
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
Multileg sling set (15,000-pound capacity) with one additional web ring.
Chain length, part number 34080-4, from a 15,000-pound capacity sling set (4 each).
Coupling link, part number 31611, from a 15,000-pound sling set (4 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Connect one additional chain length to each chain of the sling set with the coupling
link.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Secure the shelter to the truck using wire rope or tie-down assemblies. Secure all
equipment inside the shelter with tape, nylon cord, or lashings; close and secure the
door.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Install the lift provisions on the outer ends of the rear bumper by removing the tiedown
provisions located inboard of the bumper end and installing them on the outer ends of
the rear bumper.
Rigging. Rig the load according to the steps in Figure 2-4.
Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The hookup person places the apex fitting onto the
aircraft cargo hook. The hookup team then carefully dismounts the vehicle and remains close
to the load as the helicopter removes slack from the sling legs. When successful hookup is
assured, the hookup team quickly exits the area underneath the helicopter to the designated
rendezvous point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-11
Chapter 2
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the hood.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-4 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting in the bed of the
vehicle.
4. Loop the chain end through the lift shackle on the rear bumper located on the outer ends of
the bumper. Place the correct link from Table 2-4 in the grab hook.
5. Wrap the rear slings with padding where they contact the shelter sides.
6. Secure all excess chain with tape or Type III nylon cord.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-4. M1037 Shelter Carrier with S-250 or S-250E Shelter
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-12
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
M1097 SHELTER CARRIER, HEAVY HMMWV, WITH S-250 OR S-
250E SHELTER
2-6. The M1097 shelter carrier, heavy HMMWV with S-250 or S-250E shelter is rigged for dual-point
sling load using the following procedures:
z
Applicability. The following items in Table 2-5 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-5. M1097 Shelter Carrier, Heavy HMMWV, with S-250 or S-250E Shelter
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
S-250/S-250E
10,001
25K
60/10
CH-47
AN/TRC-170 Communication Shelter
9,240
15K
40/3
CH-53
TRQ-32, Intelligence and Electronic Warfare (IEW)
9,700
10K
60/10
CH-47
System
Platoon Operations Center (POC), Intelligence and
9,700
10K
60/10
CH-47
Electronic Warfare (IEW) System
Mobile Subscriber Equipment Contingency
9,993
10K
60/10
CH-47
Communications Package/Light Forces Contingency
Communications Package in S-250E
Mobile Subscriber Equipment Contingency
8,913
10K
60/10
CH-47
Communications Package/Light Forces Contingency
Communications Package in S-250
LOS (V1)
9,038
10K
60/10
CH-47
LOS (V2)
9,038
10K
60/10
CH-47
LOS (V3)
9,038
10K
60/10
CH-47
LOS (V4)
9,038
10K
60/10
CH-47
NODAL Support Vehicle
8,250
10K
60/10
CH-47
Note: All certified shelters in paragraph 2-4 (M1037 Shelter Carrier, HMMWV, With S-250/S-
250E Shelter) are certified for sling loading on the M1097 Shelter Carrier with an increased
maximum weight of 300 pounds.
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity or 25,000-pound capacity) with one additional apex
fitting for the sling set being used.
OR
Multileg sling set (15,000-pound capacity) with one additional web ring.
Additional chain lengths from the sling set being used (4 each).
Additional coupling links from the sling set being used (4 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
z
Personnel. Two persons can prepare and rig this load in 15 to 25 minutes.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-13
Chapter 2
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Connect one additional chain length to each chain of the sling set with the coupling
link.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Secure the shelter to the truck using wire rope or tie-down assemblies. Secure all
equipment inside the shelter with tape, nylon cord, or lashings; close and secure the
door.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Install the lift provisions on the outer ends of the rear bumper.
Rigging. Rig the load according to the steps in Figure 2-5.
Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The forward hookup person places apex fitting 1
onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
Figure 2-5. M1097 Shelter Carrier, Heavy HMMWV, with S-250 or S-250E Shelter
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-14
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the hood.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-5 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting in the bed of the
vehicle.
4. Loop the chain end through the lift shackle on the rear bumper located on the outer ends of
the bumper. Place the correct link from Table 2-5 in the grab hook.
5. Wrap the rear slings with padding where they contact the shelter sides.
6. Secure all excess chain with tape or Type III nylon cord.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-5. M1097 Shelter Carrier, Heavy HMMWV, with S-250 or S-250E Shelter (Continued)
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
M1037/M1042 SHELTER CARRIER (HMMWV) WITH
LIGHTWEIGHT MULTIPURPOSE SHELTER (LMS)
2-7. The M1037/M1042 shelter carrier with lightweight multipurpose shelter is rigged for dual-point
sling load using the following procedures:
z
Applicability. The following items in Table 2-6 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-6. M1037/M1042 Shelter Carrier with Lightweight Multipurpose Shelter
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
Digital Group Multiplexer (DGM) AN/TRC-138C
9,020
10K
40/3
CH-47
High Frequency Communications Central AN/TRC-120
8,765
15K
40/3
CH-53
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) with one additional apex fitting.
─ Chain length, part number 38850-00053-101, from a 10,000-pound capacity sling set
(4 each).
─ Coupling link, part number 5779125, from a 10,000-pound capacity sling set (4 each).
OR
Multileg sling set (15,000-pound capacity) with one additional web ring.
Additional chain lengths from the multileg sling set (8 each).
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-15
Chapter 2
Additional coupling links from the multileg sling set (8 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
Padding, cellulose.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 10,000-, 25,000- or 40,000-pound capacity sling set with coupling links. Connect
two additional chain lengths to each chain on the 15,000-pound multileg sling set chain
with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Secure all equipment inside the shelter with tape, nylon cord, or lashings; close and
secure shelter vents and door with nylon cord or tape.
─ Secure environmental control unit cover with duct tape.
─ Disconnect the power cord from the rear panel and secure it to the rear platform with
Type III nylon cord. Lower the power panel door and secure the door.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Install the lift provisions on the outer ends of the rear bumper.
─ Remove the upper antenna mounting bracket if installed.
Rigging.
(USMC - CH-53) Rig the load according to the steps in Figure 2-6 and using the
link counts in Table 2-6. (US ARMY - CH-47) Rig the load according to the steps in Figure
2-7 and using the link counts in Table 2-6.
Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The forward hookup person places apex fitting 1
onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
M1097/M1097A2 SHELTER CARRIER (HMMWV) WITH
LIGHTWEIGHT MULTIPURPOSE SHELTER (LMS) (USMC)
2-8. The M1097/M1097A2 shelter carrier with lightweight multipurpose shelter is rigged for dual-point
sling load using the following procedures:
z
Applicability. The following items in Table 2-7 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-16
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
Table 2-7. M1097/M1097A2 Shelter Carrier with Lightweight Multipurpose Shelter (USMC)
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
High Mobility Downsized (HMD) Direct Air Support Central
8,420
15K
40/3
CH-53
Operations Central (OC) Group Firefinder AN/TPQ-36 (V) 8
8,620
15K
40/3
CH-53
Integrated Meteorological Systems (IMETS), Block I & II
9,050
15K
40/3
CH-53
Enhanced Position Location Reporting System (EPLRS)
10,000
15K
40/3
CH-53
Downsized Net Control Station (NCS-E(D))
High Frequency Communications Central AN/TRC 120
8,765
15K
40/3
CH-53
Tactical Remote Sensor System (TRSS) Sensor Mobile
7,685
15K
40/3
CH-53
Monitoring System (SMMS)
Meteorological Measuring Set AN/TMQ-41
7,770
15K
40/3
CH-53
Air Defense Communications Platform AN/MSQ-124
10,000
15K
40/3
CH-53
Marine Expeditionary Force Intelligence Analysis System S1
9,194
15K
40/3
CH-53
Marine Expeditionary Force Intelligence Analysis System S2
9,126
15K
40/3
CH-53
Tactical Control and Analysis Center
9,300
15K
40/3
CH-53
Communications Data Link Systems on M1097A2
9,900
15K
40/3
CH53
z
Materials. The following materials are required to rig this load:
Multileg sling set (15,000-pound capacity) with one additional web ring.
─ Additional chain lengths from the multileg sling set (8 each).
─ Additional coupling links from the multileg sling set (8 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
Felt sheet, cattle hair, Type IV, 1/2-inch or suitable padding.
Padding, cellulose.
z
Personnel. Two persons can prepare and rig this load in 15 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting two additional chain lengths to each chain on the
multileg sling set chain with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together with Type
III nylon cord.
─ Secure all equipment inside the shelter with tape, nylon cord, or lashings; close and secure
shelter vents and door with nylon cord or tape.
─ Secure environmental control unit cover with duct tape.
─ Disconnect the power cord from the rear panel and secure it to the rear platform with Type III
nylon cord. Lower the power panel door and secure the door.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings. Secure the
doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and battery caps for
proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using the
securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Install the lift provisions on the outer ends of the rear bumper.
─ Remove the upper antenna mounting bracket if installed.
Rigging. Rig the load according to the steps in Figure 2-6.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-17
Chapter 2
Hookup. The hookup team stands on top of the shelter. The static wand person discharges the static
electricity with the static wand. The forward hookup person places apex fitting 1 onto the forward cargo
hook. The aft hookup person places apex fitting 2 onto the aft cargo hook. The hookup team then
carefully dismounts the vehicle and remains close to the load as the helicopter removes slack from the
sling legs. When successful hookup is assured, the hookup team quickly exits the area underneath the
helicopter to the designated rendezvous point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the shelter.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes through the
hood. Place the correct link from Table 2-7 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the shelter.
4. Loop the chain end of the sling legs through their respective lift provisions located on the outer ends of
the rear bumper. Place the correct link from Table 2-7 in the grab hook.
5. Wrap the rear slings with padding where they contact the shelter sides.
6. Secure all excess chain with tape or Type III nylon cord.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-6. M1097/M1097A2 Shelter Carrier with Lightweight Multipurpose Shelter (USMC)
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-18
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
M1097/M1097A2 SHELTER CARRIER (HMMWV) WITH
LIGHTWEIGHT MULTIPURPOSE SHELTER (LMS) USING
SHELTER LIFT RINGS AS SLING GUIDES
2-9. The M1097/M1097A2 shelter carrier with lightweight multipurpose shelter using shelter lift rings as
sling guides is rigged for dual-point sling load using the following procedures:
z
Applicability. The following items in Table 2-8 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-8. Lightweight Multipurpose Shelter
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
Operations Central (OC) Group Firefinder AN/TPQ-36 (V)
8,620
10K
40/3
CH-47
8
Integrated Meteorological Systems (IMETS), Block I & II
9,050
10K
40/3
CH-47
Digital Group Multiplexer (DGM) AN/TRC-138C
9,020
10K
40/3
CH-47
High Mobility Digital Group Multiplexer Assemblage
9,100
10K
40/3
CH-47
(HMDA) AN/TRC-173B, AN/TRC-174B, AN/TRC-175B
Marine Expeditionary Force Intelligence Analysis System
9,220
10K
40/3
CH-47
(IAS)
Spare Equipment and Maintenance Shelter AN/TSQ-190
9,220
10K
40/3
CH-47
(V) 1
Meteorological Measuring Set AN/TMQ-41
8,200
10K
40/3
CH-47
Forward Area Air Defense Command Control System
7,561
10K
40/3
CH-47
AN/TSQ-183
Forward Area Air Defense Command Control System
7,297
10K
40/3
CH-47
AN/TSQ-184
Mobile Radio Broadcasting Subsystem (MRBS)
9,746
10K
40/3
CH-47
Mobile Radio (MR) Cargo Vehicle
9,907
10K
40/3
CH-47
Mobile Television Broadcasting Subsystem (MTBS)
9,295
10K
40/3
CH-47
Mobile Television (MT) Cargo Vehicle
9,637
10K
40/3
CH-47
Mission Vehicle for the Common Ground Station, Joint
10,300
25K
32/5
CH-47
Surveillance Target Attack Radar (JSTAR) System
Advanced Field Artillery Tactical Data Systems
8,882
10K
40/3
CH-47
(AFATADS), System #1, RWS with a CHS-2 AN/GYG-
3(V)1
z
Materials. The following materials are required to rig this load:
Sling set (10,000-pound capacity) with one additional apex fitting.
─ Chain length, part number 38850-00053-101, from a 10,000-pound capacity sling set
(4 each).
─ Coupling link, part number 5779125, from a 10,000-pound capacity sling set (4 each).
OR
Sling set (25,000-pound capacity) with one additional apex fitting.
─ Chain length, part number 38850-00053-102, from a 25,000-pound capacity sling set
(4 each).
─ Coupling link, part number 5779135, from a 25,000-pound capacity sling set (4 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-19
Chapter 2
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 10,000- or 25,000-pound capacity sling set with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
─ Secure all equipment inside the shelter with tape, nylon cord, or lashings; close and
secure shelter vents and door with nylon cord or tape.
─ Secure environmental control unit cover with duct tape.
─ Disconnect the power cord from the rear panel and secure it to the rear platform with
Type III nylon cord. Lower the power panel door and secure the door.
─ Secure all equipment and cargo inside the vehicle with tape, nylon cord, or lashings.
Secure the doors shut if installed.
─ Ensure the fuel tank is not over 3/4 full. Inspect fuel tank cap, oil filler cap, and
battery caps for proper installation.
─ Engage the vehicle parking brake and put the transmission in neutral.
─ Ensure the front wheels are pointed straight ahead. Tie down the steering wheel, using
the securing device attached under the dashboard.
─ Tape the windshield in an X formation from corner to corner.
─ Install the lift provisions on the outer ends of the rear bumper.
─ Tie the shelter's rear lift rings together across the top of the shelter with Type III nylon
cord. Place the rings in the up position facing the front of the vehicle.
Rigging. Rig the load according to the steps in Figure 2-7.
Note: The procedures shown in Figure 2-6 may be used as alternate rigging procedures provided
there is no interference between the sling leg chains and antenna mounts or other items on the
vehicle. When using the procedures in Figure 2-6, use the link counts from Table 2-8.
Hookup. The hookup team stands on top of the shelter. The static wand person discharges
the static electricity with the static wand. The forward hookup person places apex fitting 1
onto the forward cargo hook. The aft hookup person places apex fitting 2 onto the aft cargo
hook. The hookup team then carefully dismounts the vehicle and remains close to the load as
the helicopter removes slack from the sling legs. When successful hookup is assured, the
hookup team quickly exits the area underneath the helicopter to the designated rendezvous
point.
Derigging. Derigging is the reverse of the preparation and rigging procedures.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-20
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
Certified Dual-Point Rigging Procedures for Wheeled Vehicles
RIGGING STEPS
1. Connect 2 sling legs to apex fitting number 1. Position the apex fitting on top of the shelter.
2. Loop the chain end of the sling legs through their respective lift provisions that protrudes
through the hood. Place the correct link from Table 2-8 in the grab hook.
3. Connect 2 sling legs to apex fitting number 2. Position the apex fitting on top of the shelter.
4. Route the right sling leg chain through the right rear shelter lift ring to the right rear lift
provision located on the outer end of the rear bumper. Continue routing the chain back
through the right rear shelter lift ring and back to the grab hook. Place the correct link from
Table 2-8 in the grab hook. Repeat the procedure using the left sling leg chain, left rear
shelter lift ring, and the left lift provision located on the end of the bumper.
5. Remove all the excess slack between the lift provisions and the shelter lift rings.
6. Secure all excess chain with tape or Type III nylon cord.
7. Cluster and tie (breakaway technique) the sling legs in each sling set on top of the vehicle to
prevent entanglement during hookup and lift-off.
Figure 2-7. LMS Shelter Mounted on M1097 /M1097A2 Using Shelter Lift Rings as Sling
Guides
CAUTION
Do not use the lift shackles located near the center of the rear bumper
for sling load lift provisions.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
20 February 2009
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
2-21
Chapter 2
M1113 TRUCK, UTILITY, EXPANDED CAPACITY (HMMWV) WITH
LIGHTWEIGHT MULTIPURPOSE SHELTER (LMS) USING
SHELTER LIFT RINGS AS SLING GUIDES
2-10. The M1113 truck, utility, expanded capacity with lightweight multipurpose shelter using shelter lift
rings as sling guides is rigged for dual-point sling load using the following procedures:
z
Applicability. The following items in Table 2-9 are certified for the helicopter(s) listed in the
following table by the US Army Natick Soldier Center:
Table 2-9. M1113 Truck with Lightweight Multipurpose Shelter using Shelter Lift Rings as
Sling Guides
Nomenclature
Max
Sling
Link Count
Type of
Weight
Set
Front/Rear
Aircraft
(Pounds)
AN/TTC-56 Single Shelter Switch (SSS)
11,500
25K
32/5
CH-47
Digital Topographic Support System-Light (DTSS-L),
11,500
25K
32/5
CH-47
AN/TYQ-67 (V)1
Integrated System Control (ISYSCON), AN/TYQ-76-B,
11,500
25K
32/5
CH-47
(V)1, (V)2, and Degraded configuration
Shadow Tactical Unmanned Aerial Vehicle (TUAV), Air
11,500
25K
32/5
CH-47
Vehicle Transport (AVT)
Shadow Tactical Unmanned Aerial Vehicle (TUAV),
11,500
25K
32/5
CH-47
Ground Control Station (GCS)
Shadow Tactical Unmanned Aerial Vehicle (TUAV),
11,500
25K
32/5
CH-47
Maintenance Section Multifunctional (MSM)
Common Ground Station, Joint Surveillance Target
11,500
25K
32/5
CH-47
Attack Radar (JSTAR) System (V)2
Trojan Spirit Lite (V)3 Support Vehicle, AN/TSQ-226(V)3
11,500
25K
32/5
CH-47
Tactical Airspace Integration System (TAIS), AN/TSQ-
11,500
25K
32/5
CH-47
221
Meteorological Measuring System-Profiler, AN/TMQ-52
11,500
25K
32/5
CH-47
IMETS AN/TMQ-40C and AN/TMQ-40D
11,500
25K
32/5
CH-47
z
Materials. The following materials are required to rig this load:
Sling set (25,000-pound capacity) with one additional apex fitting.
─ Chain length, part number 38850-00053-102, from a 25,000-pound capacity sling set
(4 each).
─ Coupling link, part number 5779135, from a 25,000-pound capacity sling set (4 each).
Tape, adhesive, pressure-sensitive, 2-inch wide roll.
Cord, nylon, Type III, 550-pound breaking strength.
Webbing, cotton, 1/4-inch, 80-pound breaking strength.
z
Personnel. Two persons can prepare and rig this load in 20 minutes.
z
Procedures. The following procedures apply to this load:
Preparation. Prepare the load using the following steps:
─ Extend the sling leg chains by connecting one additional chain length to each chain on
a 25,000-pound capacity sling set with coupling links.
─ Fold mirrors forward in front of the windshield for added protection and tie together
with Type III nylon cord.
FM 4-20.199/MCRP 4-11.3E, VOL III/NTTP 3-04.13/
2-22
AFMAN 11-223 (I), VOL III/COMDINST M13482.4B
20 February 2009
///////////////////////////////////////
|
|
