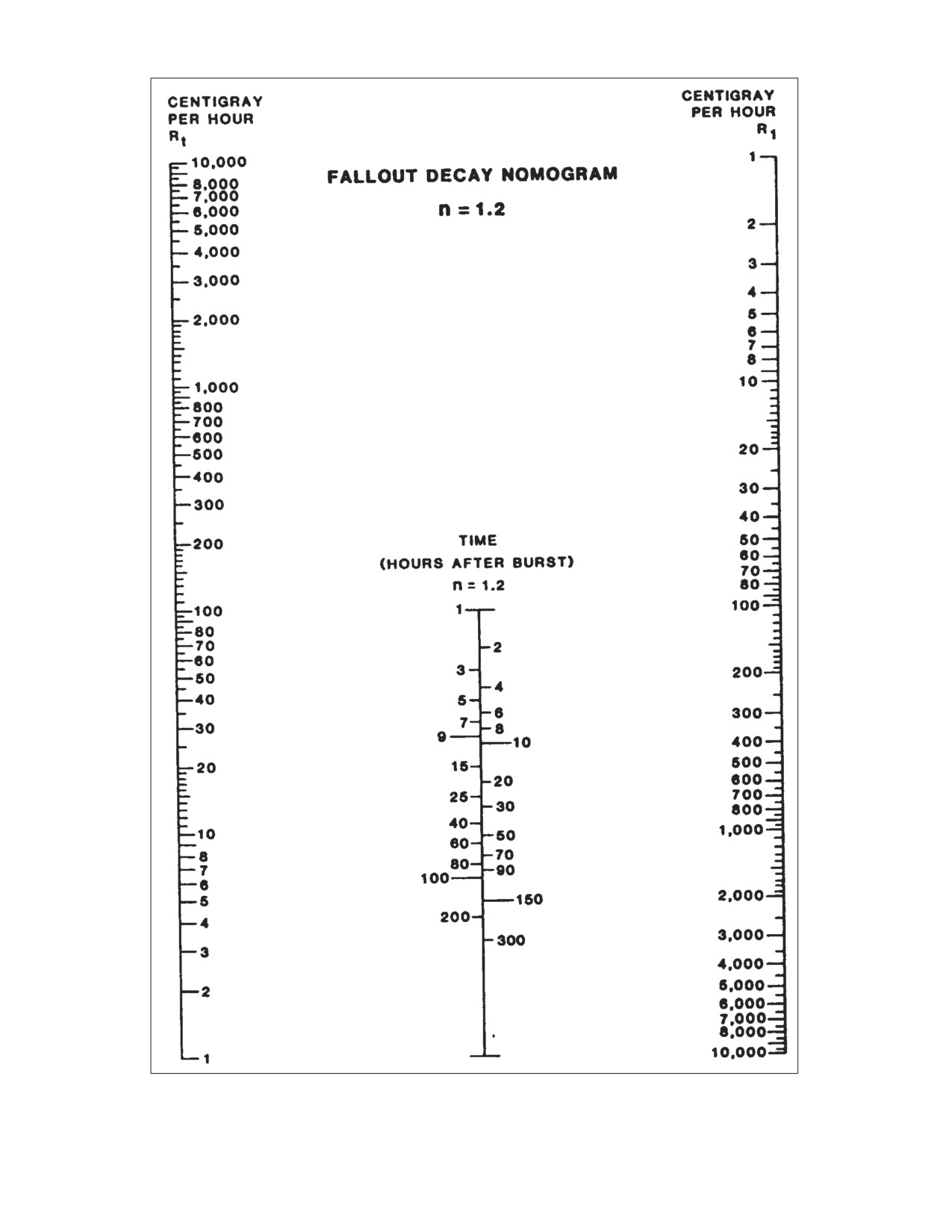

Figure J-19. Fallout Decay Nomogram (n=1.2)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-27

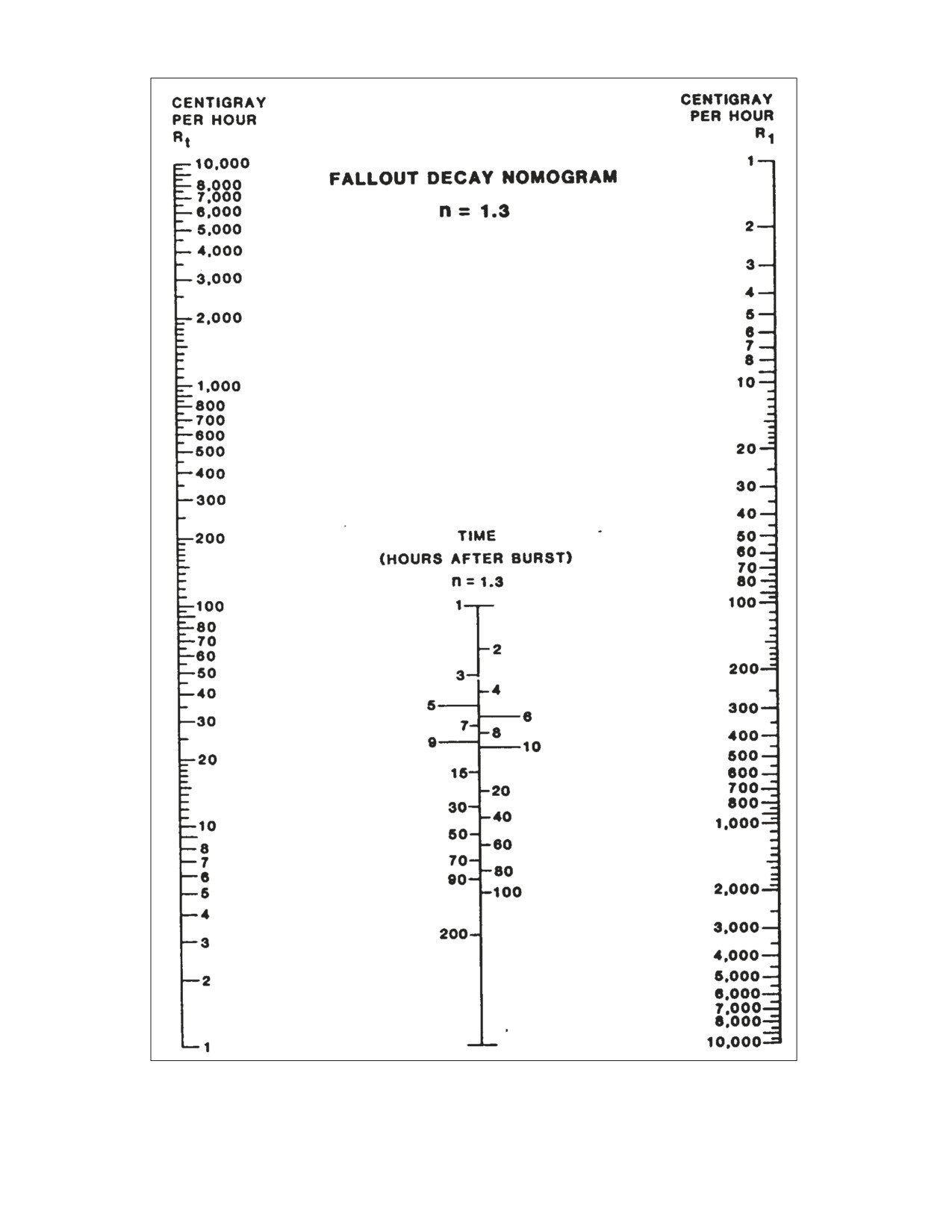

Figure J-20. Fallout Decay Nomogram (n=1.3)
J-28
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

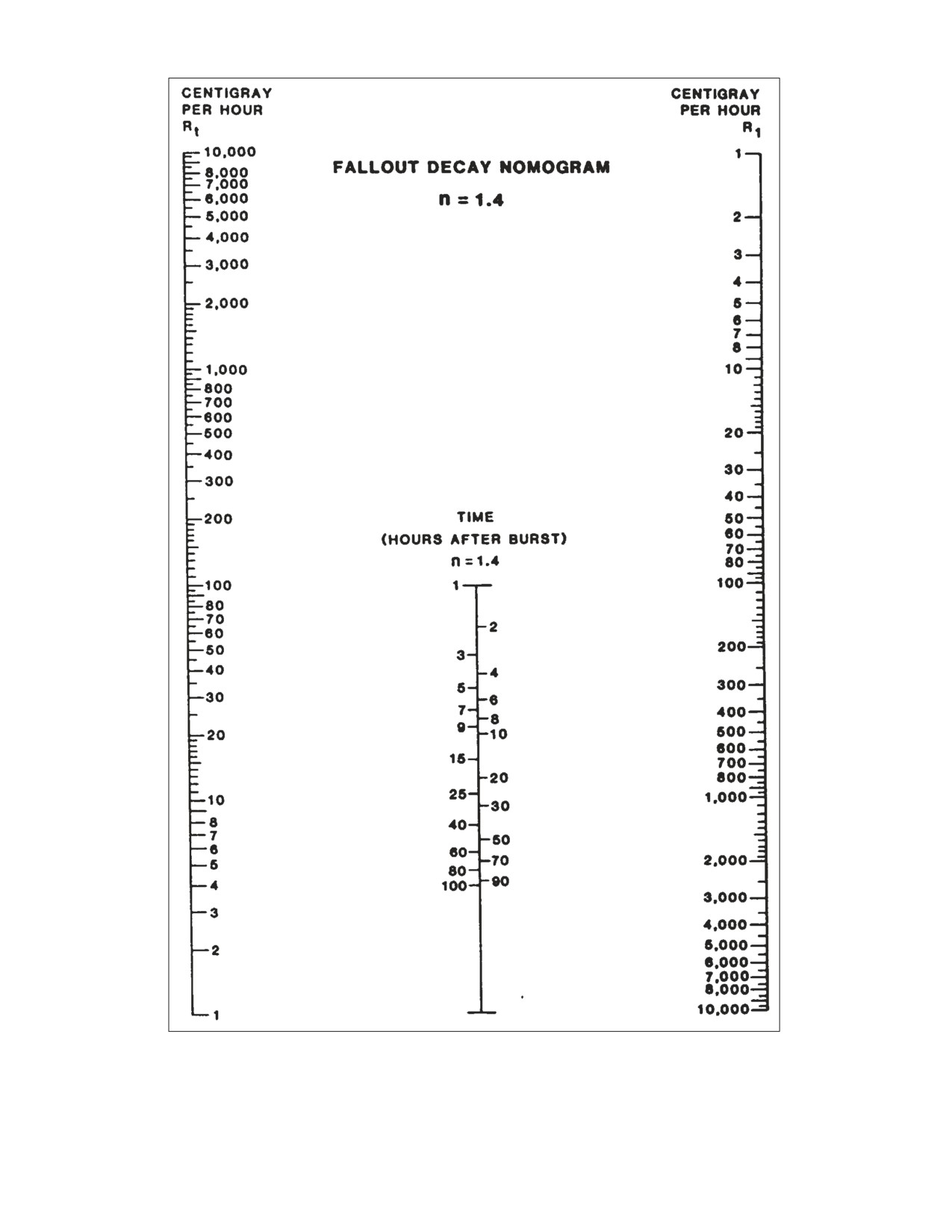

Figure J-21. Fallout Decay Nomogram (n=1.4)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-29

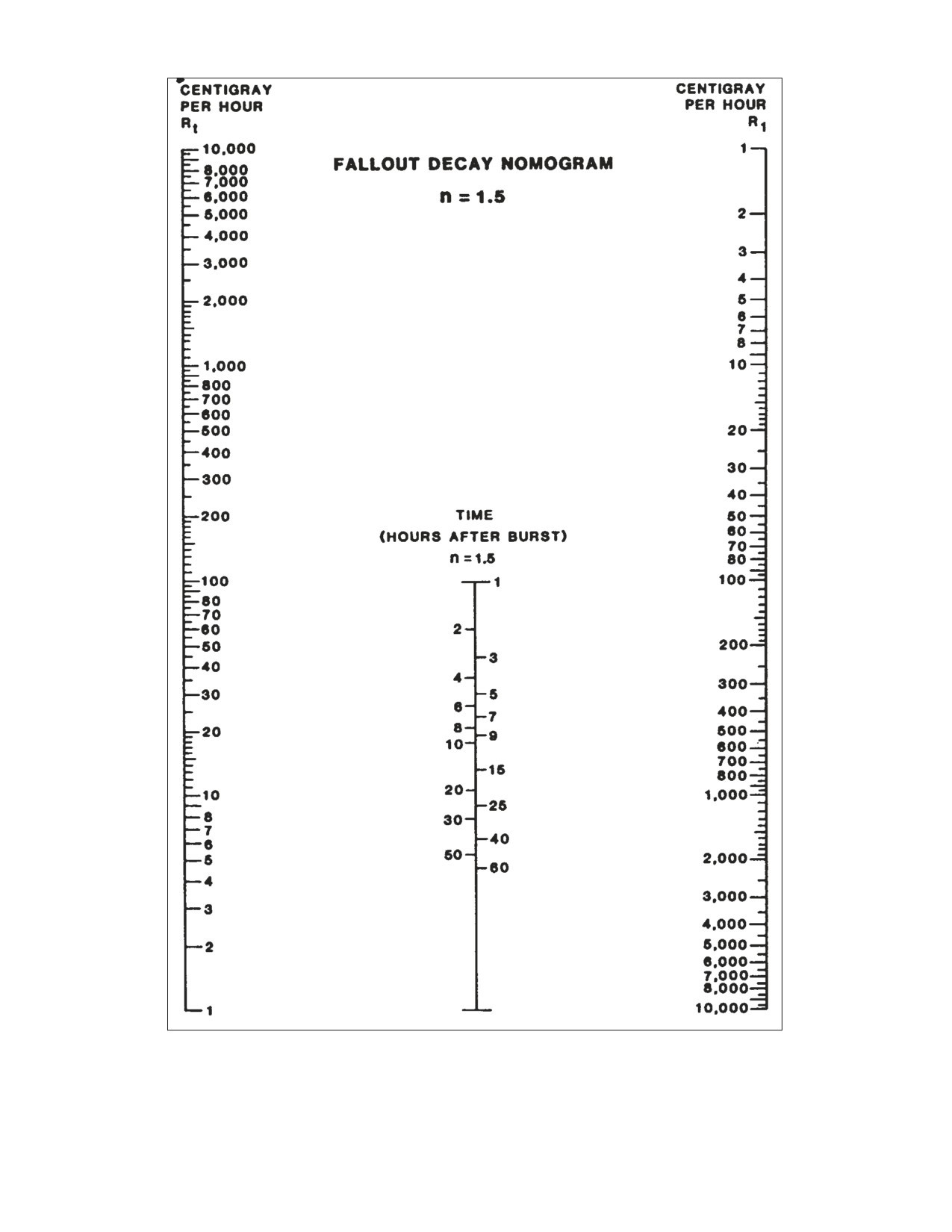

Figure J-22. Fallout Decay Nomogram (n=1.5)
J-30
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

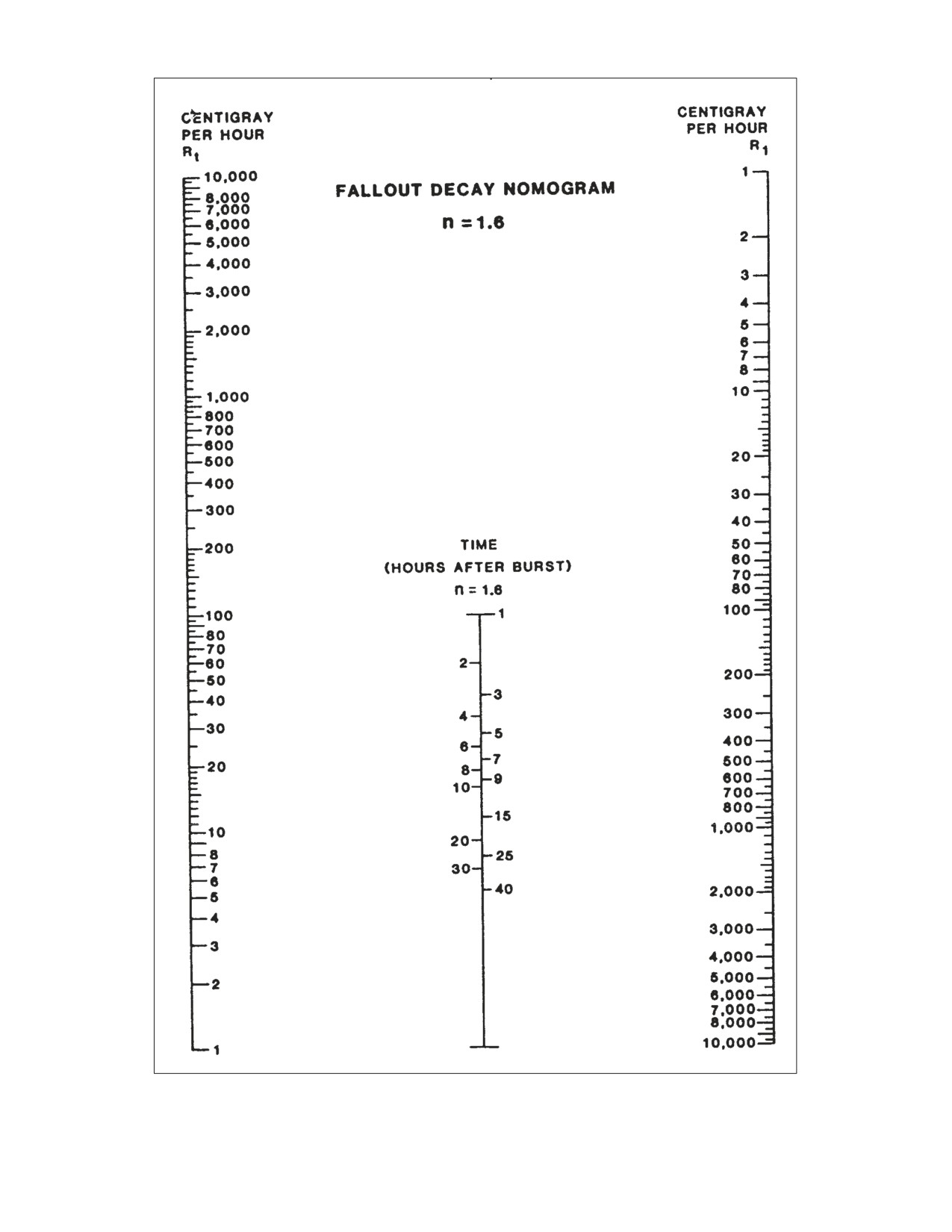

Figure J-23. Fallout Decay Nomogram (n=1.6)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-31

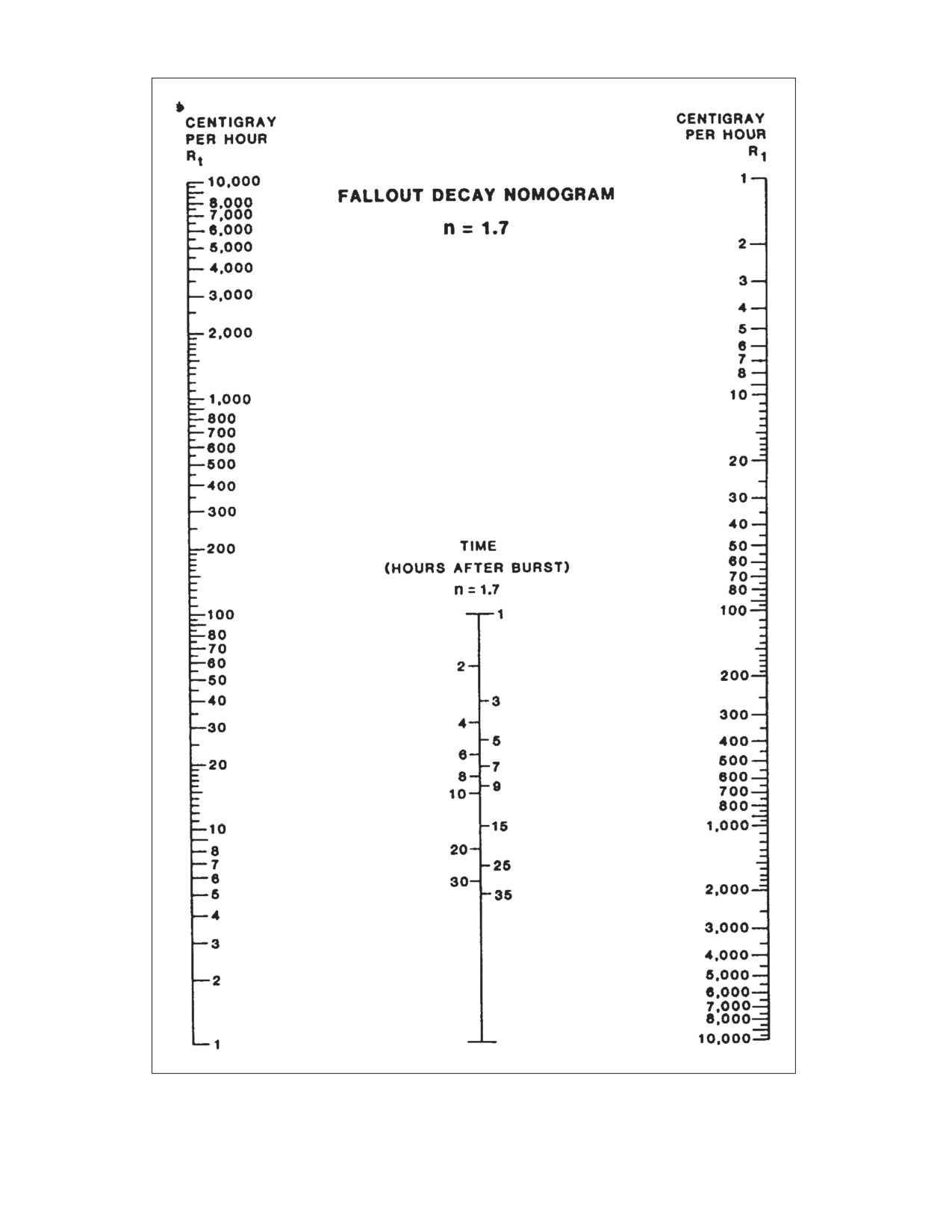

Figure J-24. Fallout Decay Nomogram (n=1.7)
J-32
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

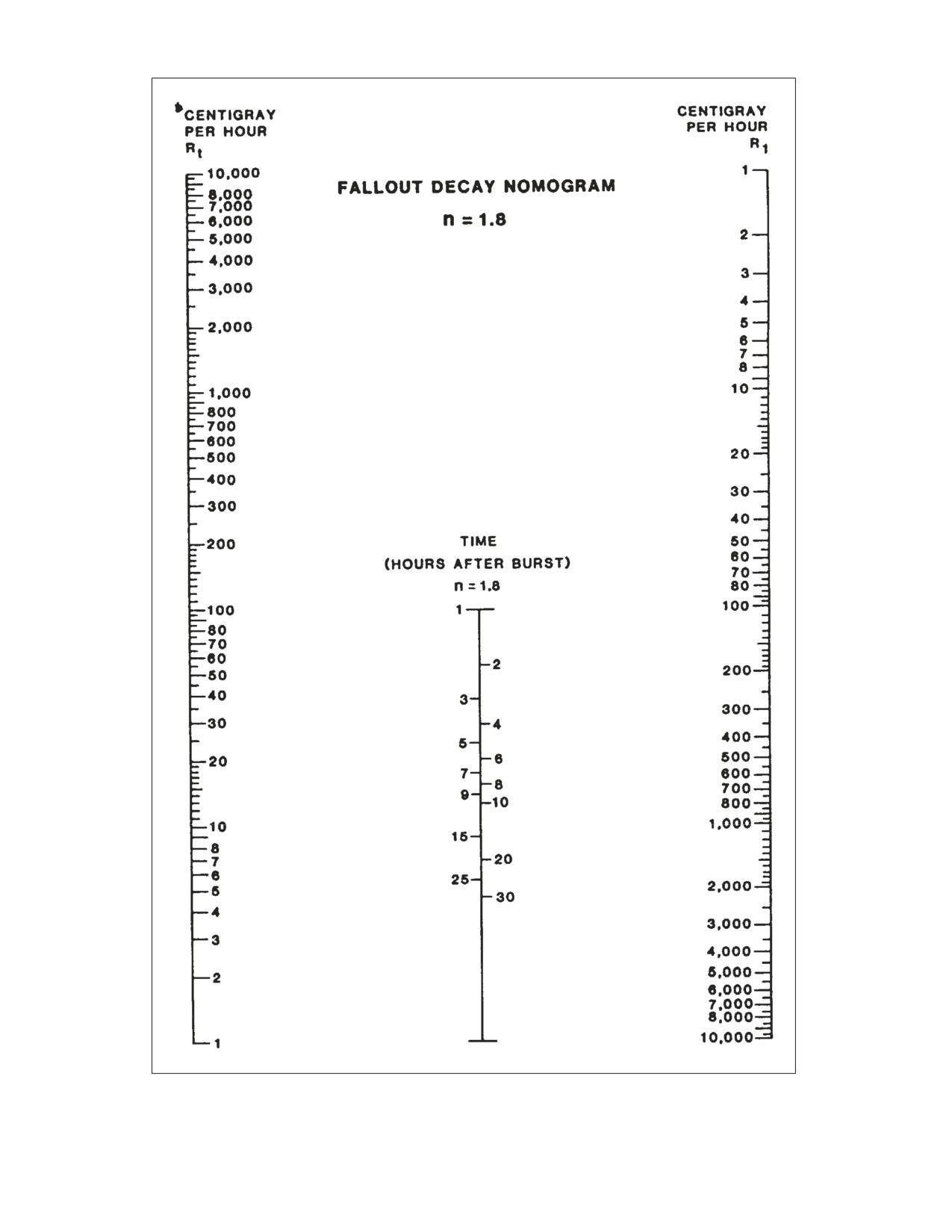

Figure J-25. Fallout Decay Nomogram (n=1.8)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-33

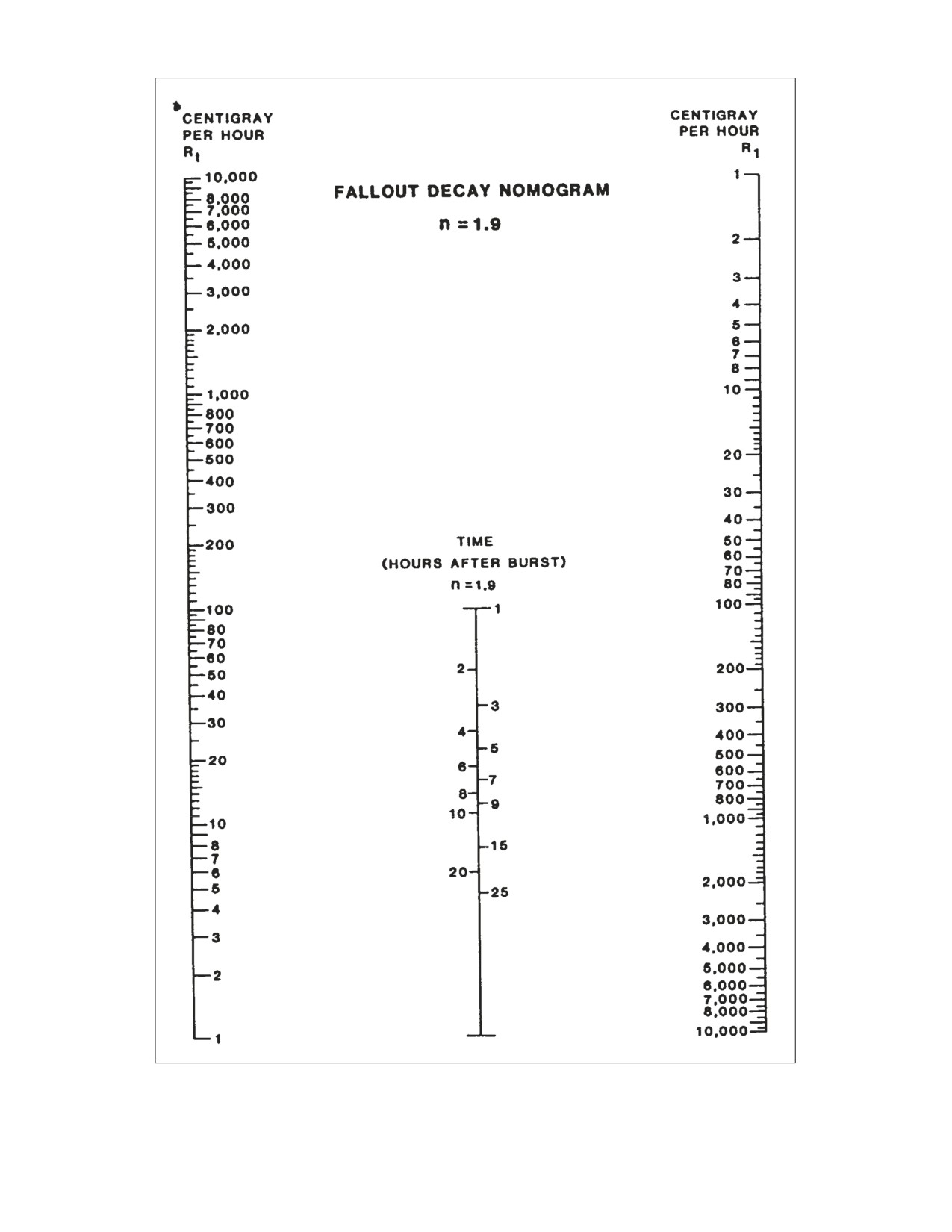

Figure J-26. Fallout Decay Nomogram (n=1.9)
J-34
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

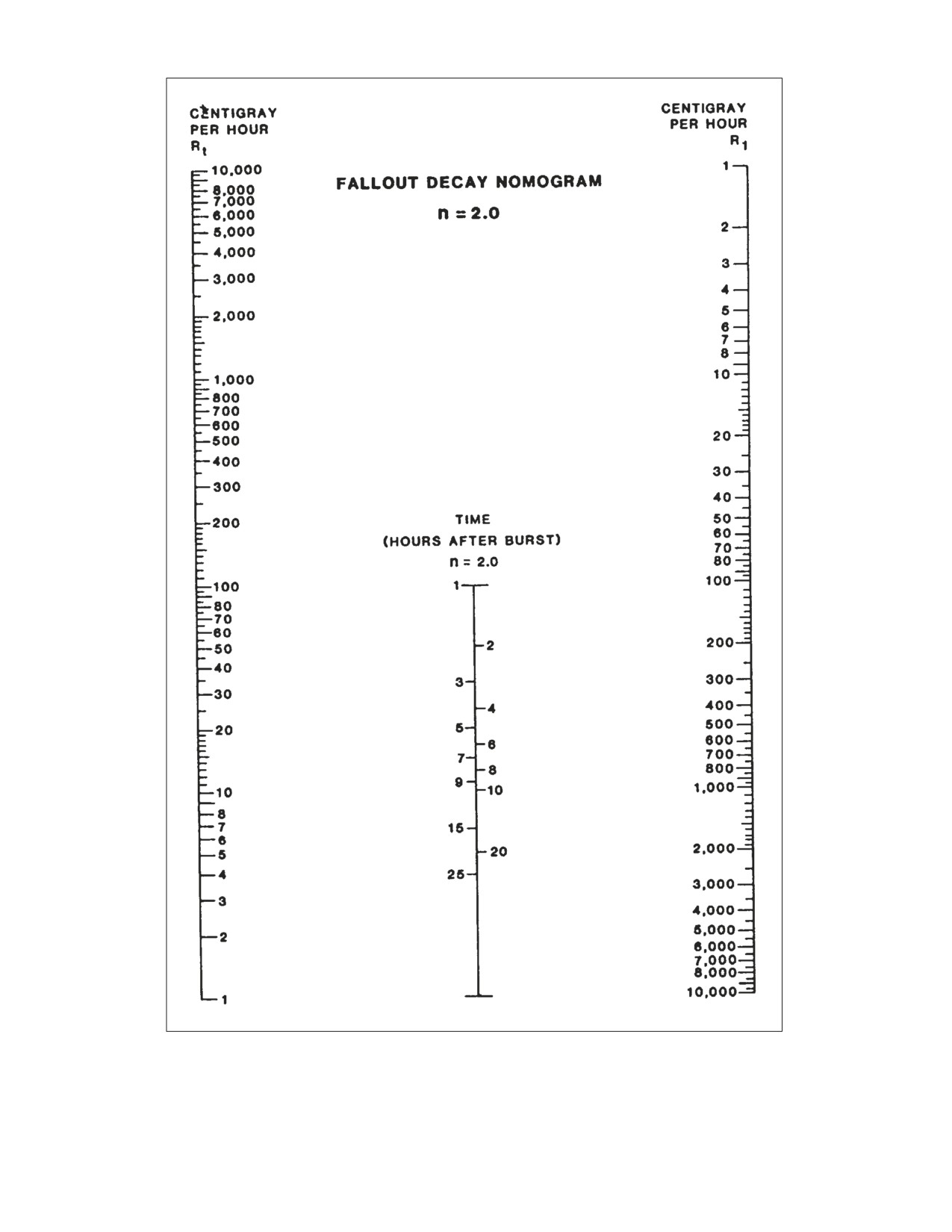

Figure J-27. Fallout Decay Nomogram (n=2.0)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-35

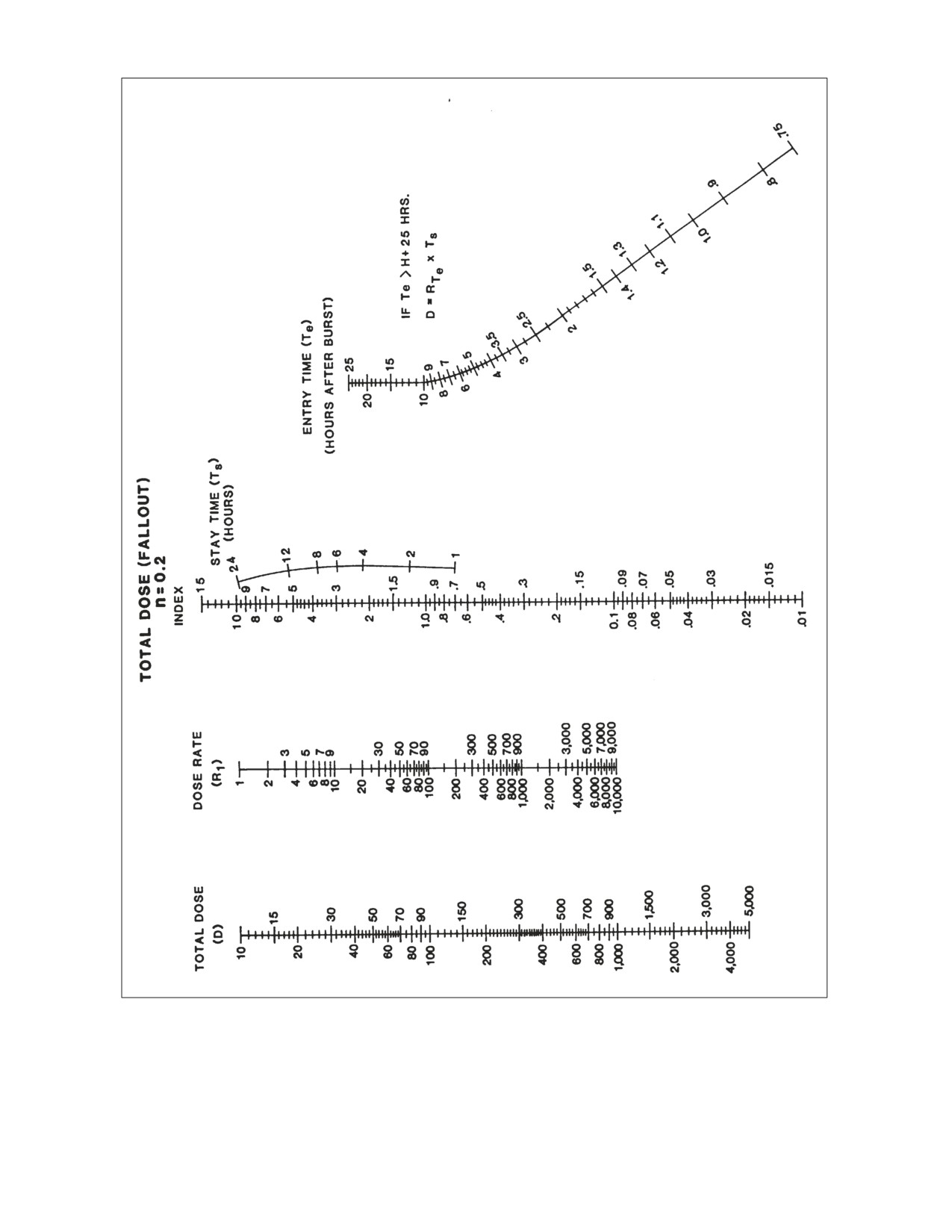

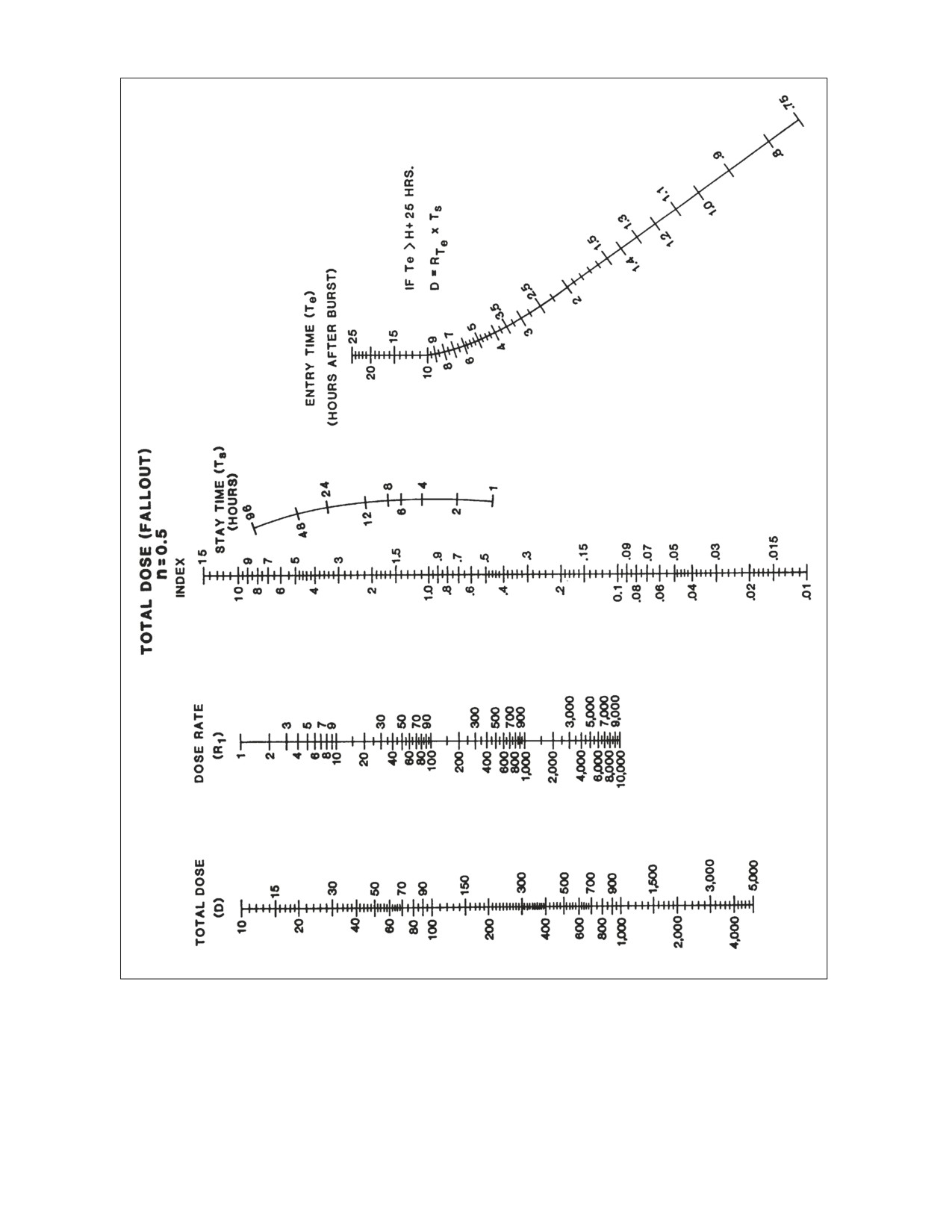

Figure J-28. Total Dose (Fallout) (n=0.2)
J-36
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006
Figure J-29. Total Dose (Fallout) (n=0.3)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-37

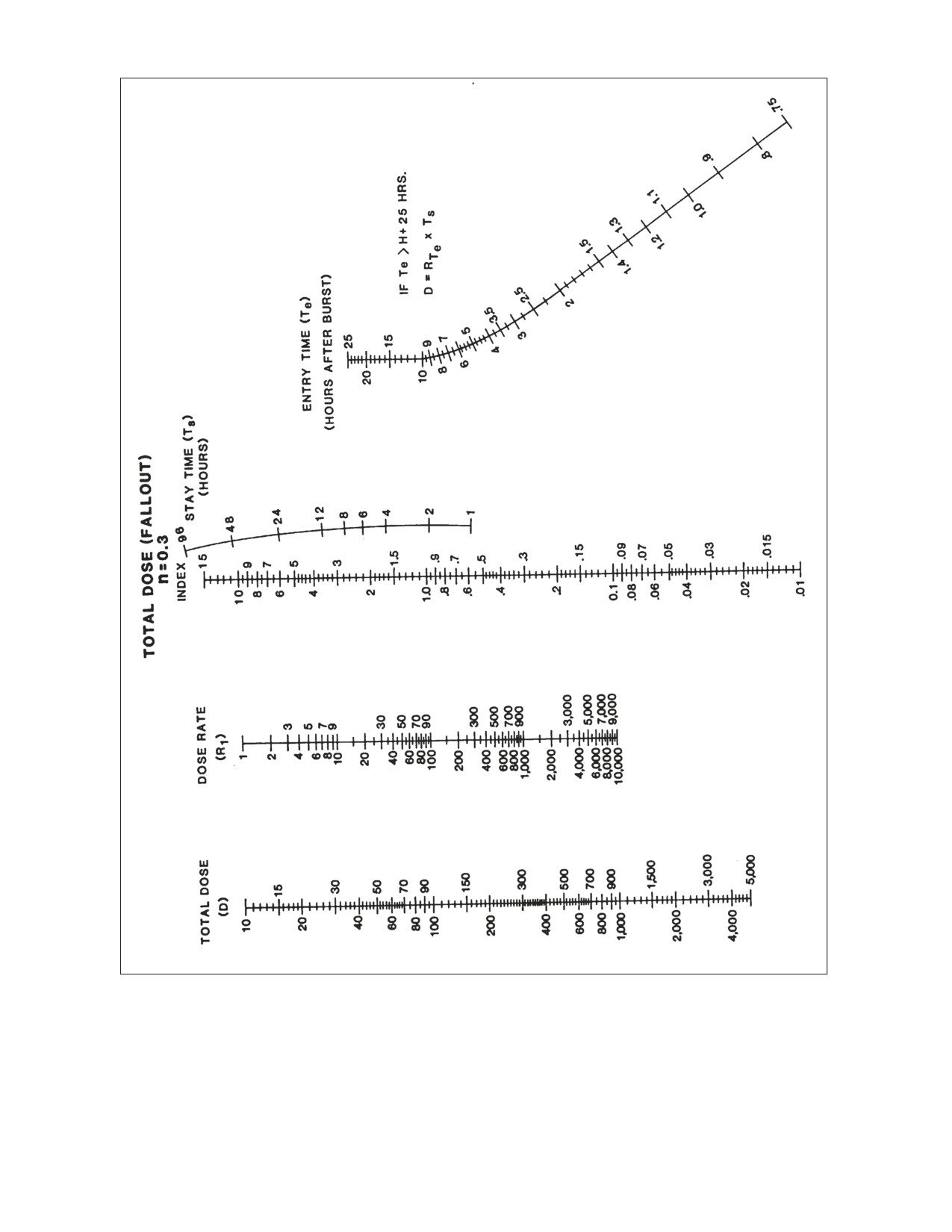

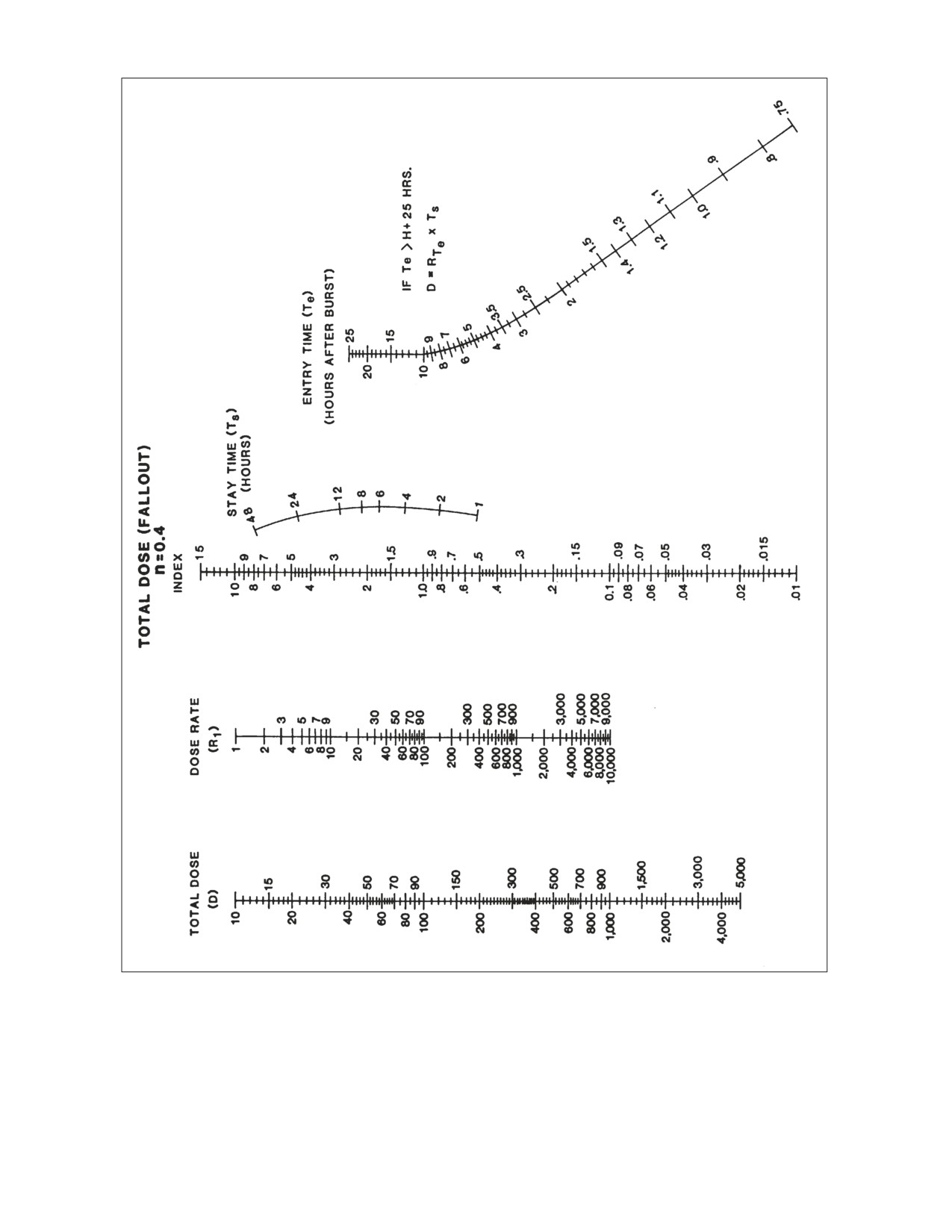

Figure J-30. Total Dose (Fallout) (n=0.4)
J-38
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006
Figure J-31. Total Dose (Fallout) (n=0.5)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-39

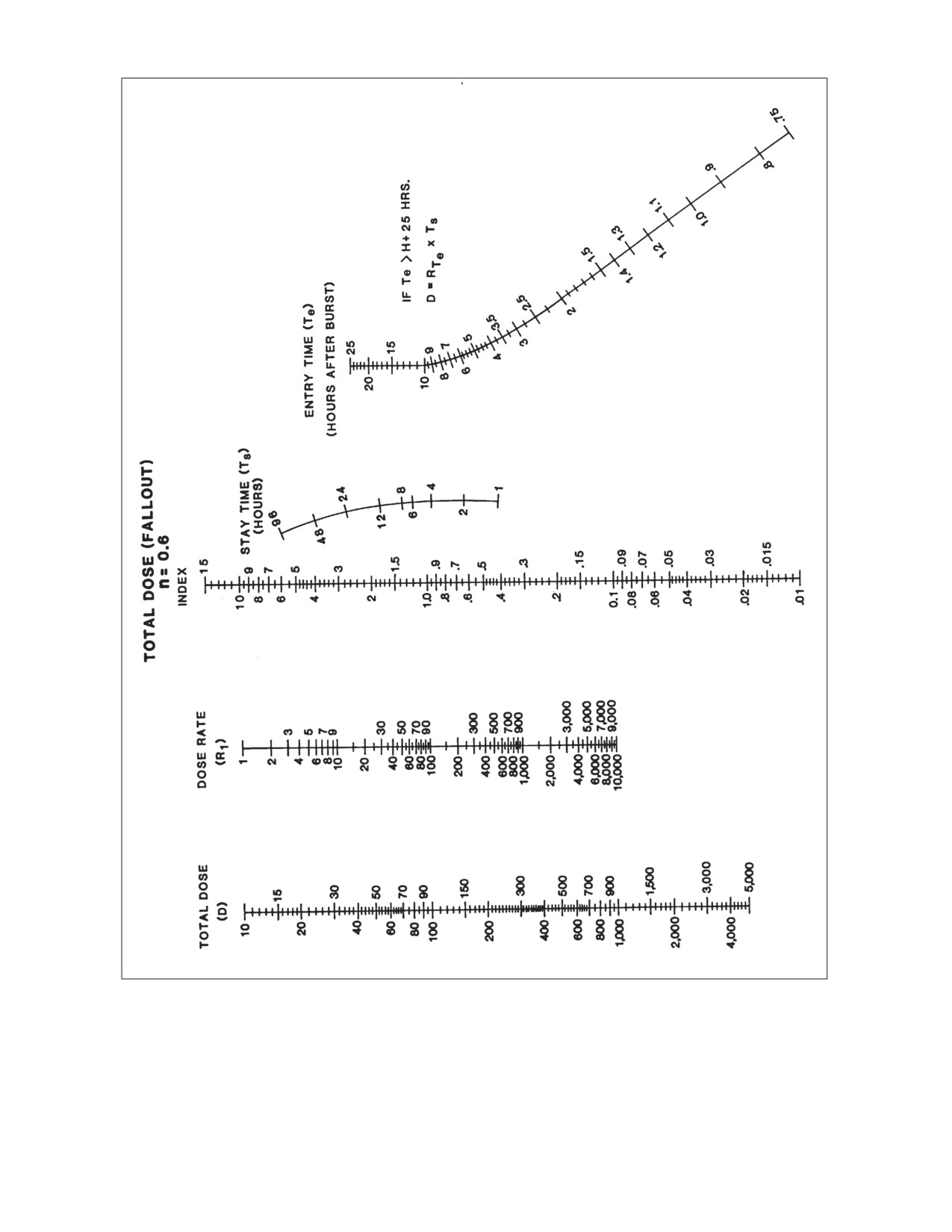

Figure J-32. Total Dose (Fallout) (n=0.6)
J-40
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

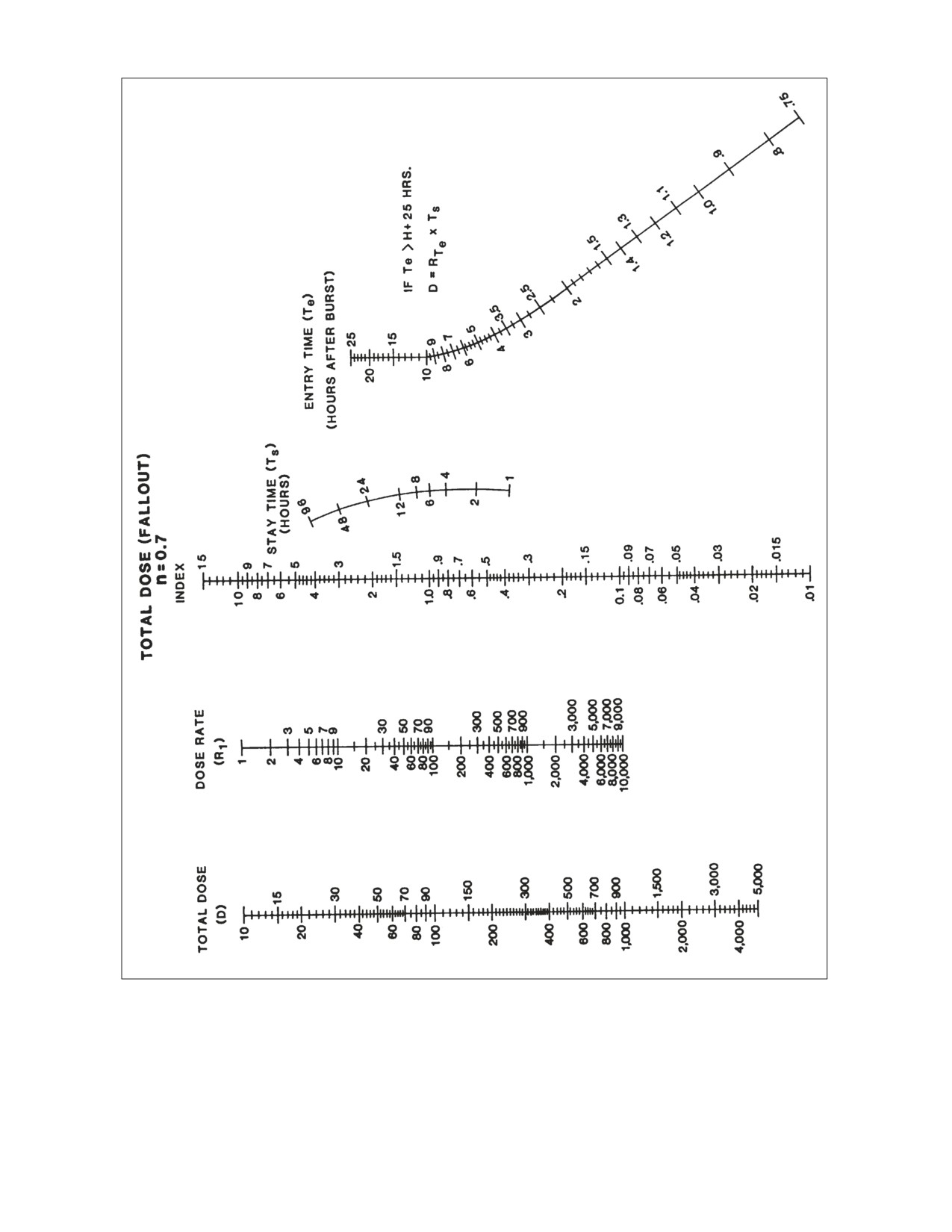

Figure J-33. Total Dose (Fallout) (n=0.7)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-41

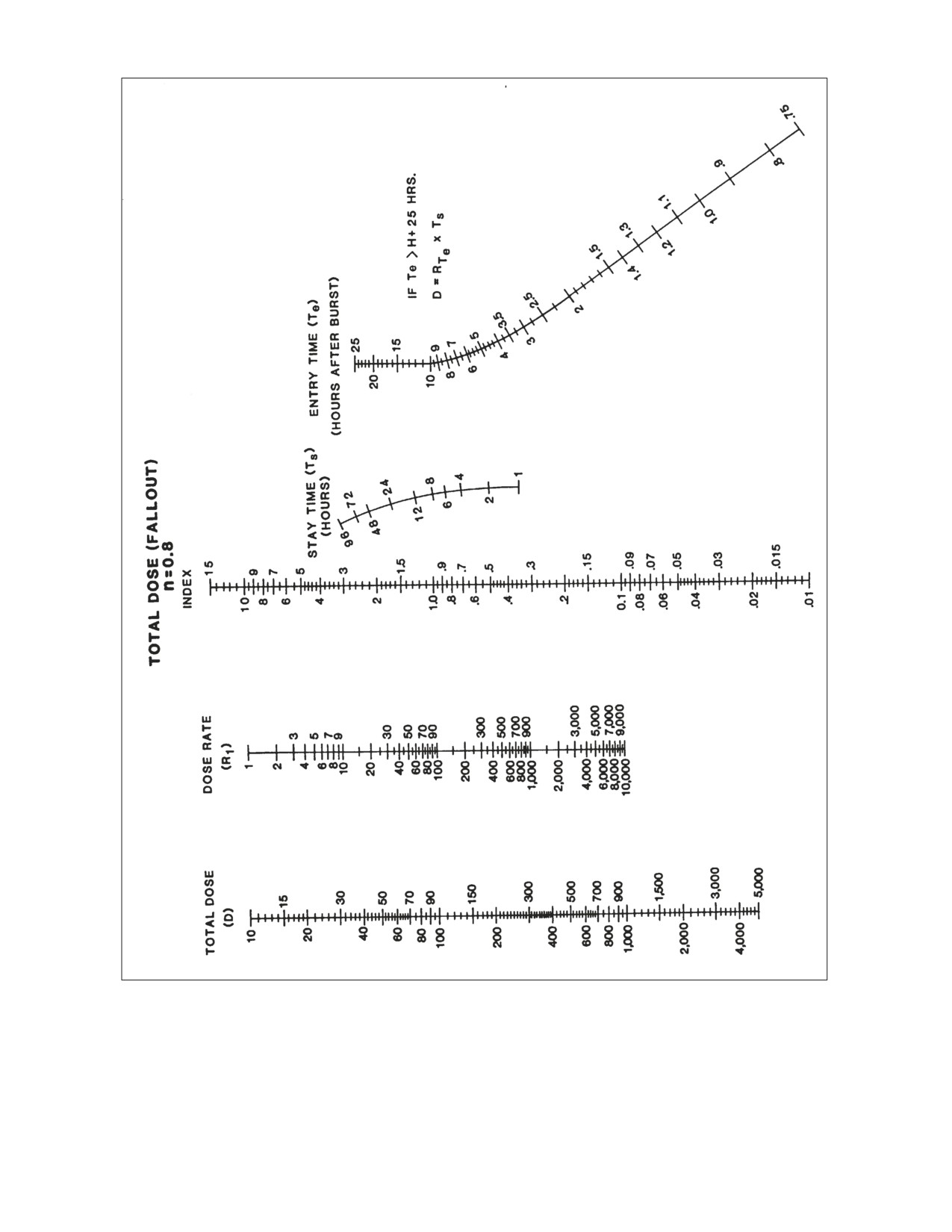

Figure J-34. Total Dose (Fallout) (n=0.8)
J-42
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

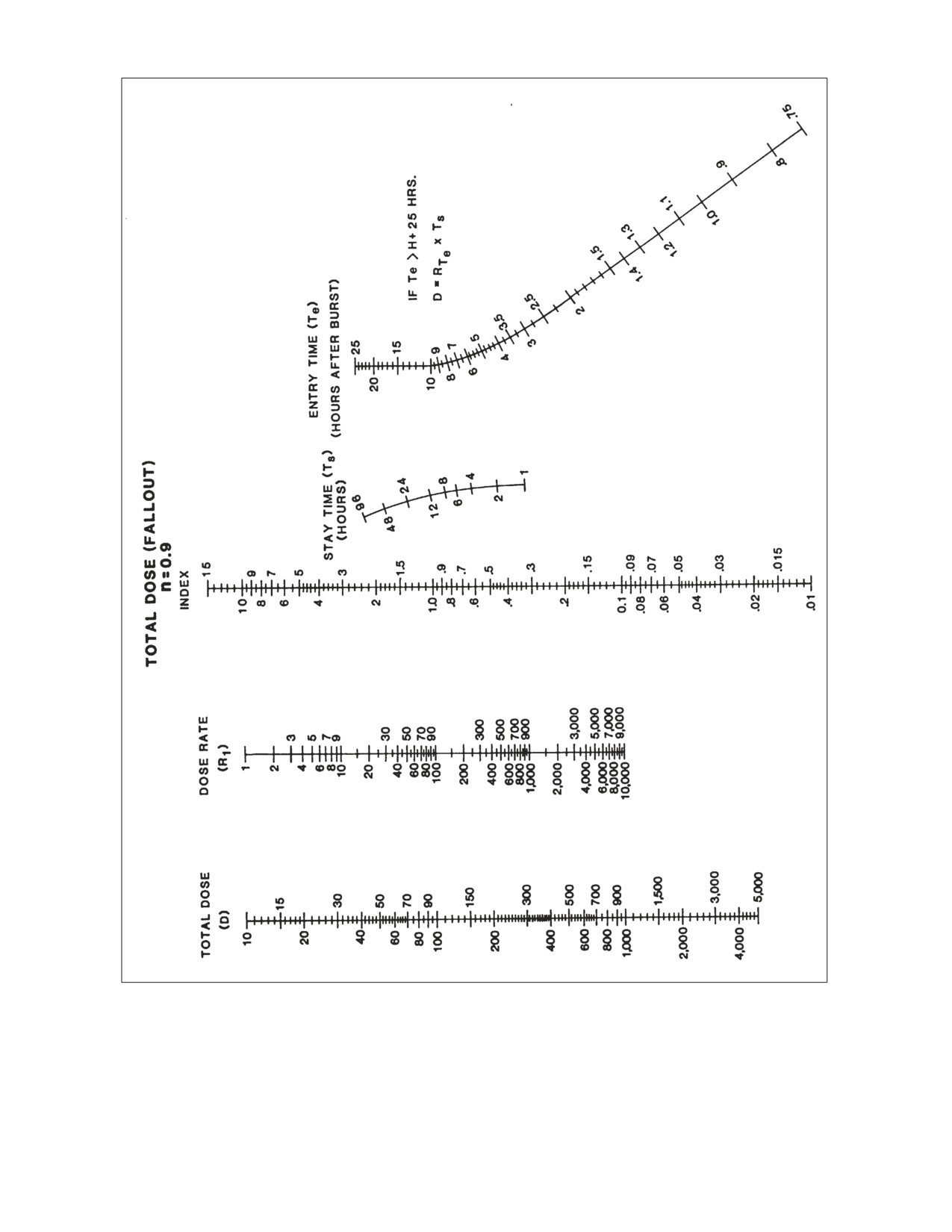

Figure J-35. Total Dose (Fallout) (n=0.9)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-43

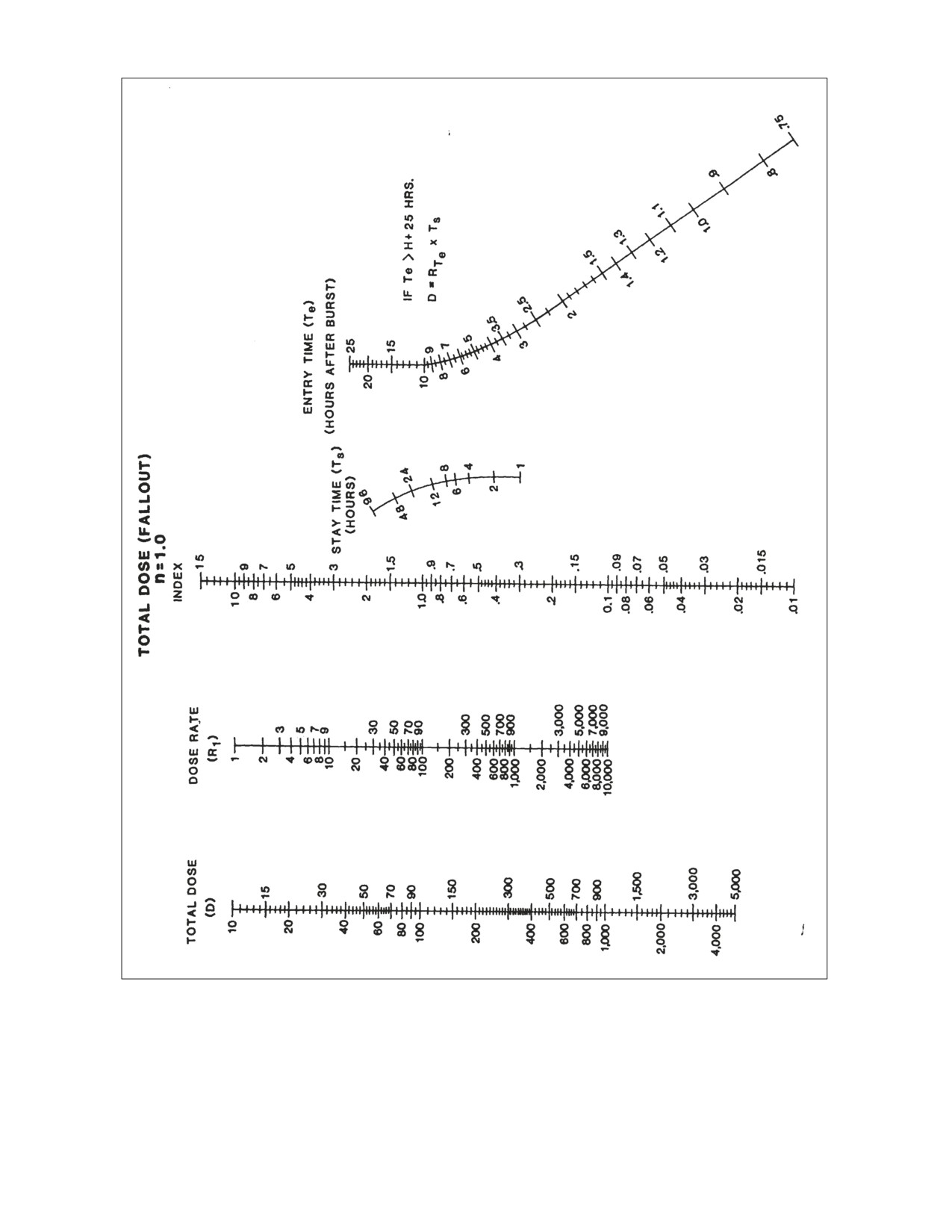

Figure J-36. Total Dose (Fallout) (n=1.0)
J-44
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

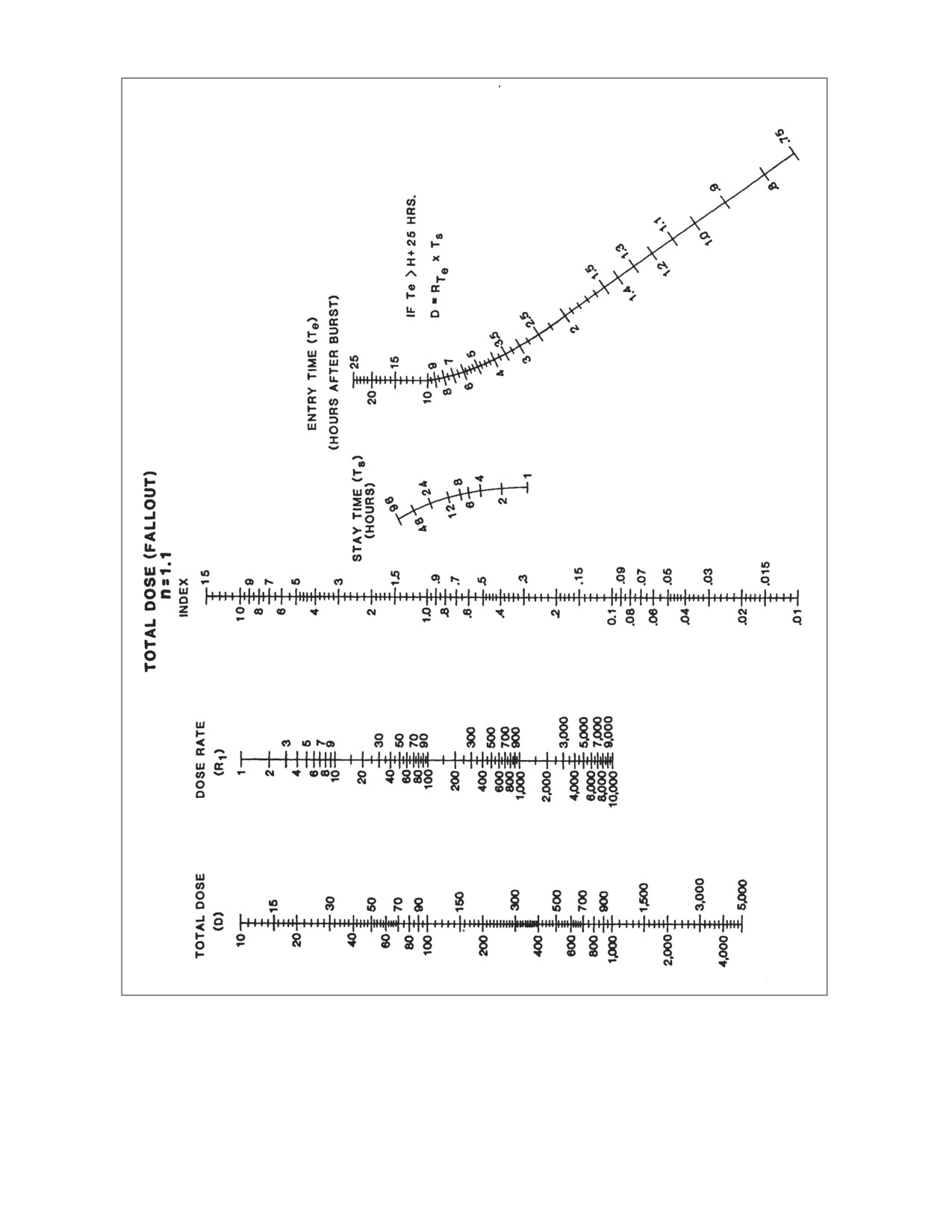

Figure J-37. Total Dose (Fallout) (n=1.1)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-45
Figure J-38. Total Dose (Fallout) (n=1.2)
J-46
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006
Figure J-39. Total Dose (Fallout) (n=1.3)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-47

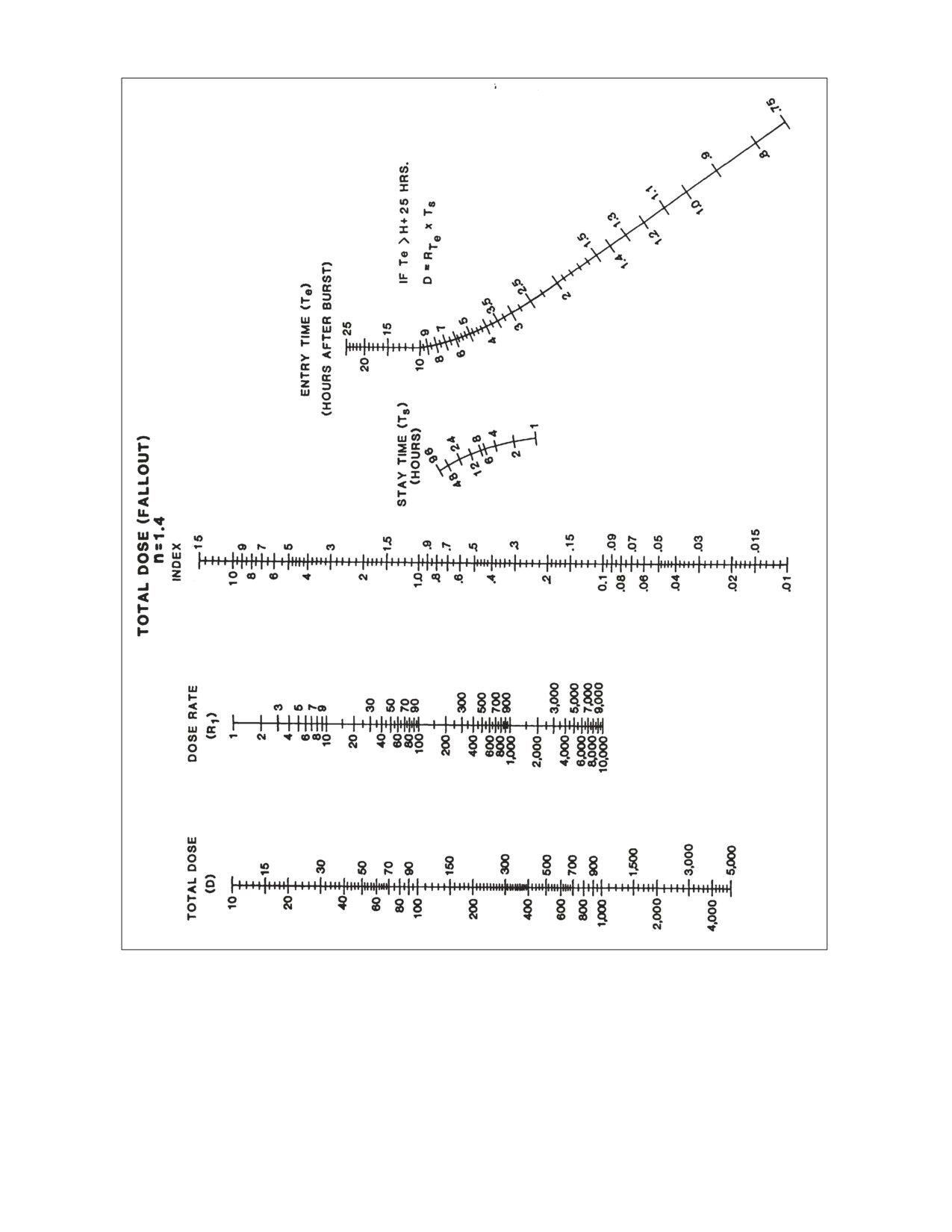

Figure J-40. Total Dose (Fallout) (n=1.4)
J-48
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

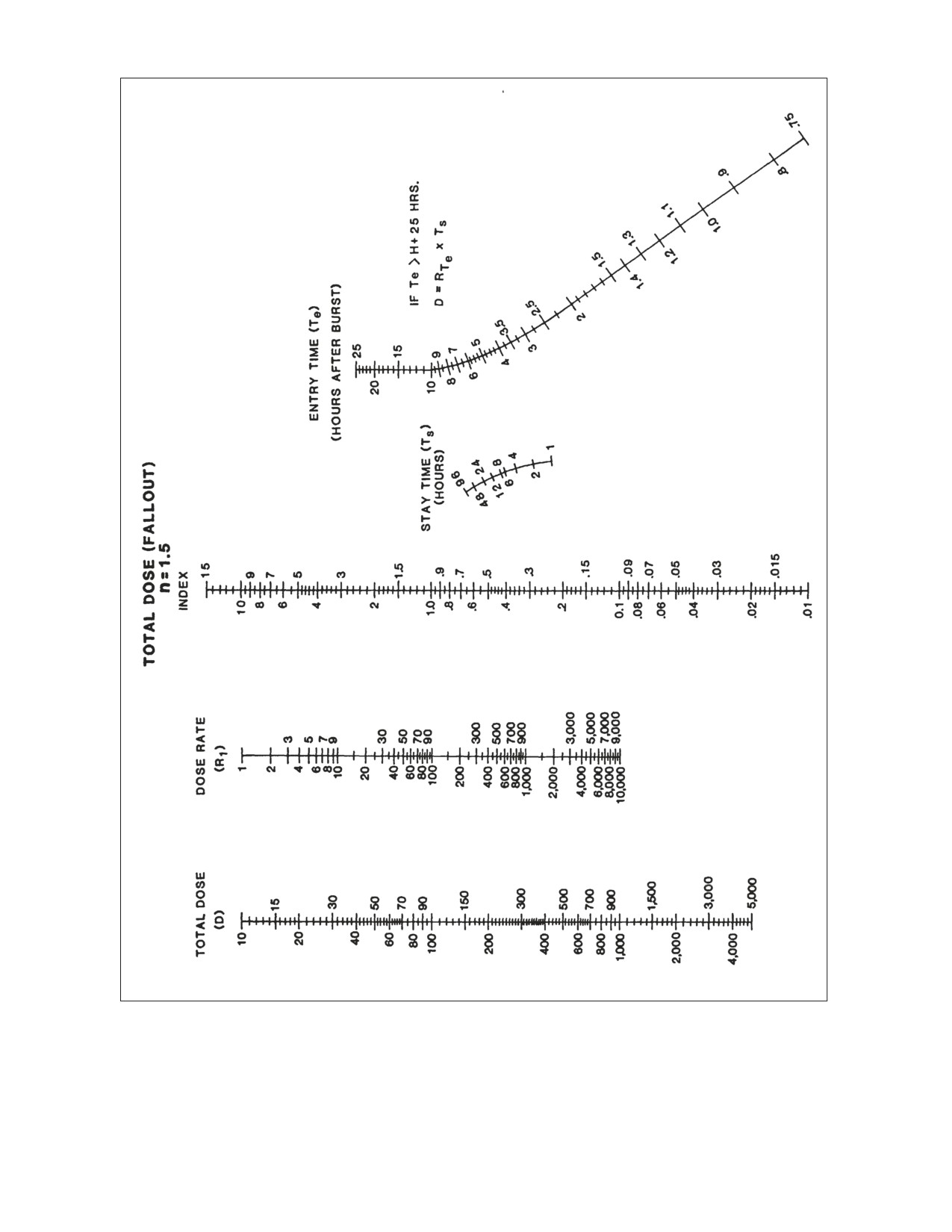

Figure J-41. Total Dose (Fallout) (n=1.5)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-49

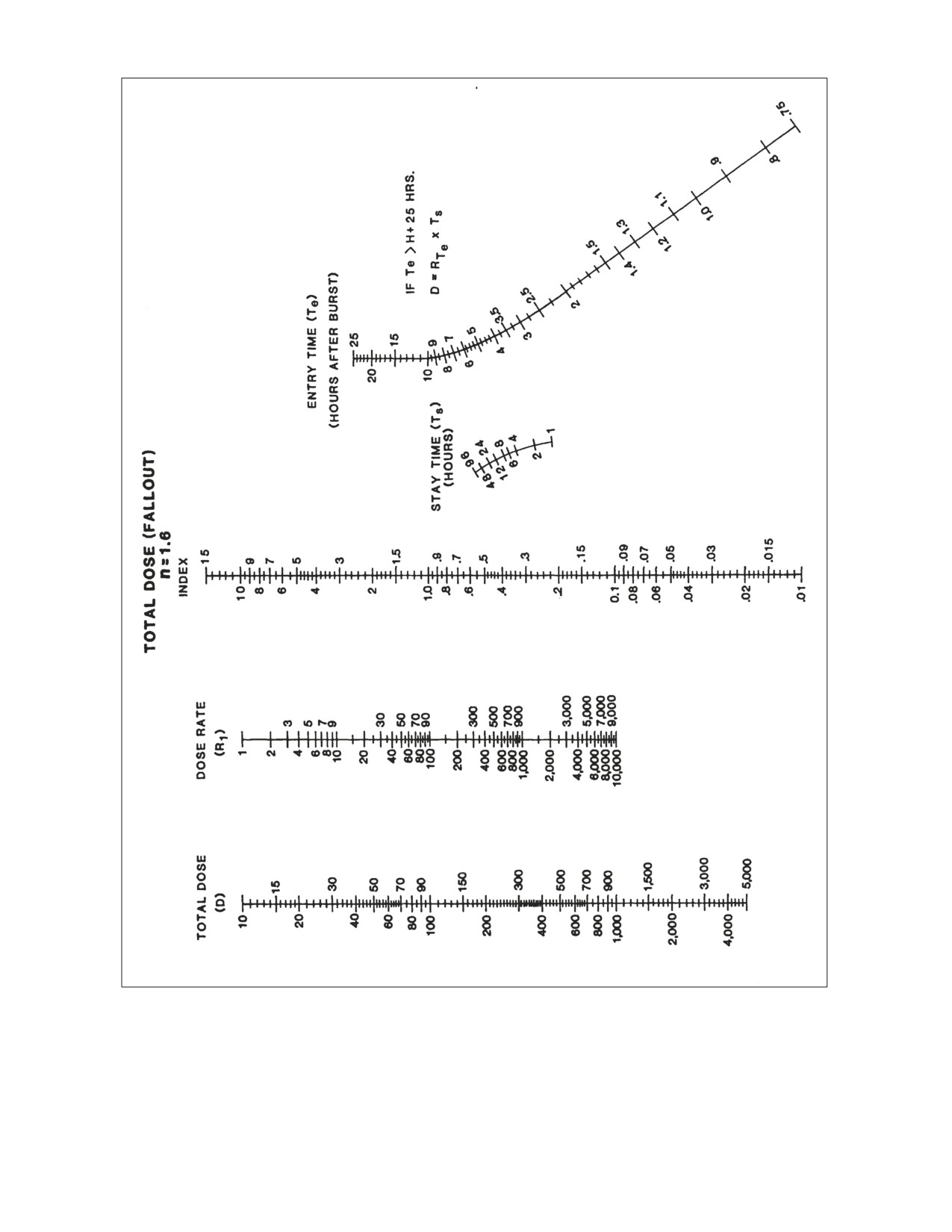

Figure J-42. Total Dose (Fallout) (n=1.6)
J-50
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

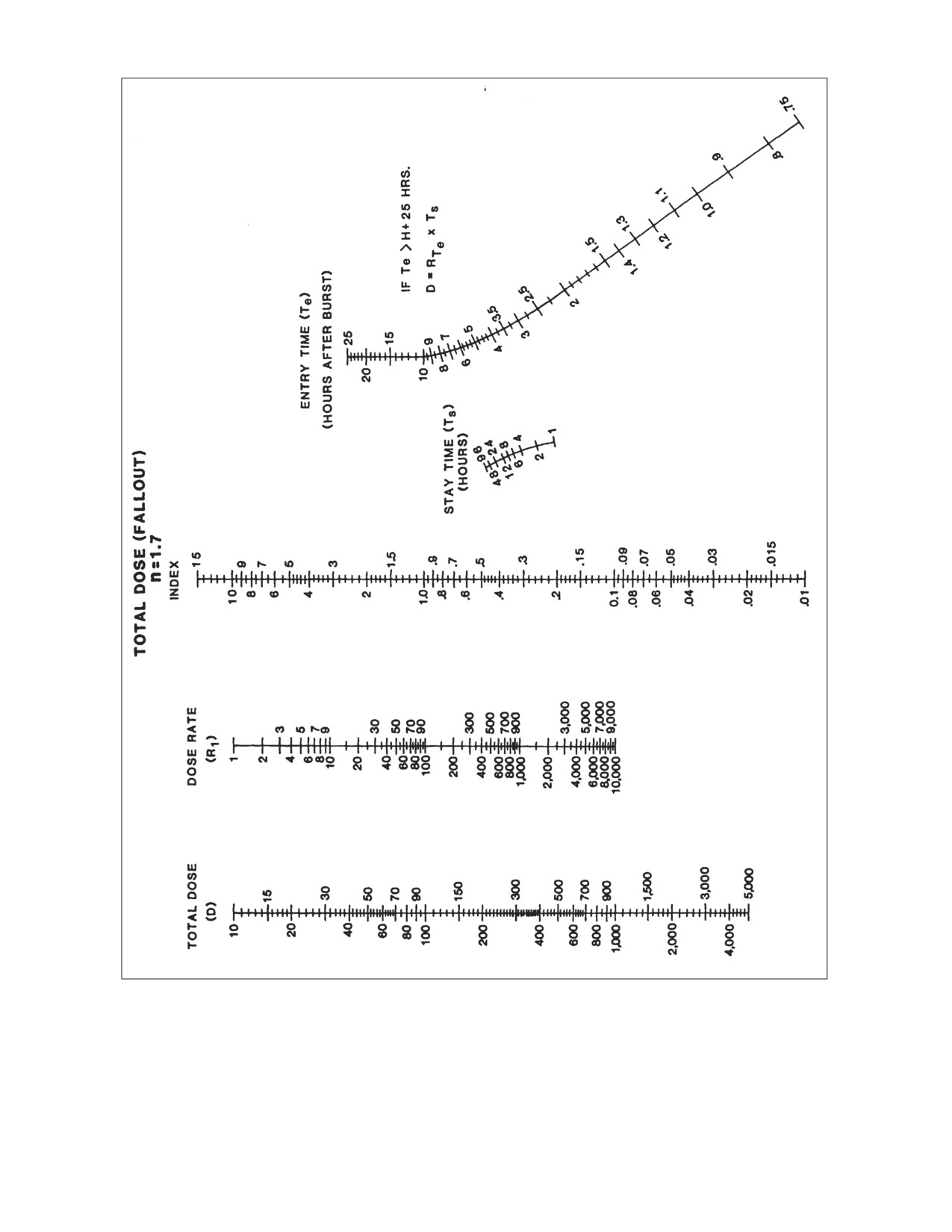

Figure J-43. Total Dose (Fallout) (n=1.7)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-51

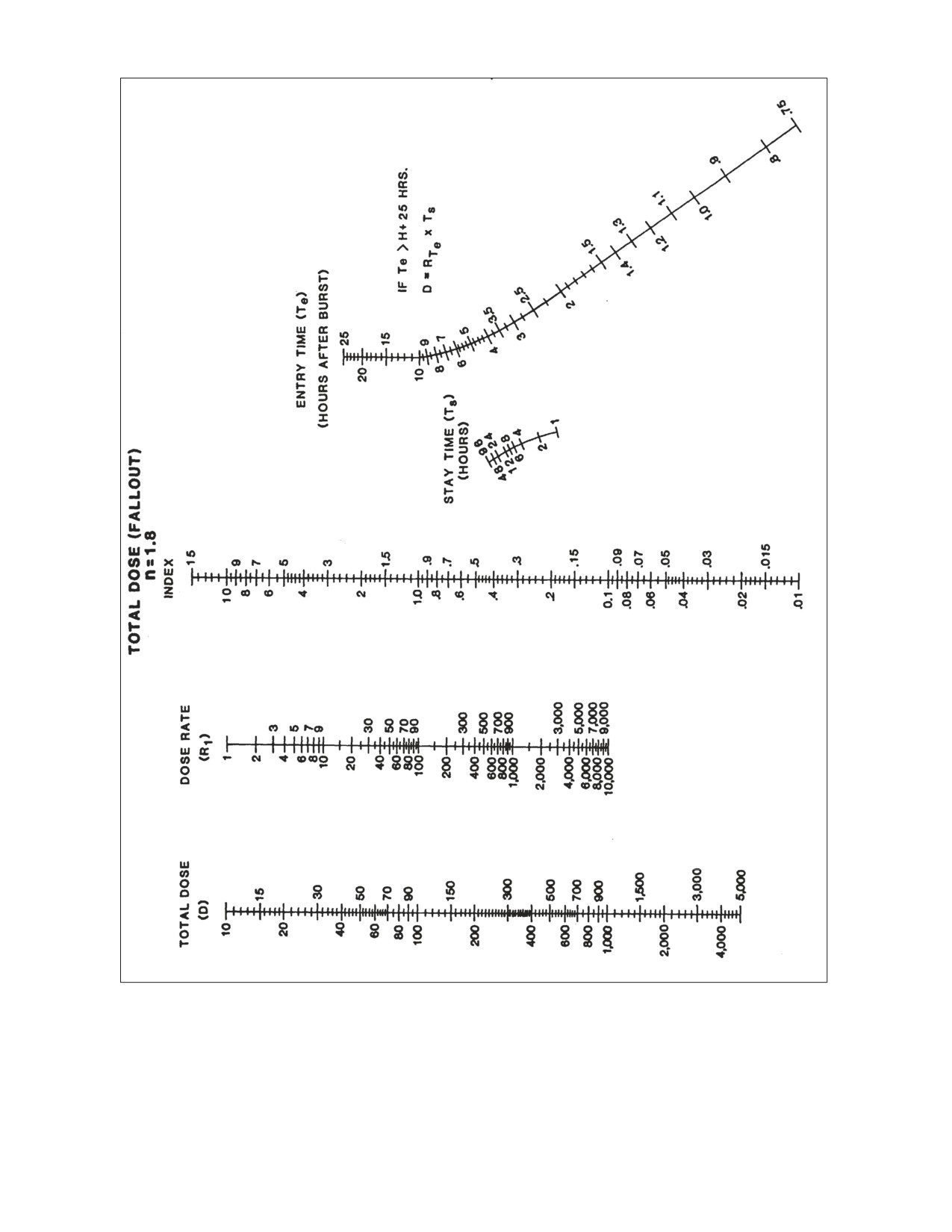

Figure J-44. Total Dose (Fallout) (n=1.8)
J-52
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

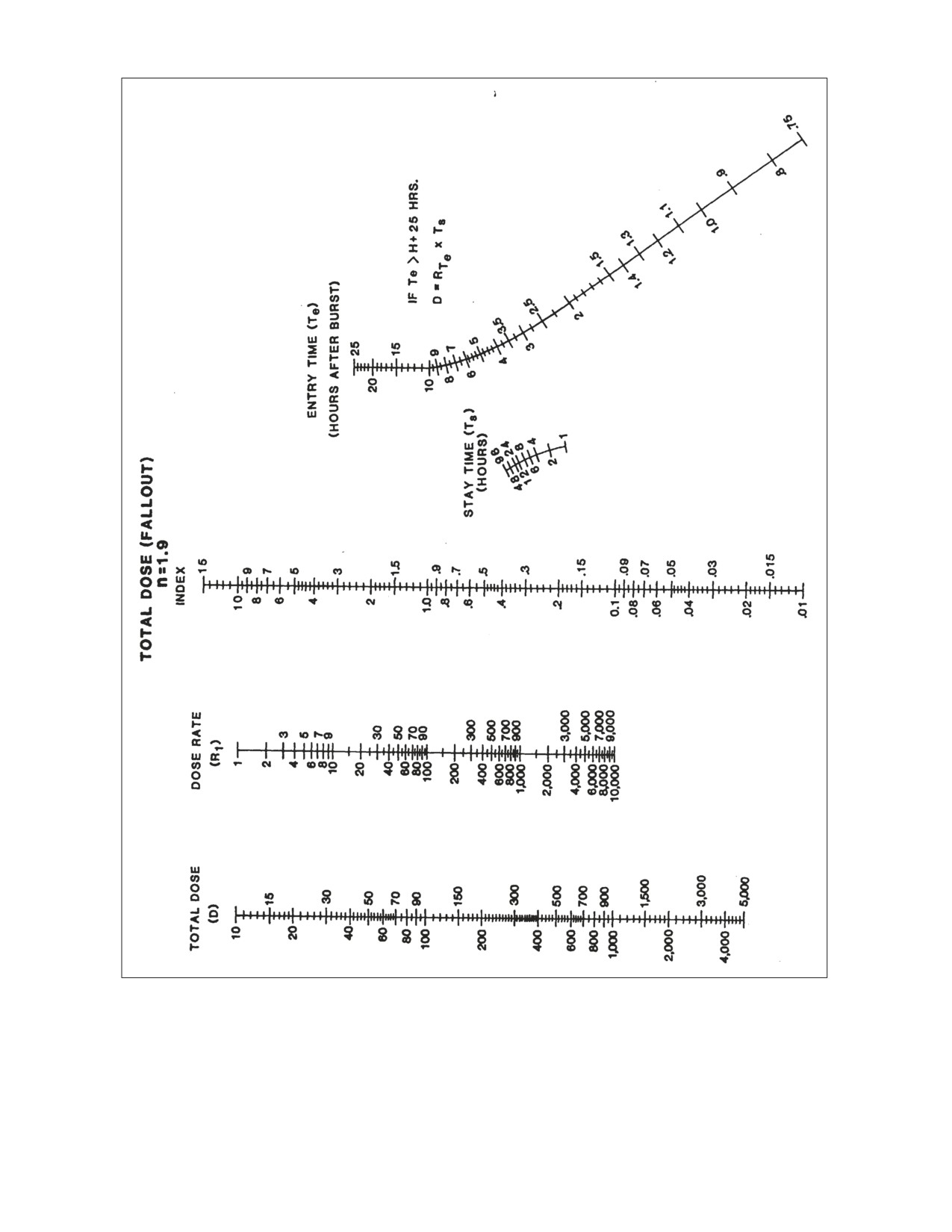

Figure J-45. Total Dose (Fallout) (n=1.9)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-53

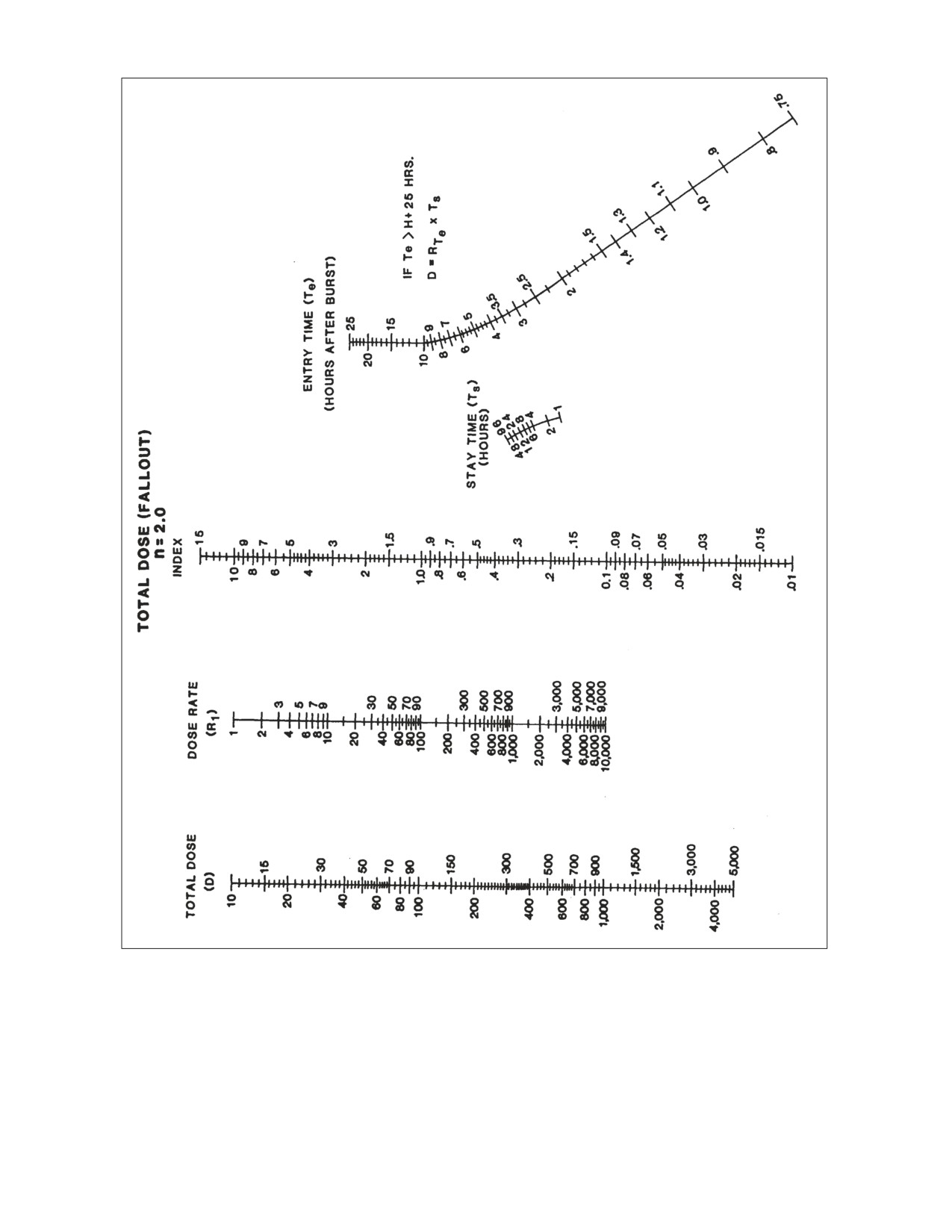

Figure J-46. Total Dose (Fallout) (n=2.0)
J-54
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006
NORMALISATION FACTOR (H + 1)
1000
900
800
700
600
500
400
300
250
200
1.9
150
1.7
100
90
80
70
60
1.5
50
40
1.3
30
25
2.0
20
1.1
1.8
15
1.6
0.9
10
9
1.4
8
7
0.7
1.2
6
5
1.0
4
0.8
3
2.5
0.6
2
1.5
1
1
2
3
5
7
9
15
25
40
1.5
2.5
4
6
8
10
20
30
48
TIME (H + ____ HOURS AFTER BURST) READING WAS TAKEN
Figure J-47. Graphical Method for Determining Normalization Factor (H+1)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-55
NORMALISATION FACTOR (H + 48)
1000
900
800
700
600
500
1.9
400
300
250
1.7
200
150
1.5
100
90
80
70
1.3
60
50
2.0
40
1.1
30
1.8
25
20
1.6
0.9
15
1.4
10
0.7
1.2
9
8
7
1.0
6
5
0.8
4
0.6
3
2.5
2
1.5
1
48
70
90
150
300
500
800
1500
3000
5000
60
80
100
200
400
600
1000
2000
4000
TIME (H + ____ HOURS AFTER BURST) READING WAS TAKEN
Figure J-48. Graphical Method for Determining Normalization Factor (H+48)
J-56
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

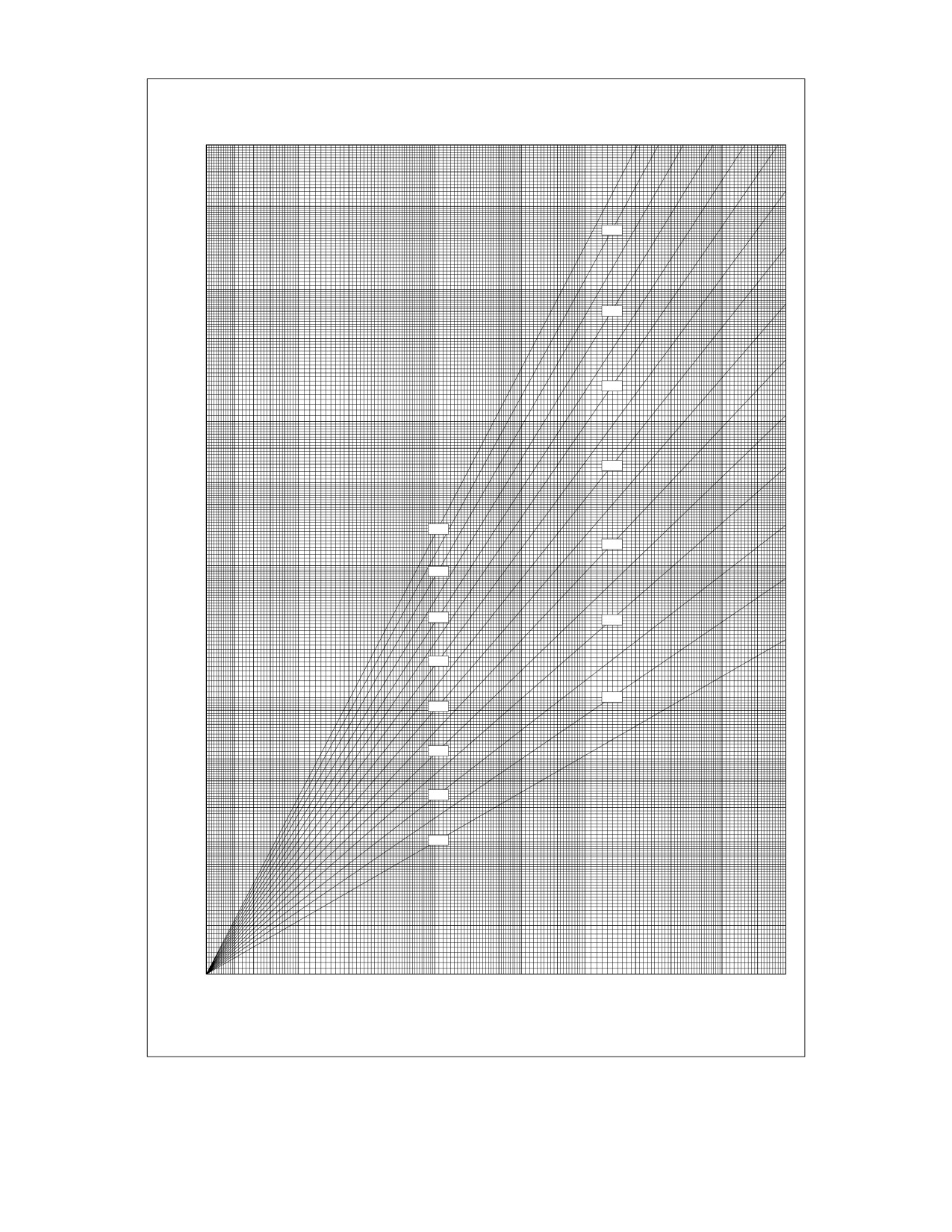

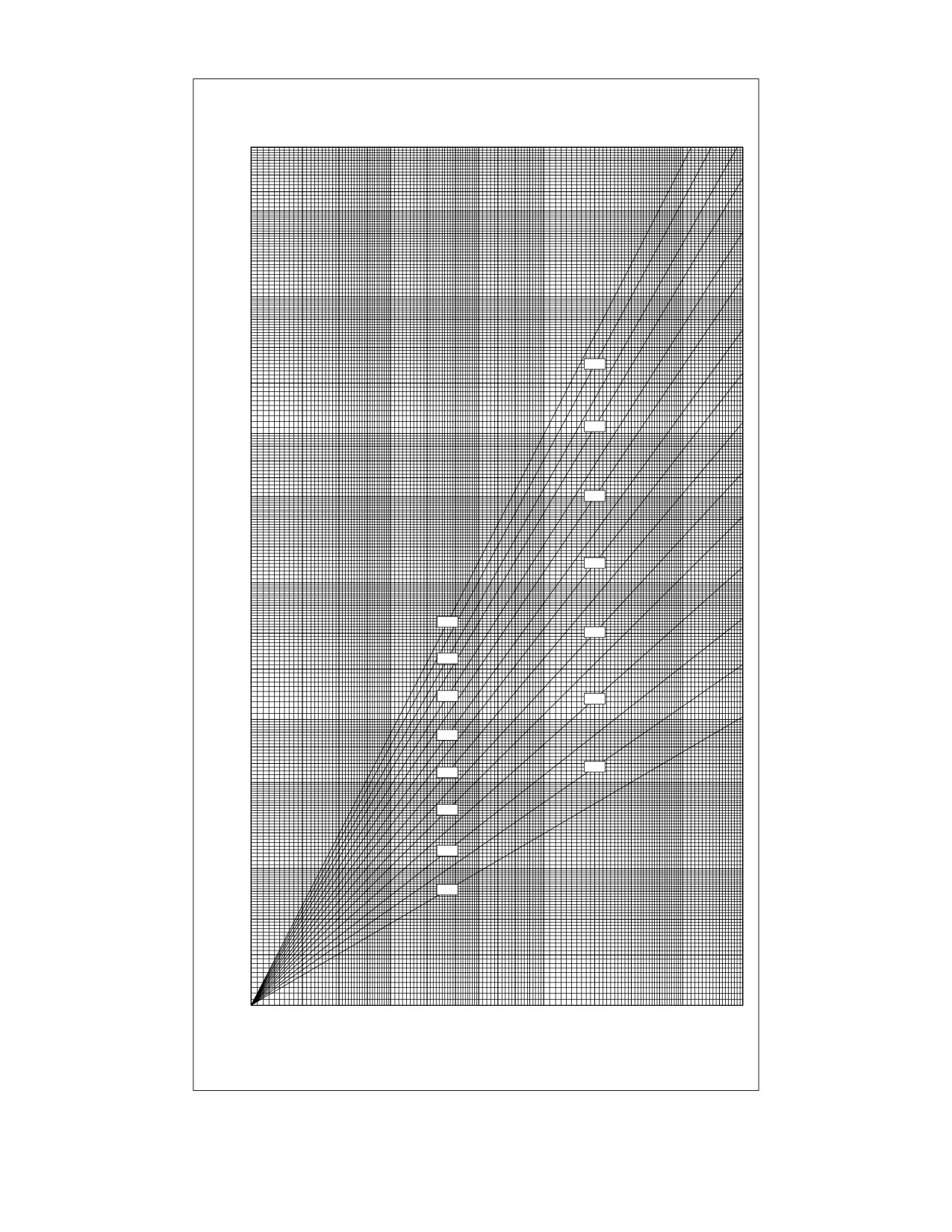

Figure J-49. Multiplication Factor
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-57

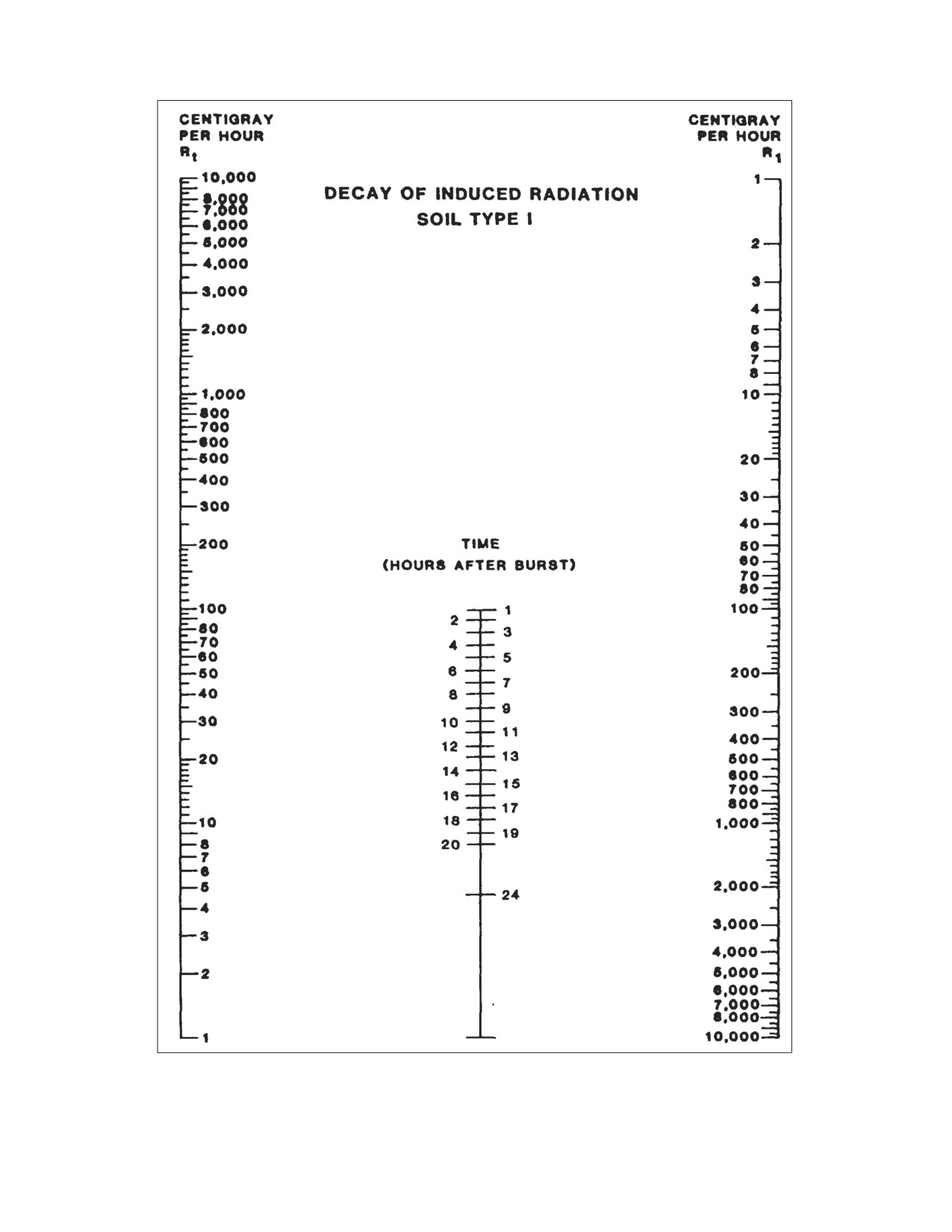

Figure J-50. Decay of Induced Radiation (Soil Type I)
J-58
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

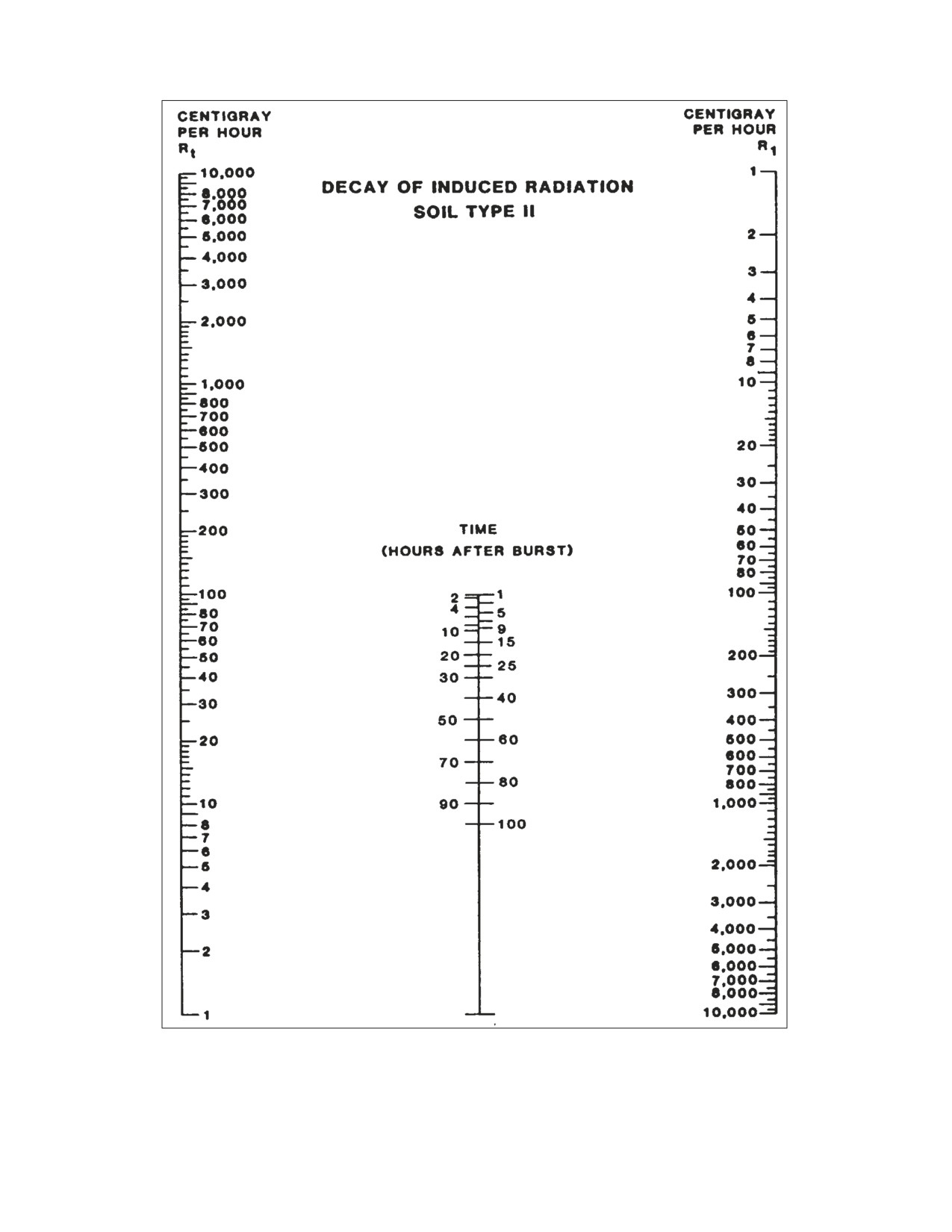

Figure J-51. Decay of Induced Radiation (Soil Type II)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-59

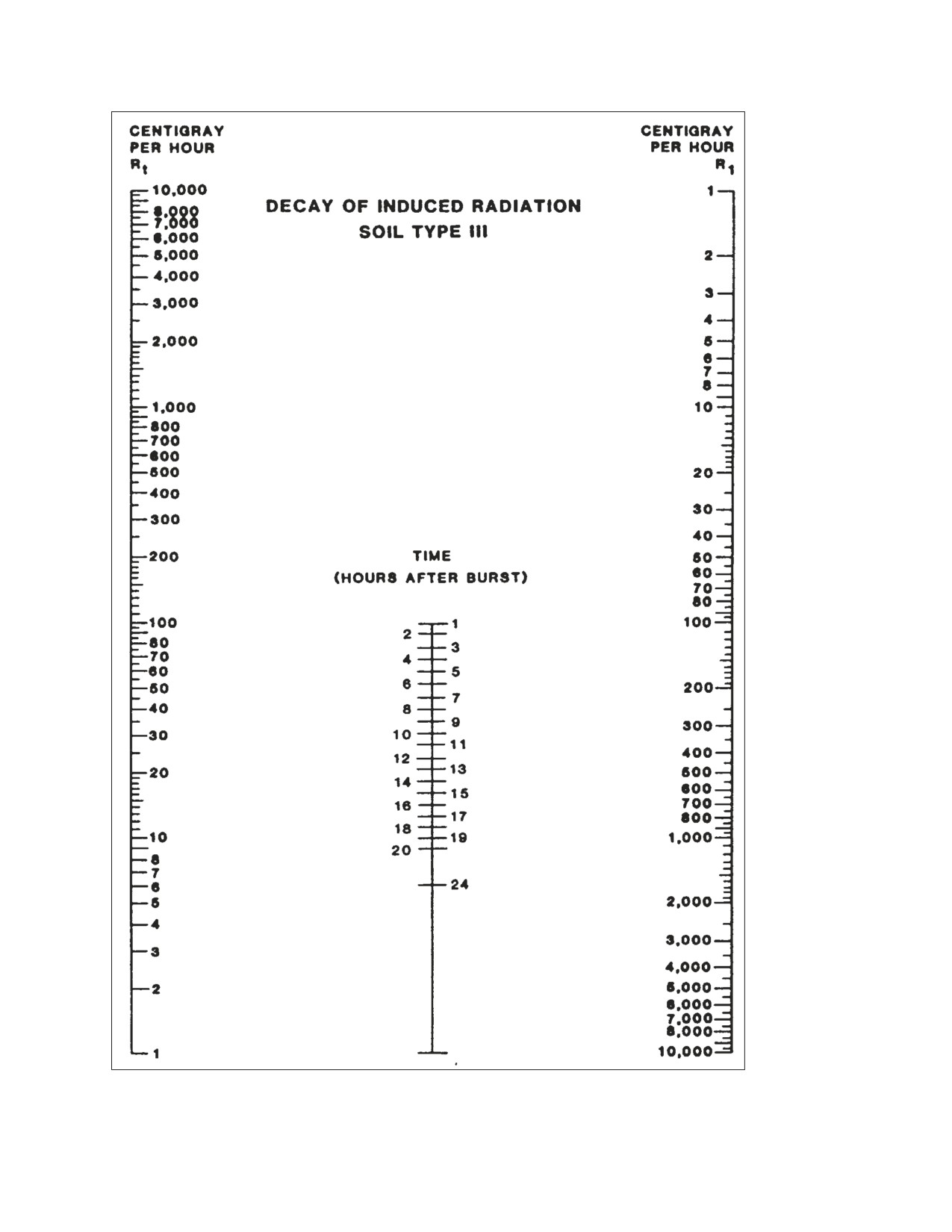

Figure J-52. Decay of Induced Radiation (Soil Type III)
J-60
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006

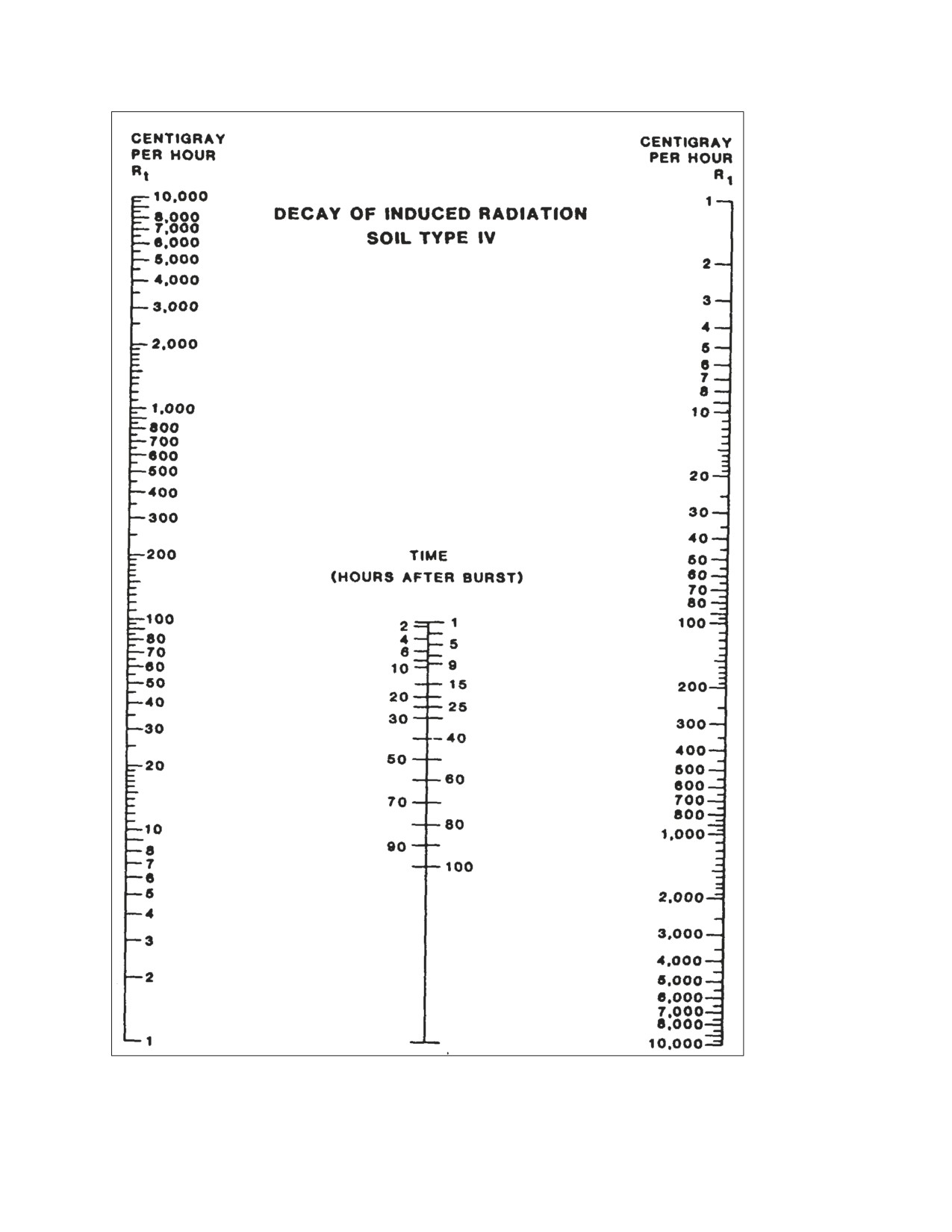

Figure J-53. Decay of Induced Radiation (Soil Type IV)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
J-61

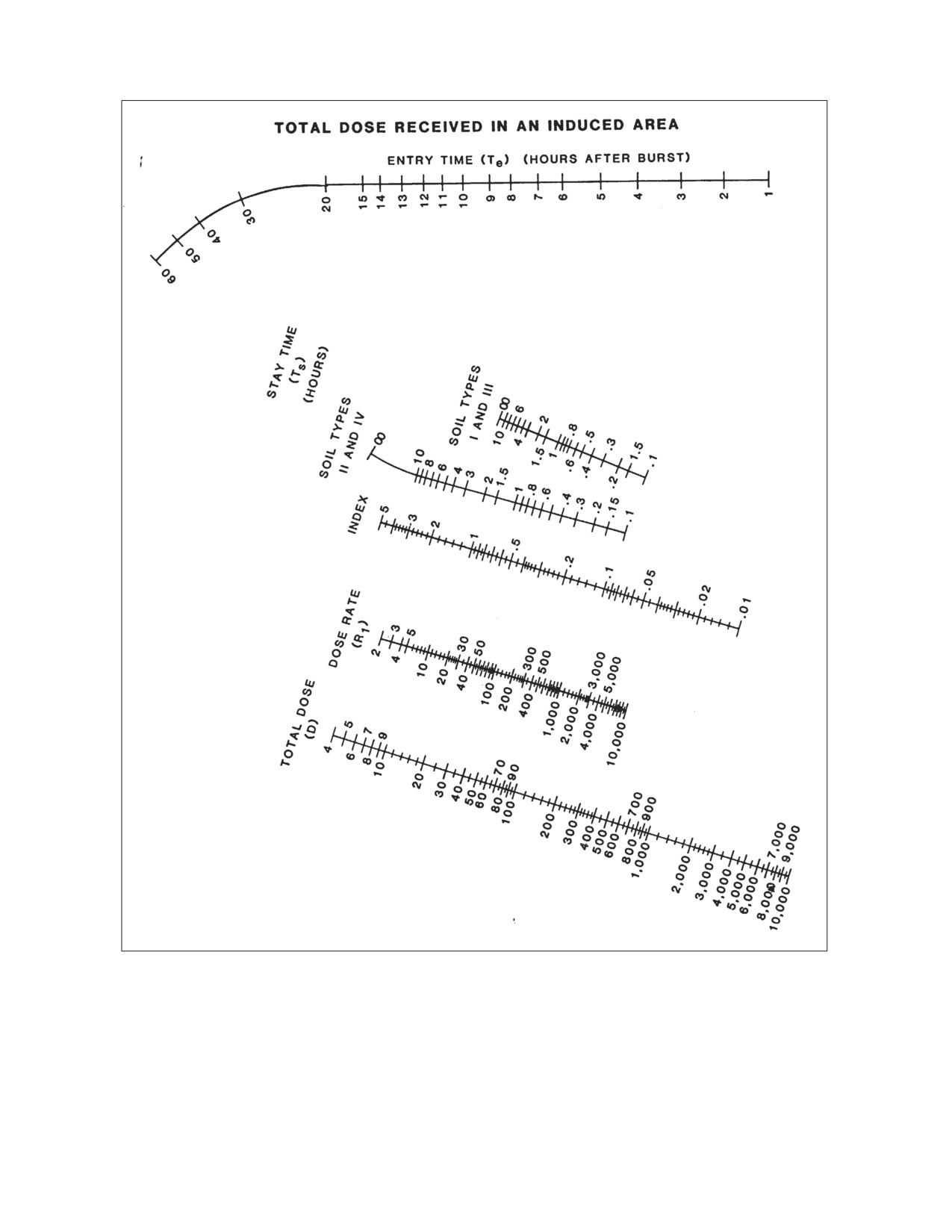

Figure J-54. Total Dose (Induced Radiation)
J-62
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006
Appendix K
CALCULATIONS
This appendix provides a single reference location for CBRN hazard prediction-
related calculations.
Downwind travel distance:
d1 = u1 * t1
d2 = 2u2
d3 = 2u3
Total Downwind Distance:
DA = d1 + d2 + d3
Leading and Trailing Edge:
DL = 1.5 * DA (Leading Edge, in KM)
DT = 0.5 * DA (Training Edge, in KM)
Initial Hazard Area (BIO only):
H1 = A + d1 or A + (u1 * t1 )
The following are calculations contained in Appendix G for nuclear contamination
avoidance TTP:
Polar Plot Method for Determining GZ:
0.35 kmps x time(s) = Distance to GZ, in km
M4A1 Calculator:
Covert degrees to mils (17.8 x degrees = mils)
Yield Estimation:
Yield 1 + yield 2 = sum yield / 2 = average yield
Time of Arrival of Fallout:
distance from GZ (km)
= time of arrival
effective wind speed in (kph)
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
K-1
Detailed Fallout Prediction:
Effective Wind Speed = Radial Line Distance From GZ to CB Height (KM)
Time of Fall from CB (HR)
Time of Completion of Fallout:
2×Cloud radius
T
=1.25×T
+
comp
arrival
Effective wind speed
Measuring Nuclear Data:
Inside dose rate
Transmission Factor(TF ) =
Outside dose rate
Outside Dose Rate: OD = ID TF
Correlation Factor: (CF) =
1
= OD
TF ID
Air-Ground Correlation Factor (AGCF)
= Ground dose rate
Aerial dose rate
Ground dose rate
= Air dose rate x AGCF
Calculation of H Hour or TOB:
Tb - Ta
T1 = (Ra/Rb)1/n-1
Decay of Fallout:
n
n
R ×t
=R
×t
1
1
2
2
Decay Rate
log(Ra/Rb)
n = log(Tb/Ta)
Period of Validity for the Decay Rate (n):
Tp = 3(Tb - Ta) + Tb
K-2
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006
Normalizing Factor (NF)
R1 = NF x R2
NF = (T2)n
Overall Correction Factor (OCF):
NF x AGCF = OCF or NF x VCF = OCF.
Plotting Data and Producing a NBC5 NUC Report
Interval Distance =Route or Course Leg Distance (km)
Number of Readings-1
Dose Rate for an Arbitrary Time (Kaufmann equation can be used as follows)
n
n
R ×t
=R
×t
(can be mathematically changed to represent the missing (or
1
1
2
2
objective) variable to read: R2 = R1 / (t2)n or R2 = R1 / NF)
Time at Which a Given Dose Rate is to be Expected (Kaufmann equation can be used as
follows)
n
n
R ×t
=R
×t
(can be mathematically changed to represent the missing
(or
1
1
2
2
objective) variable to read: t2 = R1 x t1 / R2)
NOTE: If R1 is the normalized dose rate reading at H+1, then t1 will always be 1.
Therefore, the equation can be set up as: t2 = R1 / R2 This equation can only be utilized
per the validity time for the decay rate.
Total Dose Procedures:
D = RTe x Ts (can be mathematically changed to represent the missing (or
objective) variable to read: RTe = R1
(Te)n
D = R1 x Ts
(Te)n)
Crossing a Fallout Area:
R
max
R
avg =
2
2 February 2006 FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
K-3
Optimum Time of Exit from Fallout Areas:
T
=
MF ×T
opt
ev
TFRatio = TFS/TFM.
Neutron-Induced Radiation Areas:
Crossing an Induced-Radiation Area:
R
max
R avg =
2
distance
T S =
speed
ID = OD x TF
Decay Rate for Induced Radiation:
1
Ra
t x
Ra + 1
Dose Rate for an Arbitrary Time:
R1 + t = Ra * EXP (-n * t)
Dose Accumulated in a Neutron-Induced Area:
D=R1/n*(EXP(-n*tin )-EXP(-n*tout))
Time of Exit from a Neutron-Induced Area Given a Maximum Dosage:
Tout = -l/n*ln(EXP(-n*Te)-(n*DL)/Rl
Earliest Time of Entry:
Te = -1/n*(DL/(R*n*(l-exp(-n*Ts))))
K-4
FM 3-11.3/MCWP 3-37.2A/NTTP 3-11.25/AFTTP(I) 3-2.56
2 February 2006
