C2, FM 10-500-71/TO 13C7-6-141
6
4
3
5
RIGHT
REAR
3
Install the latch assembly on the extraction bracket according to FM 4-20.102/NAVSEA SS400-AB-MMO-010
/TO 13C7-1-5. Attach the release cable to the latch assembly.
4
Safety tie the cable with one turn type I, 1/4-inch cotton webbing to the platform bushings or deck rings.
5
Connect one end of the 9-foot (2-loop), type XXVI nylon sling (deployment line) to the link assembly
according to FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5. Attach the other end of the sling to
the deployment clevises.
6
Fold the excess deployment line, and secure the folds with type I, 1/4-inch cotton webbing according to
FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.

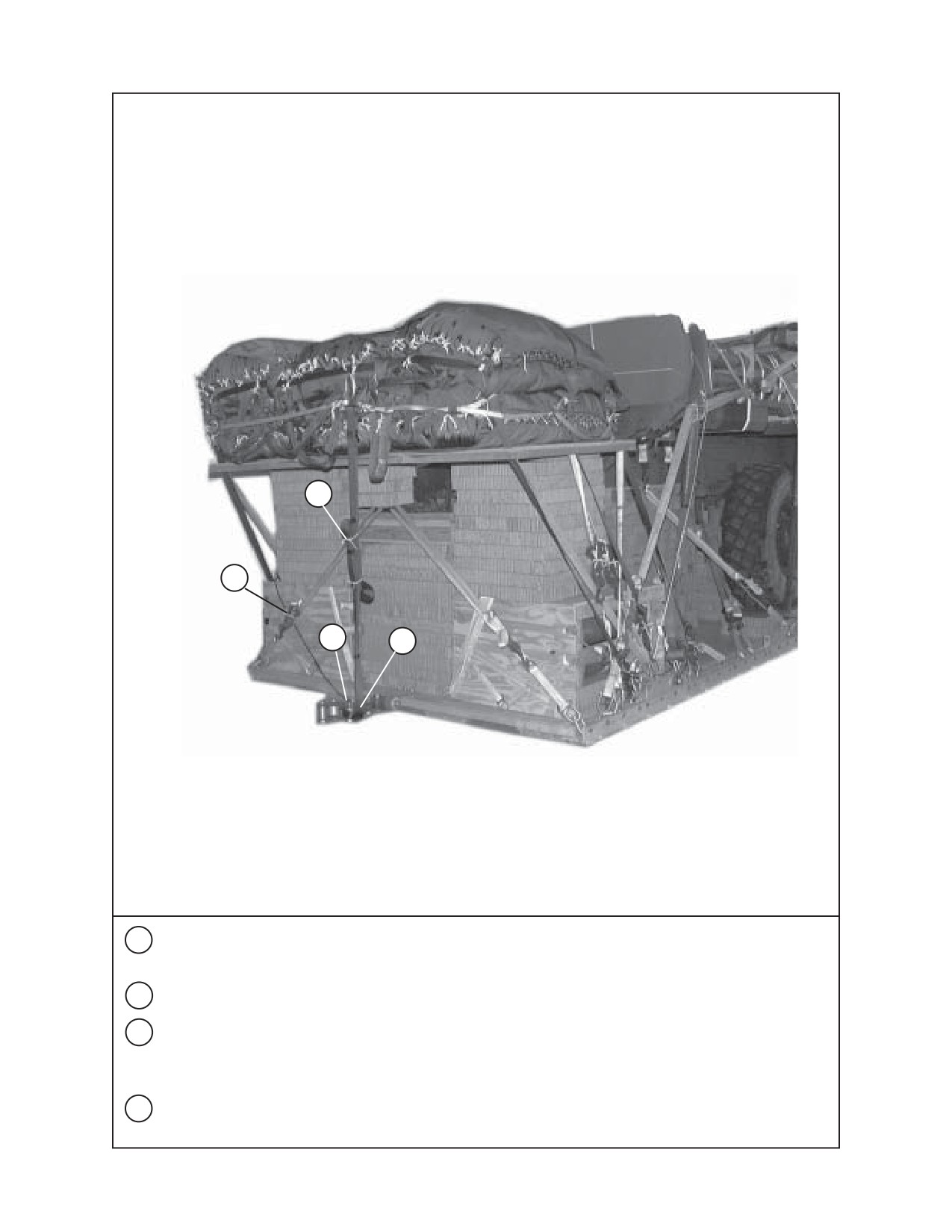

Figure
5-19. Extraction system installed (Continued)
5-95
C2, FM 10-500-71/TO 13C7-6-141
5-15. Installing Release System
Install an M-2 cargo parachute release
according to FM 4-20.102/NAVSEA
SS400-AB-MMO-010/TO 13C7-1-5 and
as shown in Figure 5-20.
3
1
4
2
1
Cover cell #2 with a piece of 9/16-inch felt and secure it with type III nylon cord.
2
Safety tie the suspensions slings three-point links with a length of type III nylon cord. Secure to convenient
points on the load in accordance with FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO 13C7-1-5.
3
Place the M-2 release centered on cell #2 and safety tie to convenient points on the load in accordance with
FM 4-20.102/NAVSEA SS400-AB-MMO-010/ TO 13C7-1-5.
4
Fold and safety tie any slack in the suspension slings with single turn of type I, 1/4-inch cotton webbing.
5-96

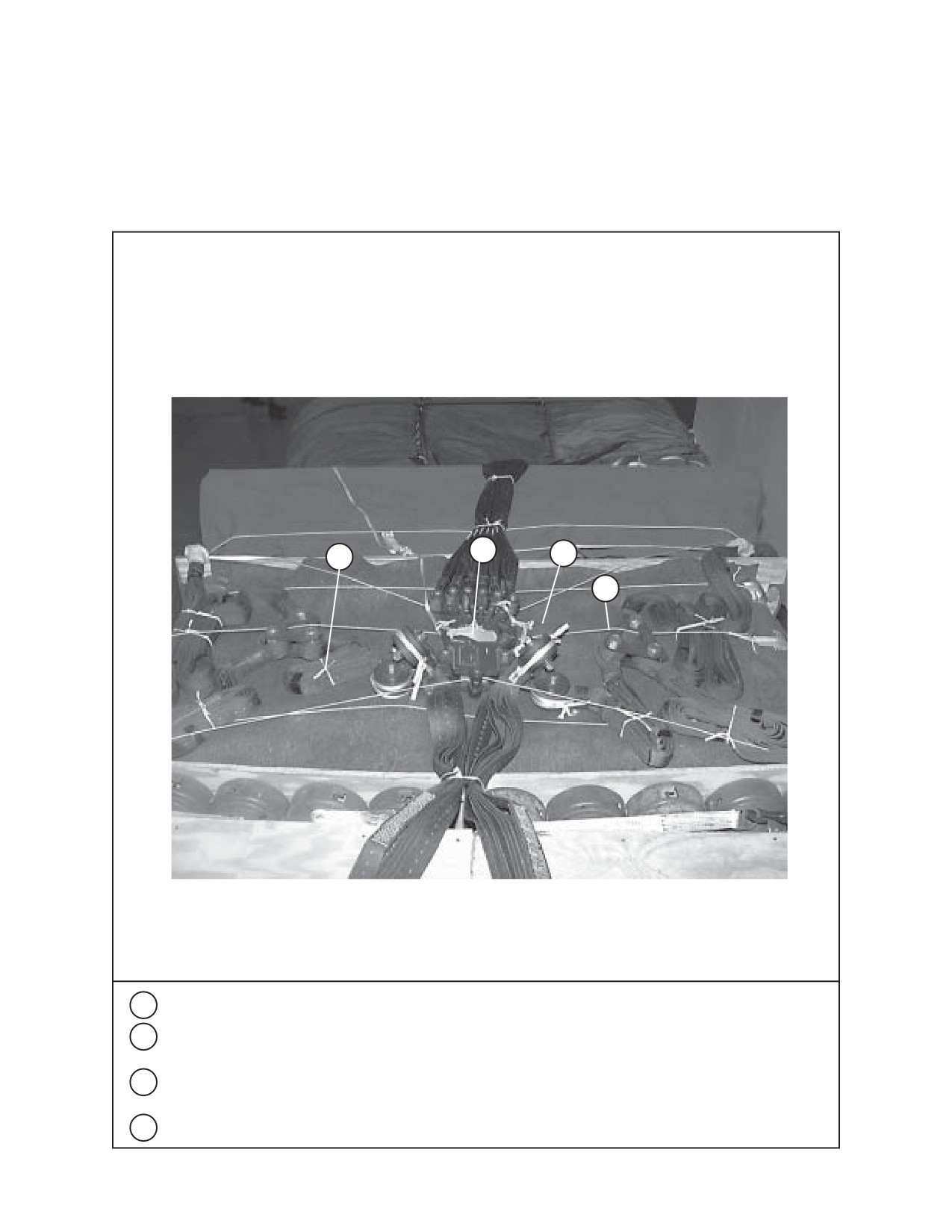

Figure
5-20. Parachute release installed
C2, FM 10-500-71/TO 13C7-6-141
5-16. Installing Provisions for Emergency Restraints
5-18. Marking the Rigged Load
Select and install provisions for emergency restraints
Mark the rigged load according to FM 4-20.102/NAVSEA
according to the emergency restraint requirements table
SS400-AB-MMO-010/TO 13C7-1-5 and as shown in Fig-
found in FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO
ure 5-21.
13C7-1-5.
5-17. Placing Extraction Parachute
5-19. Equipment Required
Select the extraction parachute and extraction line needed
Use the equipment listed in Table 5-2 to rig this load.
using the extraction parachute and extraction line require-
ments table found in FM 4-20.102/NAVSEA SS400-AB-
MMO-010/TO 13C7-1-5.
5-97
C2, FM 10-500-71/TO 13C7-6-141
CAUTION
Make the final rigger inspection required by
FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5 before the load leaves
the rigging site.
CB
RIGGED LOAD DATA
Weight: Load shown
30, 330 pounds
Maximum load allowed
30, 900 pounds
Height
99 1/2 inches
Width
108 inches
306 inches
Overall-Length
Overhang:
Front
0 inches
Rear (EFTC)
18 inches
145 inches
CB (from front edge of platform)
Extraction System
EFTC
Figure 5-21. M-1095, 5-ton trailer rigged for low-velocity airdrop
5-98
C2, FM 10-500-71/TO 13C7-6-141
Table 5-2. Equipment required for rigging the M1095, 5-ton trailer for low-velocity airdrop on a type V platform
National Stock
Item
Quantity
Number
8040-00-273-8713
Adhesive, paste, 1-gal
As required
1670-01-035-6054
Bridle, extraction line bag (for DES)
1
1670-00-434-5796
Clevis assembly, suspension, 1-in., (large)
12
4030-00-090-5354
Cloth, coated, (nylon, type II, 18 oz., green, 60-in.)
As required
8305-00-880-8155
Cord, fibrous, (nylon, type III, 550-lb)
As required
4020-00-240-2146
Coupling, airdrop extraction force transfer, w/24-ft. cable
1
1670-00-360-0328
Cover, clevis, large
As required
8135-00-664-6958
Cushioning material, packaging, (cellulose wadding)
As required
8305-00-958-3685
Felt sheet, 1/2-in. thick
As required
1670-01-183-2678
Leaf, extraction line, bag
1
Line, extraction line, type XXVI nylon webbing:
1670-01-064-4452
60-ft (1-loop), drogue, (C-17aircraft)
1
1670-01-064-4454
60-ft (6-loop), (C-130 and C-5 aircrafts)
1
1670-01-468-9178
140-ft (6-loop), (C-17, C-141 and C-5 aircrafts)
1
1670-01-483-8259
Link, tow release mechanism, (H-block), (C-17 aircraft)
1
Link assembly:
Two-point:
2
5306-00-435-8994
Bolts, 1-in diam, 4-in long
(4 )
5310-00-232-5165
Nuts, 1-in
(4 )
1670-00-003-1953
Plate, side, 3 3/4-in.,arm, cargo extra
(4 )
1670-00-003-1954
Plate, side, 5 1/2-in., arm, cargo extra
(4 )
5365-00-007-3414
Spacers, large
(4 )
1670-00-006-2752
Three-point coupling (42K)
2
1670-01-307-1055
Four-point
1
5-99
C2, FM 10-500-71/TO 13C7-6-141
Table 5-2. Equipment required for rigging the M1095, 5-ton trailer for low-velocity on type V airdrop platform
(continued)
National Stock
Item
Quantity
Number
Lumber, softwood, 96-in:
5510-00-220-6146
2- by 4-in.
As required
5510-00-220-6148
2- by 6-in.
As required
5510-00-220-6274
4- by 4-in.
As required
Nail, steel wire, common:
5315-00-010-4659
8d
As required
5315-00-010-4661
10d
As required
5315-00-753-3885
16d
As required
1670-00-753-3928
Pad, energy-dissipating, (honeycomb)
3- by 36- by 96-in:
55 sheets
Parachute:
Cargo:
1670-01-016-7841
G-11C
6
Cargo extraction:
1670-00-040-8135
28-ft (HD)
2
Drogue (for DES), (C-17):
1670-01-063-3715
15-ft
1
Platform, airdrop, type V, 24-ft:
1
1670-01-353-8425
Bracket assembly, coupling
(1)
1670-01-162-2372
Clevis, assembly, type V
(80)
1670-01-162-2376
Extraction bracket assembly
(1)
1670-01-247-2389
Link, suspension bracket, type V
(8)
1670-01-162-2381
Tandem link assembly (Multipurpose link)
(2)
Plywood, construction, 48- by 96-in:
5530-00-262-8195
1/2-in
As required
5530-00-128-4981
3/4-in
As required
1670-01-097-8817
Release, cargo parachute, M-2
1
Sling, cargo, airdrop:
For deployment line:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
1
5-100
C2, FM 10-500-71/TO 13C7-6-141
Table 5-2. Equipment required for rigging the M1095, 5-ton trailer for low-velocity airdrop on a type V platform
(continued)
National Stock
Item
Quantity
Number
For lifting:
1670-01-062-6305
9-ft (4-loop), type XXVI nylon webbing
2
1670-01-064-4453
20-ft (4-loop), type XXVI nylon webbing
1
For suspension:
1670-01-062-6306
3-ft (4-loop), type XXVI nylon webbing
4
1670-01-062-6305
9-ft (4-loop), type XXVI nylon webbing
2
1670-01-062-6310
11-ft (4-loop), type XXVI nylon webbing
2
1670-01-062-6308
16-ft (4-loop), type XXVI nylon webbing
2
1670-01-064-4453
20-ft (4-loop), type XXVI nylon webbing
2
For riser extension:
1670-01-062-6311
120-ft (2-loop), type XXVI nylon webbing
6
5340-00-040-8219
Strap, parachute release, multi-cut with 3 knives
2
7510-00-266-5016
Tape, adhesive, 2-in (masking)
As required
7510-00-074-5124
Tape, type IV, cloth-back, adhesive sensitive, 2-in
As required
5340-00-937-0273
Tiedown assembly, 15-ft
122
Webbing:
8305-00-268-2411
Cotton, type I, 1/4-in, 80-lb
As required
8305-00-082-5752
Nylon, tubular, 1/2-in, 1,000-lb natural
As required
8305-00-263-3591
Type VIII, natural
As required
8305-00-261-8584
Type X, natural
As required
5-101
C2, FM 10-500-71/TO 13C7-6-141
Appendix A
INSTALLING SUSPENSION SLING SAFETY TIES
Installing the suspension sling safety ties keeps the suspension slings
from making contact with the load. The procedures in this Appendix are
different from those in FM 4-20.102/NAVSEA SS400-AB-MMO-010/TO
13C7-1-5. An exception to FM 4-20.102/NAVSEA SS400-AB-MMO-
010/TO 13C7-1-5 is granted. The procedures in this Appendix must be
followed. Safety tie the front and rear suspension slings according to
instructions shown below.
1
2
1
Cut two lengths of 1/2-inch tubular nylon webbing, making each long enough to reach from the left front
suspension sling to the right front suspension sling plus 8 feet. Split the plies of the left front suspension
sling. Route two lengths of the 1/2-inch tubular webbing through the plies of the sling from inboard to
outboard about 3 feet.
2
Route the 3 foot running end from outboard to inboard around the inside plies and around the outboard
plies from inboard to outboard. Tie it in place on the inboard side with three alternating half-hitches with
an overhand knot in the running end.
Appendix-1
C2, FM 10-500-71/TO 13C7-6-141
3
4
4
4
5
3

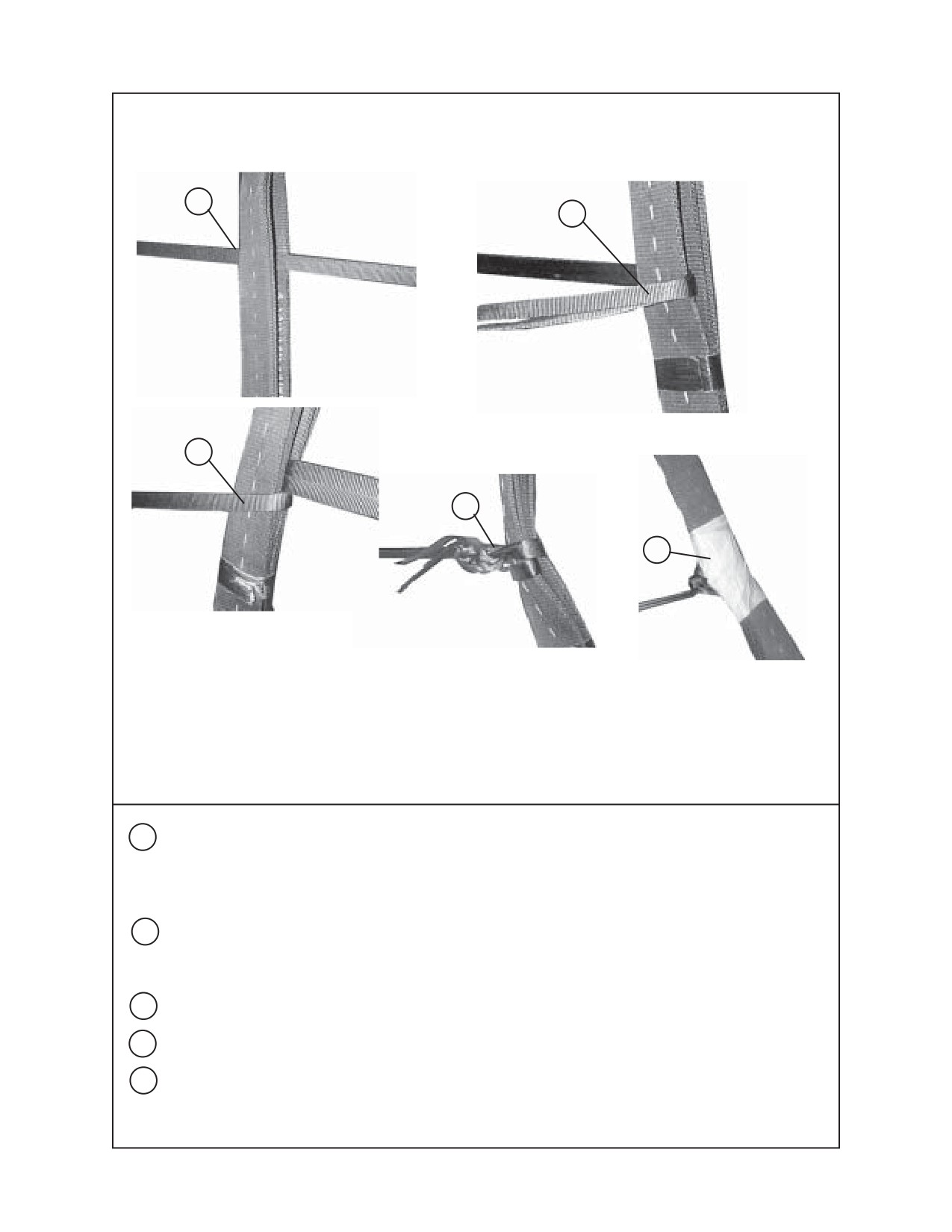

Split the plies of the right front suspension sling and route the running ends of the two lengths of 1/2-inch
tubluar nylon webbing through the plies of the sling from inboard to outboard. Pass enough of the
webbing through the sling to take the slack out, but not enough to keep the slings from hanging in their
natural position.
4
Route the running end from outboard to inboard around the inside plies and around the outboard plies
from inboard to outboard. Tie it in place on the inboard side with three alternating half-hitches with an
overhand knot in the running end.
5
Tape the webbing to the slings with masking tape.
6
Repeat steps 1 through 5 on the rear suspension slings. (not shown)
7
When using four-loop, type XXVI suspension slings, wrap each four plies with a 10- by 10-inch piece of
cotton muslin. Secure each wrap with one single turn of 1/4-inch cotton webbing. (Not shown)
Appendix-2
C2, FM 10-500-71/TO 13C7-6-141
REFERENCES
AFR 55-40/AR 59-4
Joint Airdrop Inspection Records, Malfunction Investigations and
Activity Reporting. 1 May 1998.
*AFMAN(I) 24-204/TM 38-250/
Preparing Hazardous Materials for Military Air Shipments.
NAVSUP PUB 505/MCOP 4030
December 2001.
**FM 4-20.102/
Airdrop of Supplies and Equipment: Rigging Airdrop Platforms.
NAVSEA SS400-AB-MMO-010/
22 August 2001.
TO 13C7-1-5
FM 10-500-53/MCRP 4-3.8/
Airdrop of Supplies and Equipment: Rigging Ammunition.
TO 13C7-18-41
19 August 1996.
TM 9-2320-365-20/
Operator's Instructions M1078 Series, 2 1/2-Ton, 4x4, Light Medium
TO 36A12-1C-1091-1
Tactical Vehicles (LMTV). September 1998.
TM 9-2320-365-24P/
Unit, Direct Support, and General Support Maintenance Repair Parts
TO 36A12-1B-1095-24
and Special Tools List for M1078 Series, 2 1/2-Ton, 4x4, Light Medium
Tactical Vehicles (LMTV). 31 July 2001.
TM 9-2320-366-10-1/
Technical Manual, Operator's Instructions M1083 Series, 5-Ton, 6x6,
TO 36A12-1C-1091-1
Medium Tactical Vehicles (MTV), Volume No. 1 of 2.
15 September 1998.
TM 9-2320-366-10-2/
Technical Manual, Operator's Instructions M1083 Series, 5-Ton, 6x6,
TO 36A12-1C-1091-2
Medium Tactical Vehicles (MTV), Volume No. 2 of 2.
15 September 1998.
TM 9-2320-366-10-HR
Hand Receipt Covering Contents of Components of End Item (COEI),
TO 36A12-1C-1101
Basic Issue Items (BII), and Additional Authorization List (AAL) for
M1083 Series, 5-Ton , 6X6, Medium Tactical Vehicles (MTV).
31 May 2001.
TM 9-2320-366-20-1/TO
Technical Manual, Maintenance Instructions, Unit Maintenance,
36A12-1C-1102-4
M1083 Series, 5-Ton, 6 X 6, Medium Tactical Vehicles (MTV)
Volume No. 1 of 5. 15 September 1998.
TM 9-2320-366-20-2/TO
Technical Manual, Maintenance Instructions, Unit Maintenance,
36A12-1C-1102-4
M1083 Series, 5-Ton, 6 X 6, Medium Tactical Vehicles (MTV)
Volume No. 2 of 5. 15 September 1998.
TM 9-2320-366-20-3/TO
Technical Manual, Maintenance Instructions, Unit Maintenance,
36A12-1C-1102-4
M1083 Series, 5-Ton, 6 X 6, Medium Tactical Vehicles (MTV)
Volume No. 3 of 5. 15 September 1998.
TM 9-2320-366-20-4/TO
Technical Manual, Maintenance Instructions, Unit Maintenance,
36A12-1C-1102-4
M1083 Series, 5-Ton, 6 X 6, Medium Tactical Vehicles (MTV)
Volume No. 4 of 5. 15 September 1998.
Reference-1
C2, FM 10-500-71/TO 13C7-6-141
TM 9-2320-366-24P-1/TO
Unit, Direct Support, and General Support Maintenance, Repair Parts and
36A12-1C-1156-1
Special Tools List for M1083 Series, 5-Ton, 6X6, Medium Tactical Vehicles
(MTV) Volume No. 1 of 2. 31 July 2001.
TM 9-2320-366-24P-2/TO
Unit, Direct Support, and General Support Maintenance, Repair Parts and
36A12-1C-1156-2
Special Tools List for M1083 Series, 5-Ton, 6X6, Medium Tactical Vehicles
(MTV) Volume No. 2 of 2. 31 July 2001.
TM 9-2320-366-34P-1/TO
Technical Manual, Maintenance Instructions, Direct Support, and General
36A12-1C-1192-1
Support Maintenance M1083 Series, 5-Ton, 6 X 6, Medium Tactical Vehicles
(MTV) Volume No. 1 of 5. 15 September 1998.
TM 9-2320-366-34P-2/TO
Technical Manual, Maintenance Instructions, Direct Support, and General
36A12-1C-1192-2
Support Maintenance M1083 Series, 5-Ton, 6 X 6, Medium Tactical Vehicles
(MTV) Volume No. 2 of 5. 15 September 1998.
TM 9-2320-366-34P-3/TO
Technical Manual, Maintenance Instructions, Direct Support, and General
36A12-1C-1192-3
Support Maintenance M1083 Series, 5-Ton, 6 X 6, Medium Tactical Vehicles
(MTV) Volume No. 3 of 5. 15 September 1998.
TM 9-2320-366-34P-4/TO
Technical Manual, Maintenance Instructions, Direct Support, and General
36A12-1C-1192-4
Support Maintenance M1083 Series, 5-Ton, 6 X 6, Medium Tactical Vehicles
(MTV) Volume No. 4 of 5. 15 September 1998.
TM 9-2330-394-13&P/
Operator's, Unit, Direct Support (DS) Maintenance Manual with Repair Parts and
TO 36A12-1C-1091-2
Special Tools List: M1082 Series, 2 1/2-Ton, 4x4, Light and 5-Ton, 6x6, Medium
(LMTV/MTV) Trailers.
TM 10-1670-268-20&P/TO
Organizational Maintenance Manual (Including Repair Parts and Special Tools
13C7-52-22
List) For The Type V Airdrop Platform and The Dual Row Airdrop Platform. 15
September 2002.
TM 10-1670-277-23&P/TO
Unit and Direct Support (DS) Maintenance Manual (Including Repair Parts and
13C5-28-2/NAVAIR 13-1-30
Special Tools List for Parachute, Cargo Type 28-Foot Diameter, Cargo Extraction
Parachute Assembly (NSN 1670-00-040-8135). 30 April 2002.
TM 10-1670-278-23&P/TO
Unit and Direct Support (DS) Maintenance Manual (Including Repair Parts and
13C5-25-2/NAVAIR 13-1-27
Special Tools List for Parachute, Cargo Type 15-Foot Diameter, Cargo Extraction
Parachute. 6 November 1989.
TM 10-1670-280-23&P/TO
Unit and Intermediate Direct Support (DS) Maintenance Manual (Including
13C5-31-2/NAVAIR 13-1-31
Repair Parts and Special Tools List) for Parachute, Cargo Type: 100-Foot Diam-
eter, Model G-11B, G-11C, and G-11D (NSN 1670-01-016-7841). 15 September
2002.
TM 10-1670-286-20/TO
Unit Maintenance Manual for Sling /Extraction Line Panel (Including Stowing
13C5-2-41
Procedures). 15 March 2001.
TM 10-1670-296-20&P/TO
Unit Maintenance Manual Including Repair Parts and Special Tools List for
13C7-49-2
Ancillary Equipment for Low-Velocity Airdrop Systems (LVADS). 15 September
1995.
AFTO Form 22
Technical Order Publication Improvement Report.
DA Form 2028
Recommended Changes to Publications and Blank Forms. February 1974.
Reference-2
C2, FM 10-500-71/TO 13C7-6-141
***Shipper's Declaration
for Dangerous Goods.
Locally Procured Form.
*AFMAN(I) 24-204/TM 38-250 has superseded AFJMAN 24-204/TM 38-250 (15 January 1988).
**FM 4-20.102/NAVSEA SS400-ABMMO-010/TO 13C7-1-5 Has susperseded FM 10-500-2/TO 13C7-1-5
(November 1990). This revision reflects this change.
***Shipper's Declaration for Goods has susperseded superseded DD Form 1387-2 (February 1982). This revision
reflects this change.
Reference-3
C2, FM 10-500-71/TO 13C7-6-141
GLOSSARY
AD
airdrop
AFB
Air Force base
AFMAN(I)
Air Force joint manual
AFR
Air Force regulation
AFTO
Air Force technical order
ATTN
attention
BII
Basic Issure Items
CB
center of balance
d
penny
DA
Department of the Army
DC
District of Columbia
DD
Department of Defense
DES
Drogue Extraction System
DTI
Dump Truck Improved
diam
diameter
EFTC
extraction force transfer coupling
FM
field manual
FMTV
family of medium tactical vehicles
Glossary-1
C2, FM 10-500-71/TO 13C7-6-141
ft
foot/feet
gal
gallon
HE
high explosive
HQ
headquarters
in
inch
lb
pound
LMTV
Light medium tactical vehicles
mm
millimeter
No
number
NSN
national stack number
oz
ounce
psi
pounds per square inch
Qty
quantity
TM
technical manual
TO
technical order
TRADOC
United States Army Training and Doctrine Command
US
United States
USAR
United States Army Reserve
VA
Virginia
WP
White Phosphorus
yd
yard
Glossary-2
|
