C6, FM 10-564/TO AIRDROP OF SUPPLIES AND EQUIPMENT: RIGGING FUEL DRUMS (December 1981) - page 4





C6, FM 10-564/TO 13C7-37-1
4-97. Installing Extraction System
4-99. Placing Extraction Parachute
Prepare and install the EFTC extraction system
Select the extraction parachute and extraction
as shown in Figure 4-59 found in Section VI,
line needed using the extraction line require-
and according to FM 10-500-2/TO 13C7-1-5.
ments table in FM 10-500-2/TO 13C7-1-5.
Place the extraction parachute and extraction
4-98. Installing Provisions for Emergency
line on the load for installation in the aircraft.
Restraints
4-100. Marking Rigged Load
Select and install provisions for emergency
restraints according to the emergency aft re-
Mark the rigged load according to FM 10-500-
straint requirements table in FM 10-500-2/
2/TO 13C7-1-5 and as shown in Figure 4-69.
TO 13C7-1-5.
CAUTION
The load weight may vary from the one
shown, depending upon the fuel rigged. Be
sure that the load is weighed, and the para-
chute requirements, CB, and tip-off curve
recomputed.
4-101. Equipment Required
Use the equipment listed in Table 4-7 to rig this
load.
4-108
C6, FM 10-564/TO 13C7-37-1
CAUTION
Make the final rigger inspection required by FM 10-500-2/TO 13C7-1-5
before the load leaves the rigging site.
CB
Rigged Load Data
Weight: Estimated, with gasoline
22,548 pounds
Maximum (as shown)
28,420 pounds
Height
92 inches
Width
108 inches
Length
288 inches
Overhang Front
5 inches
Rear
17 inches
CB (from front edge of platform)
150 inches
Extraction System (adds 18 inches to length of platform)
EFTC
Figure 4-69. Six drums with pumping assembly rigged on a 24-foot, type V airdrop platform for
low-velocity airdrop
4-109
C6, FM 10-564/TO 13C7-37-1
Table 4-7. Equipment required for rigging six drums with pumping assembly on a 24-foot, type V
airdrop platform for low-velocity airdrop
National Stock
Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gal
As required
4030-00-678-8562
Clevis, suspension, 3/4-in (medium)
6
4030-00-090-5354
Clevis, suspension, 1-in (large)
14
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-00-434-5782
Coupling, airdrop, extraction force transfer with cable, 24-ft
1
Cover:
1670-00-360-0328
Clevis, large
1
1670-00-360-0329
Link, type IV
7
8305-00-958-3685
Felt, 1/2-in thick
As required
1670-01-183-2678
Leaf, extraction line (line bag)
2
Line, drogue (for C-17)
1670-01-062-6316
60-ft (3-loop), type XXVI
1
Line, extraction:
1670-01-062-6316
60-ft (3-loop), type XXVI (for C-130)(Use w/ 140-ft for
1
C-5)
1670-01-107-7651
140-ft (3-loop), type XXVI (for C-141B,C-5, or C-17)
1
Link assembly:
1670-01-307-0155
Three-point
2
1670-00-783-5988
Type IV
7
Two-point:
5306-00-435-8994
Bolt, 1-in diam, 4-in long
6
5310-00-232-5165
Nut, 1-in, hexagonal
6
1670-00-003-1954
Plate, side, 5 1/2-in
6
5365-00-007-3414
Spacer, large
6
Lumber:
5510-00-220-6146
2- by 4- by:
25 1/2
2
41 1/2
2
5510-00-220-6148
2- by 6- by:
85-in
2
48-in
2
4-110
C6, FM 10-564/TO 13C7-37-1
Table 4-7. Equipment required for rigging six drums with pumping assembly on a 24-foot, type V
airdrop platform for low-velocity airdrop (continued)
National Stock
Number
Item
Quantity
5315-00-010-4659
Nail, steel wire, 8d
As required
1670-00-753-3928
Pad, energy-dissipating (honeycomb)
3- by 36- by 96-in
28 sheets
Parachute:
Cargo:
1670-01-016-7841
G-11C
6
Cargo extraction:
1670-00-040-8135
28-ft
1
Drogue (for C-17)
1670-01-063-3715
15-ft
1
Platform, airdrop, type V, 24-ft
1670-01-353-8425
Bracket assembly, coupling
(1)
1670-01-162-2372
Clevis assembly, type V
(52)
1670-01-162-2376
Extraction bracket assembly
(1)
1670-01-162-2381
Tandem link assembly (Multipurpose link)
(2)
1670-01-247-2389
Suspension link
(8)
5530-00-128-4981
Plywood, 3/4 -by 48- by 96-in
2 sheets
1670-01-097-8817
Release, cargo parachute, M-2
1
Sling, cargo, airdrop
For suspension:
1670-01-062-6306
3-ft (4-loop), type XXVI nylon webbing
8
1670-01-062-6305
9-ft (4-loop), type XXVI nylon webbing
2
1670-01-062-6308
16-ft (2-loop), type XXVI nylon webbing
4
For lifting:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
2
For deployment:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6311
120-ft (2-loop), type XXVI nylon webbing
6
4-111
C6, FM 10-564/TO 13C7-37-1
Table 4-7. Equipment required for rigging six drums with pumping assembly on a 24-foot, type V
airdrop platform for low-velocity airdrop (continued)
National Stock
Number
Item
Quantity
5340-00-040-8219
Strap, parachute release, multi-cut, comes w/ 3 knives
2
7510-00-266-5016
Tape, adhesive, 2-in
As required
1670-00-937-0271
Tie-down assembly, 15-foot
59
Webbing:
8305-00-268-2411
Cotton, 1/4-in, type I
As required
8305-00-082-5752
Nylon, tubular, 1/2-in
As required
8305-00-261-8584
Type X
As required
4-112
C6, FM 10-564/TO 13C7-37-1
Section VIII
RIGGING SEVEN DRUMS WITHOUT PUMPING ASSEMBLY
ON A 28-FOOT PLATFORM
4-102. Description of Load
4-103. Preparing Platform
Seven drums are rigged on a 28-foot, type V
Prepare a 28-foot, type V airdrop platform using
platform. Filled with 432 gallons of gasoline,
two tandem links, eight suspension links and 50
each drum weighs 2,842 pounds and is 62
clevises as shown in Figure 4-70.
inches long and 53 inches in diameter. An
empty drum weighs 250 pounds.
Notes: 1. The nose bumper may or may not
be installed.
Note: Fill drums with no more than 432
2. Measurements given in this section
gallons of fuel. If the drums are filled with a
are from the front edge of the
fuel other than gasoline, the drum weight
platform, NOT from the front edge
must be computed.
of the nose bumper.
WARNING
Do not add air to drums. Pressurization
changes will cause leaking or bursting.
4-113
C6, FM 10-564/TO 13C7-37-1
CLEVISES
TIE-DOWN RINGS
25A THROUGH 1A
D
TIE-DOWN RINGS
C
B
B
LEFT
A
A
RIGHT
FRONT
REAR
CLEVISES
25 THROUGH 1
Step:
1.
Inspect, or assemble and inspect, the platform as outlined in TM 10-1670-268-20&P/
TO 13C7-52-22.
2.
Install suspension links on each platform side rail using holes 22, 23, and 24, and holes 6, 7,
and 8.
3.
Install a tandem link on the front of each platform side rail using holes 1, 2, and 3.
4.
Install suspension links on each platform side rail using holes 33, 34, and 35, and holes 49,
50, and 51.
5.
Bolt clevises on bushings 1, 3, and 4 of each front tandem link, on bushings 2 and 4 of each
second suspension link, on bushing 3 of each third suspension link, and on bushings 2 and 4
of each rear suspension link.
6.
Starting at the front of the platform, install clevises on each platform side rail using the
bushings bolted on holes 10, 13, 14, 16, 25, 28, 29, 31, 37, 40, 41, 43, 46, 53, 54, 55 and 56.
7.
Starting at the front of the platform, number the clevises bolted to the right side 1 through
25, and those bolted to the left side 1A through 25A.
8.
Label the tiedown rings according to FM 10-500-2/TO 13C7-1-5.

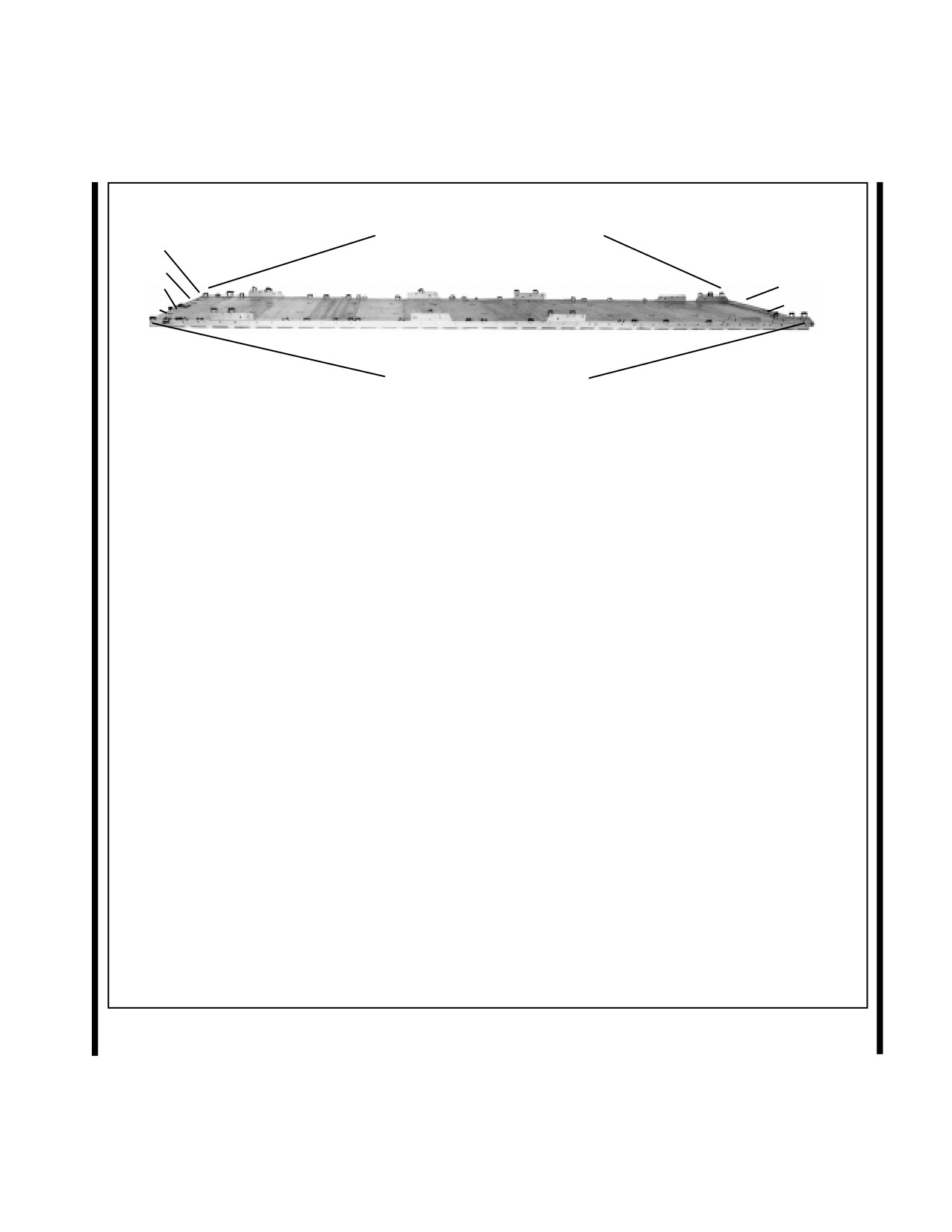

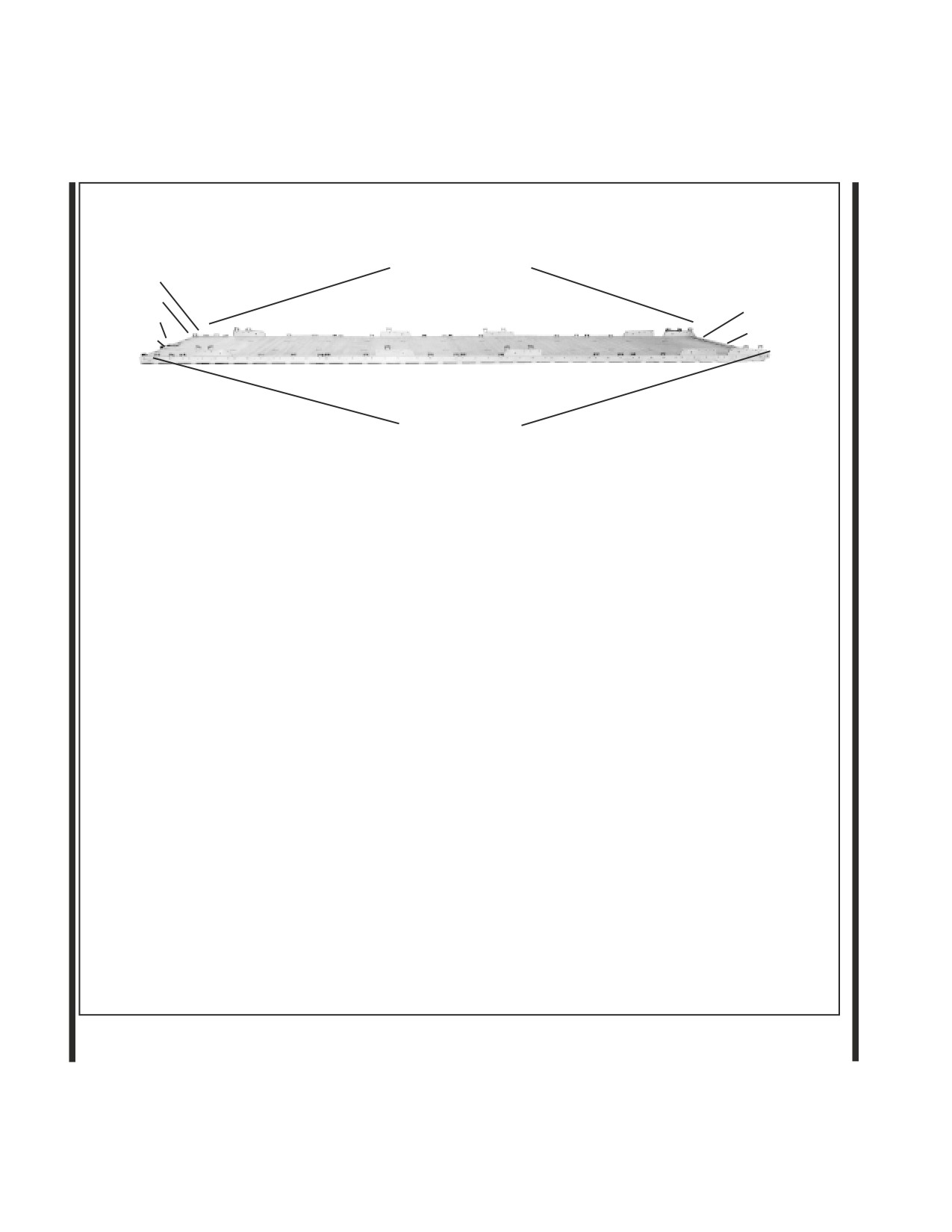

Figure 4-70. Platform prepared
4-114
C6. FM 10-564/TO 13C7-37-1

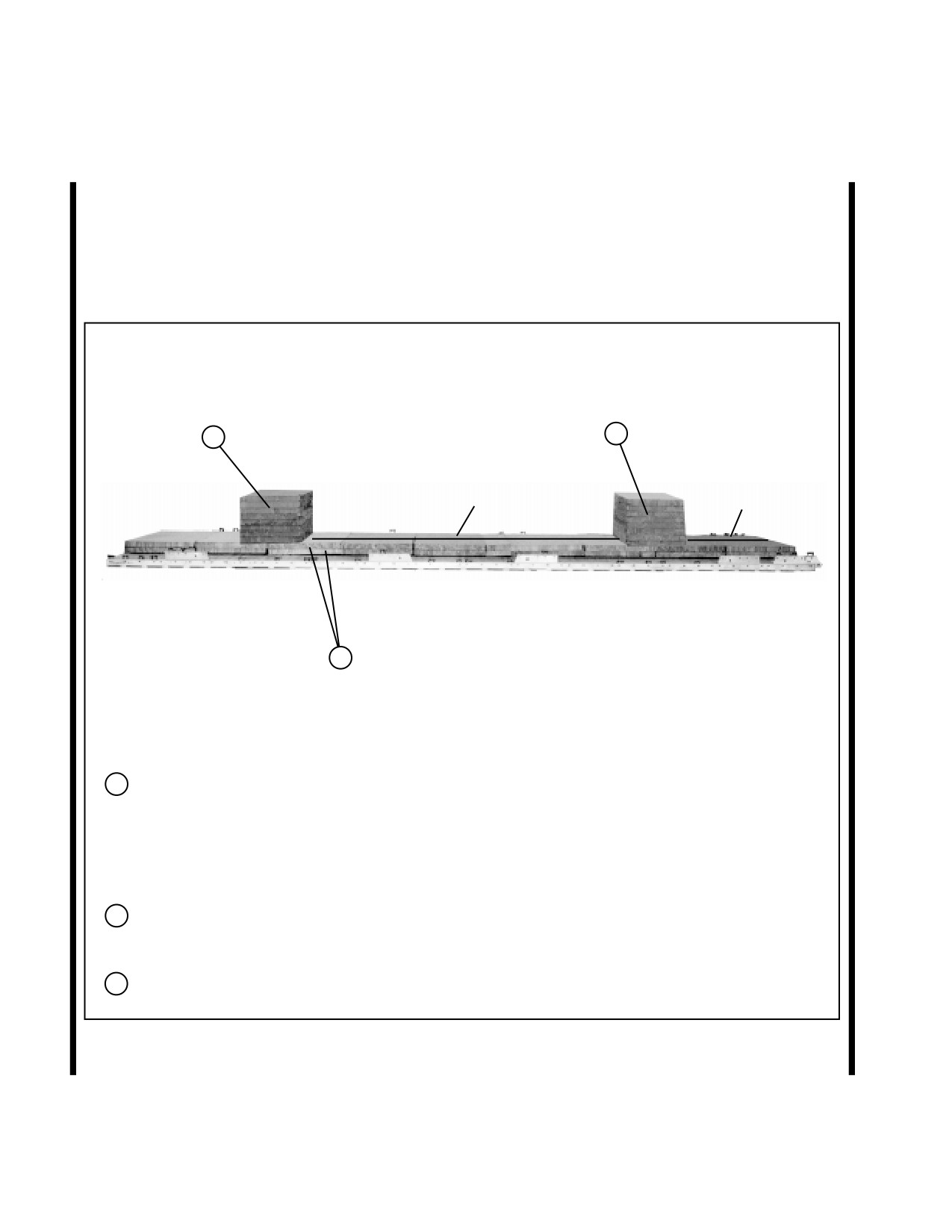

4-104. Preparing and Positioning Honeycomb
Stacks
Prepare and position the honeycomb stack as
shown in Figure 4-71.
HONEYCOMB
HONEYCOMB
60 X 36
60 X 36
1
HONEYCOMB
60 X 12
4
3
2
1
Use 18 pieces of 36- by 60-inch honeycomb, and two 12- by 60-inch pieces of honeycomb
to form a two-layer stack 336 inches long and 60 inches wide. Center the stack on the
platform flush with the front edge.
Note: Place the 12-inch section inside the stack.
2
Make three 8-layer stacks of 60- by 30-inch honeycomb. Center a stack on the base layer
57 inches from the front edge of the base.
3
Center a second 8-layer stack of honeycomb 57 inches to the rear of the first.
4
Center the third 8-layer stack of honeycomb on the base layers 57 inches to the rear of the
stack placed in step 3 above.

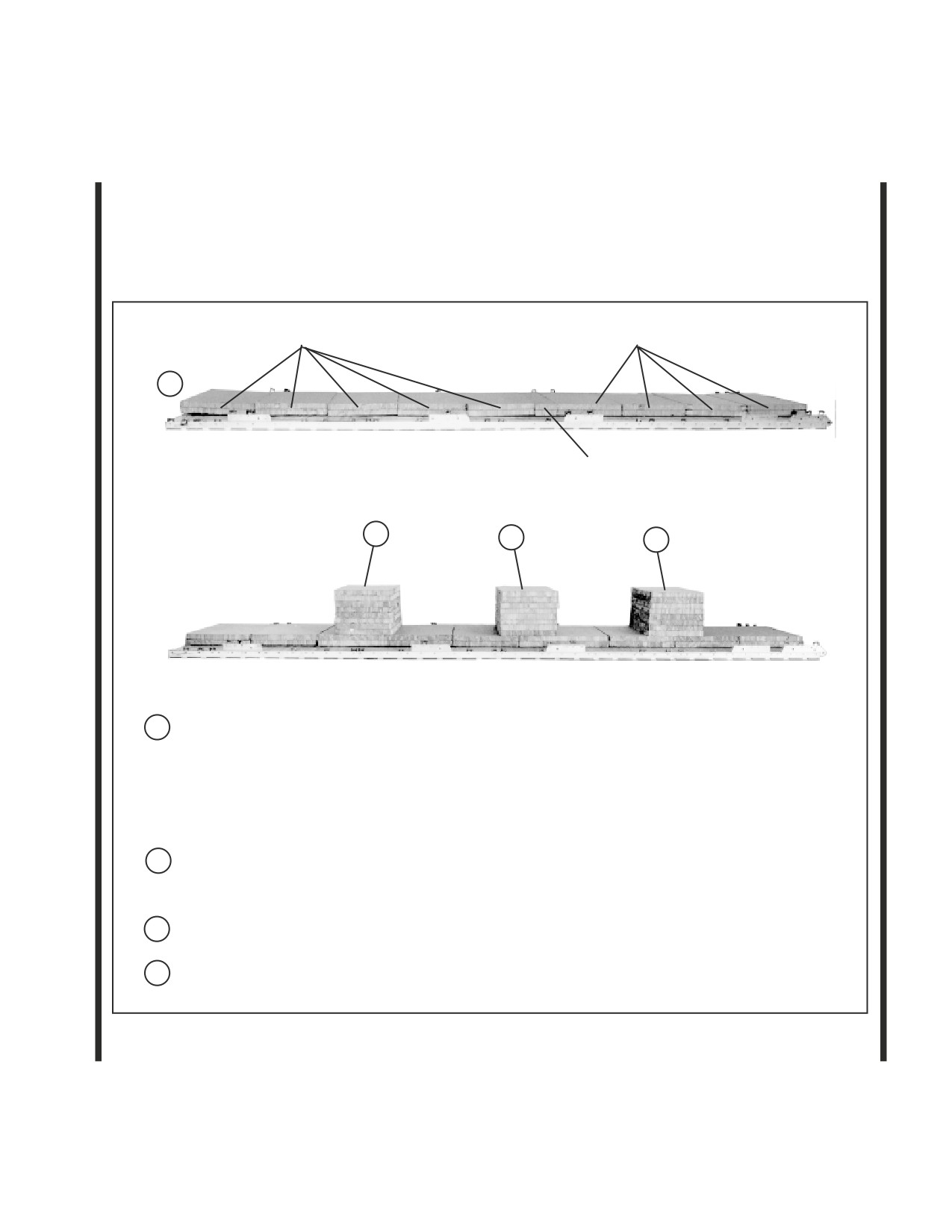

Figure 4-71. Honeycomb stack positioned
4-115
C6, FM 10-564/TO 13C7-37-1

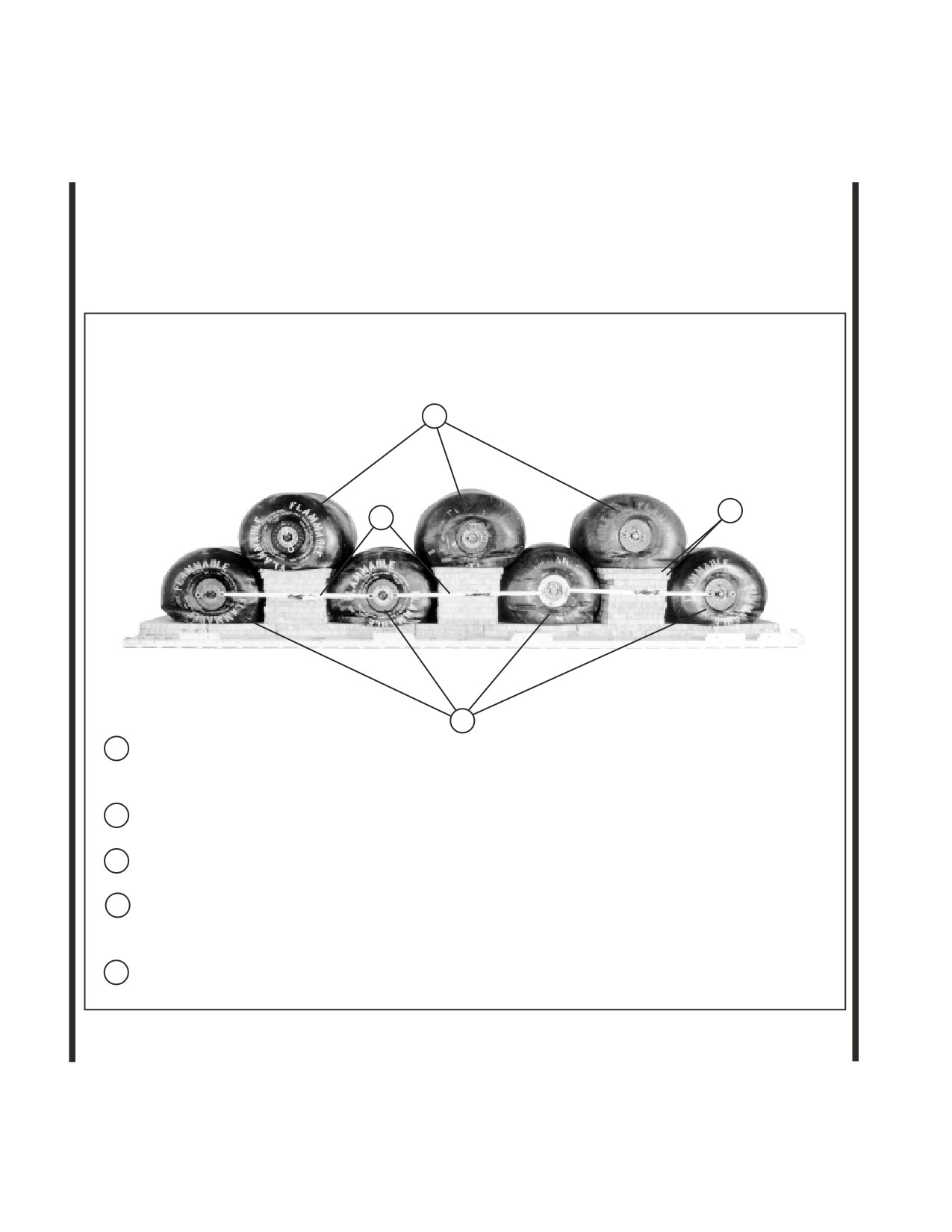

4-105. Installing Lifting Slings and
Positioning Drums
Lift the drums and position them on the honey-
comb as shown in Figure 4-72.
5
4
3
2
1
Attach a 9-foot (2-loop), type XXVI nylon webbing sling to the upper shackle on each side of
the drum with a platform clevis as shown in Figure 4-13.
2
Lift four drums onto the honeycomb base as shown.
3
Lash the shackles of the drums together on each side with 15-foot tiedown assemblies.
4
Glue a 60- by 34-inch piece of honeycomb centered on each stack. Glue a 60- by 36-inch
piece of honeycomb centered over the pieces placed previously.
5
Lift and position a drum onto each stack.

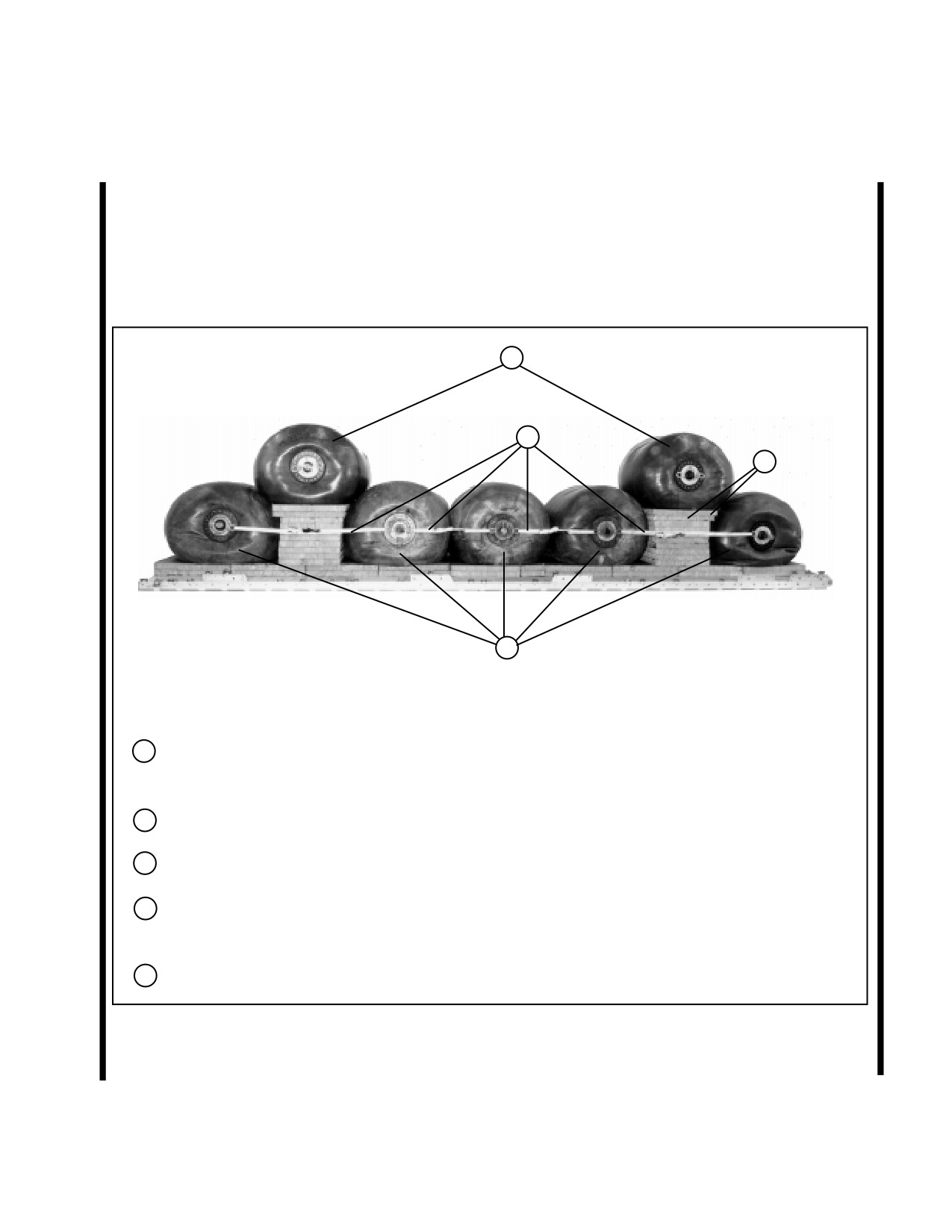

Figure 4-72. Fuel drums positioned
4-116
C6. FM 10-564/TO 13C7-37-1
4-106. Lashing Drums
Use fifty 15-foot tie-down assemblies to lash the
fuel drums as shown in Figure 4-73, and
according to FM 10-500-2/TO 13C7-1-5.
3
7
5
1
9
5
4
3
2
1
Tie-down
Lashing
Clevis
Instructions
Number
Number
Pass lashing:
1
1
Through right front shackle of first drum.
2
1A
Through left front shackle of first drum.
3
2
Through right front shackle of second drum.
4
2A
Through left front shackle of second drum.
5
3
Through right front shackle of second drum.
6
3A
Through left front shackle of second drum.
7
4
Through right front shackle of third drum.
8
4A
Through left front shackle of third drum.
9
5
Through right rear shackle of first drum.
10
5A
Through left rear shackle of first drum.

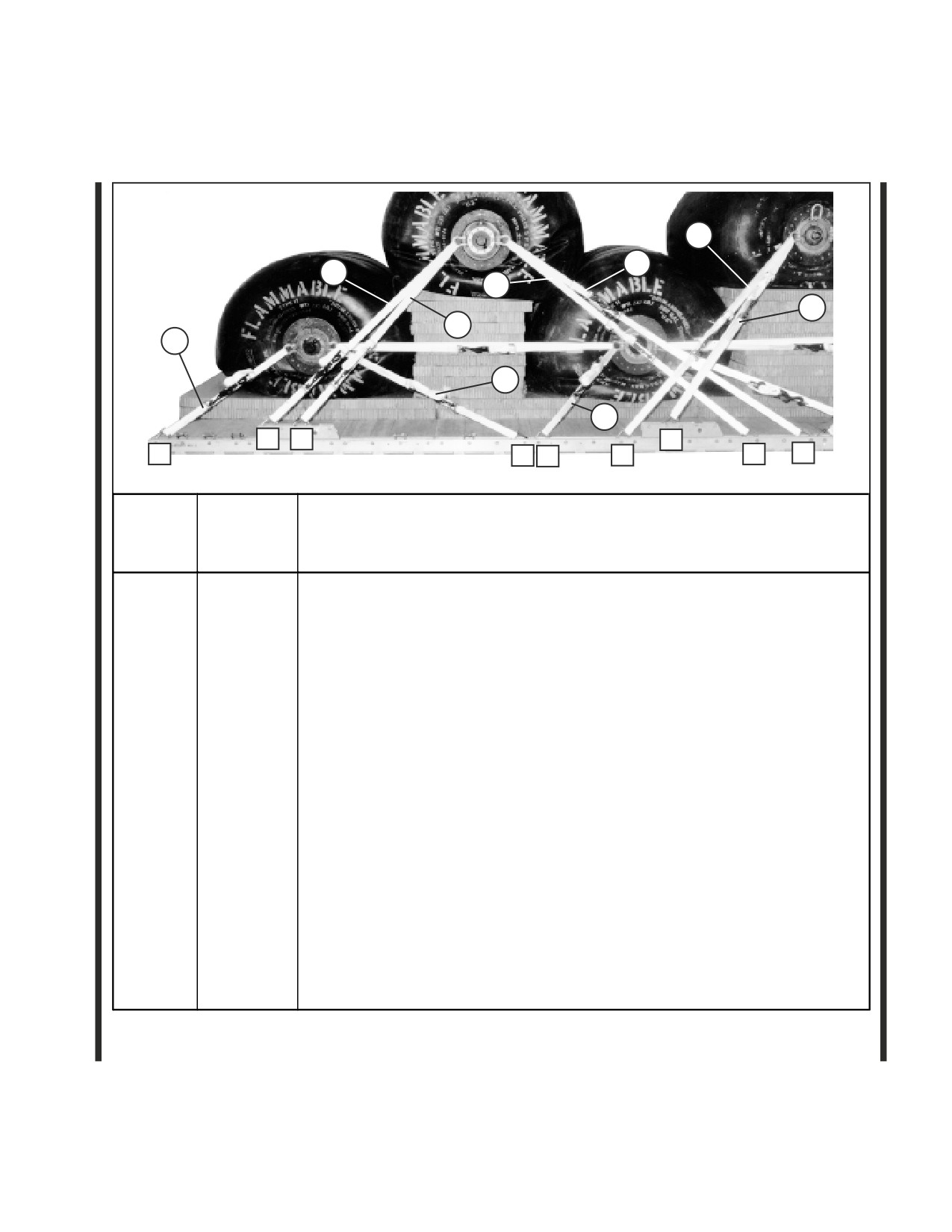

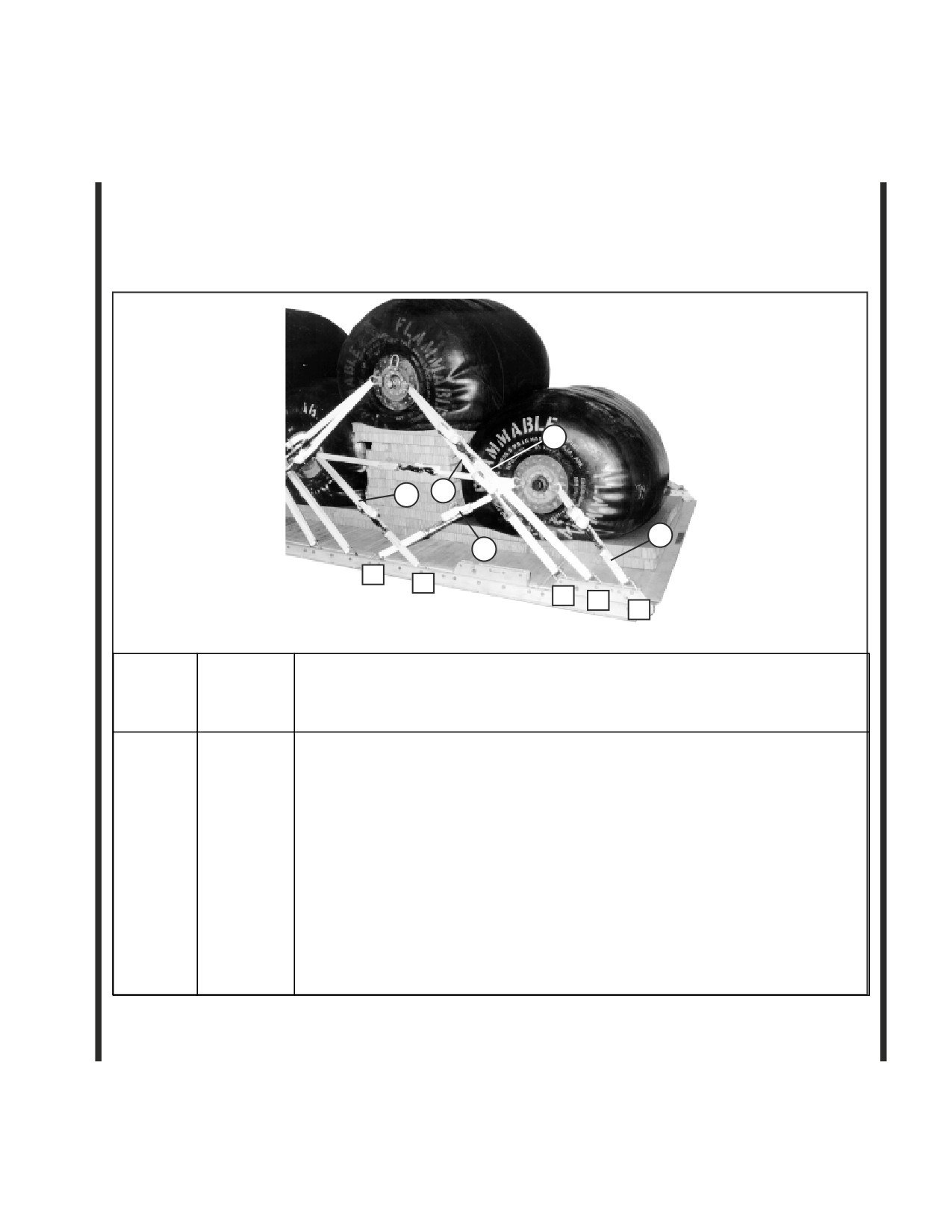

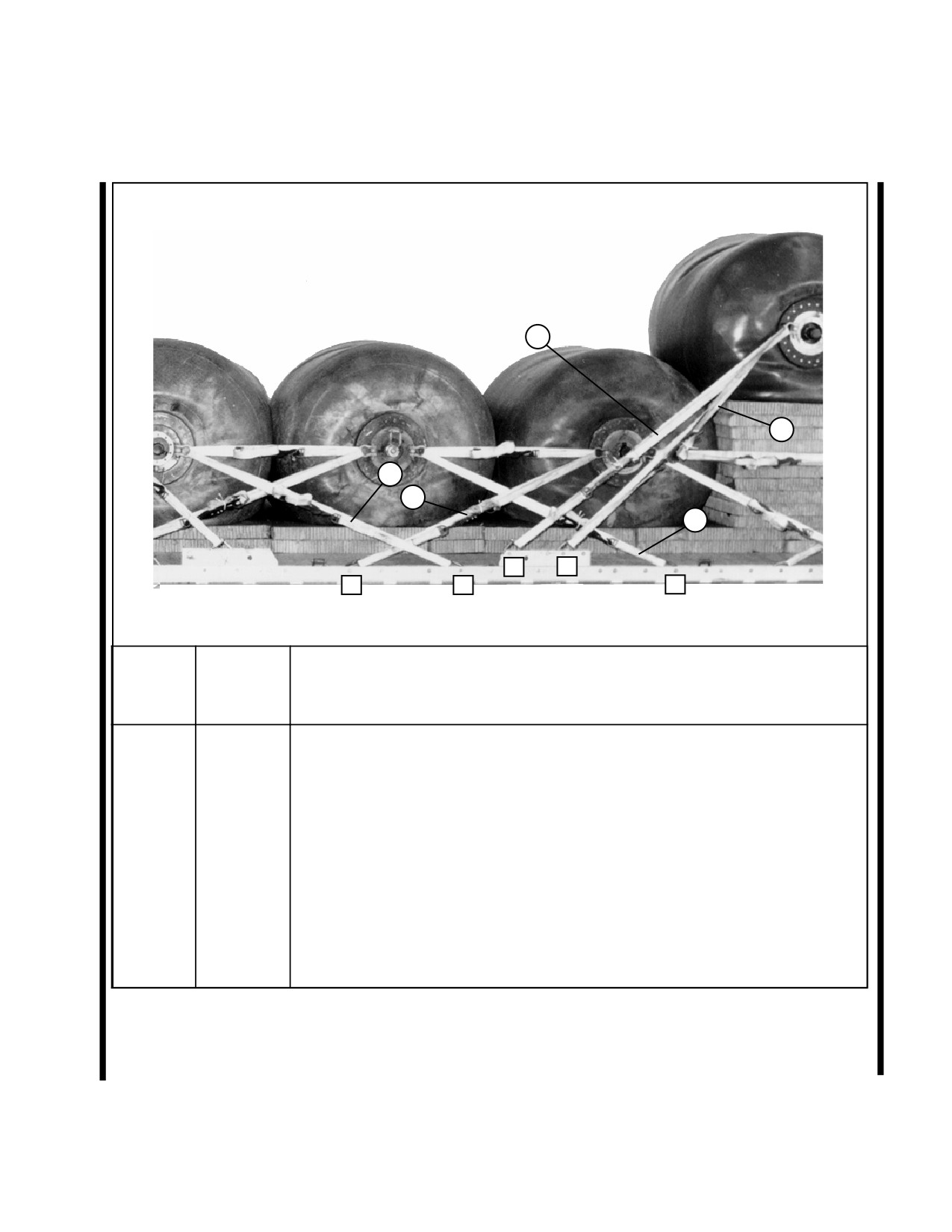

Figure 4-73. Fuel drums lashed to platform
4-117
C6, FM 10-564/TO 13C7-37-1
17
11
15
13
21
19
9
8
11
10
7
6
Tie-down
Lashing
Clevis
Instructions
Number
Number
Pass lashing:
11
6
Through right front shackle of fourth drum.
12
6A
Through left front shackle of fourth drum.
13
7
Through right front shackle of fourth drum.
14
7A
Through left front shackle of fourth drum.
15
8
Through right rear shackle of second drum.
16
8A
Through left rear shackle of second drum.
17
9
Through right rear shackle of second drum.
18
9A
Through left rear shackle of second drum.
19
10
Through right front shackle of fifth drum.
20
10A
Through left front shackle of fifth drum.
21
11
Through right rear shackle of third drum.
22
11A
Through left rear shackle of third drum.

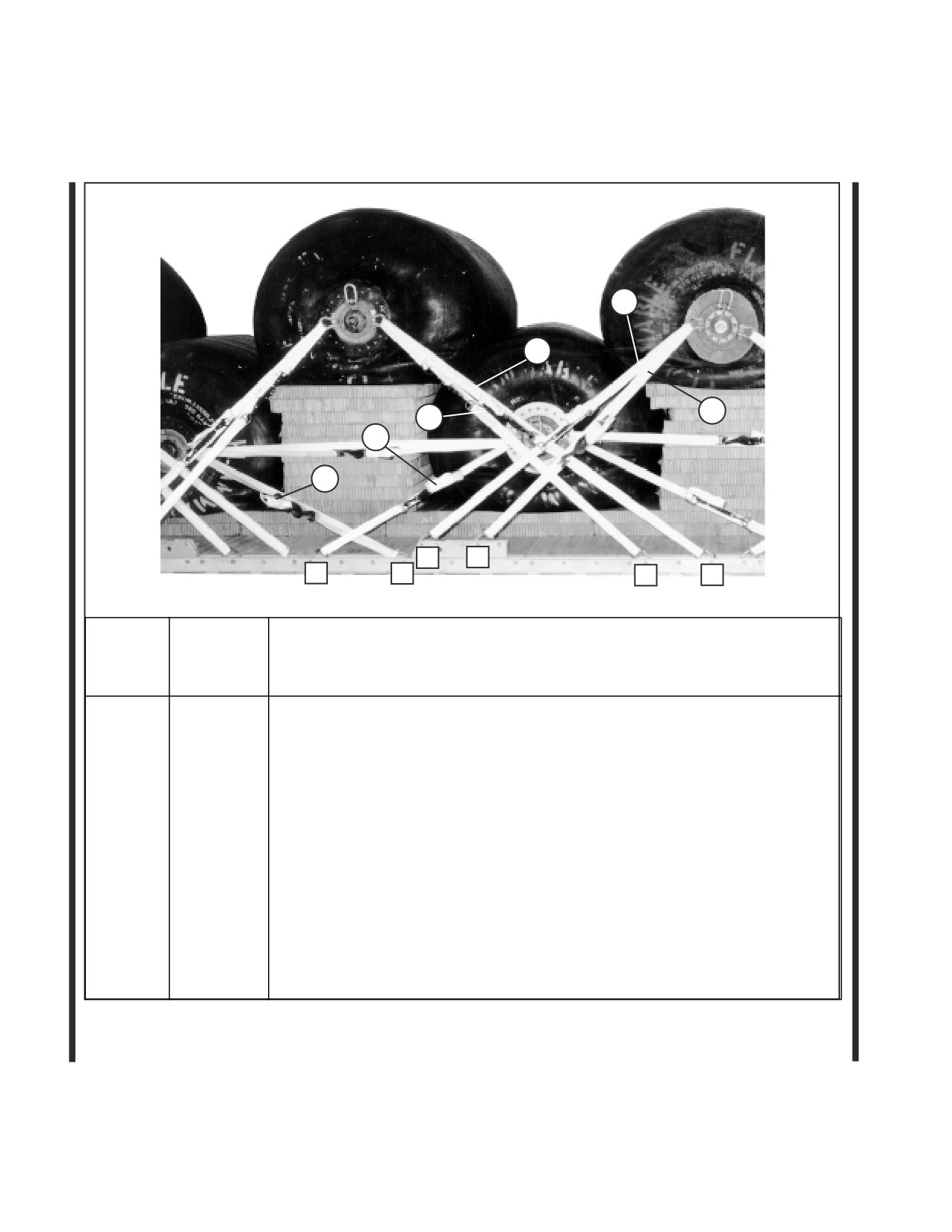

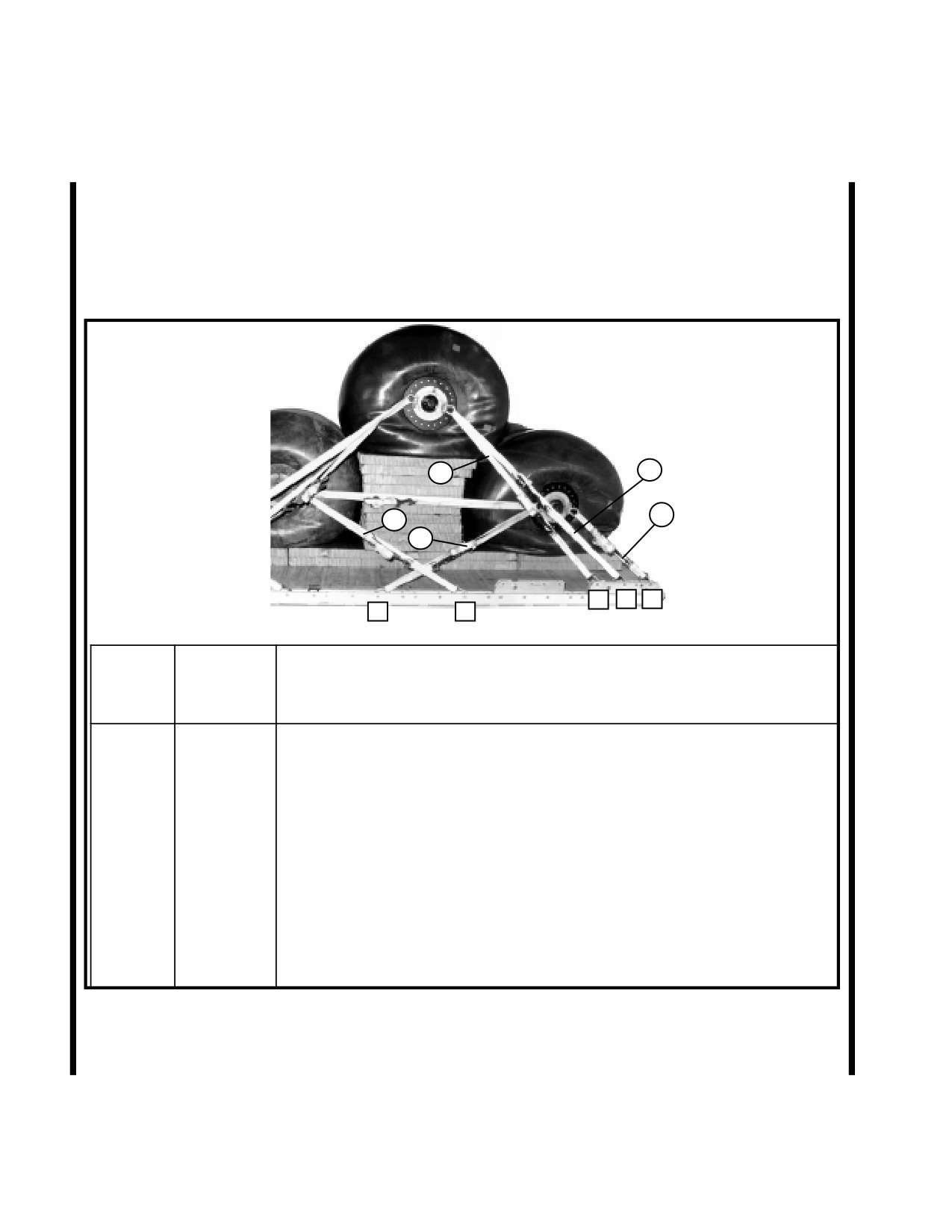

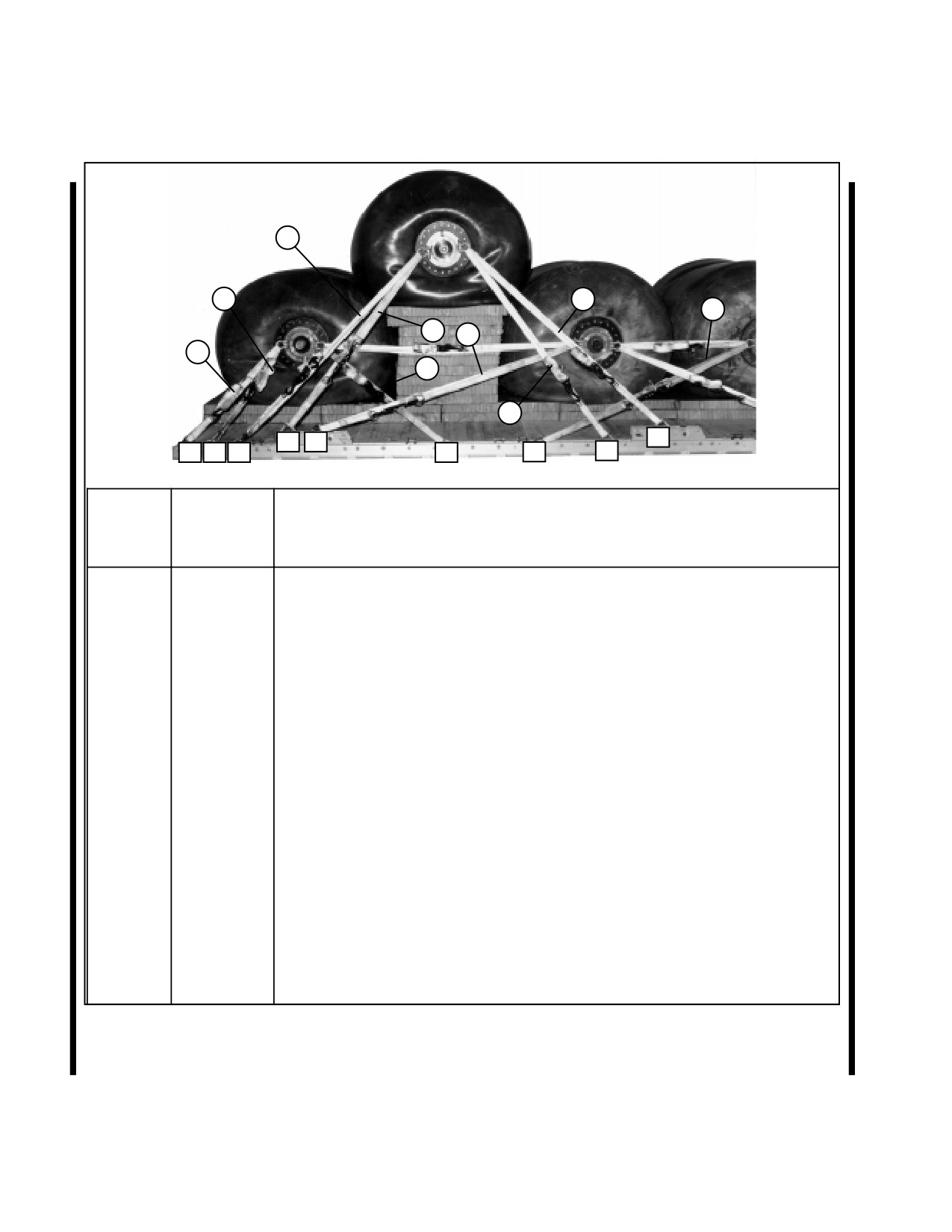

Figure 4-73. Fuel drums lashed to platform (continued)
4-118
C6. FM 10-564/TO 13C7-37-1
29
23
37
25
27
35
39
33
31
21
20
14
25
17
16
15
13
12
Tie-down
Lashing
Clevis
Number
Number
Instructions
Pass lashing:
23
12
Through right front shackle of sixth drum.
24
12A
Through left front shackle of sixth drum.
25
13
Through right front shackle of sixth drum.
26
13A
Through left front shackle of sixth drum.
27
14
Through right rear shackle of fourth drum.
28
14A
Through left rear shackle of fourth drum.
29
15
Through right rear shackle of fourth drum.
30
15A
Through left rear shackle of fourth drum.
31
16
Through right rear shackle of fifth drum.
32
16A
Through left rear shackle of fifth drum.
33
17
Through right front shackle of seventh drum.
34
17A
Through left front shackle of seventh drum.
35
20
Through right rear shackle of sixth drum.
36
20A
Through left rear shackle of sixth drum.
37
21
Through right rear shackle of sixth drum.
38
21A
Through left rear shackle of sixth drum.
39
25
Through right rear shackle of seventh drum.
40
25A
Through left rear shackle of seventh drum.
Figure 4-73. Fuel drums lashed to platform (continued)
4-119
C6, FM 10-564/TO 13C7-37-1

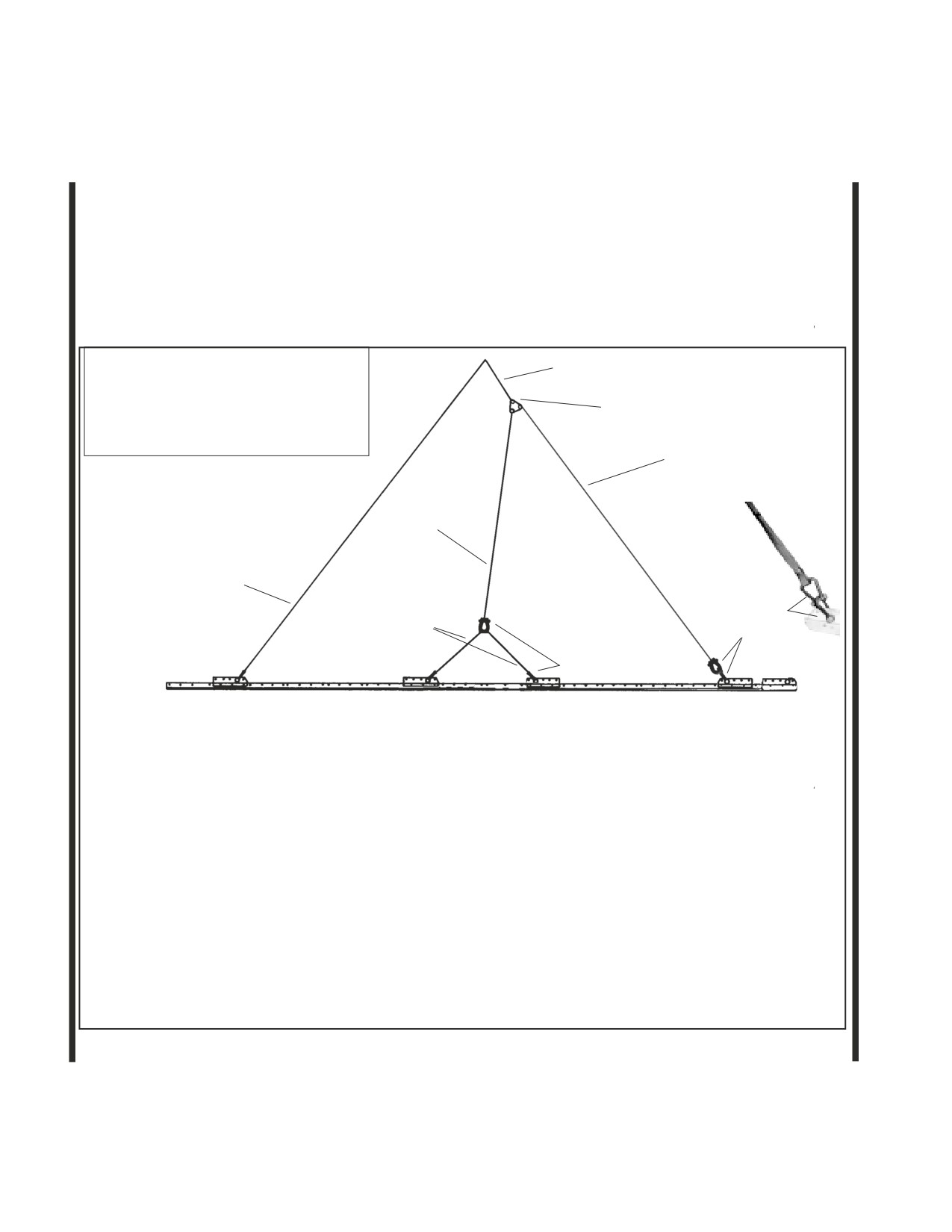

4-107. Installing and Safetying Suspension
Slings
Install the components of the centerline suspen-
sion system according to FM 10-500-2/TO
13C7-1-5, and as shown in Figure 4-74. Safety
the suspension slings as shown in Figure 4-75.
Notes:
3-FOOT SLING
1. This drawing is not to scale.
2. All slings are type XXVI nylon.
3-POINT LINK
3. Instructions are for one side. Repeat
for the other side of the load.
16-FOOT SLING
11-FOOT SLING
20-FOOT SLING
3-FOOT SLINGS
TWO LARGE
CLEVISES
LARGE CLEVISES
REAR
FRONT
Step:
1. Place the end loop of a 20-foot (4-loop) sling in the bell portion of a large clevis. Bolt the clevis
to the rear suspension link.
2. Attach a 3-foot (4-loop) sling to each center suspension link with a large clevis. Place both 3-foot
slings in the bell portion of a large clevis. Place an end loop of an 11-foot (4-loop) sling through
one spool of a three-point link. Place the other end loop of the 11-foot sling in the bolt of the
large clevis.
3. Place the end loop of a 16-foot (4-loop) sling in the bell portion of a large clevis. Place the bolt
of the clevis in the bell of a second large clevis. Bolt the second clevis to the front suspension
link. Bolt the free end of the 16-foot sling to the three-point link on thecenter suspension sling.
Bolt a 3-foot (4-loop) sling to the remaining spool of the three-point link.
Figure 4-74. Suspension slings installed
4-120
C6. FM 10-564/TO 13C7-37-1
2
1
4
3
3
5
4
1
Pad the three-point links with felt taped in place.
2
Attach the rear suspension slings and the 3-foot slings from the three-point links to the crane
hook. Raise the suspension slings.
3
Tie the rear suspension slings to each other 12 inches above the load with a double length of
1/2-inch tubular nylon webbing. Tie the front suspension slings to each other in the
same way.
4
Tie the front suspension slings to the upper shackle on the second drum with a length of type
III nylon cord. Tie the rear suspension slings to the sixth drum in the same way.
5
Tie the upper clevises on the center suspension slings to the nearest shackle on the fourth
drum with type III nylon cord.

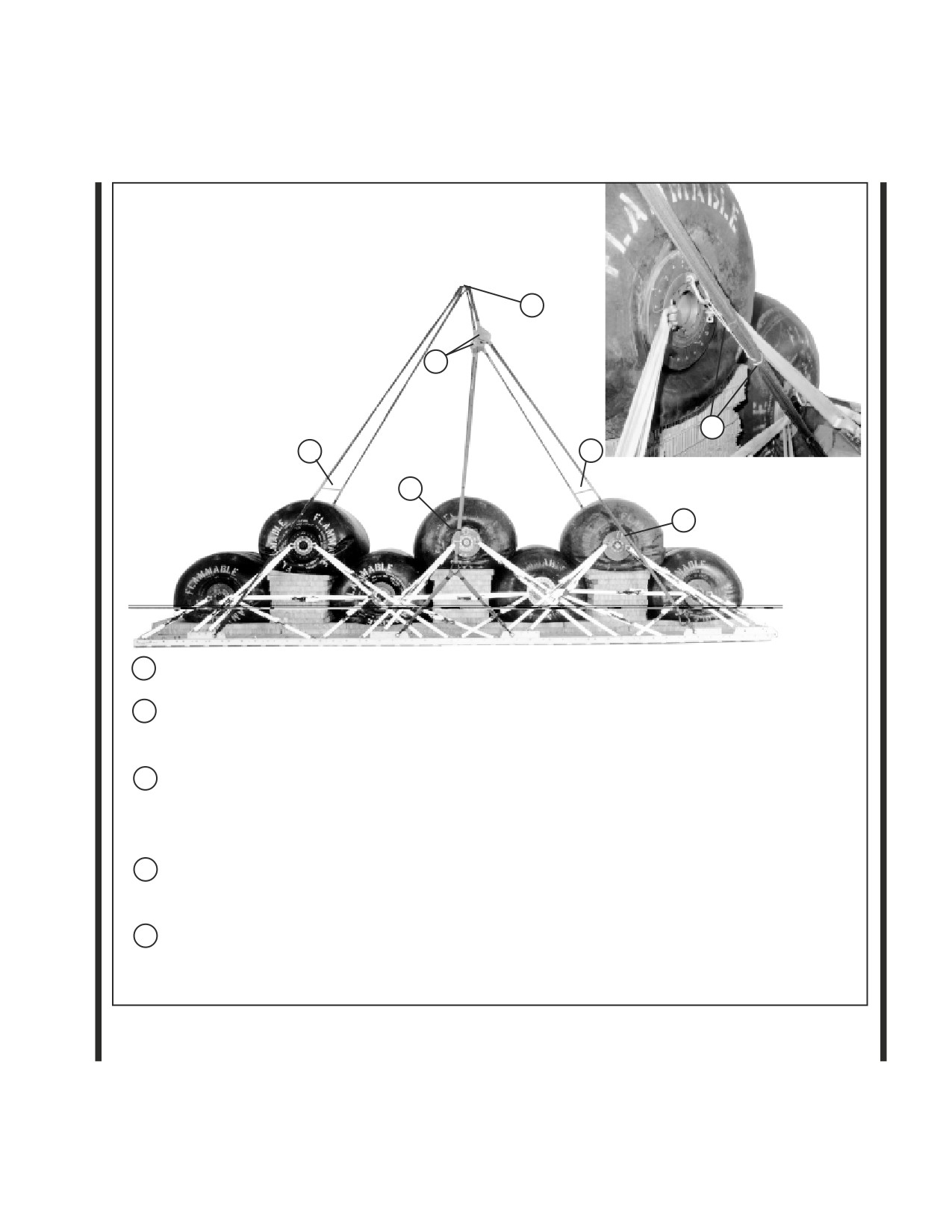

Figure 4-75. Suspension slings safetied
4-121
C6, FM 10-564/TO 13C7-37-1
4-108. Building and Lashing Parachute
Stowage Platform
Build the parachute stowage platform and its
supports as shown in Figure 4-76. Lash the
parachute stowage platform to the load as
shown in Figure 4-77.
3
Notes: 1. This drawing is not to scale.
2. All dimensions are given in
inches.
3. Use eightpenny nails.
LUMBER
2 3/4
2 X 6 X 85
2 IN DIAM HOLES
2 3/4
1
2
PLYWOOD
3/4 X 48 X 96
4
LUMBER
2 X 6 X 48
1
Make two 17-layer stacks of 8- by 8-inch honeycomb. Place one stack on each side flush
with the edge of the honeycomb supporting the rear drum and 29 inches from the rear edge of
the platform.
2
Make two 15-layer stacks of 12- by 12-inch honeycomb. Glue two 8- by 8-inch pieces of
honeycomb on top of each stack flush with the inside front corners. Place the stacks on each
side of the rear drum flush with the rear edge of the honeycomb base layer.
3
Center one or two 48- by 26-inch pieces of honeycomb over the rear drum.
4
Build the parachute stowage platform as shown. Nail the 2- by 6-inch pieces of lumber to the
edges of the plywood, and drill 2-inch holes for the lashings.

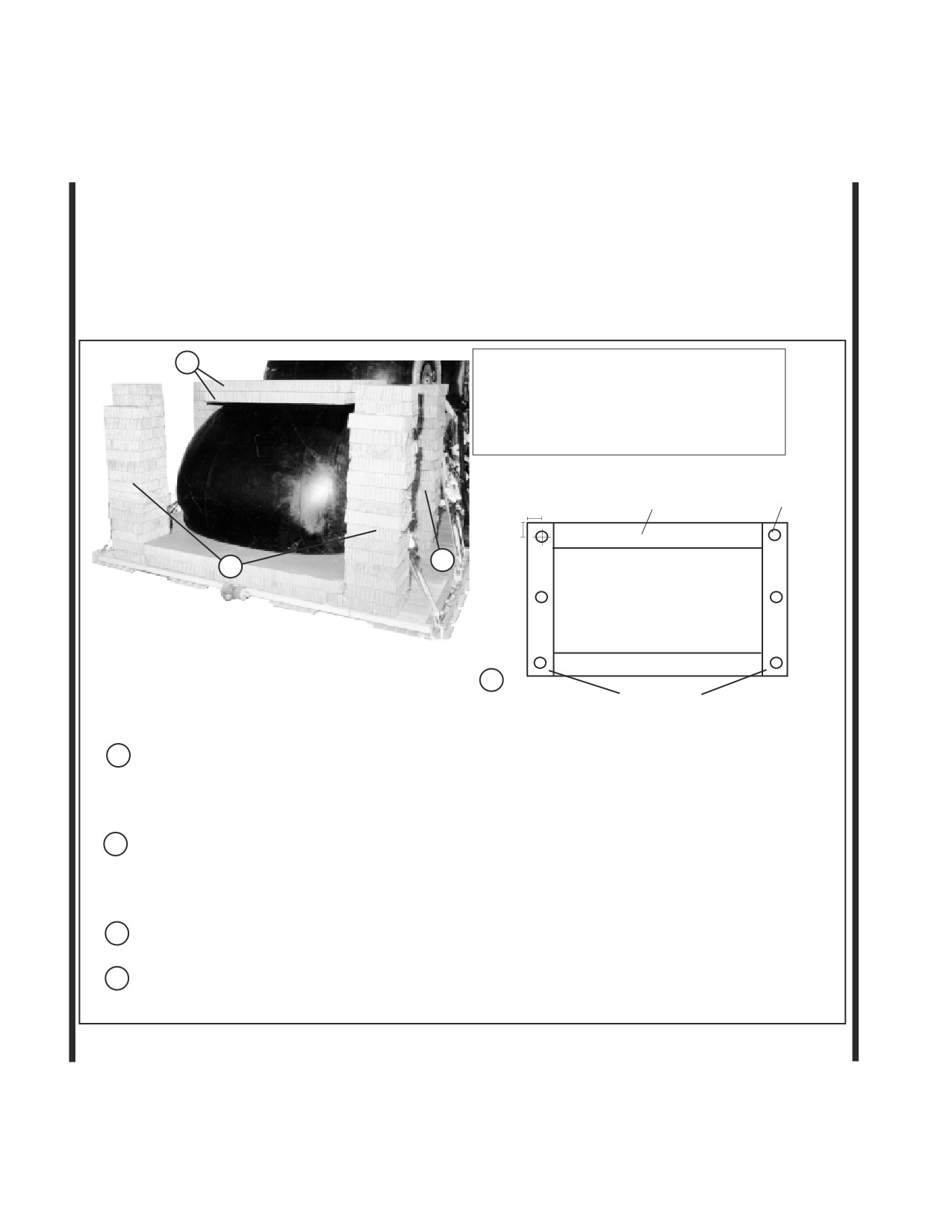

Figure 4-76. Supports placed and parachute stowage platform constructed
4-122
C6. FM 10-564/TO 13C7-37-1
1
3
2
23
18
1
Center the parachute stowage platform on the honeycomb placed in Figure 4-76. Remove or
add honeycomb if necessary for a snug fit.
2
Lash the two rear holes in the parachute stowage platform to clevises 23 and 23A.
3
Lash the two front holes in the parachute stowage platform to clevises 18 and 18A.

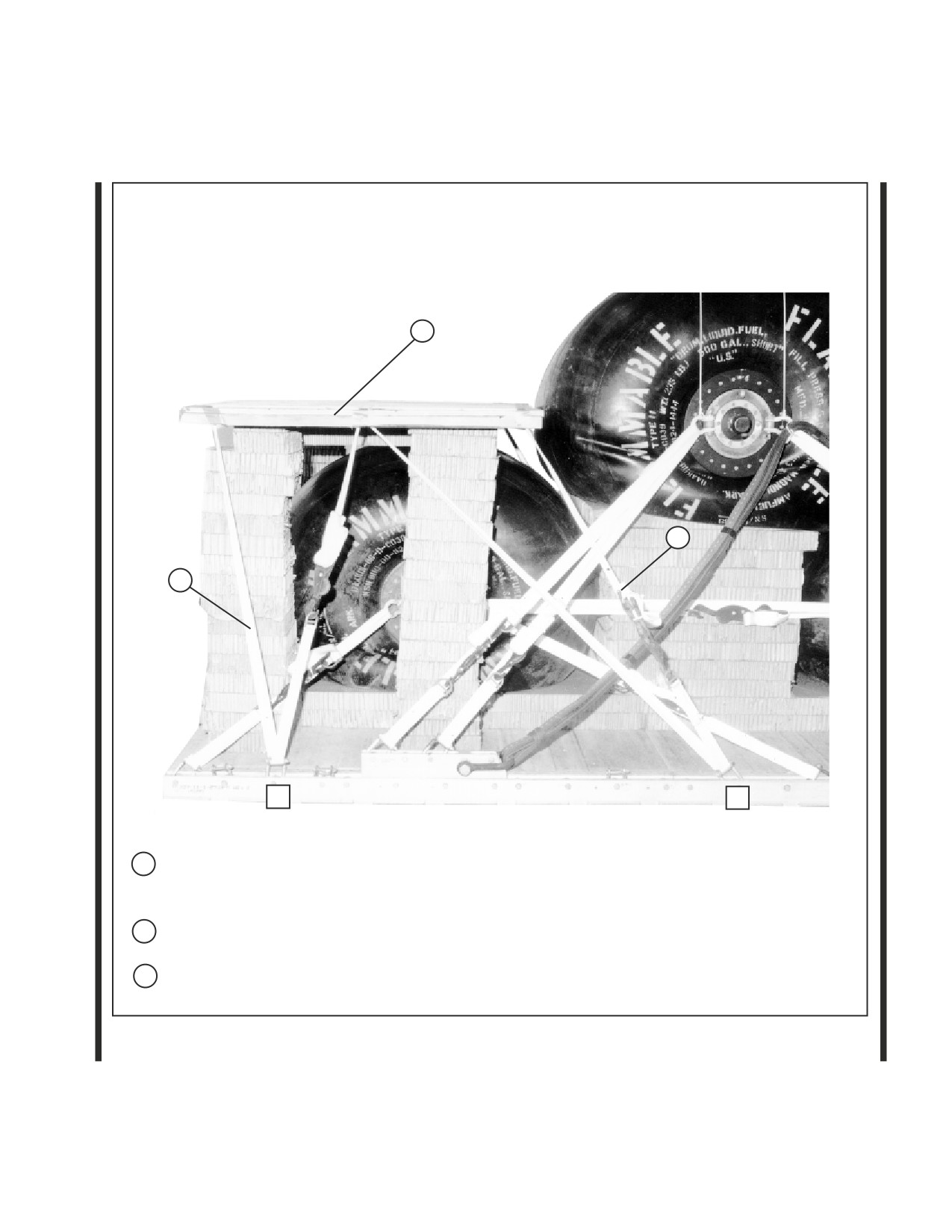

Figure 4-77. Parachute stowage platform lashed to platform rails
4-123
C6, FM 10-564/TO 13C7-37-1
4-109. Installing Cargo Parachutes
Install seven G-11 cargo parachutes as shown in
Figure 4-78, and according to FM 10-500-2/TO
13C7-1-5.
1
5
4
2
3
19
24
22
1
Cluster seven G-11 cargo parachutes on the parachute stowage platform.
2
Pass the rear restraint strap through the rear holes in the parachute stowage platform, and
attach the ends to inverted clevises 24 and 24A with D-rings and load binders.
3
Pass the center restraint strap through the center holes in the parachute stowage platform, and
attach the ends to inverted clevises 22 and 22A with D-rings and load binders.
4
Pass the front restraint strap through the front holes in the parachute stowage platform, and
attach the ends to inverted clevises 19 and 19A with D-rings and load binders.
5
Install the parachute release knives according to FM 10-500-2/TO 13C7-1-5.

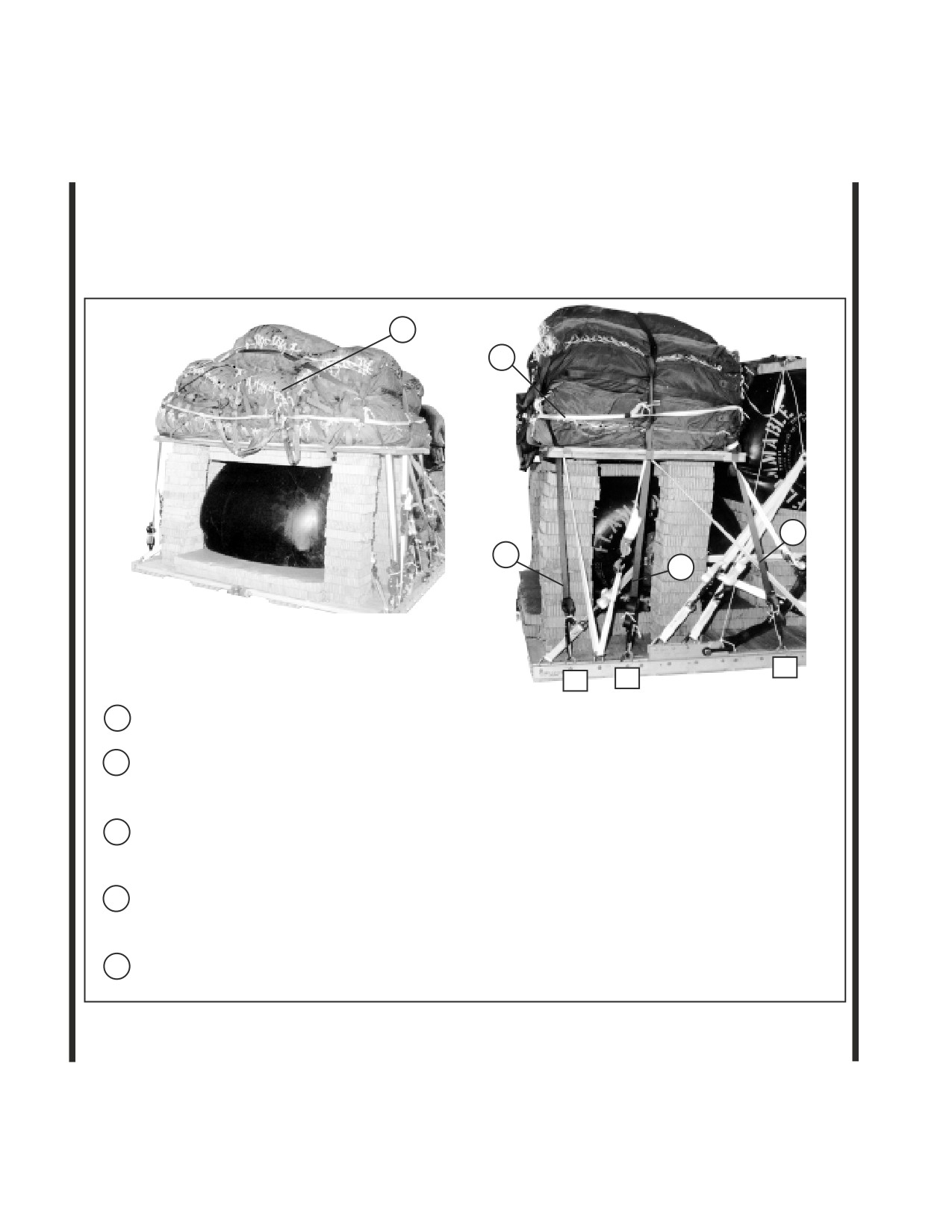

Figure 4-78. G-11 cargo parachutes installed
4-124
C6. FM 10-564/TO 13C7-37-1
4-110. Installing Parachute Release

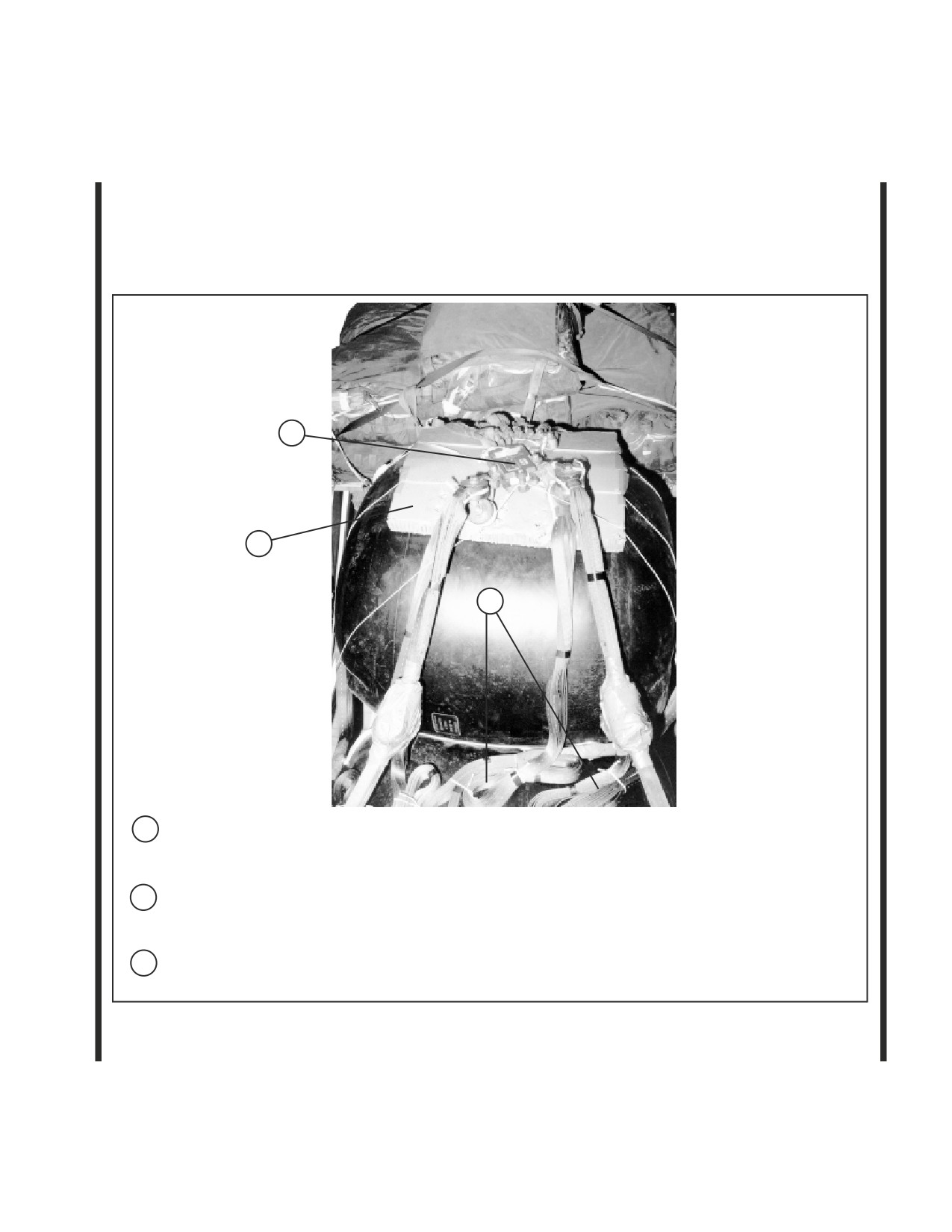

Prepare and install an M-2 cargo parachute
release as shown in Figure 4-79, and according
to FM 10-500-2/TO 13C7-1-5.
2
1
3
3
1
Center a 36 -by 36-inch piece of honeycomb over the sixth drum. Secure the honeycomb to
the drum shackles with type III nylon cord.
2
Attach the suspension slings and the riser extensions to the M-2 release according to FM 10-
500-2/TO 13C7-1-5. Secure the release to the platform with type III nylon cord.
3
S-fold the suspension slings and tie the folds with type I, 1/4-inch cotton webbing.

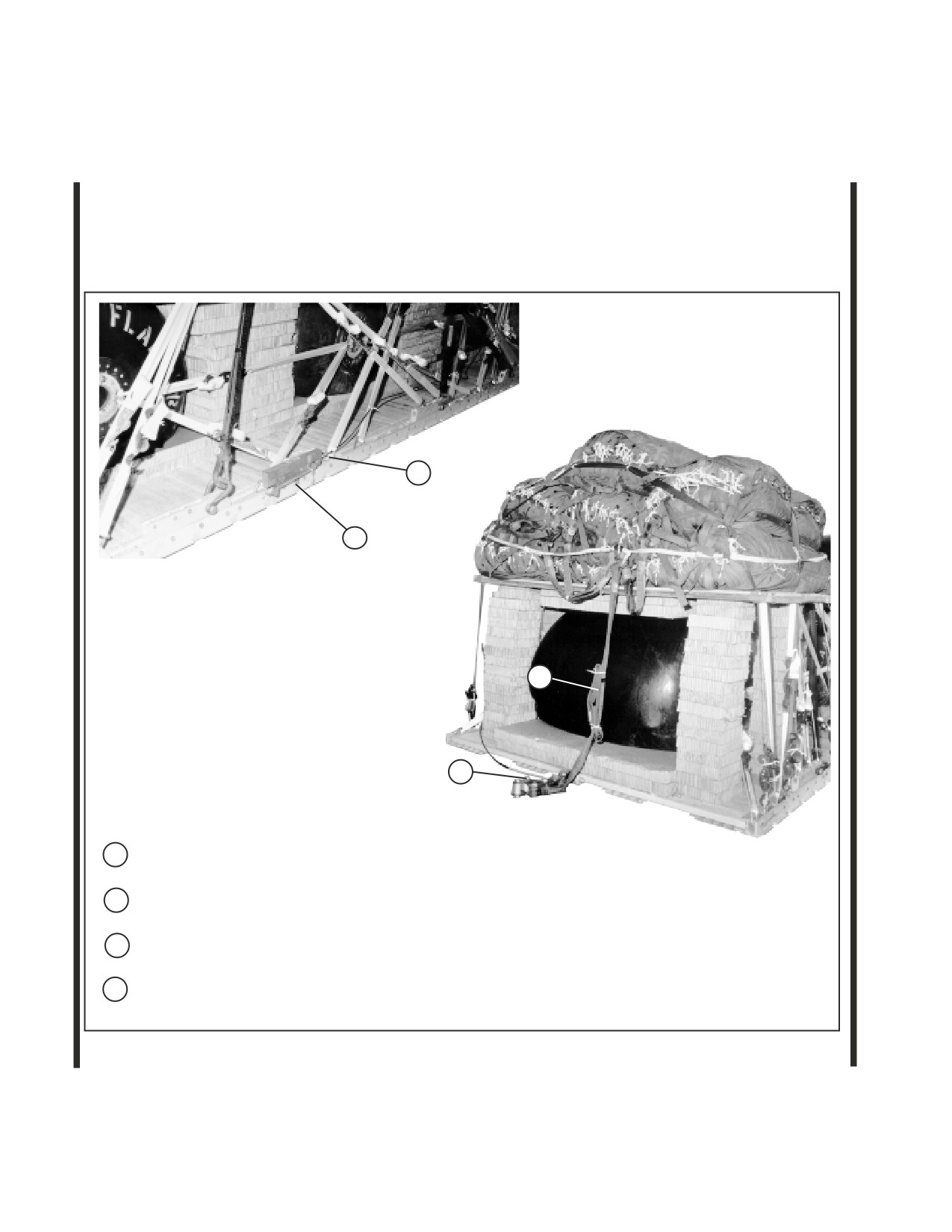

Figure 4-79. M-2 release installed
4-125
C6, FM 10-564/TO 13C7-37-1
4-111. Installing Extraction System
Prepare and install the EFTC extraction system
as shown in Figure 4-80, and according to FM
10-500-2/TO 13C7-1-5.
2
1
4
3
1
Install the actuator mounting brackets to the rear holes on the left platform rail.
2
Install a 28-foot cable to the actuator. Install the actuator to the brackets.
3
Attach the latch assembly to the extraction bracket. Attach the cable to the latch assembly.
4
Install a 9-foot (2-loop), type XXVI nylon webbing sling as the deployment line. S-fold and
tie the excess in two places with type I, 1/4-inch cotton webbing.
Figure 4-80. EFTC installed
4-126
C6, FM 10-564/TO 13C7-37-1
4-112. Installing Provisions for Emergency
4-114. Marking Rigged Load
Restraints
Mark the rigged load according to FM 10-500-
Select and install provisions for emergency
2/TO 13C7-1-5 and as shown in Figure 4-81.
restraints according to the emergency aft re-
straint requirements table in FM 10-500-2/
TO 13C7-1-5.
CAUTION
4-113. Placing Extraction Parachute
The load weight may vary from the one
shown, depending upon the fuel rigged. Be
Select the extraction parachute and extraction
sure that the load is weighed, and the para-
line needed using the extraction line require-
chute requirements, CB, and tip-off curve
ments table in FM 10-500-2/TO 13C7-1-5.
recomputed.
Place the extraction parachute and extraction
line on the load for installation in the aircraft.
4-115. Equipment Required
Use the equipment listed in Table 4-8 to rig this
load.
4-127
C6, FM 10-564/TO 13C7-37-1
CAUTION
Make the final rigger inspection required by FM 10-500-2/TO 13C7-1-5
before the load leaves the rigging site.
CB
Rigged Load Data
Weight: Estimated, with gasoline
24,781 pounds
Maximum (as shown)
31,735 pounds
Height
90 inches
Width
108 inches
Length
336 inches
Overhang Front
5 inches
Rear
17 inches
CB (from front edge of platform)
176 inches
Extraction System (adds 18 inches to length of platform)
EFTC
Figure 4-81. Seven drums rigged on a 28-foot, type V airdrop platform for low-velocity airdrop
4-128
C6. FM 10-564/TO 13C7-37-1
Table 4-8. Equipment required for rigging seven drums without pumping assembly on a 28-foot, type
V airdrop platform for low-velocity airdrop
National Stock
Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gal
As required
4030-00-678-8562
Clevis, suspension, 3/4-in (medium)
6
4030-00-090-5354
Clevis, suspension, 1-in (large)
16
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-01-326-7309
Coupling, airdrop, extraction force transfer with cable, 28-ft
1
Cover:
1670-00-360-0328
Clevis, large
1
1670-00-360-0329
Link, type IV
8
8305-00-958-3685
Felt, 1/2-in thick
As required
1670-01-183-2678
Leaf, extraction line (line bag)
2
Line, drogue (for C-17)
1670-01-062-6313
60-ft (3-loop), type XXVI
1
Line, extraction:
1670-01-064-4454
60-ft (6-loop), type XXVI (for C-130)
1
1670-01-062-6312
120-ft (6-loop), type XXVI (for C-141B or C-5)
1
NO NSN
140-ft (6-loop), type XXVI (for C-17)
1
Link assembly:
1670-01-307-0155
Three-point
2
1670-00-783-5988
Type IV
8
1670-00-006-2752
Four-point
1
5510-00-220-6148
Lumber: 2- by 6- by:
85-in
2
48-in
2
4-129
C6, FM 10-564/TO 13C7-37-1
Table 4-8. Equipment required for rigging seven drums without pumping assembly on a 28-foot, type
V airdrop platform for low-velocity airdrop (continued)
National Stock
Number
Item
Quantity
5315-00-010-4659
Nail, steel wire, 8d
As required
1670-00-753-3928
Pad, energy-dissipating (honeycomb)
3- by 36- by 96-in
32 sheets
Parachute:
Cargo:
1670-01-016-7841
G-11C
7
Cargo extraction:
1670-00-040-8135
28-ft
2
Drogue (for C-17)
1670-01-063-3715
15-ft
1
Platform, airdrop, type V, 28-ft
1670-01-353-8425
Bracket assembly, coupling
(1)
1670-01-162-2372
Clevis assembly, type V
(50)
1670-01-162-2376
Extraction bracket assembly
(1)
1670-01-162-2381
Tandem link assembly (Multipurpose link)
(2)
1670-01-247-2389
Suspension link
(8)
5530-00-128-4981
Plywood, 3/4 -by 48- by 96-in
1 sheet
1670-01-097-8817
Release, cargo parachute, M-2
1
Sling, cargo, airdrop
For suspension:
1670-01-062-6306
3-ft (4-loop), type XXVI nylon webbing
6
1670-01-062-6310-
11-ft (4-loop), type XXVI nylon webbing
2
1670-01-062-6308
16-ft (4-loop), type XXVI nylon webbing
2
1670-01-064-4453
20-ft (4-loop), type XXVI nylon webbing
2
For lifting:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
2
For deployment:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6311
120-ft (2-loop), type XXVI nylon webbing
7
4-130
C6, FM 10-564/TO 13C7-37-1
Table 4-8. Equipment required for rigging seven drums without pumping assembly on a 28-foot, type
V airdrop platform for low-velocity airdrop (continued)
National Stock
Number
Item
Quantity
5340-00-040-8219
Strap, parachute release, multi-cut, comes w/ 3 knives
2
7510-00-266-5016
Tape, adhesive, 2-in
As required
1670-00-937-0271
Tie-down assembly, 15-foot
46
Webbing:
8305-00-268-2411
Cotton, 1/4-in, type I
As required
8305-00-082-5752
Nylon, tubular, 1/2-in
As required
8305-00-261-8584
Type X
As required
4-131
C6, FM 10-564/TO 13C7-37-1
Section IX
RIGGING SEVEN DRUMS WITH PUMPING ASSEMBLY
ON A 28-FOOT PLATFORM
4-116. Description of Load
4-117. Preparing Platform
Seven drums are rigged with the pumping
Prepare a 28-foot, type V airdrop platform using
assembly on a 28-foot, type V platform. Filled
two tandem links, eight suspension links and 54
with 432 gallons of gasoline, each drum weighs
clevises as shown in Figure 4-82.
2,842 pounds and is 62 inches long and 53
inches in diameter. An empty drum weighs 250
Notes: 1. The nose bumper may or may not
pounds.
be installed.
2. Measurements given in this section
Note: Fill drums with no more than 432
are from the front edge of the
gallons of fuel. If the drums are filled with a
platform, NOT from the front edge
fuel other than gasoline, the drum weight
of the nose bumper.
must be computed.
WARNING
Do not add air to drums. Pressurization
changes will cause leaking or bursting.
4-132
C6, FM 10-564/TO 13C7-37-1
TIE-DOWN
RINGS
CLEVISES 26A THROUGH 1A
D
TIE-DOWN
C
RINGS
B
LEFT
B
A
A
REAR
RIGHT
FRONT
CLEVISES 26 THROUGH 1
Step:
1.
Inspect, or assemble and inspect, the platform as outlined in TM 10-1670-268-20&P/
TO 13C7-52-22.
2.
Install suspension links on each platform side rail using holes 22, 23, and 24, and holes 6,
7, and 8.
3.
Install a tandem link on the front of each platform side rail using holes 1, 2, and 3.
4.
Install suspension links on each platform side rail using holes 33, 34, and 35, and holes 49,
50, and 51.
5.
Bolt clevises on bushings 1, 3, and 4 of each front tandem link, on bushings 2 and 4 of each
second suspension link, on bushing 2 of each third suspension link, and on bushings 2 and 4 of
each rear suspension link.
6.
Install a clevis on bushings 54 and 55 in an inverted position on each platform side rail. Bolt one
additional clevis to each inverted clevis.
7.
Starting at the front of the platform, install clevises on each platform side rail using the
bushings bolted on holes 10, 14, 17, 18, 26, 30, 31, 37, 40, 41, 42, 44, 46, 53, and 56.
8.
Starting at the front of the platform, number the clevises bolted to the right side 1 through
26, and those bolted to the left side 1A through 26A.
9.
Label the tie-down rings according to FM 10-500-2/TO 13C7-1-5.
Figure 4-82. Platform prepared
4-133
C6, FM 10-564/TO 13C7-37-1
4-118. Preparing and Positioning Honeycomb
Stack
Prepare and position the honeycomb stack as
shown in Figure 4-83.
2
3
163 inches
57 inches
1
1
Use 18 pieces of 36- by 60-inch honeycomb, and two pieces 12- by 60 inches to form a
two-layer stack 336 inches long and 60 inches wide. Center the stack on the platform flush
with the front edge.
Note: Place the 12-inch section inside the stack.
2
Make two 8-layer stacks of 60- by 30-inch honneycomb. Center a stack on the base layer
57 inches from the front edge of the base.
3
Center the other stack on the base layers 163 inches to the rear of the stack placed in step 2.
Figure 4-83. Honeycomb stack positioned
4-134
C6, FM 10-564/TO 13C7-37-1
4-119. Installing Lifting Slings and
Positioning Drums
Lift the drums and position them on the honey-
comb as shown in Figure 4-84.
5
3
4
2
1
Attach a 9-foot (2-loop), type XXVI nylon webbing sling to the upper shackle on each side
of the drum with a platform clevis as shown in Figure 4-13.
2
Lift five drums onto the honeycomb base as shown.
3
Lash the shackles of the drums together on each side with 15-foot tie-down assemblies.
4
Glue a 60- by 34-inch piece of honeycomb centered on each stack. Glue a 60- by 36-inch
piece of honeycomb centered over the pieces placed previously.
5
Lift and position a drum onto each stack.
Figure 4-84. Fuel drums positioned
4-135
C6, FM 10-564/TO 13C7-37-1
4-120. Lashing Drums
Use thirty-eight 15-foot tie-down assemblies to
lash the fuel drums to the platform as shown in
Figure 4-85, and according to FM 10-500-2/TO
13C7-1-5.
5
3
1
7
9
3
2
1
5
4
Tie-down
Lashing
Clevis
Instructions
Number
Number
Pass lashing:
1
1
Through right front shackle of first drum.
2
1A
Through left front shackle of first drum.
3
2
Through right front shackle of second drum.
4
2A
Through left front shackle of second drum.
5
3
Through right front shackle of second drum.
6
3A
Through left front shackle of second drum.
7
4
Through right front shackle of third drum.
8
4A
Through left front shackle of third drum.
9
5
Through right rear shackle of first drum.
10
5A
Through left rear shackle of first drum.
Figure 4-85. Fuel drums lashed to platform
4-136
C6, FM 10-564/TO 13C7-37-1
15
13
17
19
11
9
8
11
10
7
Tie-down
Lashing
Clevis
Instructions
Number
Number
Pass lashing:
11
7
Through right front shackle of fourth drum.
12
7A
Through left front shackle of fourth drum.
13
8
Through right rear shackle of second drum.
14
8A
Through left rear shackle of second drum.
15
9
Through right rear shackle of second drum.
16
9A
Through left rear shackle of second drum.
17
10
Through right front shackle of fifth drum.
18
10A
Through left front shackle of fifth drum.
19
11
Through right rear shackle of third drum.
20
11A
Through left rear shackle of third drum.
Figure 4-85. Fuel drums lashed to platform (continued)
4-137
C6, FM 10-564/TO 13C7-37-1
33
35
21
25
31
29
37
27
23
21
20
13
26
24
23
18
15
14
Tie-down
Lashing
Clevis
Number
Number
Instructions
Pass lashing:
21
13
Through right front shackle of sixth drum.
22
13A
Through left front shackle of sixth drum.
23
14
Through right front shackle of sixth drum.
24
14A
Through left front shackle of sixth drum.
25
15
Through right rear shackle of fourth drum.
26
15A
Through left rear shackle of fourth drum.
27
18
Through right front shackle of seventh drum.
28
18A
Through left front shackle of seventh drum.
29
20
Through right rear shackle of fifth drum.
30
20A
Through left rear shackle of fifth drum.
31
21
Through right rear shackle of sixth drum.
32
21A
Through left rear shackle of sixth drum.
33
23
Through right rear shackle of sixth drum.
34
23A
Through left rear shackle of sixth drum.
35
24
Through right rear shackle of seventh drum.
36
24A
Through left rear shackle of seventh drum.
37
26
Through right rear shackle of seventh drum.
38
26A
Through left rear shackle of seventh drum.
Figure 4-85. Fuel drums lashed to platform (continued)
4-138
C6, FM 10-564/TO 13C7-37-1
4-121. Preparing Pump Assembly
4-122. Lashing Pump Assembly to Platform
Build the box for the pump assembly as shown
Place the pump assembly box on the load and
in Figure 4-86. Pack the pump assembly and
lash it to the platform as shown in Figure 4-88.
hoses in the box as shown in Figure 4-87.
Notes: 1. These drawings are not to scale.
2. Use 8d nails.
3. All dimensions are in inches.
LUMBER
2 x 4 x 25 1/2
3/4
41 1/2
BOTTOM
25 1/2
26
ENDS (2)
27
LUMBER
2 x 4 x 41 1/2
41 1/2
43
SIDES (2)
TOP
26
27
Step:
1. Cut the bottom of the box from 3/4-inch plywood 41 1/2 inches long and 25 1/2
inches wide. Nail a 41 1/2-inch length of 2- by 4-inch lumber flat side down and flush along
each long edge of the bottom. The top of the box is 43- by 27 inches.
2. Cut the sides of the box from 3/4-inch plywood 41 1/2 inches long and 26 inches high. Place
the sides flush with the bottom. Nail into the 2 -by 4-inch pieces of lumber.
3. Cut the ends of the box from 3/4-inch plywood 27 inches wide and 26 inches high. Nail a 25 1/2-
inch piece of 2- by 4-inch lumber flat side down, centered, and flush with the top edge of
each end piece. Nail the ends flush to the bottom and sides. Nail the sides to the 2- by 4-inch
pieces of lumber on the ends.
Figure 4-86. Pump assembly box built
4-139
C6, FM 10-564/TO 13C7-37-1
1
3
2
1
Place the pump, its hoses, a 5-gallon can of fuel, and any other items needed by the unit in
the box. Pad the items with cellulose wadding. Nail the top to the box.
2
Place four D-rings onto a 15-foot lashing. Place the lashing around the box lengthwise, and
position two D-rings on each end of the box, 6 inches from each side. Tighten the lashing.
3
Pass two 15-foot lashings around the box and through the D-rings as shown. Tighten the
lashings.

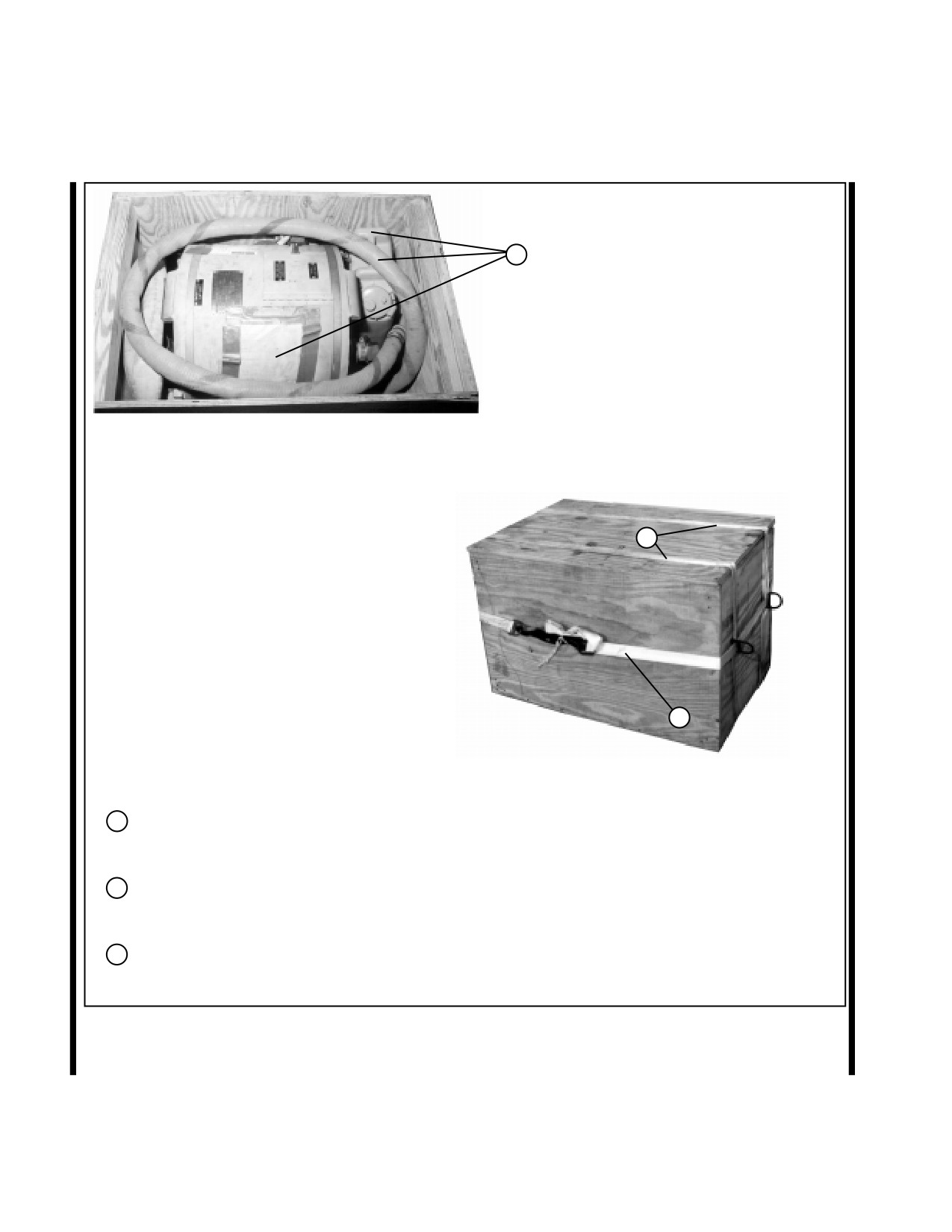

Figure 4-87. Pump assembly box packed
4-140
C6, FM 10-564/TO 13C7-37-1
3
1
2
16
6
1
Center two 96- by 36-inch pieces of honeycomb over the third, fourth, and fifth drums. Tape
the edges of the honeycomb and secure the honeycomb to the load with type III nylon cord.
Center the pump box on the honeycomb with the D-rings facing the front and rear.
2
Lash the right front D-ring on the box to clevis 6. Lash the left front D-ring to clevis 6A.
3
Lash the right rear D-ring on the box to clevis 16. Lash the left rear D-ring to clevis 16A.

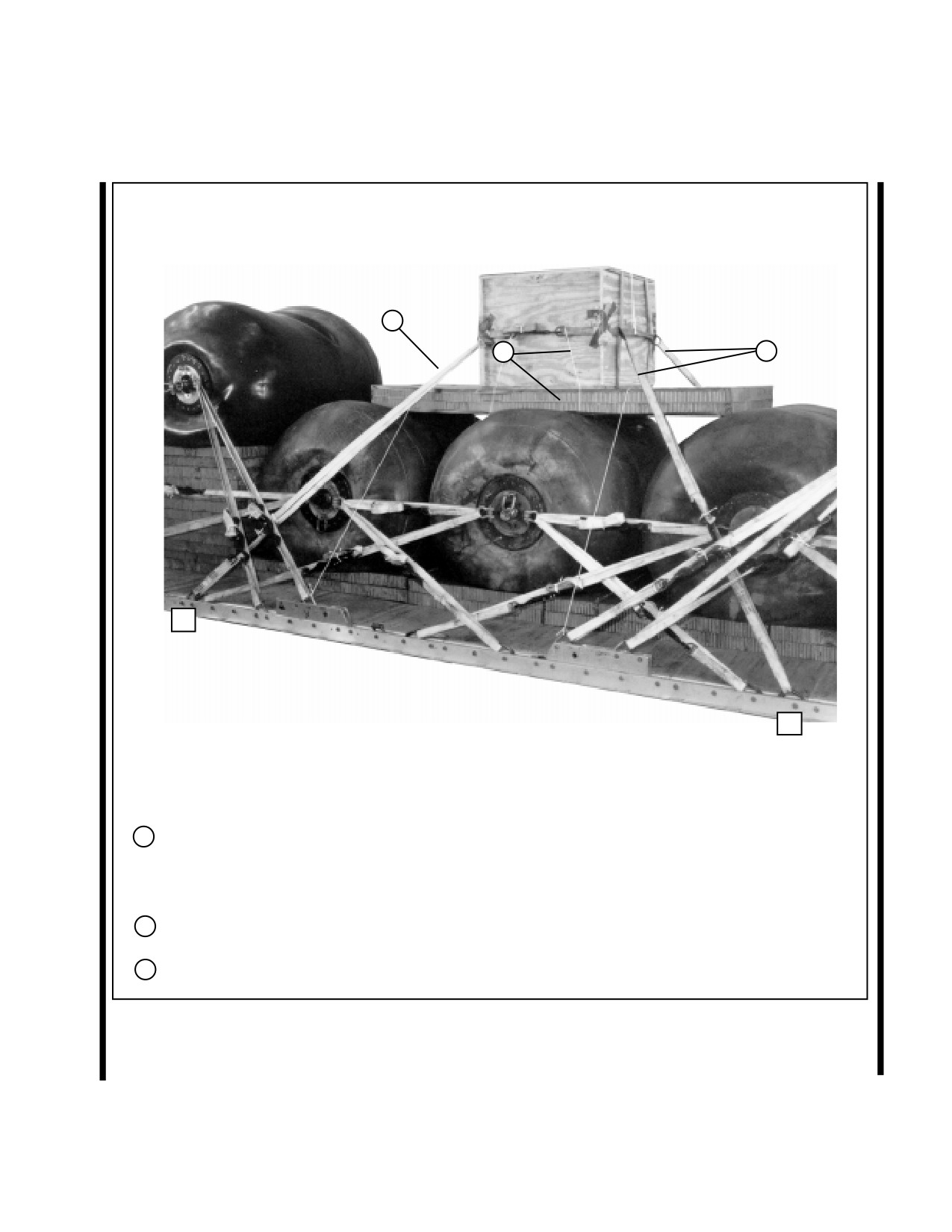

Figure 4-88. Pump assembly box lashed to platform
4-141
C6, FM 10-564/TO 13C7-37-1

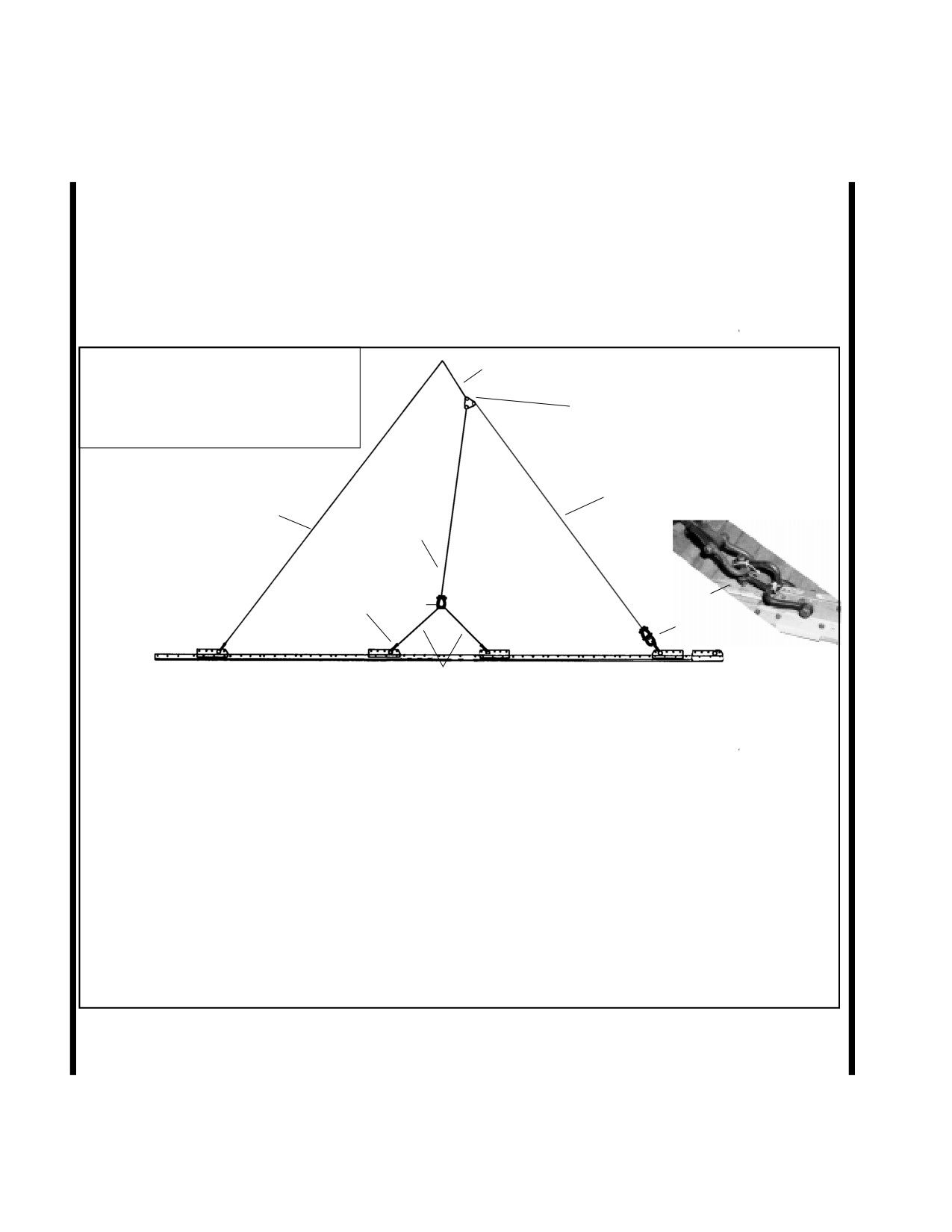

4-123. Installing and Safetying Suspension
Slings
Install the components of the centerline suspen-
sion system according to FM 10-500-2/TO
13C7-1-5 and as shown in Figure 4-89. Safety
the suspension slings as shown in Figure 4-90.
Notes
3-FOOT SLING
1. This drawing is not to scale.
2. All slings are type XXVI nylon.
3. Instructions are for one side. Repeat
3-POINT LINK
for the other side of the load.
16-FOOT SLING
20-FOOT SLING
11-FOOT SLING
THREE
LARGE CLEVISES
LARGE CLEVISES
REAR
FRONT
Step:
3-FOOT SLINGS
1. Place the end loop of a 20-foot (4-loop) sling in the bell portion of a large clevis. Bolt the clevis
to the rear suspension link.
2. Attach a 3-foot (4-loop) sling to each center suspension link with a large clevis. Place both 3-foot
slings in the bell portion of a large clevis. Place an end loop of an 11-foot (4-loop) sling through
one spool of a three-point link. Place the other end loop of the 11-foot sling in the bolt of the
large clevis.
3. Place the end loop of a 16-foot (4-loop) sling in the bell portion of a large clevis. Place the bolt
of the clevis in the bell of a second large clevis. Attach the second clevis to the front suspension
link with a third large clevis. Bolt the free end of the 16-foot sling to the three-point link on the
center suspension sling. Bolt a 3-foot (4-loop) sling to the remaining spool of the three-point
link.
Figure 4-89. Suspension slings installed
4-142















Content      ..     2      3      4      5     ..
