C6, FM 10-564/TO AIRDROP OF SUPPLIES AND EQUIPMENT: RIGGING FUEL DRUMS (December 1981) - page 5





C6, FM 10-564/TO 13C7-37-1
1
2
3
4
1

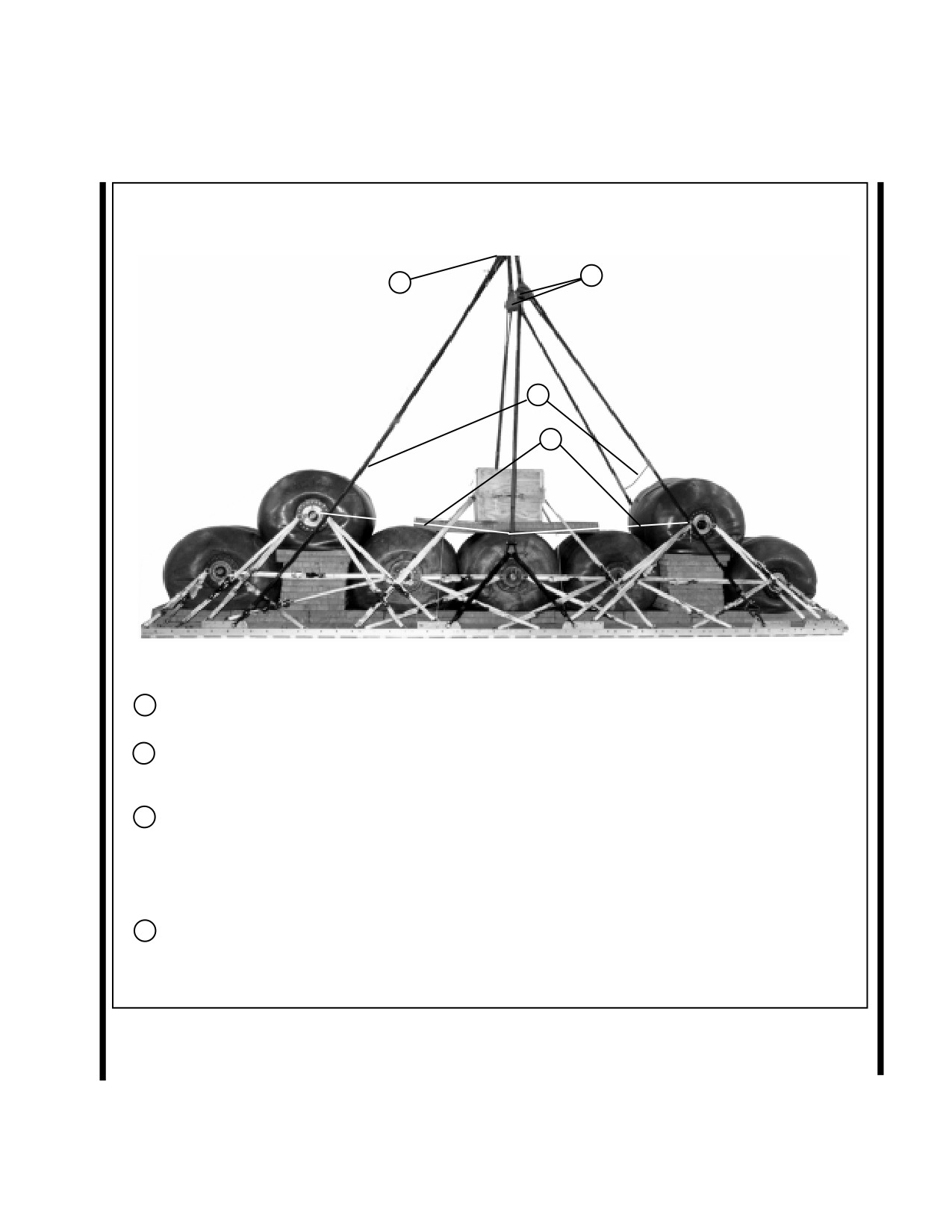

Pad the three-point links with felt taped in place.
2
Attach the rear suspension slings and the 3-foot slings from the three-point links to
the crane hook. Raise the suspension slings.
3
Tie the rear suspension slings to each other 12 inches above the load with a double
length of 1/2-inch tubular nylon webbing. Adapt the procedures in Figure 3-12,
FM 10-500-2/TO 13C7-1-5 to tie and tape the webbing. Tie the front suspension
slings to each other in the same way.
4

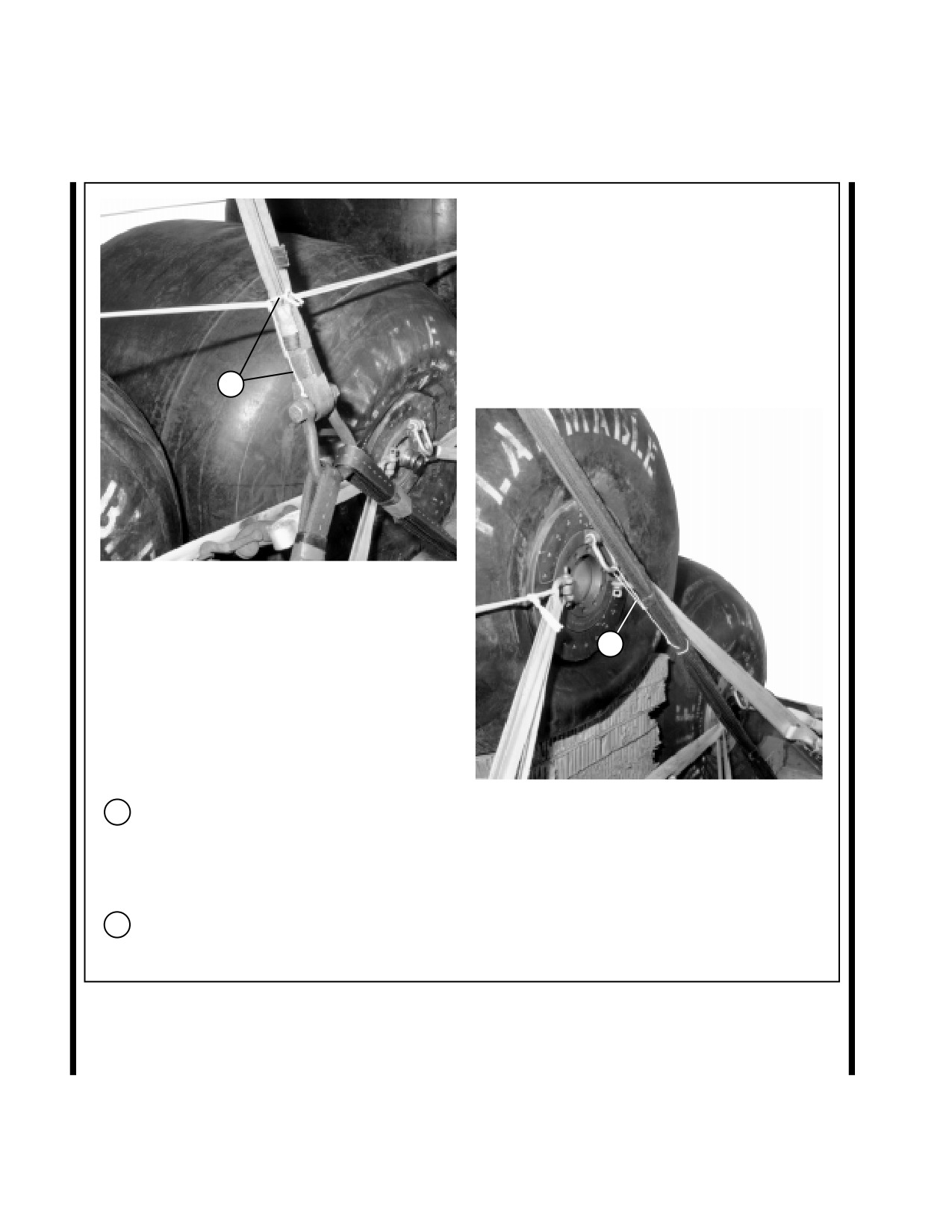

Tie a length of 1/2-inch tubular nylon webbing between the inside shackles of the
second and sixth drums and behind the center suspension slings. Make this tie as taut
as possible.
Figure 4-90. Suspension slings safetied
4-143
C6, FM 10-564/TO 13C7-37-1
5
6
5
Pass a length of 1/4-inch, type I cotton webbing through the plies of the center
suspension slings at the clevis bolt. Pass the ends up and over the 1/2-inch tubular
nylon webbing placed in step 4 so that the nylon webbing is kept in a horizontal
position. Tie the cotton webbing to the outside of the slings.
6
Tie the front suspension slings to the upper shackle on the second drum with a
length of type III nylon cord. Tie the rear suspension slings to the sixth drum in the
same way.
Figure 4-90. Suspension slings safetied (continued)
4-144
C6, FM 10-564/TO 13C7-37-1
4-124. Building and Lashing Parachute
Stowage Platform
Build the parachute stowage platform and its
supports as shown in Figure 4-76, found in
Section VIII. Lash the parachute stowage
platform to the load as shown in Figure 4-91.
1
3
2
23
16
1

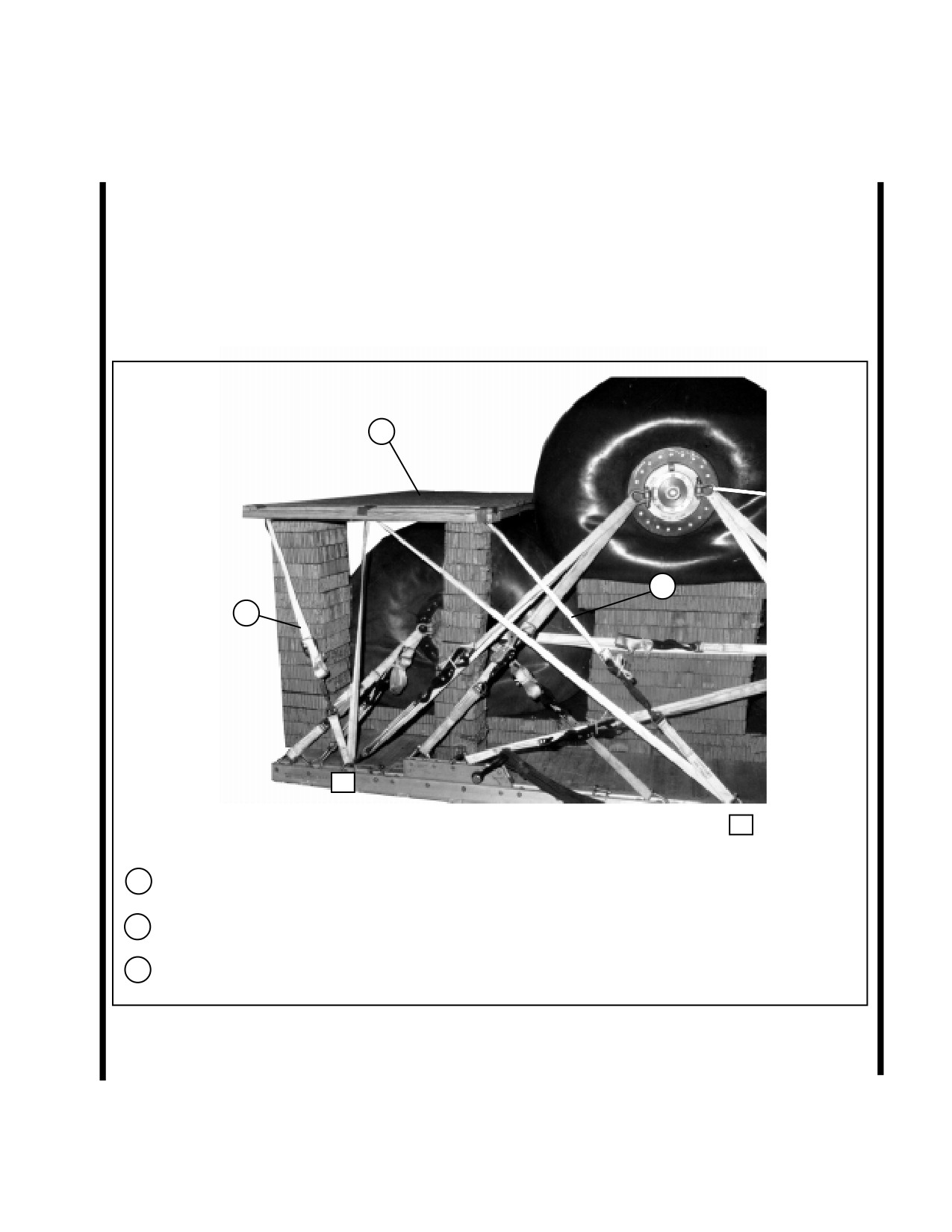

Center the parachute stowage platform on the honeycomb placed in Figure 4-77.
2
Lash the two rear holes in the parachute stowage platform to clevises 23 and 23A.
3
Lash the two front holes in the parachute stowage platform to clevises 16 and 16A.
Figure 4-91. Parachute stowage platform lashed to platform rails
4-145
C6, FM 10-564/TO 13C7-37-1
4-125. Installing Cargo Parachutes
Install seven G-11 cargo parachutes as shown in
Figure 4-92, and according to FM 10-500-2/TO
13C7-1-5.
1
5
3
2
4
19
22
25
1

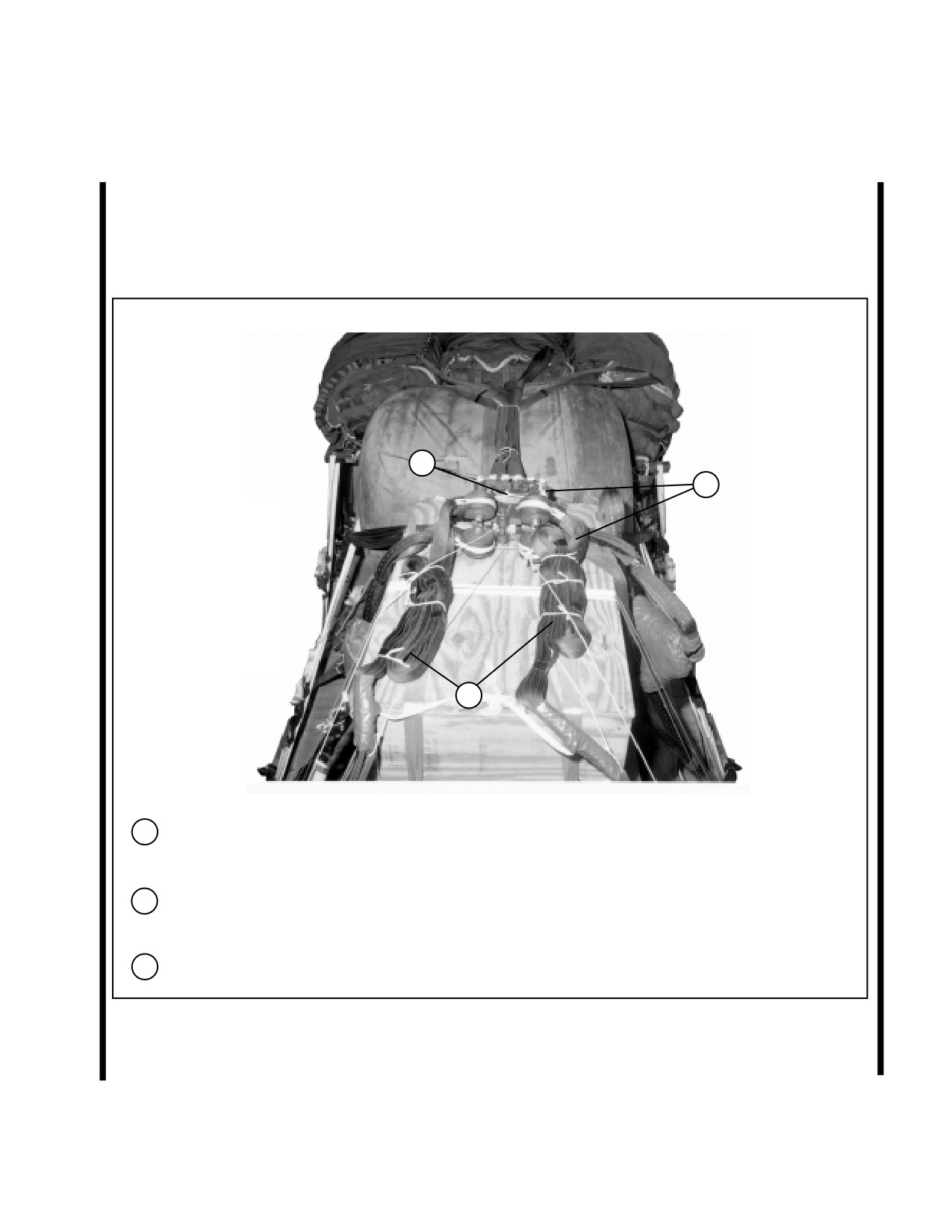

Cluster seven G-11 cargo parachutes on the parachute stowage platform.
2
Pass the rear restraint strap through the rear holes in the parachute stowage platform, and
attach the ends to the lower clevises of 25 and 25A with D-rings and load binders.
3
Pass the center restraint strap through the center holes in the parachute stowage platform,
and attach the ends to inverted clevises 22 and 22A with D-rings and load binders.
4
Pass the front restraint strap through the front holes in the parachute stowage platform, and
attach the ends to inverted clevises 19 and 19A with D-rings and load binders.
5
Install the parachute release knives according to FM 10-500-2/TO 13C7-1-5.
Figure 4-92. G-11 cargo parachutes installed
4-146
C6, FM 10-564/TO 13C7-37-1
4-126. Installing Parachute Release
Prepare and install an M-2 cargo parachute
release as shown in Figure 4-93, and according
to FM 10-500-2/TO 13C7-1-5.
1
2
3
1
Center the M-2 release assembly on the pump box. Secure the release to the load with type
III nylon cord.
2
Attach the suspension slings and the riser extensions to the M-2 release according to FM 10-
500-2/TO 13C7-1-5.
3
S-fold the suspension slings and tie the folds with type I, 1/4-inch cotton webbing.
Figure 4-93. M-2 release installed
4-147
C6, FM 10-564/TO 13C7-37-1
4-127. Installing Extraction System
4-129. Placing Extraction Parachute
Prepare and install the EFTC extraction system
Select the extraction parachute and extraction
as shown in Figure 4-80 in Section VIII, and
line needed using the extraction line require-
according to FM 10-500-2/TO 13C7-1-5.
ments table in FM 10-500-2/TO 13C7-1-5.
Place the extraction parachute and extraction
4-128. Installing Provisions for Emergency
line on the load for installation in the aircraft.
Restraints
4-130. Marking Rigged Load
Select and install provisions for emergency
restraint according to the emergency aft restraint
Mark the rigged load according to FM 10-500-
requirements table in FM 10-500-2/
2/TO 13C7-1-5 and as shown in Figure 4-94.
TO 13C7-1-5.
CAUTION
The load weight may vary from the one
shown, depending upon the fuel rigged. Be
sure that the load is weighed, and the para-
chute requirements, CB, and tip-off curve
recomputed.
4-131. Equipment Required
Use the equipment listed in Table 4-9 to rig this
load.
4-148
C6, FM 10-564/TO 13C7-37-1
CAUTION
Make the final rigger inspection required by FM 10-500-2/TO 13C7-1-5
before the load leaves the rigging site.
CB
Rigged Load Data
Weight: Estimated, with gasoline
25,081 pounds
Maximum (as shown)
32,135 pounds
Height
90 inches
Width
108 inches
Length
336 inches
Overhang Front
5 inches
Rear
17 inches
CB (from front edge of platform)
176 inches
Extraction System (adds 18 inches to length of platform)
EFTC
Figure 4-94. Seven drums with pumping assembly rigged on a 28-foot, type V airdrop platform
for low-velocity airdrop
4-149
C6, FM 10-564/TO 13C7-37-1
Table 4-9. Equipment required for rigging seven drums with pumping assembly on a 28-foot, type V
platform for low-velocity airdrop
National Stock
Number
Item
Quantity
8040-00-273-8713
Adhesive, paste, 1-gal
As required
4030-00-678-8562
Clevis, suspension, 3/4-in (medium)
6
4030-00-090-5354
Clevis, suspension, 1-in (large)
18
4020-00-240-2146
Cord, nylon, type III, 550-lb
As required
1670-01-326-7309
Coupling, airdrop, extraction force transfer with cable, 28-ft
1
Cover:
1670-00-360-0328
Clevis, large
1
1670-00-360-0329
Link, type IV
8
8305-00-958-3685
Felt, 1/2-in thick
As required
1670-01-183-2678
Leaf, extraction line (line bag)
2
Line, drogue (for C-17)
1670-01-062-6316
60-ft (3-loop), type XXVI
1
Line, extraction:
1670-01-064-4454
60-ft (6-loop), type XXVI (for C-130)
1
1670-01-062-6312
120-ft (6-loop), type XXVI (for C-141B or C-5)
1
NO NSN
140-ft (6-loop), type XXVI (for C-17)
1
Link assembly:
1670-01-3070155
Three-point
2
1670-00-783-5988
Type IV
8
1670-00-006-2752
Four-point
1
Lumber:
5510-00-220-6146
2- by 4- by:
41 1/2-in
2
25 1/2-in
2
5510-00-220-6148
2- by 6- by:
85-in
2
48-in
2
4-150
C6, FM 10-564/TO 13C7-37-1
Table 4-9. Equipment required for rigging seven drums with pumping assembly on a 28-foot, type V
platform for low-velocity airdrop (continued)
National Stock
Number
Item
Quantity
5315-00-010-4659
Nail, steel wire, 8d
As required
1670-00-753-3928
Pad, energy-dissipating (honeycomb)
3- by 36- by 96-in
28 sheets
Parachute:
Cargo:
1670-01-016-7841
G-11C
7
Cargo extraction:
1670-00-040-8135
28-ft
2
Drogue (for C-17)
1670-01-063-3715
15-ft
1
Platform, airdrop, type V, 28-ft
1670-01-353-8425
Bracket assembly, coupling
(1)
1670-01-162-2372
Clevis assembly, type V
(56)
1670-01-162-2376
Extraction bracket assembly
(1)
1670-01-162-2381
Tandem link assembly (Multipurpose link)
(2)
1670-01-247-2389
Suspension link
(8)
5530-00-128-4981
Plywood, 3/4 -by 48- by 96-in
7 sheets
1670-01-097-8817
Release, cargo parachute, M-2
1
Sling, cargo, airdrop
For suspension:
1670-01-062-6306
3-ft (4-loop), type XXVI nylon webbing
6
1670-01-062-6310-
11-ft (4-loop), type XXVI nylon webbing
2
1670-01-063-7761
16-ft (2-loop), type XXVI nylon webbing
2
1670-01-064-4453
20-ft (4-loop), type XXVI nylon webbing
2
For lifting:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
2
For deployment:
1670-01-062-6304
9-ft (2-loop), type XXVI nylon webbing
1
For riser extension:
1670-01-062-6311
120-ft (2-loop), type XXVI nylon webbing
7
4-151
C6, FM 10-564/TO 13C7-37-1
Table 4-9. Equipment required for rigging seven drums with pumping assembly on a 28-foot, type V
platform for low-velocity airdrop (continued)
National Stock
Number
Item
Quantity
5340-00-040-8219
Strap, parachute release, multi-cut, comes w/ 3 knives
2
7510-00-266-5016
Tape, adhesive, 2-in
As required
1670-00-937-0271
Tie-down assembly, 15-foot
56
Webbing:
8305-00-268-2411
Cotton, 1/4-in, type I
As required
8305-00-082-5752
Nylon, tubular, 1/2-in
As required
8305-00-261-8584
Type X
As required
4-152
C6, FM 10-564/TO 13C7-37-1
