Section 13 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)

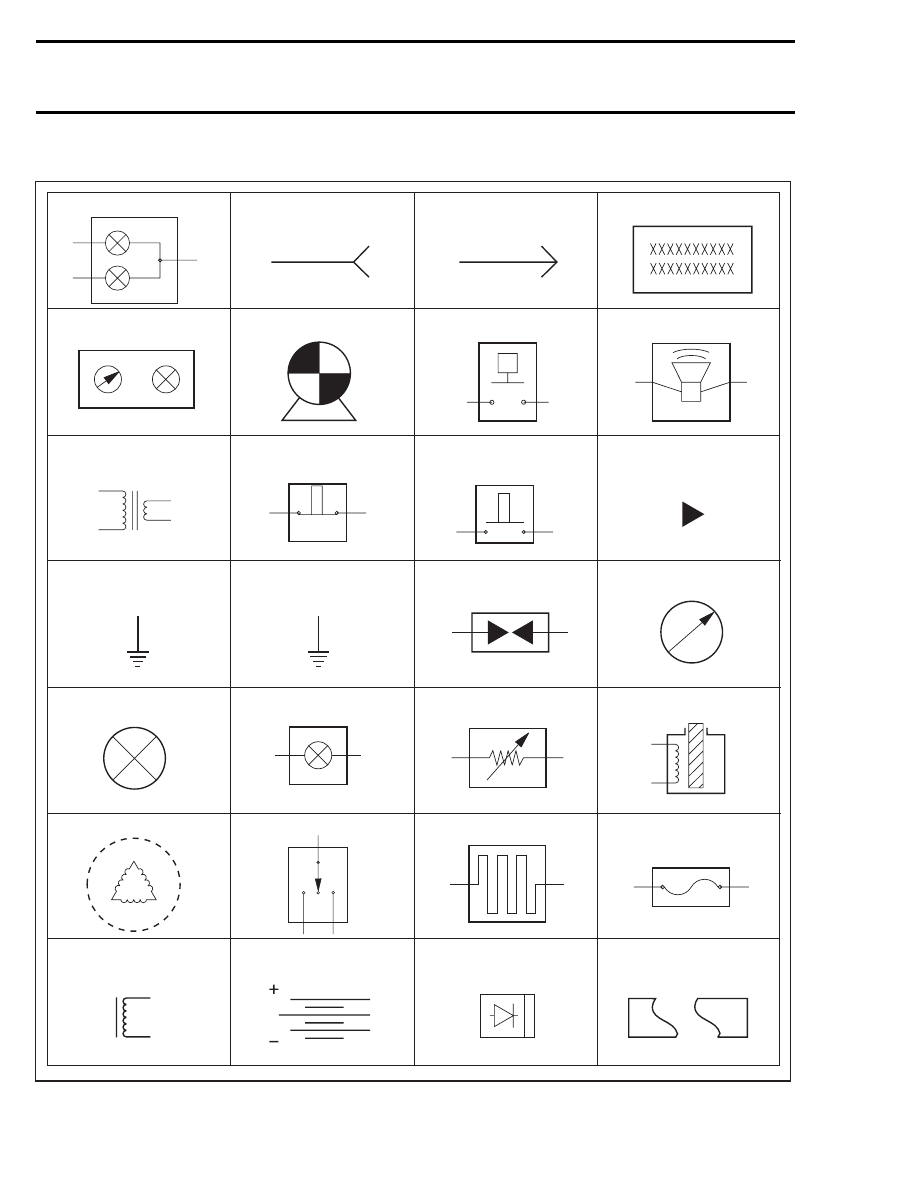

SYMBOLS DESCRIPTION

Beam and tail light

Female terminal

Male terminal

Electronic module

Meter

Electric motor

Low level sensor

Buzzer

Ignition coil

Normally close

switch

Male terminal

on instrument

Engine

ground

Spark plug

Meter movement

Bulb

PilotAnalog sensor

Solenoid valve

Magneto (Delta)

3 position switch

Heating element

Fuse

Normally open

switch

Frame

ground

Frame

Trigger coil

Battery

Diode

Partially illustrated

component

A00E9PS

488

mmr2005-102

Section 13 WIRING DIAGRAM

Subsection 01 (WIRING DIAGRAMS)

UNPLUGING CONNECTORS

Always unplug connectors by pulling on housing
not on wire.

A06E1PA

TYPICAL

Throttle Position Sensor (TPS)
Connector

A33I0QA

1

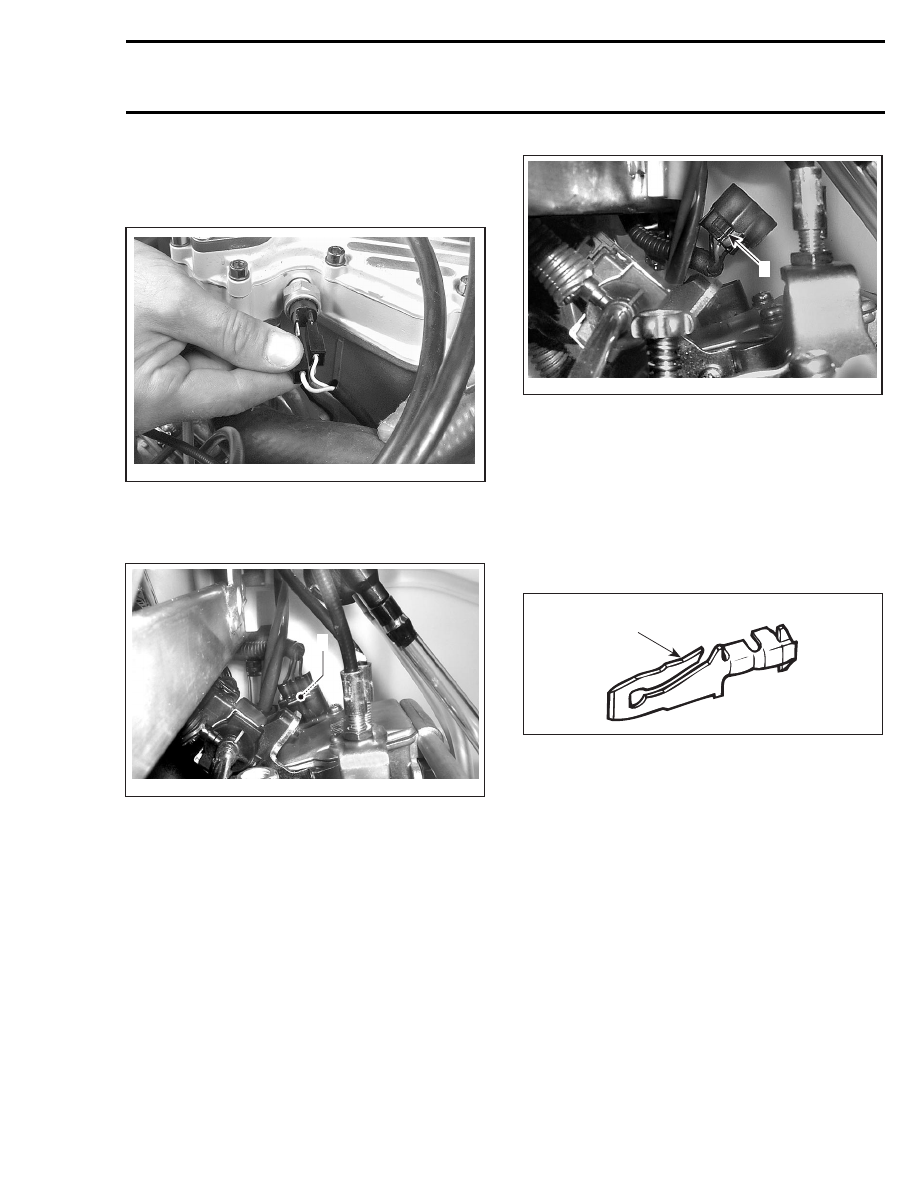

TPS CONNECTOR
1. Release button

To disconnect the Sumitomo TPS connector from
carburetor, press the release button on the other
side of the connector.

A33I0RA

1

TPS CONNECTOR UNPLUGGED
1. Release button

TAB AND RECEPTACLE
CONNECTORS REMOVAL

Tab Connector

It is locked in its housing by a spring tab on its side.
Removal is done by squeezing this tab.

A00E1DA

1

TAB CONNECTOR
1. Locking tab

To remove:

– Insert a screwdriver or Snap-on TT 600-5 from

opposite side of wire and pry locking tab.

– While holding locking tab pried, pull connector

toward wire side.

mmr2005-102

489

Section 13 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)

A00E1EA

2

1

1. Insert screwdriver here
2. Pull this side

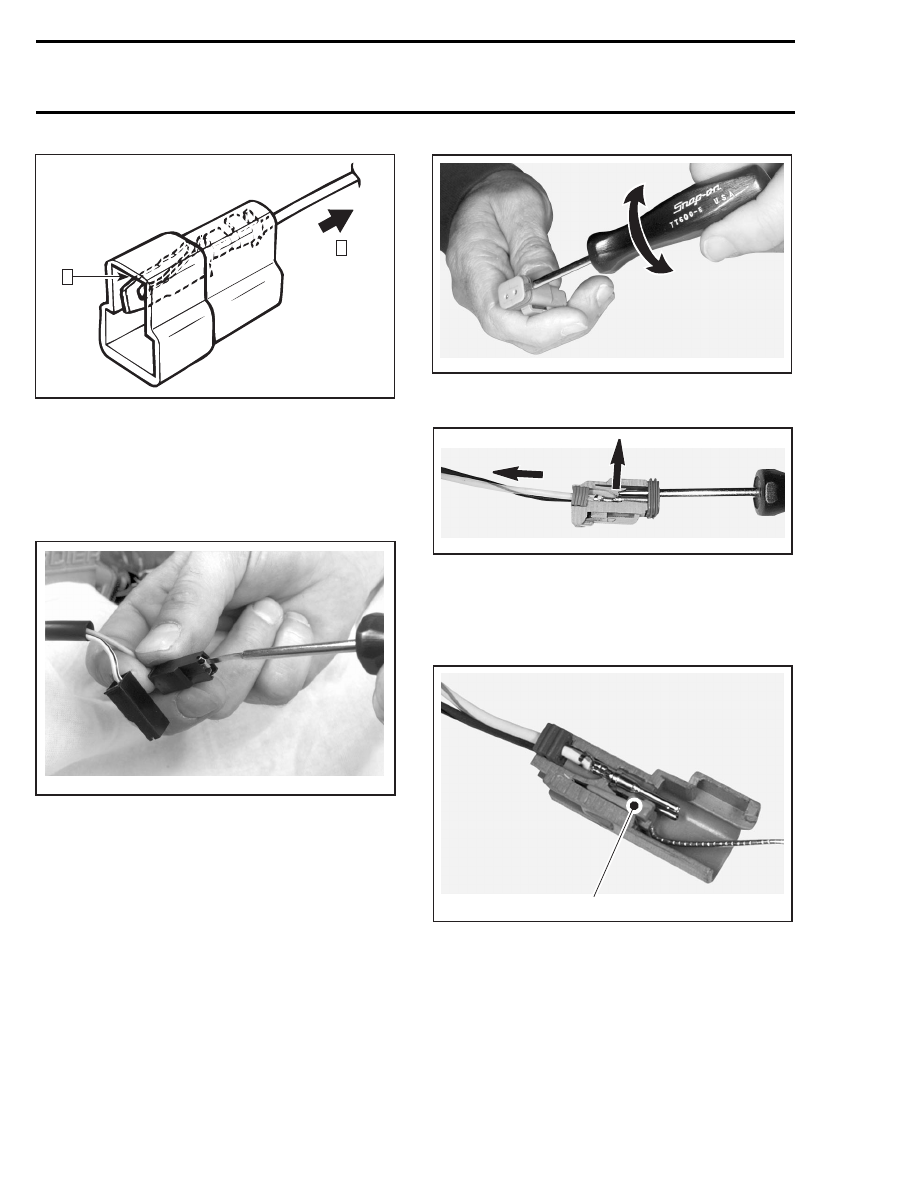

Locking Receptacle Connector

To remove:

– Insert tool Snap-on TT 600-5 in access opening

then pull housing toward wire side.

A06E1QA

Waterproof Connector Housing

Female Connector Housing

To remove:

– Insert tool Snap-on TT 600-5 under lock and

twist to lift it.

A01E31A

– Pry tab to free connector then pull wire out of

housing.

A01E32A

FEMALE CONNECTOR HOUSING — CUT-AWAY

Male Connector Housing

To remove:

– Using a small hook, pull out the lock.

A01E33A

1

1. Lock

490

mmr2005-102

Section 13 WIRING DIAGRAM

Subsection 01 (WIRING DIAGRAMS)

A01E34A

1

1. Lock

– Pry tab to free connector then pull wire out of

housing.

A01E35A

MALE CONNECTOR HOUSING — CUT-AWAY

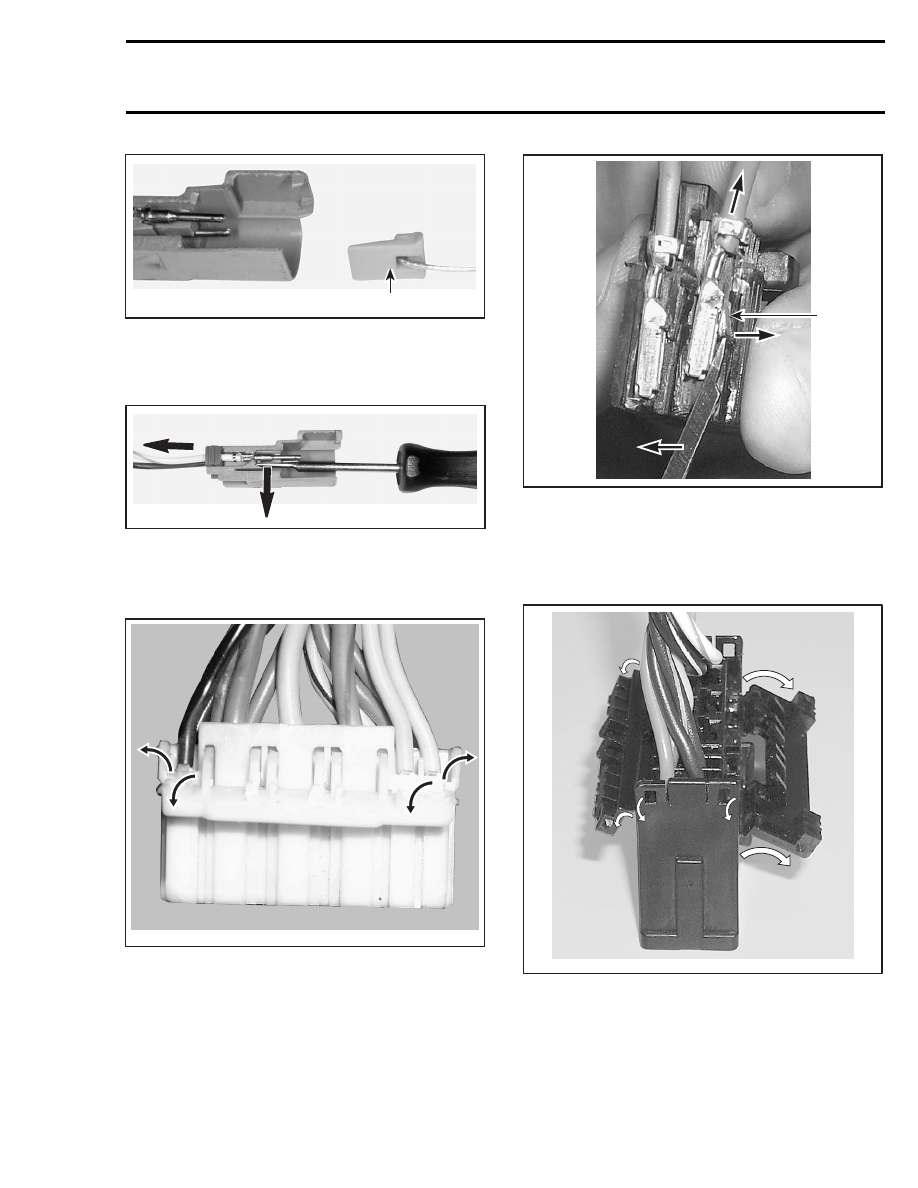

Multilock Connector Housing

Female Connector Housing

A32Z01A

To remove:

– Insert tool AMP- 755430-2 under lock and twist

to lift it.

1

A32Z02A

FEMALE CONNECTOR HOUSING — CUT-AWAY
1. Lock

Receptacle connectors can be removed from fe-
male housing with sharp head pin.

Male Connector Housing

A32Z04A

To remove:

– Insert tool AMP-755430-2 under lock and twist

to lift it.

mmr2005-102

491
