Section 11 BODY/FRAME
Subsection 02 (FRAME)
FRAME
SERVICE TOOLS
Description
Part Number
Page
Supertanium drill bit.............................................................. 529 031 800 ......................................... 463
SERVICE PRODUCTS
Description
Part Number
Page
XP-S synthetic chaincase oil ................................................. 413 803 300 ......................................... 463
FRAME CLEANING
NOTE: For bare aluminum frames use only alu-
minum cleaner and follow instructions on contain-
er. (Dursol cleaner or equivalent).
Clean frame and tunnel with appropriate cleaners
and rinse with high pressure hose.
CAUTION: Never direct high-pressure water jet
towards decals. They will peel off.
Touch up all metal spots where paint has been
scratched off. Spray all bare metal parts of vehicle
with metal protector.
Seat Cleaning
For all models, it is recommend to clean the seat
with a solution of warm soapy water, using a soft
clean cloth.
CAUTION: Avoid use of harsh detergents such
as strong soaps, degreasing solvents, abrasive
cleaners, paint thinners, etc., that may cause
damage to the seat cover.
FRAME WELDING
Aluminum Frame
– No welds should be done on aluminum frame
except if mentioned or required on a BRP bul-
letin.
– Use ER-5356 rods for MIG or TIG welding.
CAUTION: Before performing electrical weld-
ing anywhere on the vehicle, unplug electronic
module. On models equipped with a battery,
also unplug the negative cable. This will pro-
tect the electronic module and battery against
damage caused by flowing current when weld-
ing.
CAUTION: If welding is to be done near plastic
material, it is recommended to either remove
the part from the area or to protect it with alu-
minum foil to prevent damage.
FRAME COMPONENT
REPLACEMENT
Drilling Procedure

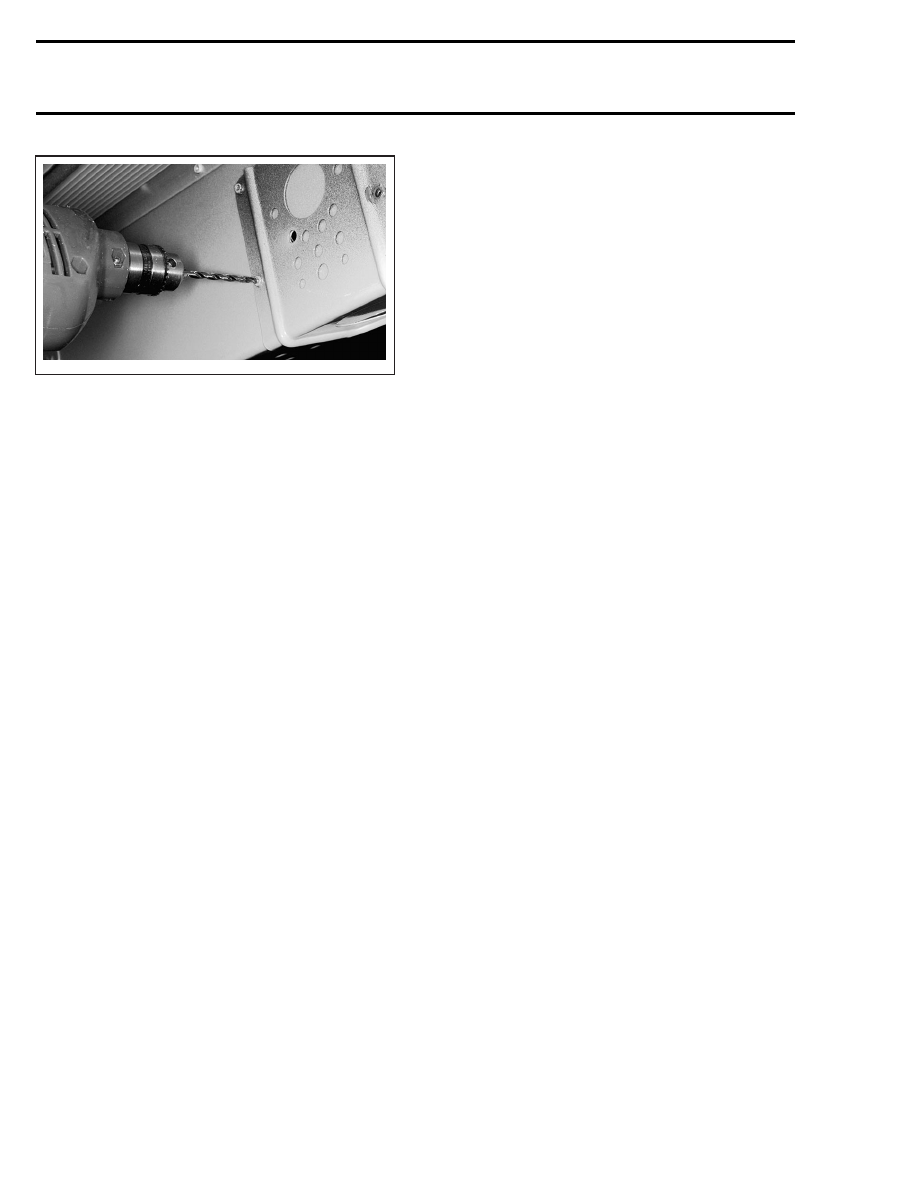

When drilling self-piercing rivets, use the Super-
tanium drill bit (P/N 529 031 800), available in a 5
mm (3/16 in) size and shipped in packs of 2.
For proper drilling instructions and to prevent pre-
mature wear, follow the procedure below.
Always use a variable speed drill.
Partially drill rivet end — not the rivet head.
Maintain a slow to medium speed at all times
when drilling. The proper speed is attained when
a constant chip is ejected.
NOTE: To increase bit life, use XP-S synthetic
chaincase oil (P/N 413 803 300) as a cutting oil.
CAUTION: High speed drilling will cause exces-
sive heat which may destroy the cutting edge
of the bit; therefore, avoid using pneumatic
drills.
mmr2005-100
463
