Snowmobile Ski Doo REV SERIES (2006 year). Instruction - part 75





Section 07 ELECTRICAL SYSTEM

Subsection 02 (CHARGING SYSTEM)

If the charger ammeter shows no change in cur-
rent after 5 minutes, you need a new battery. Cur-
rent flowing into the battery at high voltage can
become excessive. Monitor amperage and adjust
voltage as necessary to keep current at the bat-
tery’s standard amp rating. Charge for approxi-
mately 20 hours.

Installation

Reinstall battery and secure bracket properly.

Connect RED (+) cable it to positive battery termi-
nal. Connect RED wire (coming from 30 A fuse).

Connect BLACK (–) cable LAST.

WARNING

Battery BLACK (–) cable must always be dis-
connected first and connected last.

WARNING

Never charge or boost battery while installed
on vehicle.

Cover the RED (+) terminal with rubber boot.

Apply silicone dielectric grease (P/N 293 550 004)
on battery posts and connectors.

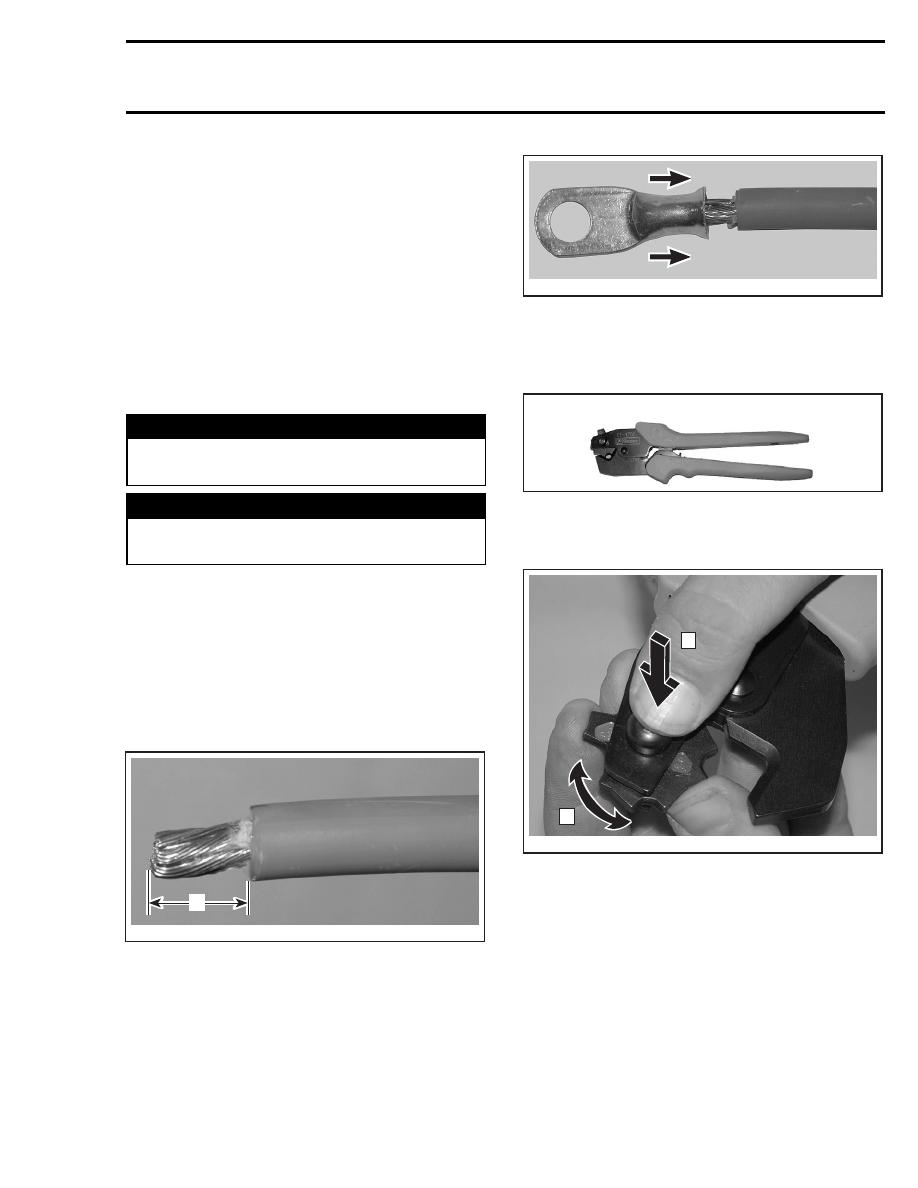

CABLE TERMINAL INSTALLATION

Carefully strip the wire approximately to 10 mm
(1/2 in) in length, using a wire stripping tool or
sharp blade/knife.

A32E2QA

A

A. 10 mm (1/2 in)

NOTE: Make sure not to cut wire strands while
stripping the wire.

Install the appropriate terminal on the wire accord-
ing to the requirement. Refer to appropriate parts
catalog.

A32E2RA

INSTALLATION OF TERMINAL

Follow the instructions provided with the crimp pli-
ers (P/N 529 035 730) to select the proper position
of the tool.

529 035 730

NOTE: Different wires require different crimp pli-
ers settings, so make sure to follow the instruction
supplied with the tool.

2

A32E2SA

1

POSITIONING THE CRIMP PLIERS
1. Press
2. Rotate

After positioning the crimp pliers, crimp the termi-
nal already installed on wire.

mmr2005-083

297

Section 07 ELECTRICAL SYSTEM
Subsection 02 (CHARGING SYSTEM)

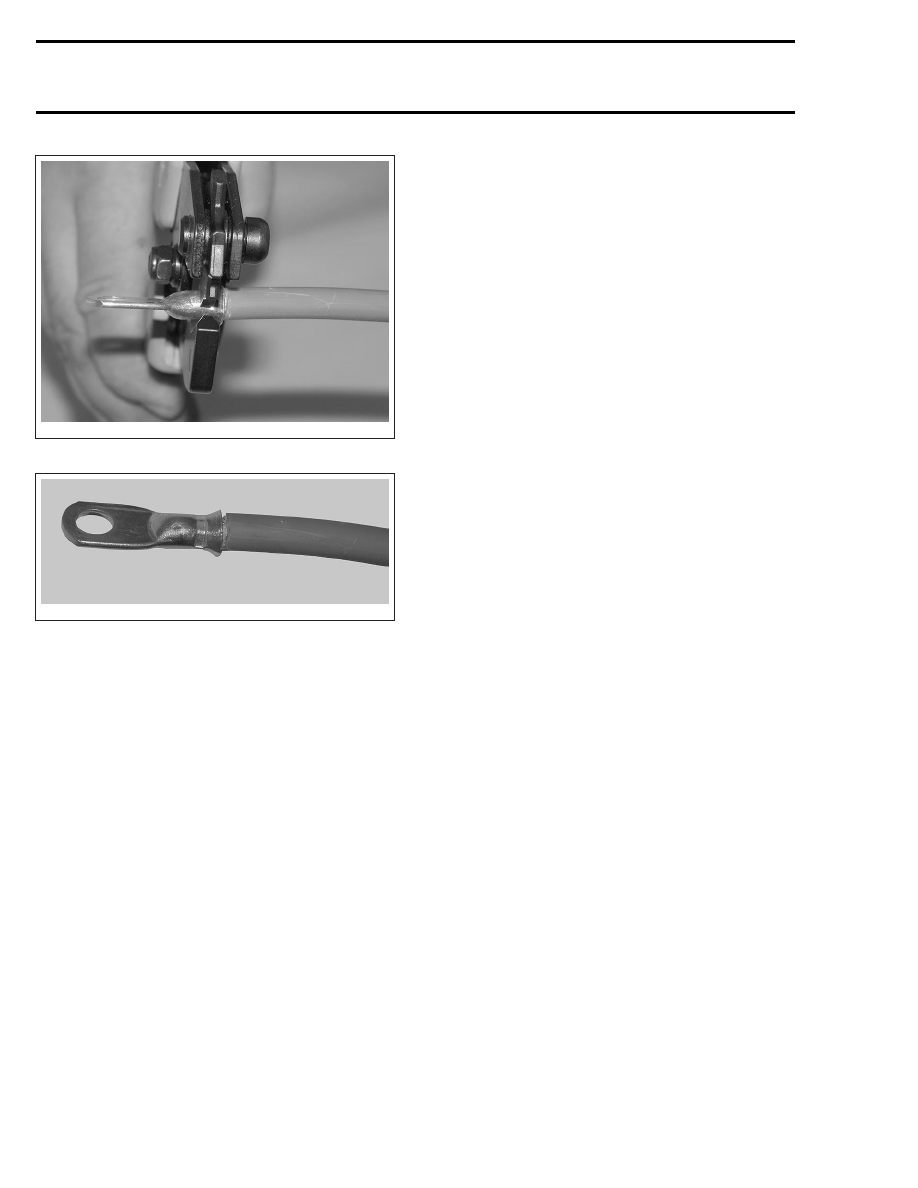

A32E2TA

CRIMPING OF WIRE

A32E2UA

PROPERLY CRIMPED WIRE

To verify, if the wire is properly crimped, apply
some pulling force on wire and the terminal at the
same time from both directions.

CAUTION: Never solder the wire to the termi-
nal. Soldering can change the property of the
wire and it can become brittle and break.

Install the protective heat shrink rubber tube on
the terminal. Heat the heat shrink rubber tube us-
ing the heat gun so that it grasps the wire and the
terminal.

CAUTION: Make sure that the protective heat
shrink rubber tube has been properly installed
and no part of wire is exposed.

298

mmr2005-083

Section 07 ELECTRICAL SYSTEM

Subsection 03 (STARTING SYSTEM)

STARTING SYSTEM

SERVICE TOOLS

Description

Part Number

Page

multimeter FLUKE 111 ......................................................... 529 035 868 ................................. 301–302

SERVICE PRODUCTS

Description

Part Number

Page

synthetic grease ................................................................... 413 711 500 ................................. 303, 305

mmr2005-084

299

Section 07 ELECTRICAL SYSTEM
Subsection 03 (STARTING SYSTEM)

16

17

7

15

5 N•m

(44 lbf•in)

4.5 N•m

(40 lbf•in)

11 N•m

(97 lbf•in)

A32E2PS

14

12

9

13

10

11

9

8

6

5

4

3

2

1

Synthetic

grease

28 N•m

(20 lbf•ft)

7 N•m

(62 lbf•in)

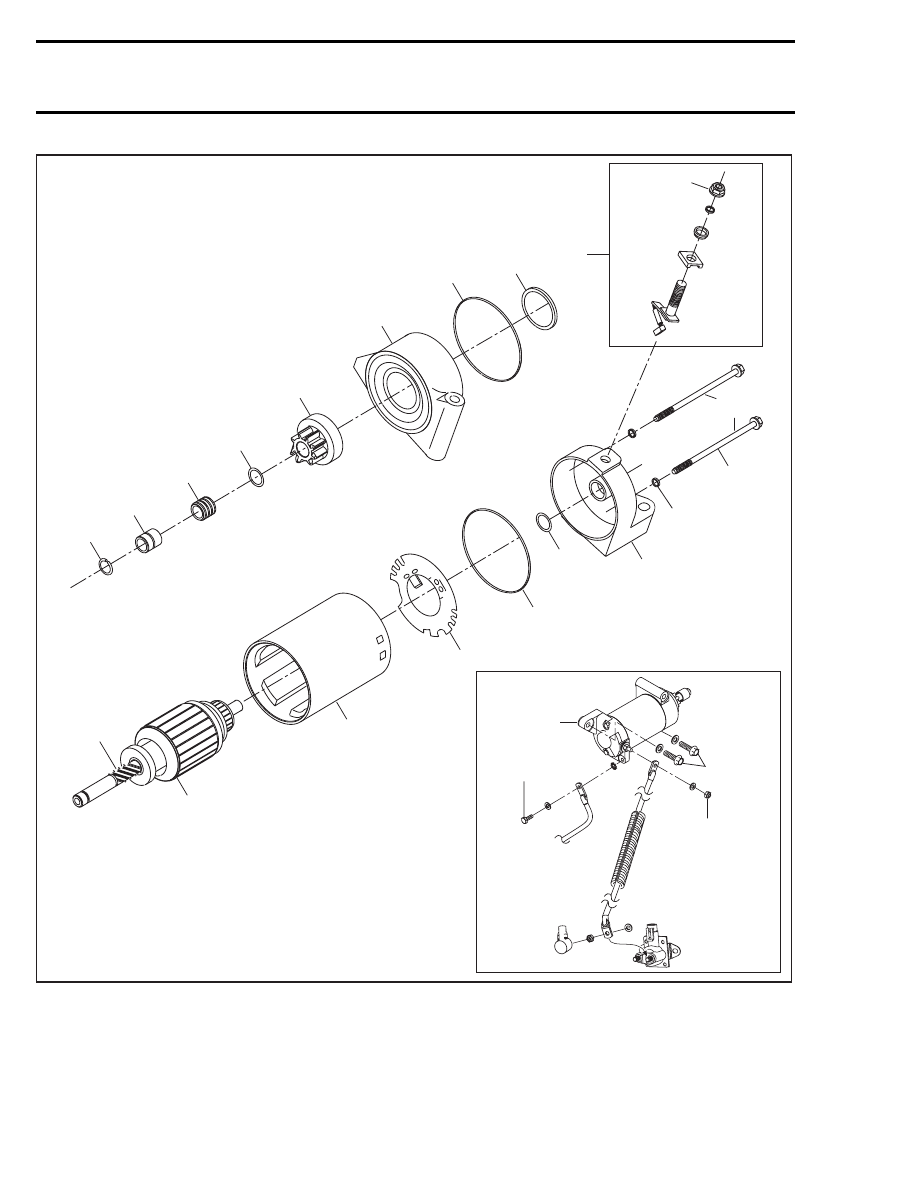

ELECTRIC STARTER

300

mmr2005-084
