Snowmobile Ski Doo REV SERIES (2006 year). Instruction - part 24





Section 03 ENGINES

Subsection 05 (TOP END)

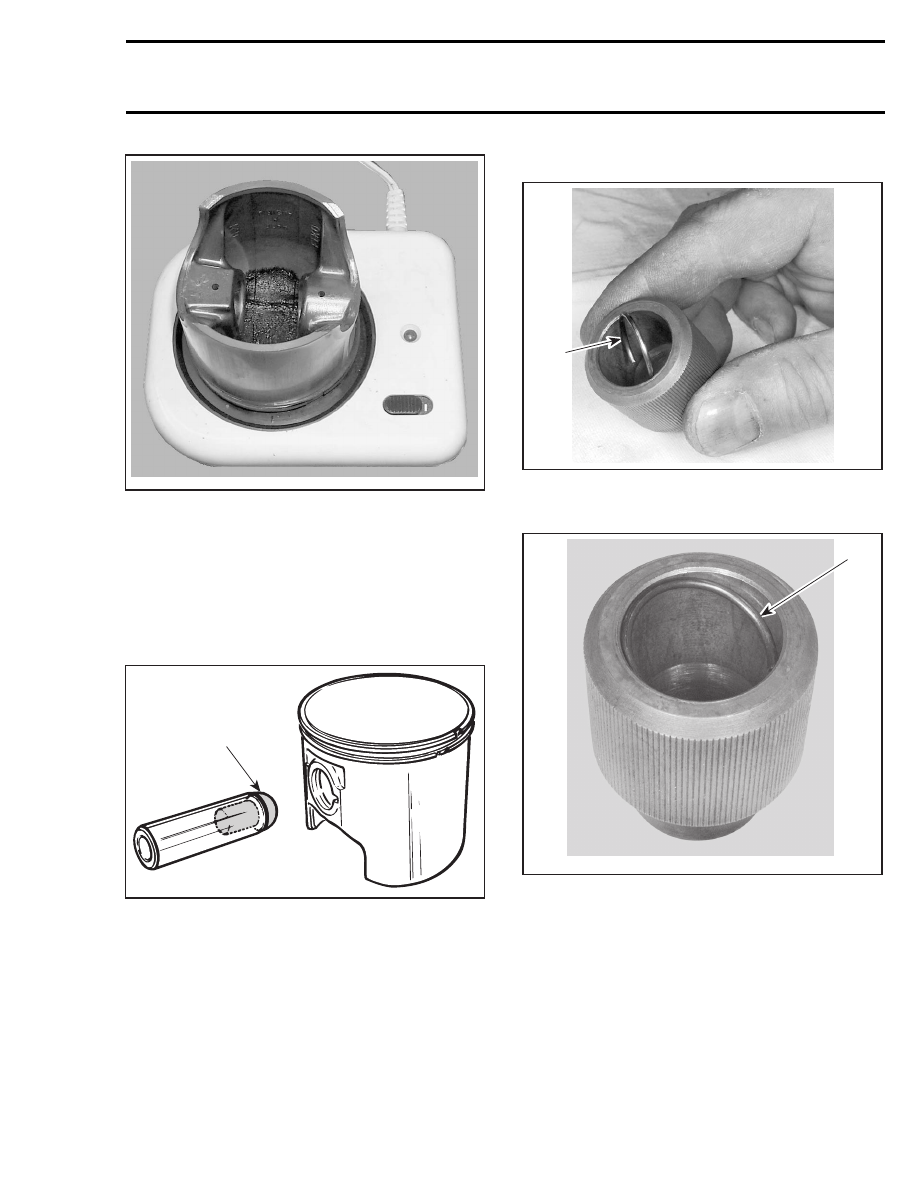

A32CBHA

CAUTION: Piston temperature must not exceed
46°C (115°F). NEVER USE DIRECT FLAME to
heat the piston and never freeze the pin. In-
appropriate heating procedure(s) may damage
the piston.

377 Engine

To center the piston pin with the connecting rod
bearing, use centering tool (P/N 529 009 100).

A01B1SA

529 009 100

NOTE: The circlip on the opposite side can be in-
stalled before pin installation, the tool will easily
go out.

Use piston pin puller (P/N 529 035 503) to install
a piston pin that cannot be installed as described
above.

To minimize the effect of acceleration forces on
circlip, install each circlip so the circlip break is at
6 o’clock as illustrated. Use piston circlip installer
(P/N 529 035 561).

Insert circlip in tool at an angle.

A02C2KA

1

1. Circlip

Square it up using a finger.

A02C2LA

1

1. Circlip

Continue to square it up using round end of circlip
installer.

mmr2005-072

87

Section 03 ENGINES
Subsection 05 (TOP END)

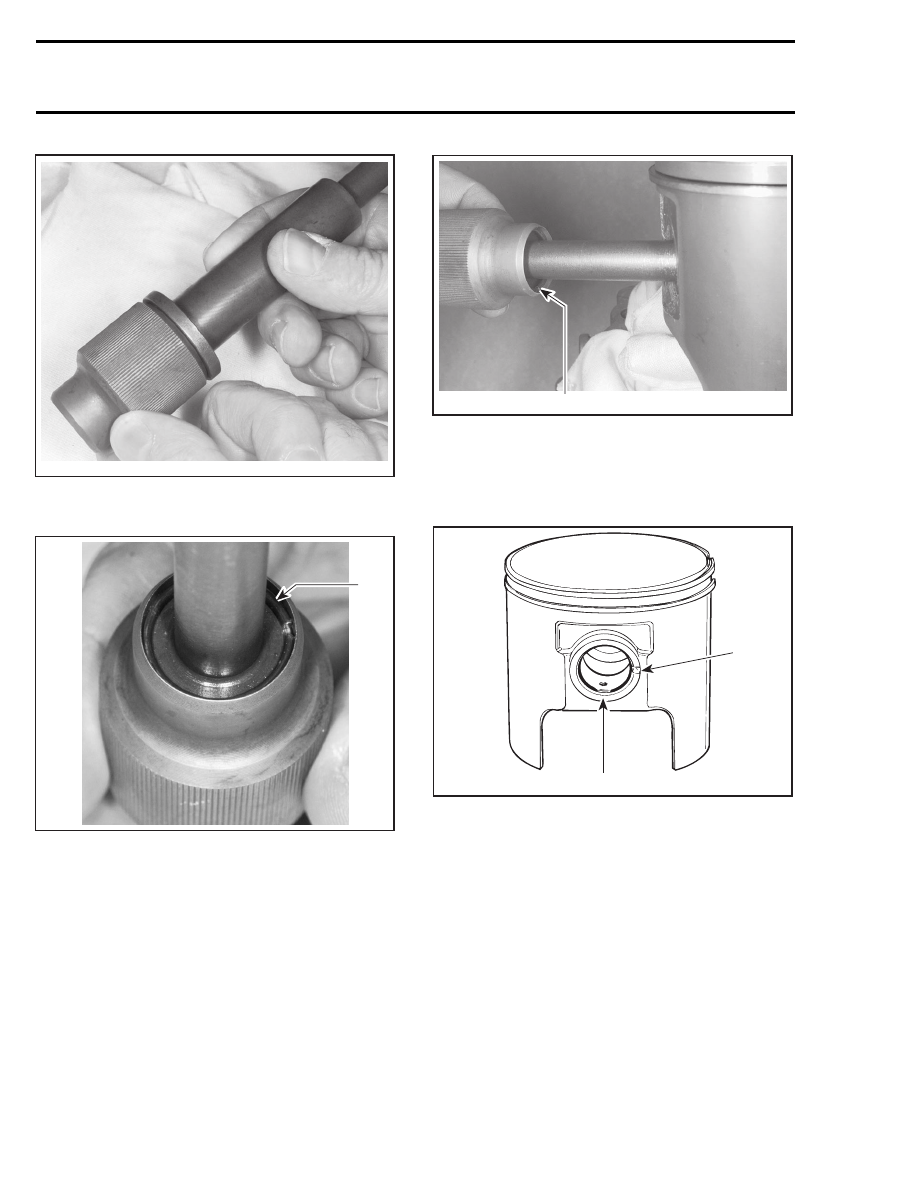

A02C2MA

Using square end of tool, push circlip in until it
rests in groove.

A02C2NA

1

1. Circlip in groove

Mount tool in piston making sure that circlip break
is facing down.

1

A02C2OA

TYPICAL
1. Circlip break facing down

Hold tool firmly against piston then strike on round
end of tool with a plastic hammer. Circlip will
move from tool groove to piston groove.

1

2

A01C02A

1. Piston notch
2. Circlip break at 6 o’clock

CAUTION: Circlips must not move freely in the
groove after installation. If so, replace them.

552 Engine

When reinstalling original needle bearings, make
sure that 34 needles are inserted between sleeve
and locating sleeve.

When installing a new cageless bearing, replace
half plastic cages by sleeve.

88

mmr2005-072

Section 03 ENGINES

Subsection 05 (TOP END)

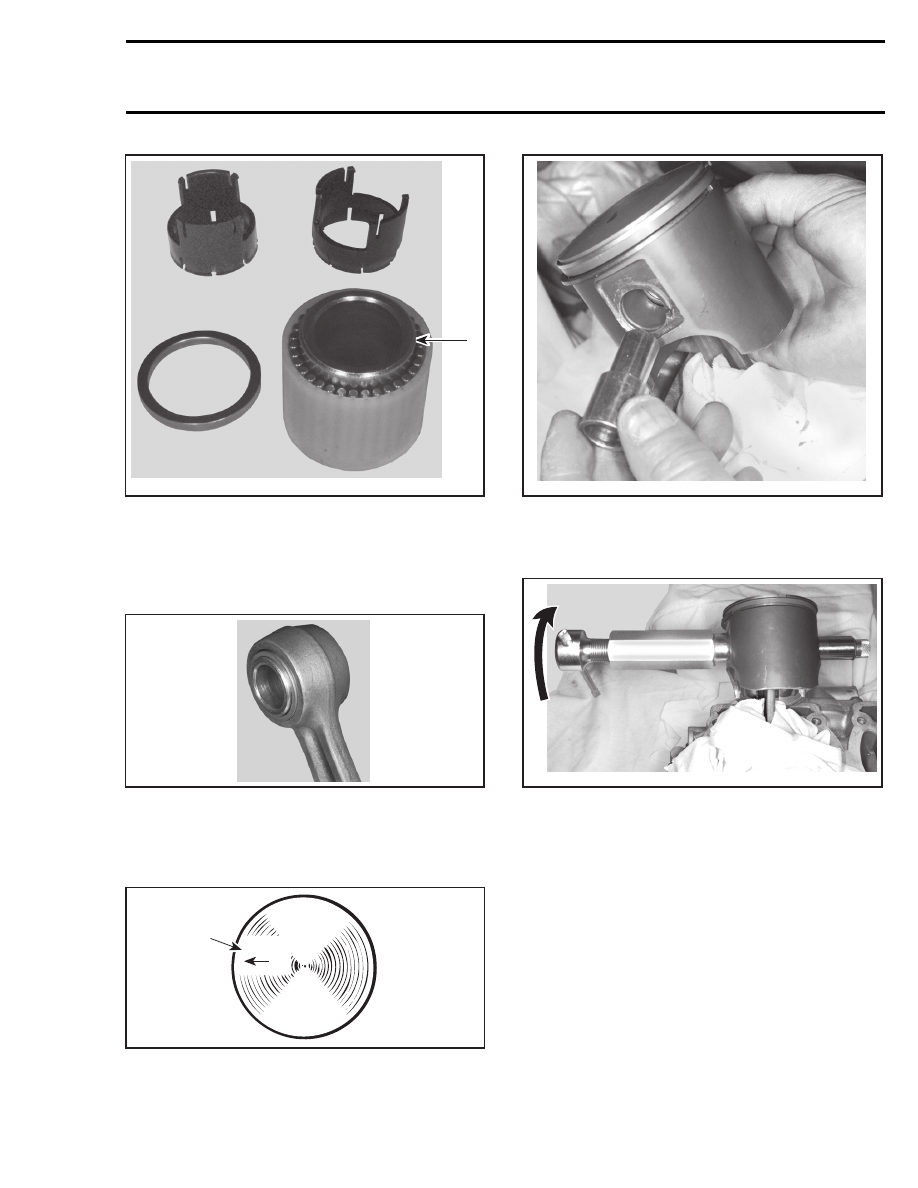

1

A02C2GA

TYPICAL
1. Sleeve

Grease thrust washers and install them on each
end of needles.

Insert cageless bearing into connecting rod.

A02C2HA

TYPICAL — CAGELESS BEARING AND SLEEVE INSTALLED

Mount piston over connecting rod with the letters
“AUS” (over an arrow on the piston dome) facing
in the direction of exhaust port.

A01C01A

AUS

1

1. Exhaust

Install shouldered sleeve.

A02C2IA

TYPICAL — SHOULDERED SLEEVE INSTALLATION

Install piston pin puller and turn handle until piston
pin is correctly positioned in piston.

A02C2JA

TYPICAL

– Remove piston pin puller and sleeve kit.

Use piston circlip installer (P/N 529 035 686) to
install new mono-hook circlips no. 10.

Insert circlip into support in such a way that when
installed in piston groove, the tab will face upward.

mmr2005-072

89

Section 03 ENGINES
Subsection 05 (TOP END)

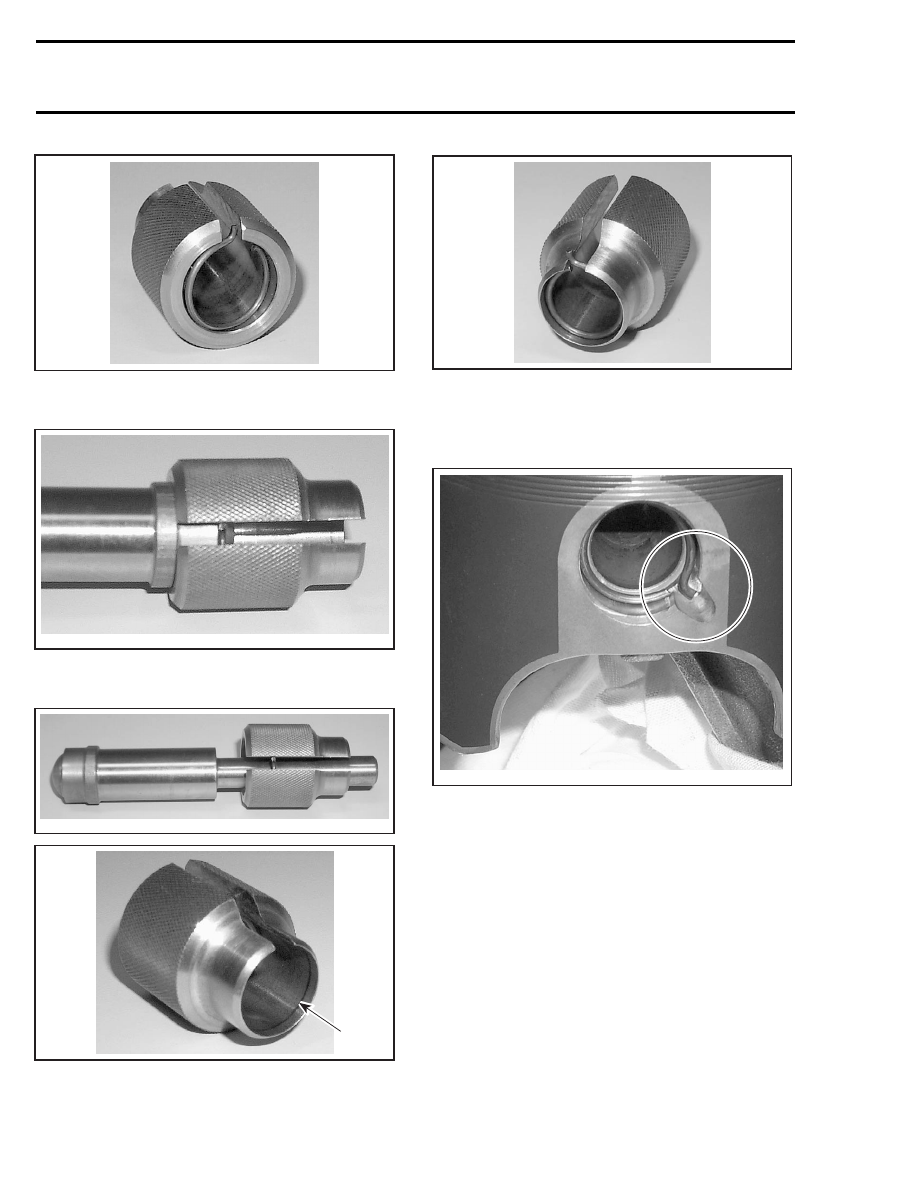

A32B0AA

With round end of pusher, position circlip perpen-
dicular to the support axis.

A32B0BA

With the other end of the pusher, push circlip into
the support groove.

A32B0CA

A32B0DA

1

1. Groove

A32B0EA

CIRCLIP READY TO BE INSTALLED ON PISTON

Using a plastic hammer, tap pusher to insert circlip
in place. Take care to install new circlips with tab
toward top as per following photo.

A32C4BA

TAB TOWARD TOP

CAUTION: Always install new mono-hook cir-
clips. If circlip installation fails at the first at-
tempt, always retry with a new one as on a sec-
ond attempt circlip will lose its normal retain-
ing capabilities.

CAUTION: Circlips must not move freely after
installation; if so, replace them.

377 and 552 Engines

Apply a thin layer of Loctite 518 (P/N 293 800
038) to crankcase mating surface of base gas-
ket. Choose the right gasket thickness accord-
ing to combustion chamber volume. Install it on
crankcase. Apply a thin layer of Loctite 518 to gas-
ket surface area.

90

mmr2005-072
