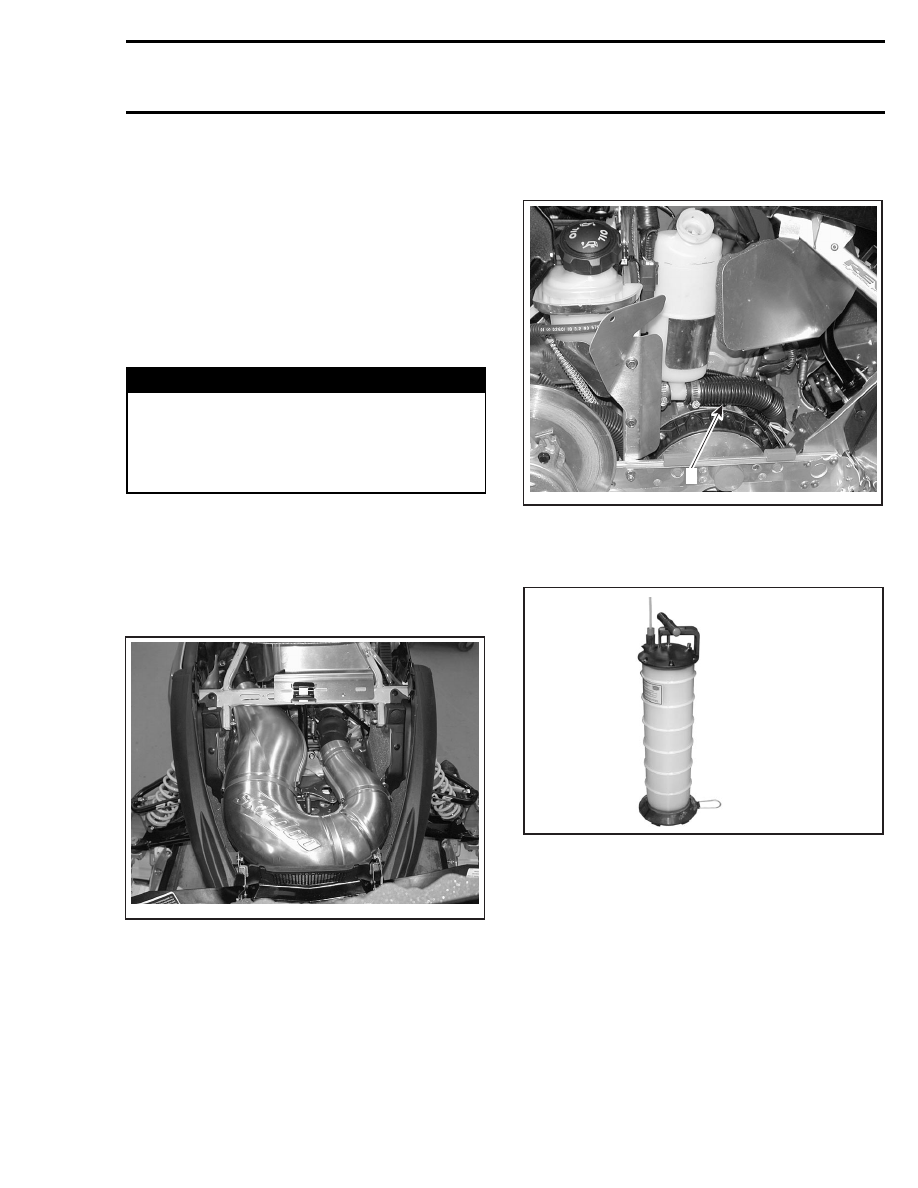

Snowmobile Ski Doo REV SERIES (2006 year). Instruction - part 19





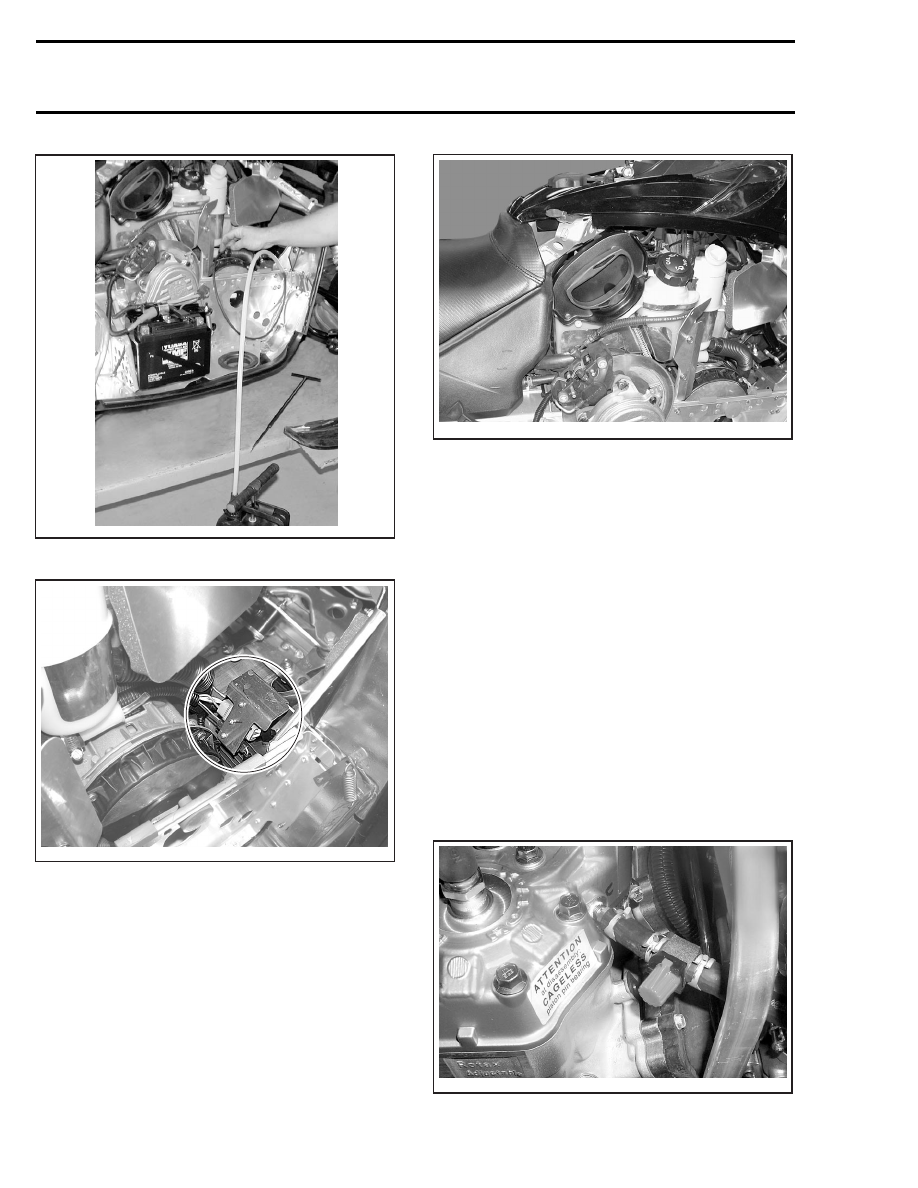

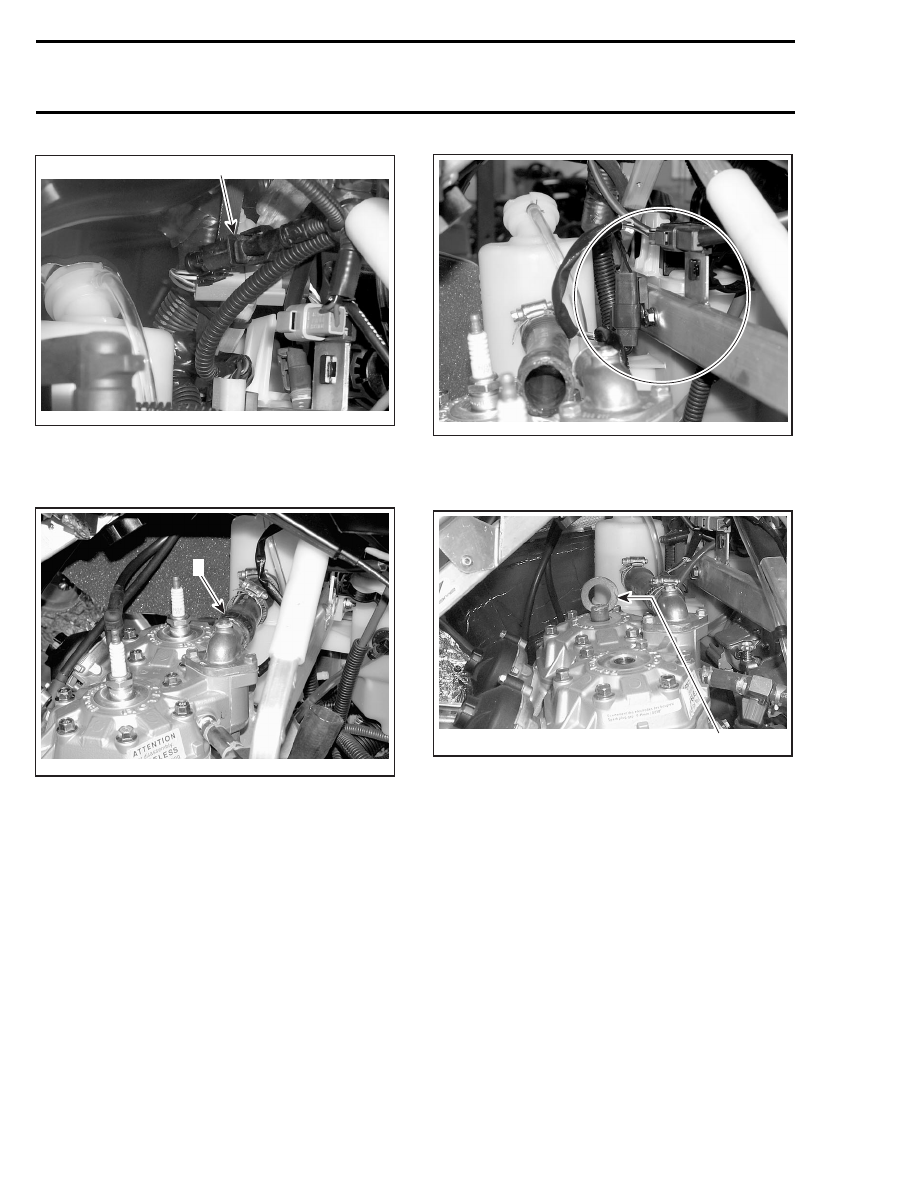

Section 03 ENGINES

Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

REMOVAL FROM VEHICLE

Vehicle and Engine Preparation

Place vehicle at workstation that will have access
to an engine-lifting hoist. Then start with initial
preparation of vehicle by doing the following.

Remove windshield.

Remove the RH side panel.

Disconnect BLACK (-) cable from battery, then the
RED (+) cable.

WARNING

Always disconnect battery or starter cables
exactly in the specified order, BLACK (-) cable
first. It is recommended to disconnect elec-
trical connections prior to disconnecting fuel
lines.

On SDI models, release the fuel pressure of the
system.

Refer to COMPONENT INSPECTION

AND ADJUSTMENT.

From the Front of Vehicle

Remove tuned pipe and manifold, refer to EX-
HAUST SYSTEM.

A33C26A

Remove starter.

NOTE: Remove BLACK starter cable from vehicle,
not from starter.

On right side of vehicle, do the following:

Remove muffler.

Drain coolant reservoir.

Unplug from the coolant reservoir the hose going
to the engine.

A33C27A

1

1. Coolant hose between reservoir and engine

Using pump (P/N 529 035 880), drain maximum
coolant from hose and engine.

529 035 880

mmr2005-070

65

Section 03 ENGINES
Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

A33C28A

Unplug magneto and trigger coil connectors.

A33C29A

Remove rewind starter handle.

A33C2AA

Unplug heather carburetor hose from coolant
reservoir.

Unscrew oil injection reservoir then separate
coolant reservoir.

On left side of vehicle, do the following:

Remove:

– LH side panel
– tool box
– belt guard
– belt drive
– drive pulley (refer to DRIVE PULLEY)
– air intake silencer (unplug ATS (Air Temperature

Sensor) connector).

NOTE: On SDI models, unplug APS (Air Pressure
Sensor) and ATS (Air Temperature Sensor) connec-
tors.

Unplug coolant hose between engine and carbu-
retor or throttle body.

A33C4KA

66

mmr2005-070

Section 03 ENGINES

Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

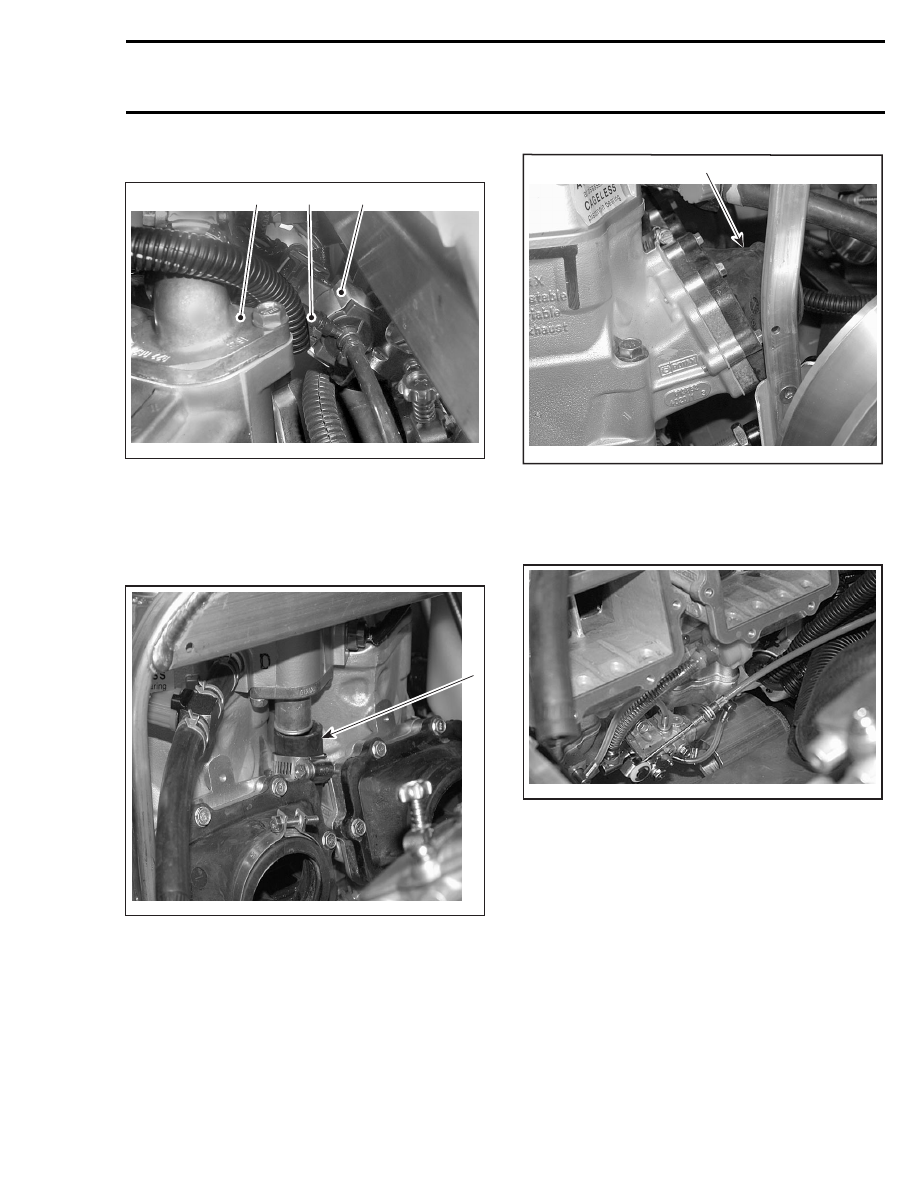

Unplug RAVE valve line from solenoid.

A33C4LA

1

2

3

1. Solenoid
2. RAVE valve line
3. Thermostat housing

Separate carburetors or throttle body from engine.

Unplug coolant hose located between cylinder
head and radiator.

1

A33C2BA

1. Coolant hose between cylinder head and radiator

Remove reed valves with their gaskets.

1

A33C2CA

TYPICAL — 793 HO ENGINE TYPE SHOWN
1. Reed valve

Unplug magneto connector from MPEM.

Detach oil pump cable from oil pump.

A33C2DA

Unplug spark plug cables.

Cut all ties retaining the knock sensor wire and
disconnect its connector.

mmr2005-070

67

Section 03 ENGINES
Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

A33C4MA

1

1. Knock sensor connector

Detach upper thermostat hose from thermostat
housing.

A33C2EA

1

1. Remove this hose

Disconnect temperature sensor connectors.

A33C2FA

Remove spark plugs and install the spark plug lift
ring (P/N 529 035 830) at the farthest spark plug
hole.

1

A33C18A

1. Spark plug lift ring

Remove RAVE valves.

Unscrew engine support bolts no. 1.

68

mmr2005-070
